A Four Tech Co RFKB5 RF Keyboard User Manual start 2

A Four Tech Co Ltd RF Keyboard start 2

users manual

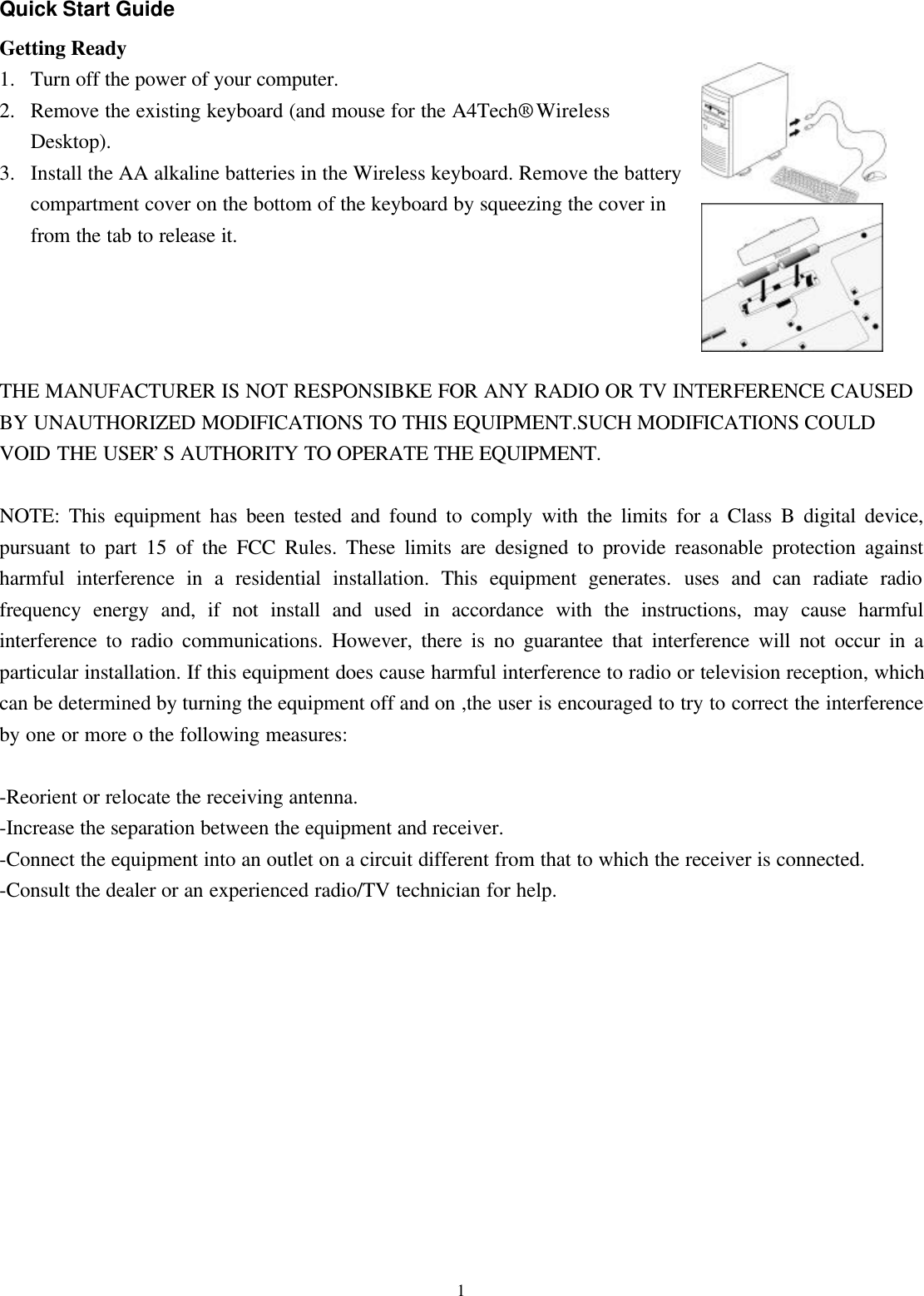

1Quick Start GuideGetting Ready1. Turn off the power of your computer.2. Remove the existing keyboard (and mouse for the A4Tech® WirelessDesktop).3. Install the AA alkaline batteries in the Wireless keyboard. Remove the batterycompartment cover on the bottom of the keyboard by squeezing the cover infrom the tab to release it.THE MANUFACTURER IS NOT RESPONSIBKE FOR ANY RADIO OR TV INTERFERENCE CAUSEDBY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS COULDVOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates. uses and can radiate radiofrequency energy and, if not install and used in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio or television reception, whichcan be determined by turning the equipment off and on ,the user is encouraged to try to correct the interferenceby one or more o the following measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.

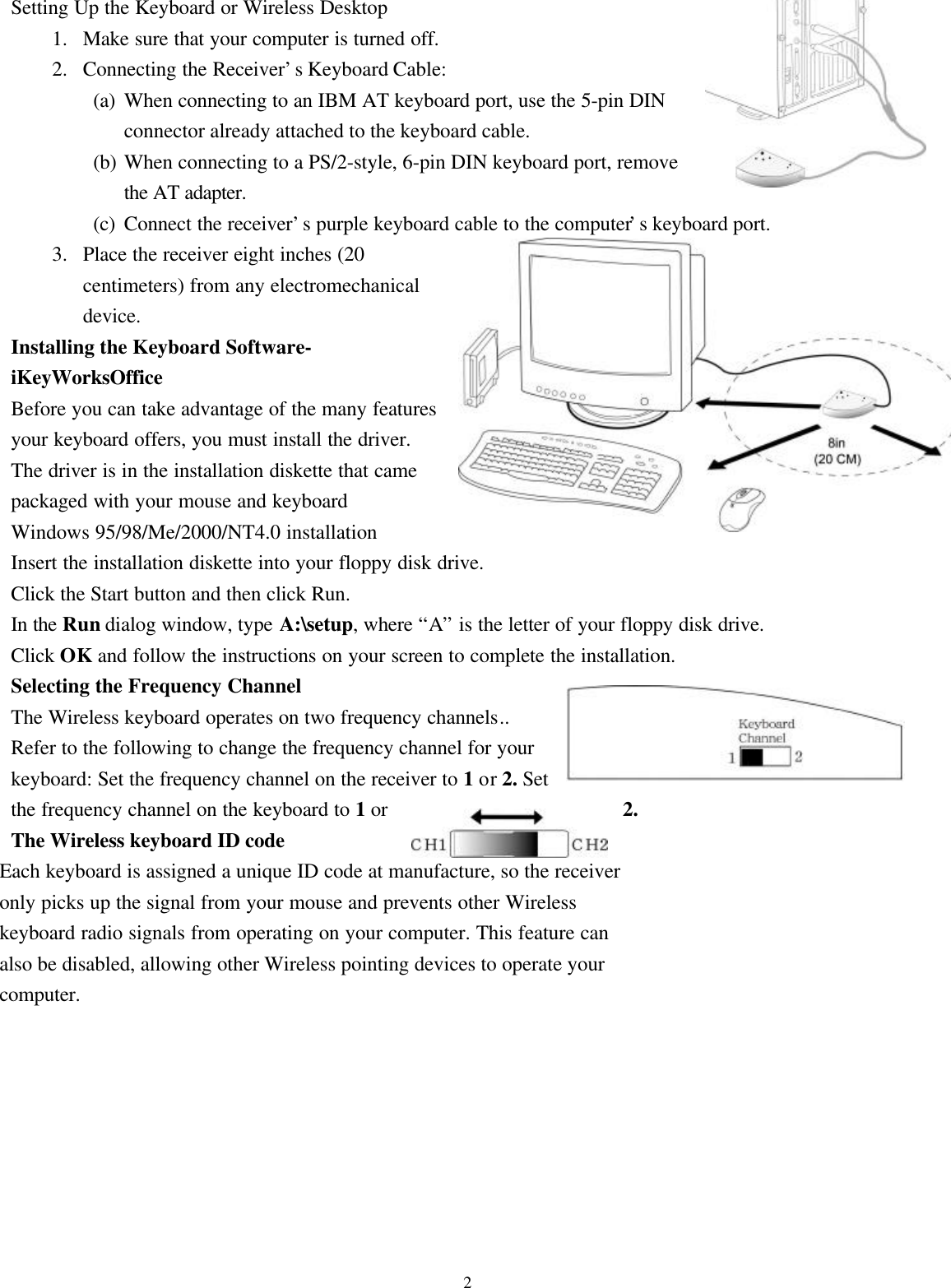

2Setting Up the Keyboard or Wireless Desktop1. Make sure that your computer is turned off.2. Connecting the Receiver’s Keyboard Cable:(a) When connecting to an IBM AT keyboard port, use the 5-pin DINconnector already attached to the keyboard cable.(b) When connecting to a PS/2-style, 6-pin DIN keyboard port, removethe AT adapter.(c) Connect the receiver’s purple keyboard cable to the computer’s keyboard port.3. Place the receiver eight inches (20centimeters) from any electromechanicaldevice.Installing the Keyboard Software-iKeyWorksOfficeBefore you can take advantage of the many featuresyour keyboard offers, you must install the driver.The driver is in the installation diskette that camepackaged with your mouse and keyboardWindows 95/98/Me/2000/NT4.0 installationInsert the installation diskette into your floppy disk drive.Click the Start button and then click Run.In the Run dialog window, type A:\setup, where “A” is the letter of your floppy disk drive.Click OK and follow the instructions on your screen to complete the installation.Selecting the Frequency ChannelThe Wireless keyboard operates on two frequency channels..Refer to the following to change the frequency channel for yourkeyboard: Set the frequency channel on the receiver to 1 or 2. Setthe frequency channel on the keyboard to 1 or 2.The Wireless keyboard ID codeEach keyboard is assigned a unique ID code at manufacture, so the receiveronly picks up the signal from your mouse and prevents other Wirelesskeyboard radio signals from operating on your computer. This feature canalso be disabled, allowing other Wireless pointing devices to operate yourcomputer.

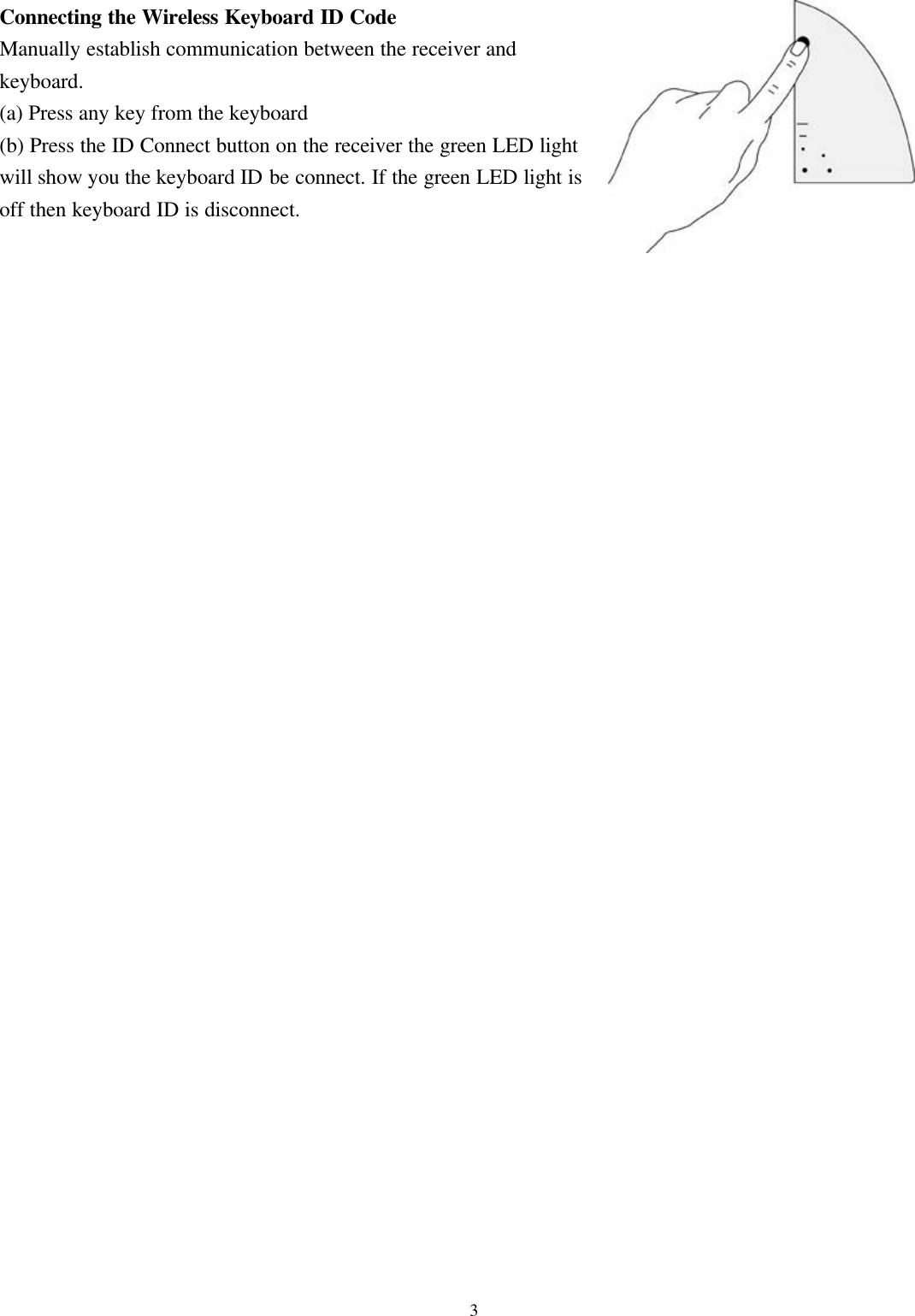

3Connecting the Wireless Keyboard ID CodeManually establish communication between the receiver andkeyboard.(a) Press any key from the keyboard(b) Press the ID Connect button on the receiver the green LED lightwill show you the keyboard ID be connect. If the green LED light isoff then keyboard ID is disconnect.

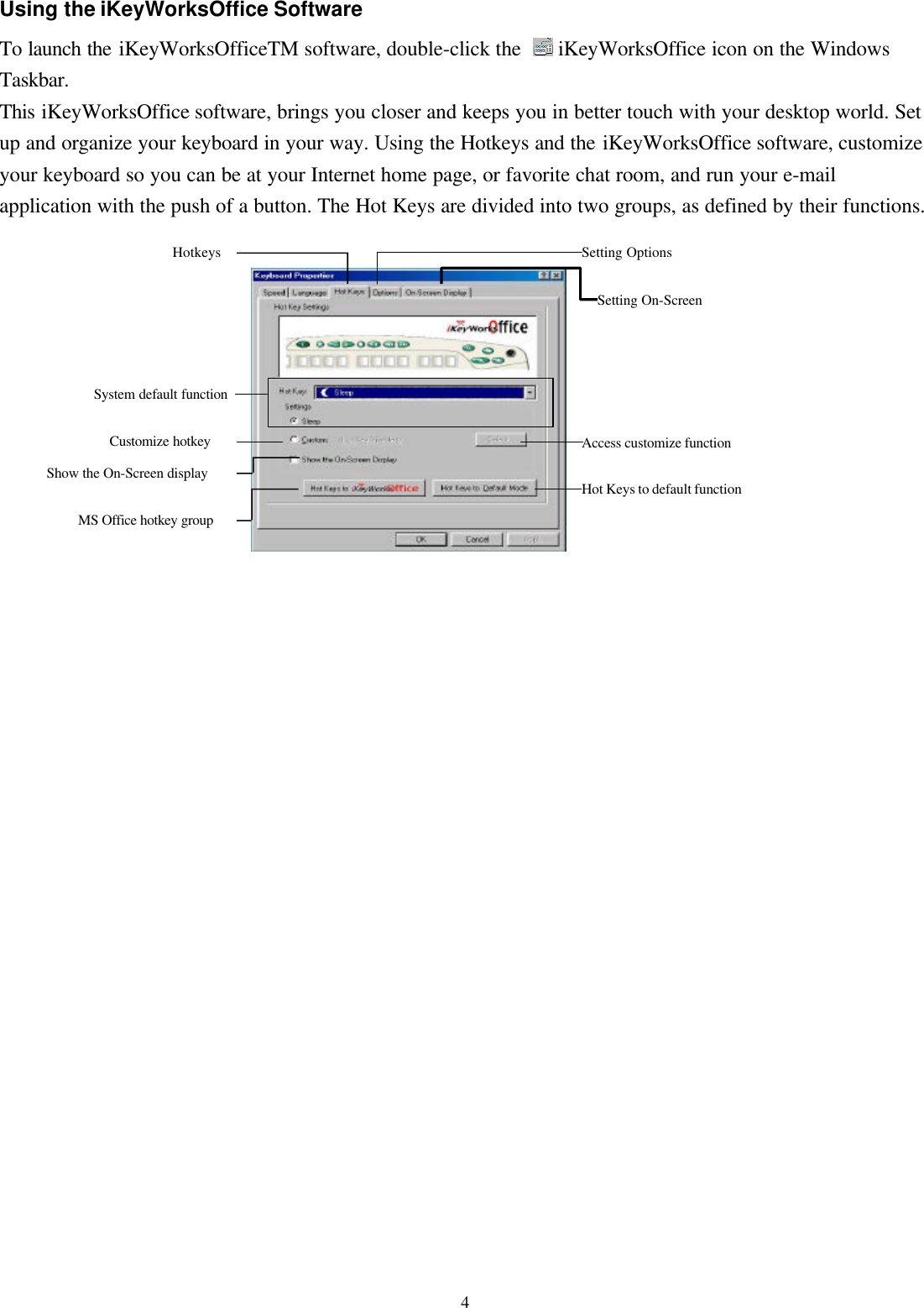

4Using the iKeyWorksOffice SoftwareTo launch the iKeyWorksOfficeTM software, double-click the iKeyWorksOffice icon on the WindowsTaskbar.This iKeyWorksOffice software, brings you closer and keeps you in better touch with your desktop world. Setup and organize your keyboard in your way. Using the Hotkeys and the iKeyWorksOffice software, customizeyour keyboard so you can be at your Internet home page, or favorite chat room, and run your e-mailapplication with the push of a button. The Hot Keys are divided into two groups, as defined by their functions.Access customize functionHotkeys Setting OptionsSetting On-ScreenHot Keys to default functionShow the On-Screen displayCustomize hotkeySystem default functionMS Office hotkey group

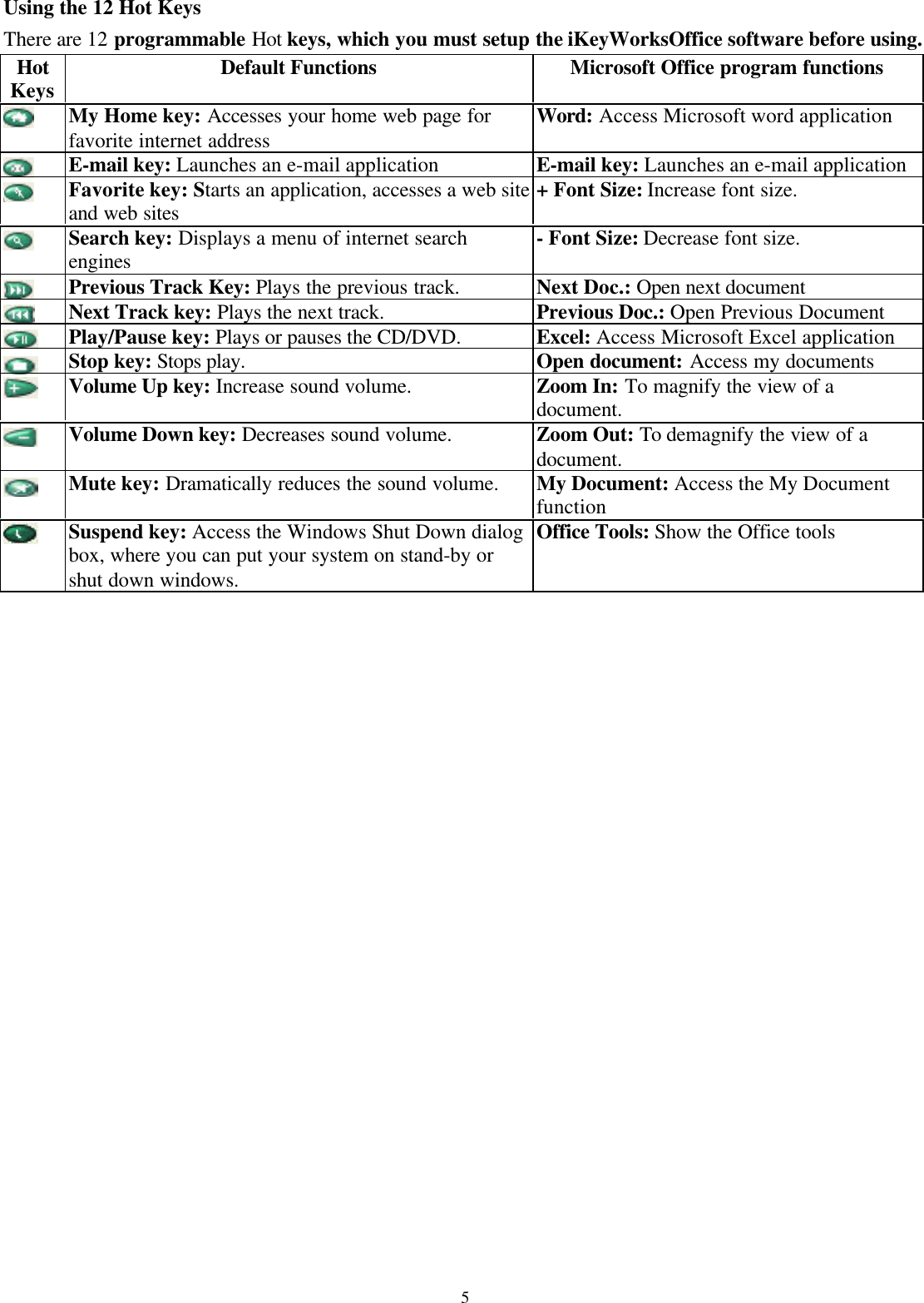

5Using the 12 Hot KeysThere are 12 programmable Hot keys, which you must setup the iKeyWorksOffice software before using.HotKeys Default Functions Microsoft Office program functionsMy Home key: Accesses your home web page forfavorite internet address Word: Access Microsoft word applicationE-mail key: Launches an e-mail application E-mail key: Launches an e-mail applicationFavorite key: Starts an application, accesses a web siteand web sites + Font Size: Increase font size.Search key: Displays a menu of internet searchengines - Font Size: Decrease font size.Previous Track Key: Plays the previous track. Next Doc.: Open next documentNext Track key: Plays the next track. Previous Doc.: Open Previous DocumentPlay/Pause key: Plays or pauses the CD/DVD. Excel: Access Microsoft Excel applicationStop key: Stops play. Open document: Access my documentsVolume Up key: Increase sound volume. Zoom In: To magnify the view of adocument.Volume Down key: Decreases sound volume. Zoom Out: To demagnify the view of adocument.Mute key: Dramatically reduces the sound volume. My Document: Access the My DocumentfunctionSuspend key: Access the Windows Shut Down dialogbox, where you can put your system on stand-by orshut down windows.Office Tools: Show the Office tools

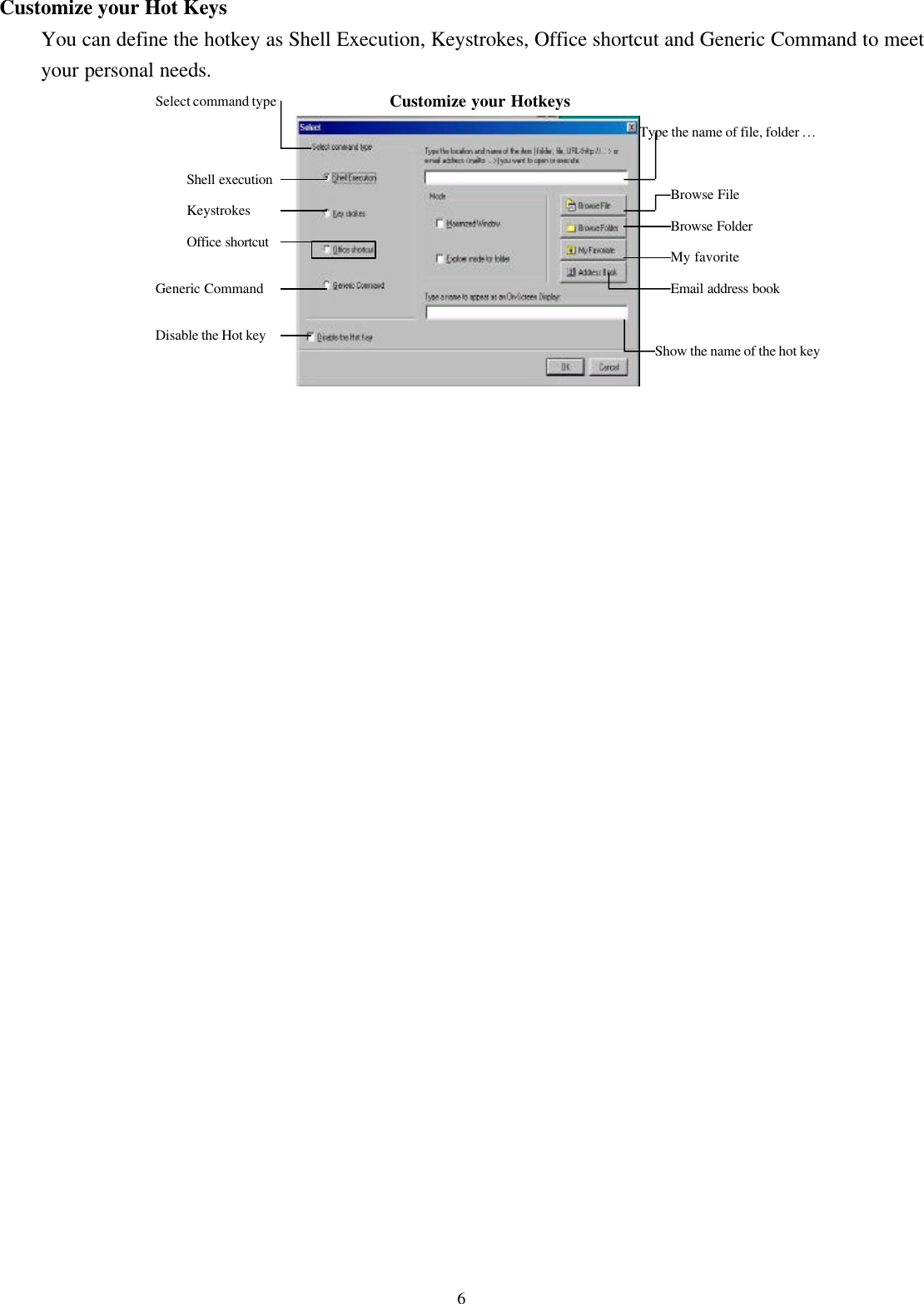

6Customize your Hot KeysYou can define the hotkey as Shell Execution, Keystrokes, Office shortcut and Generic Command to meetyour personal needs.Customize your HotkeysKeystrokesGeneric CommandDisable the Hot key Show the name of the hot keyEmail address bookType the name of file, folder …Browse FileBrowse FolderMy favoriteSelect command typeShell executionOffice shortcut
