A Four Tech Co RFKB51 Radio WIreless Wheel Keyboard User Manual start 2

A Four Tech Co Ltd Radio WIreless Wheel Keyboard start 2

users manual

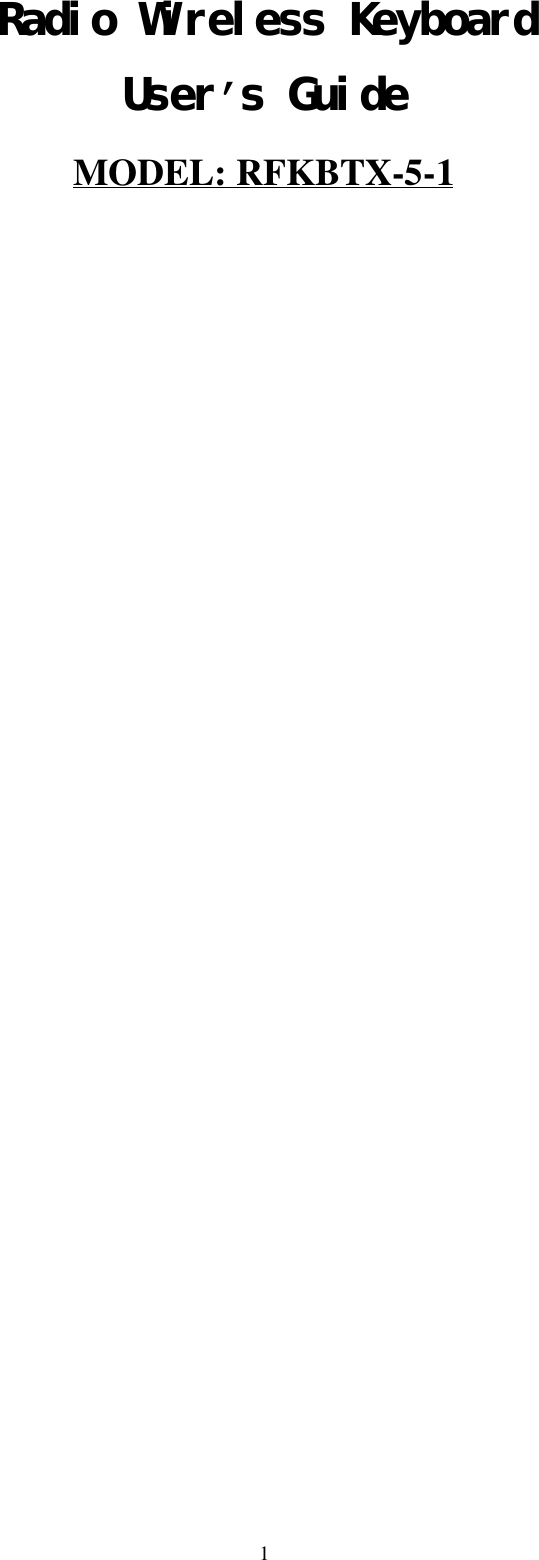

1Radio Wireless KeyboardUser’s GuideMODEL: RFKBTX-5-1

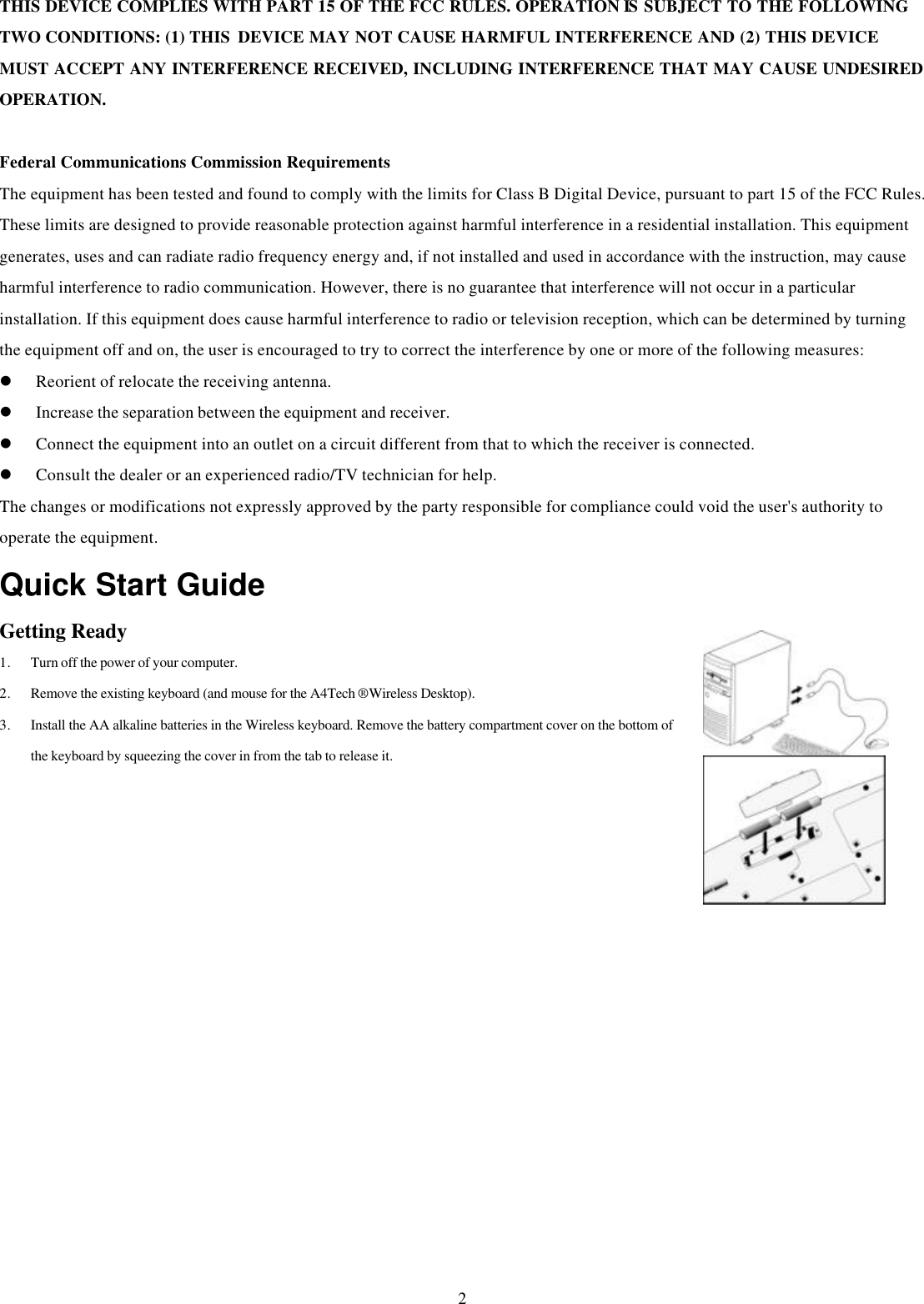

2THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWINGTWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICEMUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIREDOPERATION.Federal Communications Commission RequirementsThe equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipmentgenerates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may causeharmful interference to radio communication. However, there is no guarantee that interference will not occur in a particularinstallation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turningthe equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:l Reorient of relocate the receiving antenna.l Increase the separation between the equipment and receiver.l Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.l Consult the dealer or an experienced radio/TV technician for help.The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority tooperate the equipment.Quick Start GuideGetting Ready1. Turn off the power of your computer.2. Remove the existing keyboard (and mouse for the A4Tech ® Wireless Desktop).3. Install the AA alkaline batteries in the Wireless keyboard. Remove the battery compartment cover on the bottom ofthe keyboard by squeezing the cover in from the tab to release it.

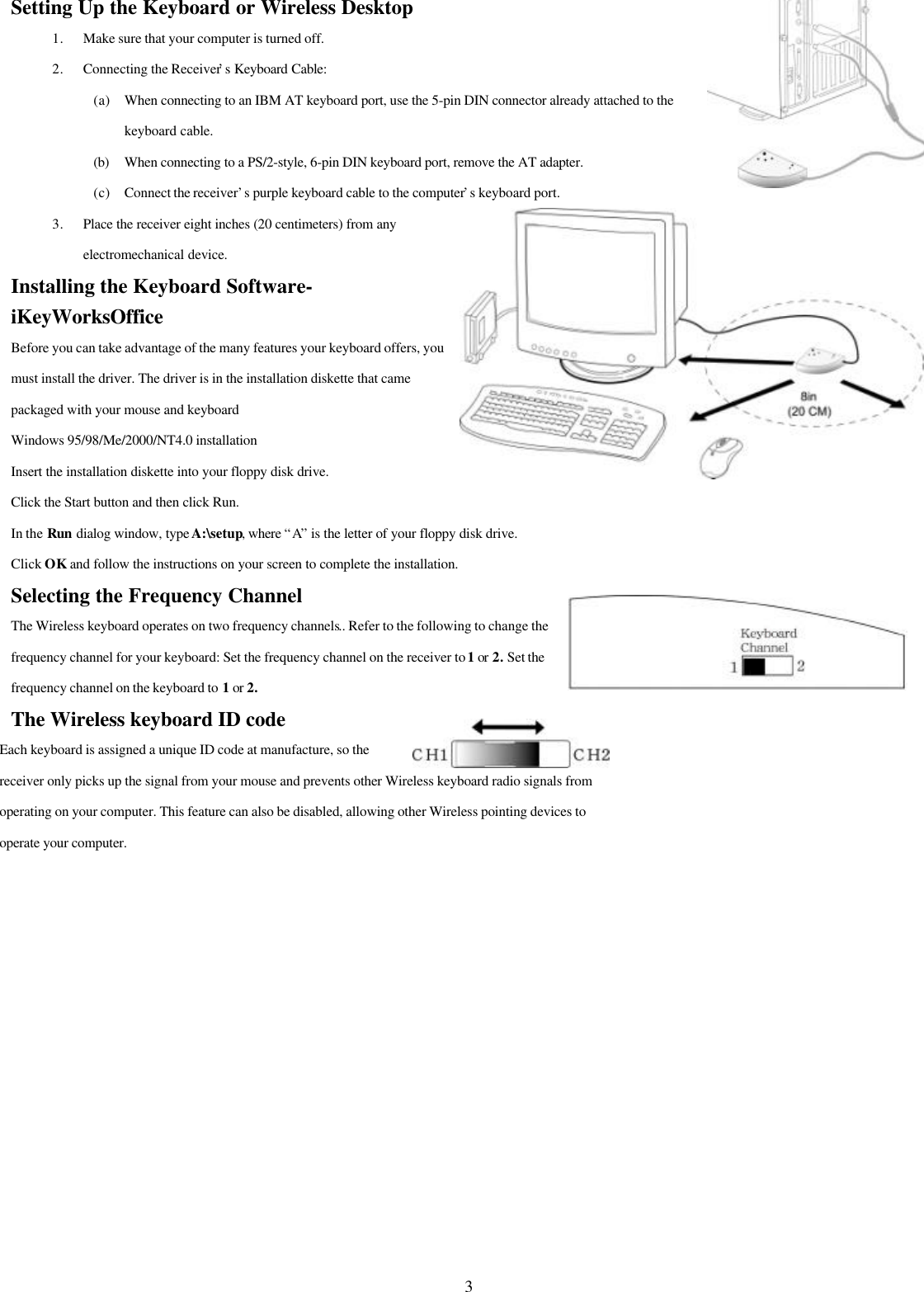

3Setting Up the Keyboard or Wireless Desktop1. Make sure that your computer is turned off.2. Connecting the Receiver’s Keyboard Cable:(a) When connecting to an IBM AT keyboard port, use the 5-pin DIN connector already attached to thekeyboard cable.(b) When connecting to a PS/2-style, 6-pin DIN keyboard port, remove the AT adapter.(c) Connect the receiver’s purple keyboard cable to the computer’s keyboard port.3. Place the receiver eight inches (20 centimeters) from anyelectromechanical device.Installing the Keyboard Software-iKeyWorksOfficeBefore you can take advantage of the many features your keyboard offers, youmust install the driver. The driver is in the installation diskette that camepackaged with your mouse and keyboardWindows 95/98/Me/2000/NT4.0 installationInsert the installation diskette into your floppy disk drive.Click the Start button and then click Run.In the Run dialog window, type A:\setup, where “A” is the letter of your floppy disk drive.Click OK and follow the instructions on your screen to complete the installation.Selecting the Frequency ChannelThe Wireless keyboard operates on two frequency channels.. Refer to the following to change thefrequency channel for your keyboard: Set the frequency channel on the receiver to 1 or 2. Set thefrequency channel on the keyboard to 1 or 2.The Wireless keyboard ID codeEach keyboard is assigned a unique ID code at manufacture, so thereceiver only picks up the signal from your mouse and prevents other Wireless keyboard radio signals fromoperating on your computer. This feature can also be disabled, allowing other Wireless pointing devices tooperate your computer.

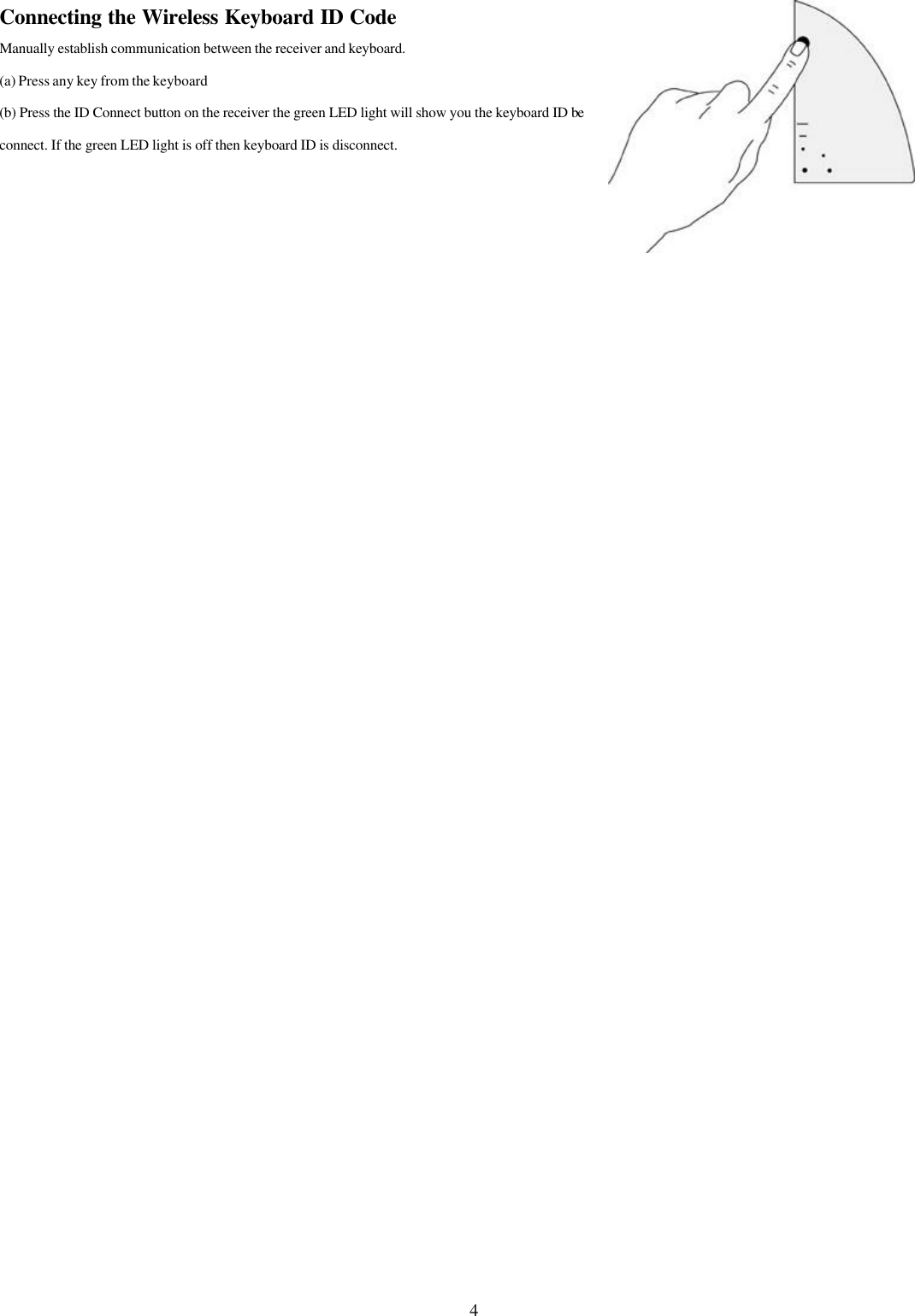

4Connecting the Wireless Keyboard ID CodeManually establish communication between the receiver and keyboard.(a) Press any key from the keyboard(b) Press the ID Connect button on the receiver the green LED light will show you the keyboard ID beconnect. If the green LED light is off then keyboard ID is disconnect.

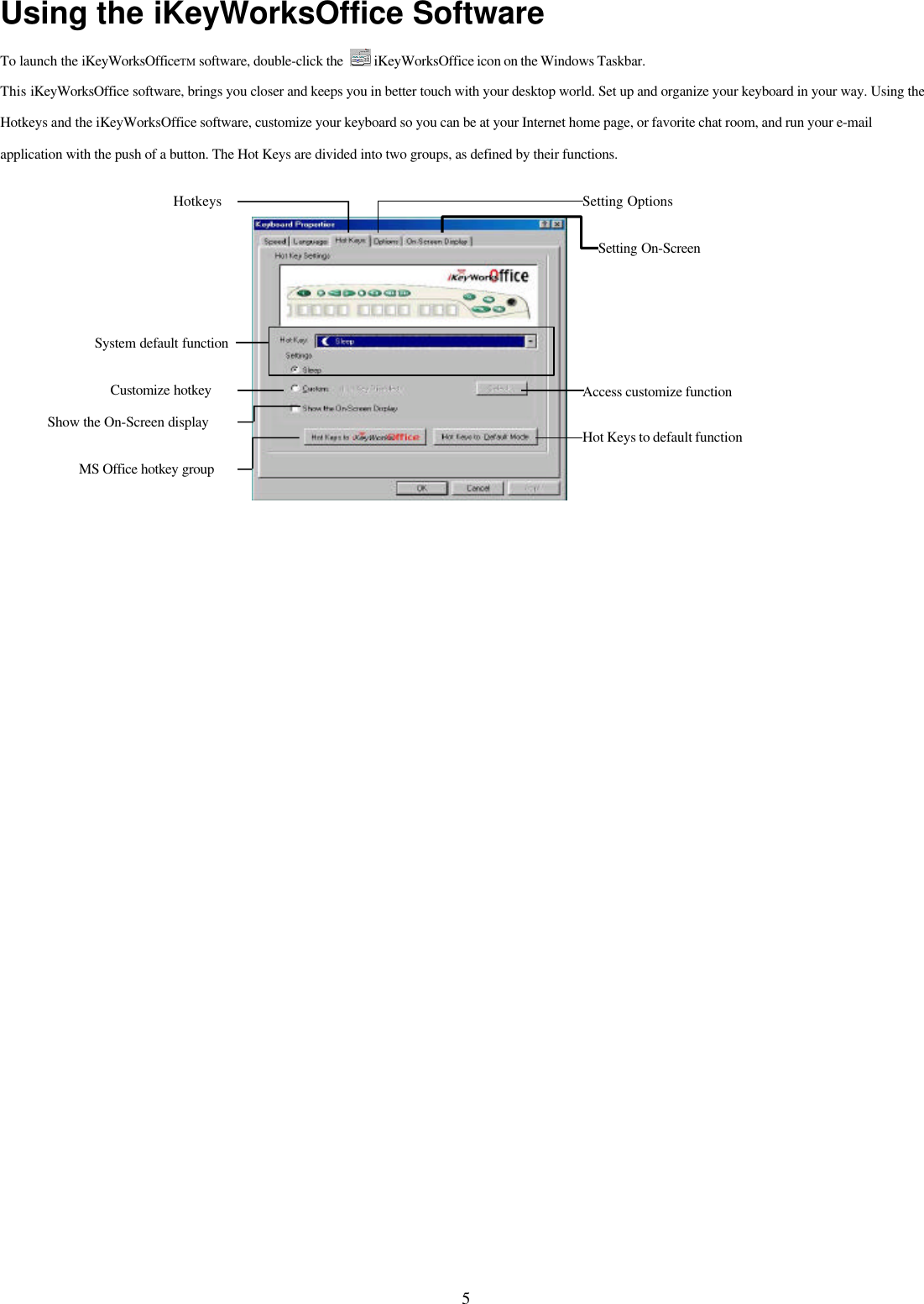

5Using the iKeyWorksOffice SoftwareTo launch the iKeyWorksOfficeTM software, double-click the iKeyWorksOffice icon on the Windows Taskbar.This iKeyWorksOffice software, brings you closer and keeps you in better touch with your desktop world. Set up and organize your keyboard in your way. Using theHotkeys and the iKeyWorksOffice software, customize your keyboard so you can be at your Internet home page, or favorite chat room, and run your e-mailapplication with the push of a button. The Hot Keys are divided into two groups, as defined by their functions.Access customize functionHotkeys Setting OptionsSetting On-ScreenHot Keys to default functionShow the On-Screen displayCustomize hotkeySystem default functionMS Office hotkey group
6Using the 12 Hot KeysThere are 12 programmable Hot keys, which you must setup the iKeyWorksOffice software before using.HotKeys Default Functions Microsoft Office program functionsMy Home key: Accesses your home web page for favorite internet address Word: Access Microsoft word applicationE-mail key: Launches an e-mail application E-mail key: Launches an e-mail applicationFavorite key: Starts an application, accesses a web site and web sites + Font Size: Increase font size.Search key: Displays a menu of internet search engines - Font Size: Decrease font size.Previous Track Key: Plays the previous track. Next Doc.: Open next documentNext Track key: Plays the next track. Previous Doc.: Open Previous DocumentPlay/Pause key: Plays or pauses the CD/DVD. Excel: Access Microsoft Excel applicationStop key: Stops play. Open document: Access my documentsVolume Up key: Increase sound volume. Zoom In: To magnify the view of a document.Volume Down key: Decreases sound volume. Zoom Out: To demagnify the view of a document.Mute key: Dramatically reduces the sound volume. My Document: Access the My Document functionSuspend key: Access the Windows Shut Down dialog box, where you can putyour system on stand-by or shut down windows. Office Tools: Show the Office tools
7Customize your Hot KeysYou can define the hotkey as Shell Execution, Keystrokes, Office shortcut and Generic Command to meet your personal needs.NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.NOTE: This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to part 15 of the FCC Rules. These limits areDesigned to provide reasonable protection against harmful interference in aResidential installation. This equipment generated, uses and can radiate radioFrequency energy and, if not installed and used in accordance with theInstructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation. Ifthis equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the followingmeasures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which theReceiver is connected.Consult the dealer or an experienced radio / TV technician for help.Customize your HotkeysKeystrokesGeneric CommandDisable the Hot key Show the name of the hot keyEmail address bookType the name of file, folder …Browse FileBrowse FolderMy favoriteSelect command typeShell executionOffice shortcut
