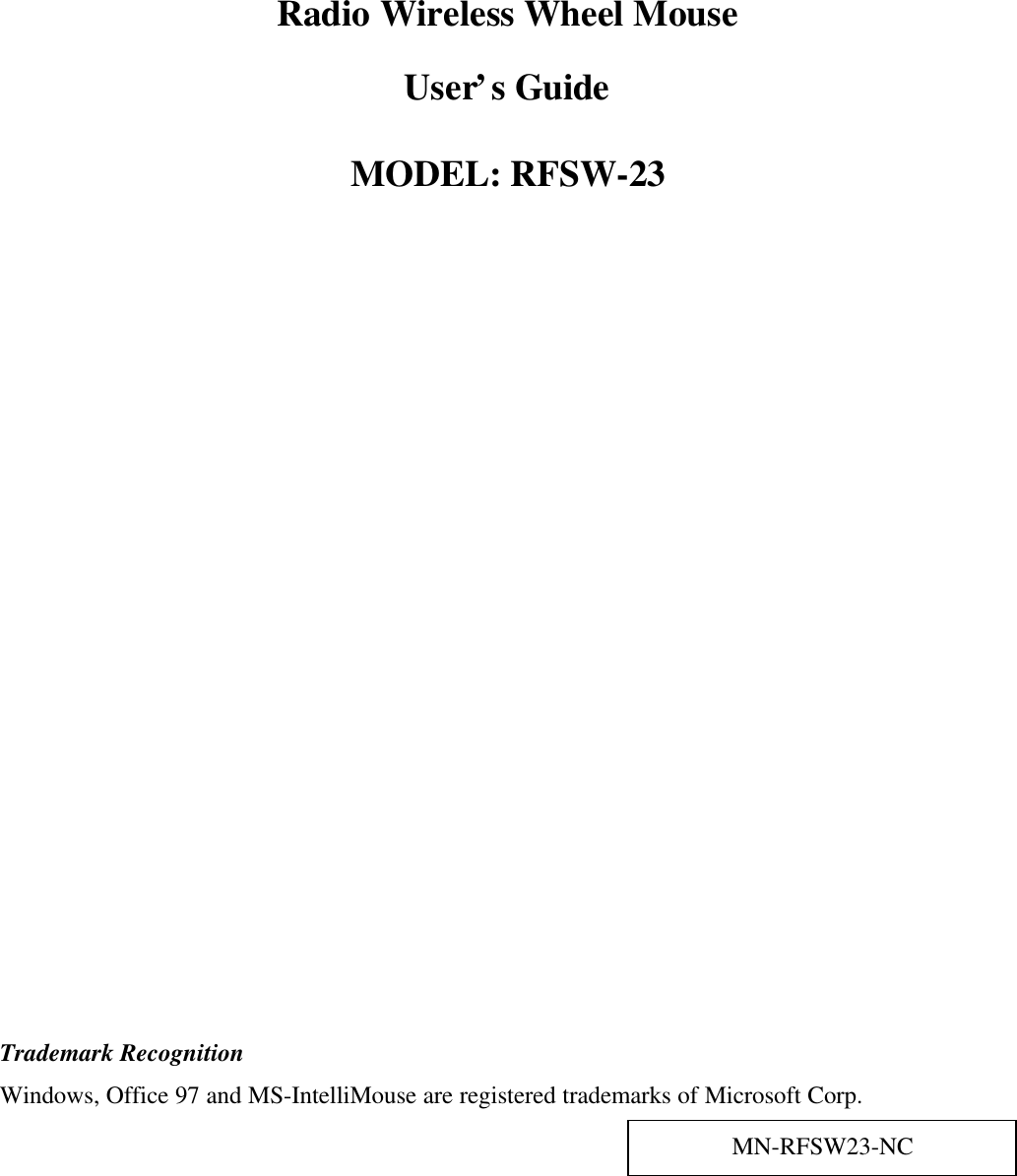

Radio Wireless Wheel MouseUser’s GuideMODEL: RFSW-23Trademark RecognitionWindows, Office 97 and MS-IntelliMouse are registered trademarks of Microsoft Corp.MN-RFSW23-NC

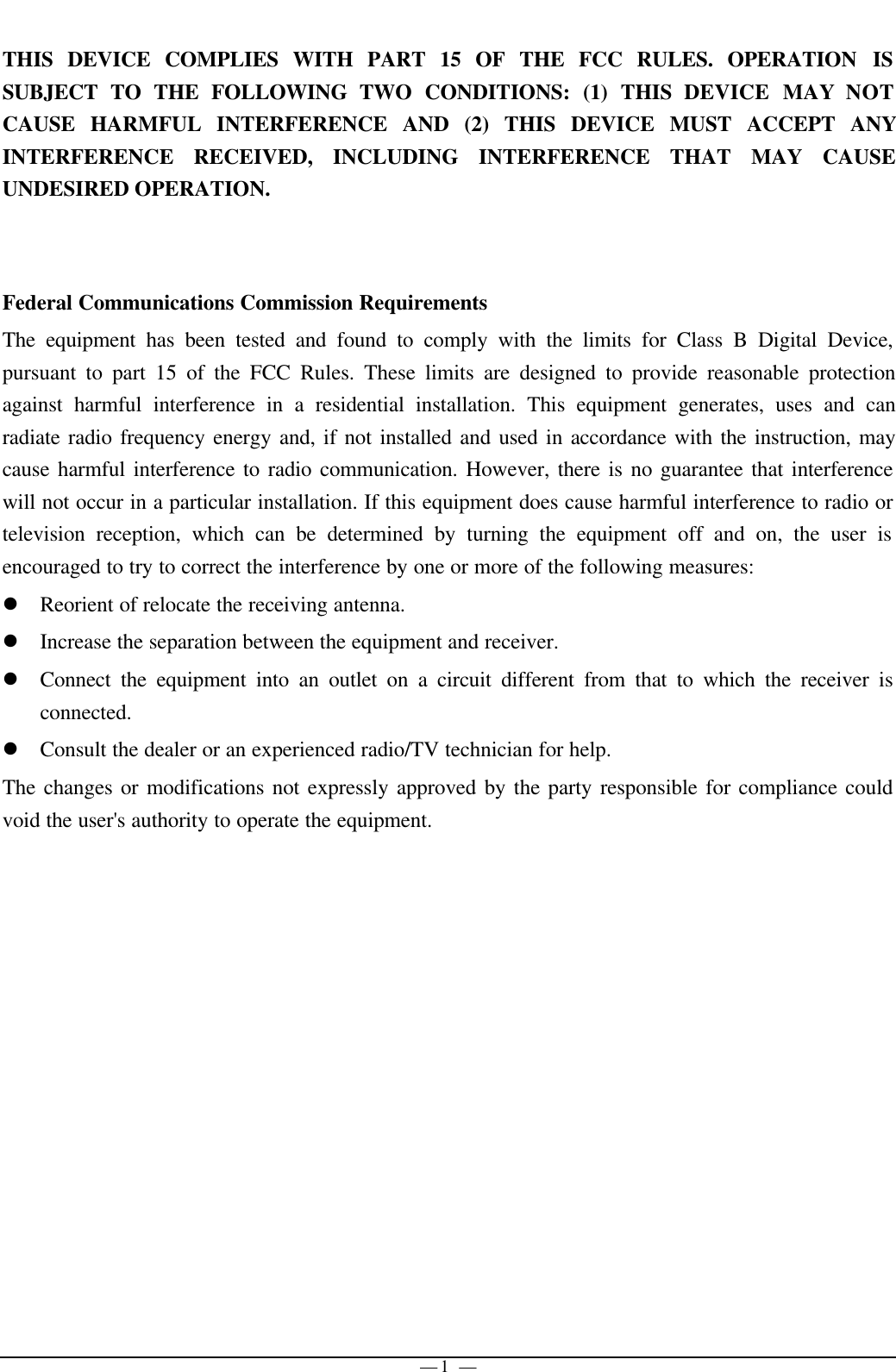

— 1 —THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION ISSUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOTCAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANYINTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSEUNDESIRED OPERATION.Federal Communications Commission RequirementsThe equipment has been tested and found to comply with the limits for Class B Digital Device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates, uses and canradiate radio frequency energy and, if not installed and used in accordance with the instruction, maycause harmful interference to radio communication. However, there is no guarantee that interferencewill not occur in a particular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the following measures:l Reorient of relocate the receiving antenna.l Increase the separation between the equipment and receiver.l Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.l Consult the dealer or an experienced radio/TV technician for help.The changes or modifications not expressly approved by the party responsible for compliance couldvoid the user's authority to operate the equipment.

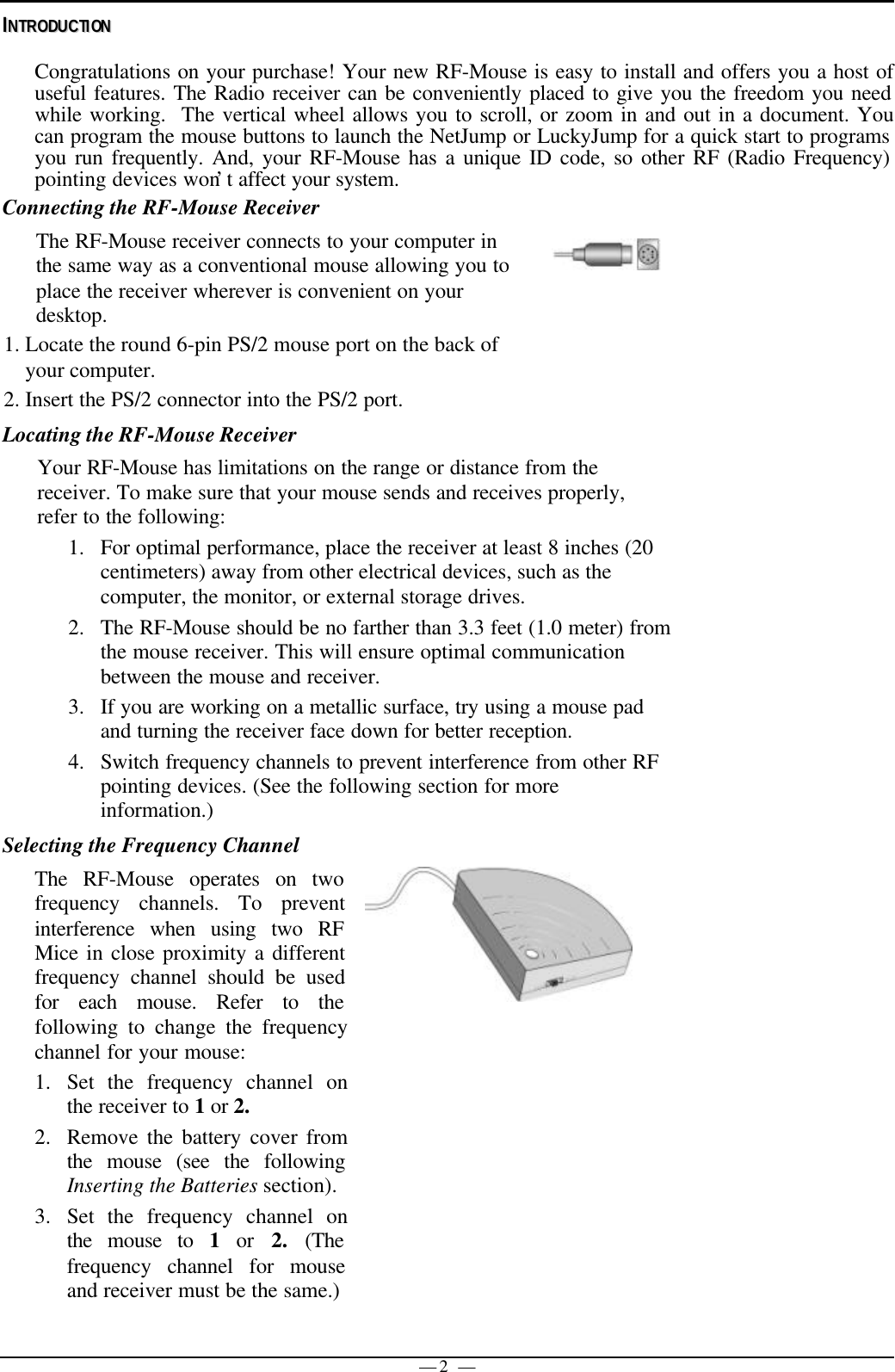

— 2 —IINNTTRROODDUUCCTTIIOONNCongratulations on your purchase! Your new RF-Mouse is easy to install and offers you a host ofuseful features. The Radio receiver can be conveniently placed to give you the freedom you needwhile working. The vertical wheel allows you to scroll, or zoom in and out in a document. Youcan program the mouse buttons to launch the NetJump or LuckyJump for a quick start to programsyou run frequently. And, your RF-Mouse has a unique ID code, so other RF (Radio Frequency)pointing devices won’t affect your system.Connecting the RF-Mouse ReceiverThe RF-Mouse receiver connects to your computer inthe same way as a conventional mouse allowing you toplace the receiver wherever is convenient on yourdesktop.1. Locate the round 6-pin PS/2 mouse port on the back ofyour computer.2. Insert the PS/2 connector into the PS/2 port.Locating the RF-Mouse ReceiverYour RF-Mouse has limitations on the range or distance from thereceiver. To make sure that your mouse sends and receives properly,refer to the following:1. For optimal performance, place the receiver at least 8 inches (20centimeters) away from other electrical devices, such as thecomputer, the monitor, or external storage drives.2. The RF-Mouse should be no farther than 3.3 feet (1.0 meter) fromthe mouse receiver. This will ensure optimal communicationbetween the mouse and receiver.3. If you are working on a metallic surface, try using a mouse padand turning the receiver face down for better reception.4. Switch frequency channels to prevent interference from other RFpointing devices. (See the following section for moreinformation.)Selecting the Frequency ChannelThe RF-Mouse operates on twofrequency channels. To preventinterference when using two RFMice in close proximity a differentfrequency channel should be usedfor each mouse. Refer to thefollowing to change the frequencychannel for your mouse:1. Set the frequency channel onthe receiver to 1 or 2.2. Remove the battery cover fromthe mouse (see the followingInserting the Batteries section).3. Set the frequency channel onthe mouse to 1 or 2. (Thefrequency channel for mouseand receiver must be the same.)
— 3 —Inserting the BatteriesThe RF-Mouse uses two AAAbatteries. For best performance,use only alkaline batteries. Referto the following to insert thebatteries:1. Press the up cover andmove to backward of themouse up cover as shownhere and remove the cover.2. Insert the two AAAbatteries. (The correctpolarity is indicated on thebattery compartmentcasing.)3. Replace the cover.Checking the Batteries powerTo check the battery power, right-click the mouseicon in the Taskbar. Choose the “Check RF-Mouse Status” option to display the RF-MouseStatus window. The current battery percentagecharge is shown.

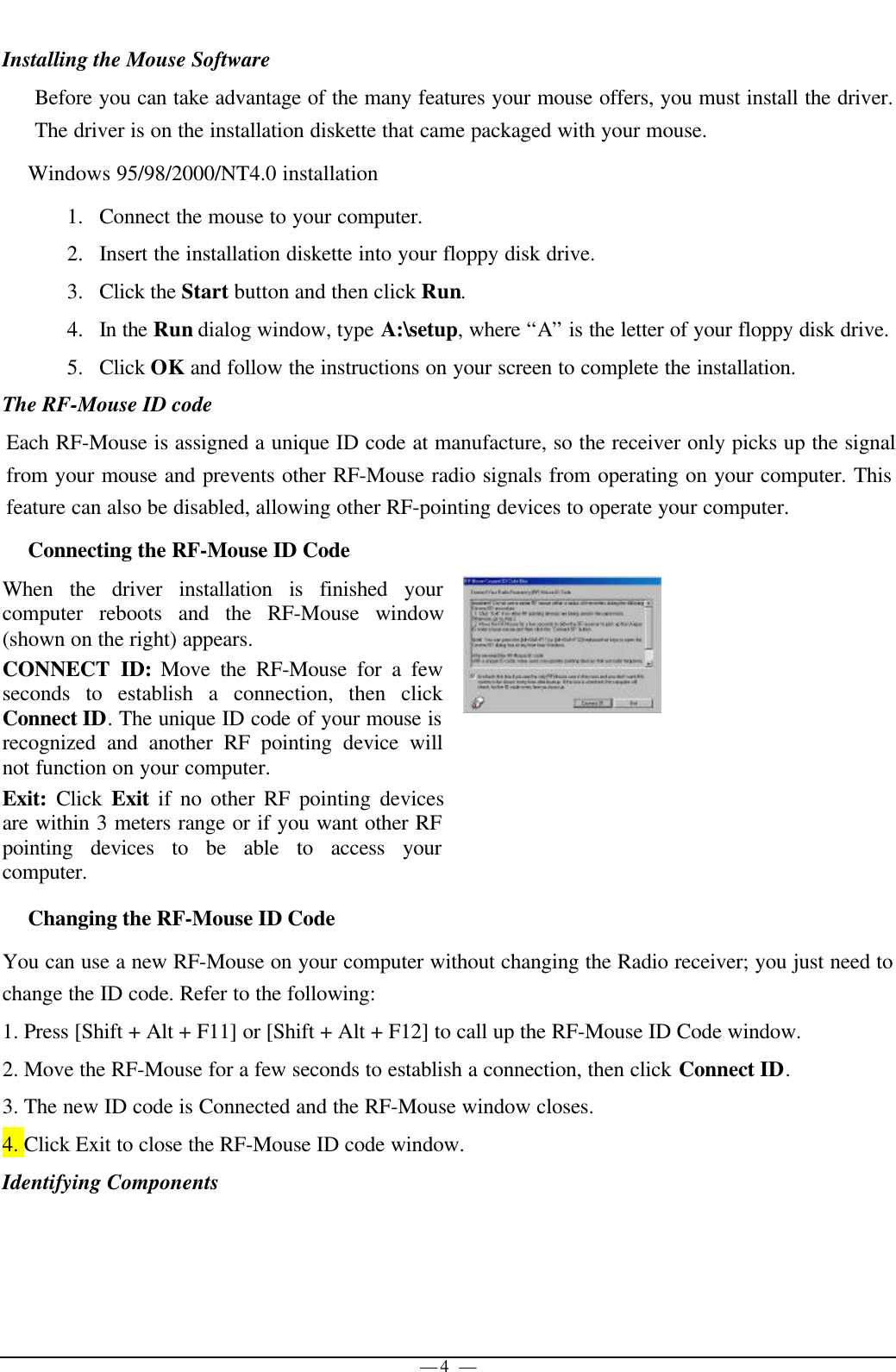

— 4 —Installing the Mouse SoftwareBefore you can take advantage of the many features your mouse offers, you must install the driver.The driver is on the installation diskette that came packaged with your mouse.Windows 95/98/2000/NT4.0 installation1. Connect the mouse to your computer.2. Insert the installation diskette into your floppy disk drive.3. Click the Start button and then click Run.4. In the Run dialog window, type A:\setup, where “A” is the letter of your floppy disk drive.5. Click OK and follow the instructions on your screen to complete the installation.The RF-Mouse ID codeEach RF-Mouse is assigned a unique ID code at manufacture, so the receiver only picks up the signalfrom your mouse and prevents other RF-Mouse radio signals from operating on your computer. Thisfeature can also be disabled, allowing other RF-pointing devices to operate your computer.Connecting the RF-Mouse ID CodeWhen the driver installation is finished yourcomputer reboots and the RF-Mouse window(shown on the right) appears.CONNECT ID: Move the RF-Mouse for a fewseconds to establish a connection, then clickConnect ID. The unique ID code of your mouse isrecognized and another RF pointing device willnot function on your computer.Exit: Click Exit if no other RF pointing devicesare within 3 meters range or if you want other RFpointing devices to be able to access yourcomputer.Changing the RF-Mouse ID CodeYou can use a new RF-Mouse on your computer without changing the Radio receiver; you just need tochange the ID code. Refer to the following:1. Press [Shift + Alt + F11] or [Shift + Alt + F12] to call up the RF-Mouse ID Code window.2. Move the RF-Mouse for a few seconds to establish a connection, then click Connect ID.3. The new ID code is Connected and the RF-Mouse window closes.4. Click Exit to close the RF-Mouse ID code window.Identifying Components
— 5 —The mouse is designed to fit snugly into your hand. The scroll wheel ispositioned on the top allowing for easy operation with the index finger.Standard mouse buttons are positioned to either side of the scroll wheelsand can be reached comfortably with the index and ring fingers. A thirdbutton is placed under the vertical wheel and can be easily clicked bypushing down on the wheel.The following pages will tell you how to configure the scroll wheels andbuttons to suit your specific needs.Cleaning the MouseClean the mouse regularly to ensure efficient operation. Refer to the following:1. Rotate the housing cover counterclockwise until it unlocks andremove it.2. Remove the tracking ball.3. Wash the tracking ball with warm water and soap then allow it todry.4. Use a cotton swab and alcohol to clean the tracking rollers in thehousing.5. Replace the tracking ball and the housing cover.6. Rotate the housing cover clockwise until it locks in place.
— 6 — UUSSIINNGG TTHHEE MMOOUUSSEEWith the iWheelWorks software, you have all the advantages of the Microsoft IntelliMouse wheel, andbut you can also scroll in Windows 95/98/2000/NT.Your mouse has a wheel; the wheel functions as both a wheel and a button. Simply click the wheel asyou would a programmable standard Third button.SSCCRROOLLLLIINNGG AANNDD ZZOOOOMMIINNGG WWIITTHH TTHHEE MMOOUUSSEETask What is it? How to do it?Wheel Scroll Use wheel Scroll for precise upand down movement. To scroll up, move the wheel forward; to scrolldown, move the wheel back.ZoomUse Zoom to either magnify ordemagnify the view of adocument in an application thatsupports it.Place the cursor in an application that is MicrosoftOffice 97/2000 compatible. Press and hold the Ctrlkey on the keyboard, then to zoom in, move thewheel forward; to zoom out, move the wheelbackwards.AutoScroll UseAutoScroll in Windows95/98/NT/2000 and MicrosoftOffice97/2000 compatibleapplications to scroll throughlarge documents.AutoScroll allows you scroll adocument automatically withouthaving to move the mousecontinuously.Assign AutoScroll to a button on the mouse if it isnot already assigned.Place the cursor in an application, Press the mousebutton assigned to AutoScroll. The AutoScroll iconappears.Move the mouse once in the direction you want toscroll. The farther you move the pointer from thestarting point, the faster the scrolling.To stop AutoScroll, press any mouse button.

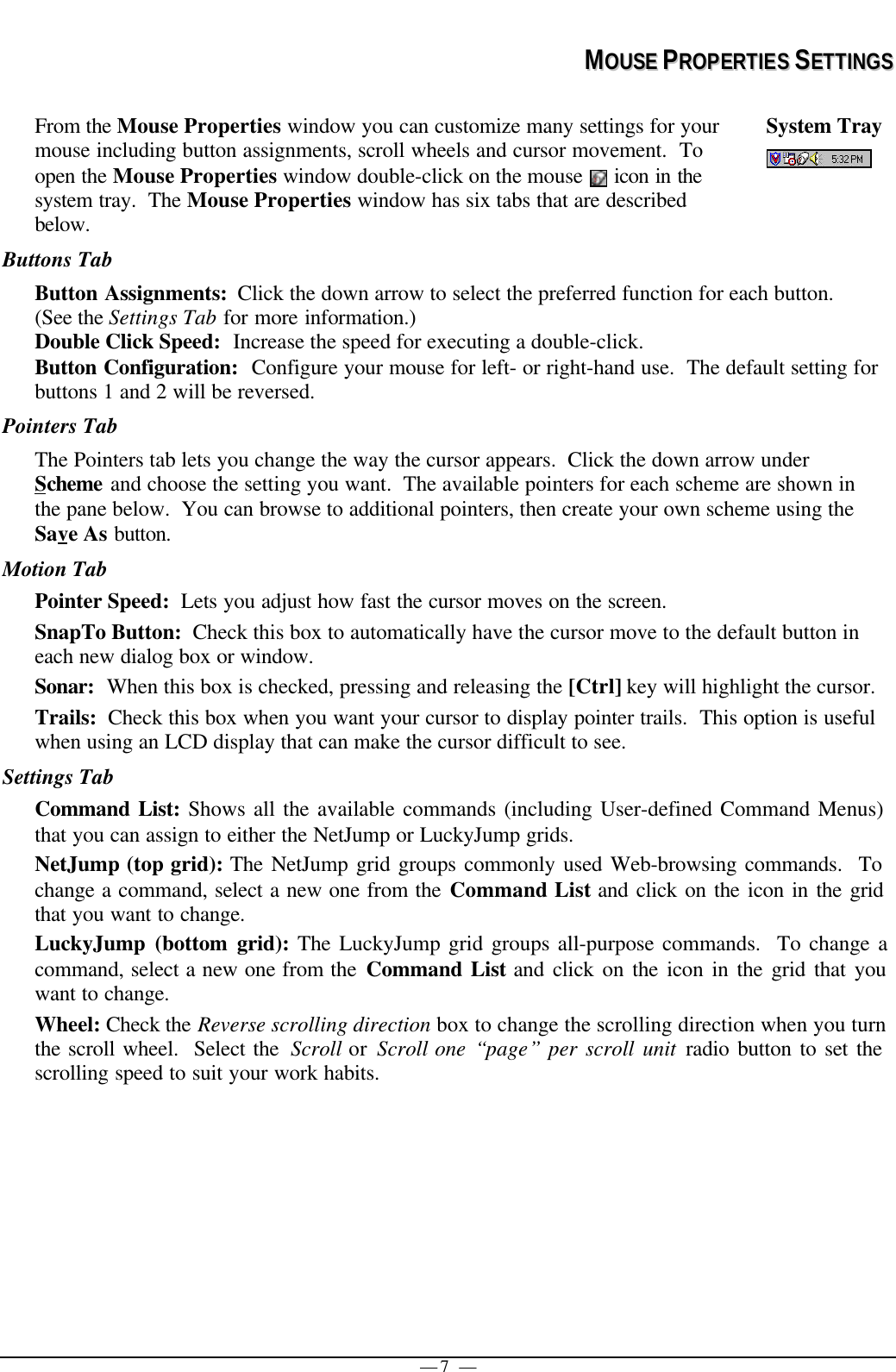

— 7 — MMOOUUSSEE PPRROOPPEERRTTIIEESS SSEETTTTIINNGGSSFrom the Mouse Properties window you can customize many settings for yourmouse including button assignments, scroll wheels and cursor movement. Toopen the Mouse Properties window double-click on the mouse icon in thesystem tray. The Mouse Properties window has six tabs that are describedbelow.System TrayButtons TabButton Assignments: Click the down arrow to select the preferred function for each button.(See the Settings Tab for more information.)Double Click Speed: Increase the speed for executing a double-click.Button Configuration: Configure your mouse for left- or right-hand use. The default setting forbuttons 1 and 2 will be reversed.Pointers TabThe Pointers tab lets you change the way the cursor appears. Click the down arrow underScheme and choose the setting you want. The available pointers for each scheme are shown inthe pane below. You can browse to additional pointers, then create your own scheme using theSave As button.Motion TabPointer Speed: Lets you adjust how fast the cursor moves on the screen.SnapTo Button: Check this box to automatically have the cursor move to the default button ineach new dialog box or window.Sonar: When this box is checked, pressing and releasing the [Ctrl] key will highlight the cursor.Trails: Check this box when you want your cursor to display pointer trails. This option is usefulwhen using an LCD display that can make the cursor difficult to see.Settings TabCommand List: Shows all the available commands (including User-defined Command Menus)that you can assign to either the NetJump or LuckyJump grids.NetJump (top grid): The NetJump grid groups commonly used Web-browsing commands. Tochange a command, select a new one from the Command List and click on the icon in the gridthat you want to change.LuckyJump (bottom grid): The LuckyJump grid groups all-purpose commands. To change acommand, select a new one from the Command List and click on the icon in the grid that youwant to change.Wheel: Check the Reverse scrolling direction box to change the scrolling direction when you turnthe scroll wheel. Select the Scroll or Scroll one “page” per scroll unit radio button to set thescrolling speed to suit your work habits.
— 8 —Executing Net Jump CommandsNetJump combines commonly used tasks for Web browsing into one convenient grid and putsthem right under the cursor. To use NetJump, open the Mouse Properties window and select theButtons tab. Assign NetJump in the drop-down menu of the button you want. Click OK to closethe Mouse Properties window. Now click the assigned button to open the NetJump grid andexecute your command. (See the Settings Tab section above for instructions on customizingNetJump.)Executing LuckyJump CommandsLuckyJump combines commonly used tasks for Windows environments into one convenient gridand puts them right under the cursor. To use LuckyJump, open the Mouse Properties window andselect the Buttons tab. Assign LuckyJump in the drop-down menu of the button you want. ClickOK to close the Mouse Properties window. Now click the assigned button to open theLuckyJump grid and execute your command. (See the Settings Tab section above for instructionson customizing LuckyJump.)NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIOOR TV INTERFERENCE CAUSED BY UNAUTHORIZEDMODIFICATIONS TO THIS EQUIPMENT. SUCHMODIFICATIIONS COULD VOID THE USER’S AUTHORITY TOOPERATE THE EQUIPMENT.NOTE: This equipment has been tested and found to comply with the limits for aClass B digital device, pursuant to part 15 of the FCC Rules. These limits areDesigned to provide reasonable protection against harmful interference in aResidential installation. This equipment generated, uses and can radiate radioFrequency energy and, if not installed and used in accordance with theInstructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation. Ifthis equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the followingmeasures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which theReceiver is connected.Consult the dealer or an experienced radio / TV technician for help.
