A Four Tech Co RSW25 Radio Wireless Wheel Mouse User Manual RFSW 25 Manual 1

A Four Tech Co Ltd Radio Wireless Wheel Mouse RFSW 25 Manual 1

User Manual

Radio Wireless Wheel MouseUser’s GuideMODEL: RFSW-25Trademark RecognitionWindows, Office 97 and MS-IntelliMouse are registered trademarks of Microsoft Corp.MN-RFSW25-NC
— 1 —THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION ISSUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAYNOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPTANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAYCAUSE UNDESIRED OPERATION.Federal Communications Commission RequirementsThe equipment has been tested and found to comply with the limits for Class B DigitalDevice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and, if not installed and used in accordance withthe instruction, may cause harmful interference to radio communication. However, there is noguarantee that interference will not occur in a particular installation. If this equipment doescause harmful interference to radio or television reception, which can be determined byturning the equipment off and on, the user is encouraged to try to correct the interference byone or more of the following measures:l Reorient of relocate the receiving antenna.l Increase the separation between the equipment and receiver.l Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.l Consult the dealer or an experienced radio/TV technician for help.The changes or modifications not expressly approved by the party responsible for compliancecould void the user's authority to operate the equipment.
— 2 —IINNTTRROODDUUCCTTIIOONNCongratulations on your purchase! Your new RF-Mouse is easy to install and offers you a host of useful features. TheRadio receiver can be conveniently placed to give you the freedom you need while working. The vertical wheelallows you to scroll, or zoom in and out in a document. You can program the mouse buttons to launch the NetJumpor LuckyJump for a quick start to programs you run frequently. And, your RF-Mouse has a unique ID code, so otherRF (Radio Frequency) pointing devices won’t affect your system.Connecting the RF-Mouse ReceiverThe RF-Mouse receiver connects to your computer in the same way as a conventionalmouse allowing you to place the receiver wherever is convenient on your desktop.1. Locate the round 6-pin PS/2 mouse port on the back of your computer.2. Insert the PS/2 connector into the PS/2 port.Locating the RF-Mouse ReceiverYour RF-Mouse has limitations on the range or distance from the receiver. To make sure that your mouse sendsand receives properly, refer to the following:1. For optimal performance, place the receiver at least 8 inches (20 centimeters) away from otherelectrical devices, such as the computer, the monitor, or external storage drives.2. The RF-Mouse should be no farther than 3.3 feet (1.0 meter) from the mouse receiver. This willensure optimal communication between the mouse and receiver.3. If you are working on a metallic surface, try using a mouse pad and turning the receiver face down forbetter reception.4. Switch frequency channels to prevent interference from other RF pointing devices. (See the followingsection for more information.)Selecting the Frequency ChannelThe RF-Mouse operates on two frequency channels. Toprevent interference when using two RF Mice in closeproximity a different frequency channel should be usedfor each mouse. Refer to the following to change thefrequency channel for your mouse:1. Set the frequency channel on the receiver to 1 or2.2. Remove the battery cover from the mouse (see thefollowing Inserting the Batteries section).3. Set the frequency channel on the mouse to 1 or 2.(The frequency channel for mouse and receivermust be the same.)

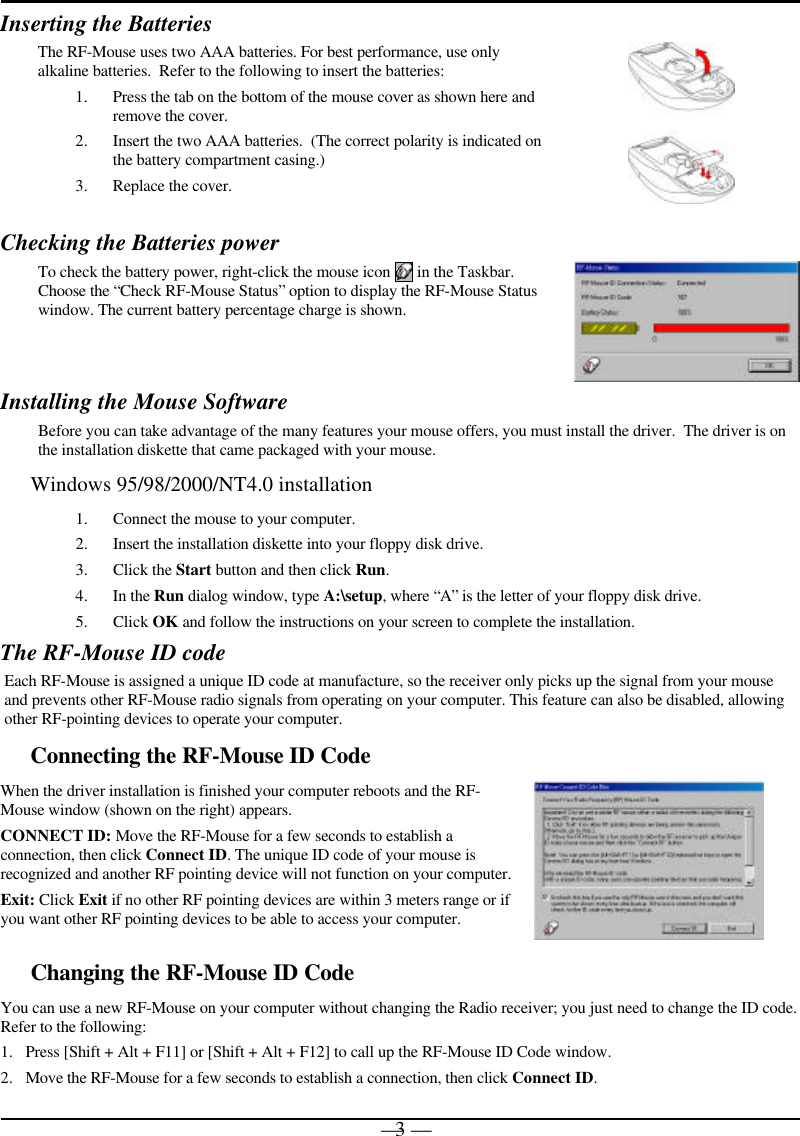

— 3 —Inserting the BatteriesThe RF-Mouse uses two AAA batteries. For best performance, use onlyalkaline batteries. Refer to the following to insert the batteries:1. Press the tab on the bottom of the mouse cover as shown here andremove the cover.2. Insert the two AAA batteries. (The correct polarity is indicated onthe battery compartment casing.)3. Replace the cover.Checking the Batteries powerTo check the battery power, right-click the mouse icon in the Taskbar.Choose the “Check RF-Mouse Status” option to display the RF-Mouse Statuswindow. The current battery percentage charge is shown.Installing the Mouse SoftwareBefore you can take advantage of the many features your mouse offers, you must install the driver. The driver is onthe installation diskette that came packaged with your mouse.Windows 95/98/2000/NT4.0 installation1. Connect the mouse to your computer.2. Insert the installation diskette into your floppy disk drive.3. Click the Start button and then click Run.4. In the Run dialog window, type A:\setup, where “A” is the letter of your floppy disk drive.5. Click OK and follow the instructions on your screen to complete the installation.The RF-Mouse ID codeEach RF-Mouse is assigned a unique ID code at manufacture, so the receiver only picks up the signal from your mouseand prevents other RF-Mouse radio signals from operating on your computer. This feature can also be disabled, allowingother RF-pointing devices to operate your computer.Connecting the RF-Mouse ID CodeWhen the driver installation is finished your computer reboots and the RF-Mouse window (shown on the right) appears.CONNECT ID: Move the RF-Mouse for a few seconds to establish aconnection, then click Connect ID. The unique ID code of your mouse isrecognized and another RF pointing device will not function on your computer.Exit: Click Exit if no other RF pointing devices are within 3 meters range or ifyou want other RF pointing devices to be able to access your computer.Changing the RF-Mouse ID CodeYou can use a new RF-Mouse on your computer without changing the Radio receiver; you just need to change the ID code.Refer to the following:1. Press [Shift + Alt + F11] or [Shift + Alt + F12] to call up the RF-Mouse ID Code window.2. Move the RF-Mouse for a few seconds to establish a connection, then click Connect ID.
— 4 —3. The new ID code is Connected and the RF-Mouse window closes.4. Click Exit to close the RF-Mouse ID code window.Identifying ComponentsThe mouse is designed to fit snugly into your hand. The scroll wheel is positioned on the top allowing for easyoperation with the index finger. Standard mouse buttons are positioned to either side of the scroll wheels and can bereached comfortably with the index and ring fingers. A third button is placed under the vertical wheel and can beeasily clicked by pushing down on the wheel.The following pages will tell you how to configure the scroll wheels and buttons to suit your specific needs.Cleaning the MouseClean the mouse regularly to ensure efficient operation. Refer to the following:1. Rotate the housing cover counterclockwise until it unlocks and remove it.2. Remove the tracking ball.3. Wash the tracking ball with warm water and soap then allow it to dry.4. Use a cotton swab and alcohol to clean the tracking rollers in the housing.5. Replace the tracking ball and the housing cover.6. Rotate the housing cover clockwise until it locks in place.

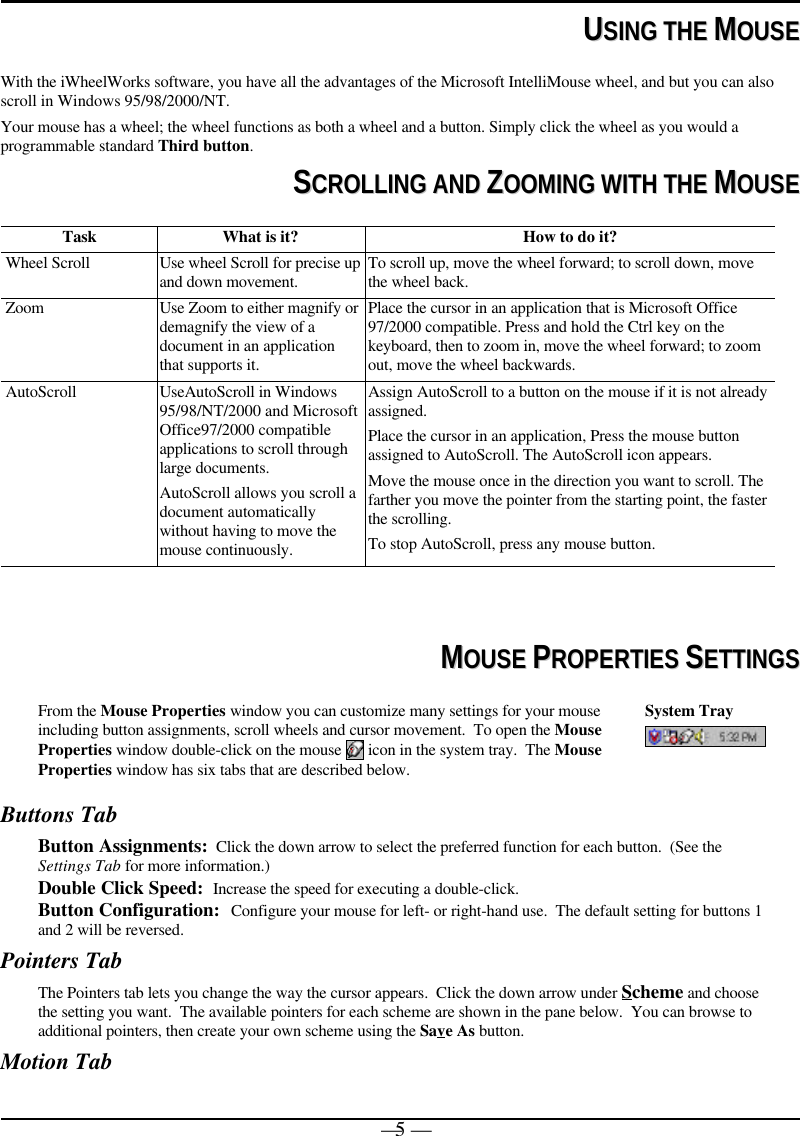

— 5 — UUSSIINNGG TTHHEE MMOOUUSSEEWith the iWheelWorks software, you have all the advantages of the Microsoft IntelliMouse wheel, and but you can alsoscroll in Windows 95/98/2000/NT.Your mouse has a wheel; the wheel functions as both a wheel and a button. Simply click the wheel as you would aprogrammable standard Third button.SSCCRROOLLLLIINNGG AANNDD ZZOOOOMMIINNGG WWIITTHH TTHHEE MMOOUUSSEETask What is it? How to do it?Wheel Scroll Use wheel Scroll for precise upand down movement. To scroll up, move the wheel forward; to scroll down, movethe wheel back.Zoom Use Zoom to either magnify ordemagnify the view of adocument in an applicationthat supports it.Place the cursor in an application that is Microsoft Office97/2000 compatible. Press and hold the Ctrl key on thekeyboard, then to zoom in, move the wheel forward; to zoomout, move the wheel backwards.AutoScroll UseAutoScroll in Windows95/98/NT/2000 and MicrosoftOffice97/2000 compatibleapplications to scroll throughlarge documents.AutoScroll allows you scroll adocument automaticallywithout having to move themouse continuously.Assign AutoScroll to a button on the mouse if it is not alreadyassigned.Place the cursor in an application, Press the mouse buttonassigned to AutoScroll. The AutoScroll icon appears.Move the mouse once in the direction you want to scroll. Thefarther you move the pointer from the starting point, the fasterthe scrolling.To stop AutoScroll, press any mouse button. MMOOUUSSEE PPRROOPPEERRTTIIEESS SSEETTTTIINNGGSSFrom the Mouse Properties window you can customize many settings for your mouseincluding button assignments, scroll wheels and cursor movement. To open the MouseProperties window double-click on the mouse icon in the system tray. The MouseProperties window has six tabs that are described below.System TrayButtons TabButton Assignments: Click the down arrow to select the preferred function for each button. (See theSettings Tab for more information.)Double Click Speed: Increase the speed for executing a double-click.Button Configuration: Configure your mouse for left- or right-hand use. The default setting for buttons 1and 2 will be reversed.Pointers TabThe Pointers tab lets you change the way the cursor appears. Click the down arrow under Scheme and choosethe setting you want. The available pointers for each scheme are shown in the pane below. You can browse toadditional pointers, then create your own scheme using the Save As button.Motion Tab
— 6 —Pointer Speed: Lets you adjust how fast the cursor moves on the screen.SnapTo Button: Check this box to automatically have the cursor move to the default button in each newdialog box or window.Sonar: When this box is checked, pressing and releasing the [Ctrl] key will highlight the cursor.Trails: Check this box when you want your cursor to display pointer trails. This option is useful when usingan LCD display that can make the cursor difficult to see.Settings TabCommand List: Shows all the available commands (including User-defined Command Menus) that you canassign to either the NetJump or LuckyJump grids.NetJump (top grid): The NetJump grid groups commonly used Web-browsing commands. To change acommand, select a new one from the Command List and click on the icon in the grid that you want to change.LuckyJump (bottom grid): The LuckyJump grid groups all-purpose commands. To change a command,select a new one from the Command List and click on the icon in the grid that you want to change.Wheel: Check the Reverse scrolling direction box to change the scrolling direction when you turn the scrollwheel. Select the Scroll or Scroll one “page” per scroll unit radio button to set the scrolling speed to suit yourwork habits.Executing Net Jump CommandsNetJump combines commonly used tasks for Web browsing into one convenient grid and puts them right under thecursor. To use NetJump, open the Mouse Properties window and select the Buttons tab. Assign NetJump in thedrop-down menu of the button you want. Click OK to close the Mouse Properties window. Now click the assignedbutton to open the NetJump grid and execute your command. (See the Settings Tab section above for instructions oncustomizing NetJump.)Executing LuckyJump CommandsLuckyJump combines commonly used tasks for Windows environments into one convenient grid and puts them rightunder the cursor. To use LuckyJump, open the Mouse Properties window and select the Buttons tab. AssignLuckyJump in the drop-down menu of the button you want. Click OK to close the Mouse Properties window.Now click the assigned button to open the LuckyJump grid and execute your command. (See the Settings Tabsection above for instructions on customizing LuckyJump.)
Low Power Narrowband FM IF The MC3361C includes an Oscillator, Mixer, Limiting Amplifer, QuadratureDiscriminator, Acitve Filter, Squelch, Scan Control and Mute Switch. This devices isdesigned for use in FM dual conversion communications equipment.l Operates from 2.0 to 8.0 V Supplyl Low Drain Current 2.8 Ma Typical@VCC=4.0 Vdcl Excellent Sensitivity : input Limiting Voltage-3.0Db=2.6µV Typicall Low Number of External Parts Pequiredl Operating Frequency Up to 60 MHzl Full ESD Protection7
