ACS Solutions FranceS FBE420 EQUIPMENT THAT IS INSTALLED ON BUSES AND IS FOR USE BY PASSENGER FOR CASH TRANSACTIONS TO PURCHASE TICKETS, FOR ISSUING MAGNETIC TICKETS AND FOR THE VALIDATION OF MAGNETIC TICKETS OR CONTACTLESS SMART CARD User Manual FBE420 UserMan

ACS Solutions France SAS EQUIPMENT THAT IS INSTALLED ON BUSES AND IS FOR USE BY PASSENGER FOR CASH TRANSACTIONS TO PURCHASE TICKETS, FOR ISSUING MAGNETIC TICKETS AND FOR THE VALIDATION OF MAGNETIC TICKETS OR CONTACTLESS SMART CARD FBE420 UserMan

USERS MANUAL

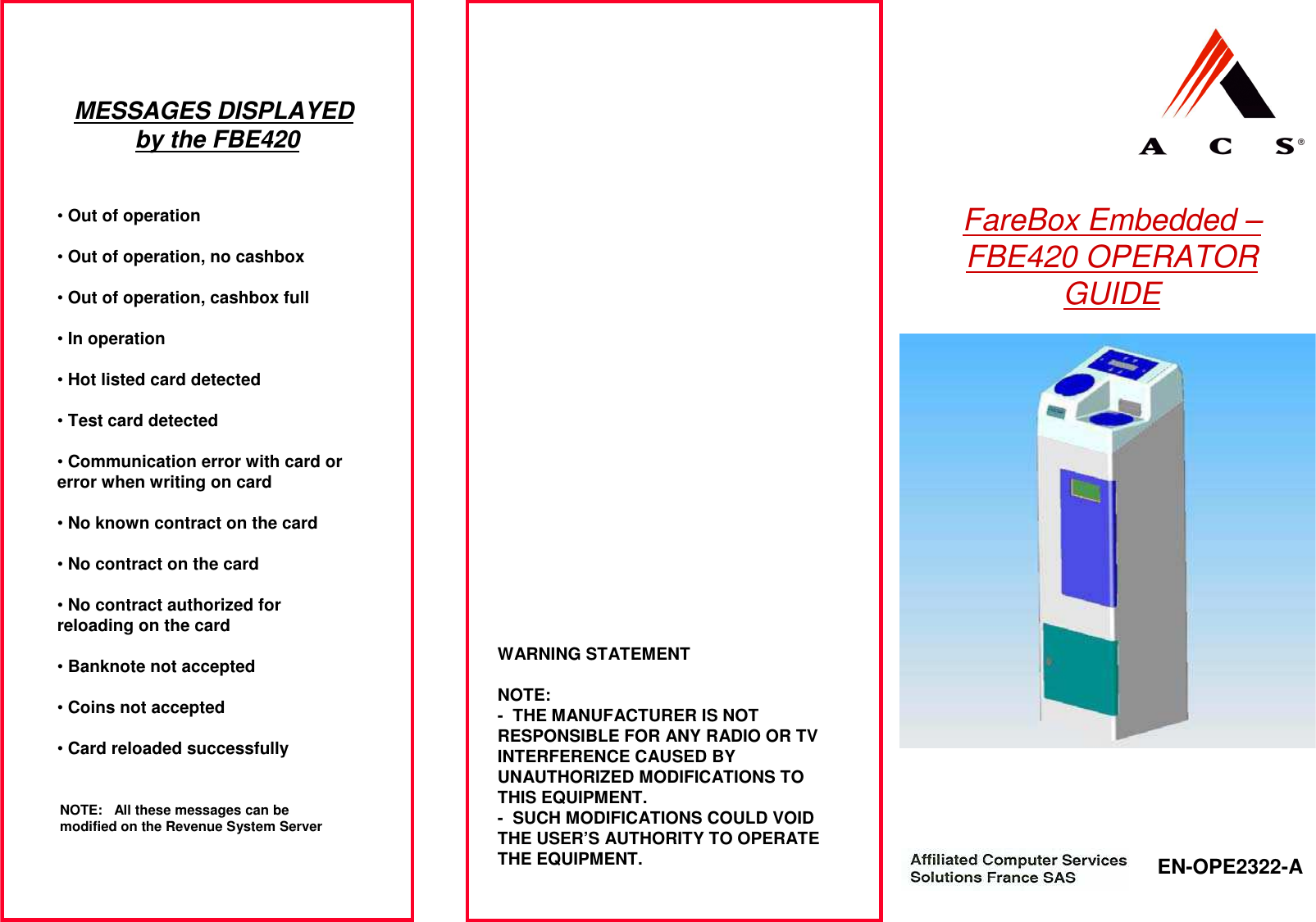

FareBox Embedded –FBE420 OPERATOR GUIDE EN-OPE2322-A WARNING STATEMENTNOTE:- THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.- SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.MESSAGES DISPLAYED by the FBE420•Out of operation•Out of operation, no cashbox•Out of operation, cashbox full•In operation•Hot listed card detected•Test card detected•Communication error with card or error when writing on card•No known contract on the card•No contract on the card•No contract authorized for reloading on the card•Banknote not accepted•Coins not accepted•Card reloaded successfullyNOTE: All these messages can be modified on the Revenue System Server

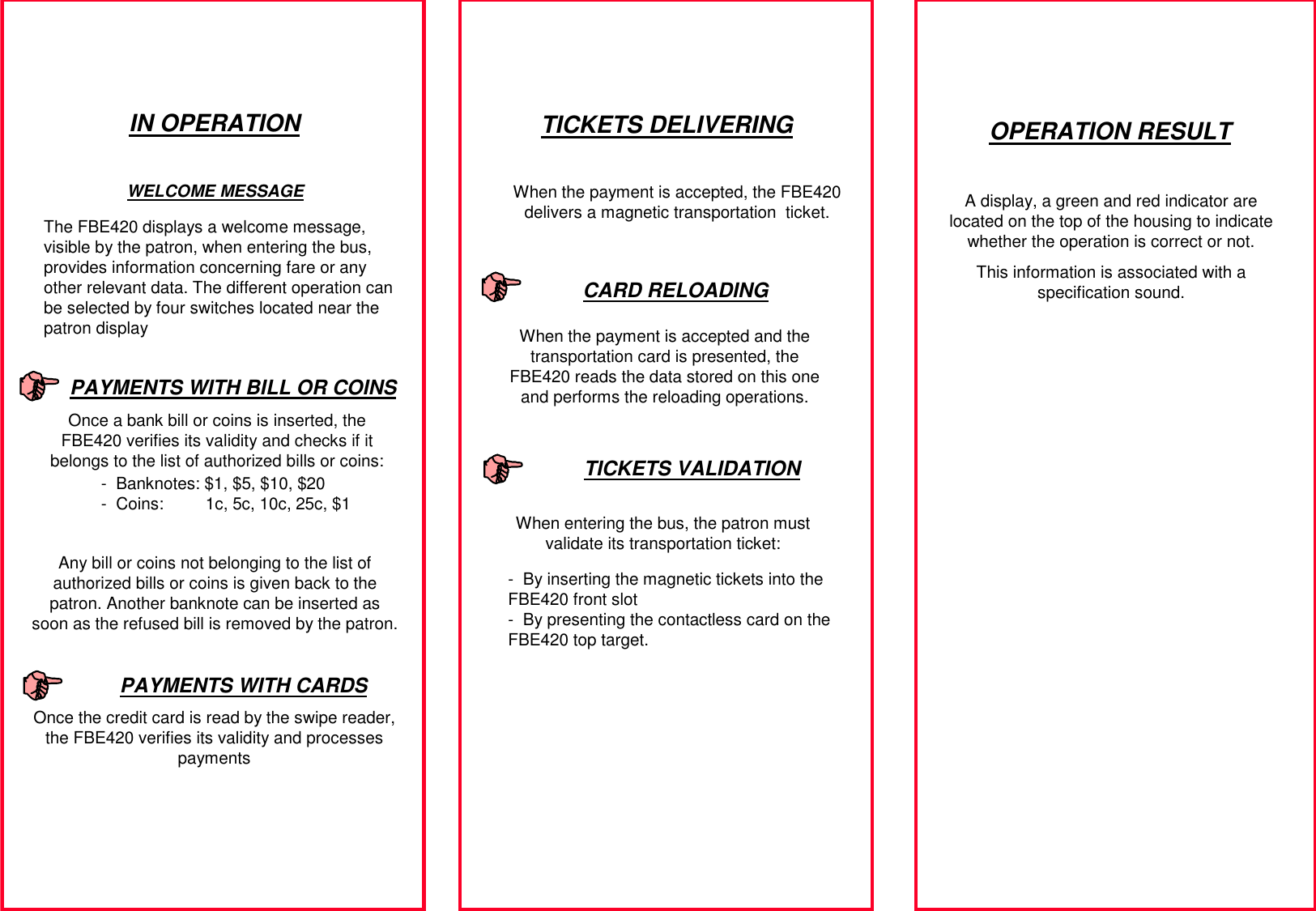

IN OPERATIONThe FBE420 displays a welcome message, visible by the patron, when entering the bus, provides information concerning fare or any other relevant data. The different operation can be selected by four switches located near the patron displayOnce a bank bill or coins is inserted, the FBE420 verifies its validity and checks if it belongs to the list of authorized bills or coins:When the payment is accepted, the FBE420 delivers a magnetic transportation ticket. When entering the bus, the patron must validate its transportation ticket:When the payment is accepted and the transportation card is presented, the FBE420 reads the data stored on this one and performs the reloading operations.WELCOME MESSAGEPAYMENTS WITH BILL OR COINSAny bill or coins not belonging to the list of authorized bills or coins is given back to the patron. Another banknote can be inserted as soon as the refused bill is removed by the patron.TICKETS DELIVERINGTICKETS VALIDATIONCARD RELOADINGOPERATION RESULTA display, a green and red indicator are located on the top of the housing to indicate whether the operation is correct or not.This information is associated with a specification sound.- Banknotes: $1, $5, $10, $20- Coins: 1c, 5c, 10c, 25c, $1PAYMENTS WITH CARDSOnce the credit card is read by the swipe reader, the FBE420 verifies its validity and processes payments- By inserting the magnetic tickets into the FBE420 front slot- By presenting the contactless card on the FBE420 top target.
