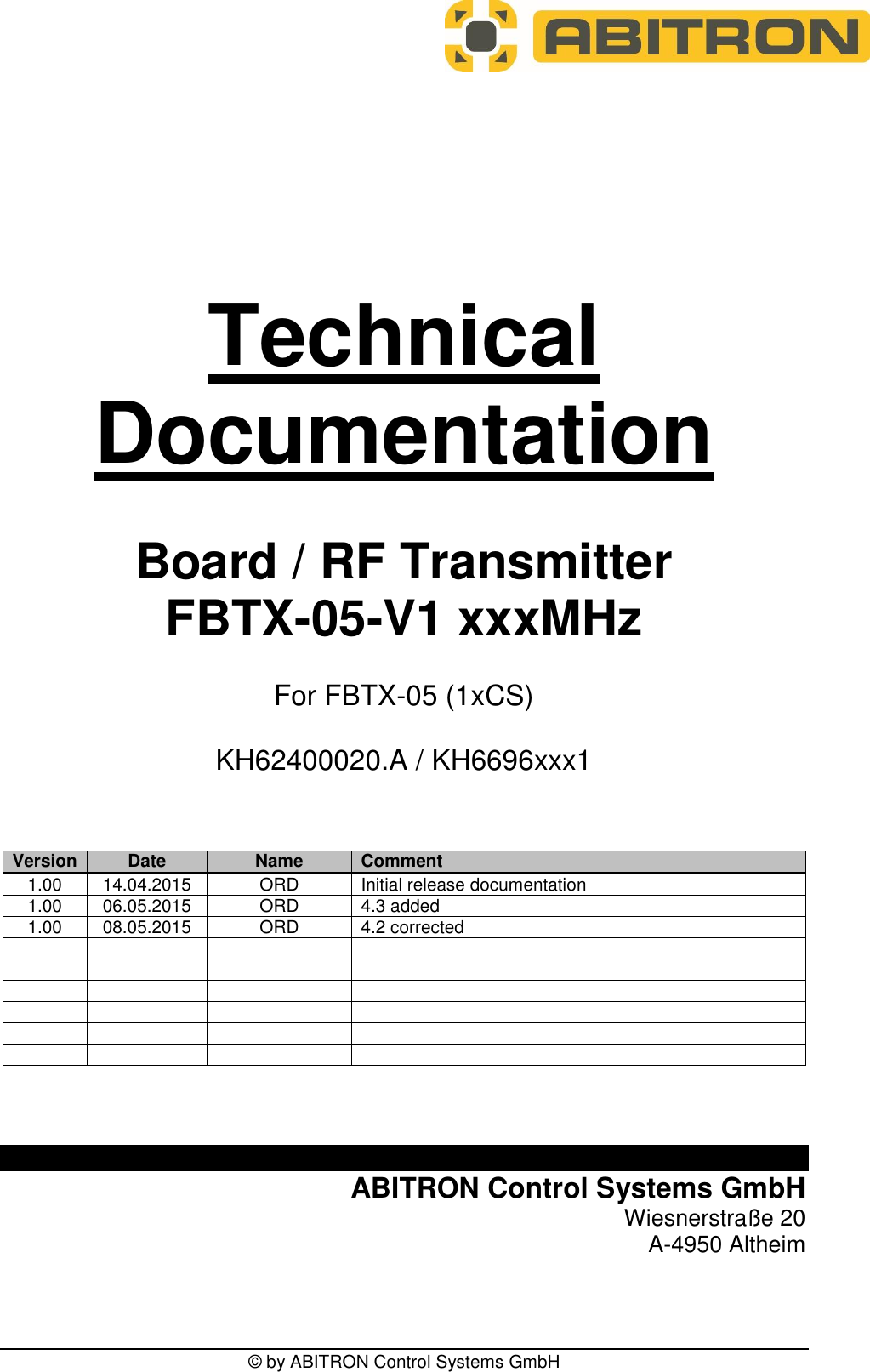

© by ABITRON Control Systems GmbH             Technical Documentation   Board / RF Transmitter FBTX-05-V1 xxxMHz  For FBTX-05 (1xCS)    KH62400020.A / KH6696xxx1     Version Date Name Comment 1.00 14.04.2015 ORD Initial release documentation 1.00 06.05.2015 ORD 4.3 added 1.00 08.05.2015 ORD 4.2 corrected                              ABITRON Control Systems GmbH Wiesnerstraße 20 A-4950 Altheim

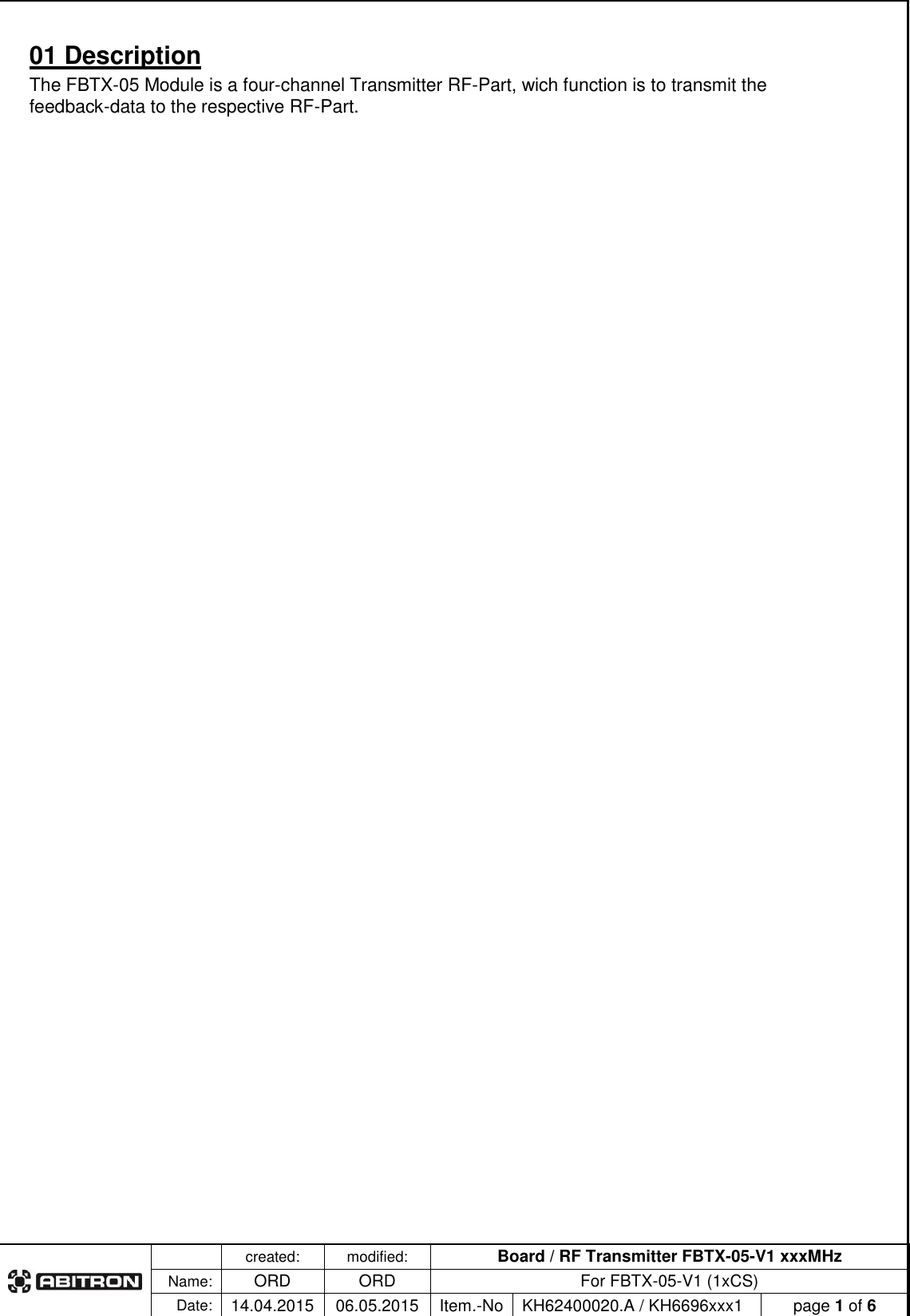

  created: modified: Board / RF Transmitter FBTX-05-V1 xxxMHz  Name: ORD ORD For FBTX-05-V1 (1xCS) Date: 14.04.2015 06.05.2015 Item.-No KH62400020.A / KH6696xxx1 page 1 of 6  01 Description The FBTX-05 Module is a four-channel Transmitter RF-Part, wich function is to transmit the feedback-data to the respective RF-Part.

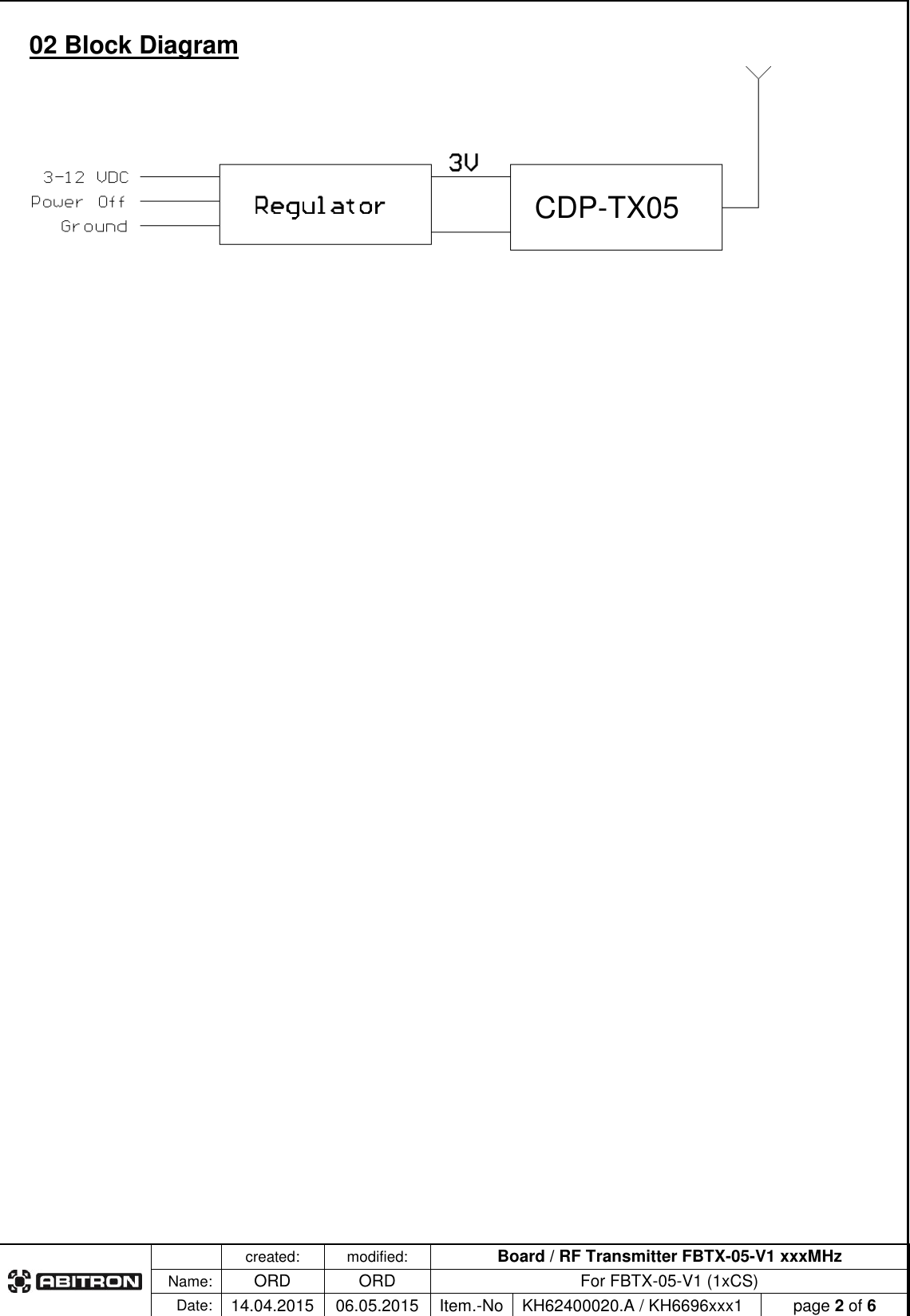

  created: modified: Board / RF Transmitter FBTX-05-V1 xxxMHz  Name: ORD ORD For FBTX-05-V1 (1xCS) Date: 14.04.2015 06.05.2015 Item.-No KH62400020.A / KH6696xxx1 page 2 of 6  02 Block Diagram  CDP-TX05

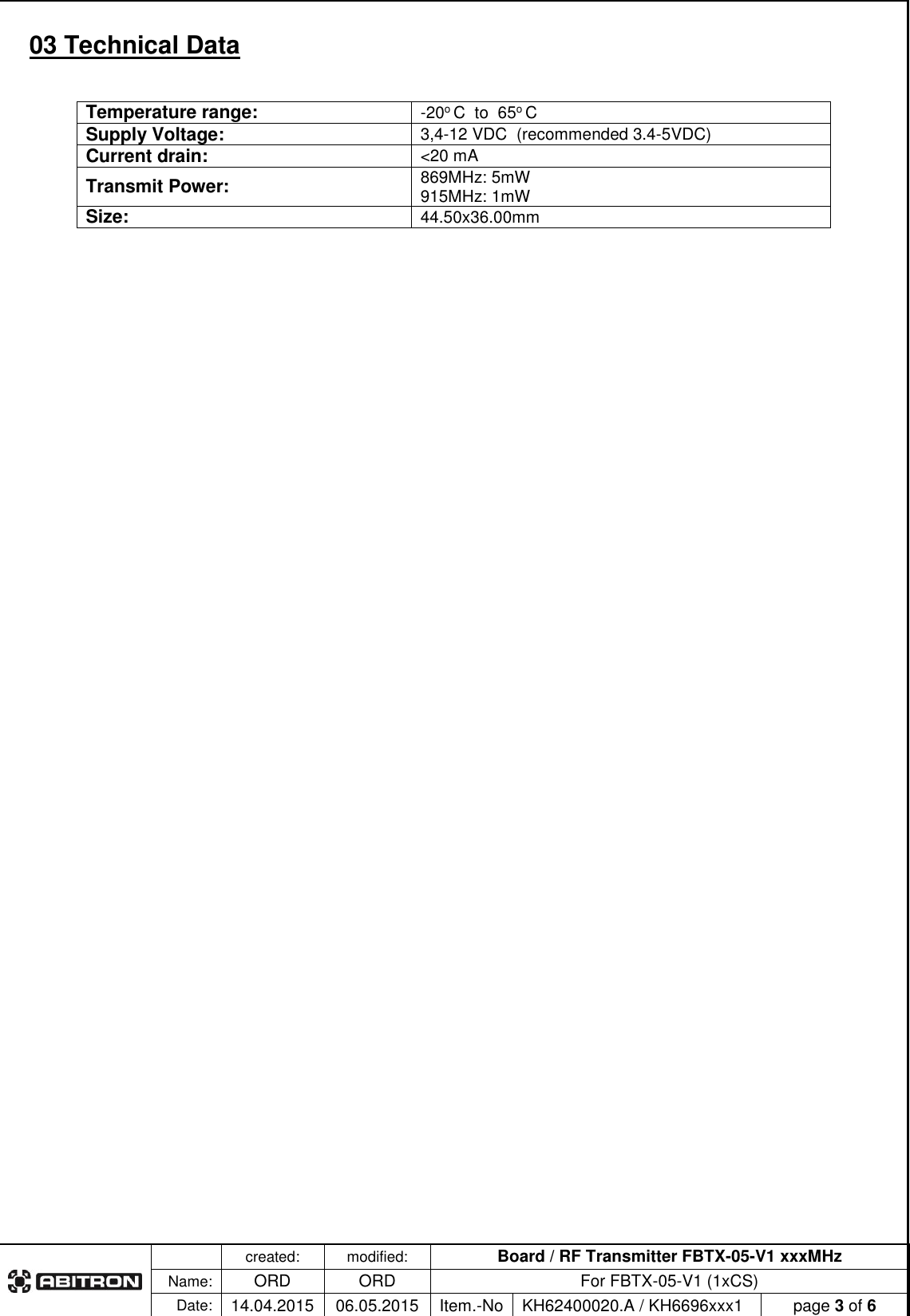

  created: modified: Board / RF Transmitter FBTX-05-V1 xxxMHz  Name: ORD ORD For FBTX-05-V1 (1xCS) Date: 14.04.2015 06.05.2015 Item.-No KH62400020.A / KH6696xxx1 page 3 of 6  03 Technical Data  Temperature range: -20o C  to  65o C Supply Voltage: 3,4-12 VDC  (recommended 3.4-5VDC) Current drain: <20 mA Transmit Power: 869MHz: 5mW 915MHz: 1mW Size: 44.50x36.00mm

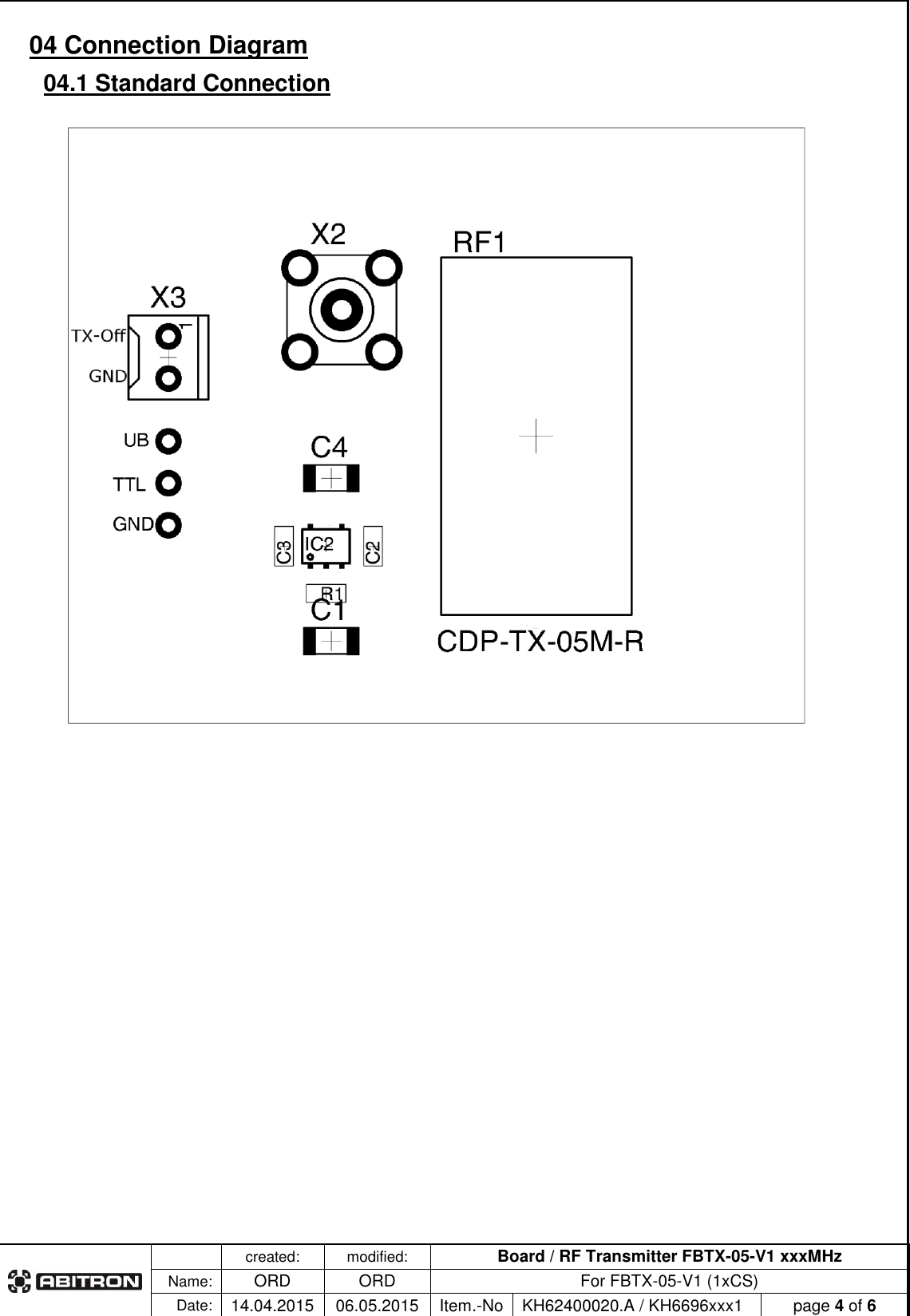

  created: modified: Board / RF Transmitter FBTX-05-V1 xxxMHz  Name: ORD ORD For FBTX-05-V1 (1xCS) Date: 14.04.2015 06.05.2015 Item.-No KH62400020.A / KH6696xxx1 page 4 of 6  04 Connection Diagram 04.1 Standard Connection

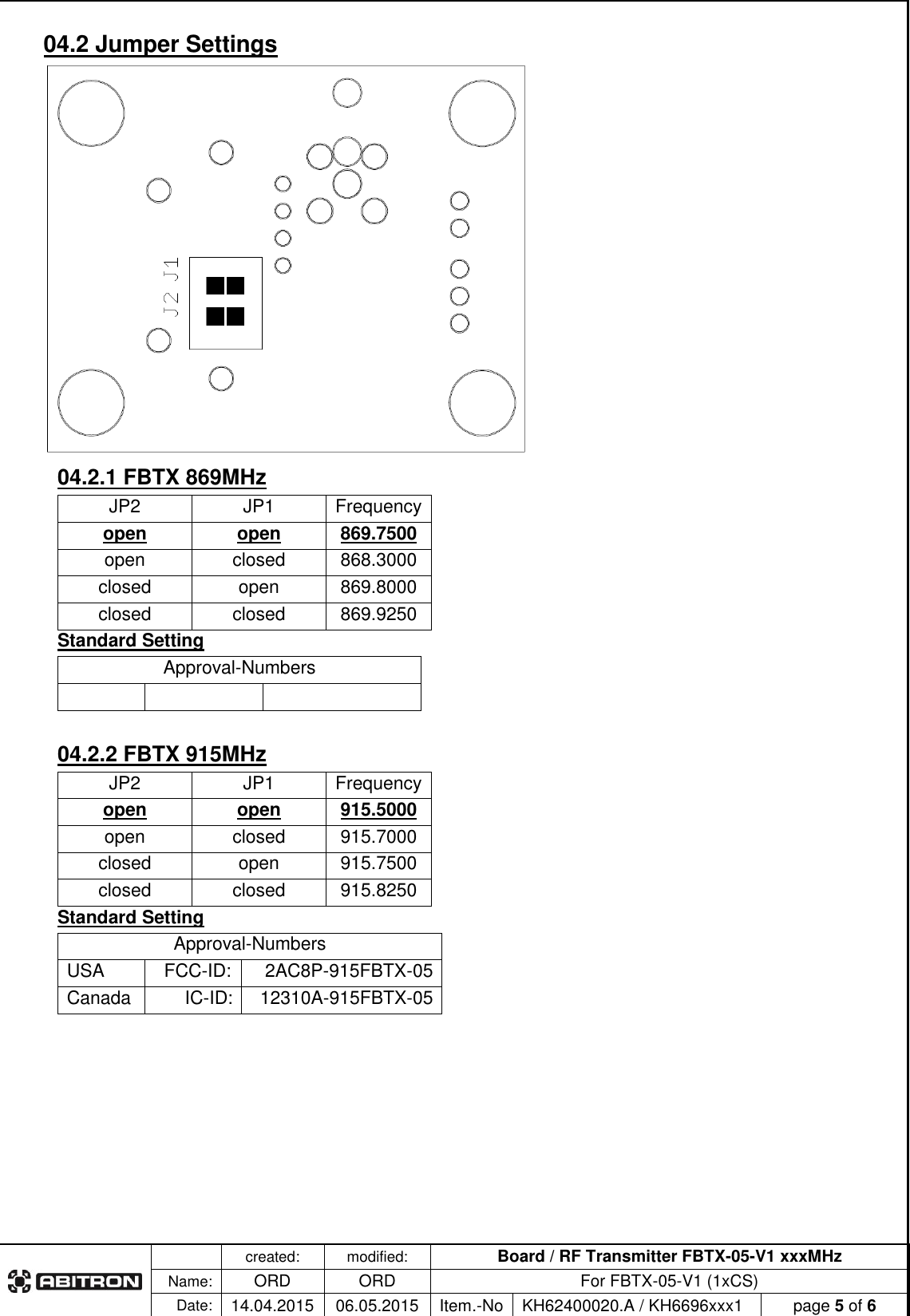

  created: modified: Board / RF Transmitter FBTX-05-V1 xxxMHz  Name: ORD ORD For FBTX-05-V1 (1xCS) Date: 14.04.2015 06.05.2015 Item.-No KH62400020.A / KH6696xxx1 page 5 of 6  04.2 Jumper Settings  04.2.1 FBTX 869MHz JP2 JP1 Frequency open open 869.7500 open closed 868.3000 closed open 869.8000 closed closed 869.9250 Standard Setting Approval-Numbers     04.2.2 FBTX 915MHz JP2 JP1 Frequency open open 915.5000 open closed 915.7000 closed open 915.7500 closed closed 915.8250 Standard Setting Approval-Numbers USA   FCC-ID: 2AC8P-915FBTX-05 Canada IC-ID: 12310A-915FBTX-05

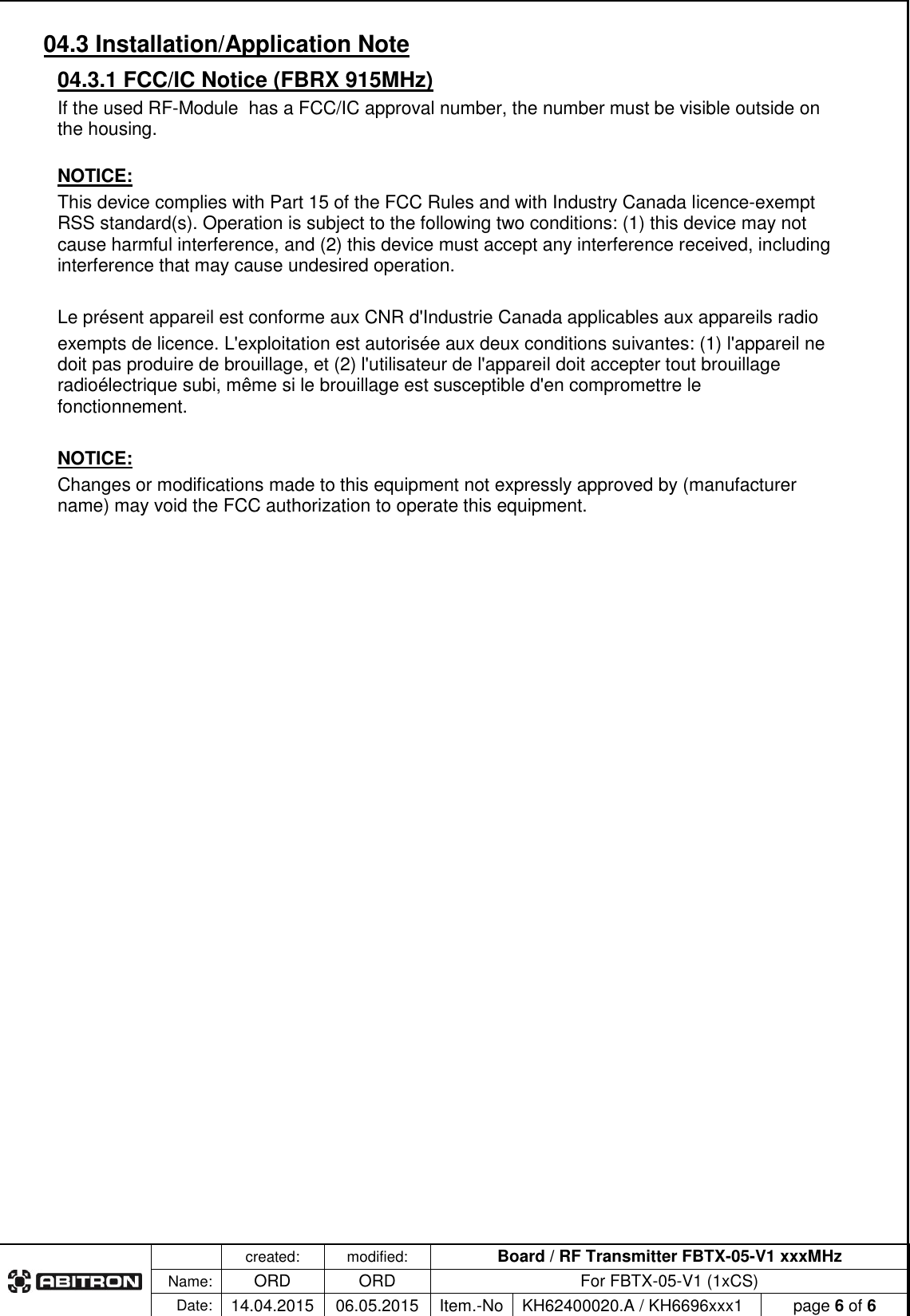

  created: modified: Board / RF Transmitter FBTX-05-V1 xxxMHz  Name: ORD ORD For FBTX-05-V1 (1xCS) Date: 14.04.2015 06.05.2015 Item.-No KH62400020.A / KH6696xxx1 page 6 of 6  04.3 Installation/Application Note 04.3.1 FCC/IC Notice (FBRX 915MHz) If the used RF-Module  has a FCC/IC approval number, the number must be visible outside on the housing.  NOTICE: This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.  NOTICE: Changes or modifications made to this equipment not expressly approved by (manufacturer name) may void the FCC authorization to operate this equipment.
