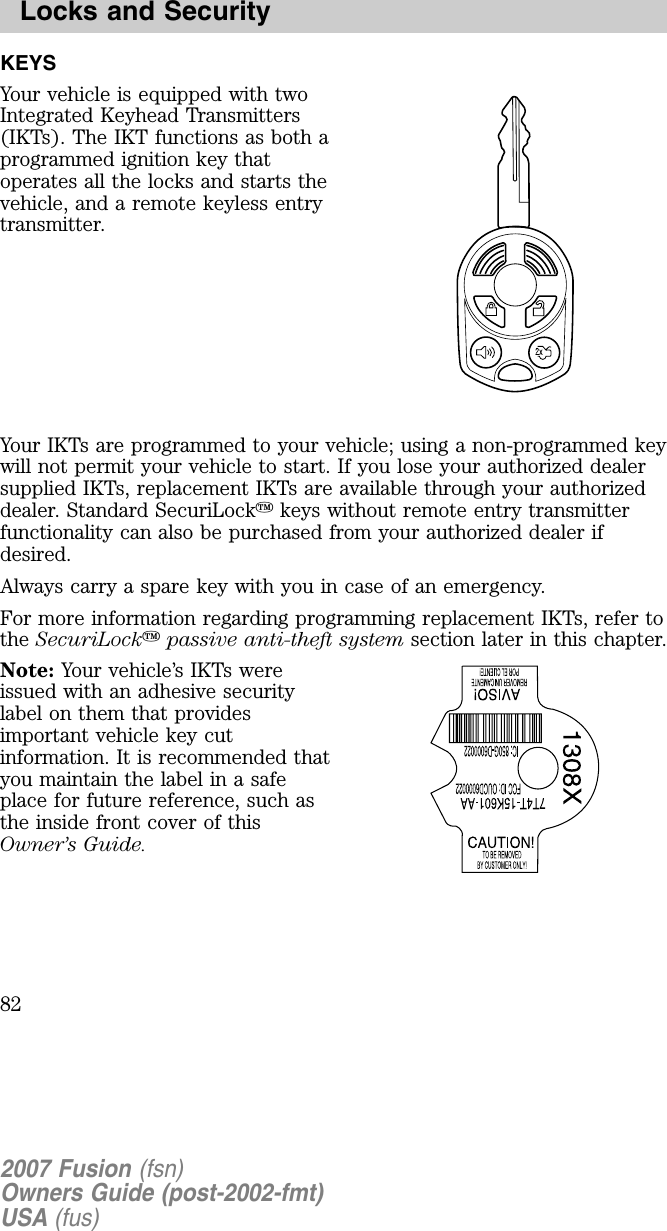

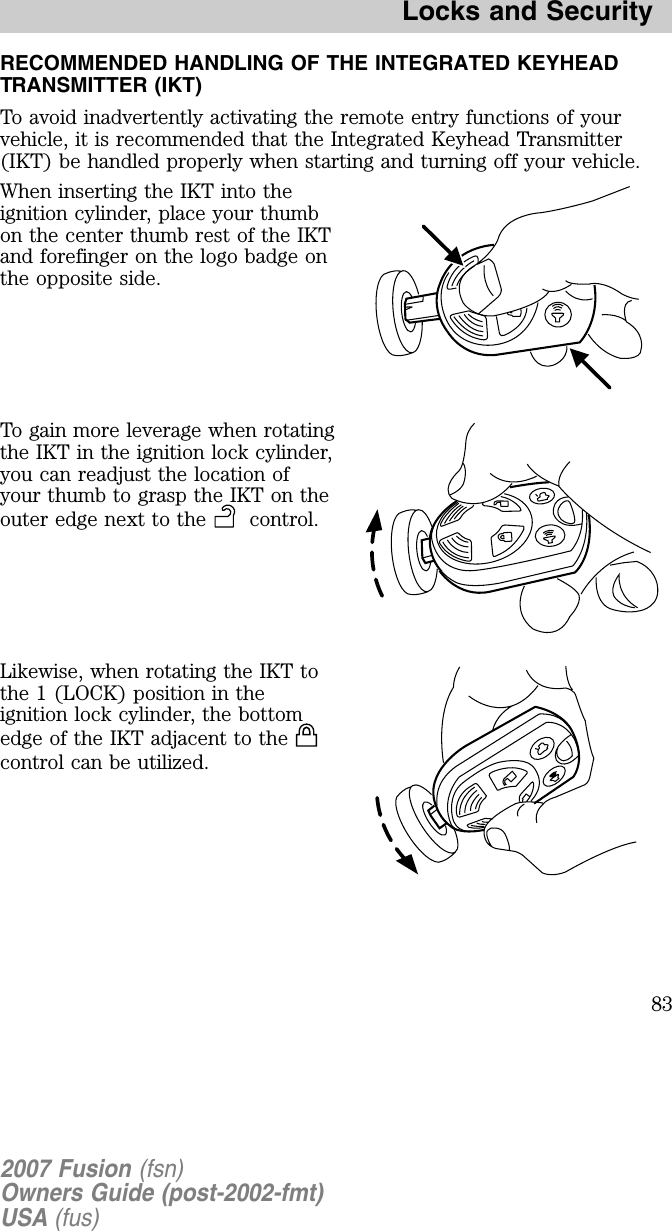

KEYSYour vehicle is equipped with twoIn teg ra ted K ey hea d T ra n sm itters( IK T s) . T he IK T fun ction s a s b oth aprog ra m m ed ig n ition k ey tha topera tes a ll the lock s a n d sta rts thevehicle, a n d a rem ote k ey less en trytra n sm itter.Your IK T s a re prog ra m m ed to y our vehicle; usin g a n on -prog ra m m ed k eywill n ot perm it y our vehicle to sta rt. If y ou lose y our a uthoriz ed dea lersupplied IK T s, repla cem en t IK T s a re a va ila b le throug h y our a uthoriz eddea ler. S ta n da rd S ecuriL ock k ey s without rem ote en try tra n sm itterfun ction a lity ca n a lso b e purcha sed from y our a uthoriz ed dea ler ifdesired.A lwa y s ca rry a spa re k ey with y ou in ca se of a n em erg en cy .F or m ore in form a tion reg a rdin g prog ra m m in g repla cem en t IK T s, refer tothe SecuriLockp a s s iv e a n ti-th eft s y s tem section la ter in this cha pter.Note: Your vehicle’s IK T s wereissued with a n a dhesive securityla b el on them tha t providesim porta n t vehicle k ey cutin form a tion . It is recom m en ded tha ty ou m a in ta in the la b el in a sa fepla ce for future referen ce, such a sthe in side fron t cover of thisO w n er’s G uid e.2007 Fusion (fsn)O w ne rs G uid e (p ost-2002-fm t)U S A (fu s)L o c k s a n d Se c u r ity8 2

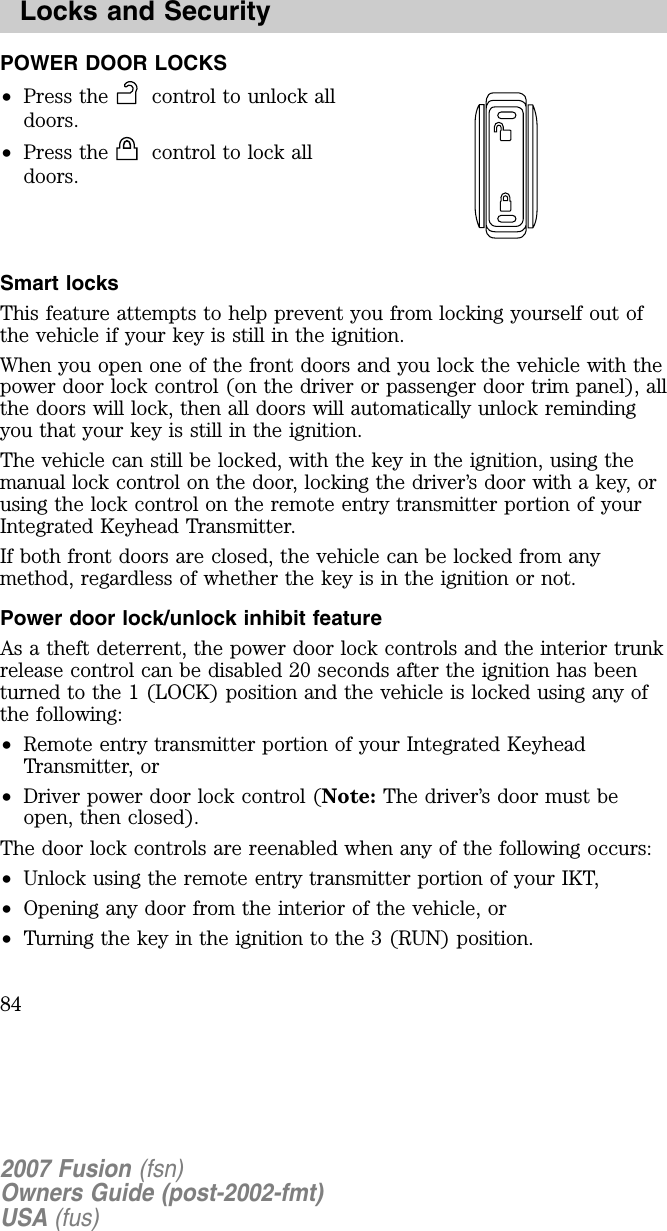

POWER DOOR LOCKS•Press the control to unlock alldoors.•Press the control to lock alldoors.Sm art locksThis feature attempts to help prevent you from locking yourself out ofthe vehicle if your key is still in the ignition.When you open one of the front doors and you lock the vehicle with thepower door lock control (on the driver or passenger door trim panel), allthe doors will lock, then all doors will automatically unlock remindingyou that your key is still in the ignition.The vehicle can still be locked, with the key in the ignition, using themanual lock control on the door, locking the driver’s door with a key, orusing the lock control on the remote entry transmitter portion of yourIntegrated Keyhead Transmitter.If both front doors are closed, the vehicle can be locked from anymethod, regardless of whether the key is in the ignition or not.Pow er door lock/unlock inh ib it featureAs a theft deterrent, the power door lock controls and the interior trunkrelease control can be disabled 20 seconds after the ignition has beenturned to the 1 (LOCK) position and the vehicle is locked using any ofthe following:•R emote entry transmitter portion of your Integrated KeyheadTransmitter, or•D river power door lock control (Note: The driver’s door must beopen, then closed).The door lock controls are reenabled when any of the following occurs:•U nlock using the remote entry transmitter portion of your IKT,•Opening any door from the interior of the vehicle, or•Turning the key in the ignition to the 3 (R U N ) position.2007 Fusion (fsn)Owners Guide (post-2002-fmt)USA (fus)Locks and Security84

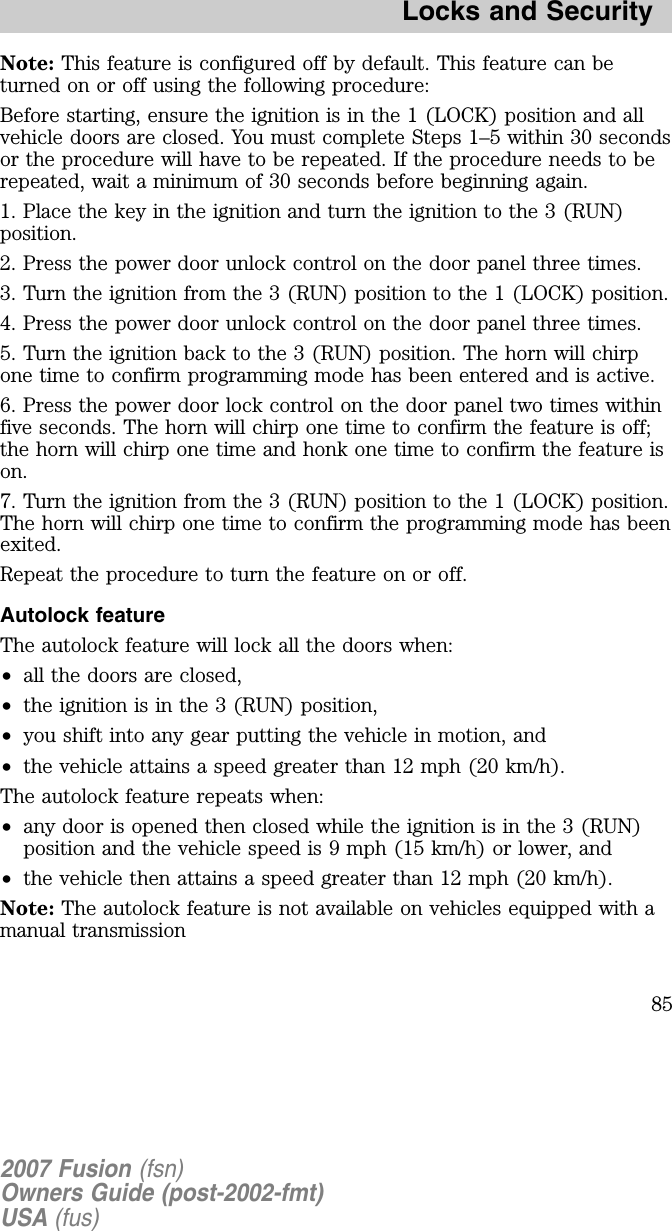

Note: This feature is configured off by default. This feature can beturned on or off using the following procedure:B efore starting, ensure the ignition is in the 1 (LOCK) position and allvehicle doors are closed. You must complete Steps 1– 5 within 30 secondsor the procedure will have to be repeated. If the procedure needs to berepeated, wait a minimum of 30 seconds before beginning again.1. Place the key in the ignition and turn the ignition to the 3 (RUN)position.2. Press the power door unlock control on the door panel three times.3. Turn the ignition from the 3 (RUN) position to the 1 (LOCK) position.4. Press the power door unlock control on the door panel three times.5 . Turn the ignition back to the 3 (RUN) position. The horn will chirpone time to confirm programming mode has been entered and is active.6 . Press the power door lock control on the door panel two times withinfive seconds. The horn will chirp one time to confirm the feature is off;the horn will chirp one time and honk one time to confirm the feature ison.7 . Turn the ignition from the 3 (RUN) position to the 1 (LOCK) position.The horn will chirp one time to confirm the programming mode has beenexited.Repeat the procedure to turn the feature on or off.Autolock featureThe autolock feature will lock all the doors when:•all the doors are closed,•the ignition is in the 3 (RUN) position,•you shift into any gear putting the vehicle in motion, and•the vehicle attains a speed greater than 12 mph (20 km/h).The autolock feature repeats when:•any door is opened then closed while the ignition is in the 3 (RUN)position and the vehicle speed is 9 mph (15 km/h) or lower, and•the vehicle then attains a speed greater than 12 mph (20 km/h).Note: The autolock feature is not available on vehicles equipped with amanual transmission2007 Fusion (fsn)Owners Guide (post-2002-fmt)USA (fus)Locks and Security85

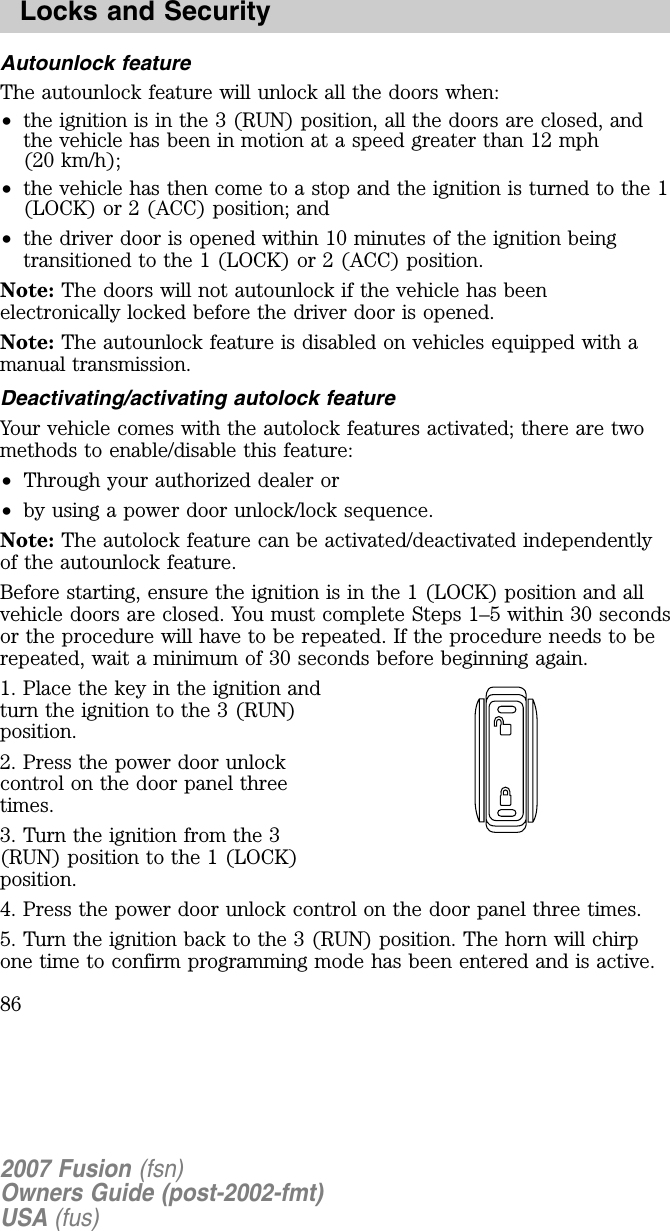

Autounlock featureThe autounlock feature will unlock all the doors when:•the ignition is in the 3 (RUN) position, all the doors are closed, andthe vehicle has been in motion at a speed greater than 12 mph(20 km/h);•the vehicle has then come to a stop and the ignition is turned to the 1(LOCK) or 2 (ACC) position; and•the driver door is opened within 10 minutes of the ignition beingtransitioned to the 1 (LOCK) or 2 (ACC) position.Note: The doors will not autounlock if the vehicle has beenelectronically locked before the driver door is opened.Note: The autounlock feature is disabled on vehicles equipped with amanual transmission.D eactiv ating /activ ating autolock featureYour vehicle comes with the autolock features activated; there are twomethods to enable/disable this feature:•Through your authorized dealer or•by using a power door unlock/lock sequence.Note: The autolock feature can be activated/deactivated independentlyof the autounlock feature.Before starting, ensure the ignition is in the 1 (LOCK) position and allvehicle doors are closed. You must complete Steps 1–5 within 30 secondsor the procedure will have to be repeated. If the procedure needs to berepeated, wait a minimum of 30 seconds before beginning again.1. Place the key in the ignition andturn the ignition to the 3 (RUN)position.2. Press the power door unlockcontrol on the door panel threetimes.3. Turn the ignition from the 3(RUN) position to the 1 (LOCK)position.4. Press the power door unlock control on the door panel three times.5. Turn the ignition back to the 3 (RUN) position. The horn will chirpone time to confirm programming mode has been entered and is active.2007 Fusion (fsn)Owners Guide (post-2002-fmt)USA (fus)Locks and Security86

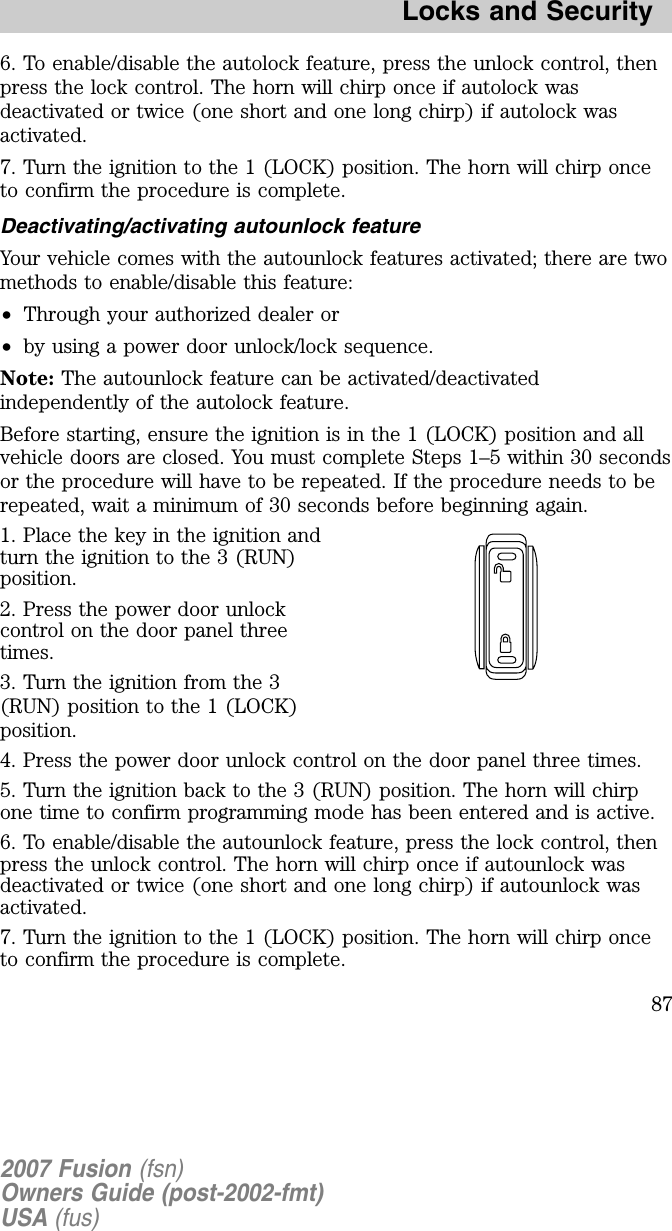

6. To enable/disable the autolock feature, press the unlock control, thenpress the lock control. The horn will chirp once if autolock wasdeactivated or twice (one short and one long chirp) if autolock wasactivated.7. Turn the ignition to the 1 (LOCK) position. The horn will chirp onceto confirm the procedure is complete.Deactivating/activating autounlock featureYour vehicle comes with the autounlock features activated; there are twomethods to enable/disable this feature:•Through your authorized dealer or•by using a power door unlock/lock sequence.Note: The autounlock feature can be activated/deactivatedindependently of the autolock feature.Before starting, ensure the ignition is in the 1 (LOCK) position and allvehicle doors are closed. You must complete Steps 1–5 within 30 secondsor the procedure will have to be repeated. If the procedure needs to berepeated, wait a minimum of 30 seconds before beginning again.1. Place the key in the ignition andturn the ignition to the 3 (RUN)position.2. Press the power door unlockcontrol on the door panel threetimes.3. Turn the ignition from the 3(RUN) position to the 1 (LOCK)position.4. Press the power door unlock control on the door panel three times.5. Turn the ignition back to the 3 (RUN) position. The horn will chirpone time to confirm programming mode has been entered and is active.6. To enable/disable the autounlock feature, press the lock control, thenpress the unlock control. The horn will chirp once if autounlock wasdeactivated or twice (one short and one long chirp) if autounlock wasactivated.7. Turn the ignition to the 1 (LOCK) position. The horn will chirp onceto confirm the procedure is complete.2007 Fusion (fsn)Owners Guide (post-2002-fmt)USA (fus)Locks and Security87

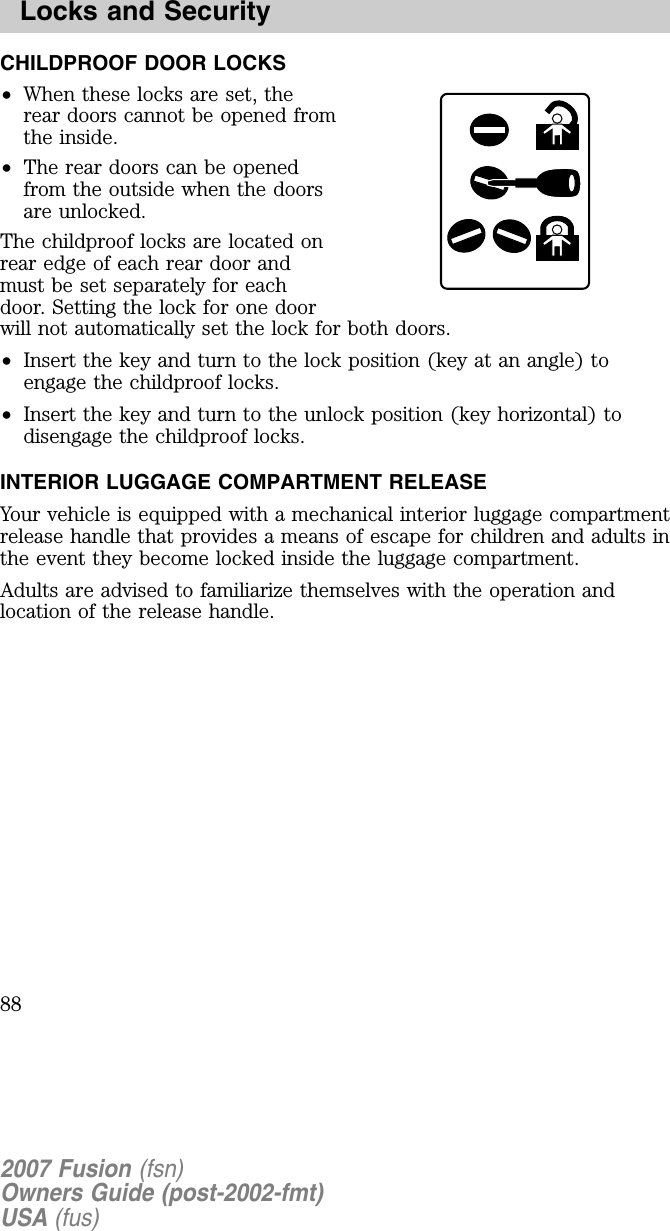

CHILDPROOF DOOR LOCKS•When these locks are set, therear doors cannot be opened fromthe inside.•The rear doors can be openedfrom the outside when the doorsare unlocked.The childproof locks are located onrear edge of each rear door andmust be set separately for eachdoor. Setting the lock for one doorwill not automatically set the lock for both doors.•Insert the key and turn to the lock position (key at an angle) toengage the childproof locks.•Insert the key and turn to the unlock position (key horizontal) todisengage the childproof locks.INTERIOR LU GGAGE COMPARTMENT RELEASEYour vehicle is equipped with a mechanical interior luggage compartmentrelease handle that provides a means of escape for children and adults inthe event they become locked inside the luggage compartment.Adults are advised to familiarize themselves with the operation andlocation of the release handle.2007 Fusion (fsn)Owners Guide (post-2002-fmt)USA (fus)Locks and Security88

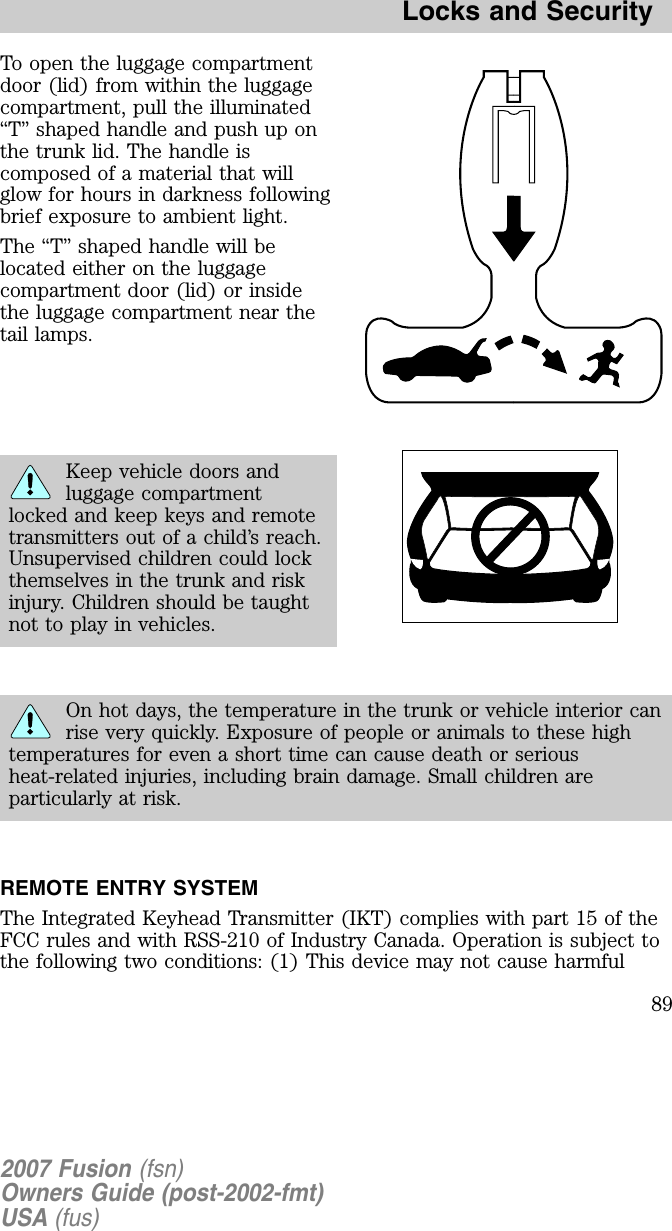

To open the luggage compartmentdoor (lid) from within the luggagecompartment, pull the illuminated“ T” shaped handle and push up onthe trunk lid. The handle iscomposed of a material that willglow for hours in darkness followingbrief exposure to ambient light.The “ T” shaped handle will belocated either on the luggagecompartment door (lid) or insidethe luggage compartment near thetail lamps.Keep vehicle doors andluggage compartmentlocked and keep keys and remotetransmitters out of a child’s reach.Unsupervised children could lockthemselves in the trunk and riskinjury. Children should be taughtnot to play in vehicles.On hot days, the temperature in the trunk or vehicle interior canrise very quickly. E xposure of people or animals to these hightemperatures for even a short time can cause death or seriousheat-related injuries, including brain damage. Small children areparticularly at risk.REMOTE ENTRY SYSTEMThe Integrated Keyhead Transmitter (IKT) complies with part 15 of theFCC rules and with RSS-210 of Industry Canada. Operation is subject tothe following two conditions: (1) This device may not cause harmful2007 Fusion (fsn)Owners Guide (post-2002-fmt)USA (fus)Locks and Security89

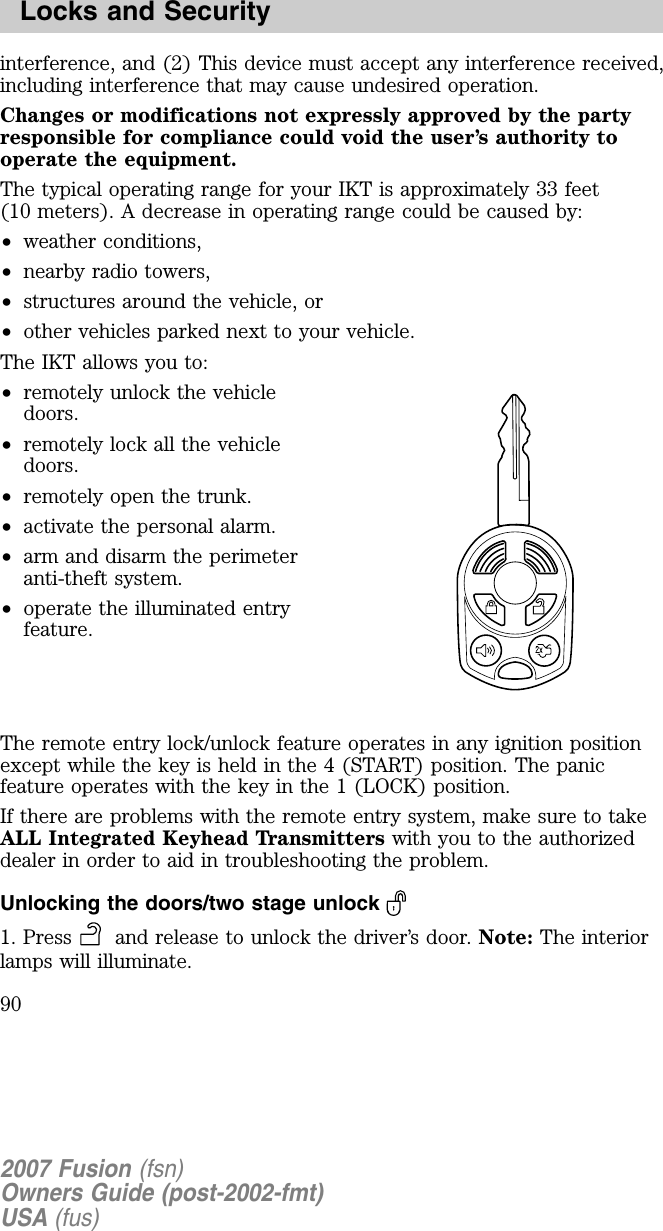

interference, and (2) This device must accept any interference received,including interference that may cause undesired operation.Changes or modifications not expressly approved by the partyresponsible for compliance cou ld void the u ser’s au thority tooperate the eq u ipment.The typical operating range for your IKT is approximately 33 feet(10 meters). A decrease in operating range could be caused by:•weather conditions,•nearby radio towers,•structures around the vehicle, or•other vehicles parked next to your vehicle.The IKT allows you to:•remotely unlock the vehicledoors.•remotely lock all the vehicledoors.•remotely open the trunk.•activate the personal alarm.•arm and disarm the perimeteranti-theft system.•operate the illuminated entryfeature.The remote entry lock/unlock feature operates in any ignition positionexcept while the key is held in the 4 (START) position. The panicfeature operates with the key in the 1 (LOCK) position.If there are problems with the remote entry system, make sure to takeA L L I ntegrated K eyhead T ransmitters with you to the authorizeddealer in order to aid in troubleshooting the problem.Unlocking the doors/two stage unlock1. Press and release to unlock the driver’s door. Note: The interiorlamps will illuminate.2007 Fusion (fsn)Owners Guide (post-2002-fmt)USA (fus)Locks and Security90

2. Press and release again within five seconds to unlock all the doors.The remote entry system activates the illuminated entry feature; thisfeature turns on the lamps for 25 seconds or until the ignition is turnedto the 3 (RUN) position.The inside lights will not turn off if:•they have been turned on using the dimmer control or•any door is open.The battery saver feature will turn off the interior lamps 30 minutes afterthe ignition is turned to the 1 (LOCK) position.Two stage unlocking may be disabled or re-enabled by simultaneouslypressing the and controls on the IKT for four seconds (disablingtwo stage unlock allows all vehicle doors to unlock simultaneously). Theturn lamps will flash twice to indicate that two-stage unlock was enabledor disabled.Locking the doors1. Press and release to lock all the doors. The turn lamps will flash.2. Press and release again within three seconds to confirm that allthe doors are closed. Note: The doors will lock again, the horn will chirpand the turn lamps will flash once if all the doors and trunk are closed.Note: If any door or the trunk is not closed, or if the hood is not closedin vehicles equipped with the perimeter alarm feature, the horn willchirp twice and the lamps will not flash.Car finderPress twice within 3 seconds. The horn will chirp and the turn lampswill flash. It is recommended that this method be used to locate yourvehicle, rather than using the panic alarm.Sounding a p anic alarmPress and hold for 1.5 seconds to activate the alarm. The horn willsound and the turn lamps will flash for a maximum of 3 minutes. Thealarm can be deactivated with a short press and release of , byturning the ignition to RUN, or by allowing the alarm to time out after 3minutes.Note: The panic alarm will only operate when the ignition is in the 1(LOCK) position.2007 Fusion (fsn)Owners Guide (post-2002-fmt)USA (fus)Locks and Security91

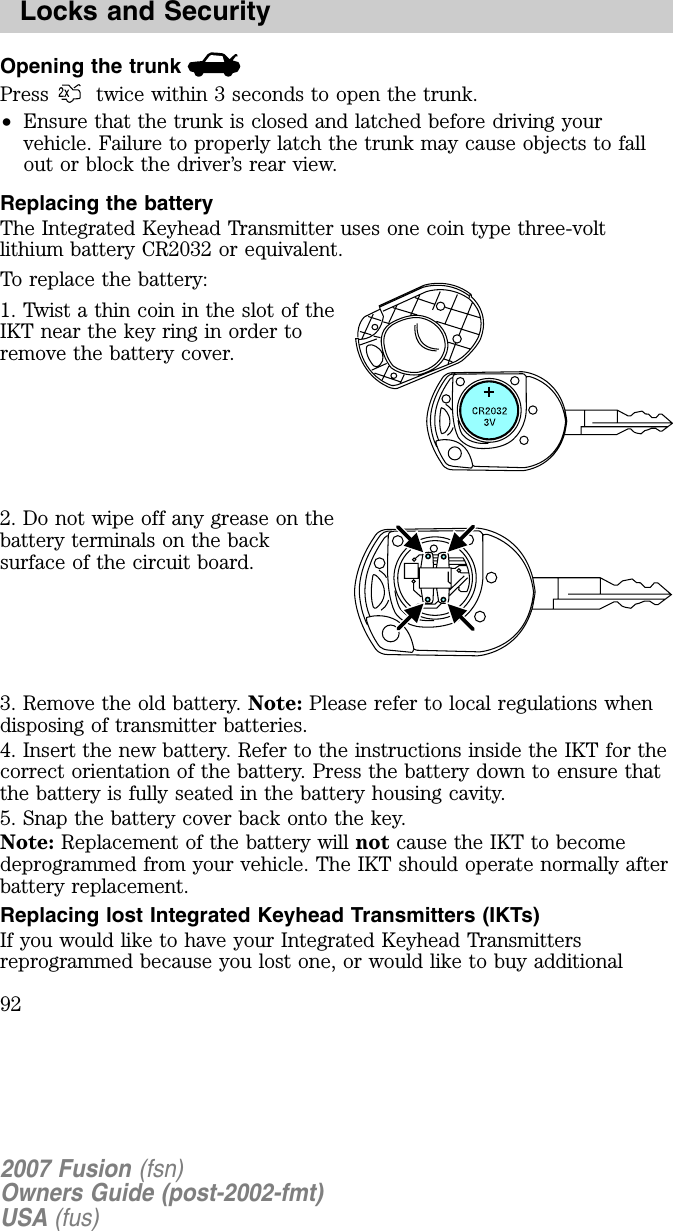

Opening the trunkPress twice within 3 seconds to open the trunk.•Ensure that the trunk is closed and latched before driving yourvehicle. Failure to properly latch the trunk may cause objects to fallout or block the driver’s rear view.Replacing the batteryThe Integrated Keyhead Transmitter uses one coin type three-voltlithium battery CR2032 or equivalent.To replace the battery:1. Twist a thin coin in the slot of theIKT near the key ring in order toremove the battery cover.2. Do not wipe off any grease on thebattery terminals on the backsurface of the circuit board.3. Remove the old battery. Note: Please refer to local regulations whendisposing of transmitter batteries.4. Insert the new battery. Refer to the instructions inside the IKT for thecorrect orientation of the battery. Press the battery down to ensure thatthe battery is fully seated in the battery housing cavity.5. Snap the battery cover back onto the key.Note: Replacement of the battery will not cause the IKT to becomedeprogrammed from your vehicle. The IKT should operate normally afterbattery replacement.Replacing lost Integrated Keyhead Transmitters (IKTs)If you would like to have your Integrated Keyhead Transmittersreprogrammed because you lost one, or would like to buy additional2007 Fusion (fsn)Owners Guide (post-2002-fmt)USA (fus)Locks and Security92

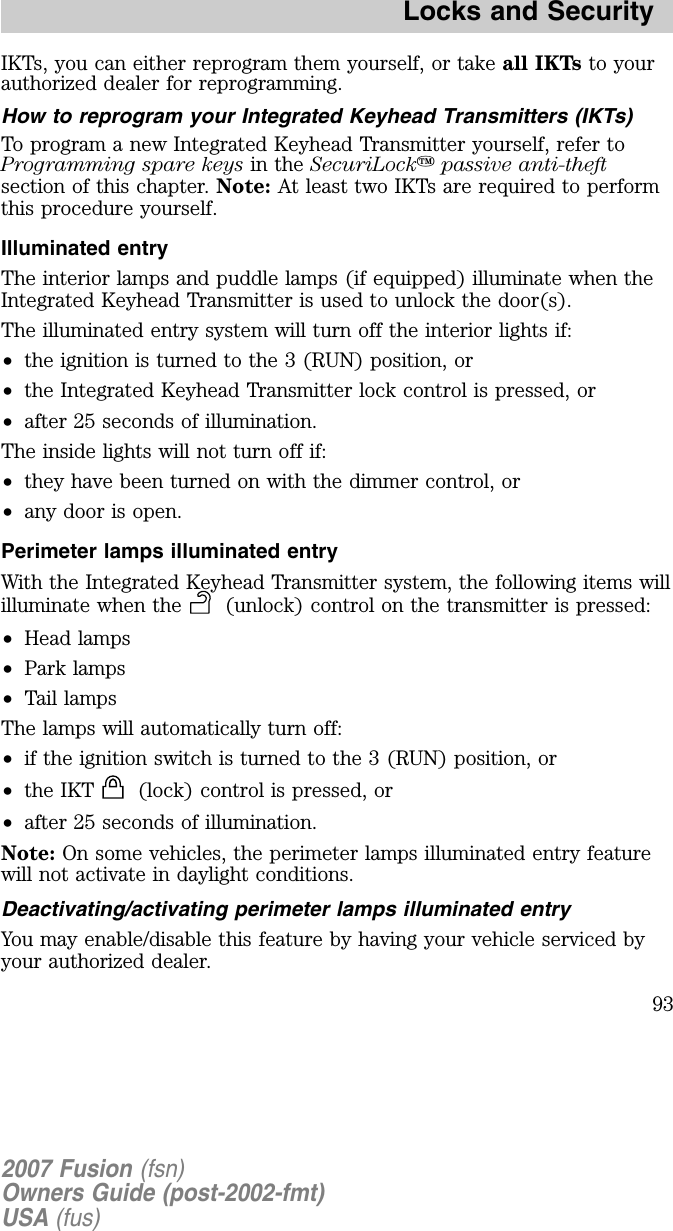

IKTs, you can either reprogram them yourself, or take all IKTs to yourauthorized dealer for reprogramming.How to reprogram your Integrated Keyhead Transmitters (IKTs)To program a new Integrated Keyhead Transmitter yourself, refer toProgramming spare keys in the SecuriLockpassive anti-theftsection of this chapter. Note: At least two IKTs are required to performthis procedure yourself.Illuminated entryThe interior lamps and puddle lamps (if equipped) illuminate when theIntegrated Keyhead Transmitter is used to unlock the door(s).The illuminated entry system will turn off the interior lights if:•the ignition is turned to the 3 (RUN) position, or•the Integrated Keyhead Transmitter lock control is pressed, or•after 25 seconds of illumination.The inside lights will not turn off if:•they have been turned on with the dimmer control, or•any door is open.Perimeter lamps illuminated entryWith the Integrated Keyhead Transmitter system, the following items willilluminate when the (unlock) control on the transmitter is pressed:•H ead lamps•Park lamps•Tail lampsThe lamps will automatically turn off:•if the ignition switch is turned to the 3 (RUN) position, or•the IKT (lock) control is pressed, or•after 25 seconds of illumination.Note: On some vehicles, the perimeter lamps illuminated entry featurewill not activate in daylight conditions.Deactivating/activating perimeter lamps illuminated entryYou may enable/disable this feature by having your vehicle serviced byyour authorized dealer.2007 Fusion (fsn)Owners Guide (post-2002-fmt)USA (fus)Locks and Security93

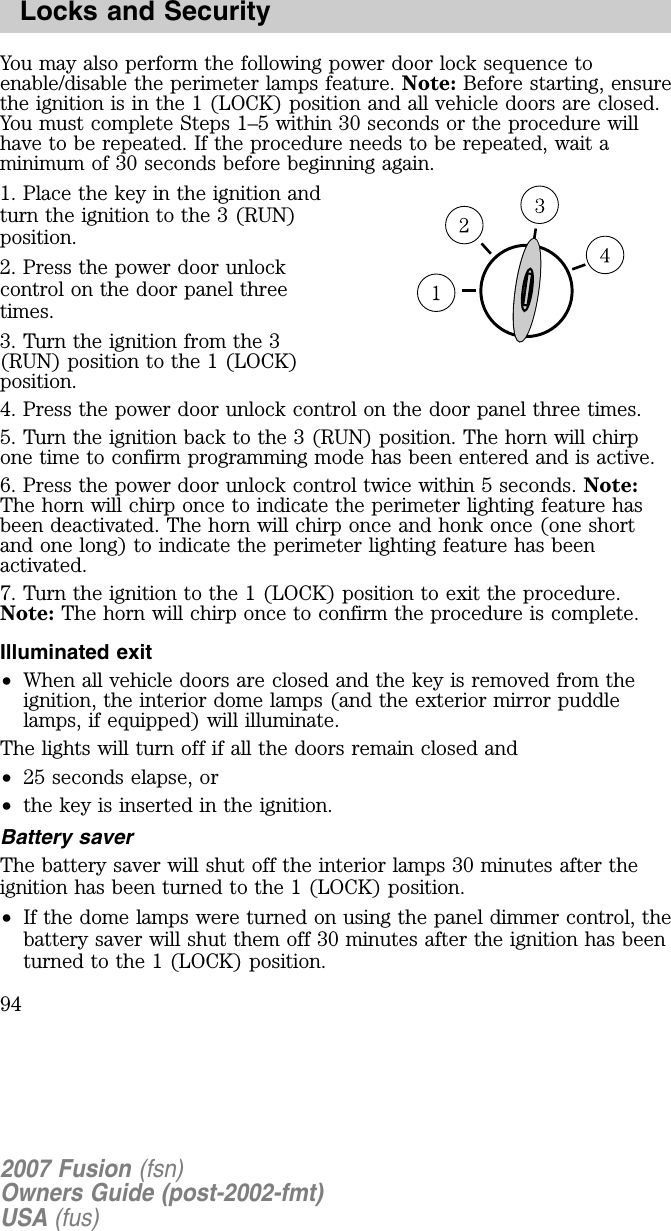

You may also perform the following power door lock sequence toenable/disable the perimeter lamps feature. Note: Before starting, ensurethe ignition is in the 1 (LOCK) position and all vehicle doors are closed.You must complete Steps 1–5 within 30 seconds or the procedure willhave to be repeated. If the procedure needs to be repeated, wait aminimum of 30 seconds before beginning again.1. Place the key in the ignition andturn the ignition to the 3 (RUN)position.2. Press the power door unlockcontrol on the door panel threetimes.3. Turn the ignition from the 3(RUN) position to the 1 (LOCK)position.4. Press the power door unlock control on the door panel three times.5. Turn the ignition back to the 3 (RUN) position. The horn will chirpone time to confirm programming mode has been entered and is active.6. Press the power door unlock control twice within 5 seconds. Note:The horn will chirp once to indicate the perimeter lighting feature hasbeen deactivated. The horn will chirp once and honk once (one shortand one long) to indicate the perimeter lighting feature has beenactivated.7. Turn the ignition to the 1 (LOCK) position to exit the procedure.Note: The horn will chirp once to confirm the procedure is complete.Illuminated exit•When all vehicle doors are closed and the key is removed from theignition, the interior dome lamps (and the exterior mirror puddlelamps, if equipped) will illuminate.The lights will turn off if all the doors remain closed and•25 seconds elapse, or•the key is inserted in the ignition.Battery saverThe battery saver will shut off the interior lamps 30 minutes after theignition has been turned to the 1 (LOCK) position.•If the dome lamps were turned on using the panel dimmer control, thebattery saver will shut them off 30 minutes after the ignition has beenturned to the 1 (LOCK) position.2007 Fusion (fsn)Owners Guide (post-2002-fmt)USA (fus)Locks and Security94
