ALPS ALPINE WE1G0003 Straight Key FOB User Manual Short Term Confidential

Alps Electric Co., Ltd. Straight Key FOB Short Term Confidential

(Short-Term Confidential) User Manual

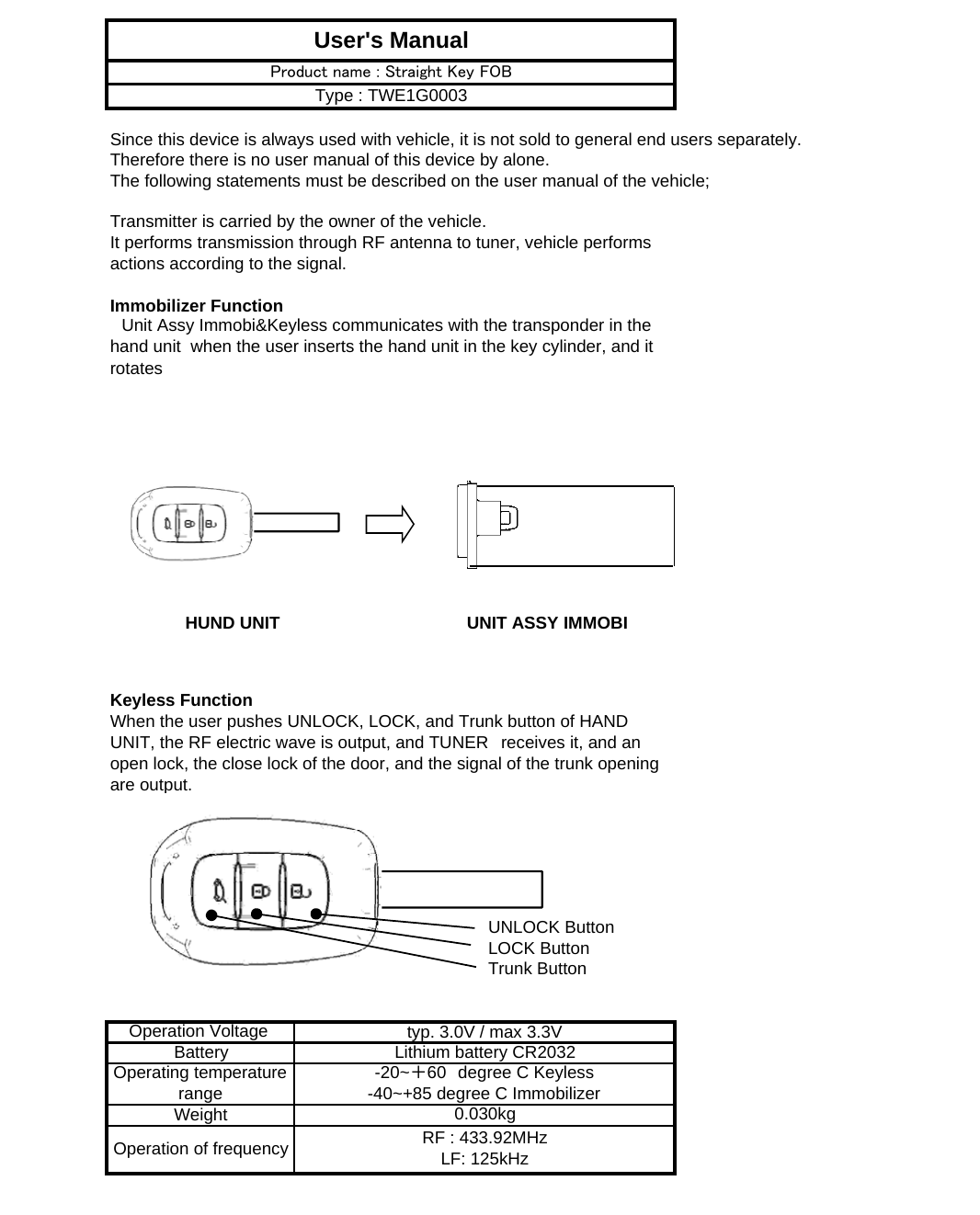

Since this device is always used with vehicle, it is not sold to general end users separately.Therefore there is no user manual of this device by alone.The following statements must be described on the user manual of the vehicle;Immobilizer FunctionKeyless FunctionUNLOCK ButtonLOCK ButtonTrunk ButtonUser's ManualTransmitter is carried by the owner of the vehicle.It performs transmission through RF antenna to tuner, vehicle performsactions according to the signal.　Unit Assy Immobi&Keyless communicates with the transponder in thehand unit when the user inserts the hand unit in the key cylinder, and itrotatesProduct name : Straight Key FOBType : TWE1G0003Lithium battery CR2032typ. 3.0V / max 3.3VBatteryWeightOperation of frequency RF : 433.92MHzLF: 125kHzWhen the user pushes UNLOCK, LOCK, and Trunk button of HANDUNIT, the RF electric wave is output, and TUNER　receives it, and anopen lock, the close lock of the door, and the signal of the trunk openingare output.0.030kgOperating temperaturerange-20~＋60　degree C Keyless-40~+85 degree C ImmobilizerOperation Voltage HUND UNIT UNIT ASSY IMMOBI
■CAUTION■Procedure to check Model name, FCC ID and IC Number.1. Remove the half cover with a flathead screwdriver.2. Take out a PWB from the half cover.3. FCC ID and IC Number are written on the button side of PWB.Procedure to check CE Marking.1. Remove the half cover with a flathead screwdriver.2. CE Marking is written on the inside of half cover.・Give a shock.・Get it wet. If it got wet, wipe and dry up.・Disassembly and modification. This device complies with Part 15 of FCC Rules and RSS-Gen of ICRules. Operation is subject to the following two conditions: (1) this devicemay not cause interference, and (2) this device must accept anyinterference, including interference that may cause undesired operationof this device.FCC WARNINGChanges or modifications not expressly approved by the partyresponsible for compliance could void the user’s authority to operate theequipment. Replace only with the same or equivalent type-CAUTION - Do not exposed to excessive heat such as sunshine, fire or the like.-CAUTION - Danger of explosion if battery is incorrectly replaced. Please DO NOT the following. Engine is not started by failure ofelectronic parts. (Product can not receive the signal correctly) Pay attention to the following.・It may not be operated when using the equipment of the samefrequency band in the vicinity.half cover PWBModel nameFCC IDandIChalf cover CEMarking
