AOB 1082250 Electrical Powder Dropper User Manual

Battenfeld Acquisition Company Inc. & Subsidiary Electrical Powder Dropper

User Manual

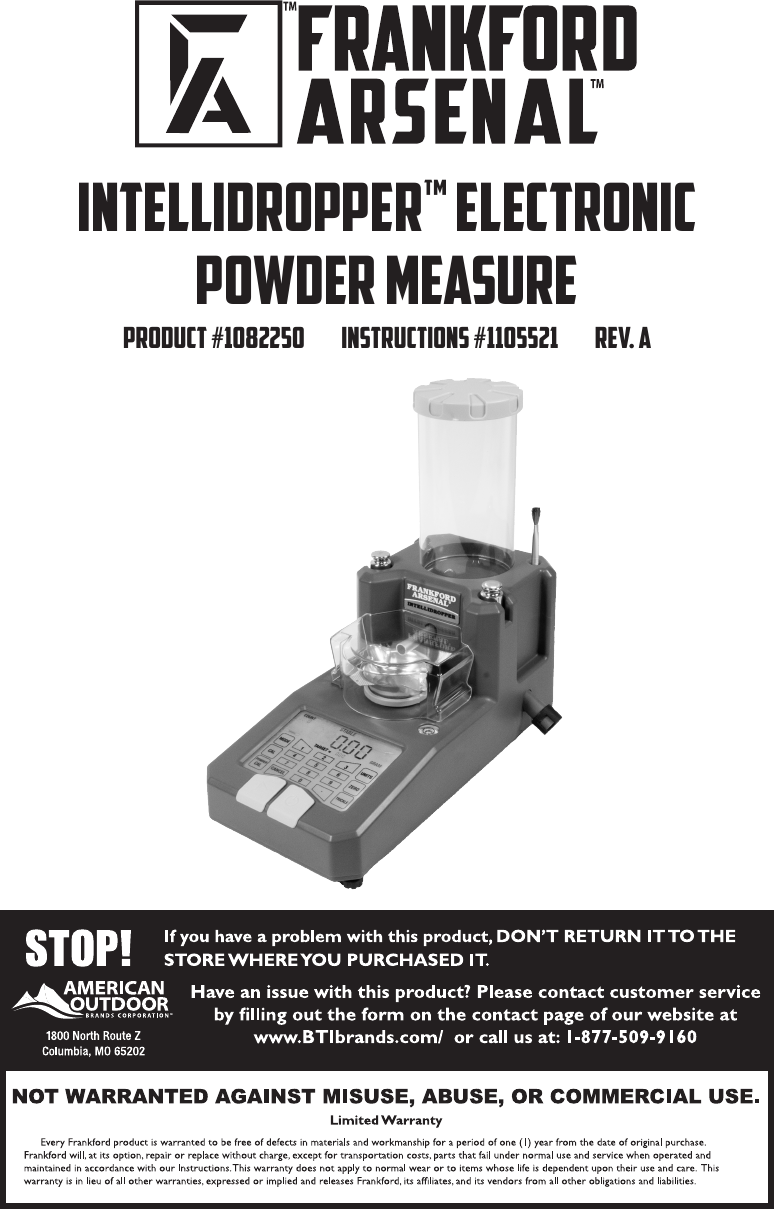

INTELLIDROPPER™ ELECTRONIC POWDER MEASUREProduct #1082250 Instructions #1105521 Rev. A

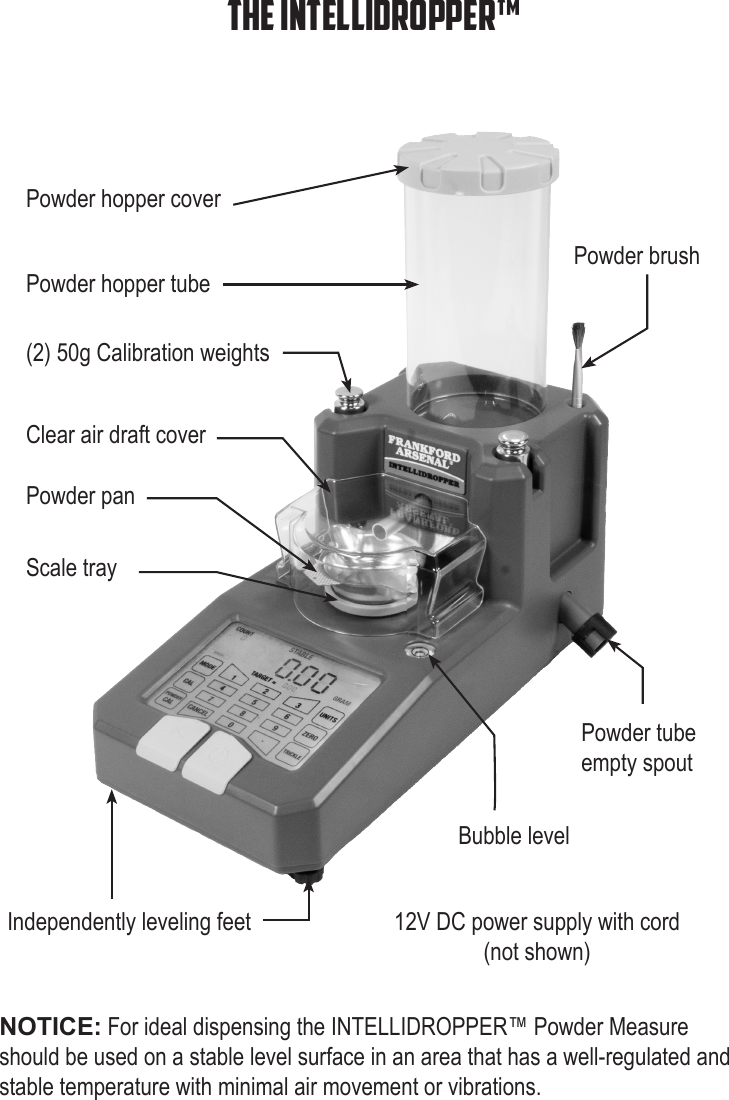

Powder hopper coverPowder hopper tubePowder panScale tray(2) 50g Calibration weightsClear air draft coverPowder tube empty spoutPowder brush12V DC power supply with cord (not shown)Bubble levelIndependently leveling feetNOTICE: For ideal dispensing the INTELLIDROPPER™ Powder Measure should be used on a stable level surface in an area that has a well-regulated and stable temperature with minimal air movement or vibrations.the INTELLIDROPPER™

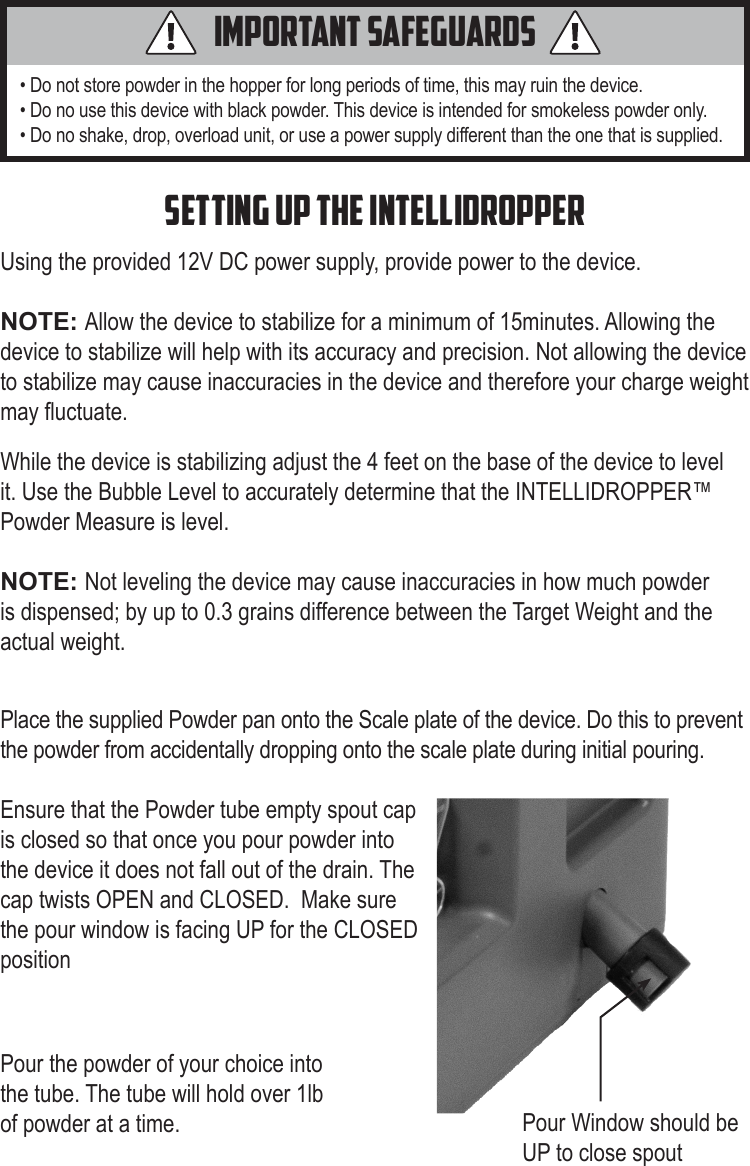

• Do not store powder in the hopper for long periods of time, this may ruin the device. • Do no use this device with black powder. This device is intended for smokeless powder only. • Do no shake, drop, overload unit, or use a power supply different than the one that is supplied. Using the provided 12V DC power supply, provide power to the device. NOTE: Allow the device to stabilize for a minimum of 15minutes. Allowing the device to stabilize will help with its accuracy and precision. Not allowing the device to stabilize may cause inaccuracies in the device and therefore your charge weight may uctuate. Important Safeguardssetting up the INTELLIDROPPERWhile the device is stabilizing adjust the 4 feet on the base of the device to level it. Use the Bubble Level to accurately determine that the INTELLIDROPPER™ Powder Measure is level.NOTE: Not leveling the device may cause inaccuracies in how much powder is dispensed; by up to 0.3 grains difference between the Target Weight and the actual weight. Place the supplied Powder pan onto the Scale plate of the device. Do this to prevent the powder from accidentally dropping onto the scale plate during initial pouring.Ensure that the Powder tube empty spout cap is closed so that once you pour powder into the device it does not fall out of the drain. The cap twists OPEN and CLOSED. Make sure the pour window is facing UP for the CLOSED positionPour Window should be UP to close spoutPour the powder of your choice into the tube. The tube will hold over 1lb of powder at a time.

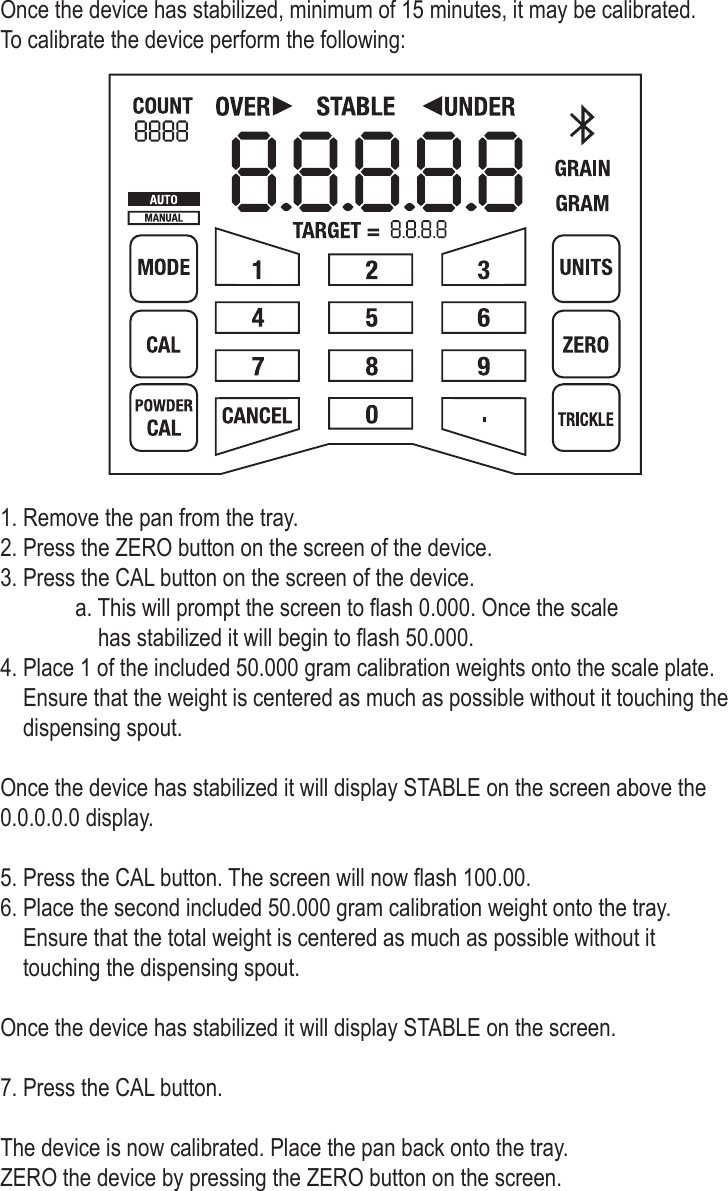

Once the device has stabilized, minimum of 15 minutes, it may be calibrated. To calibrate the device perform the following:1. Remove the pan from the tray.2. Press the ZERO button on the screen of the device. 3. Press the CAL button on the screen of the device. a. This will prompt the screen to ash 0.000. Once the scale has stabilized it will begin to ash 50.000.4. Place 1 of the included 50.000 gram calibration weights onto the scale plate. Ensure that the weight is centered as much as possible without it touching the dispensing spout. Once the device has stabilized it will display STABLE on the screen above the0.0.0.0.0 display.5. Press the CAL button. The screen will now ash 100.00.6. Place the second included 50.000 gram calibration weight onto the tray. Ensure that the total weight is centered as much as possible without it touching the dispensing spout. Once the device has stabilized it will display STABLE on the screen.7. Press the CAL button.The device is now calibrated. Place the pan back onto the tray. ZERO the device by pressing the ZERO button on the screen.

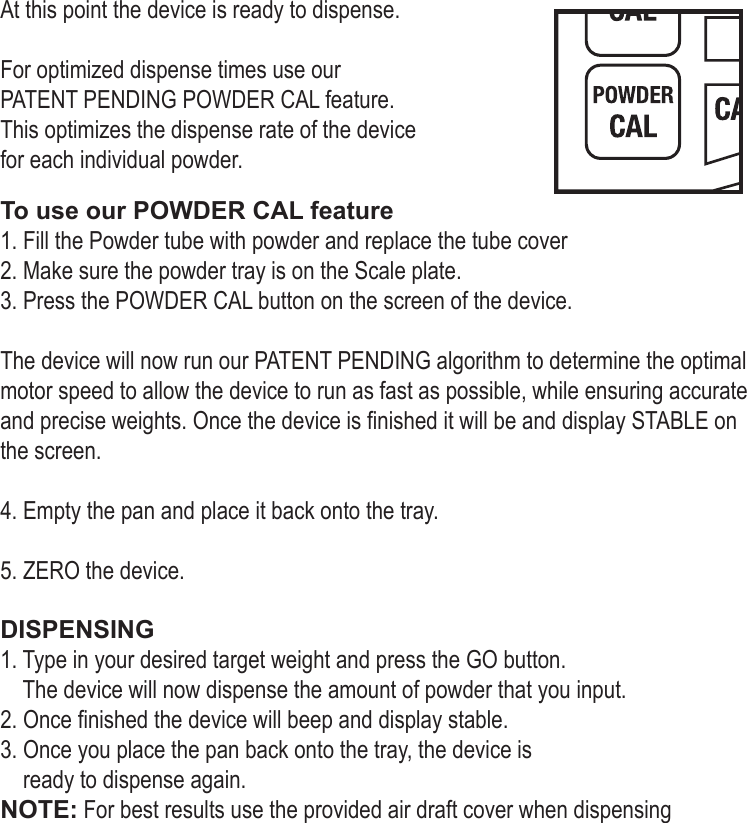

At this point the device is ready to dispense. For optimized dispense times use our PATENT PENDING POWDER CAL feature. This optimizes the dispense rate of the device for each individual powder. To use our POWDER CAL feature 1. Fill the Powder tube with powder and replace the tube cover2. Make sure the powder tray is on the Scale plate.3. Press the POWDER CAL button on the screen of the device. The device will now run our PATENT PENDING algorithm to determine the optimal motor speed to allow the device to run as fast as possible, while ensuring accurate and precise weights. Once the device is nished it will be and display STABLE on the screen. 4. Empty the pan and place it back onto the tray. 5. ZERO the device. DISPENSING1. Type in your desired target weight and press the GO button. The device will now dispense the amount of powder that you input. 2. Once nished the device will beep and display stable. 3. Once you place the pan back onto the tray, the device is ready to dispense again. NOTE: For best results use the provided air draft cover when dispensing

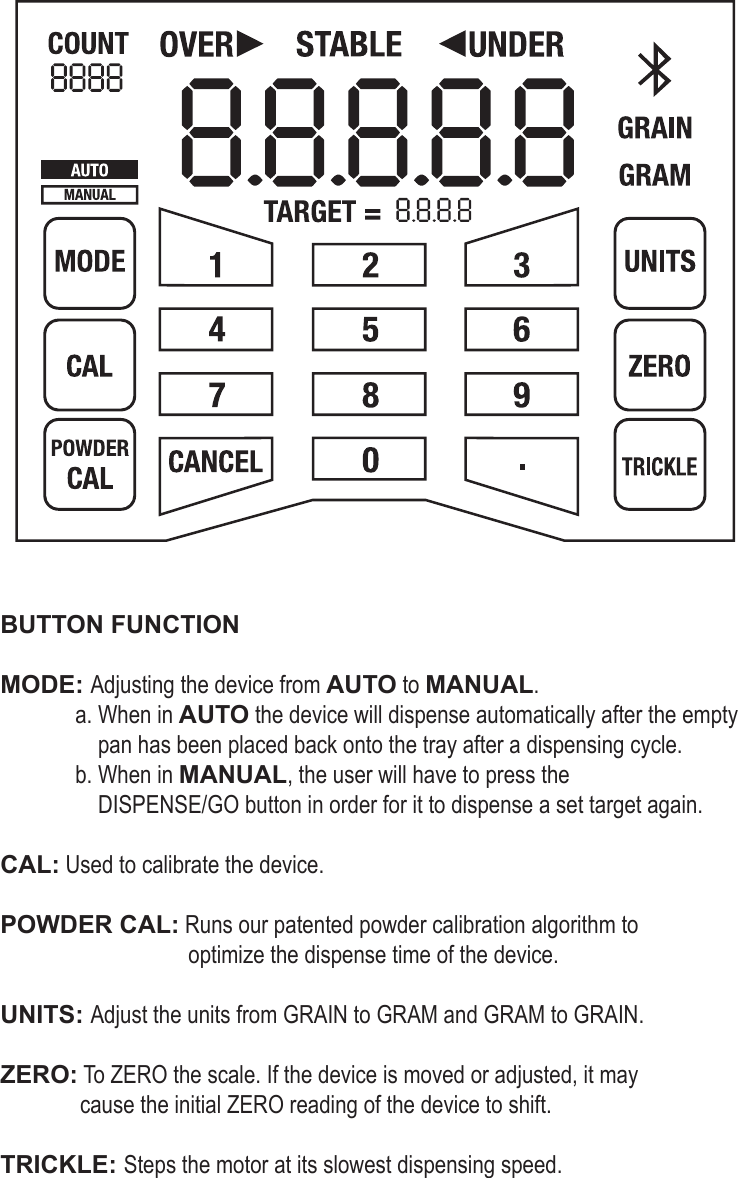

BUTTON FUNCTIONMODE: Adjusting the device from AUTO to MANUAL. a. When in AUTO the device will dispense automatically after the empty pan has been placed back onto the tray after a dispensing cycle. b. When in MANUAL, the user will have to press the DISPENSE/GO button in order for it to dispense a set target again. CAL: Used to calibrate the device. POWDER CAL: Runs our patented powder calibration algorithm to optimize the dispense time of the device. UNITS: Adjust the units from GRAIN to GRAM and GRAM to GRAIN. ZERO: To ZERO the scale. If the device is moved or adjusted, it may cause the initial ZERO reading of the device to shift. TRICKLE: Steps the motor at its slowest dispensing speed.

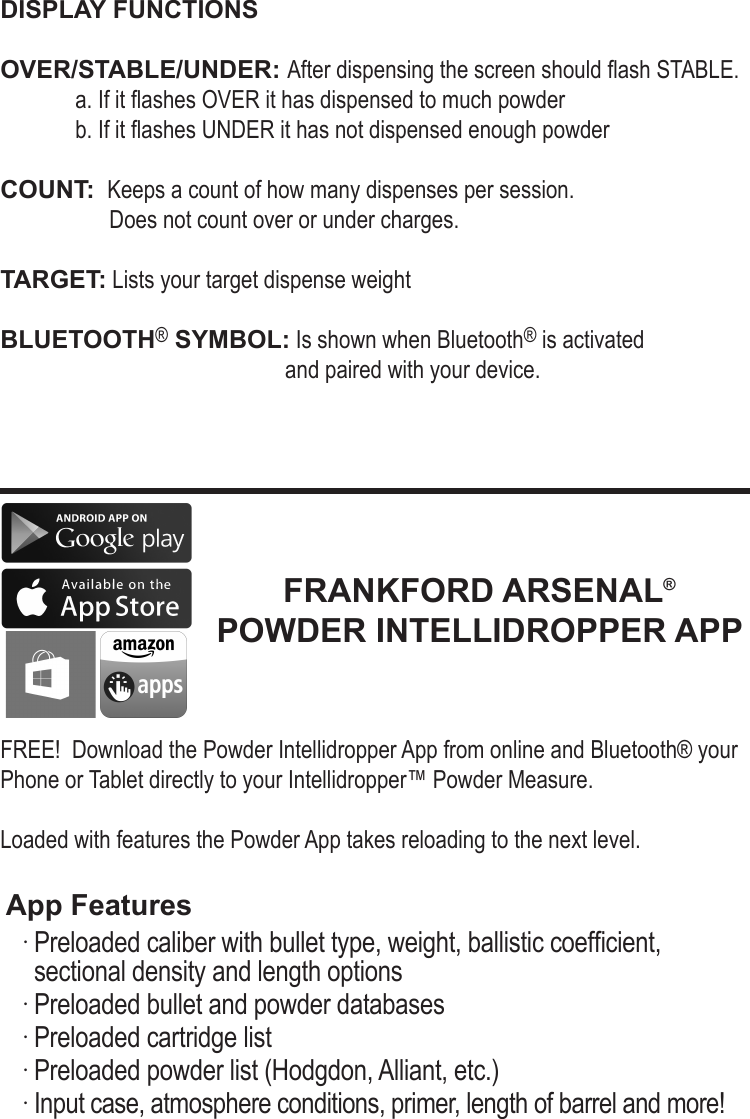

DISPLAY FUNCTIONSOVER/STABLE/UNDER: After dispensing the screen should ash STABLE. a. If it ashes OVER it has dispensed to much powder b. If it ashes UNDER it has not dispensed enough powderCOUNT: Keeps a count of how many dispenses per session. Does not count over or under charges.TARGET: Lists your target dispense weightBLUETOOTH® SYMBOL: Is shown when Bluetooth® is activated and paired with your device.FRANKFORD ARSENAL® POWDER INTELLIDROPPER APPFREE! Download the Powder Intellidropper App from online and Bluetooth® your Phone or Tablet directly to your Intellidropper™ Powder Measure.Loaded with features the Powder App takes reloading to the next level.App Features ·Preloaded caliber with bullet type, weight, ballistic coefcient, sectional density and length options ·Preloaded bullet and powder databases ·Preloaded cartridge list ·Preloaded powder list (Hodgdon, Alliant, etc.) ·Input case, atmosphere conditions, primer, length of barrel and more!

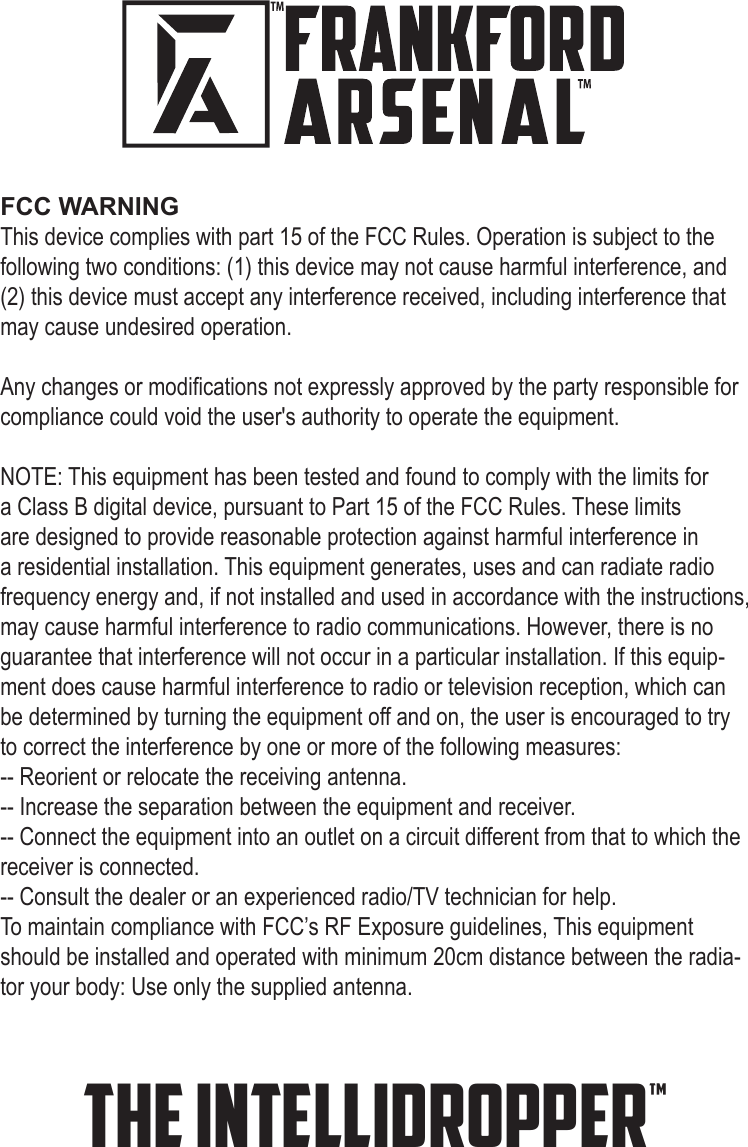

the INTELLIDROPPER™FCC WARNINGThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Any changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equip-ment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum 20cm distance between the radia-tor your body: Use only the supplied antenna.
