Bluetooth Wireless Stereo SolutionUser Manual (GBMA201, GBMH201, GBMHKIT)

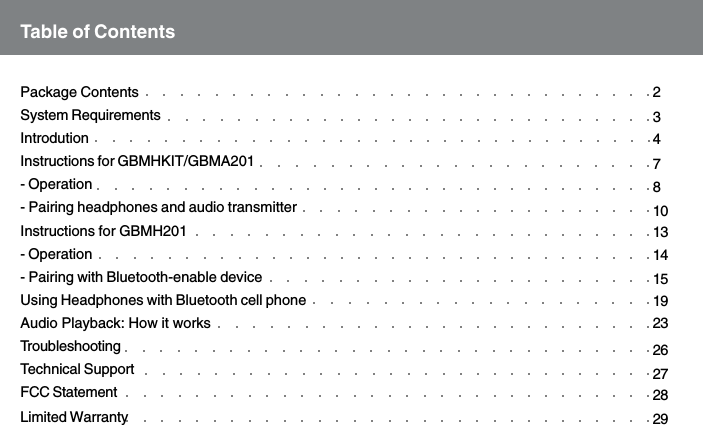

Package ContentsSystem RequirementsIntrodutionInstructions for GBMHKIT/GBMA201- Operation- Pairing headphones and audio transmitterInstructions for GBMH201- Operation- Pairing with Bluetooth-enable deviceUsing Headphones with Bluetooth cell phoneAudio Playback: How it worksTroubleshootingTechnical SupportFCC StatementLimited WarrantyTable of Contents2347810131415192326272829

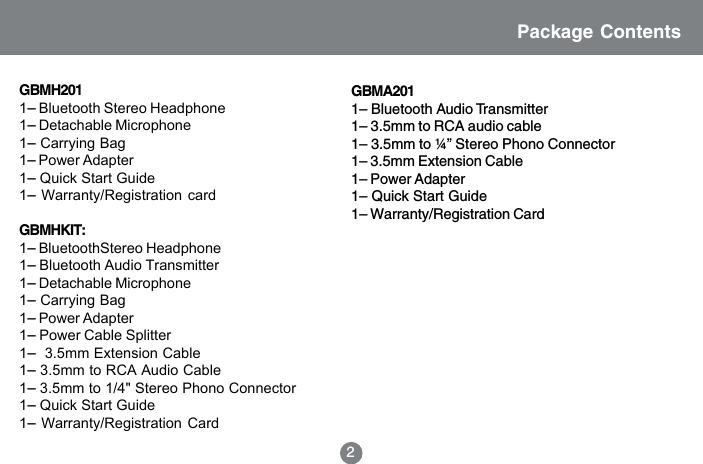

2GBMH2011– Bluetooth Stereo Headphone1– Detachable Microphone1– Carrying Bag1– Power Adapter1– Quick Start Guide1– Warranty/Registration cardGBMHKIT:1– BluetoothStereo Headphone1– Bluetooth Audio Transmitter1– Detachable Microphone1– Carrying Bag1– Power Adapter1– Power Cable Splitter1– 3.5mm Extension Cable1– 3.5mm to RCA Audio Cable1– 3.5mm to 1/4" Stereo Phono Connector1– Quick Start Guide1– Warranty/Registration CardPackage ContentsGBMA2011– Bluetooth Audio Transmitter1– 3.5mm to RCA audio cable1– 3.5mm to ¼” Stereo Phono Connector1– 3.5mm Extension Cable1– Power Adapter1– Quick Start Guide1– Warranty/Registration Card

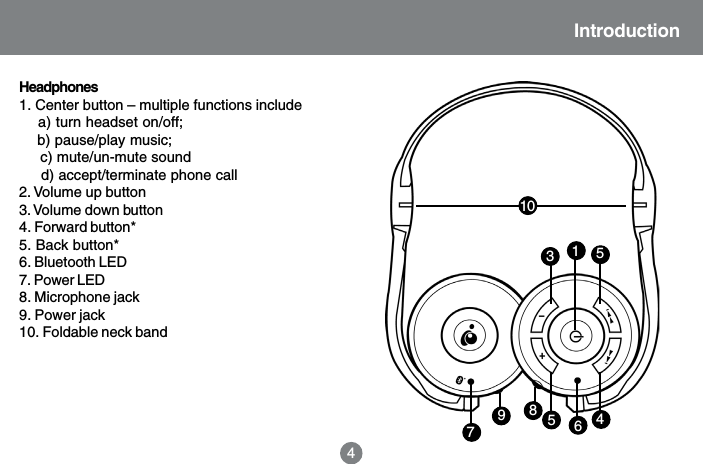

IntroductionHeadphones1. Center button – multiple functions include a) turn headset on/off; b) pause/play music; c) mute/un-mute sound d) accept/terminate phone call2. Volume up button3. Volume down button4. Forward button*5. Back button*6. Bluetooth LED7. Power LED8. Microphone jack9. Power jack10. Foldable neck band410315465897

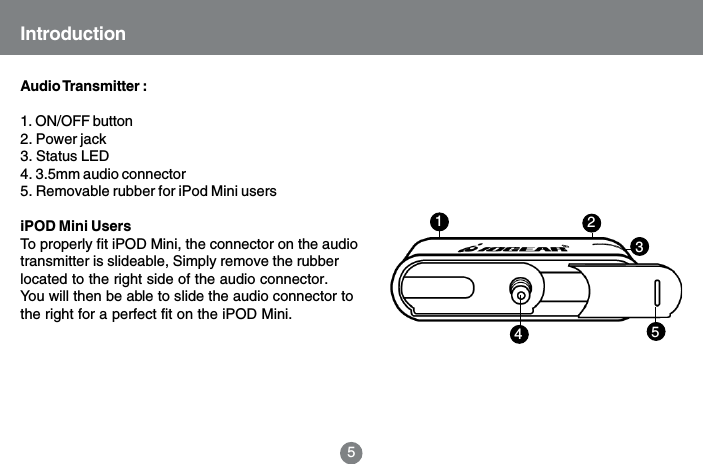

IntroductionAudio Transmitter :1. ON/OFF button2. Power jack3. Status LED4. 3.5mm audio connector5. Removable rubber for iPod Mini usersiPOD Mini UsersTo properly fit iPOD Mini, the connector on the audiotransmitter is slideable, Simply remove the rubberlocated to the right side of the audio connector.You will then be able to slide the audio connector tothe right for a perfect fit on the iPOD Mini.521453

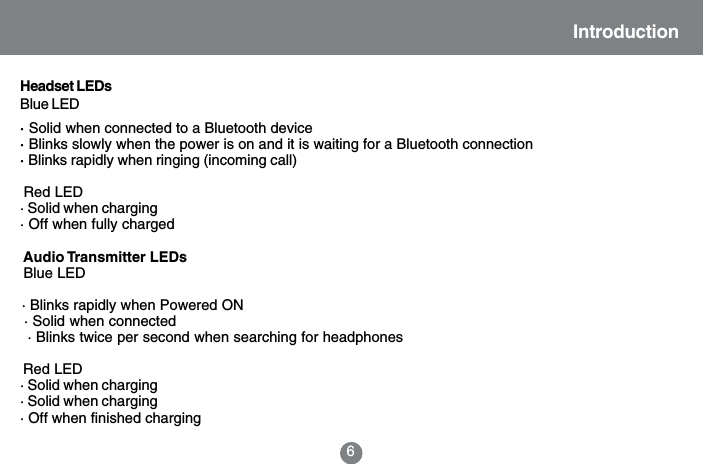

Introduction· Solid when connected to a Bluetooth device· Blinks slowly when the power is on and it is waiting for a Bluetooth connection· Blinks rapidly when ringing (incoming call) Red LED· Solid when charging· Off when fully charged Audio Transmitter LEDs Blue LED · Blinks rapidly when Powered ON · Solid when connected · Blinks twice per second when searching for headphones Red LED· Solid when charging· Solid when charging· Off when finished charging6Headset LEDsBlue LED

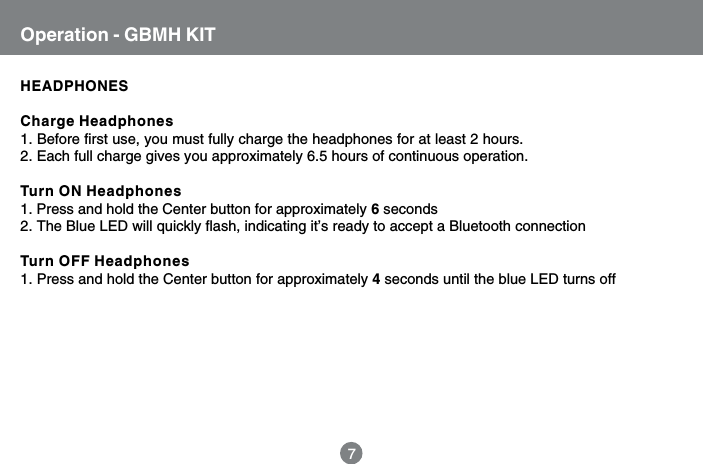

HEADPHONESCharge Headphones1. Before first use, you must fully charge the headphones for at least 2 hours.2. Each full charge gives you approximately 6.5 hours of continuous operation.Turn ON Headphones1. Press and hold the Center button for approximately 6 seconds2. The Blue LED will quickly flash, indicating it’s ready to accept a Bluetooth connectionTurn OFF Headphones1. Press and hold the Center button for approximately 4 seconds until the blue LED turns offOperation - GBMH KIT7

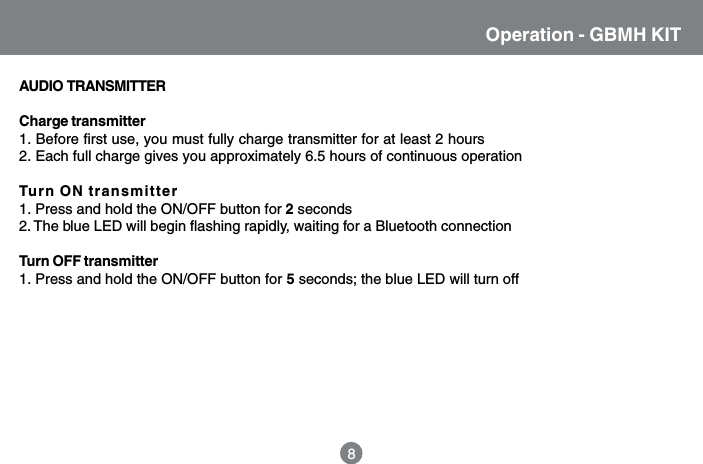

Operation - GBMH KIT8AUDIO TRANSMITTERCharge transmitter1. Before first use, you must fully charge transmitter for at least 2 hours2. Each full charge gives you approximately 6.5 hours of continuous operationTurn ON transmitter1. Press and hold the ON/OFF button for 2 seconds2. The blue LED will begin flashing rapidly, waiting for a Bluetooth connectionTurn OFF transmitter1. Press and hold the ON/OFF button for 5 seconds; the blue LED will turn off

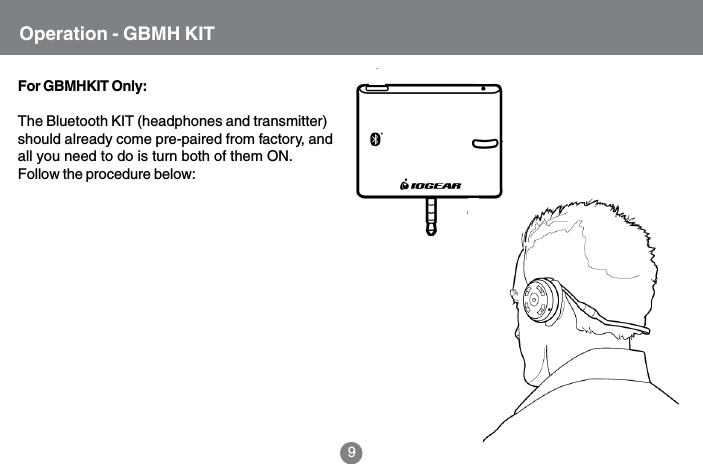

Operation - GBMH KIT9For GBMHKIT Only:The Bluetooth KIT (headphones and transmitter)should already come pre-paired from factory, andall you need to do is turn both of them ON.Follow the procedure below:

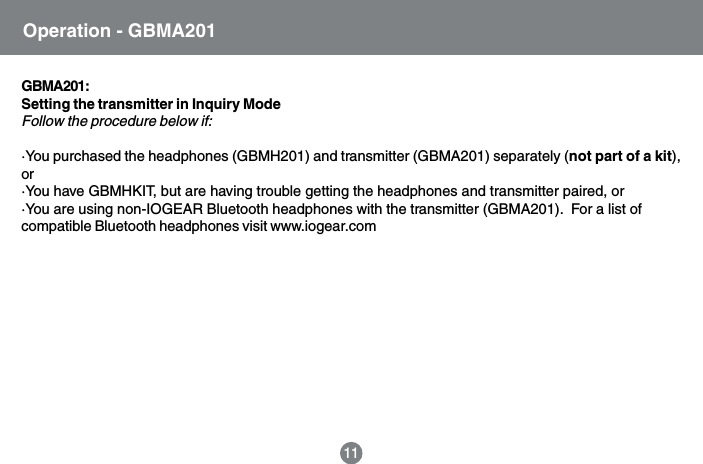

Operation - GBMA20111GBMA201:Setting the transmitter in Inquiry ModeFollow the procedure below if:·You purchased the headphones (GBMH201) and transmitter (GBMA201) separately (not part of a kit),or·You have GBMHKIT, but are having trouble getting the headphones and transmitter paired, or·You are using non-IOGEAR Bluetooth headphones with the transmitter (GBMA201). For a list ofcompatible Bluetooth headphones visit www.iogear.com

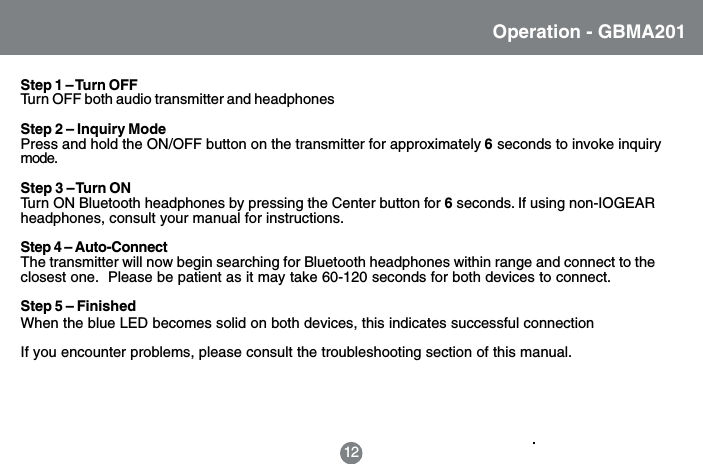

Operation - GBMA201Step 1 – Turn OFFTurn OFF both audio transmitter and headphonesStep 2 – Inquiry ModePress and hold the ON/OFF button on the transmitter for approximately 6 seconds to invoke inquirymode.Step 3 – Turn ONTurn ON Bluetooth headphones by pressing the Center button for 6 seconds. If using non-IOGEARheadphones, consult your manual for instructions.Step 4 – Auto-ConnectThe transmitter will now begin searching for Bluetooth headphones within range and connect to theclosest one. Please be patient as it may take 60-120 seconds for both devices to connect.Step 5 – FinishedWhen the blue LED becomes solid on both devices, this indicates successful connection12If you encounter problems, please consult the troubleshooting section of this manual.

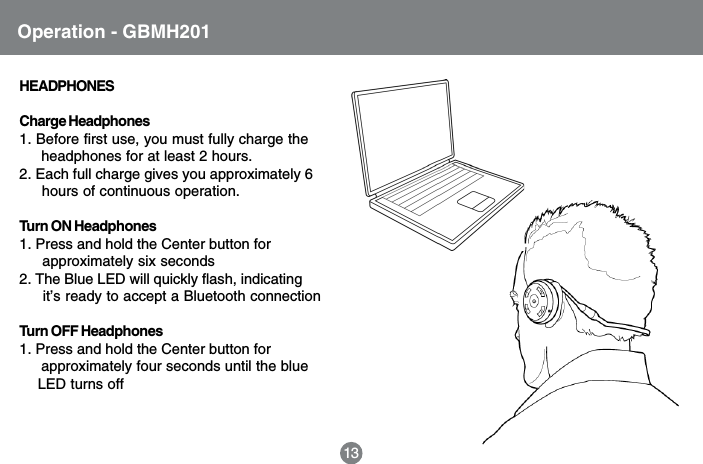

HEADPHONESCharge Headphones1. Before first use, you must fully charge the headphones for at least 2 hours.2. Each full charge gives you approximately 6 hours of continuous operation.Turn ON Headphones1. Press and hold the Center button for approximately six seconds2. The Blue LED will quickly flash, indicating it’s ready to accept a Bluetooth connectionTurn OFF Headphones1. Press and hold the Center button for approximately four seconds until the blue LED turns off13Operation - GBMH201

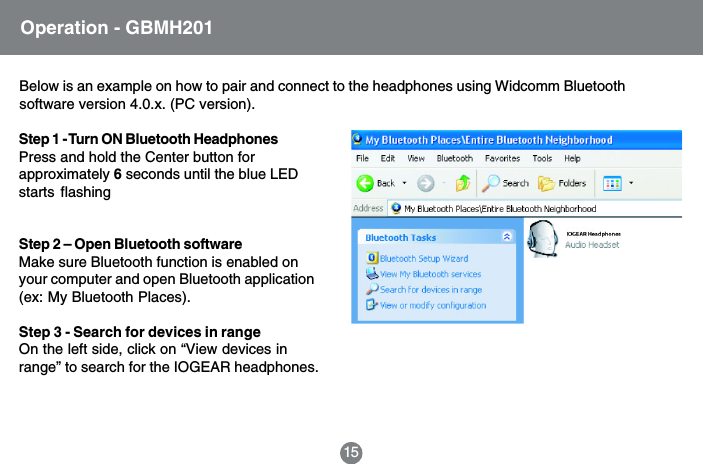

Step 1 - Turn ON Bluetooth HeadphonesPress and hold the Center button forapproximately 6 seconds until the blue LEDstarts flashingStep 2 – Open Bluetooth softwareMake sure Bluetooth function is enabled onyour computer and open Bluetooth application(ex: My Bluetooth Places).Step 3 - Search for devices in rangeOn the left side, click on “View devices inrange” to search for the IOGEAR headphones.15Operation - GBMH201Below is an example on how to pair and connect to the headphones using Widcomm Bluetoothsoftware version 4.0.x. (PC version).

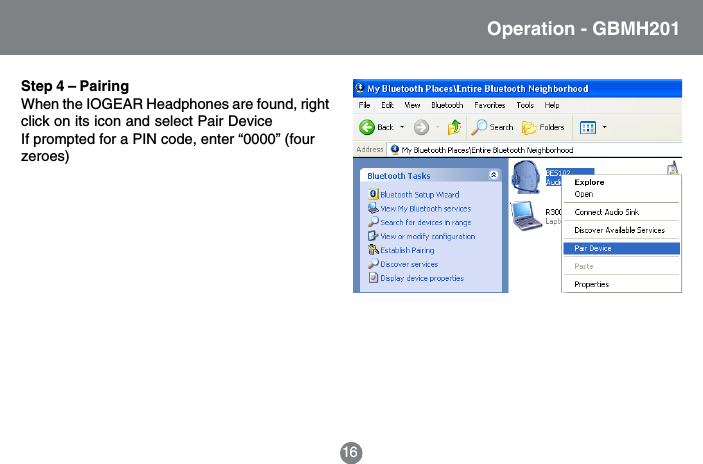

Operation - GBMH20116Step 4 – PairingWhen the IOGEAR Headphones are found, rightclick on its icon and select Pair DeviceIf prompted for a PIN code, enter “0000” (fourzeroes)

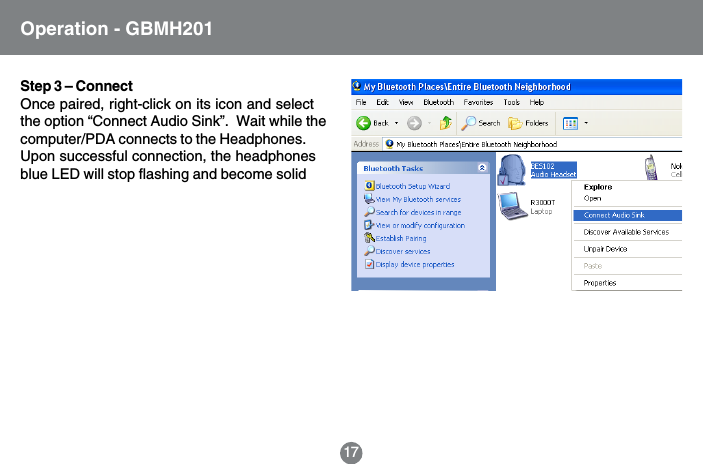

17Operation - GBMH201Step 3 – ConnectOnce paired, right-click on its icon and selectthe option “Connect Audio Sink”. Wait while thecomputer/PDA connects to the Headphones.Upon successful connection, the headphonesblue LED will stop flashing and become solid

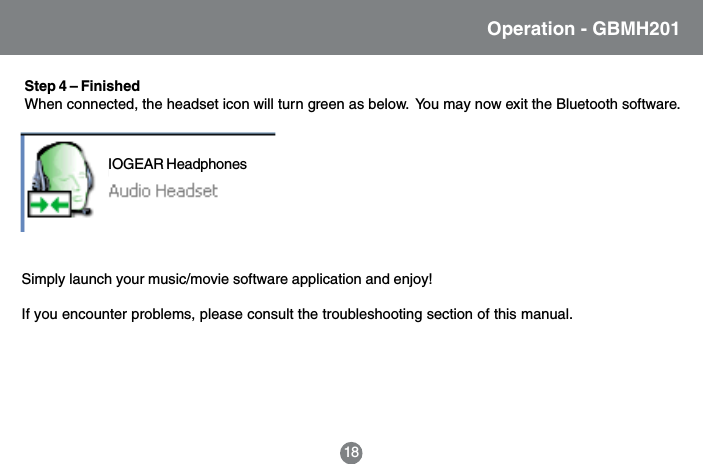

18Operation - GBMH201Step 4 – FinishedWhen connected, the headset icon will turn green as below. You may now exit the Bluetooth software.Simply launch your music/movie software application and enjoy!If you encounter problems, please consult the troubleshooting section of this manual.IOGEAR Headphones

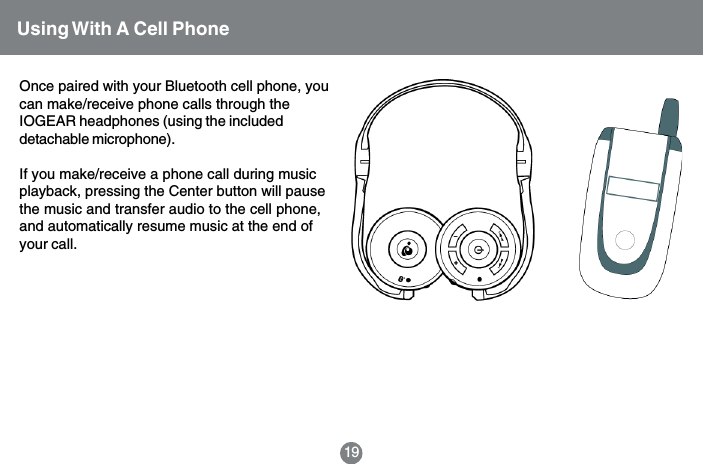

19Using With A Cell PhoneOnce paired with your Bluetooth cell phone, youcan make/receive phone calls through theIOGEAR headphones (using the includeddetachable microphone).If you make/receive a phone call during musicplayback, pressing the Center button will pausethe music and transfer audio to the cell phone,and automatically resume music at the end ofyour call.

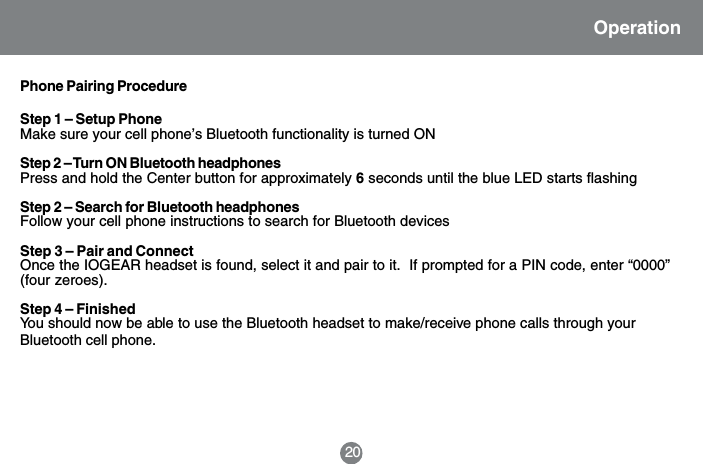

20OperationPhone Pairing ProcedureStep 1 – Setup PhoneMake sure your cell phone’s Bluetooth functionality is turned ONStep 2 – Turn ON Bluetooth headphonesPress and hold the Center button for approximately 6 seconds until the blue LED starts flashingStep 2 – Search for Bluetooth headphonesFollow your cell phone instructions to search for Bluetooth devicesStep 3 – Pair and ConnectOnce the IOGEAR headset is found, select it and pair to it. If prompted for a PIN code, enter “0000”(four zeroes).Step 4 – FinishedYou should now be able to use the Bluetooth headset to make/receive phone calls through yourBluetooth cell phone.

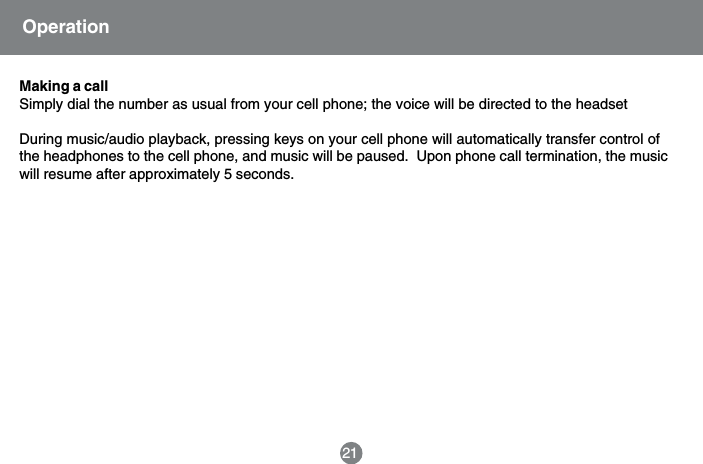

Making a callSimply dial the number as usual from your cell phone; the voice will be directed to the headsetDuring music/audio playback, pressing keys on your cell phone will automatically transfer control ofthe headphones to the cell phone, and music will be paused. Upon phone call termination, the musicwill resume after approximately 5 seconds.21Operation

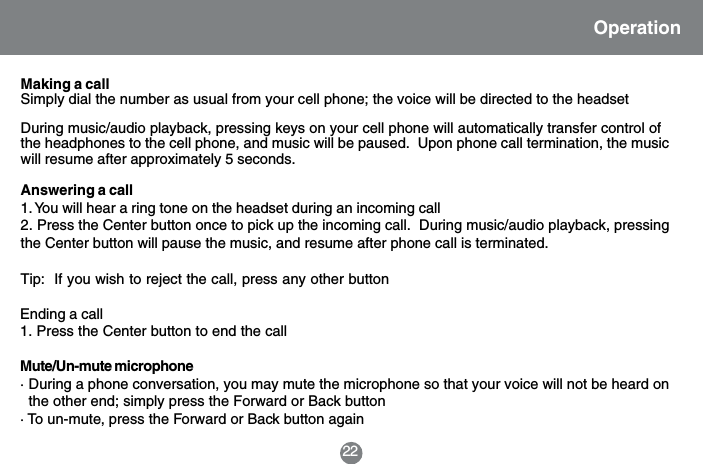

22OperationMaking a callSimply dial the number as usual from your cell phone; the voice will be directed to the headsetDuring music/audio playback, pressing keys on your cell phone will automatically transfer control ofthe headphones to the cell phone, and music will be paused. Upon phone call termination, the musicwill resume after approximately 5 seconds.Answering a call1. You will hear a ring tone on the headset during an incoming call2. Press the Center button once to pick up the incoming call. During music/audio playback, pressingthe Center button will pause the music, and resume after phone call is terminated.Tip: If you wish to reject the call, press any other buttonEnding a call1. Press the Center button to end the callMute/Un-mute microphone· During a phone conversation, you may mute the microphone so that your voice will not be heard on the other end; simply press the Forward or Back button· To un-mute, press the Forward or Back button again

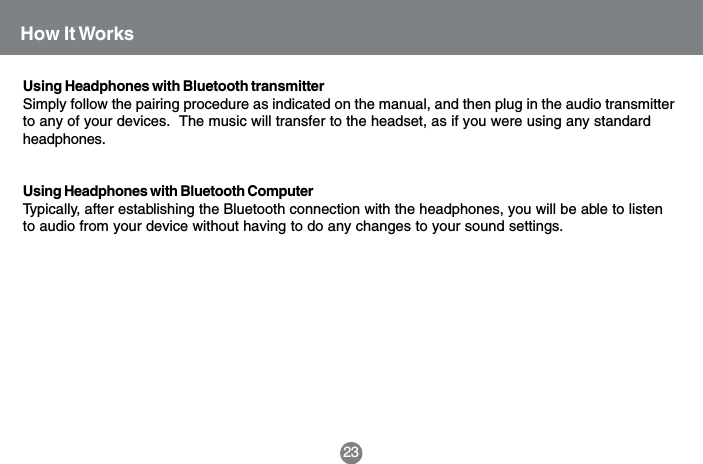

Using Headphones with Bluetooth transmitterSimply follow the pairing procedure as indicated on the manual, and then plug in the audio transmitterto any of your devices. The music will transfer to the headset, as if you were using any standardheadphones.Using Headphones with Bluetooth ComputerTypically, after establishing the Bluetooth connection with the headphones, you will be able to listento audio from your device without having to do any changes to your sound settings.How It Works23

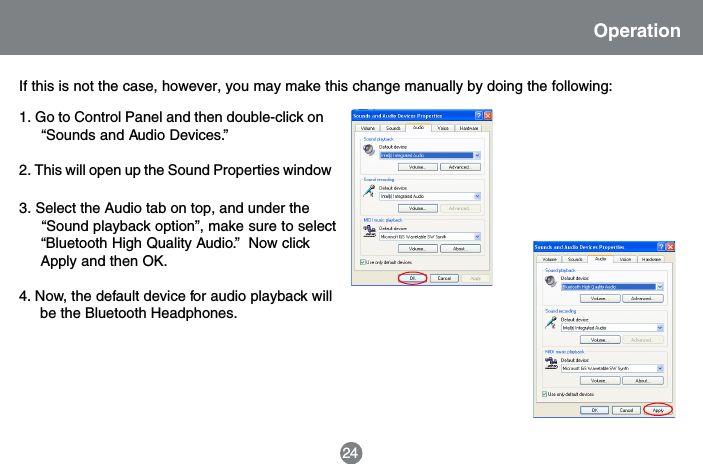

24OperationIf this is not the case, however, you may make this change manually by doing the following:3. Select the Audio tab on top, and under the “Sound playback option”, make sure to select “Bluetooth High Quality Audio.” Now click Apply and then OK.4. Now, the default device for audio playback will be the Bluetooth Headphones.1. Go to Control Panel and then double-click on “Sounds and Audio Devices.”2. This will open up the Sound Properties window

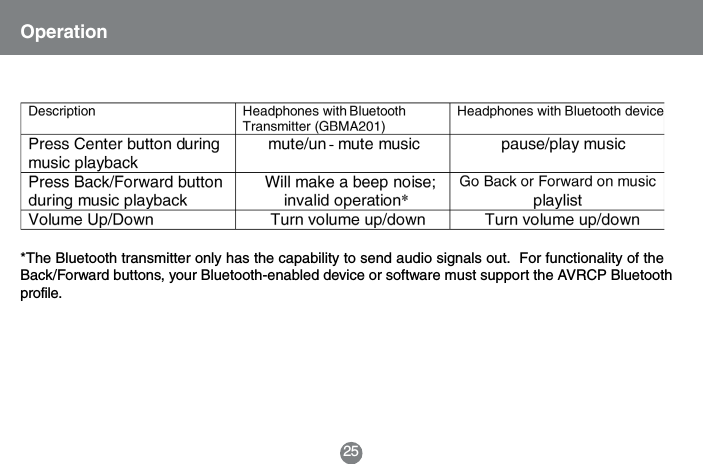

*The Bluetooth transmitter only has the capability to send audio signals out. For functionality of theBack/Forward buttons, your Bluetooth-enabled device or software must support the AVRCP Bluetoothprofile.25Operation

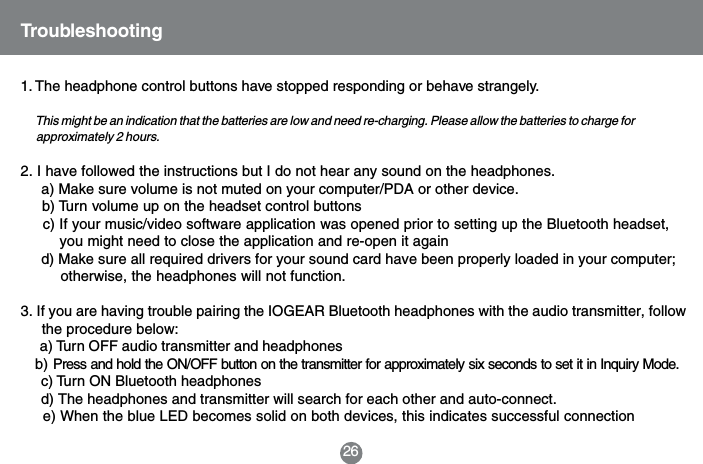

261. The headphone control buttons have stopped responding or behave strangely. This might be an indication that the batteries are low and need re-charging. Please allow the batteries to charge for approximately 2 hours.2. I have followed the instructions but I do not hear any sound on the headphones. a) Make sure volume is not muted on your computer/PDA or other device. b) Turn volume up on the headset control buttons c) If your music/video software application was opened prior to setting up the Bluetooth headset, you might need to close the application and re-open it again d) Make sure all required drivers for your sound card have been properly loaded in your computer; otherwise, the headphones will not function.3. If you are having trouble pairing the IOGEAR Bluetooth headphones with the audio transmitter, follow the procedure below: a) Turn OFF audio transmitter and headphones b) Press and hold the ON/OFF button on the transmitter for approximately six seconds to set it in Inquiry Mode. c) Turn ON Bluetooth headphones d) The headphones and transmitter will search for each other and auto-connect. e) When the blue LED becomes solid on both devices, this indicates successful connectionTroubleshooting

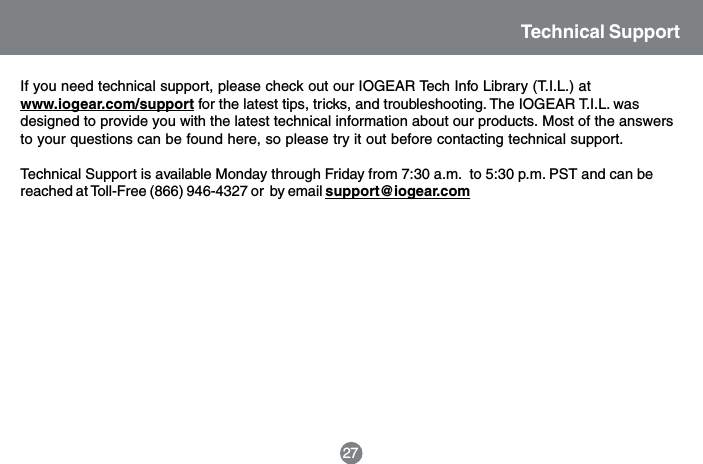

Technical SupportIf you need technical support, please check out our IOGEAR Tech Info Library (T.I.L.) atwww.iogear.com/support for the latest tips, tricks, and troubleshooting. The IOGEAR T.I.L. wasdesigned to provide you with the latest technical information about our products. Most of the answersto your questions can be found here, so please try it out before contacting technical support.Technical Support is available Monday through Friday from 7:30 a.m. to 5:30 p.m. PST and can bereached at Toll-Free (866) 946-4327 or by email support@iogear.com27

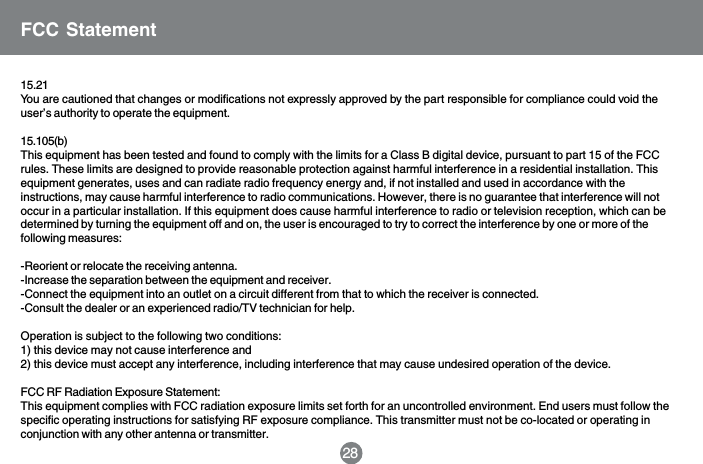

15.21You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void theuser’s authority to operate the equipment.15.105(b)This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCCrules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Thisequipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will notoccur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can bedetermined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-Consult the dealer or an experienced radio/TV technician for help.Operation is subject to the following two conditions:1) this device may not cause interference and2) this device must accept any interference, including interference that may cause undesired operation of the device.FCC RF Radiation Exposure Statement:This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow thespecific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating inconjunction with any other antenna or transmitter.FCC Statement28

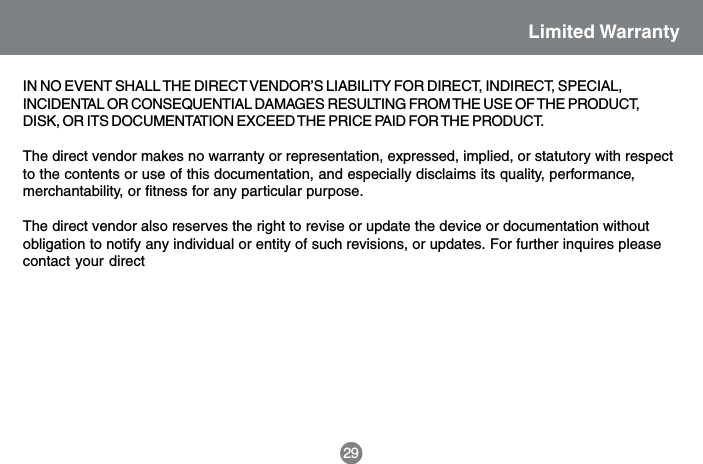

Limited Warranty29IN NO EVENT SHALL THE DIRECT VENDOR’S LIABILITY FOR DIRECT, INDIRECT, SPECIAL,INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT,DISK, OR ITS DOCUMENTATION EXCEED THE PRICE PAID FOR THE PRODUCT.The direct vendor makes no warranty or representation, expressed, implied, or statutory with respectto the contents or use of this documentation, and especially disclaims its quality, performance,merchantability, or fitness for any particular purpose.The direct vendor also reserves the right to revise or update the device or documentation withoutobligation to notify any individual or entity of such revisions, or updates. For further inquires pleasecontact your direct

Contact Information:23 Hubble • Irvine, CA 92618 • (P)949.453.8782 • (F)949.453.8785 • www.iogear.com
