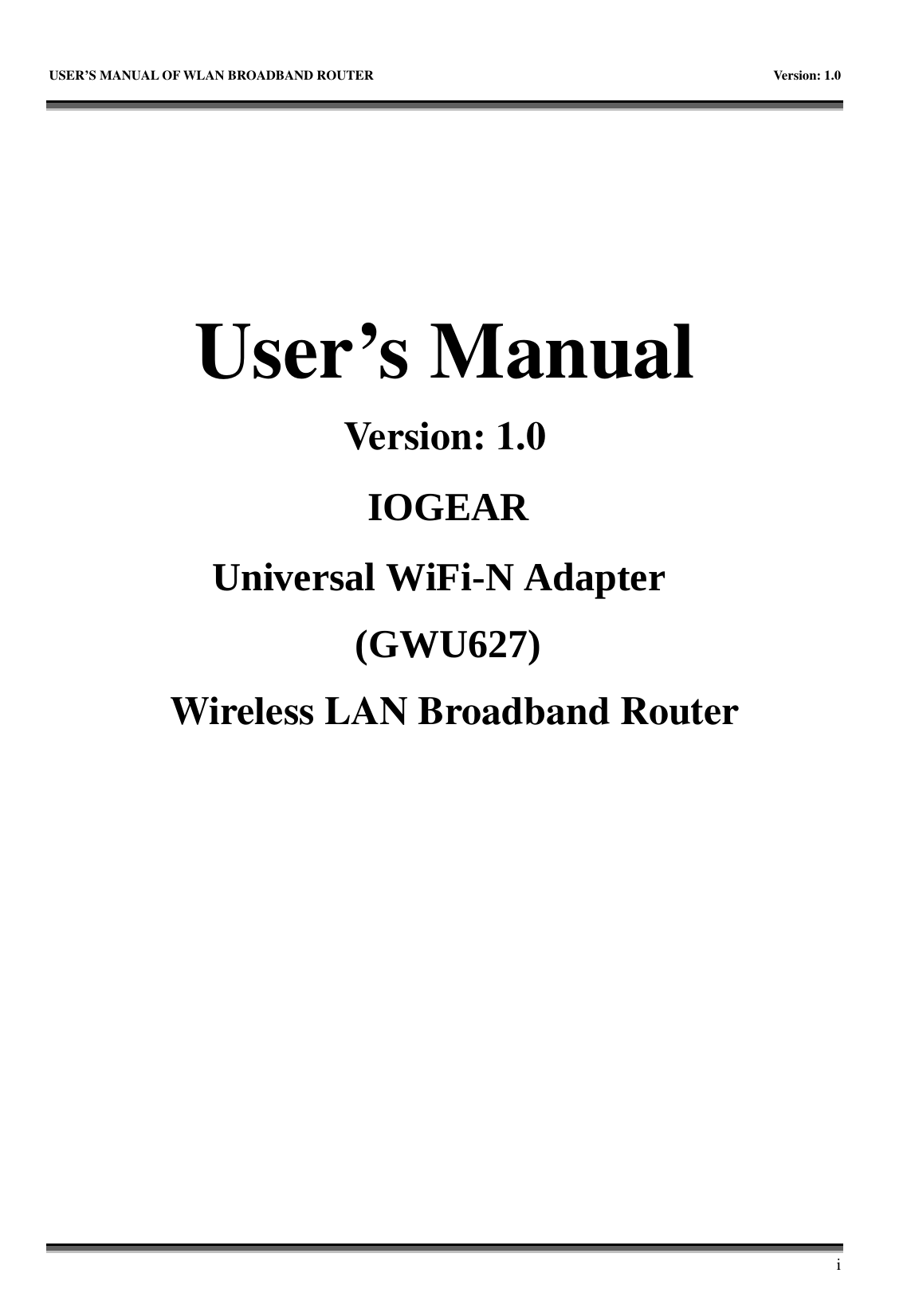

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 i User’s Manual Version: 1.0 IOGEAR Universal WiFi-N Adapter (GWU627) Wireless LAN Broadband Router

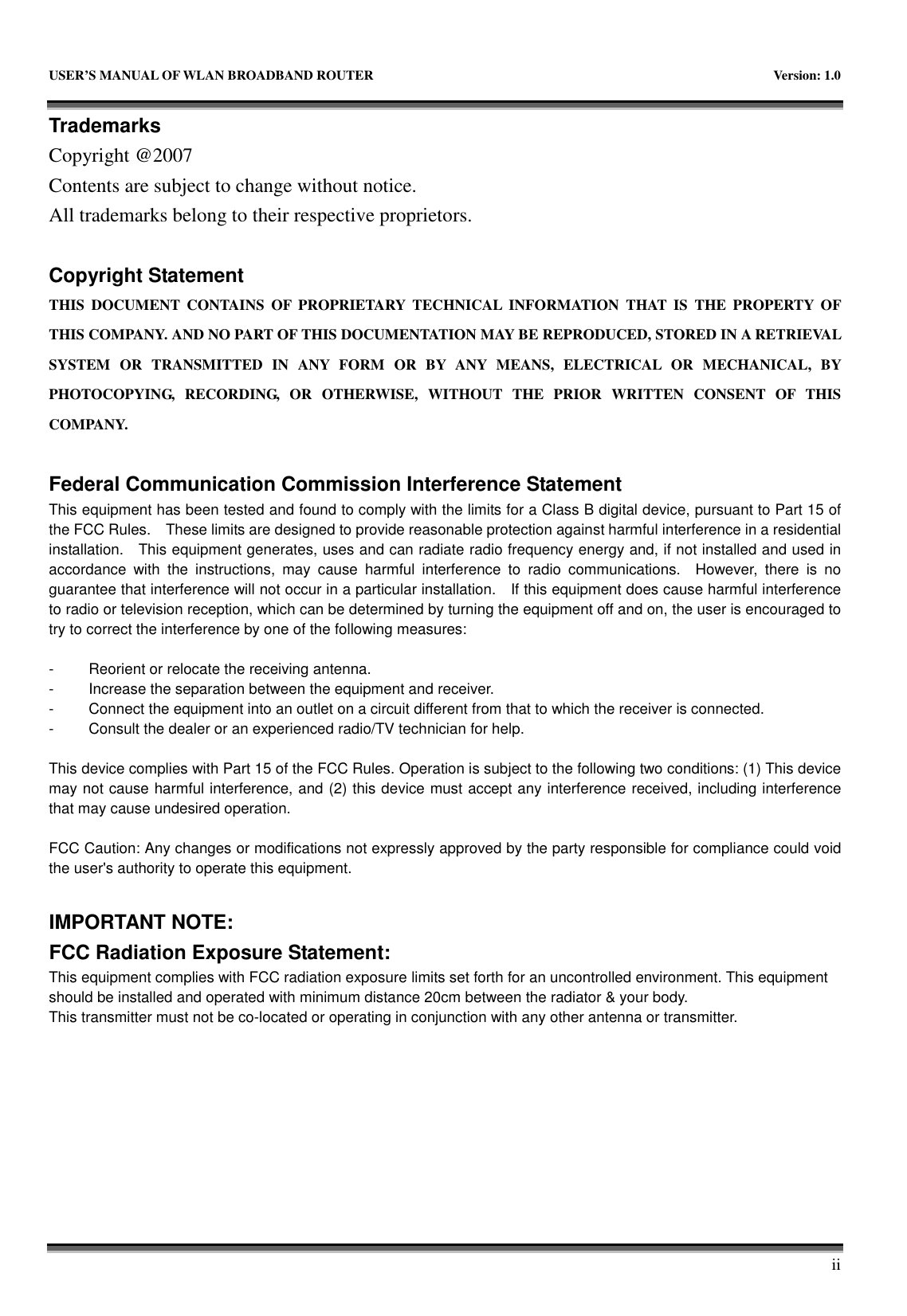

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 ii Trademarks Copyright @2007 Contents are subject to change without notice. All trademarks belong to their respective proprietors. Copyright Statement THIS DOCUMENT CONTAINS OF PROPRIETARY TECHNICAL INFORMATION THAT IS THE PROPERTY OF THIS COMPANY. AND NO PART OF THIS DOCUMENTATION MAY BE REPRODUCED, STORED IN A RETRIEVAL SYSTEM OR TRANSMITTED IN ANY FORM OR BY ANY MEANS, ELECTRICAL OR MECHANICAL, BY PHOTOCOPYING, RECORDING, OR OTHERWISE, WITHOUT THE PRIOR WRITTEN CONSENT OF THIS COMPANY. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

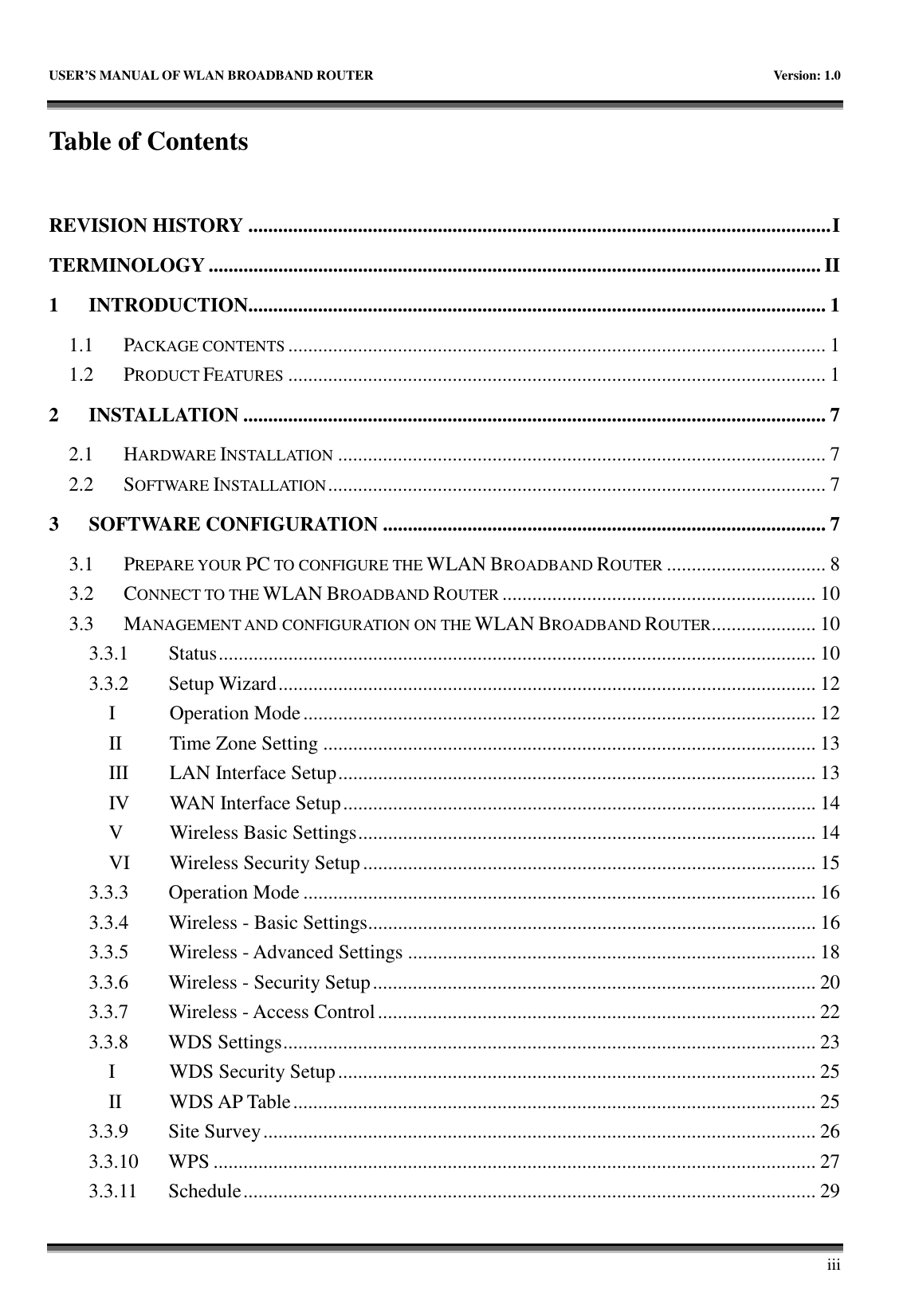

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 iii Table of Contents REVISION HISTORY .....................................................................................................................I TERMINOLOGY ........................................................................................................................... II 1 INTRODUCTION.................................................................................................................... 1 1.1 PACKAGE CONTENTS............................................................................................................ 1 1.2 PRODUCT FEATURES............................................................................................................ 1 2 INSTALLATION ..................................................................................................................... 7 2.1 HARDWARE INSTALLATION.................................................................................................. 7 2.2 SOFTWARE INSTALLATION.................................................................................................... 7 3 SOFTWARE CONFIGURATION ......................................................................................... 7 3.1 PREPARE YOUR PC TO CONFIGURE THE WLAN BROADBAND ROUTER................................ 8 3.2 CONNECT TO THE WLAN BROADBAND ROUTER............................................................... 10 3.3 MANAGEMENT AND CONFIGURATION ON THE WLAN BROADBAND ROUTER..................... 10 3.3.1 Status........................................................................................................................ 10 3.3.2 Setup Wizard............................................................................................................ 12 I Operation Mode....................................................................................................... 12 II Time Zone Setting ................................................................................................... 13 III LAN Interface Setup................................................................................................ 13 IV WAN Interface Setup............................................................................................... 14 V Wireless Basic Settings............................................................................................ 14 VI Wireless Security Setup........................................................................................... 15 3.3.3 Operation Mode ....................................................................................................... 16 3.3.4 Wireless - Basic Settings.......................................................................................... 16 3.3.5 Wireless - Advanced Settings .................................................................................. 18 3.3.6 Wireless - Security Setup......................................................................................... 20 3.3.7 Wireless - Access Control........................................................................................ 22 3.3.8 WDS Settings........................................................................................................... 23 I WDS Security Setup................................................................................................ 25 II WDS AP Table......................................................................................................... 25 3.3.9 Site Survey............................................................................................................... 26 3.3.10 WPS ......................................................................................................................... 27 3.3.11 Schedule................................................................................................................... 29

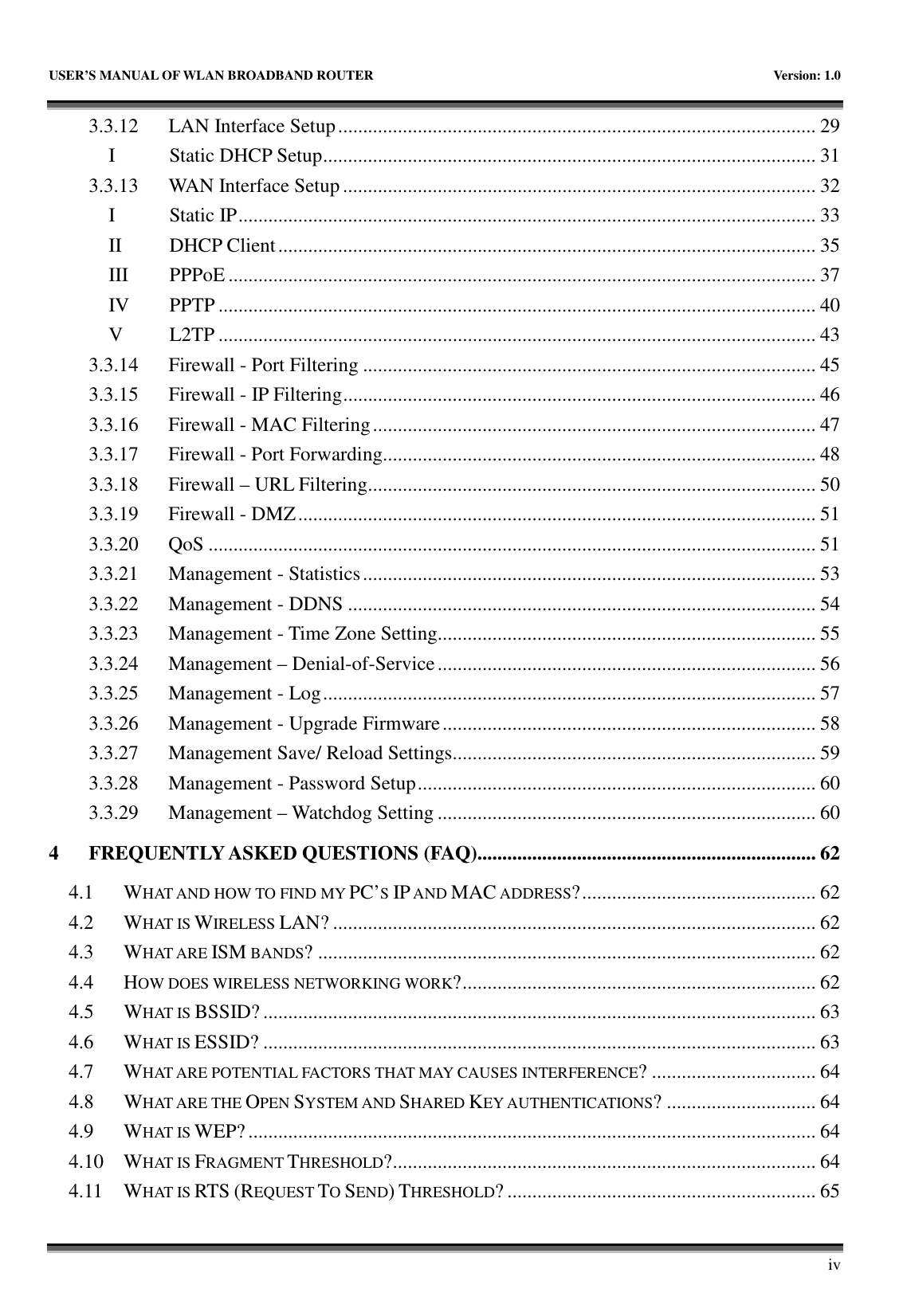

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 iv 3.3.12 LAN Interface Setup................................................................................................ 29 I Static DHCP Setup................................................................................................... 31 3.3.13 WAN Interface Setup............................................................................................... 32 I Static IP.................................................................................................................... 33 II DHCP Client............................................................................................................ 35 III PPPoE ...................................................................................................................... 37 IV PPTP ........................................................................................................................ 40 V L2TP ........................................................................................................................ 43 3.3.14 Firewall - Port Filtering ........................................................................................... 45 3.3.15 Firewall - IP Filtering............................................................................................... 46 3.3.16 Firewall - MAC Filtering......................................................................................... 47 3.3.17 Firewall - Port Forwarding....................................................................................... 48 3.3.18 Firewall – URL Filtering.......................................................................................... 50 3.3.19 Firewall - DMZ........................................................................................................ 51 3.3.20 QoS .......................................................................................................................... 51 3.3.21 Management - Statistics........................................................................................... 53 3.3.22 Management - DDNS .............................................................................................. 54 3.3.23 Management - Time Zone Setting............................................................................ 55 3.3.24 Management – Denial-of-Service............................................................................ 56 3.3.25 Management - Log................................................................................................... 57 3.3.26 Management - Upgrade Firmware........................................................................... 58 3.3.27 Management Save/ Reload Settings......................................................................... 59 3.3.28 Management - Password Setup................................................................................ 60 3.3.29 Management – Watchdog Setting ............................................................................ 60 4 FREQUENTLY ASKED QUESTIONS (FAQ).................................................................... 62 4.1 WHAT AND HOW TO FIND MY PC’S IP AND MAC ADDRESS?............................................... 62 4.2 WHAT IS WIRELESS LAN? ................................................................................................. 62 4.3 WHAT ARE ISM BANDS? .................................................................................................... 62 4.4 HOW DOES WIRELESS NETWORKING WORK?....................................................................... 62 4.5 WHAT IS BSSID? ............................................................................................................... 63 4.6 WHAT IS ESSID? ............................................................................................................... 63 4.7 WHAT ARE POTENTIAL FACTORS THAT MAY CAUSES INTERFERENCE? ................................. 64 4.8 WHAT ARE THE OPEN SYSTEM AND SHARED KEY AUTHENTICATIONS? .............................. 64 4.9 WHAT IS WEP?.................................................................................................................. 64 4.10 WHAT IS FRAGMENT THRESHOLD?..................................................................................... 64 4.11 WHAT IS RTS (REQUEST TO SEND) THRESHOLD? .............................................................. 65

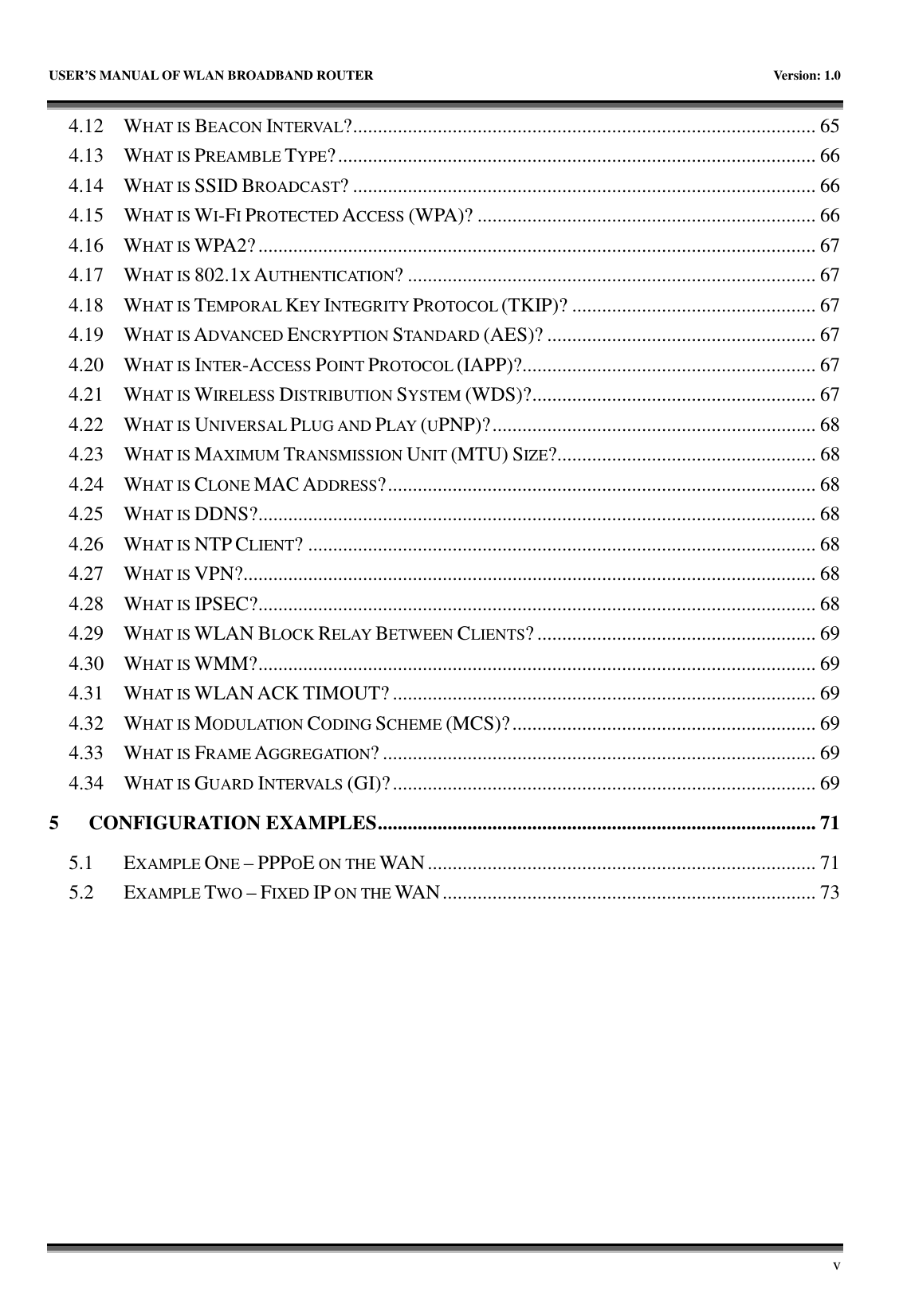

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 v 4.12 WHAT IS BEACON INTERVAL?............................................................................................. 65 4.13 WHAT IS PREAMBLE TYPE?................................................................................................ 66 4.14 WHAT IS SSID BROADCAST? ............................................................................................. 66 4.15 WHAT IS WI-FI PROTECTED ACCESS (WPA)? .................................................................... 66 4.16 WHAT IS WPA2?................................................................................................................ 67 4.17 WHAT IS 802.1X AUTHENTICATION? .................................................................................. 67 4.18 WHAT IS TEMPORAL KEY INTEGRITY PROTOCOL (TKIP)? ................................................. 67 4.19 WHAT IS ADVANCED ENCRYPTION STANDARD (AES)? ...................................................... 67 4.20 WHAT IS INTER-ACCESS POINT PROTOCOL (IAPP)?........................................................... 67 4.21 WHAT IS WIRELESS DISTRIBUTION SYSTEM (WDS)?......................................................... 67 4.22 WHAT IS UNIVERSAL PLUG AND PLAY (UPNP)?................................................................. 68 4.23 WHAT IS MAXIMUM TRANSMISSION UNIT (MTU) SIZE?.................................................... 68 4.24 WHAT IS CLONE MAC ADDRESS?...................................................................................... 68 4.25 WHAT IS DDNS?................................................................................................................ 68 4.26 WHAT IS NTP CLIENT? ...................................................................................................... 68 4.27 WHAT IS VPN?................................................................................................................... 68 4.28 WHAT IS IPSEC?................................................................................................................ 68 4.29 WHAT IS WLAN BLOCK RELAY BETWEEN CLIENTS? ........................................................ 69 4.30 WHAT IS WMM?................................................................................................................ 69 4.31 WHAT IS WLAN ACK TIMOUT? ..................................................................................... 69 4.32 WHAT IS MODULATION CODING SCHEME (MCS)?............................................................. 69 4.33 WHAT IS FRAME AGGREGATION? ....................................................................................... 69 4.34 WHAT IS GUARD INTERVALS (GI)?..................................................................................... 69 5 CONFIGURATION EXAMPLES........................................................................................ 71 5.1 EXAMPLE ONE – PPPOE ON THE WAN.............................................................................. 71 5.2 EXAMPLE TWO – FIXED IP ON THE WAN........................................................................... 73

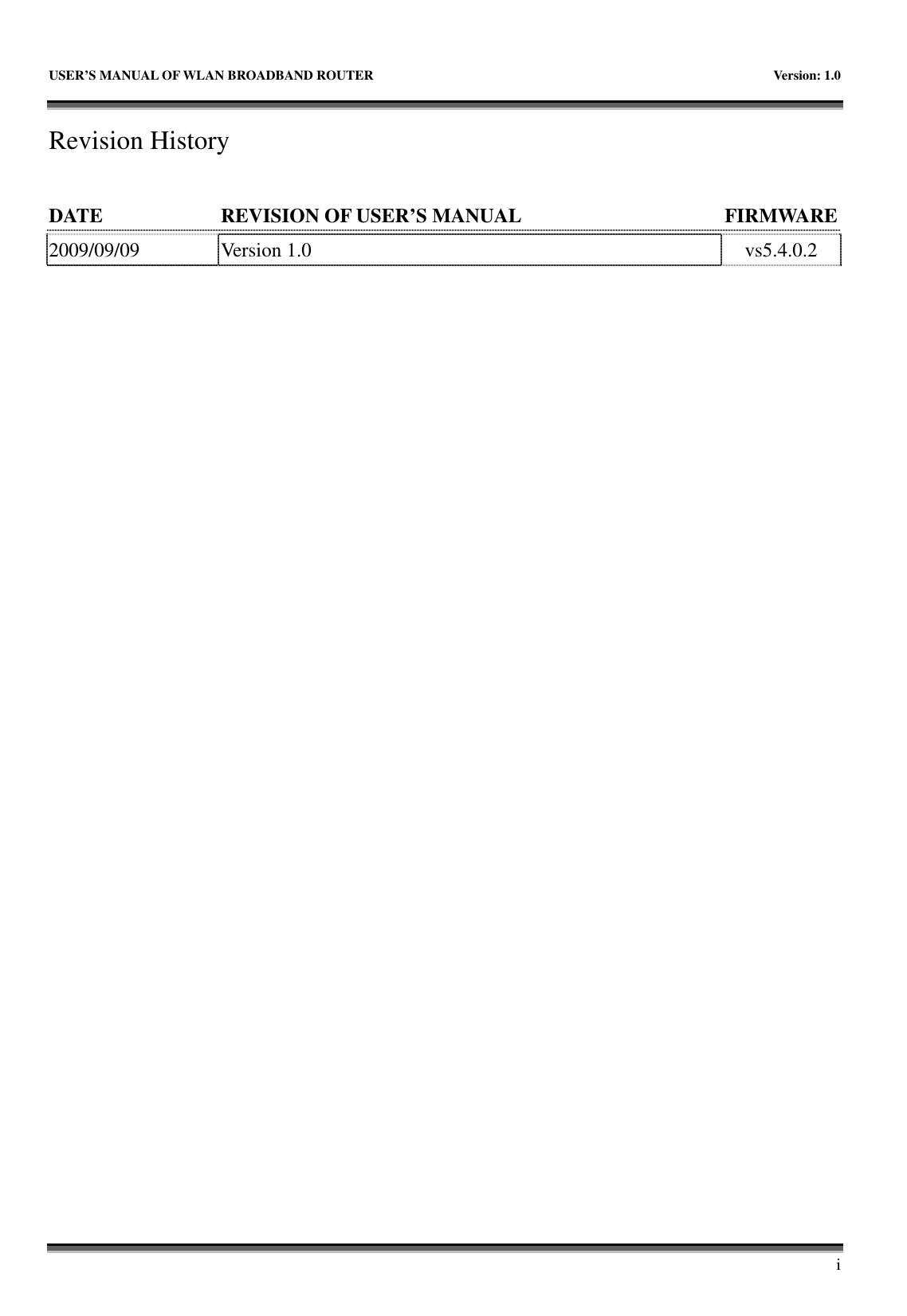

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 i Revision History DATE REVISION OF USER’S MANUAL FIRMWARE 2009/09/09 Version 1.0 vs5.4.0.2

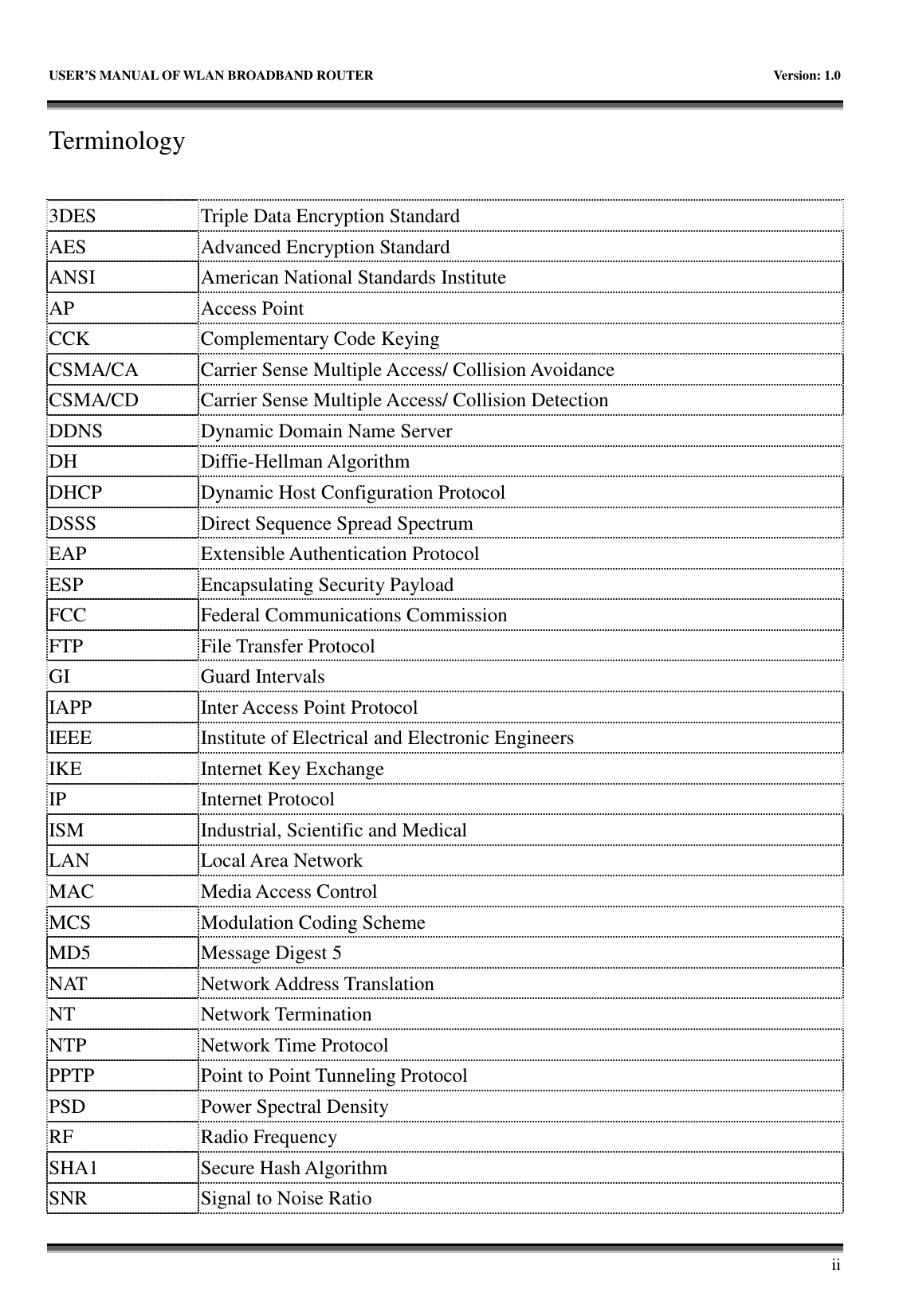

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 ii Terminology 3DES Triple Data Encryption Standard AES Advanced Encryption Standard ANSI American National Standards Institute AP Access Point CCK Complementary Code Keying CSMA/CA Carrier Sense Multiple Access/ Collision Avoidance CSMA/CD Carrier Sense Multiple Access/ Collision Detection DDNS Dynamic Domain Name Server DH Diffie-Hellman Algorithm DHCP Dynamic Host Configuration Protocol DSSS Direct Sequence Spread Spectrum EAP Extensible Authentication Protocol ESP Encapsulating Security Payload FCC Federal Communications Commission FTP File Transfer Protocol GI Guard Intervals IAPP Inter Access Point Protocol IEEE Institute of Electrical and Electronic Engineers IKE Internet Key Exchange IP Internet Protocol ISM Industrial, Scientific and Medical LAN Local Area Network MAC Media Access Control MCS Modulation Coding Scheme MD5 Message Digest 5 NAT Network Address Translation NT Network Termination NTP Network Time Protocol PPTP Point to Point Tunneling Protocol PSD Power Spectral Density RF Radio Frequency SHA1 Secure Hash Algorithm SNR Signal to Noise Ratio

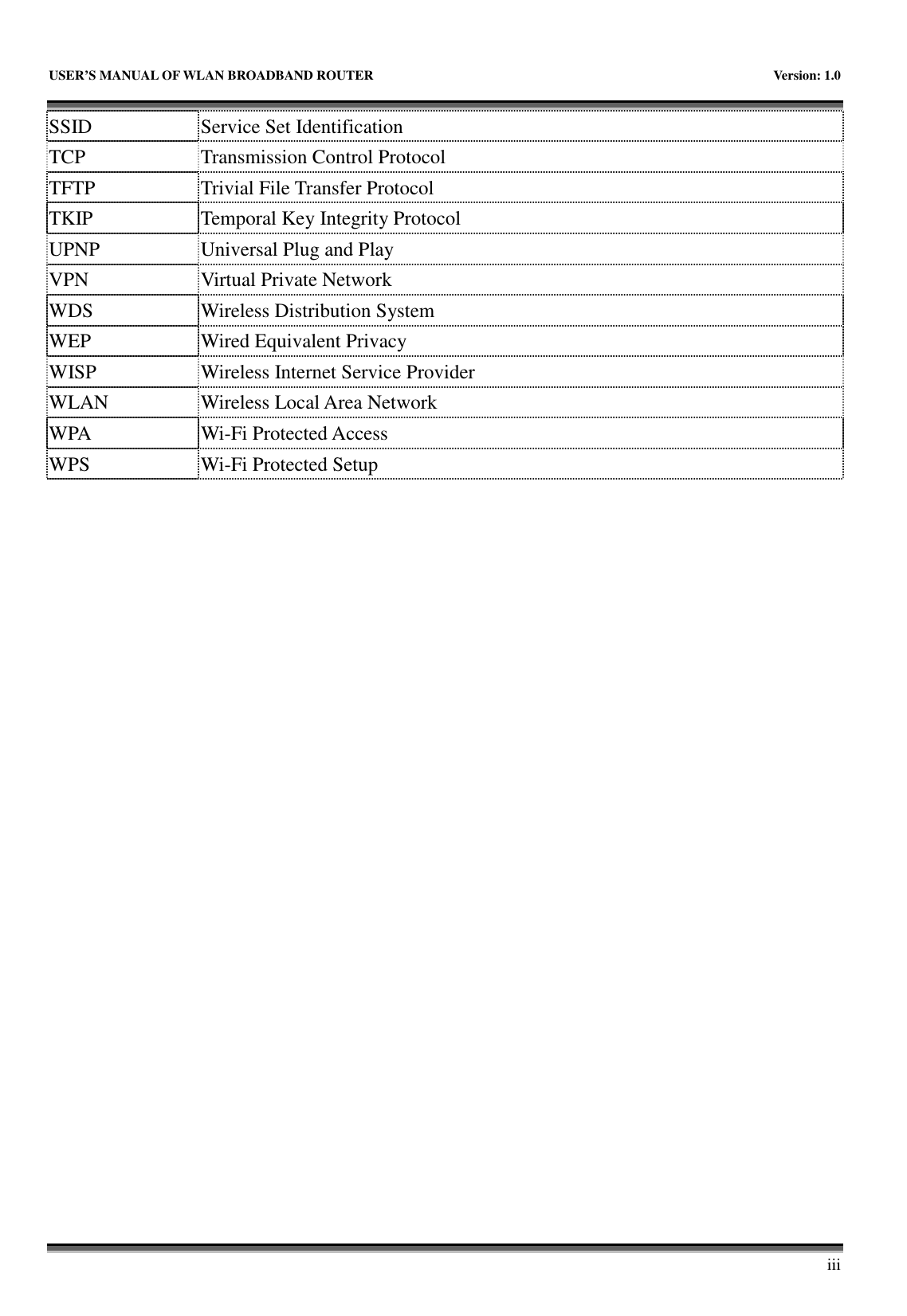

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 iii SSID Service Set Identification TCP Transmission Control Protocol TFTP Trivial File Transfer Protocol TKIP Temporal Key Integrity Protocol UPNP Universal Plug and Play VPN Virtual Private Network WDS Wireless Distribution System WEP Wired Equivalent Privacy WISP Wireless Internet Service Provider WLAN Wireless Local Area Network WPA Wi-Fi Protected Access WPS Wi-Fi Protected Setup

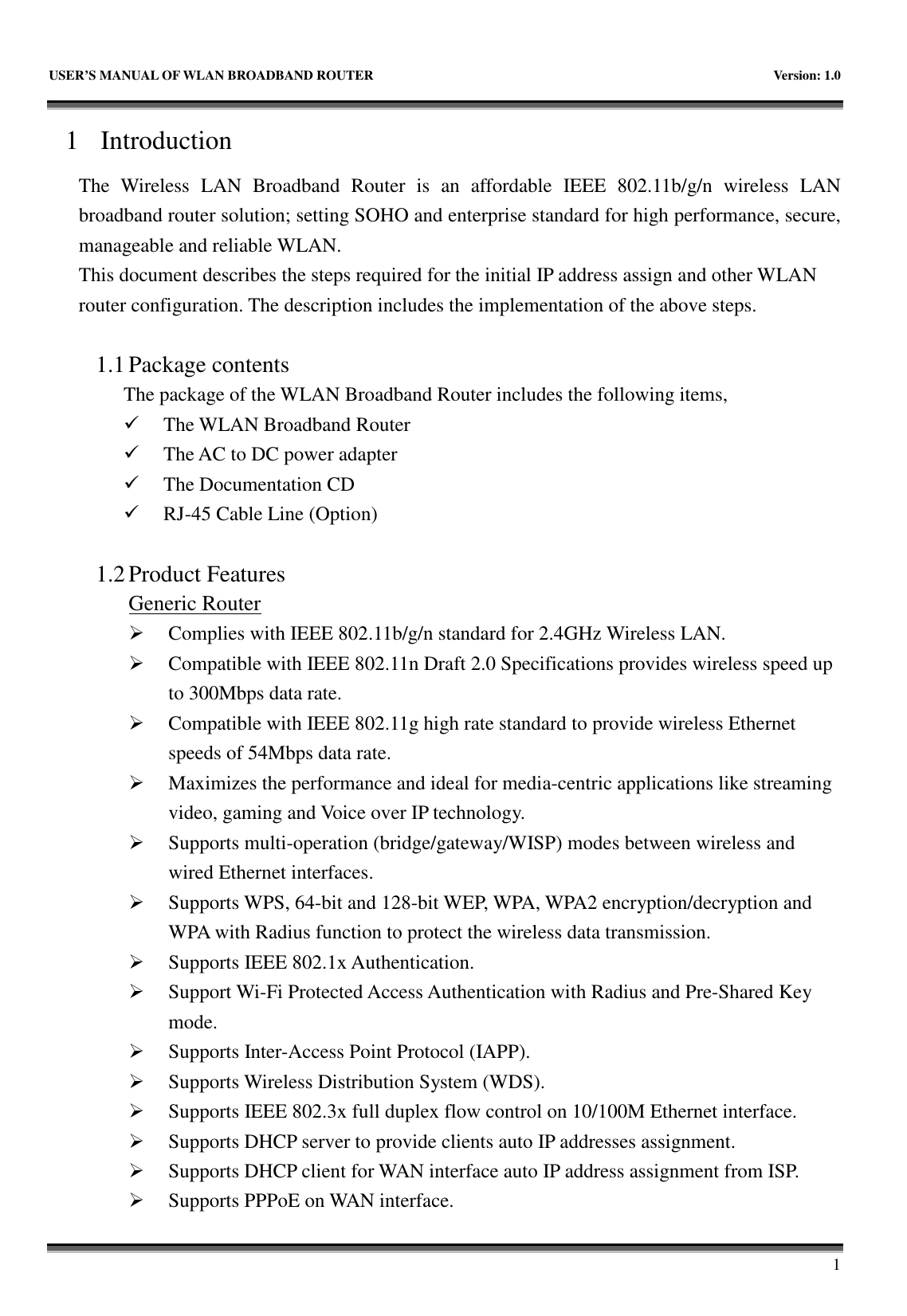

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 1 1 Introduction The Wireless LAN Broadband Router is an affordable IEEE 802.11b/g/n wireless LAN broadband router solution; setting SOHO and enterprise standard for high performance, secure, manageable and reliable WLAN. This document describes the steps required for the initial IP address assign and other WLAN router configuration. The description includes the implementation of the above steps. 1.1 Package contents The package of the WLAN Broadband Router includes the following items,  The WLAN Broadband Router  The AC to DC power adapter  The Documentation CD  RJ-45 Cable Line (Option) 1.2 Product Features Generic Router  Complies with IEEE 802.11b/g/n standard for 2.4GHz Wireless LAN.  Compatible with IEEE 802.11n Draft 2.0 Specifications provides wireless speed up to 300Mbps data rate.  Compatible with IEEE 802.11g high rate standard to provide wireless Ethernet speeds of 54Mbps data rate.  Maximizes the performance and ideal for media-centric applications like streaming video, gaming and Voice over IP technology.  Supports multi-operation (bridge/gateway/WISP) modes between wireless and wired Ethernet interfaces.  Supports WPS, 64-bit and 128-bit WEP, WPA, WPA2 encryption/decryption and WPA with Radius function to protect the wireless data transmission.  Supports IEEE 802.1x Authentication.  Support Wi-Fi Protected Access Authentication with Radius and Pre-Shared Key mode.  Supports Inter-Access Point Protocol (IAPP).  Supports Wireless Distribution System (WDS).  Supports IEEE 802.3x full duplex flow control on 10/100M Ethernet interface.  Supports DHCP server to provide clients auto IP addresses assignment.  Supports DHCP client for WAN interface auto IP address assignment from ISP.  Supports PPPoE on WAN interface.

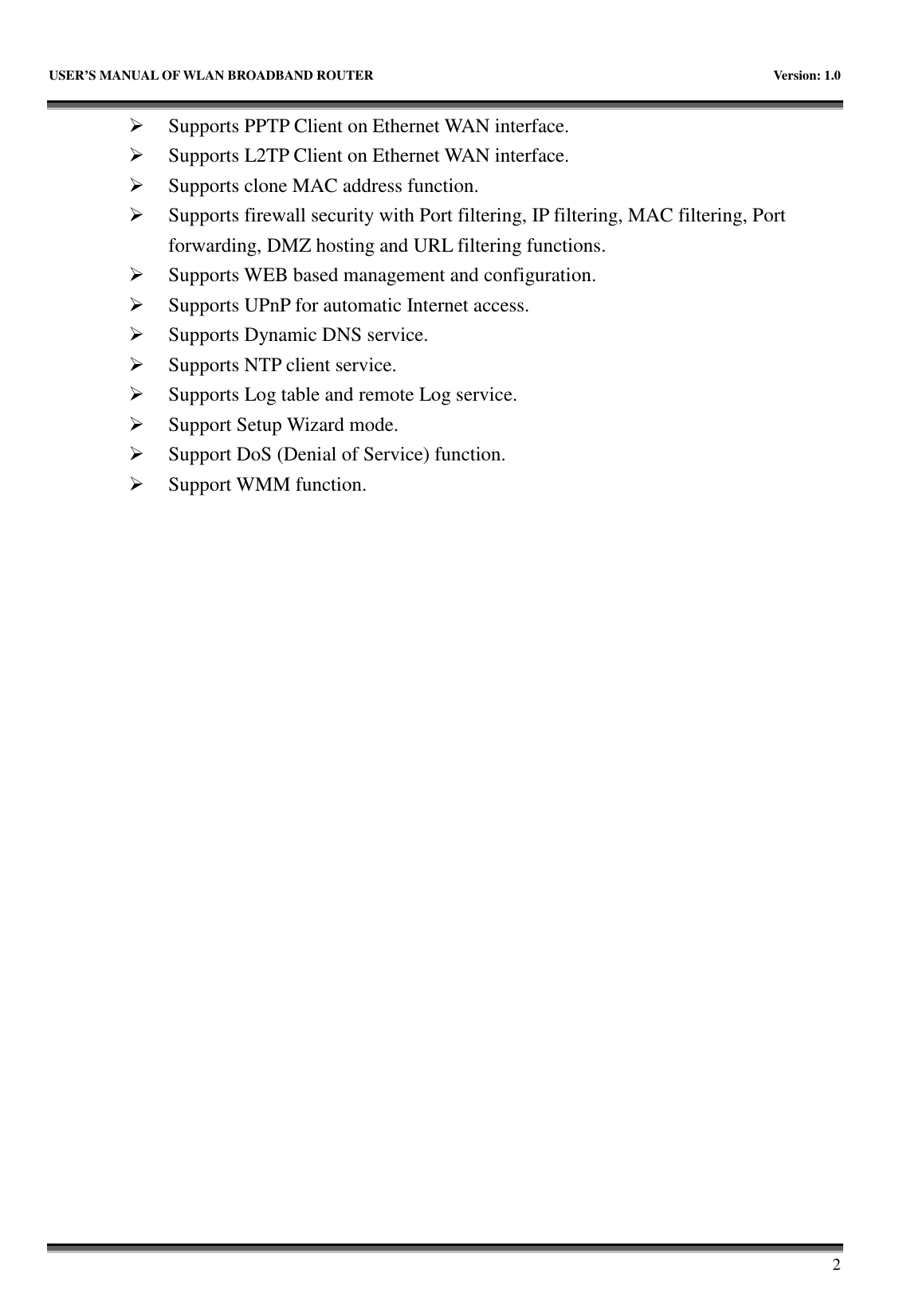

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 2  Supports PPTP Client on Ethernet WAN interface.  Supports L2TP Client on Ethernet WAN interface.  Supports clone MAC address function.  Supports firewall security with Port filtering, IP filtering, MAC filtering, Port forwarding, DMZ hosting and URL filtering functions.  Supports WEB based management and configuration.  Supports UPnP for automatic Internet access.  Supports Dynamic DNS service.  Supports NTP client service.  Supports Log table and remote Log service.  Support Setup Wizard mode.  Support DoS (Denial of Service) function.  Support WMM function.

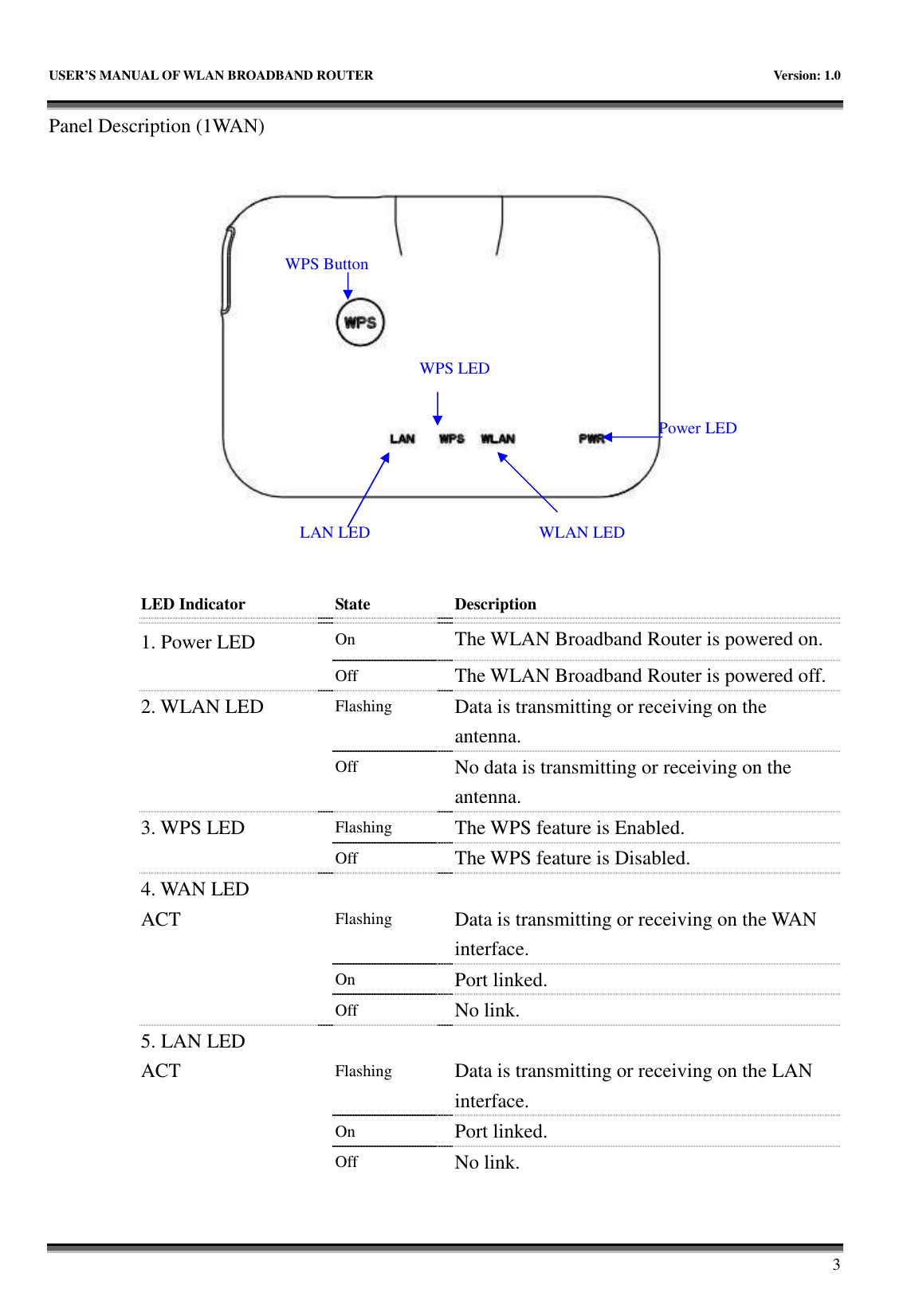

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 3 Panel Description (1WAN) LED Indicator State Description 1. Power LED On The WLAN Broadband Router is powered on. Off The WLAN Broadband Router is powered off. 2. WLAN LED Flashing Data is transmitting or receiving on the antenna. Off No data is transmitting or receiving on the antenna. 3. WPS LED Flashing The WPS feature is Enabled. Off The WPS feature is Disabled. 4. WAN LED ACT Flashing Data is transmitting or receiving on the WAN interface. On Port linked. Off No link. 5. LAN LED ACT Flashing Data is transmitting or receiving on the LAN interface. On Port linked. Off No link. Power LED WLAN LED LAN LED WPS Button WPS LED

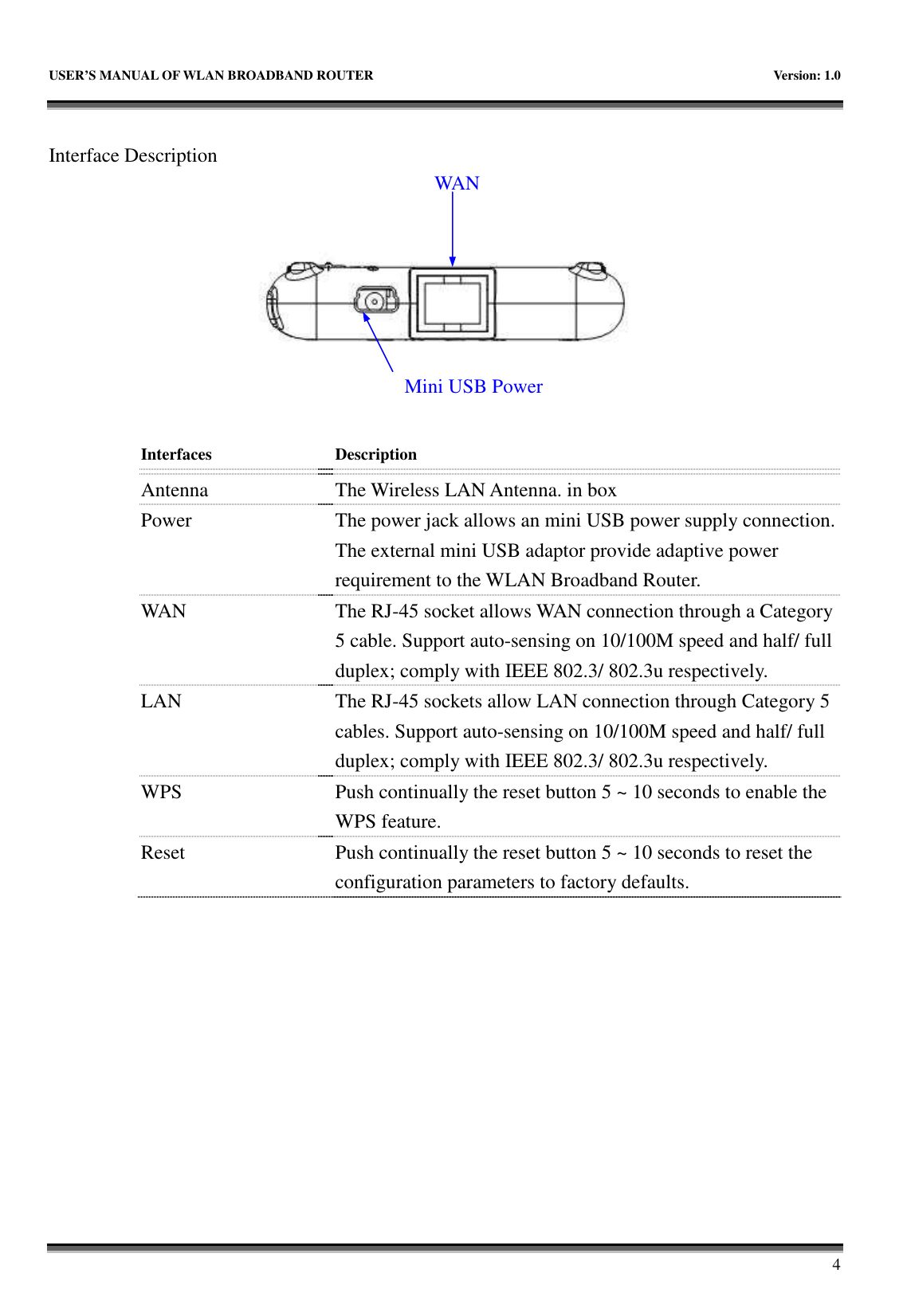

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 4 Interface Description Interfaces Description Antenna The Wireless LAN Antenna. in box Power The power jack allows an mini USB power supply connection. The external mini USB adaptor provide adaptive power requirement to the WLAN Broadband Router. WAN The RJ-45 socket allows WAN connection through a Category 5 cable. Support auto-sensing on 10/100M speed and half/ full duplex; comply with IEEE 802.3/ 802.3u respectively. LAN The RJ-45 sockets allow LAN connection through Category 5 cables. Support auto-sensing on 10/100M speed and half/ full duplex; comply with IEEE 802.3/ 802.3u respectively. WPS Push continually the reset button 5 ~ 10 seconds to enable the WPS feature. Reset Push continually the reset button 5 ~ 10 seconds to reset the configuration parameters to factory defaults. Mini USB Power WAN

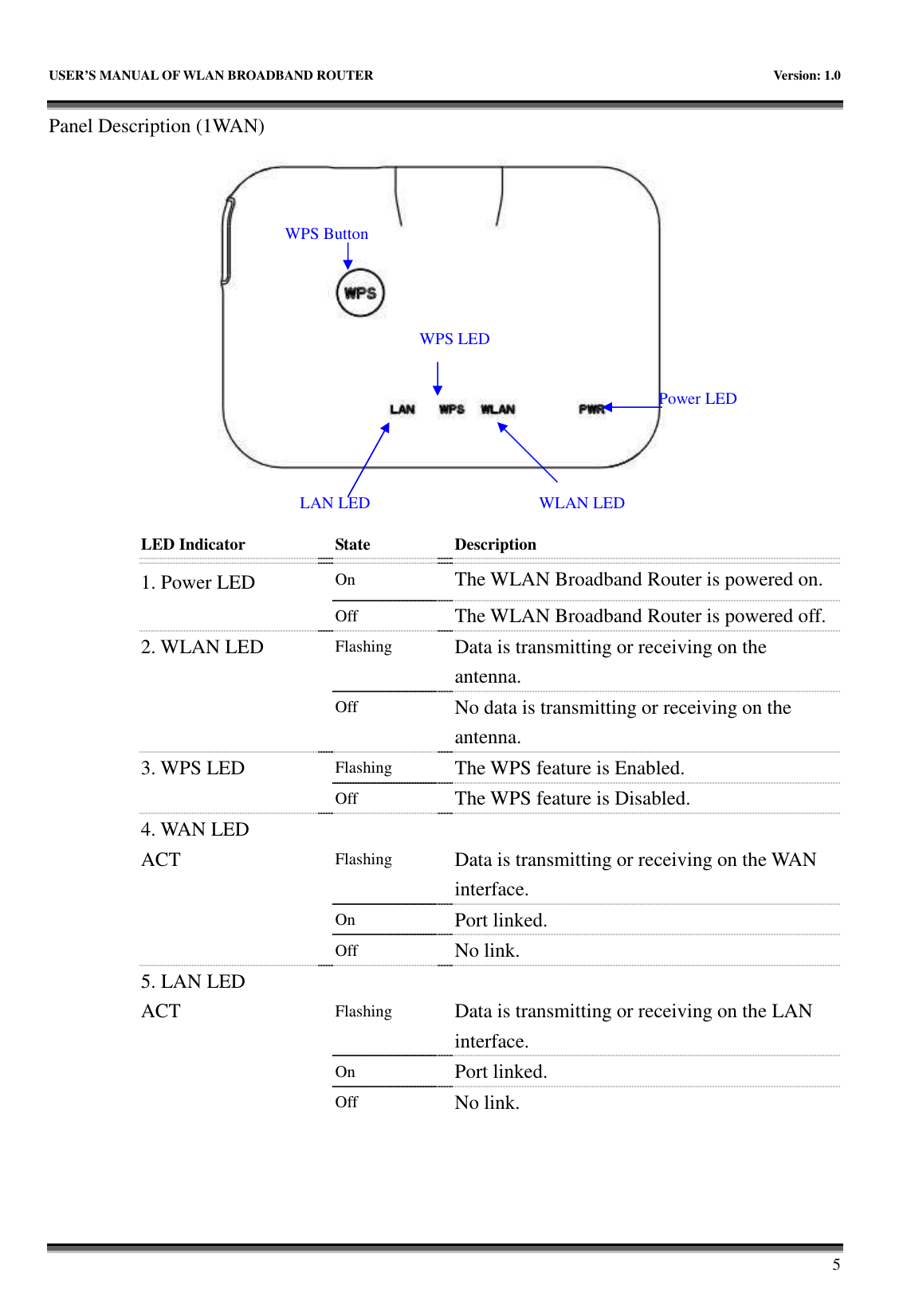

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 5 Panel Description (1WAN) LED Indicator State Description 1. Power LED On The WLAN Broadband Router is powered on. Off The WLAN Broadband Router is powered off. 2. WLAN LED Flashing Data is transmitting or receiving on the antenna. Off No data is transmitting or receiving on the antenna. 3. WPS LED Flashing The WPS feature is Enabled. Off The WPS feature is Disabled. 4. WAN LED ACT Flashing Data is transmitting or receiving on the WAN interface. On Port linked. Off No link. 5. LAN LED ACT Flashing Data is transmitting or receiving on the LAN interface. On Port linked. Off No link. Power LED WLAN LED LAN LED WPS Button WPS LED

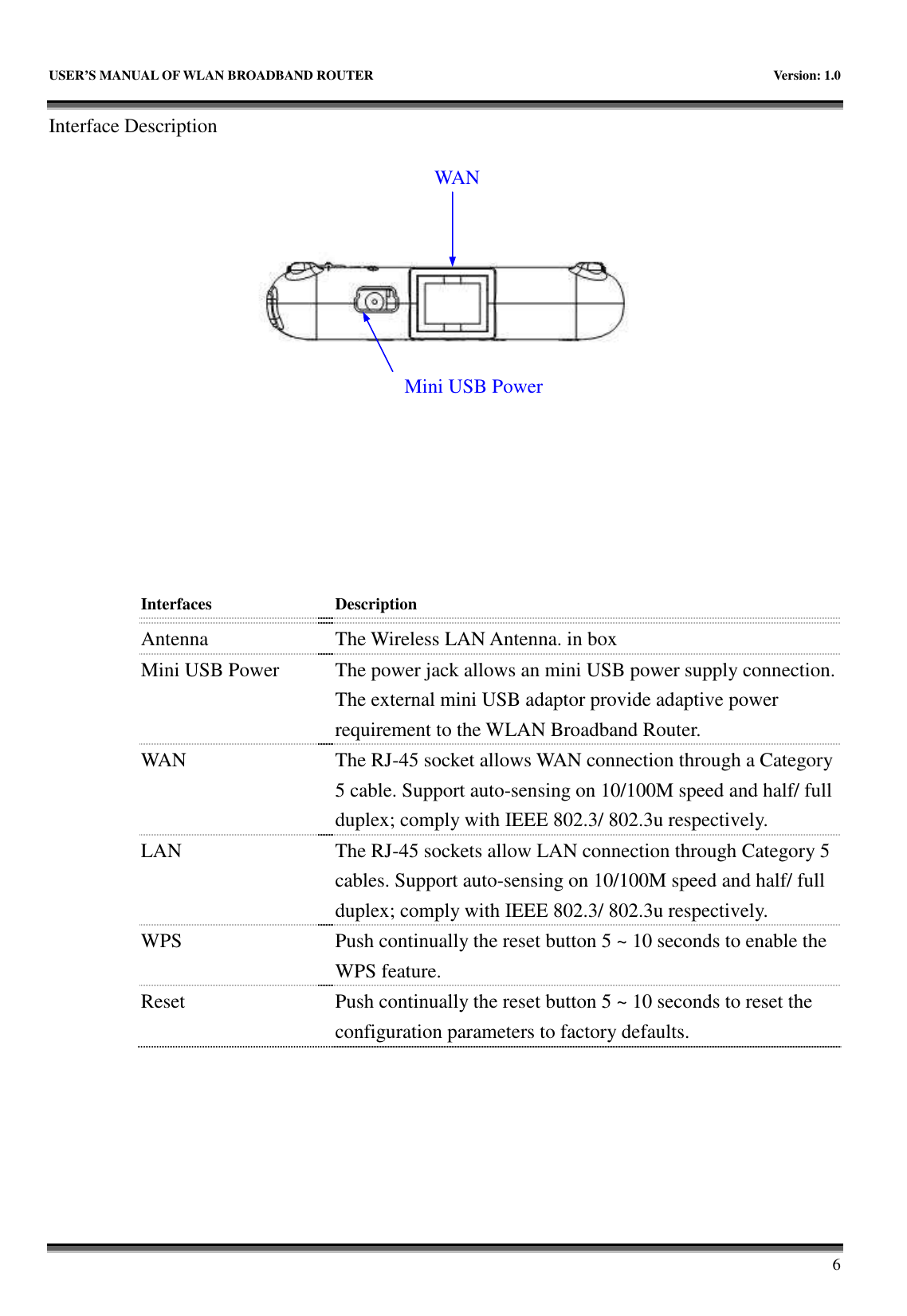

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 6 Interface Description Interfaces Description Antenna The Wireless LAN Antenna. in box Mini USB Power The power jack allows an mini USB power supply connection. The external mini USB adaptor provide adaptive power requirement to the WLAN Broadband Router. WAN The RJ-45 socket allows WAN connection through a Category 5 cable. Support auto-sensing on 10/100M speed and half/ full duplex; comply with IEEE 802.3/ 802.3u respectively. LAN The RJ-45 sockets allow LAN connection through Category 5 cables. Support auto-sensing on 10/100M speed and half/ full duplex; comply with IEEE 802.3/ 802.3u respectively. WPS Push continually the reset button 5 ~ 10 seconds to enable the WPS feature. Reset Push continually the reset button 5 ~ 10 seconds to reset the configuration parameters to factory defaults. WAN Mini USB Power

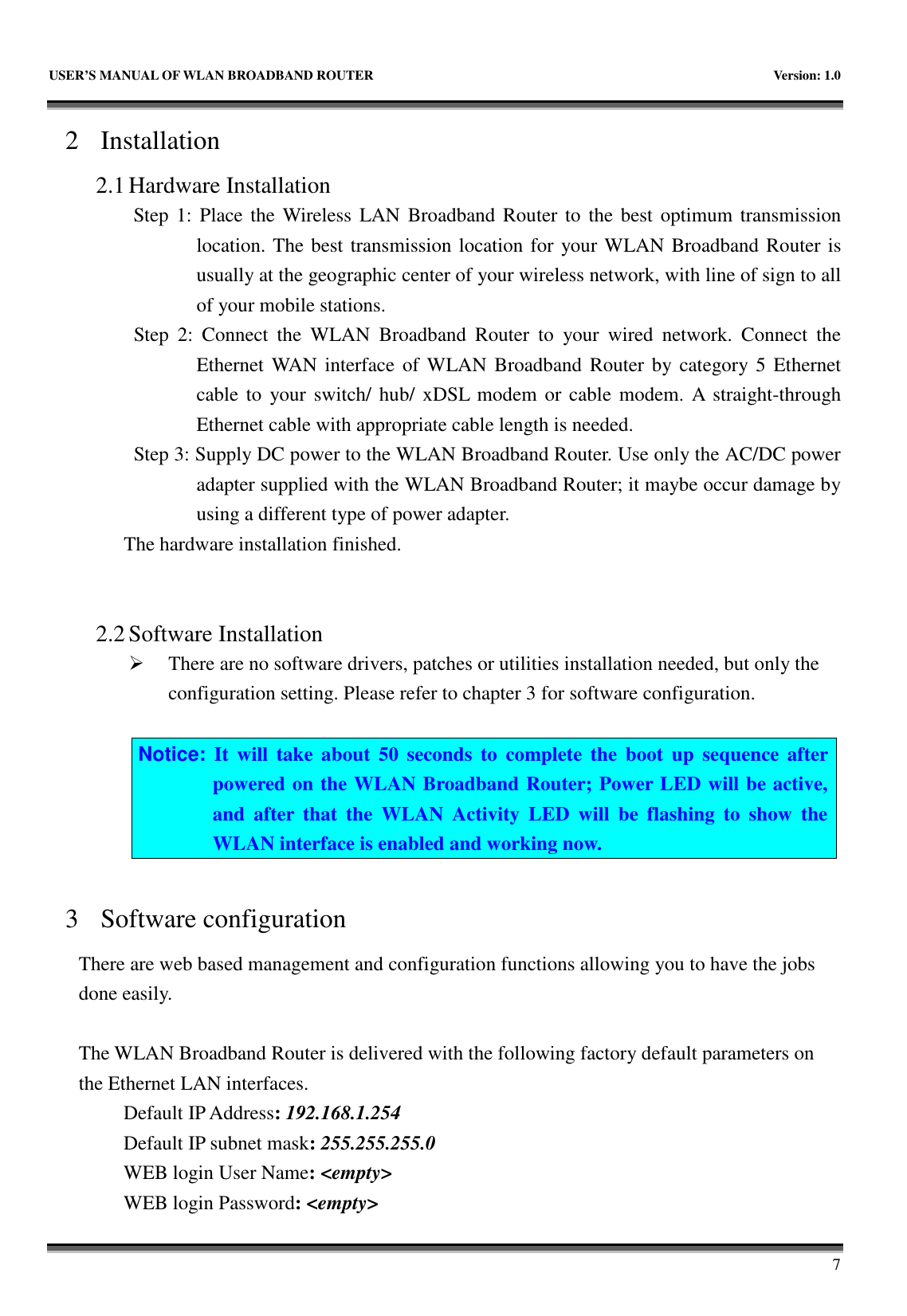

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 7 2 Installation 2.1 Hardware Installation Step 1: Place the Wireless LAN Broadband Router to the best optimum transmission location. The best transmission location for your WLAN Broadband Router is usually at the geographic center of your wireless network, with line of sign to all of your mobile stations. Step 2: Connect the WLAN Broadband Router to your wired network. Connect the Ethernet WAN interface of WLAN Broadband Router by category 5 Ethernet cable to your switch/ hub/ xDSL modem or cable modem. A straight-through Ethernet cable with appropriate cable length is needed. Step 3: Supply DC power to the WLAN Broadband Router. Use only the AC/DC power adapter supplied with the WLAN Broadband Router; it maybe occur damage by using a different type of power adapter. The hardware installation finished. 2.2 Software Installation  There are no software drivers, patches or utilities installation needed, but only the configuration setting. Please refer to chapter 3 for software configuration. Notice: It will take about 50 seconds to complete the boot up sequence after powered on the WLAN Broadband Router; Power LED will be active, and after that the WLAN Activity LED will be flashing to show the WLAN interface is enabled and working now. 3 Software configuration There are web based management and configuration functions allowing you to have the jobs done easily. The WLAN Broadband Router is delivered with the following factory default parameters on the Ethernet LAN interfaces. Default IP Address: 192.168.1.254 Default IP subnet mask: 255.255.255.0 WEB login User Name: <empty> WEB login Password: <empty>

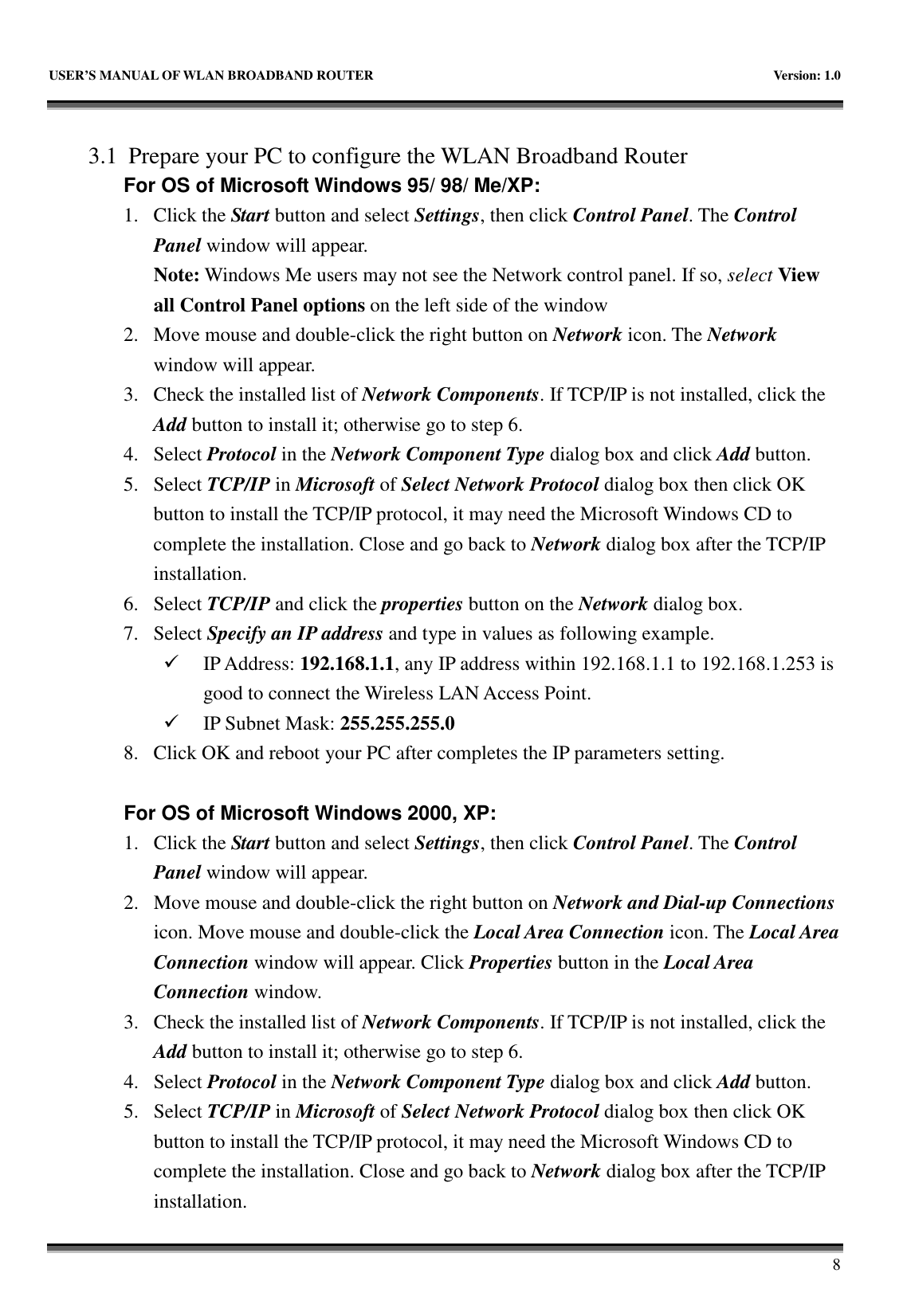

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 8 3.1 Prepare your PC to configure the WLAN Broadband Router For OS of Microsoft Windows 95/ 98/ Me/XP: 1. Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear. Note: Windows Me users may not see the Network control panel. If so, select View all Control Panel options on the left side of the window 2. Move mouse and double-click the right button on Network icon. The Network window will appear. 3. Check the installed list of Network Components. If TCP/IP is not installed, click the Add button to install it; otherwise go to step 6. 4. Select Protocol in the Network Component Type dialog box and click Add button. 5. Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK button to install the TCP/IP protocol, it may need the Microsoft Windows CD to complete the installation. Close and go back to Network dialog box after the TCP/IP installation. 6. Select TCP/IP and click the properties button on the Network dialog box. 7. Select Specify an IP address and type in values as following example.  IP Address: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is good to connect the Wireless LAN Access Point.  IP Subnet Mask: 255.255.255.0 8. Click OK and reboot your PC after completes the IP parameters setting. For OS of Microsoft Windows 2000, XP: 1. Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear. 2. Move mouse and double-click the right button on Network and Dial-up Connections icon. Move mouse and double-click the Local Area Connection icon. The Local Area Connection window will appear. Click Properties button in the Local Area Connection window. 3. Check the installed list of Network Components. If TCP/IP is not installed, click the Add button to install it; otherwise go to step 6. 4. Select Protocol in the Network Component Type dialog box and click Add button. 5. Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK button to install the TCP/IP protocol, it may need the Microsoft Windows CD to complete the installation. Close and go back to Network dialog box after the TCP/IP installation.

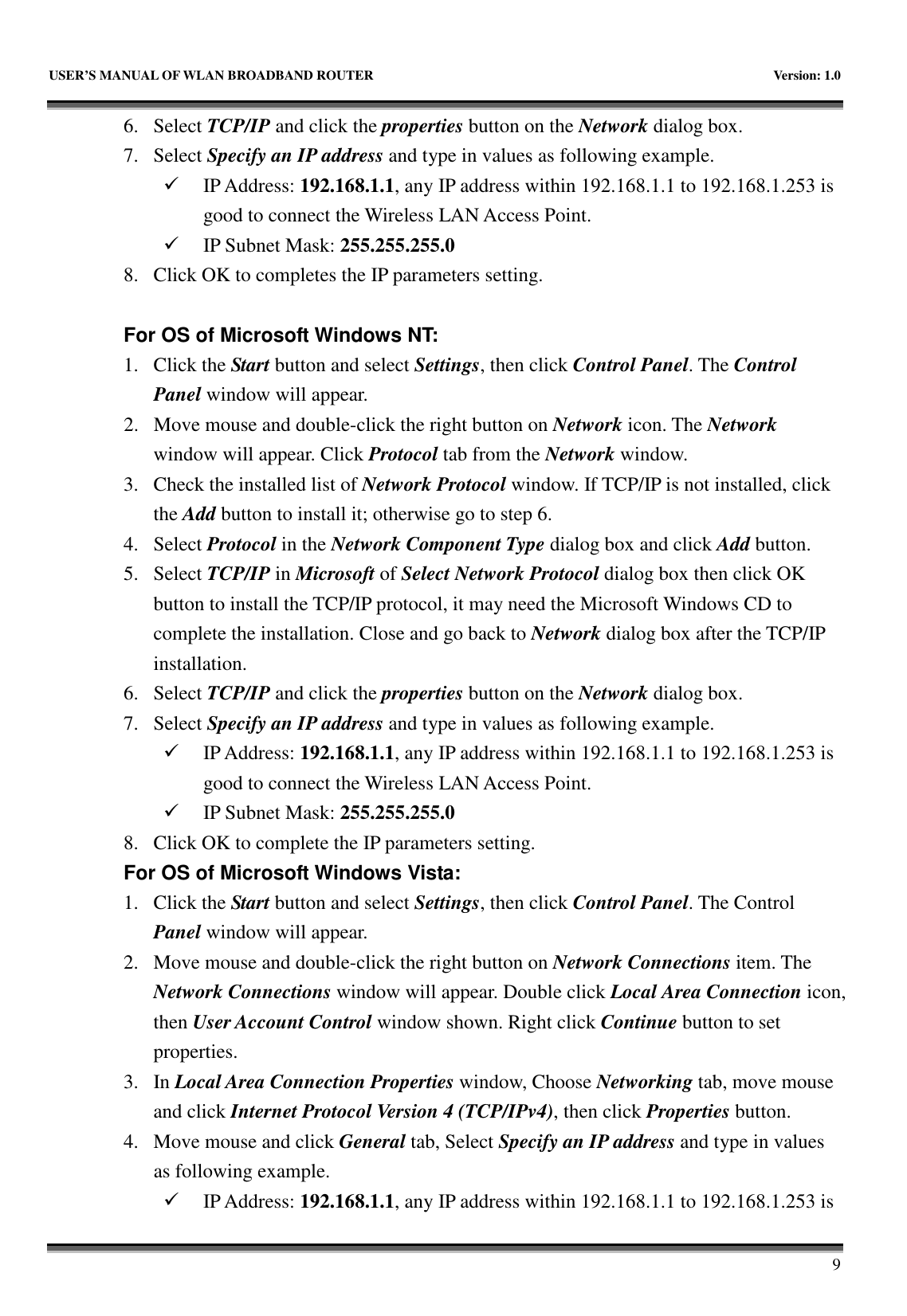

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 9 6. Select TCP/IP and click the properties button on the Network dialog box. 7. Select Specify an IP address and type in values as following example.  IP Address: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is good to connect the Wireless LAN Access Point.  IP Subnet Mask: 255.255.255.0 8. Click OK to completes the IP parameters setting. For OS of Microsoft Windows NT: 1. Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear. 2. Move mouse and double-click the right button on Network icon. The Network window will appear. Click Protocol tab from the Network window. 3. Check the installed list of Network Protocol window. If TCP/IP is not installed, click the Add button to install it; otherwise go to step 6. 4. Select Protocol in the Network Component Type dialog box and click Add button. 5. Select TCP/IP in Microsoft of Select Network Protocol dialog box then click OK button to install the TCP/IP protocol, it may need the Microsoft Windows CD to complete the installation. Close and go back to Network dialog box after the TCP/IP installation. 6. Select TCP/IP and click the properties button on the Network dialog box. 7. Select Specify an IP address and type in values as following example.  IP Address: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is good to connect the Wireless LAN Access Point.  IP Subnet Mask: 255.255.255.0 8. Click OK to complete the IP parameters setting. For OS of Microsoft Windows Vista: 1. Click the Start button and select Settings, then click Control Panel. The Control Panel window will appear. 2. Move mouse and double-click the right button on Network Connections item. The Network Connections window will appear. Double click Local Area Connection icon, then User Account Control window shown. Right click Continue button to set properties. 3. In Local Area Connection Properties window, Choose Networking tab, move mouse and click Internet Protocol Version 4 (TCP/IPv4), then click Properties button. 4. Move mouse and click General tab, Select Specify an IP address and type in values as following example.  IP Address: 192.168.1.1, any IP address within 192.168.1.1 to 192.168.1.253 is

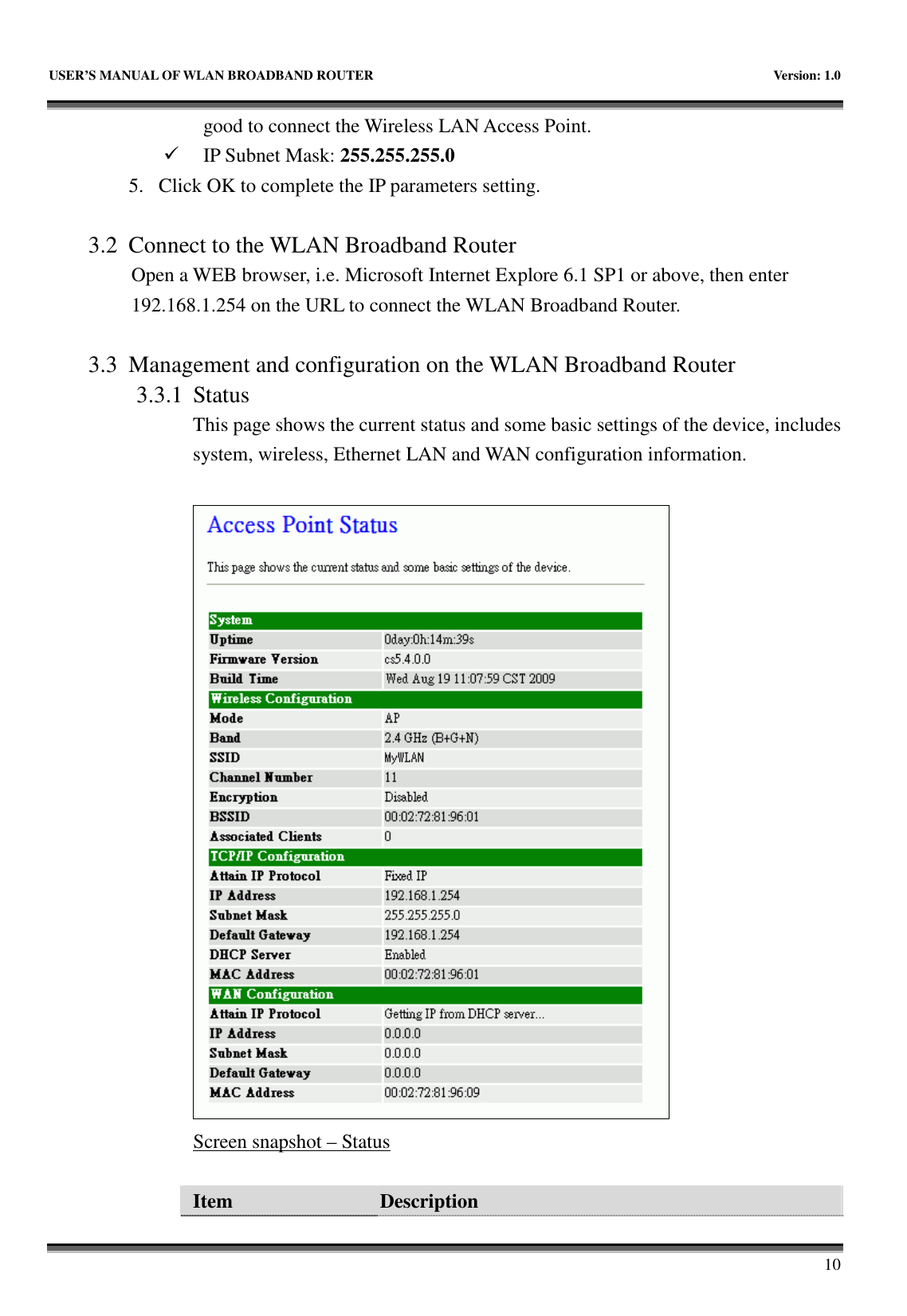

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 10 good to connect the Wireless LAN Access Point.  IP Subnet Mask: 255.255.255.0 5. Click OK to complete the IP parameters setting. 3.2 Connect to the WLAN Broadband Router Open a WEB browser, i.e. Microsoft Internet Explore 6.1 SP1 or above, then enter 192.168.1.254 on the URL to connect the WLAN Broadband Router. 3.3 Management and configuration on the WLAN Broadband Router 3.3.1 Status This page shows the current status and some basic settings of the device, includes system, wireless, Ethernet LAN and WAN configuration information. Screen snapshot – Status Item Description

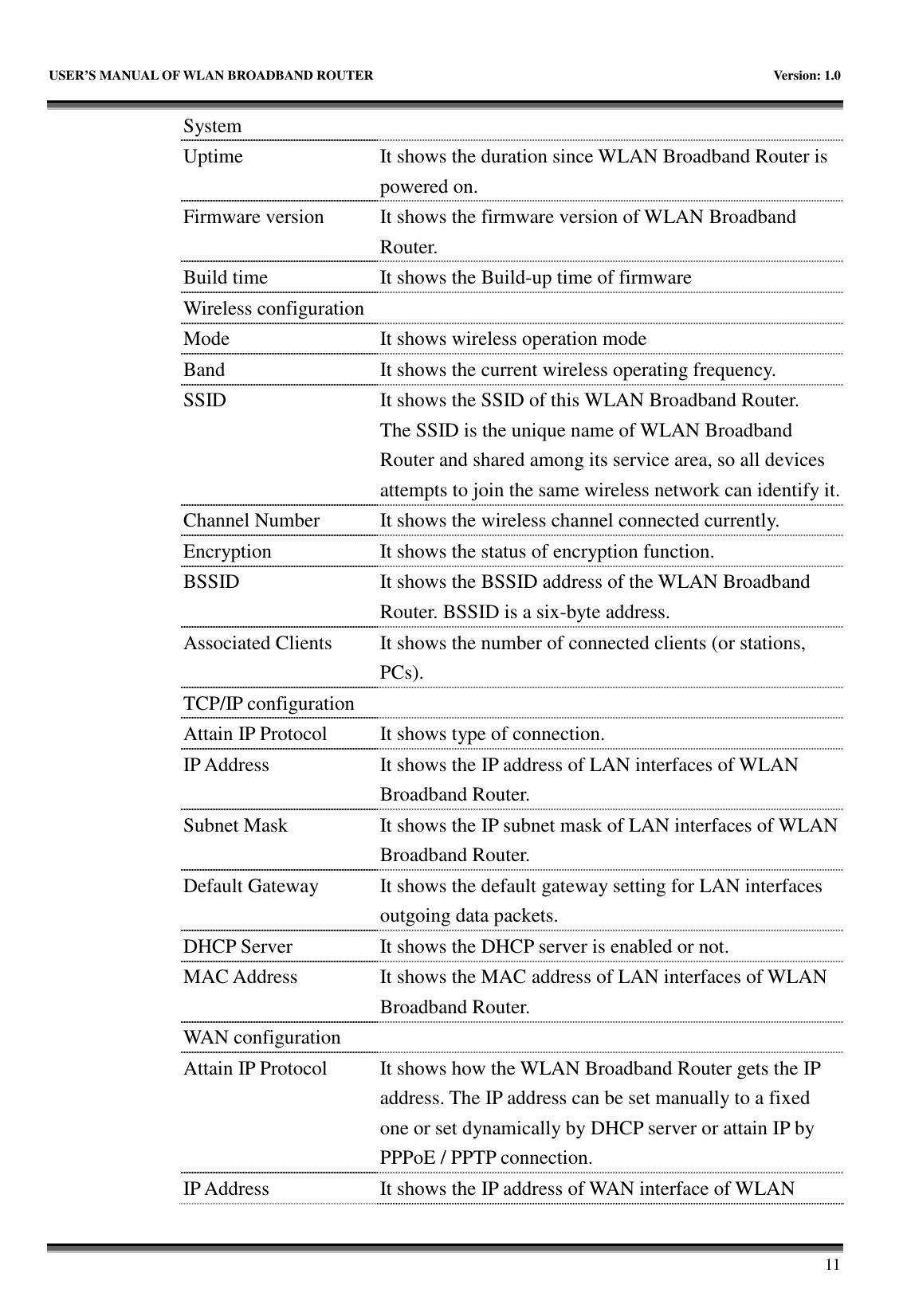

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 11 System Uptime It shows the duration since WLAN Broadband Router is powered on. Firmware version It shows the firmware version of WLAN Broadband Router. Build time It shows the Build-up time of firmware Wireless configuration Mode It shows wireless operation mode Band It shows the current wireless operating frequency. SSID It shows the SSID of this WLAN Broadband Router. The SSID is the unique name of WLAN Broadband Router and shared among its service area, so all devices attempts to join the same wireless network can identify it. Channel Number It shows the wireless channel connected currently. Encryption It shows the status of encryption function. BSSID It shows the BSSID address of the WLAN Broadband Router. BSSID is a six-byte address. Associated Clients It shows the number of connected clients (or stations, PCs). TCP/IP configuration Attain IP Protocol It shows type of connection. IP Address It shows the IP address of LAN interfaces of WLAN Broadband Router. Subnet Mask It shows the IP subnet mask of LAN interfaces of WLAN Broadband Router. Default Gateway It shows the default gateway setting for LAN interfaces outgoing data packets. DHCP Server It shows the DHCP server is enabled or not. MAC Address It shows the MAC address of LAN interfaces of WLAN Broadband Router. WAN configuration Attain IP Protocol It shows how the WLAN Broadband Router gets the IP address. The IP address can be set manually to a fixed one or set dynamically by DHCP server or attain IP by PPPoE / PPTP connection. IP Address It shows the IP address of WAN interface of WLAN

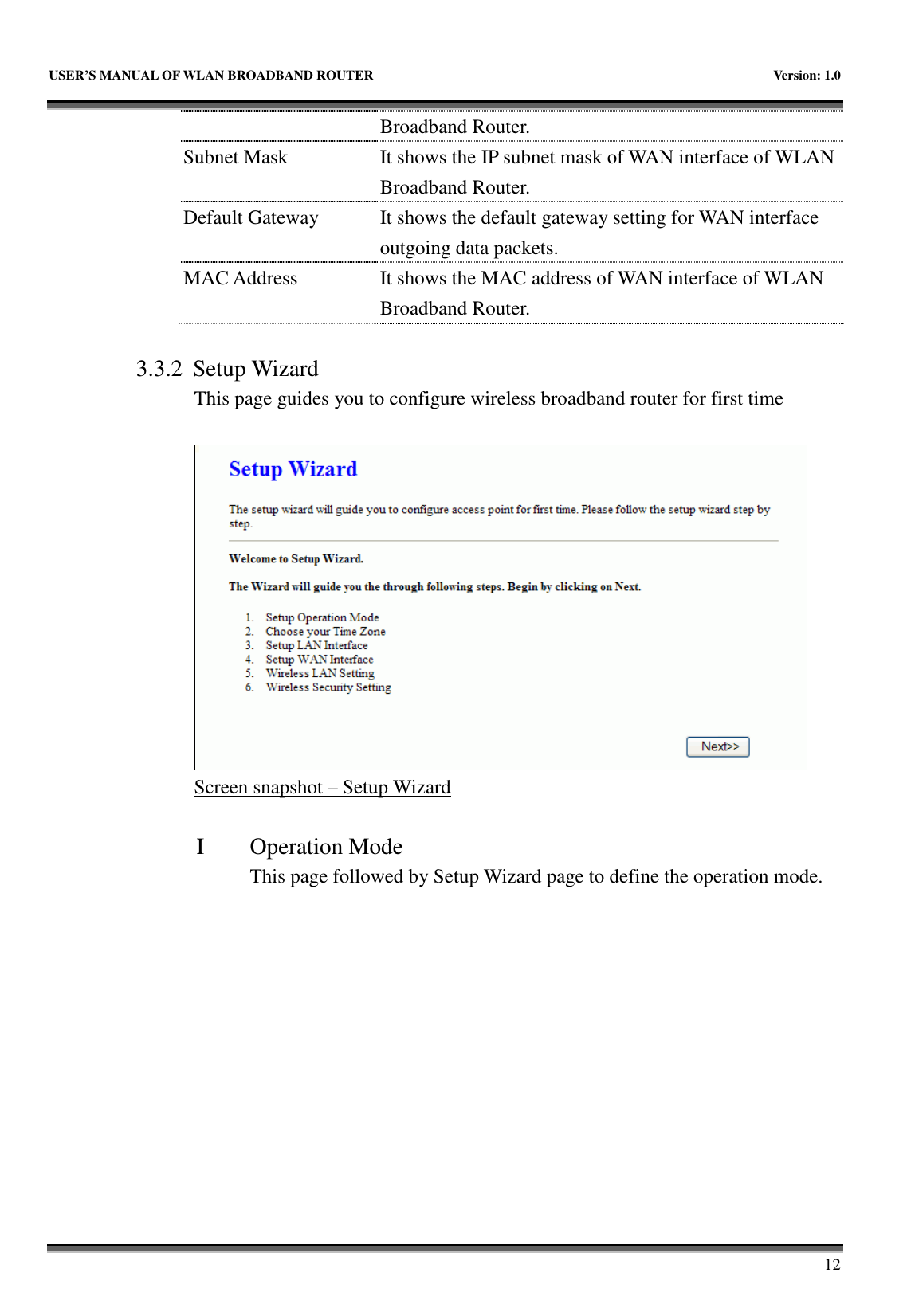

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 12 Broadband Router. Subnet Mask It shows the IP subnet mask of WAN interface of WLAN Broadband Router. Default Gateway It shows the default gateway setting for WAN interface outgoing data packets. MAC Address It shows the MAC address of WAN interface of WLAN Broadband Router. 3.3.2 Setup Wizard This page guides you to configure wireless broadband router for first time Screen snapshot – Setup Wizard I Operation Mode This page followed by Setup Wizard page to define the operation mode.

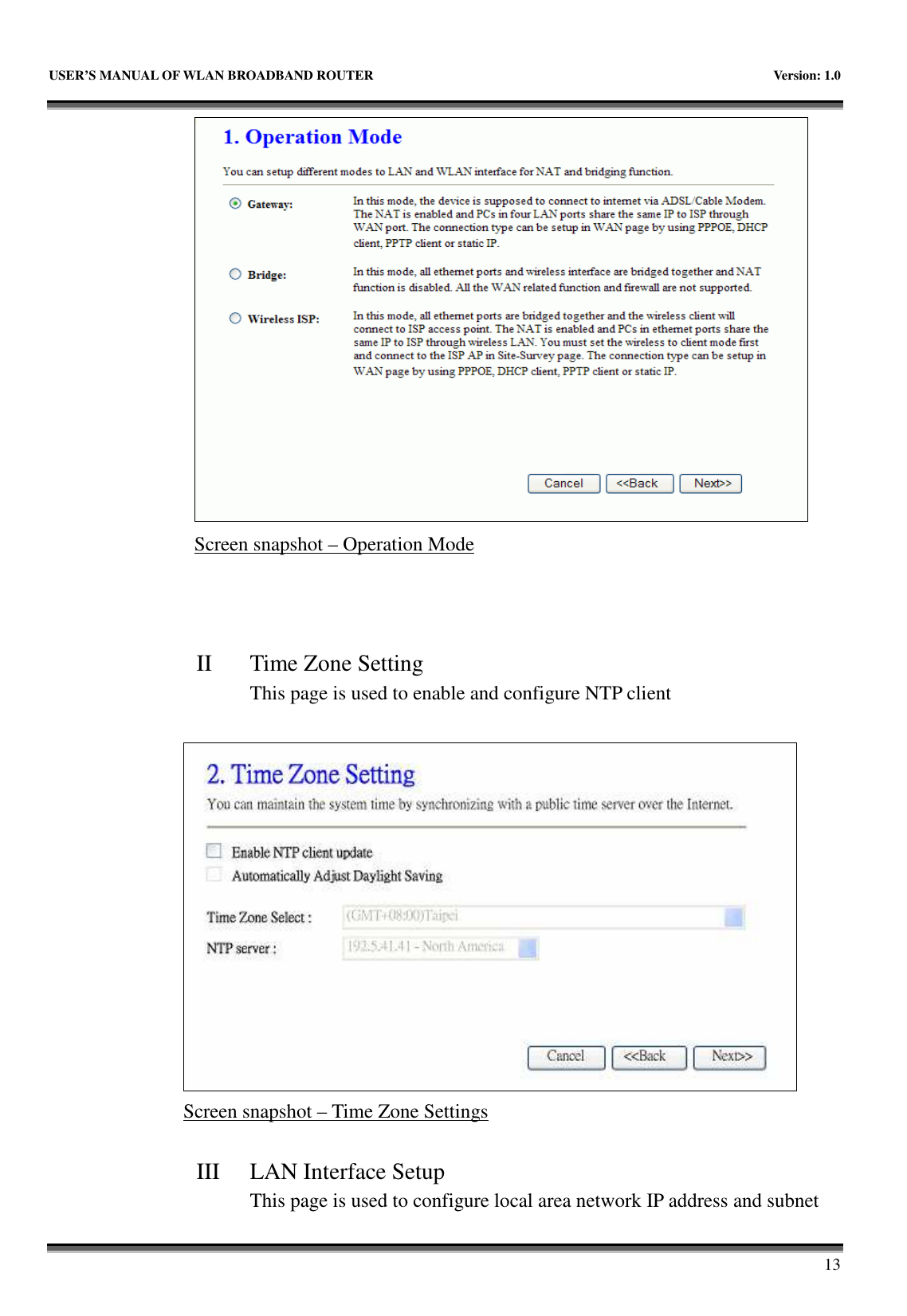

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 13 Screen snapshot – Operation Mode II Time Zone Setting This page is used to enable and configure NTP client Screen snapshot – Time Zone Settings III LAN Interface Setup This page is used to configure local area network IP address and subnet

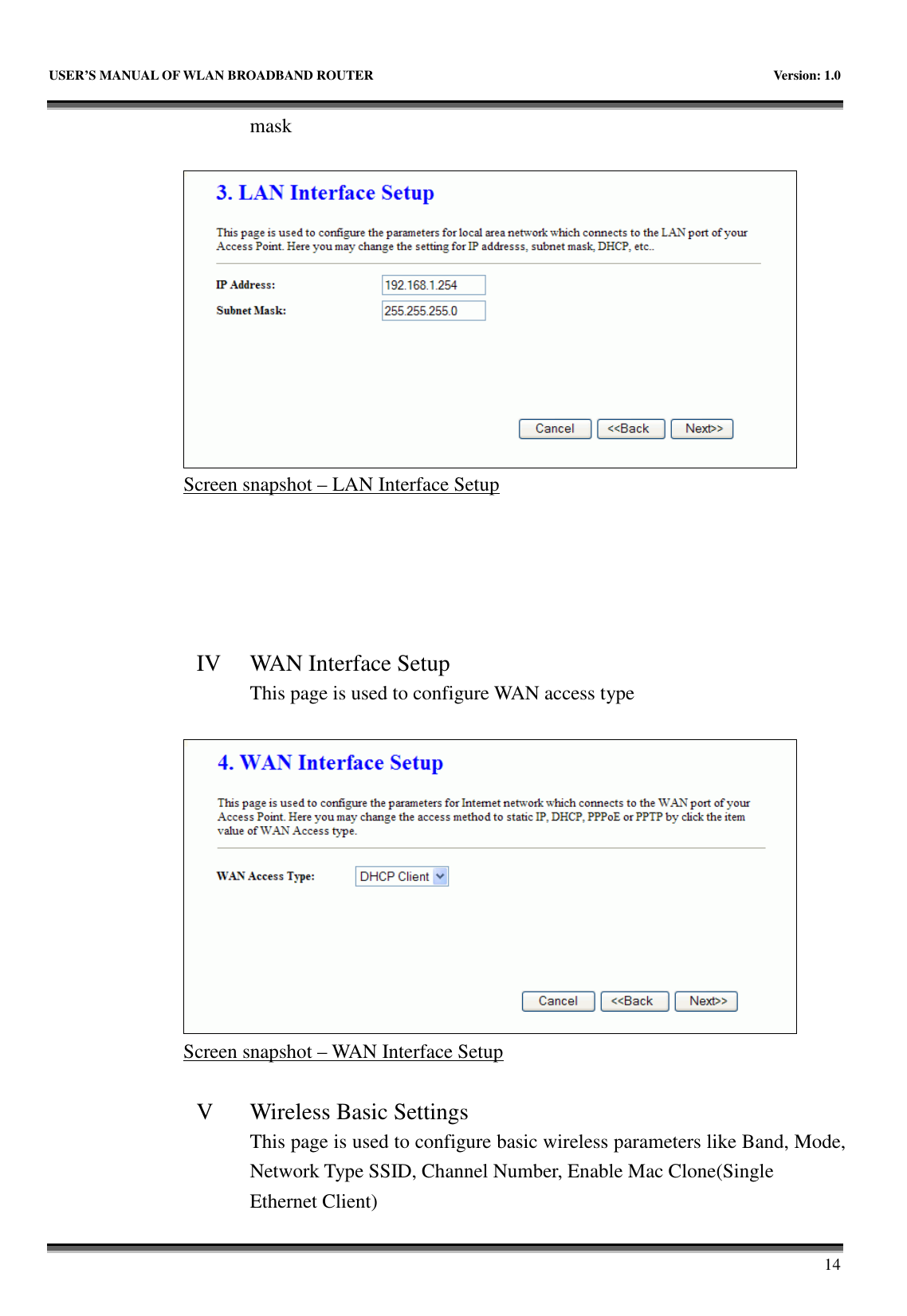

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 14 mask Screen snapshot – LAN Interface Setup IV WAN Interface Setup This page is used to configure WAN access type Screen snapshot – WAN Interface Setup V Wireless Basic Settings This page is used to configure basic wireless parameters like Band, Mode, Network Type SSID, Channel Number, Enable Mac Clone(Single Ethernet Client)

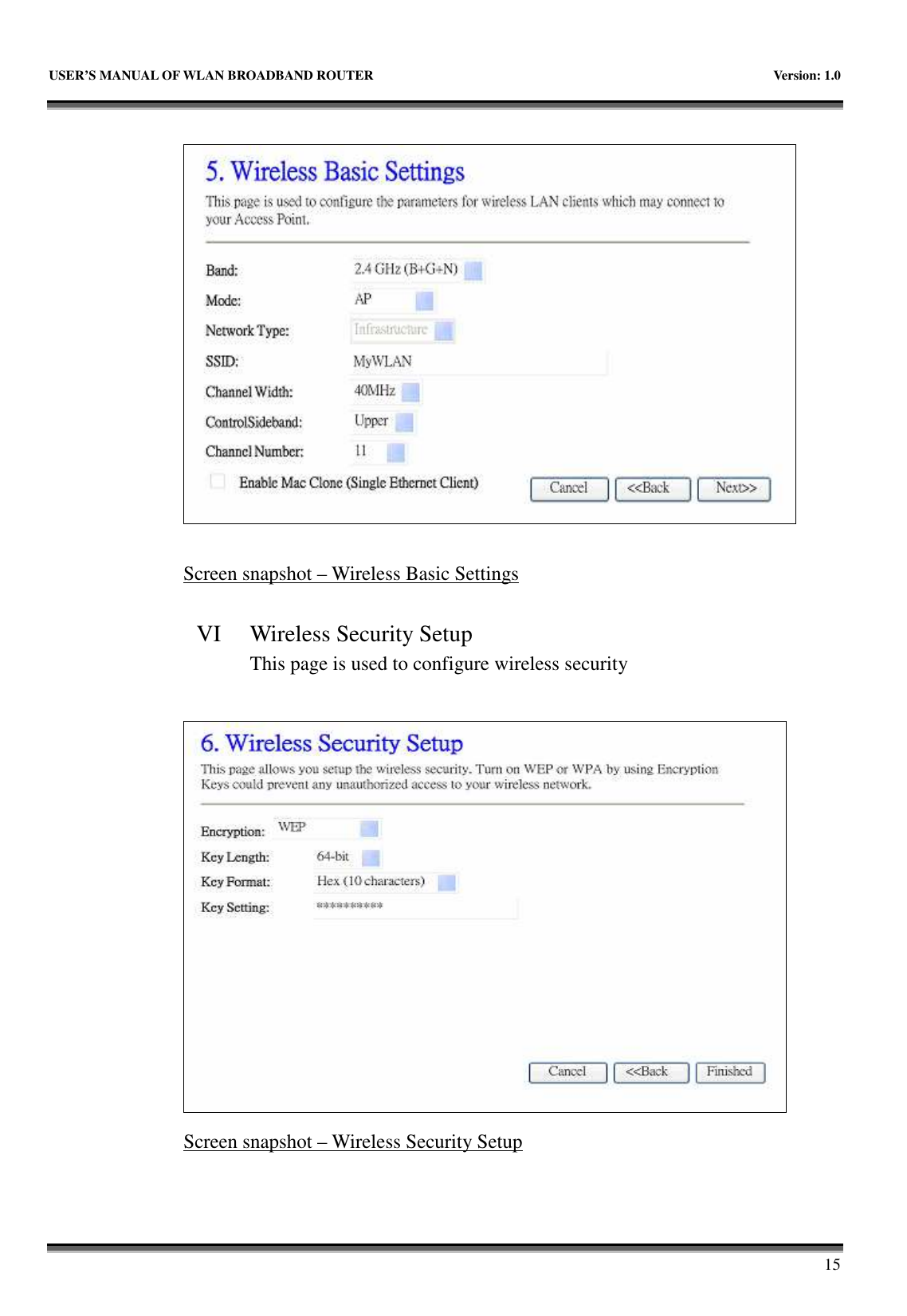

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 15 Screen snapshot – Wireless Basic Settings VI Wireless Security Setup This page is used to configure wireless security Screen snapshot – Wireless Security Setup

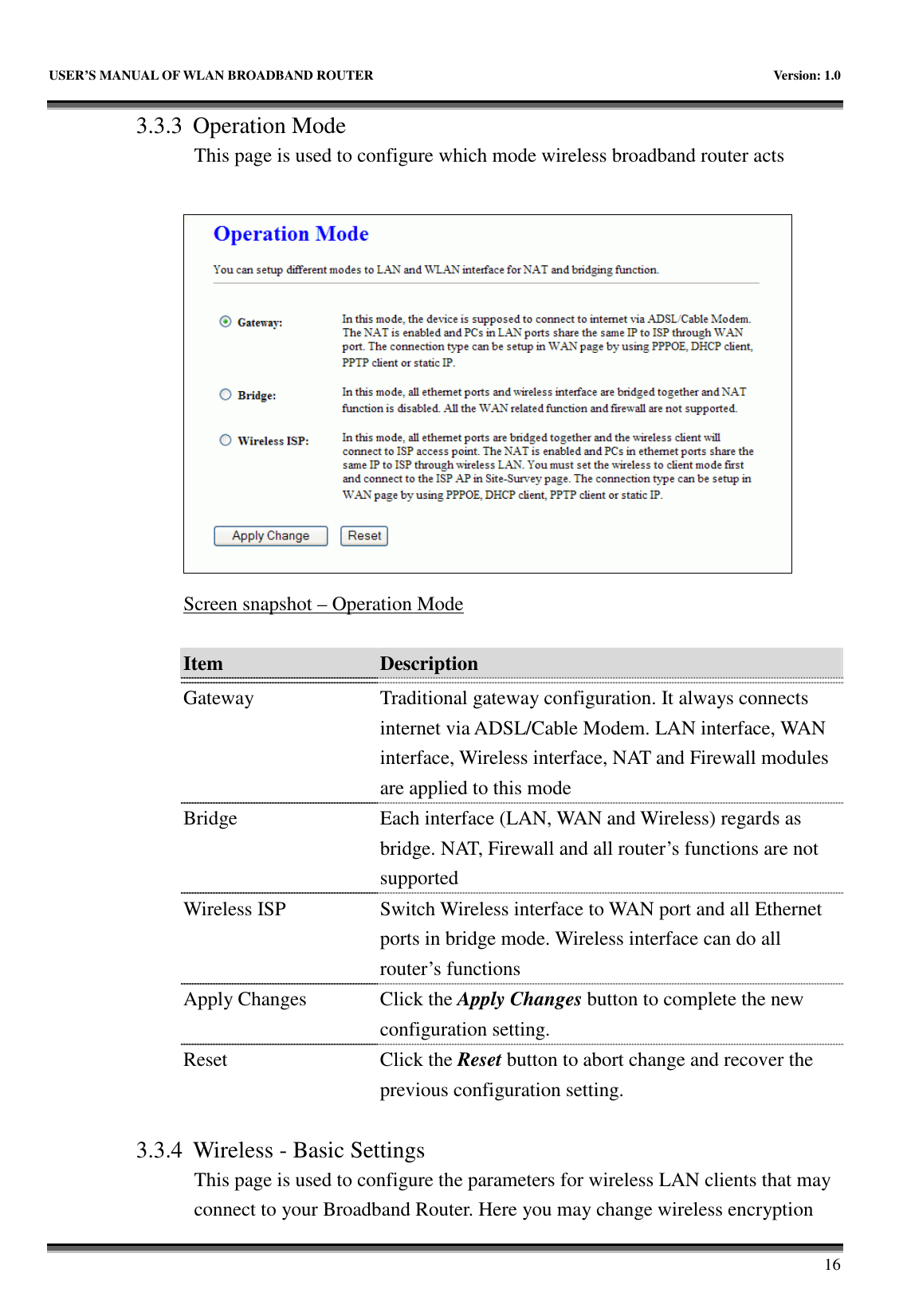

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 16 3.3.3 Operation Mode This page is used to configure which mode wireless broadband router acts Screen snapshot – Operation Mode Item Description Gateway Traditional gateway configuration. It always connects internet via ADSL/Cable Modem. LAN interface, WAN interface, Wireless interface, NAT and Firewall modules are applied to this mode Bridge Each interface (LAN, WAN and Wireless) regards as bridge. NAT, Firewall and all router’s functions are not supported Wireless ISP Switch Wireless interface to WAN port and all Ethernet ports in bridge mode. Wireless interface can do all router’s functions Apply Changes Click the Apply Changes button to complete the new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting. 3.3.4 Wireless - Basic Settings This page is used to configure the parameters for wireless LAN clients that may connect to your Broadband Router. Here you may change wireless encryption

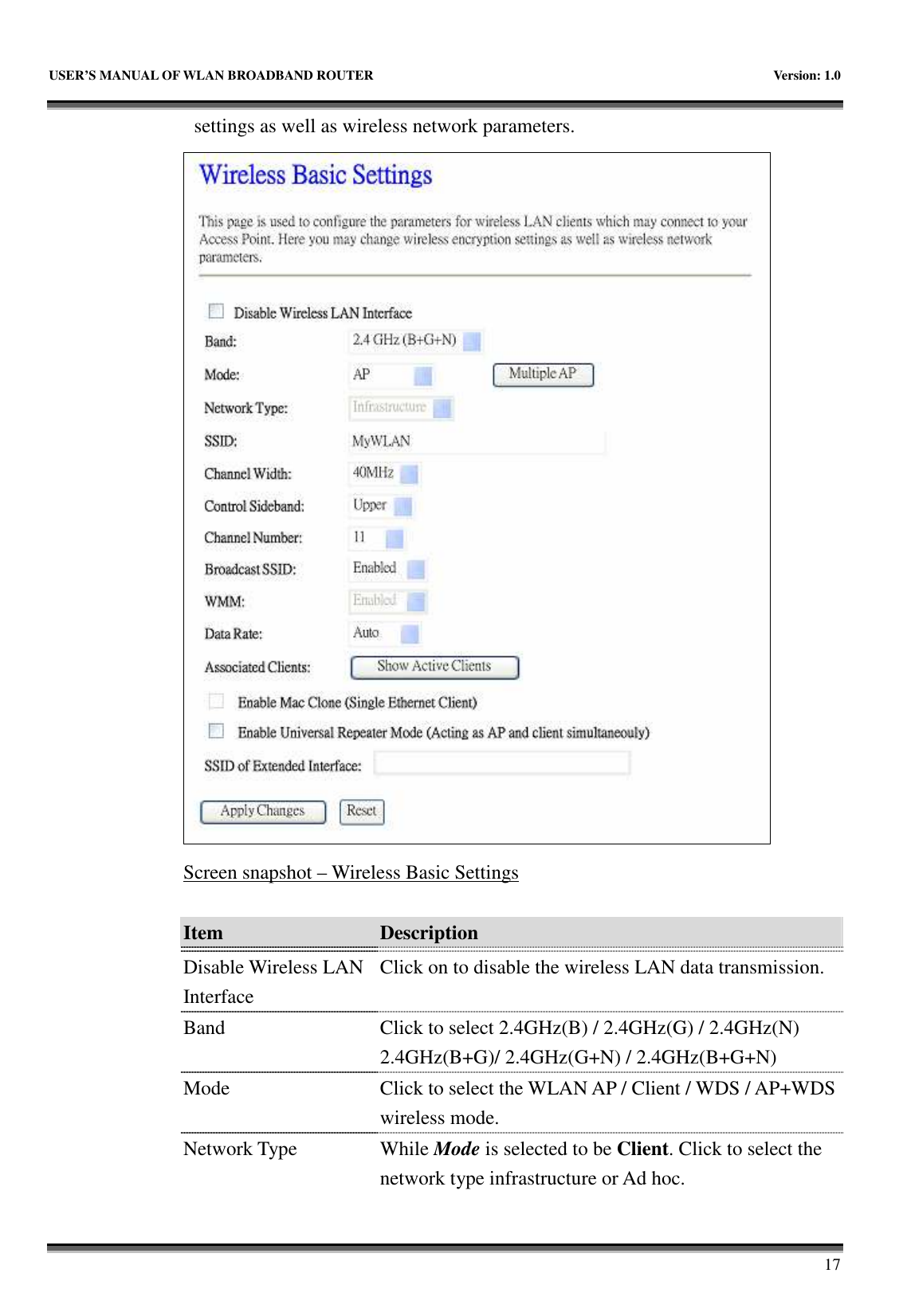

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 17 settings as well as wireless network parameters. Screen snapshot – Wireless Basic Settings Item Description Disable Wireless LAN Interface Click on to disable the wireless LAN data transmission. Band Click to select 2.4GHz(B) / 2.4GHz(G) / 2.4GHz(N) 2.4GHz(B+G)/ 2.4GHz(G+N) / 2.4GHz(B+G+N) Mode Click to select the WLAN AP / Client / WDS / AP+WDS wireless mode. Network Type While Mode is selected to be Client. Click to select the network type infrastructure or Ad hoc.

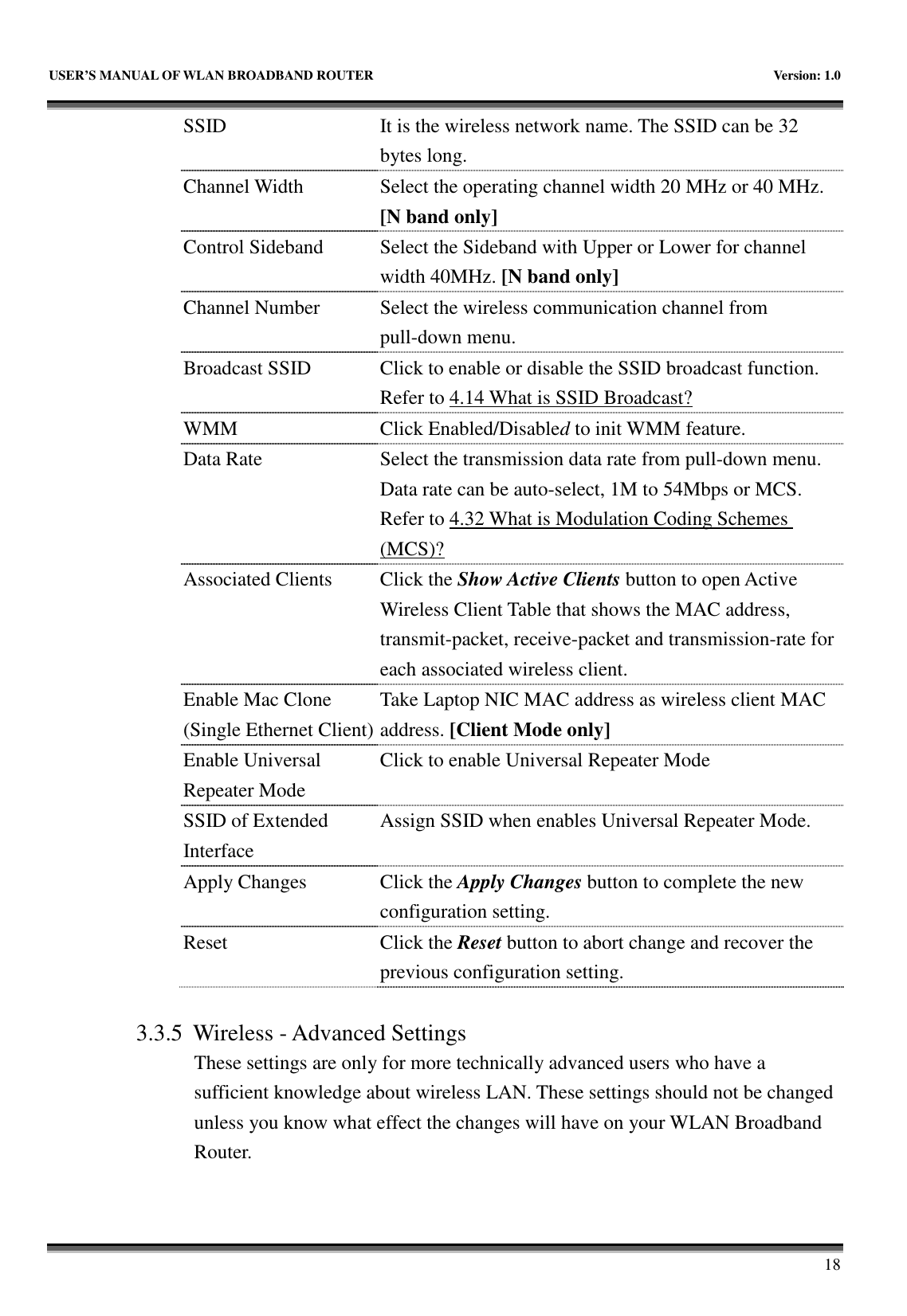

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 18 SSID It is the wireless network name. The SSID can be 32 bytes long. Channel Width Select the operating channel width 20 MHz or 40 MHz. [N band only] Control Sideband Select the Sideband with Upper or Lower for channel width 40MHz. [N band only] Channel Number Select the wireless communication channel from pull-down menu. Broadcast SSID Click to enable or disable the SSID broadcast function. Refer to 4.14 What is SSID Broadcast? WMM Click Enabled/Disabled to init WMM feature. Data Rate Select the transmission data rate from pull-down menu. Data rate can be auto-select, 1M to 54Mbps or MCS. Refer to 4.32 What is Modulation Coding Schemes (MCS)? Associated Clients Click the Show Active Clients button to open Active Wireless Client Table that shows the MAC address, transmit-packet, receive-packet and transmission-rate for each associated wireless client. Enable Mac Clone (Single Ethernet Client) Take Laptop NIC MAC address as wireless client MAC address. [Client Mode only] Enable Universal Repeater Mode Click to enable Universal Repeater Mode SSID of Extended Interface Assign SSID when enables Universal Repeater Mode. Apply Changes Click the Apply Changes button to complete the new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting. 3.3.5 Wireless - Advanced Settings These settings are only for more technically advanced users who have a sufficient knowledge about wireless LAN. These settings should not be changed unless you know what effect the changes will have on your WLAN Broadband Router.

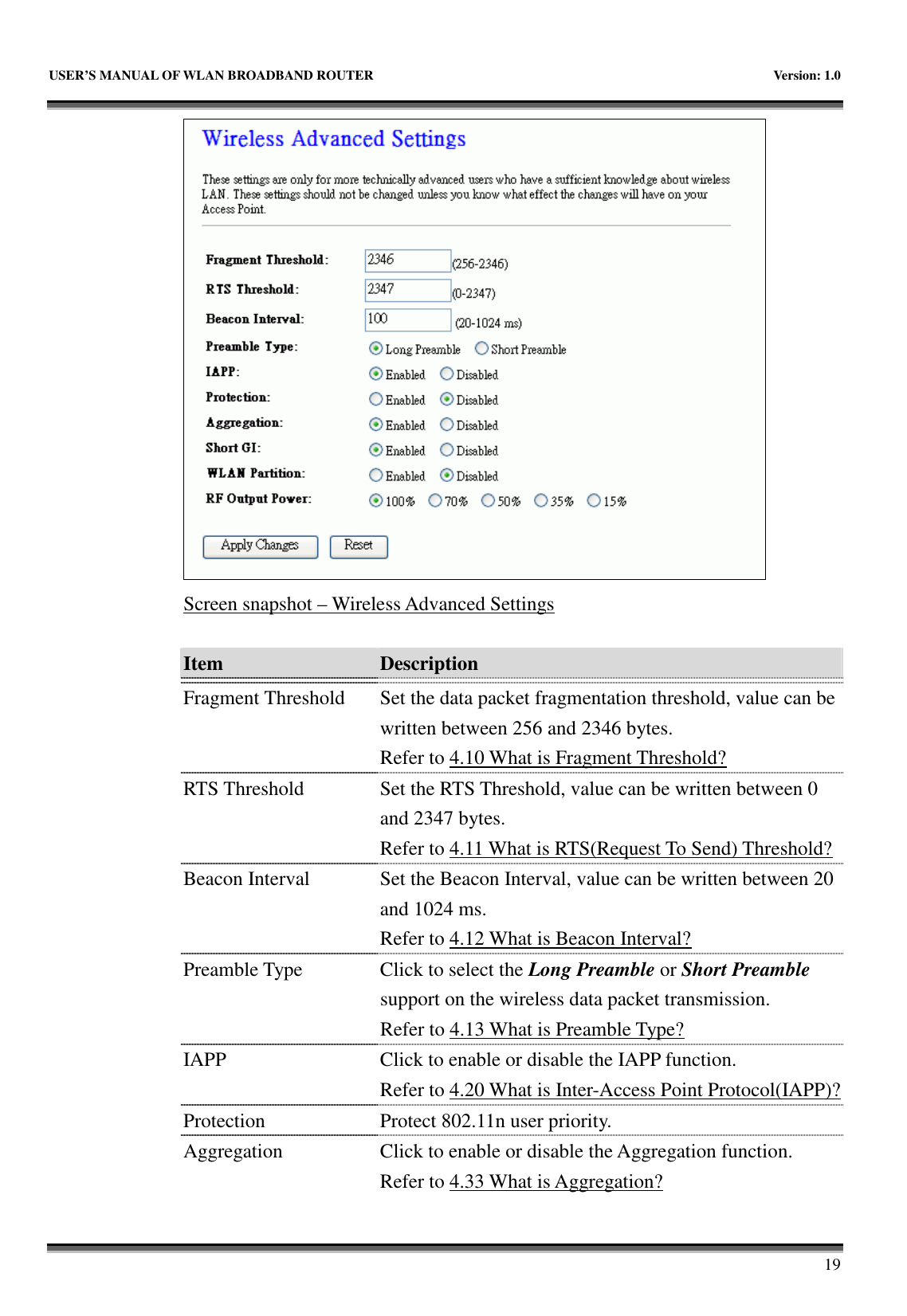

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 19 Screen snapshot – Wireless Advanced Settings Item Description Fragment Threshold Set the data packet fragmentation threshold, value can be written between 256 and 2346 bytes. Refer to 4.10 What is Fragment Threshold? RTS Threshold Set the RTS Threshold, value can be written between 0 and 2347 bytes. Refer to 4.11 What is RTS(Request To Send) Threshold? Beacon Interval Set the Beacon Interval, value can be written between 20 and 1024 ms. Refer to 4.12 What is Beacon Interval? Preamble Type Click to select the Long Preamble or Short Preamble support on the wireless data packet transmission. Refer to 4.13 What is Preamble Type? IAPP Click to enable or disable the IAPP function. Refer to 4.20 What is Inter-Access Point Protocol(IAPP)? Protection Protect 802.11n user priority. Aggregation Click to enable or disable the Aggregation function. Refer to 4.33 What is Aggregation?

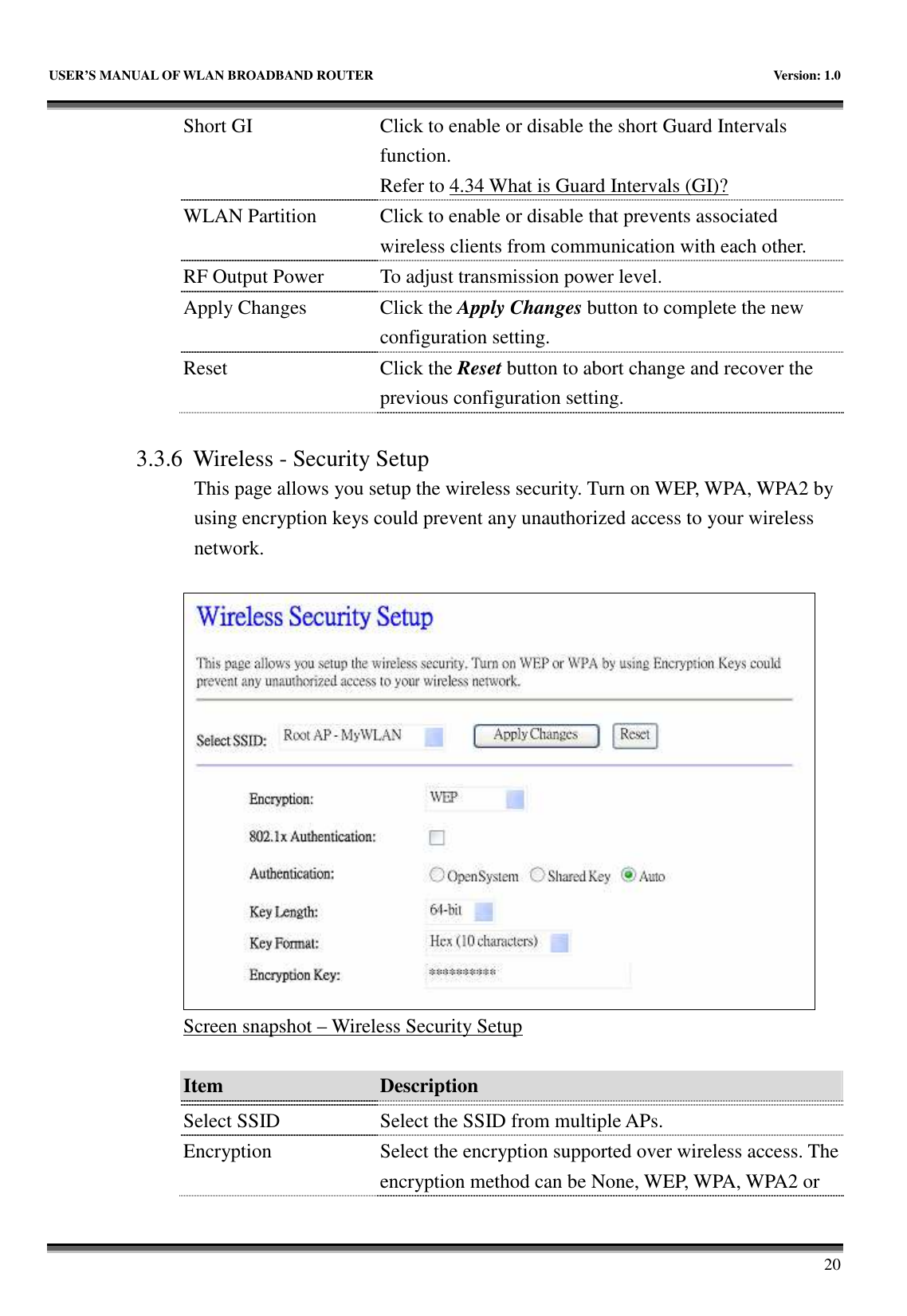

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 20 Short GI Click to enable or disable the short Guard Intervals function. Refer to 4.34 What is Guard Intervals (GI)? WLAN Partition Click to enable or disable that prevents associated wireless clients from communication with each other. RF Output Power To adjust transmission power level. Apply Changes Click the Apply Changes button to complete the new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting. 3.3.6 Wireless - Security Setup This page allows you setup the wireless security. Turn on WEP, WPA, WPA2 by using encryption keys could prevent any unauthorized access to your wireless network. Screen snapshot – Wireless Security Setup Item Description Select SSID Select the SSID from multiple APs. Encryption Select the encryption supported over wireless access. The encryption method can be None, WEP, WPA, WPA2 or

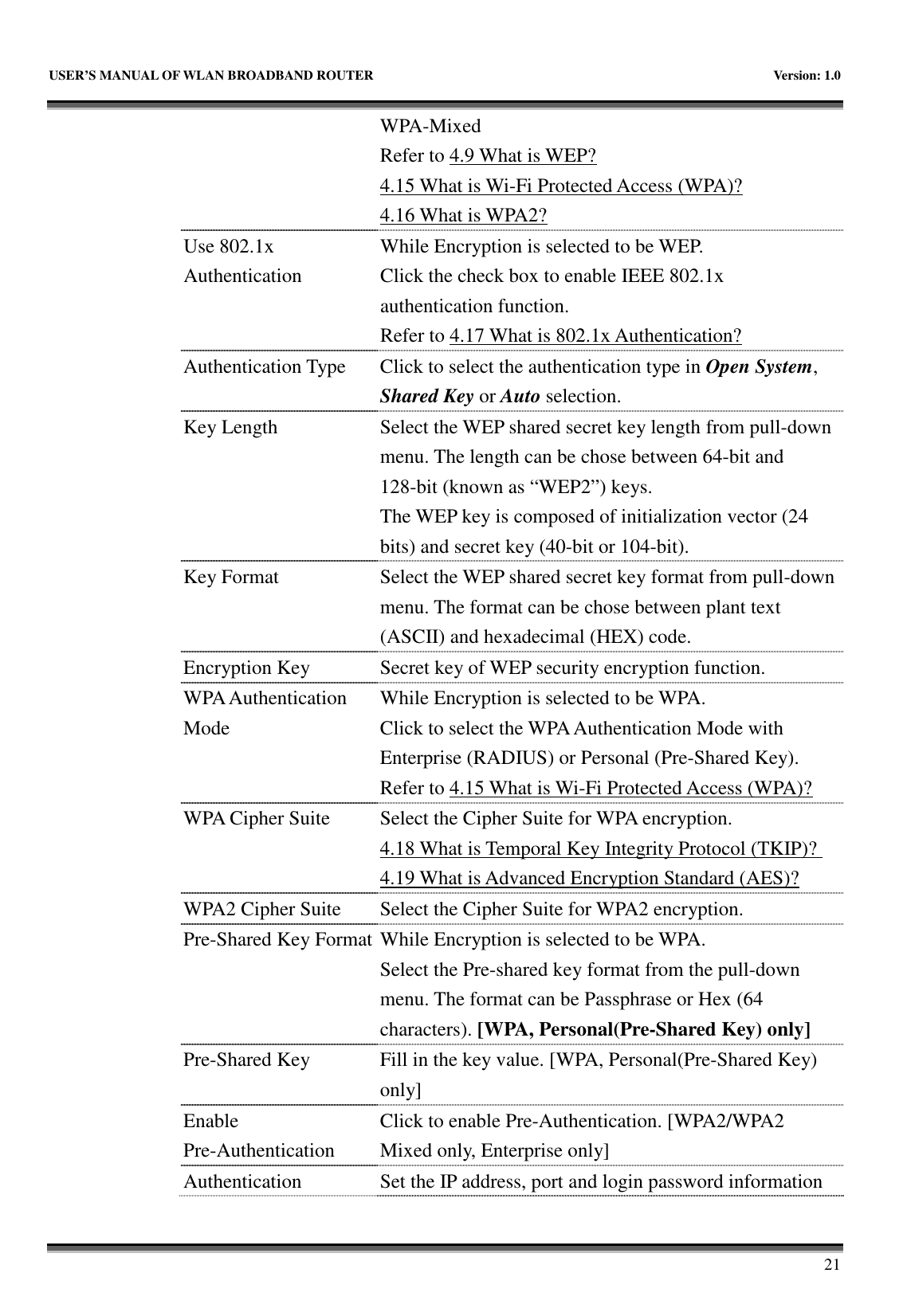

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 21 WPA-Mixed Refer to 4.9 What is WEP? 4.15 What is Wi-Fi Protected Access (WPA)? 4.16 What is WPA2? Use 802.1x Authentication While Encryption is selected to be WEP. Click the check box to enable IEEE 802.1x authentication function. Refer to 4.17 What is 802.1x Authentication? Authentication Type Click to select the authentication type in Open System, Shared Key or Auto selection. Key Length Select the WEP shared secret key length from pull-down menu. The length can be chose between 64-bit and 128-bit (known as “WEP2”) keys. The WEP key is composed of initialization vector (24 bits) and secret key (40-bit or 104-bit). Key Format Select the WEP shared secret key format from pull-down menu. The format can be chose between plant text (ASCII) and hexadecimal (HEX) code. Encryption Key Secret key of WEP security encryption function. WPA Authentication Mode While Encryption is selected to be WPA. Click to select the WPA Authentication Mode with Enterprise (RADIUS) or Personal (Pre-Shared Key). Refer to 4.15 What is Wi-Fi Protected Access (WPA)? WPA Cipher Suite Select the Cipher Suite for WPA encryption. 4.18 What is Temporal Key Integrity Protocol (TKIP)? 4.19 What is Advanced Encryption Standard (AES)? WPA2 Cipher Suite Select the Cipher Suite for WPA2 encryption. Pre-Shared Key Format While Encryption is selected to be WPA. Select the Pre-shared key format from the pull-down menu. The format can be Passphrase or Hex (64 characters). [WPA, Personal(Pre-Shared Key) only] Pre-Shared Key Fill in the key value. [WPA, Personal(Pre-Shared Key) only] Enable Pre-Authentication Click to enable Pre-Authentication. [WPA2/WPA2 Mixed only, Enterprise only] Authentication Set the IP address, port and login password information

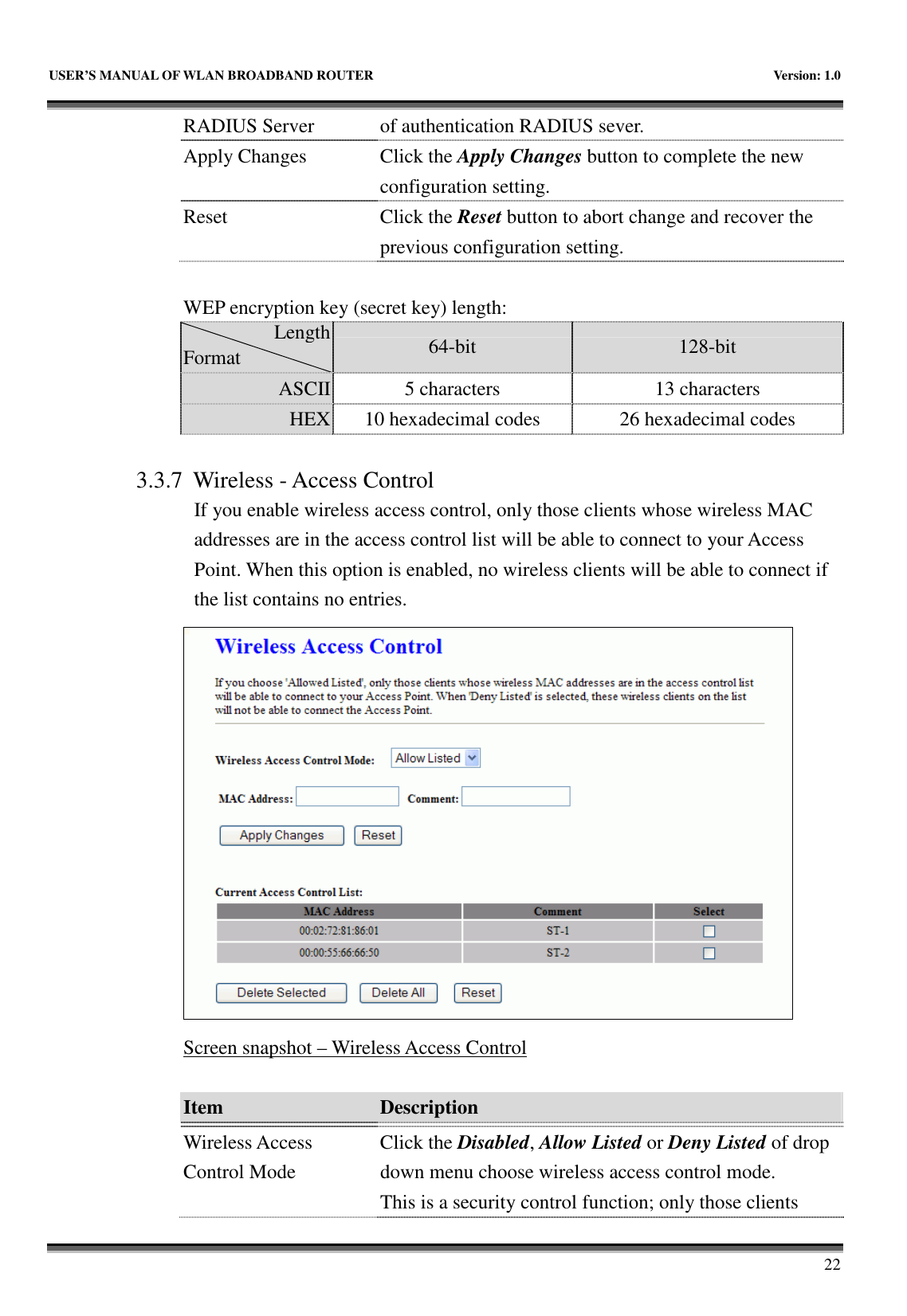

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 22 RADIUS Server of authentication RADIUS sever. Apply Changes Click the Apply Changes button to complete the new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting. WEP encryption key (secret key) length: Length Format 64-bit 128-bit ASCII 5 characters 13 characters HEX 10 hexadecimal codes 26 hexadecimal codes 3.3.7 Wireless - Access Control If you enable wireless access control, only those clients whose wireless MAC addresses are in the access control list will be able to connect to your Access Point. When this option is enabled, no wireless clients will be able to connect if the list contains no entries. Screen snapshot – Wireless Access Control Item Description Wireless Access Control Mode Click the Disabled, Allow Listed or Deny Listed of drop down menu choose wireless access control mode. This is a security control function; only those clients

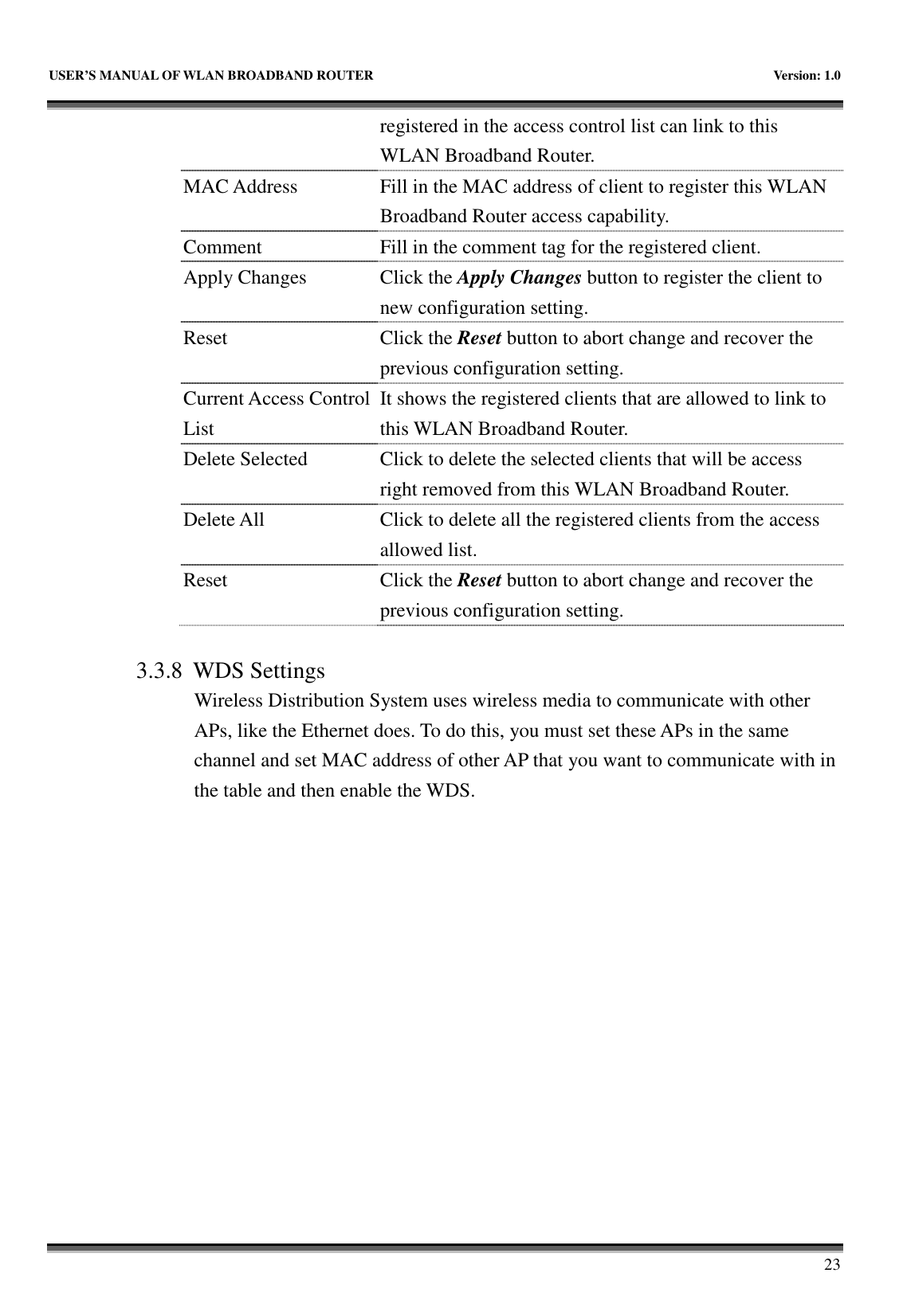

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 23 registered in the access control list can link to this WLAN Broadband Router. MAC Address Fill in the MAC address of client to register this WLAN Broadband Router access capability. Comment Fill in the comment tag for the registered client. Apply Changes Click the Apply Changes button to register the client to new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting. Current Access Control List It shows the registered clients that are allowed to link to this WLAN Broadband Router. Delete Selected Click to delete the selected clients that will be access right removed from this WLAN Broadband Router. Delete All Click to delete all the registered clients from the access allowed list. Reset Click the Reset button to abort change and recover the previous configuration setting. 3.3.8 WDS Settings Wireless Distribution System uses wireless media to communicate with other APs, like the Ethernet does. To do this, you must set these APs in the same channel and set MAC address of other AP that you want to communicate with in the table and then enable the WDS.

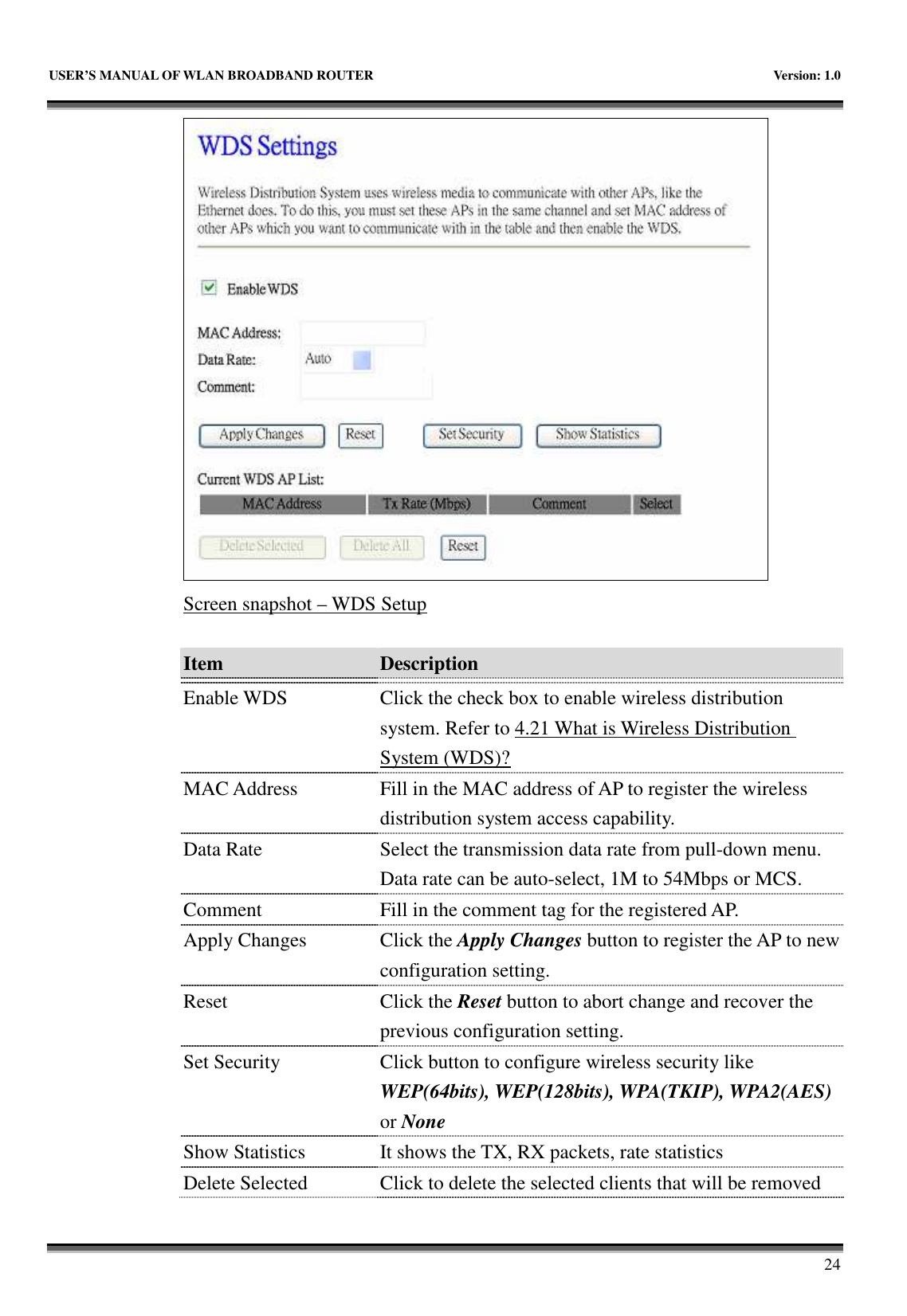

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 24 Screen snapshot – WDS Setup Item Description Enable WDS Click the check box to enable wireless distribution system. Refer to 4.21 What is Wireless Distribution System (WDS)? MAC Address Fill in the MAC address of AP to register the wireless distribution system access capability. Data Rate Select the transmission data rate from pull-down menu. Data rate can be auto-select, 1M to 54Mbps or MCS. Comment Fill in the comment tag for the registered AP. Apply Changes Click the Apply Changes button to register the AP to new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting. Set Security Click button to configure wireless security like WEP(64bits), WEP(128bits), WPA(TKIP), WPA2(AES) or None Show Statistics It shows the TX, RX packets, rate statistics Delete Selected Click to delete the selected clients that will be removed

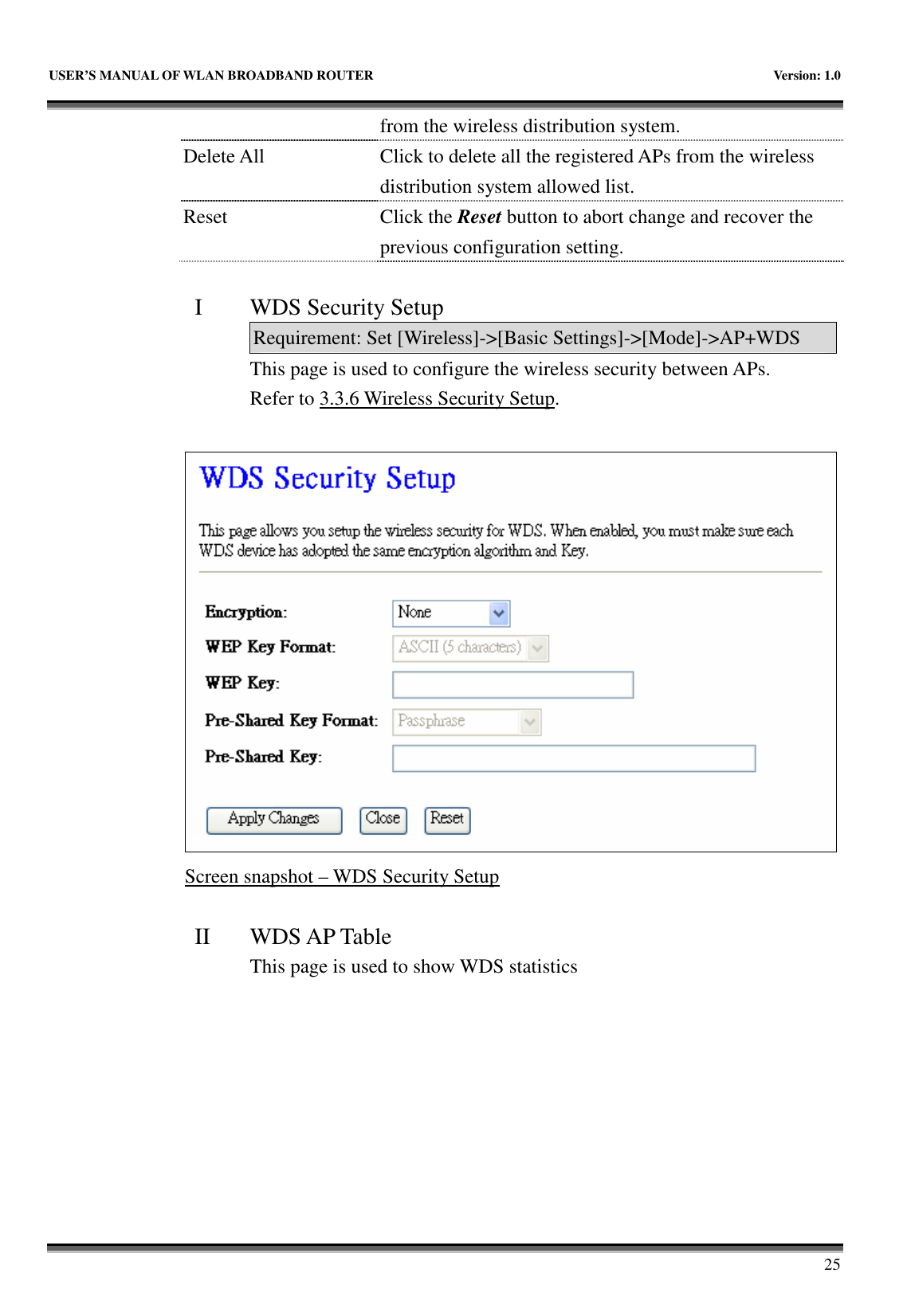

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 25 from the wireless distribution system. Delete All Click to delete all the registered APs from the wireless distribution system allowed list. Reset Click the Reset button to abort change and recover the previous configuration setting. I WDS Security Setup Requirement: Set [Wireless]->[Basic Settings]->[Mode]->AP+WDS This page is used to configure the wireless security between APs. Refer to 3.3.6 Wireless Security Setup. Screen snapshot – WDS Security Setup II WDS AP Table This page is used to show WDS statistics

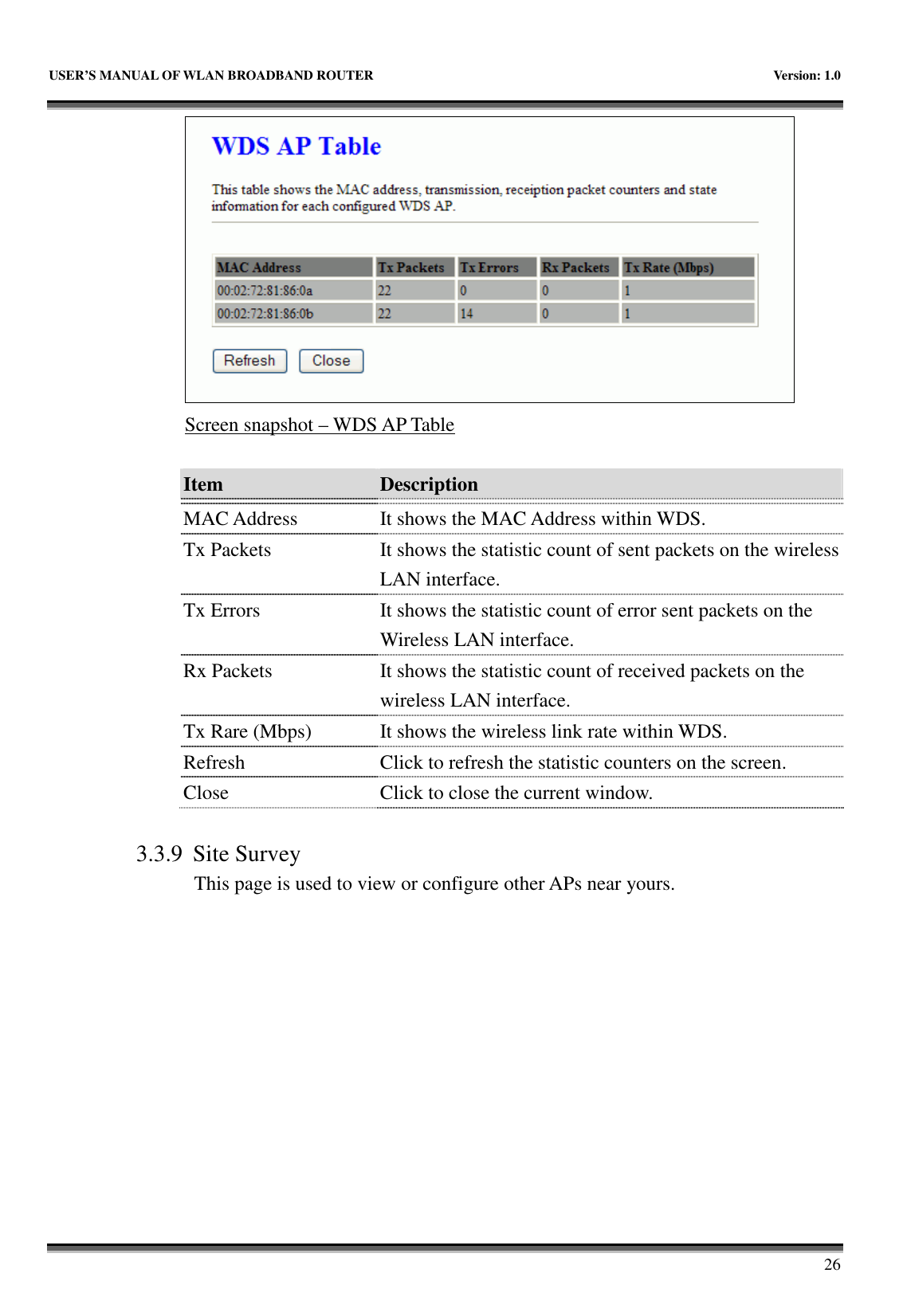

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 26 Screen snapshot – WDS AP Table Item Description MAC Address It shows the MAC Address within WDS. Tx Packets It shows the statistic count of sent packets on the wireless LAN interface. Tx Errors It shows the statistic count of error sent packets on the Wireless LAN interface. Rx Packets It shows the statistic count of received packets on the wireless LAN interface. Tx Rare (Mbps) It shows the wireless link rate within WDS. Refresh Click to refresh the statistic counters on the screen. Close Click to close the current window. 3.3.9 Site Survey This page is used to view or configure other APs near yours.

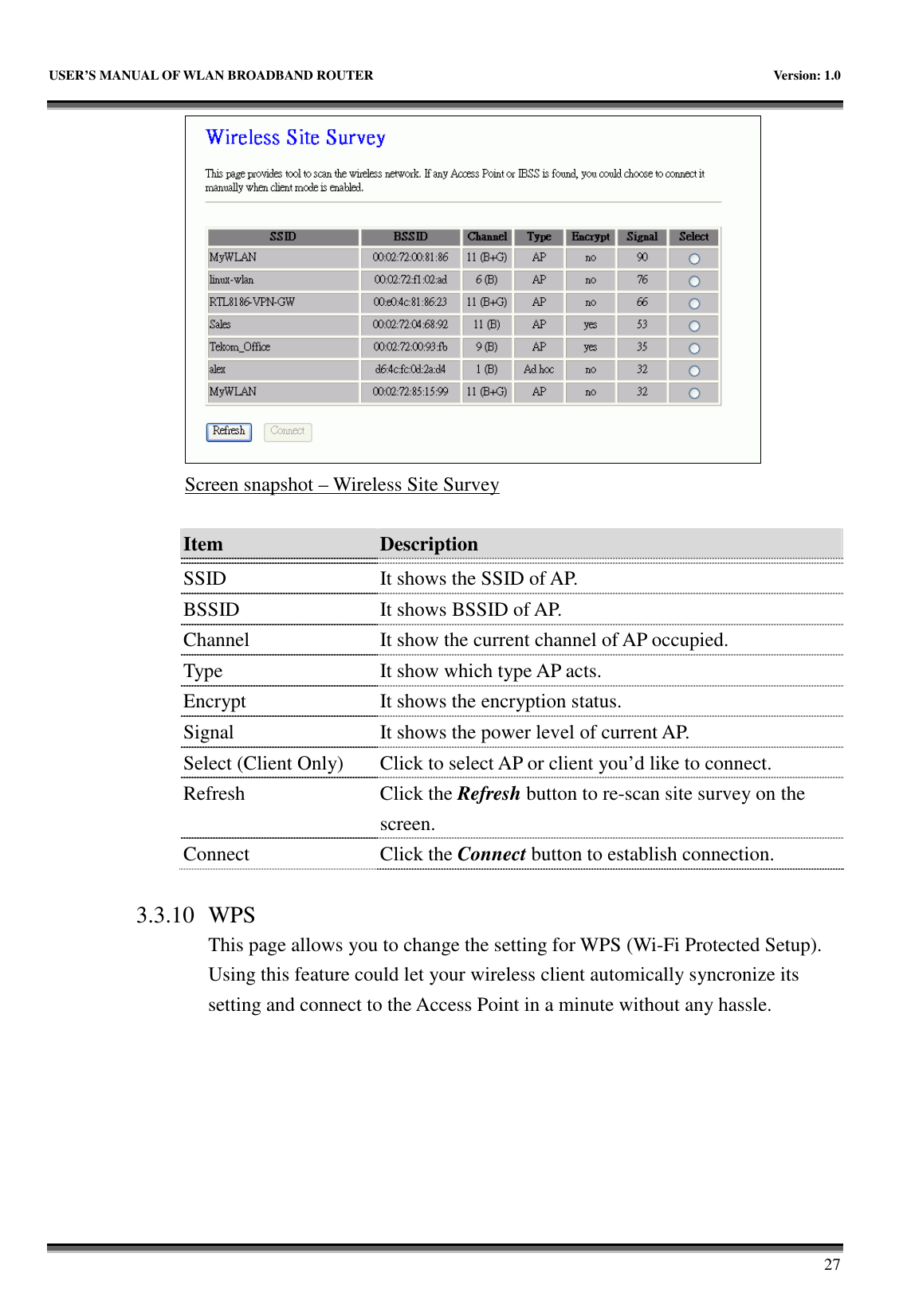

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 27 Screen snapshot – Wireless Site Survey Item Description SSID It shows the SSID of AP. BSSID It shows BSSID of AP. Channel It show the current channel of AP occupied. Type It show which type AP acts. Encrypt It shows the encryption status. Signal It shows the power level of current AP. Select (Client Only) Click to select AP or client you’d like to connect. Refresh Click the Refresh button to re-scan site survey on the screen. Connect Click the Connect button to establish connection. 3.3.10 WPS This page allows you to change the setting for WPS (Wi-Fi Protected Setup). Using this feature could let your wireless client automically syncronize its setting and connect to the Access Point in a minute without any hassle.

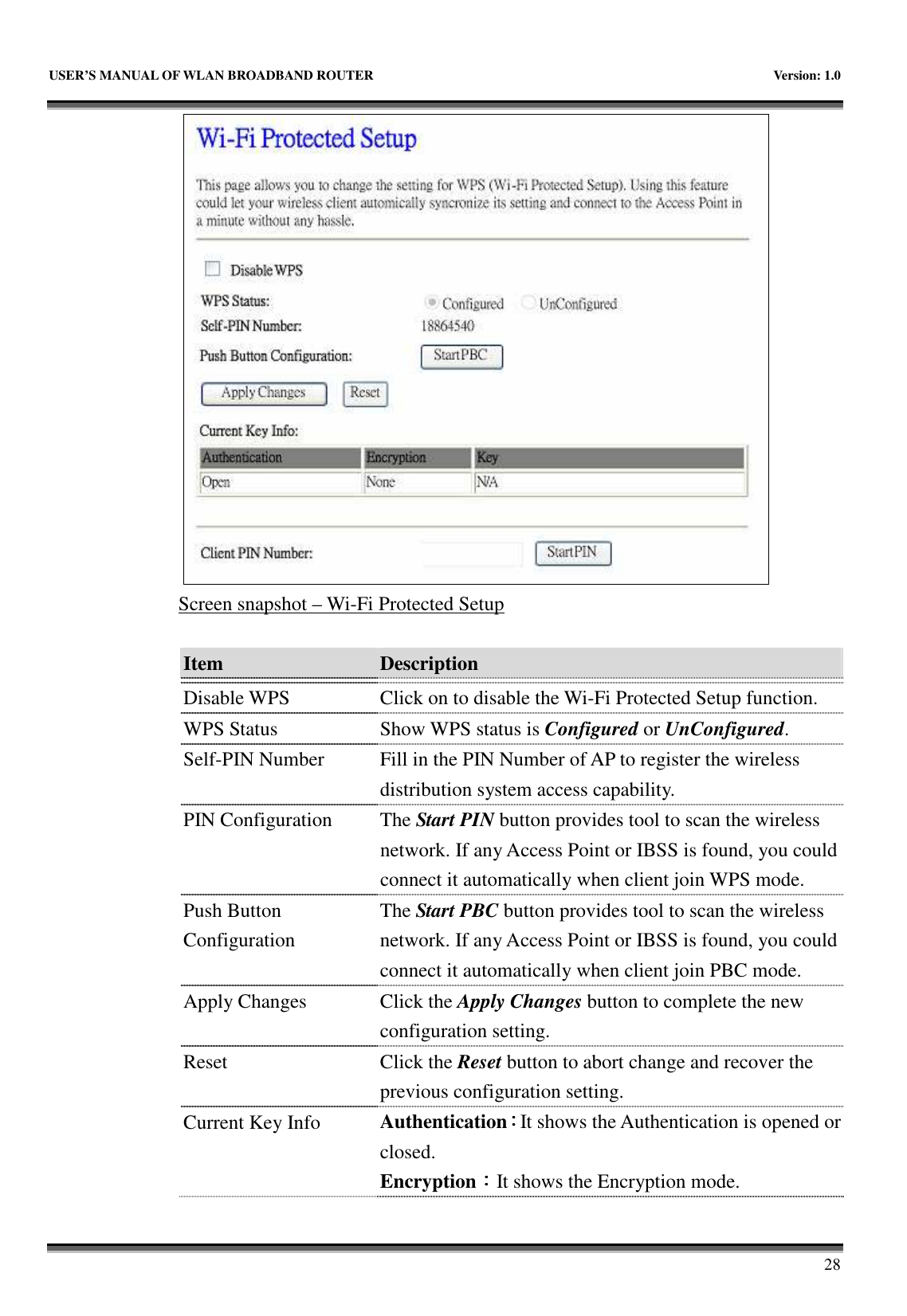

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 28 Screen snapshot – Wi-Fi Protected Setup Item Description Disable WPS Click on to disable the Wi-Fi Protected Setup function. WPS Status Show WPS status is Configured or UnConfigured. Self-PIN Number Fill in the PIN Number of AP to register the wireless distribution system access capability. PIN Configuration The Start PIN button provides tool to scan the wireless network. If any Access Point or IBSS is found, you could connect it automatically when client join WPS mode. Push Button Configuration The Start PBC button provides tool to scan the wireless network. If any Access Point or IBSS is found, you could connect it automatically when client join PBC mode. Apply Changes Click the Apply Changes button to complete the new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting. Current Key Info Authentication：：：：It shows the Authentication is opened or closed. Encryption：：：：It shows the Encryption mode.

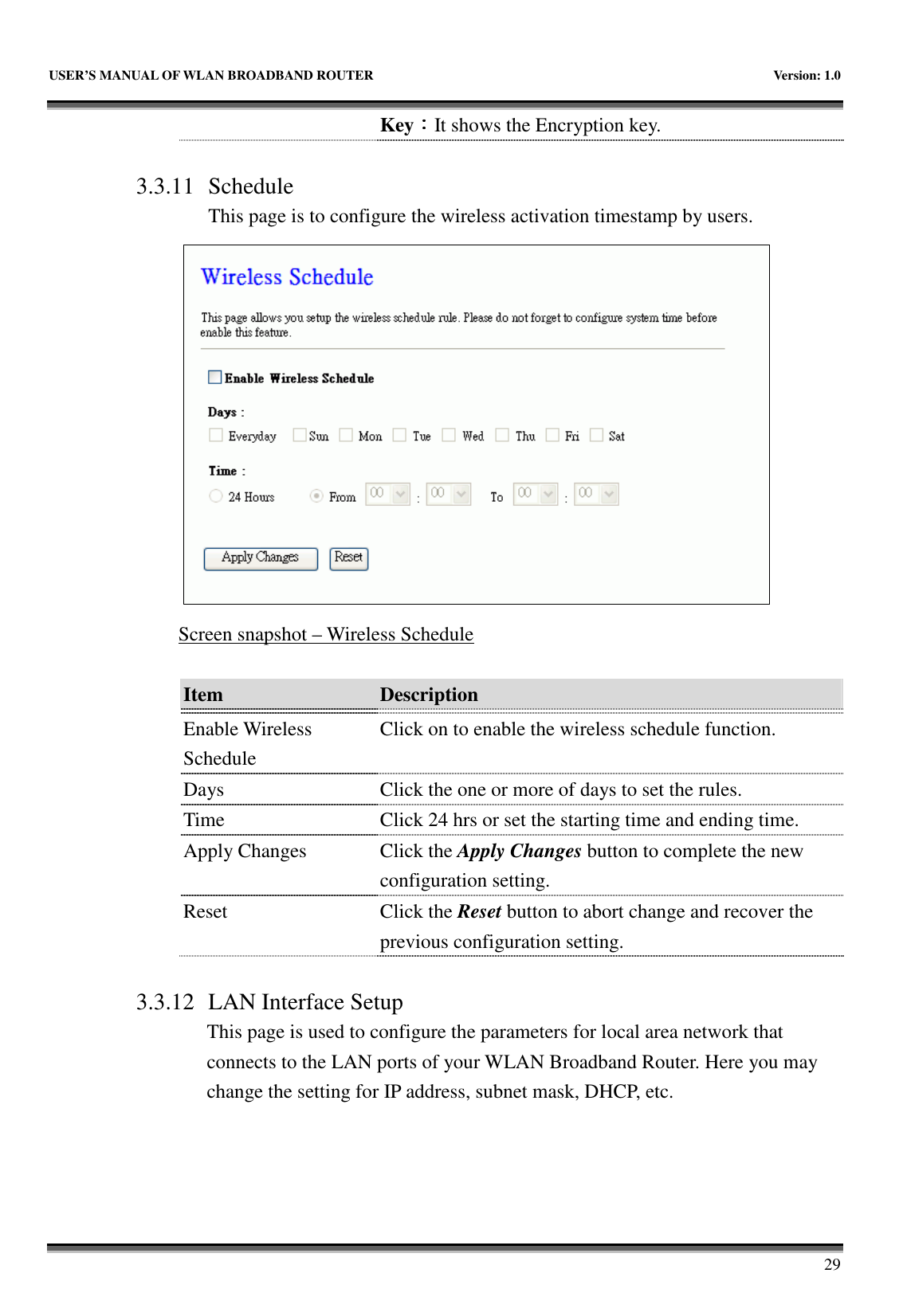

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 29 Key：：：：It shows the Encryption key. 3.3.11 Schedule This page is to configure the wireless activation timestamp by users. Screen snapshot – Wireless Schedule Item Description Enable Wireless Schedule Click on to enable the wireless schedule function. Days Click the one or more of days to set the rules. Time Click 24 hrs or set the starting time and ending time. Apply Changes Click the Apply Changes button to complete the new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting. 3.3.12 LAN Interface Setup This page is used to configure the parameters for local area network that connects to the LAN ports of your WLAN Broadband Router. Here you may change the setting for IP address, subnet mask, DHCP, etc.

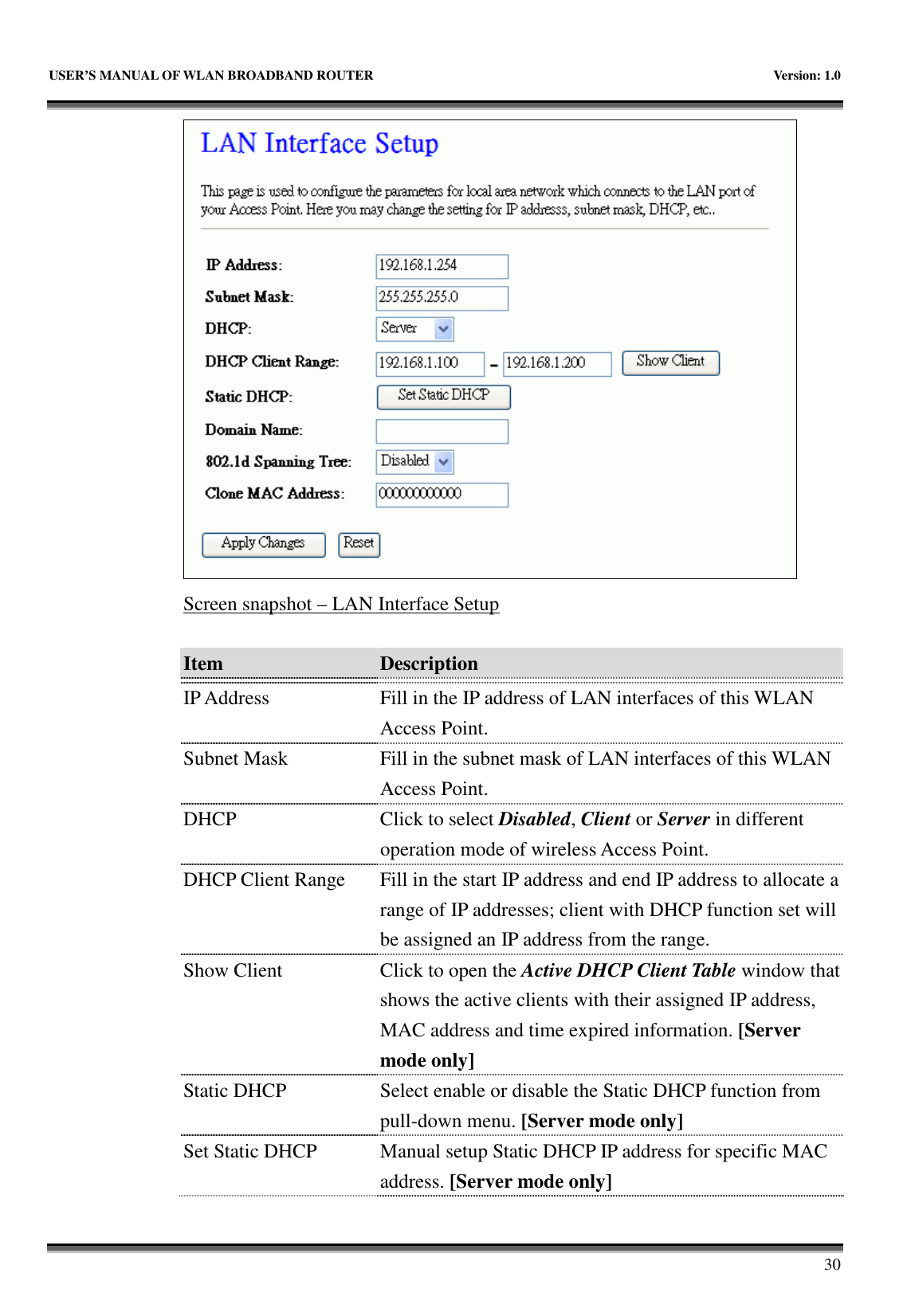

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 30 Screen snapshot – LAN Interface Setup Item Description IP Address Fill in the IP address of LAN interfaces of this WLAN Access Point. Subnet Mask Fill in the subnet mask of LAN interfaces of this WLAN Access Point. DHCP Click to select Disabled, Client or Server in different operation mode of wireless Access Point. DHCP Client Range Fill in the start IP address and end IP address to allocate a range of IP addresses; client with DHCP function set will be assigned an IP address from the range. Show Client Click to open the Active DHCP Client Table window that shows the active clients with their assigned IP address, MAC address and time expired information. [Server mode only] Static DHCP Select enable or disable the Static DHCP function from pull-down menu. [Server mode only] Set Static DHCP Manual setup Static DHCP IP address for specific MAC address. [Server mode only]

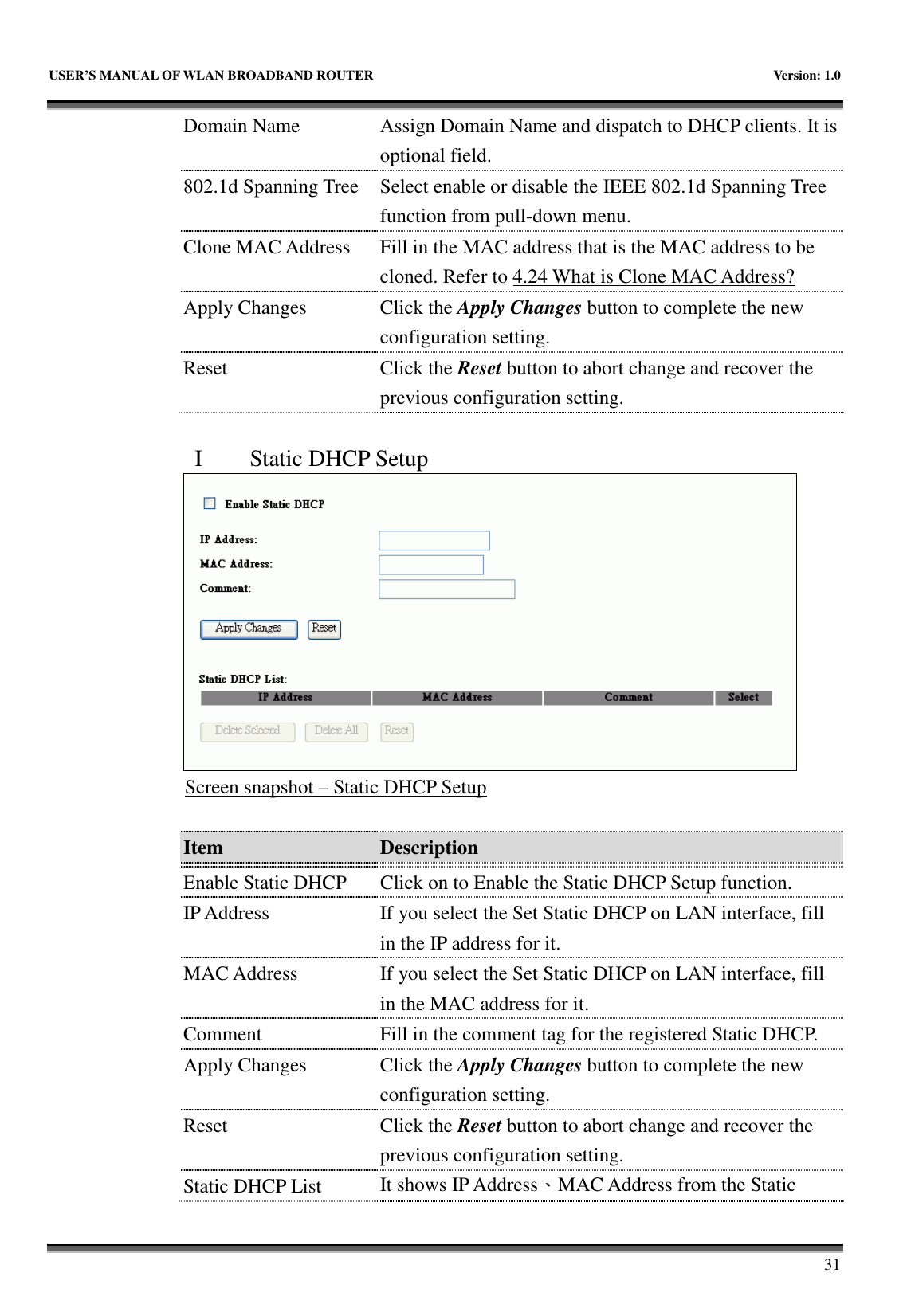

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 31 Domain Name Assign Domain Name and dispatch to DHCP clients. It is optional field. 802.1d Spanning Tree Select enable or disable the IEEE 802.1d Spanning Tree function from pull-down menu. Clone MAC Address Fill in the MAC address that is the MAC address to be cloned. Refer to 4.24 What is Clone MAC Address? Apply Changes Click the Apply Changes button to complete the new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting. I Static DHCP Setup Screen snapshot – Static DHCP Setup Item Description Enable Static DHCP Click on to Enable the Static DHCP Setup function. IP Address If you select the Set Static DHCP on LAN interface, fill in the IP address for it. MAC Address If you select the Set Static DHCP on LAN interface, fill in the MAC address for it. Comment Fill in the comment tag for the registered Static DHCP. Apply Changes Click the Apply Changes button to complete the new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting. Static DHCP List It shows IP Address、MAC Address from the Static

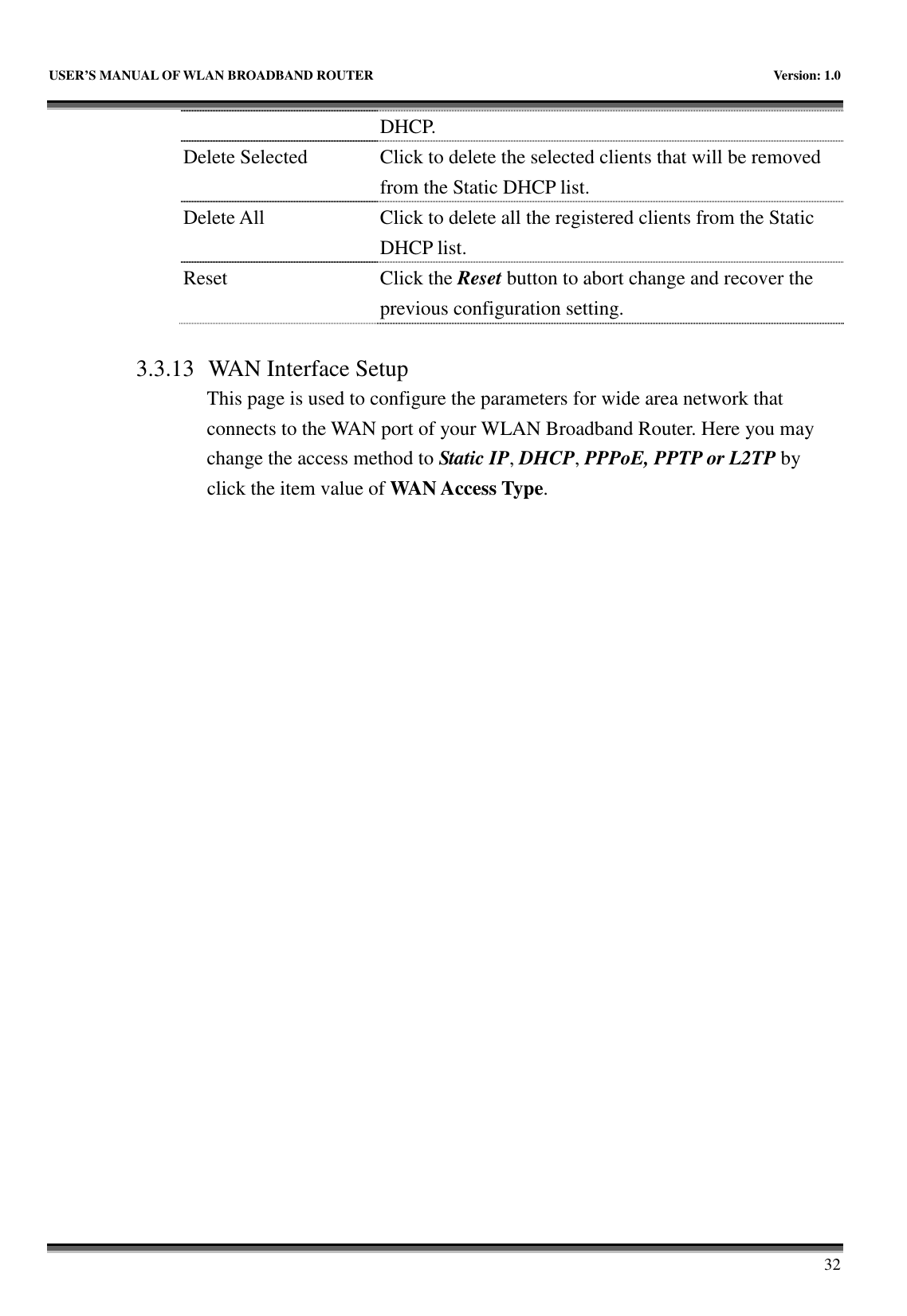

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 32 DHCP. Delete Selected Click to delete the selected clients that will be removed from the Static DHCP list. Delete All Click to delete all the registered clients from the Static DHCP list. Reset Click the Reset button to abort change and recover the previous configuration setting. 3.3.13 WAN Interface Setup This page is used to configure the parameters for wide area network that connects to the WAN port of your WLAN Broadband Router. Here you may change the access method to Static IP, DHCP, PPPoE, PPTP or L2TP by click the item value of WAN Access Type.

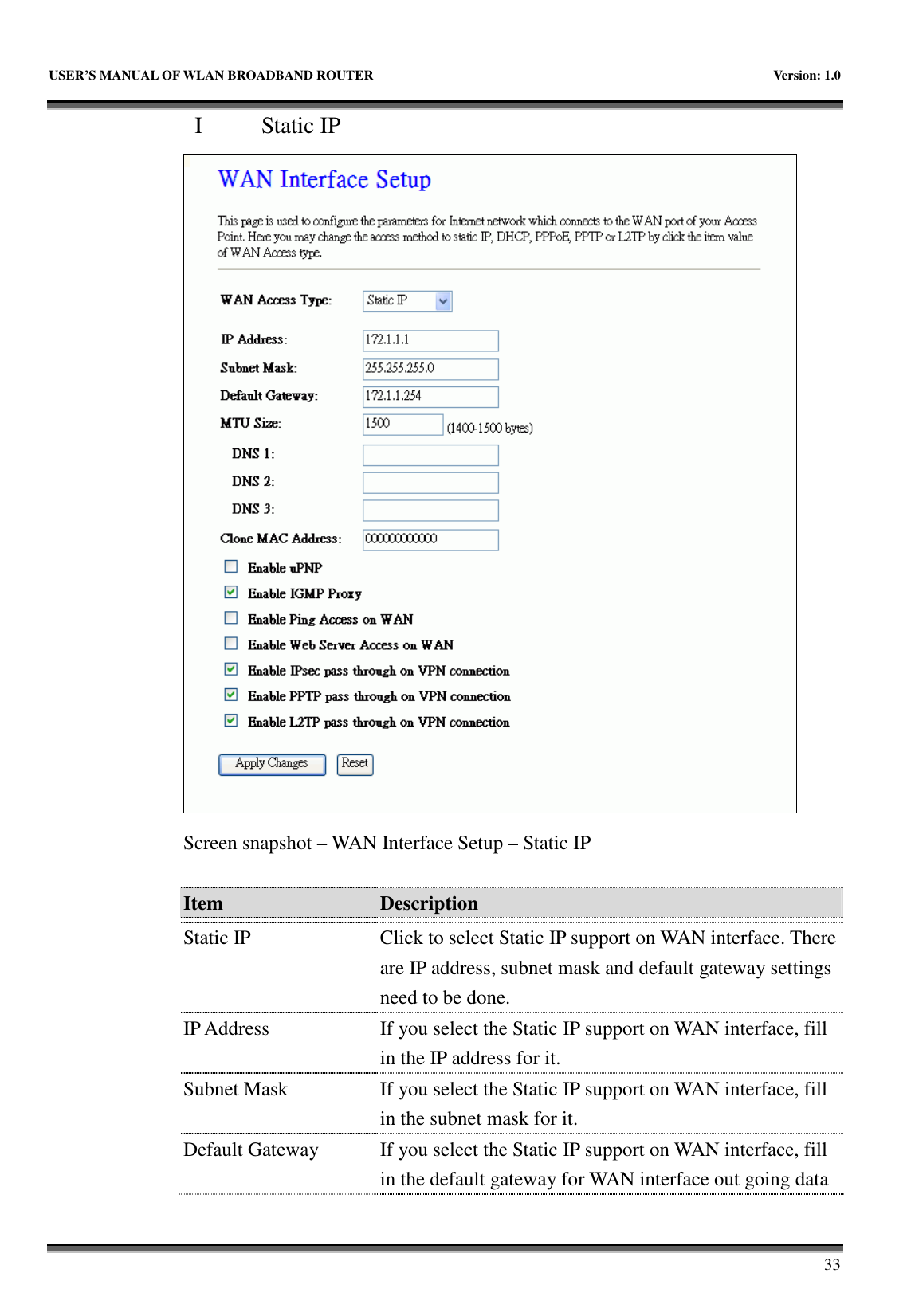

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 33 I Static IP Screen snapshot – WAN Interface Setup – Static IP Item Description Static IP Click to select Static IP support on WAN interface. There are IP address, subnet mask and default gateway settings need to be done. IP Address If you select the Static IP support on WAN interface, fill in the IP address for it. Subnet Mask If you select the Static IP support on WAN interface, fill in the subnet mask for it. Default Gateway If you select the Static IP support on WAN interface, fill in the default gateway for WAN interface out going data

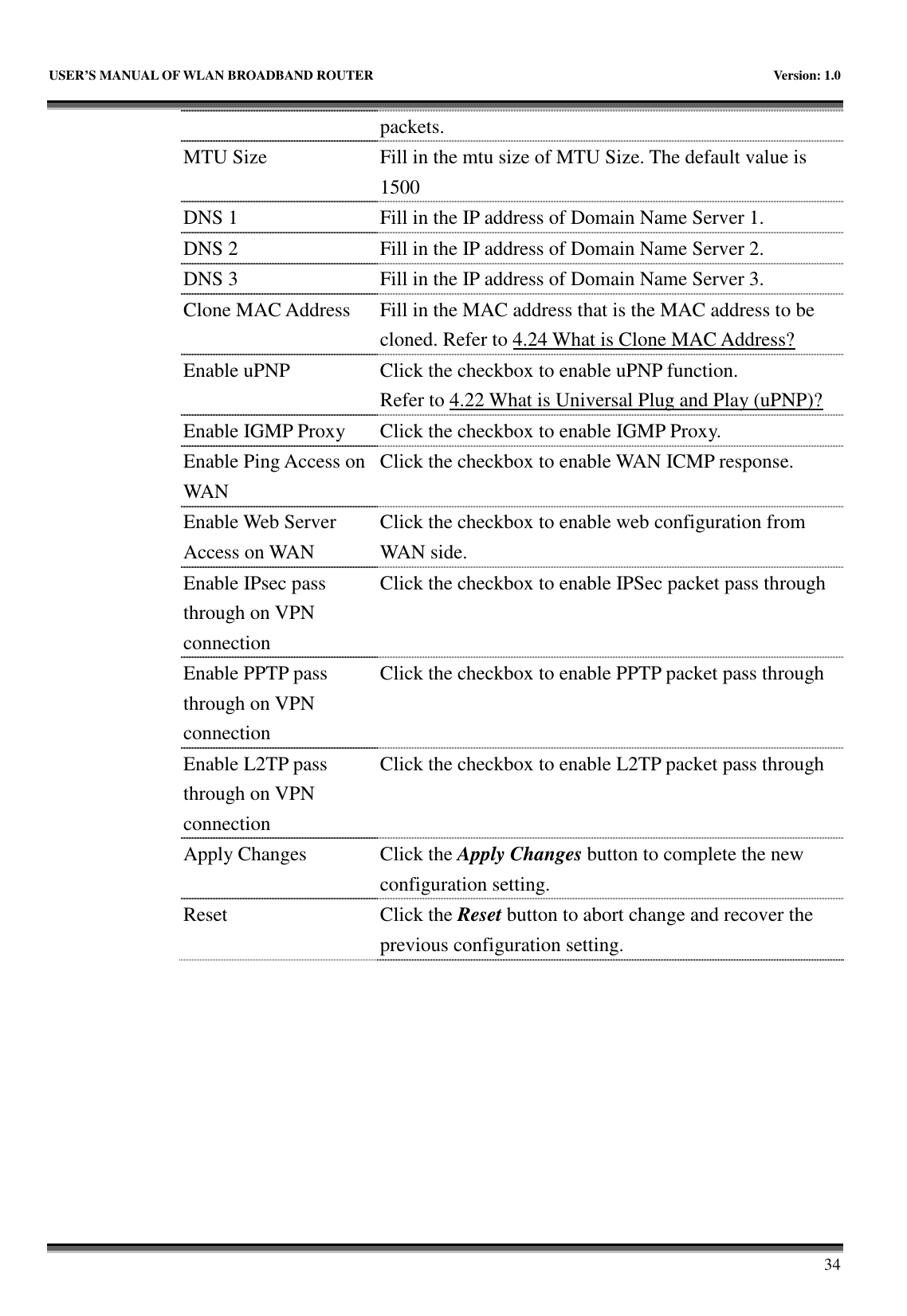

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 34 packets. MTU Size Fill in the mtu size of MTU Size. The default value is 1500 DNS 1 Fill in the IP address of Domain Name Server 1. DNS 2 Fill in the IP address of Domain Name Server 2. DNS 3 Fill in the IP address of Domain Name Server 3. Clone MAC Address Fill in the MAC address that is the MAC address to be cloned. Refer to 4.24 What is Clone MAC Address? Enable uPNP Click the checkbox to enable uPNP function. Refer to 4.22 What is Universal Plug and Play (uPNP)? Enable IGMP Proxy Click the checkbox to enable IGMP Proxy. Enable Ping Access on WAN Click the checkbox to enable WAN ICMP response. Enable Web Server Access on WAN Click the checkbox to enable web configuration from WAN side. Enable IPsec pass through on VPN connection Click the checkbox to enable IPSec packet pass through Enable PPTP pass through on VPN connection Click the checkbox to enable PPTP packet pass through Enable L2TP pass through on VPN connection Click the checkbox to enable L2TP packet pass through Apply Changes Click the Apply Changes button to complete the new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting.

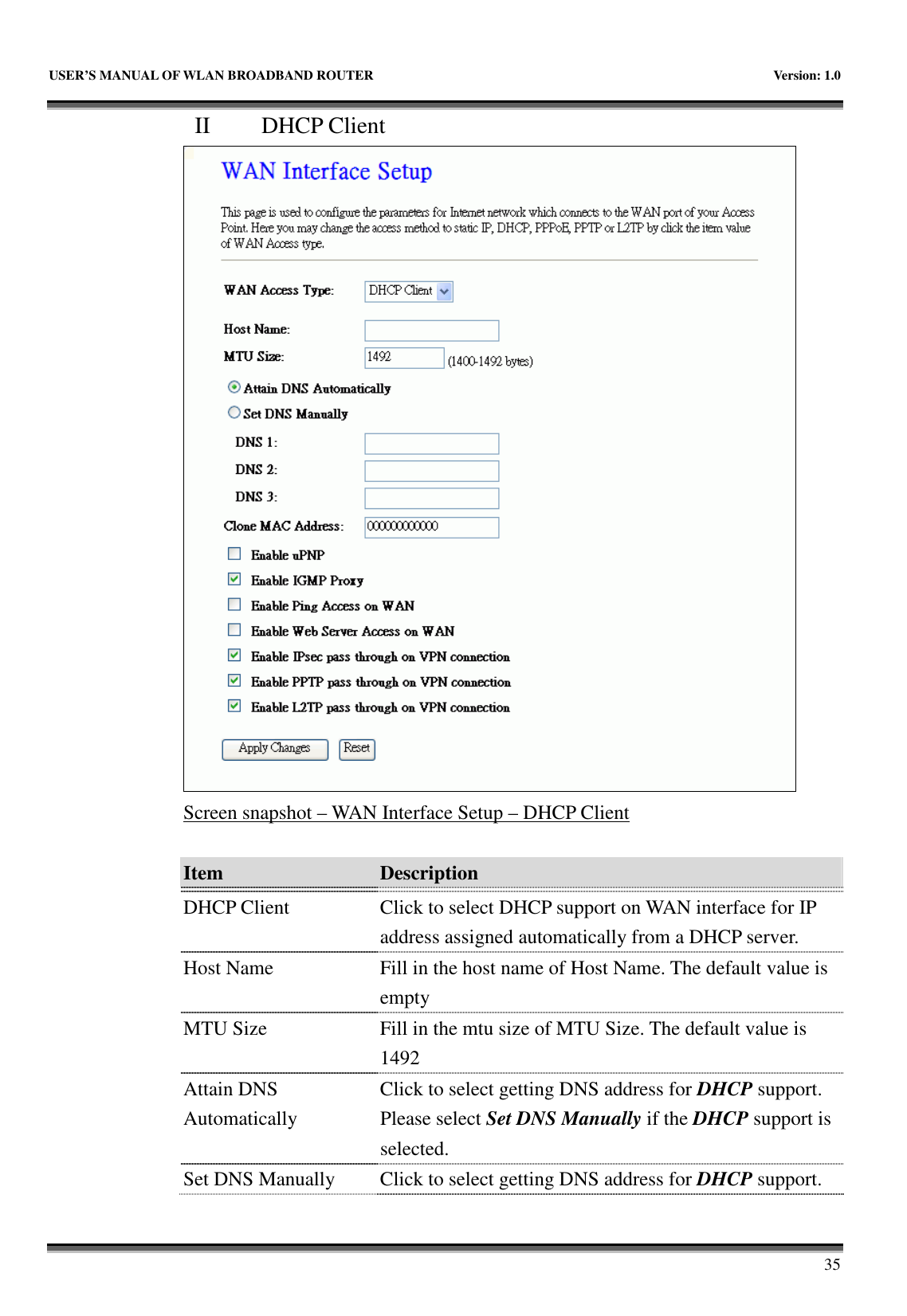

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 35 II DHCP Client Screen snapshot – WAN Interface Setup – DHCP Client Item Description DHCP Client Click to select DHCP support on WAN interface for IP address assigned automatically from a DHCP server. Host Name Fill in the host name of Host Name. The default value is empty MTU Size Fill in the mtu size of MTU Size. The default value is 1492 Attain DNS Automatically Click to select getting DNS address for DHCP support. Please select Set DNS Manually if the DHCP support is selected. Set DNS Manually Click to select getting DNS address for DHCP support.

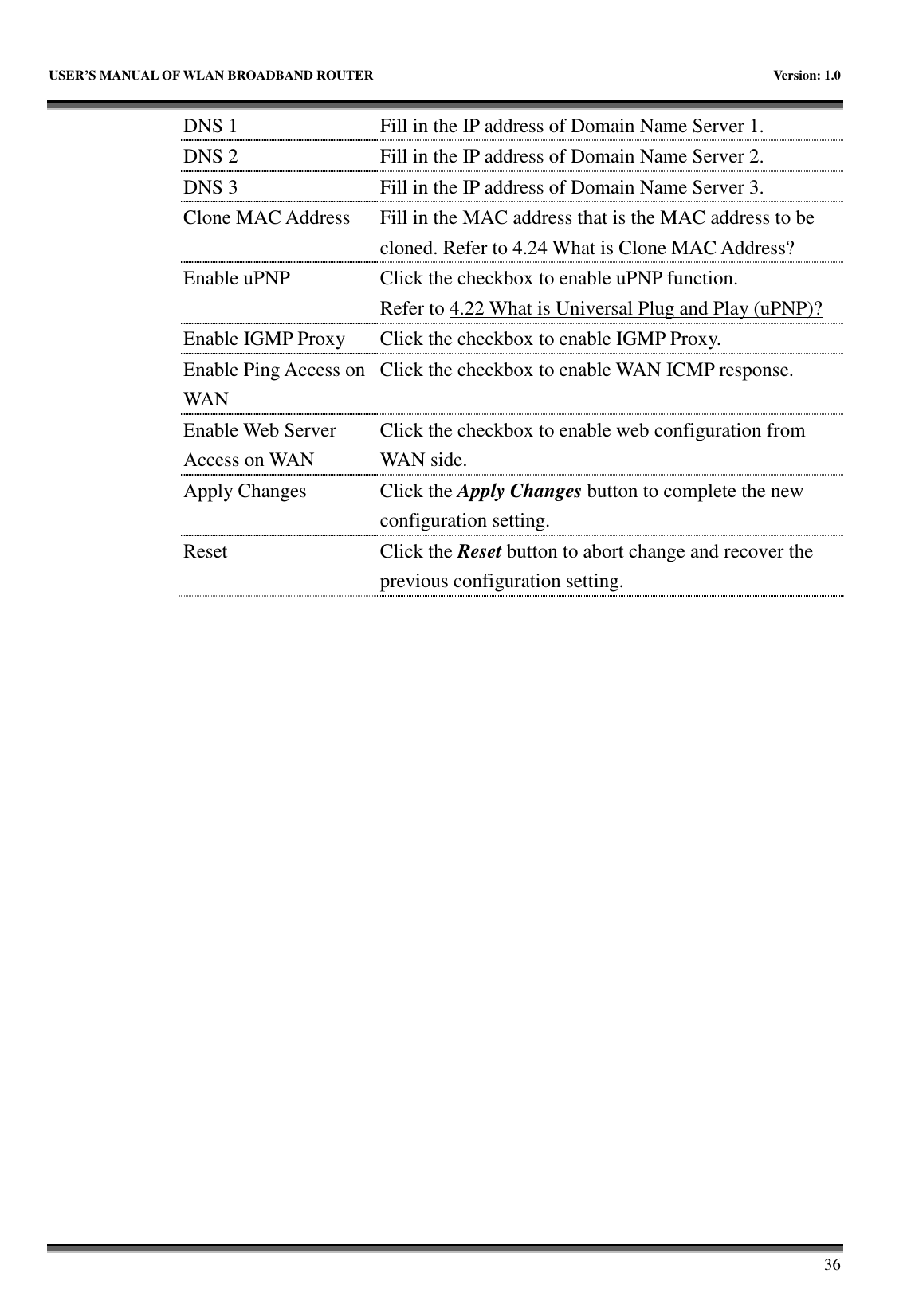

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 36 DNS 1 Fill in the IP address of Domain Name Server 1. DNS 2 Fill in the IP address of Domain Name Server 2. DNS 3 Fill in the IP address of Domain Name Server 3. Clone MAC Address Fill in the MAC address that is the MAC address to be cloned. Refer to 4.24 What is Clone MAC Address? Enable uPNP Click the checkbox to enable uPNP function. Refer to 4.22 What is Universal Plug and Play (uPNP)? Enable IGMP Proxy Click the checkbox to enable IGMP Proxy. Enable Ping Access on WAN Click the checkbox to enable WAN ICMP response. Enable Web Server Access on WAN Click the checkbox to enable web configuration from WAN side. Apply Changes Click the Apply Changes button to complete the new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting.

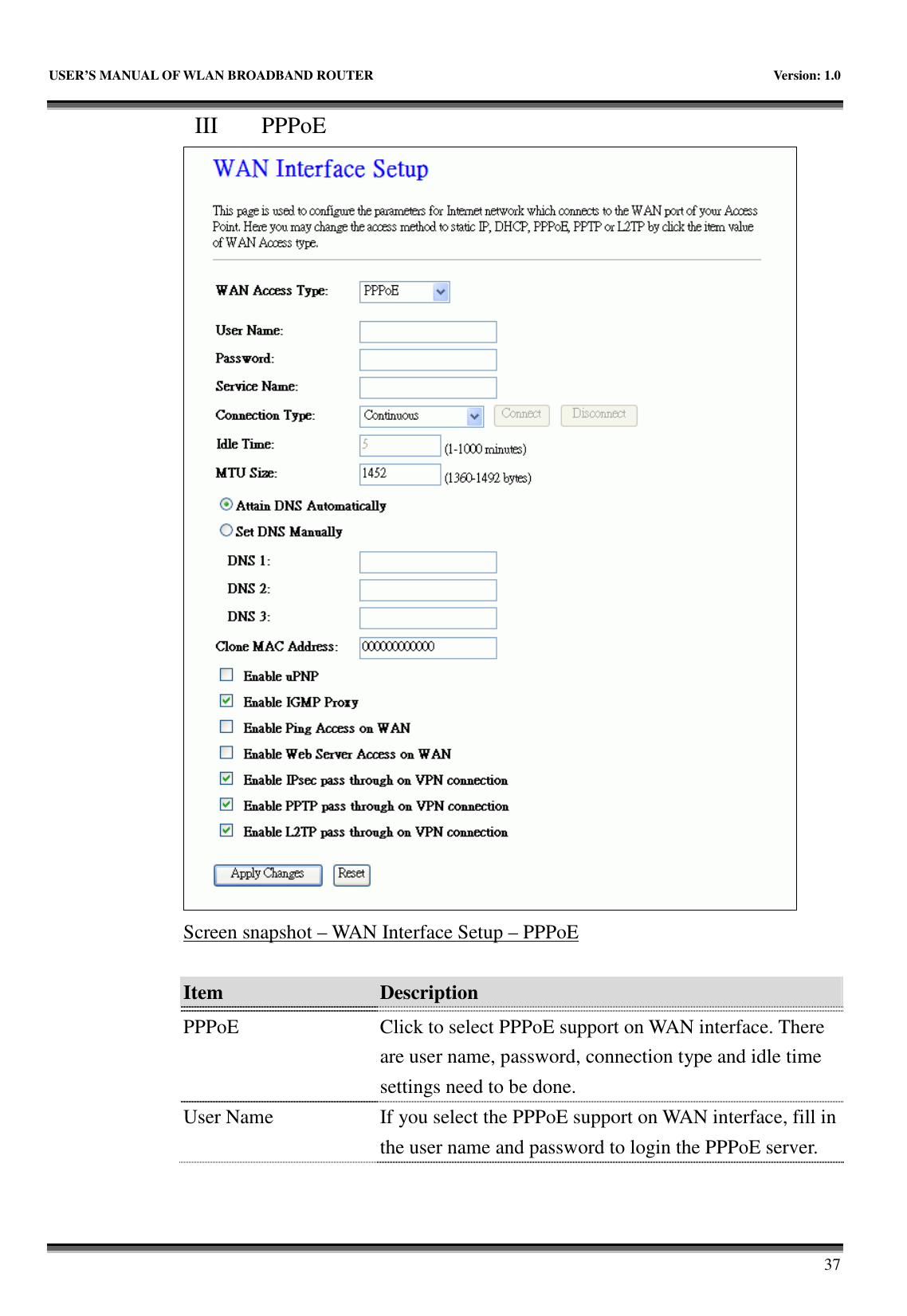

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 37 III PPPoE Screen snapshot – WAN Interface Setup – PPPoE Item Description PPPoE Click to select PPPoE support on WAN interface. There are user name, password, connection type and idle time settings need to be done. User Name If you select the PPPoE support on WAN interface, fill in the user name and password to login the PPPoE server.

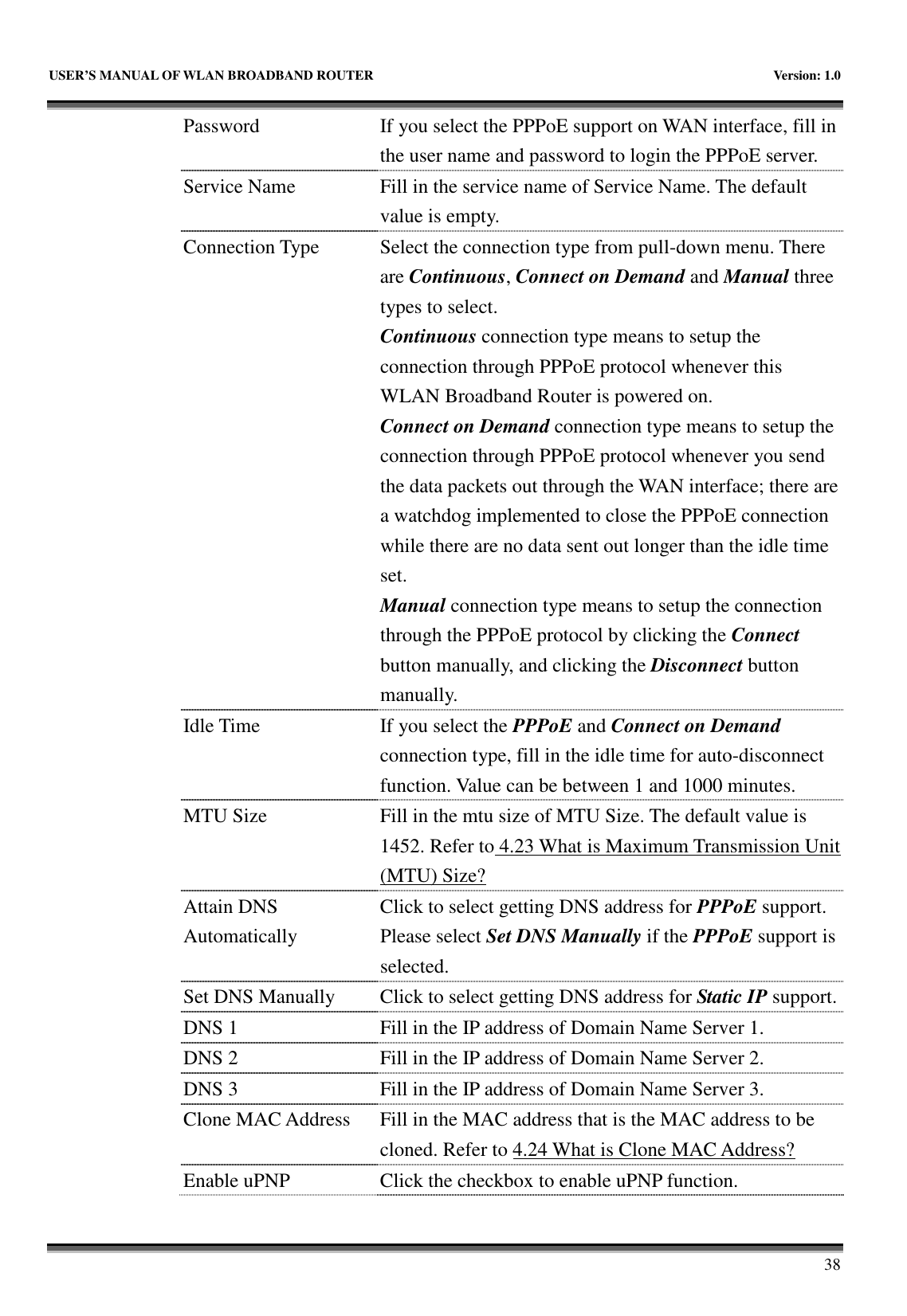

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 38 Password If you select the PPPoE support on WAN interface, fill in the user name and password to login the PPPoE server. Service Name Fill in the service name of Service Name. The default value is empty. Connection Type Select the connection type from pull-down menu. There are Continuous, Connect on Demand and Manual three types to select. Continuous connection type means to setup the connection through PPPoE protocol whenever this WLAN Broadband Router is powered on. Connect on Demand connection type means to setup the connection through PPPoE protocol whenever you send the data packets out through the WAN interface; there are a watchdog implemented to close the PPPoE connection while there are no data sent out longer than the idle time set. Manual connection type means to setup the connection through the PPPoE protocol by clicking the Connect button manually, and clicking the Disconnect button manually. Idle Time If you select the PPPoE and Connect on Demand connection type, fill in the idle time for auto-disconnect function. Value can be between 1 and 1000 minutes. MTU Size Fill in the mtu size of MTU Size. The default value is 1452. Refer to 4.23 What is Maximum Transmission Unit (MTU) Size? Attain DNS Automatically Click to select getting DNS address for PPPoE support. Please select Set DNS Manually if the PPPoE support is selected. Set DNS Manually Click to select getting DNS address for Static IP support. DNS 1 Fill in the IP address of Domain Name Server 1. DNS 2 Fill in the IP address of Domain Name Server 2. DNS 3 Fill in the IP address of Domain Name Server 3. Clone MAC Address Fill in the MAC address that is the MAC address to be cloned. Refer to 4.24 What is Clone MAC Address? Enable uPNP Click the checkbox to enable uPNP function.

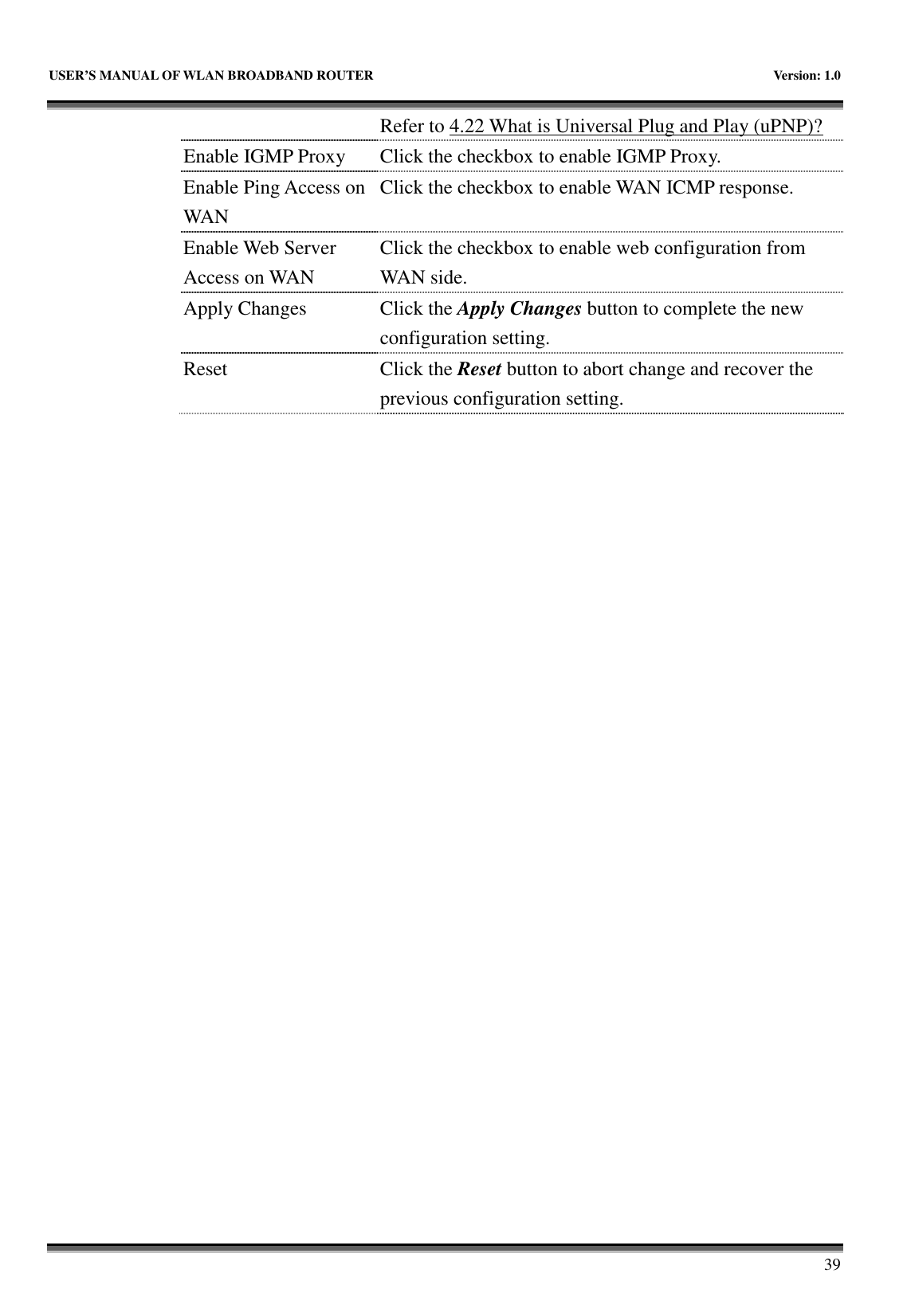

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 39 Refer to 4.22 What is Universal Plug and Play (uPNP)? Enable IGMP Proxy Click the checkbox to enable IGMP Proxy. Enable Ping Access on WAN Click the checkbox to enable WAN ICMP response. Enable Web Server Access on WAN Click the checkbox to enable web configuration from WAN side. Apply Changes Click the Apply Changes button to complete the new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting.

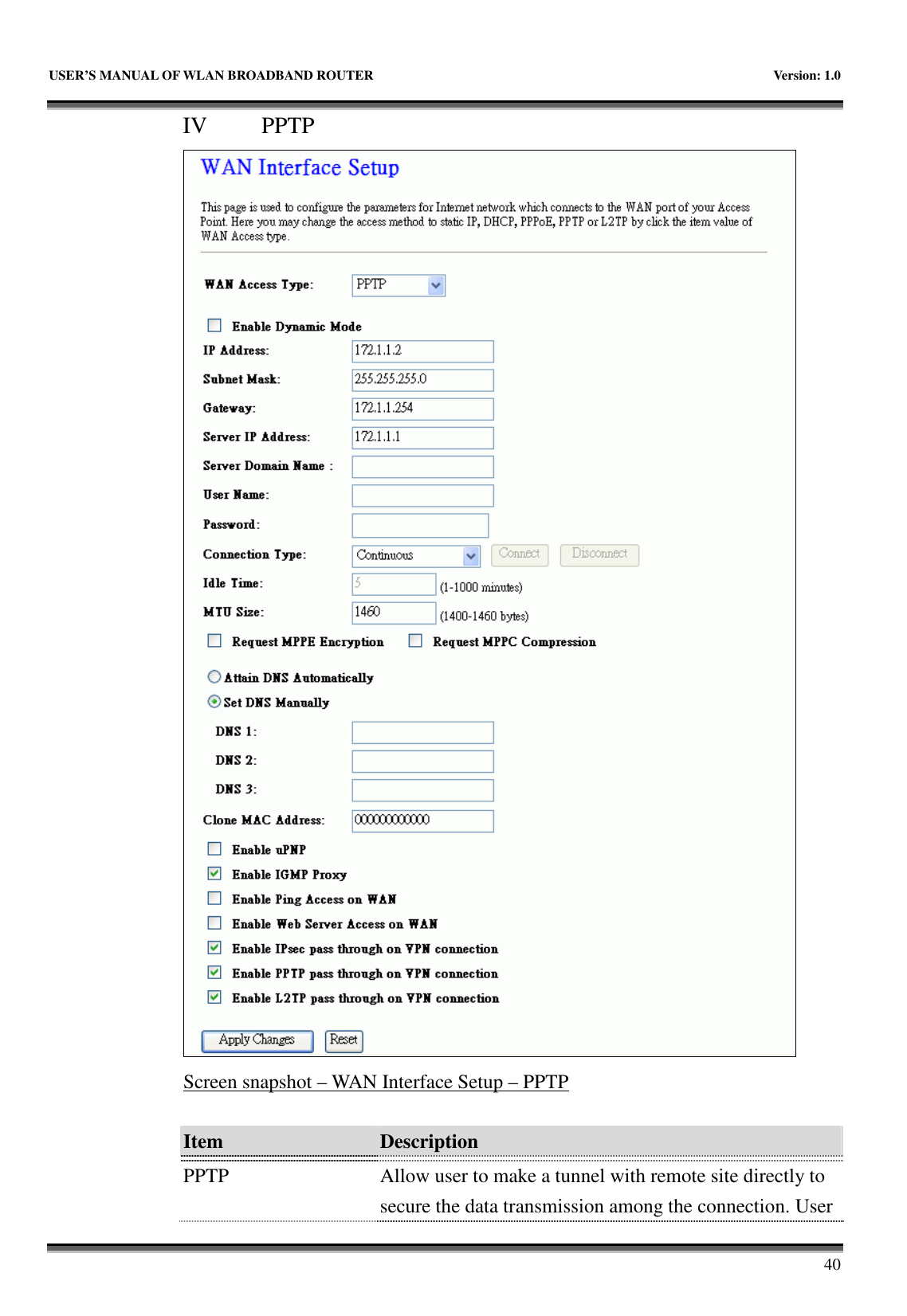

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 40 IV PPTP Screen snapshot – WAN Interface Setup – PPTP Item Description PPTP Allow user to make a tunnel with remote site directly to secure the data transmission among the connection. User

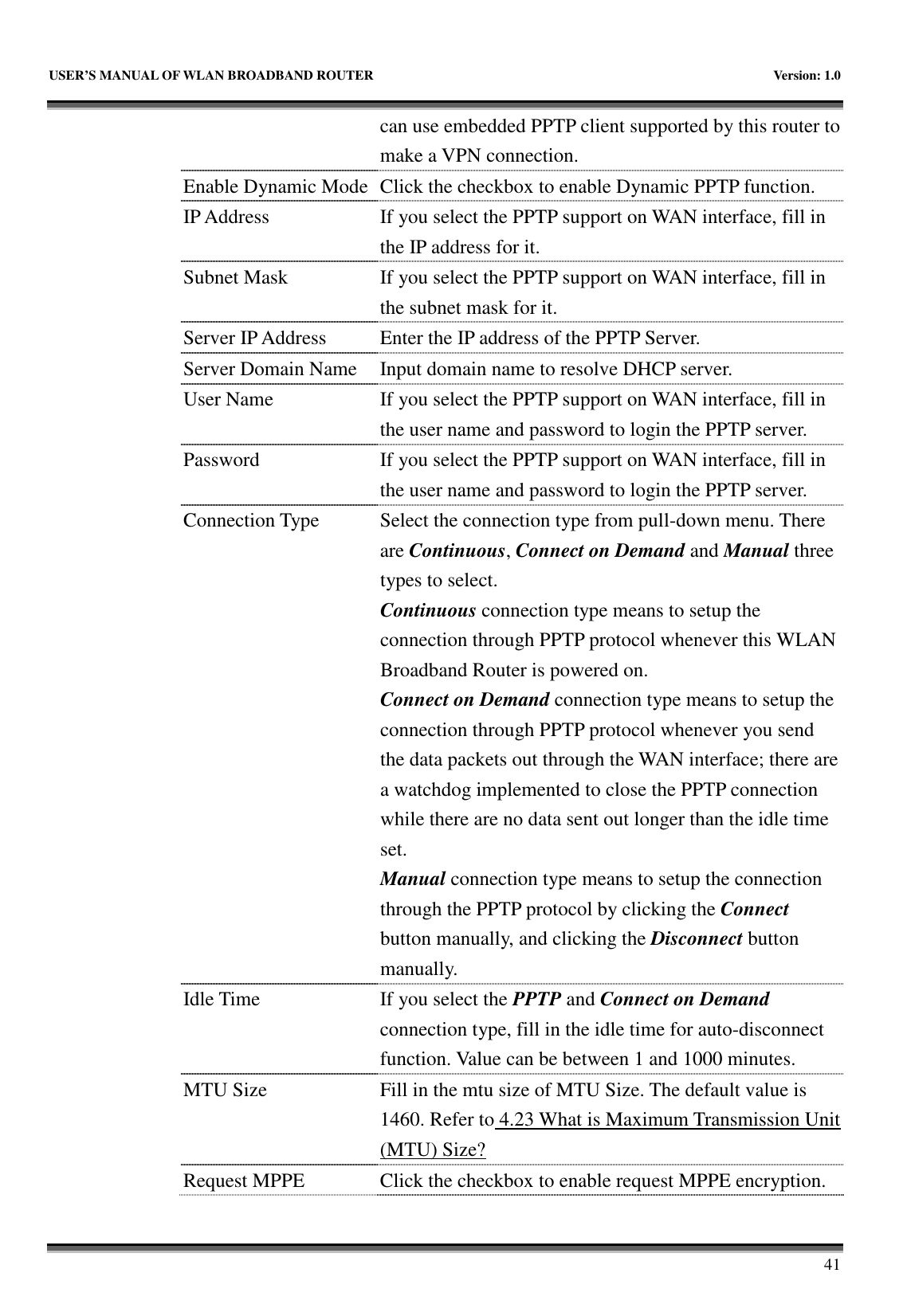

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 41 can use embedded PPTP client supported by this router to make a VPN connection. Enable Dynamic Mode Click the checkbox to enable Dynamic PPTP function. IP Address If you select the PPTP support on WAN interface, fill in the IP address for it. Subnet Mask If you select the PPTP support on WAN interface, fill in the subnet mask for it. Server IP Address Enter the IP address of the PPTP Server. Server Domain Name Input domain name to resolve DHCP server. User Name If you select the PPTP support on WAN interface, fill in the user name and password to login the PPTP server. Password If you select the PPTP support on WAN interface, fill in the user name and password to login the PPTP server. Connection Type Select the connection type from pull-down menu. There are Continuous, Connect on Demand and Manual three types to select. Continuous connection type means to setup the connection through PPTP protocol whenever this WLAN Broadband Router is powered on. Connect on Demand connection type means to setup the connection through PPTP protocol whenever you send the data packets out through the WAN interface; there are a watchdog implemented to close the PPTP connection while there are no data sent out longer than the idle time set. Manual connection type means to setup the connection through the PPTP protocol by clicking the Connect button manually, and clicking the Disconnect button manually. Idle Time If you select the PPTP and Connect on Demand connection type, fill in the idle time for auto-disconnect function. Value can be between 1 and 1000 minutes. MTU Size Fill in the mtu size of MTU Size. The default value is 1460. Refer to 4.23 What is Maximum Transmission Unit (MTU) Size? Request MPPE Click the checkbox to enable request MPPE encryption.

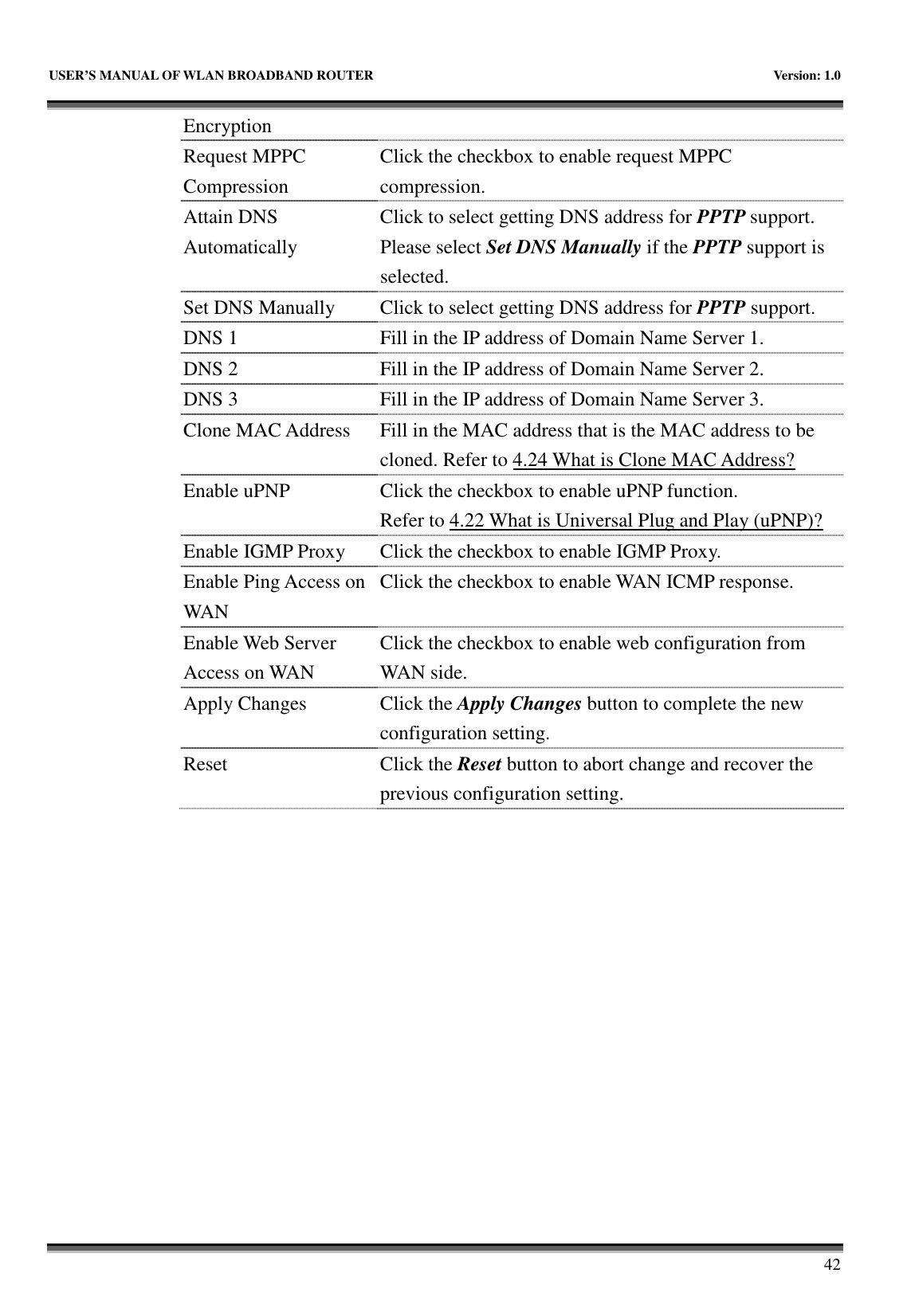

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 42 Encryption Request MPPC Compression Click the checkbox to enable request MPPC compression. Attain DNS Automatically Click to select getting DNS address for PPTP support. Please select Set DNS Manually if the PPTP support is selected. Set DNS Manually Click to select getting DNS address for PPTP support. DNS 1 Fill in the IP address of Domain Name Server 1. DNS 2 Fill in the IP address of Domain Name Server 2. DNS 3 Fill in the IP address of Domain Name Server 3. Clone MAC Address Fill in the MAC address that is the MAC address to be cloned. Refer to 4.24 What is Clone MAC Address? Enable uPNP Click the checkbox to enable uPNP function. Refer to 4.22 What is Universal Plug and Play (uPNP)? Enable IGMP Proxy Click the checkbox to enable IGMP Proxy. Enable Ping Access on WAN Click the checkbox to enable WAN ICMP response. Enable Web Server Access on WAN Click the checkbox to enable web configuration from WAN side. Apply Changes Click the Apply Changes button to complete the new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting.

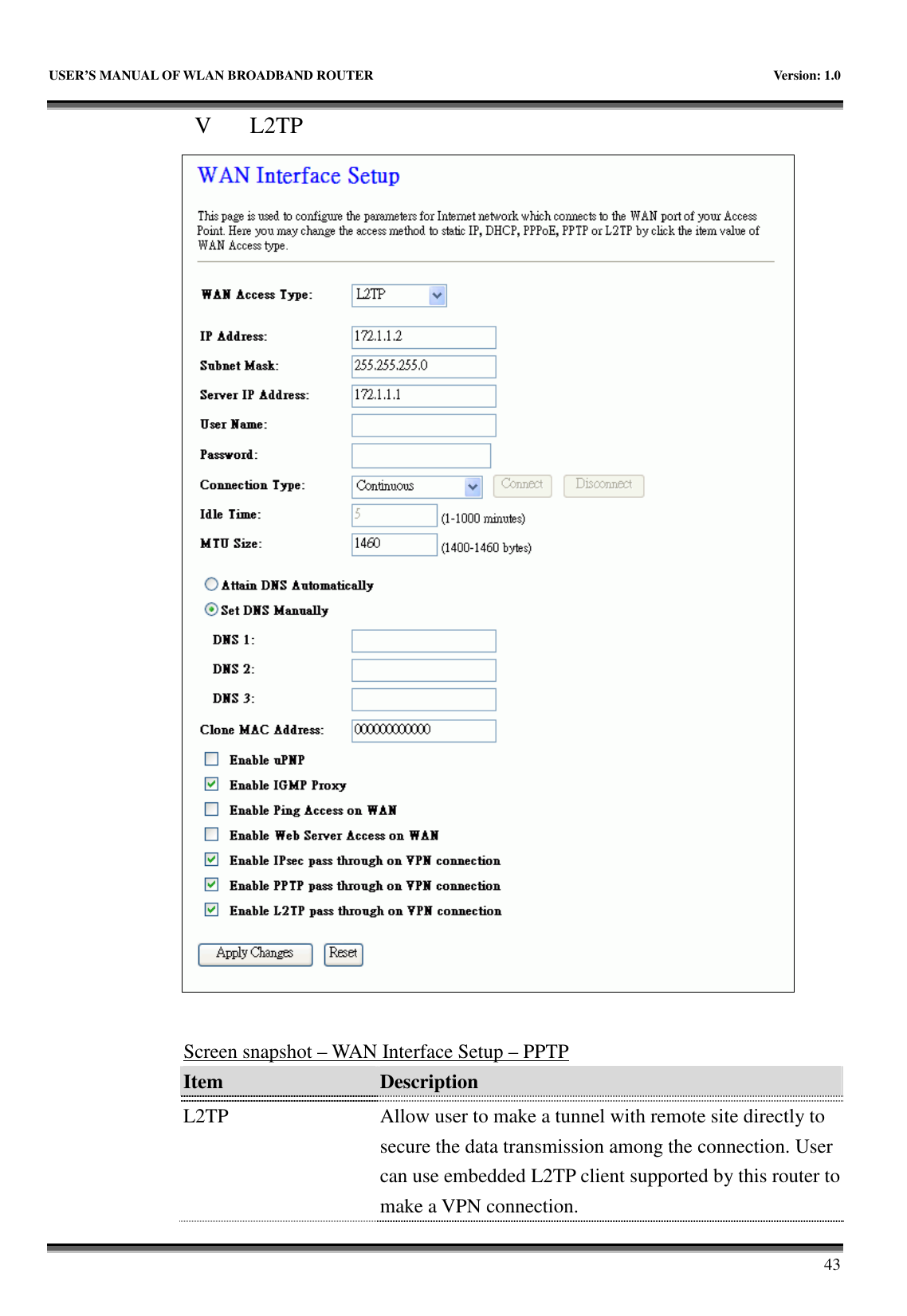

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 43 V L2TP Screen snapshot – WAN Interface Setup – PPTP Item Description L2TP Allow user to make a tunnel with remote site directly to secure the data transmission among the connection. User can use embedded L2TP client supported by this router to make a VPN connection.

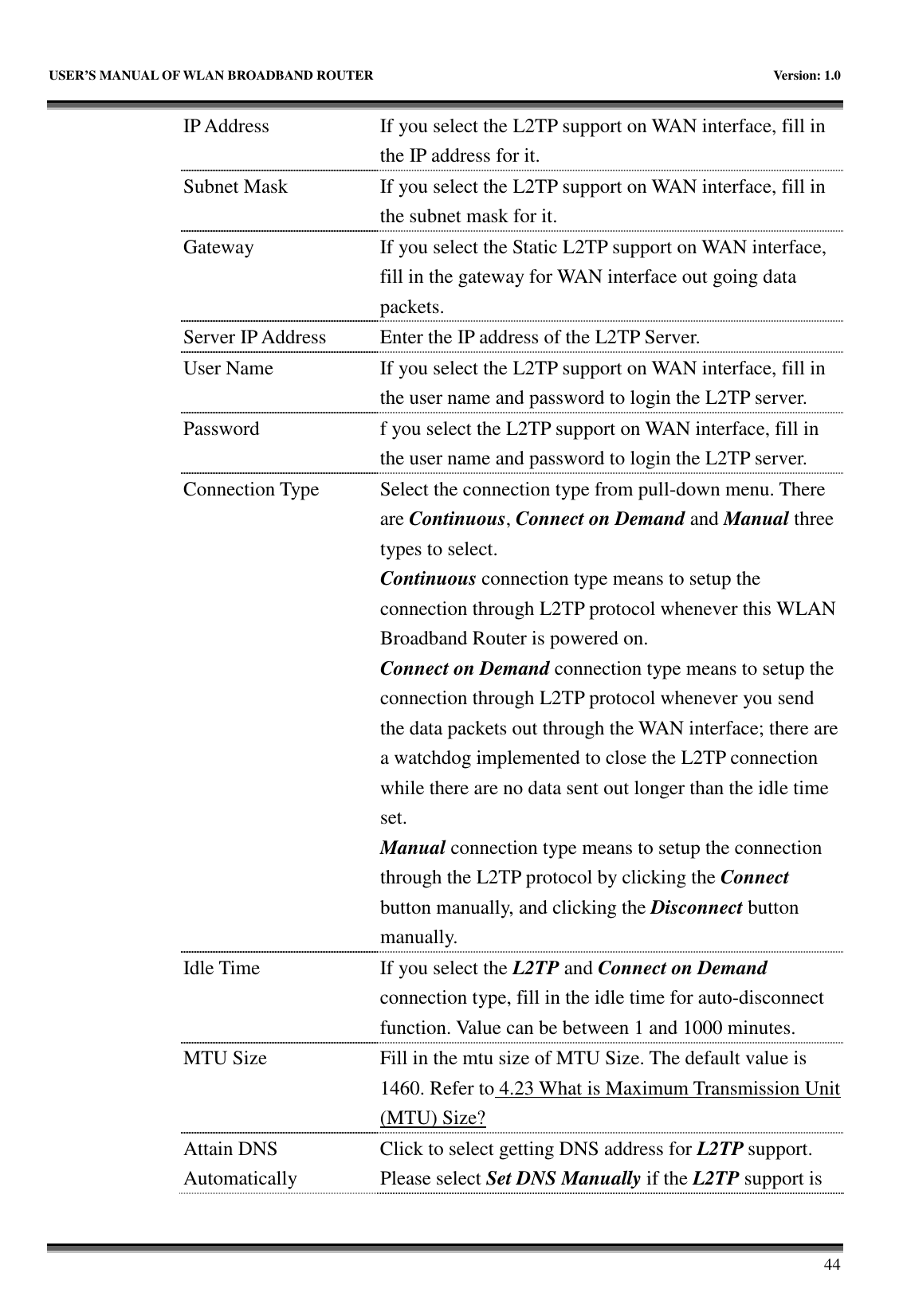

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 44 IP Address If you select the L2TP support on WAN interface, fill in the IP address for it. Subnet Mask If you select the L2TP support on WAN interface, fill in the subnet mask for it. Gateway If you select the Static L2TP support on WAN interface, fill in the gateway for WAN interface out going data packets. Server IP Address Enter the IP address of the L2TP Server. User Name If you select the L2TP support on WAN interface, fill in the user name and password to login the L2TP server. Password f you select the L2TP support on WAN interface, fill in the user name and password to login the L2TP server. Connection Type Select the connection type from pull-down menu. There are Continuous, Connect on Demand and Manual three types to select. Continuous connection type means to setup the connection through L2TP protocol whenever this WLAN Broadband Router is powered on. Connect on Demand connection type means to setup the connection through L2TP protocol whenever you send the data packets out through the WAN interface; there are a watchdog implemented to close the L2TP connection while there are no data sent out longer than the idle time set. Manual connection type means to setup the connection through the L2TP protocol by clicking the Connect button manually, and clicking the Disconnect button manually. Idle Time If you select the L2TP and Connect on Demand connection type, fill in the idle time for auto-disconnect function. Value can be between 1 and 1000 minutes. MTU Size Fill in the mtu size of MTU Size. The default value is 1460. Refer to 4.23 What is Maximum Transmission Unit (MTU) Size? Attain DNS Automatically Click to select getting DNS address for L2TP support. Please select Set DNS Manually if the L2TP support is

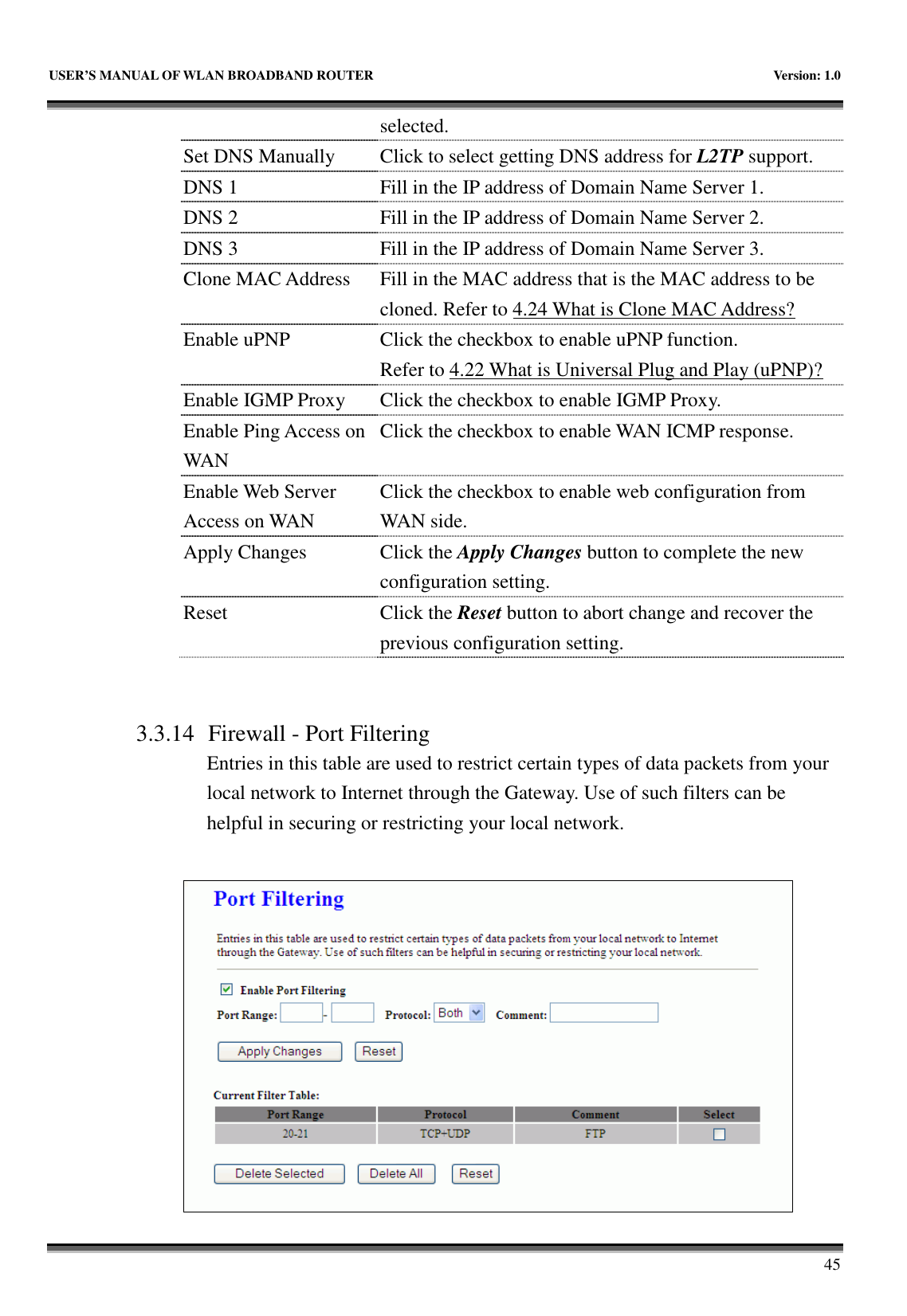

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 45 selected. Set DNS Manually Click to select getting DNS address for L2TP support. DNS 1 Fill in the IP address of Domain Name Server 1. DNS 2 Fill in the IP address of Domain Name Server 2. DNS 3 Fill in the IP address of Domain Name Server 3. Clone MAC Address Fill in the MAC address that is the MAC address to be cloned. Refer to 4.24 What is Clone MAC Address? Enable uPNP Click the checkbox to enable uPNP function. Refer to 4.22 What is Universal Plug and Play (uPNP)? Enable IGMP Proxy Click the checkbox to enable IGMP Proxy. Enable Ping Access on WAN Click the checkbox to enable WAN ICMP response. Enable Web Server Access on WAN Click the checkbox to enable web configuration from WAN side. Apply Changes Click the Apply Changes button to complete the new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting. 3.3.14 Firewall - Port Filtering Entries in this table are used to restrict certain types of data packets from your local network to Internet through the Gateway. Use of such filters can be helpful in securing or restricting your local network.

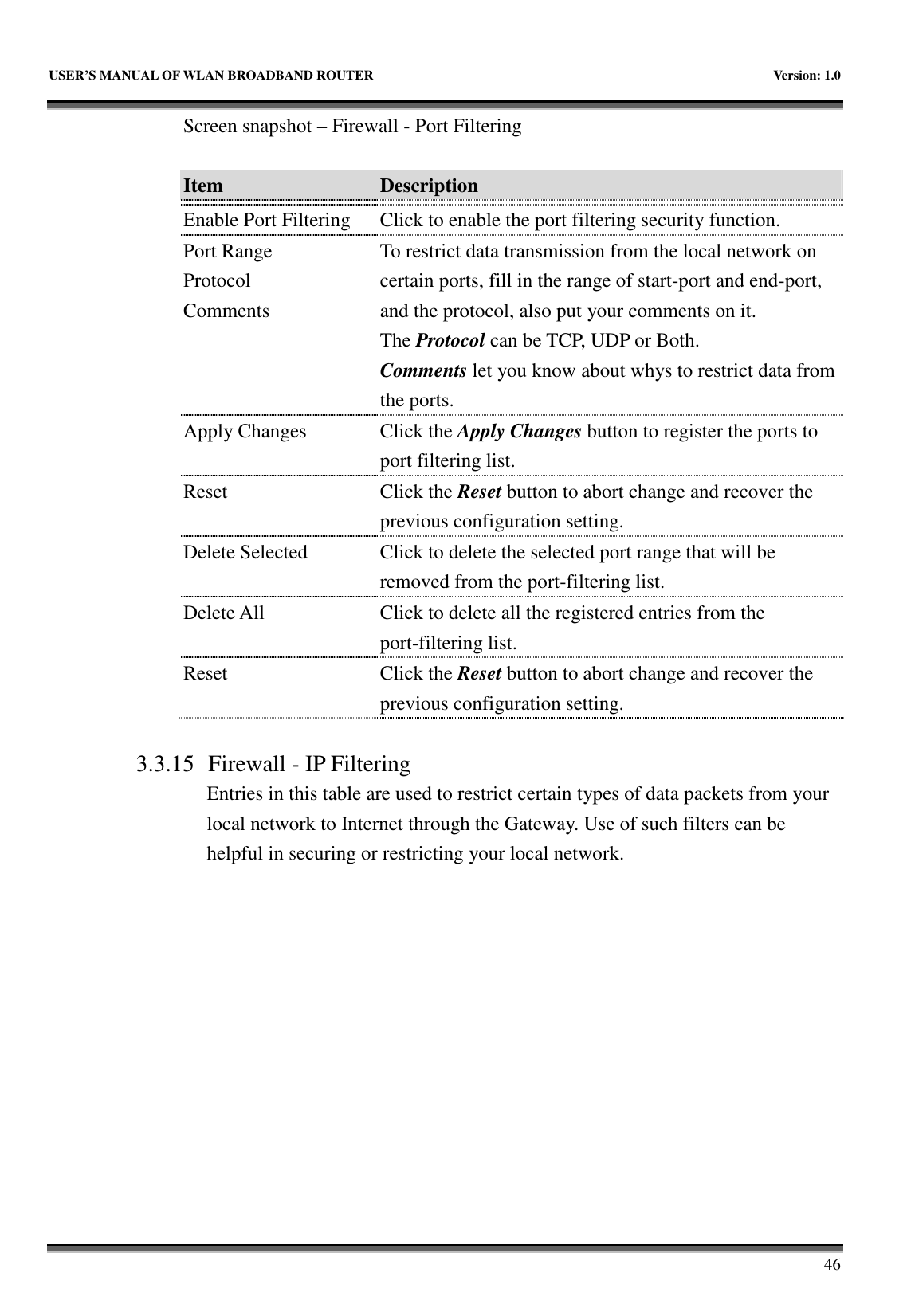

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 46 Screen snapshot – Firewall - Port Filtering Item Description Enable Port Filtering Click to enable the port filtering security function. Port Range Protocol Comments To restrict data transmission from the local network on certain ports, fill in the range of start-port and end-port, and the protocol, also put your comments on it. The Protocol can be TCP, UDP or Both. Comments let you know about whys to restrict data from the ports. Apply Changes Click the Apply Changes button to register the ports to port filtering list. Reset Click the Reset button to abort change and recover the previous configuration setting. Delete Selected Click to delete the selected port range that will be removed from the port-filtering list. Delete All Click to delete all the registered entries from the port-filtering list. Reset Click the Reset button to abort change and recover the previous configuration setting. 3.3.15 Firewall - IP Filtering Entries in this table are used to restrict certain types of data packets from your local network to Internet through the Gateway. Use of such filters can be helpful in securing or restricting your local network.

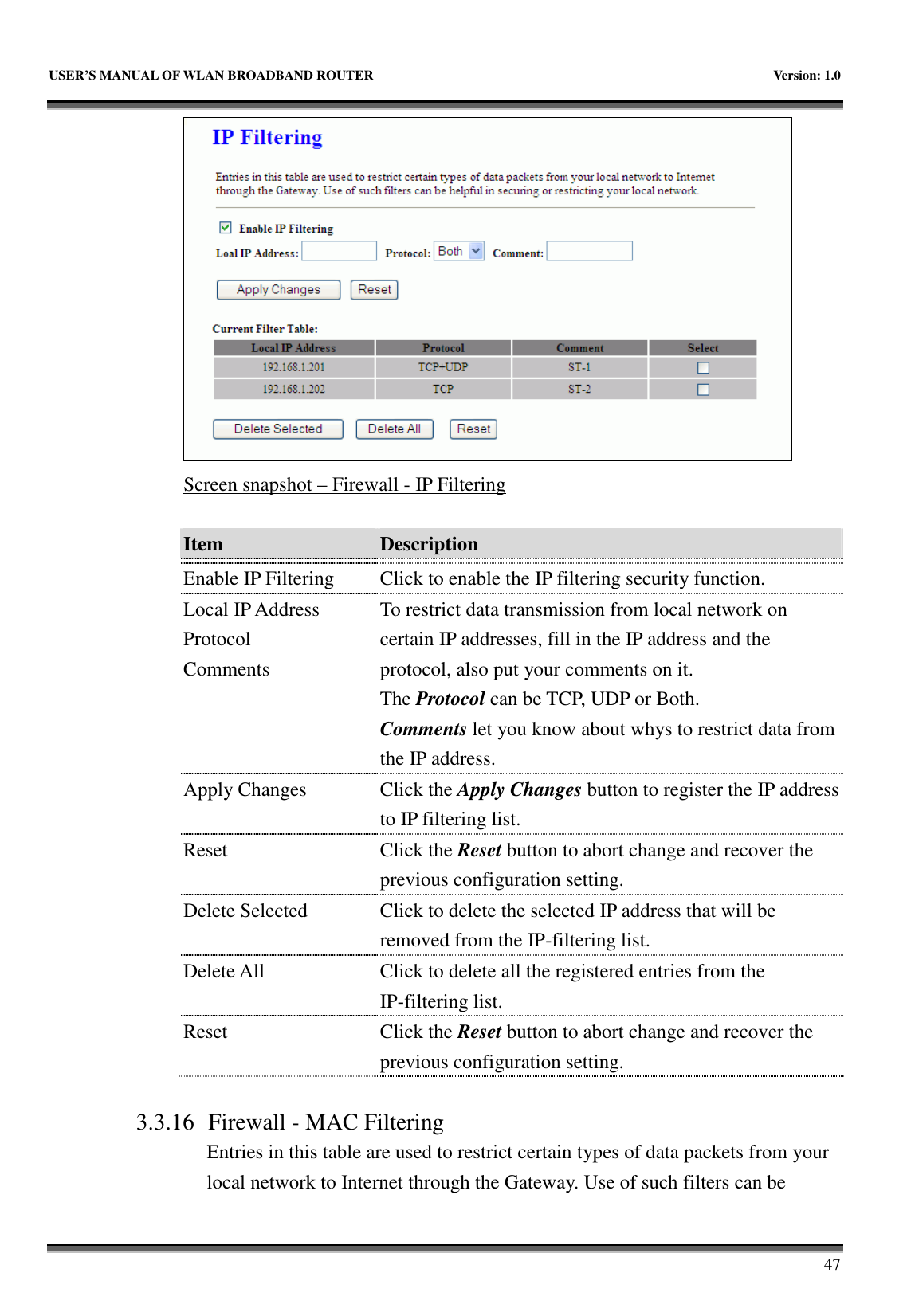

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 47 Screen snapshot – Firewall - IP Filtering Item Description Enable IP Filtering Click to enable the IP filtering security function. Local IP Address Protocol Comments To restrict data transmission from local network on certain IP addresses, fill in the IP address and the protocol, also put your comments on it. The Protocol can be TCP, UDP or Both. Comments let you know about whys to restrict data from the IP address. Apply Changes Click the Apply Changes button to register the IP address to IP filtering list. Reset Click the Reset button to abort change and recover the previous configuration setting. Delete Selected Click to delete the selected IP address that will be removed from the IP-filtering list. Delete All Click to delete all the registered entries from the IP-filtering list. Reset Click the Reset button to abort change and recover the previous configuration setting. 3.3.16 Firewall - MAC Filtering Entries in this table are used to restrict certain types of data packets from your local network to Internet through the Gateway. Use of such filters can be

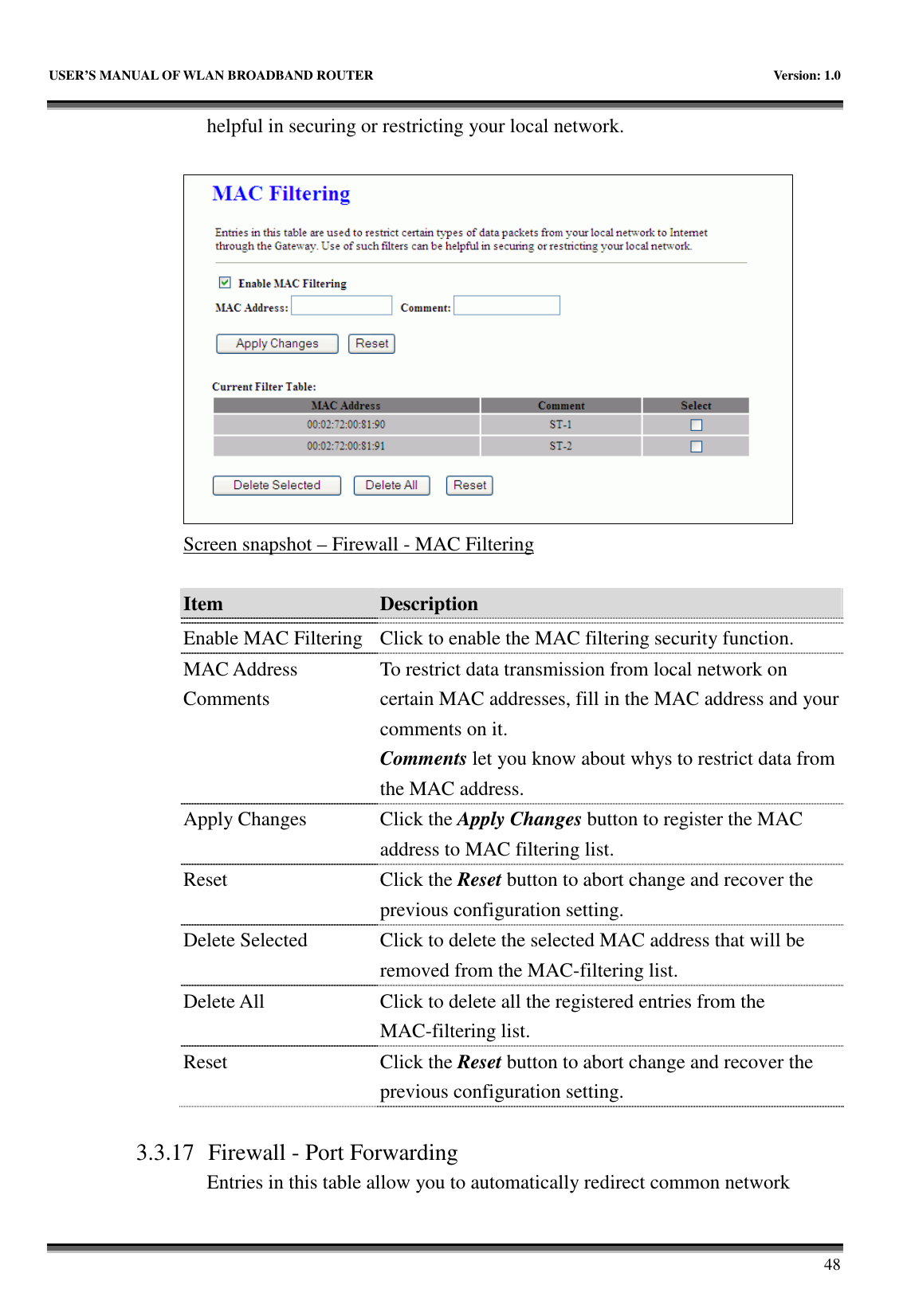

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 48 helpful in securing or restricting your local network. Screen snapshot – Firewall - MAC Filtering Item Description Enable MAC Filtering Click to enable the MAC filtering security function. MAC Address Comments To restrict data transmission from local network on certain MAC addresses, fill in the MAC address and your comments on it. Comments let you know about whys to restrict data from the MAC address. Apply Changes Click the Apply Changes button to register the MAC address to MAC filtering list. Reset Click the Reset button to abort change and recover the previous configuration setting. Delete Selected Click to delete the selected MAC address that will be removed from the MAC-filtering list. Delete All Click to delete all the registered entries from the MAC-filtering list. Reset Click the Reset button to abort change and recover the previous configuration setting. 3.3.17 Firewall - Port Forwarding Entries in this table allow you to automatically redirect common network

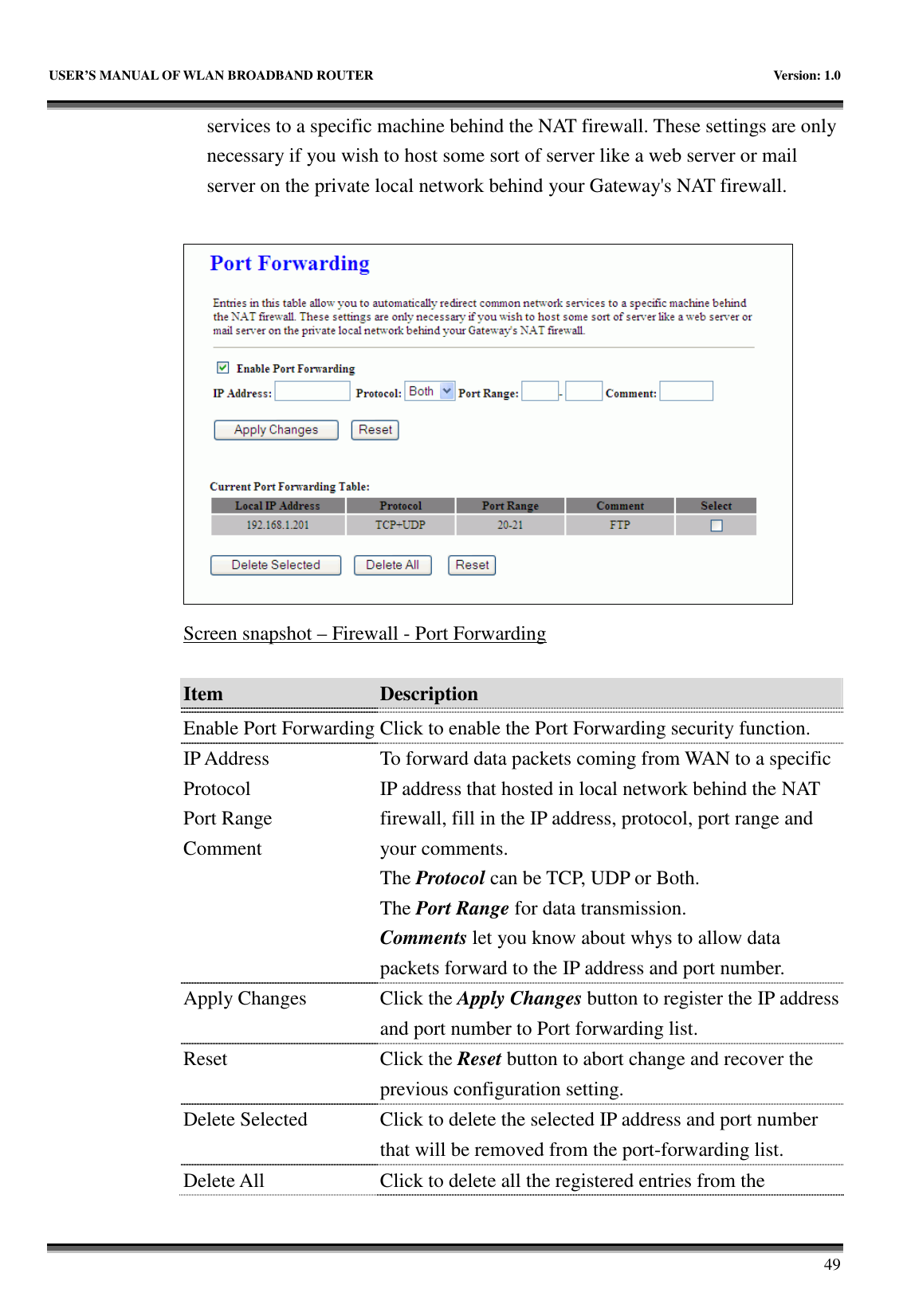

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 49 services to a specific machine behind the NAT firewall. These settings are only necessary if you wish to host some sort of server like a web server or mail server on the private local network behind your Gateway's NAT firewall. Screen snapshot – Firewall - Port Forwarding Item Description Enable Port Forwarding Click to enable the Port Forwarding security function. IP Address Protocol Port Range Comment To forward data packets coming from WAN to a specific IP address that hosted in local network behind the NAT firewall, fill in the IP address, protocol, port range and your comments. The Protocol can be TCP, UDP or Both. The Port Range for data transmission. Comments let you know about whys to allow data packets forward to the IP address and port number. Apply Changes Click the Apply Changes button to register the IP address and port number to Port forwarding list. Reset Click the Reset button to abort change and recover the previous configuration setting. Delete Selected Click to delete the selected IP address and port number that will be removed from the port-forwarding list. Delete All Click to delete all the registered entries from the

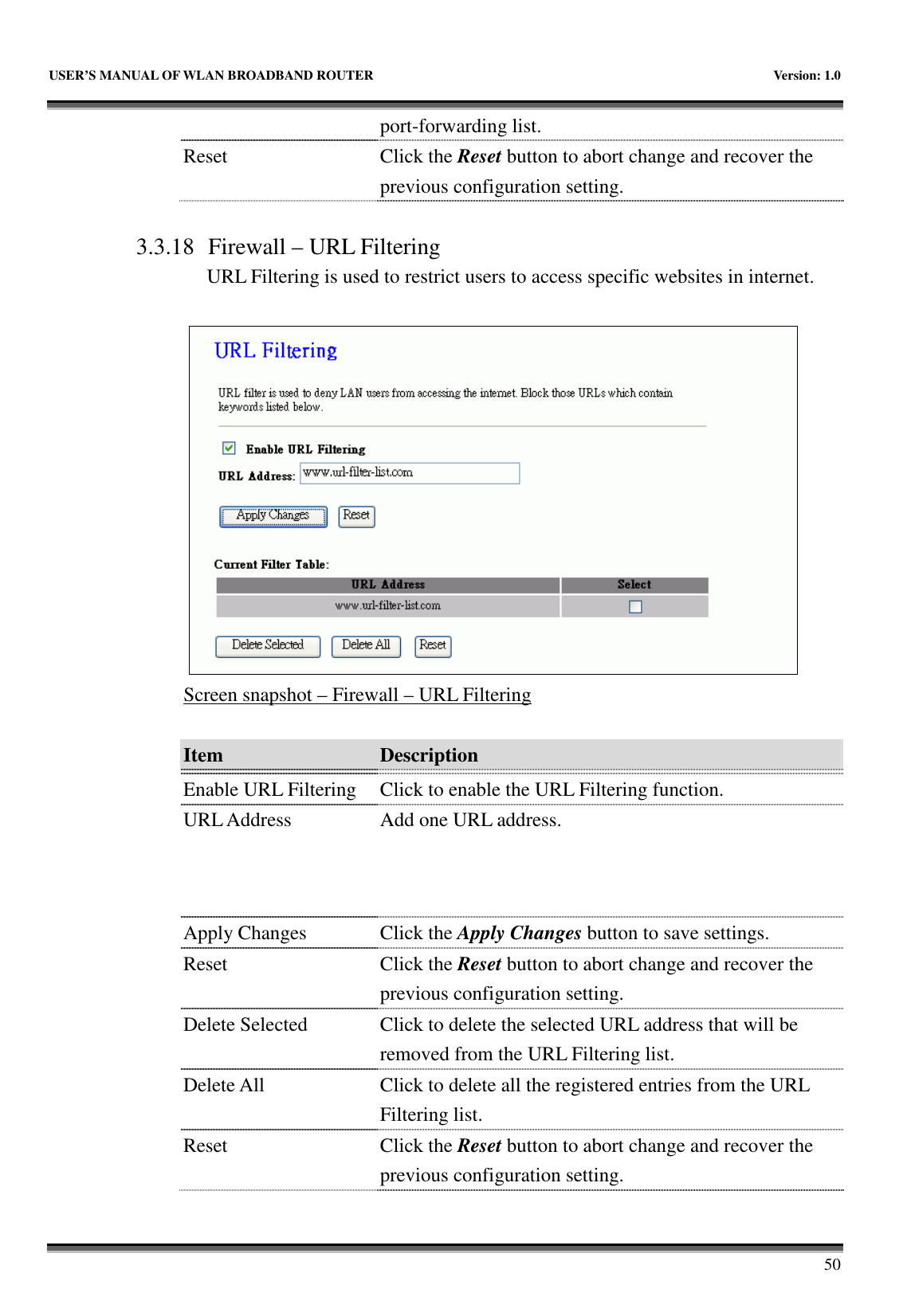

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 50 port-forwarding list. Reset Click the Reset button to abort change and recover the previous configuration setting. 3.3.18 Firewall – URL Filtering URL Filtering is used to restrict users to access specific websites in internet. Screen snapshot – Firewall – URL Filtering Item Description Enable URL Filtering Click to enable the URL Filtering function. URL Address Add one URL address. Apply Changes Click the Apply Changes button to save settings. Reset Click the Reset button to abort change and recover the previous configuration setting. Delete Selected Click to delete the selected URL address that will be removed from the URL Filtering list. Delete All Click to delete all the registered entries from the URL Filtering list. Reset Click the Reset button to abort change and recover the previous configuration setting.

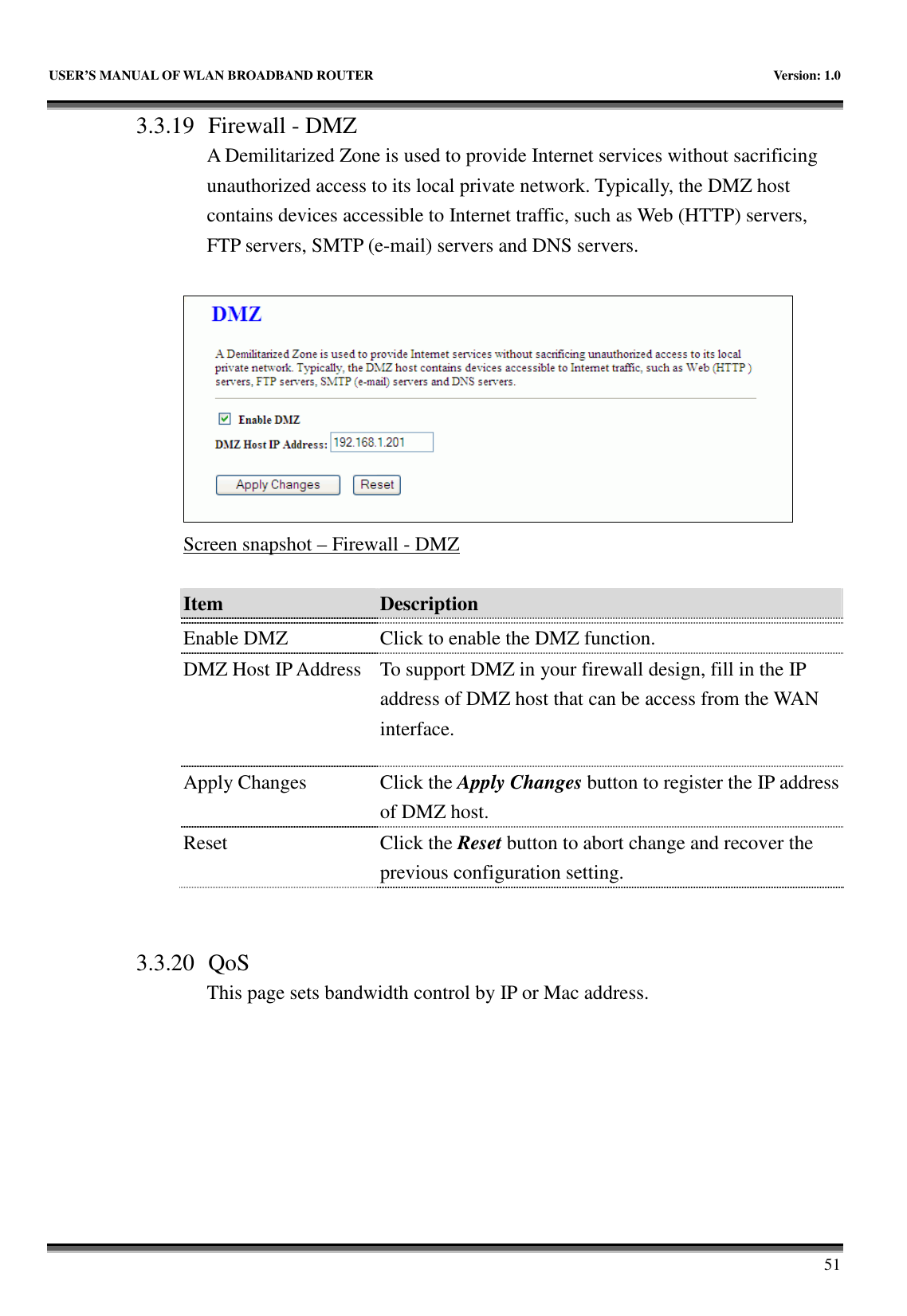

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 51 3.3.19 Firewall - DMZ A Demilitarized Zone is used to provide Internet services without sacrificing unauthorized access to its local private network. Typically, the DMZ host contains devices accessible to Internet traffic, such as Web (HTTP) servers, FTP servers, SMTP (e-mail) servers and DNS servers. Screen snapshot – Firewall - DMZ Item Description Enable DMZ Click to enable the DMZ function. DMZ Host IP Address To support DMZ in your firewall design, fill in the IP address of DMZ host that can be access from the WAN interface. Apply Changes Click the Apply Changes button to register the IP address of DMZ host. Reset Click the Reset button to abort change and recover the previous configuration setting. 3.3.20 QoS This page sets bandwidth control by IP or Mac address.

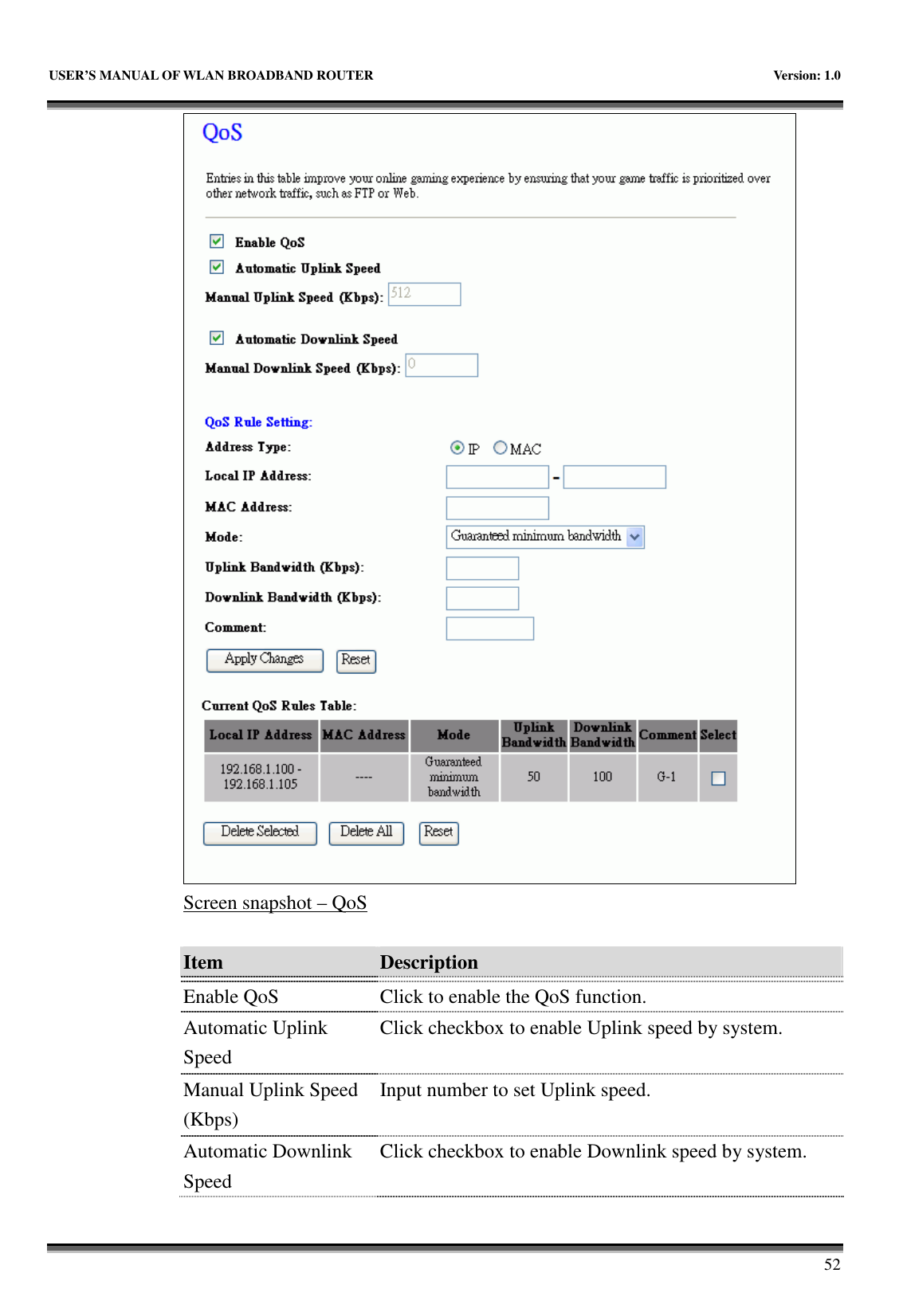

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 52 Screen snapshot – QoS Item Description Enable QoS Click to enable the QoS function. Automatic Uplink Speed Click checkbox to enable Uplink speed by system. Manual Uplink Speed (Kbps) Input number to set Uplink speed. Automatic Downlink Speed Click checkbox to enable Downlink speed by system.

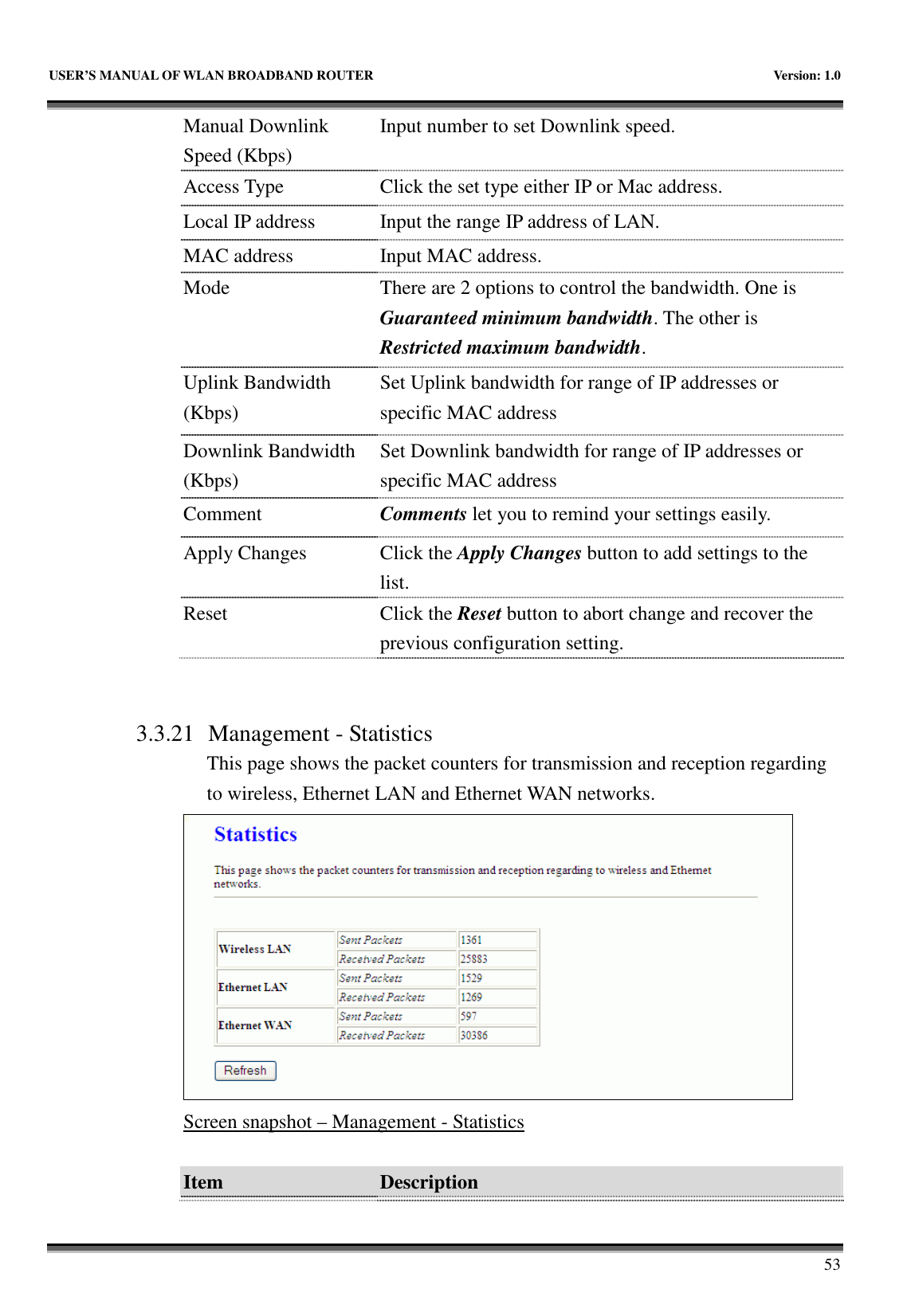

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 53 Manual Downlink Speed (Kbps) Input number to set Downlink speed. Access Type Click the set type either IP or Mac address. Local IP address Input the range IP address of LAN. MAC address Input MAC address. Mode There are 2 options to control the bandwidth. One is Guaranteed minimum bandwidth. The other is Restricted maximum bandwidth. Uplink Bandwidth (Kbps) Set Uplink bandwidth for range of IP addresses or specific MAC address Downlink Bandwidth (Kbps) Set Downlink bandwidth for range of IP addresses or specific MAC address Comment Comments let you to remind your settings easily. Apply Changes Click the Apply Changes button to add settings to the list. Reset Click the Reset button to abort change and recover the previous configuration setting. 3.3.21 Management - Statistics This page shows the packet counters for transmission and reception regarding to wireless, Ethernet LAN and Ethernet WAN networks. Screen snapshot – Management - Statistics Item Description

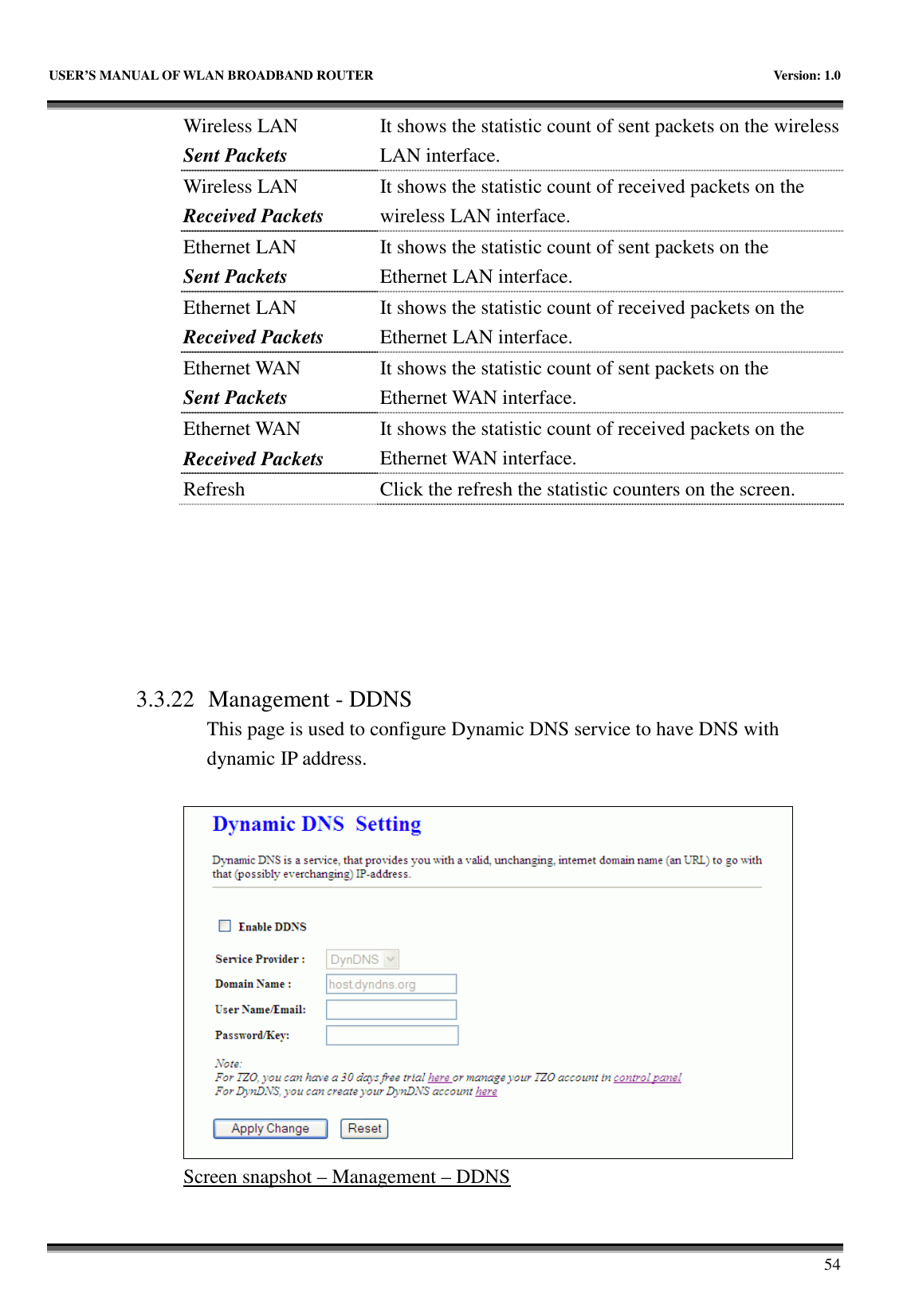

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 54 Wireless LAN Sent Packets It shows the statistic count of sent packets on the wireless LAN interface. Wireless LAN Received Packets It shows the statistic count of received packets on the wireless LAN interface. Ethernet LAN Sent Packets It shows the statistic count of sent packets on the Ethernet LAN interface. Ethernet LAN Received Packets It shows the statistic count of received packets on the Ethernet LAN interface. Ethernet WAN Sent Packets It shows the statistic count of sent packets on the Ethernet WAN interface. Ethernet WAN Received Packets It shows the statistic count of received packets on the Ethernet WAN interface. Refresh Click the refresh the statistic counters on the screen. 3.3.22 Management - DDNS This page is used to configure Dynamic DNS service to have DNS with dynamic IP address. Screen snapshot – Management – DDNS

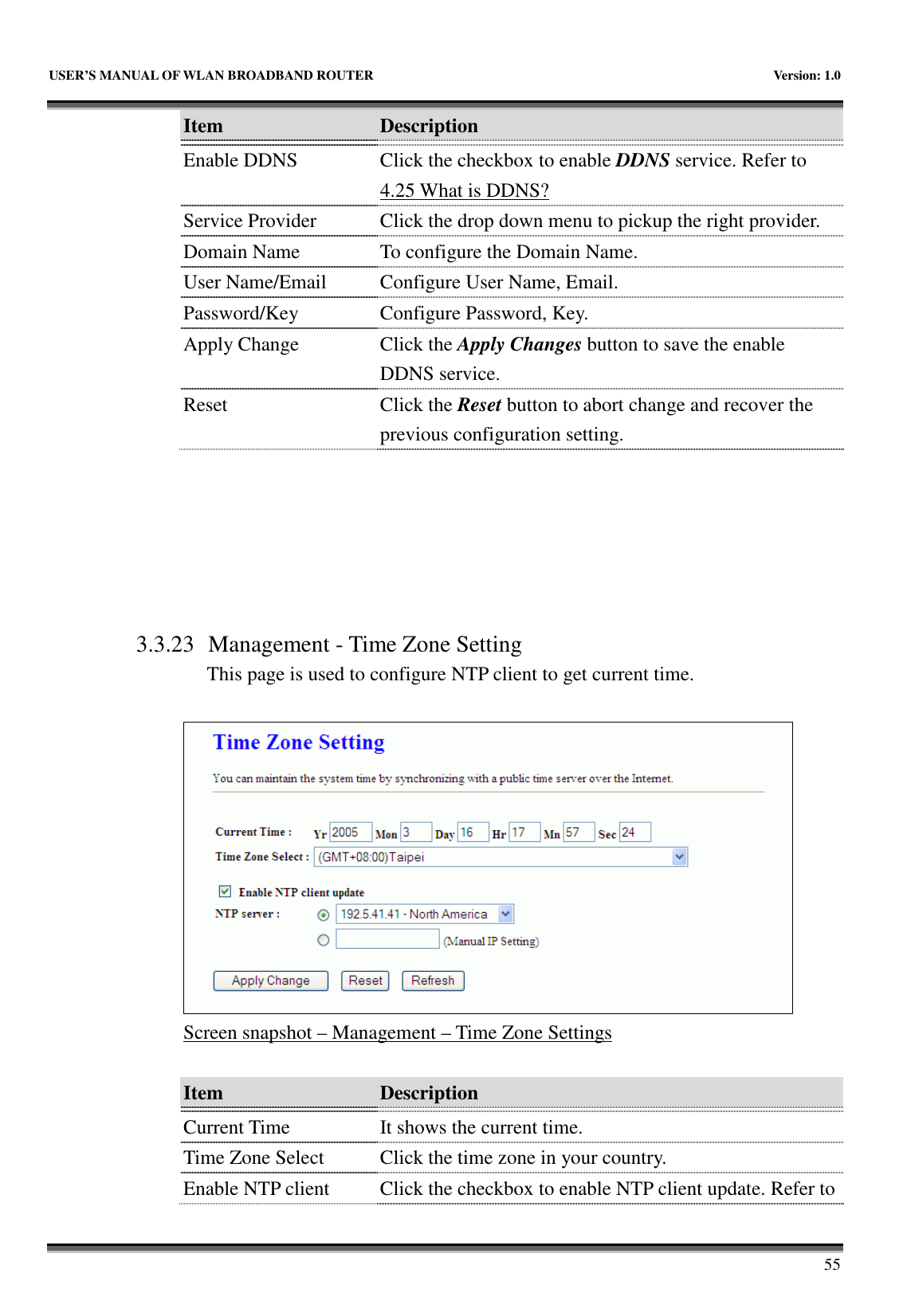

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 55 Item Description Enable DDNS Click the checkbox to enable DDNS service. Refer to 4.25 What is DDNS? Service Provider Click the drop down menu to pickup the right provider. Domain Name To configure the Domain Name. User Name/Email Configure User Name, Email. Password/Key Configure Password, Key. Apply Change Click the Apply Changes button to save the enable DDNS service. Reset Click the Reset button to abort change and recover the previous configuration setting. 3.3.23 Management - Time Zone Setting This page is used to configure NTP client to get current time. Screen snapshot – Management – Time Zone Settings Item Description Current Time It shows the current time. Time Zone Select Click the time zone in your country. Enable NTP client Click the checkbox to enable NTP client update. Refer to

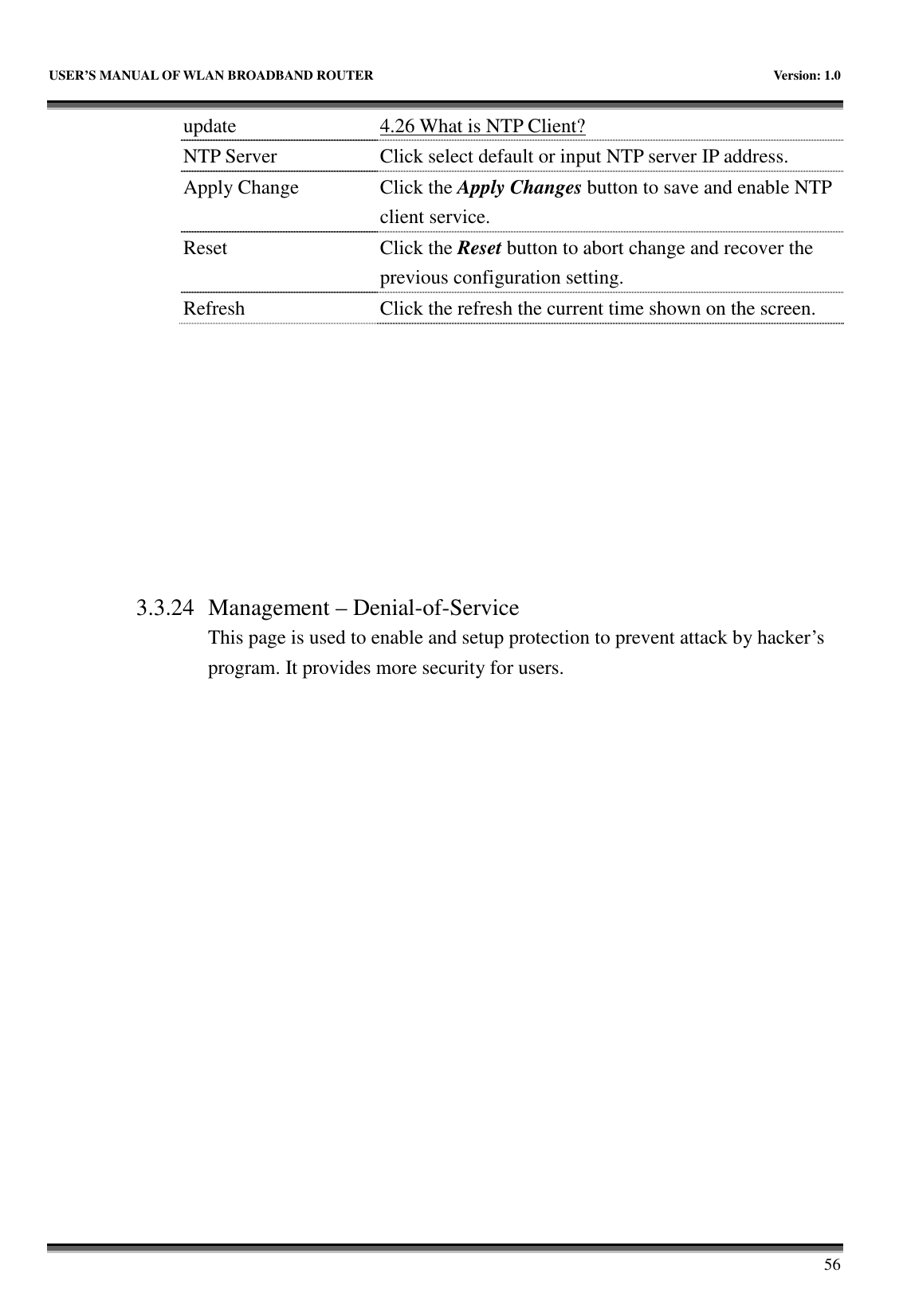

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 56 update 4.26 What is NTP Client? NTP Server Click select default or input NTP server IP address. Apply Change Click the Apply Changes button to save and enable NTP client service. Reset Click the Reset button to abort change and recover the previous configuration setting. Refresh Click the refresh the current time shown on the screen. 3.3.24 Management – Denial-of-Service This page is used to enable and setup protection to prevent attack by hacker’s program. It provides more security for users.

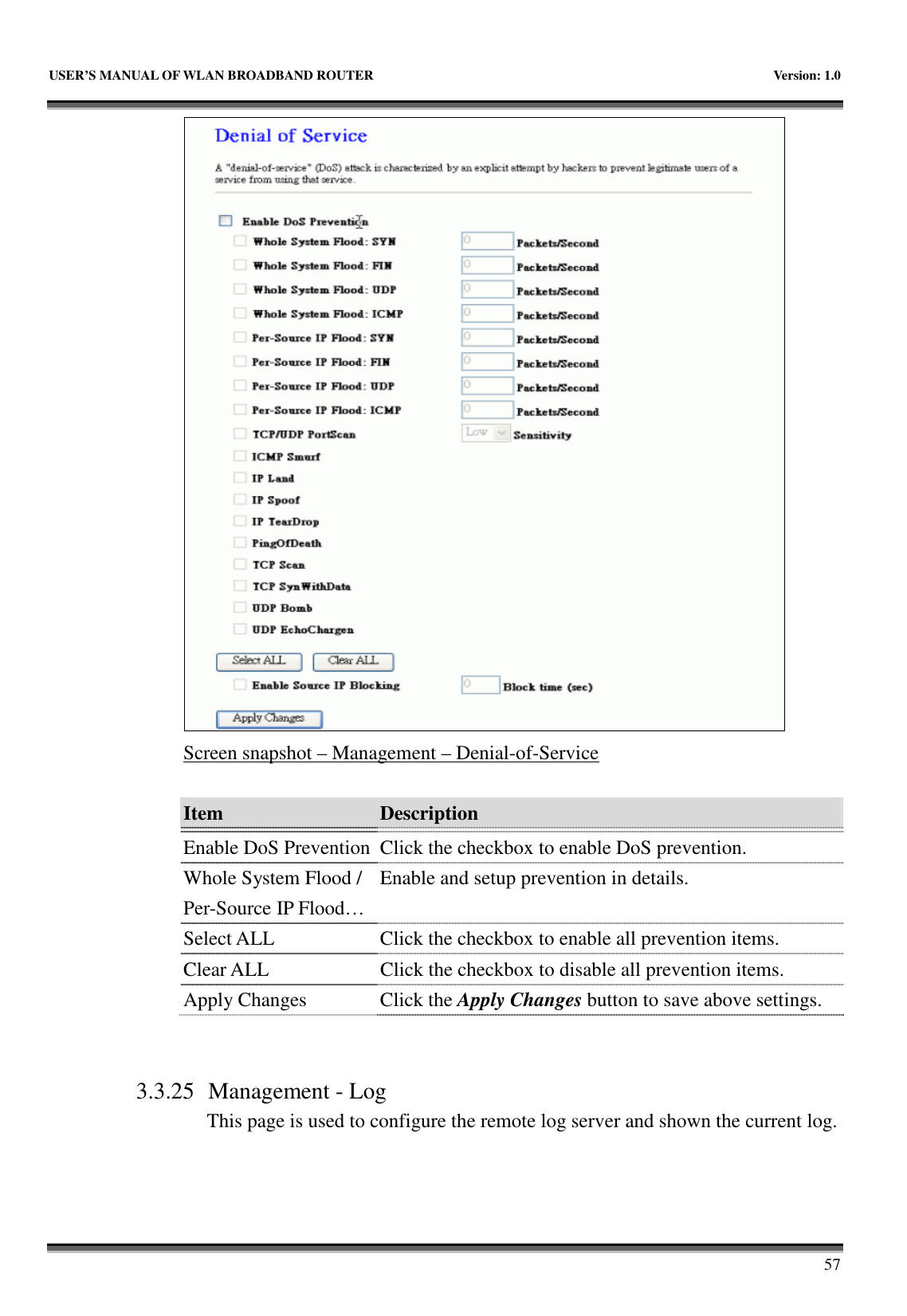

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 57 Screen snapshot – Management – Denial-of-Service Item Description Enable DoS Prevention Click the checkbox to enable DoS prevention. Whole System Flood / Per-Source IP Flood… Enable and setup prevention in details. Select ALL Click the checkbox to enable all prevention items. Clear ALL Click the checkbox to disable all prevention items. Apply Changes Click the Apply Changes button to save above settings. 3.3.25 Management - Log This page is used to configure the remote log server and shown the current log.

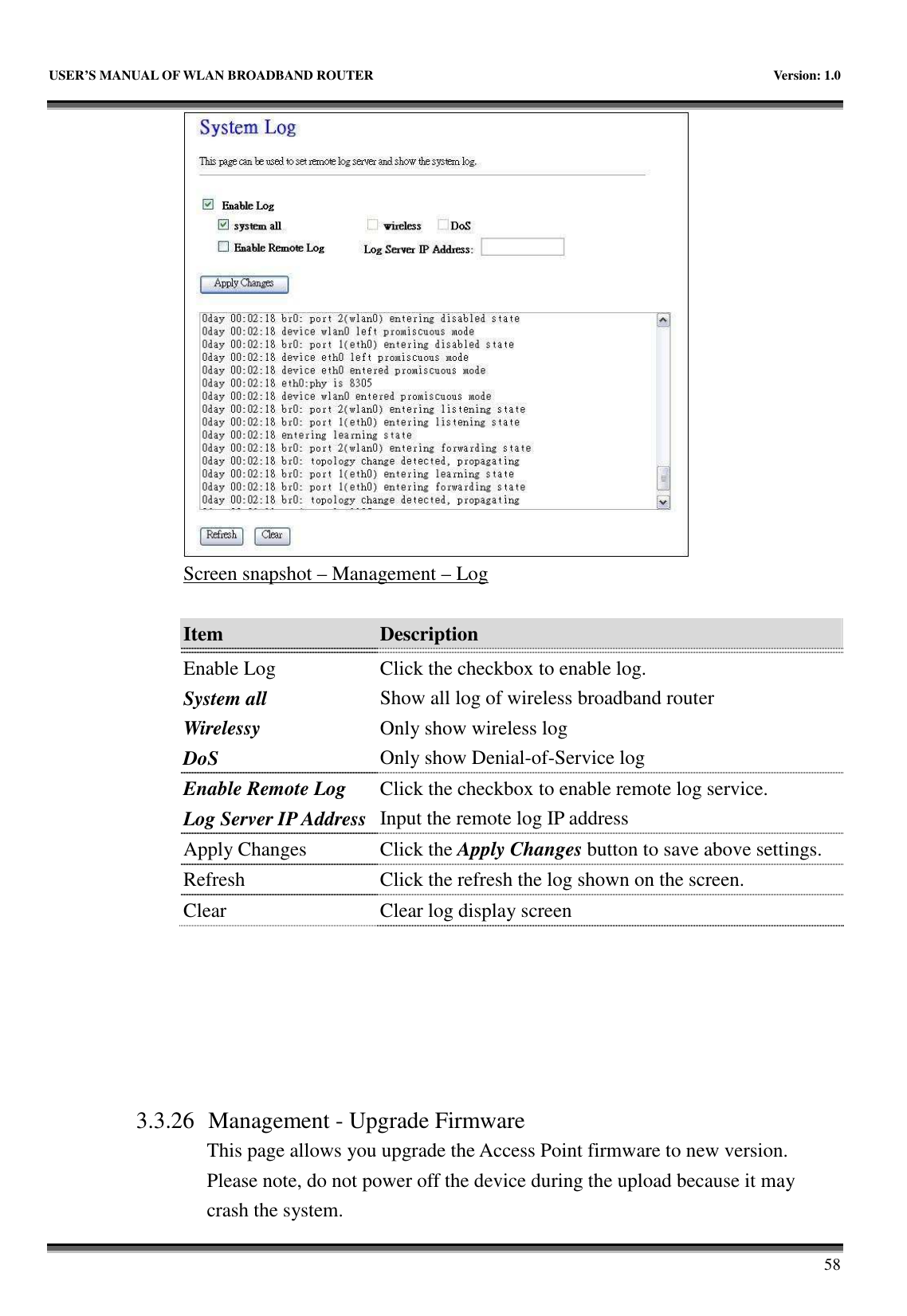

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 58 Screen snapshot – Management – Log Item Description Enable Log System all Wirelessy DoS Click the checkbox to enable log. Show all log of wireless broadband router Only show wireless log Only show Denial-of-Service log Enable Remote Log Log Server IP Address Click the checkbox to enable remote log service. Input the remote log IP address Apply Changes Click the Apply Changes button to save above settings. Refresh Click the refresh the log shown on the screen. Clear Clear log display screen 3.3.26 Management - Upgrade Firmware This page allows you upgrade the Access Point firmware to new version. Please note, do not power off the device during the upload because it may crash the system.

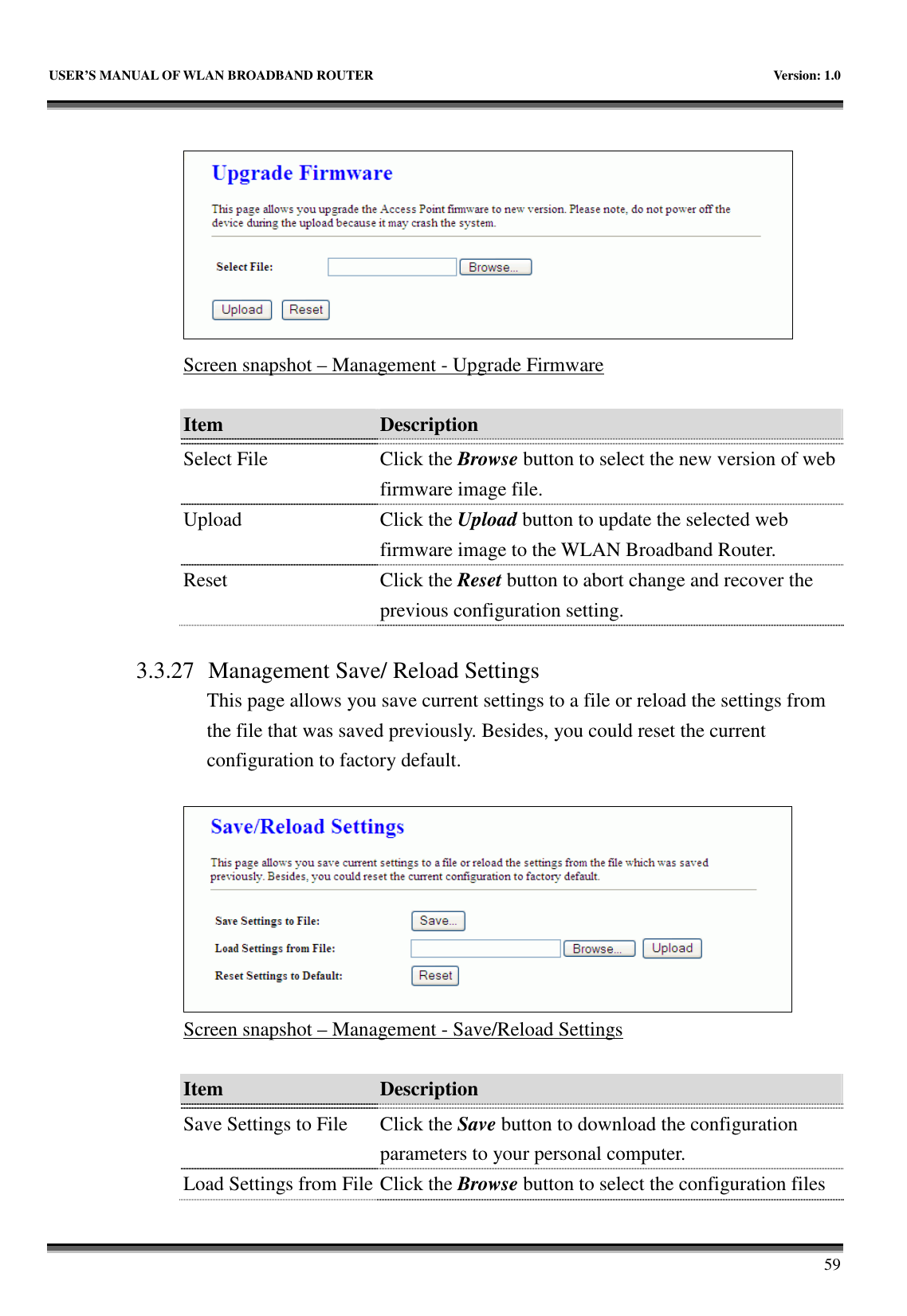

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 59 Screen snapshot – Management - Upgrade Firmware Item Description Select File Click the Browse button to select the new version of web firmware image file. Upload Click the Upload button to update the selected web firmware image to the WLAN Broadband Router. Reset Click the Reset button to abort change and recover the previous configuration setting. 3.3.27 Management Save/ Reload Settings This page allows you save current settings to a file or reload the settings from the file that was saved previously. Besides, you could reset the current configuration to factory default. Screen snapshot – Management - Save/Reload Settings Item Description Save Settings to File Click the Save button to download the configuration parameters to your personal computer. Load Settings from File Click the Browse button to select the configuration files

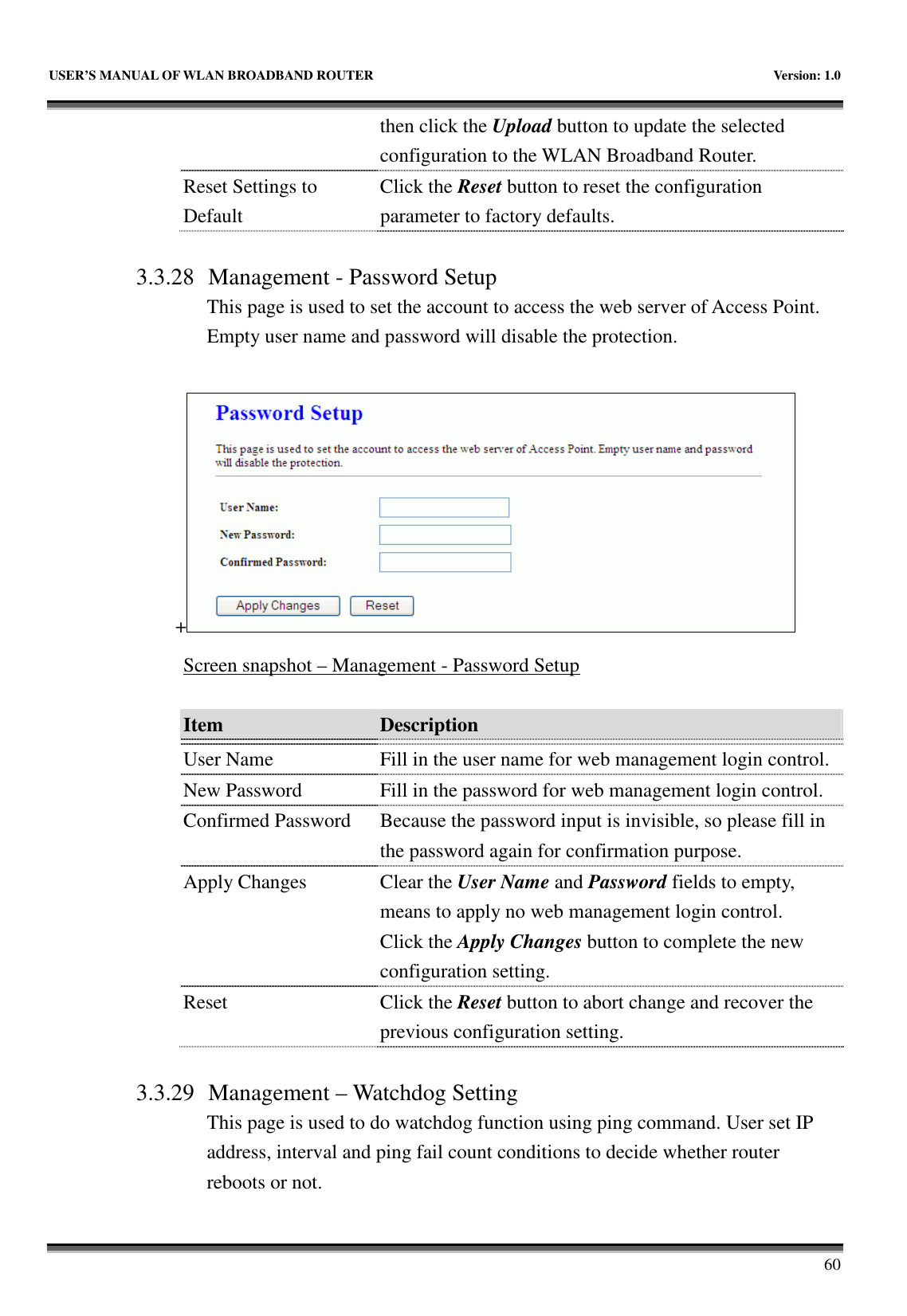

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 60 then click the Upload button to update the selected configuration to the WLAN Broadband Router. Reset Settings to Default Click the Reset button to reset the configuration parameter to factory defaults. 3.3.28 Management - Password Setup This page is used to set the account to access the web server of Access Point. Empty user name and password will disable the protection. + Screen snapshot – Management - Password Setup Item Description User Name Fill in the user name for web management login control. New Password Fill in the password for web management login control. Confirmed Password Because the password input is invisible, so please fill in the password again for confirmation purpose. Apply Changes Clear the User Name and Password fields to empty, means to apply no web management login control. Click the Apply Changes button to complete the new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting. 3.3.29 Management – Watchdog Setting This page is used to do watchdog function using ping command. User set IP address, interval and ping fail count conditions to decide whether router reboots or not.

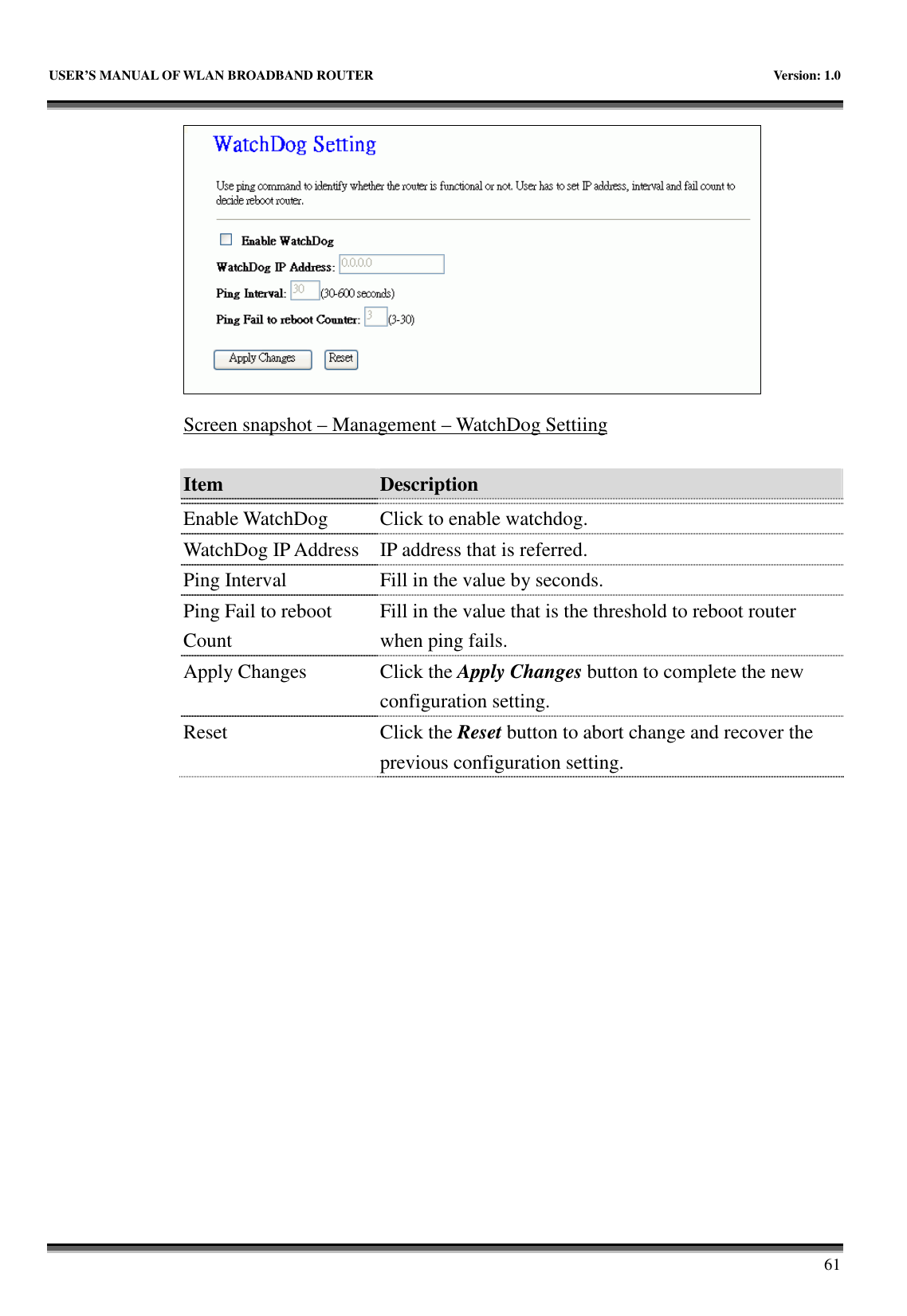

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 61 Screen snapshot – Management – WatchDog Settiing Item Description Enable WatchDog Click to enable watchdog. WatchDog IP Address IP address that is referred. Ping Interval Fill in the value by seconds. Ping Fail to reboot Count Fill in the value that is the threshold to reboot router when ping fails. Apply Changes Click the Apply Changes button to complete the new configuration setting. Reset Click the Reset button to abort change and recover the previous configuration setting.

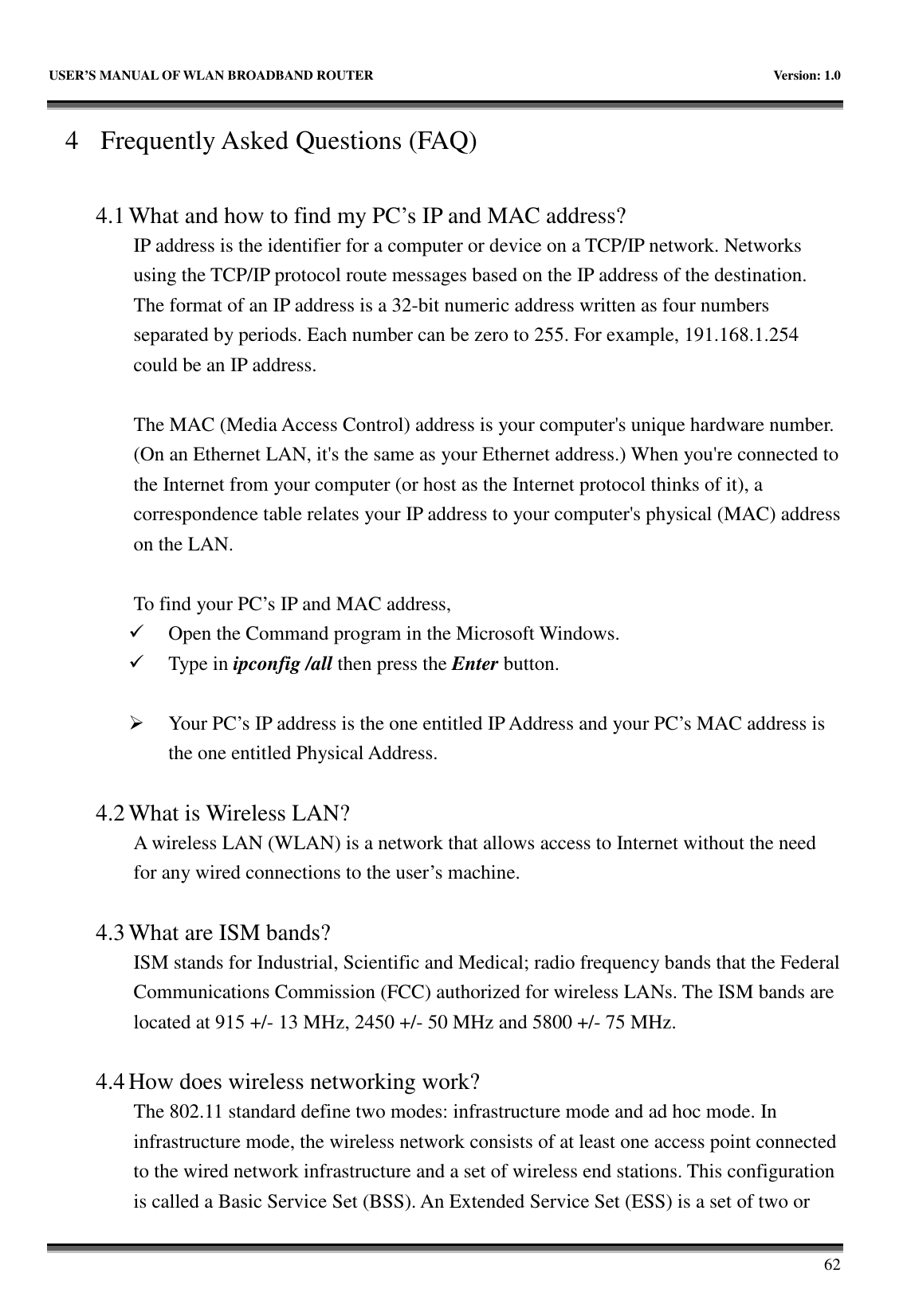

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 62 4 Frequently Asked Questions (FAQ) 4.1 What and how to find my PC’s IP and MAC address? IP address is the identifier for a computer or device on a TCP/IP network. Networks using the TCP/IP protocol route messages based on the IP address of the destination. The format of an IP address is a 32-bit numeric address written as four numbers separated by periods. Each number can be zero to 255. For example, 191.168.1.254 could be an IP address. The MAC (Media Access Control) address is your computer's unique hardware number. (On an Ethernet LAN, it's the same as your Ethernet address.) When you're connected to the Internet from your computer (or host as the Internet protocol thinks of it), a correspondence table relates your IP address to your computer's physical (MAC) address on the LAN. To find your PC’s IP and MAC address,  Open the Command program in the Microsoft Windows.  Type in ipconfig /all then press the Enter button.  Your PC’s IP address is the one entitled IP Address and your PC’s MAC address is the one entitled Physical Address. 4.2 What is Wireless LAN? A wireless LAN (WLAN) is a network that allows access to Internet without the need for any wired connections to the user’s machine. 4.3 What are ISM bands? ISM stands for Industrial, Scientific and Medical; radio frequency bands that the Federal Communications Commission (FCC) authorized for wireless LANs. The ISM bands are located at 915 +/- 13 MHz, 2450 +/- 50 MHz and 5800 +/- 75 MHz. 4.4 How does wireless networking work? The 802.11 standard define two modes: infrastructure mode and ad hoc mode. In infrastructure mode, the wireless network consists of at least one access point connected to the wired network infrastructure and a set of wireless end stations. This configuration is called a Basic Service Set (BSS). An Extended Service Set (ESS) is a set of two or

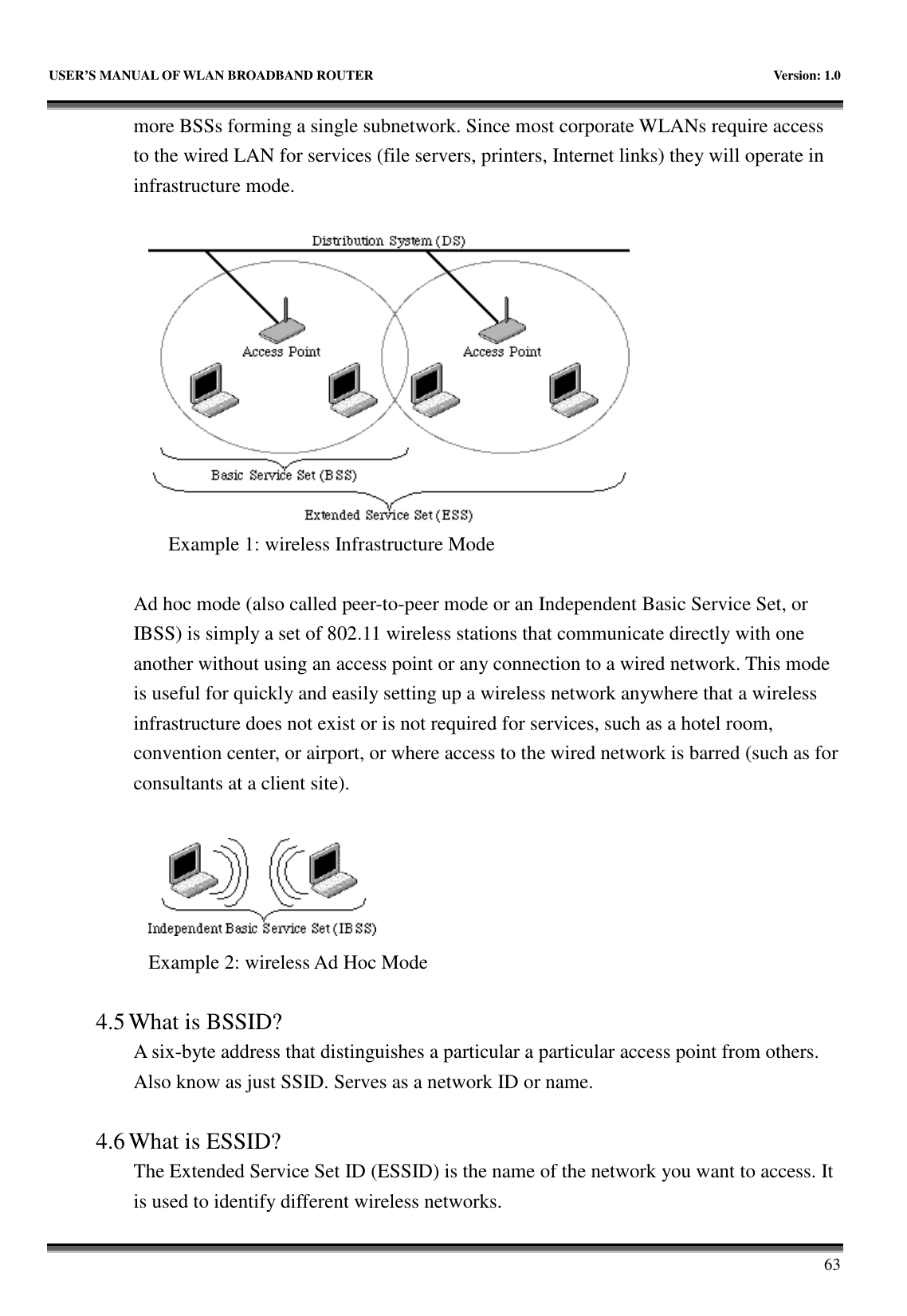

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 63 more BSSs forming a single subnetwork. Since most corporate WLANs require access to the wired LAN for services (file servers, printers, Internet links) they will operate in infrastructure mode. Example 1: wireless Infrastructure Mode Ad hoc mode (also called peer-to-peer mode or an Independent Basic Service Set, or IBSS) is simply a set of 802.11 wireless stations that communicate directly with one another without using an access point or any connection to a wired network. This mode is useful for quickly and easily setting up a wireless network anywhere that a wireless infrastructure does not exist or is not required for services, such as a hotel room, convention center, or airport, or where access to the wired network is barred (such as for consultants at a client site). Example 2: wireless Ad Hoc Mode 4.5 What is BSSID? A six-byte address that distinguishes a particular a particular access point from others. Also know as just SSID. Serves as a network ID or name. 4.6 What is ESSID? The Extended Service Set ID (ESSID) is the name of the network you want to access. It is used to identify different wireless networks.

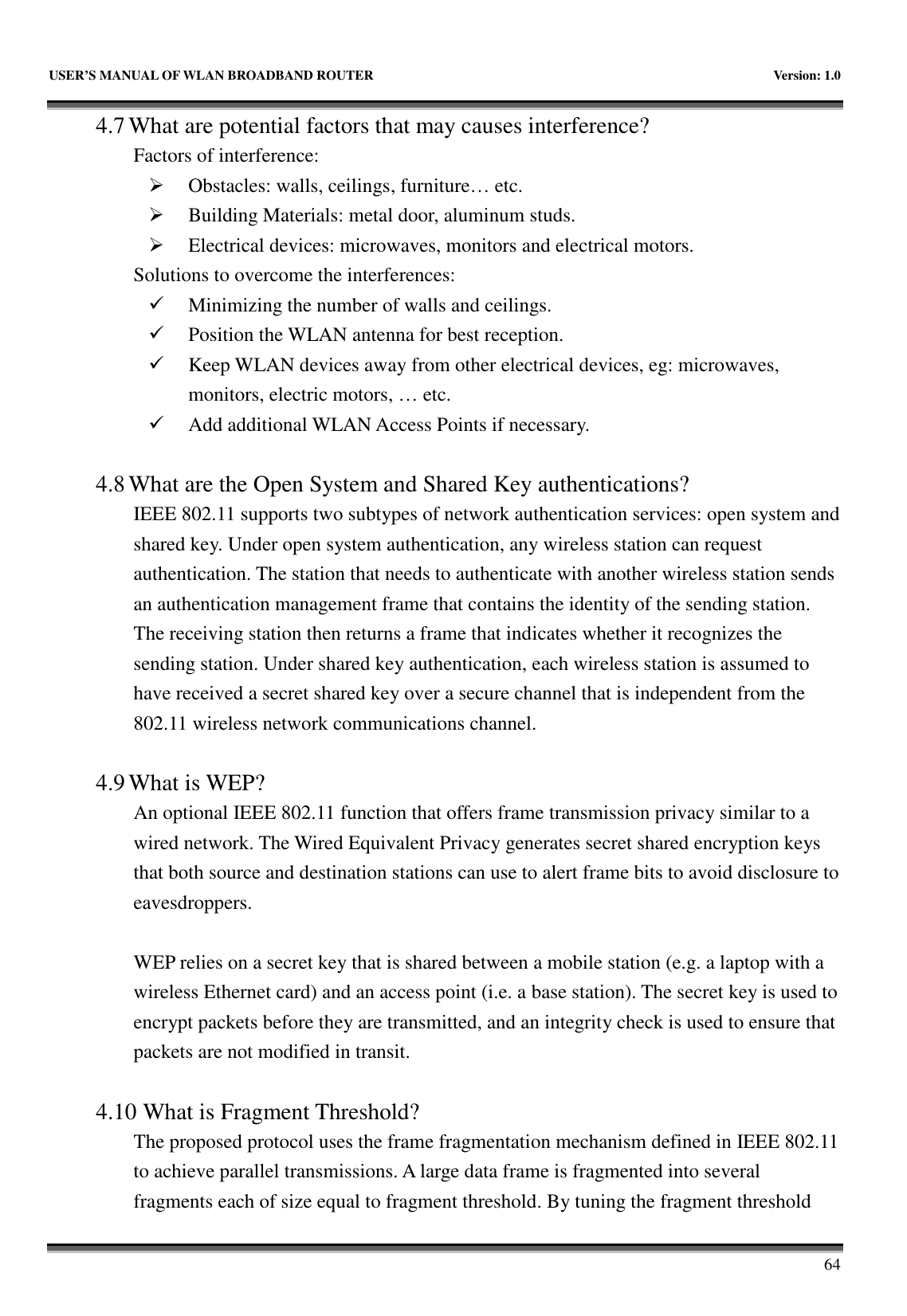

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 64 4.7 What are potential factors that may causes interference? Factors of interference:  Obstacles: walls, ceilings, furniture… etc.  Building Materials: metal door, aluminum studs.  Electrical devices: microwaves, monitors and electrical motors. Solutions to overcome the interferences:  Minimizing the number of walls and ceilings.  Position the WLAN antenna for best reception.  Keep WLAN devices away from other electrical devices, eg: microwaves, monitors, electric motors, … etc.  Add additional WLAN Access Points if necessary. 4.8 What are the Open System and Shared Key authentications? IEEE 802.11 supports two subtypes of network authentication services: open system and shared key. Under open system authentication, any wireless station can request authentication. The station that needs to authenticate with another wireless station sends an authentication management frame that contains the identity of the sending station. The receiving station then returns a frame that indicates whether it recognizes the sending station. Under shared key authentication, each wireless station is assumed to have received a secret shared key over a secure channel that is independent from the 802.11 wireless network communications channel. 4.9 What is WEP? An optional IEEE 802.11 function that offers frame transmission privacy similar to a wired network. The Wired Equivalent Privacy generates secret shared encryption keys that both source and destination stations can use to alert frame bits to avoid disclosure to eavesdroppers. WEP relies on a secret key that is shared between a mobile station (e.g. a laptop with a wireless Ethernet card) and an access point (i.e. a base station). The secret key is used to encrypt packets before they are transmitted, and an integrity check is used to ensure that packets are not modified in transit. 4.10 What is Fragment Threshold? The proposed protocol uses the frame fragmentation mechanism defined in IEEE 802.11 to achieve parallel transmissions. A large data frame is fragmented into several fragments each of size equal to fragment threshold. By tuning the fragment threshold

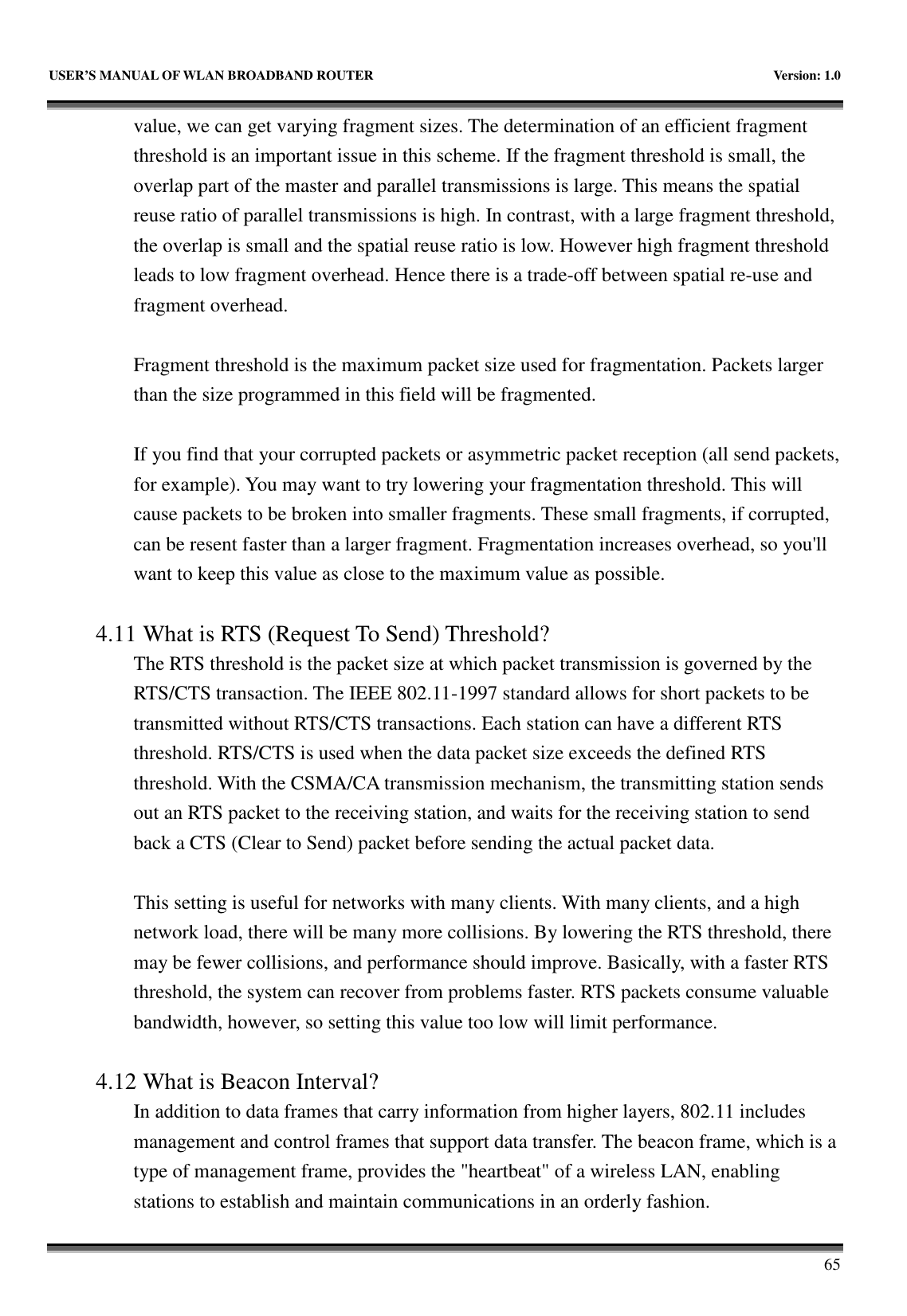

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 65 value, we can get varying fragment sizes. The determination of an efficient fragment threshold is an important issue in this scheme. If the fragment threshold is small, the overlap part of the master and parallel transmissions is large. This means the spatial reuse ratio of parallel transmissions is high. In contrast, with a large fragment threshold, the overlap is small and the spatial reuse ratio is low. However high fragment threshold leads to low fragment overhead. Hence there is a trade-off between spatial re-use and fragment overhead. Fragment threshold is the maximum packet size used for fragmentation. Packets larger than the size programmed in this field will be fragmented. If you find that your corrupted packets or asymmetric packet reception (all send packets, for example). You may want to try lowering your fragmentation threshold. This will cause packets to be broken into smaller fragments. These small fragments, if corrupted, can be resent faster than a larger fragment. Fragmentation increases overhead, so you'll want to keep this value as close to the maximum value as possible. 4.11 What is RTS (Request To Send) Threshold? The RTS threshold is the packet size at which packet transmission is governed by the RTS/CTS transaction. The IEEE 802.11-1997 standard allows for short packets to be transmitted without RTS/CTS transactions. Each station can have a different RTS threshold. RTS/CTS is used when the data packet size exceeds the defined RTS threshold. With the CSMA/CA transmission mechanism, the transmitting station sends out an RTS packet to the receiving station, and waits for the receiving station to send back a CTS (Clear to Send) packet before sending the actual packet data. This setting is useful for networks with many clients. With many clients, and a high network load, there will be many more collisions. By lowering the RTS threshold, there may be fewer collisions, and performance should improve. Basically, with a faster RTS threshold, the system can recover from problems faster. RTS packets consume valuable bandwidth, however, so setting this value too low will limit performance. 4.12 What is Beacon Interval? In addition to data frames that carry information from higher layers, 802.11 includes management and control frames that support data transfer. The beacon frame, which is a type of management frame, provides the "heartbeat" of a wireless LAN, enabling stations to establish and maintain communications in an orderly fashion.

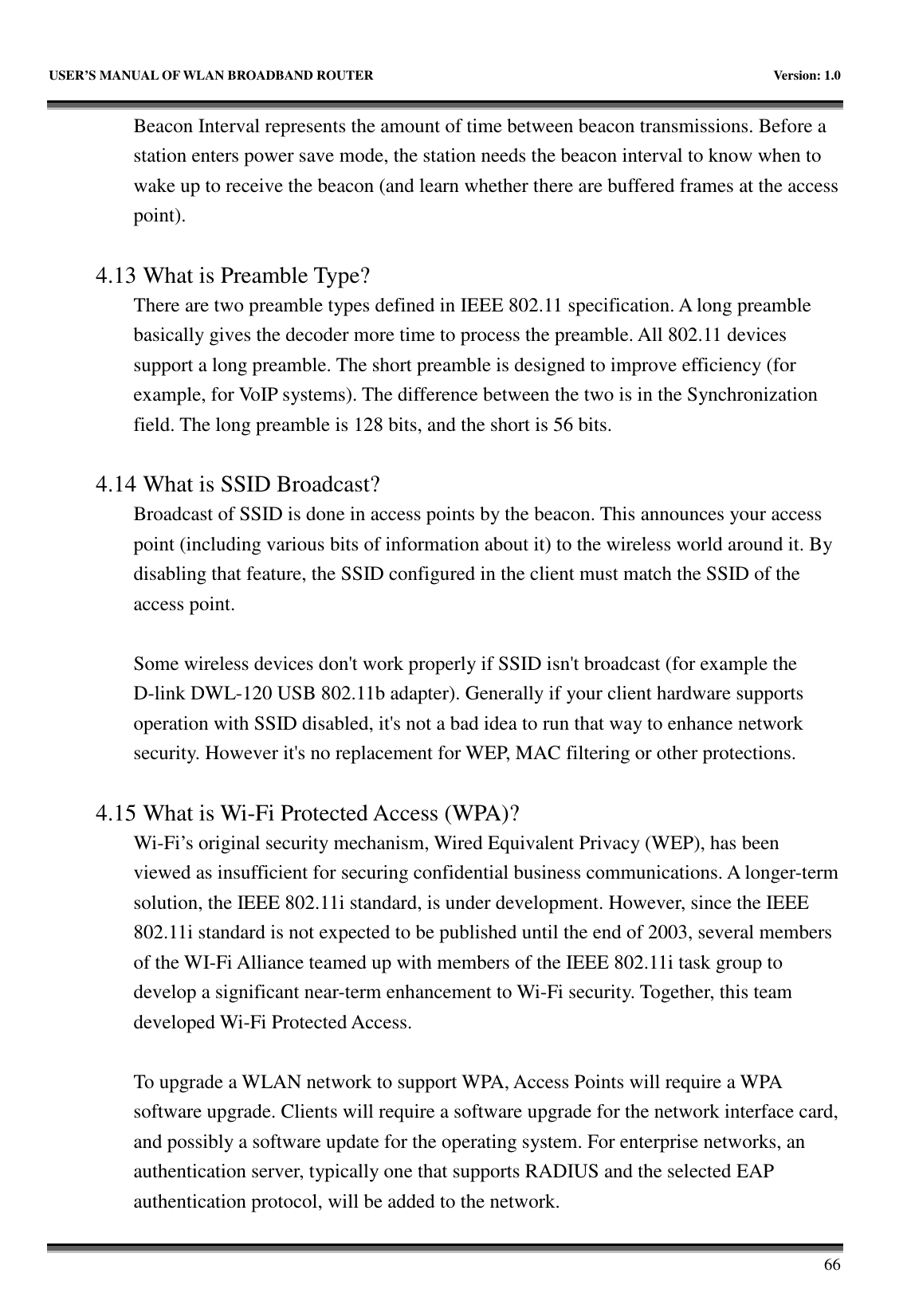

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 66 Beacon Interval represents the amount of time between beacon transmissions. Before a station enters power save mode, the station needs the beacon interval to know when to wake up to receive the beacon (and learn whether there are buffered frames at the access point). 4.13 What is Preamble Type? There are two preamble types defined in IEEE 802.11 specification. A long preamble basically gives the decoder more time to process the preamble. All 802.11 devices support a long preamble. The short preamble is designed to improve efficiency (for example, for VoIP systems). The difference between the two is in the Synchronization field. The long preamble is 128 bits, and the short is 56 bits. 4.14 What is SSID Broadcast? Broadcast of SSID is done in access points by the beacon. This announces your access point (including various bits of information about it) to the wireless world around it. By disabling that feature, the SSID configured in the client must match the SSID of the access point. Some wireless devices don't work properly if SSID isn't broadcast (for example the D-link DWL-120 USB 802.11b adapter). Generally if your client hardware supports operation with SSID disabled, it's not a bad idea to run that way to enhance network security. However it's no replacement for WEP, MAC filtering or other protections. 4.15 What is Wi-Fi Protected Access (WPA)? Wi-Fi’s original security mechanism, Wired Equivalent Privacy (WEP), has been viewed as insufficient for securing confidential business communications. A longer-term solution, the IEEE 802.11i standard, is under development. However, since the IEEE 802.11i standard is not expected to be published until the end of 2003, several members of the WI-Fi Alliance teamed up with members of the IEEE 802.11i task group to develop a significant near-term enhancement to Wi-Fi security. Together, this team developed Wi-Fi Protected Access. To upgrade a WLAN network to support WPA, Access Points will require a WPA software upgrade. Clients will require a software upgrade for the network interface card, and possibly a software update for the operating system. For enterprise networks, an authentication server, typically one that supports RADIUS and the selected EAP authentication protocol, will be added to the network.

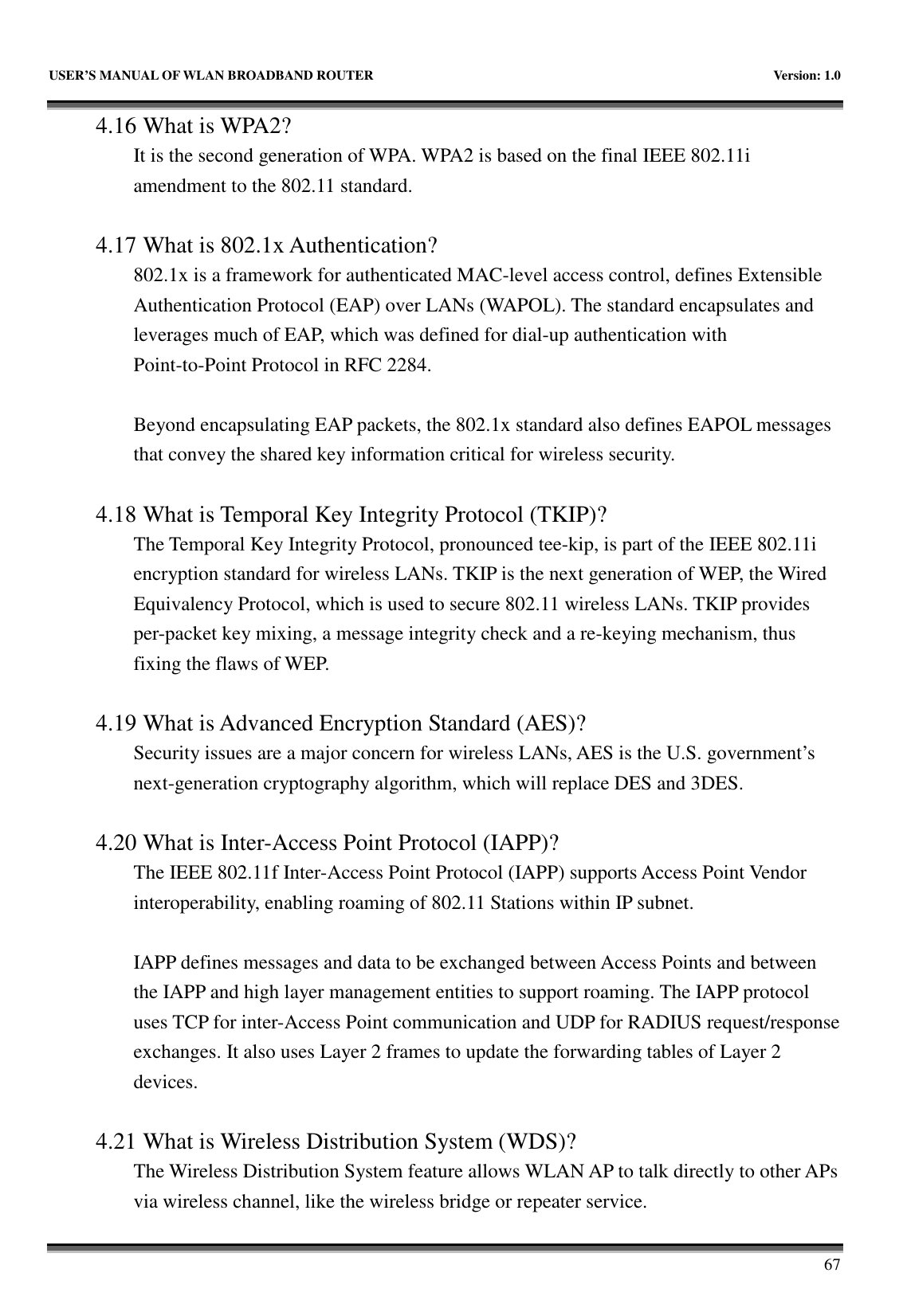

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 67 4.16 What is WPA2? It is the second generation of WPA. WPA2 is based on the final IEEE 802.11i amendment to the 802.11 standard. 4.17 What is 802.1x Authentication? 802.1x is a framework for authenticated MAC-level access control, defines Extensible Authentication Protocol (EAP) over LANs (WAPOL). The standard encapsulates and leverages much of EAP, which was defined for dial-up authentication with Point-to-Point Protocol in RFC 2284. Beyond encapsulating EAP packets, the 802.1x standard also defines EAPOL messages that convey the shared key information critical for wireless security. 4.18 What is Temporal Key Integrity Protocol (TKIP)? The Temporal Key Integrity Protocol, pronounced tee-kip, is part of the IEEE 802.11i encryption standard for wireless LANs. TKIP is the next generation of WEP, the Wired Equivalency Protocol, which is used to secure 802.11 wireless LANs. TKIP provides per-packet key mixing, a message integrity check and a re-keying mechanism, thus fixing the flaws of WEP. 4.19 What is Advanced Encryption Standard (AES)? Security issues are a major concern for wireless LANs, AES is the U.S. government’s next-generation cryptography algorithm, which will replace DES and 3DES. 4.20 What is Inter-Access Point Protocol (IAPP)? The IEEE 802.11f Inter-Access Point Protocol (IAPP) supports Access Point Vendor interoperability, enabling roaming of 802.11 Stations within IP subnet. IAPP defines messages and data to be exchanged between Access Points and between the IAPP and high layer management entities to support roaming. The IAPP protocol uses TCP for inter-Access Point communication and UDP for RADIUS request/response exchanges. It also uses Layer 2 frames to update the forwarding tables of Layer 2 devices. 4.21 What is Wireless Distribution System (WDS)? The Wireless Distribution System feature allows WLAN AP to talk directly to other APs via wireless channel, like the wireless bridge or repeater service.

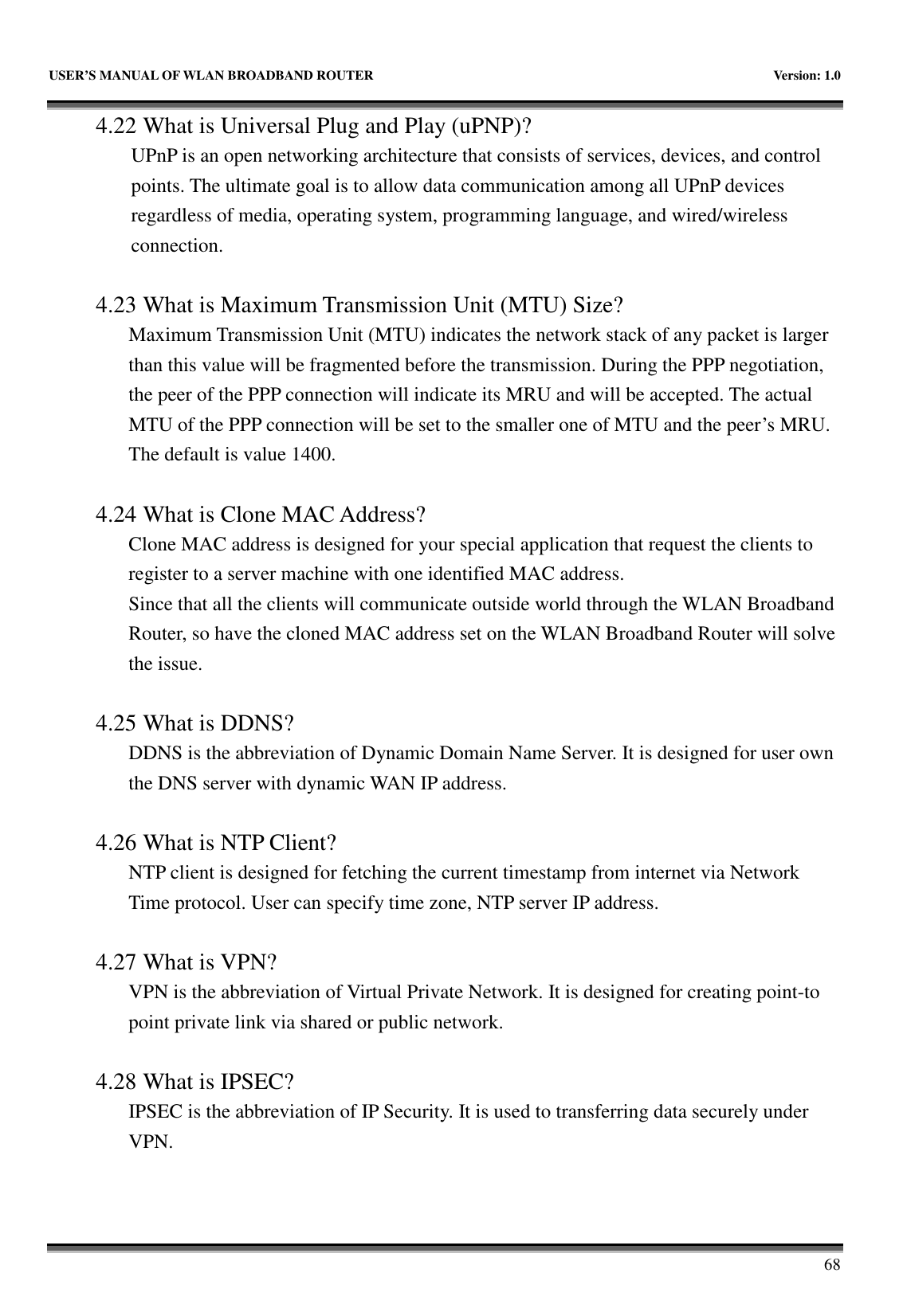

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 68 4.22 What is Universal Plug and Play (uPNP)? UPnP is an open networking architecture that consists of services, devices, and control points. The ultimate goal is to allow data communication among all UPnP devices regardless of media, operating system, programming language, and wired/wireless connection. 4.23 What is Maximum Transmission Unit (MTU) Size? Maximum Transmission Unit (MTU) indicates the network stack of any packet is larger than this value will be fragmented before the transmission. During the PPP negotiation, the peer of the PPP connection will indicate its MRU and will be accepted. The actual MTU of the PPP connection will be set to the smaller one of MTU and the peer’s MRU. The default is value 1400. 4.24 What is Clone MAC Address? Clone MAC address is designed for your special application that request the clients to register to a server machine with one identified MAC address. Since that all the clients will communicate outside world through the WLAN Broadband Router, so have the cloned MAC address set on the WLAN Broadband Router will solve the issue. 4.25 What is DDNS? DDNS is the abbreviation of Dynamic Domain Name Server. It is designed for user own the DNS server with dynamic WAN IP address. 4.26 What is NTP Client? NTP client is designed for fetching the current timestamp from internet via Network Time protocol. User can specify time zone, NTP server IP address. 4.27 What is VPN? VPN is the abbreviation of Virtual Private Network. It is designed for creating point-to point private link via shared or public network. 4.28 What is IPSEC? IPSEC is the abbreviation of IP Security. It is used to transferring data securely under VPN.

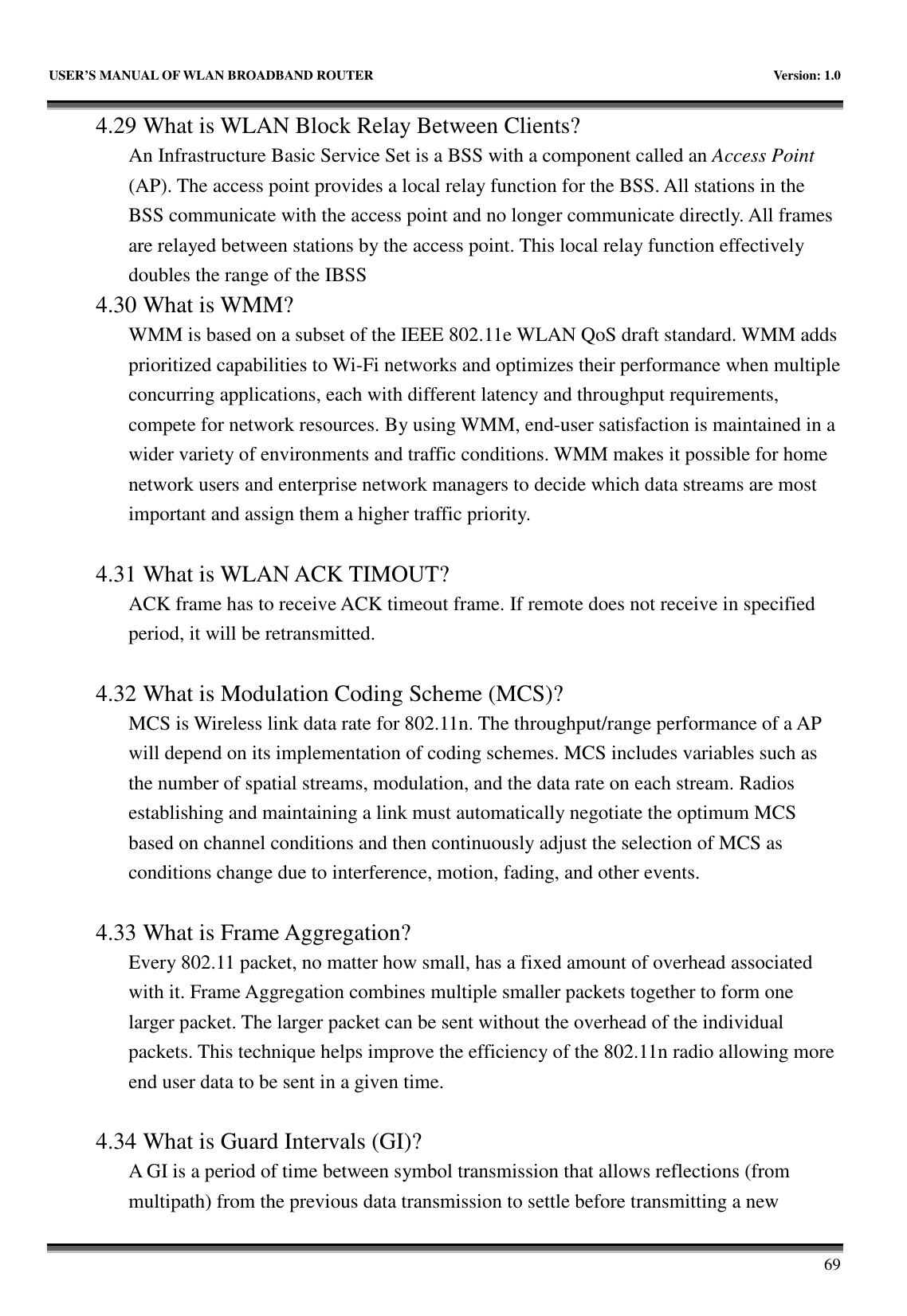

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 69 4.29 What is WLAN Block Relay Between Clients? An Infrastructure Basic Service Set is a BSS with a component called an Access Point (AP). The access point provides a local relay function for the BSS. All stations in the BSS communicate with the access point and no longer communicate directly. All frames are relayed between stations by the access point. This local relay function effectively doubles the range of the IBSS 4.30 What is WMM? WMM is based on a subset of the IEEE 802.11e WLAN QoS draft standard. WMM adds prioritized capabilities to Wi-Fi networks and optimizes their performance when multiple concurring applications, each with different latency and throughput requirements, compete for network resources. By using WMM, end-user satisfaction is maintained in a wider variety of environments and traffic conditions. WMM makes it possible for home network users and enterprise network managers to decide which data streams are most important and assign them a higher traffic priority. 4.31 What is WLAN ACK TIMOUT? ACK frame has to receive ACK timeout frame. If remote does not receive in specified period, it will be retransmitted. 4.32 What is Modulation Coding Scheme (MCS)? MCS is Wireless link data rate for 802.11n. The throughput/range performance of a AP will depend on its implementation of coding schemes. MCS includes variables such as the number of spatial streams, modulation, and the data rate on each stream. Radios establishing and maintaining a link must automatically negotiate the optimum MCS based on channel conditions and then continuously adjust the selection of MCS as conditions change due to interference, motion, fading, and other events. 4.33 What is Frame Aggregation? Every 802.11 packet, no matter how small, has a fixed amount of overhead associated with it. Frame Aggregation combines multiple smaller packets together to form one larger packet. The larger packet can be sent without the overhead of the individual packets. This technique helps improve the efficiency of the 802.11n radio allowing more end user data to be sent in a given time. 4.34 What is Guard Intervals (GI)? A GI is a period of time between symbol transmission that allows reflections (from multipath) from the previous data transmission to settle before transmitting a new

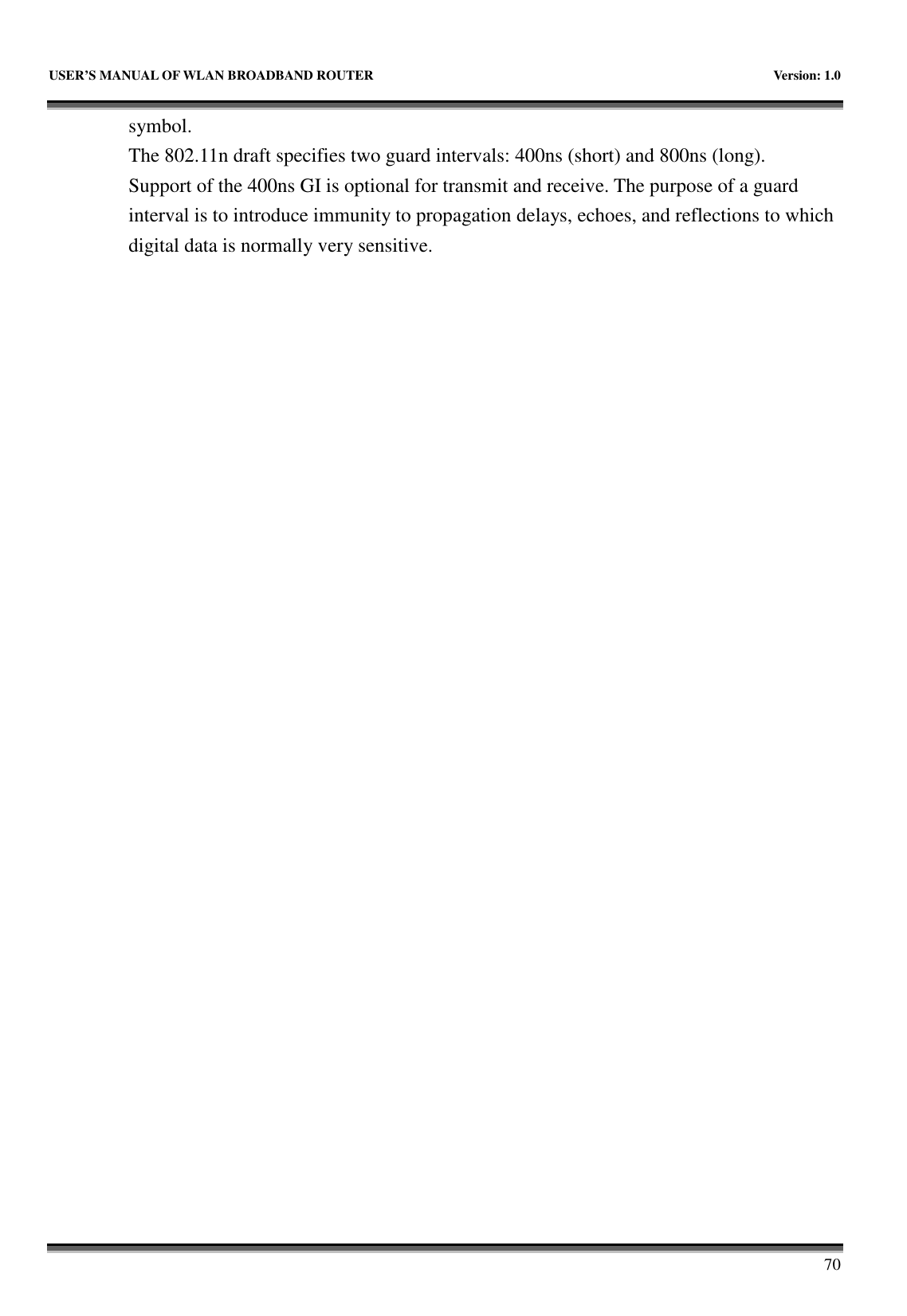

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 70 symbol. The 802.11n draft specifies two guard intervals: 400ns (short) and 800ns (long). Support of the 400ns GI is optional for transmit and receive. The purpose of a guard interval is to introduce immunity to propagation delays, echoes, and reflections to which digital data is normally very sensitive.

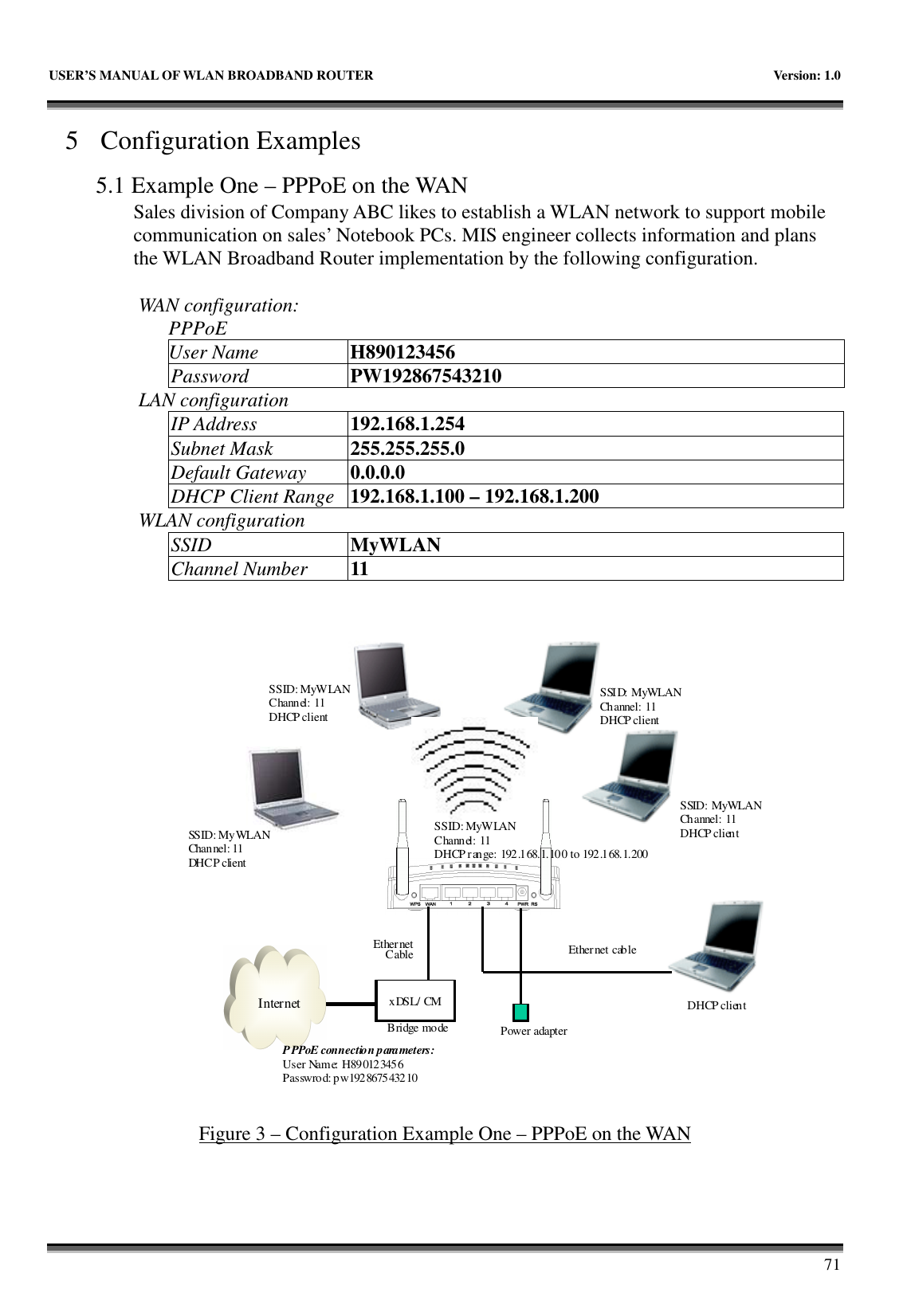

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 71 5 Configuration Examples 5.1 Example One – PPPoE on the WAN Sales division of Company ABC likes to establish a WLAN network to support mobile communication on sales’ Notebook PCs. MIS engineer collects information and plans the WLAN Broadband Router implementation by the following configuration. WAN configuration: PPPoE User Name H890123456 Password PW192867543210 LAN configuration IP Address 192.168.1.254 Subnet Mask 255.255.255.0 Default Gateway 0.0.0.0 DHCP Client Range 192.168.1.100 – 192.168.1.200 WLAN configuration SSID MyWLAN Channel Number 11 InternetxDSL/ CMPower adapterEthernetCable Ethernet cableSSID: MyWLANChannel: 11 DHCP clientSSID: MyWLANChannel: 11 DHCP clientSSID: MyWLANChannel: 11 DHCP clientSSID: MyWLANChannel: 11 DHCP clientDHCP clientBridge modePPPoE connection parameters:User Name: H890123456Passwrod: pw192867543210SSID: MyWLANChannel: 11DHCP range: 192.168.1.100 to 192.168.1.200 Figure 3 – Configuration Example One – PPPoE on the WAN

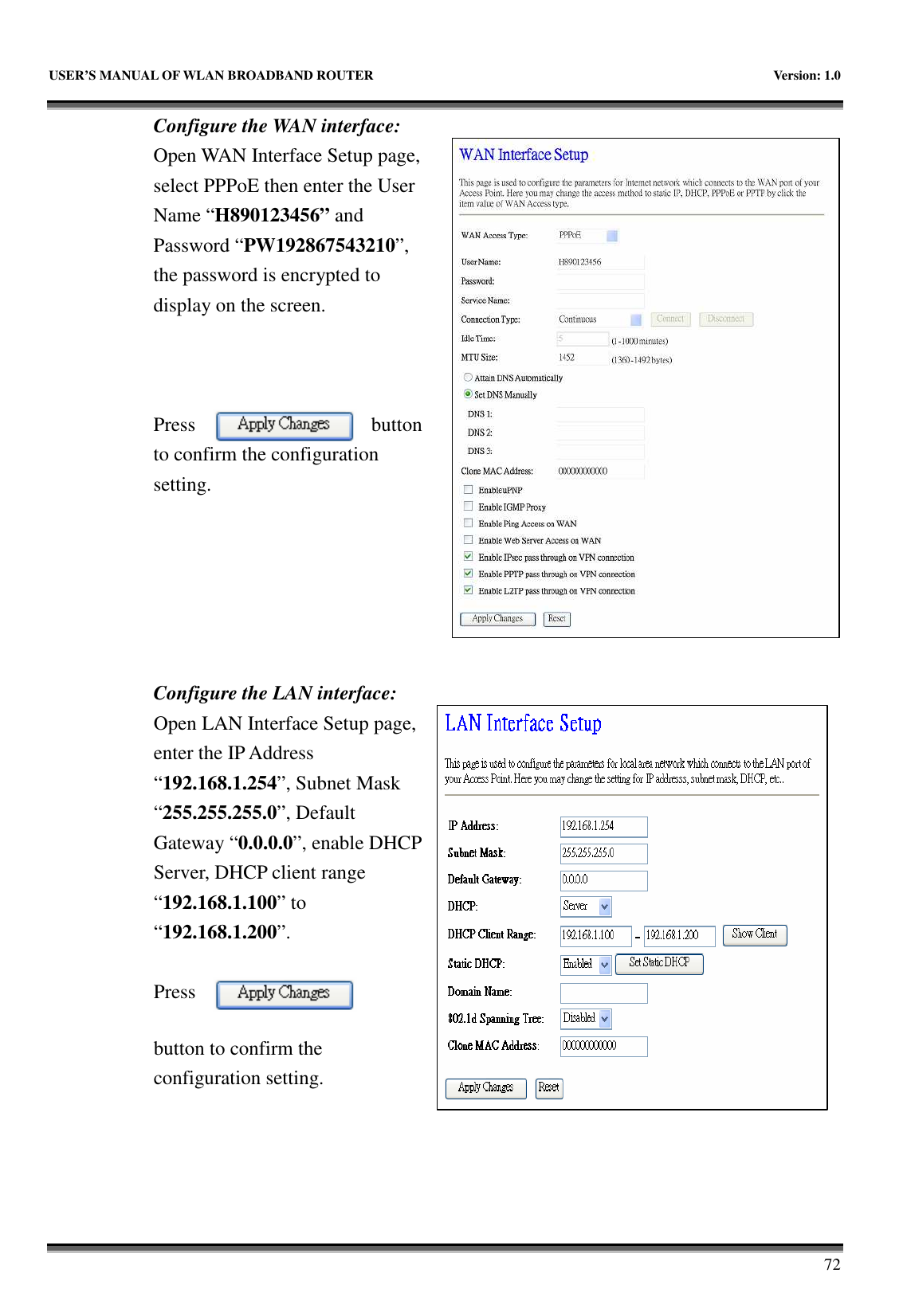

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 72 Configure the WAN interface: Open WAN Interface Setup page, select PPPoE then enter the User Name “H890123456” and Password “PW192867543210”, the password is encrypted to display on the screen. Press button to confirm the configuration setting. Configure the LAN interface: Open LAN Interface Setup page, enter the IP Address “192.168.1.254”, Subnet Mask “255.255.255.0”, Default Gateway “0.0.0.0”, enable DHCP Server, DHCP client range “192.168.1.100” to “192.168.1.200”. Press button to confirm the configuration setting.

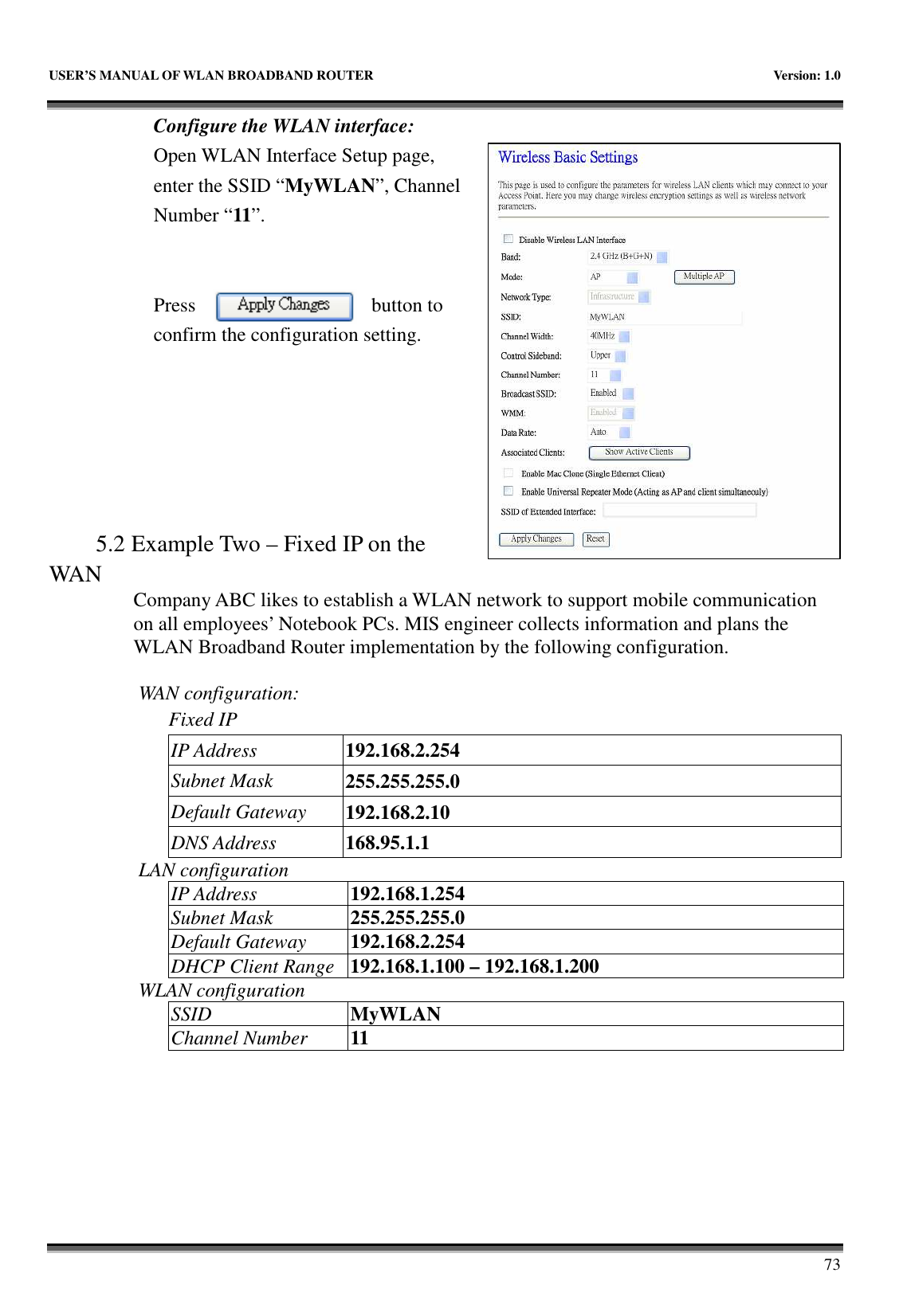

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 73 Configure the WLAN interface: Open WLAN Interface Setup page, enter the SSID “MyWLAN”, Channel Number “11”. Press button to confirm the configuration setting. 5.2 Example Two – Fixed IP on the WAN Company ABC likes to establish a WLAN network to support mobile communication on all employees’ Notebook PCs. MIS engineer collects information and plans the WLAN Broadband Router implementation by the following configuration. WAN configuration: Fixed IP IP Address 192.168.2.254 Subnet Mask 255.255.255.0 Default Gateway 192.168.2.10 DNS Address 168.95.1.1 LAN configuration IP Address 192.168.1.254 Subnet Mask 255.255.255.0 Default Gateway 192.168.2.254 DHCP Client Range 192.168.1.100 – 192.168.1.200 WLAN configuration SSID MyWLAN Channel Number 11

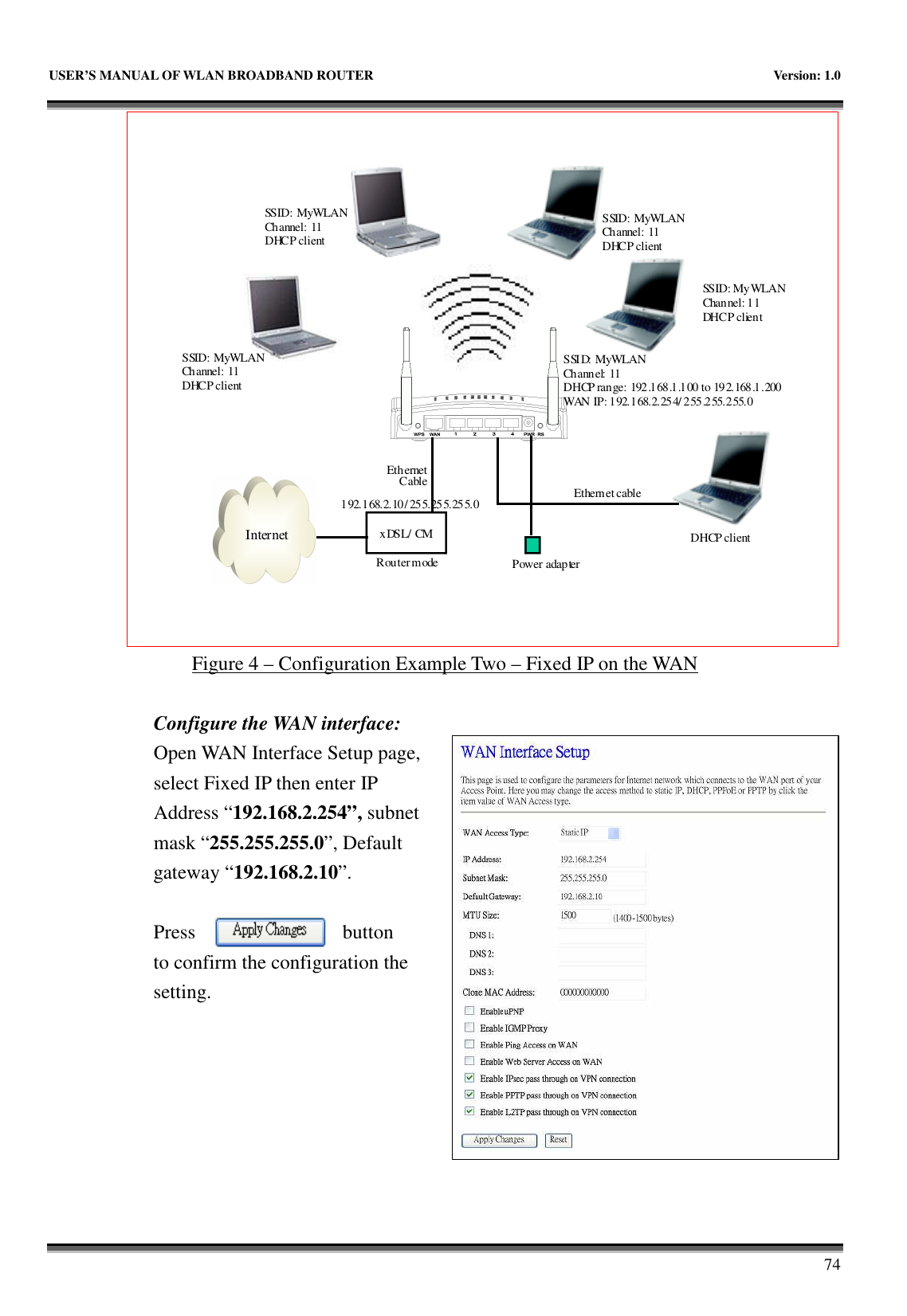

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 74 InternetxDSL/ CMPower adapterEthernetCable Ethernet cableSSID: MyWLANChannel: 11 DHCP clientSSID: MyWLANChannel: 11 DHCP clientSSID: MyWLANChannel: 11 DHCP clientSSID: MyWLANChannel: 11 DHCP clientDHCP clientRouter modeSSID: MyWLANChannel: 11DHCP range: 192.168.1.100 to 192.168.1.200WAN IP: 192.168.2.254/ 255.255.255.0192.168.2.10/ 255.255.255.0 Figure 4 – Configuration Example Two – Fixed IP on the WAN Configure the WAN interface: Open WAN Interface Setup page, select Fixed IP then enter IP Address “192.168.2.254”, subnet mask “255.255.255.0”, Default gateway “192.168.2.10”. Press button to confirm the configuration the setting.

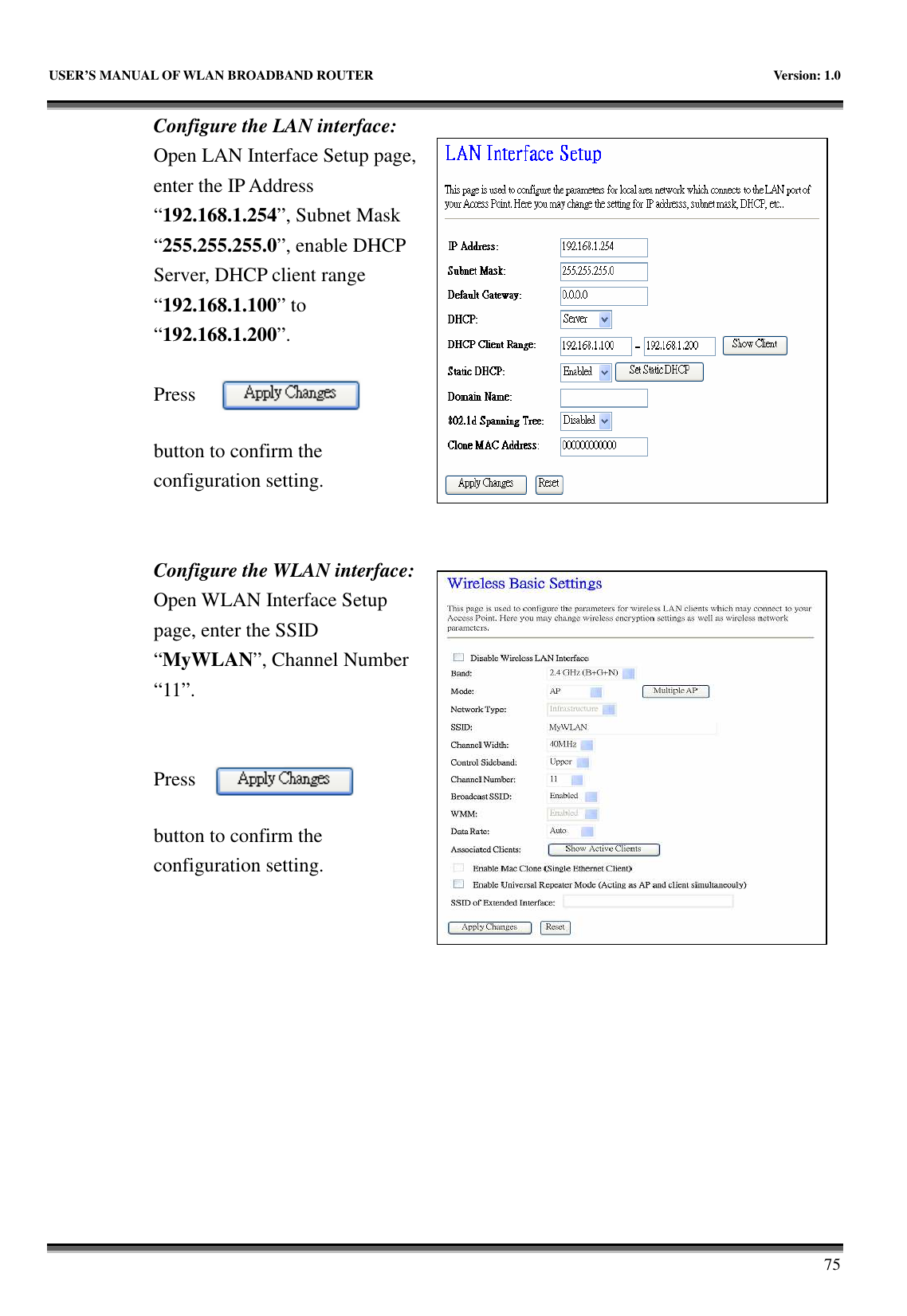

USER’S MANUAL OF WLAN BROADBAND ROUTER Version: 1.0 75 Configure the LAN interface: Open LAN Interface Setup page, enter the IP Address “192.168.1.254”, Subnet Mask “255.255.255.0”, enable DHCP Server, DHCP client range “192.168.1.100” to “192.168.1.200”. Press button to confirm the configuration setting. Configure the WLAN interface: Open WLAN Interface Setup page, enter the SSID “MyWLAN”, Channel Number “11”. Press button to confirm the configuration setting.
