AUTOEQUIPS TECH CB213 Digital Wireless System User Manual

AUTOEQUIPS TECH CO., LTD. Digital Wireless System

User Manual

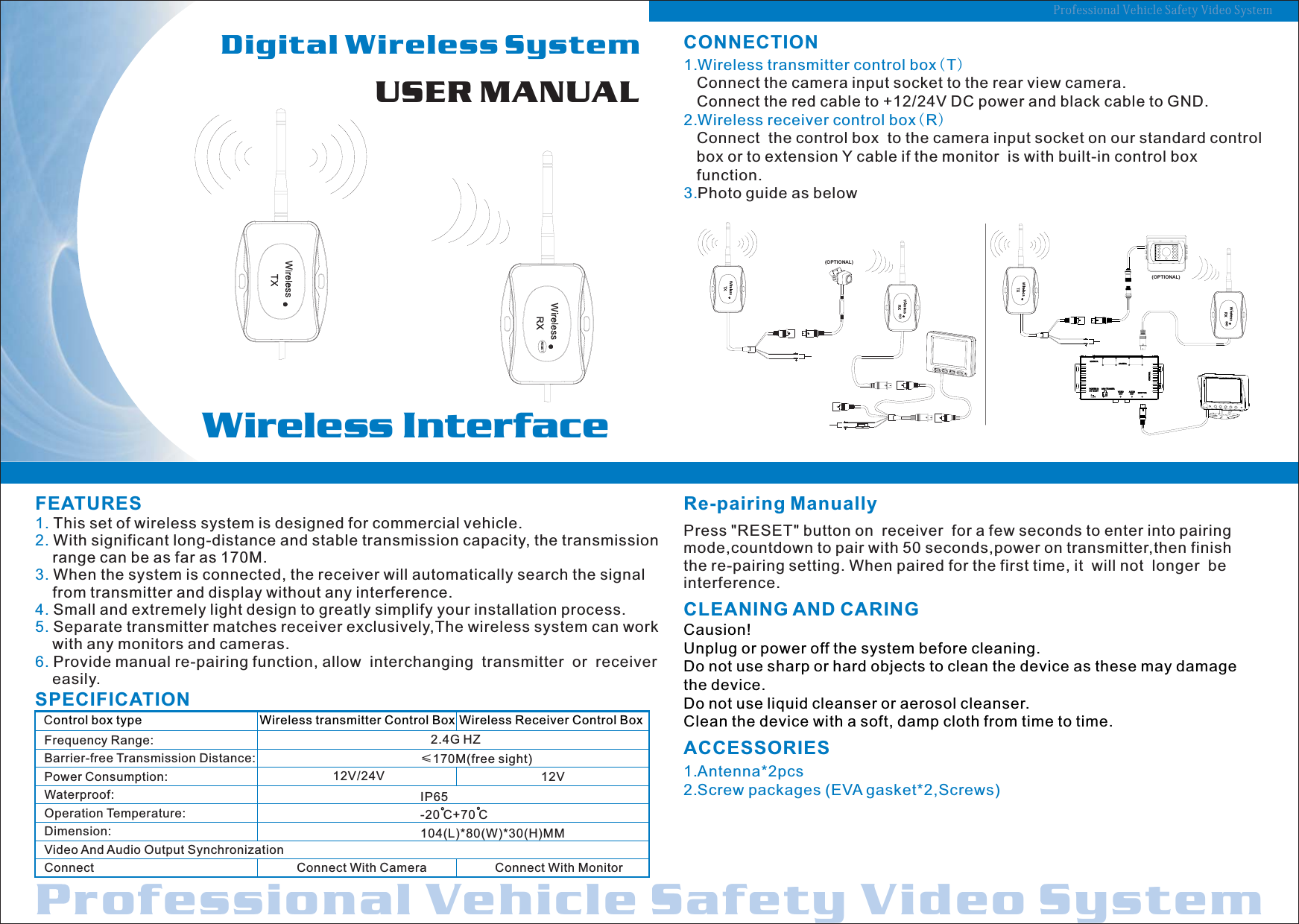

USER MANUALDigital Wireless System Wireless Interfacerofessional SafetyVideo SystemVehicle Professional Vehicle Safety Video SystemSPECIFICATIONACCESSORIES1.Antenna*2pcs2.Screw packages (EVA gasket*2,Screws) CLEANING AND CARINGCausion!Unplug or power off the system before cleaning.Do not use sharp or hard objects to clean the device as these may damage the device.Do not use liquid cleanser or aerosol cleanser.Clean the device with a soft, damp cloth from time to time.CONNECTION1.Wireless transmitter control box(T) 2.Wireless receiver control box(R) 3.Connect the camera input socket to the rear view camera. Connect the red cable to +12/24V DC power and black cable to GND.Connect the control box to the camera input socket on our standard control box or to if the monitor is with built-in control box function.Photo guide as belowextension Y cableFEATURES1. 2.3.4. 5. 6. This set of wireless system is designed for commercial vehicle. With significant long-distance and stable transmission capacity, the transmission range can be as far as 170M. When the system is connected, the receiver will automatically search the signal from transmitter and display without any interference.Small and extremely light design to greatly simplify your installation process.Separate transmitter matches receiver exclusively,The wireless system can work with any monitors and cameras.Provide manual re-pairing function, allow interchanging transmitter or receiver easily.Frequency Range:Barrier-free Transmission Distance: Power Consumption:Waterproof:Operation Temperature: Dimension:Video And Audio Output SynchronizationConnect 2.4G HZ≤170M(free sight)IP65-20 C+70 C104(L)*80(W)*30(H)MM Control box type Wireless transmitter Control Box Wireless Receiver Control BoxConnect With Camera Connect With MonitorOO12V/24V 12VCAMERAMIR/NORMONITORCAM TRIGGERPOWER INDC 12-24VCONTR LOAUDIO OUTVIDEO OUT432 1+1 42 3-(OPTIONAL)Re-pairing ManuallyPress "RESET" button on receiver for a few seconds to enter into pairingmode,countdown to pair with 50 seconds,power on transmitter,then finishthe re-pairing setting. When paired for the first time, it will not longer beinterference.(OPTIONAL)

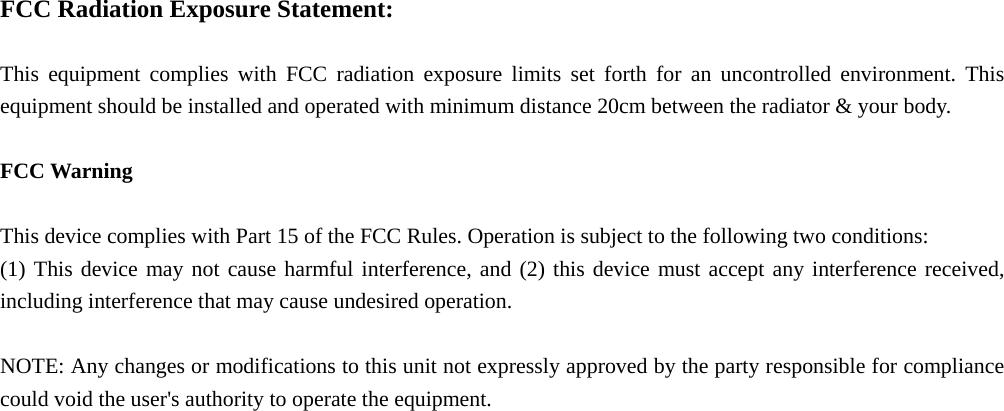

FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
