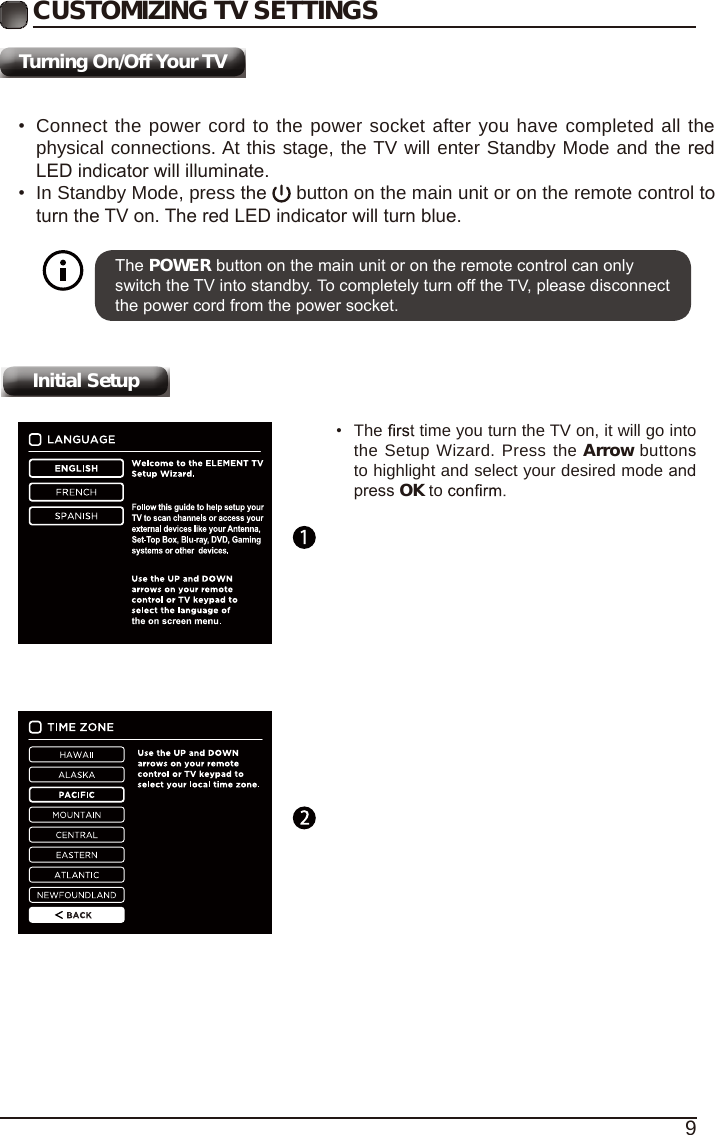

9Turning On/Off Your TVCUSTOMIZING TV SETTINGS• Connect the power cord to the power socket after you have completed all the physical connections. At this stage, the TV will enter Standby Mode and the red LED indicator will illuminate. • In Standby Mode, press the button on the main unit or on the remote control to turn the TV on. The red LED indicator will turn blue.The POWER button on the main unit or on the remote control can only switch the TV into standby. To completely turn off the TV, please disconnect the power cord from the power socket. Initial Setup• The time you turn the TV on, it will go into the Setup Wizard. Press the Arrow buttons to highlight and select your desired mode and press OK to

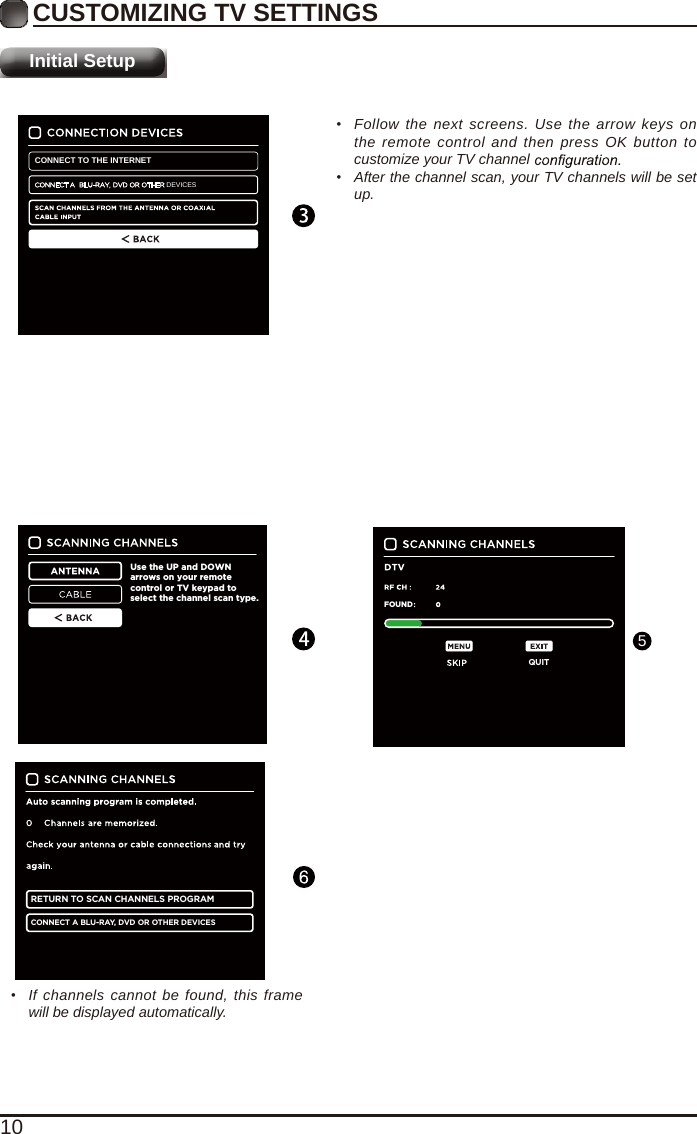

10CUSTOMIZING TV SETTINGSInitial Setup• Follow the next screens. Use the arrow keys on the remote control and then press OK button to customize your TV channel • After the channel scan, your TV channels will be set up.Use the UP and DOWN arrows on your remote control or TV keypad to select the channel scan type.RETURN TO SCAN CHANNELS PROGRAMCONNECT A BLU-RAY, DVD OR OTHER DEVICESQUITFOUNDCONNECT TO THE INTERNETDEVICES• If channels cannot be found, this frame will be displayed automatically.5

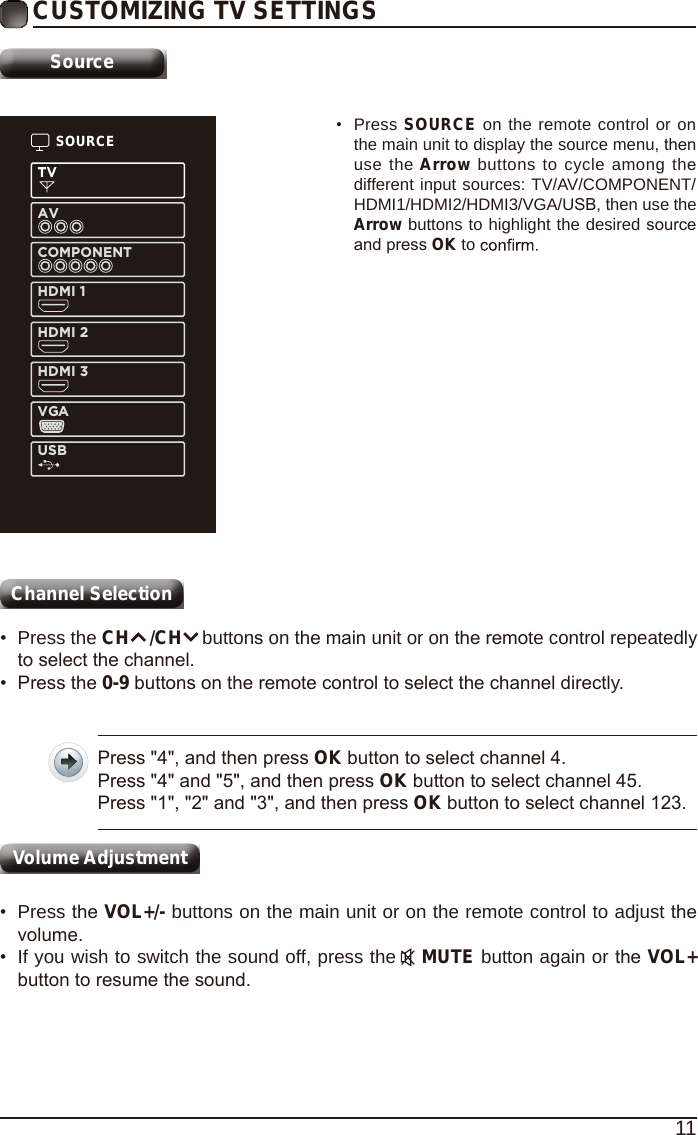

11CUSTOMIZING TV SETTINGSSourceSOURCETVAVCOMPONENTHDMI 1HDMI 2HDMI 3VGAUSB• Press SOURCE on the remote control or on the main unit to display the source menu, then use the Arrow buttons to cycle among the different input sources: TV/AV/COMPONENT/HDMI1/HDMI2/HDMI3/VGA/USB, then use the Arrow buttons to highlight the desired source and press OK to Channel Selection • Press the CH /CH buttons on the main unit or on the remote control repeatedly to select the channel.• Press the 0-9 buttons on the remote control to select the channel directly.Press "4", and then press OK button to select channel 4.Press "4" and "5", and then press OK button to select channel 45.Press "1", "2" and "3", and then press OK button to select channel 123.• Press the VOL+/- buttons on the main unit or on the remote control to adjust the volume.• If you wish to switch the sound off, press the MUTE button again or the VOL+ button to resume the sound.Volume Adjustment

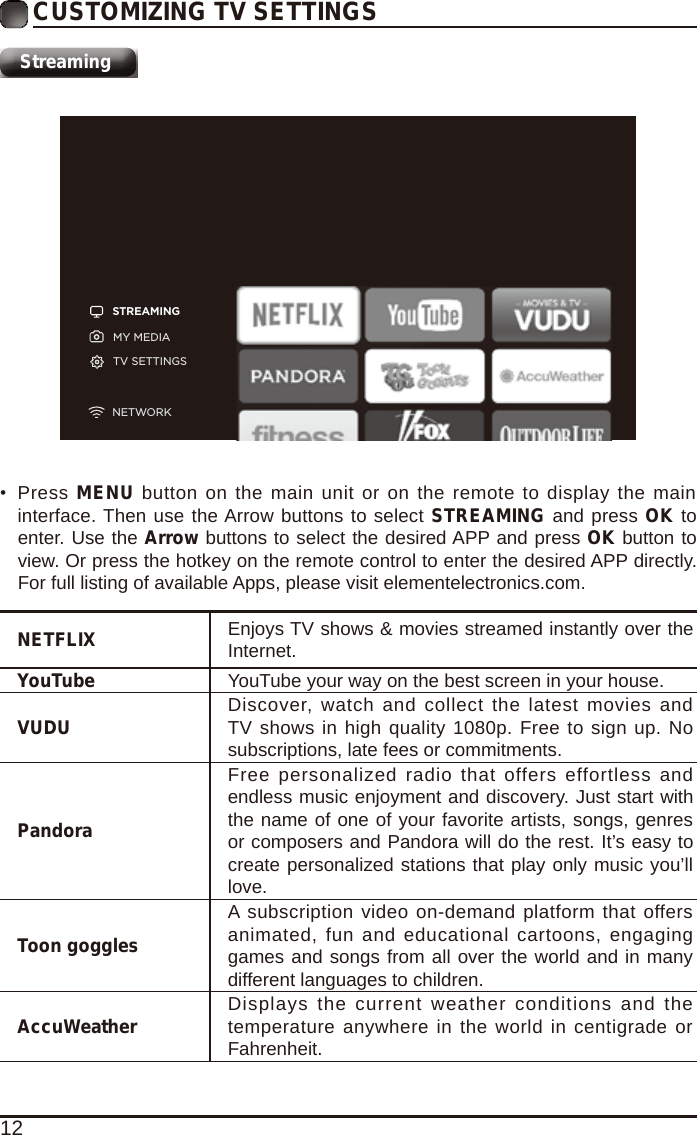

12CUSTOMIZING TV SETTINGSStreamingSTREAMINGMY MEDIATV SETTINGSNETWORKNETFLIX Enjoys TV shows & movies streamed instantly over the Internet.YouTube YouTube your way on the best screen in your house.VUDU Discover, watch and collect the latest movies and TV shows in high quality 1080p. Free to sign up. No subscriptions, late fees or commitments. PandoraFree personalized radio that offers effortless and endless music enjoyment and discovery. Just start with the name of one of your favorite artists, songs, genres or composers and Pandora will do the rest. It’s easy to create personalized stations that play only music you’ll love.Toon gogglesA subscription video on-demand platform that offers animated, fun and educational cartoons, engaging games and songs from all over the world and in many different languages to children.AccuWeather Displays the current weather conditions and the temperature anywhere in the world in centigrade or Fahrenheit.• Press MENU button on the main unit or on the remote to display the main interface. Then use the Arrow buttons to select STREAMING and press OK to enter. Use the Arrow buttons to select the desired APP and press OK button to view. Or press the hotkey on the remote control to enter the desired APP directly. For full listing of available Apps, please visit elementelectronics.com.

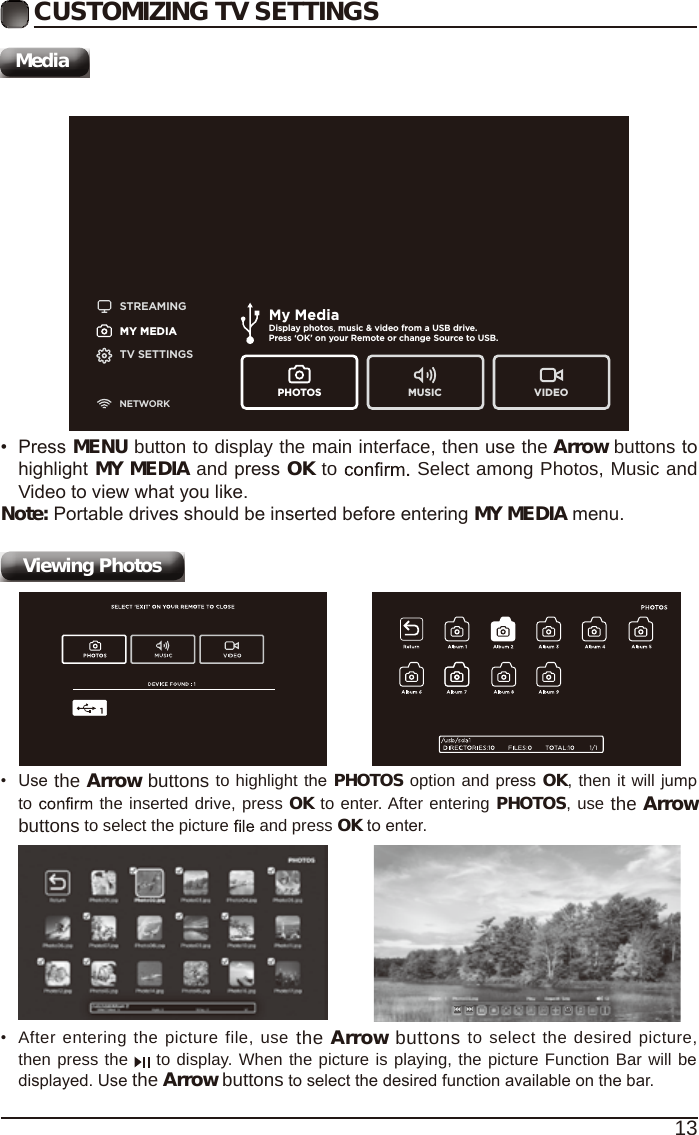

13CUSTOMIZING TV SETTINGSMediaSTREAMINGMY MEDIATV SETTINGSNETWORKMy MediaDisplay photos, music & video from a USB drive.Press ‘OK’ on your Remote or change Source to USB. PHOTOS MUSIC VIDEOViewing Photos • After entering the picture file, use the Arrow buttons to select the desired picture, then press the to display. When the picture is playing, the picture Function Bar will be displayed. Use the Arrow buttons to select the desired function available on the bar.• Use the Arrow buttons to highlight the PHOTOS option and press OK, then it will jump to the inserted drive, press OK to enter. After entering PHOTOS, use the Arrow buttons to select the picture and press OK to enter.• Press MENU button to display the main interface, then use the Arrow buttons to highlight MY MEDIA and press OK to Select among Photos, Music and Video to view what you like. Note: Portable drives should be inserted before entering MY MEDIA menu.

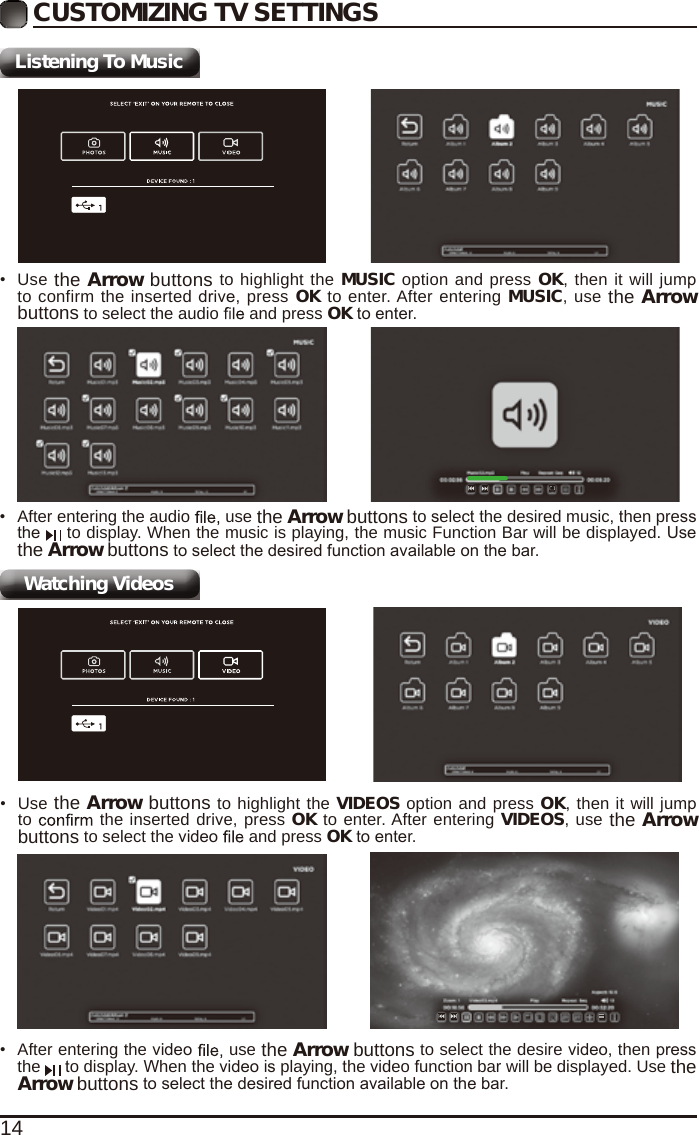

14CUSTOMIZING TV SETTINGSListening To MusicWatching Videos• After entering the audio use the Arrow buttons to select the desired music, then press the to display. When the music is playing, the music Function Bar will be displayed. Use the Arrow buttons to select the desired function available on the bar.• Use the Arrow buttons to highlight the MUSIC option and press OK, then it will jump to confirm the inserted drive, press OK to enter. After entering MUSIC, use the Arrow buttons to select the audio and press OK to enter.• After entering the video use the Arrow buttons to select the desire video, then press the to display. When the video is playing, the video function bar will be displayed. Use the Arrow buttons to select the desired function available on the bar.• Use the Arrow buttons to highlight the VIDEOS option and press OK, then it will jump to the inserted drive, press OK to enter. After entering VIDEOS, use the Arrow buttons to select the video and press OK to enter.

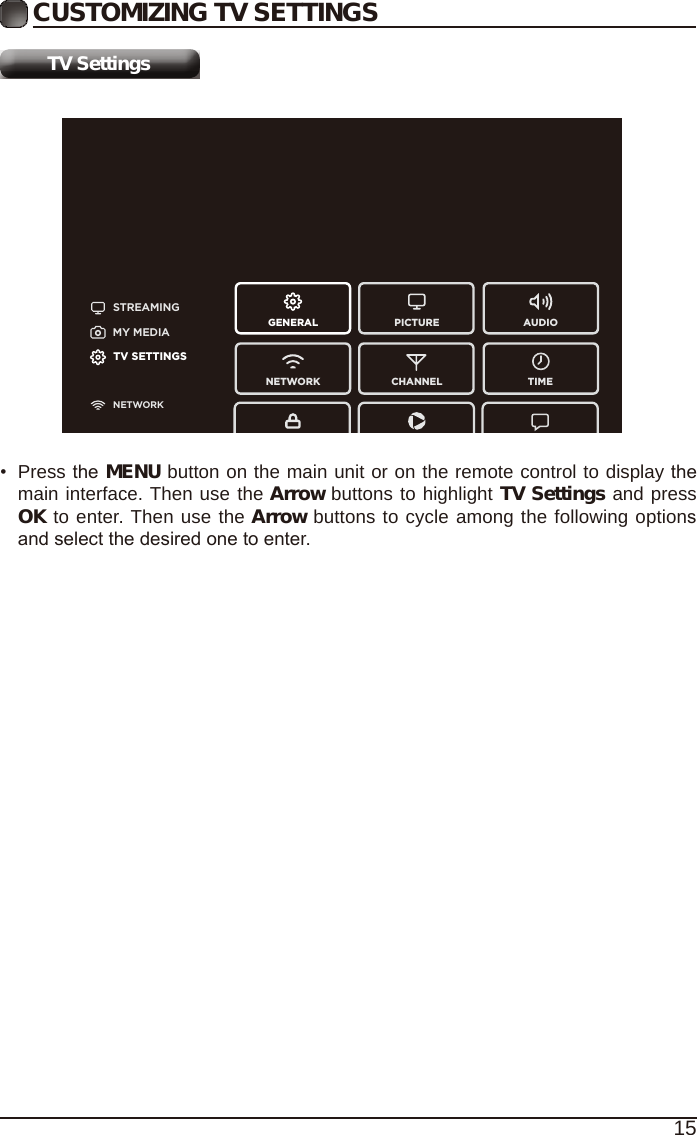

15CUSTOMIZING TV SETTINGSTV SettingsSTREAMINGGENERAL PICTURENETWORK CHANNEL TIMEAUDIOMY MEDIATV SETTINGSNETWORK• Press the MENU button on the main unit or on the remote control to display the main interface. Then use the Arrow buttons to highlight TV Settings and press OK to enter. Then use the Arrow buttons to cycle among the following options and select the desired one to enter.

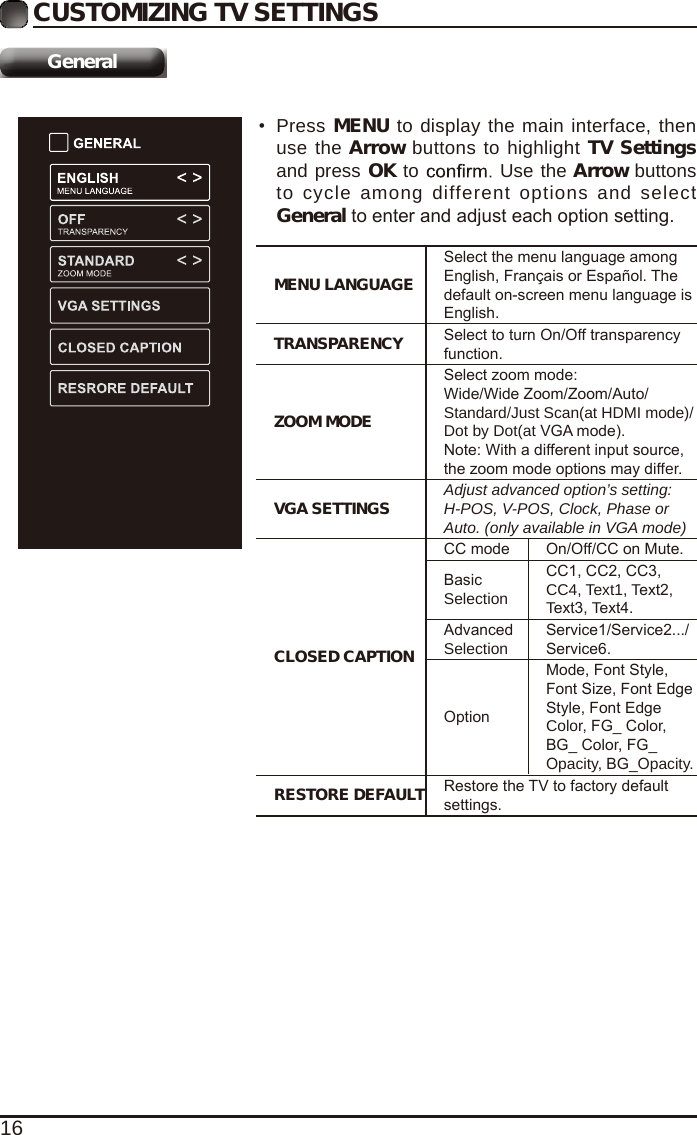

16CUSTOMIZING TV SETTINGSGeneral• Press MENU to display the main interface, then use the Arrow buttons to highlight TV Settings and press OK to Use the Arrow buttons to cycle among different options and select General to enter and adjust each option setting. MENU LANGUAGESelect the menu language among English, Français or Español. The default on-screen menu language is English.TRANSPARENCY Select to turn On/Off transparency function.ZOOM MODESelect zoom mode:Wide/Wide Zoom/Zoom/Auto/ Standard/Just Scan(at HDMI mode)/Dot by Dot(at VGA mode).Note: With a different input source,the zoom mode options may differ.VGA SETTINGS Adjust advanced option’s setting: H-POS, V-POS, Clock, Phase or Auto. (only available in VGA mode)CLOSED CAPTIONCC mode On/Off/CC on Mute.Basic SelectionCC1, CC2, CC3, CC4, Text1, Text2, Text3, Text4.Advanced SelectionService1/Service2.../Service6.OptionMode, Font Style, Font Size, Font Edge Style, Font Edge Color, FG_ Color, BG_ Color, FG_Opacity, BG_Opacity.RESTORE DEFAULT Restore the TV to factory default settings.

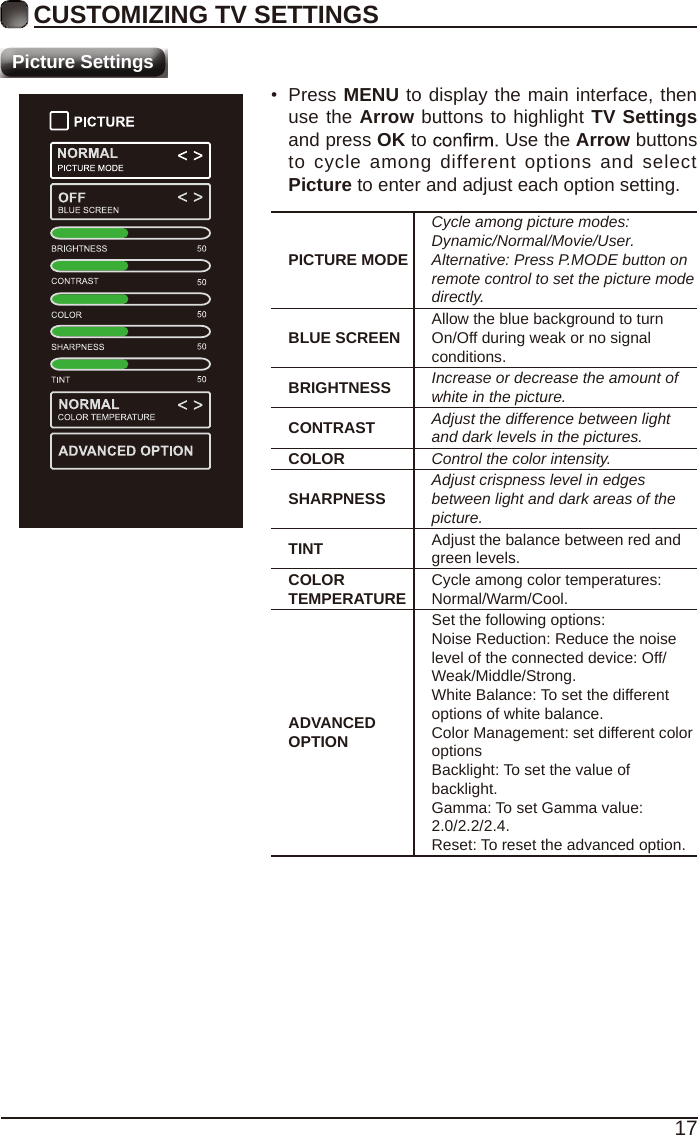

17CUSTOMIZING TV SETTINGSPicture SettingsPICTURE MODECycle among picture modes:Dynamic/Normal/Movie/User.Alternative: Press P.MODE button on remote control to set the picture mode directly.BLUE SCREEN Allow the blue background to turn On/Off during weak or no signal conditions.BRIGHTNESS Increase or decrease the amount of white in the picture.CONTRAST Adjust the difference between light and dark levels in the pictures.COLOR Control the color intensity.SHARPNESS Adjust crispness level in edges between light and dark areas of the picture.TINT Adjust the balance between red and green levels.COLOR TEMPERATURE Cycle among color temperatures: Normal/Warm/Cool.ADVANCED OPTIONSet the following options:Noise Reduction: Reduce the noise level of the connected device: Off/Weak/Middle/Strong.White Balance: To set the different options of white balance.Color Management: set different color optionsBacklight: To set the value of backlight.Gamma: To set Gamma value: 2.0/2.2/2.4.Reset: To reset the advanced option.• Press MENU to display the main interface, then use the Arrow buttons to highlight TV Settings and press OK to Use the Arrow buttons to cycle among different options and select Picture to enter and adjust each option setting.

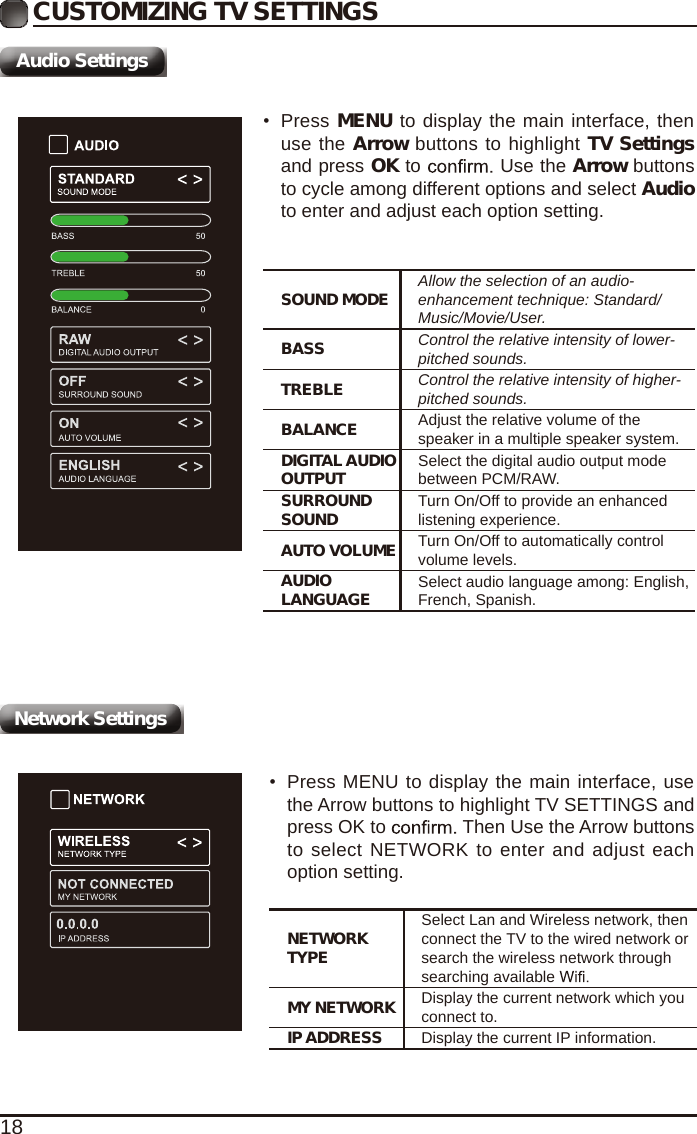

18CUSTOMIZING TV SETTINGSAudio SettingsSOUND MODE Allow the selection of an audio-enhancement technique: Standard/Music/Movie/User.BASS Control the relative intensity of lower-pitched sounds.TREBLE Control the relative intensity of higher-pitched sounds.BALANCE Adjust the relative volume of the speaker in a multiple speaker system.DIGITAL AUDIO OUTPUT Select the digital audio output mode between PCM/RAW.SURROUND SOUND Turn On/Off to provide an enhanced listening experience.AUTO VOLUME Turn On/Off to automatically control volume levels.AUDIO LANGUAGE Select audio language among: English, French, Spanish.•Press MENU to display the main interface, thenuse the Arrow buttons to highlight TV Settingsand press OK to Use the Arrow buttonsto cycle among different options and select Audioto enter and adjust each option setting.NETWORK TYPESelect Lan and Wireless network, then connect the TV to the wired network or search the wireless network through searching available MY NETWORK Display the current network which you connect to.IP ADDRESS Display the current IP information.•Press MENU to display the main interface, usethe Arrow buttons to highlight TV SETTINGS andpress OK to Then Use the Arrow buttonsto select NETWORK to enter and adjust eachoption setting.Network Settings

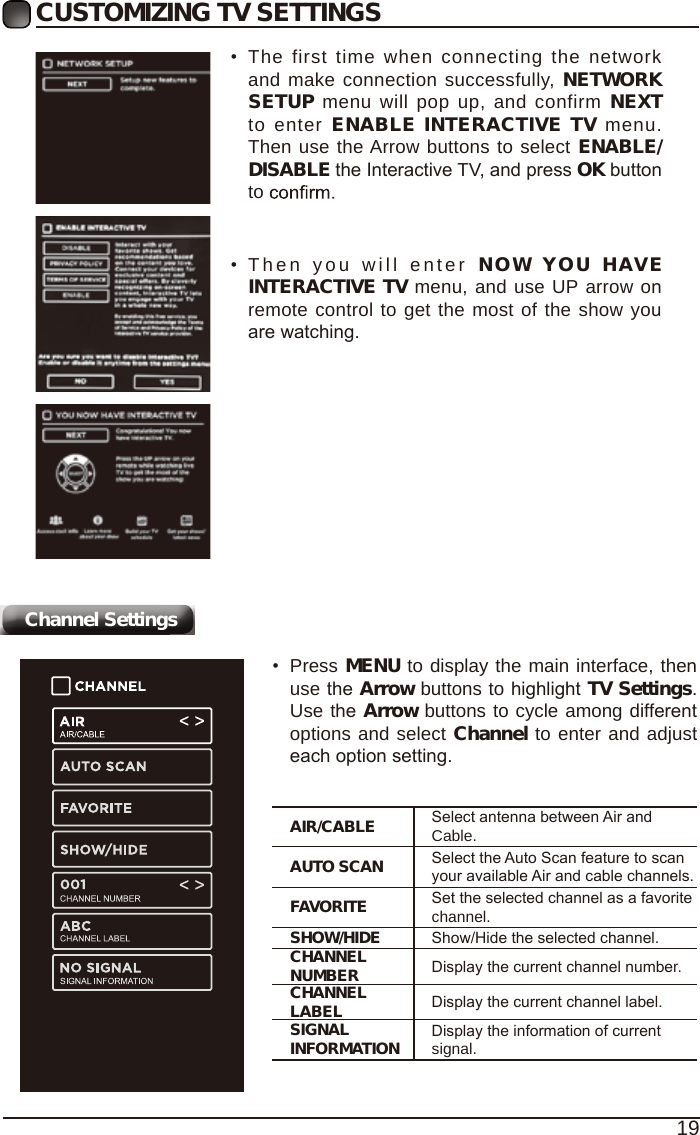

19CUSTOMIZING TV SETTINGSChannel Settings•The first time when connecting the networkand make connection successfully, NETWORKSETUP menu will pop up, and confirm NEXTto enter ENABLE INTERACTIVE TV menu.Then use the Arrow buttons to select ENABLE/DISABLE the Interactive TV, and press OK buttonto•Then you will enter NOW YOU HAVEINTERACTIVE TV menu, and use UP arrow onremote control to get the most of the show youare watching.AIR/CABLE Select antenna between Air and Cable.AUTO SCAN Select the Auto Scan feature to scan your available Air and cable channels.FAVORITE Set the selected channel as a favorite channel.SHOW/HIDE Show/Hide the selected channel.CHANNEL NUMBER Display the current channel number.CHANNEL LABEL Display the current channel label.SIGNAL INFORMATION Display the information of current signal.•Press MENU to display the main interface, thenuse the Arrow buttons to highlight TV Settings.Use the Arrow buttons to cycle among differentoptions and select Channel to enter and adjusteach option setting.

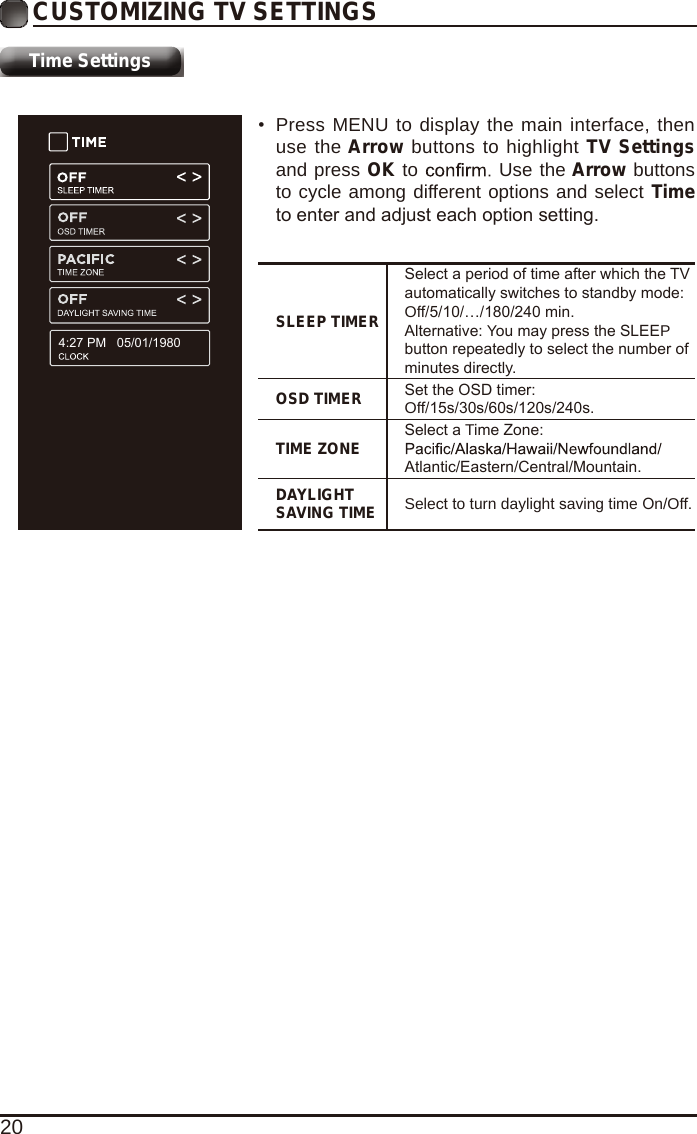

20CUSTOMIZING TV SETTINGSTime Settings•Press MENU to display the main interface, thenuse the Arrow buttons to highlight TV Settingsand press OK to Use the Arrow buttonsto cycle among different options and select Timeto enter and adjust each option setting.SLEEP TIMERSelect a period of time after which the TV automatically switches to standby mode:Off/5/10/…/180/240 min. Alternative: You may press the SLEEP button repeatedly to select the number of minutes directly.OSD TIMER Set the OSD timer: Off/15s/30s/60s/120s/240s.TIME ZONE Select a Time Zone: Atlantic/Eastern/Central/Mountain.DAYLIGHT SAVING TIME Select to turn daylight saving time On/Off.4:27 PM 05/01/1980

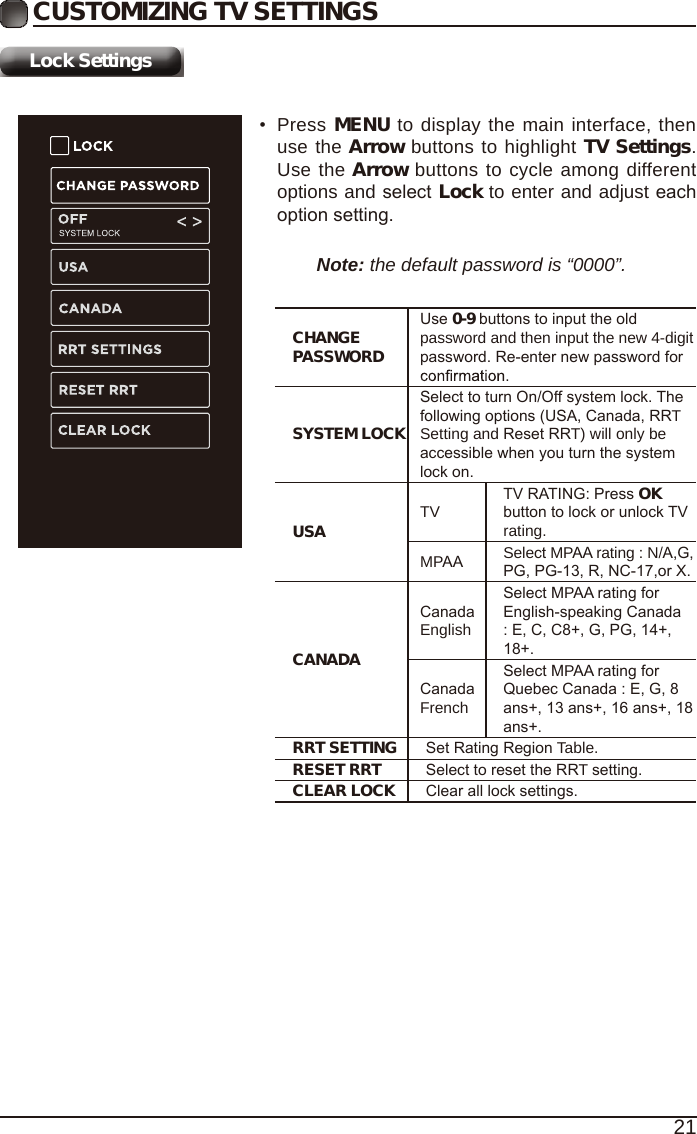

21Lock SettingsCUSTOMIZING TV SETTINGS•Press MENU to display the main interface, thenuse the Arrow buttons to highlight TV Settings.Use the Arrow buttons to cycle among differentoptions and select Lock to enter and adjust eachoption setting.Note: the default password is “0000”. CHANGE PASSWORDUse 0-9 buttons to input the old password and then input the new 4-digit password. Re-enter new password for SYSTEM LOCKSelect to turn On/Off system lock. The following options (USA, Canada, RRT Setting and Reset RRT) will only be accessible when you turn the system lock on.USA TVTV RATING: Press OK button to lock or unlock TV rating.MPAA Select MPAA rating : N/A,G, PG, PG-13, R, NC-17,or X.CANADACanada EnglishSelect MPAA rating for English-speaking Canada : E, C, C8+, G, PG, 14+, 18+.Canada FrenchSelect MPAA rating for Quebec Canada : E, G, 8 ans+, 13 ans+, 16 ans+, 18 ans+.RRT SETTING Set Rating Region Table.RESET RRT Select to reset the RRT setting.CLEAR LOCK Clear all lock settings.

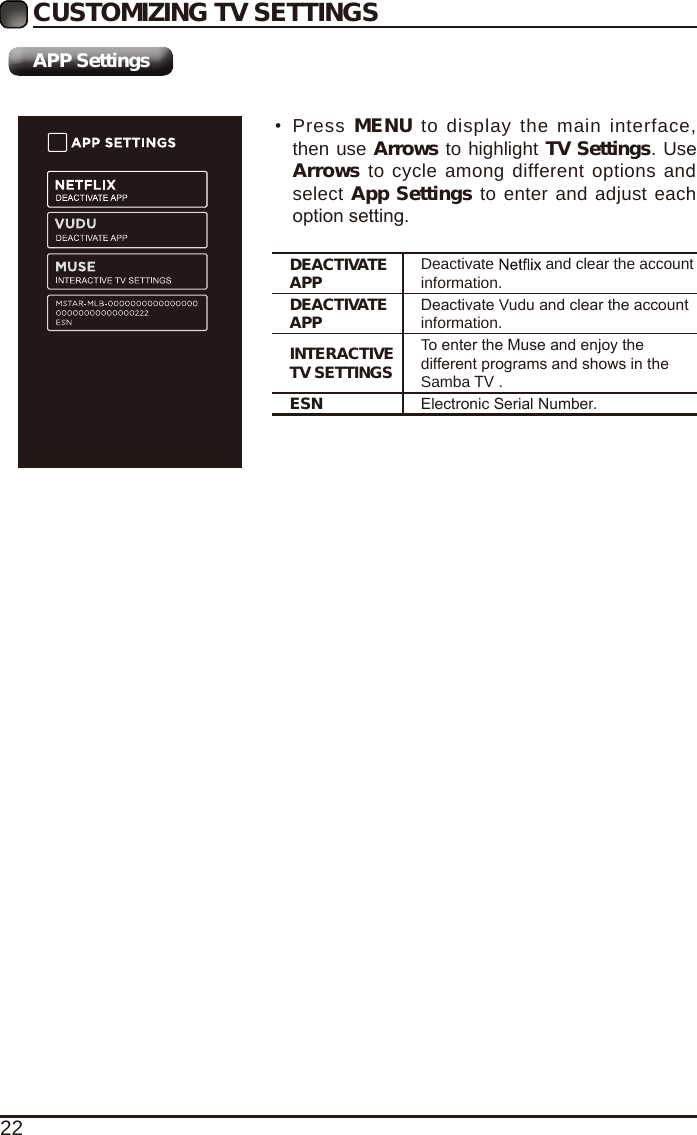

22CUSTOMIZING TV SETTINGS•Press MENU to display the main interface,then use Arrows to highlight TV Settings. UseArrows to cycle among different options andselect App Settings to enter and adjust eachoption setting.DEACTIVATE APP Deactivate and clear the account information.DEACTIVATE APP Deactivate Vudu and clear the account information.INTERACTIVE TV SETTINGSTo enter the Muse and enjoy the different programs and shows in the Samba TV .ESN Electronic Serial Number.APP Settings

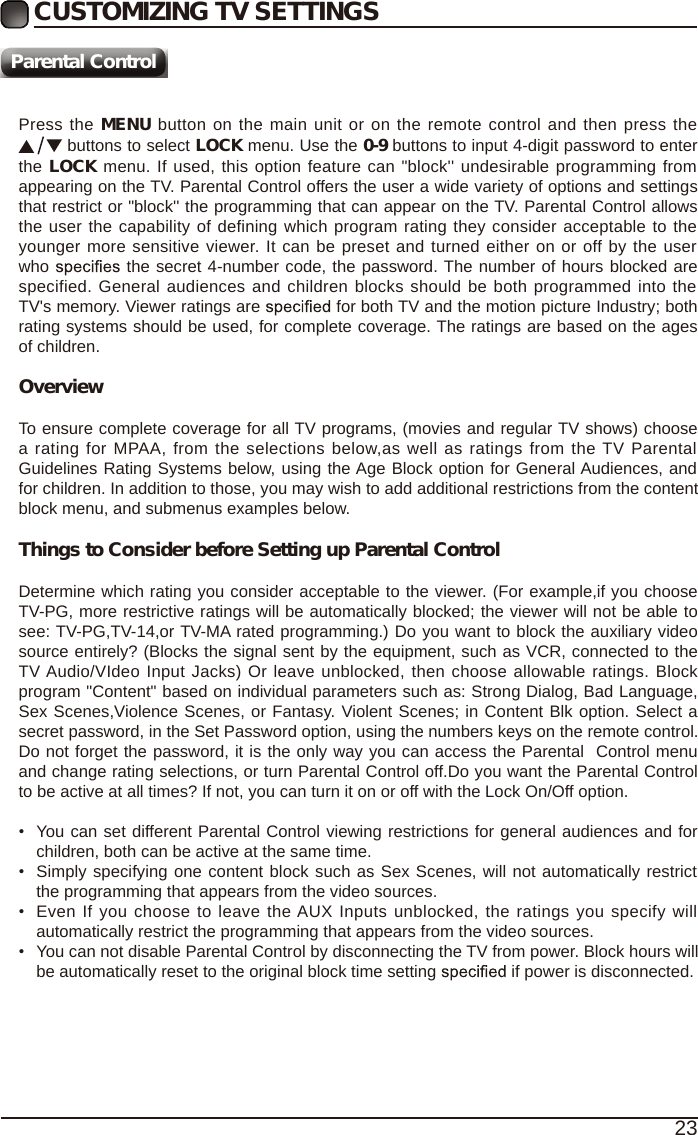

23Press the MENU button on the main unit or on the remote control and then press the buttons to select LOCK menu. Use the 0-9 buttons to input 4-digit password to enter the LOCK menu. If used, this option feature can "block'' undesirable programming from appearing on the TV. Parental Control offers the user a wide variety of options and settings that restrict or "block'' the programming that can appear on the TV. Parental Control allows the user the capability of defining which program rating they consider acceptable to the younger more sensitive viewer. It can be preset and turned either on or off by the user who the secret 4-number code, the password. The number of hours blocked are specified. General audiences and children blocks should be both programmed into the TV's memory. Viewer ratings are for both TV and the motion picture Industry; both rating systems should be used, for complete coverage. The ratings are based on the ages of children.OverviewTo ensure complete coverage for all TV programs, (movies and regular TV shows) choose a rating for MPAA, from the selections below,as well as ratings from the TV Parental Guidelines Rating Systems below, using the Age Block option for General Audiences, and for children. In addition to those, you may wish to add additional restrictions from the content block menu, and submenus examples below.Things to Consider before Setting up Parental ControlDetermine which rating you consider acceptable to the viewer. (For example,if you choose TV-PG, more restrictive ratings will be automatically blocked; the viewer will not be able to see: TV-PG,TV-14,or TV-MA rated programming.) Do you want to block the auxiliary video source entirely? (Blocks the signal sent by the equipment, such as VCR, connected to the TV Audio/VIdeo Input Jacks) Or leave unblocked, then choose allowable ratings. Block program "Content" based on individual parameters such as: Strong Dialog, Bad Language, Sex Scenes,Violence Scenes, or Fantasy. Violent Scenes; in Content Blk option. Select a secret password, in the Set Password option, using the numbers keys on the remote control.Do not forget the password, it is the only way you can access the Parental Control menu and change rating selections, or turn Parental Control off.Do you want the Parental Control to be active at all times? If not, you can turn it on or off with the Lock On/Off option.•You can set different Parental Control viewing restrictions for general audiences and forchildren, both can be active at the same time.•Simply specifying one content block such as Sex Scenes, will not automatically restrictthe programming that appears from the video sources.•Even If you choose to leave the AUX Inputs unblocked, the ratings you specify willautomatically restrict the programming that appears from the video sources.•You can not disable Parental Control by disconnecting the TV from power. Block hours willbe automatically reset to the original block time setting if power is disconnected.CUSTOMIZING TV SETTINGSParental Control

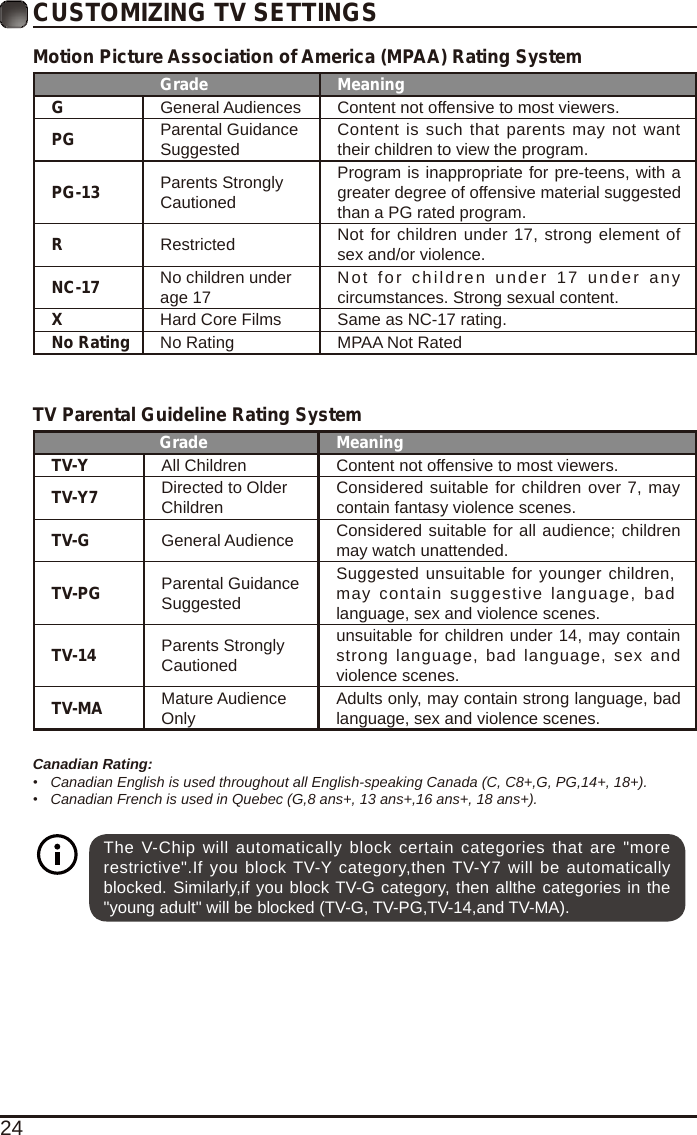

24Motion Picture Association of America (MPAA) Rating SystemGrade MeaningGGeneral Audiences Content not offensive to most viewers.PG Parental Guidance Suggested Content is such that parents may not want their children to view the program.PG-13 Parents Strongly CautionedProgram is inappropriate for pre-teens, with a greater degree of offensive material suggested than a PG rated program.RRestricted Not for children under 17, strong element of sex and/or violence.NC-17 No children under age 17 Not for children under 17 under any circumstances. Strong sexual content.XHard Core Films Same as NC-17 rating.No Rating No Rating MPAA Not RatedTV Parental Guideline Rating System Grade MeaningTV-Y All Children Content not offensive to most viewers.TV-Y7 Directed to Older Children Considered suitable for children over 7, may contain fantasy violence scenes.TV-G General Audience Considered suitable for all audience; children may watch unattended.TV-PG Parental Guidance SuggestedSuggested unsuitable for younger children, may contain suggestive language, bad language, sex and violence scenes.TV-14 Parents Strongly Cautionedunsuitable for children under 14, may contain strong language, bad language, sex and violence scenes.TV-MA Mature Audience Only Adults only, may contain strong language, bad language, sex and violence scenes.Canadian Rating:• Canadian English is used throughout all English-speaking Canada (C, C8+,G, PG,14+, 18+).• Canadian French is used in Quebec (G,8 ans+, 13 ans+,16 ans+, 18 ans+).CUSTOMIZING TV SETTINGSThe V-Chip will automatically block certain categories that are "more restrictive".If you block TV-Y category,then TV-Y7 will be automatically blocked. Similarly,if you block TV-G category, then allthe categories in the "young adult" will be blocked (TV-G, TV-PG,TV-14,and TV-MA).

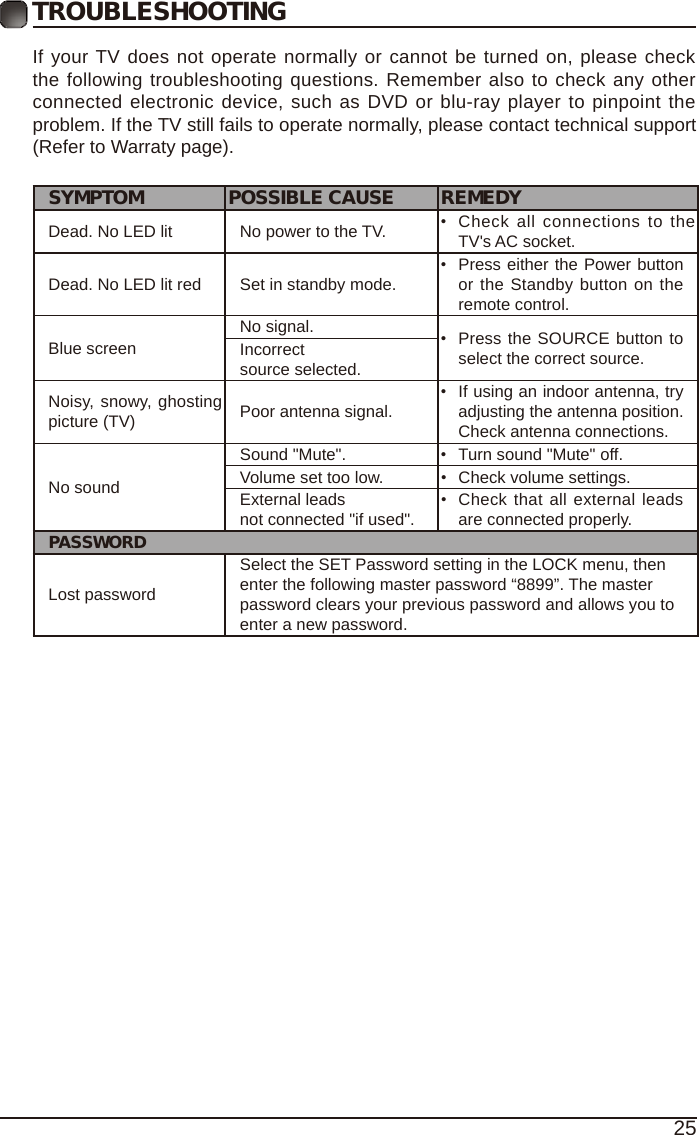

25TROUBLESHOOTING If your TV does not operate normally or cannot be turned on, please check the following troubleshooting questions. Remember also to check any other connected electronic device, such as DVD or blu-ray player to pinpoint the problem. If the TV still fails to operate normally, please contact technical support (Refer to Warraty page).SYMPTOM POSSIBLE CAUSE REMEDYDead. No LED lit No power to the TV. •Check all connections to theTV's AC socket.Dead. No LED lit red Set in standby mode.•Press either the Power buttonor the Standby button on theremote control.Blue screen No signal. •Press the SOURCE button toselect the correct source.Incorrect source selected.Noisy, snowy, ghosting picture (TV) Poor antenna signal.•If using an indoor antenna, tryadjusting the antenna position.Check antenna connections.No soundSound "Mute". •Turn sound "Mute" off.Volume set too low. •Check volume settings.External leads not connected "if used".•Check that all external leadsare connected properly.PASSWORDLost passwordSelect the SET Password setting in the LOCK menu, thenenter the following master password “8899”. The masterpassword clears your previous password and allows you toenter a new password.

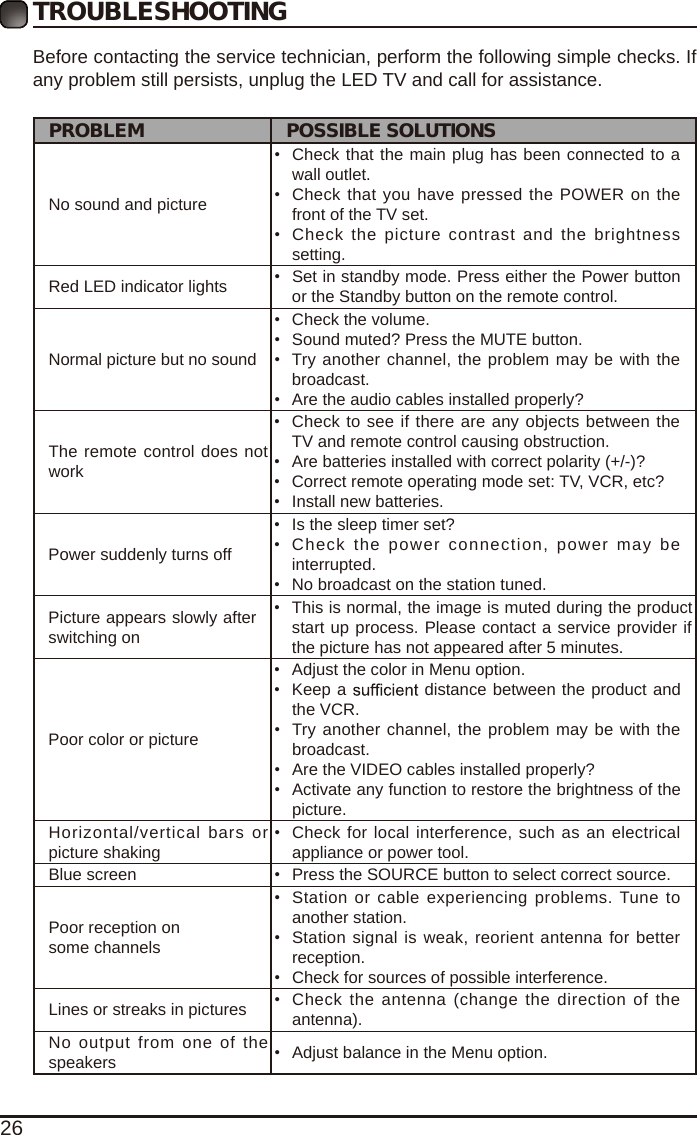

26Before contacting the service technician, perform the following simple checks. If any problem still persists, unplug the LED TV and call for assistance.PROBLEM POSSIBLE SOLUTIONSNo sound and picture•Check that the main plug has been connected to awall outlet.•Check that you have pressed the POWER on thefront of the TV set.•Check the picture contrast and the brightnesssetting.Red LED indicator lights •Set in standby mode. Press either the Power buttonor the Standby button on the remote control.Normal picture but no sound•Check the volume.•Sound muted? Press the MUTE button.•Try another channel, the problem may be with thebroadcast.•Are the audio cables installed properly?The remote control does not work•Check to see if there are any objects between theTV and remote control causing obstruction.•Are batteries installed with correct polarity (+/-)?•Correct remote operating mode set: TV, VCR, etc?•Install new batteries.Power suddenly turns off •Is the sleep timer set?•Check the power connection, power may beinterrupted.•No broadcast on the station tuned.Picture appears slowly after switching on •This is normal, the image is muted during the productstart up process. Please contact a service provider ifthe picture has not appeared after 5 minutes.Poor color or picture•Adjust the color in Menu option.•Keep a distance between the product and the VCR.•Try another channel, the problem may be with thebroadcast.•Are the VIDEO cables installed properly?•Activate any function to restore the brightness of thepicture.Horizontal/vertical bars or picture shaking•Check for local interference, such as an electricalappliance or power tool.Blue screen •Press the SOURCE button to select correct source.Poor reception on some channels•Station or cable experiencing problems. Tune toanother station.•Station signal is weak, reorient antenna for betterreception.•Check for sources of possible interference.Lines or streaks in pictures •Check the antenna (change the direction of theantenna).No output from one of the speakers •Adjust balance in the Menu option.TROUBLESHOOTING

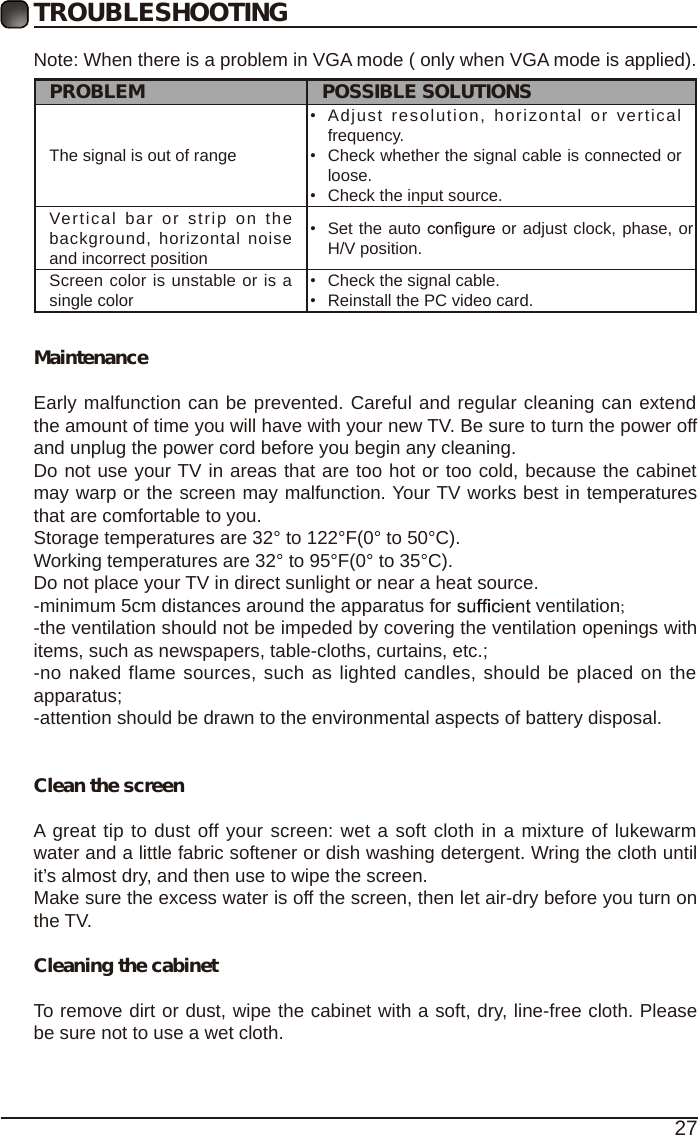

27TROUBLESHOOTINGNote: When there is a problem in VGA mode ( only when VGA mode is applied). PROBLEM POSSIBLE SOLUTIONSThe signal is out of range •Adjust resolution, horizontal or verticalfrequency.•Check whether the signal cable is connected orloose.•Check the input source.Vertical bar or strip on the background, horizontal noise and incorrect position •Set the auto or adjust clock, phase, or H/V position.Screen color is unstable or is a single color •Check the signal cable.•Reinstall the PC video card.MaintenanceEarly malfunction can be prevented. Careful and regular cleaning can extend the amount of time you will have with your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.Do not use your TV in areas that are too hot or too cold, because the cabinet may warp or the screen may malfunction. Your TV works best in temperatures that are comfortable to you.Storage temperatures are 32° to 122°F(0° to 50°C).Working temperatures are 32° to 95°F(0° to 35°C).Do not place your TV in direct sunlight or near a heat source.-minimum 5cm distances around the apparatus for ventilation;-the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.;-no naked flame sources, such as lighted candles, should be placed on the apparatus;-attention should be drawn to the environmental aspects of battery disposal.Clean the screenA great tip to dust off your screen: wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use to wipe the screen.Make sure the excess water is off the screen, then let air-dry before you turn on the TV. Cleaning the cabinetTo remove dirt or dust, wipe the cabinet with a soft, dry, line-free cloth. Please be sure not to use a wet cloth.

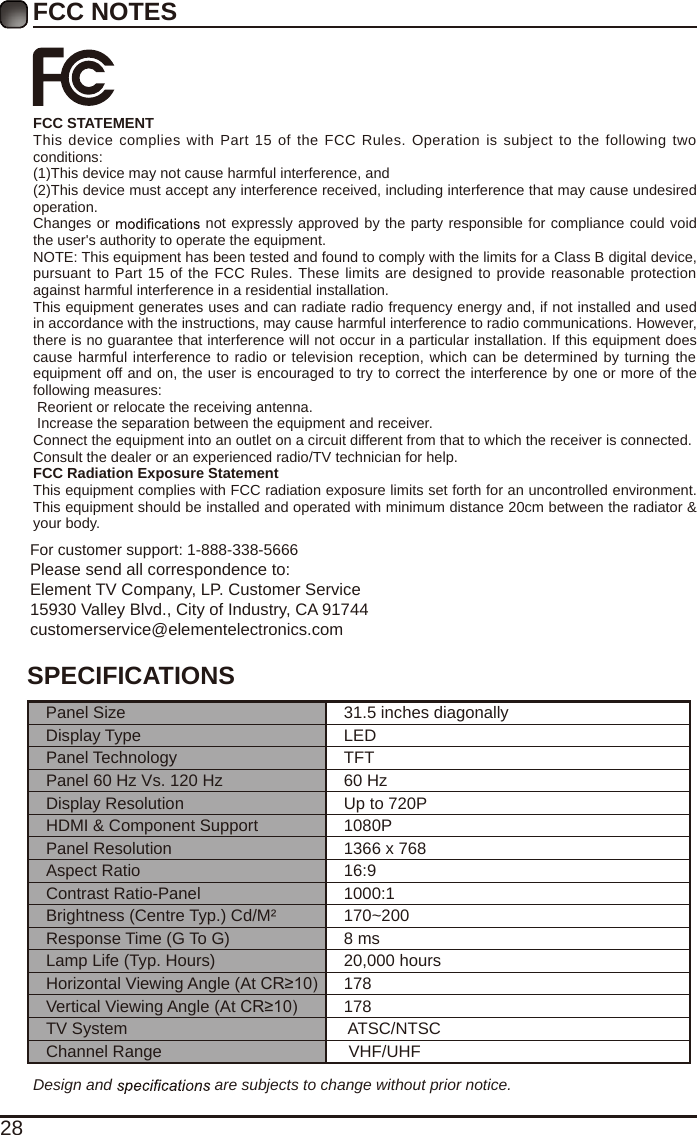

28FCC NOTESFCC STATEMENTThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and(2)This device must accept any interference received, including interference that may cause undesired operation. Changes or not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.FCC Radiation Exposure StatementThis equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.For customer support: 1-888-338-5666Please send all correspondence to:Element TV Company, LP. Customer Service15930 Valley Blvd., City of Industry, CA 91744customerservice@elementelectronics.comDesign and are subjects to change without prior notice. SPECIFICATIONSPanel Size 31.5 inches diagonally Display Type LEDPanel Technology TFTPanel 60 Hz Vs. 120 Hz 60 HzDisplay Resolution Up to 720PHDMI & Component Support 1080PPanel Resolution 1366 x 768Aspect Ratio 16:9Contrast Ratio-Panel 1000:1Brightness (Centre Typ.) Cd/M² 170~200Response Time (G To G) 8 msLamp Life (Typ. Hours) 20,000 hoursHorizontal Viewing Angle (At CR≥10) 178Vertical Viewing Angle (At CR≥10) 178TV System ATSC/NTSCChannel Range VHF/UHF

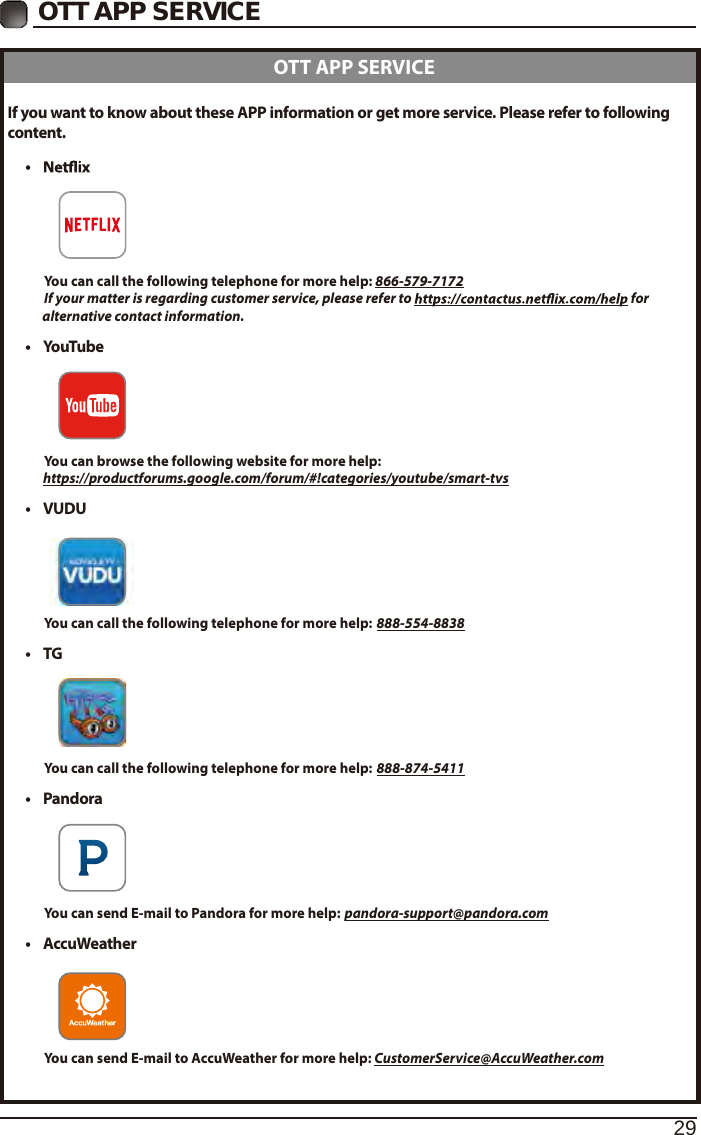

29OTT APP SERVICEIf you want to know about these APP information or get more service. Please refer to following content.• You can call the following telephone for more help: 866-579-7172 If your matter is regarding customer service, please refer to for alternative contact information.• YouTube You can browse the following website for more help: https://productforums.google.com/forum/#!categories/youtube/smart-tvs• VUDU You can call the following telephone for more help: 888-554-8838• TG You can call the following telephone for more help: 888-874-5411• Pandora You can send E-mail to Pandora for more help: pandora-support@pandora.com• AccuWeather You can send E-mail to AccuWeather for more help: CustomerService@AccuWeather.com OTT APP SERVICE

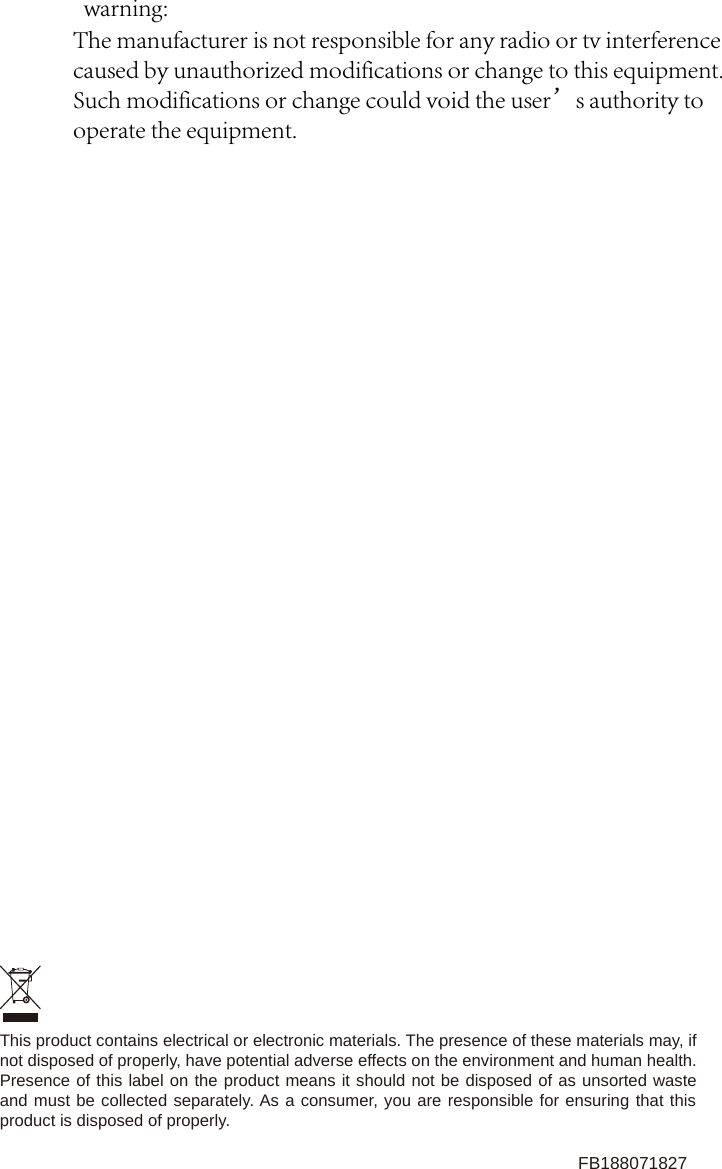

This product contains electrical or electronic materials. The presence of these materials may, if not disposed of properly, have potential adverse effects on the environment and human health.Presence of this label on the product means it should not be disposed of as unsorted waste and must be collected separately. As a consumer, you are responsible for ensuring that this product is disposed of properly.FB188071827warning:The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications or change to this equipment. Such modifications or change could void the user’s authority to operate the equipment.
