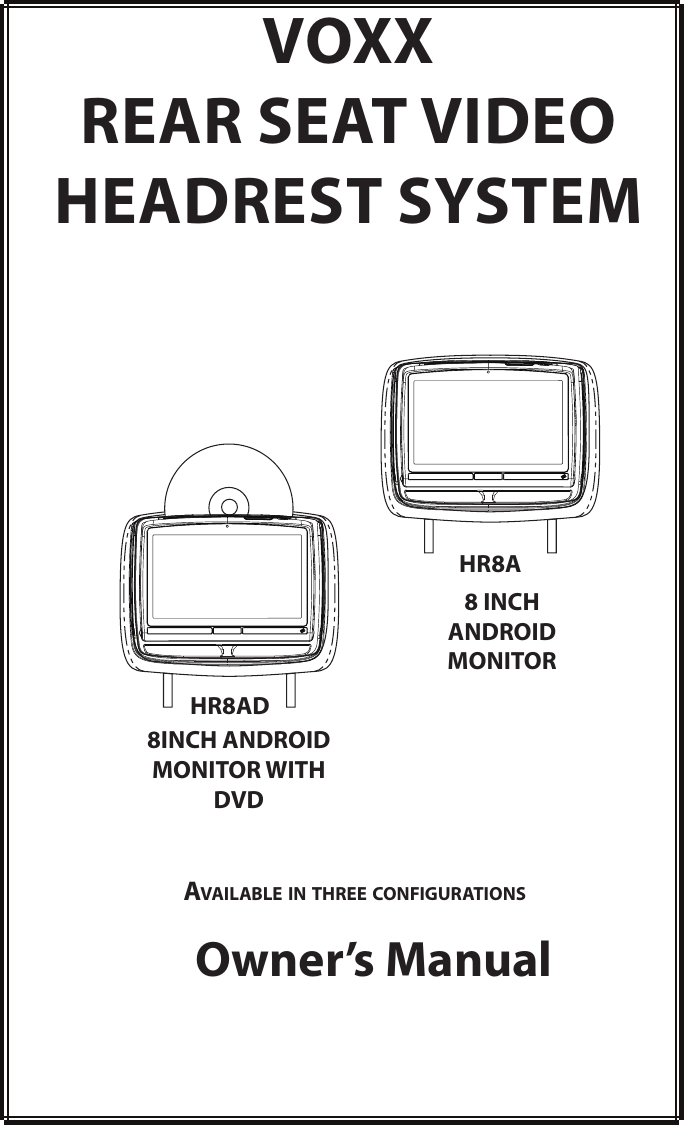

VOXXREAR SEAT VIDEOHEADREST SYSTEMOwner’s ManualAvAilAble in three configurAtionsHR8AHR8AD8 INCH ANDROID MONITOR8INCH ANDROID MONITOR WITH DVD

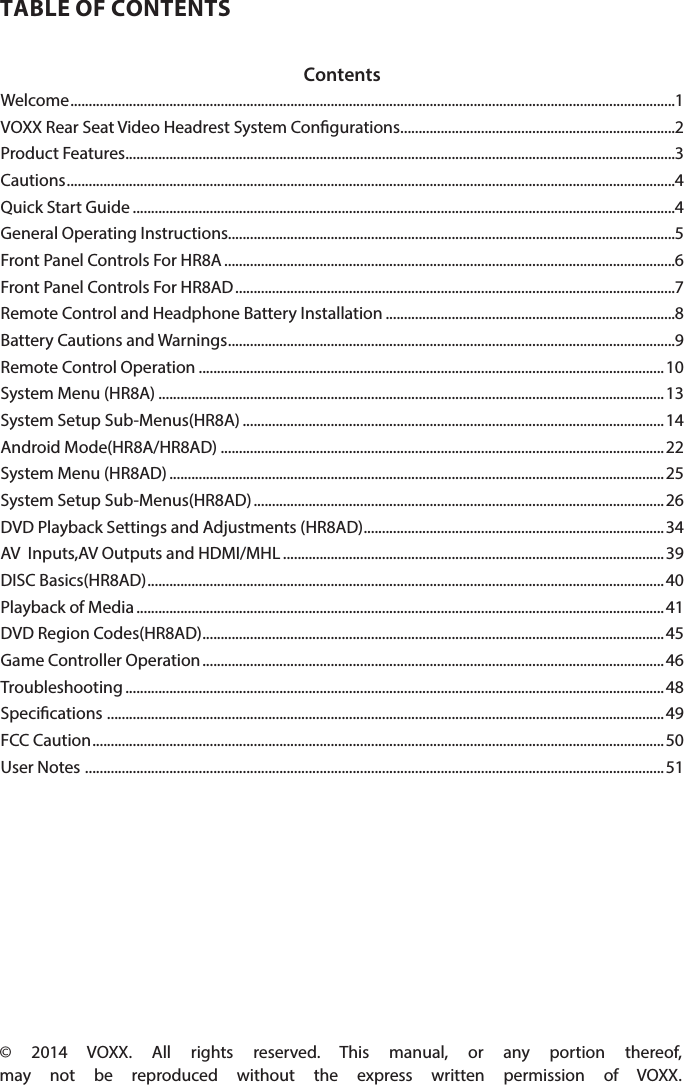

ContentsWelcome ��1VOXX Rear Seat Video Headrest System Congurations ��2Product Features ��3Cautions ��4Quick Start Guide ��4General Operating Instructions��5Front Panel Controls For HR8A ��6Front Panel Controls For HR8AD ��7Remote Control and Headphone Battery Installation ��8Battery Cautions and Warnings ��9Remote Control Operation ��10System Menu (HR8A) ��13System Setup Sub-Menus(HR8A) ��14Android Mode(HR8A/HR8AD) ��22System Menu (HR8AD) ��25System Setup Sub-Menus(HR8AD) �� 26DVD Playback Settings and Adjustments (HR8AD) ��34AV Inputs,AV Outputs and HDMI/MHL ��39DISC Basics(HR8AD) ��40Playback of Media ��41DVD Region Codes(HR8AD) ��45Game Controller Operation �� 46Troubleshooting �� 48Specications ��49FCC Caution �� 50User Notes ��51TABLE OF CONTENTS© 2014 VOXX� All rights reserved� This manual, or any portion thereof, may not be reproduced without the express written permission of VOXX�

VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual1Thank you for purchasing the VOXX Rear Seat Video Headrest System� Before operating this system read this manual thoroughly and retain it for future reference�WELCOMELicensed under one or more of the following patents: Patented, refer to www�voxxintl�com/company/patents�The Rear Seat Video Headrest System is set-up and adjusted with easy to use menus that are accessed using the remote control or the front panel buttons�The supplied two-channel wireless Infrared (IR) headphones have an A-B switch that allow the users to select the audio from either M1 on “CH. A” or M2 on ”CH. B”• The M1 monitor will only respond to the remote control when the Monitor Select “M1” button is pressed�• The M2 monitor will only respond to the remote control when the Monitor Select “M2” button is pressed� The VOXX is a versatile Rear Seat Video Headrest System and is available in the conguration (please refer to page 2 for a detailed description of the conguration)� Each of the conguration come with two replacement video monitor headrests referred to as either “M1” or “M2” in this manual� The system allows the users to watch the same DVD/Video Source on both monitors simultaneously or individual DVD/Video Sources on either monitor� The full function wireless remote control operates either monitor by selecting Monitor Select “M1” or “M2” button�HR8A: is a 8” Android LCD monitor that allows the user to select from several sources (Android mode,USB,HDMI/MHL,SD Card,M1/M2,AV-IN,AUX, and GAME* Source)� The monitor has a built-in infrared audio transmitter channel�HR8AD: is a 8” Android LCD monitor with a built-in DVD player that allows the user to select from several sources(Android mode,DVD,USB,HDMI/MHL,SD Card,M1/M2,AV-IN,AUX,andGAME* Source)� The monitor has a built-in infrared audio transmitter channel�* GAME Optional

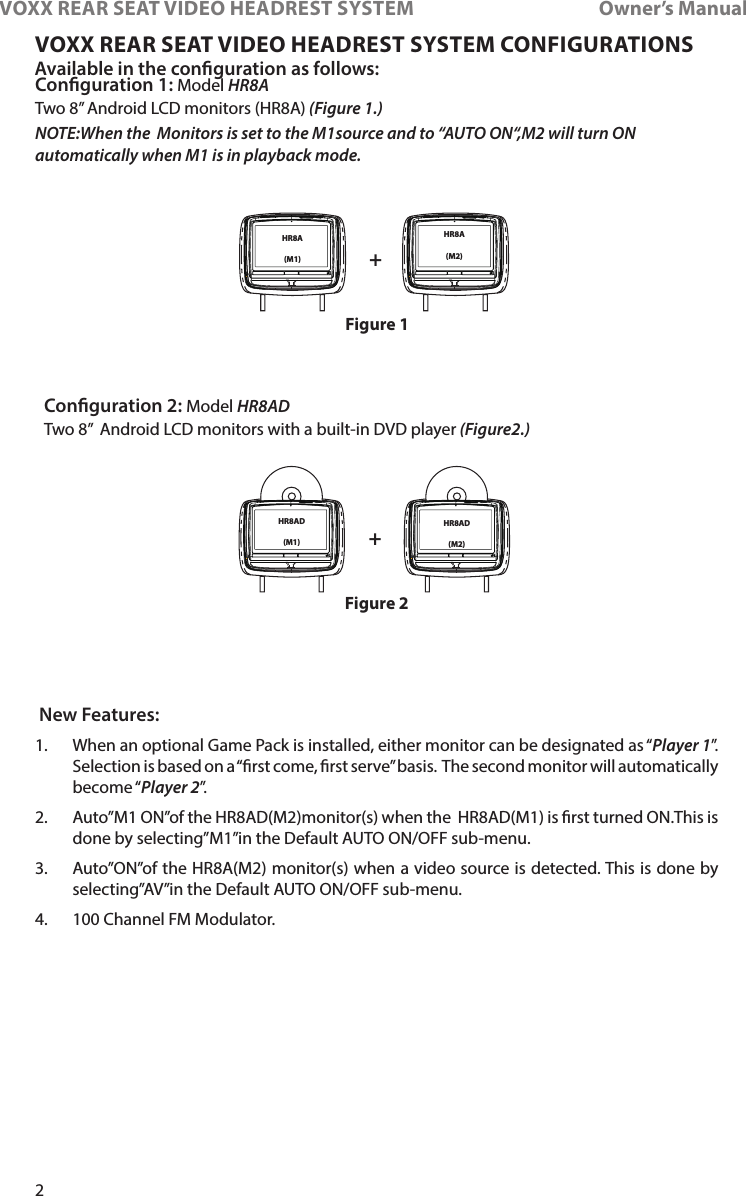

2VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualVOXX REAR SEAT VIDEO HEADREST SYSTEM CONFIGURATIONSAvailable in the conguration as follows: New Features:1� When an optional Game Pack is installed, either monitor can be designated as “Player 1”� Selection is based on a “rst come, rst serve” basis� The second monitor will automatically become “Player 2”�2� Auto”M1 ON”of the HR8AD(M2)monitor(s) when the HR8AD(M1) is rst turned ON�This is done by selecting”M1”in the Default AUTO ON/OFF sub-menu�3� Auto”ON”of the HR8A(M2) monitor(s) when a video source is detected� This is done by selecting”AV”in the Default AUTO ON/OFF sub-menu� 4� 100 Channel FM Modulator�Conguration 1: Model HR8A Two 8” Android LCD monitors (HR8A) (Figure 1.)NOTE:When the Monitors is set to the M1source and to “AUTO ON“,M2 will turn ON automatically when M1 is in playback mode.Conguration 2: Model HR8AD Two 8” Android LCD monitors with a built-in DVD player (Figure2.)+Figure 1HR8A(M1)HR8A(M2)+Figure 2HR8AD(M1)HR8AD(M2)

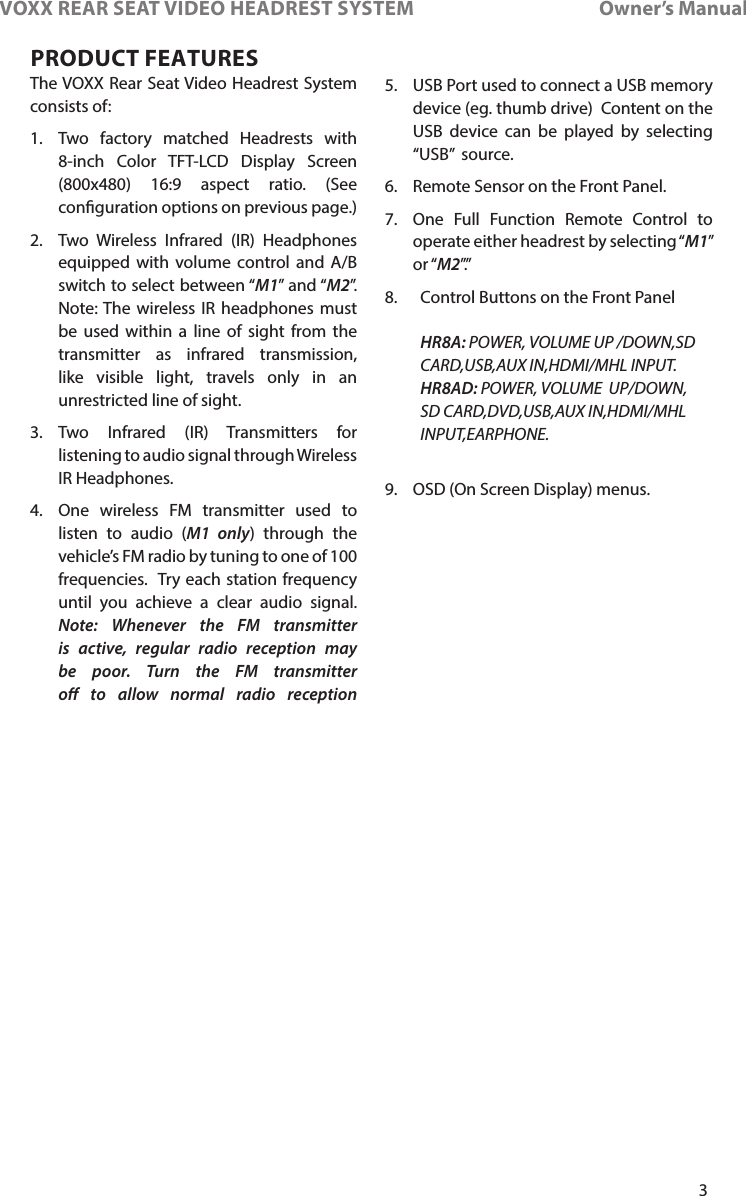

3VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualThe VOXX Rear Seat Video Headrest System consists of:1� Two factory matched Headrests with 8-inch Color TFT-LCD Display Screen (800x480) 16:9 aspect ratio� (See conguration options on previous page�)2� Two Wireless Infrared (IR) Headphones equipped with volume control and A/B switch to select between “M1” and “M2”� Note: The wireless IR headphones must be used within a line of sight from the transmitter as infrared transmission, like visible light, travels only in an unrestricted line of sight�3� Two Infrared (IR) Transmitters for listening to audio signal through Wireless IR Headphones�4� One wireless FM transmitter used to listen to audio (M1 only) through the vehicle’s FM radio by tuning to one of 100 frequencies� Try each station frequency until you achieve a clear audio signal� Note: Whenever the FM transmitter is active, regular radio reception may be poor. Turn the FM transmitter o to allow normal radio reception PRODUCT FEATURES5� USB Port used to connect a USB memory device (eg� thumb drive) Content on the USB device can be played by selecting “USB” source� 6� Remote Sensor on the Front Panel�7� One Full Function Remote Control to operate either headrest by selecting “M1” or “M2”�”8� Control Buttons on the Front Panel HR8A: POWER, VOLUME UP /DOWN,SD CARD,USB,AUX IN,HDMI/MHL INPUT.HR8AD: POWER, VOLUME UP/DOWN, SD CARD,DVD,USB,AUX IN,HDMI/MHL INPUT,EARPHONE. 9� OSD (On Screen Display) menus�

4VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualTurn ON the Monitors (M1 and M2)� 1� Press the Power ON/OFF button� The power indicator will light up red�2� Insert a DVD, CD, MP3 disc into the disc slot located on top of the M1 monitor (disc label toward user)� Push down gently on the disc until the player pulls the disc in (Do Not force disc)for M1with DVD only,Not suitable for Both Android monitor�3� Tilt the monitor to a comfortable viewing position� 4� The supplied wireless IR headphones have an ”A-B” switch used to select the audio from either the “M1” or “M2” monitor� When sitting in front of the M1 screen, use the CH. A setting� When sitting in front of the M2 screen, use the CH. B setting� Set the headset to the proper channel and press the Power On/O switch� The power indicator will light up red� Turn the volume down to its lowest setting QUICK START GUIDEbefore putting the headphones on� When the DVD menu appears(HR8AD), select the menu item using the UP/DOWN buttons and press Enter or Play button�5� If audio playback through the vehicle radio is preferred, use the FM transmitter ON/OFF button on the remote control� Set the vehicle radio to the channel selected on the M1 monitor� If interference with a local radio station occurs, set the FM modulator to one of the other 100 radio frequencies using the Channel Select buttons on the remote control or front panel� Note: To operate the M1 screen, press M1 on the remote control. To operate the M2 screen, press M2.6� To turn OFF either M1 or M2, press and hold the Power ON/OFF button for 5 seconds or turn the vehicle OFF�Safety PrecautionFor safety reasons, when changing a video disc it is recommended that the vehicle not be in motion, and that you do not allow children to unfasten safety belts to change a disc or make any adjustments to the system� System adjustments can be accomplished using the remote control unit, while safety belts remain fastened� Enjoy your entertainment system but remember that the safety of all passengers remains the number one priority�CAUTION Always run the vehicle’s engine while using the VOXX Rear Seat Video Headrest System� Using this system without running the engine can result in battery drainage� To avoid the risk of battery drainage, please remember to turn o the device when the vehicle is not in use for long periods of time�Important NoticeAn LCD Panel and/or Video Monitor may be installed in a motor vehicle and visible to the driver if the LCD Panel or Video Monitor is used for vehicle information, system control, rear or side observation or navigation� If the LCD Panel or Video Monitor is used for television reception, video or DVD play, the LCD Panel or Video Monitor must be installed so that these features will only function when the vehicle is in “park” or when the vehicle’s parking brake is applied�An LCD Panel or Video Monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the parking is not applied must be installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to the operator of the motor vehicle�CAUTIONS

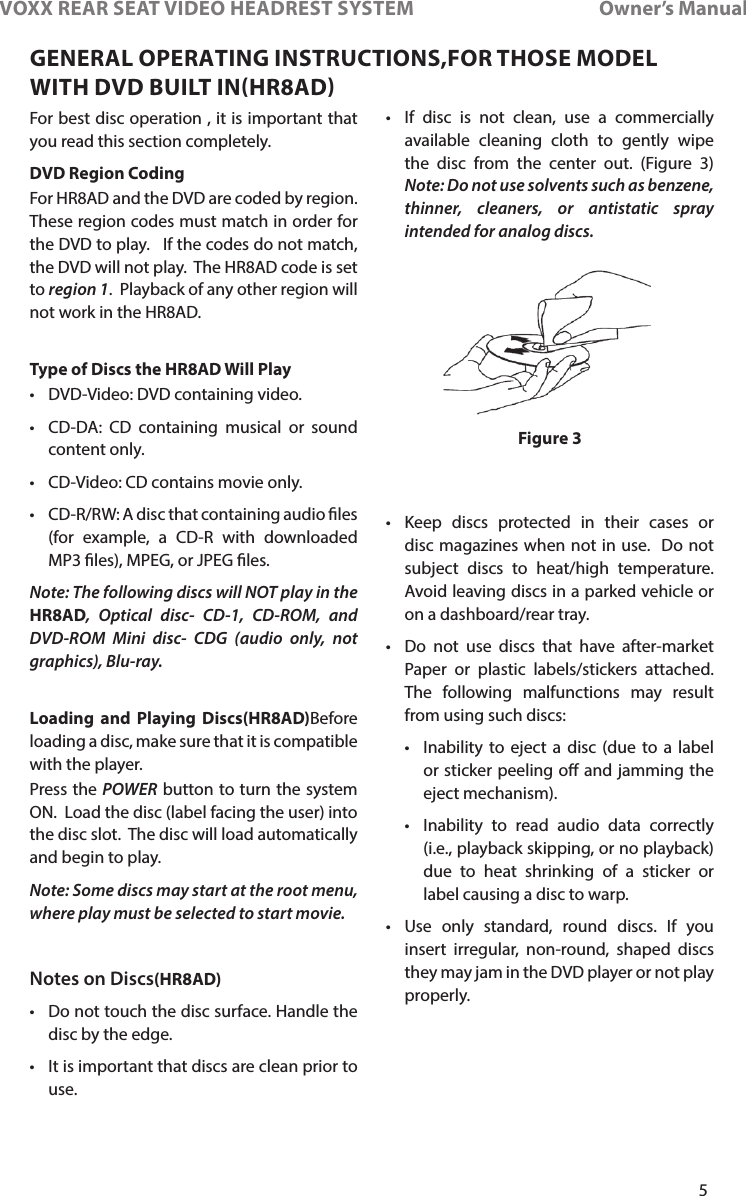

5VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualFor best disc operation , it is important that you read this section completely�DVD Region CodingFor HR8AD and the DVD are coded by region� These region codes must match in order for the DVD to play� If the codes do not match, the DVD will not play� The HR8AD code is set to region 1� Playback of any other region will not work in the HR8AD�Type of Discs the HR8AD Will Play• DVD-Video: DVD containing video�• CD-DA: CD containing musical or sound content only�• CD-Video: CD contains movie only�• CD-R/RW: A disc that containing audio les (for example, a CD-R with downloaded MP3 les), MPEG, or JPEG les�Note: The following discs will NOT play in the HR8AD, Optical disc- CD-1, CD-ROM, and DVD-ROM Mini disc- CDG (audio only, not graphics), Blu-ray.Loading and Playing Discs(HR8AD)Before loading a disc, make sure that it is compatible with the player�Press the POWER button to turn the system ON� Load the disc (label facing the user) into the disc slot� The disc will load automatically and begin to play�Note: Some discs may start at the root menu, where play must be selected to start movie. Notes on Discs(HR8AD)• Do not touch the disc surface� Handle the disc by the edge�• It is important that discs are clean prior to use� • If disc is not clean, use a commercially available cleaning cloth to gently wipe the disc from the center out� (Figure 3) Note: Do not use solvents such as benzene, thinner, cleaners, or antistatic spray intended for analog discs.• Keep discs protected in their cases or disc magazines when not in use� Do not subject discs to heat/high temperature� Avoid leaving discs in a parked vehicle or on a dashboard/rear tray�• Do not use discs that have after-market Paper or plastic labels/stickers attached� The following malfunctions may result from using such discs:• Inability to eject a disc (due to a label or sticker peeling o and jamming the eject mechanism)�• Inability to read audio data correctly (i�e�, playback skipping, or no playback) due to heat shrinking of a sticker or label causing a disc to warp�• Use only standard, round discs� If you insert irregular, non-round, shaped discs they may jam in the DVD player or not play properly�Figure 3GENERAL OPERATING INSTRUCTIONS,FOR THOSE MODEL WITH DVD BUILT INHR8AD

6VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualFigure 471234568911101. IR TRANSMITTER and IR SENSOR IR Transmitter: is used to broad cast audio signal to the wireless IR headphones� IR Sensor: is used to receive signals from the remote control � 2. USB PORT This port is used to connect a USB device for playback of content� To view content, select “USB” source and insert the USB device� The USB device will start automatically � 3. SD CARD Support SD HC up to 32GB and IO Connector:Micro SD(TF Card) �4. AUX IN(HR8A) These jiacks are used to supply extera audio and inputs audio to the unit�5. EARPHONE6. HDMI/MHL INPUT For connection of device with HDMI/MHL output�( Note:Requires a HDMI/MHL enabled device and a special HDMI/MHL adapter�Contact your HDMI/MHL device supplier for adapter)� 7. Protective Cover Used to protect and cover the HDMI jack, AV Input jacks and USB port when not in use �8. 8-inch TFT LCD Display Screen(Touch panel ) (800 x 480) � 9. Camera Front 0�3MP 10. VOLUME UP and DOWN 11. POWER Button Press this button to turn the unit ON and OFF� FRONT PANEL CONTROLS FOR HR8AHR8A /MHL

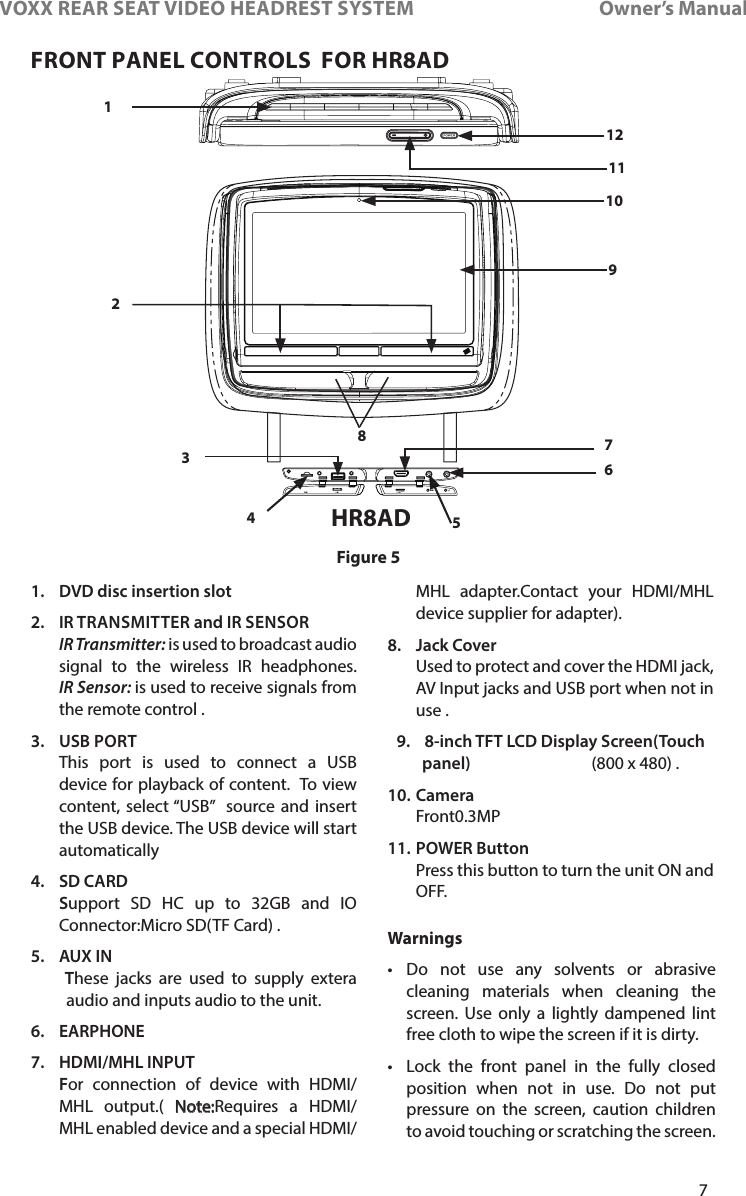

7VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualFigure 5823456791012111. DVD disc insertion slot2. IR TRANSMITTER and IR SENSOR IR Transmitter: is used to broadcast audio signal to the wireless IR headphones� IR Sensor: is used to receive signals from the remote control � 3. USB PORT This port is used to connect a USB device for playback of content� To view content, select “USB” source and insert the USB device� The USB device will start automatically 4. SD CARD Support SD HC up to 32GB and IO Connector:Micro SD(TF Card) �5. AUX IN These jacks are used to supply extera audio and inputs audio to the unit�6. EARPHONE 7. HDMI/MHL INPUT For connection of device with HDMI/MHL output�( Note:Requires a HDMI/MHL enabled device and a special HDMI/MHL adapter�Contact your HDMI/MHL device supplier for adapter)� 8. Jack Cover Used to protect and cover the HDMI jack, AV Input jacks and USB port when not in use �9. 8-inch TFT LCD Display Screen(Touch panel) (800 x 480) �10. Camera Front0�3MP 11. POWER Button Press this button to turn the unit ON and OFF� HR8AD /MHL1Warnings• Do not use any solvents or abrasive cleaning materials when cleaning the screen� Use only a lightly dampened lint free cloth to wipe the screen if it is dirty�• Lock the front panel in the fully closed position when not in use� Do not put pressure on the screen, caution children to avoid touching or scratching the screen�FRONT PANEL CONTROLS FOR HR8AD

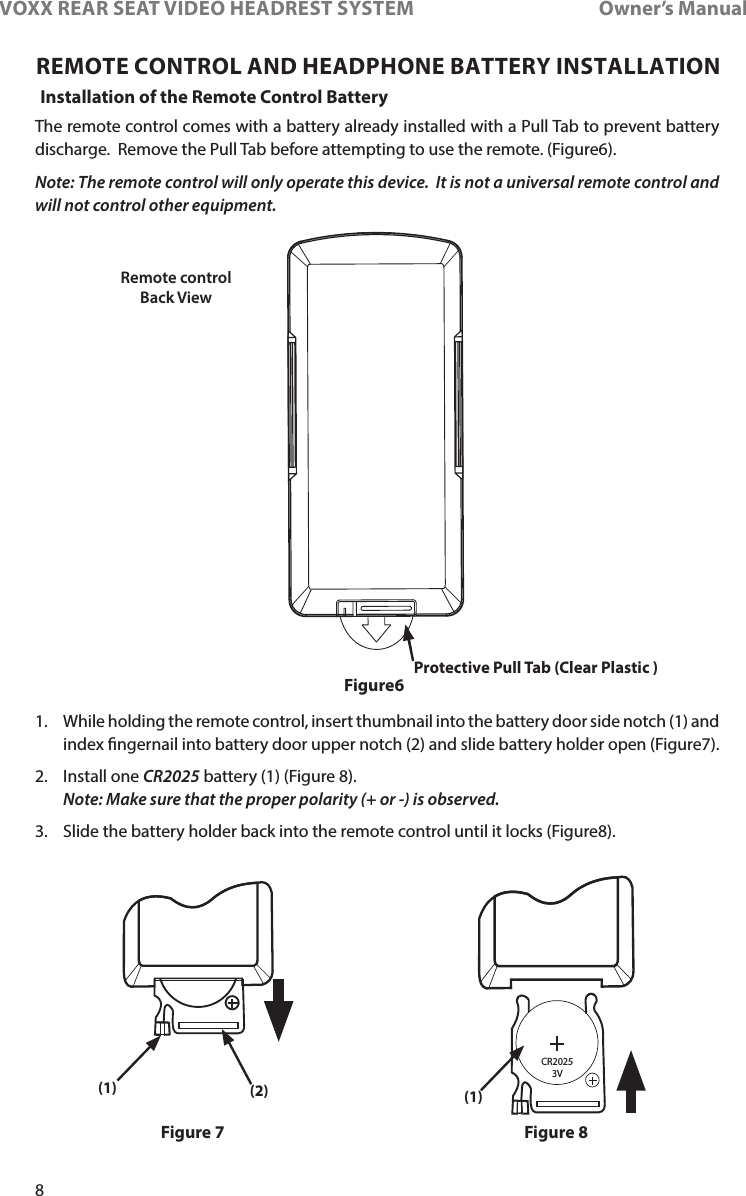

8VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualREMOTE CONTROL AND HEADPHONE BATTERY INSTALLATIONInstallation of the Remote Control BatteryFigure6Figure 7 Figure 8The remote control comes with a battery already installed with a Pull Tab to prevent battery discharge� Remove the Pull Tab before attempting to use the remote� (Figure6)�Note: The remote control will only operate this device. It is not a universal remote control and will not control other equipment.Remote control Back ViewCR2025 3VProtective Pull Tab (Clear Plastic )(1) (2) (1)1� While holding the remote control, insert thumbnail into the battery door side notch (1) and index ngernail into battery door upper notch (2) and slide battery holder open (Figure7)�2� Install one CR2025 battery (1) (Figure 8)� Note: Make sure that the proper polarity (+ or -) is observed.3� Slide the battery holder back into the remote control until it locks (Figure8)�

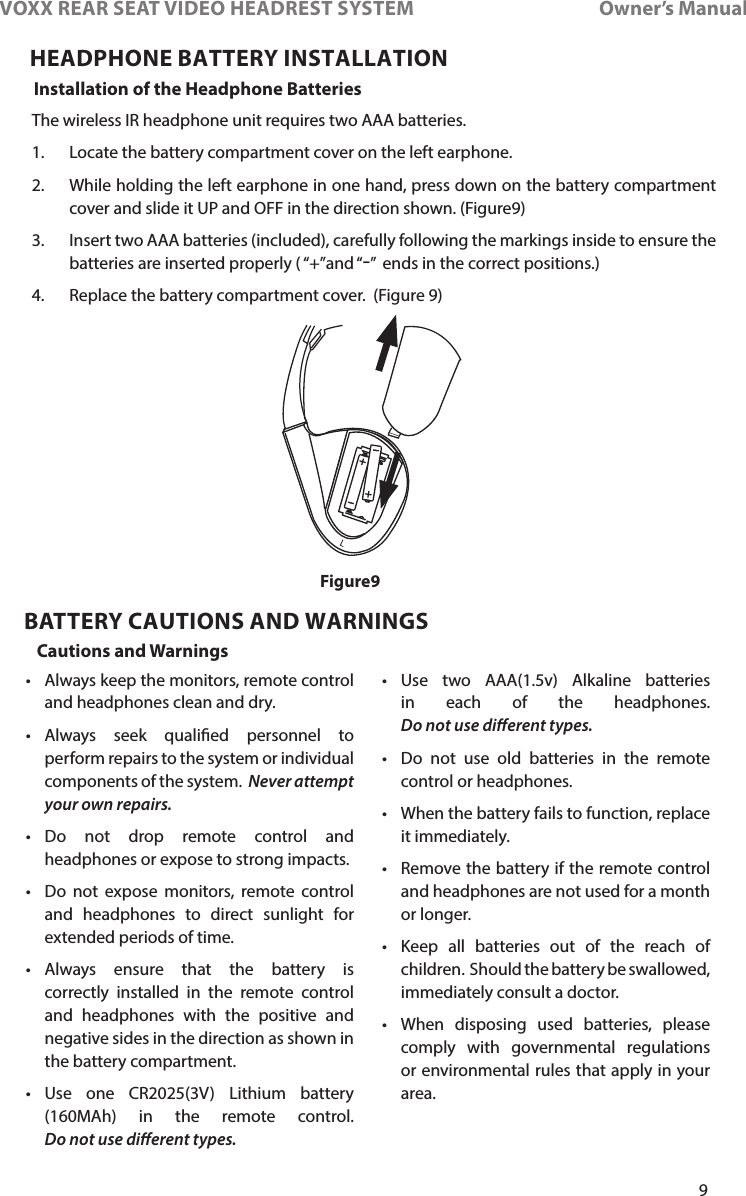

9VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualThe wireless IR headphone unit requires two AAA batteries� 1� Locate the battery compartment cover on the left earphone� 2� While holding the left earphone in one hand, press down on the battery compartment cover and slide it UP and OFF in the direction shown� (Figure9)3� Insert two AAA batteries (included), carefully following the markings inside to ensure the batteries are inserted properly ( “+”and “-” ends in the correct positions�)4� Replace the battery compartment cover� (Figure 9)Installation of the Headphone BatteriesHEADPHONE BATTERY INSTALLATIONFigure9• Always keep the monitors, remote control and headphones clean and dry�• Always seek qualied personnel to perform repairs to the system or individual components of the system� Never attempt your own repairs.• Do not drop remote control and headphones or expose to strong impacts�• Do not expose monitors, remote control and headphones to direct sunlight for extended periods of time� • Always ensure that the battery is correctly installed in the remote control and headphones with the positive and negative sides in the direction as shown in the battery compartment�• Use one CR2025(3V) Lithium battery (160MAh) in the remote control� Do not use dierent types.• Use two AAA(1�5v) Alkaline batteries in each of the headphones� Do not use dierent types.• Do not use old batteries in the remote control or headphones�• When the battery fails to function, replace it immediately�• Remove the battery if the remote control and headphones are not used for a month or longer� • Keep all batteries out of the reach of children� Should the battery be swallowed, immediately consult a doctor�• When disposing used batteries, please comply with governmental regulations or environmental rules that apply in your area�BATTERY CAUTIONS AND WARNINGSCautions and Warnings

10VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualREMOTE CONTROL OPERATIONFigure 10 1234567891011121315161718192014212223242526272829303132

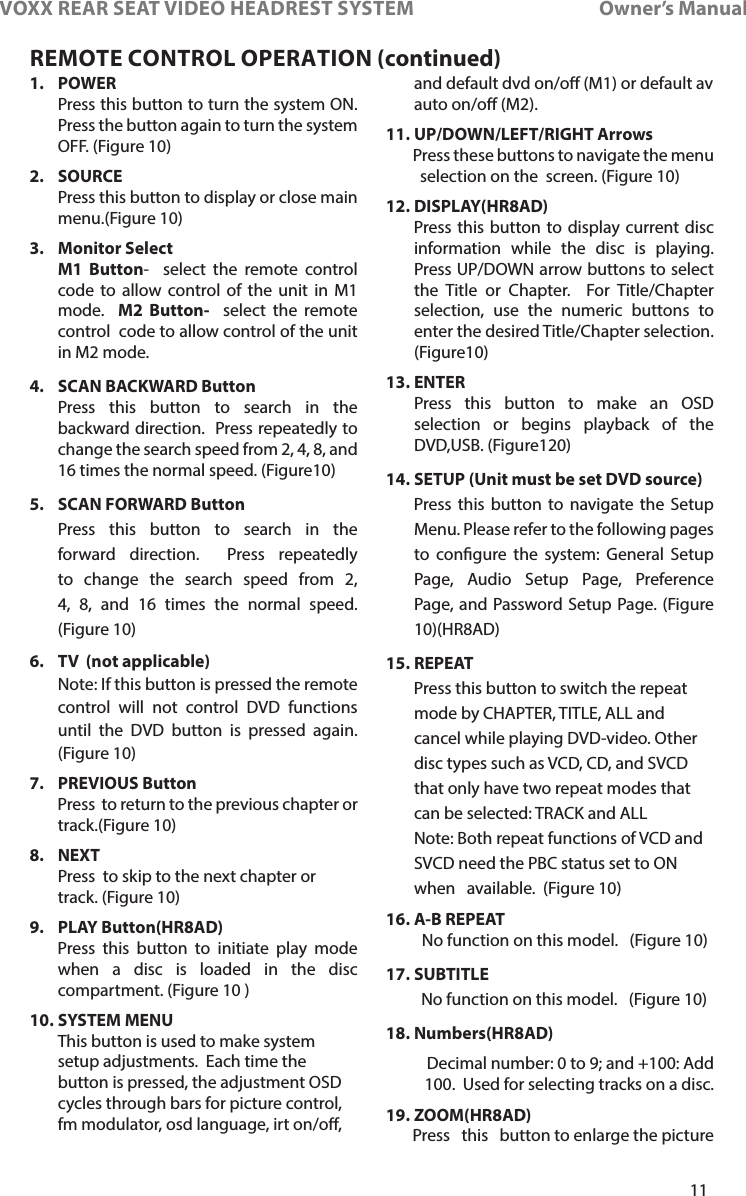

11VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualREMOTE CONTROL OPERATION (continued)1. POWER Press this button to turn the system ON� Press the button again to turn the system OFF� (Figure 10)2. SOURCE Press this button to display or close main menu�(Figure 10)3. Monitor Select M1 Button- select the remote control code to allow control of the unit in M1 mode� M2 Button- select the remote control code to allow control of the unit in M2 mode�4. SCAN BACKWARD Button Press this button to search in the backward direction� Press repeatedly to change the search speed from 2, 4, 8, and 16 times the normal speed� (Figure10)5. SCAN FORWARD Button Press this button to search in the forward direction� Press repeatedly to change the search speed from 2, 4, 8, and 16 times the normal speed� (Figure 10)6. TV (not applicable) Note: If this button is pressed the remote control will not control DVD functions until the DVD button is pressed again� (Figure 10)7. PREVIOUS Button Press to return to the previous chapter or track�(Figure 10)8. NEXT Press to skip to the next chapter or track� (Figure 10) 9. PLAY Button(HR8AD) Press this button to initiate play mode when a disc is loaded in the disc compartment� (Figure 10 )10. SYSTEM MENU This button is used to make system setup adjustments� Each time the button is pressed, the adjustment OSD cycles through bars for picture control, fm modulator, osd language, irt on/o, and default dvd on/o (M1) or default av auto on/o (M2)� 11. UP/DOWN/LEFT/RIGHT Arrows Press these buttons to navigate the menu selection on the screen� (Figure 10)12. DISPLAY(HR8AD) Press this button to display current disc information while the disc is playing� Press UP/DOWN arrow buttons to select the Title or Chapter� For Title/Chapter selection, use the numeric buttons to enter the desired Title/Chapter selection� (Figure10)13. ENTER Press this button to make an OSD selection or begins playback of the DVD,USB� (Figure120) 14. SETUP (Unit must be set DVD source) Press this button to navigate the Setup Menu� Please refer to the following pages to congure the system: General Setup Page, Audio Setup Page, Preference Page, and Password Setup Page� (Figure 10)(HR8AD)15. REPEAT Press this button to switch the repeat mode by CHAPTER, TITLE, ALL and cancel while playing DVD-video� Other disc types such as VCD, CD, and SVCD that only have two repeat modes that can be selected: TRACK and ALL Note: Both repeat functions of VCD and SVCD need the PBC status set to ON when available� (Figure 10)16. A-B REPEAT No function on this model� (Figure 10)17. SUBTITLE No function on this model� (Figure 10)18. Numbers(HR8AD) Decimal number: 0 to 9; and +100: Add 100� Used for selecting tracks on a disc�19. ZOOM(HR8AD) Press this button to enlarge the picture

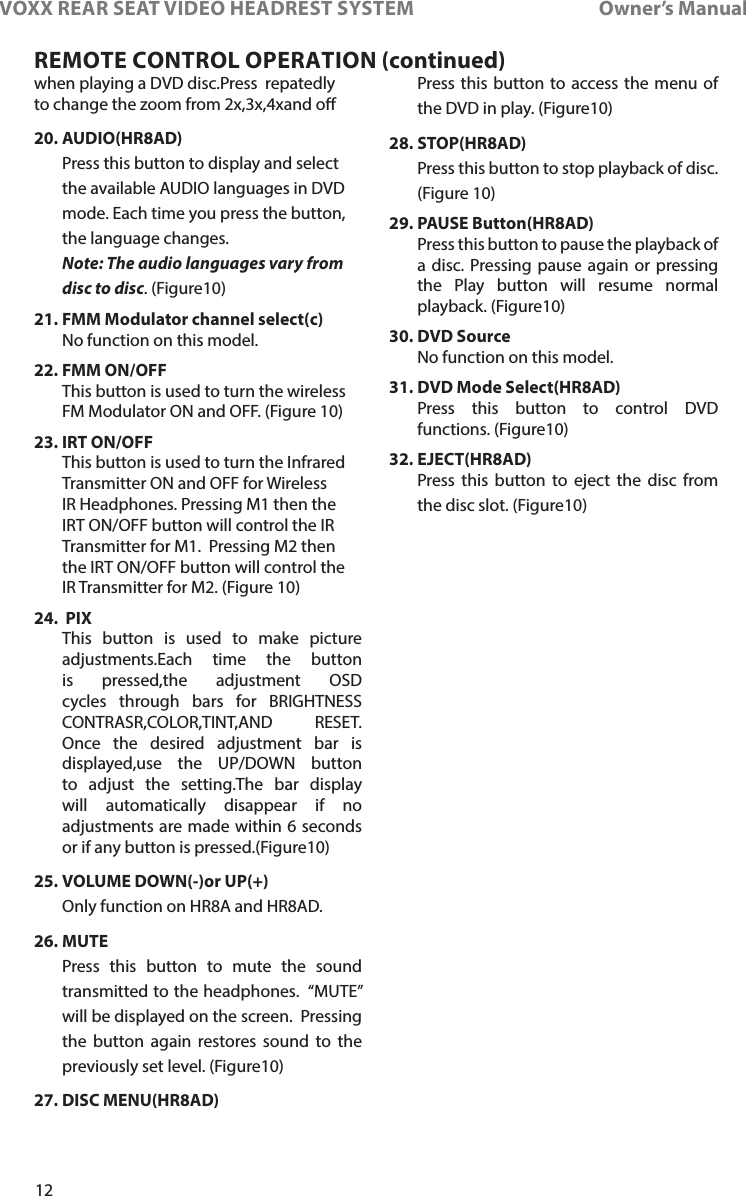

12VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualREMOTE CONTROL OPERATION (continued)when playing a DVD disc�Press repatedly to change the zoom from 2x,3x,4xand o20. AUDIO(HR8AD) Press this button to display and select the available AUDIO languages in DVD mode� Each time you press the button, the language changes� Note: The audio languages vary from disc to disc� (Figure10)21. FMM Modulator channel select(c) No function on this model�22. FMM ON/OFF This button is used to turn the wireless FM Modulator ON and OFF� (Figure 10)23. IRT ON/OFF This button is used to turn the Infrared Transmitter ON and OFF for Wireless IR Headphones� Pressing M1 then the IRT ON/OFF button will control the IR Transmitter for M1� Pressing M2 then the IRT ON/OFF button will control the IR Transmitter for M2� (Figure 10)24. PIX This button is used to make picture adjustments�Each time the button is pressed,the adjustment OSD cycles through bars for BRIGHTNESS CONTRASR,COLOR,TINT,AND RESET�Once the desired adjustment bar is displayed,use the UP/DOWN button to adjust the setting�The bar display will automatically disappear if no adjustments are made within 6 seconds or if any button is pressed�(Figure10)25. VOLUME DOWN(-)or UP(+) Only function on HR8A and HR8AD� 26. MUTE Press this button to mute the sound transmitted to the headphones� “MUTE” will be displayed on the screen� Pressing the button again restores sound to the previously set level� (Figure10)27. DISC MENU(HR8AD) Press this button to access the menu of the DVD in play� (Figure10)28. STOP(HR8AD) Press this button to stop playback of disc� (Figure 10)29. PAUSE Button(HR8AD) Press this button to pause the playback of a disc� Pressing pause again or pressing the Play button will resume normal playback� (Figure10)30. DVD Source No function on this model� 31. DVD Mode Select(HR8AD) Press this button to control DVD functions� (Figure10)32. EJECT(HR8AD) Press this button to eject the disc from the disc slot� (Figure10)

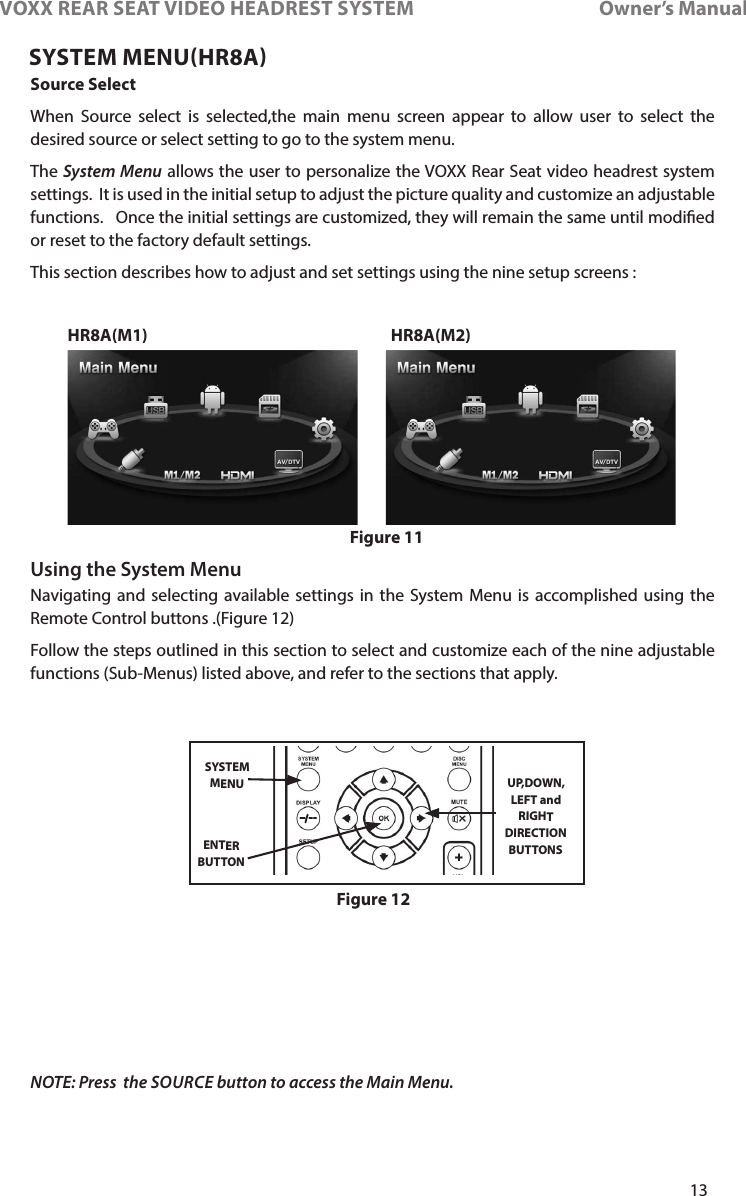

13VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualSource SelectWhen Source select is selected,the main menu screen appear to allow user to select the desired source or select setting to go to the system menu�The System Menu allows the user to personalize the VOXX Rear Seat video headrest system settings� It is used in the initial setup to adjust the picture quality and customize an adjustable functions� Once the initial settings are customized, they will remain the same until modied or reset to the factory default settings�This section describes how to adjust and set settings using the nine setup screens : Using the System MenuNavigating and selecting available settings in the System Menu is accomplished using the Remote Control buttons �(Figure 12)Follow the steps outlined in this section to select and customize each of the nine adjustable functions (Sub-Menus) listed above, and refer to the sections that apply�NOTE: Press the SOURCE button to access the Main Menu.Figure 12SYSTEM MENUHR8AHR8A(M1) HR8A(M2)Figure 11SYSTEM MENU UP,DOWN, LEFT and RIGHT DIRECTION BUTTONSENTER BUTTON

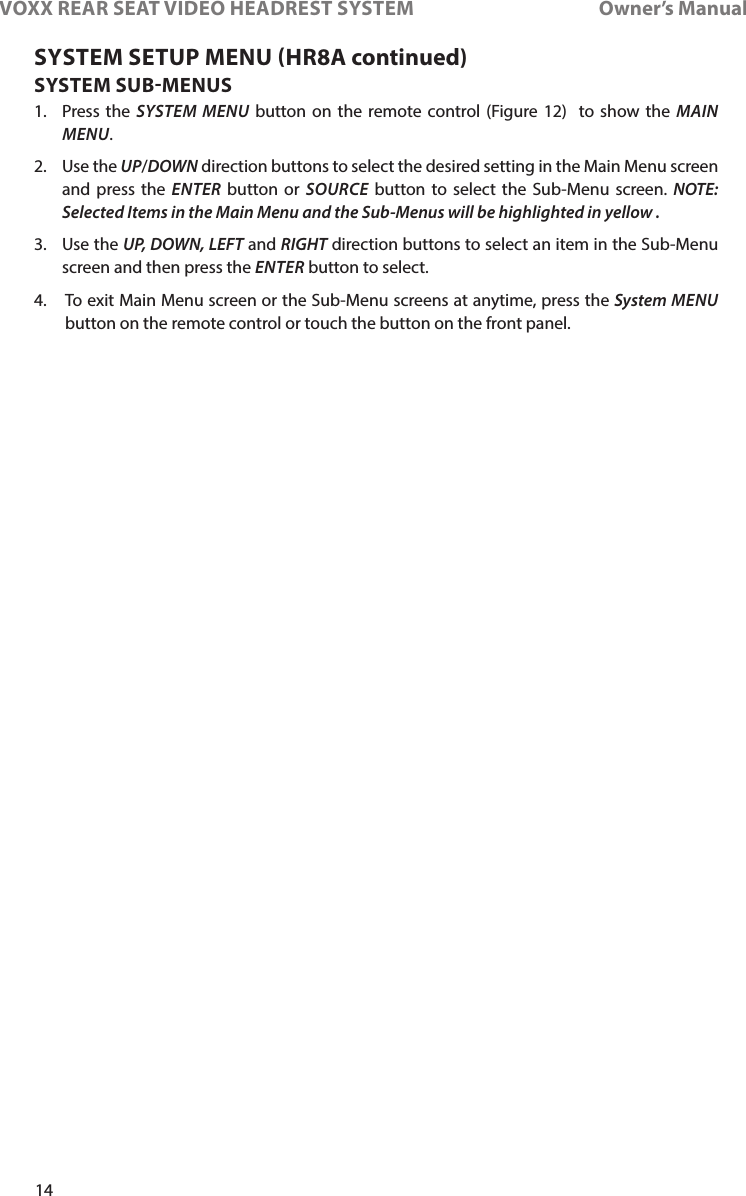

14VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualSYSTEM SUBMENUS1� Press the SYSTEM MENU button on the remote control (Figure 12) to show the MAIN MENU�2� Use the UP/DOWN direction buttons to select the desired setting in the Main Menu screen and press the ENTER button or SOURCE button to select the Sub-Menu screen� NOTE: Selected Items in the Main Menu and the Sub-Menus will be highlighted in yellow .3� Use the UP, DOWN, LEFT and RIGHT direction buttons to select an item in the Sub-Menu screen and then press the ENTER button to select�4� To exit Main Menu screen or the Sub-Menu screens at anytime, press the System MENU button on the remote control or touch the button on the front panel�SYSTEM SETUP MENU HR8A continued)

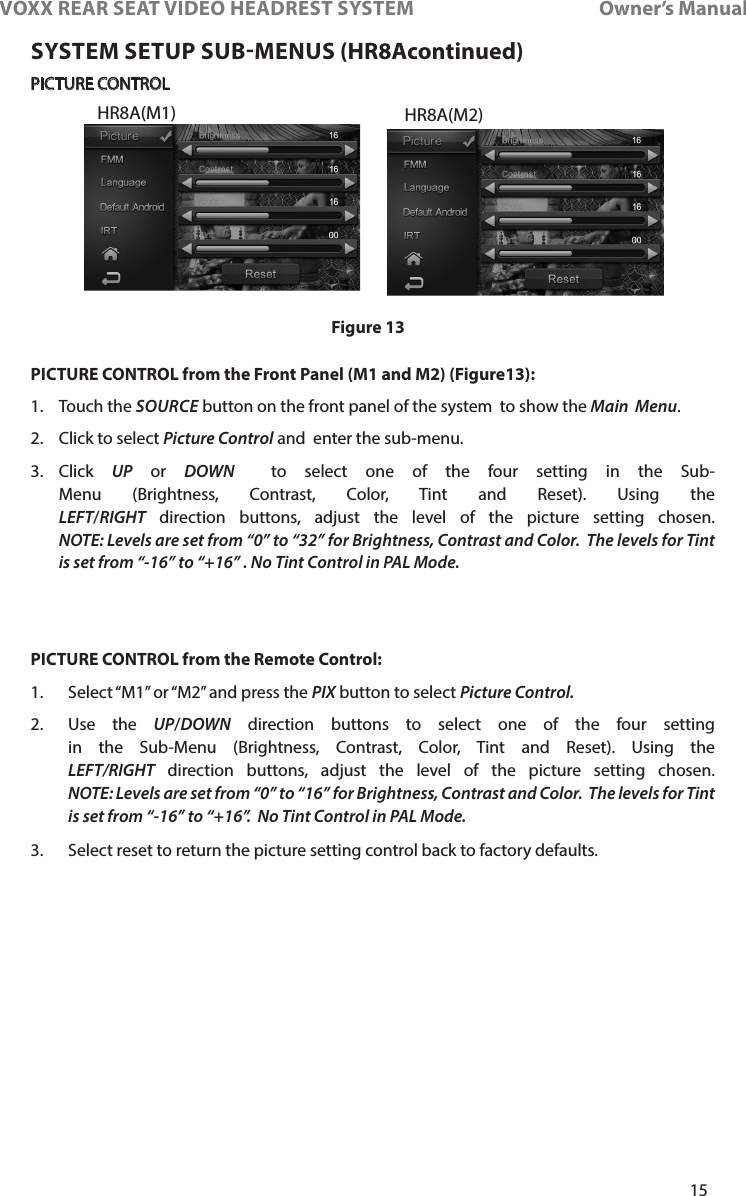

15VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualPICTURE CONTROLPICTURE CONTROL from the Front Panel (M1 and M2) (Figure13):1� Touch the SOURCE button on the front panel of the system to show the Main Menu� 2� Click to select Picture Control and enter the sub-menu�3� Click UP or DOWN to select one of the four setting in the Sub-Menu (Brightness, Contrast, Color, Tint and Reset)� Using the LEFT/RIGHT direction buttons, adjust the level of the picture setting chosen� NOTE: Levels are set from “0” to “32” for Brightness, Contrast and Color. The levels for Tint is set from “-16” to “+16” . No Tint Control in PAL Mode. PICTURE CONTROL from the Remote Control:1� Select “M1” or “M2” and press the PIX button to select Picture Control.2� Use the UP/DOWN direction buttons to select one of the four setting in the Sub-Menu (Brightness, Contrast, Color, Tint and Reset)� Using the LEFT/RIGHT direction buttons, adjust the level of the picture setting chosen� NOTE: Levels are set from “0” to “16” for Brightness, Contrast and Color. The levels for Tint is set from “-16” to “+16”. No Tint Control in PAL Mode.3� Select reset to return the picture setting control back to factory defaults�Figure 13SYSTEM SETUP SUBMENUS (HR8Acontinued)HR8A(M1) HR8A(M2)

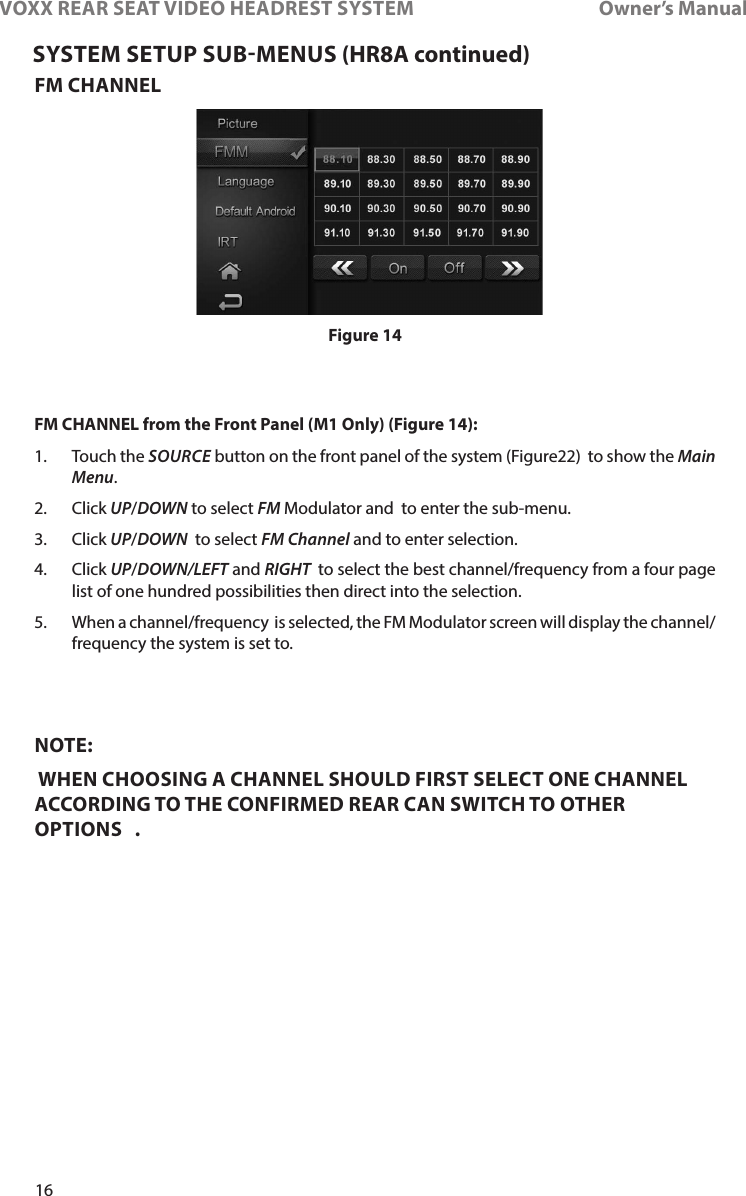

16VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualFM CHANNELFM CHANNEL from the Front Panel (M1 Only) (Figure 14):1� Touch the SOURCE button on the front panel of the system (Figure22) to show the Main Menu� 2� Click UP/DOWN to select FM Modulator and to enter the sub-menu�3� Click UP/DOWN to select FM Channel and to enter selection� 4� Click UP/DOWN/LEFT and RIGHT to select the best channel/frequency from a four page list of one hundred possibilities then direct into the selection� 5� When a channel/frequency is selected, the FM Modulator screen will display the channel/frequency the system is set to� NOTE: WHEN CHOOSING A CHANNEL SHOULD FIRST SELECT ONE CHANNEL ACCORDING TO THE CONFIRMED REAR CAN SWITCH TO OTHER OPTIONS .SYSTEM SETUP SUBMENUS (HR8A continued)Figure 14

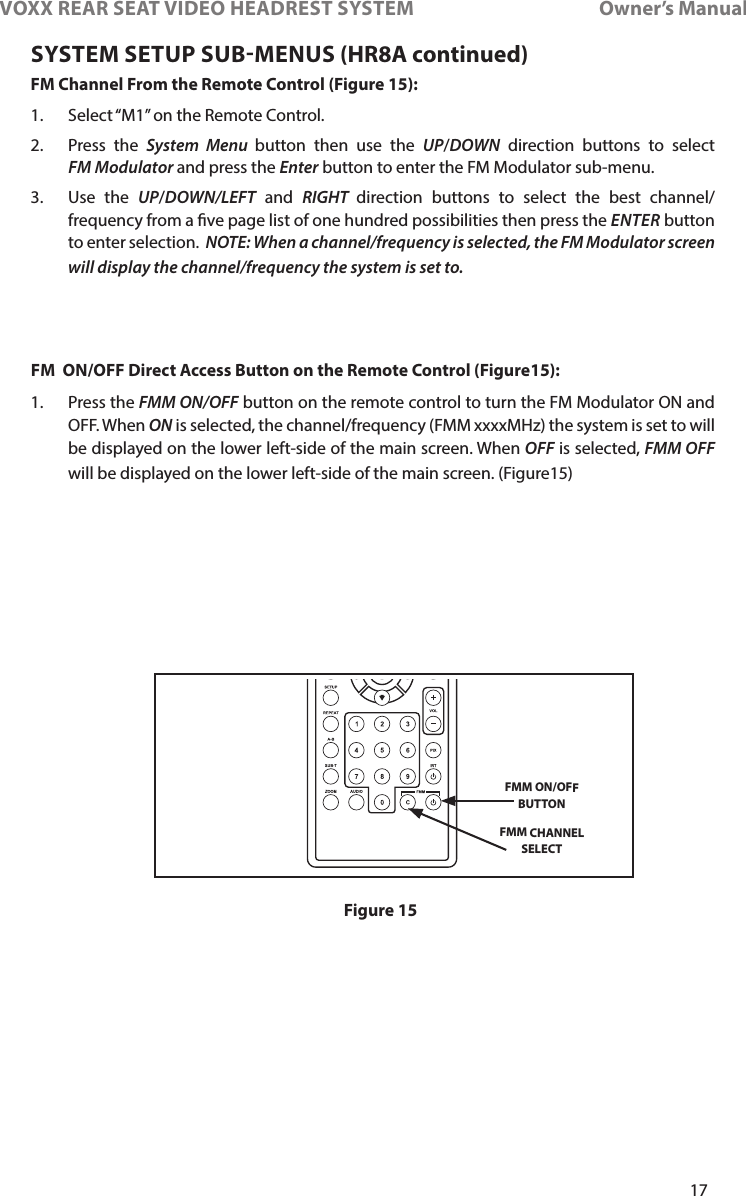

17VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualSYSTEM SETUP SUBMENUS (HR8A continued)FM Channel From the Remote Control (Figure 15):1� Select “M1” on the Remote Control�2� Press the System Menu button then use the UP/DOWN direction buttons to select FM Modulator and press the Enter button to enter the FM Modulator sub-menu�3� Use the UP/DOWN/LEFT and RIGHT direction buttons to select the best channel/frequency from a ve page list of one hundred possibilities then press the ENTER button to enter selection� NOTE: When a channel/frequency is selected, the FM Modulator screen will display the channel/frequency the system is set to. FM ON/OFF Direct Access Button on the Remote Control (Figure15): 1� Press the FMM ON/OFF button on the remote control to turn the FM Modulator ON and OFF� When ON is selected, the channel/frequency (FMM xxxxMHz) the system is set to will be displayed on the lower left-side of the main screen� When OFF is selected, FMM OFF will be displayed on the lower left-side of the main screen� (Figure15)FMM ON/OFF BUTTONFMM CHANNEL SELECTFigure 15

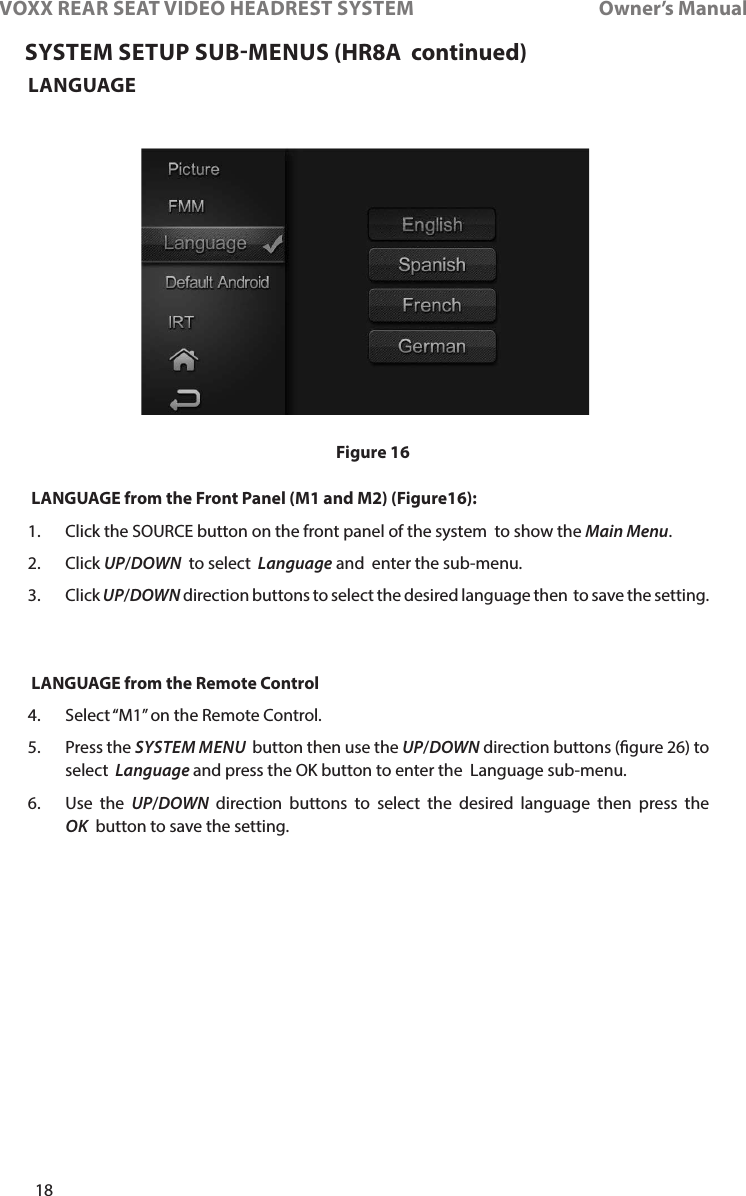

18VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualLANGUAGE LANGUAGE from the Front Panel (M1 and M2) (Figure16):1� Click the SOURCE button on the front panel of the system to show the Main Menu�2� Click UP/DOWN to select Language and enter the sub-menu�3� Click UP/DOWN direction buttons to select the desired language then to save the setting� LANGUAGE from the Remote Control 4� Select “M1” on the Remote Control�5� Press the SYSTEM MENU button then use the UP/DOWN direction buttons (gure 26) to select Language and press the OK button to enter the Language sub-menu�6� Use the UP/DOWN direction buttons to select the desired language then press the OK button to save the setting�SYSTEM SETUP SUBMENUS (HR8A continued)Figure 16

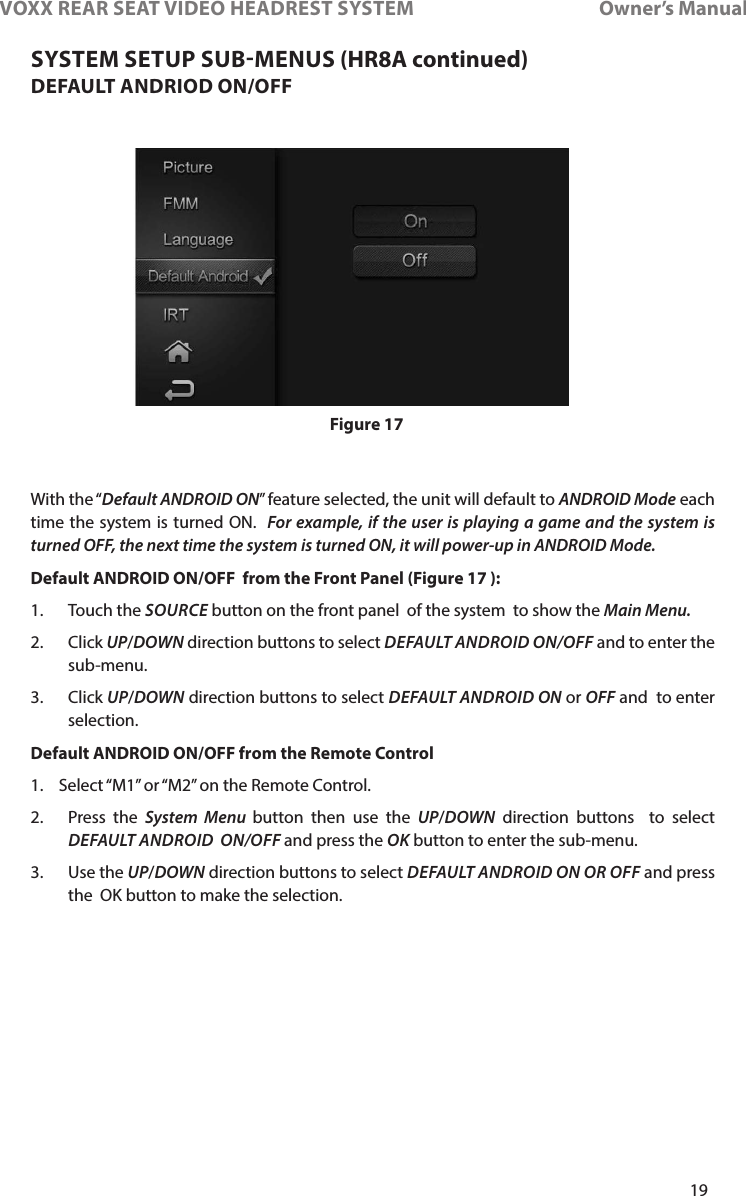

19VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualDEFAULT ANDRIOD ON/OFFWith the “Default ANDROID ON” feature selected, the unit will default to ANDROID Mode each time the system is turned ON� For example, if the user is playing a game and the system is turned OFF, the next time the system is turned ON, it will power-up in ANDROID Mode. Default ANDROID ON/OFF from the Front Panel (Figure 17 ):1� Touch the SOURCE button on the front panel of the system to show the Main Menu. 2� Click UP/DOWN direction buttons to select DEFAULT ANDROID ON/OFF and to enter the sub-menu� 3� Click UP/DOWN direction buttons to select DEFAULT ANDROID ON or OFF and to enter selection�Default ANDROID ON/OFF from the Remote Control 1� Select “M1” or “M2” on the Remote Control�2� Press the System Menu button then use the UP/DOWN direction buttons to select DEFAULT ANDROID ON/OFF and press the OK button to enter the sub-menu�3� Use the UP/DOWN direction buttons to select DEFAULT ANDROID ON OR OFF and press the OK button to make the selection� Figure 17SYSTEM SETUP SUBMENUS (HR8A continued)

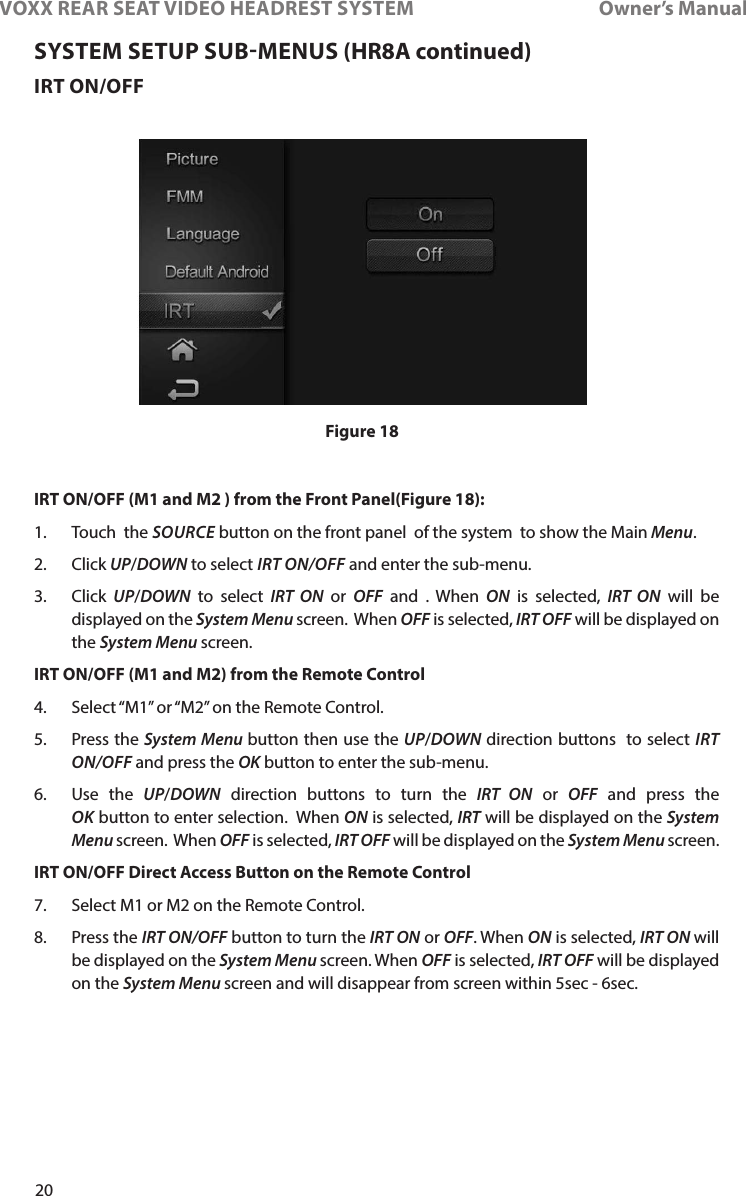

20VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualIRT ON/OFFIRT ON/OFF (M1 and M2 ) from the Front Panel(Figure 18):1� Touch the SOURCE button on the front panel of the system to show the Main Menu� 2� Click UP/DOWN to select IRT ON/OFF and enter the sub-menu� 3� Click UP/DOWN to select IRT ON or OFF and � When ON is selected, IRT ON will be displayed on the System Menu screen� When OFF is selected, IRT OFF will be displayed on the System Menu screen�IRT ON/OFF (M1 and M2) from the Remote Control 4� Select “M1” or “M2” on the Remote Control�5� Press the System Menu button then use the UP/DOWN direction buttons to select IRT ON/OFF and press the OK button to enter the sub-menu�6� Use the UP/DOWN direction buttons to turn the IRT ON or OFF and press the OK button to enter selection� When ON is selected, IRT will be displayed on the System Menu screen� When OFF is selected, IRT OFF will be displayed on the System Menu screen�IRT ON/OFF Direct Access Button on the Remote Control 7� Select M1 or M2 on the Remote Control�8� Press the IRT ON/OFF button to turn the IRT ON or OFF� When ON is selected, IRT ON will be displayed on the System Menu screen� When OFF is selected, IRT OFF will be displayed on the System Menu screen and will disappear from screen within 5sec - 6sec�Figure 18SYSTEM SETUP SUBMENUS (HR8A continued)

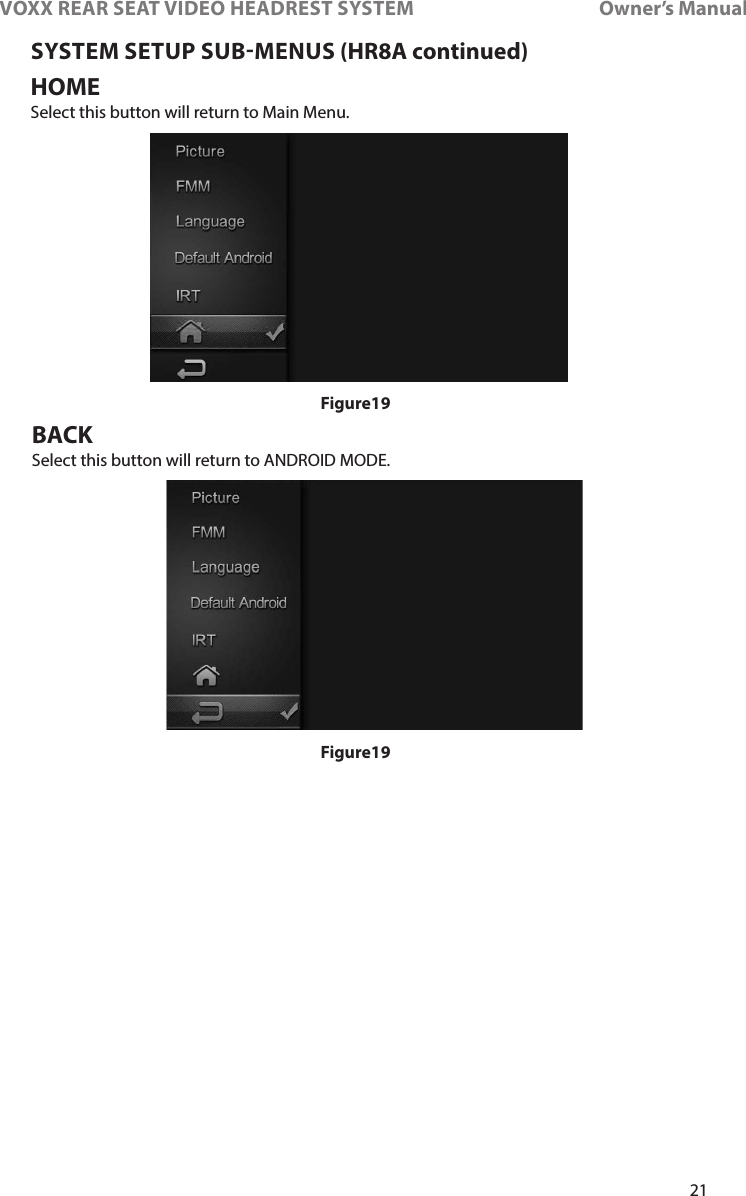

21VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualSYSTEM SETUP SUBMENUS (HR8A continued)HOMESelect this button will return to Main Menu�BACKSelect this button will return to ANDROID MODE�Figure19Figure19

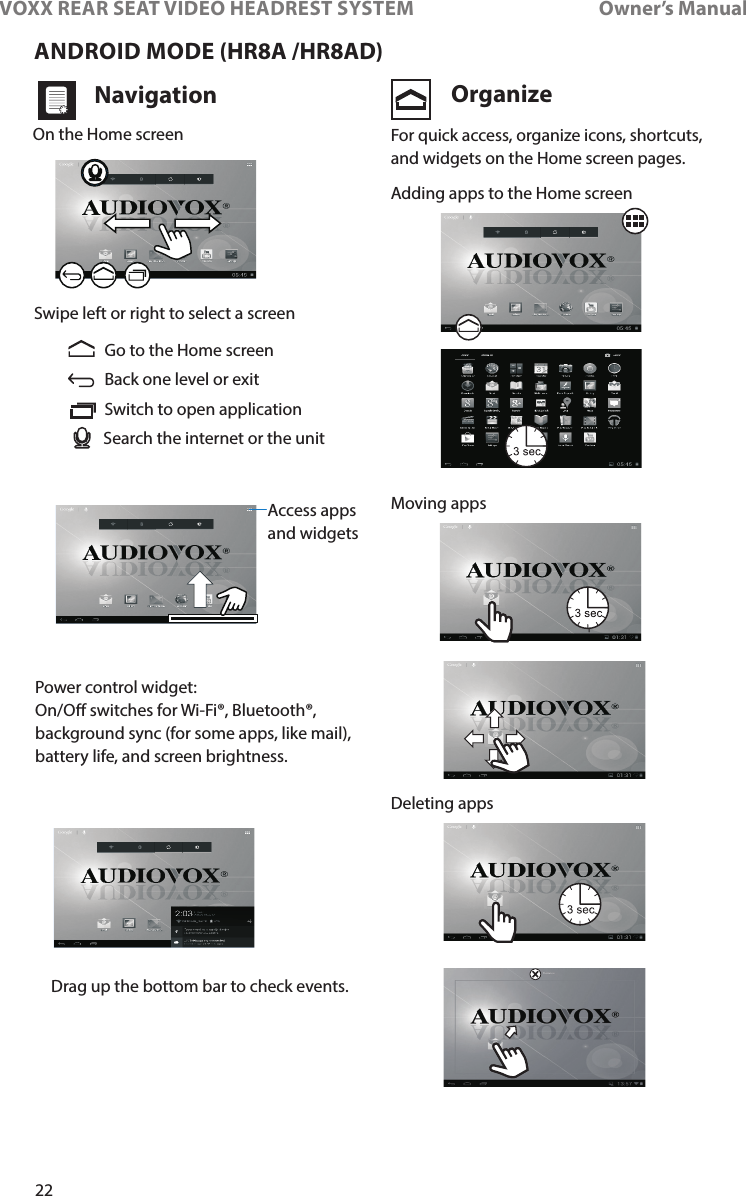

22VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualANDROID MODE (HR8A /HR8AD)Navigation OrganizeOn the Home screenSwipe left or right to select a screenAccess appsand widgetsGo to the Home screenAdding apps to the Home screenMoving appsDeleting appsBack one level or exitSwitch to open applicationSearch the internet or the unitDrag up the bottom bar to check events�For quick access, organize icons, shortcuts, and widgets on the Home screen pages�Power control widget:On/O switches for Wi-Fi®, Bluetooth®, background sync (for some apps, like mail), battery life, and screen brightness�

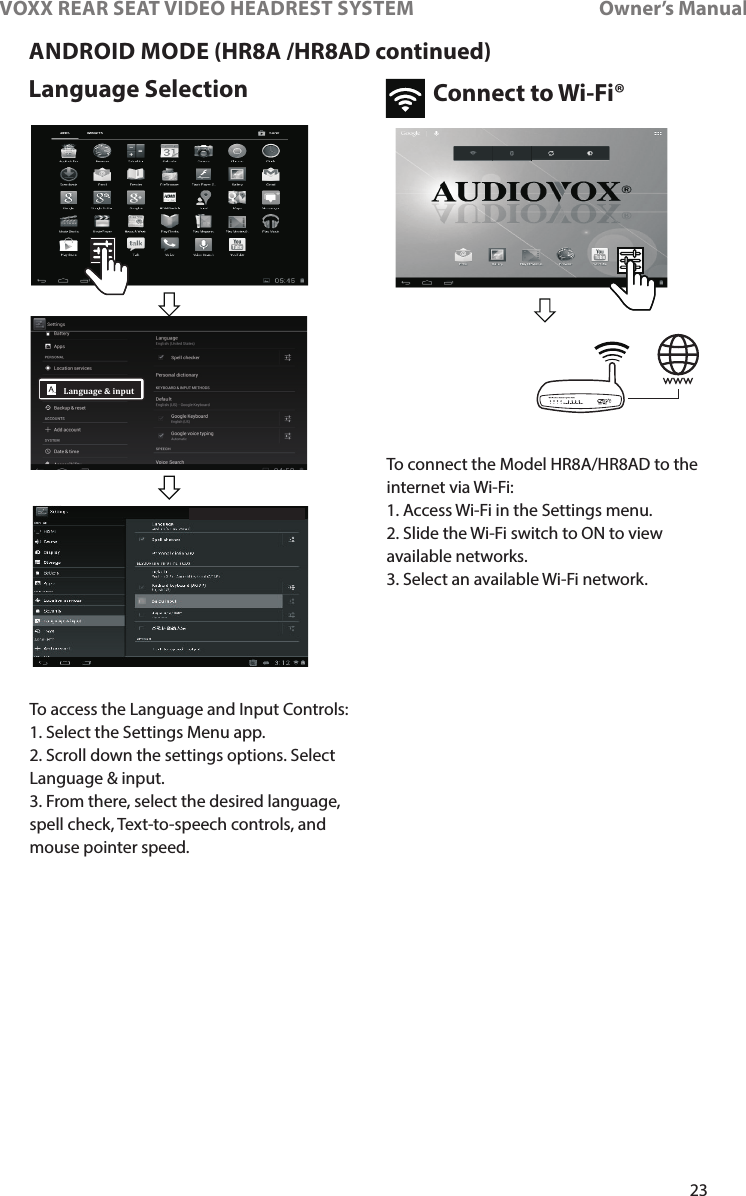

23VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualANDROID MODE (HR8A /HR8AD continued)Language Selection Connect to Wi-Fi®Language & inputTo access the Language and Input Controls:1� Select the Settings Menu app�2� Scroll down the settings options� Select Language & input�3� From there, select the desired language, spell check, Text-to-speech controls, and mouse pointer speed�To connect the Model HR8A/HR8AD to the internet via Wi-Fi:1� Access Wi-Fi in the Settings menu�2� Slide the Wi-Fi switch to ON to view available networks�3� Select an available Wi-Fi network�

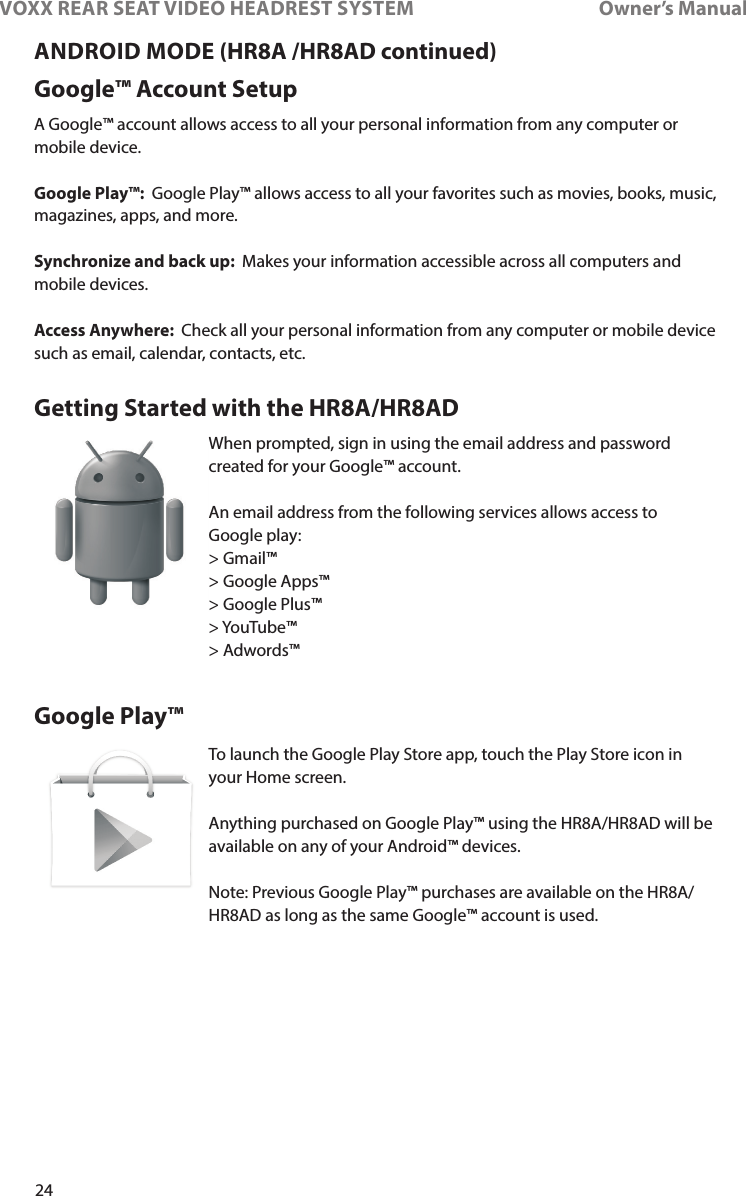

24VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualANDROID MODE (HR8A /HR8AD continued)Google™ Account SetupGetting Started with the HR8A/HR8ADGoogle Play™A Google™ account allows access to all your personal information from any computer or mobile device�Google Play™: Google Play™ allows access to all your favorites such as movies, books, music, magazines, apps, and more�Synchronize and back up: Makes your information accessible across all computers and mobile devices�Access Anywhere: Check all your personal information from any computer or mobile device such as email, calendar, contacts, etc�To launch the Google Play Store app, touch the Play Store icon in your Home screen�Anything purchased on Google Play™ using the HR8A/HR8AD will be available on any of your Android™ devices�Note: Previous Google Play™ purchases are available on the HR8A/HR8AD as long as the same Google™ account is used�When prompted, sign in using the email address and password created for your Google™ account�An email address from the following services allows access to Google play:> Gmail™> Google Apps™> Google Plus™> YouTube™> Adwords™

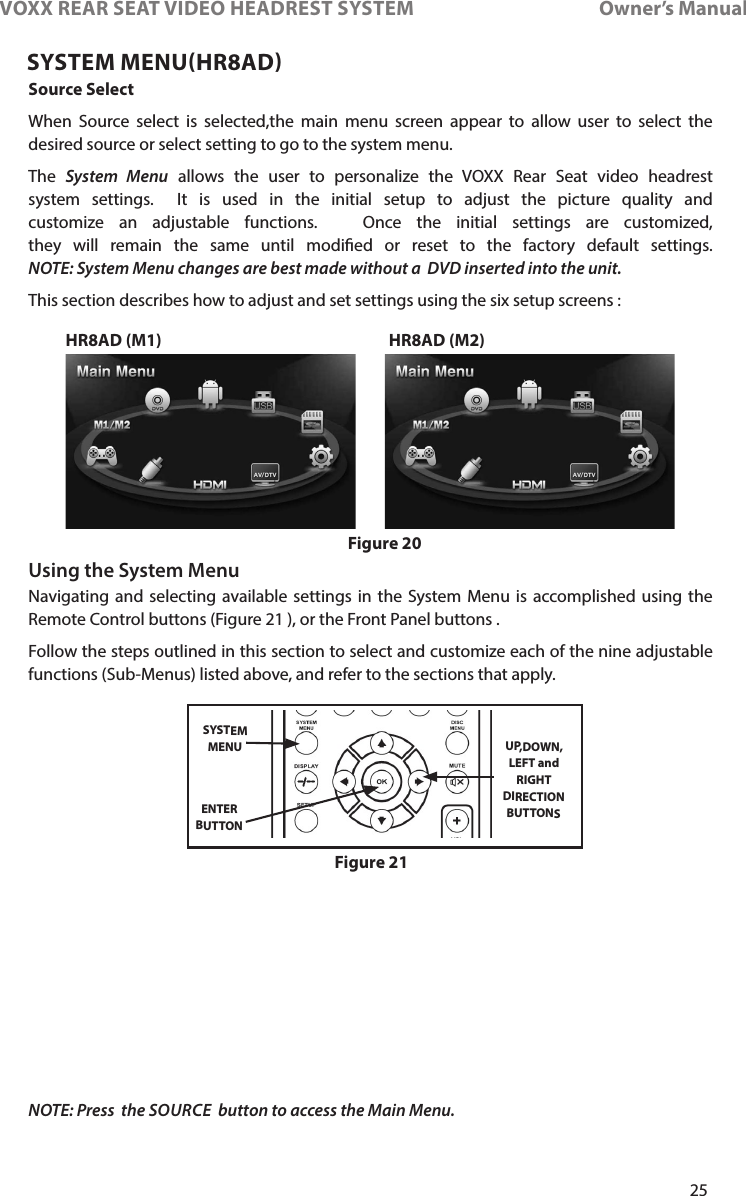

25VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualSource SelectWhen Source select is selected,the main menu screen appear to allow user to select the desired source or select setting to go to the system menu�The System Menu allows the user to personalize the VOXX Rear Seat video headrest system settings� It is used in the initial setup to adjust the picture quality and customize an adjustable functions� Once the initial settings are customized, they will remain the same until modied or reset to the factory default settings� NOTE: System Menu changes are best made without a DVD inserted into the unit.This section describes how to adjust and set settings using the six setup screens : Using the System MenuNavigating and selecting available settings in the System Menu is accomplished using the Remote Control buttons (Figure 21 ), or the Front Panel buttons �Follow the steps outlined in this section to select and customize each of the nine adjustable functions (Sub-Menus) listed above, and refer to the sections that apply�NOTE: Press the SOURCE button to access the Main Menu.Figure 21SYSTEM MENUHR8ADHR8AD (M1) HR8AD (M2)Figure 20SYSTEM MENU UP,DOWN, LEFT and RIGHT DIRECTION BUTTONSENTER BUTTON

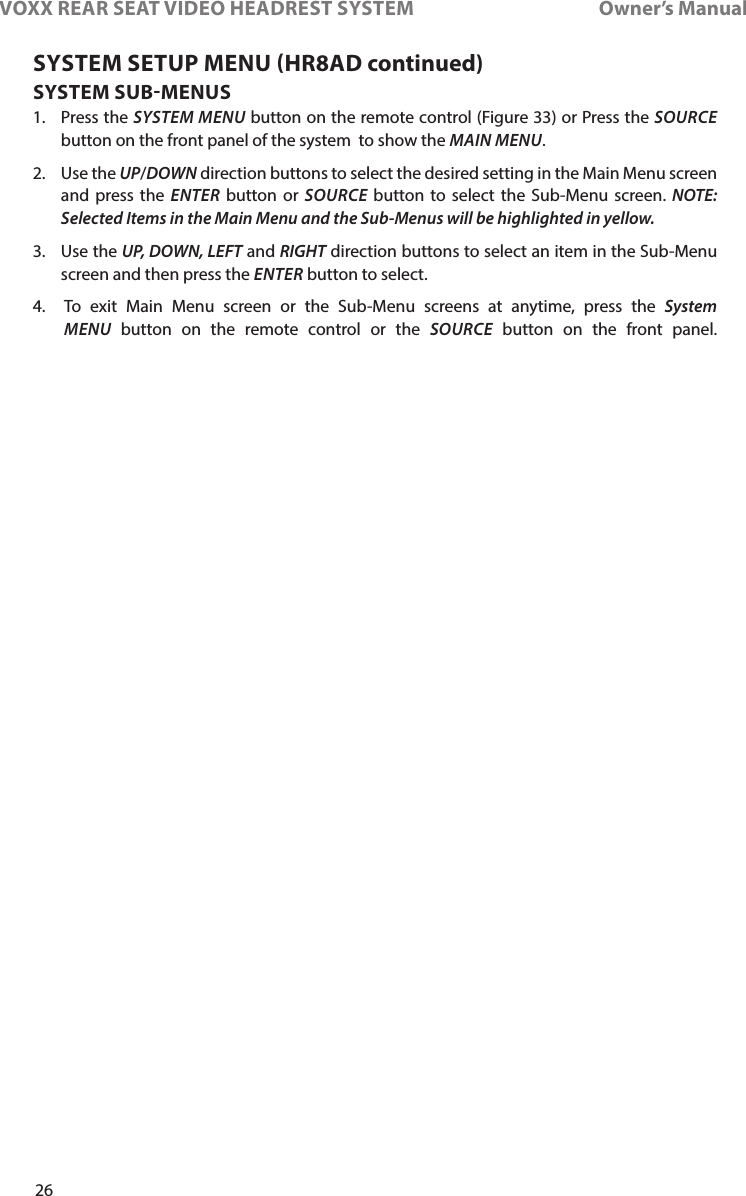

26VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualSYSTEM SUBMENUS1� Press the SYSTEM MENU button on the remote control (Figure 33) or Press the SOURCE button on the front panel of the system to show the MAIN MENU�2� Use the UP/DOWN direction buttons to select the desired setting in the Main Menu screen and press the ENTER button or SOURCE button to select the Sub-Menu screen� NOTE: Selected Items in the Main Menu and the Sub-Menus will be highlighted in yellow.3� Use the UP, DOWN, LEFT and RIGHT direction buttons to select an item in the Sub-Menu screen and then press the ENTER button to select�4� To exit Main Menu screen or the Sub-Menu screens at anytime, press the System MENU button on the remote control or the SOURCE button on the front panel� SYSTEM SETUP MENU HR8AD continued)

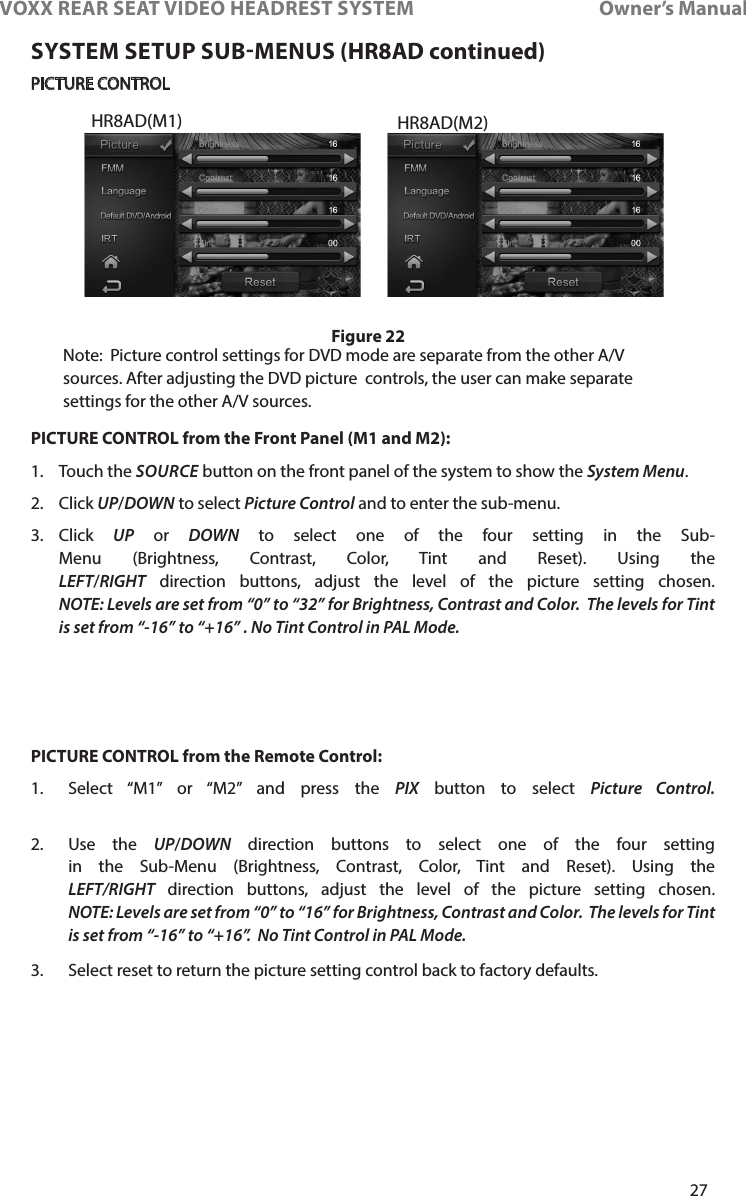

27VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualPICTURE CONTROLPICTURE CONTROL from the Front Panel (M1 and M2):1� Touch the SOURCE button on the front panel of the system to show the System Menu� 2� Click UP/DOWN to select Picture Control and to enter the sub-menu�3� Click UP or DOWN to select one of the four setting in the Sub-Menu (Brightness, Contrast, Color, Tint and Reset)� Using the LEFT/RIGHT direction buttons, adjust the level of the picture setting chosen� NOTE: Levels are set from “0” to “32” for Brightness, Contrast and Color. The levels for Tint is set from “-16” to “+16” . No Tint Control in PAL Mode. PICTURE CONTROL from the Remote Control:1� Select “M1” or “M2” and press the PIX button to select Picture Control. 2� Use the UP/DOWN direction buttons to select one of the four setting in the Sub-Menu (Brightness, Contrast, Color, Tint and Reset)� Using the LEFT/RIGHT direction buttons, adjust the level of the picture setting chosen� NOTE: Levels are set from “0” to “16” for Brightness, Contrast and Color. The levels for Tint is set from “-16” to “+16”. No Tint Control in PAL Mode.3� Select reset to return the picture setting control back to factory defaults�Figure 22SYSTEM SETUP SUBMENUS (HR8AD continued)Note: Picture control settings for DVD mode are separate from the other A/V sources� After adjusting the DVD picture controls, the user can make separate settings for the other A/V sources�HR8AD(M1) HR8AD(M2)

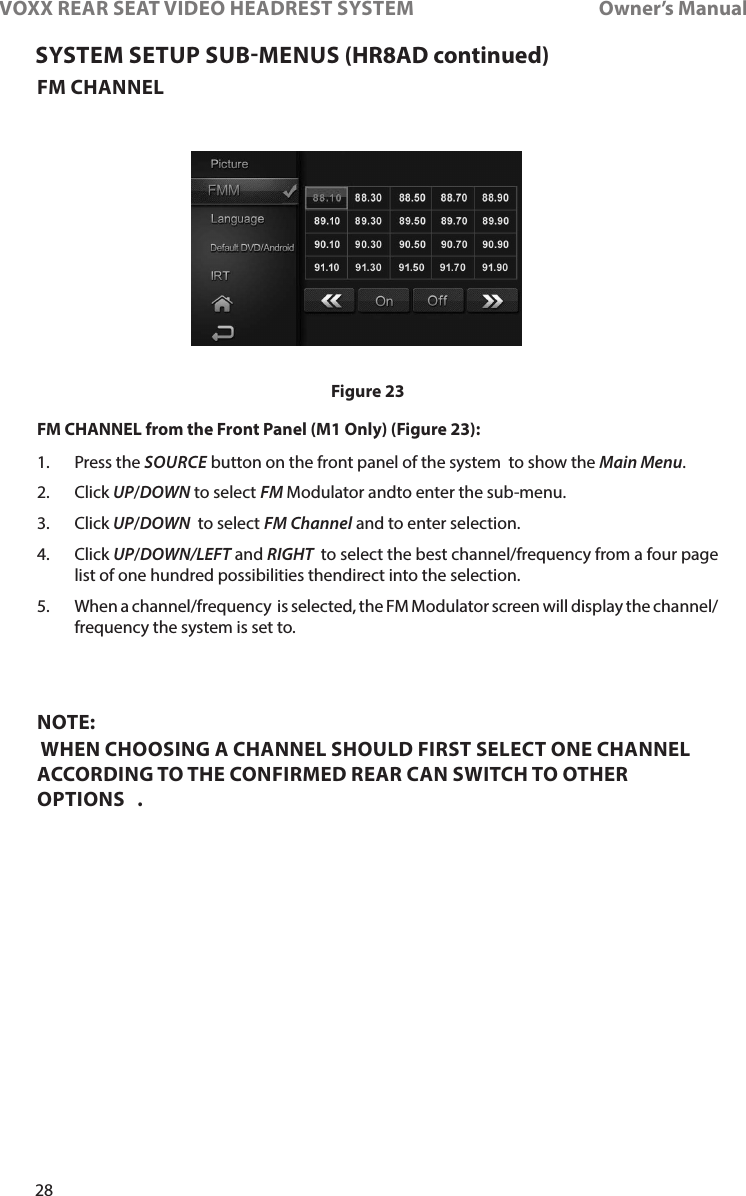

28VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualFM CHANNELFM CHANNEL from the Front Panel (M1 Only) (Figure 23):1� Press the SOURCE button on the front panel of the system to show the Main Menu� 2� Click UP/DOWN to select FM Modulator andto enter the sub-menu�3� Click UP/DOWN to select FM Channel and to enter selection� 4� Click UP/DOWN/LEFT and RIGHT to select the best channel/frequency from a four page list of one hundred possibilities thendirect into the selection� 5� When a channel/frequency is selected, the FM Modulator screen will display the channel/frequency the system is set to� NOTE: WHEN CHOOSING A CHANNEL SHOULD FIRST SELECT ONE CHANNEL ACCORDING TO THE CONFIRMED REAR CAN SWITCH TO OTHER OPTIONS .SYSTEM SETUP SUBMENUS (HR8AD continued)Figure 23

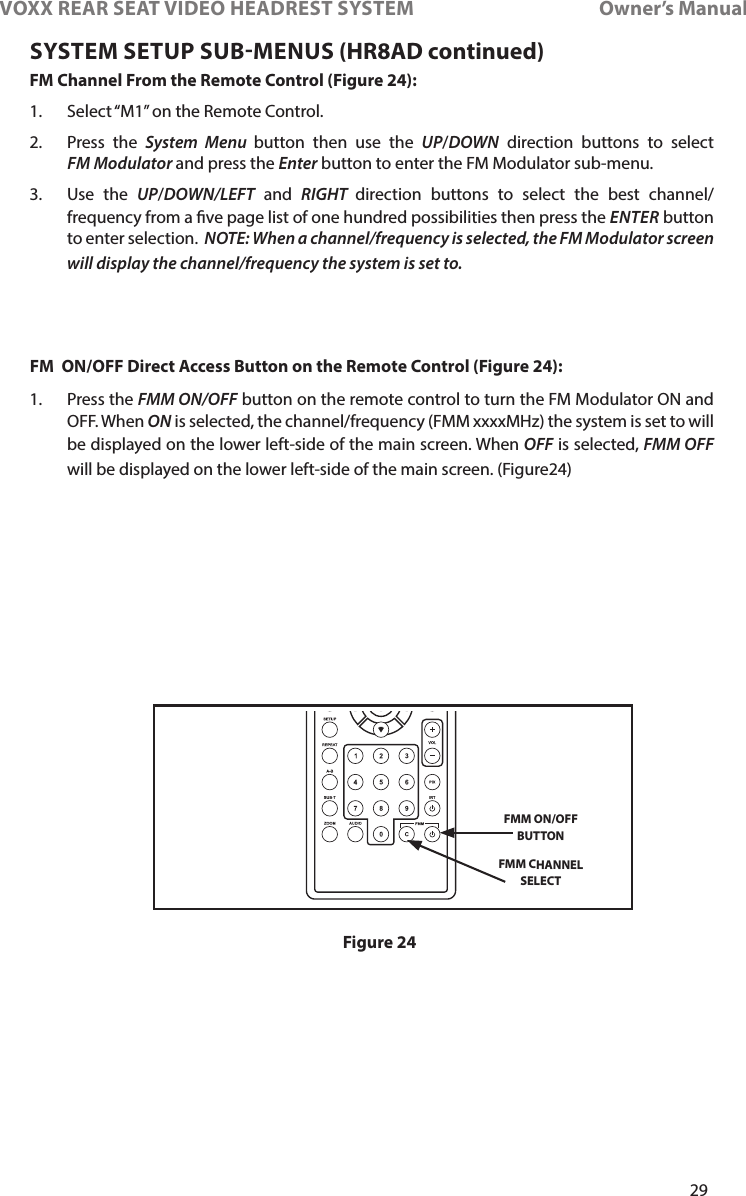

29VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualFM Channel From the Remote Control (Figure 24):1� Select “M1” on the Remote Control�2� Press the System Menu button then use the UP/DOWN direction buttons to select FM Modulator and press the Enter button to enter the FM Modulator sub-menu�3� Use the UP/DOWN/LEFT and RIGHT direction buttons to select the best channel/frequency from a ve page list of one hundred possibilities then press the ENTER button to enter selection� NOTE: When a channel/frequency is selected, the FM Modulator screen will display the channel/frequency the system is set to. FM ON/OFF Direct Access Button on the Remote Control (Figure 24): 1� Press the FMM ON/OFF button on the remote control to turn the FM Modulator ON and OFF� When ON is selected, the channel/frequency (FMM xxxxMHz) the system is set to will be displayed on the lower left-side of the main screen� When OFF is selected, FMM OFF will be displayed on the lower left-side of the main screen� (Figure24)FMM ON/OFF BUTTONFMM CHANNEL SELECTFigure 24SYSTEM SETUP SUBMENUS (HR8AD continued)

30VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualLANGUAGE LANGUAGE from the Front Panel (M1 and M2) (Figure 25):1� Click the SOURCE button on the front panel of the system to show the Main Menu�2� Click UP/DOWN to select Language and enter the sub-menu�3� Click UP/DOWN direction buttons to select the desired language then to save the setting� LANGUAGE from the Remote Control 4� Select “M1” on the Remote Control�5� Press the SYSTEM MENU button then use the UP/DOWN direction buttons to select Language and press the OK button to enter the Language sub-menu�6� Use the UP/DOWN direction buttons to select the desired language then press the OK button to save the setting�SYSTEM SETUP SUBMENUS (HR8AD continued)Figure 25

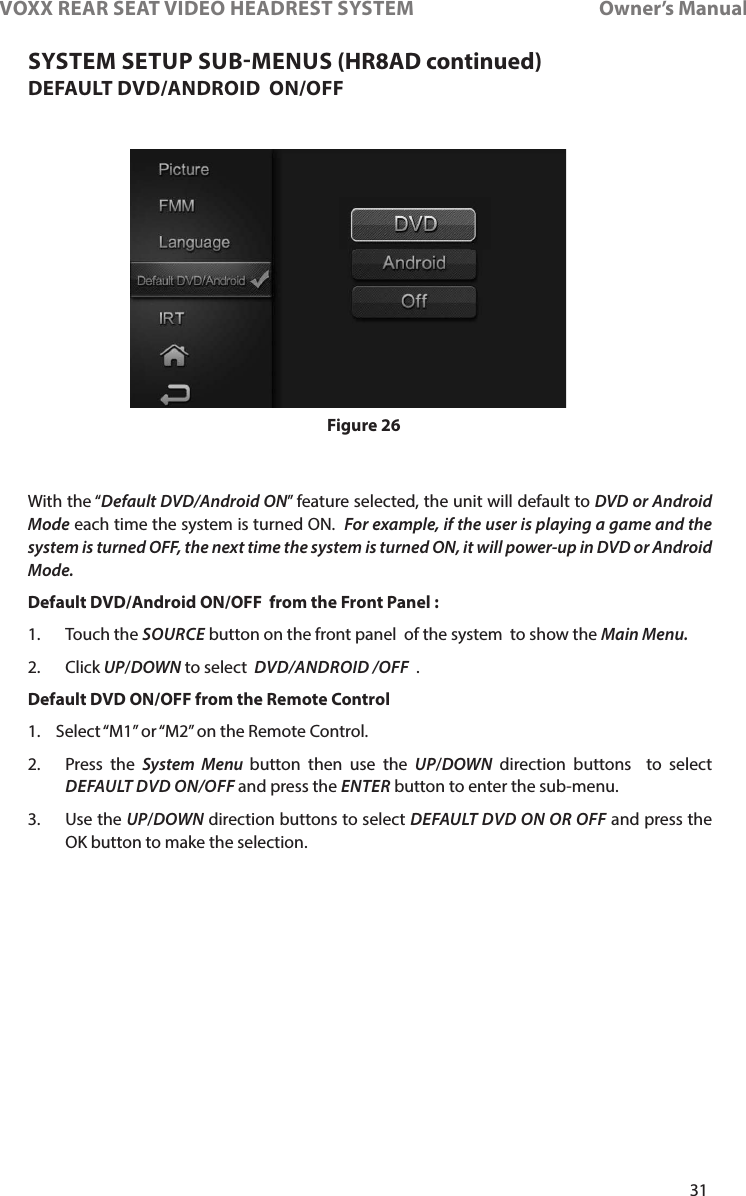

31VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualDEFAULT DVD/ANDROID ON/OFFWith the “Default DVD/Android ON” feature selected, the unit will default to DVD or Android Mode each time the system is turned ON� For example, if the user is playing a game and the system is turned OFF, the next time the system is turned ON, it will power-up in DVD or Android Mode. Default DVD/Android ON/OFF from the Front Panel :1� Touch the SOURCE button on the front panel of the system to show the Main Menu. 2� Click UP/DOWN to select DVD/ANDROID /OFF � Default DVD ON/OFF from the Remote Control 1� Select “M1” or “M2” on the Remote Control�2� Press the System Menu button then use the UP/DOWN direction buttons to select DEFAULT DVD ON/OFF and press the ENTER button to enter the sub-menu�3� Use the UP/DOWN direction buttons to select DEFAULT DVD ON OR OFF and press the OK button to make the selection� Figure 26SYSTEM SETUP SUBMENUS (HR8AD continued)

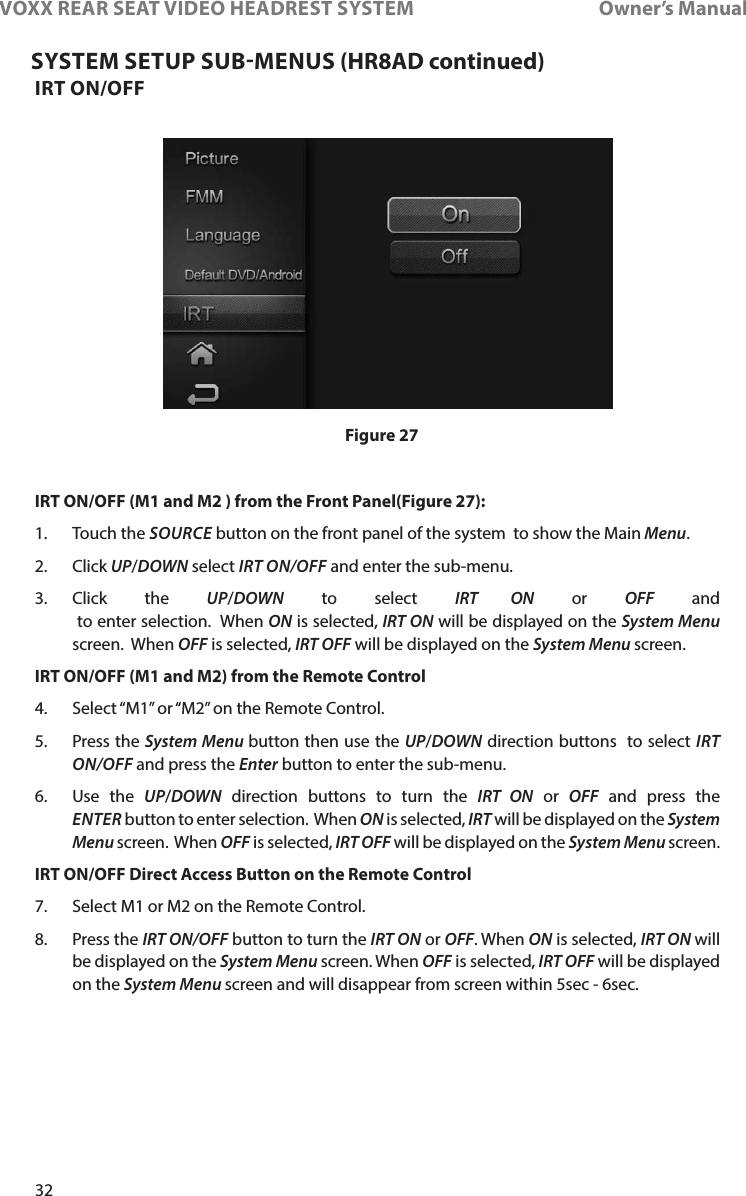

32VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualSYSTEM SETUP SUBMENUS (HR8AD continued)IRT ON/OFFIRT ON/OFF (M1 and M2 ) from the Front Panel(Figure 27):1� Touch the SOURCE button on the front panel of the system to show the Main Menu� 2� Click UP/DOWN select IRT ON/OFF and enter the sub-menu� 3� Click the UP/DOWN to select IRT ON or OFF and to enter selection� When ON is selected, IRT ON will be displayed on the System Menu screen� When OFF is selected, IRT OFF will be displayed on the System Menu screen�IRT ON/OFF (M1 and M2) from the Remote Control 4� Select “M1” or “M2” on the Remote Control�5� Press the System Menu button then use the UP/DOWN direction buttons to select IRT ON/OFF and press the Enter button to enter the sub-menu�6� Use the UP/DOWN direction buttons to turn the IRT ON or OFF and press the ENTER button to enter selection� When ON is selected, IRT will be displayed on the System Menu screen� When OFF is selected, IRT OFF will be displayed on the System Menu screen�IRT ON/OFF Direct Access Button on the Remote Control 7� Select M1 or M2 on the Remote Control�8� Press the IRT ON/OFF button to turn the IRT ON or OFF� When ON is selected, IRT ON will be displayed on the System Menu screen� When OFF is selected, IRT OFF will be displayed on the System Menu screen and will disappear from screen within 5sec - 6sec�Figure 27

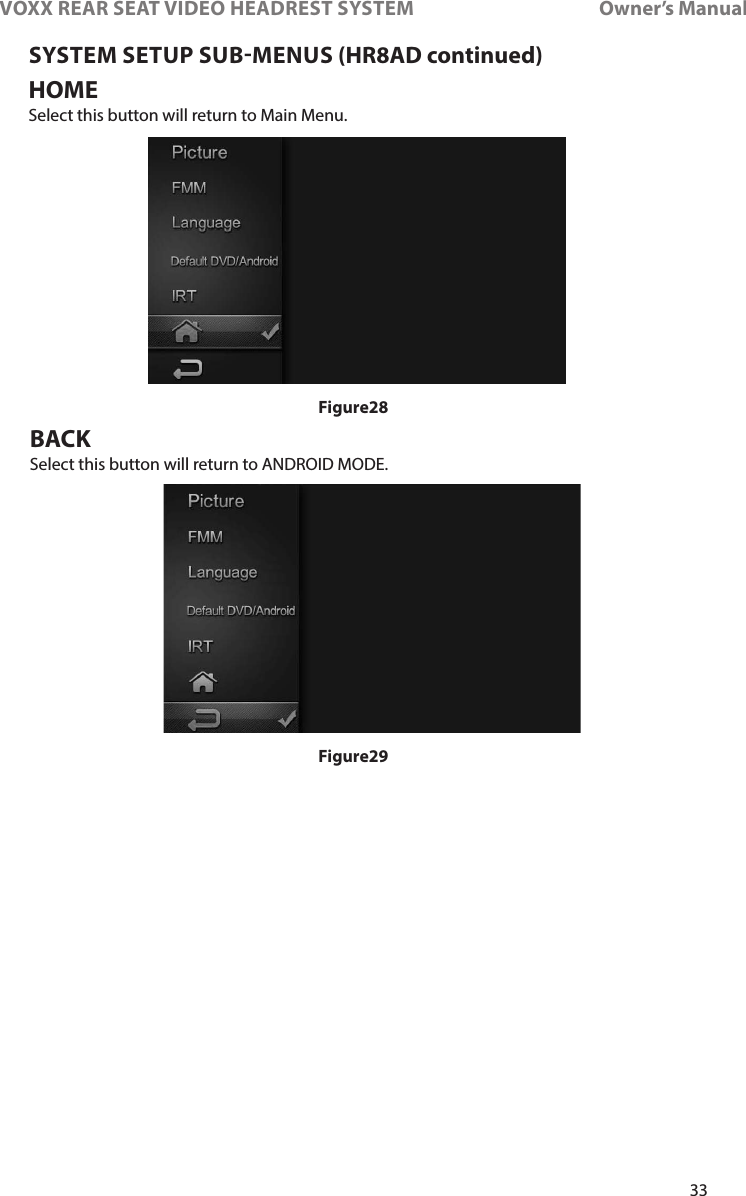

33VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualSYSTEM SETUP SUBMENUS (HR8AD continued)HOMESelect this button will return to Main Menu�BACKSelect this button will return to ANDROID MODE�Figure28Figure29

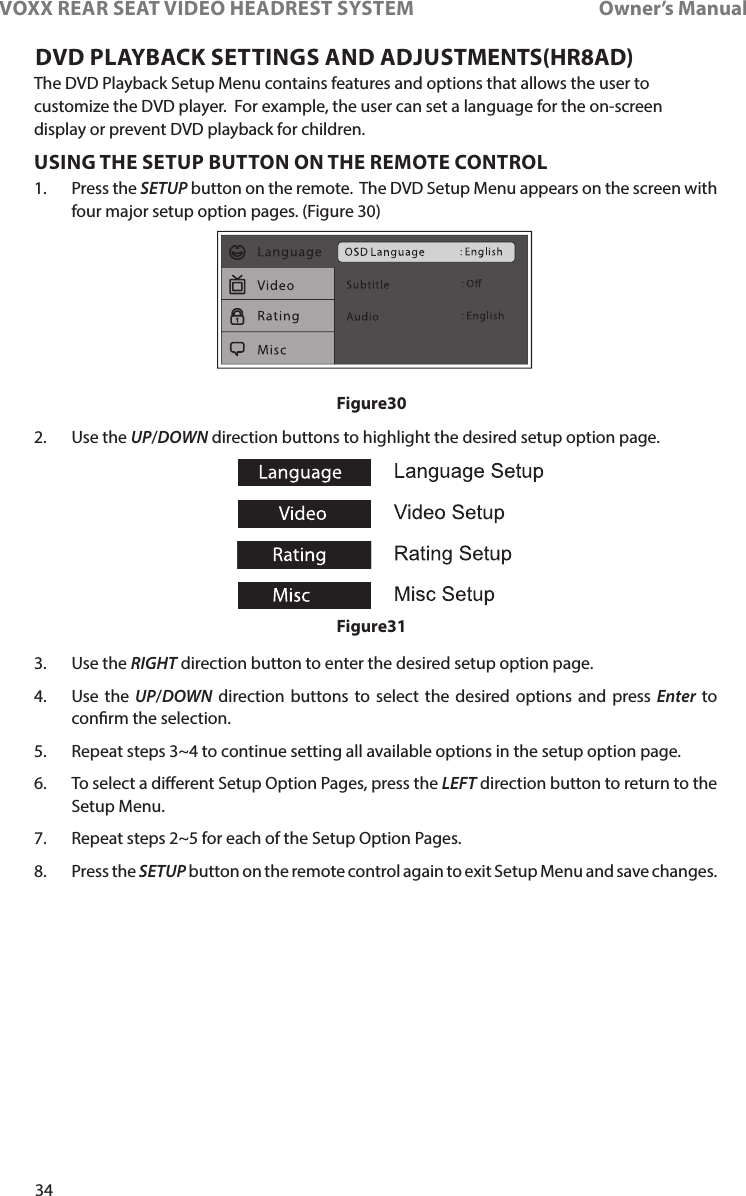

34VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualThe DVD Playback Setup Menu contains features and options that allows the user to customize the DVD player� For example, the user can set a language for the on-screen display or prevent DVD playback for children�USING THE SETUP BUTTON ON THE REMOTE CONTROL1� Press the SETUP button on the remote� The DVD Setup Menu appears on the screen with four major setup option pages� (Figure 30)2� Use the UP/DOWN direction buttons to highlight the desired setup option page�3� Use the RIGHT direction button to enter the desired setup option page�4� Use the UP/DOWN direction buttons to select the desired options and press Enter to conrm the selection�5� Repeat steps 3~4 to continue setting all available options in the setup option page�6� To select a dierent Setup Option Pages, press the LEFT direction button to return to the Setup Menu�7� Repeat steps 2~5 for each of the Setup Option Pages� 8� Press the SETUP button on the remote control again to exit Setup Menu and save changes�DVD PLAYBACK SETTINGS AND ADJUSTMENTS(HR8AD)Figure30Figure31

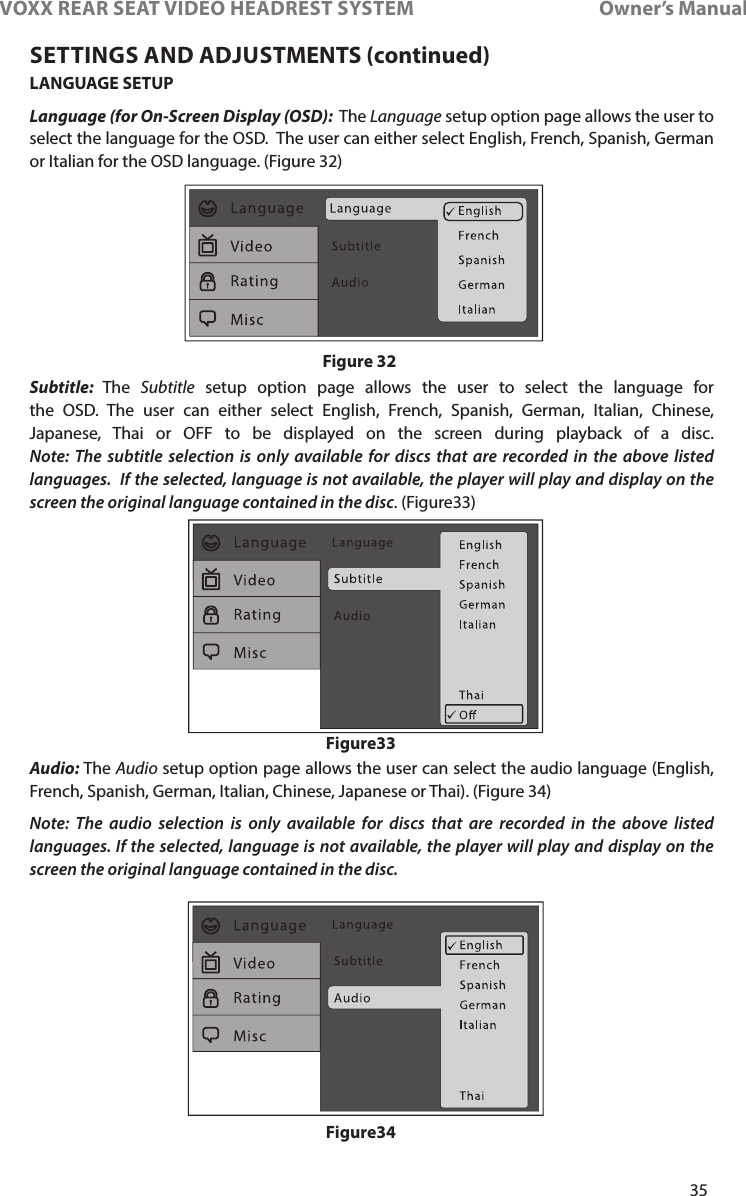

35VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualLANGUAGE SETUPLanguage (for On-Screen Display (OSD): The Language setup option page allows the user to select the language for the OSD� The user can either select English, French, Spanish, German or Italian for the OSD language� (Figure 32)Subtitle: The Subtitle setup option page allows the user to select the language for the OSD� The user can either select English, French, Spanish, German, Italian, Chinese, Japanese, Thai or OFF to be displayed on the screen during playback of a disc� Note: The subtitle selection is only available for discs that are recorded in the above listed languages. If the selected, language is not available, the player will play and display on the screen the original language contained in the disc� (Figure33)Audio: The Audio setup option page allows the user can select the audio language (English, French, Spanish, German, Italian, Chinese, Japanese or Thai)� (Figure 34)Note: The audio selection is only available for discs that are recorded in the above listed languages. If the selected, language is not available, the player will play and display on the screen the original language contained in the disc.Figure 32Figure33Figure34SETTINGS AND ADJUSTMENTS (continued)

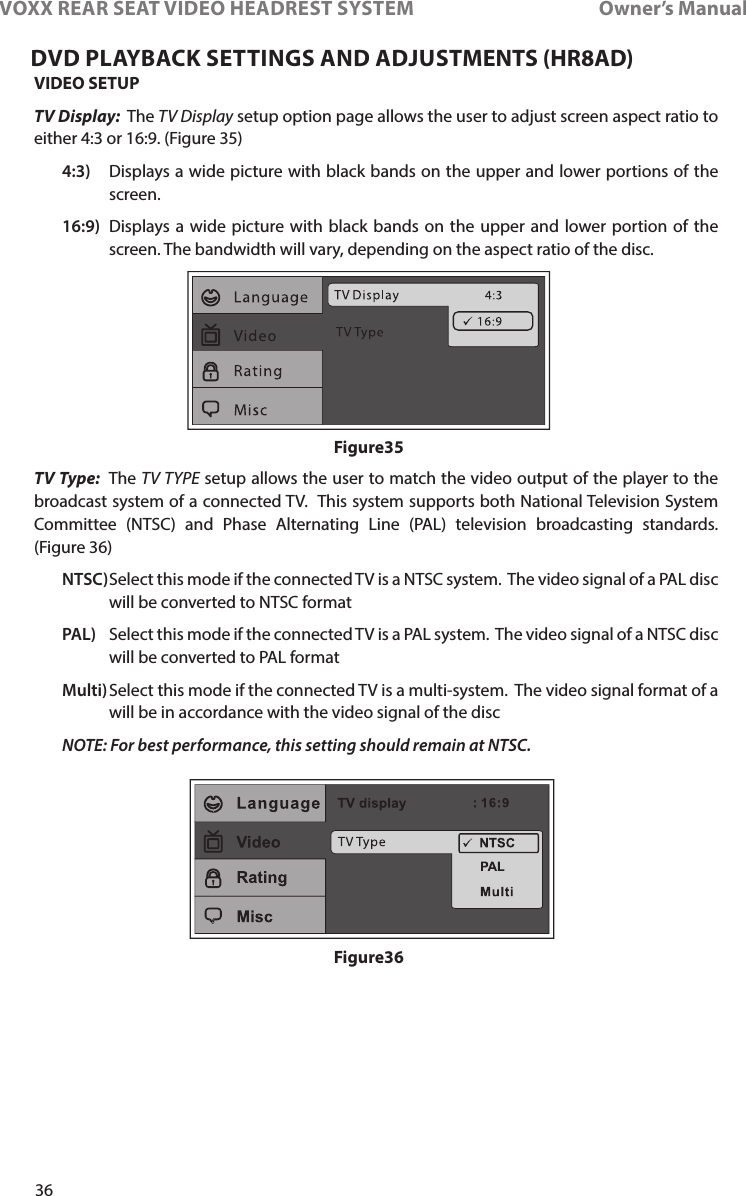

36VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualVIDEO SETUPTV Display: The TV Display setup option page allows the user to adjust screen aspect ratio to either 4:3 or 16:9� (Figure 35) 4:3) Displays a wide picture with black bands on the upper and lower portions of the screen� 16:9) Displays a wide picture with black bands on the upper and lower portion of the screen� The bandwidth will vary, depending on the aspect ratio of the disc�TV Type: The TV TYPE setup allows the user to match the video output of the player to the broadcast system of a connected TV� This system supports both National Television System Committee (NTSC) and Phase Alternating Line (PAL) television broadcasting standards� (Figure 36) NTSC) Select this mode if the connected TV is a NTSC system� The video signal of a PAL disc will be converted to NTSC format PAL) Select this mode if the connected TV is a PAL system� The video signal of a NTSC disc will be converted to PAL format Multi) Select this mode if the connected TV is a multi-system� The video signal format of a will be in accordance with the video signal of the disc NOTE: For best performance, this setting should remain at NTSC.Figure35Figure36DVD PLAYBACK SETTINGS AND ADJUSTMENTS (HR8AD)

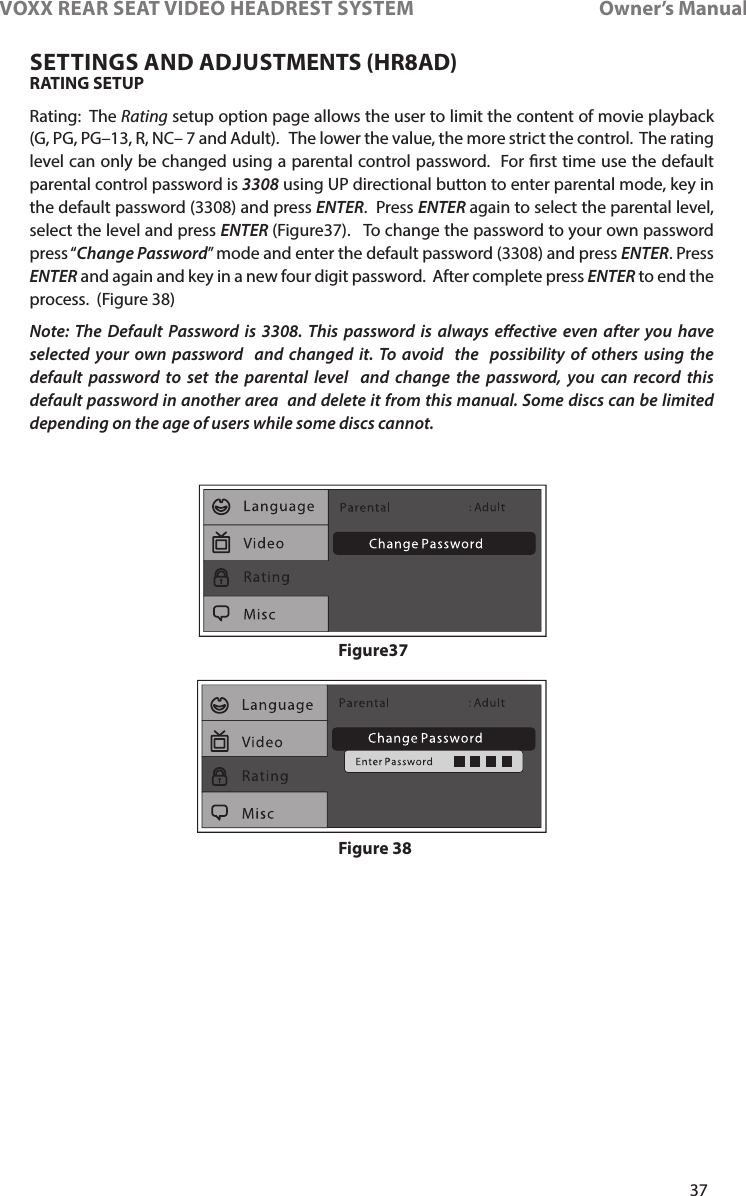

37VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualRATING SETUP Rating: The Rating setup option page allows the user to limit the content of movie playback (G, PG, PG–13, R, NC– 7 and Adult)� The lower the value, the more strict the control� The rating level can only be changed using a parental control password� For rst time use the default parental control password is 3308 using UP directional button to enter parental mode, key in the default password (3308) and press ENTER� Press ENTER again to select the parental level, select the level and press ENTER (Figure37)� To change the password to your own password press “Change Password” mode and enter the default password (3308) and press ENTER� Press ENTER and again and key in a new four digit password� After complete press ENTER to end the process� (Figure 38)Note: The Default Password is 3308. This password is always eective even after you have selected your own password and changed it. To avoid the possibility of others using the default password to set the parental level and change the password, you can record this default password in another area and delete it from this manual. Some discs can be limited depending on the age of users while some discs cannot.Figure 38Figure37SETTINGS AND ADJUSTMENTS (HR8AD)

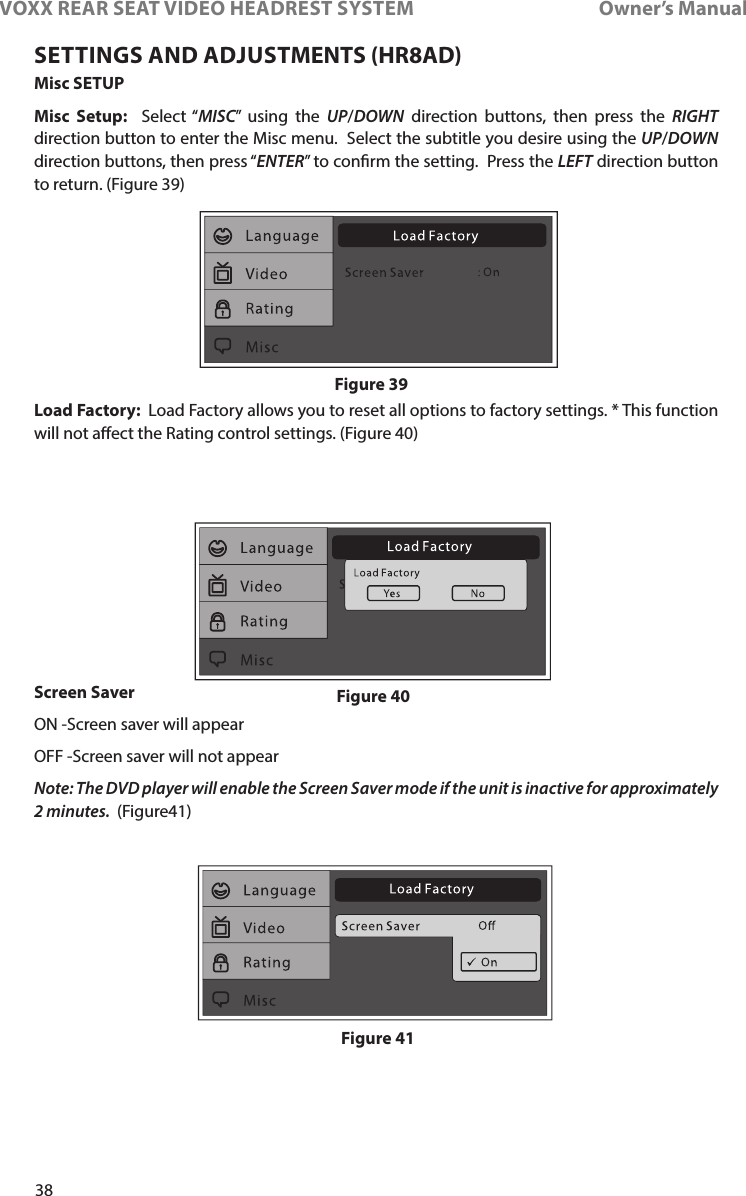

38VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualMisc SETUPMisc Setup: Select “MISC” using the UP/DOWN direction buttons, then press the RIGHT direction button to enter the Misc menu� Select the subtitle you desire using the UP/DOWN direction buttons, then press “ENTER” to conrm the setting� Press the LEFT direction button to return� (Figure 39)Load Factory: Load Factory allows you to reset all options to factory settings� * This function will not aect the Rating control settings� (Figure 40)Screen SaverON -Screen saver will appearOFF -Screen saver will not appearNote: The DVD player will enable the Screen Saver mode if the unit is inactive for approximately 2 minutes. (Figure41)SETTINGS AND ADJUSTMENTS (HR8AD)Figure 39Figure 40Figure 41

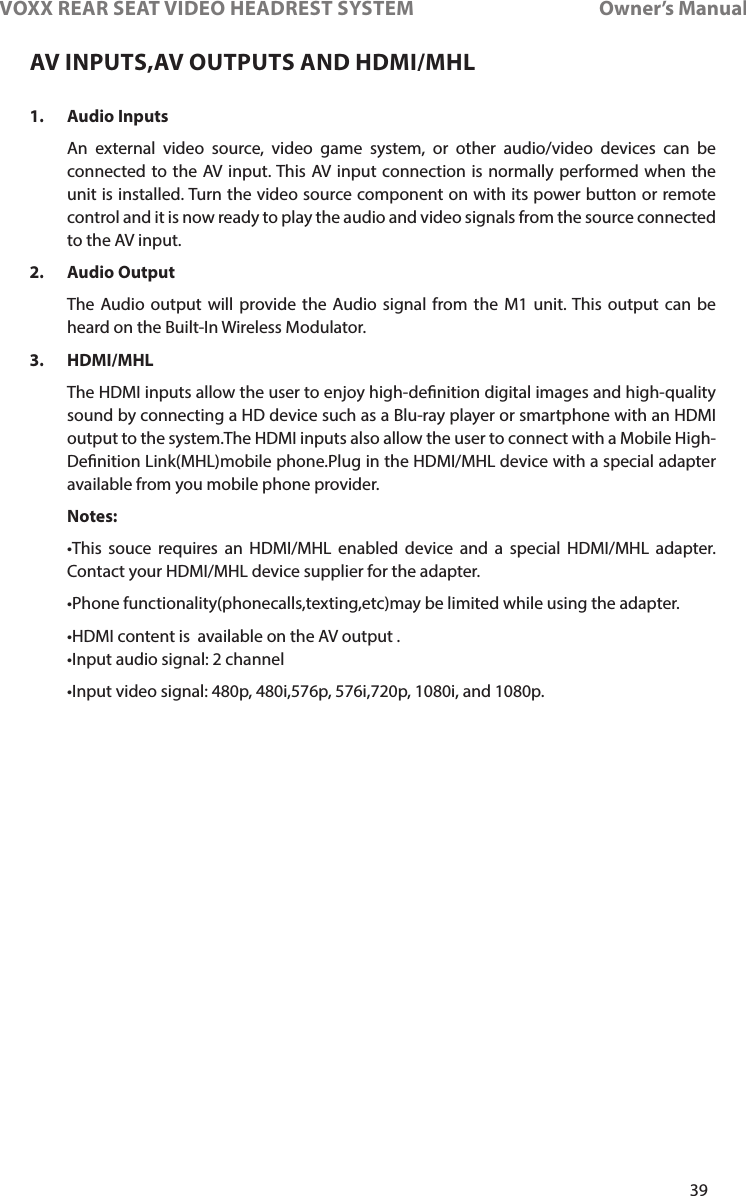

39VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual1. Audio Inputs An external video source, video game system, or other audio/video devices can be connected to the AV input� This AV input connection is normally performed when the unit is installed� Turn the video source component on with its power button or remote control and it is now ready to play the audio and video signals from the source connected to the AV input�2. Audio Output The Audio output will provide the Audio signal from the M1 unit� This output can be heard on the Built-In Wireless Modulator�3. HDMI/MHL The HDMI inputs allow the user to enjoy high-denition digital images and high-quality sound by connecting a HD device such as a Blu-ray player or smartphone with an HDMI output to the system�The HDMI inputs also allow the user to connect with a Mobile High-Denition Link(MHL)mobile phone�Plug in the HDMI/MHL device with a special adapter available from you mobile phone provider� Notes: •This souce requires an HDMI/MHL enabled device and a special HDMI/MHL adapter.Contact your HDMI/MHL device supplier for the adapter� •Phonefunctionality(phonecalls,texting,etc)maybelimitedwhileusingtheadapter. •HDMIcontentisavailableontheAVoutput. •Inputaudiosignal:2channel•Inputvideosignal:480p,480i,576p,576i,720p,1080i,and1080p.AV INPUTS,AV OUTPUTS AND HDMI/MHL

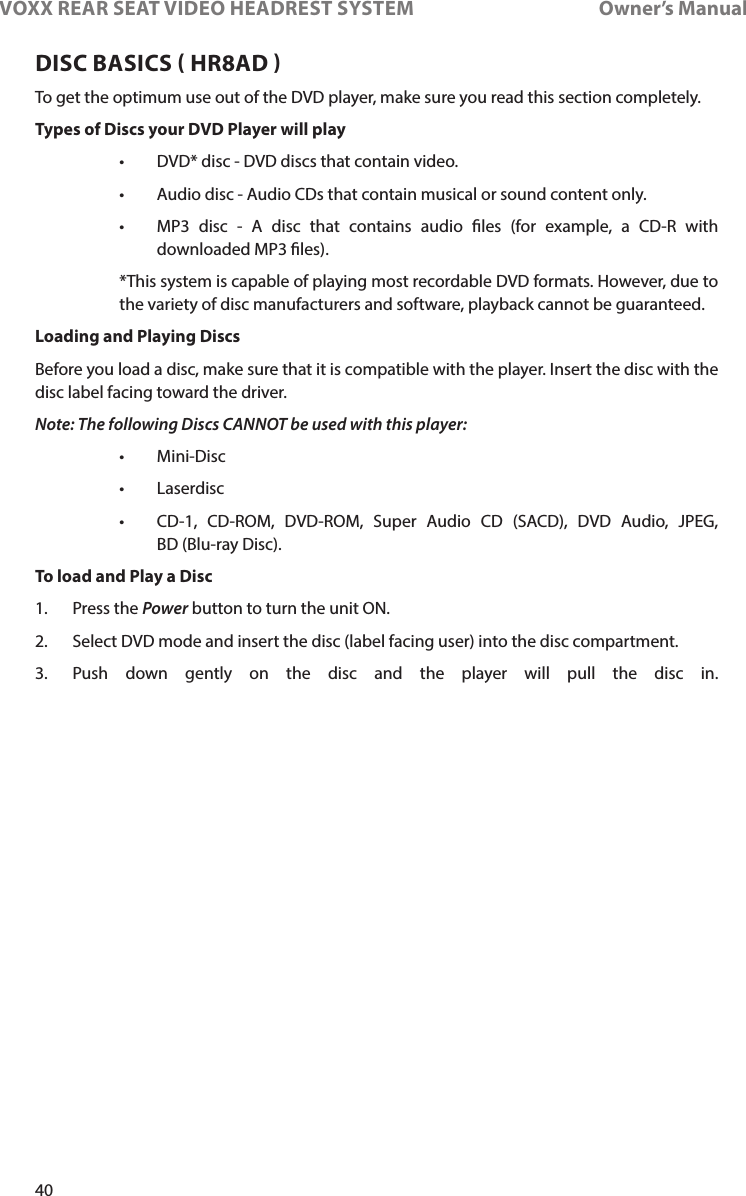

40VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualTo get the optimum use out of the DVD player, make sure you read this section completely�Types of Discs your DVD Player will play• DVD* disc - DVD discs that contain video�• Audio disc - Audio CDs that contain musical or sound content only�• MP3 disc - A disc that contains audio les (for example, a CD-R with downloaded MP3 les)�*This system is capable of playing most recordable DVD formats� However, due to the variety of disc manufacturers and software, playback cannot be guaranteed�Loading and Playing DiscsBefore you load a disc, make sure that it is compatible with the player� Insert the disc with the disc label facing toward the driver�Note: The following Discs CANNOT be used with this player:• Mini-Disc• Laserdisc• CD-1, CD-ROM, DVD-ROM, Super Audio CD (SACD), DVD Audio, JPEG, BD (Blu-ray Disc)� To load and Play a Disc1� Press the Power button to turn the unit ON�2� Select DVD mode and insert the disc (label facing user) into the disc compartment�3� Push down gently on the disc and the player will pull the disc in� DISC BASICS  HR8AD 

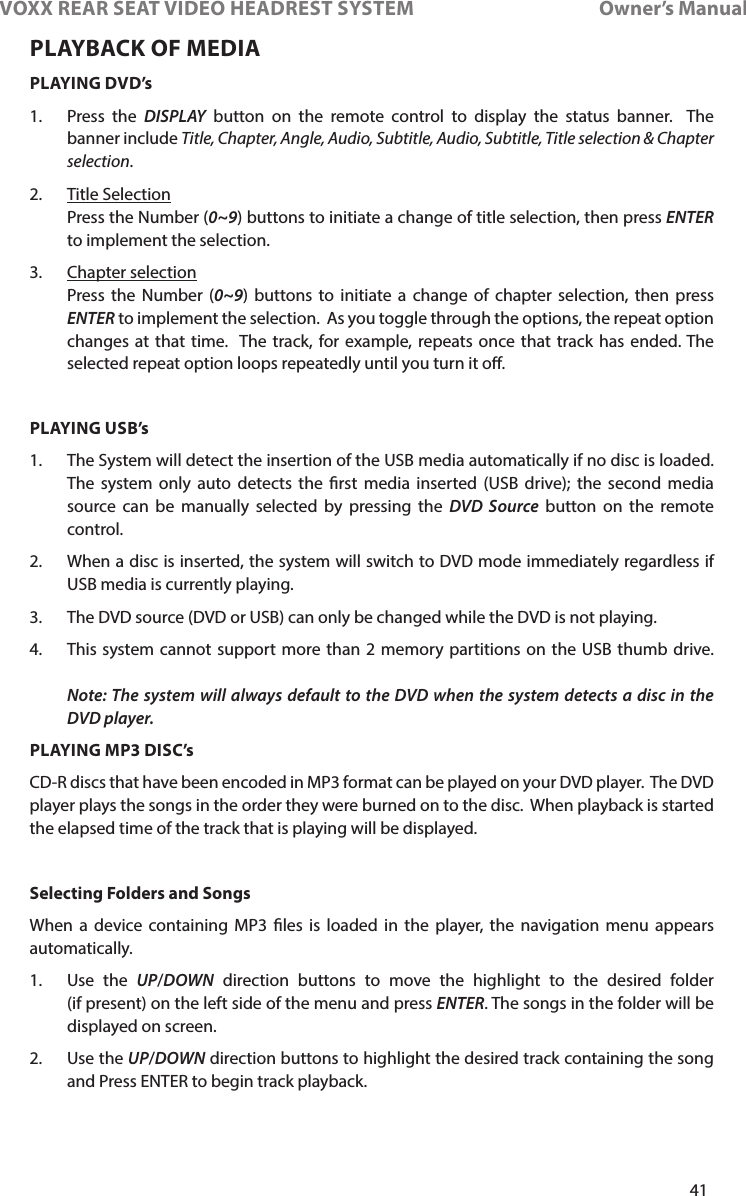

41VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualPLAYBACK OF MEDIAPLAYING DVD’s1� Press the DISPLAY button on the remote control to display the status banner� The banner include Title, Chapter, Angle, Audio, Subtitle, Audio, Subtitle, Title selection & Chapter selection�2� Title Selection Press the Number (0~9) buttons to initiate a change of title selection, then press ENTER to implement the selection�3� Chapter selection Press the Number (0~9) buttons to initiate a change of chapter selection, then press ENTER to implement the selection� As you toggle through the options, the repeat option changes at that time� The track, for example, repeats once that track has ended� The selected repeat option loops repeatedly until you turn it o�PLAYING USB’s1� The System will detect the insertion of the USB media automatically if no disc is loaded� The system only auto detects the rst media inserted (USB drive); the second media source can be manually selected by pressing the DVD Source button on the remote control�2� When a disc is inserted, the system will switch to DVD mode immediately regardless if USB media is currently playing�3� The DVD source (DVD or USB) can only be changed while the DVD is not playing�4� This system cannot support more than 2 memory partitions on the USB thumb drive� Note: The system will always default to the DVD when the system detects a disc in the DVD player.PLAYING MP3 DISC’sCD-R discs that have been encoded in MP3 format can be played on your DVD player� The DVD player plays the songs in the order they were burned on to the disc� When playback is started the elapsed time of the track that is playing will be displayed�Selecting Folders and SongsWhen a device containing MP3 les is loaded in the player, the navigation menu appears automatically�1� Use the UP/DOWN direction buttons to move the highlight to the desired folder (if present) on the left side of the menu and press ENTER� The songs in the folder will be displayed on screen� 2� Use the UP/DOWN direction buttons to highlight the desired track containing the song and Press ENTER to begin track playback�

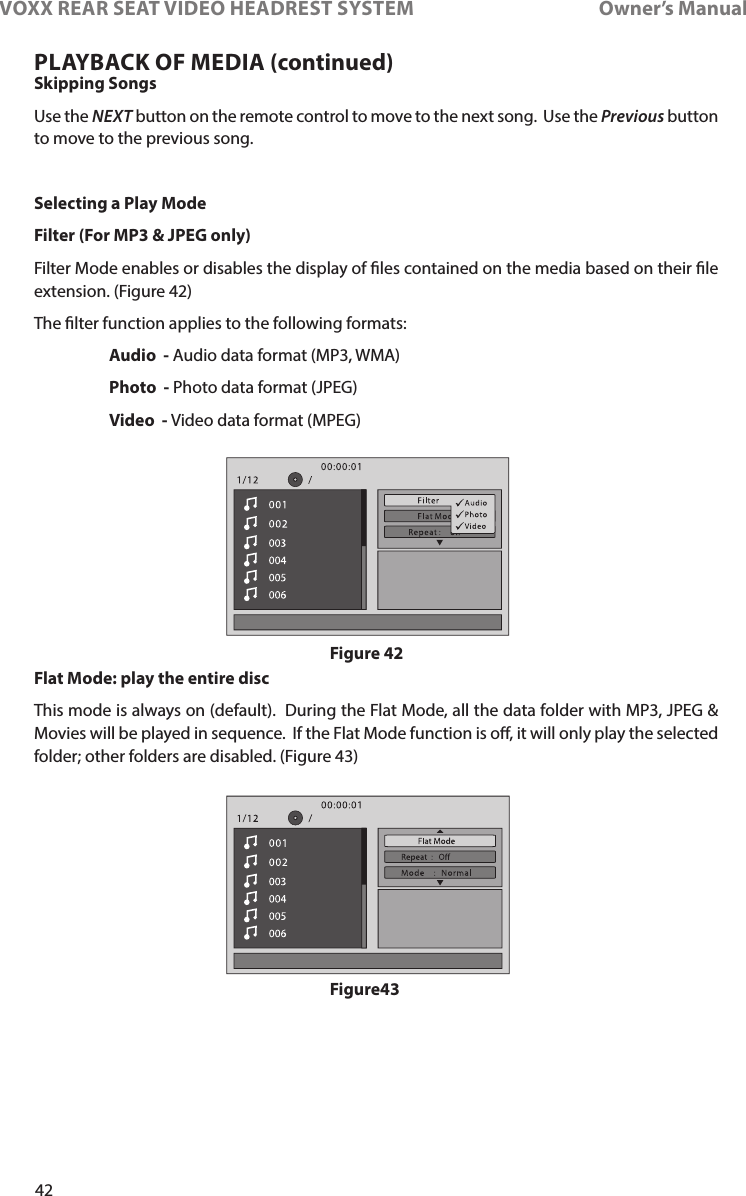

42VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualSkipping SongsUse the NEXT button on the remote control to move to the next song� Use the Previous button to move to the previous song�Selecting a Play ModeFilter (For MP3 & JPEG only)Filter Mode enables or disables the display of les contained on the media based on their le extension� (Figure 42)The lter function applies to the following formats: Audio - Audio data format (MP3, WMA) Photo - Photo data format (JPEG) Video - Video data format (MPEG)Flat Mode: play the entire discThis mode is always on (default)� During the Flat Mode, all the data folder with MP3, JPEG & Movies will be played in sequence� If the Flat Mode function is o, it will only play the selected folder; other folders are disabled� (Figure 43)PLAYBACK OF MEDIA (continued)Figure 42Figure43

43VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualRepeat: Play Repetitively Repeat function has 4 options : O, Single, Folder and All� Move cursor to Repeat Function and press ENTER, each time ENTER is pressed the unit will cycle through the available options (O/Single/Folder and All are displayed in that order)� Repeat default is OFF; (Figure44)O Turn o repeat function Single Repeat the song being played until STOP is pressed�Folder Play all songs in a folder repetitivelyAll Play all songs on the disc repetitivelyMode: Play ModeThe Mode function has 4 options: Normal, Shue, Random and Music Intro� Move cursor to the Mode function area and press ENTER repeatedly till the desired mode is displayed� Normal/Shue/Random/Music Intro are displayed in that order� The Mode function default is Normal� (Figure45)Normal: Play all songs in folder once�Shue: Play songs in a folder in a shue order� Each song in the folder is played only once�Random: Play songs in a folder in a random order� Each song in a folder will only be played once�Music Intro: Play each song in order in the folder for 10 seconds The purpose of the “Music Intro” function is to provide the user with a sample of each song for 10 seconds, thereby making it easy to select and listen to a favorite song�Figure 44Figure45PLAYBACK OF MEDIA continued

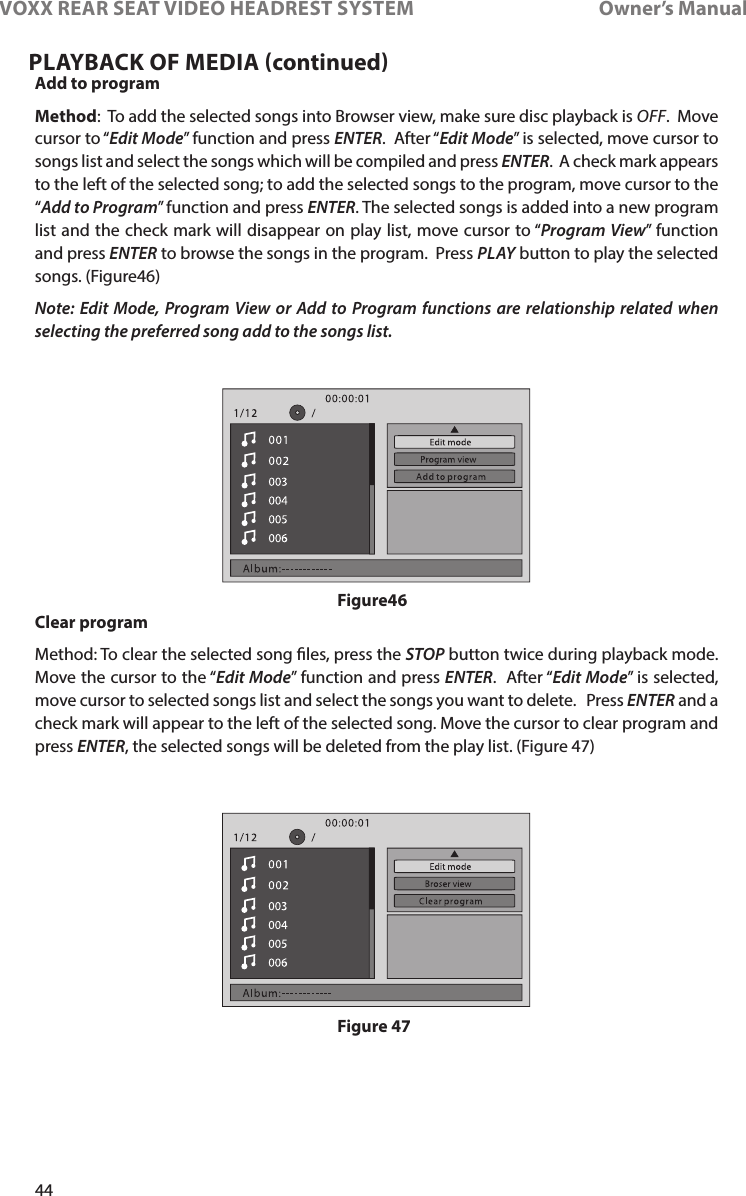

44VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualAdd to programMethod: To add the selected songs into Browser view, make sure disc playback is OFF� Move cursor to “Edit Mode” function and press ENTER� After “Edit Mode” is selected, move cursor to songs list and select the songs which will be compiled and press ENTER� A check mark appears to the left of the selected song; to add the selected songs to the program, move cursor to the “Add to Program” function and press ENTER� The selected songs is added into a new program list and the check mark will disappear on play list, move cursor to “Program View” function and press ENTER to browse the songs in the program� Press PLAY button to play the selected songs� (Figure46)Note: Edit Mode, Program View or Add to Program functions are relationship related when selecting the preferred song add to the songs list.Clear programMethod: To clear the selected song les, press the STOP button twice during playback mode� Move the cursor to the “Edit Mode” function and press ENTER� After “Edit Mode” is selected, move cursor to selected songs list and select the songs you want to delete� Press ENTER and a check mark will appear to the left of the selected song� Move the cursor to clear program and press ENTER, the selected songs will be deleted from the play list� (Figure 47)PLAYBACK OF MEDIA continuedFigure46Figure 47

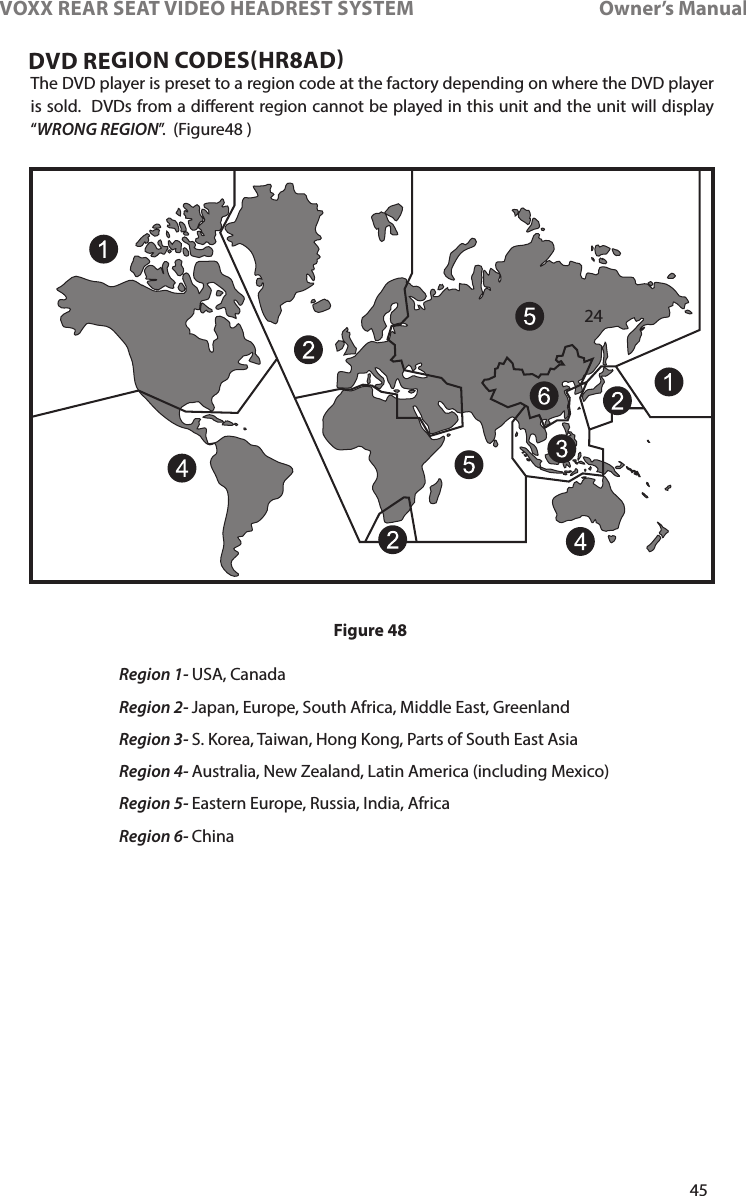

45VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualThe DVD player is preset to a region code at the factory depending on where the DVD player is sold� DVDs from a dierent region cannot be played in this unit and the unit will display “WRONG REGION”� (Figure48 )Region 1- USA, CanadaRegion 2- Japan, Europe, South Africa, Middle East, GreenlandRegion 3- S� Korea, Taiwan, Hong Kong, Parts of South East AsiaRegion 4- Australia, New Zealand, Latin America (including Mexico)Region 5- Eastern Europe, Russia, India, AfricaRegion 6- ChinaDVD REGION CODESHR8ADFigure 4824

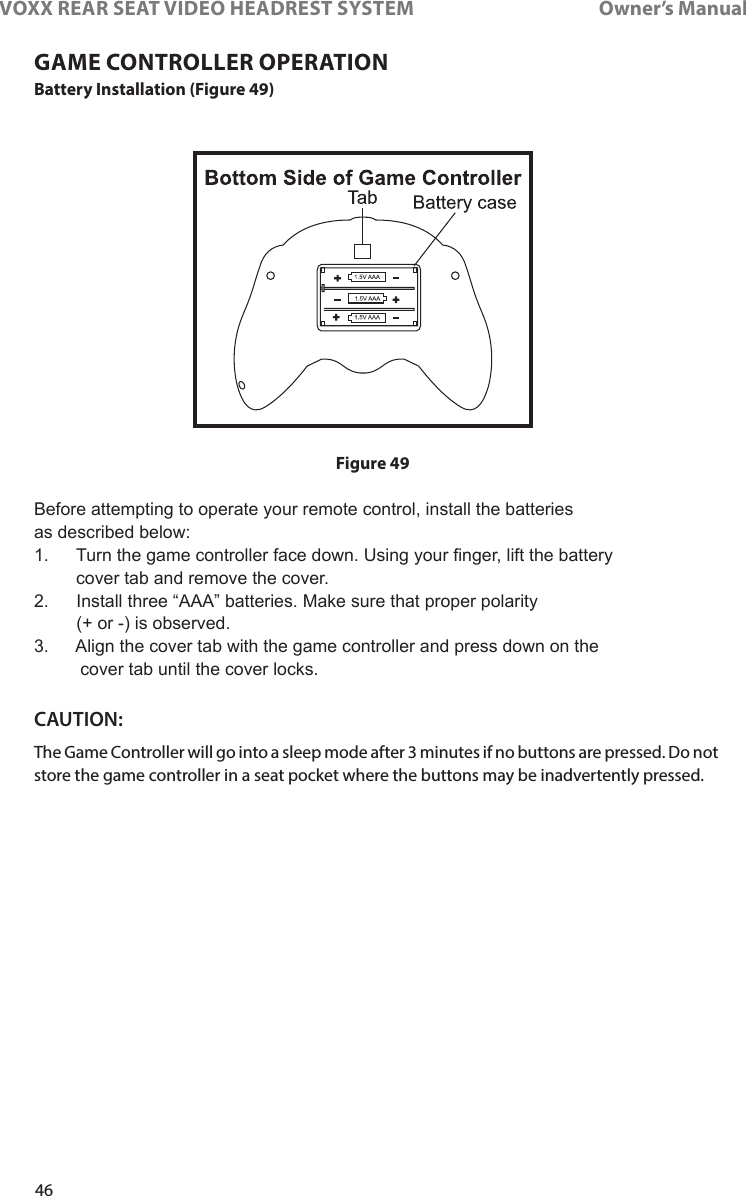

46VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualBattery Installation (Figure 49) Before attempting to operate your remote control, install the batteries as described below:1. Turn the game controller face down. Using your nger, lift the battery cover tab and remove the cover.2. Install three “AAA” batteries. Make sure that proper polarity (+ or -) is observed.3. Align the cover tab with the game controller and press down on the cover tab until the cover locks.CAUTION: The Game Controller will go into a sleep mode after 3 minutes if no buttons are pressed� Do not store the game controller in a seat pocket where the buttons may be inadvertently pressed�GAME CONTROLLER OPERATIONFigure 49

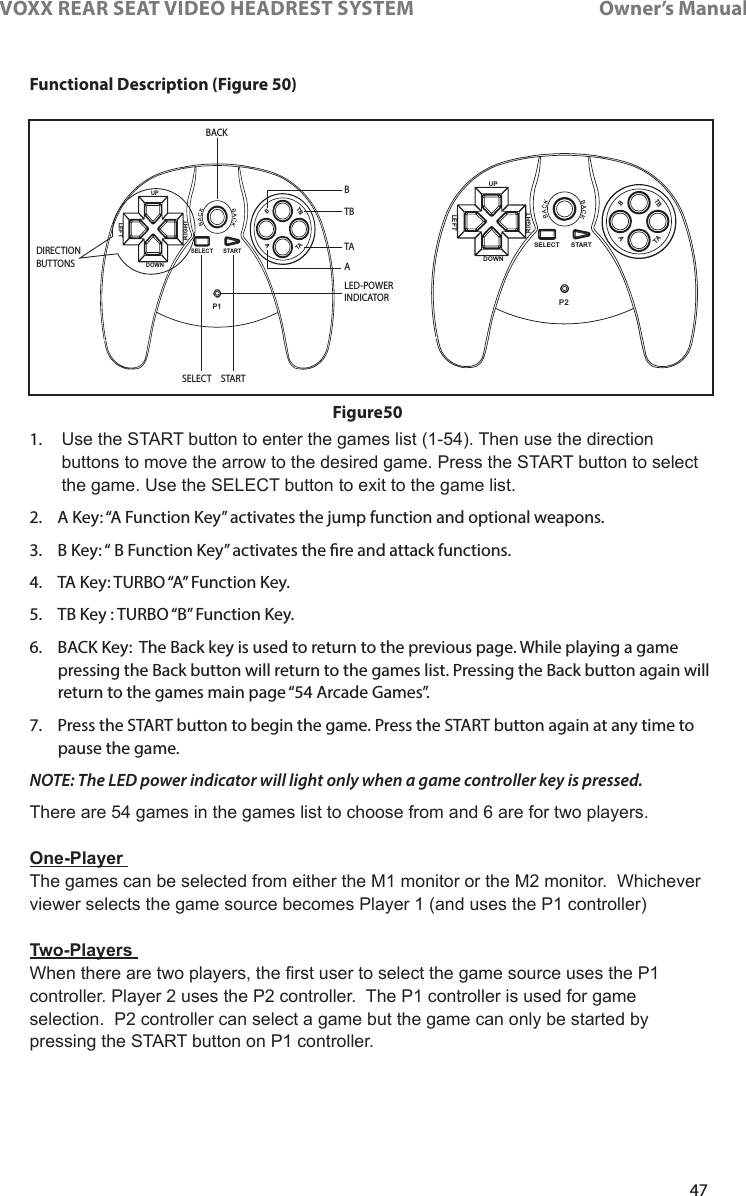

47VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualUPDOWNLEFTRIGHTSELECTSTA RTBATBTAP1STARTSELECTDIRECTION BUTTONSLED-POWER INDICATORATATBBACKBUPDOWNLEFTRIGHTSELECTSTARTBATBTAP2Functional Description (Figure 50)1� Use the START button to enter the games list (1-54). Then use the direction buttons to move the arrow to the desired game. Press the START button to select the game. Use the SELECT button to exit to the game list. 2� A Key: “A Function Key” activates the jump function and optional weapons�3� B Key: “ B Function Key” activates the re and attack functions�4� TA Key: TURBO “A” Function Key�5� TB Key : TURBO “B” Function Key�6� BACK Key: The Back key is used to return to the previous page� While playing a game pressing the Back button will return to the games list� Pressing the Back button again will return to the games main page “54 Arcade Games”�7� Press the START button to begin the game� Press the START button again at any time to pause the game�NOTE: The LED power indicator will light only when a game controller key is pressed.There are 54 games in the games list to choose from and 6 are for two players.One-Player The games can be selected from either the M1 monitor or the M2 monitor. Whichever viewer selects the game source becomes Player 1 (and uses the P1 controller) Two-Players When there are two players, the rst user to select the game source uses the P1 controller. Player 2 uses the P2 controller. The P1 controller is used for game selection. P2 controller can select a game but the game can only be started by pressing the START button on P1 controller.Figure50

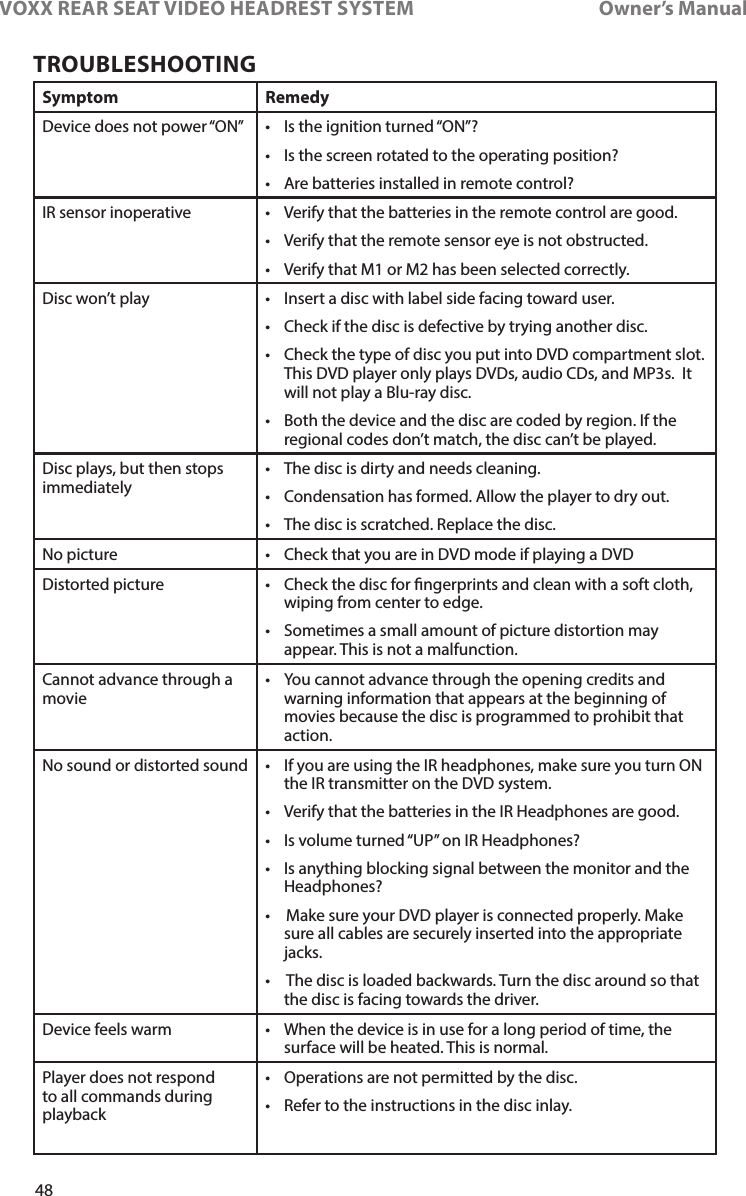

48VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualTROUBLESHOOTINGSymptom RemedyDevice does not power “ON” • Is the ignition turned “ON”?• Is the screen rotated to the operating position?• Are batteries installed in remote control?IR sensor inoperative • Verify that the batteries in the remote control are good�• Verify that the remote sensor eye is not obstructed�• Verify that M1 or M2 has been selected correctly�Disc won’t play • Insert a disc with label side facing toward user�• Check if the disc is defective by trying another disc�• Check the type of disc you put into DVD compartment slot� This DVD player only plays DVDs, audio CDs, and MP3s� It will not play a Blu-ray disc�• Both the device and the disc are coded by region� If the regional codes don’t match, the disc can’t be played� Disc plays, but then stops immediately• The disc is dirty and needs cleaning�• Condensation has formed� Allow the player to dry out�• The disc is scratched� Replace the disc�No picture • Check that you are in DVD mode if playing a DVDDistorted picture • Check the disc for ngerprints and clean with a soft cloth, wiping from center to edge�• Sometimes a small amount of picture distortion may appear� This is not a malfunction�Cannot advance through a movie• You cannot advance through the opening credits and warning information that appears at the beginning of movies because the disc is programmed to prohibit that action�No sound or distorted sound • If you are using the IR headphones, make sure you turn ON the IR transmitter on the DVD system�• Verify that the batteries in the IR Headphones are good�• Is volume turned “UP” on IR Headphones?• Is anything blocking signal between the monitor and the Headphones?• Make sure your DVD player is connected properly� Make sure all cables are securely inserted into the appropriate jacks�• The disc is loaded backwards� Turn the disc around so that the disc is facing towards the driver�Device feels warm • When the device is in use for a long period of time, the surface will be heated� This is normal�Player does not respond to all commands during playback• Operations are not permitted by the disc�• Refer to the instructions in the disc inlay�

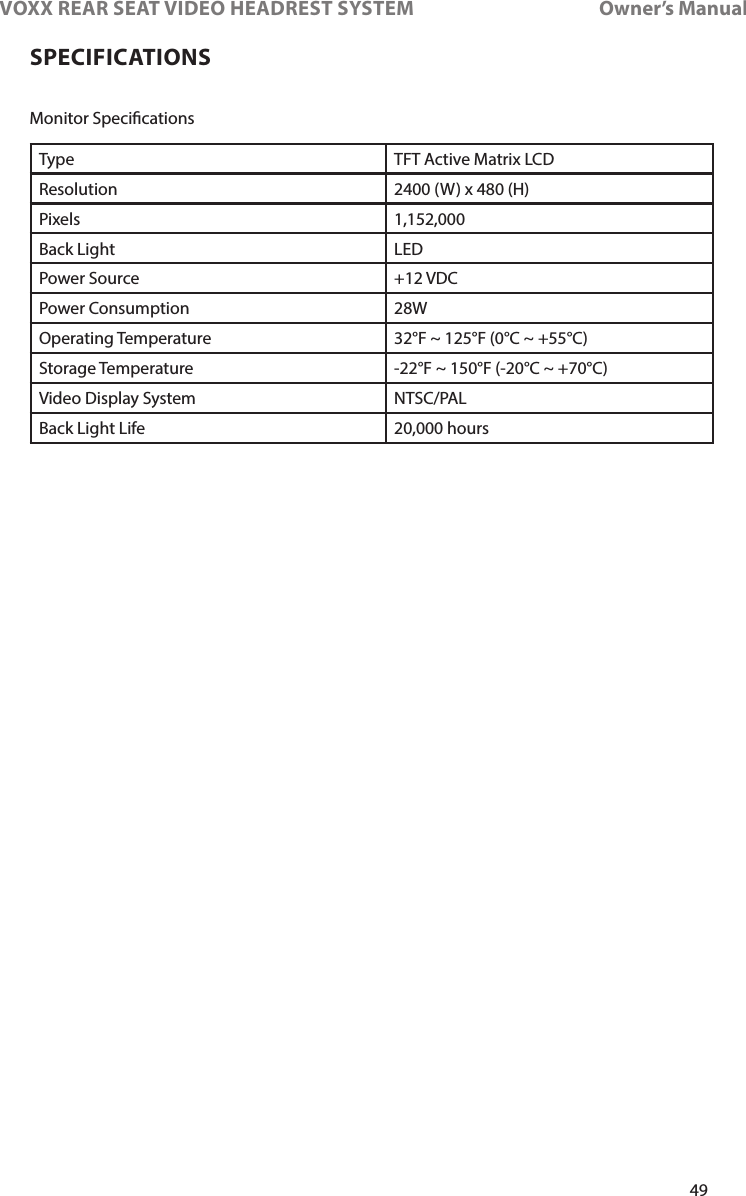

49VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualSPECIFICATIONSMonitor SpecicationsType TFT Active Matrix LCDResolution 2400 (W) x 480 (H)Pixels 1,152,000Back Light LEDPower Source +12 VDCPower Consumption 28WOperating Temperature 32°F ~ 125°F (0°C ~ +55°C)Storage Temperature -22°F ~ 150°F (-20°C ~ +70°C)Video Display System NTSC/PALBack Light Life 20,000 hours

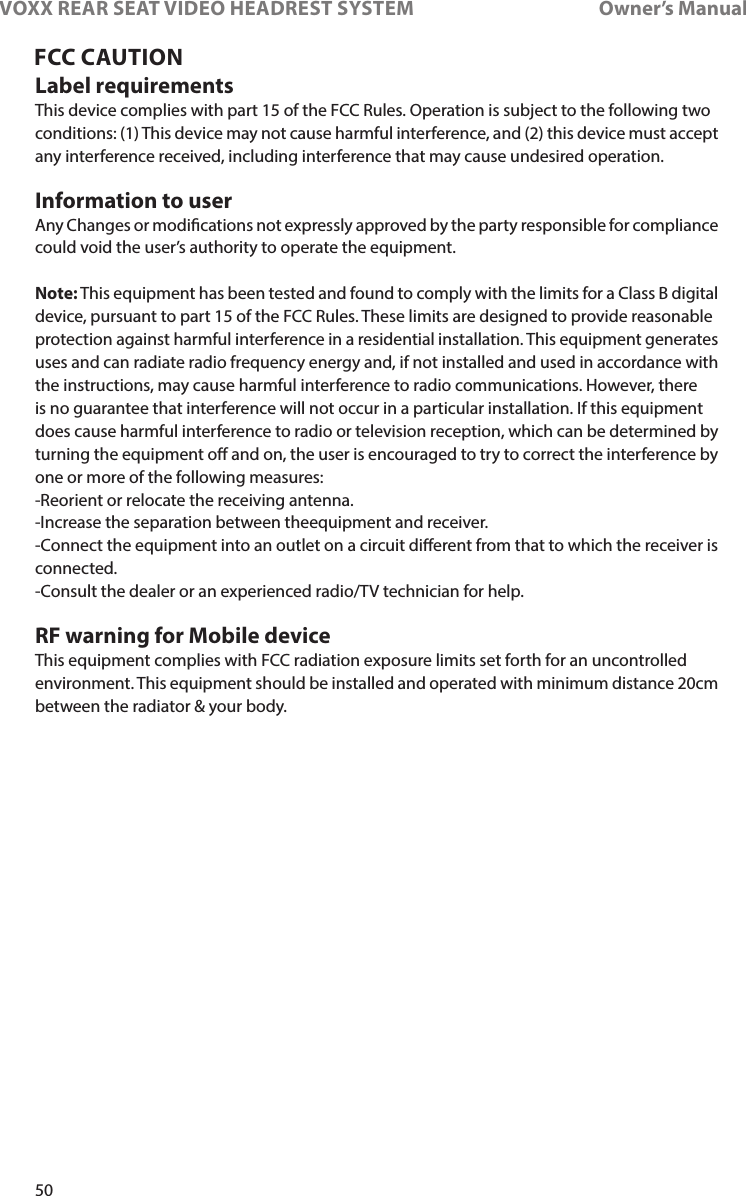

50VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualFCC CAUTIONLabel requirementsThis device complies with part 15 of the FCC Rules� Operation is subject to the following twoconditions: (1) This device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation�Information to userAny Changes or modications not expressly approved by the party responsible for compliancecould void the user’s authority to operate the equipment�Note: This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to part 15 of the FCC Rules� These limits are designed to provide reasonableprotection against harmful interference in a residential installation� This equipment generatesuses and can radiate radio frequency energy and, if not installed and used in accordance withthe instructions, may cause harmful interference to radio communications� However, thereis no guarantee that interference will not occur in a particular installation� If this equipmentdoes cause harmful interference to radio or television reception, which can be determined byturning the equipment o and on, the user is encouraged to try to correct the interference byone or more of the following measures:-Reorient or relocate the receiving antenna�-Increase the separation between theequipment and receiver�-Connect the equipment into an outlet on a circuit dierent from that to which the receiver isconnected�-Consult the dealer or an experienced radio/TV technician for help�RF warning for Mobile deviceThis equipment complies with FCC radiation exposure limits set forth for an uncontrolledenvironment� This equipment should be installed and operated with minimum distance 20cmbetween the radiator & your body�

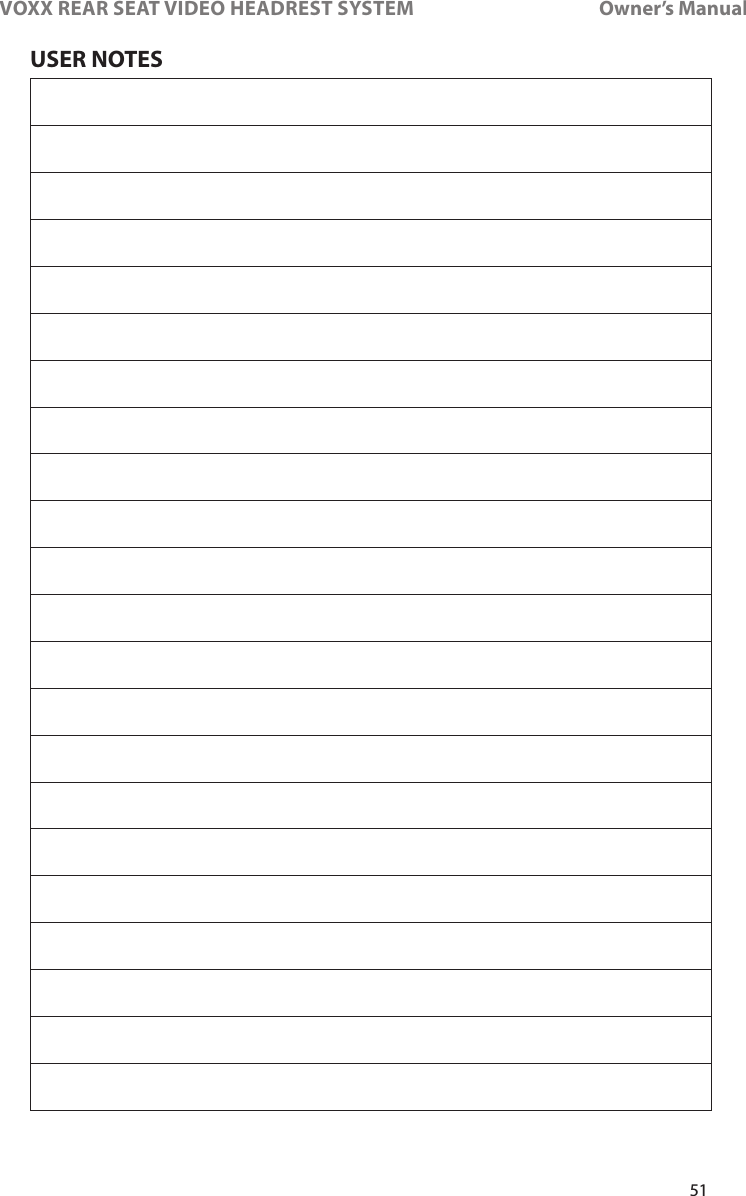

51VOXX REAR SEAT VIDEO HEADREST SYSTEM Owner’s ManualUSER NOTES

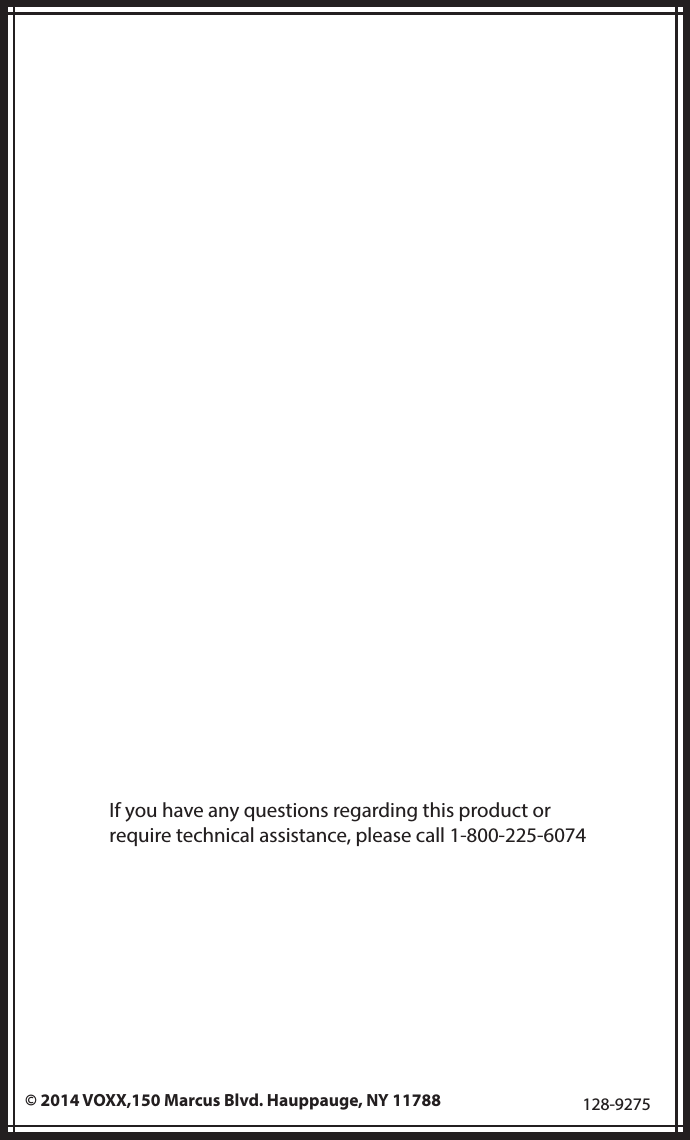

52© 2014 VOXX,150 Marcus Blvd. Hauppauge, NY 11788 128-9275If you have any questions regarding this product or require technical assistance, please call 1-800-225-6074
