Action Electronics 9R3ODM21012 Overhead LCD monitor with DVD player User Manual 91 K0 10130G IB ADVDLX10 updated

Action Electronics Co.,Ltd. Overhead LCD monitor with DVD player 91 K0 10130G IB ADVDLX10 updated

Users Manual

OPERATIONMANUALADVDLX1010.1" OVERHEAD LED BACKLITLCD MONITOR WITHDVD PLAYER128-9208R

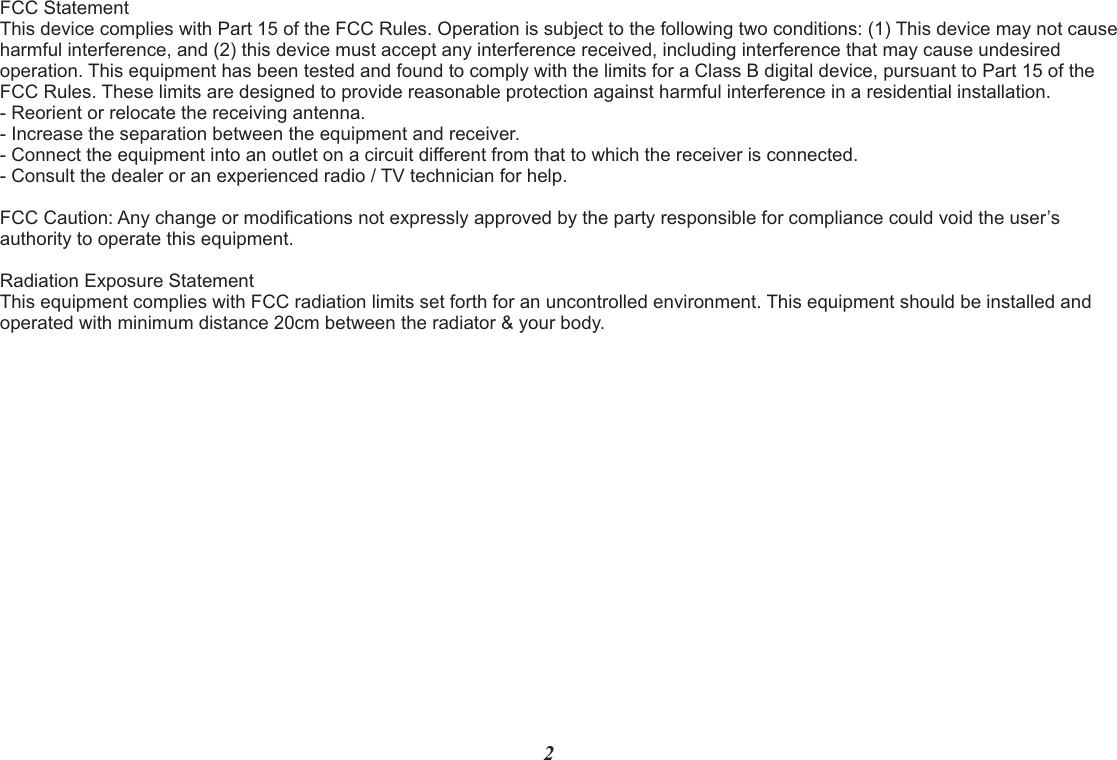

FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio / TV technician for help. FCC Caution: Any change or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Radiation Exposure Statement This equipment complies with FCC radiation limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.2

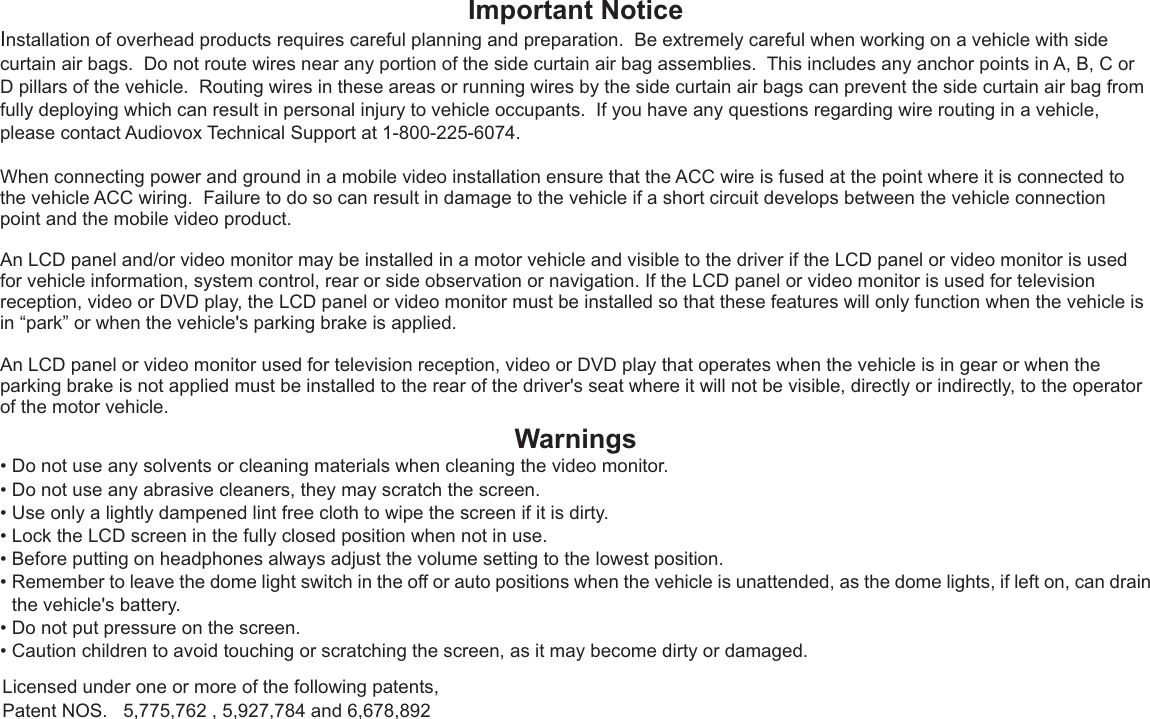

Important NoticeInstallation of overhead products requires careful planning and preparation. Be extremely careful when working on a vehicle with side curtain air bags. Do not route wires near any portion of the side curtain air bag assemblies. This includes any anchor points in A, B, C or D pillars of the vehicle. Routing wires in these areas or running wires by the side curtain air bags can prevent the side curtain air bag from fully deploying which can result in personal injury to vehicle occupants. If you have any questions regarding wire routing in a vehicle, please contact Audiovox Technical Support at 1-800-225-6074.When connecting power and ground in a mobile video installation ensure that the ACC wire is fused at the point where it is connected to the vehicle ACC wiring. Failure to do so can result in damage to the vehicle if a short circuit develops between the vehicle connection point and the mobile video product.An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park” or when the vehicle's parking brake is applied. An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the parking brake is not applied must be installed to the rear of the driver's seat where it will not be visible, directly or indirectly, to the operator of the motor vehicle.Warnings•Do not use any solvents or cleaning materials when cleaning the video monitor.•Do not use any abrasive cleaners, they may scratch the screen.•Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.•Lock the LCD screen in the fully closed position when not in use.•Before putting on headphones always adjust the volume setting to the lowest position.•Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome lights, if left on, can drainthe vehicle's battery.•Do not put pressure on the screen.•Caution children to avoid touching or scratching the screen, as it may become dirty or damaged.Licensed under one or more of the following patents, Patent NOS. 5,775,762 , 5,927,784 and 6,678,892
4FEATURESCongratulationsCongratulations on your purchase of the ADVENT ADVDLX10 DVD Player with drop-down video / monitor. The ADVDLX10 has been designed to give you and your family many years of video entertainment in the mobile environment. Please read the directions that follow to familiarize yourself with the product to ensure that you obtain the best results from your equipment.Note: Installation options vary, see the individual owner's manuals for each component in your system to obtain a full understanding of each component's operation.Safety PrecautionFor safety reasons, when changing video media it is recommended that the vehicle is not in motion, and that you do not allow children to unfasten seat-belts to change video media or make any adjustments to the system. System adjustments can be accomplished using the remote control, while seat-belts remain fastened. Enjoy your ADVENT entertainment system but remember the safety of all passengers remains the number one priority.• 10.1” TFT (Thin Film Transistor) Active Matrix LCD (Liquid Crystal Display) Monitor • LED Backlighting•Built-in DVD Player• OSD (On Screen Display) for Control of Picture Quality and Functions•••Three Audio / Video Source Inputs (DVD/USB, AV, AUX)• Dome Lights with Built-in Three Way Switch•Built-in 100 Channel Wireless FM Modulator•Last Position Memory for DVD• Screen Mode Selection (4:3, 16:9)• Full Function Remote Control• Backlit Controls••Plays DVD, CD and MP3 DiscsSelectable (M1 and M2) IR Receive and Transmit Codes(See page 5.)Switchable Dual Channel IR Infrared Transmitter(See page 5.)AV Output via RCA Jacks

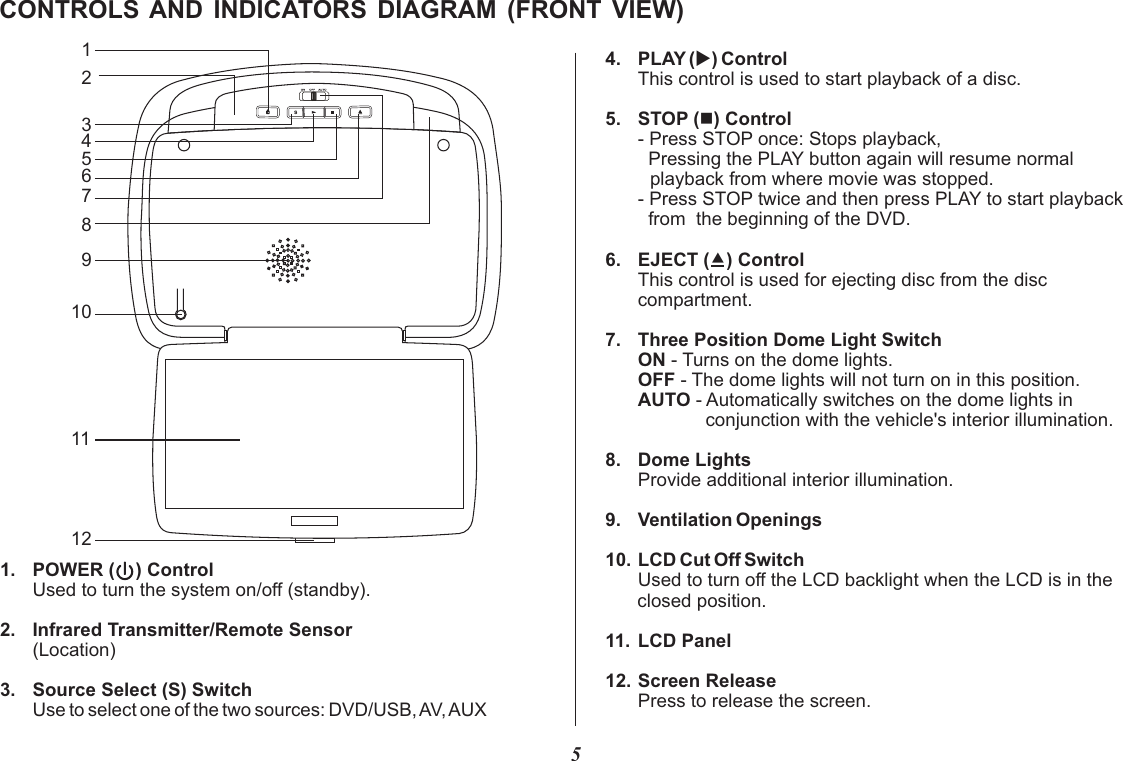

5CONTROLS AND INDICATORS DIAGRAM (FRONT VIEW) 4. PLAY (u) Control This control is used to start playback of a disc.5. STOP (n) Control- Press STOP once: Stops playback, Pressing the PLAY button again will resume normal playback from where movie was stopped.- Press STOP twice and then press PLAY to start playback from the beginning of the DVD.6. EJECT () ControlThis control is used for ejecting disc from the disccompartment. 7. Three Position Dome Light SwitchON - Turns on the dome lights.OFF - The dome lights will not turn on in this position.AUTO - Automatically switches on the dome lights in conjunction with the vehicle's interior illumination.8. Dome LightsProvide additional interior illumination.9. Ventilation Openings10. LCD Cut Off SwitchUsed to turn off the LCD backlight when the LCD is in the closed position.11. LCD Panel12. Screen ReleasePress to release the screen.12345678910121. POWER ( ) ControlUsed to turn the system on/off (standby).2. Infrared Transmitter/Remote Sensor (Location)3. Source Select (S) SwitchUse to select one of the two sources: DVD/USB, AV, AUX11

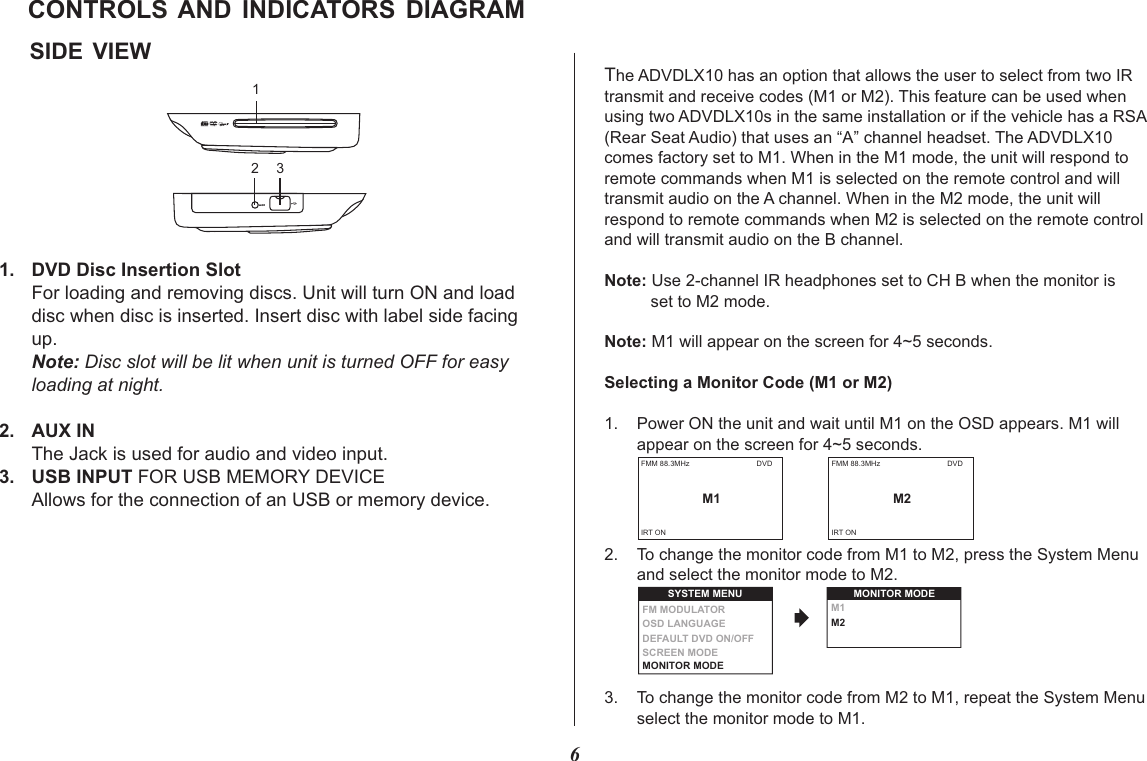

6SIDE VIEWCONTROLS AND INDICATORS DIAGRAMThe ADVDLX10 has an option that allows the user to select from two IR transmit and receive codes (M1 or M2). This feature can be used when using two ADVDLX10s in the same installation or if the vehicle has a RSA (Rear Seat Audio) that uses an “A” channel headset. The ADVDLX10 comes factory set to M1. When in the M1 mode, the unit will respond to remote commands when M1 is selected on the remote control and will transmit audio on the A channel. When in the M2 mode, the unit will respond to remote commands when M2 is selected on the remote control and will transmit audio on the B channel.Note: Use 2-channel IR headphones set to CH B when the monitor is set to M2 mode.Note: M1 will appear on the screen for 4~5 seconds.Selecting a Monitor Code (M1 or M2)1. Power ON the unit and wait until M1 on the OSD appears. M1 will appear on the screen for 4~5 seconds. 2. To change the monitor code from M1 to M2, press the System Menu and select the monitor mode to M2. 3. To change the monitor code from M2 to M1, repeat the System Menu select the monitor mode to M1. FMM 88.3MHzM1DVDIRT ON1. DVD Disc Insertion SlotFor loading and removing discs. Unit will turn ON and loaddisc when disc is inserted. Insert disc with label side facing up. Note: Disc slot will be lit when unit is turned OFF for easyloading at night.2. AUX IN The Jack is used for audio and video input.3. USB INPUT FOR USB MEMORY DEVICEAllows for the connection of an USB or memory device.2 31M1M2MONITOR MODESYSTEM MENUOSD LANGUAGEDEFAULT DVD ON/OFFSCREEN MODEFM MODULATOR MONITOR MODE FMM 88.3MHzM2DVDIRT ON

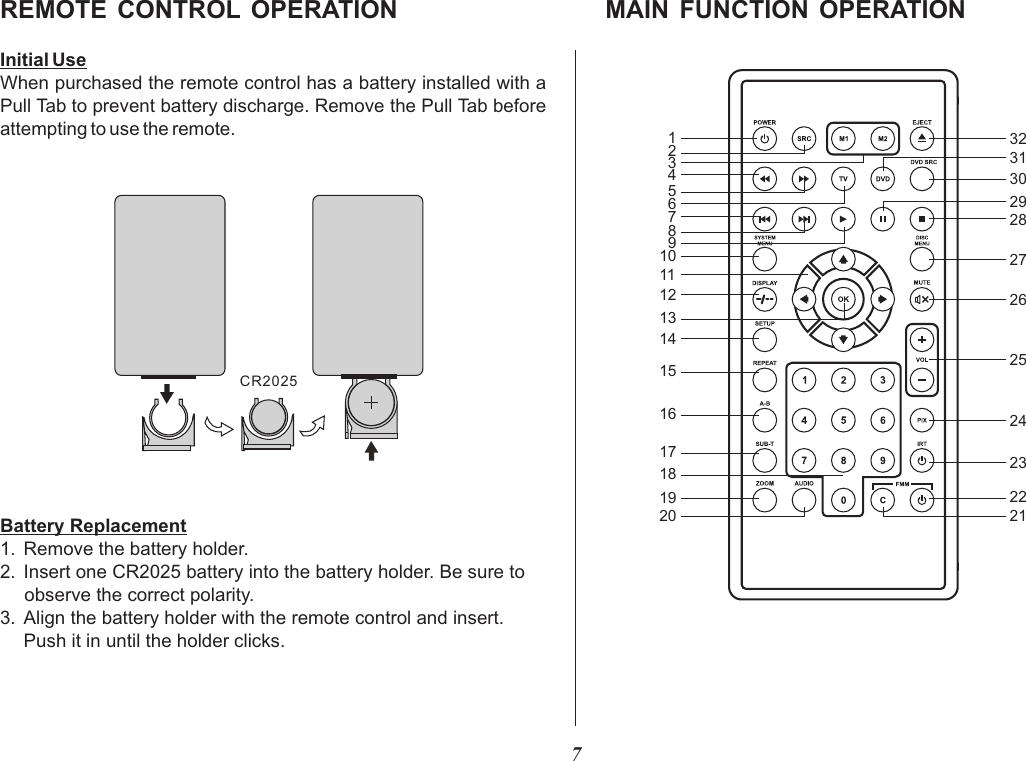

1324567891012141113151617181920 2122232425262728293031327MAIN FUNCTION OPERATION CR2025REMOTE CONTROL OPERATION Initial UseWhen purchased the remote control has a battery installed with a Pull Tab to prevent battery discharge. Remove the Pull Tab before attempting to use the remote.Battery Replacement1. Remove the battery holder.2. Insert one CR2025 battery into the battery holder. Be sure to observe the correct polarity.3. Align the battery holder with the remote control and insert. Push it in until the holder clicks.

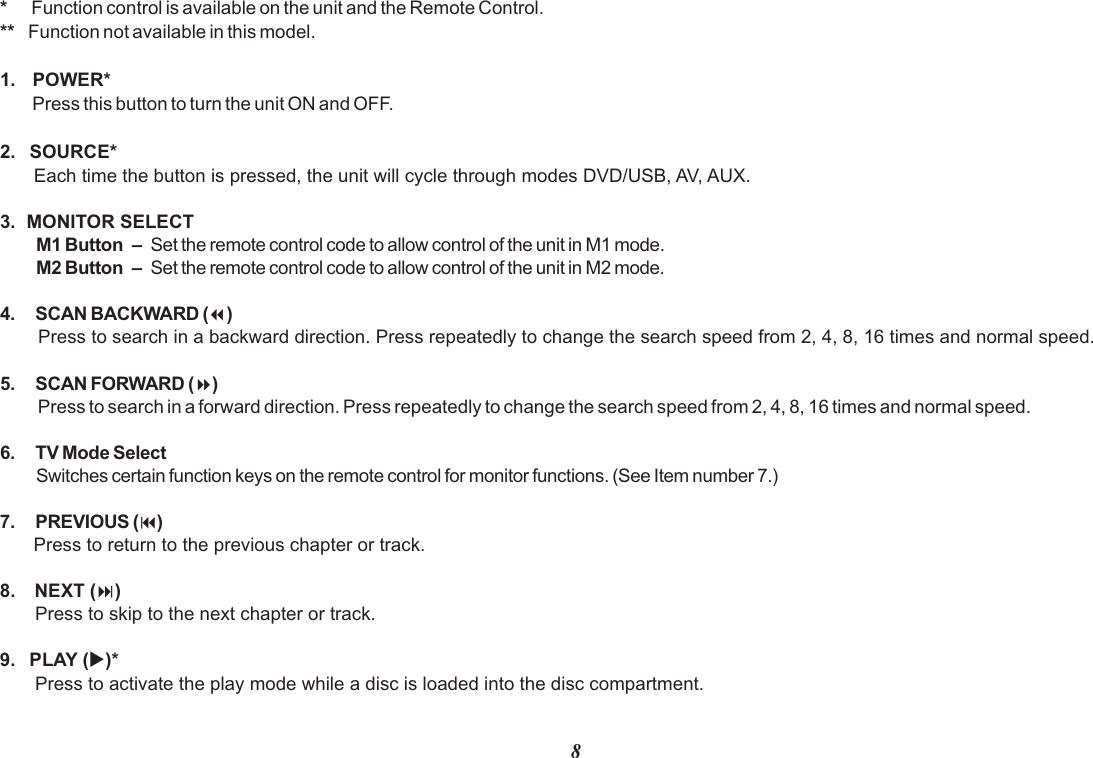

8* Function control is available on the unit and the Remote Control.** Function not available in this model.1. POWER*Press this button to turn the unit ON and OFF.2. SOURCE*Each time the button is pressed, the unit will cycle through modes DVD/USB, AV, AUX.3. MONITOR SELECTM1 Button – Set the remote control code to allow control of the unit in M1 mode.M2 Button – Set the remote control code to allow control of the unit in M2 mode.4. SCAN BACKWARD (7)Press to search in a backward direction. Press repeatedly to change the search speed from 2, 4, 8, 16 times and normal speed.5. SCAN FORWARD (8) Press to search in a forward direction. Press repeatedly to change the search speed from 2, 4, 8, 16 times and normal speed.6. TV Mode Select Switches certain function keys on the remote control for monitor functions. (See Item number 7.)7. PREVIOUS (9)Press to return to the previous chapter or track.8. NEXT (:)Press to skip to the next chapter or track.9. PLAY (u)*Press to activate the play mode while a disc is loaded into the disc compartment.

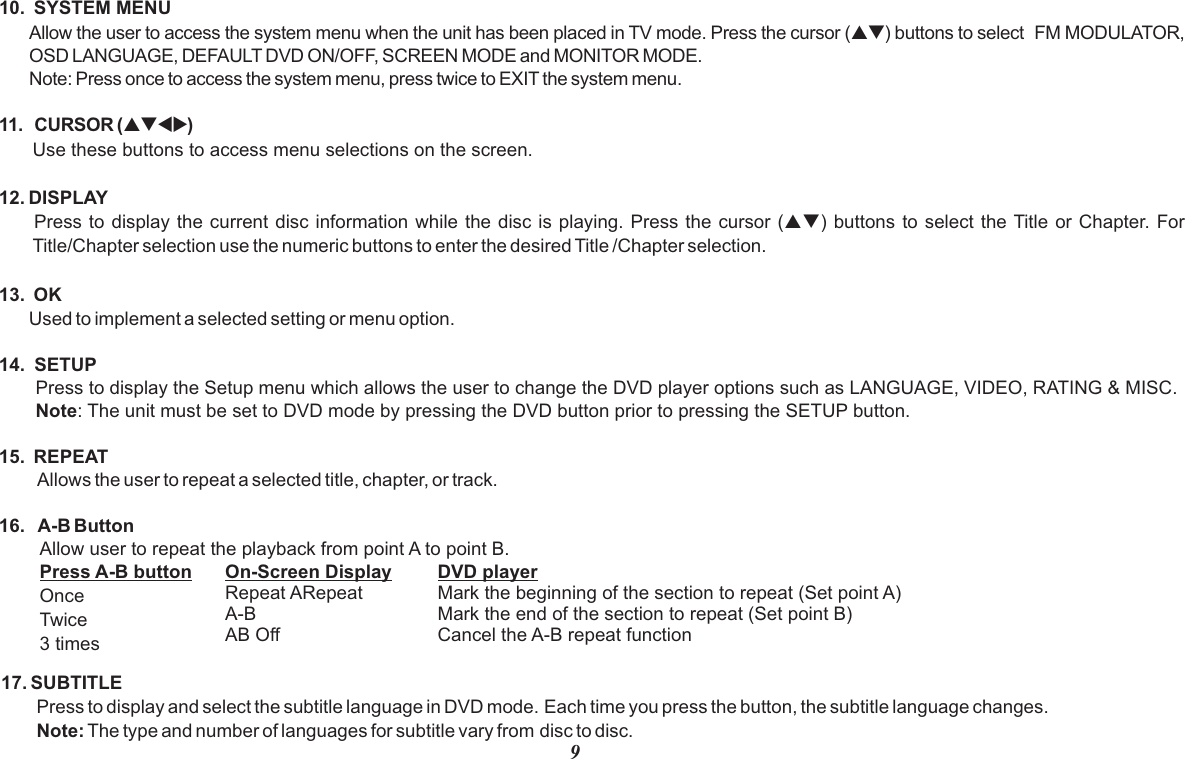

910. SYSTEM MENU Allow the user to access the system menu when the unit has been placed in TV mode. Press the cursor (pq) buttons to select FM MODULATOR, OSD LANGUAGE, DEFAULT DVD ON/OFF, SCREEN MODE and MONITOR MODE.Note: Press once to access the system menu, press twice to EXIT the system menu. 11. CURSOR (pqtu)Use these buttons to access menu selections on the screen.12. DISPLAYPress to display the current disc information while the disc is playing. Press the cursor (pq) buttons to select the Title or Chapter. For Title/Chapter selection use the numeric buttons to enter the desired Title /Chapter selection.13. OKUsed to implement a selected setting or menu option.14. SETUPPress to display the Setup menu which allows the user to change the DVD player options such as LANGUAGE, VIDEO, RATING & MISC. Note: The unit must be set to DVD mode by pressing the DVD button prior to pressing the SETUP button.15. REPEAT Allows the user to repeat a selected title, chapter, or track.16. 17. SUBTITLEPress to display and select the subtitle language in DVD mode. Each time you press the button, the subtitle language changes.Note: The type and number of languages for subtitle vary from disc to disc.A-B Button Allow user to repeat the playback from point A to point B. On-Screen DisplayRepeat ARepeatA-BAB OffPress A-B buttonOnceTwice3 timesDVD playerMark the beginning of the section to repeat (Set point A)Mark the end of the section to repeat (Set point B)Cancel the A-B repeat function

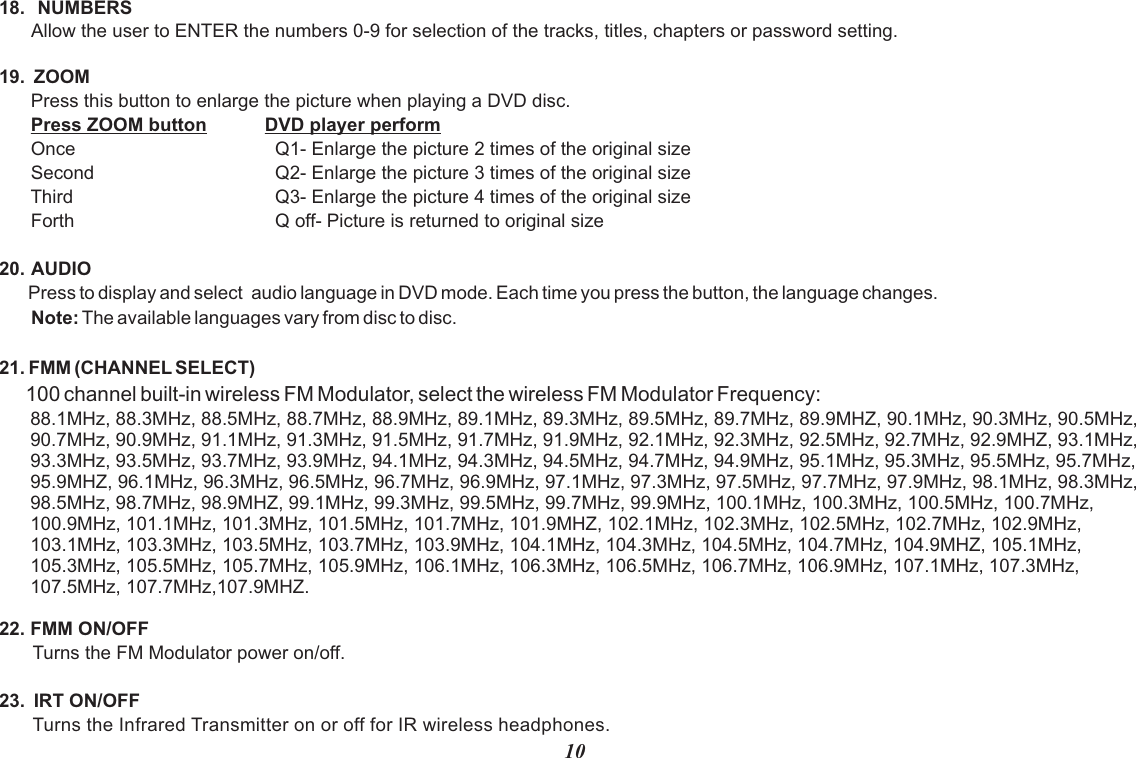

1018. NUMBERSAllow the user to ENTER the numbers 0-9 for selection of the tracks, titles, chapters or password setting.19. ZOOM Press this button to enlarge the picture when playing a DVD disc. Press ZOOM button DVD player perform Once Q1- Enlarge the picture 2 times of the original size Second Q2- Enlarge the picture 3 times of the original size Third Q3- Enlarge the picture 4 times of the original size Forth Q off- Picture is returned to original size20. AUDIO Press to display and select audio language in DVD mode. Each time you press the button, the language changes.Note: The available languages vary from disc to disc.21. FMM (22. FMM ON/OFF Turns the FM Modulator power on/off.23. IRT ON/OFF Turns the Infrared Transmitter on or off for IR wireless headphones. CHANNEL SELECT) 100 channel built-in wireless FM Modulator, select the wireless FM Modulator Frequency: 88.1MHz, 88.3MHz, 88.5MHz, 88.7MHz, 88.9MHz, 89.1MHz, 89.3MHz, 89.5MHz, 89.7MHz, 89.9MHZ, 90.1MHz, 90.3MHz, 90.5MHz, 90.7MHz, 90.9MHz, 91.1MHz, 91.3MHz, 91.5MHz, 91.7MHz, 91.9MHz, 92.1MHz, 92.3MHz, 92.5MHz, 92.7MHz, 92.9MHZ, 93.1MHz, 93.3MHz, 93.5MHz, 93.7MHz, 93.9MHz, 94.1MHz, 94.3MHz, 94.5MHz, 94.7MHz, 94.9MHz, 95.1MHz, 95.3MHz, 95.5MHz, 95.7MHz, 95.9MHZ, 96.1MHz, 96.3MHz, 96.5MHz, 96.7MHz, 96.9MHz, 97.1MHz, 97.3MHz, 97.5MHz, 97.7MHz, 97.9MHz, 98.1MHz, 98.3MHz, 98.5MHz, 98.7MHz, 98.9MHZ, 99.1MHz, 99.3MHz, 99.5MHz, 99.7MHz, 99.9MHz, 100.1MHz, 100.3MHz, 100.5MHz, 100.7MHz, 100.9MHz, 101.1MHz, 101.3MHz, 101.5MHz, 101.7MHz, 101.9MHZ, 102.1MHz, 102.3MHz, 102.5MHz, 102.7MHz, 102.9MHz, 103.1MHz, 103.3MHz, 103.5MHz, 103.7MHz, 103.9MHz, 104.1MHz, 104.3MHz, 104.5MHz, 104.7MHz, 104.9MHZ, 105.1MHz, 105.3MHz, 105.5MHz, 105.7MHz, 105.9MHz, 106.1MHz, 106.3MHz, 106.5MHz, 106.7MHz, 106.9MHz, 107.1MHz, 107.3MHz, 107.5MHz, 107.7MHz,107.9MHZ.

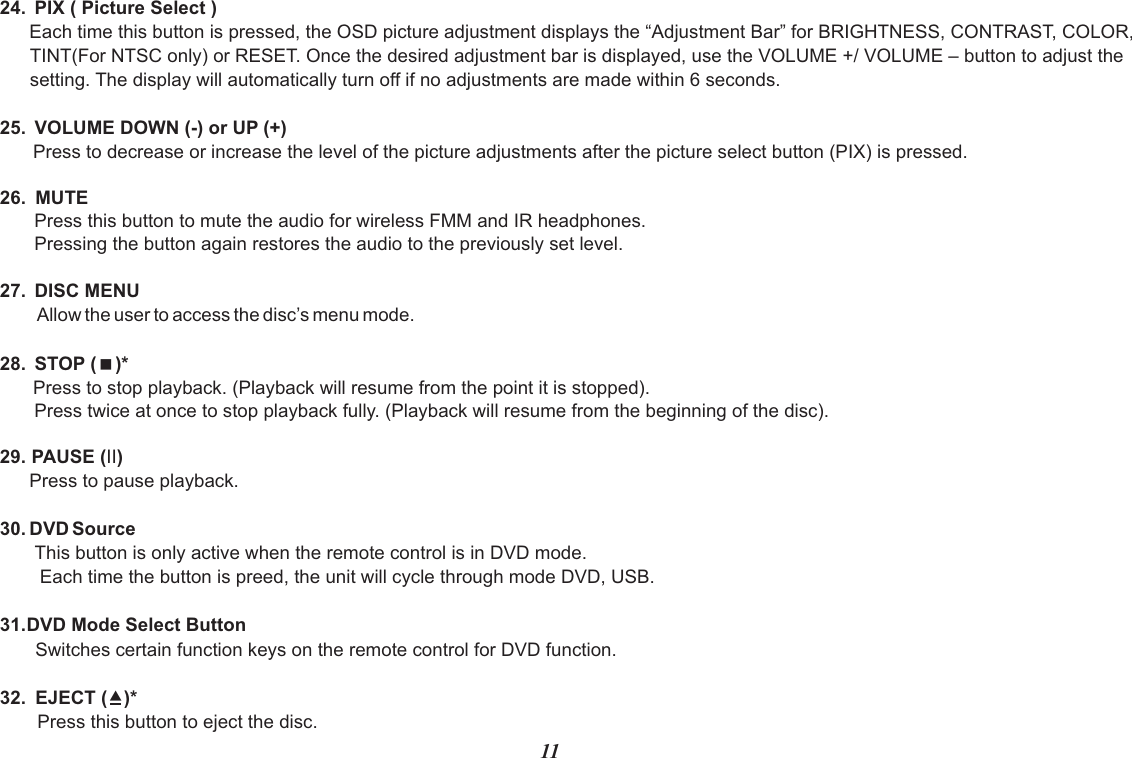

24. PIX ( Picture Select )Each time this button is pressed, the OSD picture adjustment displays the “Adjustment Bar” for BRIGHTNESS, CONTRAST, COLOR, TINT(For NTSC only) or RESET. Once the desired adjustment bar is displayed, use the VOLUME +/ VOLUME – button to adjust the setting. The display will automatically turn off if no adjustments are made within 6 seconds.25. VOLUME DOWN (-) or UP (+)Press to decrease or increase the level of the picture adjustments after the picture select button (PIX) is pressed.26. MUTEPress this button to mute the audio for wireless FMM and IR headphones.Pressing the button again restores the audio to the previously set level.27. DISC MENUAllow the user to access the disc’s menu mode.28. STOP (<)* Press to stop playback. (Playback will resume from the point it is stopped).Press twice at once to stop playback fully. (Playback will resume from the beginning of the disc).29. PAUSE (II)Press to pause playback.30. DVD SourceThis button is only active when the remote control is in DVD mode. Each time the button is preed, the unit will cycle through mode DVD, USB.31.DVD Mode Select ButtonSwitches certain function keys on the remote control for DVD function.32. EJECT ()*Press this button to eject the disc.11

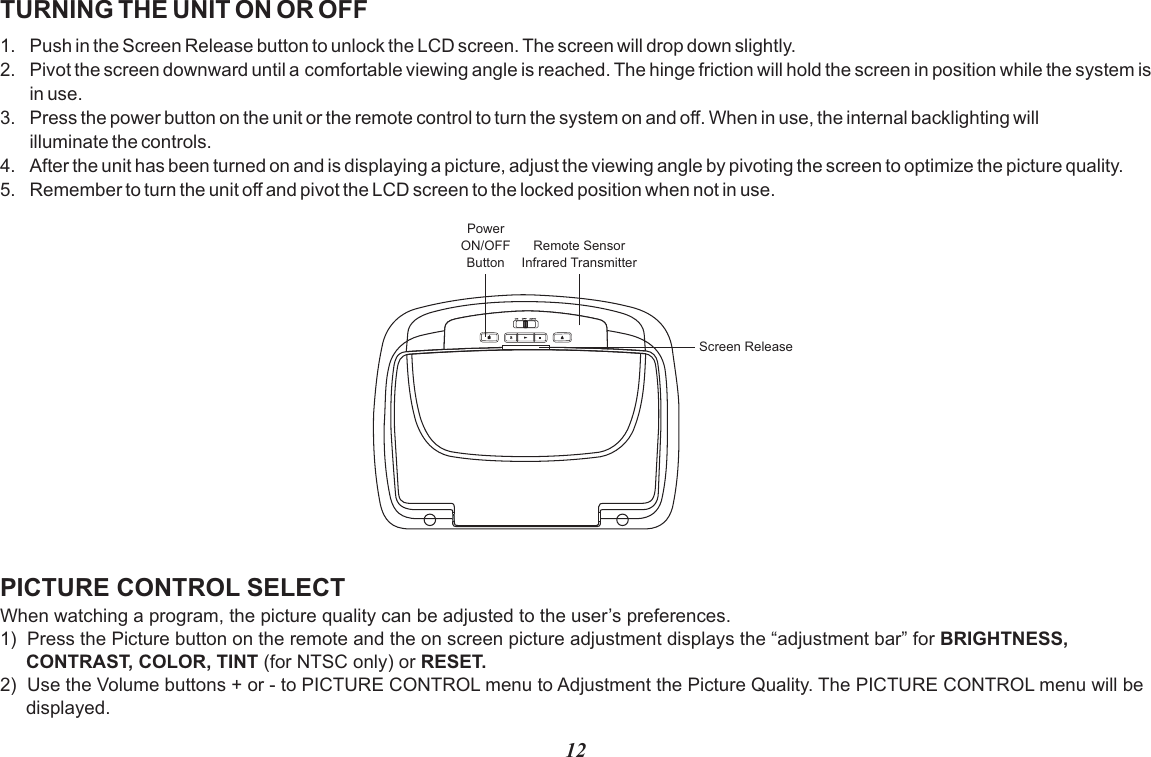

TURNING THE UNIT ON OR OFF1. Push in the Screen Release button to unlock the LCD screen. The screen will drop down slightly.2. Pivot the screen downward until a comfortable viewing angle is reached. The hinge friction will hold the screen in position while the system is in use.3. Press the power button on the unit or the remote control to turn the system on and off. When in use, the internal backlighting will illuminate the controls.4. After the unit has been turned on and is displaying a picture, adjust the viewing angle by pivoting the screen to optimize the picture quality.5. Remember to turn the unit off and pivot the LCD screen to the locked position when not in use.PICTURE CONTROL SELECTWhen watching a program, the picture quality can be adjusted to the user’s preferences.1) Press the Picture button on the remote and the on screen picture adjustment displays the “adjustment bar” for BRIGHTNESS, CONTRAST, COLOR, TINT (for NTSC only) or RESET.2) Use the Volume buttons + or - to PICTURE CONTROL menu to Adjustment the Picture Quality. The PICTURE CONTROL menu will be displayed.12Remote SensorInfrared TransmitterPowerON/OFFButtonScreen Release
SYSTEM MENU SETTINGS AND ADJUSTMENTSThe System Menu contains features and options that let you customize your system. For example, you can change the screen mode display, OSD language, and source default.Using the System Menu1) Press the TV button and then the SYSTEM MENU button on the remote. The main page of the system menu will appear on screen.2) Use the cursor buttons p or q to select the desired item in the main page and press the ENTER button to select.3) The submenu will appear on screen.4) Use the cursor buttons p or q to select an item in the sub menu and then press the ENTER button to select.5) Press the System Menu button to exit System Menu.Note: The System Menu can be controlled via Remote Control only. (Items selected in the menu will have a green highlight.)FM MODULATOR The FM Modulator allows the user to listen to audio through the vehicle’s radio.ON - Turns the wireless FM Modulator on if audio playback through your vehicle’s radio is preferred.OFF - Turns the wireless FM Modulator off.FM CHANNEL - Selects the wireless FM Modulator Frequency ().88.1MHz, 88.3MHz, 88.5MHz, 88.7MHz, 88.9MHz, 89.1MHz, 89.3MHz, 89.5MHz, 89.7MHz, 89.9MHZ, 90.1MHz, 90.3MHz, 90.5MHz, 90.7MHz, 90.9MHz, 91.1MHz, 91.3MHz, 91.5MHz, 91.7MHz, 91.9MHz, 92.1MHz, 92.3MHz, 92.5MHz, 92.7MHz, 92.9MHZ, 93.1MHz, 93.3MHz, 93.5MHz, 93.7MHz, 93.9MHz, 94.1MHz, 94.3MHz, 94.5MHz, 94.7MHz, 94.9MHz, 95.1MHz, 95.3MHz, 95.5MHz, 95.7MHz, 95.9MHZ, 96.1MHz, 96.3MHz, 96.5MHz, 96.7MHz, 96.9MHz, 97.1MHz, 97.3MHz, 97.5MHz, 97.7MHz, 97.9MHz, 98.1MHz, 98.3MHz, 98.5MHz, 98.7MHz, 98.9MHZ, 99.1MHz, 99.3MHz, 99.5MHz, 99.7MHz, 99.9MHz, 100.1MHz, 100.3MHz, 100.5MHz, 100.7MHz, 100.9MHz, 101.1MHz, 101.3MHz, 101.5MHz, 101.7MHz, 101.9MHZ, 102.1MHz, 102.3MHz, 102.5MHz, 102.7MHz, 102.9MHz, 103.1MHz, 103.3MHz, 103.5MHz, 103.7MHz, 103.9MHz, 104.1MHz, 104.3MHz, 104.5MHz, 104.7MHz, 104.9MHZ, 105.1MHz, 105.3MHz, 105.5MHz, 105.7MHz, 105.9MHz, 106.1MHz, 106.3MHz, 106.5MHz, 106.7MHz, 106.9MHz, 107.1MHz, 107.3MHz, 107.5MHz, 107.7MHz,107.9MHZ.13

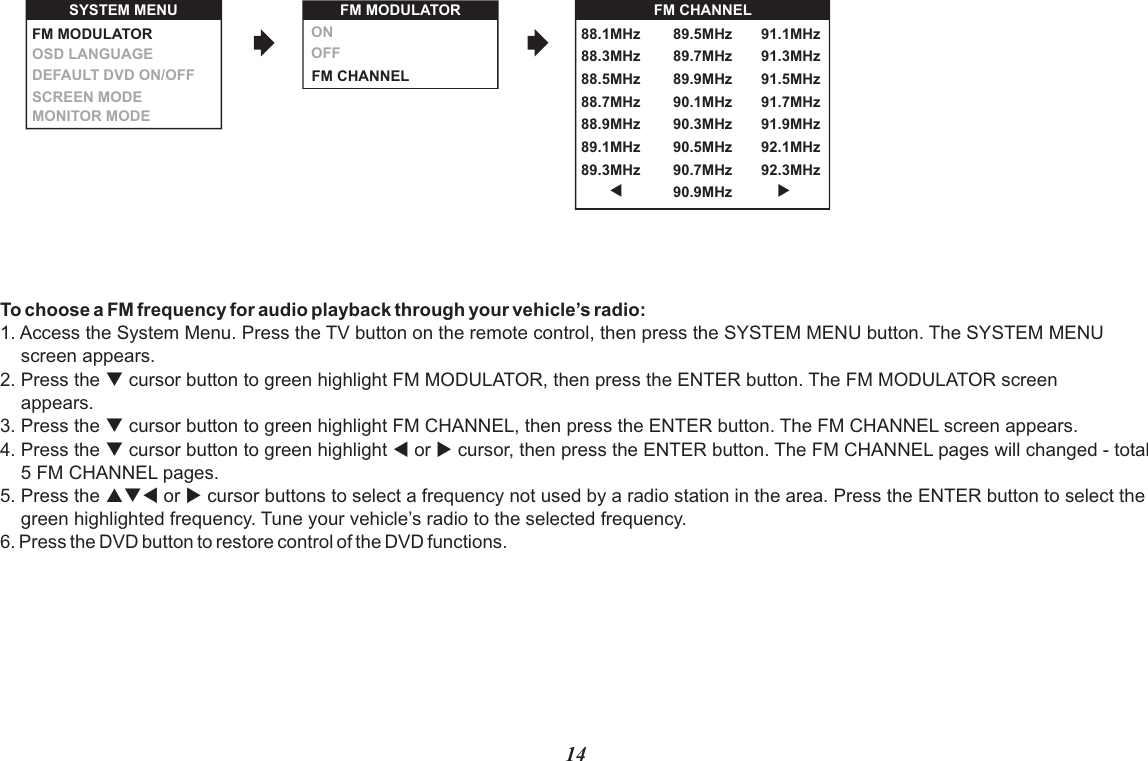

To choose a FM frequency for audio playback through your vehicle’s radio:1. Access the System Menu. Press the TV button on the remote control, then press the SYSTEM MENU button. The SYSTEM MENU screen appears.2. Press the q cursor button to green highlight FM MODULATOR, then press the ENTER button. The FM MODULATOR screen appears.3. Press the q cursor button to green highlight FM CHANNEL, then press the ENTER button. The FM CHANNEL screen appears.4. Press the q cursor button to green highlight t or u cursor, then press the ENTER button. The FM CHANNEL pages will changed - total 5 FM CHANNEL pages. 5. Press the pqt or u cursor buttons to select a frequency not used by a radio station in the area. Press the ENTER button to select the green highlighted frequency. Tune your vehicle’s radio to the selected frequency.6. Press the DVD button to restore control of the DVD functions.14SYSTEM MENUOSD LANGUAGEDEFAULT DVD ON/OFFSCREEN MODEFM MODULATOR MONITOR MODE ONOFFFM CHANNEL FM MODULATOR FM CHANNEL 88.1MHz88.3MHz88.5MHz88.7MHz88.9MHz89.1MHz89.3MHz89.5MHz89.7MHz89.9MHz90.1MHz90.3MHz90.5MHz90.7MHz90.9MHz91.1MHz91.3MHz91.5MHz91.7MHz91.9MHz92.1MHz92.3MHz

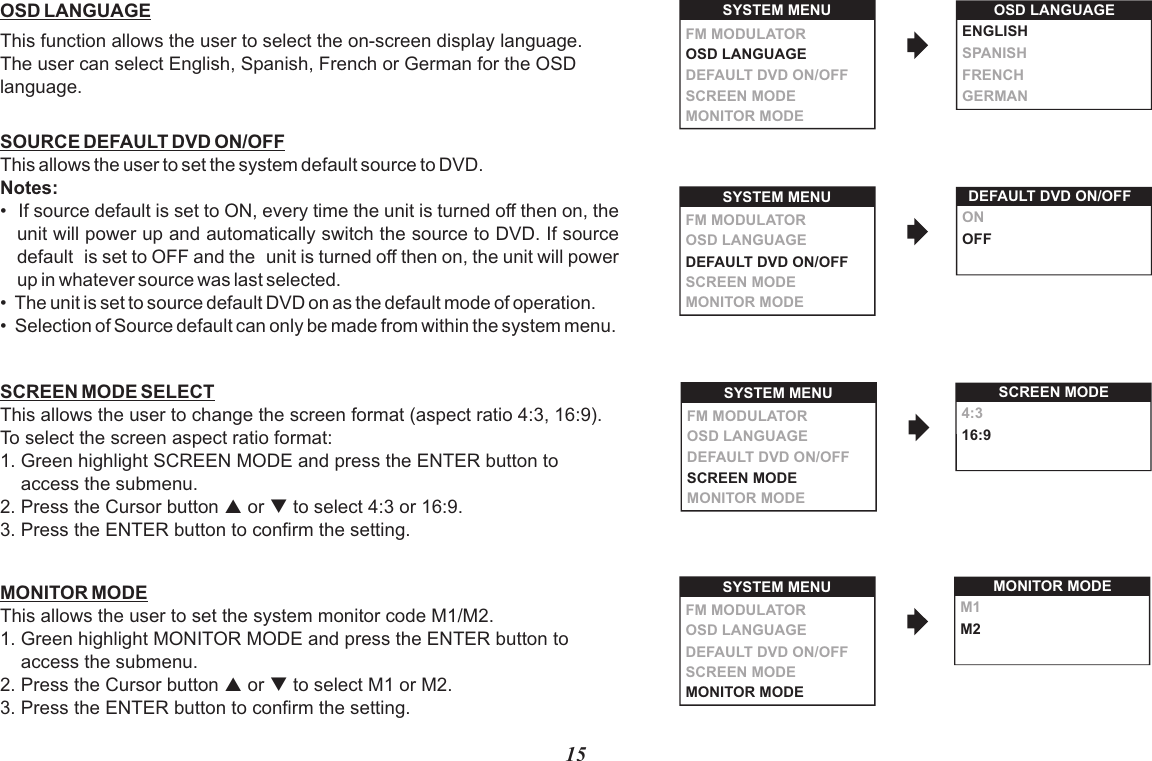

DEFAULT DVD ON/OFFONOFF154:316:9SCREEN MODESOURCE DEFAULT DVD ON/OFFThis allows the user to set the system default source to DVD.Notes:• If source default is set to ON, every time the unit is turned off then on, the unit will power up and automatically switch the source to DVD. If source default is set to OFF and the unit is turned off then on, the unit will power up in whatever source was last selected.• The unit is set to source default DVD on as the default mode of operation.• Selection of Source default can only be made from within the system menu.SCREEN MODE SELECTThis allows the user to change the screen format (aspect ratio 4:3, 16:9). To select the screen aspect ratio format:1. Green highlight SCREEN MODE and press the ENTER button to access the submenu.2. Press the Cursor button p or q to select 4:3 or 16:9.3. Press the ENTER button to confirm the setting.OSD LANGUAGEThis function allows the user to select the on-screen display language.The user can select English, Spanish, French or German for the OSD language.ENGLISHSPANISHFRENCHGERMANSYSTEM MENUOSD LANGUAGEDEFAULT DVD ON/OFFSCREEN MODEFM MODULATOR OSD LANGUAGEMONITOR MODE SYSTEM MENUOSD LANGUAGEDEFAULT DVD ON/OFFSCREEN MODEFM MODULATOR MONITOR MODE SYSTEM MENUOSD LANGUAGEDEFAULT DVD ON/OFFSCREEN MODEFM MODULATOR MONITOR MODE M1M2MONITOR MODESYSTEM MENUOSD LANGUAGEDEFAULT DVD ON/OFFSCREEN MODEFM MODULATOR MONITOR MODE MONITOR MODE This allows the user to set the system monitor code M1/M2.1. Green highlight MONITOR MODE and press the ENTER button to access the submenu.2. Press the Cursor button p or q to select M1 or M2.3. Press the ENTER button to confirm the setting.
16DVD SETUP MENU SETTINGS AND ADJUSTMENTSThe DVD Setup Menu contains features and options that let you customize your DVD player. For example, you can set a language for the on-screen display or prevent children from viewing DVD playback of adult DVD Titles. Using the Setup Menu1. Press the DVD button and then the SETUP button on the remote. The Setup Menu appears on the screen as shown per diagram.2. Use the p or q cursor buttons to highlight the settings to be changed. Use the u cursor button to highlight the sub-setttings. Press the u cursor button to open the submenu that contains the different options available. Press the ENTER button to set the desired option.3. Use the t cursor button to position the highlight back on the icon side of the setup page to set the other options. Repeat steps 1~2.4. Press the SETUP button again to exit the Setup Menu.LANGUAGE SETUPDVD Language for On-Screen DisplayOSD MENU: The OSD MENU setup allows you to select the language for the on-screen display.The user can select English, French, Spanish, German or Italian for the OSD language.SubtitleAudioOSD Language : English: Off: EnglishLanguageVideoRatingMiscSubtitleAudioOSD Language EnglishFrenchSpanishGermanItalianLanguageVideoRatingMisc

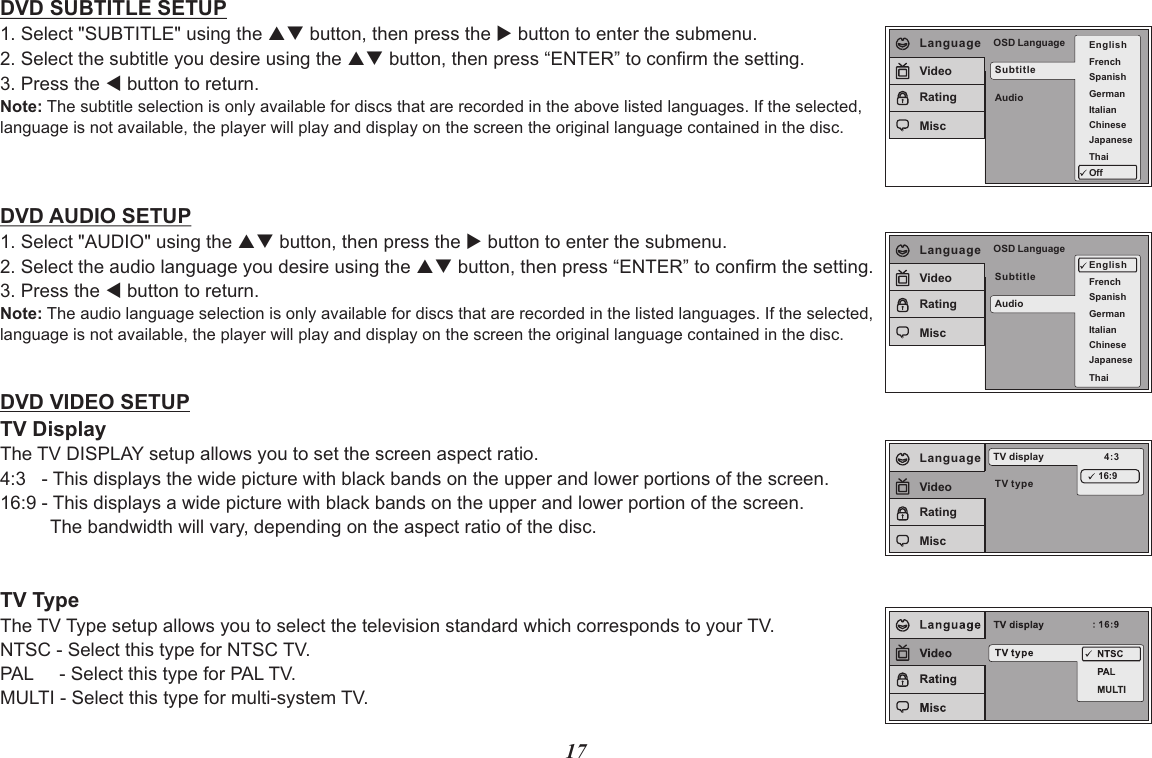

17DVD SUBTITLE SETUP1. Select "SUBTITLE" using the pq button, then press the u button to enter the submenu.2. Select the subtitle you desire using the pq button, then press “ENTER” to confirm the setting.3. Press the t button to return.Note: The subtitle selection is only available for discs that are recorded in the above listed languages. If the selected, language is not available, the player will play and display on the screen the original language contained in the disc.DVD AUDIO SETUP1. Select "AUDIO" using the pq button, then press the u button to enter the submenu.2. Select the audio language you desire using the pq button, then press “ENTER” to confirm the setting.3. Press the t button to return.Note: The audio language selection is only available for discs that are recorded in the listed languages. If the selected,language is not available, the player will play and display on the screen the original language contained in the disc.DVD VIDEO SETUPTV DisplayThe TV DISPLAY setup allows you to set the screen aspect ratio.4:3 - This displays the wide picture with black bands on the upper and lower portions of the screen.16:9 - This displays a wide picture with black bands on the upper and lower portion of the screen. The bandwidth will vary, depending on the aspect ratio of the disc.TV TypeThe TV Type setup allows you to select the television standard which corresponds to your TV.NTSC - Select this type for NTSC TV.PAL - Select this type for PAL TV.MULTI - Select this type for multi-system TV.SubtitleAudioOSD Language EnglishFrenchSpanishGermanItalianJapaneseChineseThaiOffLanguageVideoRatingMiscSubtitleAudioOSD LanguageEnglishFrenchSpanishGermanItalianJapaneseChineseThaiLanguageVideoRatingMiscTV typeTV display 4:316:9LanguageVideoRatingMisc

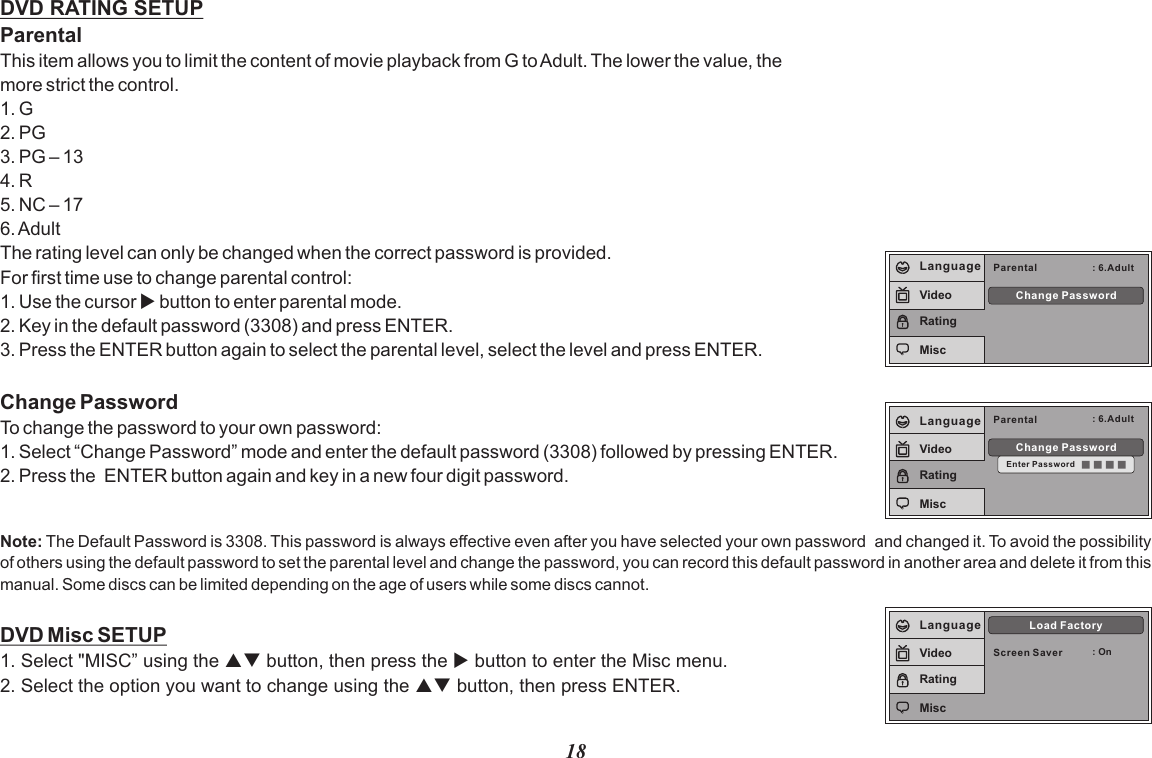

18DVD RATING SETUPParentalThis item allows you to limit the content of movie playback from G to Adult. The lower the value, the more strict the control.1. G2. PG3. PG – 134. R5. NC – 176. AdultThe rating level can only be changed when the correct password is provided.For first time use to change parental control:1. Use the cursor u button to enter parental mode.2. Key in the default password (3308) and press ENTER.3. Press the ENTER button again to select the parental level, select the level and press ENTER. Change PasswordTo change the password to your own password:1. Select “Change Password” mode and enter the default password (3308) followed by pressing ENTER.2. Press the ENTER button again and key in a new four digit password. DVD Misc SETUP1. Select "MISC” using the pq button, then press the u button to enter the Misc menu.2. Select the option you want to change using the pq button, then press ENTER.Note: The Default Password is 3308. This password is always effective even after you have selected your own password and changed it. To avoid the possibility of others using the default password to set the parental level and change the password, you can record this default password in another area and delete it from this manual. Some discs can be limited depending on the age of users while some discs cannot.Parental : 6.AdultChange PasswordLanguageVideoRatingMiscParental : 6.AdultChange PasswordEnter PasswordLanguageVideoRatingMiscScreen Saver : OnLoad FactoryLanguageVideoRatingMisc
Screen SaverLoad FactoryLoad FactoryYes NoLanguageVideoRatingMiscScreen Saver OffLoad FactoryOnLanguageVideoRatingMiscLoad FactoryThis option allows you to reset all options to factory settings.Note: This function will not affect the Rating control settings.Screen SaverThis option allows you to set the Screen Saver mode.ON - Screen saver will appearOFF - Screen saver will not appearNote: The DVD player will enter Screen Saver mode if the unit is inactive for approximately 2 minutes.PLAYING DVDs1. Press the DISPLAY button on the remote control to display the status banner. The banner includes title, chapter, angle, audio, subtitle, and time.2. Title SelectionPress the numeric (0~9) buttons to initiate a change of title selection. Then press ENTER to implement the selection.3. Chapter SelectionPress the numeric (0~9) buttons to initiate a change of chapter selection. Then press ENTER to implement the selection.19

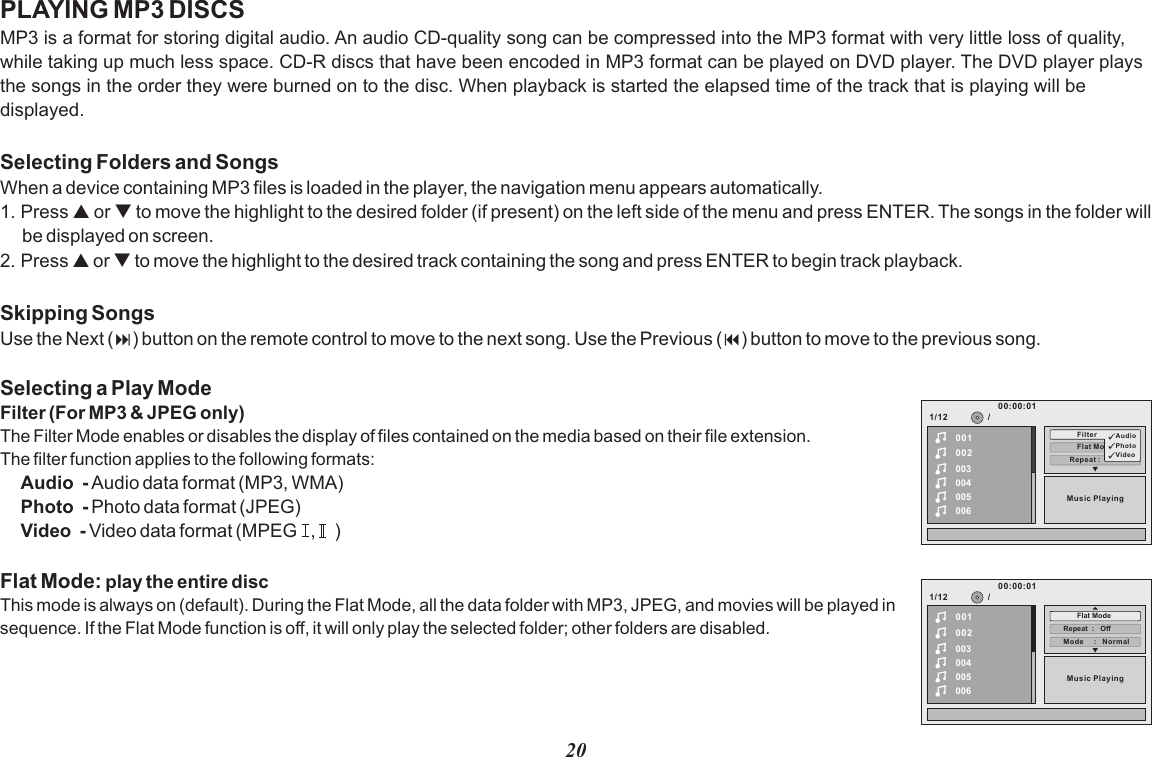

20PLAYING MP3 DISCSMP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CD-R discs that have been encoded in MP3 format can be played on DVD player. The DVD player plays the songs in the order they were burned on to the disc. When playback is started the elapsed time of the track that is playing will be displayed.Selecting Folders and SongsWhen a device containing MP3 files is loaded in the player, the navigation menu appears automatically.1. Press p or q to move the highlight to the desired folder (if present) on the left side of the menu and press ENTER. The songs in the folder will be displayed on screen. 2. Press p or q to move the highlight to the desired track containing the song and press ENTER to begin track playback.Skipping SongsUse the Next (:) button on the remote control to move to the next song. Use the Previous (9) button to move to the previous song.Selecting a Play ModeFilter (For MP3 & JPEG only)The Filter Mode enables or disables the display of files contained on the media based on their file extension.The filter function applies to the following formats:Audio - Audio data format (MP3, WMA)Photo - Photo data format (JPEG)Video - Video data format (MPEG , )Flat Mode: play the entire discThis mode is always on (default). During the Flat Mode, all the data folder with MP3, JPEG, and movies will be played in sequence. If the Flat Mode function is off, it will only play the selected folder; other folders are disabled.1/12Repeat : off002003004005006Flat ModeMusic Playing/00100:00:01Filter Audi oPhotoVideo1/12002003004005006Music Playing/00100:00:01Mode : NormalRepeat : OffFlat Mode

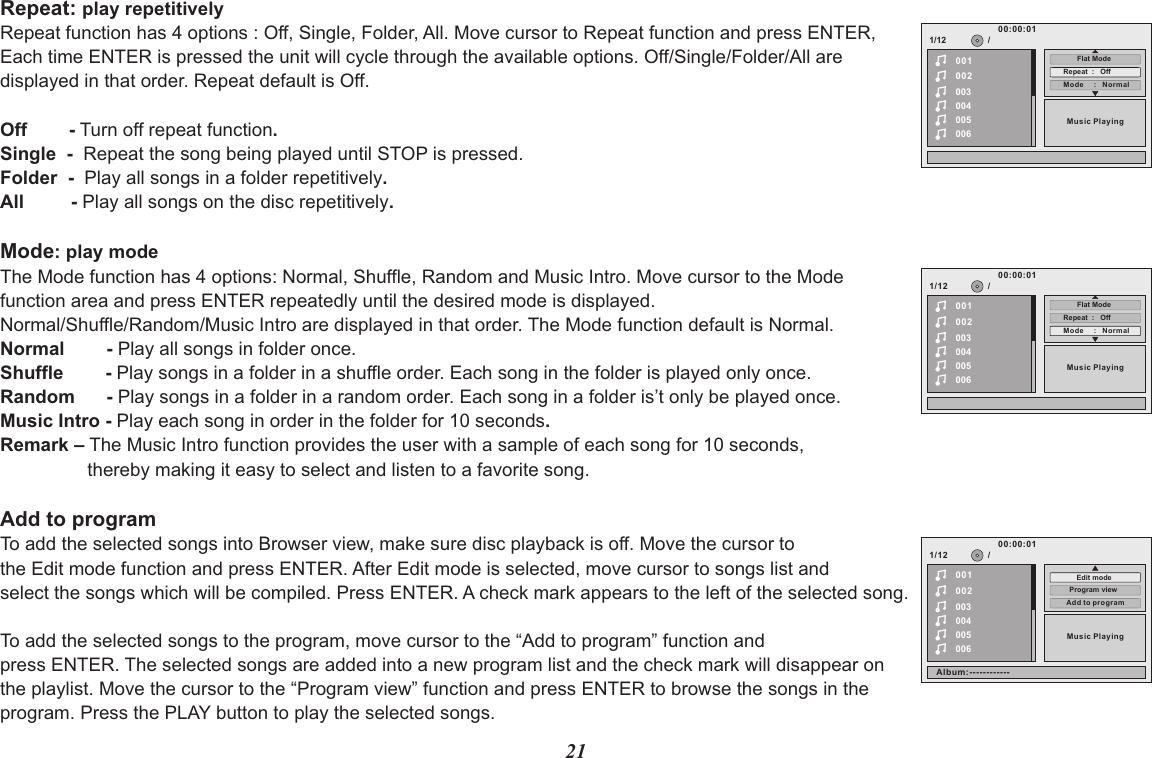

21Repeat: play repetitively Repeat function has 4 options : Off, Single, Folder, All. Move cursor to Repeat function and press ENTER, Each time ENTER is pressed the unit will cycle through the available options. Off/Single/Folder/All are displayed in that order. Repeat default is Off.Off - Turn off repeat function.Single - Repeat the song being played until STOP is pressed.Folder - Play all songs in a folder repetitively.All - Play all songs on the disc repetitively.Mode: play modeThe Mode function has 4 options: Normal, Shuffle, Random and Music Intro. Move cursor to the Mode function area and press ENTER repeatedly until the desired mode is displayed.Normal/Shuffle/Random/Music Intro are displayed in that order. The Mode function default is Normal.Normal - Play all songs in folder once.Shuffle - Play songs in a folder in a shuffle order. Each song in the folder is played only once.Random - Play songs in a folder in a random order. Each song in a folder is’t only be played once.Music Intro - Play each song in order in the folder for 10 seconds.Remark – The Music Intro function provides the user with a sample of each song for 10 seconds, thereby making it easy to select and listen to a favorite song.Add to programTo add the selected songs into Browser view, make sure disc playback is off. Move the cursor to the Edit mode function and press ENTER. After Edit mode is selected, move cursor to songs list and select the songs which will be compiled. Press ENTER. A check mark appears to the left of the selected song.To add the selected songs to the program, move cursor to the “Add to program” function and press ENTER. The selected songs are added into a new program list and the check mark will disappear on the playlist. Move the cursor to the “Program view” function and press ENTER to browse the songs in the program. Press the PLAY button to play the selected songs.1/12002003004005006Music Playing/00100:00:01Mode : NormalRepeat : OffFlat Mode1/12002003004005006Music Playing/00100:00:01Mode : NormalRepeat : OffFlat Mode1/12002003004005006Music Playing/00100:00:01Add to programProgram viewEdit modeAlbum:------------

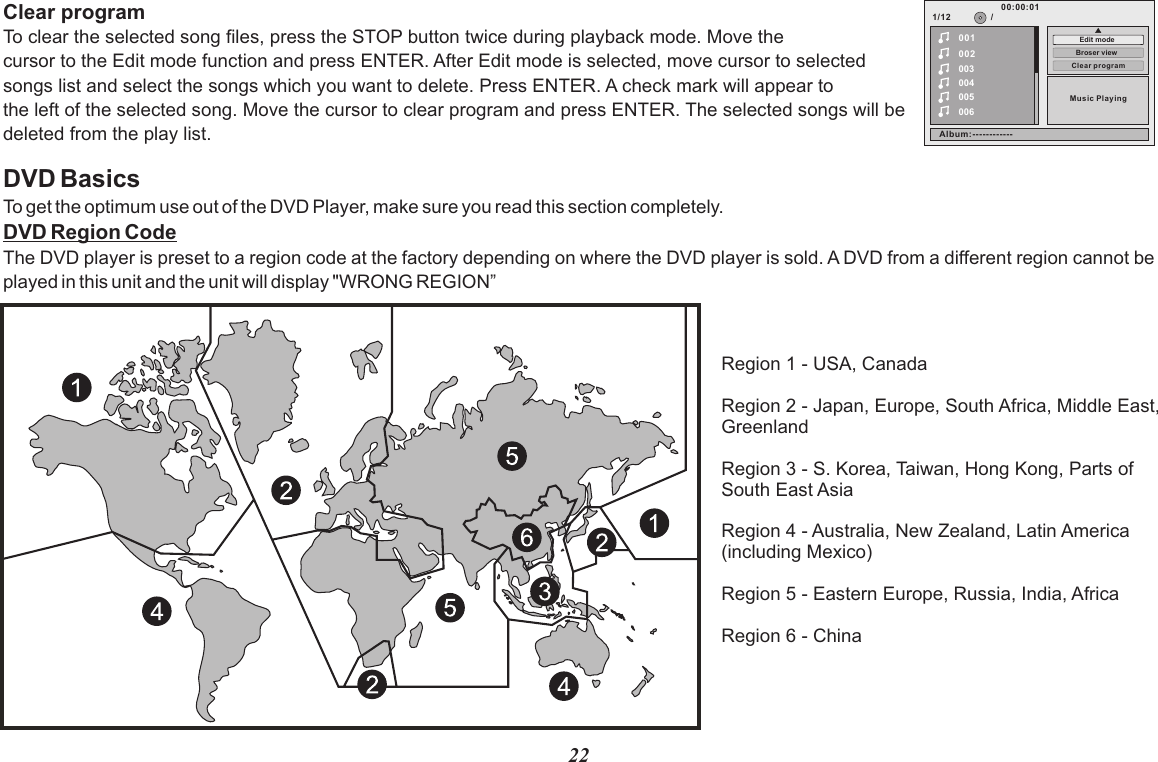

22Clear programTo clear the selected song files, press the STOP button twice during playback mode. Move the cursor to the Edit mode function and press ENTER. After Edit mode is selected, move cursor to selected songs list and select the songs which you want to delete. Press ENTER. A check mark will appear to the left of the selected song. Move the cursor to clear program and press ENTER. The selected songs will bedeleted from the play list.1/12002003004005006Music Playing/00100:00:01Clear programBroser viewEdit modeAlbum:------------Region 1 - USA, CanadaRegion 2 - Japan, Europe, South Africa, Middle East,GreenlandRegion 3 - S. Korea, Taiwan, Hong Kong, Parts ofSouth East AsiaRegion 4 - Australia, New Zealand, Latin America(including Mexico)Region 5 - Eastern Europe, Russia, India, AfricaRegion 6 - ChinaDVD BasicsTo get the optimum use out of the DVD Player, make sure you read this section completely.DVD Region CodeThe DVD player is preset to a region code at the factory depending on where the DVD player is sold. A DVD from a different region cannot be played in this unit and the unit will display "WRONG REGION”

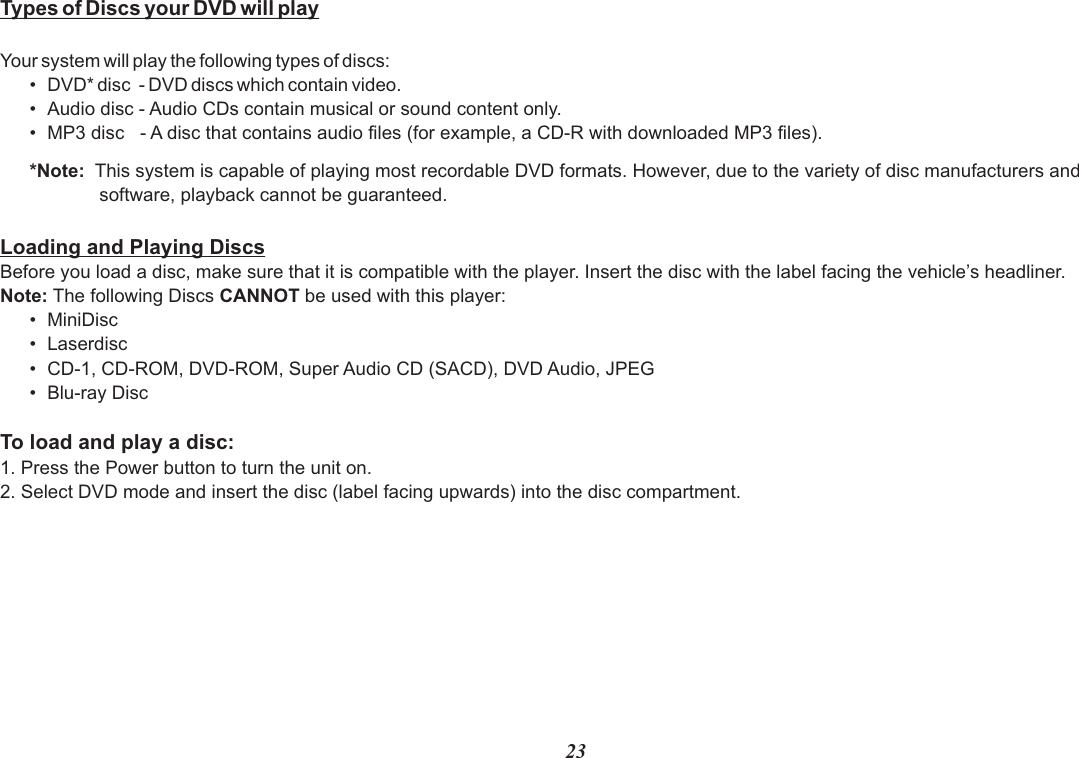

23Types of Discs your DVD will playYour system will play the following types of discs:•DVD* disc - DVD discs which contain video.•Audio disc - Audio CDs contain musical or sound content only.•MP3 disc - A disc that contains audio files (for example, a CD-R with downloaded MP3 files).*Note: This system is capable of playing most recordable DVD formats. However, due to the variety of disc manufacturers and software, playback cannot be guaranteed.Loading and Playing DiscsBefore you load a disc, make sure that it is compatible with the player. Insert the disc with the label facing the vehicle’s headliner.Note: The following Discs CANNOT be used with this player:•MiniDisc•Laserdisc•CD-1, CD-ROM, DVD-ROM, Super Audio CD (SACD), DVD Audio, JPEG •Blu-ray DiscTo load and play a disc:1. Press the Power button to turn the unit on.2. Select DVD mode and insert the disc (label facing upwards) into the disc compartment.
OVERHEAD DOME LIGHTSThe Dome Lights integrated into the unit are controlled by a three position slide switch. Sliding the switch to the ON position will turnthe lights ON. The OFF position will prevent the lights from turning ON with the vehicle's interior lighting. The AUTO position will allow thelights to turn ON and OFF with the vehicle's interior lighting. Refer to the Installation Guide for wire connections. Do not leave the vehicle unattended with the dome light switch in the ON position, as this could result in a discharged battery. ACCESSORIESWIRELESS HEADPHONESSOURCE FEATUREThe ADVDLX10 includes a built-in infrared transmitter for use with the supplied wireless headphones. The headphone volume is adjusted using the controls on each headset. Any number of wireless headphones may be used but they must be used within a line of sight from the transmitter, as infrared transmissions, like visible light, travel only in a straight line. See the documentation accompanying your wireless headphones.Note: If the monitor is set to M2 mode, the headphones supplied with this unit will not work, as these headphones are single channel. Only two-channel wireless headphones will work with this unit when set to M2 mode. The only time it is necessary to set this unit to M2 mode is if there is an RSA (Rear Seat Audio) installed in the vehicle or if two of these monitors are installed in one vehicle. Press the system menu and highlight monitor mode to change the M1 mode to M2 mode or M2 mode to M1 mode.AVThe AV input may be connected to a external video source, video game system, or other audio / video devices. To access the audio / video inputs, inputs, turn the unit on and press the S (source) button or the Source button on the remote control until "AV” is displayed on the screen. Turn the video source component on with its power button or remote control and it is now ready to play the audio and video signals from the source connected to AV.AUXThe AUX input may be connected to a external video source, video game system or other audio/video devices via AUX harness input, turnthe unit ON and press the S (Source) button or source button on the remote until “AUX” is displayed on screen. Turn the video source component on with its power button or remote control and it is now ready to play the audio and video signal from the source connected to AUX. 24

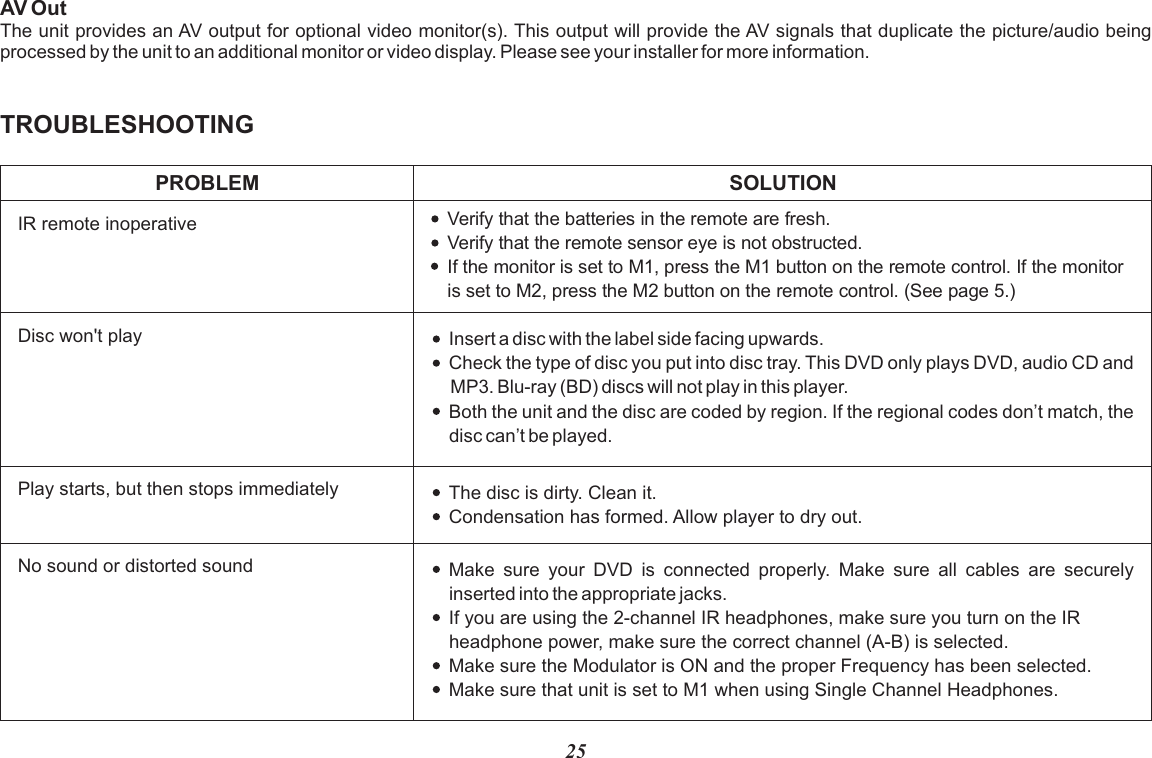

25TROUBLESHOOTINGPROBLEMIR remote inoperative Verify that the batteries in the remote are fresh.Verify that the remote sensor eye is not obstructed.If the monitor is set to M1, press the M1 button on the remote control. If the monitor is set to M2, press the M2 button on the remote control. (See page 5.)Disc won't playNo sound or distorted soundPlay starts, but then stops immediatelyInsert a disc with the label side facing upwards.Check the type of disc you put into disc tray. This DVD only plays DVD, audio CD and MP3. Blu-ray (BD) discs will not play in this player.Both the unit and the disc are coded by region. If the regional codes don’t match, the disc can’t be played.Make sure your DVD is connected properly. Make sure all cables are securely inserted into the appropriate jacks.If you are using the 2-channel IR headphones, make sure you turn on the IR headphone power, make sure the correct channel (A-B) is selected.Make sure the Modulator is ON and the proper Frequency has been selected.Make sure that unit is set to M1 when using Single Channel Headphones.The disc is dirty. Clean it.Condensation has formed. Allow player to dry out.SOLUTIONAV OutThe unit provides an AV output for optional video monitor(s). This output will provide the AV signals that duplicate the picture/audio being processed by the unit to an additional monitor or video display. Please see your installer for more information.

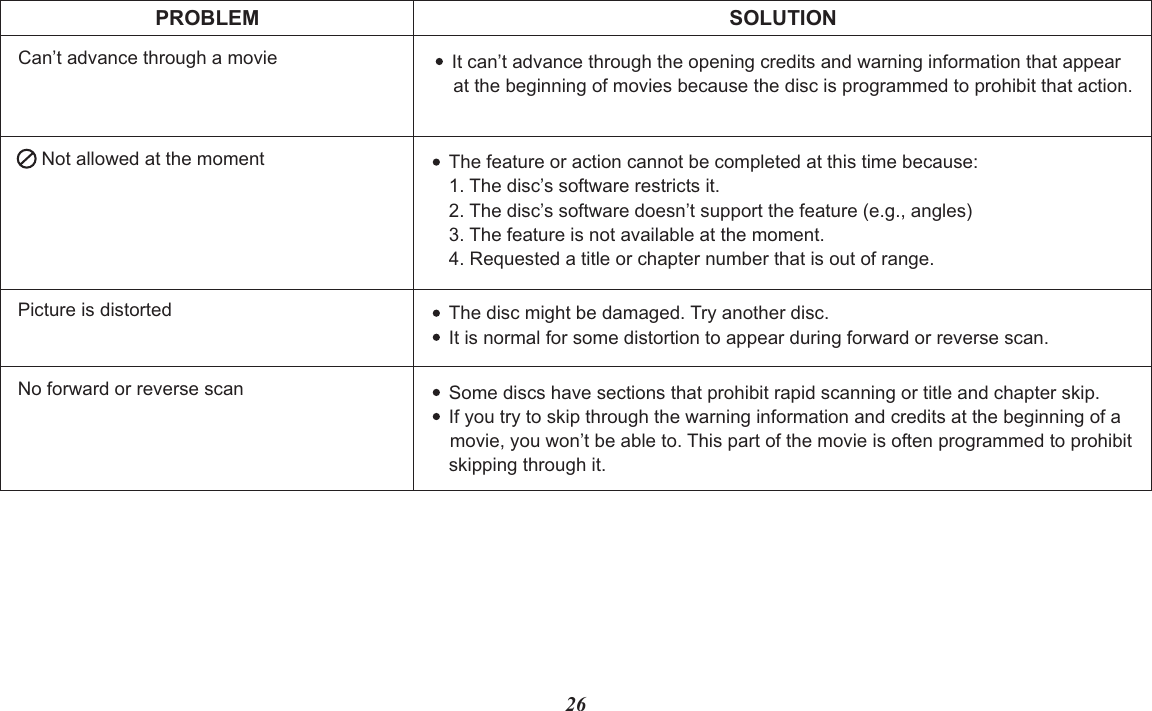

PROBLEMPicture is distorted The disc might be damaged. Try another disc.It is normal for some distortion to appear during forward or reverse scan.SOLUTIONNot allowed at the moment The feature or action cannot be completed at this time because:
