Action Electronics 9R3ODM90902 9” Digital Audio Video Player with FM Transmitter User Manual 91 N9 01020G ODM90902CR

Action Electronics Co.,Ltd. 9” Digital Audio Video Player with FM Transmitter 91 N9 01020G ODM90902CR

User manual

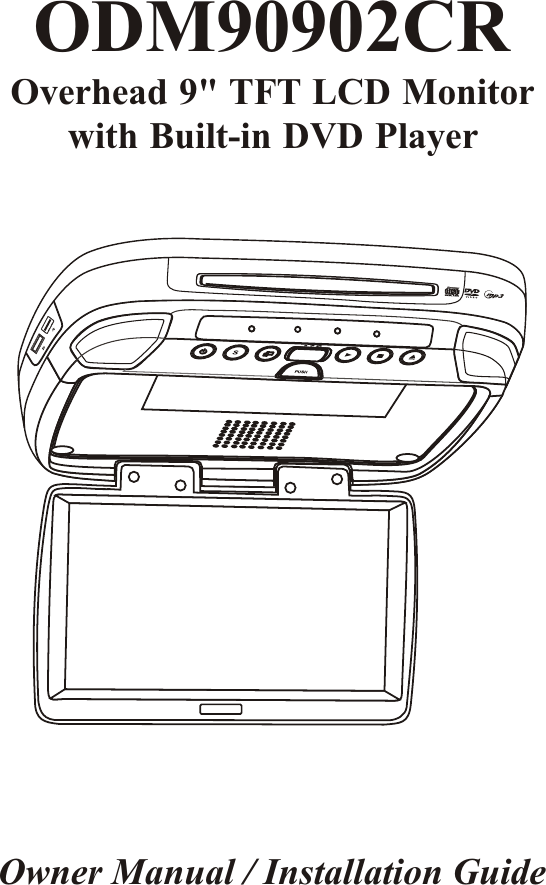

Owner Manual / Installation GuideODM90902CROverhead 9" TFT LCD Monitorwith Built-in DVD Player
2Important NoticeAn LCD panel or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park” or when the vehicle’s parking brake is applied.An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the parking brake is not applied must be installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, to the operator of the motor vehicle.Warnings Do not use any solvents or cleaning materials when cleaning the video monitor.Do not use any abrasive cleaners, they may scratch the screen. Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.Lock the LCD screen in the fully closed position when not in use.Before putting on headphones always adjust the volume setting to the lowest position.Remember to leave the dome light switch in the off or auto positions when the vehicle is unattended, as the dome lights, if left on, can drain the vehicle’s battery. Do not put pressure on the screen.Caution children to avoid touching or scratching the screen, as it may Congratulations on your purchase of the unit Flip Down Monitor. This unit has been designed to give you and your family many years of video entertainment in the mobile environment. Please read the directions that follow to familiarize yourself with the product and to ensure that you obtain the best results from your equipment. Please note: Installation options vary, see the individual owner’s manuals for each component in your system to obtain a full understanding of each component’s operation.Safety PrecautionFor safety reasons, when changing video media it is recommended that the vehicle is not in motion, and that you do not allow children to unfasten seat-belts to change video media or make any adjustments to the system. System adjustments can be accomplished using the remote control, while seat-belts remain fastened. Enjoy your entertainment system but remember the safety of all passengers remains the number one priority.

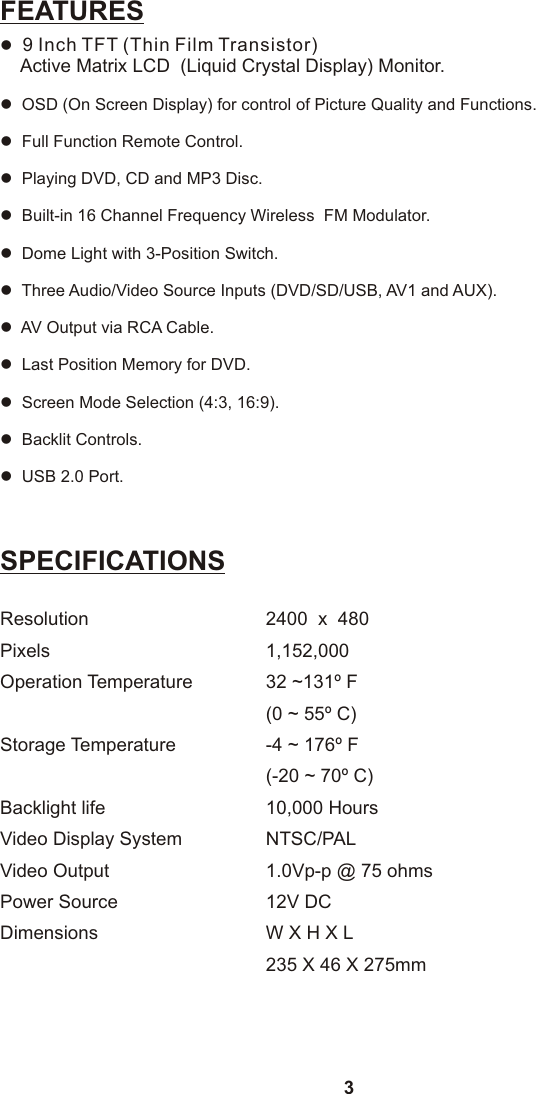

3SPECIFICATIONSResolution 2400 x 480Pixels 1,152,000Operation Temperature 32 ~131º F(0 ~ 55º C)Storage Temperature -4 ~ 176º F(-20 ~ 70º C)Backlight life 10,000 HoursVideo Display System NTSC/PALVideo Output 1.0Vp-p @ 75 ohmsPower Source 12V DCDimensions W X H X L 235 X 46 X 275mmFEATURESllllllllllll 9 Inch TFT (Thin Film Transistor) Active Matrix LCD (Liquid Crystal Display) Monitor. OSD (On Screen Display) for control of Picture Quality and Functions. Full Function Remote Control. Playing DVD, CD and MP3 Disc. Built-in 16 Channel Frequency Wireless FM Modulator. Dome Light with 3-Position Switch. Three Audio/Video Source Inputs (DVD/SD/USB, AV1 and AUX). AV Output via RCA Cable. Last Position Memory for DVD. Screen Mode Selection (4:3, 16:9). Backlit Controls. USB 2.0 Port.

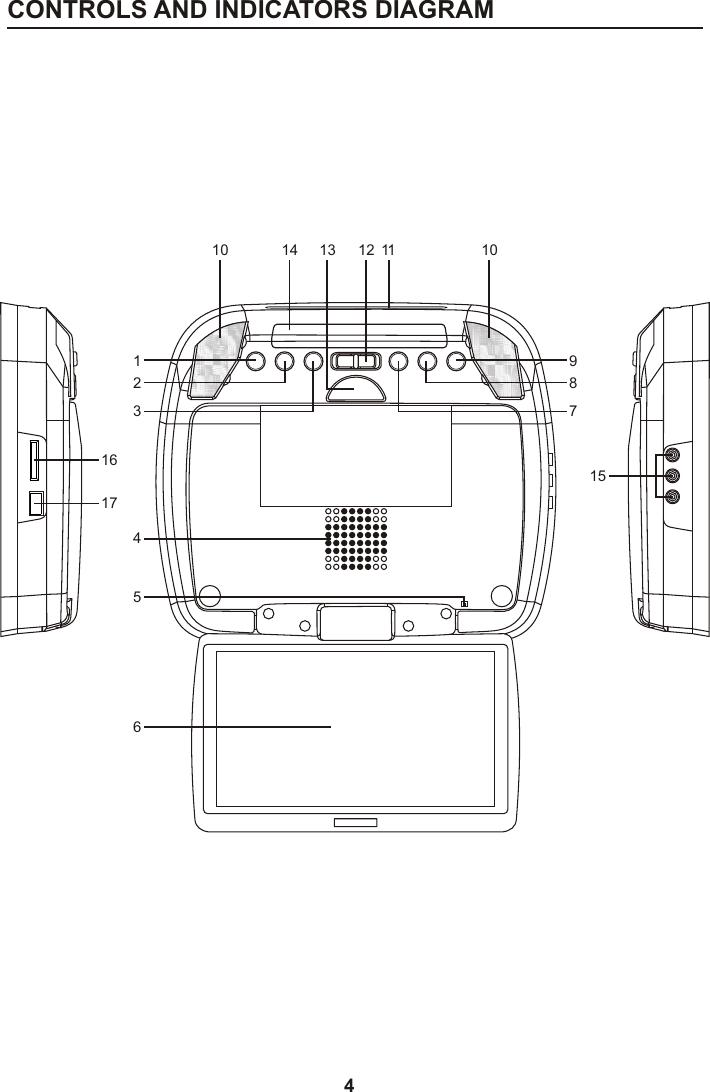

CONTROLS AND INDICATORS DIAGRAM41 91011121314102 83 7456151617

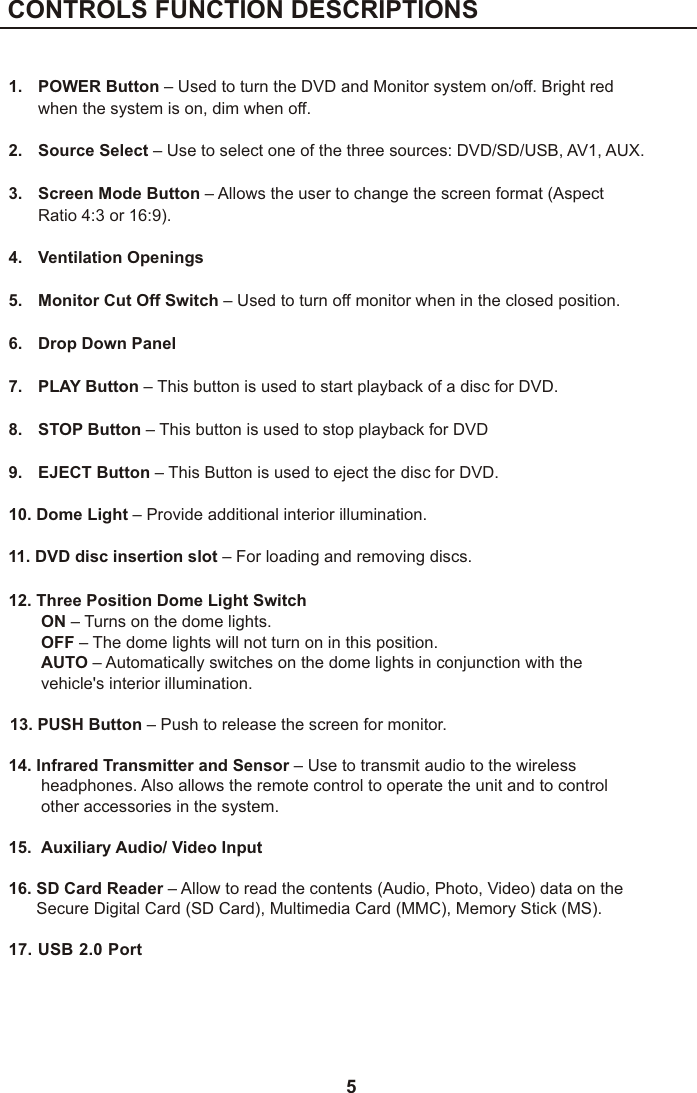

5CONTROLS FUNCTION DESCRIPTIONS1. POWER Button – Used to turn the DVD and Monitor system on/off. Bright red when the system is on, dim when off.2. Source Select – Use to select one of the three sources: DVD/SD/USB, AV1, AUX.3. Screen Mode Button – Allows the user to change the screen format (Aspect Ratio 4:3 or 16:9).4. Ventilation Openings5. Monitor Cut Off Switch – Used to turn off monitor when in the closed position.6. Drop Down Panel7. PLAY Button – This button is used to start playback of a disc for DVD.8. STOP Button – This button is used to stop playback for DVD9. EJECT Button – This Button is used to eject the disc for DVD.10. Dome Light – Provide additional interior illumination.11. DVD disc insertion slot – For loading and removing discs.12. Three Position Dome Light SwitchON – Turns on the dome lights.OFF – The dome lights will not turn on in this position.AUTO – Automatically switches on the dome lights in conjunction with the vehicle's interior illumination.13. PUSH Button – Push to release the screen for monitor.14. Infrared Transmitter and Sensor – Use to transmit audio to the wireless headphones. Also allows the remote control to operate the unit and to control other accessories in the system.15. Auxiliary Audio/ Video Input16. SD Card Reader – Allow to read the contents (Audio, Photo, Video) data on the Secure Digital Card (SD Card), Multimedia Card (MMC), Memory Stick (MS).17. USB 2.0 Port

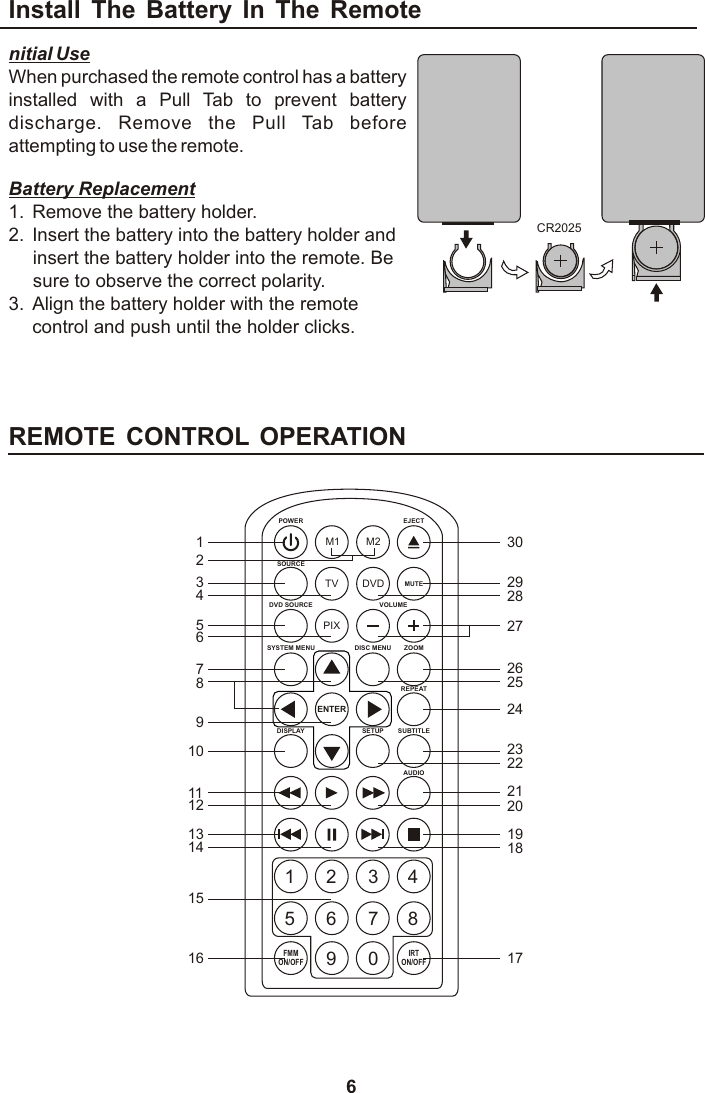

6Install The Battery In The RemoteCR2025REMOTE CONTROL OPERATIONnitial UseWhen purchased the remote control has a battery installed with a Pull Tab to prevent battery discharge. Remove the Pull Tab before attempting to use the remote.Battery Replacement1. Remove the battery holder.2. Insert the battery into the battery holder and insert the battery holder into the remote. Be sure to observe the correct polarity.3. Align the battery holder with the remote control and push until the holder clicks.M1 M2POWER EJECTTV DVDSOURCEMUTEDVD SOURCE VOLUMEPIXSYSTEM MENU DISC MENU ZOOMREPEATENTERSUBTITLE SETUPDISPLAY AUDIO1 2 3 45 6 7 89 0IRTON/OFFFMMON/OFF12345678910111213141516 1718192021222324252627282930

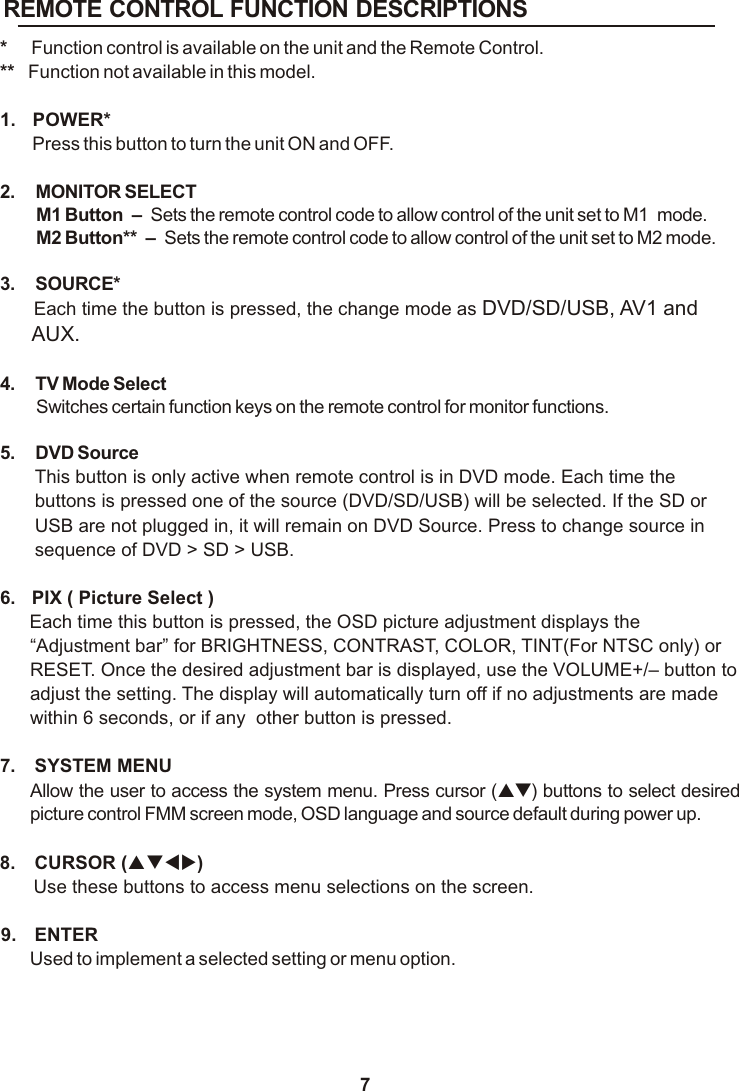

REMOTE CONTROL FUNCTION DESCRIPTIONS7* Function control is available on the unit and the Remote Control.** Function not available in this model.1. POWER* Press this button to turn the unit ON and OFF.2. MONITOR SELECTM1 Button – Sets the remote control code to allow control of the unit set to M1 mode. M2 Button** – Sets the remote control code to allow control of the unit set to M2 mode.3. SOURCE* Each time the button is pressed, the change mode as DVD/SD/USB, AV1 and AUX.4. TV Mode SelectSwitches certain function keys on the remote control for monitor functions.5. DVD SourceThis button is only active when remote control is in DVD mode. Each time the buttons is pressed one of the source (DVD/SD/USB) will be selected. If the SD or USB are not plugged in, it will remain on DVD Source. Press to change source in sequence of DVD > SD > USB.6. PIX ( Picture Select )Each time this button is pressed, the OSD picture adjustment displays the “Adjustment bar” for BRIGHTNESS, CONTRAST, COLOR, TINT(For NTSC only) or RESET. Once the desired adjustment bar is displayed, use the VOLUME+/ button to adjust the setting. The display will automatically turn off if no adjustments are made within 6 seconds, or if any other button is pressed.7. SYSTEM MENU Allow the user to access the system menu. Press cursor (pq) buttons to select desired picture control FMM screen mode, OSD language and source default during power up.8. CURSOR (pqtu)Use these buttons to access menu selections on the screen.9. ENTERUsed to implement a selected setting or menu option.–

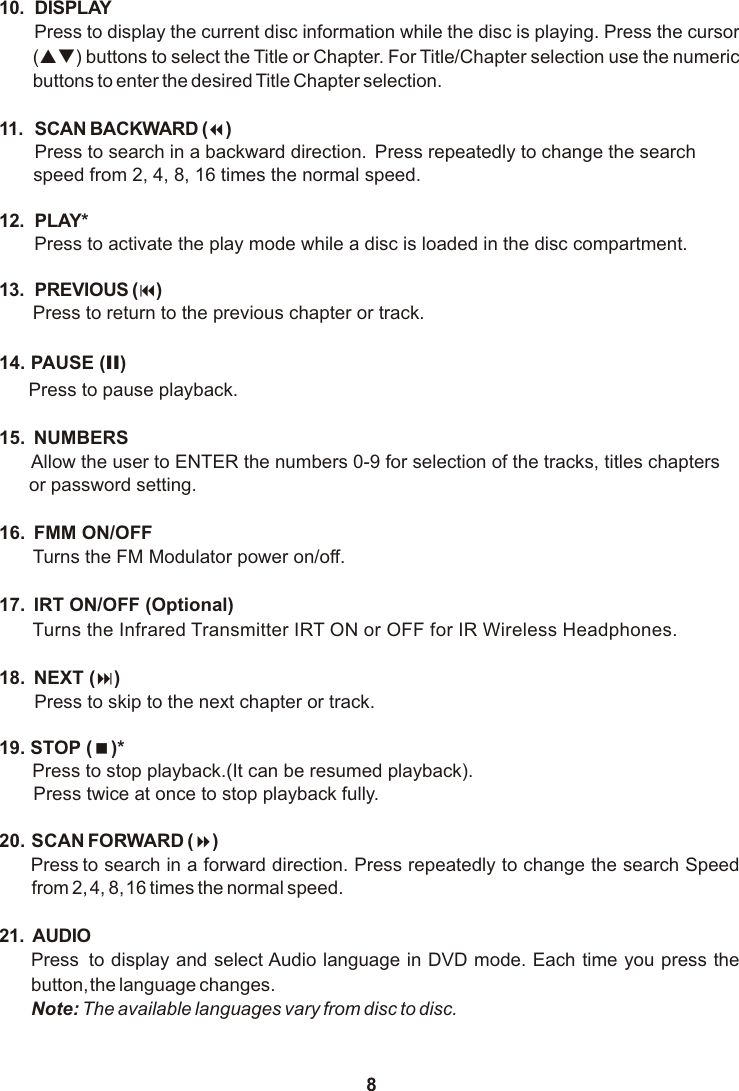

810. DISPLAYPress to display the current disc information while the disc is playing. Press the cursor (pq) buttons to select the Title or Chapter. For Title/Chapter selection use the numeric buttons to enter the desired Title Chapter selection.11. SCAN BACKWARD (7)Press to search in a backward direction. Press repeatedly to change the search speed from 2, 4, 8, 16 times the normal speed.12. PLAY* Press to activate the play mode while a disc is loaded in the disc compartment.13. PREVIOUS (9)Press to return to the previous chapter or track.14. PAUSE (II)Press to pause playback.15. NUMBERSAllow the user to ENTER the numbers 0-9 for selection of the tracks, titles chapters or password setting.16. FMM ON/OFF Turns the FM Modulator power on/off.17. IRT ON/OFF (Optional)Turns the Infrared Transmitter IRT ON or OFF for IR Wireless Headphones. 18. NEXT (:)Press to skip to the next chapter or track.19. STOP (<)* Press to stop playback.(It can be resumed playback).Press twice at once to stop playback fully.20. SCAN FORWARD (8)Press to search in a forward direction. Press repeatedly to change the search Speed from 2, 4, 8, 16 times the normal speed. 21. AUDIOPress to display and select Audio language in DVD mode. Each time you press the button, the language changes.Note: The available languages vary from disc to disc.

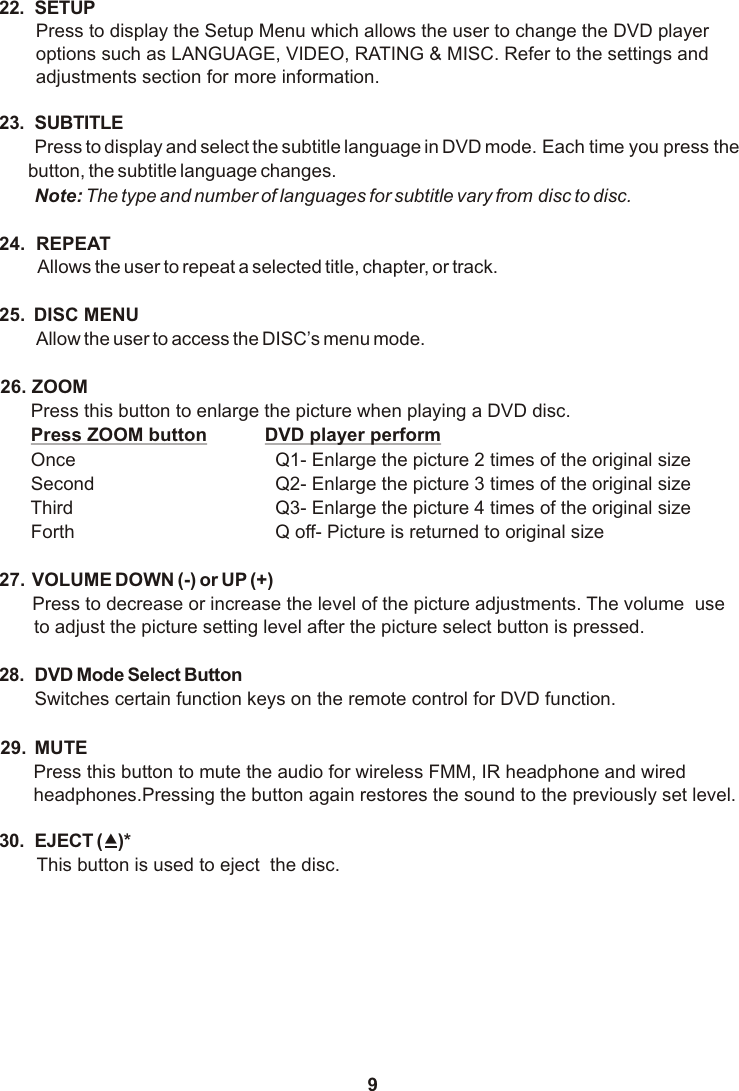

922. SETUPPress to display the Setup Menu which allows the user to change the DVD player options such as LANGUAGE, VIDEO, RATING & MISC. Refer to the settings and adjustments section for more information.23. SUBTITLEPress to display and select the subtitle language in DVD mode. Each time you press the button, the subtitle language changes.Note: The type and number of languages for subtitle vary from disc to disc.24. REPEAT Allows the user to repeat a selected title, chapter, or track.25. DISC MENUAllow the user to access the DISC’s menu mode.26. ZOOM Press this button to enlarge the picture when playing a DVD disc. Press ZOOM button DVD player perform Once Q1- Enlarge the picture 2 times of the original size Second Q2- Enlarge the picture 3 times of the original size Third Q3- Enlarge the picture 4 times of the original size Forth Q off- Picture is returned to original size27. VOLUME DOWN (-) or UP (+)Press to decrease or increase the level of the picture adjustments. The volume use to adjust the picture setting level after the picture select button is pressed.28. DVD Mode Select ButtonSwitches certain function keys on the remote control for DVD function.29. MUTEPress this button to mute the audio for wireless FMM, IR headphone and wired headphones.Pressing the button again restores the sound to the previously set level.30. EJECT (?)*This button is used to eject the disc.

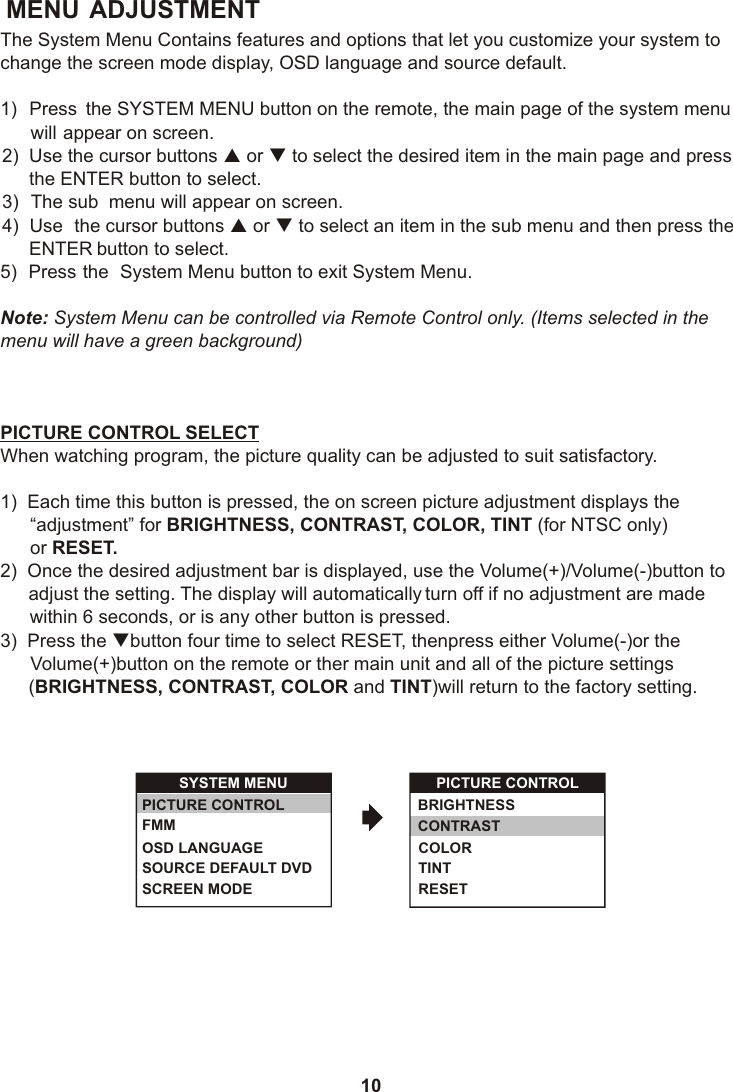

10The System Menu Contains features and options that let you customize your system to change the screen mode display, OSD language and source default.1) Press the SYSTEM MENU button on the remote, the main page of the system menu will appear on screen.2) Use the cursor buttons p or q to select the desired item in the main page and press the ENTER button to select.3) The sub menu will appear on screen.4) Use the cursor buttons p or q to select an item in the sub menu and then press the ENTER button to select.5) Press the System Menu button to exit System Menu.Note: System Menu can be controlled via Remote Control only. (Items selected in the menu will have a green background)PICTURE CONTROL SELECTWhen watching program, the picture quality can be adjusted to suit satisfactory.1) Each time this button is pressed, the on screen picture adjustment displays the “adjustment” for BRIGHTNESS, CONTRAST, COLOR, TINT (for NTSC only) or RESET.2) Once the desired adjustment bar is displayed, use the Volume(+)/Volume(-)button to adjust the setting. The display will automatically t u r n off if no adjustment are made within 6 seconds, or is any other button is pressed.3) Press the qbutton four time to select RESET, thenpress either Volume(-)or the Volume(+)button on the remote or ther main unit and all of the picture settings (BRIGHTNESS, CONTRAST, COLOR and TINT)will return to the factory setting.SYSTEM MENU PICTURE CONTROLSCREEN MODEOSD LANGUAGESOURCE DEFAULT DVDPICTURE CONTROLFMM BRIGHTNESSCONTRASTCOLORTINTRESETMENU ADJUSTMENT

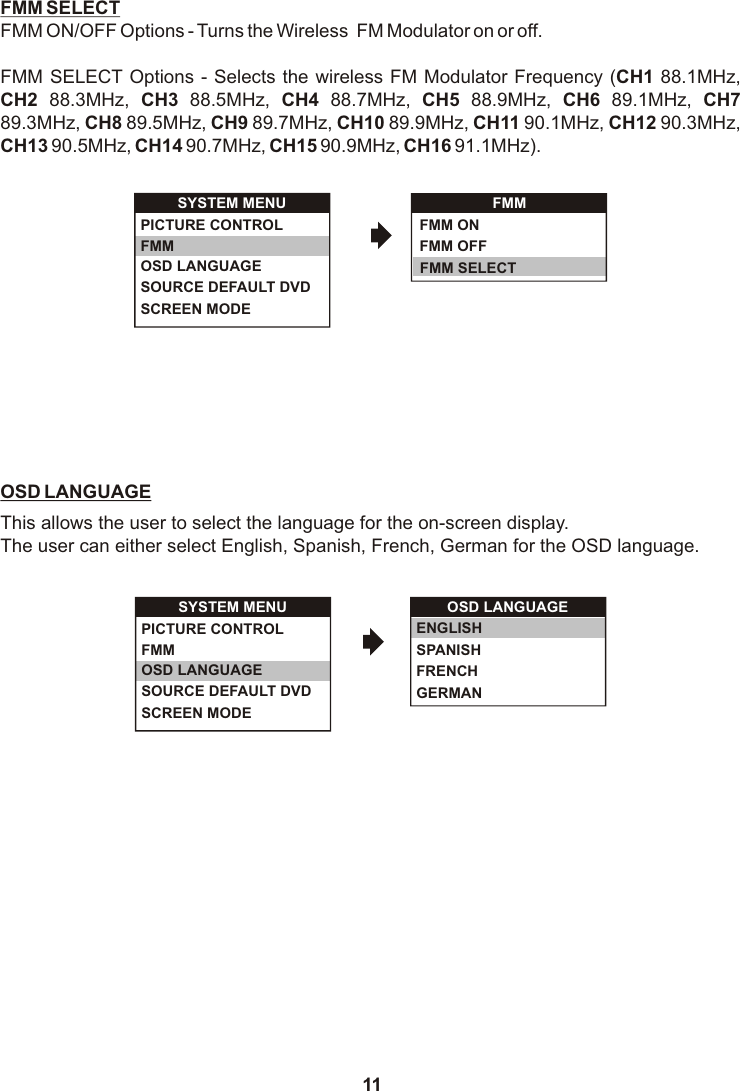

11FMM SELECTFMM ON/OFF Options - Turns the Wireless FM Modulator on or off.FMM SELECT Options - Selects the wireless FM Modulator Frequency (CH1 88.1MHz, CH2 88.3MHz, CH3 88.5MHz, CH4 88.7MHz, CH5 88.9MHz, CH6 89.1MHz, CH7 89.3MHz, CH8 89.5MHz, CH9 89.7MHz, CH10 89.9MHz, CH11 90.1MHz, CH12 90.3MHz, CH13 90.5MHz, CH14 90.7MHz, CH15 90.9MHz, CH16 91.1MHz).OSD LANGUAGEThis allows the user to select the language for the on-screen display. The user can either select English, Spanish, French, German for the OSD language. OSD LANGUAGEENGLISHSPANISHFRENCHGERMANSYSTEM MENUOSD LANGUAGESOURCE DEFAULT DVDSCREEN MODEPICTURE CONTROLFMM FMMFMM ONFMM OFFFMM SELECTSYSTEM MENUOSD LANGUAGESOURCE DEFAULT DVDSCREEN MODEPICTURE CONTROLFMM

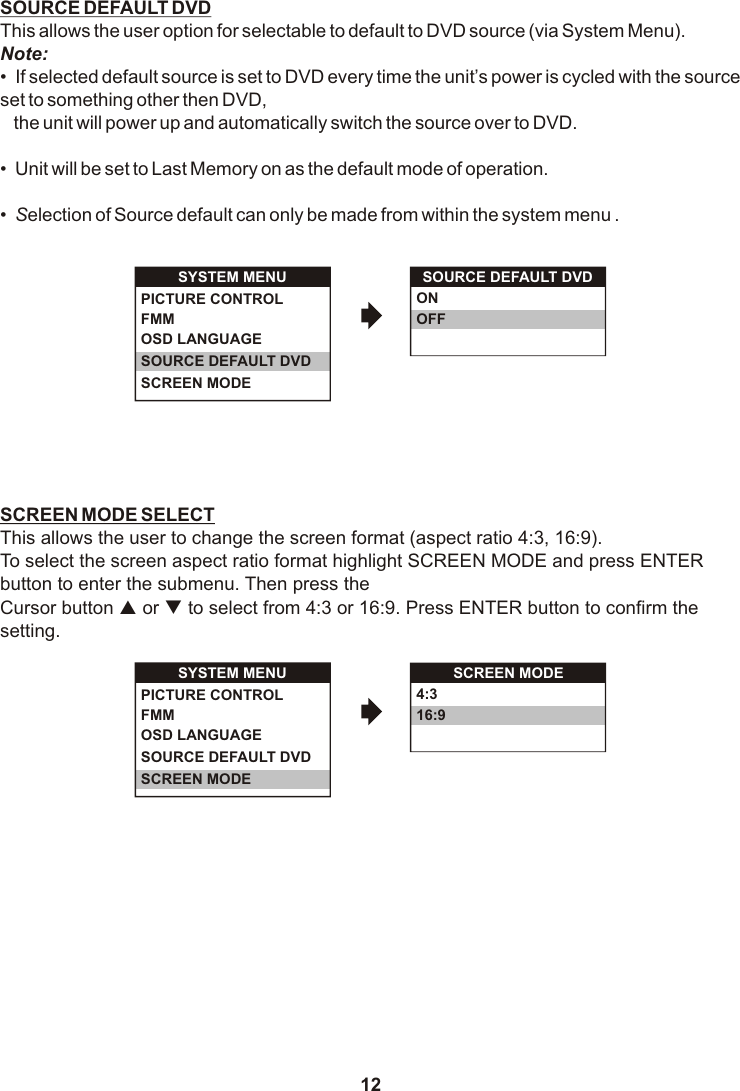

12SOURCE DEFAULT DVDThis allows the user option for selectable to default to DVD source (via System Menu).Note:• If selected default source is set to DVD every time the unit’s power is cycled with the source set to something other then DVD, the unit will power up and automatically switch the source over to DVD.• Unit will be set to Last Memory on as the default mode of operation.• Selection of Source default can only be made from within the system menu .SCREEN MODE SELECTThis allows the user to change the screen format (aspect ratio 4:3, 16:9). To select the screen aspect ratio format highlight SCREEN MODE and press ENTER button to enter the submenu. Then press theCursor button p or q to select from 4:3 or 16:9. Press ENTER button to confirm the setting.SOURCE DEFAULT DVDONOFFSYSTEM MENUOSD LANGUAGESOURCE DEFAULT DVDSCREEN MODEPICTURE CONTROLFMM SCREEN MODE4:316:9SYSTEM MENUOSD LANGUAGESOURCE DEFAULT DVDSCREEN MODEPICTURE CONTROLFMM

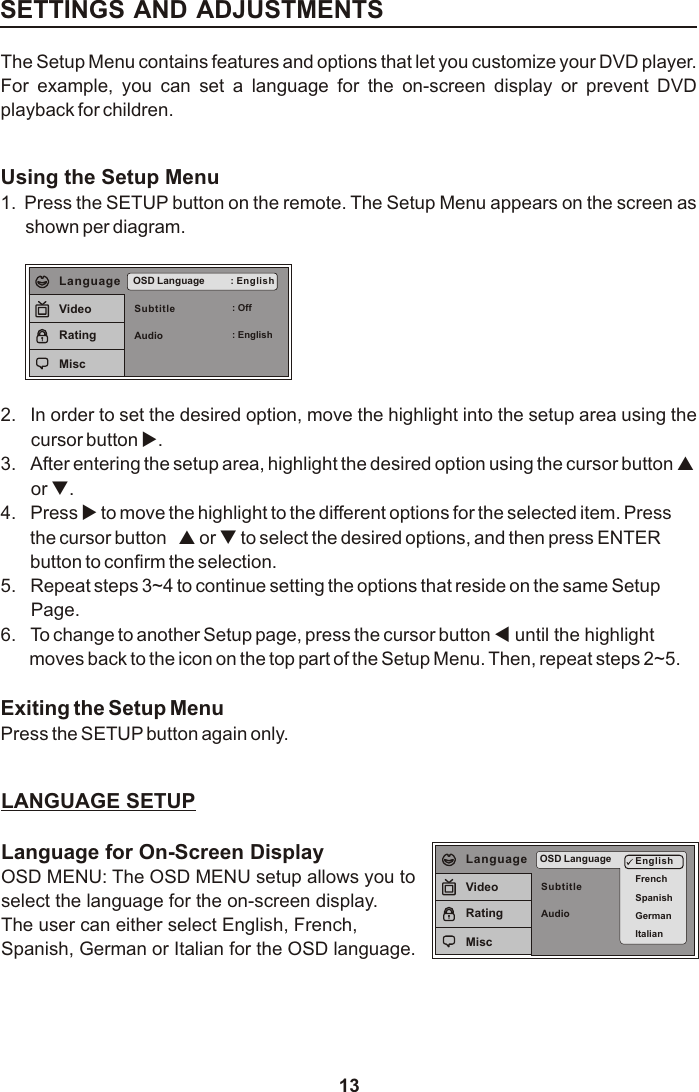

13SETTINGS AND ADJUSTMENTSThe Setup Menu contains features and options that let you customize your DVD player. For example, you can set a language for the on-screen display or prevent DVD playback for children. Using the Setup Menu1. Press the SETUP button on the remote. The Setup Menu appears on the screen as shown per diagram.SubtitleAudioOSD Language : English: Off: EnglishLanguageVideoRatingMisc2. In order to set the desired option, move the highlight into the setup area using the cursor button u.3. After entering the setup area, highlight the desired option using the cursor button por q.4. Press u to move the highlight to the different options for the selected item. Pressthe cursor button p or q to select the desired options, and then press ENTERbutton to confirm the selection.5. Repeat steps 3~4 to continue setting the options that reside on the same SetupPage.6. To change to another Setup page, press the cursor button t until the highlightmoves back to the icon on the top part of the Setup Menu. Then, repeat steps 2~5.Exiting the Setup MenuPress the SETUP button again only.LANGUAGE SETUPLanguage for On-Screen DisplayOSD MENU: The OSD MENU setup allows you toselect the language for the on-screen display.The user can either select English, French, Spanish, German or Italian for the OSD language.SubtitleAudioOSD Language EnglishFrenchSpanishGermanItalianLanguageVideoRatingMisc

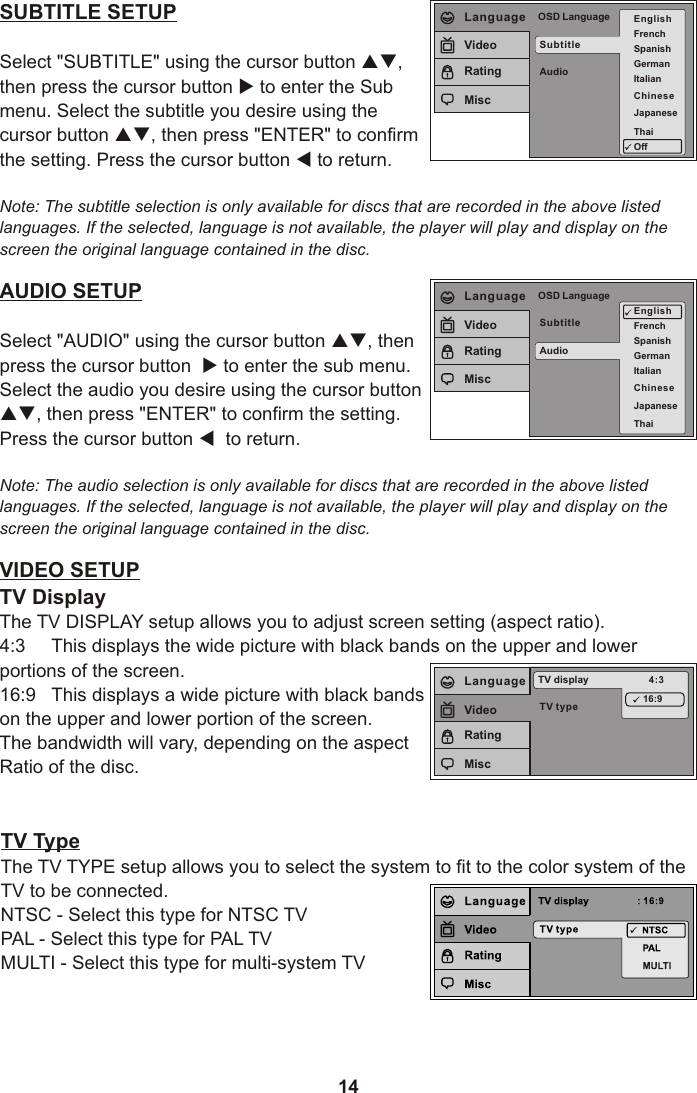

14SUBTITLE SETUPSelect "SUBTITLE" using the cursor button pq,then press the cursor button u to enter the Sub menu. Select the subtitle you desire using the cursor button pq, then press "ENTER" to confirm the setting. Press the cursor button t to return.Note: The subtitle selection is only available for discs that are recorded in the above listed languages. If the selected, language is not available, the player will play and display on the screen the original language contained in the disc.AUDIO SETUPSelect "AUDIO" using the cursor button pq, then press the cursor button u to enter the sub menu. Select the audio you desire using the cursor button pq, then press "ENTER" to confirm the setting. Press the cursor button t to return.Note: The audio selection is only available for discs that are recorded in the above listed languages. If the selected, language is not available, the player will play and display on the screen the original language contained in the disc.SubtitleAudioOSD LanguageEnglishFrenchSpanishGermanItalianJapaneseThaiLanguageVideoRatingMiscVIDEO SETUPTV DisplayThe TV DISPLAY setup allows you to adjust screen setting (aspect ratio). 4:3 This displays the wide picture with black bands on the upper and lower portions of the screen.16:9 This displays a wide picture with black bands on the upper and lower portion of the screen.The bandwidth will vary, depending on the aspect Ratio of the disc.TV typeTV display 4:316:9LanguageVideoRatingMiscChineseSubtitleAudioOSD Language EnglishFrenchSpanishGermanItalianJapaneseThaiOffLanguageVideoRatingMisc ChineseTV TypeThe TV TYPE setup allows you to select the system to fit to the color system of the TV to be connected.NTSC - Select this type for NTSC TVPAL - Select this type for PAL TVMULTI - Select this type for multi-system TV

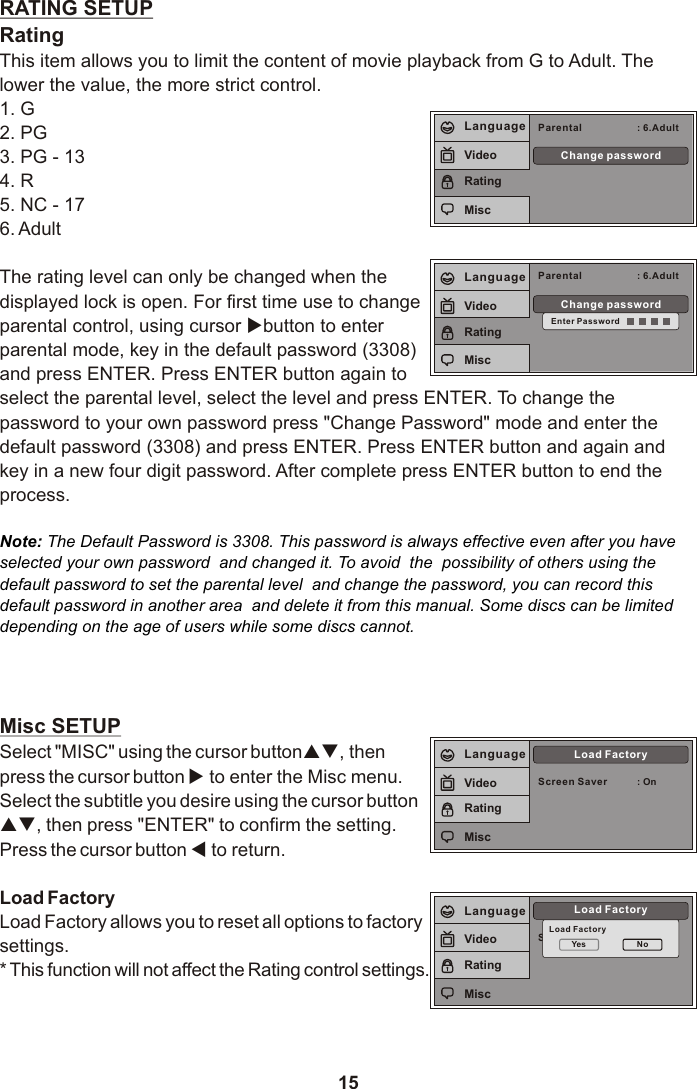

15RATING SETUPRatingThis item allows you to limit the content of movie playback from G to Adult. The lower the value, the more strict control.1. G2. PG3. PG - 134. R5. NC - 176. AdultThe rating level can only be changed when the displayed lock is open. For first time use to change parental control, using cursor ubutton to enter parental mode, key in the default password (3308) and press ENTER. Press ENTER button again to select the parental level, select the level and press ENTER. To change the password to your own password press "Change Password" mode and enter the default password (3308) and press ENTER. Press ENTER button and again and key in a new four digit password. After complete press ENTER button to end the process.Misc SETUPSelect "MISC" using the cursor button pq, then press the cursor button u to enter the Misc menu. Select the subtitle you desire using the cursor button pq, then press "ENTER" to confirm the setting. Press the cursor button t to return.Load FactoryLoad Factory allows you to reset all options to factory settings.* This function will not affect the Rating control settings.Note: The Default Password is 3308. This password is always effective even after you have selected your own password and changed it. To avoid the possibility of others using the default password to set the parental level and change the password, you can record this default password in another area and delete it from this manual. Some discs can be limited depending on the age of users while some discs cannot.Parental : 6.AdultChange passwordLanguageVideoRatingMiscParental : 6.AdultChange passwordEnter PasswordLanguageVideoRatingMiscScreen SaverLoad FactoryLoad FactoryYes NoLanguageVideoRatingMiscScreen Saver : OnLoad FactoryLanguageVideoRatingMisc

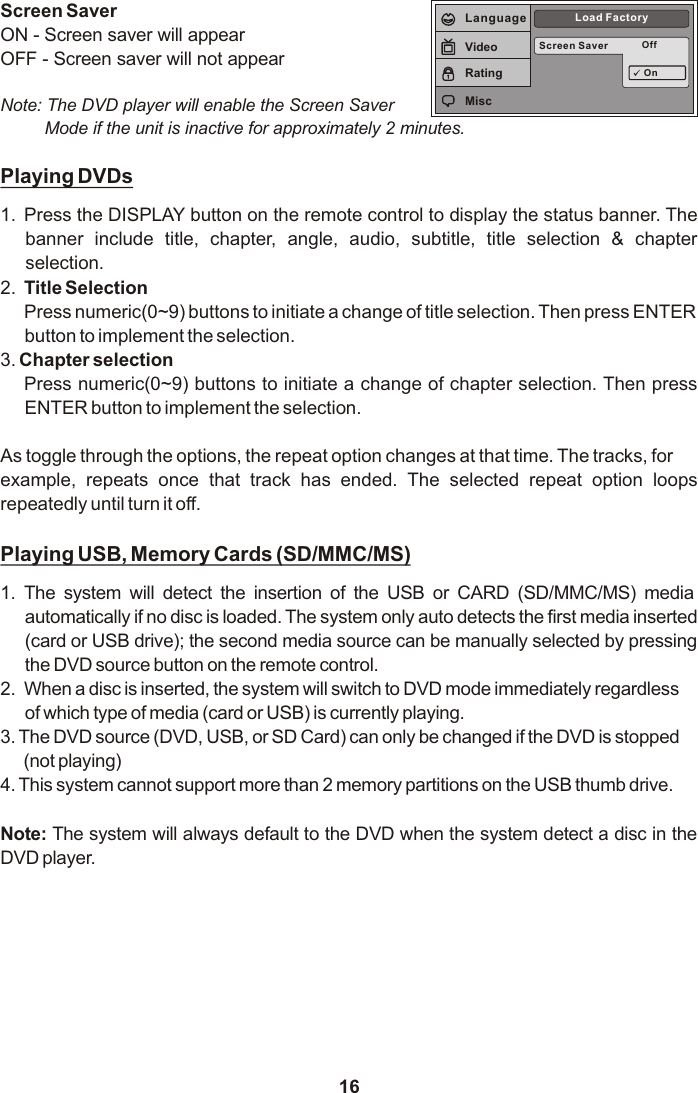

16Playing DVDs1. Press the DISPLAY button on the remote control to display the status banner. The banner include title, chapter, angle, audio, subtitle, title selection & chapter selection.2. Title SelectionPress numeric(0~9) buttons to initiate a change of title selection. Then press ENTERbutton to implement the selection.3. Chapter selection Press numeric(0~9) buttons to initiate a change of chapter selection. Then press ENTER button to implement the selection. As toggle through the options, the repeat option changes at that time. The tracks, forexample, repeats once that track has ended. The selected repeat option loops repeatedly until turn it off.Playing USB, Memory Cards (SD/MMC/MS)1. The system will detect the insertion of the USB or CARD (SD/MMC/MS) media automatically if no disc is loaded. The system only auto detects the first media inserted (card or USB drive); the second media source can be manually selected by pressing the DVD source button on the remote control.2. When a disc is inserted, the system will switch to DVD mode immediately regardlessof which type of media (card or USB) is currently playing.3. The DVD source (DVD, USB, or SD Card) can only be changed if the DVD is stopped(not playing)4. This system cannot support more than 2 memory partitions on the USB thumb drive.Note: The system will always default to the DVD when the system detect a disc in the DVD player.Screen Saver OffLoad FactoryOnLanguageVideoRatingMiscScreen SaverON - Screen saver will appearOFF - Screen saver will not appearNote: The DVD player will enable the Screen Saver Mode if the unit is inactive for approximately 2 minutes.

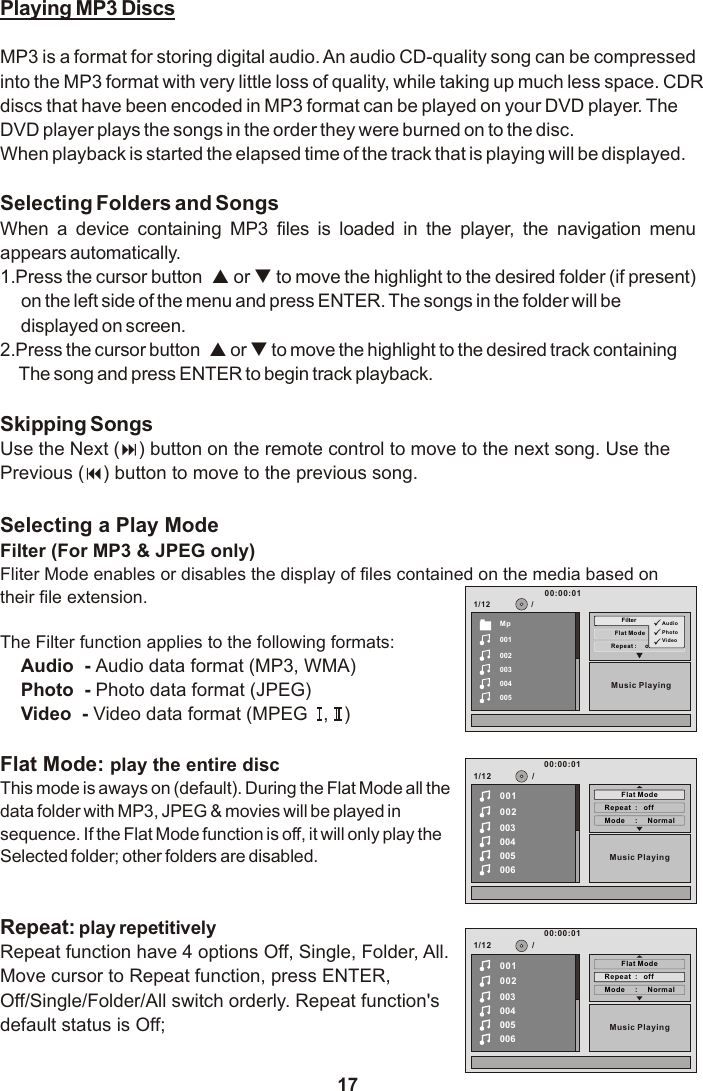

171/12Music PlayingRepea t : offMp001002003004005Flat ModeFilter AudioPhotoVid eo00:00:01/Playing MP3 DiscsMP3 is a format for storing digital audio. An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space. CDRdiscs that have been encoded in MP3 format can be played on your DVD player. The DVD player plays the songs in the order they were burned on to the disc.When playback is started the elapsed time of the track that is playing will be displayed.Selecting Folders and SongsWhen a device containing MP3 files is loaded in the player, the navigation menu appears automatically.1.Press the cursor button p or q to move the highlight to the desired folder (if present) on the left side of the menu and press ENTER. The songs in the folder will be displayed on screen. 2.Press the cursor button p or q to move the highlight to the desired track containingThe song and press ENTER to begin track playback.Skipping SongsUse the Next (:) button on the remote control to move to the next song. Use the Previous (9) button to move to the previous song.Selecting a Play ModeFilter (For MP3 & JPEG only)Fliter Mode enables or disables the display of files contained on the media based on their file extension.The Filter function applies to the following formats:Audio - Audio data format (MP3, WMA)Photo - Photo data format (JPEG)Video - Video data format (MPEG , )Flat Mode: play the entire discThis mode is aways on (default). During the Flat Mode all the data folder with MP3, JPEG & movies will be played in sequence. If the Flat Mode function is off, it will only play the Selected folder; other folders are disabled.Repeat: play repetitively Repeat function have 4 options Off, Single, Folder, All.Move cursor to Repeat function, press ENTER,Off/Single/Folder/All switch orderly. Repeat function'sdefault status is Off;1/12Mode : Norm al002003004005006Repeat : of fMusic Playing/00100:00:01Flat Mode1/12Mode : Norm al002003004005006Repeat : of fMusic Playing/00100:00:01Flat Mode

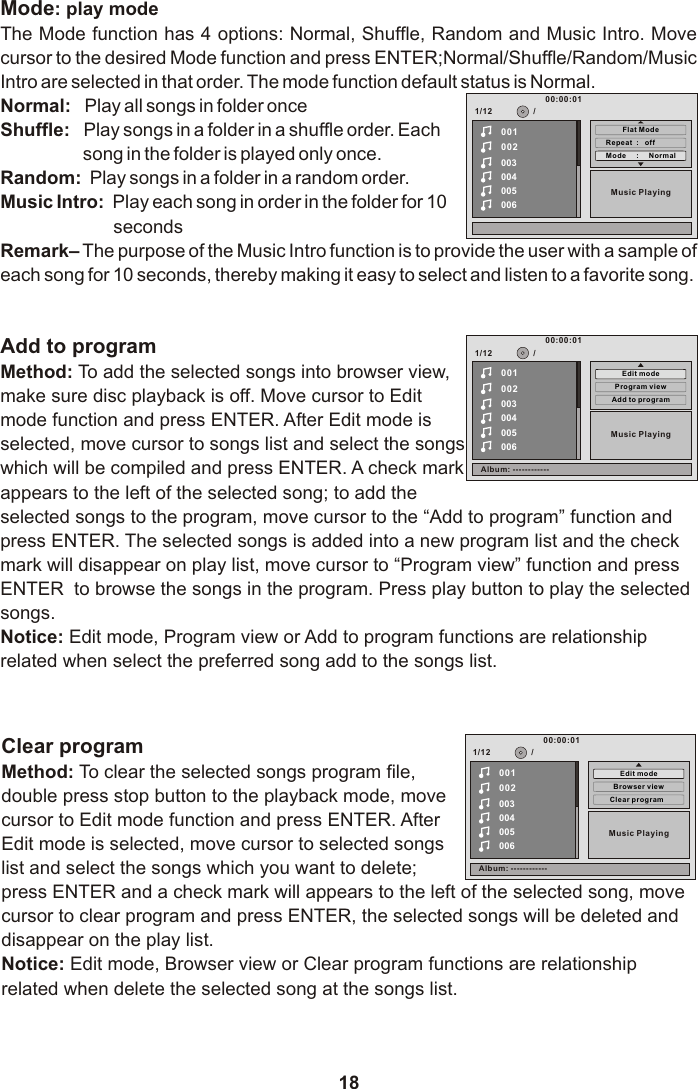

18Add to programMethod: To add the selected songs into browser view, make sure disc playback is off. Move cursor to Edit mode function and press ENTER. After Edit mode is selected, move cursor to songs list and select the songs which will be compiled and press ENTER. A check mark appears to the left of the selected song; to add the selected songs to the program, move cursor to the “Add to program” function and press ENTER. The selected songs is added into a new program list and the check mark will disappear on play list, move cursor to “Program view” function and press ENTER to browse the songs in the program. Press play button to play the selected songs.Notice: Edit mode, Program view or Add to program functions are relationship related when select the preferred song add to the songs list.1/12Add to prog ram002003004005006Program v iewMusic Playing/00100:00:01Edit modeAlbum: ------ ------Clear programMethod: To clear the selected songs program file, double press stop button to the playback mode, move cursor to Edit mode function and press ENTER. After Edit mode is selected, move cursor to selected songs list and select the songs which you want to delete; press ENTER and a check mark will appears to the left of the selected song, move cursor to clear program and press ENTER, the selected songs will be deleted and disappear on the play list.Notice: Edit mode, Browser view or Clear program functions are relationship related when delete the selected song at the songs list.1/12Clear pro gram002003004005006Browser v iewMusic Playing/00100:00:01Edit modeAlbum: ------ ------Mode: play modeThe Mode function has 4 options: Normal, Shuffle, Random and Music Intro. Move cursor to the desired Mode function and press ENTER;Normal/Shuffle/Random/Music Intro are selected in that order. The mode function default status is Normal.Normal: Play all songs in folder once Shuffle: Play songs in a folder in a shuffle order. Each song in the folder is played only once.Random: Play songs in a folder in a random order.Music Intro: Play each song in order in the folder for 10 secondsRemark– The purpose of the Music Intro function is to provide the user with a sample of each song for 10 seconds, thereby making it easy to select and listen to a favorite song.1/12Mode : Norm al002003004005006Repeat : of fMusic Playing/00100:00:01Flat Mode

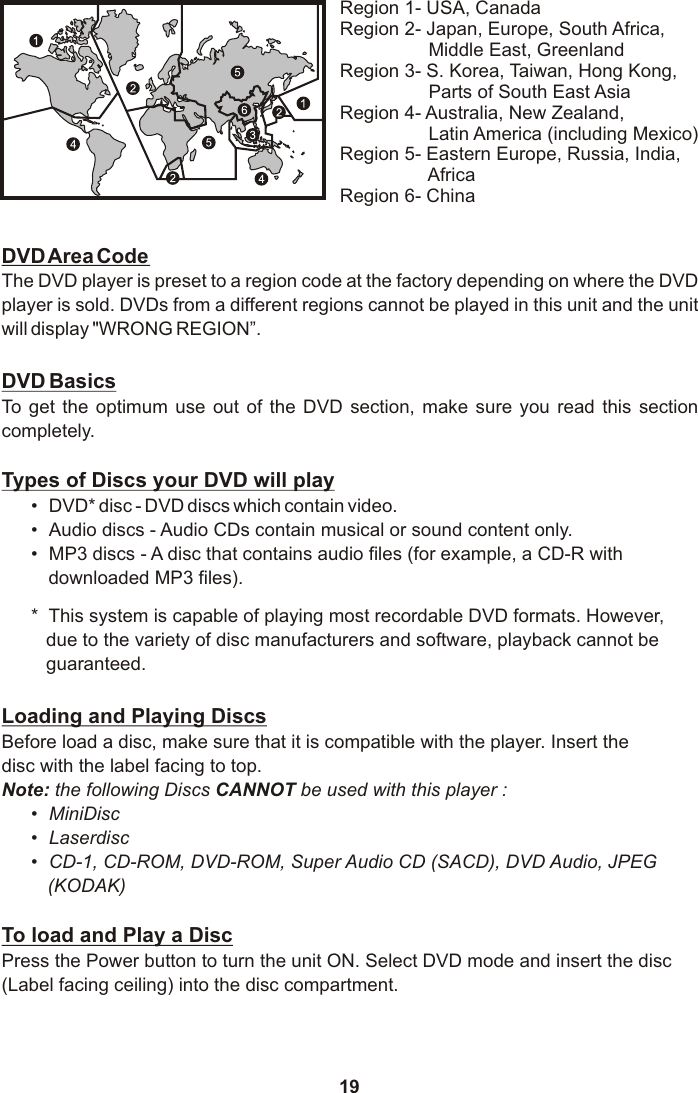

19DVD Area CodeThe DVD player is preset to a region code at the factory depending on where the DVD player is sold. DVDs from a different regions cannot be played in this unit and the unit will display "WRONG REGION”.DVD BasicsTo get the optimum use out of the DVD section, make sure you read this section completely.Types of Discs your DVD will play• DVD* disc - DVD discs which contain video.• Audio discs - Audio CDs contain musical or sound content only.• MP3 discs - A disc that contains audio files (for example, a CD-R with downloaded MP3 files).* This system is capable of playing most recordable DVD formats. However, due to the variety of disc manufacturers and software, playback cannot be guaranteed.Loading and Playing DiscsBefore load a disc, make sure that it is compatible with the player. Insert the disc with the label facing to top.Note: the following Discs CANNOT be used with this player :•MiniDisc•Laserdisc•CD-1, CD-ROM, DVD-ROM, Super Audio CD (SACD), DVD Audio, JPEG (KODAK)To load and Play a DiscPress the Power button to turn the unit ON. Select DVD mode and insert the disc (Label facing ceiling) into the disc compartment.Region 1- USA, CanadaRegion 2- Japan, Europe, South Africa, Middle East, GreenlandRegion 3- S. Korea, Taiwan, Hong Kong, Parts of South East AsiaRegion 4- Australia, New Zealand, Latin America (including Mexico)Region 5- Eastern Europe, Russia, India, AfricaRegion 6- China

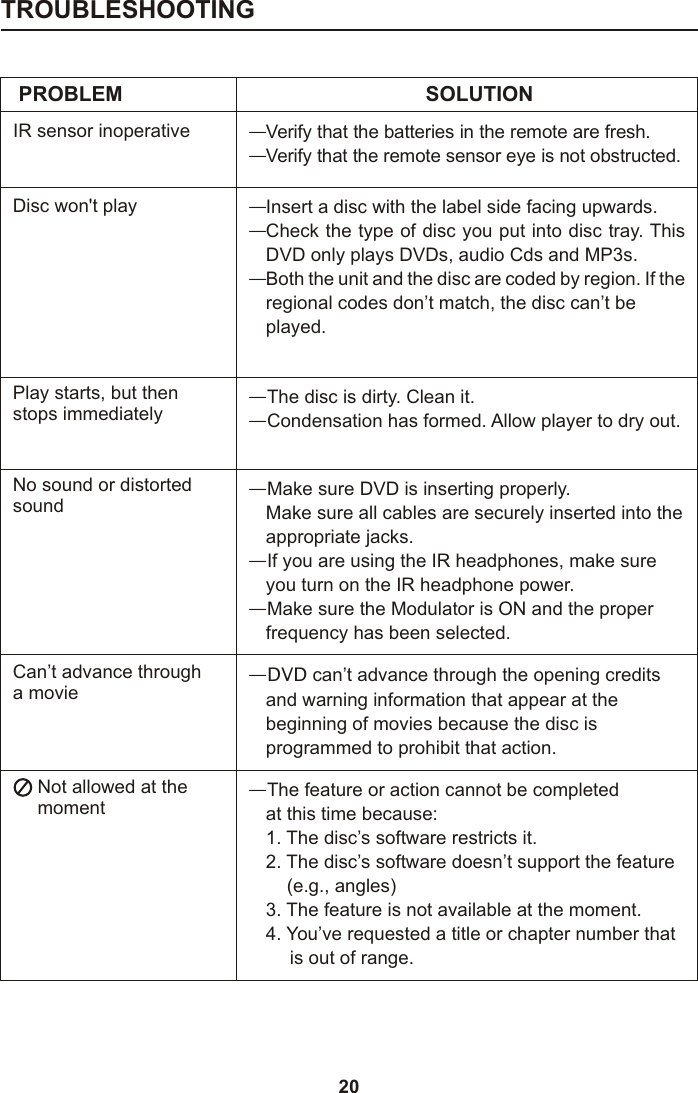

20TROUBLESHOOTINGPROBLEMIR sensor inoperativeDisc won't play—Verify that the batteries in the remote are fresh.—Verify that the remote sensor eye is not obstructed.—Insert a disc with the label side facing upwards.—Check the type of disc you put into disc tray. This DVD only plays DVDs, audio Cds and MP3s.—Both the unit and the disc are coded by region. If the regional codes don’t match, the disc can’t beplayed.SOLUTIONNo sound or distortedsoundPlay starts, but thenstops immediately—Make sure DVD is inserting properly.Make sure all cables are securely inserted into the appropriate jacks.—If you are using the IR headphones, make sureyou turn on the IR headphone power.—Make sure the Modulator is ON and the proper frequency has been selected.—The disc is dirty. Clean it.—Condensation has formed. Allow player to dry out.Can’t advance througha movie—DVD can’t advance through the opening credits and warning information that appear at thebeginning of movies because the disc is programmed to prohibit that action.—The feature or action cannot be completed at this time because:1. The disc’s software restricts it.2. The disc’s software doesn’t support the feature (e.g., angles)3. The feature is not available at the moment.4. You’ve requested a title or chapter number that is out of range.Not allowed at themoment

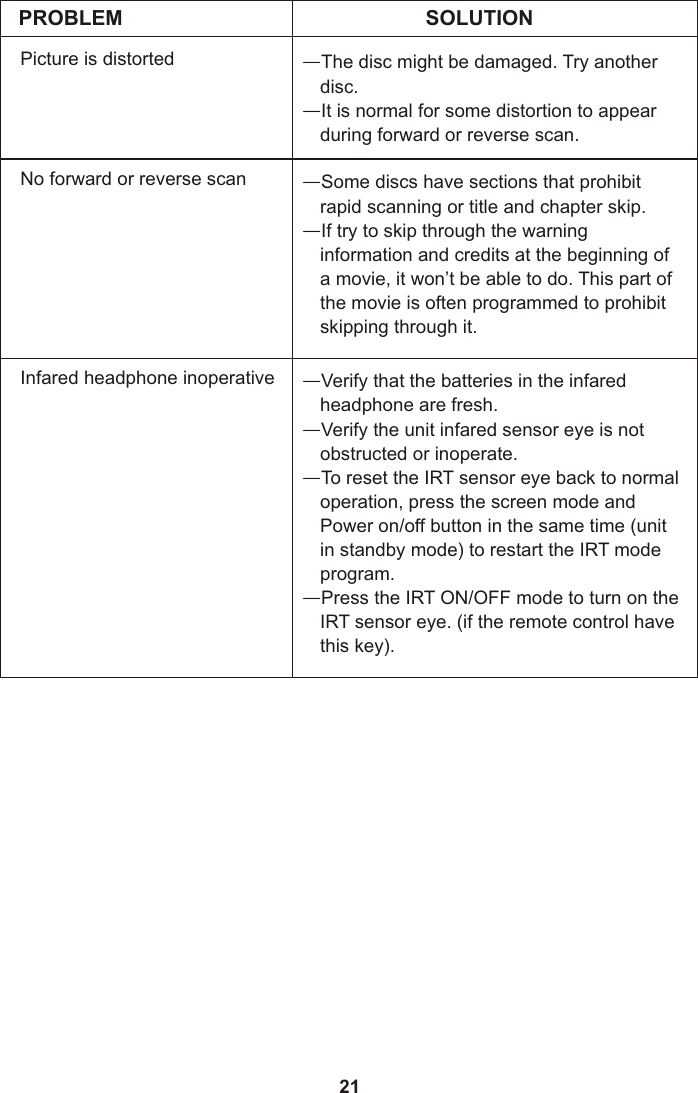

21Infared headphone inoperativePicture is distorted —The disc might be damaged. Try another disc.—It is normal for some distortion to appear during forward or reverse scan.No forward or reverse scan —Some discs have sections that prohibit rapid scanning or title and chapter skip.—If try to skip through the warning information and credits at the beginning of a movie, it won’t be able to do. This part of the movie is often programmed to prohibit skipping through it.—Verify that the batteries in the infared headphone are fresh.—Verify the unit infared sensor eye is notobstructed or inoperate.—To reset the IRT sensor eye back to normal operation, press the screen mode and Power on/off button in the same time (unit in standby mode) to restart the IRT mode program. —Press the IRT ON/OFF mode to turn on the IRT sensor eye. (if the remote control have this key).PROBLEM SOLUTION
221) Connect the Power Harness to the mating connector on the Video Monitor.2) Connect the power harness to the electrical system through an In-Line 5-Ampere fused by tapping into an accessory hot line. Also connect the Black wire to a good chassis ground.3) Connect the AV input cable to the AV Source output equipment ( VCD, Game, DVD Player etc)4) Connect the AV output cable to other AV Source input equipment.5) Verify all functions of the system before final mounting of the finished assembly.vehicle'sWIRING DIAGRAMDome Light HarnessRed/Black(Lamp On)Black/Red(Lamp Common)Violet/Brown(Lamp Auto)Black: GroundPower HarnessRed: +12VDC Accessory Ckt.(Install 5A inline Fuse)Line Out-R (Red)Line Out-L (White)Line Out-V (Yellow)Line In-R (Red)Line In-V (Yellow)Line In-L (White)AV Output CableAV1 Input CableFM ANT
23CONNECTING THE DOME LIGHTSThe dome lights in the video monitor require three connections to the vehicle's wiring. There are two common types of dome light circuits used, positive or negative switched. Positive systems supply voltage to the interior lights to turn them on, negative switched systems apply ground to illuminate the bulbs. To determine which system you have you must locate the wires at the dome light. On a positive switched system, with all the doors closed and the lights out, both wires at the dome light will rest at ground. When the light is activated, one of these wires will switch to +12 vdc. This is the vehicle's switching wire. On a negative switched system, with all the doors closed and the lights out, both wires at the dome light will rest at + 12vdc. When the light is activated, one of these wires will switch to ground. This is the switching wire.For positive systems, connect the violet / brown (Lamp auto) wire to the vehicle's switched wire. Then connect the red / black (lamp on) wire to a fused constant 12 volt source and the black / red (lamp common) wire to a good ground. Positive systems are commonly found on Ford vehicles.For negative systems, connect the violet / brown (Lamp auto) wire to the vehicle's switched wire. Then connect the red / black (lamp on) wire to a good ground and the black / red (lamp common) wire to fused constant 12 volt source. Negative systems are commonly found on General Motors and import vehicles.Note: Some vehicles which incorporate transistorized control of the dome light circuit, such as the 1999 Dodge Caravan, may require that the violet / brown (Lamp auto) wire be connected to the door pin switch wire, as the additional current draw of the Monitor's lights may not be supported by the output of the vehicles body control computer. Positive Switched Dome LightingTo 3 pinconnectoron MonitorFactory Dome Light CircuitToconstant+12vdcRed / Black – Lamp onBlack / Red – Lamp commonViolet / Brown – Lamp AutoToconstant+12vdcFactory Door ajarswitch or BodyControl computer

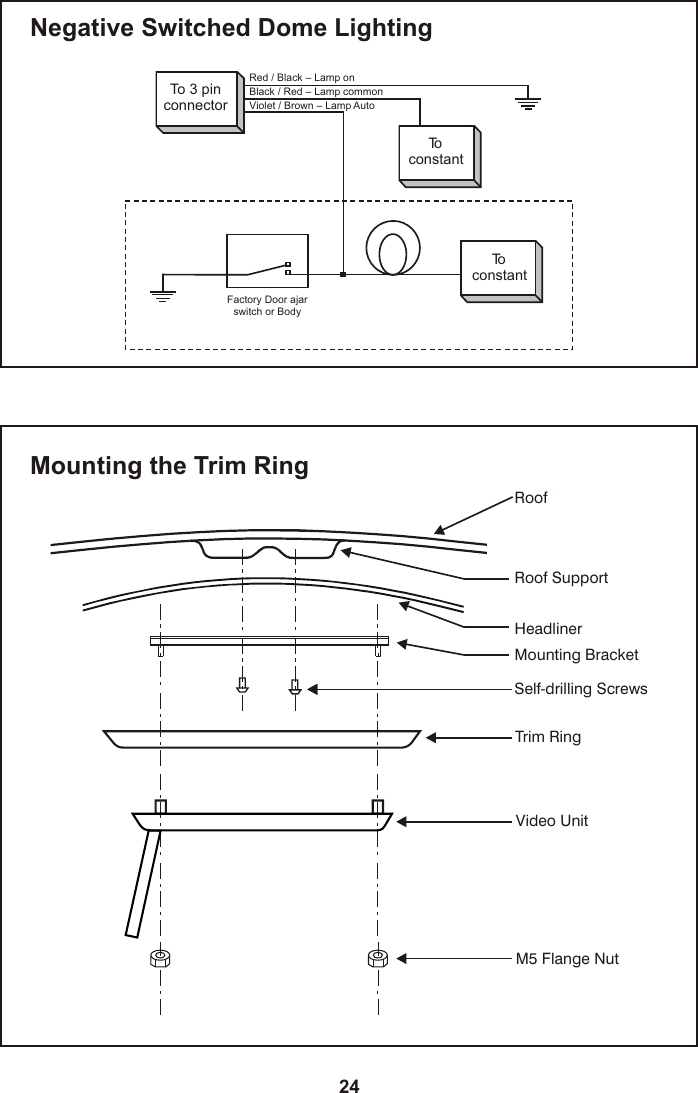

24Negative Switched Dome LightingRed / Black – Lamp onBlack / Red – Lamp commonViolet / Brown – Lamp AutoFactory Door ajarswitch or BodyTo 3 pinconnectorToconstantToconstantMounting the Trim RingRoofRoof SupportHeadlinerMounting BracketSelf-drilling ScrewsTrim RingVideo UnitM5 Flange Nut

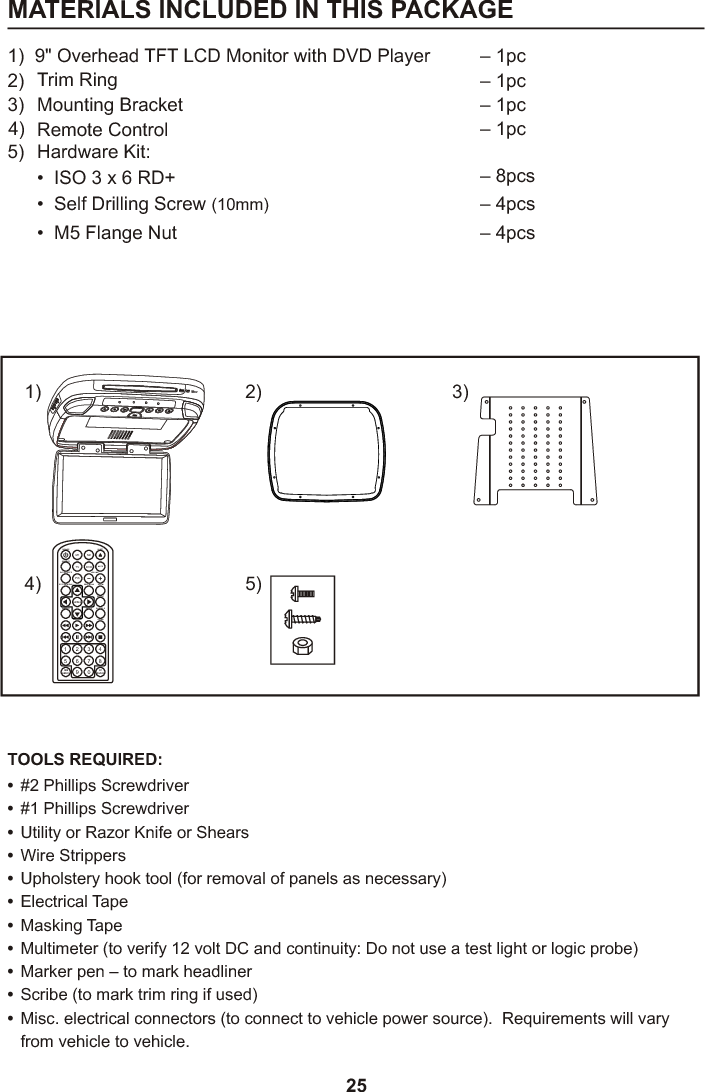

251) 9" Overhead TFT LCD Monitor with DVD Player 4) Remote Control – 1pc5) Hardware Kit:• ISO 3 x 6 RD+ – 8pcs• Self Drilling Screw (10mm) – 4pcs• M5 Flange Nut – 4pcs2) Trim Ring – 1pc3) Mounting Bracket – 1pcMATERIALS INCLUDED IN THIS PACKAGE#2 Phillips Screwdriver#1 Phillips ScrewdriverUtility or Razor Knife or ShearsWire StrippersUpholstery hook tool (for removal of panels as necessary)Electrical TapeMasking TapeMultimeter (to verify 12 volt DC and continuity: Do not use a test light or logic probe)Marker pen – to mark headlinerScribe (to mark trim ring if used)Misc. electrical connectors (to connect to vehicle power source). Requirements will varyfrom vehicle to vehicle.•••••••••••TOOLS REQUIRED:1) 2)M1 M2POWER EJECTTV DVDSOURCEMUTEDVD SOURCE VOLUMEPIXSYSTEM MENU DISC MENU ZOOMREPEATENTERSUBTITLE SETUPDISPLAY AUDIO1 2 3 45 6 7 89 0IRTON/OFFFMMON/OFF5)3)4)– 1pc
Notice : The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device.
