CUSTOM VEHICLE HEADRESTSwith 7” or 8” Slim Style LED LCD Monitors with Built-in DVD Player for Rear Seat EntertainmentWith FM TransmitterInstallation Guide7” Slim Style LED LCD Monitor8” Slim Style LED LCD MonitorFM Transmtter

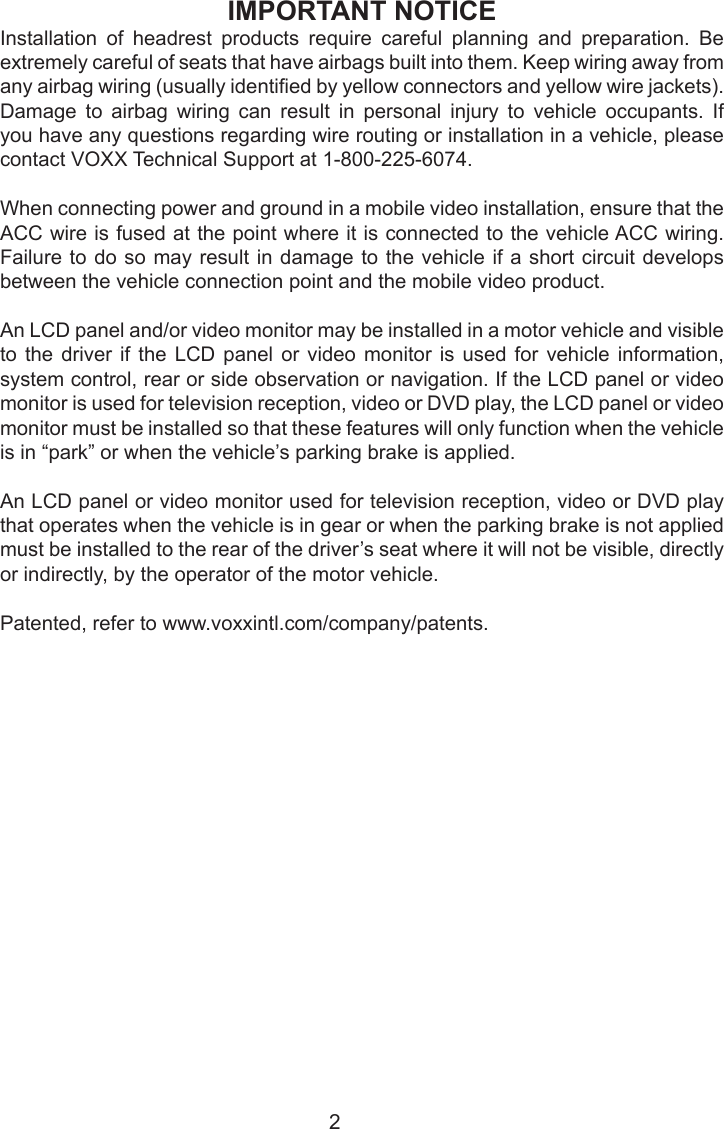

IMPORTANT NOTICEInstallation of headrest products require careful planning and preparation. Be extremely careful of seats that have airbags built into them. Keep wiring away from any airbag wiring (usually identied by yellow connectors and yellow wire jackets). Damage to airbag wiring can result in personal injury to vehicle occupants. If you have any questions regarding wire routing or installation in a vehicle, please contact VOXX Technical Support at 1-800-225-6074.When connecting power and ground in a mobile video installation, ensure that the ACC wire is fused at the point where it is connected to the vehicle ACC wiring. Failure to do so may result in damage to the vehicle if a short circuit develops between the vehicle connection point and the mobile video product.An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park” or when the vehicle’s parking brake is applied.An LCD panel or video monitor used for television reception, video or DVD play that operates when the vehicle is in gear or when the parking brake is not applied must be installed to the rear of the driver’s seat where it will not be visible, directly or indirectly, by the operator of the motor vehicle.Patented, refer to www.voxxintl.com/company/patents.2
MATERIALS INCLUDED IN THIS PACKAGE:Installation Package (P/N XXXX) (1pc) The wireless FM Interface Box automatically determines which headrest is M1 and which headrest is M2 and sets each headrest to its own function (IR transmitter channel and IR receiver remote control codes). The M1 Monitor has Pink/Green DIN connectors and the M2 Monitor has Blue/Yellow DIN connectors and should be connected to their respective connectors.3d) Installation Guideb) 2 Pin DC Power Cable(P/N 112-3667) - (1pc)c) HDMI Cable(P/N 112-XXXX) - (1pc)a) Wireless FM Interface Box(P/N 136-XXXX) - (1pc)- or -(P/N 112-4327) - (1pc)

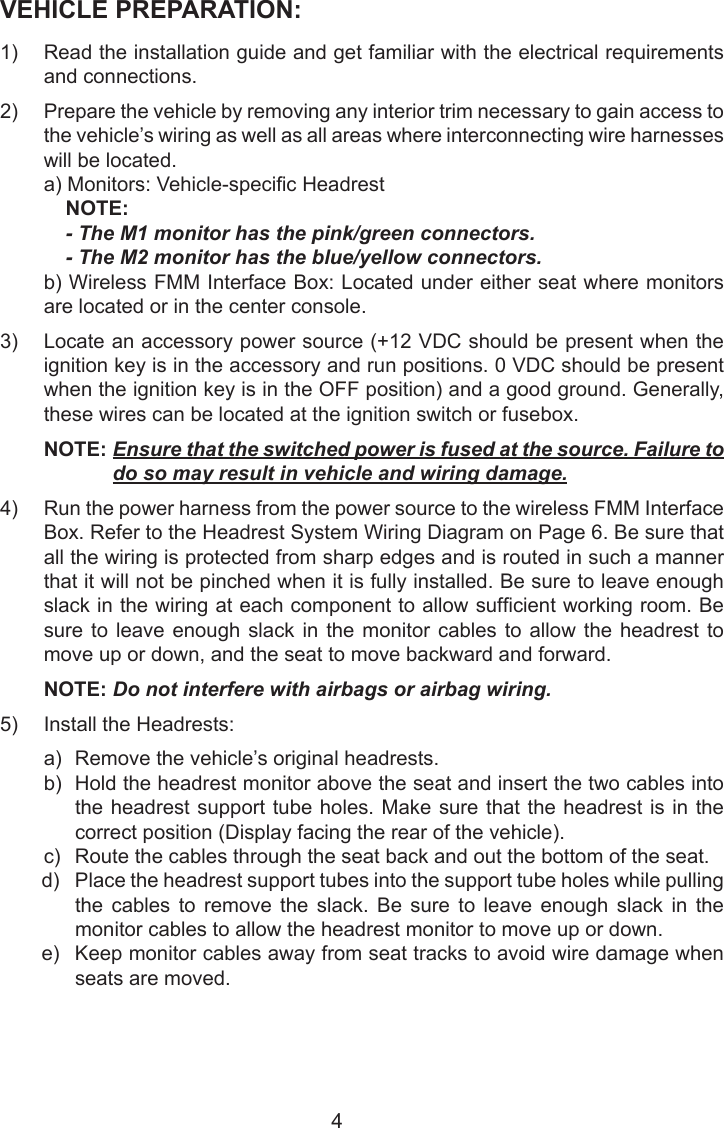

VEHICLE PREPARATION:1) Read the installation guide and get familiar with the electrical requirementsand connections.2) Prepare the vehicle by removing any interior trim necessary to gain access tothe vehicle’s wiring as well as all areas where interconnecting wire harnesseswill be located.a) Monitors: Vehicle-specic Headrest NOTE:- The M1 monitor has the pink/green connectors.- The M2 monitor has the blue/yellow connectors. b) Wireless FMM Interface Box: Located under either seat where monitorsare located or in the center console.3) Locate an accessory power source (+12 VDC should be present when theignition key is in the accessory and run positions. 0 VDC should be presentwhen the ignition key is in the OFF position) and a good ground. Generally,these wires can be located at the ignition switch or fusebox. NOTE: Ensure that the switched power is fused at the source. Failure todo so may result in vehicle and wiring damage.4) Run the power harness from the power source to the wireless FMM InterfaceBox. Refer to the Headrest System Wiring Diagram on Page 6. Be sure thatall the wiring is protected from sharp edges and is routed in such a mannerthat it will not be pinched when it is fully installed. Be sure to leave enoughslack in the wiring at each component to allow sufcient working room. Besure to leave enough slack in the monitor cables to allow the headrest tomove up or down, and the seat to move backward and forward.NOTE: Do not interfere with airbags or airbag wiring.5) Install the Headrests:a) Remove the vehicle’s original headrests.b) Hold the headrest monitor above the seat and insert the two cables intothe headrest support tube holes. Make sure that the headrest is in thecorrect position (Display facing the rear of the vehicle).c) Route the cables through the seat back and out the bottom of the seat.d) Place the headrest support tubes into the support tube holes while pullingthe cables to remove the slack. Be sure to leave enough slack in themonitor cables to allow the headrest monitor to move up or down.e) Keep monitor cables away from seat tracks to avoid wire damage whenseats are moved.4

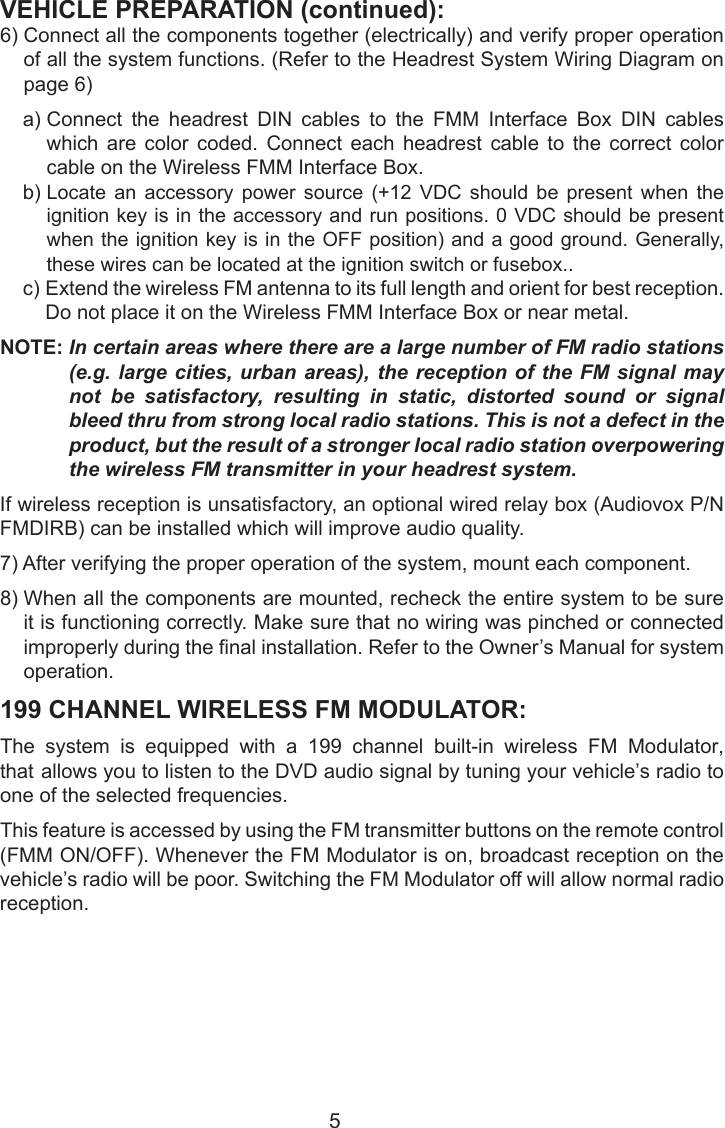

VEHICLE PREPARATION (continued):6) Connect all the components together (electrically) and verify proper operationof all the system functions. (Refer to the Headrest System Wiring Diagram onpage 6)a) Connect the headrest DIN cables to the FMM Interface Box DIN cableswhich are color coded. Connect each headrest cable to the correct colorcable on the Wireless FMM Interface Box.b) Locate an accessory power source (+12 VDC should be present when theignition key is in the accessory and run positions. 0 VDC should be presentwhen the ignition key is in the OFF position) and a good ground. Generally,these wires can be located at the ignition switch or fusebox..c) Extend the wireless FM antenna to its full length and orient for best reception.Do not place it on the Wireless FMM Interface Box or near metal.NOTE: In certain areas where there are a large number of FM radio stations (e.g. large cities, urban areas), the reception of the FM signal may not be satisfactory, resulting in static, distorted sound or signal bleed thru from strong local radio stations. This is not a defect in the product, but the result of a stronger local radio station overpowering the wireless FM transmitter in your headrest system.If wireless reception is unsatisfactory, an optional wired relay box (Audiovox P/N FMDIRB) can be installed which will improve audio quality.7) After verifying the proper operation of the system, mount each component.8) When all the components are mounted, recheck the entire system to be sureit is functioning correctly. Make sure that no wiring was pinched or connectedimproperly during the nal installation. Refer to the Owner’s Manual for systemoperation.199 CHANNEL WIRELESS FM MODULATOR:The system is equipped with a 199 channel built-in wireless FM Modulator, that allows you to listen to the DVD audio signal by tuning your vehicle’s radio to one of the selected frequencies. This feature is accessed by using the FM transmitter buttons on the remote control (FMM ON/OFF). Whenever the FM Modulator is on, broadcast reception on the vehicle’s radio will be poor. Switching the FM Modulator off will allow normal radio reception.5
HEADREST SYSTEM WIRING DIAGRAMMaster Monitor Satellite MonitorOPTIONAL FM DIRECT CONNECTIONHDMI &USB CABLEFM ANTENNAINTERFACERelay Box for wireless FM ModulatorFMDIRBAV OutputSee the instructions supplied with the FMDIRB for installation.GAME MODULEOPTIONAL MVGP1 (GAME PACKAGE)112-4289HRM2GREEN112-4288HRM1PINK112-4291HRS2BLUE112-4290HRS1YELLOWMVGP1** Use the supplied double sided tape to securethe game module to the interface box.FMBOX2 PIN DC POWER CABLE**DCIN** NOTE: Power cable must be fused at the power source to avoid wiring and vehicle damage in the event of a short circuit.6

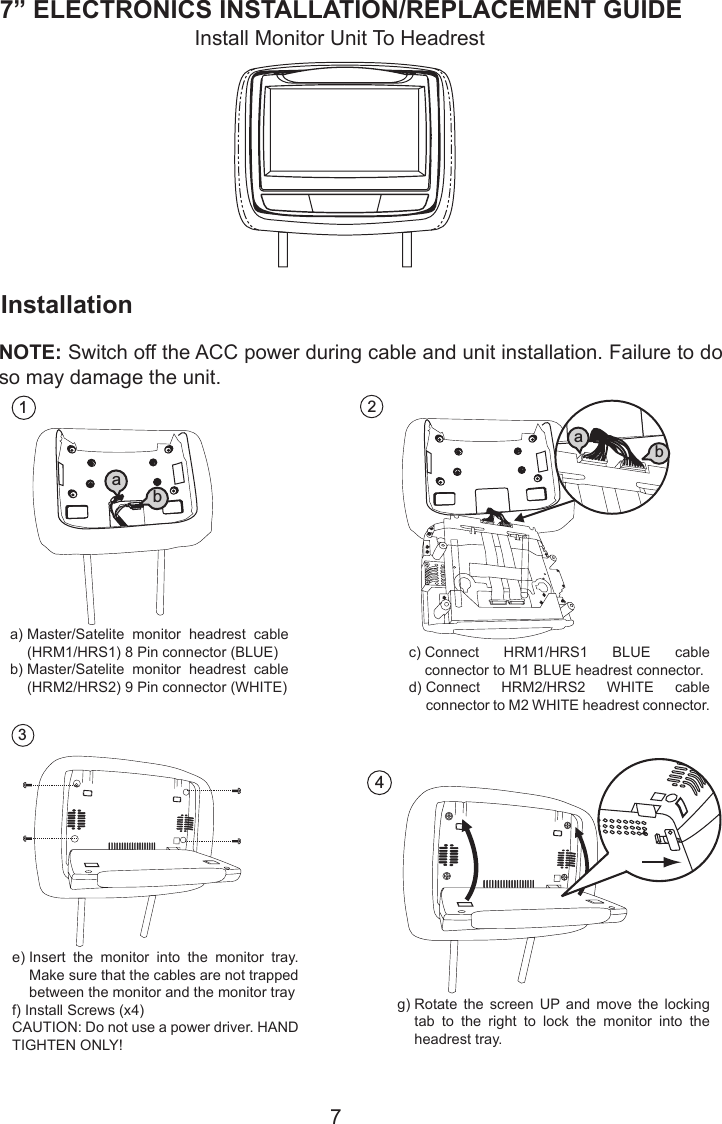

77” ELECTRONICS INSTALLATION/REPLACEMENT GUIDE2a) M1 BLUE headrest connectorb) Connect HRM2/HRS2 WHITE cable connector to M2 WHITE headrest connectorConnect HRM1/HRS1 BLUE cable connector toab4Rotate the screen up and move the locking tab to the right to lock the monitor into the headresttray.InstallationInstall Monitor Unit To HeadrestNOTE: Switch off the ACC power during cable and unit installation. Failure to do so may damage the unit.1a) Master/Satellite monitor headrestcable (HRM1/HRS1) 8 Pin connector (BLUE)b) Master/Satellite monitor headrest cable (HRM2/HRS2) 9 Pin connector (WHITE)ab3a) Master/Satelite monitor headrest cable (HRM1/HRS1) 8 Pin connector (BLUE)b) Master/Satelite monitor headrest cable (HRM2/HRS2) 9 Pin connector (WHITE)e) Insert the monitor into the monitor tray. Make sure that the cables are not trapped between the monitor and the monitor trayf) Install Screws (x4)CAUTION: Do not use a power driver. HAND TIGHTEN ONLY!c) Connect HRM1/HRS1 BLUE cable connector to M1 BLUE headrest connector.d) Connect HRM2/HRS2 WHITE cable connector to M2 WHITE headrest connector.g) Rotate the screen UP and move the locking tab to the right to lock the monitor into the headrest tray.
6Reverse the procedure for removing the electronics.87” ELECTRONICS INSTALLATION/REPLACEMENT GUIDE (continued)5

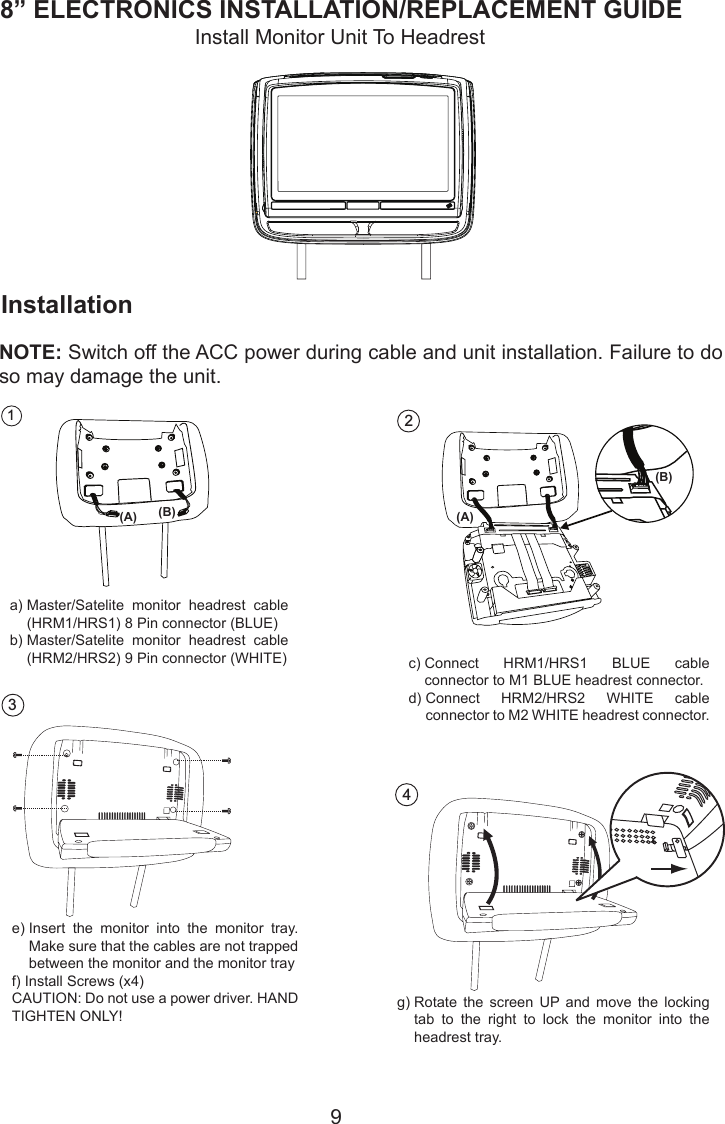

98” ELECTRONICS INSTALLATION/REPLACEMENT GUIDE2a) M1 BLUE headrest connectorb) Connect HRM2/HRS2 WHITE cable connector to M2 WHITE headrest connectorConnect HRM1/HRS1 BLUE cable connector toab4Rotate the screen up and move the locking tab to the right to lock the monitor into the headresttray.InstallationInstall Monitor Unit To HeadrestNOTE: Switch off the ACC power during cable and unit installation. Failure to do so may damage the unit.1a) Master/Satellite monitor headrestcable (HRM1/HRS1) 8 Pin connector (BLUE)b) Master/Satellite monitor headrest cable (HRM2/HRS2) 9 Pin connector (WHITE)ab3a) Master/Satelite monitor headrest cable (HRM1/HRS1) 8 Pin connector (BLUE)b) Master/Satelite monitor headrest cable (HRM2/HRS2) 9 Pin connector (WHITE)e) Insert the monitor into the monitor tray. Make sure that the cables are not trapped between the monitor and the monitor trayf) Install Screws (x4)CAUTION: Do not use a power driver. HAND TIGHTEN ONLY!c) Connect HRM1/HRS1 BLUE cable connector to M1 BLUE headrest connector.d) Connect HRM2/HRS2 WHITE cable connector to M2 WHITE headrest connector.g) Rotate the screen UP and move the locking tab to the right to lock the monitor into the headrest tray.(A) (B)(B)(A)

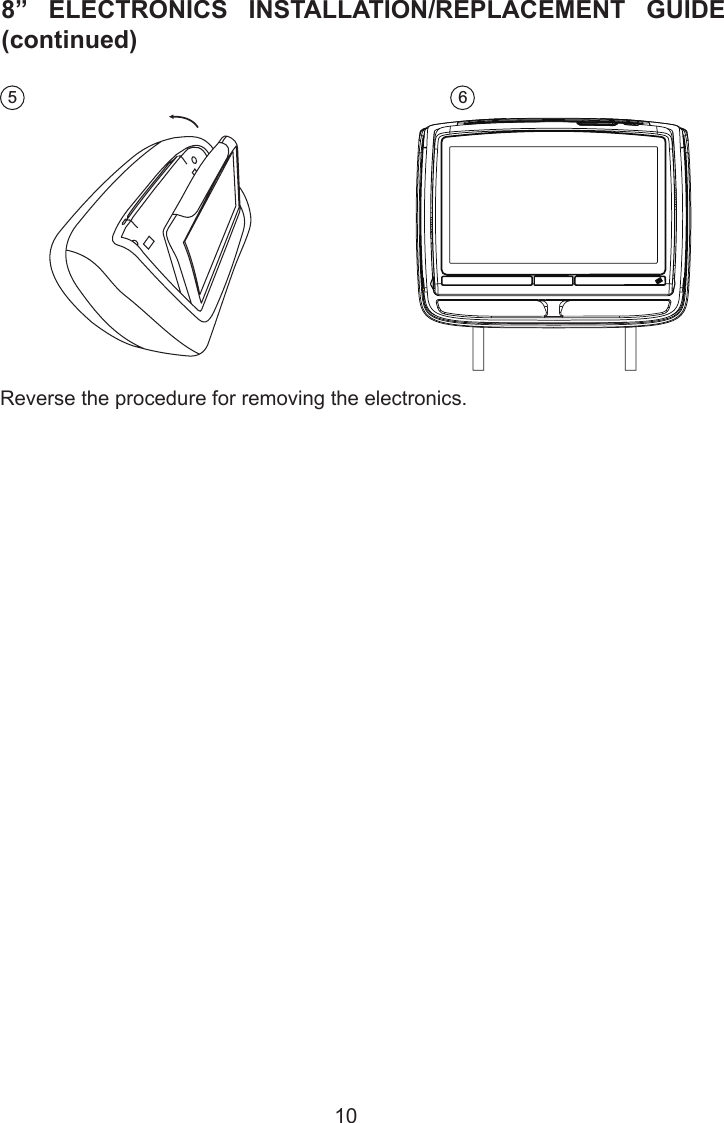

56Reverse the procedure for removing the electronics.108” ELECTRONICS INSTALLATION/REPLACEMENT GUIDE (continued)

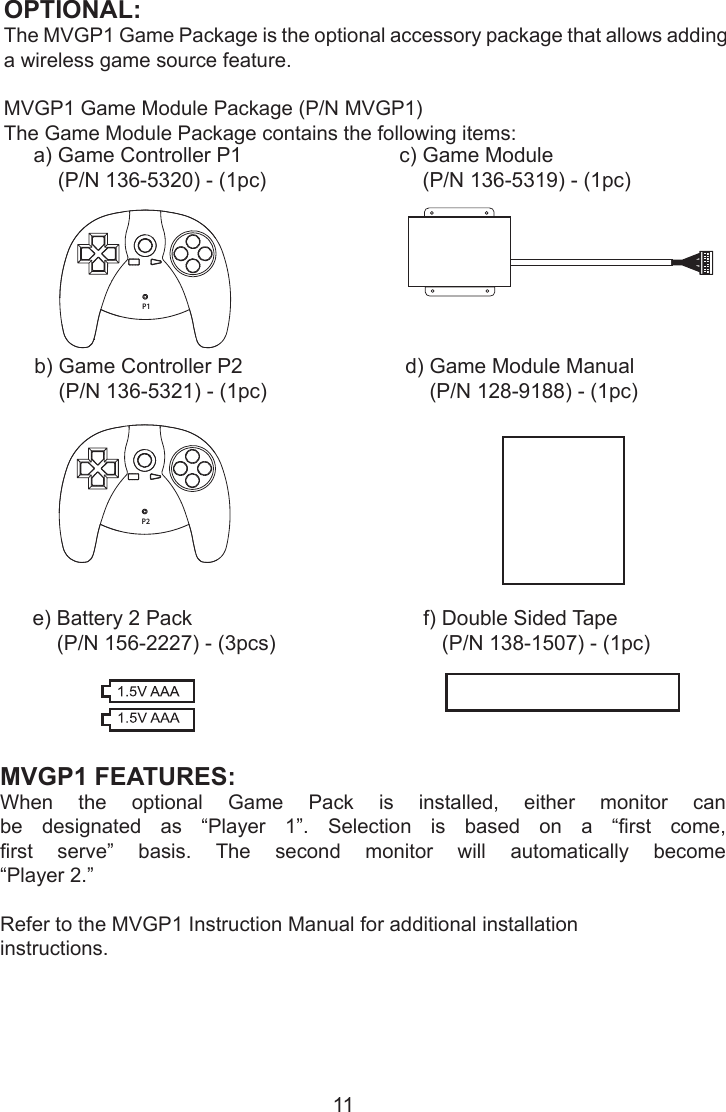

11OPTIONAL: The MVGP1 Game Package is the optional accessory package that allows adding a wireless game source feature.MVGP1 Game Module Package (P/N MVGP1)The Game Module Package contains the following items:P1a) Game Controller P1(P/N 136-5320) - (1pc)b) Game Controller P2(P/N 136-5321) - (1pc)P2c) Game Module(P/N 136-5319) - (1pc)d) Game Module Manual(P/N 128-9188) - (1pc)MVGP1 FEATURES: When the optional Game Pack is installed, either monitor can be designated as “Player 1”. Selection is based on a “rst come, rst serve” basis. The second monitor will automatically become “Player 2.”Refer to the MVGP1 Instruction Manual for additional installation instructions.e) Battery 2 Pack(P/N 156-2227) - (3pcs)f) Double Sided Tape(P/N 138-1507) - (1pc)

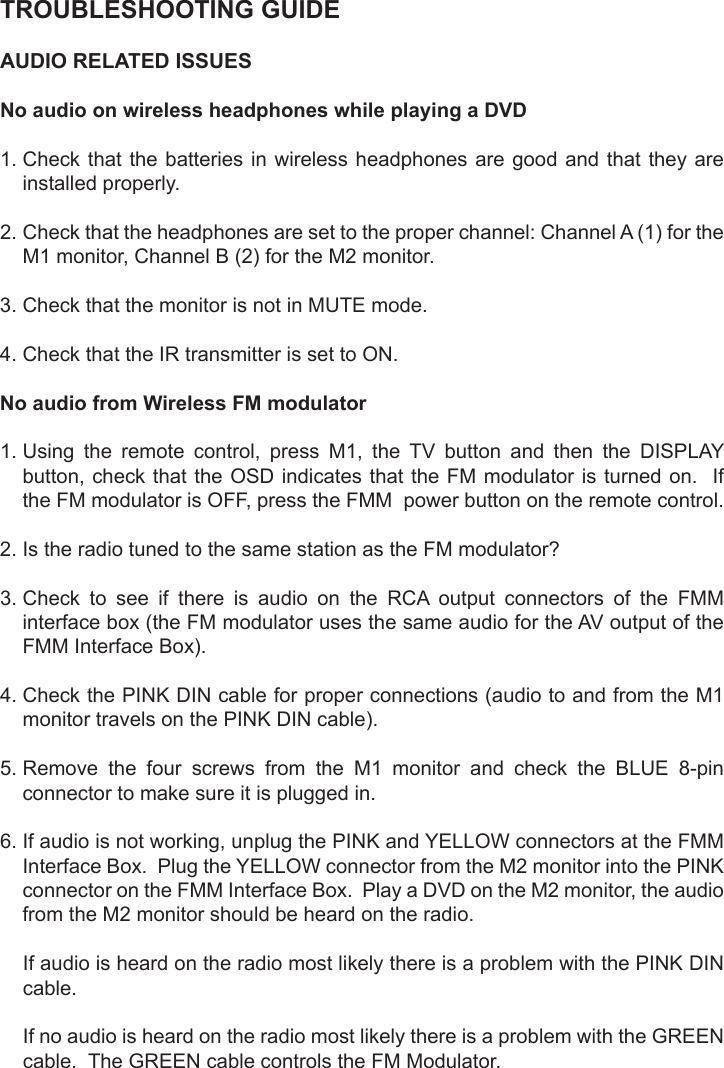

TROUBLESHOOTING GUIDEAUDIO RELATED ISSUESNo audio on wireless headphones while playing a DVD1. Check that the batteries in wireless headphones are good and that they areinstalled properly.2. Check that the headphones are set to the proper channel: Channel A (1) for theM1 monitor, Channel B (2) for the M2 monitor.3. Check that the monitor is not in MUTE mode.4. Check that the IR transmitter is set to ON.No audio from Wireless FM modulator1. Using the remote control, press M1, the TV button and then the DISPLAYbutton, check that the OSD indicates that the FM modulator is turned on. Ifthe FM modulator is OFF, press the FMM power button on the remote control.2. Is the radio tuned to the same station as the FM modulator?3. Check to see if there is audio on the RCA output connectors of the FMMinterface box (the FM modulator uses the same audio for the AV output of theFMM Interface Box).4. Check the PINK DIN cable for proper connections (audio to and from the M1monitor travels on the PINK DIN cable).5. Remove the four screws from the M1 monitor and check the BLUE 8-pinconnector to make sure it is plugged in.6. If audio is not working, unplug the PINK and YELLOW connectors at the FMMInterface Box. Plug the YELLOW connector from the M2 monitor into the PINKconnector on the FMM Interface Box. Play a DVD on the M2 monitor, the audiofrom the M2 monitor should be heard on the radio.If audio is heard on the radio most likely there is a problem with the PINK DINcable.If no audio is heard on the radio most likely there is a problem with the GREENcable. The GREEN cable controls the FM Modulator.

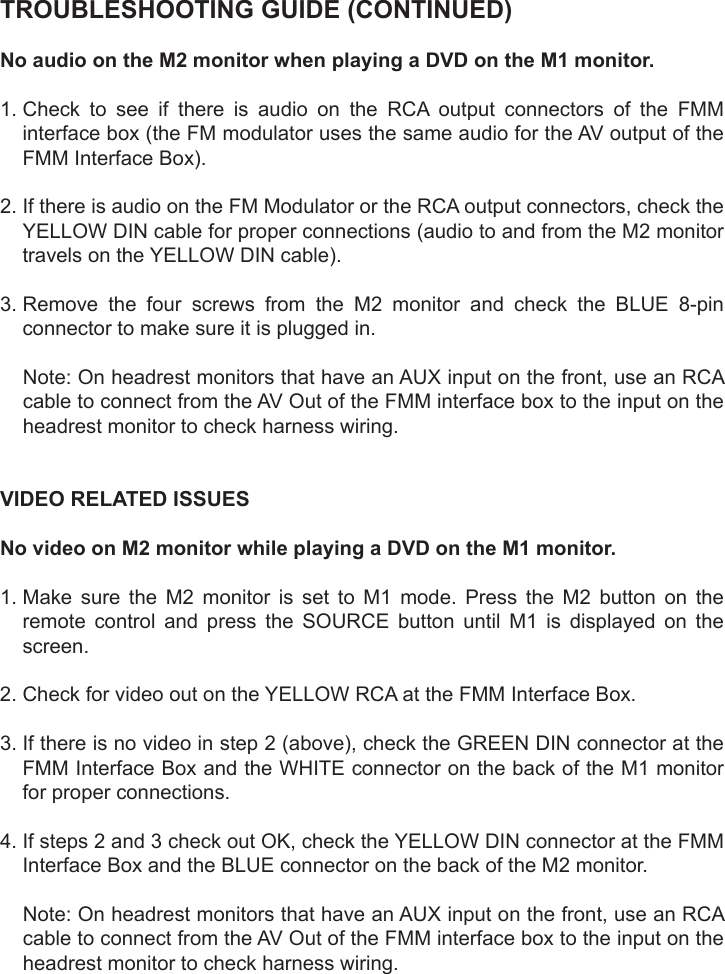

TROUBLESHOOTING GUIDE (CONTINUED)No audio on the M2 monitor when playing a DVD on the M1 monitor.1. Check to see if there is audio on the RCA output connectors of the FMMinterface box (the FM modulator uses the same audio for the AV output of theFMM Interface Box).2. If there is audio on the FM Modulator or the RCA output connectors, check theYELLOW DIN cable for proper connections (audio to and from the M2 monitortravels on the YELLOW DIN cable).3. Remove the four screws from the M2 monitor and check the BLUE 8-pinconnector to make sure it is plugged in.Note: On headrest monitors that have an AUX input on the front, use an RCAcable to connect from the AV Out of the FMM interface box to the input on theheadrest monitor to check harness wiring.VIDEO RELATED ISSUESNo video on M2 monitor while playing a DVD on the M1 monitor.1. Make sure the M2 monitor is set to M1 mode. Press the M2 button on theremote control and press the SOURCE button until M1 is displayed on thescreen.2. Check for video out on the YELLOW RCA at the FMM Interface Box.3. If there is no video in step 2 (above), check the GREEN DIN connector at theFMM Interface Box and the WHITE connector on the back of the M1 monitorfor proper connections.4. If steps 2 and 3 check out OK, check the YELLOW DIN connector at the FMMInterface Box and the BLUE connector on the back of the M2 monitor.Note: On headrest monitors that have an AUX input on the front, use an RCAcable to connect from the AV Out of the FMM interface box to the input on theheadrest monitor to check harness wiring.

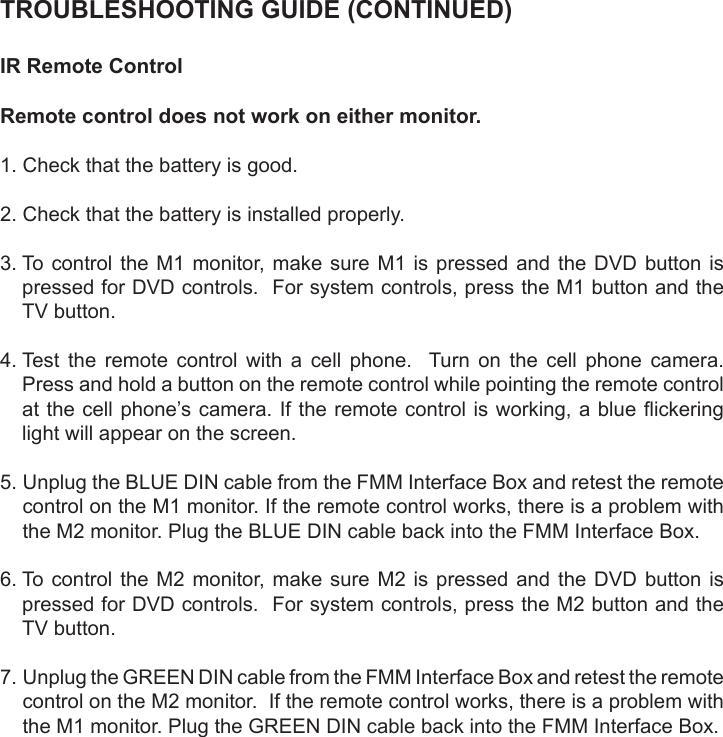

TROUBLESHOOTING GUIDE (CONTINUED)IR Remote ControlRemote control does not work on either monitor.1. Check that the battery is good.2. Check that the battery is installed properly.3. To control the M1 monitor, make sure M1 is pressed and the DVD button ispressed for DVD controls. For system controls, press the M1 button and theTV button.4. Test the remote control with a cell phone. Turn on the cell phone camera.Press and hold a button on the remote control while pointing the remote controlat the cell phone’s camera. If the remote control is working, a blue ickeringlight will appear on the screen.5. Unplug the BLUE DIN cable from the FMM Interface Box and retest the remotecontrol on the M1 monitor. If the remote control works, there is a problem withthe M2 monitor. Plug the BLUE DIN cable back into the FMM Interface Box.6. To control the M2 monitor, make sure M2 is pressed and the DVD button ispressed for DVD controls. For system controls, press the M2 button and theTV button.7. Unplug the GREEN DIN cable from the FMM Interface Box and retest the remotecontrol on the M2 monitor. If the remote control works, there is a problem withthe M1 monitor. Plug the GREEN DIN cable back into the FMM Interface Box.

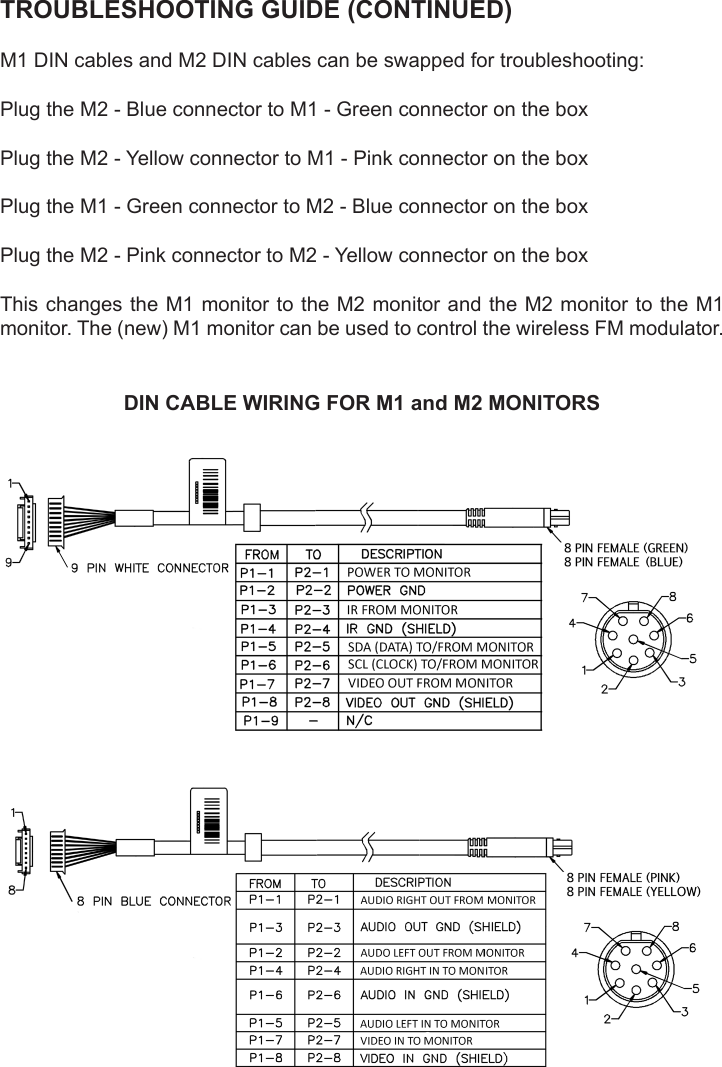

TROUBLESHOOTING GUIDE (CONTINUED)M1 DIN cables and M2 DIN cables can be swapped for troubleshooting:Plug the M2 - Blue connector to M1 - Green connector on the box Plug the M2 - Yellow connector to M1 - Pink connector on the box Plug the M1 - Green connector to M2 - Blue connector on the box Plug the M2 - Pink connector to M2 - Yellow connector on the boxThis changes the M1 monitor to the M2 monitor and the M2 monitor to the M1 monitor. The (new) M1 monitor can be used to control the wireless FM modulator.DIN CABLE WIRING FOR M1 and M2 MONITORS
© 2016 VOXX Electronics Corp., Hauppauge, NY 128-XXXXIf you have any questions regarding this product or require technical assistance please call 1-800-225-6074.www.voxxelectronics.comThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesiredoperation.FCC NoteNOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the followingmeasures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
