Airaya GRID-3X3-PS Wireless Bridge User Manual

Airaya, Corp Wireless Bridge

Contents

user manual

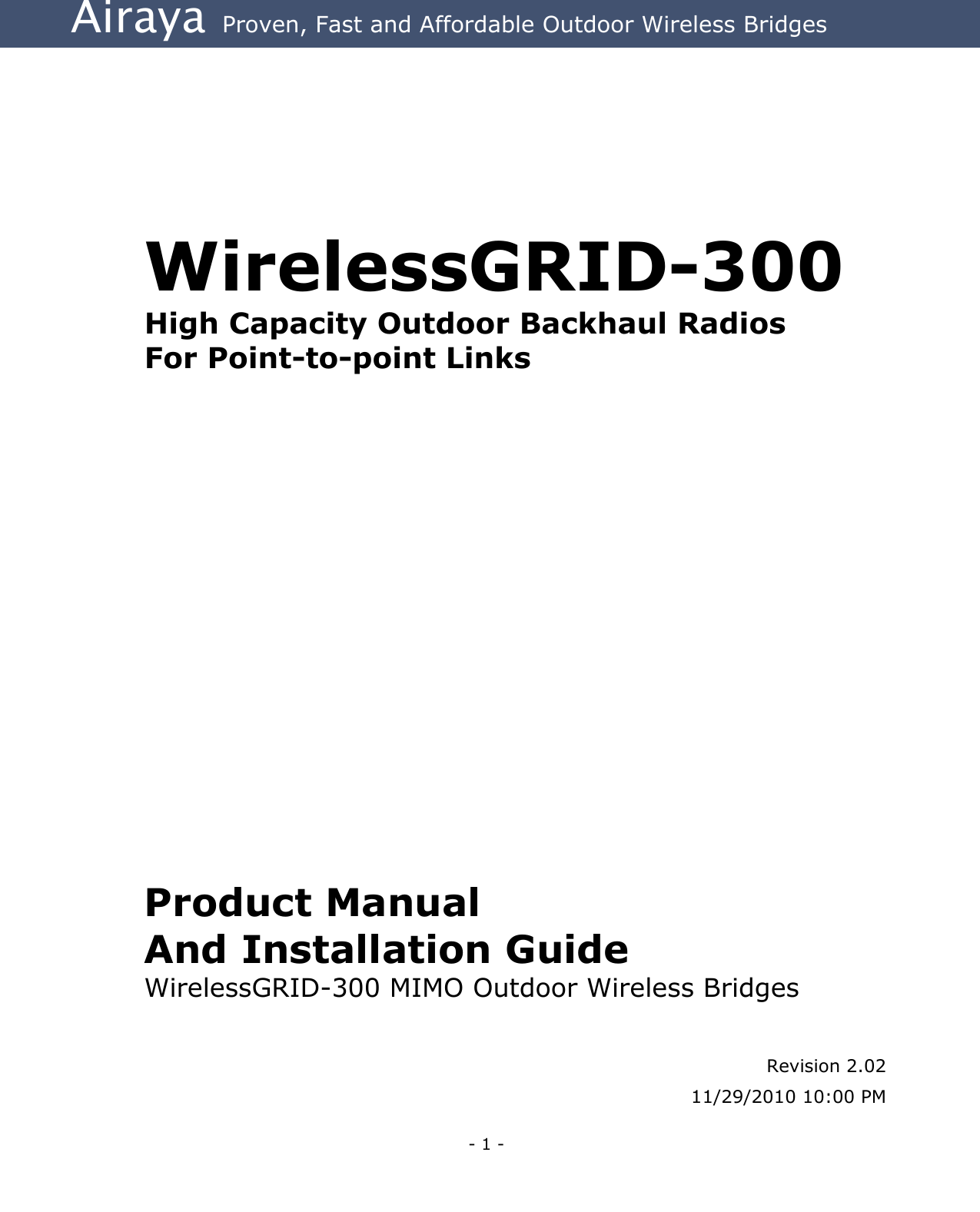

Airaya - 1 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges Product Manual And Installation Guide WirelessGRID-300 MIMO Outdoor Wireless Bridges Revision 2.02 11/29/2010 10:00 PMWirelessGRID-300 High Capacity Outdoor Backhaul Radios For Point-to-point Links

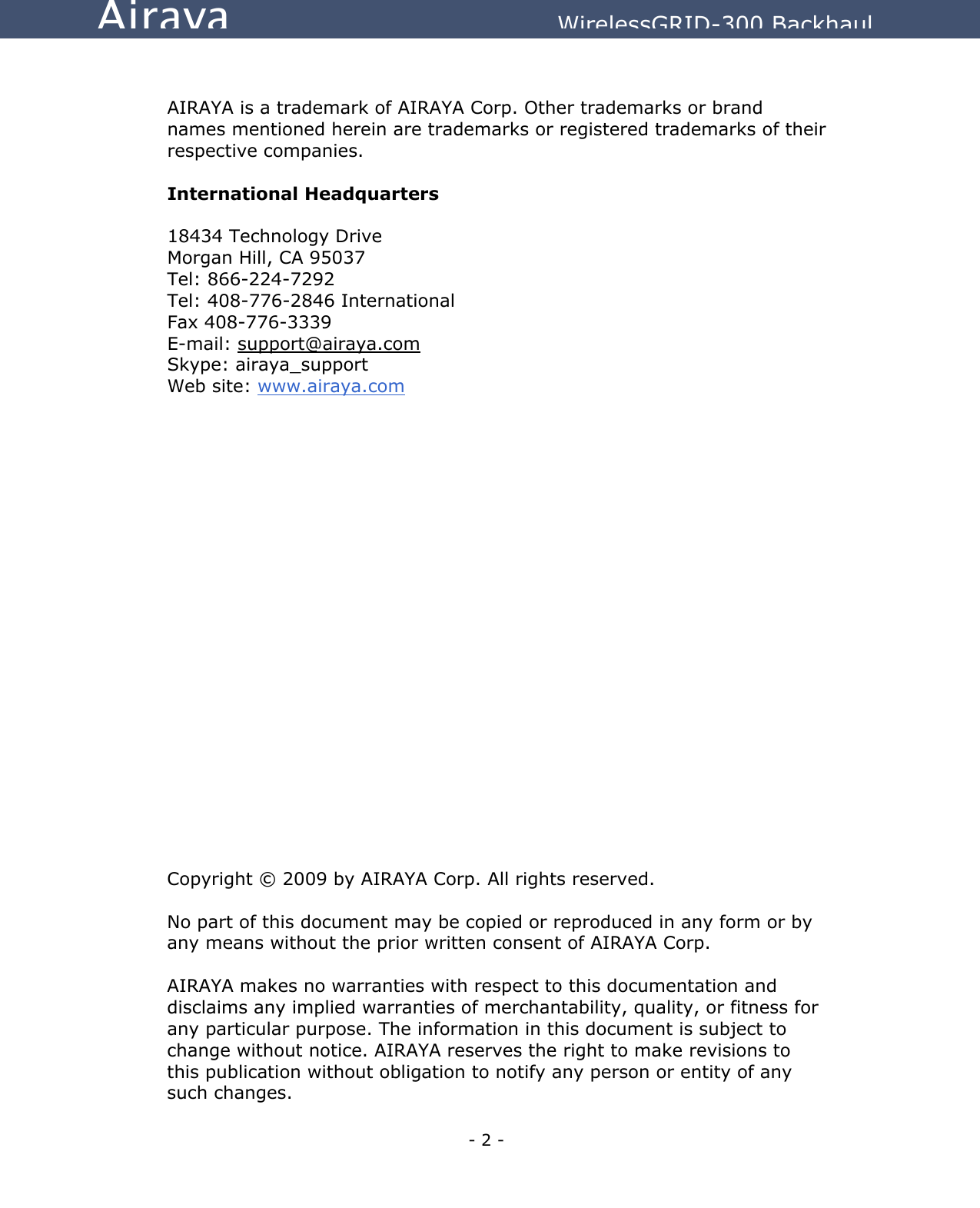

- 2 - Airaya WirelessGRID-300 Backhaul AIRAYA is a trademark of AIRAYA Corp. Other trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective companies. International Headquarters 18434 Technology Drive Morgan Hill, CA 95037 Tel: 866-224-7292 Tel: 408-776-2846 International Fax 408-776-3339 E-mail: support@airaya.com Skype: airaya_support Web site: www.airaya.com Copyright © 2009 by AIRAYA Corp. All rights reserved. No part of this document may be copied or reproduced in any form or by any means without the prior written consent of AIRAYA Corp. AIRAYA makes no warranties with respect to this documentation and disclaims any implied warranties of merchantability, quality, or fitness for any particular purpose. The information in this document is subject to change without notice. AIRAYA reserves the right to make revisions to this publication without obligation to notify any person or entity of any such changes.

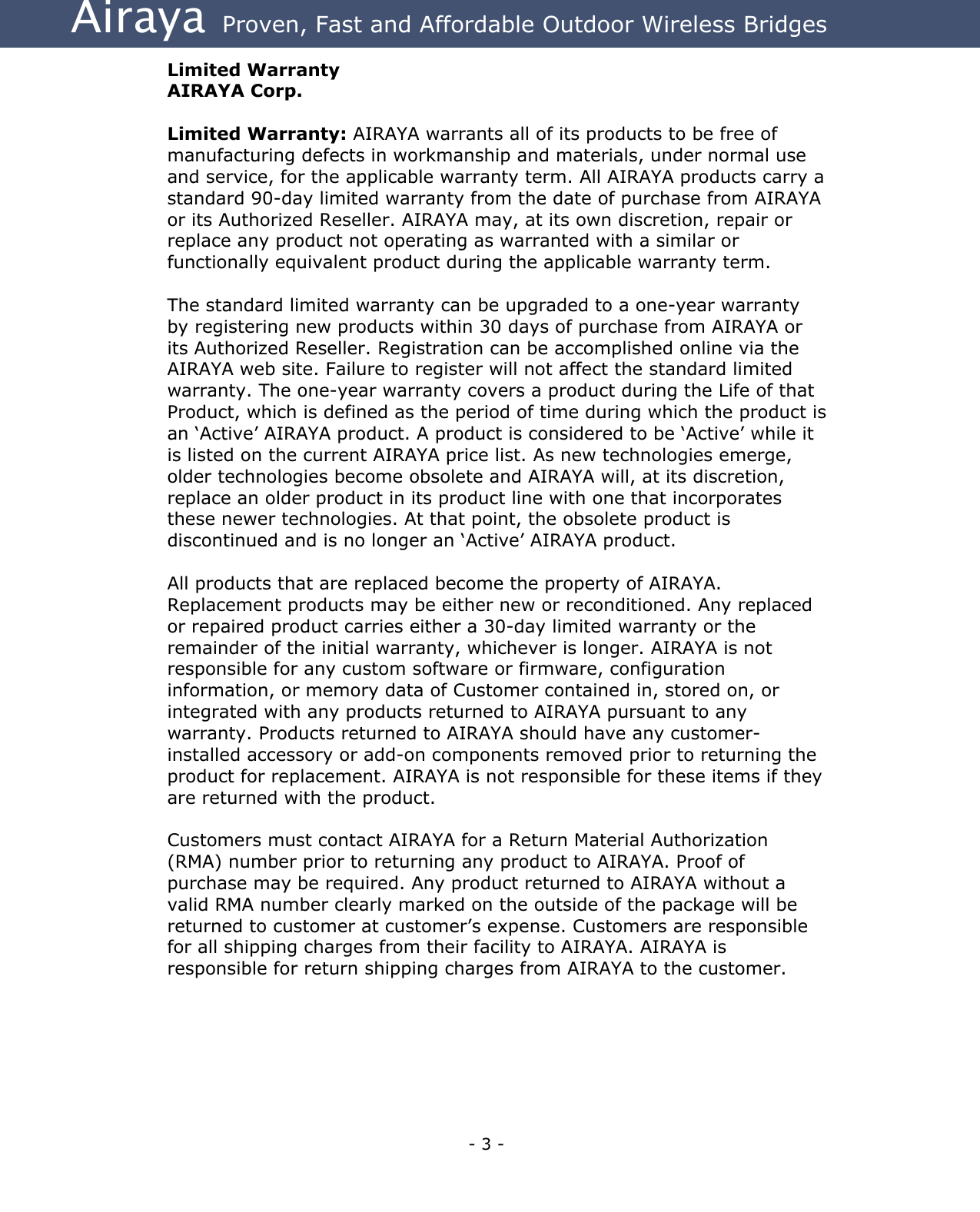

Airaya - 3 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges Limited Warranty AIRAYA Corp. Limited Warranty: AIRAYA warrants all of its products to be free of manufacturing defects in workmanship and materials, under normal use and service, for the applicable warranty term. All AIRAYA products carry a standard 90-day limited warranty from the date of purchase from AIRAYA or its Authorized Reseller. AIRAYA may, at its own discretion, repair or replace any product not operating as warranted with a similar or functionally equivalent product during the applicable warranty term. The standard limited warranty can be upgraded to a one-year warranty by registering new products within 30 days of purchase from AIRAYA or its Authorized Reseller. Registration can be accomplished online via the AIRAYA web site. Failure to register will not affect the standard limited warranty. The one-year warranty covers a product during the Life of that Product, which is defined as the period of time during which the product is an ‘Active’ AIRAYA product. A product is considered to be ‘Active’ while it is listed on the current AIRAYA price list. As new technologies emerge, older technologies become obsolete and AIRAYA will, at its discretion, replace an older product in its product line with one that incorporates these newer technologies. At that point, the obsolete product is discontinued and is no longer an ‘Active’ AIRAYA product. All products that are replaced become the property of AIRAYA. Replacement products may be either new or reconditioned. Any replaced or repaired product carries either a 30-day limited warranty or the remainder of the initial warranty, whichever is longer. AIRAYA is not responsible for any custom software or firmware, configuration information, or memory data of Customer contained in, stored on, or integrated with any products returned to AIRAYA pursuant to any warranty. Products returned to AIRAYA should have any customer-installed accessory or add-on components removed prior to returning the product for replacement. AIRAYA is not responsible for these items if they are returned with the product. Customers must contact AIRAYA for a Return Material Authorization (RMA) number prior to returning any product to AIRAYA. Proof of purchase may be required. Any product returned to AIRAYA without a valid RMA number clearly marked on the outside of the package will be returned to customer at customer’s expense. Customers are responsible for all shipping charges from their facility to AIRAYA. AIRAYA is responsible for return shipping charges from AIRAYA to the customer.

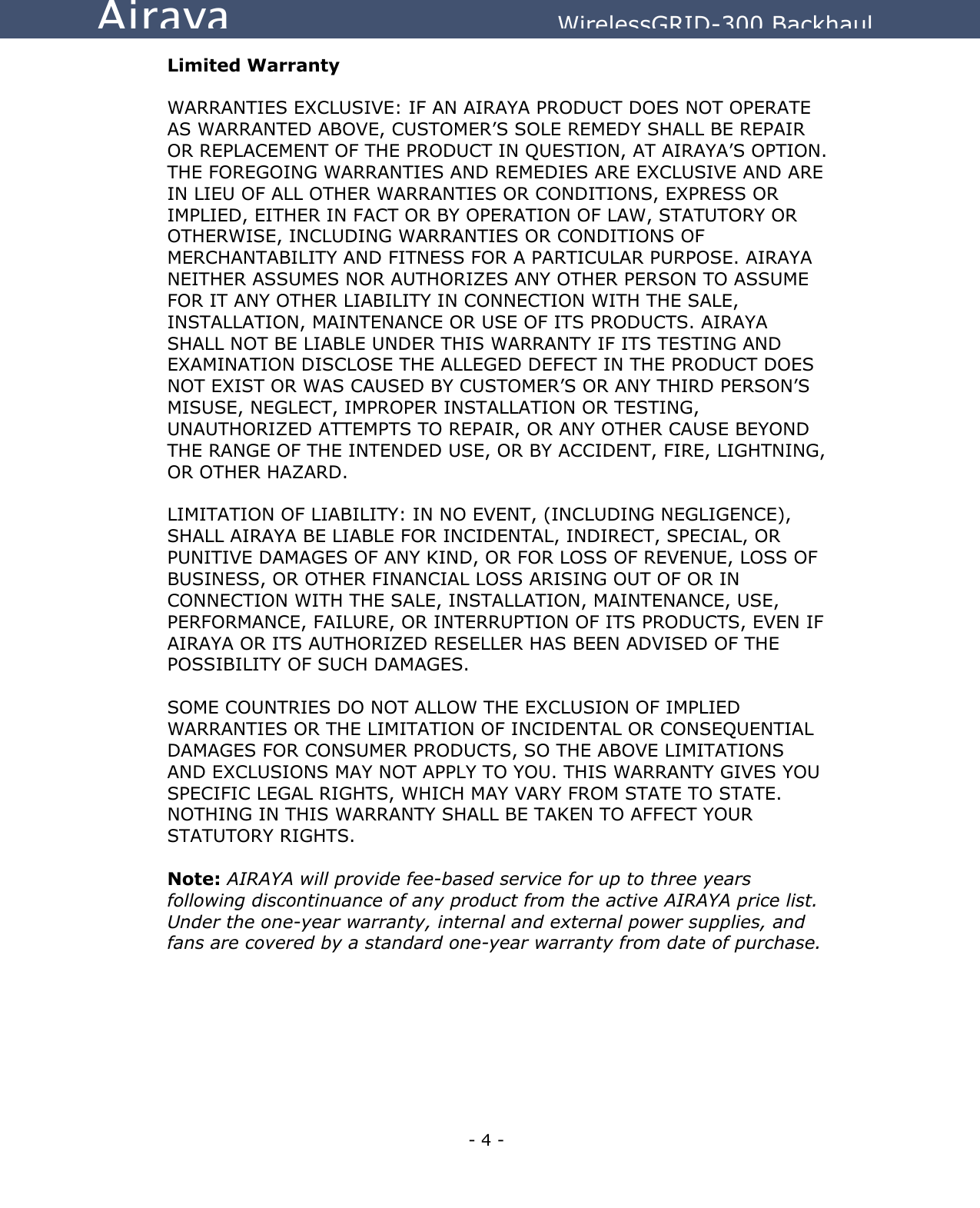

- 4 - Airaya WirelessGRID-300 Backhaul Limited Warranty WARRANTIES EXCLUSIVE: IF AN AIRAYA PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, CUSTOMER’S SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT OF THE PRODUCT IN QUESTION, AT AIRAYA’S OPTION. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. AIRAYA NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. AIRAYA SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD. LIMITATION OF LIABILITY: IN NO EVENT, (INCLUDING NEGLIGENCE), SHALL AIRAYA BE LIABLE FOR INCIDENTAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE, LOSS OF BUSINESS, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS, EVEN IF AIRAYA OR ITS AUTHORIZED RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME COUNTRIES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS. Note: AIRAYA will provide fee-based service for up to three years following discontinuance of any product from the active AIRAYA price list. Under the one-year warranty, internal and external power supplies, and fans are covered by a standard one-year warranty from date of purchase.

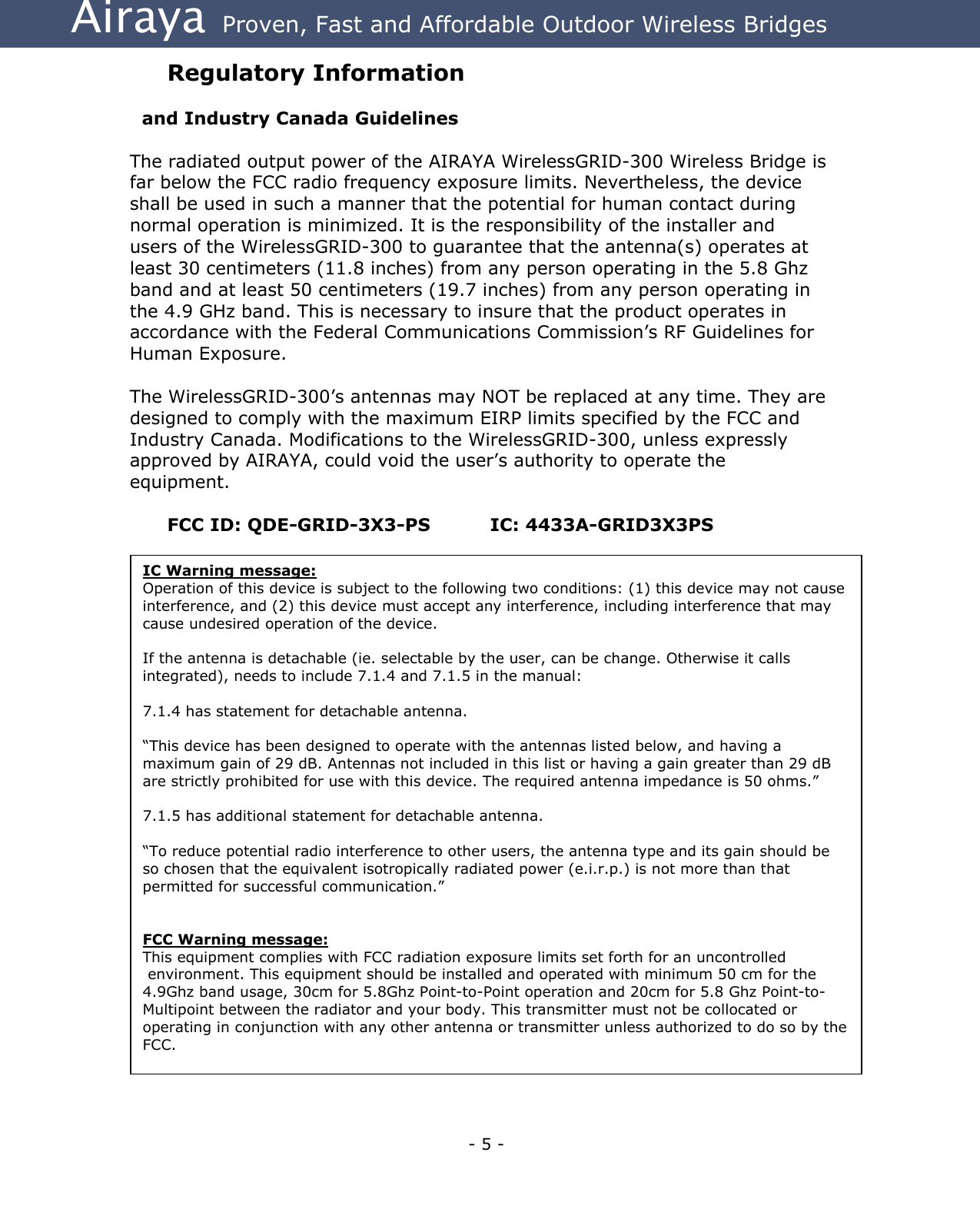

Airaya - 5 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges Regulatory Information and Industry Canada Guidelines The radiated output power of the AIRAYA WirelessGRID-300 Wireless Bridge is far below the FCC radio frequency exposure limits. Nevertheless, the device shall be used in such a manner that the potential for human contact during normal operation is minimized. It is the responsibility of the installer and users of the WirelessGRID-300 to guarantee that the antenna(s) operates at least 30 centimeters (11.8 inches) from any person operating in the 5.8 Ghz band and at least 50 centimeters (19.7 inches) from any person operating in the 4.9 GHz band. This is necessary to insure that the product operates in accordance with the Federal Communications Commission’s RF Guidelines for Human Exposure. The WirelessGRID-300’s antennas may NOT be replaced at any time. They are designed to comply with the maximum EIRP limits specified by the FCC and Industry Canada. Modifications to the WirelessGRID-300, unless expressly approved by AIRAYA, could void the user’s authority to operate the equipment. FCC ID: QDE-GRID-3X3-PS IC: 4433A-GRID3X3PS IC Warning message: Operation of this device is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. If the antenna is detachable (ie. selectable by the user, can be change. Otherwise it calls integrated), needs to include 7.1.4 and 7.1.5 in the manual: 7.1.4 has statement for detachable antenna. “This device has been designed to operate with the antennas listed below, and having a maximum gain of 29 dB. Antennas not included in this list or having a gain greater than 29 dB are strictly prohibited for use with this device. The required antenna impedance is 50 ohms.” 7.1.5 has additional statement for detachable antenna. “To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.” FCC Warning message: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum 50 cm for the 4.9Ghz band usage, 30cm for 5.8Ghz Point-to-Point operation and 20cm for 5.8 Ghz Point-to-Multipoint between the radiator and your body. This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC.

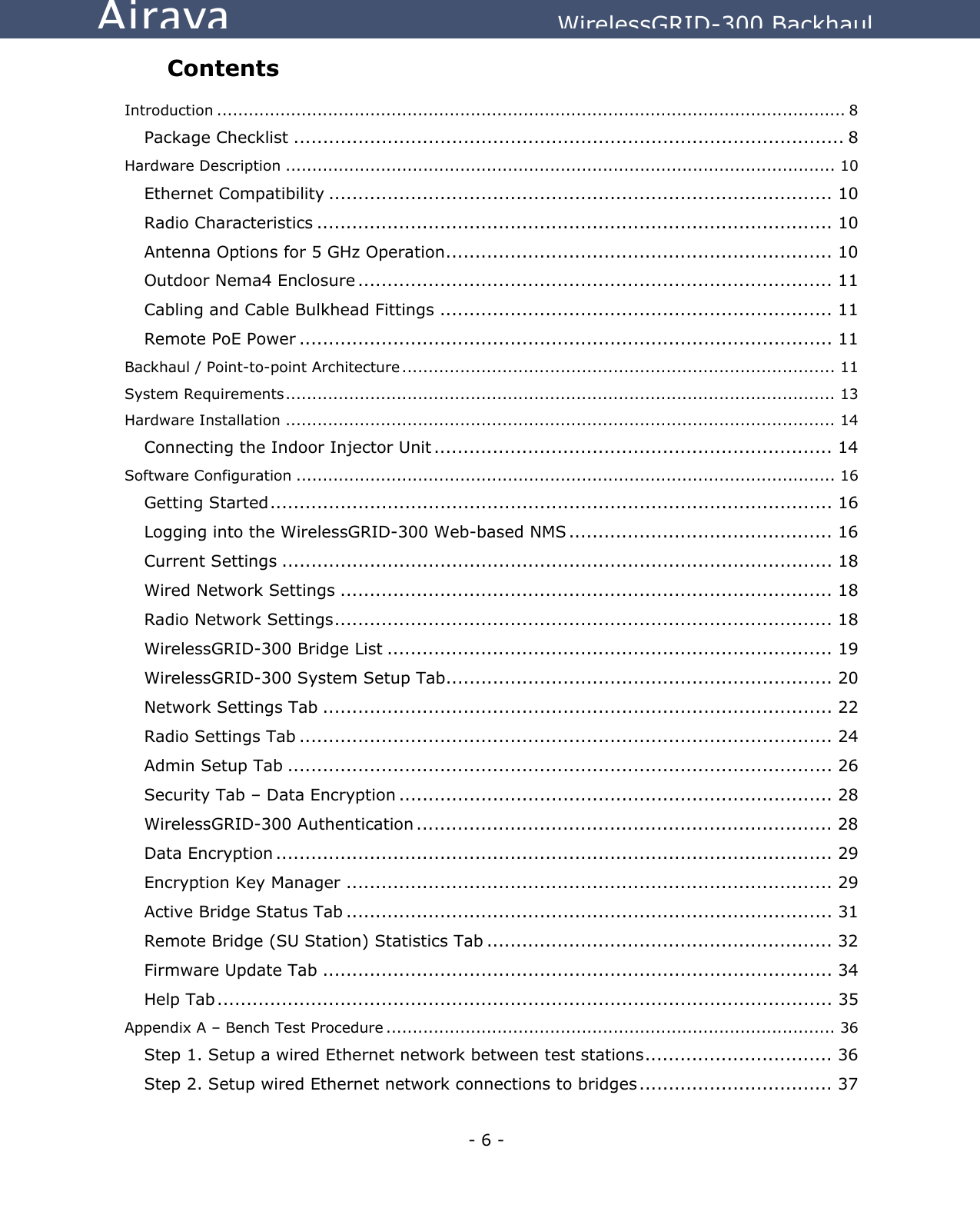

- 6 - Airaya WirelessGRID-300 Backhaul Contents Introduction ....................................................................................................................... 8 Package Checklist .............................................................................................. 8 Hardware Description ........................................................................................................ 10 Ethernet Compatibility ...................................................................................... 10 Radio Characteristics ........................................................................................ 10 Antenna Options for 5 GHz Operation.................................................................. 10 Outdoor Nema4 Enclosure ................................................................................. 11 Cabling and Cable Bulkhead Fittings ................................................................... 11 Remote PoE Power ........................................................................................... 11 Backhaul / Point-to-point Architecture .................................................................................. 11 System Requirements........................................................................................................ 13 Hardware Installation ........................................................................................................ 14 Connecting the Indoor Injector Unit .................................................................... 14 Software Configuration ...................................................................................................... 16 Getting Started................................................................................................ 16 Logging into the WirelessGRID-300 Web-based NMS ............................................. 16 Current Settings .............................................................................................. 18 Wired Network Settings .................................................................................... 18 Radio Network Settings..................................................................................... 18 WirelessGRID-300 Bridge List ............................................................................ 19 WirelessGRID-300 System Setup Tab.................................................................. 20 Network Settings Tab ....................................................................................... 22 Radio Settings Tab ........................................................................................... 24 Admin Setup Tab ............................................................................................. 26 Security Tab – Data Encryption .......................................................................... 28 WirelessGRID-300 Authentication ....................................................................... 28 Data Encryption ............................................................................................... 29 Encryption Key Manager ................................................................................... 29 Active Bridge Status Tab ................................................................................... 31 Remote Bridge (SU Station) Statistics Tab ........................................................... 32 Firmware Update Tab ....................................................................................... 34 Help Tab......................................................................................................... 35 Appendix A – Bench Test Procedure ..................................................................................... 36 Step 1. Setup a wired Ethernet network between test stations................................ 36 Step 2. Setup wired Ethernet network connections to bridges................................. 37

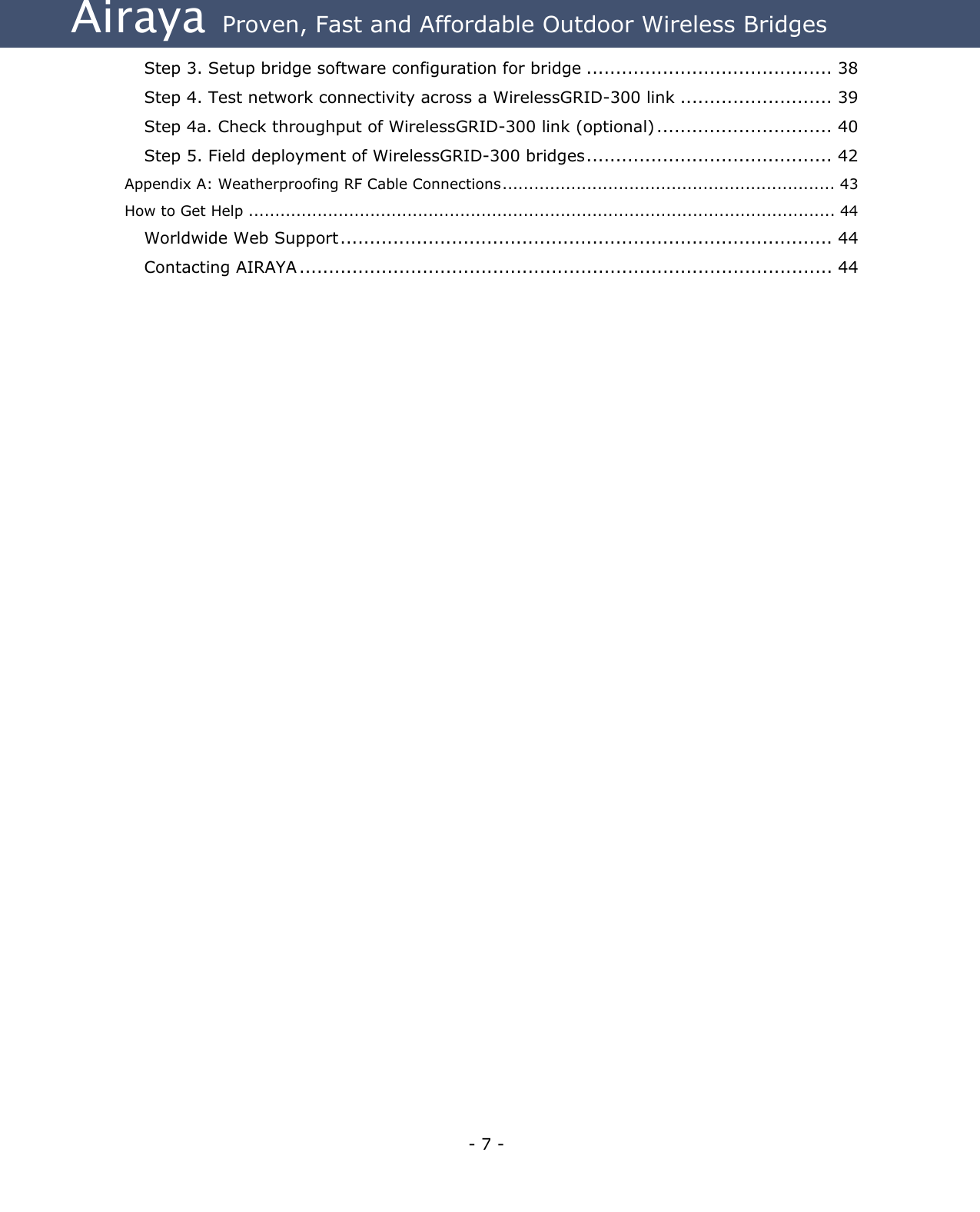

Airaya - 7 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges Step 3. Setup bridge software configuration for bridge .......................................... 38 Step 4. Test network connectivity across a WirelessGRID-300 link .......................... 39 Step 4a. Check throughput of WirelessGRID-300 link (optional).............................. 40 Step 5. Field deployment of WirelessGRID-300 bridges.......................................... 42 Appendix A: Weatherproofing RF Cable Connections............................................................... 43 How to Get Help ............................................................................................................... 44 Worldwide Web Support.................................................................................... 44 Contacting AIRAYA ........................................................................................... 44

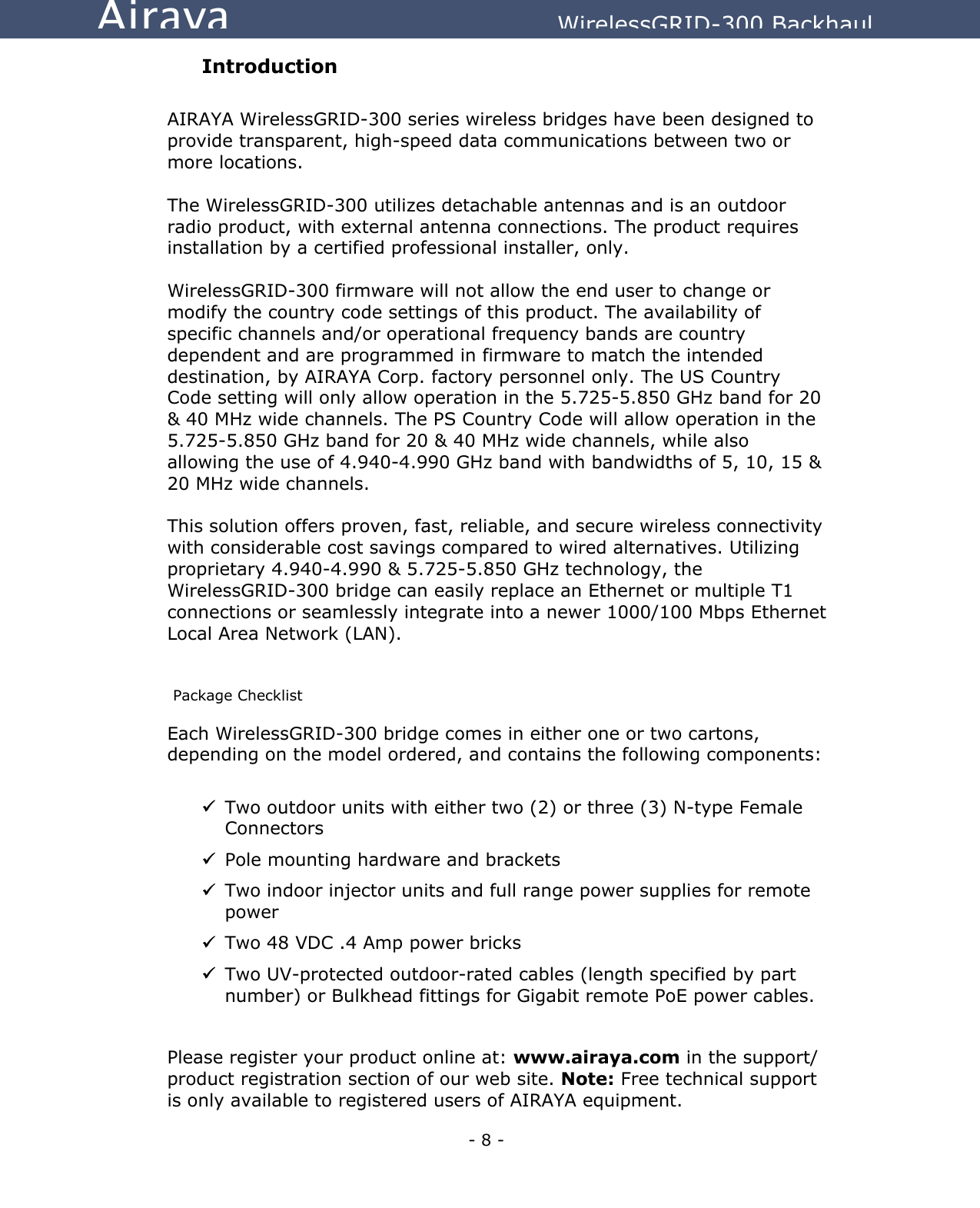

- 8 - Airaya WirelessGRID-300 Backhaul Introduction AIRAYA WirelessGRID-300 series wireless bridges have been designed to provide transparent, high-speed data communications between two or more locations. The WirelessGRID-300 utilizes detachable antennas and is an outdoor radio product, with external antenna connections. The product requires installation by a certified professional installer, only. WirelessGRID-300 firmware will not allow the end user to change or modify the country code settings of this product. The availability of specific channels and/or operational frequency bands are country dependent and are programmed in firmware to match the intended destination, by AIRAYA Corp. factory personnel only. The US Country Code setting will only allow operation in the 5.725-5.850 GHz band for 20 & 40 MHz wide channels. The PS Country Code will allow operation in the 5.725-5.850 GHz band for 20 & 40 MHz wide channels, while also allowing the use of 4.940-4.990 GHz band with bandwidths of 5, 10, 15 & 20 MHz wide channels. This solution offers proven, fast, reliable, and secure wireless connectivity with considerable cost savings compared to wired alternatives. Utilizing proprietary 4.940-4.990 & 5.725-5.850 GHz technology, the WirelessGRID-300 bridge can easily replace an Ethernet or multiple T1 connections or seamlessly integrate into a newer 1000/100 Mbps Ethernet Local Area Network (LAN). Package Checklist Each WirelessGRID-300 bridge comes in either one or two cartons, depending on the model ordered, and contains the following components:  Two outdoor units with either two (2) or three (3) N-type Female Connectors  Pole mounting hardware and brackets  Two indoor injector units and full range power supplies for remote power  Two 48 VDC .4 Amp power bricks  Two UV-protected outdoor-rated cables (length specified by part number) or Bulkhead fittings for Gigabit remote PoE power cables. Please register your product online at: www.airaya.com in the support/ product registration section of our web site. Note: Free technical support is only available to registered users of AIRAYA equipment.
Airaya - 9 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges Please inform your dealer if there are any incorrect, missing, or damaged parts. If possible, retain the carton and original packing materials for repacking purposes in case you need to return a radio bridge for repair.

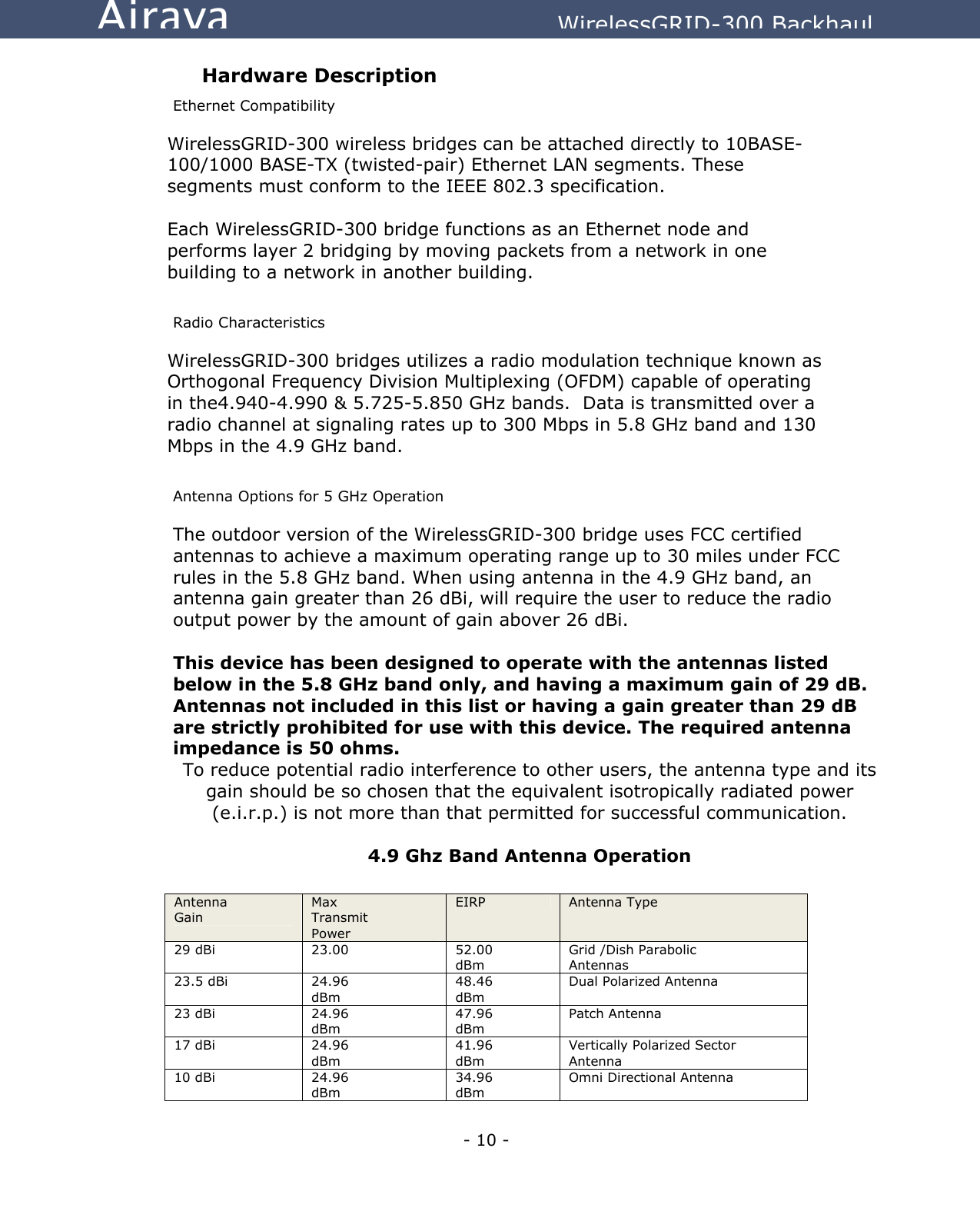

- 10 - Airaya WirelessGRID-300 Backhaul Hardware Description Ethernet Compatibility WirelessGRID-300 wireless bridges can be attached directly to 10BASE-100/1000 BASE-TX (twisted-pair) Ethernet LAN segments. These segments must conform to the IEEE 802.3 specification. Each WirelessGRID-300 bridge functions as an Ethernet node and performs layer 2 bridging by moving packets from a network in one building to a network in another building. Radio Characteristics WirelessGRID-300 bridges utilizes a radio modulation technique known as Orthogonal Frequency Division Multiplexing (OFDM) capable of operating in the4.940-4.990 & 5.725-5.850 GHz bands. Data is transmitted over a radio channel at signaling rates up to 300 Mbps in 5.8 GHz band and 130 Mbps in the 4.9 GHz band. Antenna Options for 5 GHz Operation The outdoor version of the WirelessGRID-300 bridge uses FCC certified antennas to achieve a maximum operating range up to 30 miles under FCC rules in the 5.8 GHz band. When using antenna in the 4.9 GHz band, an antenna gain greater than 26 dBi, will require the user to reduce the radio output power by the amount of gain abover 26 dBi. This device has been designed to operate with the antennas listed below in the 5.8 GHz band only, and having a maximum gain of 29 dB. Antennas not included in this list or having a gain greater than 29 dB are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. 4.9 Ghz Band Antenna Operation Antenna Gain Max Transmit Power EIRP Antenna Type 29 dBi 23.00 52.00 dBm Grid /Dish Parabolic Antennas 23.5 dBi 24.96 dBm 48.46 dBm Dual Polarized Antenna 23 dBi 24.96 dBm 47.96 dBm Patch Antenna 17 dBi 24.96 dBm 41.96 dBm Vertically Polarized Sector Antenna 10 dBi 24.96 dBm 34.96 dBm Omni Directional Antenna

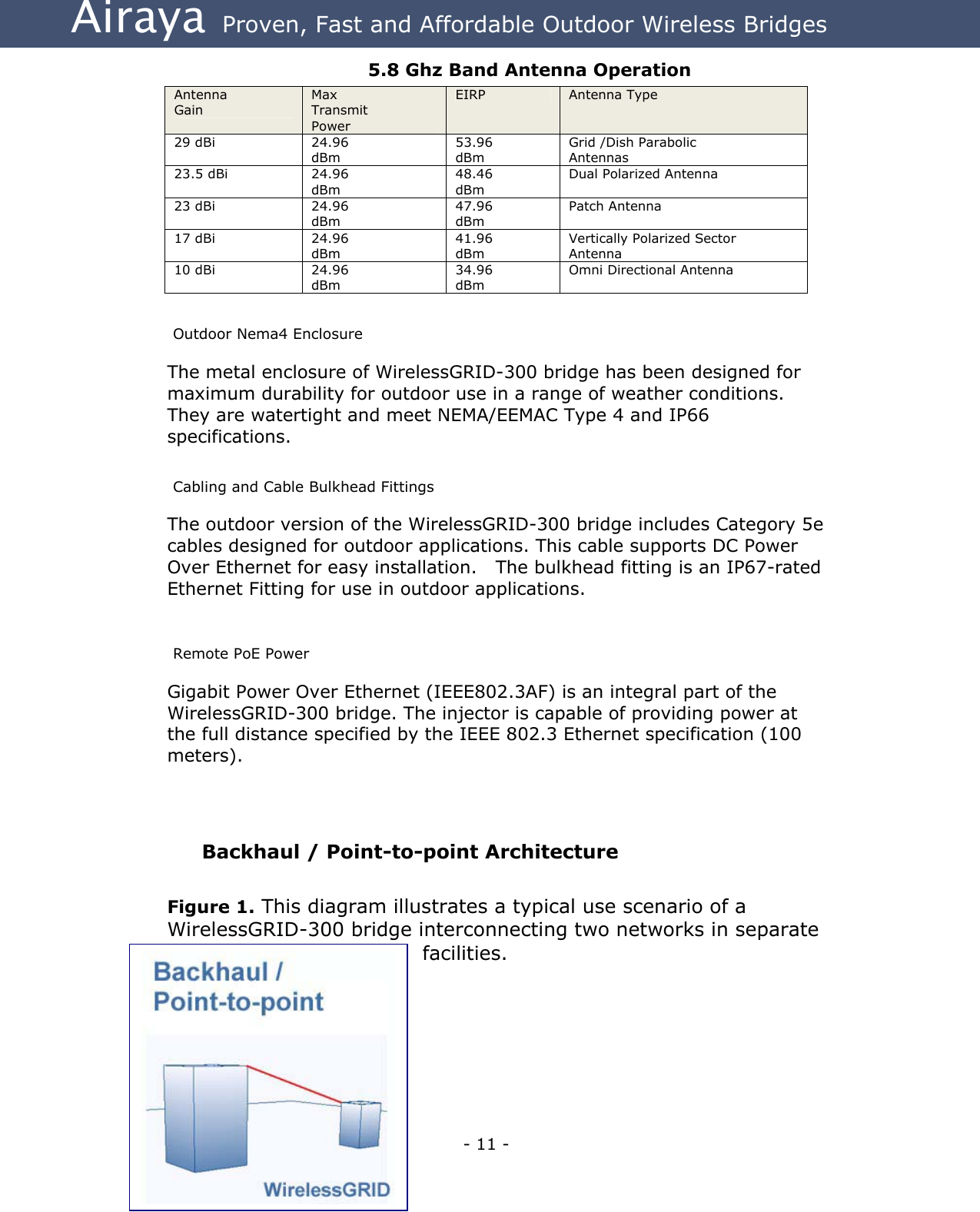

Airaya - 11 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges 5.8 Ghz Band Antenna Operation Outdoor Nema4 Enclosure The metal enclosure of WirelessGRID-300 bridge has been designed for maximum durability for outdoor use in a range of weather conditions. They are watertight and meet NEMA/EEMAC Type 4 and IP66 specifications. Cabling and Cable Bulkhead Fittings The outdoor version of the WirelessGRID-300 bridge includes Category 5e cables designed for outdoor applications. This cable supports DC Power Over Ethernet for easy installation. The bulkhead fitting is an IP67-rated Ethernet Fitting for use in outdoor applications. Remote PoE Power Gigabit Power Over Ethernet (IEEE802.3AF) is an integral part of the WirelessGRID-300 bridge. The injector is capable of providing power at the full distance specified by the IEEE 802.3 Ethernet specification (100 meters). Backhaul / Point-to-point Architecture Figure 1. This diagram illustrates a typical use scenario of a WirelessGRID-300 bridge interconnecting two networks in separate facilities. Antenna Gain Max Transmit Power EIRP Antenna Type 29 dBi 24.96 dBm 53.96 dBm Grid /Dish Parabolic Antennas 23.5 dBi 24.96 dBm 48.46 dBm Dual Polarized Antenna 23 dBi 24.96 dBm 47.96 dBm Patch Antenna 17 dBi 24.96 dBm 41.96 dBm Vertically Polarized Sector Antenna 10 dBi 24.96 dBm 34.96 dBm Omni Directional Antenna

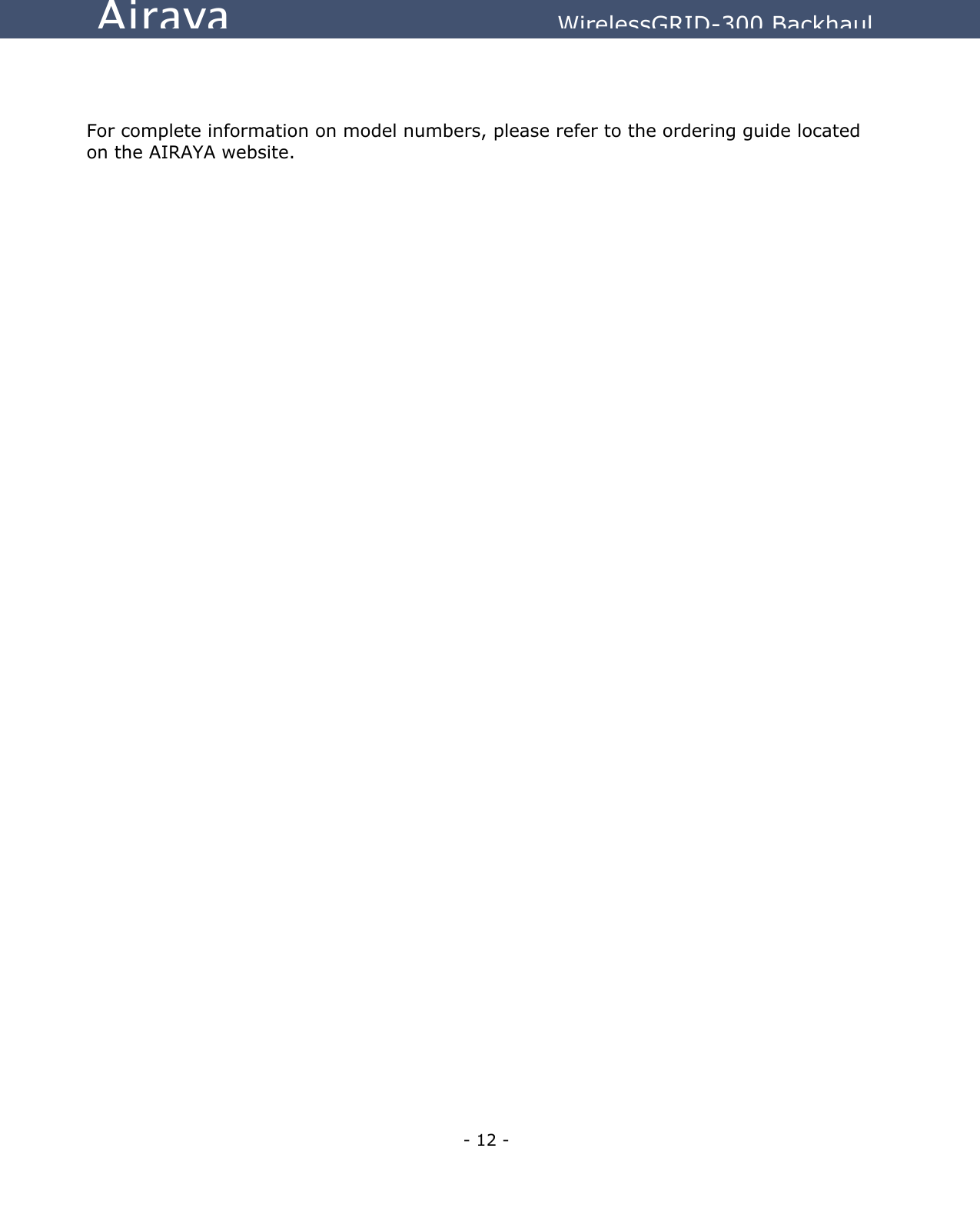

- 12 - Airaya WirelessGRID-300 Backhaul For complete information on model numbers, please refer to the ordering guide located on the AIRAYA website.

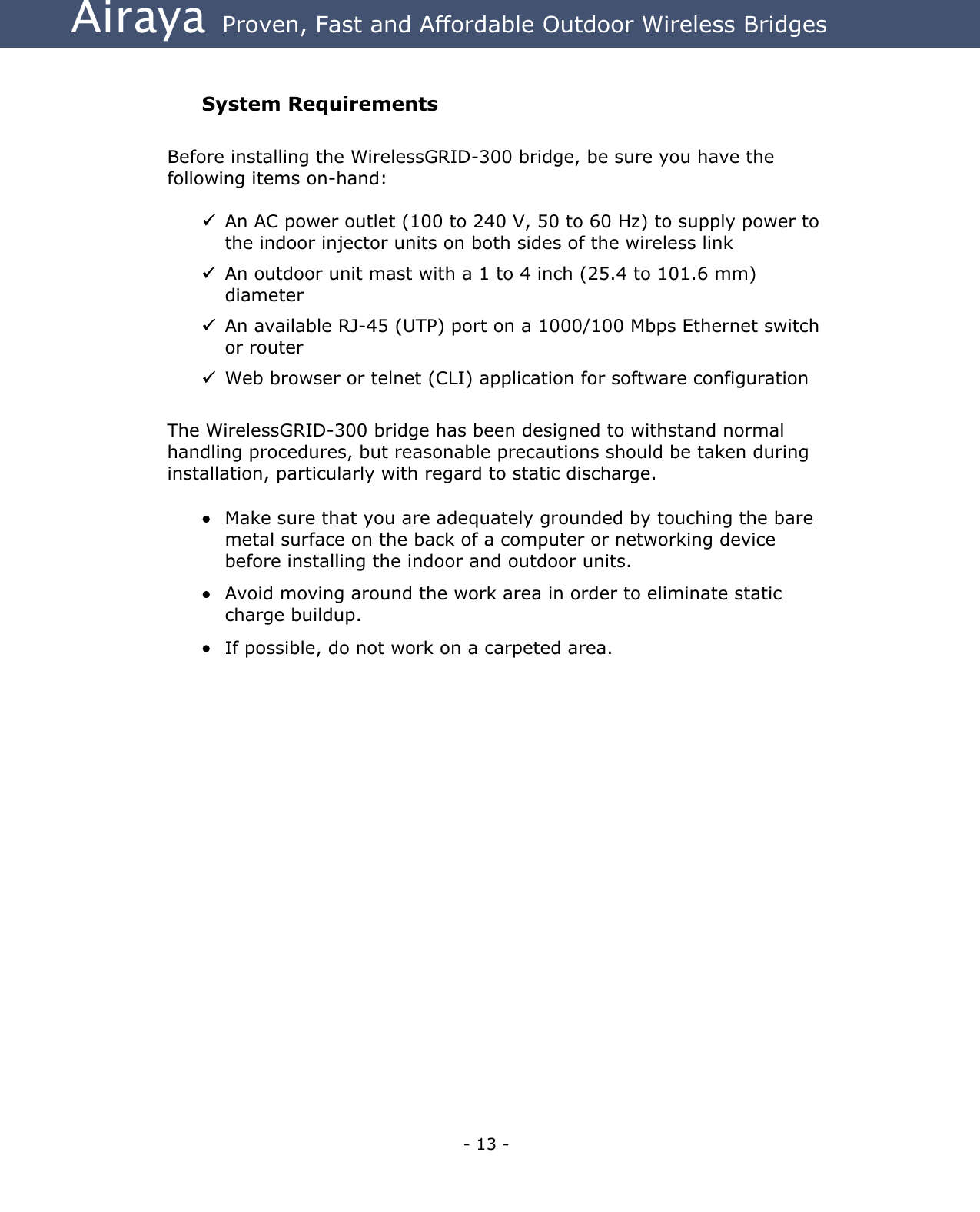

Airaya - 13 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges System Requirements Before installing the WirelessGRID-300 bridge, be sure you have the following items on-hand:  An AC power outlet (100 to 240 V, 50 to 60 Hz) to supply power to the indoor injector units on both sides of the wireless link  An outdoor unit mast with a 1 to 4 inch (25.4 to 101.6 mm) diameter  An available RJ-45 (UTP) port on a 1000/100 Mbps Ethernet switch or router  Web browser or telnet (CLI) application for software configuration The WirelessGRID-300 bridge has been designed to withstand normal handling procedures, but reasonable precautions should be taken during installation, particularly with regard to static discharge. • Make sure that you are adequately grounded by touching the bare metal surface on the back of a computer or networking device before installing the indoor and outdoor units. • Avoid moving around the work area in order to eliminate static charge buildup. • If possible, do not work on a carpeted area.

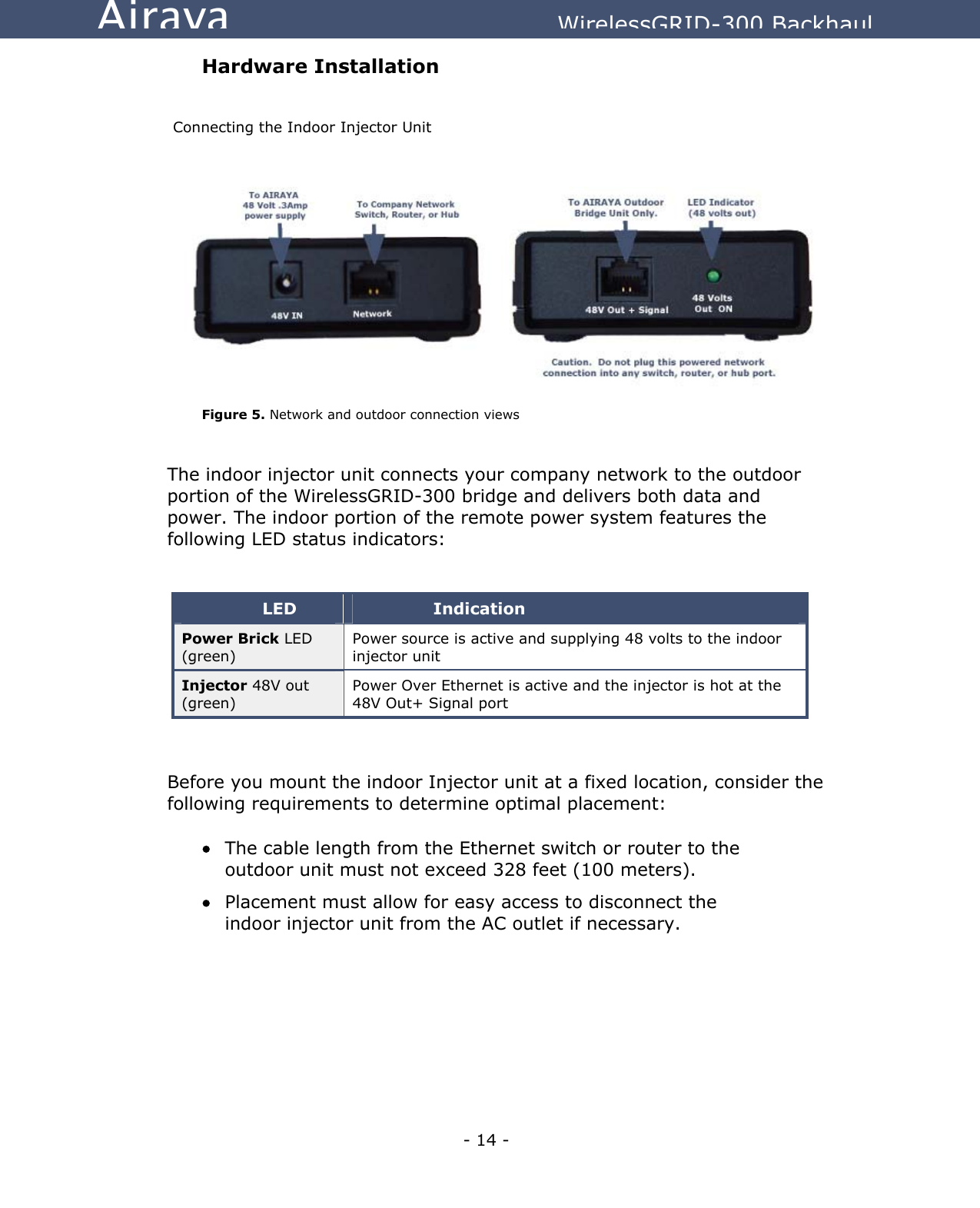

- 14 - Airaya WirelessGRID-300 Backhaul Hardware Installation Connecting the Indoor Injector Unit Figure 5. Network and outdoor connection views The indoor injector unit connects your company network to the outdoor portion of the WirelessGRID-300 bridge and delivers both data and power. The indoor portion of the remote power system features the following LED status indicators: LED Indication Power Brick LED (green) Power source is active and supplying 48 volts to the indoor injector unit Injector 48V out (green) Power Over Ethernet is active and the injector is hot at the 48V Out+ Signal port Before you mount the indoor Injector unit at a fixed location, consider the following requirements to determine optimal placement: • The cable length from the Ethernet switch or router to the outdoor unit must not exceed 328 feet (100 meters). • Placement must allow for easy access to disconnect the indoor injector unit from the AC outlet if necessary.
Airaya - 15 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges Follow these steps to install the indoor injector unit: 1. Connect the To Network port on the indoor injector unit to your 1000/100 Mbps Ethernet switch or router using a straight-through Category 5 UTP cable. 2. Connect the power brick to the 48 VDC In power socket on the indoor injector unit and then plug the power brick into the wall power receptacle. Warning: Use only the power adapter supplied with the WirelessGRID-300 bridge in order to prevent damage. 3. You are now ready to apply power to the outdoor unit. Connect the 48V OUT + Signal port to the outdoor unit using the included (black) Category 5e cable attached to the outdoor unit. The 48V OUT LED will light to indicate that the indoor injector unit is active and outputting 48 volts, .4 amps to the 48V OUT + Signal port. TIP After applying power to the outdoor unit, the link light on your network connection (Switch or Router Port) should be on.

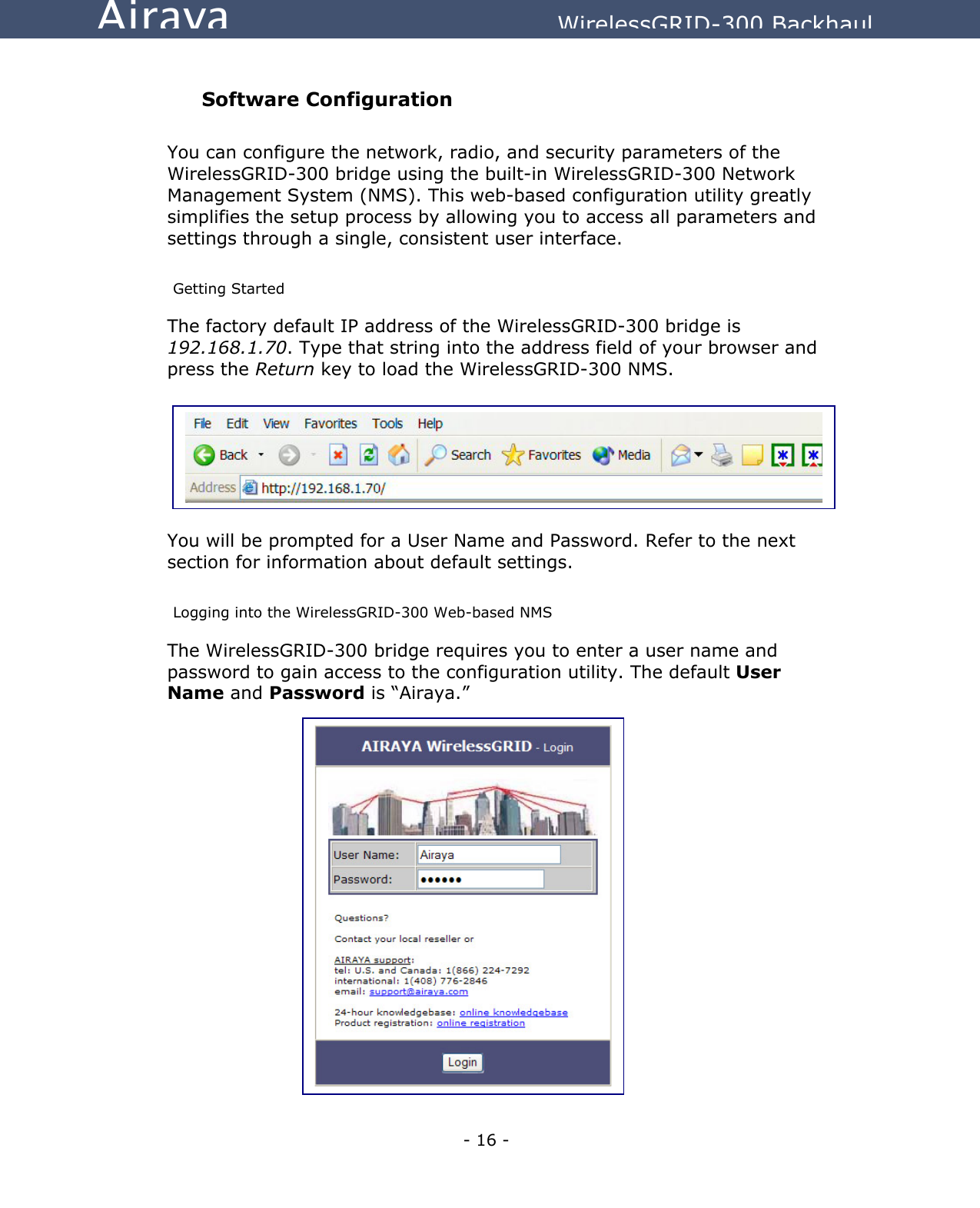

- 16 - Airaya WirelessGRID-300 Backhaul Software Configuration You can configure the network, radio, and security parameters of the WirelessGRID-300 bridge using the built-in WirelessGRID-300 Network Management System (NMS). This web-based configuration utility greatly simplifies the setup process by allowing you to access all parameters and settings through a single, consistent user interface. Getting Started The factory default IP address of the WirelessGRID-300 bridge is 192.168.1.70. Type that string into the address field of your browser and press the Return key to load the WirelessGRID-300 NMS. You will be prompted for a User Name and Password. Refer to the next section for information about default settings. Logging into the WirelessGRID-300 Web-based NMS The WirelessGRID-300 bridge requires you to enter a user name and password to gain access to the configuration utility. The default User Name and Password is “Airaya.”

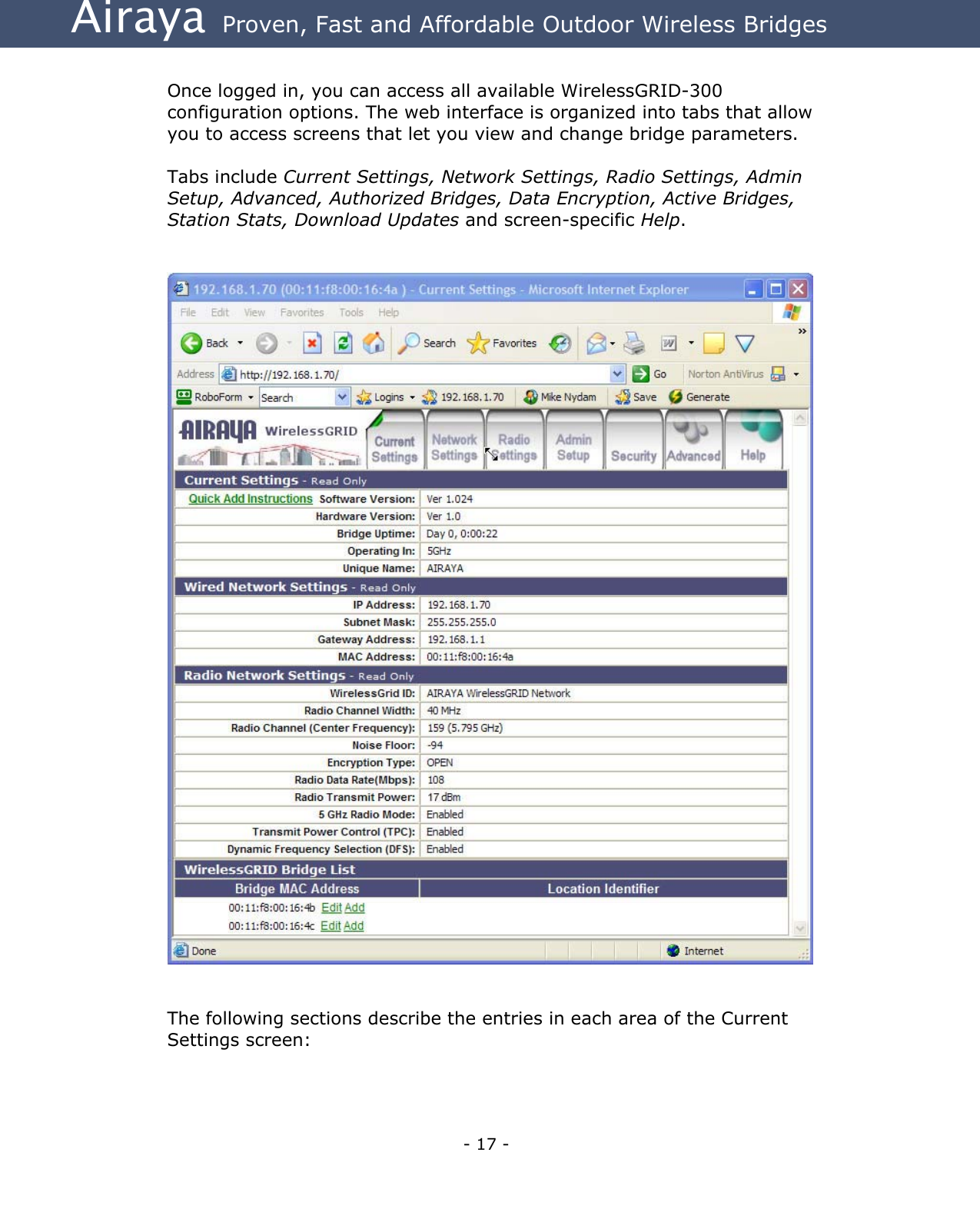

Airaya - 17 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges Once logged in, you can access all available WirelessGRID-300 configuration options. The web interface is organized into tabs that allow you to access screens that let you view and change bridge parameters. Tabs include Current Settings, Network Settings, Radio Settings, Admin Setup, Advanced, Authorized Bridges, Data Encryption, Active Bridges, Station Stats, Download Updates and screen-specific Help. The following sections describe the entries in each area of the Current Settings screen:

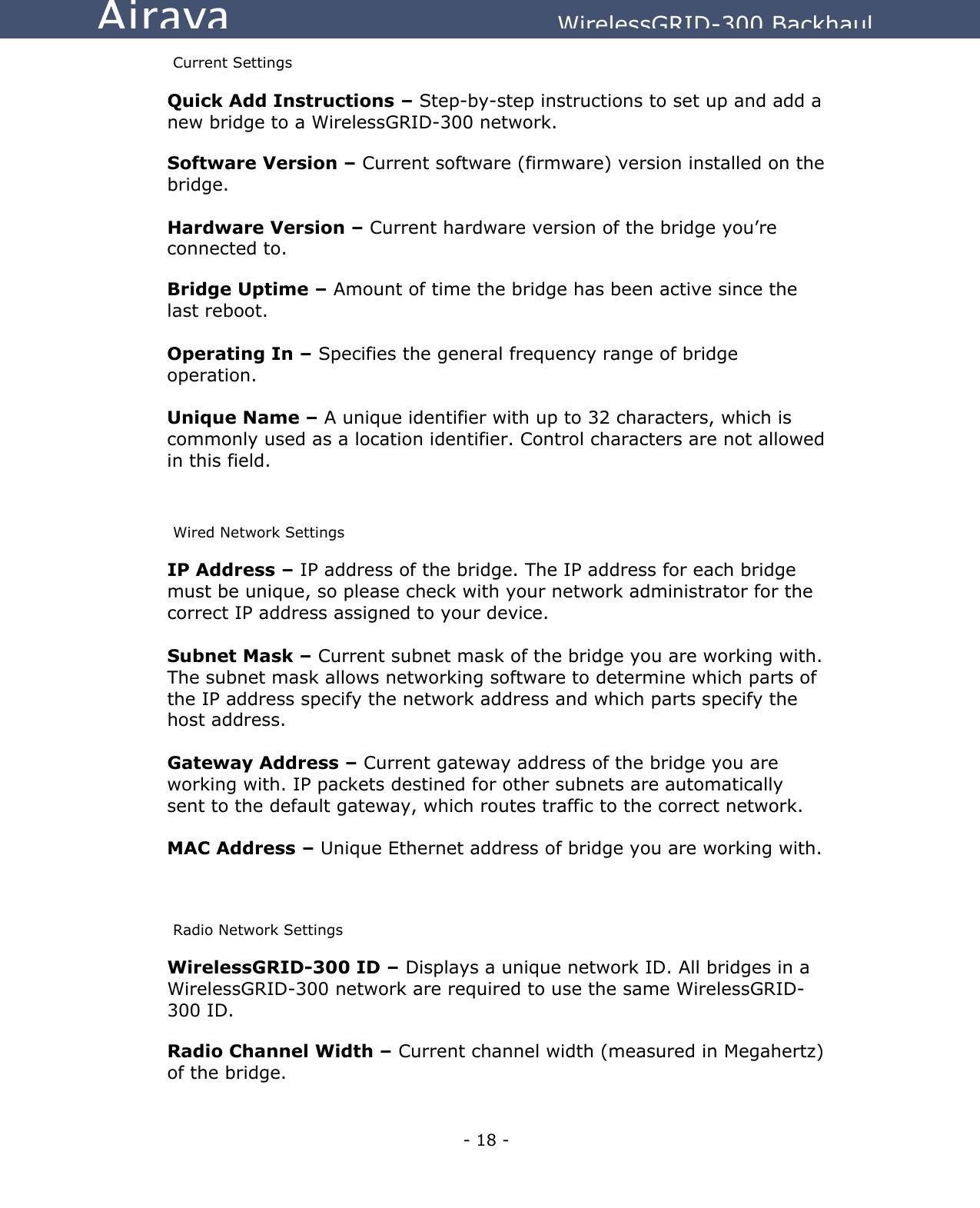

- 18 - Airaya WirelessGRID-300 Backhaul Current Settings Quick Add Instructions – Step-by-step instructions to set up and add a new bridge to a WirelessGRID-300 network. Software Version – Current software (firmware) version installed on the bridge. Hardware Version – Current hardware version of the bridge you’re connected to. Bridge Uptime – Amount of time the bridge has been active since the last reboot. Operating In – Specifies the general frequency range of bridge operation. Unique Name – A unique identifier with up to 32 characters, which is commonly used as a location identifier. Control characters are not allowed in this field. Wired Network Settings IP Address – IP address of the bridge. The IP address for each bridge must be unique, so please check with your network administrator for the correct IP address assigned to your device. Subnet Mask – Current subnet mask of the bridge you are working with. The subnet mask allows networking software to determine which parts of the IP address specify the network address and which parts specify the host address. Gateway Address – Current gateway address of the bridge you are working with. IP packets destined for other subnets are automatically sent to the default gateway, which routes traffic to the correct network. MAC Address – Unique Ethernet address of bridge you are working with. Radio Network Settings WirelessGRID-300 ID – Displays a unique network ID. All bridges in a WirelessGRID-300 network are required to use the same WirelessGRID-300 ID. Radio Channel Width – Current channel width (measured in Megahertz) of the bridge.

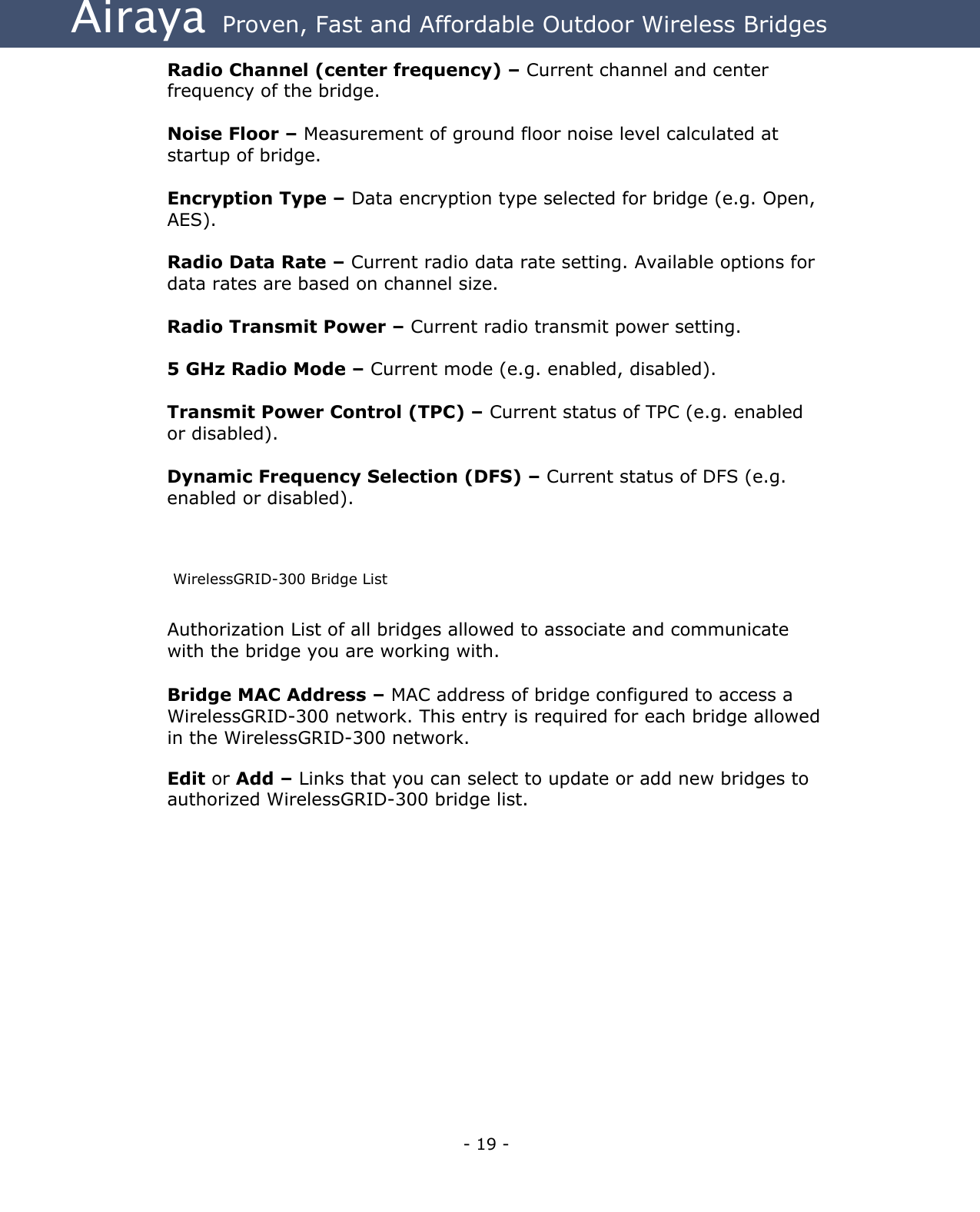

Airaya - 19 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges Radio Channel (center frequency) – Current channel and center frequency of the bridge. Noise Floor – Measurement of ground floor noise level calculated at startup of bridge. Encryption Type – Data encryption type selected for bridge (e.g. Open, AES). Radio Data Rate – Current radio data rate setting. Available options for data rates are based on channel size. Radio Transmit Power – Current radio transmit power setting. 5 GHz Radio Mode – Current mode (e.g. enabled, disabled). Transmit Power Control (TPC) – Current status of TPC (e.g. enabled or disabled). Dynamic Frequency Selection (DFS) – Current status of DFS (e.g. enabled or disabled). WirelessGRID-300 Bridge List Authorization List of all bridges allowed to associate and communicate with the bridge you are working with. Bridge MAC Address – MAC address of bridge configured to access a WirelessGRID-300 network. This entry is required for each bridge allowed in the WirelessGRID-300 network. Edit or Add – Links that you can select to update or add new bridges to authorized WirelessGRID-300 bridge list.

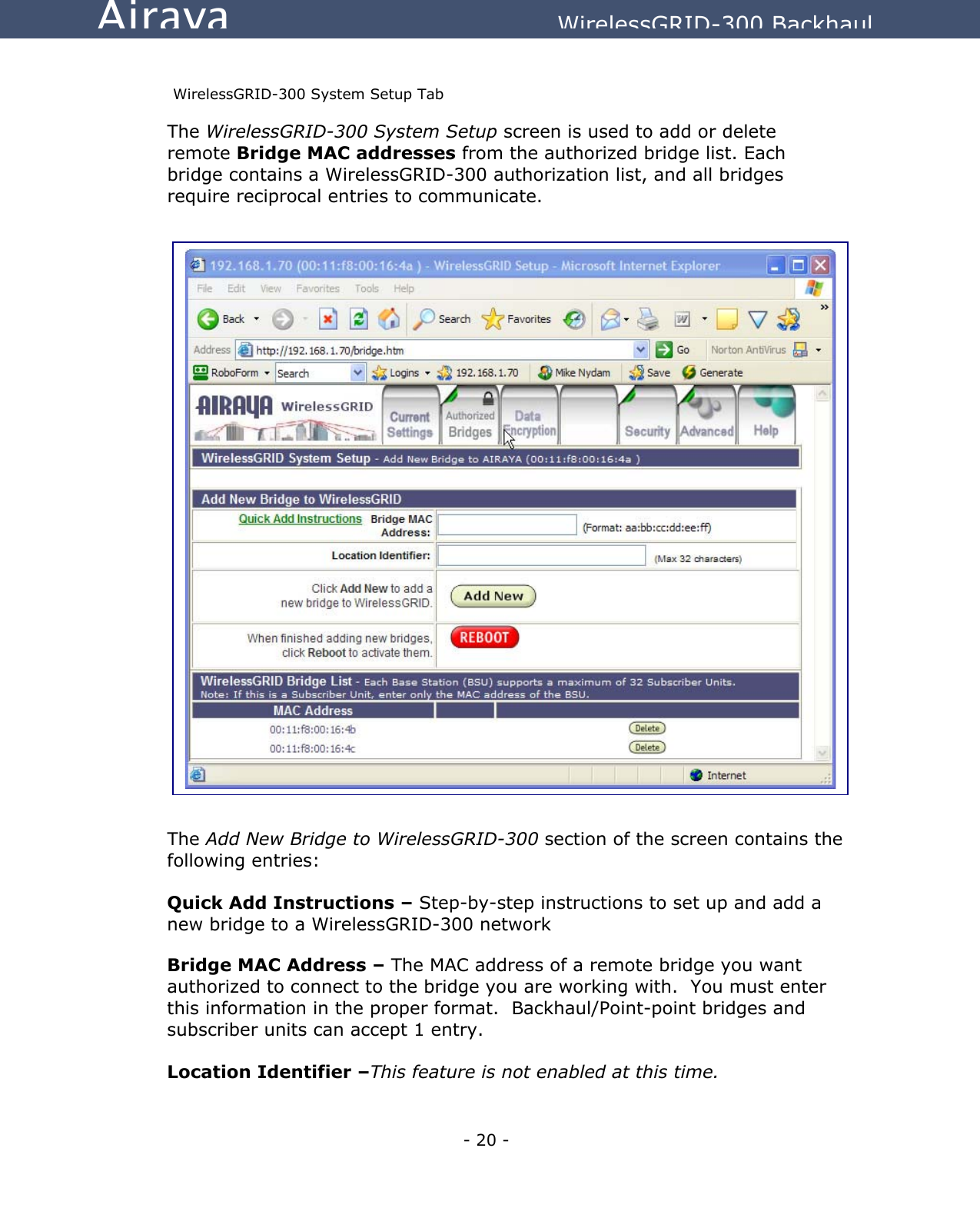

- 20 - Airaya WirelessGRID-300 Backhaul WirelessGRID-300 System Setup Tab The WirelessGRID-300 System Setup screen is used to add or delete remote Bridge MAC addresses from the authorized bridge list. Each bridge contains a WirelessGRID-300 authorization list, and all bridges require reciprocal entries to communicate. The Add New Bridge to WirelessGRID-300 section of the screen contains the following entries: Quick Add Instructions – Step-by-step instructions to set up and add a new bridge to a WirelessGRID-300 network Bridge MAC Address – The MAC address of a remote bridge you want authorized to connect to the bridge you are working with. You must enter this information in the proper format. Backhaul/Point-point bridges and subscriber units can accept 1 entry. Location Identifier –This feature is not enabled at this time.

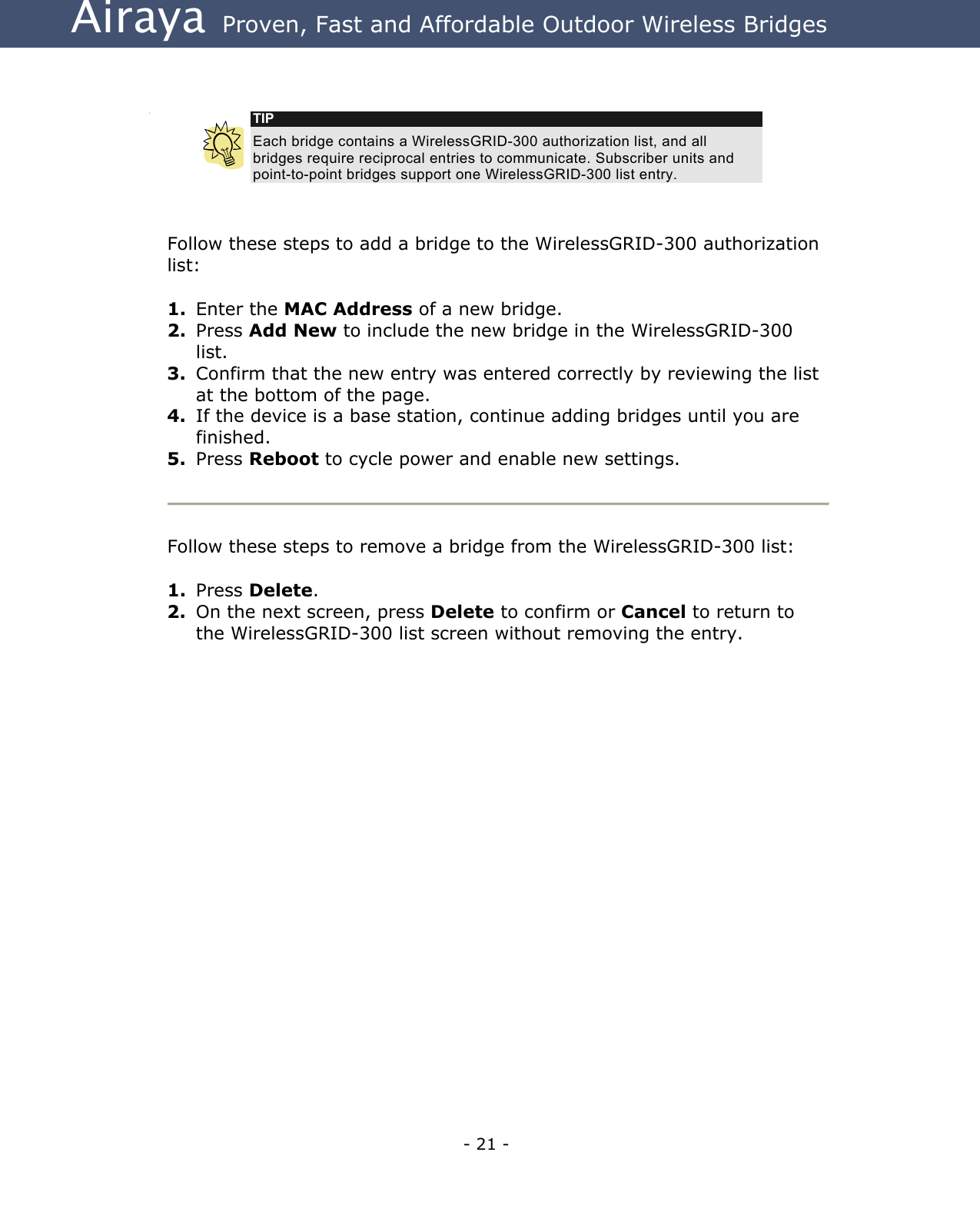

Airaya - 21 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges Follow these steps to add a bridge to the WirelessGRID-300 authorization list: 1. Enter the MAC Address of a new bridge. 2. Press Add New to include the new bridge in the WirelessGRID-300 list. 3. Confirm that the new entry was entered correctly by reviewing the list at the bottom of the page. 4. If the device is a base station, continue adding bridges until you are finished. 5. Press Reboot to cycle power and enable new settings. Follow these steps to remove a bridge from the WirelessGRID-300 list: 1. Press Delete. 2. On the next screen, press Delete to confirm or Cancel to return to the WirelessGRID-300 list screen without removing the entry. TIP Each bridge contains a WirelessGRID-300 authorization list, and all bridges require reciprocal entries to communicate. Subscriber units and point-to-point bridges support one WirelessGRID-300 list entry.

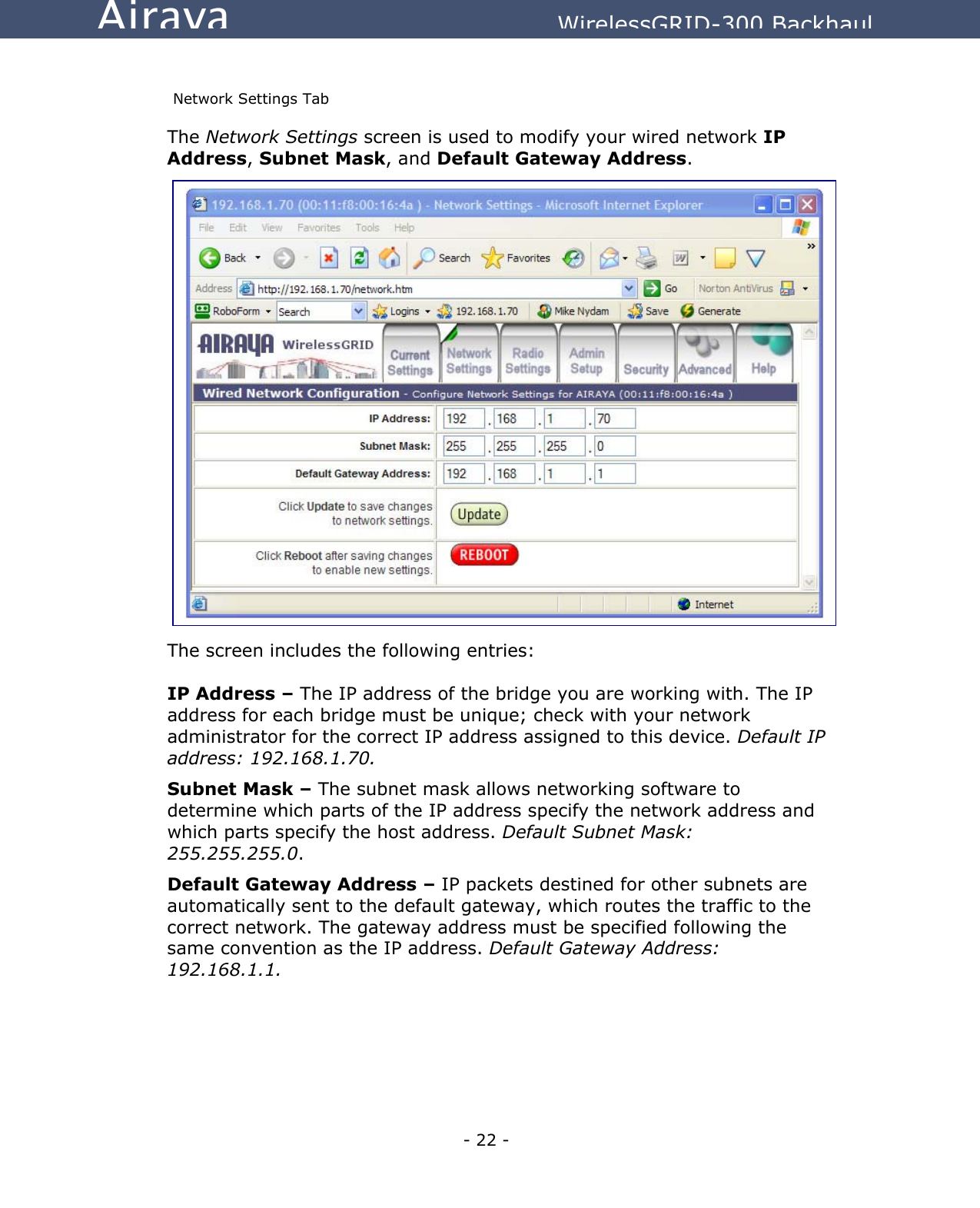

- 22 - Airaya WirelessGRID-300 Backhaul Network Settings Tab The Network Settings screen is used to modify your wired network IP Address, Subnet Mask, and Default Gateway Address. The screen includes the following entries: IP Address – The IP address of the bridge you are working with. The IP address for each bridge must be unique; check with your network administrator for the correct IP address assigned to this device. Default IP address: 192.168.1.70. Subnet Mask – The subnet mask allows networking software to determine which parts of the IP address specify the network address and which parts specify the host address. Default Subnet Mask: 255.255.255.0. Default Gateway Address – IP packets destined for other subnets are automatically sent to the default gateway, which routes the traffic to the correct network. The gateway address must be specified following the same convention as the IP address. Default Gateway Address: 192.168.1.1.

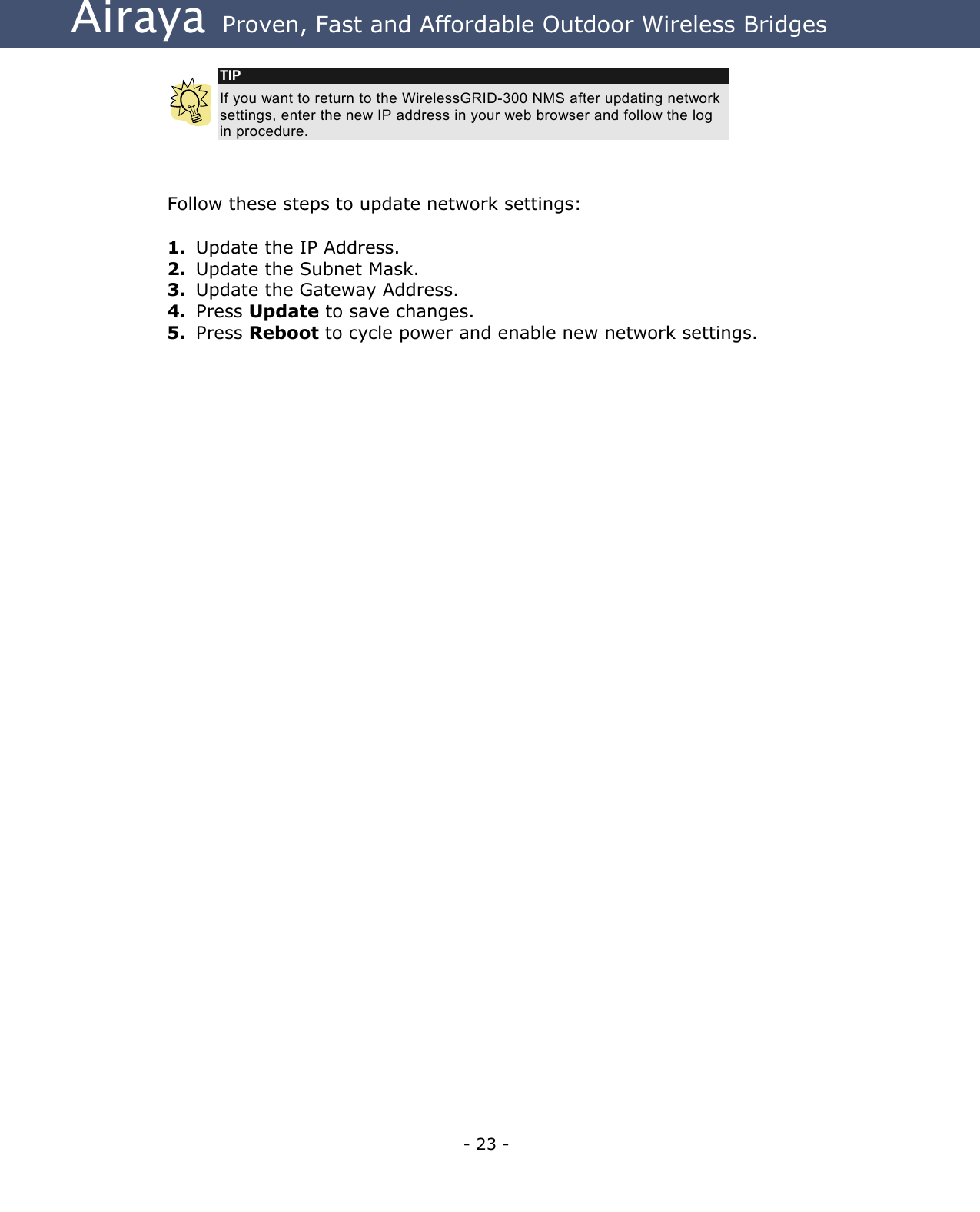

Airaya - 23 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges TIP If you want to return to the WirelessGRID-300 NMS after updating network settings, enter the new IP address in your web browser and follow the log in procedure. Follow these steps to update network settings: 1. Update the IP Address. 2. Update the Subnet Mask. 3. Update the Gateway Address. 4. Press Update to save changes. 5. Press Reboot to cycle power and enable new network settings.

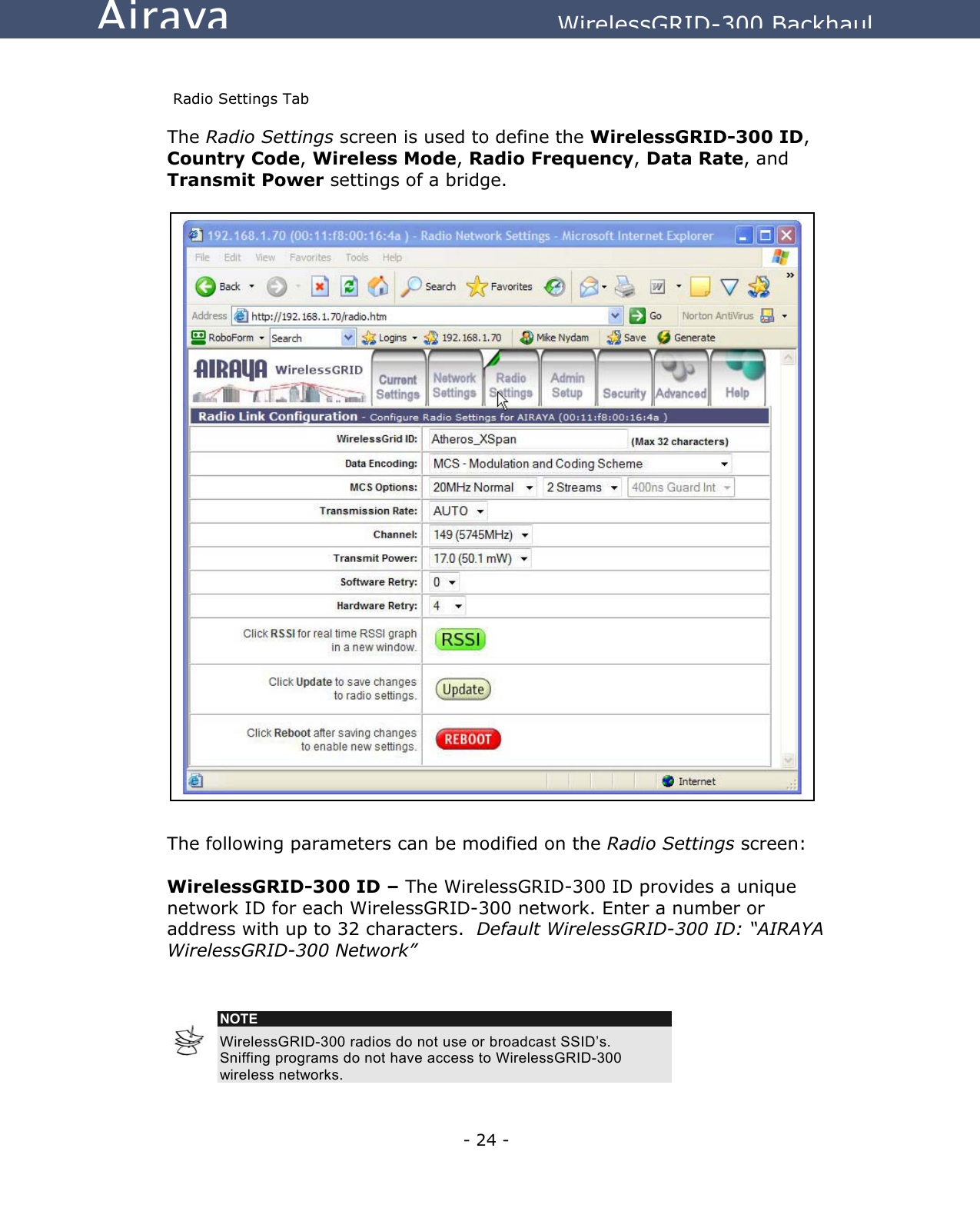

- 24 - Airaya WirelessGRID-300 Backhaul Radio Settings Tab The Radio Settings screen is used to define the WirelessGRID-300 ID, Country Code, Wireless Mode, Radio Frequency, Data Rate, and Transmit Power settings of a bridge. The following parameters can be modified on the Radio Settings screen: WirelessGRID-300 ID – The WirelessGRID-300 ID provides a unique network ID for each WirelessGRID-300 network. Enter a number or address with up to 32 characters. Default WirelessGRID-300 ID: “AIRAYA WirelessGRID-300 Network” NOTE WirelessGRID-300 radios do not use or broadcast SSID’s. Sniffing programs do not have access to WirelessGRID-300 wireless networks.

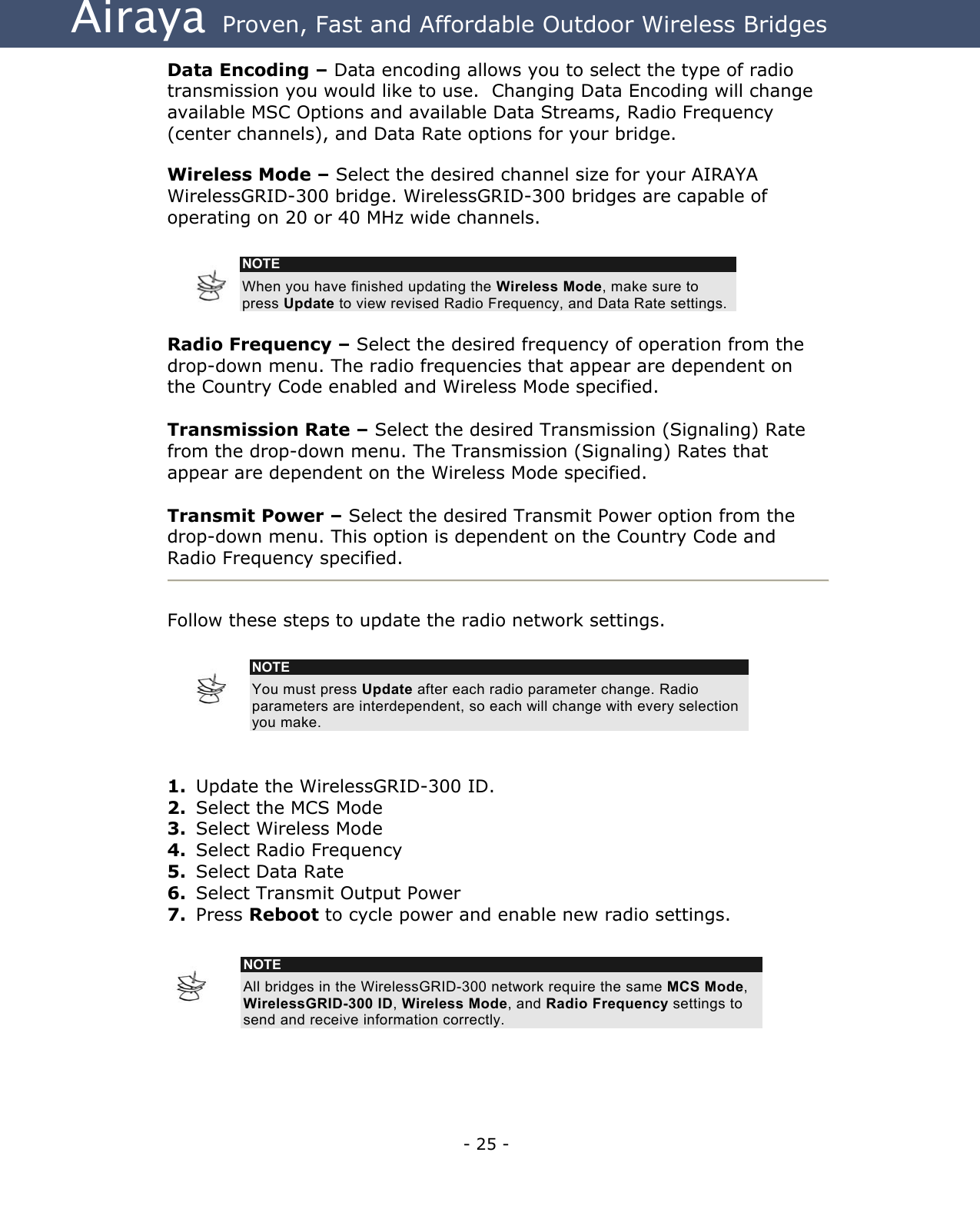

Airaya - 25 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges Data Encoding – Data encoding allows you to select the type of radio transmission you would like to use. Changing Data Encoding will change available MSC Options and available Data Streams, Radio Frequency (center channels), and Data Rate options for your bridge. Wireless Mode – Select the desired channel size for your AIRAYA WirelessGRID-300 bridge. WirelessGRID-300 bridges are capable of operating on 20 or 40 MHz wide channels. NOTE When you have finished updating the Wireless Mode, make sure to press Update to view revised Radio Frequency, and Data Rate settings. Radio Frequency – Select the desired frequency of operation from the drop-down menu. The radio frequencies that appear are dependent on the Country Code enabled and Wireless Mode specified. Transmission Rate – Select the desired Transmission (Signaling) Rate from the drop-down menu. The Transmission (Signaling) Rates that appear are dependent on the Wireless Mode specified. Transmit Power – Select the desired Transmit Power option from the drop-down menu. This option is dependent on the Country Code and Radio Frequency specified. Follow these steps to update the radio network settings. NOTE You must press Update after each radio parameter change. Radio parameters are interdependent, so each will change with every selection you make. 1. Update the WirelessGRID-300 ID. 2. Select the MCS Mode 3. Select Wireless Mode 4. Select Radio Frequency 5. Select Data Rate 6. Select Transmit Output Power 7. Press Reboot to cycle power and enable new radio settings. NOTE All bridges in the WirelessGRID-300 network require the same MCS Mode, WirelessGRID-300 ID, Wireless Mode, and Radio Frequency settings to send and receive information correctly.

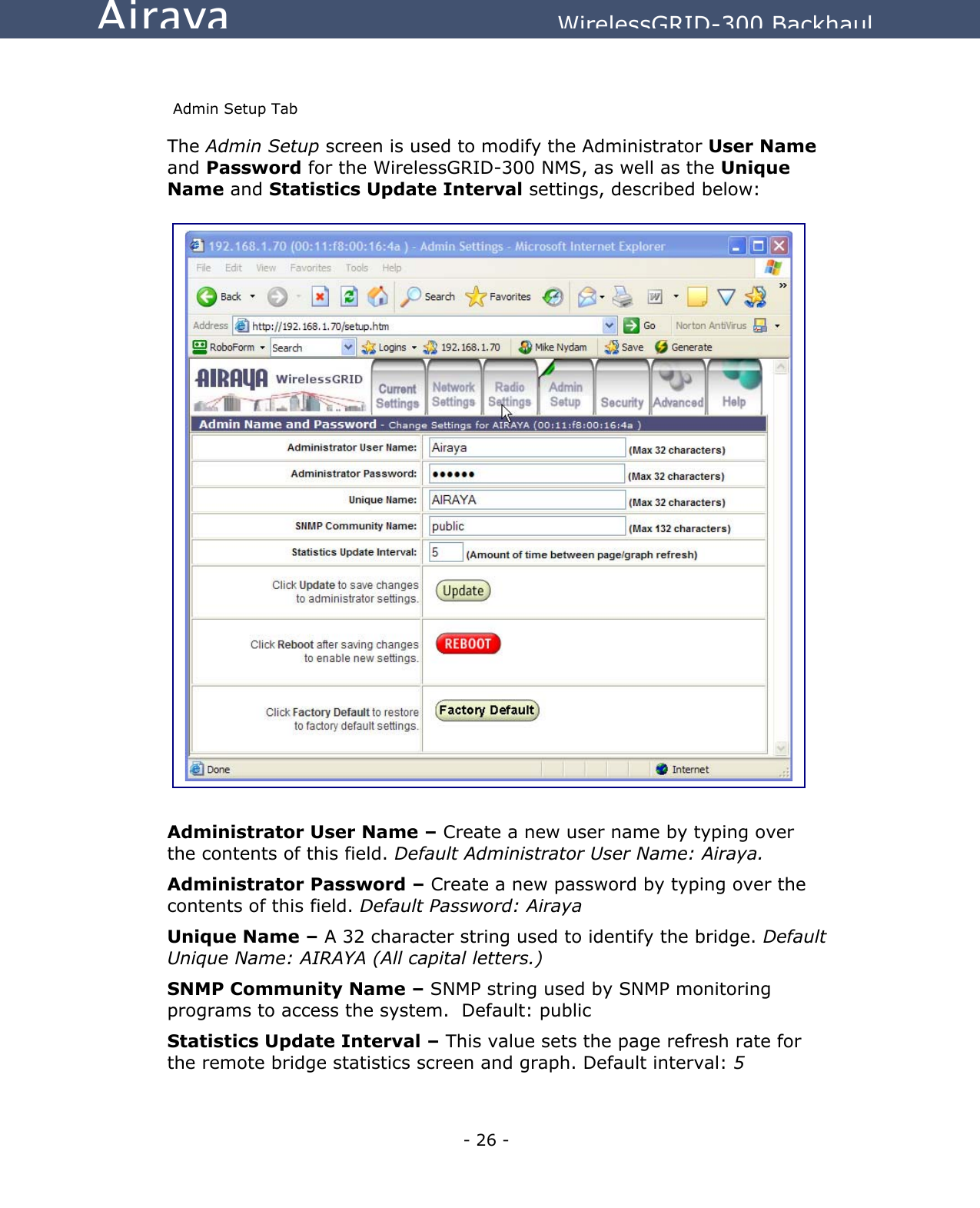

- 26 - Airaya WirelessGRID-300 Backhaul Admin Setup Tab The Admin Setup screen is used to modify the Administrator User Name and Password for the WirelessGRID-300 NMS, as well as the Unique Name and Statistics Update Interval settings, described below: Administrator User Name – Create a new user name by typing over the contents of this field. Default Administrator User Name: Airaya. Administrator Password – Create a new password by typing over the contents of this field. Default Password: Airaya Unique Name – A 32 character string used to identify the bridge. Default Unique Name: AIRAYA (All capital letters.) SNMP Community Name – SNMP string used by SNMP monitoring programs to access the system. Default: public Statistics Update Interval – This value sets the page refresh rate for the remote bridge statistics screen and graph. Default interval: 5

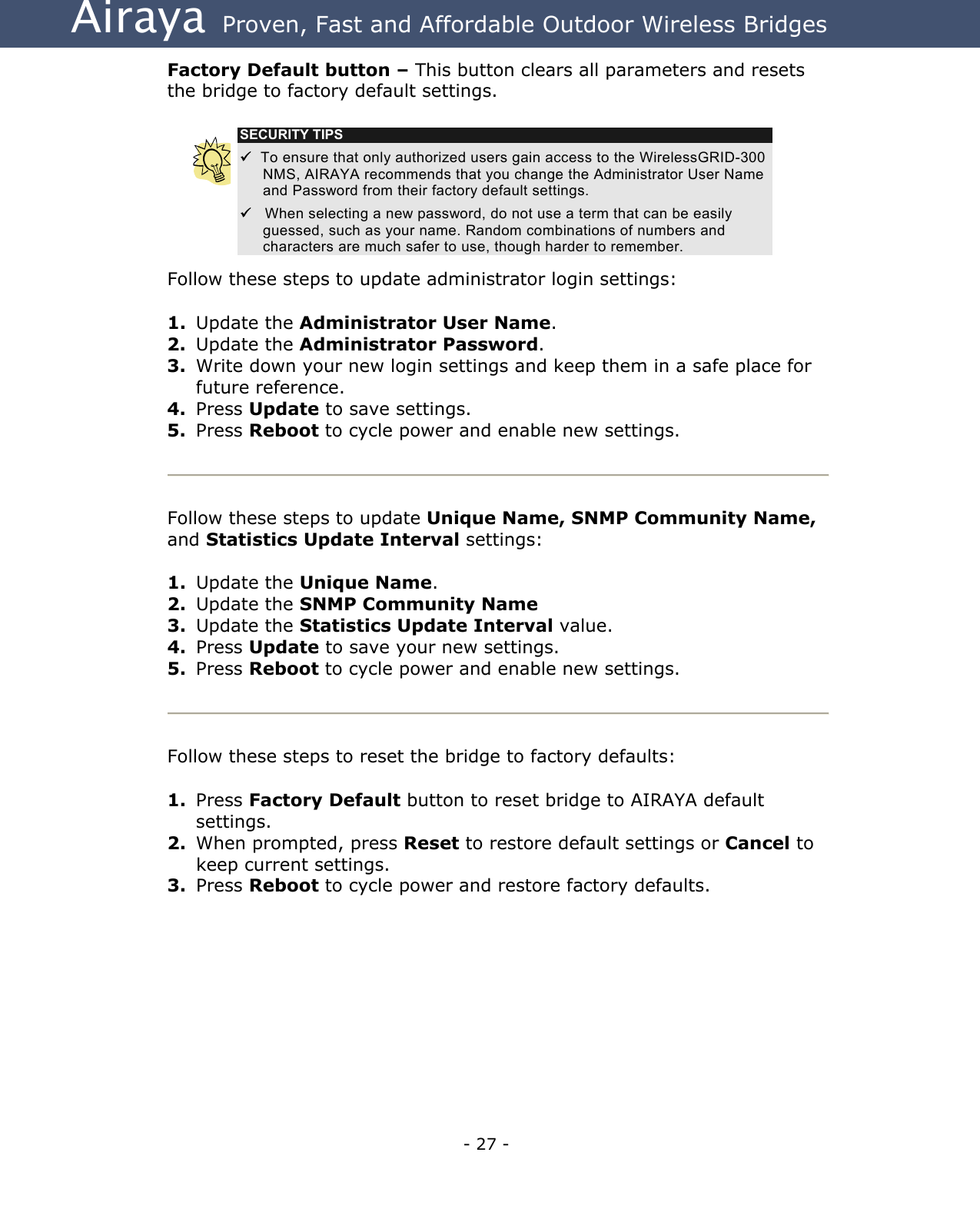

Airaya - 27 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges Factory Default button – This button clears all parameters and resets the bridge to factory default settings. Follow these steps to update administrator login settings: 1. Update the Administrator User Name. 2. Update the Administrator Password. 3. Write down your new login settings and keep them in a safe place for future reference. 4. Press Update to save settings. 5. Press Reboot to cycle power and enable new settings. Follow these steps to update Unique Name, SNMP Community Name, and Statistics Update Interval settings: 1. Update the Unique Name. 2. Update the SNMP Community Name 3. Update the Statistics Update Interval value. 4. Press Update to save your new settings. 5. Press Reboot to cycle power and enable new settings. Follow these steps to reset the bridge to factory defaults: 1. Press Factory Default button to reset bridge to AIRAYA default settings. 2. When prompted, press Reset to restore default settings or Cancel to keep current settings. 3. Press Reboot to cycle power and restore factory defaults. SECURITY TIPS  To ensure that only authorized users gain access to the WirelessGRID-300 NMS, AIRAYA recommends that you change the Administrator User Name and Password from their factory default settings.  When selecting a new password, do not use a term that can be easily guessed, such as your name. Random combinations of numbers and characters are much safer to use, though harder to remember.

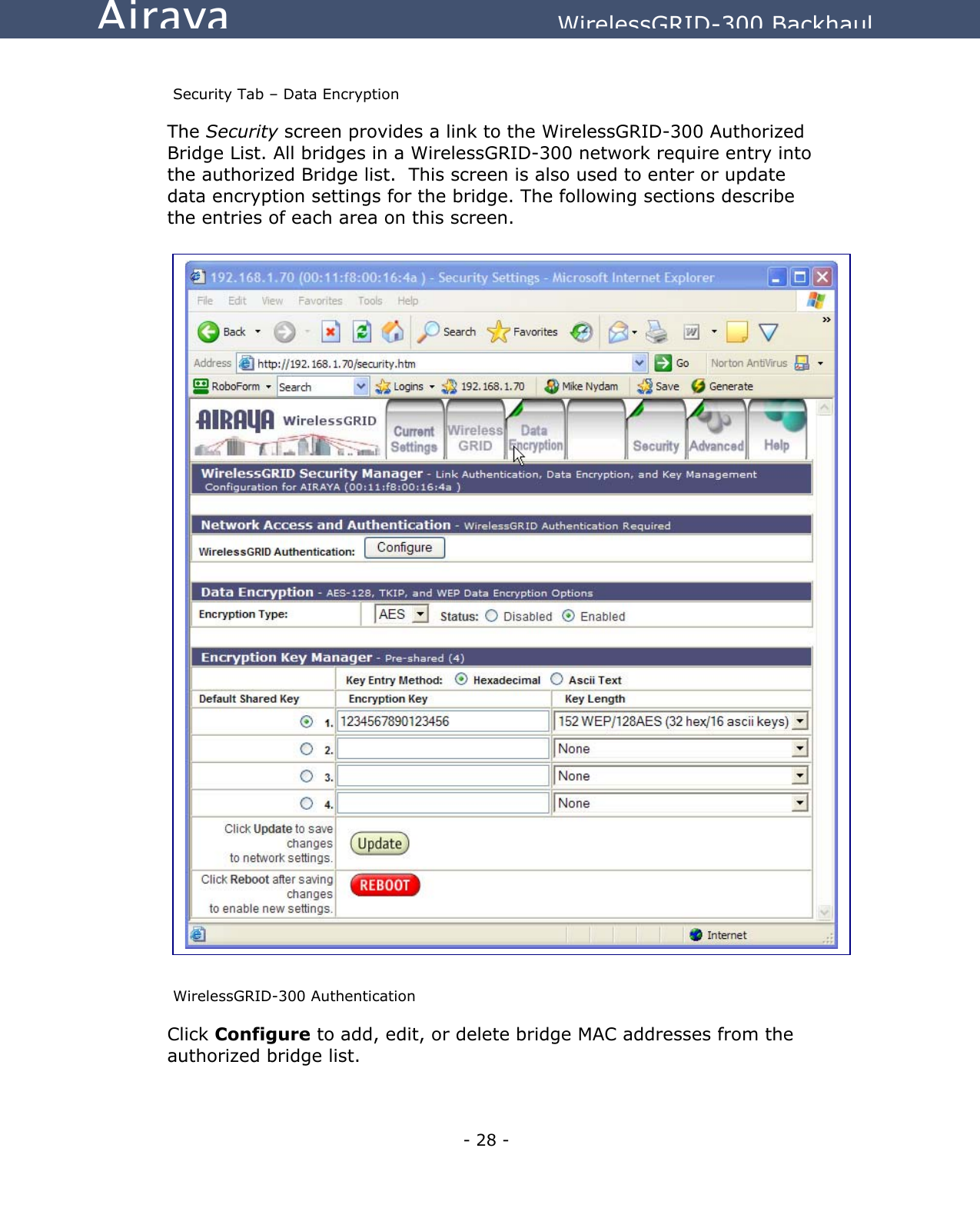

- 28 - Airaya WirelessGRID-300 Backhaul Security Tab – Data Encryption The Security screen provides a link to the WirelessGRID-300 Authorized Bridge List. All bridges in a WirelessGRID-300 network require entry into the authorized Bridge list. This screen is also used to enter or update data encryption settings for the bridge. The following sections describe the entries of each area on this screen. WirelessGRID-300 Authentication Click Configure to add, edit, or delete bridge MAC addresses from the authorized bridge list.
Airaya - 29 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges Data Encryption Encryption Type – WirelessGRID-300 bridges support AES data encryption. Default Setting: Open (Not enabled). 128-bit AES – WirelessGRID-300 bridges support hardware-based embedded 128-bit AES encryption. Enter 16 ascii or 32 hexadecimal digits. Status – The status button indicates the current state of encryption on your bridge. Default: Disabled. Disabled – No data encryption is enforced on your bridge. Enabled – Data encryption is enforced on your bridge. Follow these steps to enable Data Encryption on the bridge: 1. Select an Encryption Type (AES). 2. Change the Status to reflect the proper status. 3. Press Update to save settings. 4. Press Reboot to enable new security settings. Encryption Key Manager Pre-Shared Key Configuration – When you select Pre-Shared Key for encryption, you may enter up to four default shared-keys in the Encryption Key Manager. Please note: When encryption is enabled, all bridges require an identical Key Entry Method, Encryption Key, and Encryption Key Length. Key Entry Method – You can use hexadecimal digits or ASCII text to enter each key. Click on the "key length" drop-down menu to view lengths for each type of key. Default Shared Key – Select the default pre-shared key you want to enable. Encryption Key – Enter up to four pre-shared encryption keys. Key Length – Specify the length of the pre-shared encryption keys. NOTE Refer to the section on the WirelessGRID-300 System Setup tab for detailed instructions on how to add, edit, or delete bridge MAC addresses.

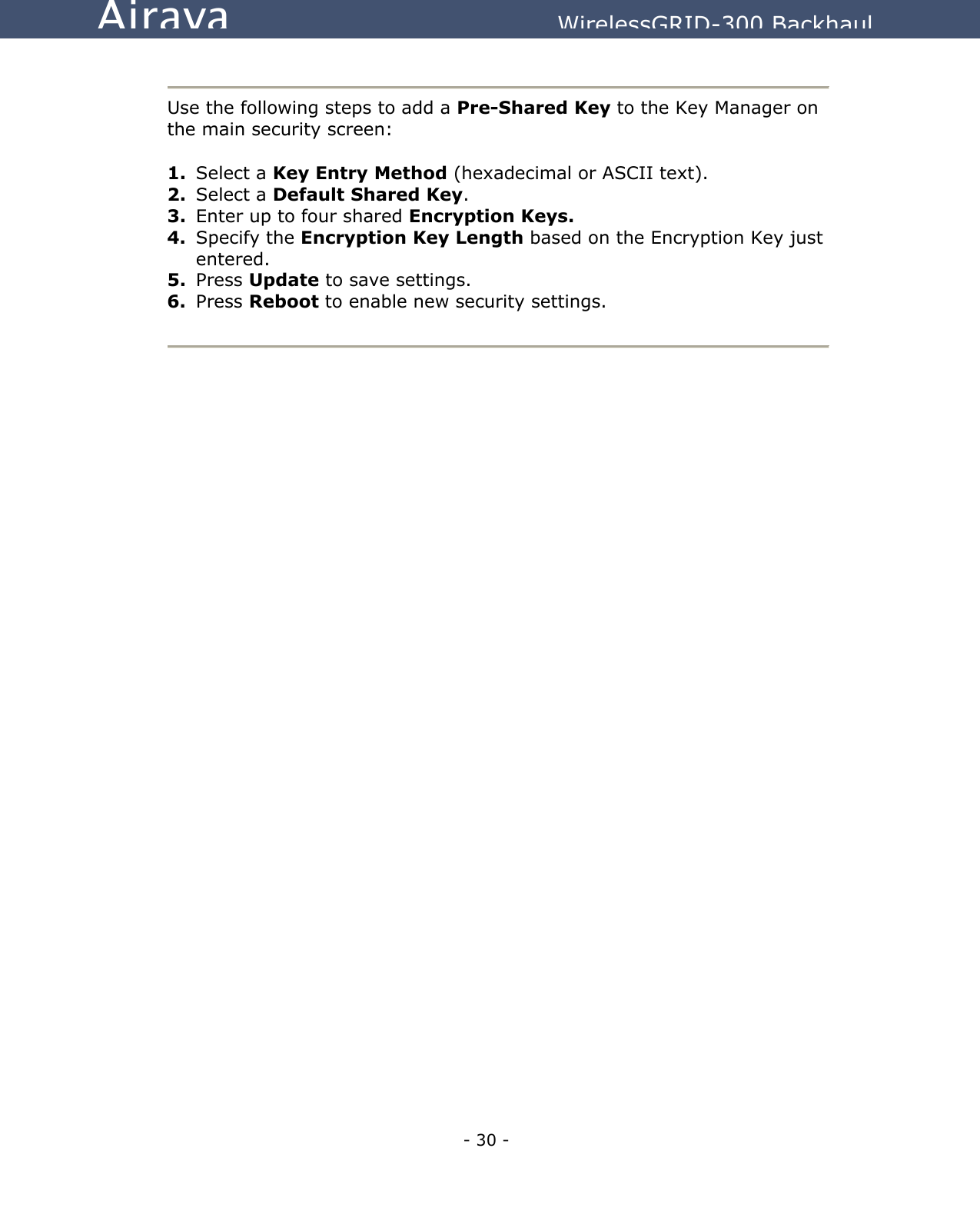

- 30 - Airaya WirelessGRID-300 Backhaul Use the following steps to add a Pre-Shared Key to the Key Manager on the main security screen: 1. Select a Key Entry Method (hexadecimal or ASCII text). 2. Select a Default Shared Key. 3. Enter up to four shared Encryption Keys. 4. Specify the Encryption Key Length based on the Encryption Key just entered. 5. Press Update to save settings. 6. Press Reboot to enable new security settings.

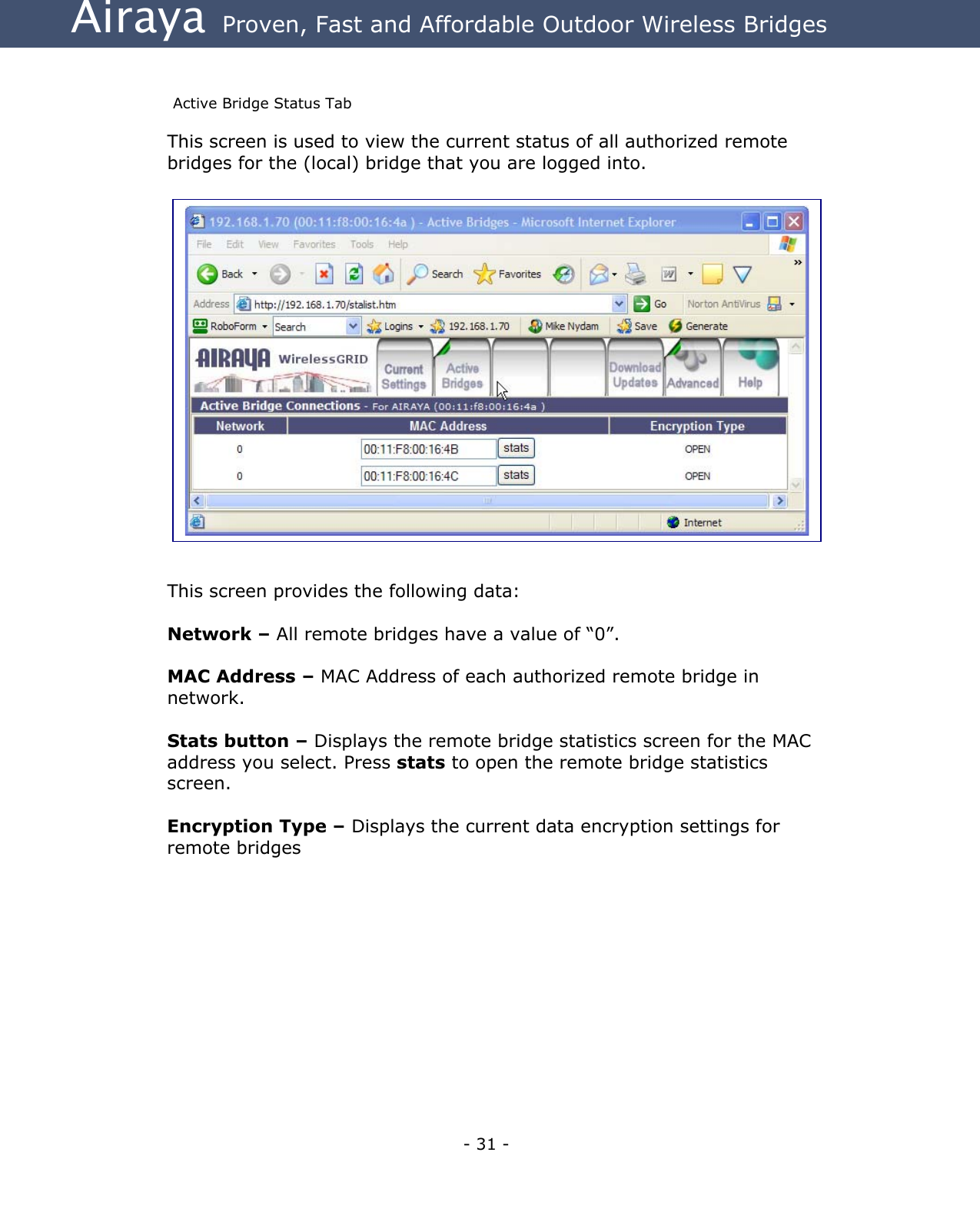

Airaya - 31 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges Active Bridge Status Tab This screen is used to view the current status of all authorized remote bridges for the (local) bridge that you are logged into. This screen provides the following data: Network – All remote bridges have a value of “0”. MAC Address – MAC Address of each authorized remote bridge in network. Stats button – Displays the remote bridge statistics screen for the MAC address you select. Press stats to open the remote bridge statistics screen. Encryption Type – Displays the current data encryption settings for remote bridges

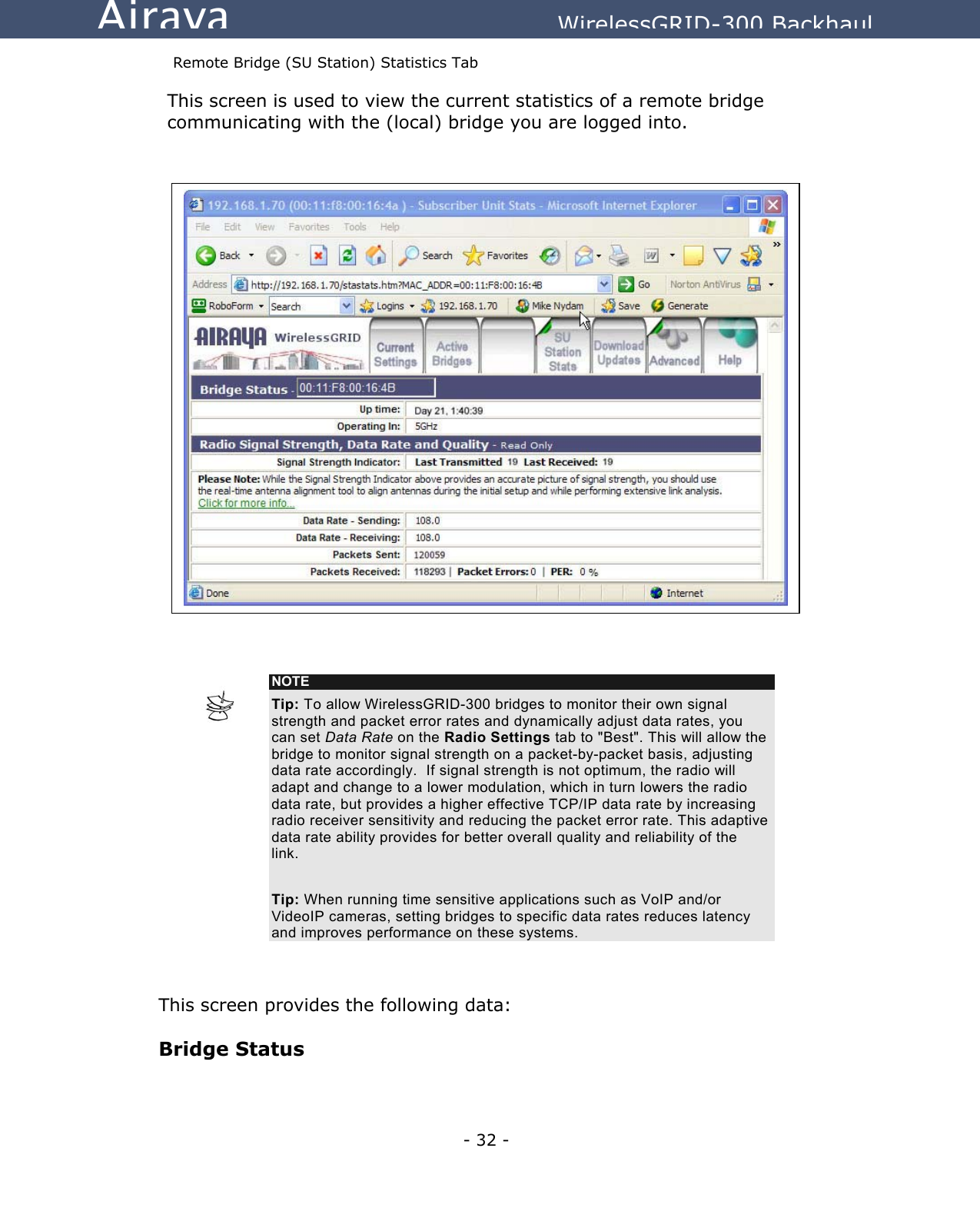

- 32 - Airaya WirelessGRID-300 Backhaul Remote Bridge (SU Station) Statistics Tab This screen is used to view the current statistics of a remote bridge communicating with the (local) bridge you are logged into. This screen provides the following data: Bridge Status NOTE Tip: To allow WirelessGRID-300 bridges to monitor their own signal strength and packet error rates and dynamically adjust data rates, you can set Data Rate on the Radio Settings tab to "Best". This will allow the bridge to monitor signal strength on a packet-by-packet basis, adjusting data rate accordingly. If signal strength is not optimum, the radio will adapt and change to a lower modulation, which in turn lowers the radio data rate, but provides a higher effective TCP/IP data rate by increasing radio receiver sensitivity and reducing the packet error rate. This adaptive data rate ability provides for better overall quality and reliability of the link. Tip: When running time sensitive applications such as VoIP and/or VideoIP cameras, setting bridges to specific data rates reduces latency and improves performance on these systems.

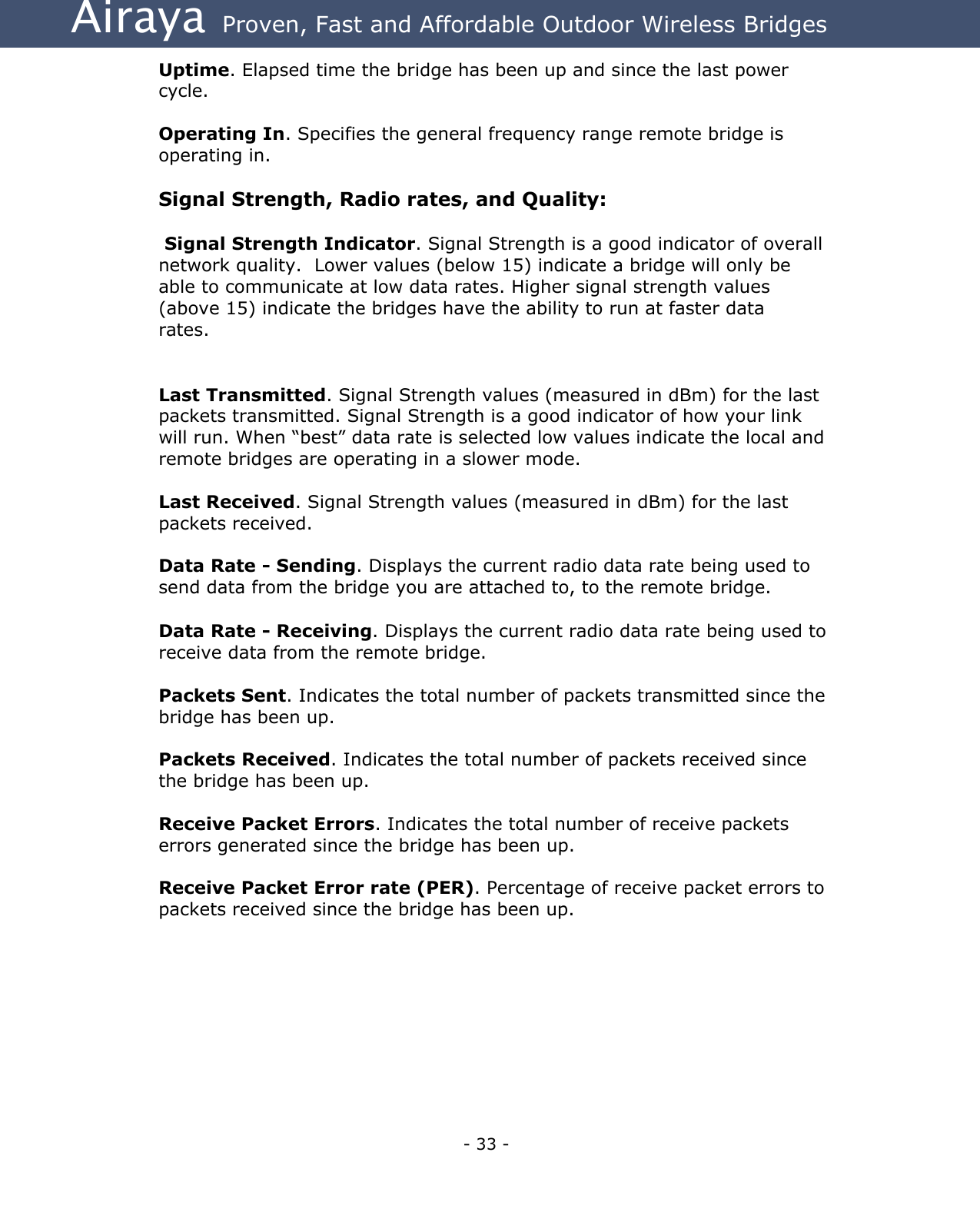

Airaya - 33 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges Uptime. Elapsed time the bridge has been up and since the last power cycle. Operating In. Specifies the general frequency range remote bridge is operating in. Signal Strength, Radio rates, and Quality: Signal Strength Indicator. Signal Strength is a good indicator of overall network quality. Lower values (below 15) indicate a bridge will only be able to communicate at low data rates. Higher signal strength values (above 15) indicate the bridges have the ability to run at faster data rates. Last Transmitted. Signal Strength values (measured in dBm) for the last packets transmitted. Signal Strength is a good indicator of how your link will run. When “best” data rate is selected low values indicate the local and remote bridges are operating in a slower mode. Last Received. Signal Strength values (measured in dBm) for the last packets received. Data Rate - Sending. Displays the current radio data rate being used to send data from the bridge you are attached to, to the remote bridge. Data Rate - Receiving. Displays the current radio data rate being used to receive data from the remote bridge. Packets Sent. Indicates the total number of packets transmitted since the bridge has been up. Packets Received. Indicates the total number of packets received since the bridge has been up. Receive Packet Errors. Indicates the total number of receive packets errors generated since the bridge has been up. Receive Packet Error rate (PER). Percentage of receive packet errors to packets received since the bridge has been up.
- 34 - Airaya WirelessGRID-300 Backhaul Firmware Update Tab Periodically, AIRAYA releases firmware updates that fix known issues and enhance the functionality of WirelessGRID-300 bridges. The latest WirelessGRID-300 firmware release can be located in the support section of the AIRAYA website at the following URL: http://www.airaya.com/products/productdb/_product_support.asp If you are unsure whether you need an upgrade, please contact AIRAYA customer support (support@airaya.com) and a representative will help you. WARNING! Some configuration parameters can be overwritten during the bridge firmware upgrade process. As a safeguard, save a copy of your current settings before performing the upgrade. This will allow you to re-enter your settings if necessary. To document your settings, you can either select the Current Settings tab and copy the screen to a text file or print the screen. You should follow this procedure for each bridge that you plan to upgrade. The following screen shows the settings used for upgrading bridge firmware:

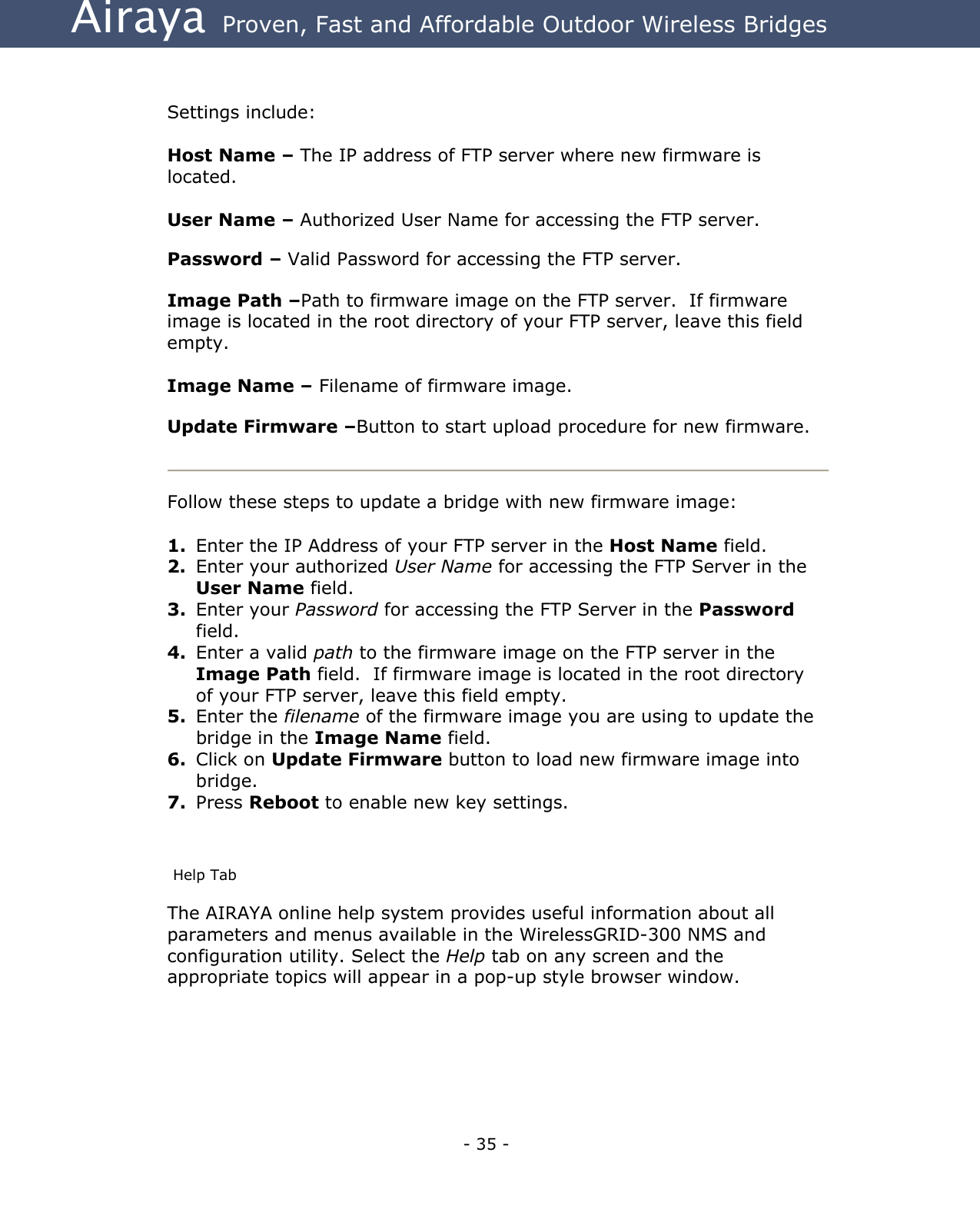

Airaya - 35 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges Settings include: Host Name – The IP address of FTP server where new firmware is located. User Name – Authorized User Name for accessing the FTP server. Password – Valid Password for accessing the FTP server. Image Path –Path to firmware image on the FTP server. If firmware image is located in the root directory of your FTP server, leave this field empty. Image Name – Filename of firmware image. Update Firmware –Button to start upload procedure for new firmware. Follow these steps to update a bridge with new firmware image: 1. Enter the IP Address of your FTP server in the Host Name field. 2. Enter your authorized User Name for accessing the FTP Server in the User Name field. 3. Enter your Password for accessing the FTP Server in the Password field. 4. Enter a valid path to the firmware image on the FTP server in the Image Path field. If firmware image is located in the root directory of your FTP server, leave this field empty. 5. Enter the filename of the firmware image you are using to update the bridge in the Image Name field. 6. Click on Update Firmware button to load new firmware image into bridge. 7. Press Reboot to enable new key settings. Help Tab The AIRAYA online help system provides useful information about all parameters and menus available in the WirelessGRID-300 NMS and configuration utility. Select the Help tab on any screen and the appropriate topics will appear in a pop-up style browser window.

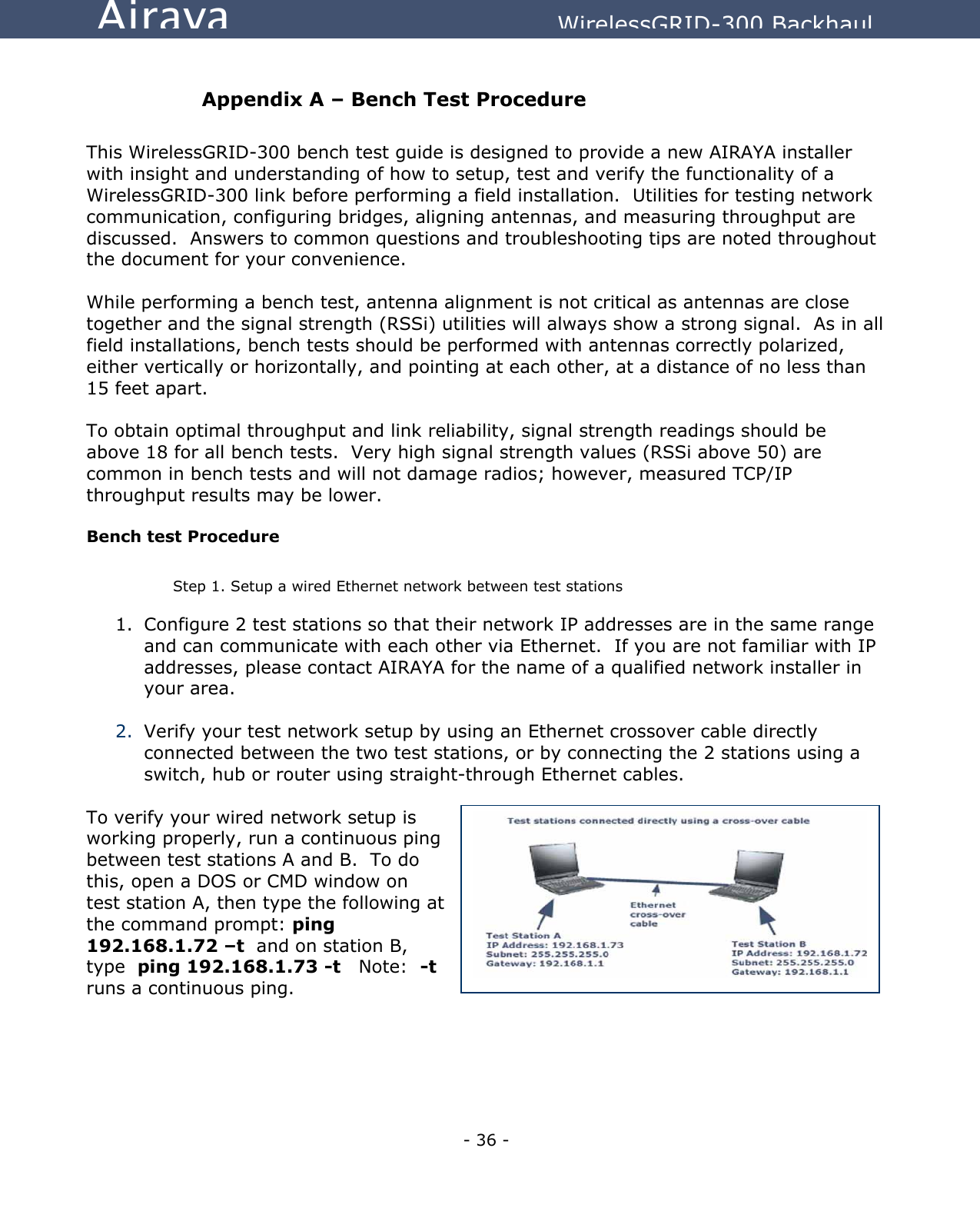

- 36 - Airaya WirelessGRID-300 Backhaul Appendix A – Bench Test Procedure This WirelessGRID-300 bench test guide is designed to provide a new AIRAYA installer with insight and understanding of how to setup, test and verify the functionality of a WirelessGRID-300 link before performing a field installation. Utilities for testing network communication, configuring bridges, aligning antennas, and measuring throughput are discussed. Answers to common questions and troubleshooting tips are noted throughout the document for your convenience. While performing a bench test, antenna alignment is not critical as antennas are close together and the signal strength (RSSi) utilities will always show a strong signal. As in all field installations, bench tests should be performed with antennas correctly polarized, either vertically or horizontally, and pointing at each other, at a distance of no less than 15 feet apart. To obtain optimal throughput and link reliability, signal strength readings should be above 18 for all bench tests. Very high signal strength values (RSSi above 50) are common in bench tests and will not damage radios; however, measured TCP/IP throughput results may be lower. Bench test Procedure Step 1. Setup a wired Ethernet network between test stations 1. Configure 2 test stations so that their network IP addresses are in the same range and can communicate with each other via Ethernet. If you are not familiar with IP addresses, please contact AIRAYA for the name of a qualified network installer in your area. 2. Verify your test network setup by using an Ethernet crossover cable directly connected between the two test stations, or by connecting the 2 stations using a switch, hub or router using straight-through Ethernet cables. To verify your wired network setup is working properly, run a continuous ping between test stations A and B. To do this, open a DOS or CMD window on test station A, then type the following at the command prompt: ping 192.168.1.72 –t and on station B, type ping 192.168.1.73 -t Note: -t runs a continuous ping.

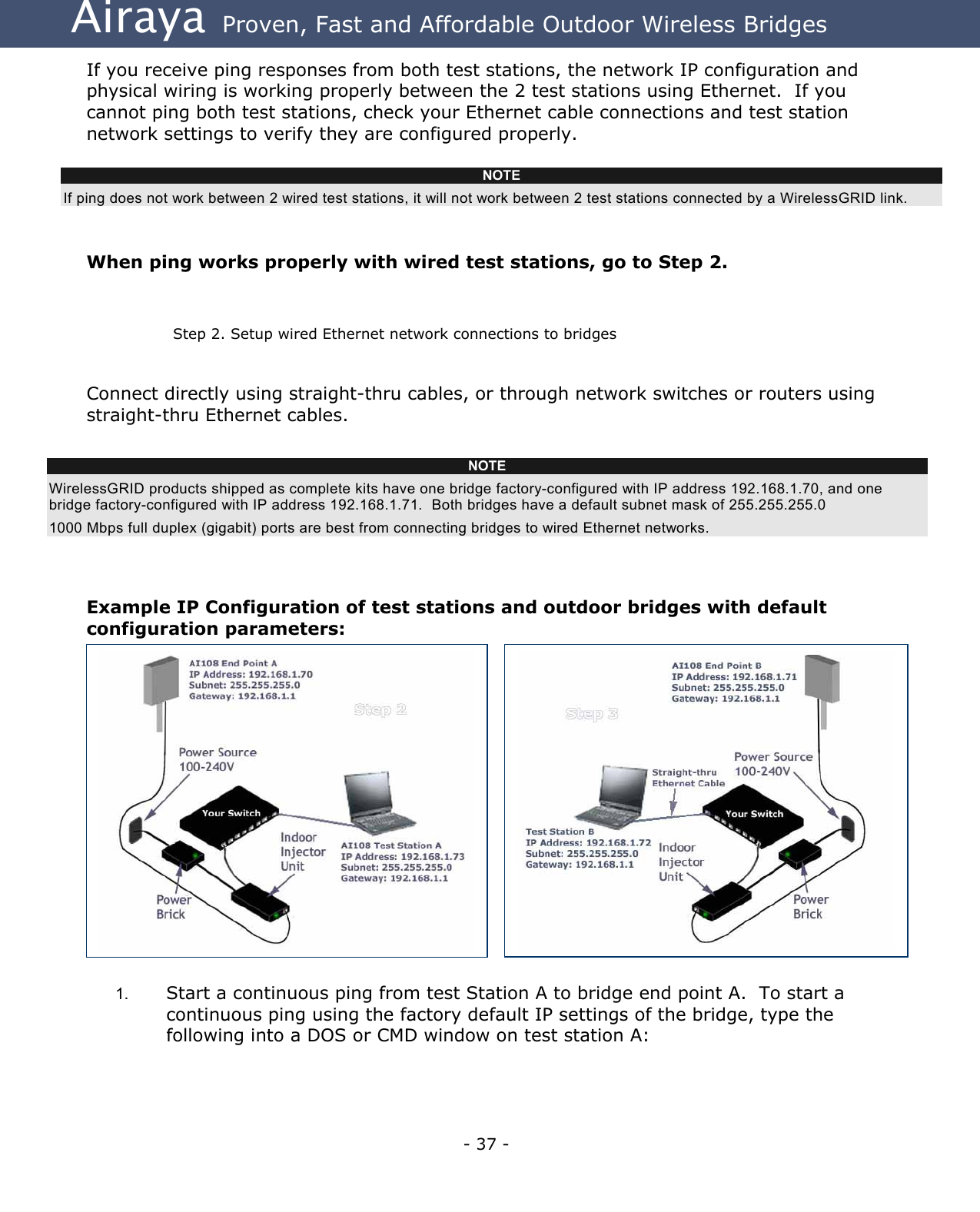

Airaya - 37 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges If you receive ping responses from both test stations, the network IP configuration and physical wiring is working properly between the 2 test stations using Ethernet. If you cannot ping both test stations, check your Ethernet cable connections and test station network settings to verify they are configured properly. When ping works properly with wired test stations, go to Step 2. Step 2. Setup wired Ethernet network connections to bridges Connect directly using straight-thru cables, or through network switches or routers using straight-thru Ethernet cables. Example IP Configuration of test stations and outdoor bridges with default configuration parameters: 1. Start a continuous ping from test Station A to bridge end point A. To start a continuous ping using the factory default IP settings of the bridge, type the following into a DOS or CMD window on test station A: NOTE WirelessGRID products shipped as complete kits have one bridge factory-configured with IP address 192.168.1.70, and one bridge factory-configured with IP address 192.168.1.71. Both bridges have a default subnet mask of 255.255.255.0 1000 Mbps full duplex (gigabit) ports are best from connecting bridges to wired Ethernet networks. NOTE If ping does not work between 2 wired test stations, it will not work between 2 test stations connected by a WirelessGRID link.

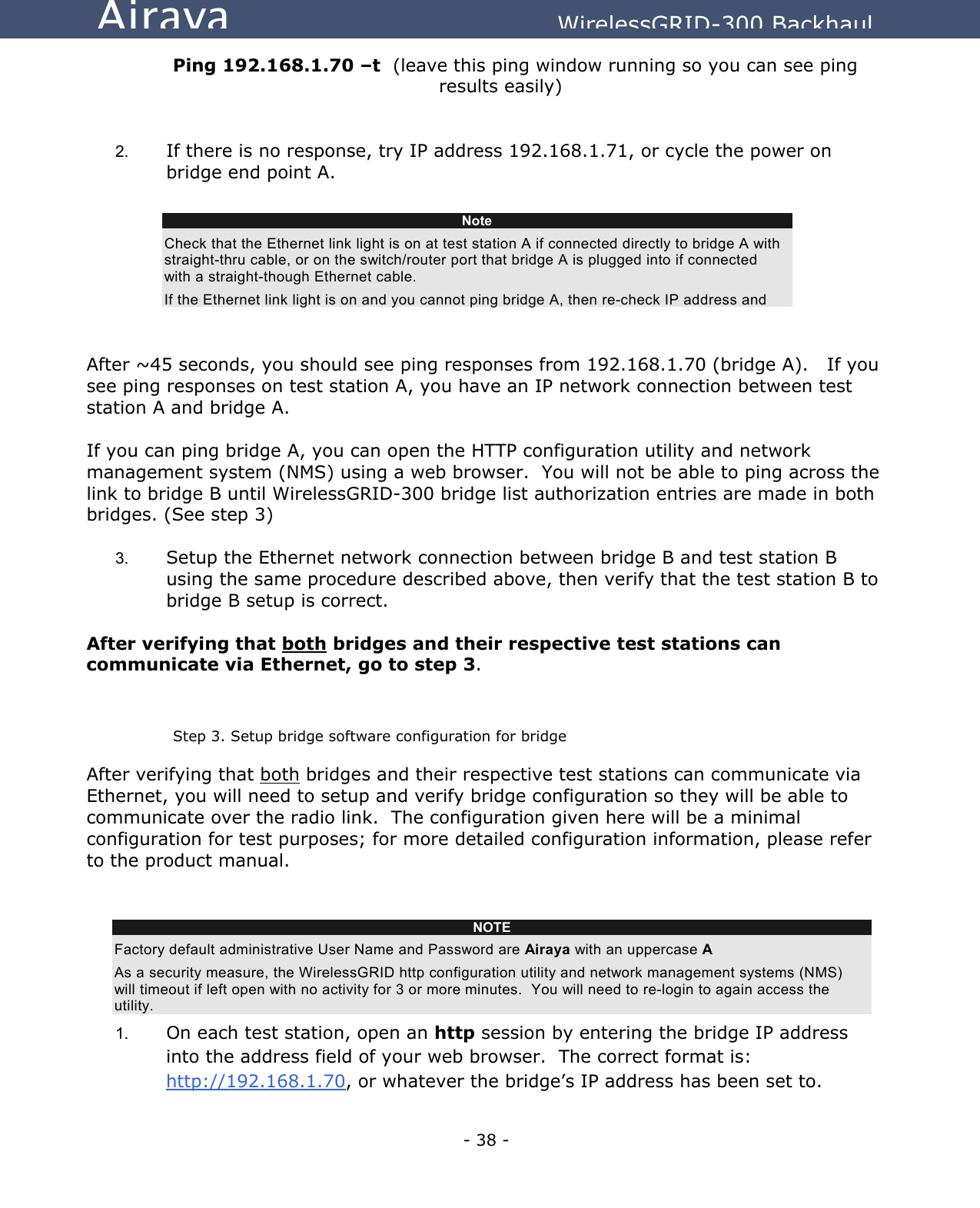

- 38 - Airaya WirelessGRID-300 Backhaul Ping 192.168.1.70 –t (leave this ping window running so you can see ping results easily) 2. If there is no response, try IP address 192.168.1.71, or cycle the power on bridge end point A. After ~45 seconds, you should see ping responses from 192.168.1.70 (bridge A). If you see ping responses on test station A, you have an IP network connection between test station A and bridge A. If you can ping bridge A, you can open the HTTP configuration utility and network management system (NMS) using a web browser. You will not be able to ping across the link to bridge B until WirelessGRID-300 bridge list authorization entries are made in both bridges. (See step 3) 3. Setup the Ethernet network connection between bridge B and test station B using the same procedure described above, then verify that the test station B to bridge B setup is correct. After verifying that both bridges and their respective test stations can communicate via Ethernet, go to step 3. Step 3. Setup bridge software configuration for bridge After verifying that both bridges and their respective test stations can communicate via Ethernet, you will need to setup and verify bridge configuration so they will be able to communicate over the radio link. The configuration given here will be a minimal configuration for test purposes; for more detailed configuration information, please refer to the product manual. 1. On each test station, open an http session by entering the bridge IP address into the address field of your web browser. The correct format is: http://192.168.1.70, or whatever the bridge’s IP address has been set to. Note Check that the Ethernet link light is on at test station A if connected directly to bridge A with straight-thru cable, or on the switch/router port that bridge A is plugged into if connected with a straight-though Ethernet cable. If the Ethernet link light is on and you cannot ping bridge A, then re-check IP address and NOTE Factory default administrative User Name and Password are Airaya with an uppercase A As a security measure, the WirelessGRID http configuration utility and network management systems (NMS) will timeout if left open with no activity for 3 or more minutes. You will need to re-login to again access the utility.

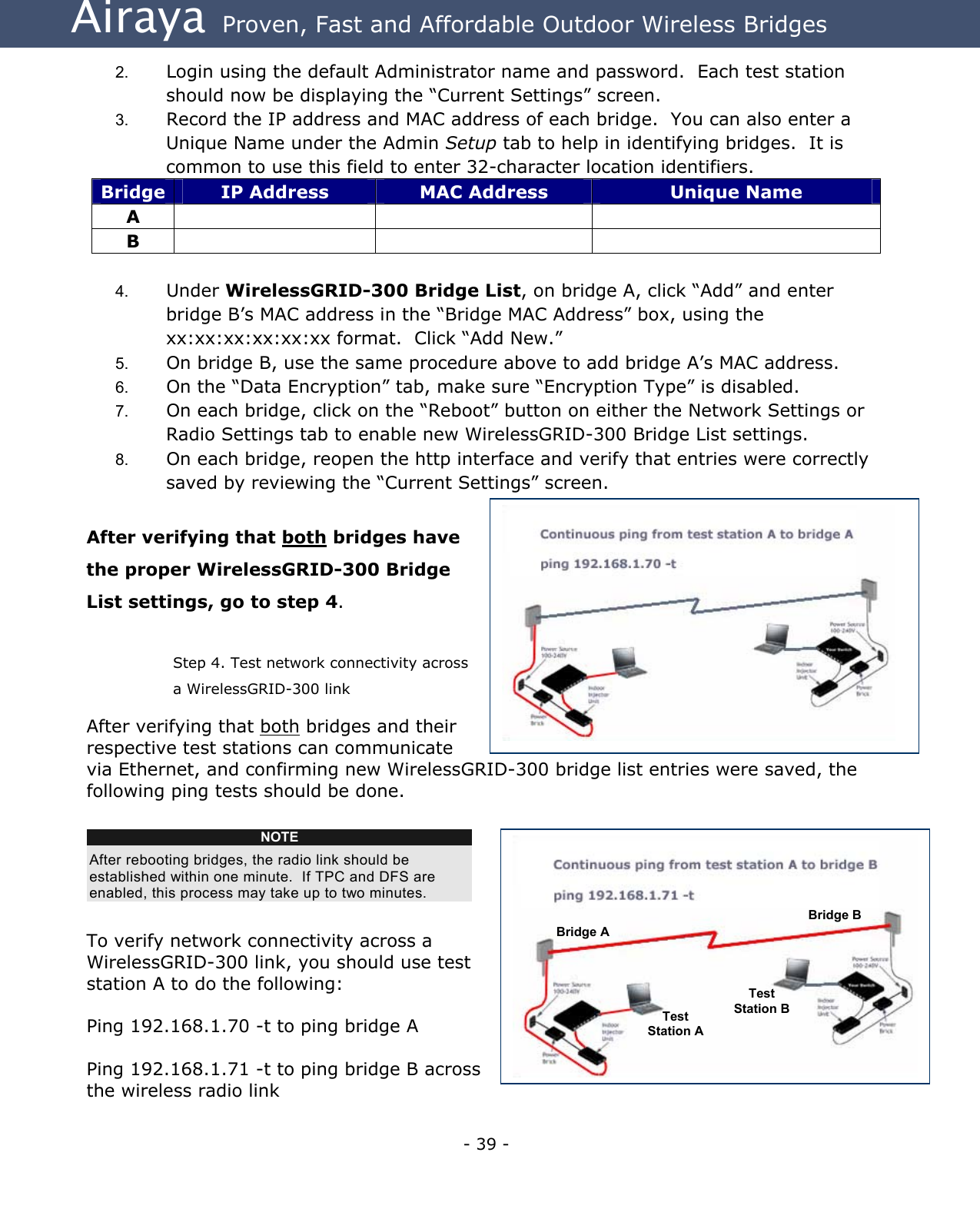

Airaya - 39 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges 2. Login using the default Administrator name and password. Each test station should now be displaying the “Current Settings” screen. 3. Record the IP address and MAC address of each bridge. You can also enter a Unique Name under the Admin Setup tab to help in identifying bridges. It is common to use this field to enter 32-character location identifiers. Bridge IP Address MAC Address Unique Name A B 4. Under WirelessGRID-300 Bridge List, on bridge A, click “Add” and enter bridge B’s MAC address in the “Bridge MAC Address” box, using the xx:xx:xx:xx:xx:xx format. Click “Add New.” 5. On bridge B, use the same procedure above to add bridge A’s MAC address. 6. On the “Data Encryption” tab, make sure “Encryption Type” is disabled. 7. On each bridge, click on the “Reboot” button on either the Network Settings or Radio Settings tab to enable new WirelessGRID-300 Bridge List settings. 8. On each bridge, reopen the http interface and verify that entries were correctly saved by reviewing the “Current Settings” screen. After verifying that both bridges have the proper WirelessGRID-300 Bridge List settings, go to step 4. Step 4. Test network connectivity across a WirelessGRID-300 link After verifying that both bridges and their respective test stations can communicate via Ethernet, and confirming new WirelessGRID-300 bridge list entries were saved, the following ping tests should be done. To verify network connectivity across a WirelessGRID-300 link, you should use test station A to do the following: Ping 192.168.1.70 -t to ping bridge A Ping 192.168.1.71 -t to ping bridge B across the wireless radio link NOTE After rebooting bridges, the radio link should be established within one minute. If TPC and DFS are enabled, this process may take up to two minutes. Test Station A Test Station BBridge ABridge B

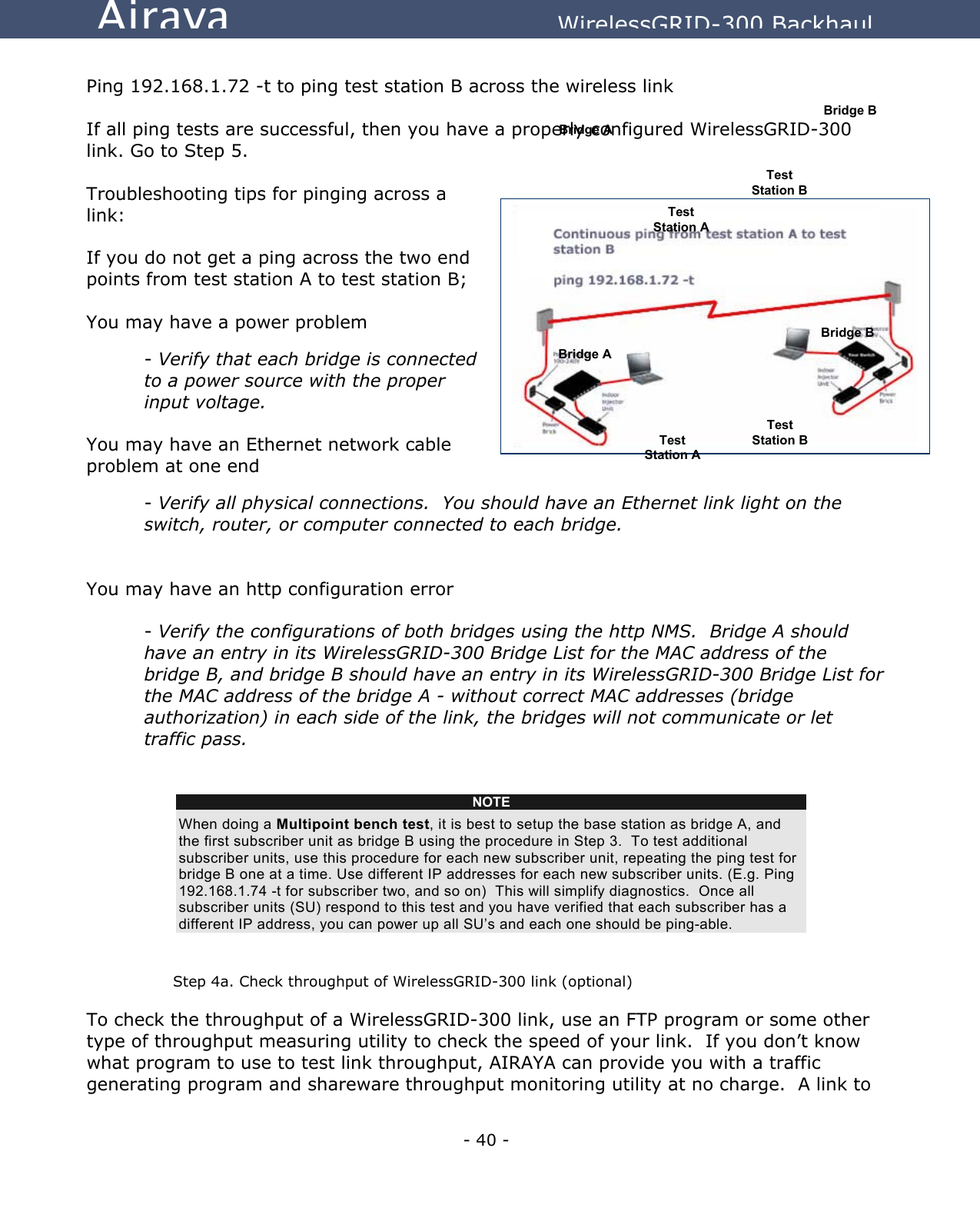

- 40 - Airaya WirelessGRID-300 Backhaul Ping 192.168.1.72 -t to ping test station B across the wireless link If all ping tests are successful, then you have a properly configured WirelessGRID-300 link. Go to Step 5. Troubleshooting tips for pinging across a link: If you do not get a ping across the two end points from test station A to test station B; You may have a power problem - Verify that each bridge is connected to a power source with the proper input voltage. You may have an Ethernet network cable problem at one end - Verify all physical connections. You should have an Ethernet link light on the switch, router, or computer connected to each bridge. You may have an http configuration error - Verify the configurations of both bridges using the http NMS. Bridge A should have an entry in its WirelessGRID-300 Bridge List for the MAC address of the bridge B, and bridge B should have an entry in its WirelessGRID-300 Bridge List for the MAC address of the bridge A - without correct MAC addresses (bridge authorization) in each side of the link, the bridges will not communicate or let traffic pass. Step 4a. Check throughput of WirelessGRID-300 link (optional) To check the throughput of a WirelessGRID-300 link, use an FTP program or some other type of throughput measuring utility to check the speed of your link. If you don’t know what program to use to test link throughput, AIRAYA can provide you with a traffic generating program and shareware throughput monitoring utility at no charge. A link to NOTE When doing a Multipoint bench test, it is best to setup the base station as bridge A, and the first subscriber unit as bridge B using the procedure in Step 3. To test additional subscriber units, use this procedure for each new subscriber unit, repeating the ping test for bridge B one at a time. Use different IP addresses for each new subscriber units. (E.g. Ping 192.168.1.74 -t for subscriber two, and so on) This will simplify diagnostics. Once all subscriber units (SU) respond to this test and you have verified that each subscriber has a different IP address, you can power up all SU’s and each one should be ping-able. Test Station A Test Station BBridge ABridge BTest Station BBridge ABridge BTest Station A
Airaya - 41 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges these utilities can be found on the main page of the AIRAYA support section of website. http://www.airaya.com/products/productdb/_product_support.asp If you are planning to do meaningful throughput tests, you will need a minimum of 2 test stations with at least 1.6GHz processors and Windows XP, 2000, or the Linux operating system. Windows 95, 98, ME TCP/IP stacks limit TCP throughput and cannot be used to accurately test throughput on an AIRAYA WirelessGRID-300 link. AIRAYA’s internal bench test results can be found at the following web address: http://www.airaya.com/products/WirelessGRID-300_testdata.html NOTE If you use 100/10 Mbps Ethernet to communicate with a WirelessGRID bridge, you will not get maximum throughput, and packet errors may occur between the bridge and your 100/10 Mbps Ethernet device. AIRAYA recommends 1000 Mbps Ethernet switches or routers to maximize throughput. Throughput tests will not work if Step 4 above has not been finished successfully.

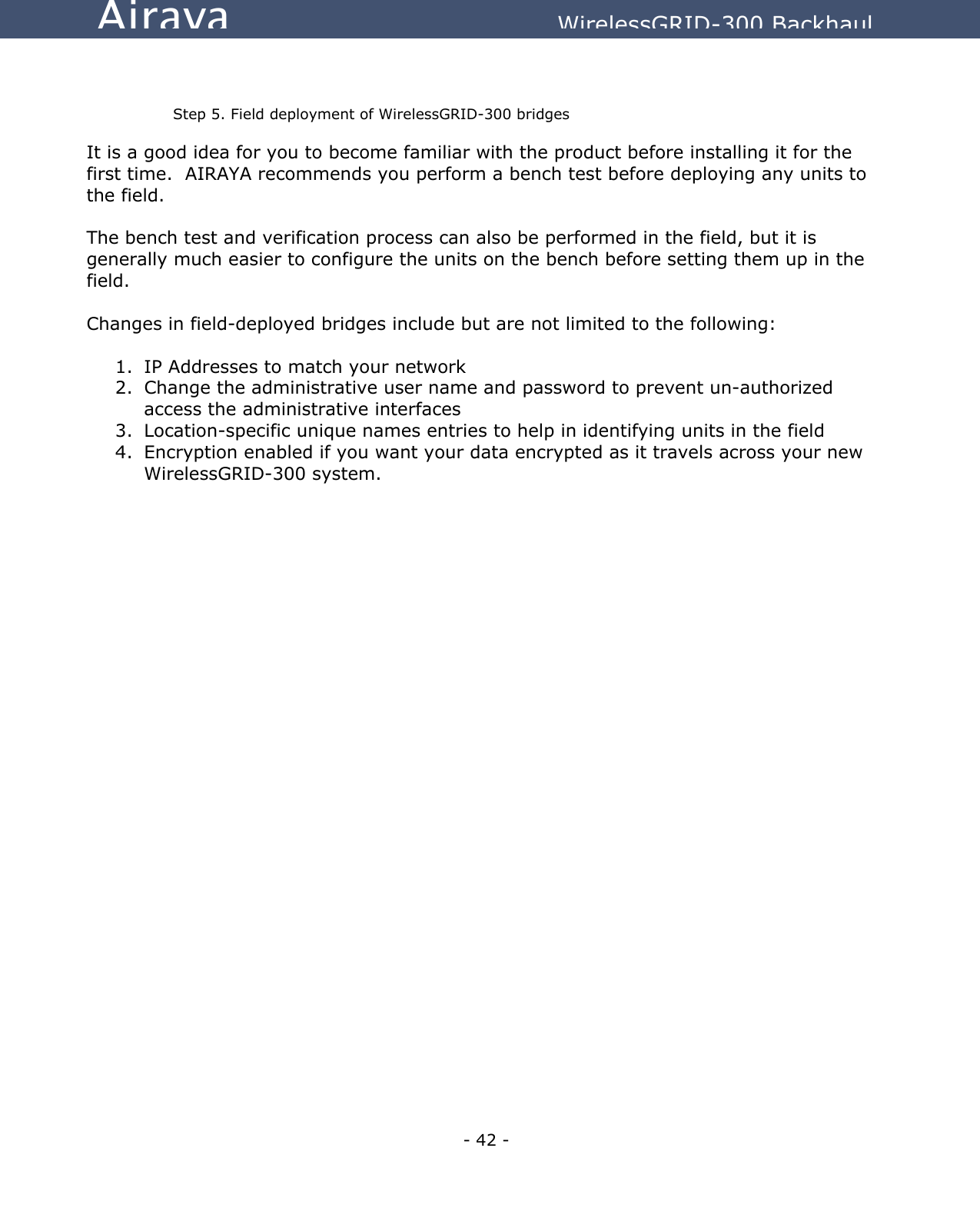

- 42 - Airaya WirelessGRID-300 Backhaul Step 5. Field deployment of WirelessGRID-300 bridges It is a good idea for you to become familiar with the product before installing it for the first time. AIRAYA recommends you perform a bench test before deploying any units to the field. The bench test and verification process can also be performed in the field, but it is generally much easier to configure the units on the bench before setting them up in the field. Changes in field-deployed bridges include but are not limited to the following: 1. IP Addresses to match your network 2. Change the administrative user name and password to prevent un-authorized access the administrative interfaces 3. Location-specific unique names entries to help in identifying units in the field 4. Encryption enabled if you want your data encrypted as it travels across your new WirelessGRID-300 system.

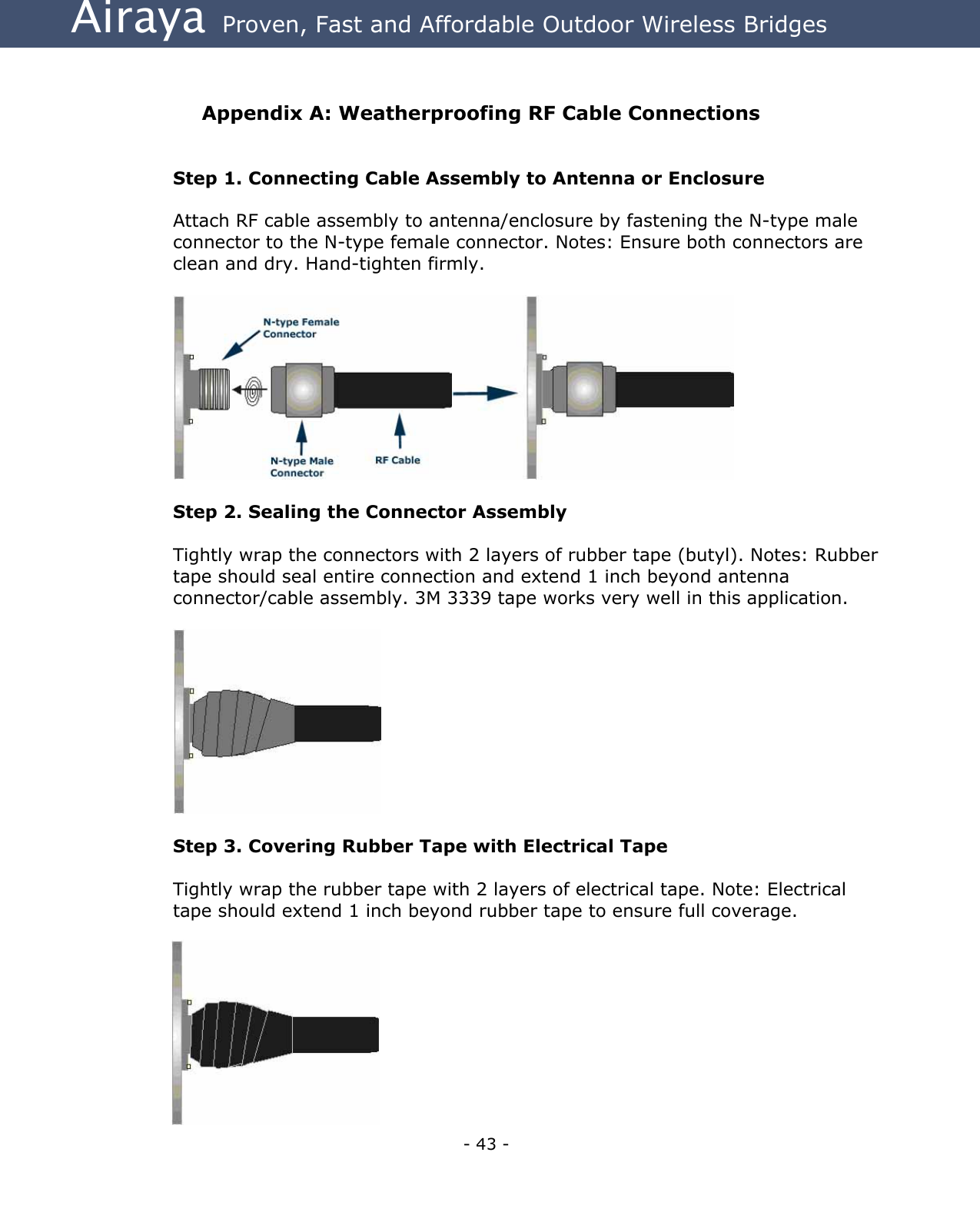

Airaya - 43 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges Appendix A: Weatherproofing RF Cable Connections Step 1. Connecting Cable Assembly to Antenna or Enclosure Attach RF cable assembly to antenna/enclosure by fastening the N-type male connector to the N-type female connector. Notes: Ensure both connectors are clean and dry. Hand-tighten firmly. Step 2. Sealing the Connector Assembly Tightly wrap the connectors with 2 layers of rubber tape (butyl). Notes: Rubber tape should seal entire connection and extend 1 inch beyond antenna connector/cable assembly. 3M 3339 tape works very well in this application. Step 3. Covering Rubber Tape with Electrical Tape Tightly wrap the rubber tape with 2 layers of electrical tape. Note: Electrical tape should extend 1 inch beyond rubber tape to ensure full coverage.

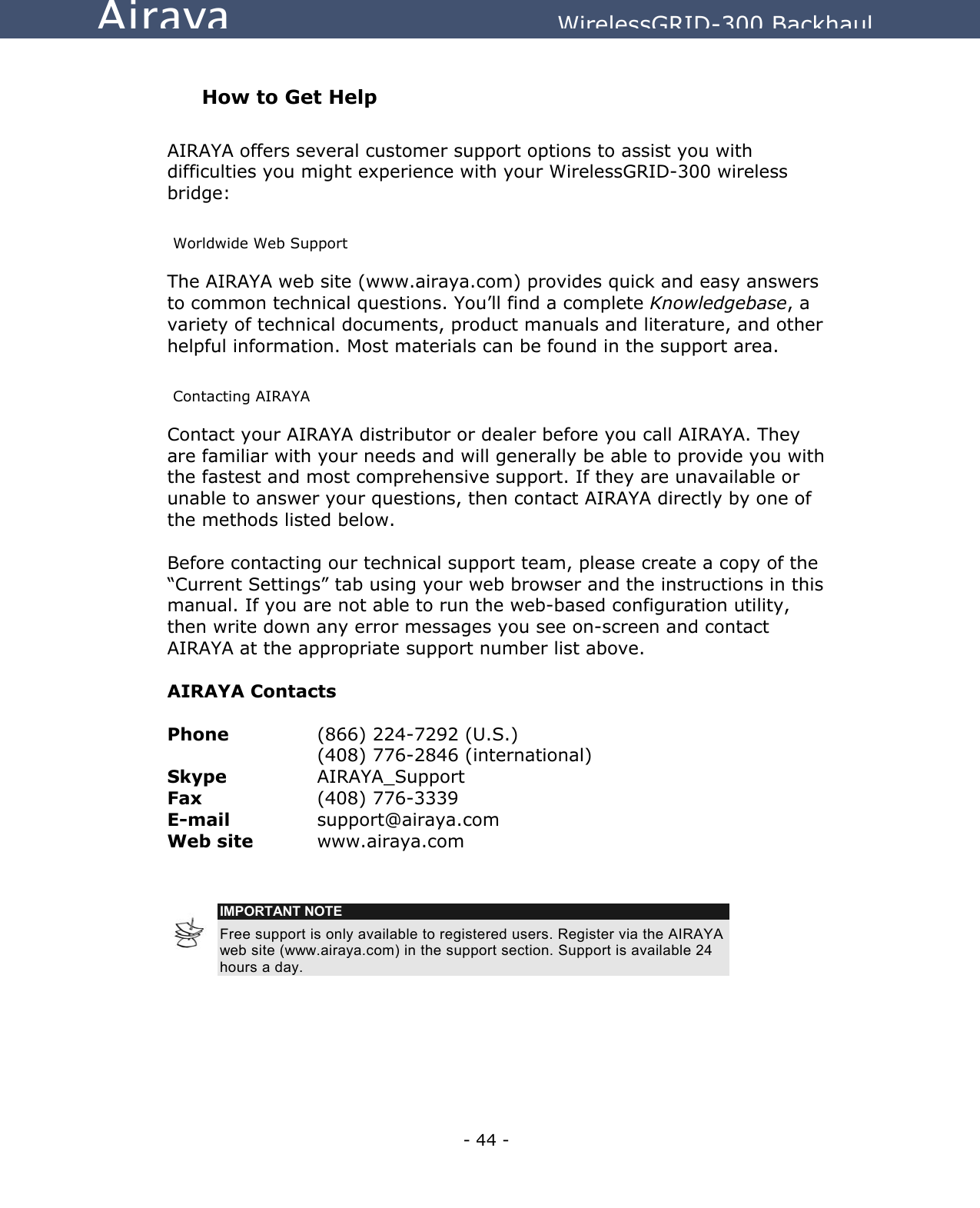

- 44 - Airaya WirelessGRID-300 Backhaul How to Get Help AIRAYA offers several customer support options to assist you with difficulties you might experience with your WirelessGRID-300 wireless bridge: Worldwide Web Support The AIRAYA web site (www.airaya.com) provides quick and easy answers to common technical questions. You’ll find a complete Knowledgebase, a variety of technical documents, product manuals and literature, and other helpful information. Most materials can be found in the support area. Contacting AIRAYA Contact your AIRAYA distributor or dealer before you call AIRAYA. They are familiar with your needs and will generally be able to provide you with the fastest and most comprehensive support. If they are unavailable or unable to answer your questions, then contact AIRAYA directly by one of the methods listed below. Before contacting our technical support team, please create a copy of the “Current Settings” tab using your web browser and the instructions in this manual. If you are not able to run the web-based configuration utility, then write down any error messages you see on-screen and contact AIRAYA at the appropriate support number list above. AIRAYA Contacts Phone (866) 224-7292 (U.S.) (408) 776-2846 (international) Skype AIRAYA_Support Fax (408) 776-3339 E-mail support@airaya.com Web site www.airaya.com IMPORTANT NOTE Free support is only available to registered users. Register via the AIRAYA web site (www.airaya.com) in the support section. Support is available 24 hours a day.
