Airfox Technology Trade K20 K20 Multimedia Backlit Bluetooth Keyboard User Manual HB006 Ipad Bluetooth Keyboard

Airfox Technology Trade Co., Limited K20 Multimedia Backlit Bluetooth Keyboard HB006 Ipad Bluetooth Keyboard

15_K20 UserMan.pdf

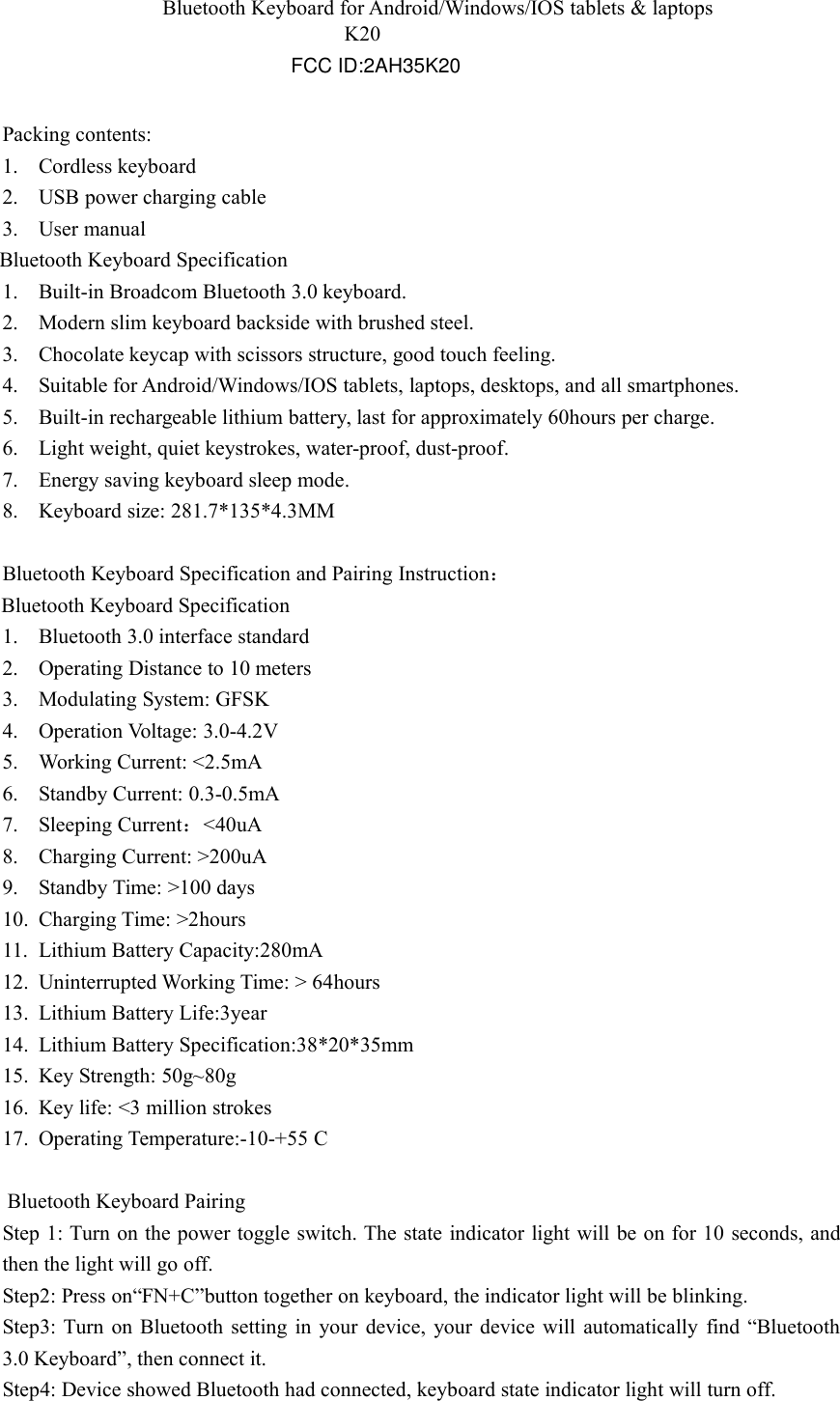

K20Bluetooth Keyboard for Android/Windows/IOS tablets & laptopsPacking contents:1. Cordless keyboard2. USB power charging cable3. User manualBluetooth Keyboard Specification1. Built-in Broadcom Bluetooth 3.0 keyboard.2. Modern slim keyboard backside with brushed steel.3. Chocolate keycap with scissors structure, good touch feeling.4. Suitable for Android/Windows/IOS tablets, laptops, desktops, and all smartphones.5. Built-in rechargeable lithium battery, last for approximately 60hours per charge.6. Light weight, quiet keystrokes, water-proof, dust-proof.7. Energy saving keyboard sleep mode.8. Keyboard size: 281.7*135*4.3MMBluetooth Keyboard Specification and Pairing Instruction：Bluetooth Keyboard Specification1. Bluetooth 3.0 interface standard2. Operating Distance to 10 meters3. Modulating System: GFSK4. Operation Voltage: 3.0-4.2V5. Working Current: <2.5mA6. Standby Current: 0.3-0.5mA7. Sleeping Current：<40uA8. Charging Current: >200uA9. Standby Time: >100 days10. Charging Time: >2hours11. Lithium Battery Capacity:280mA12. Uninterrupted Working Time: > 64hours13. Lithium Battery Life:3year14. Lithium Battery Specification:38*20*35mm15. Key Strength: 50g~80g16. Key life: <3 million strokes17. Operating Temperature:-10-+55 CBluetooth Keyboard PairingStep 1: Turn on the power toggle switch. The state indicator light will be on for 10 seconds, andthen the light will go off.Step2: Press on“FN+C”button together on keyboard, the indicator light will be blinking.Step3: Turn on Bluetooth setting in your device, your device will automatically find “Bluetooth3.0 Keyboard”, then connect it.Step4: Device showed Bluetooth had connected, keyboard state indicator light will turn off.FCC ID:2AH35K20

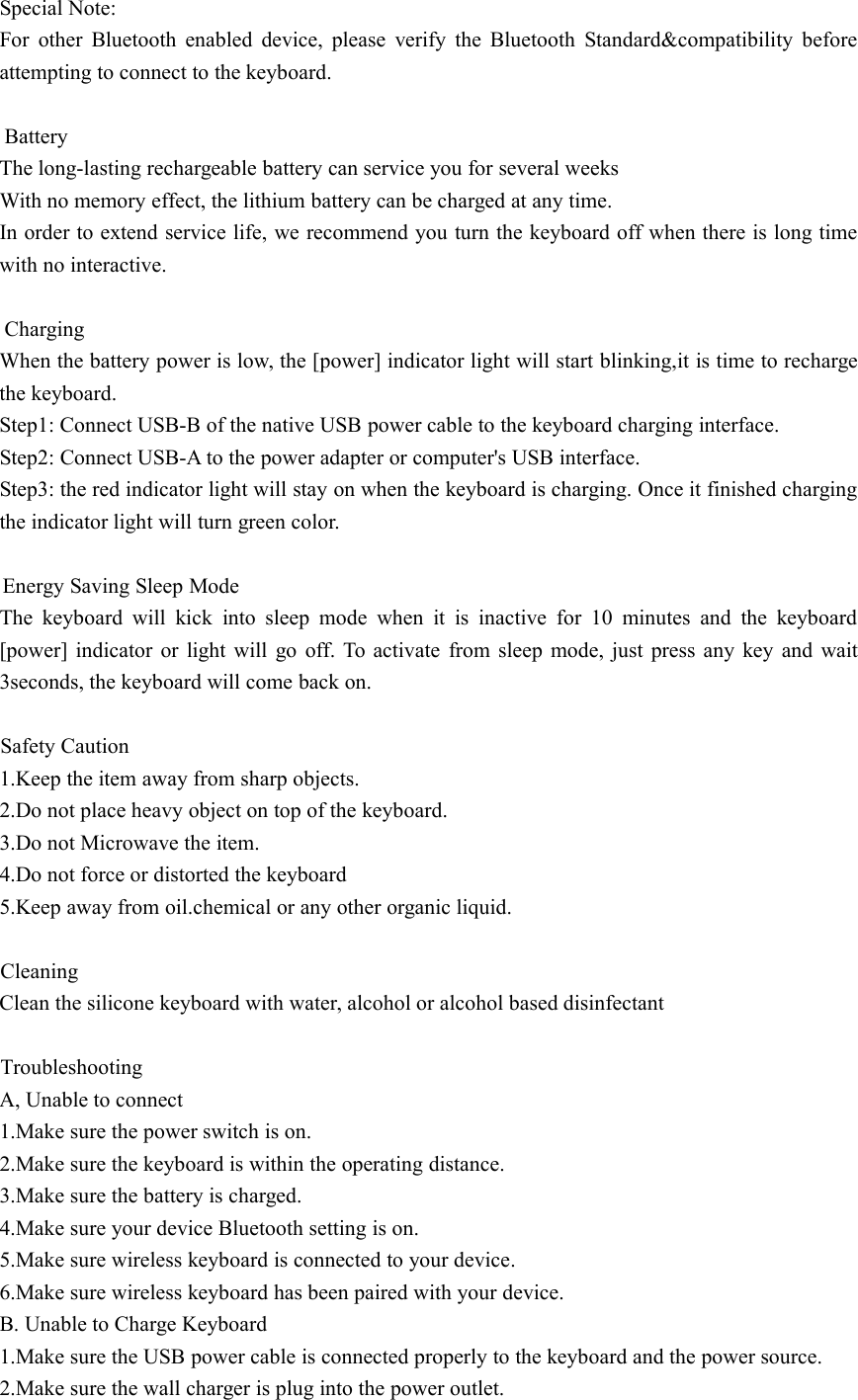

Special Note:For other Bluetooth enabled device, please verify the Bluetooth Standard&compatibility beforeattempting to connect to the keyboard.BatteryThe long-lasting rechargeable battery can service you for several weeksWith no memory effect, the lithium battery can be charged at any time.In order to extend service life, we recommend you turn the keyboard off when there is long timewith no interactive.ChargingWhen the battery power is low, the [power] indicator light will start blinking,it is time to rechargethe keyboard.Step1: Connect USB-B of the native USB power cable to the keyboard charging interface.Step2: Connect USB-A to the power adapter or computer's USB interface.Step3: the red indicator light will stay on when the keyboard is charging. Once it finished chargingthe indicator light will turn green color.Energy Saving Sleep ModeThe keyboard will kick into sleep mode when it is inactive for 10 minutes and the keyboard[power] indicator or light will go off. To activate from sleep mode, just press any key and wait3seconds, the keyboard will come back on.Safety Caution1.Keep the item away from sharp objects.2.Do not place heavy object on top of the keyboard.3.Do not Microwave the item.4.Do not force or distorted the keyboard5.Keep away from oil.chemical or any other organic liquid.CleaningClean the silicone keyboard with water, alcohol or alcohol based disinfectantTroubleshootingA, Unable to connect1.Make sure the power switch is on.2.Make sure the keyboard is within the operating distance.3.Make sure the battery is charged.4.Make sure your device Bluetooth setting is on.5.Make sure wireless keyboard is connected to your device.6.Make sure wireless keyboard has been paired with your device.B. Unable to Charge Keyboard1.Make sure the USB power cable is connected properly to the keyboard and the power source.2.Make sure the wall charger is plug into the power outlet.

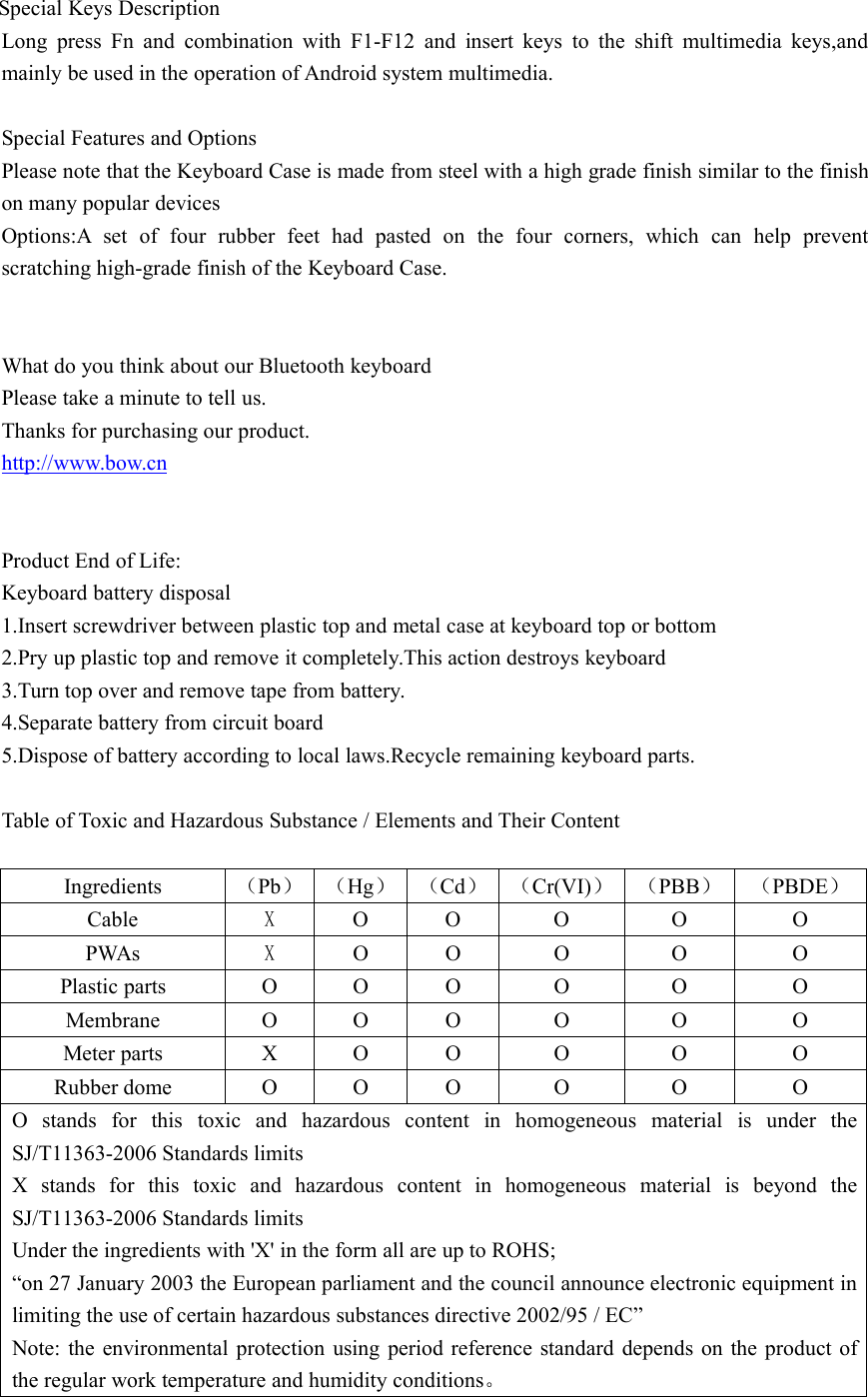

Special Keys DescriptionLong press Fn and combination with F1-F12 and insert keys to the shift multimedia keys,andmainly be used in the operation of Android system multimedia.Special Features and OptionsPlease note that the Keyboard Case is made from steel with a high grade finish similar to the finishon many popular devicesOptions:A set of four rubber feet had pasted on the four corners, which can help preventscratching high-grade finish of the Keyboard Case.What do you think about our Bluetooth keyboardPlease take a minute to tell us.Thanks for purchasing our product.http://www.bow.cnProduct End of Life:Keyboard battery disposal1.Insert screwdriver between plastic top and metal case at keyboard top or bottom2.Pry up plastic top and remove it completely.This action destroys keyboard3.Turn top over and remove tape from battery.4.Separate battery from circuit board5.Dispose of battery according to local laws.Recycle remaining keyboard parts.Table of Toxic and Hazardous Substance / Elements and Their ContentIngredients （Pb） （Hg） （Cd） （Cr(VI)） （PBB） （PBDE）Cable XO O O O OPWAs XO O O O OPlastic parts O O O O O OMembrane O O O O O OMeter parts X O O O O ORubber dome O O O O O OO stands for this toxic and hazardous content in homogeneous material is under theSJ/T11363-2006 Standards limitsX stands for this toxic and hazardous content in homogeneous material is beyond theSJ/T11363-2006 Standards limitsUnder the ingredients with 'X' in the form all are up to ROHS;“on 27 January 2003 the European parliament and the council announce electronic equipment inlimiting the use of certain hazardous substances directive 2002/95 / EC”Note: the environmental protection using period reference standard depends on the product ofthe regular work temperature and humidity conditions。

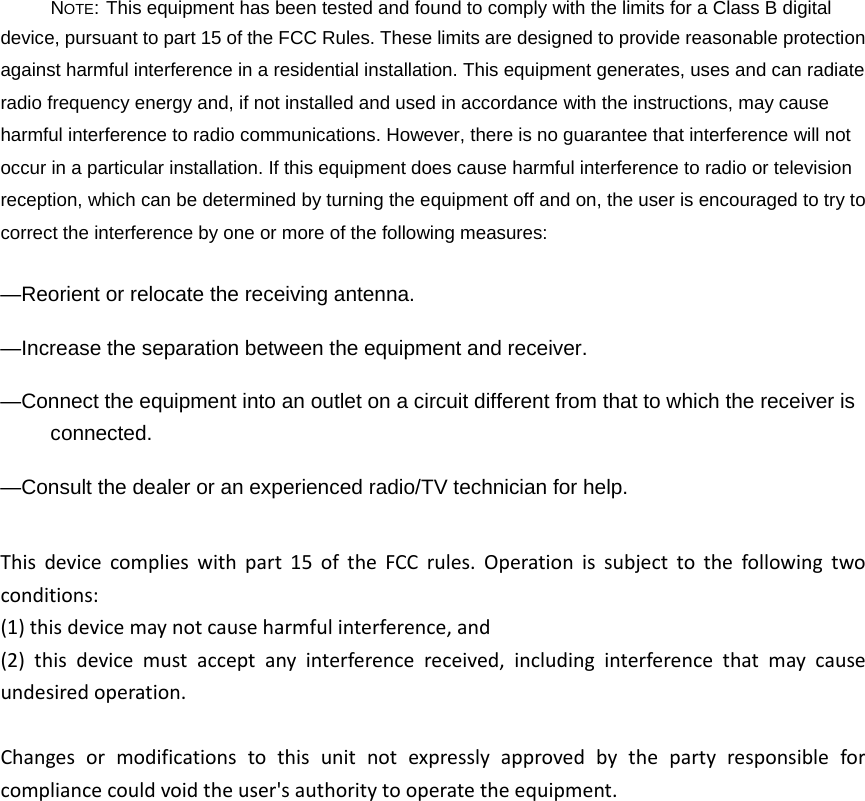

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser'sauthoritytooperatetheequipment.
