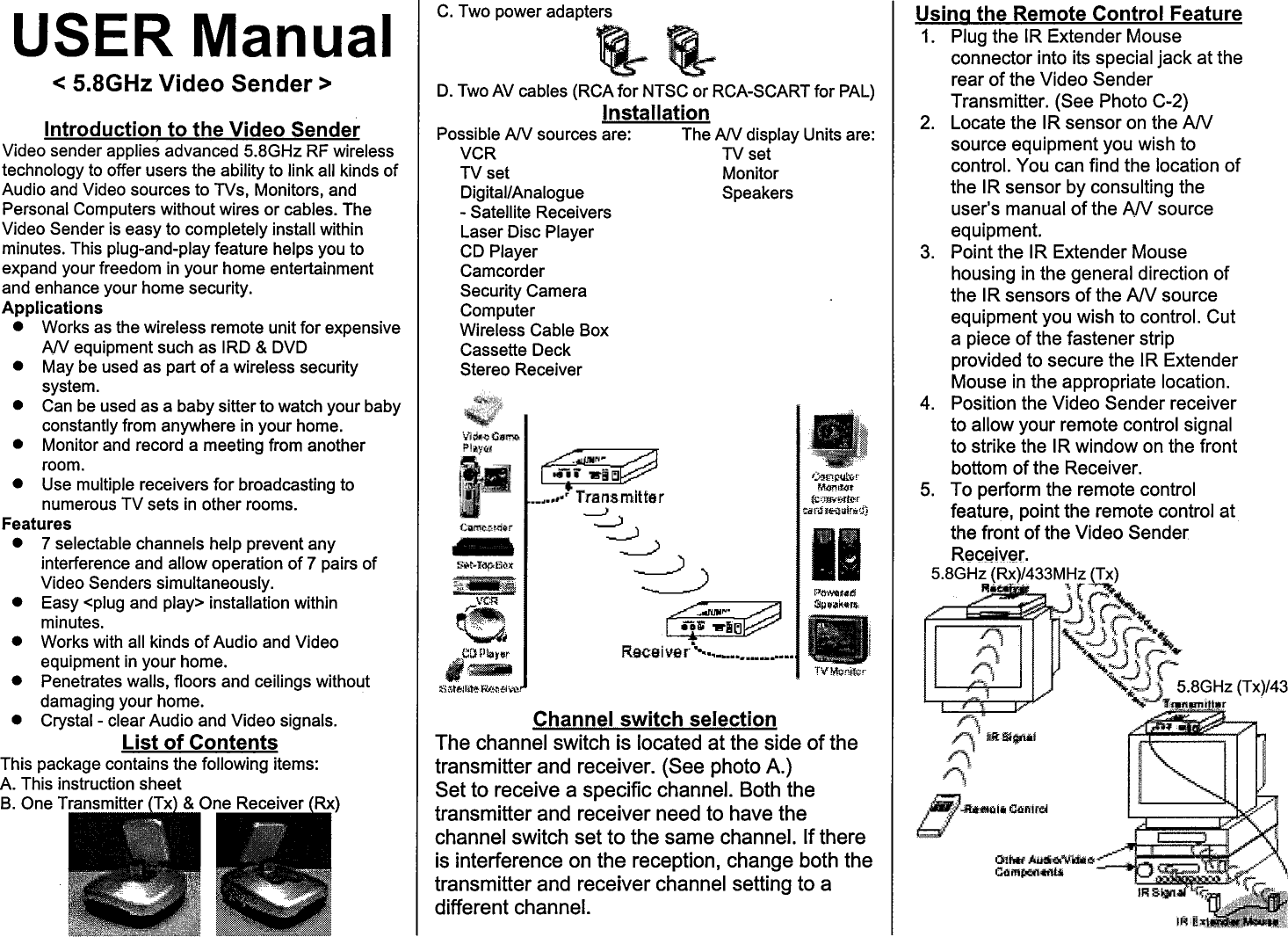

Airwave Technologies AWW698RX 5.8GHz Video Sender User Manual Manual

Airwave Technologies Inc 5.8GHz Video Sender Manual

Manual

Photo A: Power Switch 433MHz ID Channel Tack switch (only AWV698C applicable) Photo B.: Channel Indicator: CH1 ~ CH7 Remote Control Indicator Photo C.: (Receiver) Audio R Audio L Video Power Plug (9V) (Transmitter) plug for IR cable LED (transmitter) Photo D.: (Shown above is the antenna direction for application.) Specification Transmitter: 1. Frequency: 5.725GHz – 5.875GHz 2. Channel: 7 selectable channels 3. Modulation: FM-FM Input level: Video - 1 Vp-p (PAL) Audio - 3 Vp-p Impedance: Video - 75 ohms (PAL) Audio - 10K ohms 4. Input port: SCART line cable 5. Antenna: Built in antenna 6. Power supply: DC 9V power adapter Receiver: 1. Frequency: 5.725GHz – 5.875GHz 2. Channel: 7 selectable channels 3. Output port: SCART line cable 4. Antenna: Built in antenna 5. Power supply: DC 9V power adapter Trouble Shooting If a problem occurs, first refer to this information before you take the device for repair. If you are unable to rectify the fault using the information given here, contact your local dealer or service specialist. Under no circumstances should you attempt to repair the device yourself, as this would invalidate the warranty. PROBLEM POSSIBLE CAUSE REMEDY The transmission channels for the transmitter/receiver do not correspond.Set the transmission channel on the transmitter/receiver The transmission distance is too great. Reduce the distance. Connecting cable. Check the EURO-AV plug and the cinch plug. No picture/sound transmissionTransmitter or receiver not switched on. Switch on the transmitter or receiver Wrong direction of patch antenna Adjust the antenna to the right position. See photo D. Move the transmitter or receiver a few centimeters Interference. Change the transmission channel on the transmitter/receiver Microwave units and the use of the so-called ”blue tooth function” (W LAN) on mobile phones or notebooks. Change channel to find better channel to receive. Poor picture/sound quality Infrared module. Check the connection and position of the infrared module. The remote control of the signal source does not respond. A wireless transmitter in the 433MHz range (e.g. a baby-phone) is interfering with the transmission. Switch this device off. DOC0000-0269 TransmitterReceiver

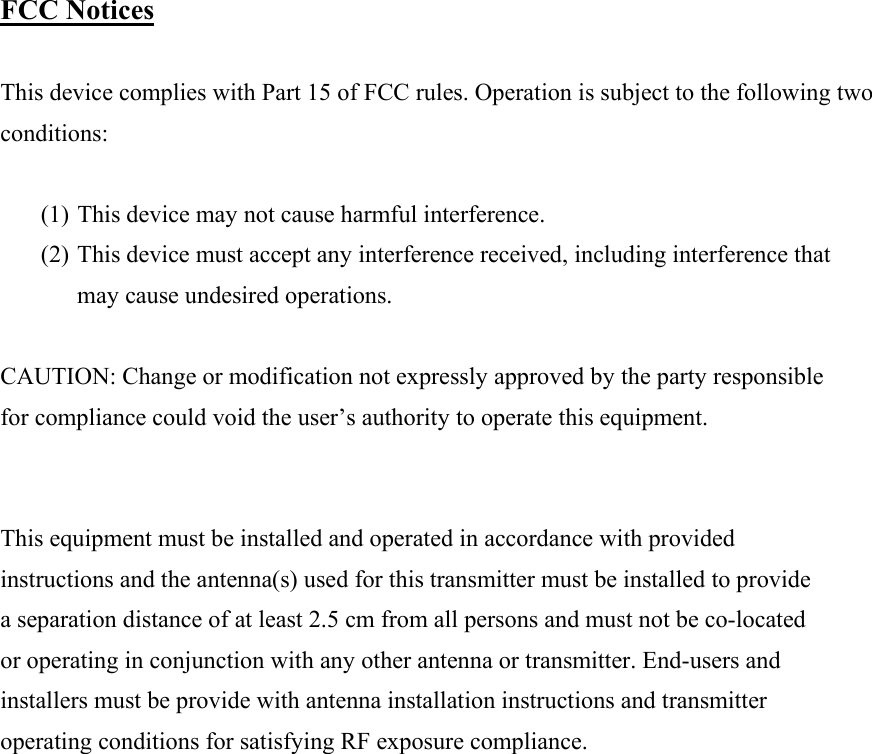

FCC Notices This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operations. CAUTION: Change or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 2.5 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
