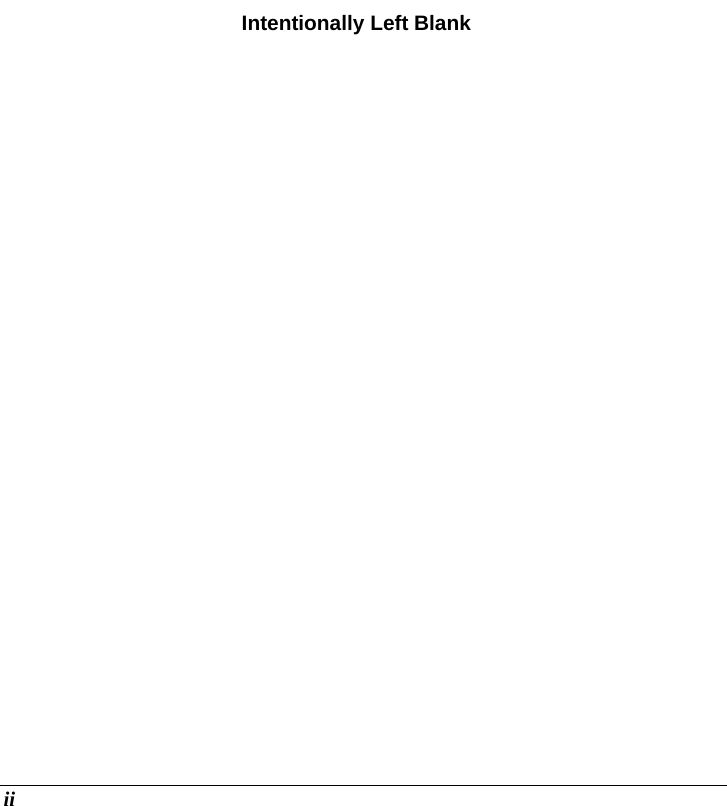

ii Intentionally Left Blank

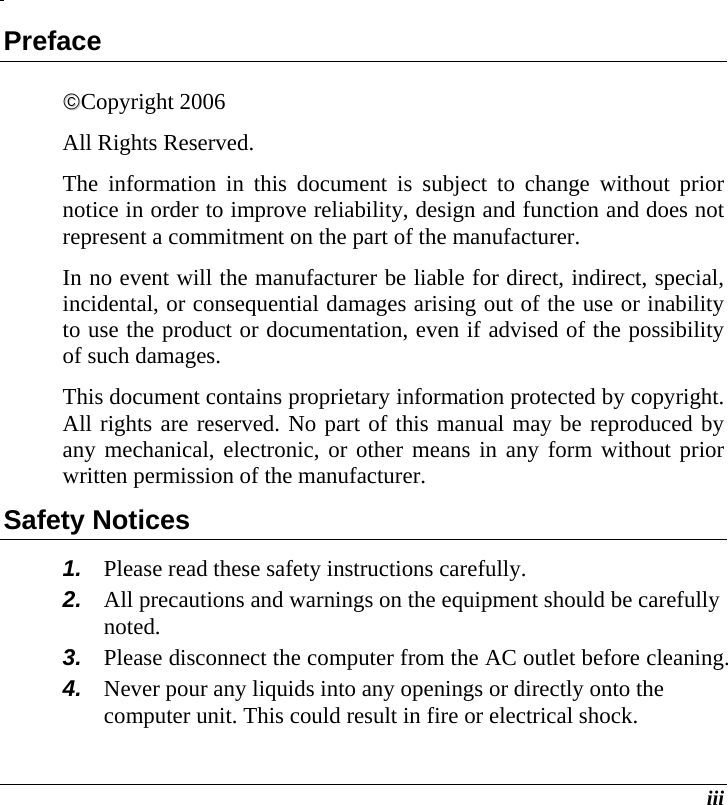

iii Preface ©©Copyright 2006 All Rights Reserved. The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. Safety Notices 1. Please read these safety instructions carefully. 2. All precautions and warnings on the equipment should be carefully noted. 3. Please disconnect the computer from the AC outlet before cleaning. 4. Never pour any liquids into any openings or directly onto the computer unit. This could result in fire or electrical shock.

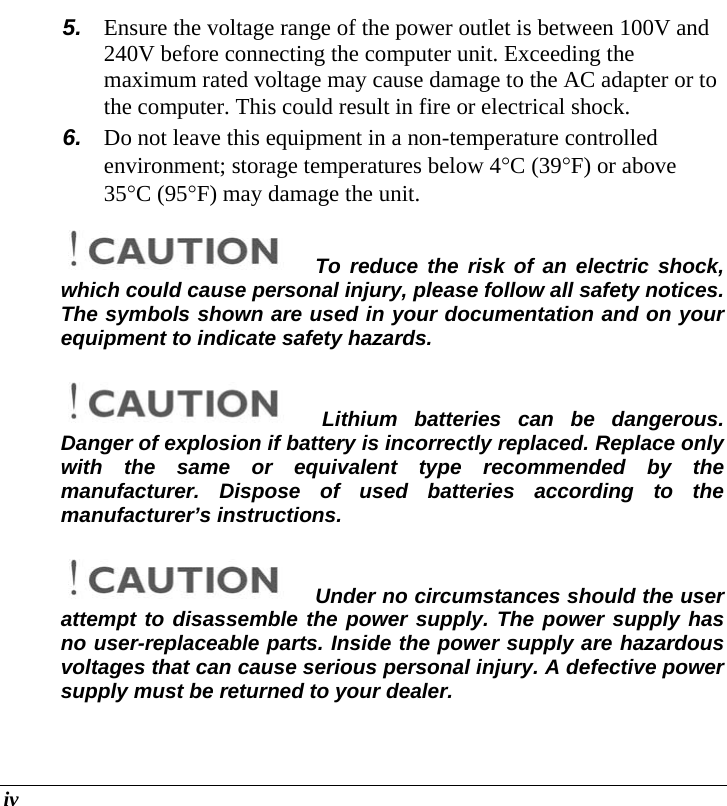

iv 5. Ensure the voltage range of the power outlet is between 100V and 240V before connecting the computer unit. Exceeding the maximum rated voltage may cause damage to the AC adapter or to the computer. This could result in fire or electrical shock. 6. Do not leave this equipment in a non-temperature controlled environment; storage temperatures below 4°C (39°F) or above 35°C (95°F) may damage the unit. To reduce the risk of an electric shock, which could cause personal injury, please follow all safety notices. The symbols shown are used in your documentation and on your equipment to indicate safety hazards. Lithium batteries can be dangerous. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. Under no circumstances should the user attempt to disassemble the power supply. The power supply has no user-replaceable parts. Inside the power supply are hazardous voltages that can cause serious personal injury. A defective power supply must be returned to your dealer.

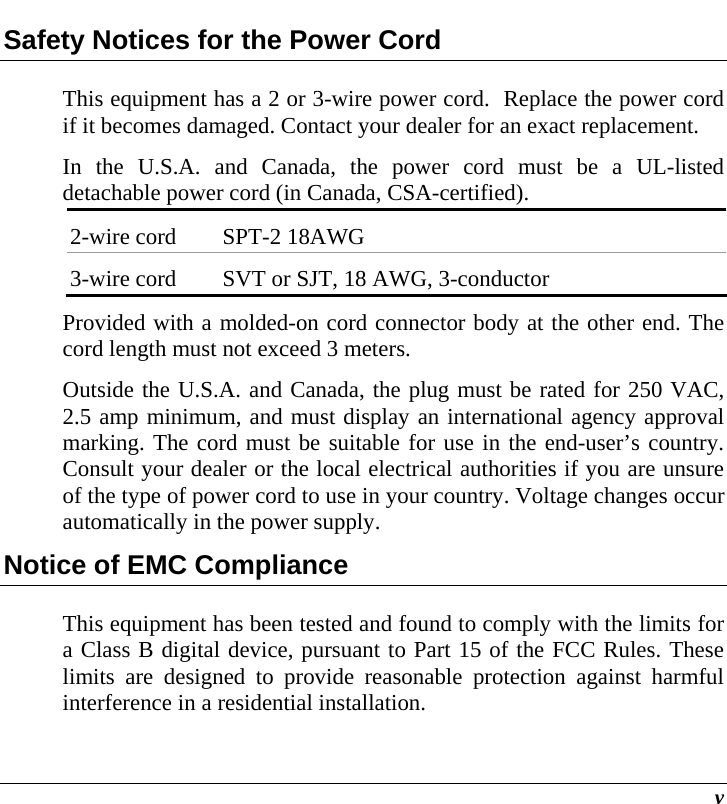

v Safety Notices for the Power Cord This equipment has a 2 or 3-wire power cord. Replace the power cord if it becomes damaged. Contact your dealer for an exact replacement. In the U.S.A. and Canada, the power cord must be a UL-listed detachable power cord (in Canada, CSA-certified). 2-wire cord SPT-2 18AWG 3-wire cord SVT or SJT, 18 AWG, 3-conductor Provided with a molded-on cord connector body at the other end. The cord length must not exceed 3 meters. Outside the U.S.A. and Canada, the plug must be rated for 250 VAC, 2.5 amp minimum, and must display an international agency approval marking. The cord must be suitable for use in the end-user’s country. Consult your dealer or the local electrical authorities if you are unsure of the type of power cord to use in your country. Voltage changes occur automatically in the power supply. Notice of EMC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

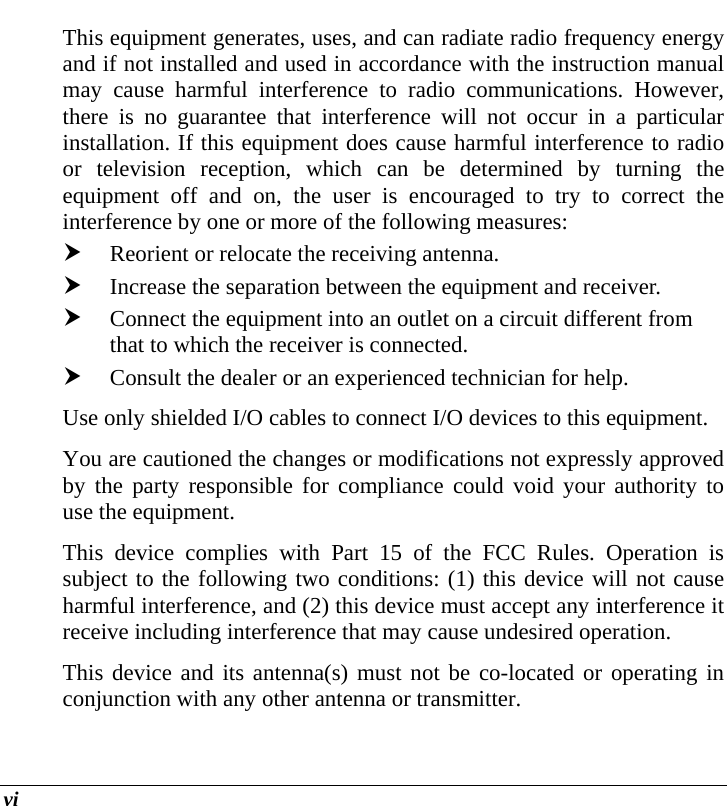

vi This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: h Reorient or relocate the receiving antenna. h Increase the separation between the equipment and receiver. h Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. h Consult the dealer or an experienced technician for help. Use only shielded I/O cables to connect I/O devices to this equipment. You are cautioned the changes or modifications not expressly approved by the party responsible for compliance could void your authority to use the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device will not cause harmful interference, and (2) this device must accept any interference it receive including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

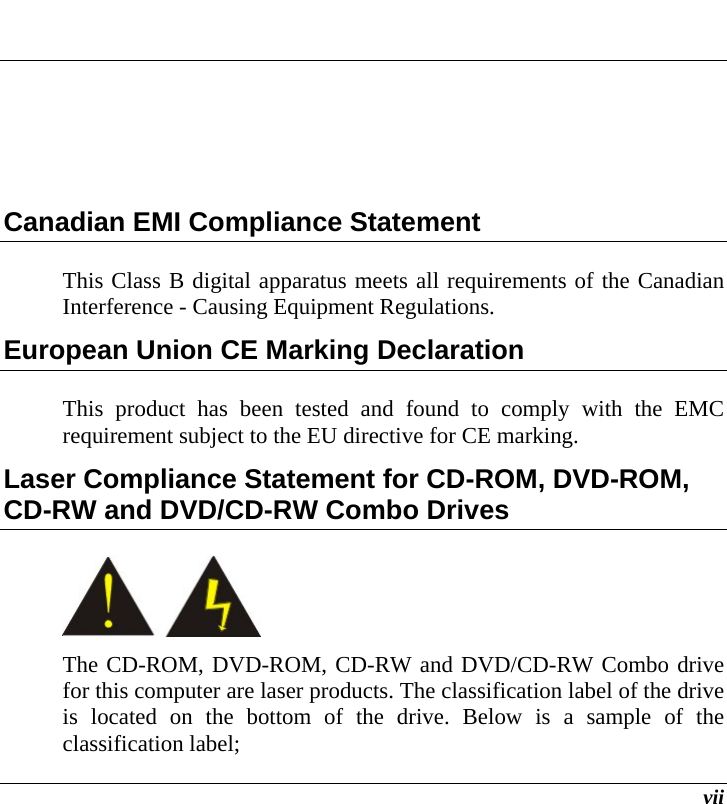

vii Canadian EMI Compliance Statement This Class B digital apparatus meets all requirements of the Canadian Interference - Causing Equipment Regulations. European Union CE Marking Declaration This product has been tested and found to comply with the EMC requirement subject to the EU directive for CE marking. Laser Compliance Statement for CD-ROM, DVD-ROM, CD-RW and DVD/CD-RW Combo Drives The CD-ROM, DVD-ROM, CD-RW and DVD/CD-RW Combo drive for this computer are laser products. The classification label of the drive is located on the bottom of the drive. Below is a sample of the classification label;

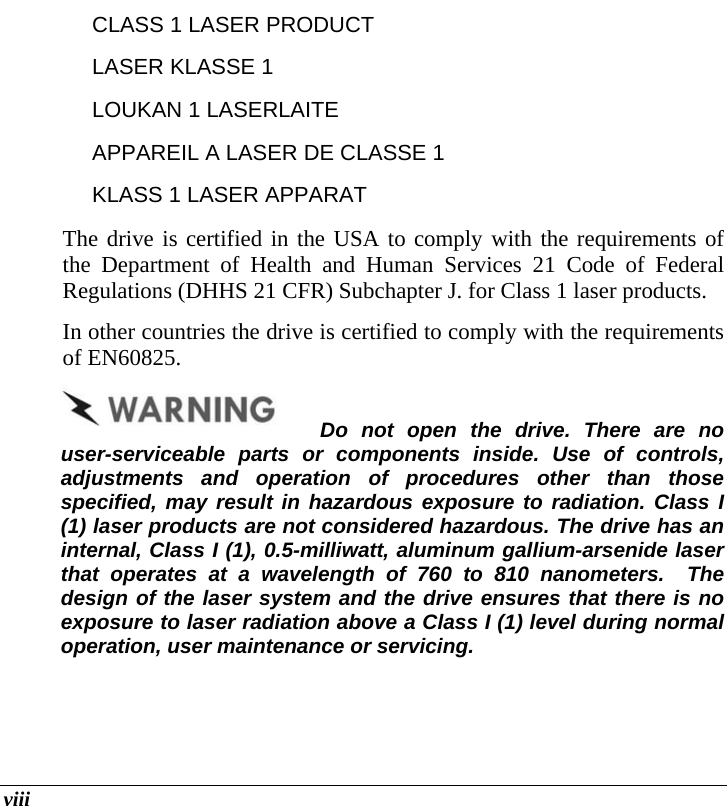

viii CLASS 1 LASER PRODUCT LASER KLASSE 1 LOUKAN 1 LASERLAITE APPAREIL A LASER DE CLASSE 1 KLASS 1 LASER APPARAT The drive is certified in the USA to comply with the requirements of the Department of Health and Human Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J. for Class 1 laser products. In other countries the drive is certified to comply with the requirements of EN60825. Do not open the drive. There are no user-serviceable parts or components inside. Use of controls, adjustments and operation of procedures other than those specified, may result in hazardous exposure to radiation. Class I (1) laser products are not considered hazardous. The drive has an internal, Class I (1), 0.5-milliwatt, aluminum gallium-arsenide laser that operates at a wavelength of 760 to 810 nanometers. The design of the laser system and the drive ensures that there is no exposure to laser radiation above a Class I (1) level during normal operation, user maintenance or servicing.

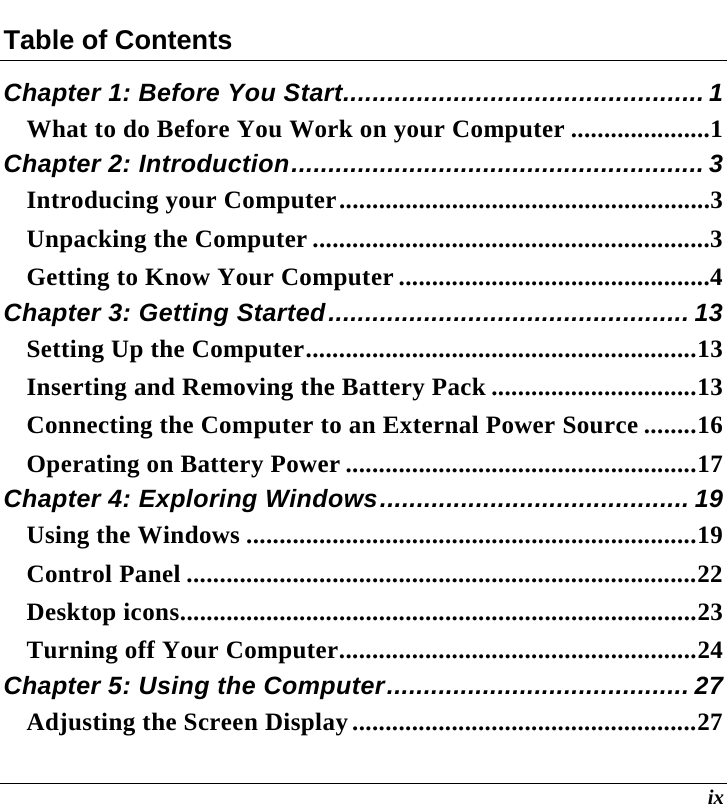

ix Table of Contents Chapter 1: Before You Start................................................. 1 What to do Before You Work on your Computer .....................1 Chapter 2: Introduction........................................................ 3 Introducing your Computer........................................................3 Unpacking the Computer ............................................................3 Getting to Know Your Computer ...............................................4 Chapter 3: Getting Started................................................. 13 Setting Up the Computer...........................................................13 Inserting and Removing the Battery Pack ...............................13 Connecting the Computer to an External Power Source ........16 Operating on Battery Power .....................................................17 Chapter 4: Exploring Windows.......................................... 19 Using the Windows ....................................................................19 Control Panel .............................................................................22 Desktop icons..............................................................................23 Turning off Your Computer......................................................24 Chapter 5: Using the Computer......................................... 27 Adjusting the Screen Display....................................................27

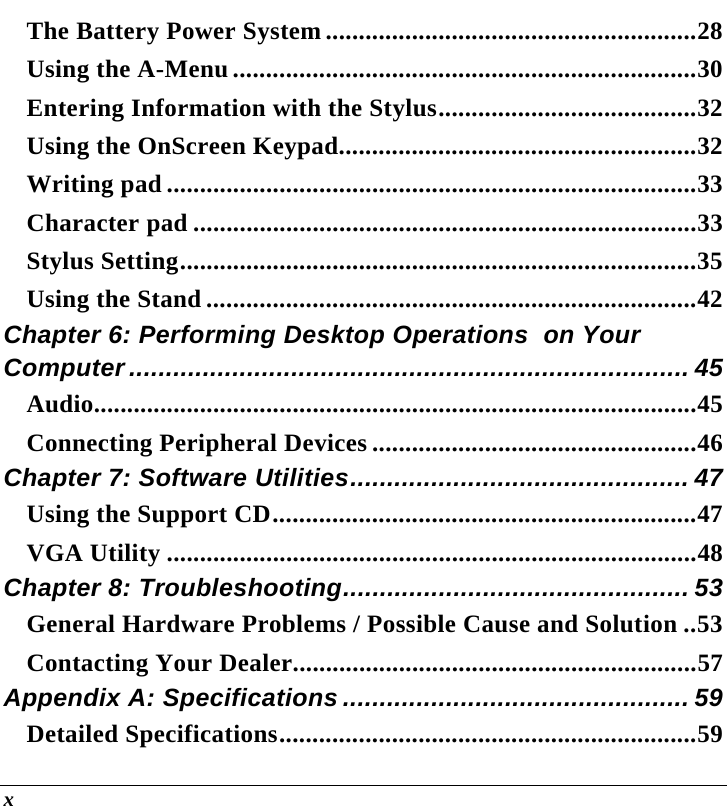

x The Battery Power System ........................................................28 Using the A-Menu ......................................................................30 Entering Information with the Stylus.......................................32 Using the OnScreen Keypad......................................................32 Writing pad ................................................................................33 Character pad ............................................................................33 Stylus Setting..............................................................................35 Using the Stand ..........................................................................42 Chapter 6: Performing Desktop Operations on Your Computer ............................................................................ 45 Audio...........................................................................................45 Connecting Peripheral Devices .................................................46 Chapter 7: Software Utilities.............................................. 47 Using the Support CD................................................................47 VGA Utility ................................................................................48 Chapter 8: Troubleshooting............................................... 53 General Hardware Problems / Possible Cause and Solution ..53 Contacting Your Dealer.............................................................57 Appendix A: Specifications ............................................... 59 Detailed Specifications...............................................................59

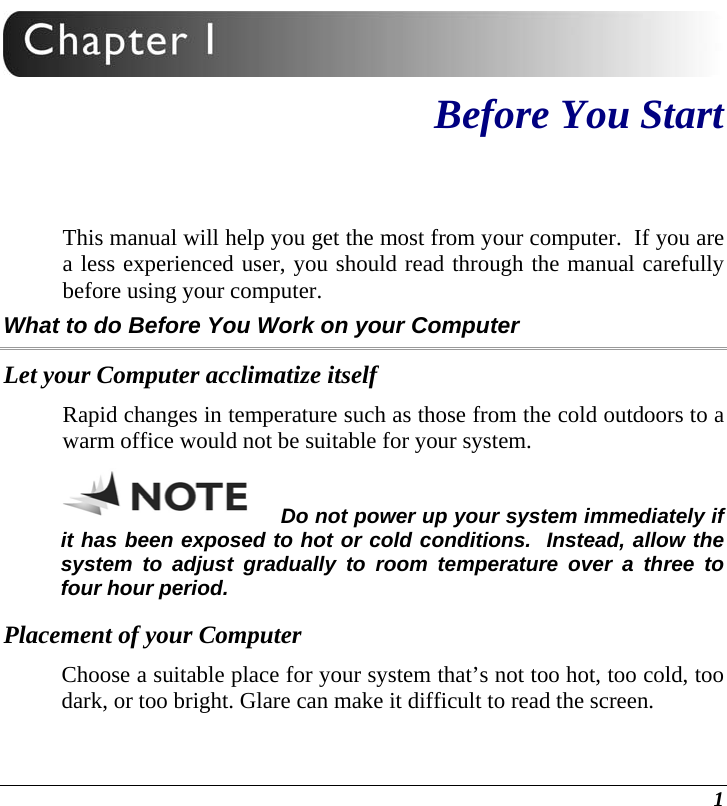

1 Before You Start This manual will help you get the most from your computer. If you are a less experienced user, you should read through the manual carefully before using your computer. What to do Before You Work on your Computer Let your Computer acclimatize itself Rapid changes in temperature such as those from the cold outdoors to a warm office would not be suitable for your system. Do not power up your system immediately if it has been exposed to hot or cold conditions. Instead, allow the system to adjust gradually to room temperature over a three to four hour period. Placement of your Computer Choose a suitable place for your system that’s not too hot, too cold, too dark, or too bright. Glare can make it difficult to read the screen.

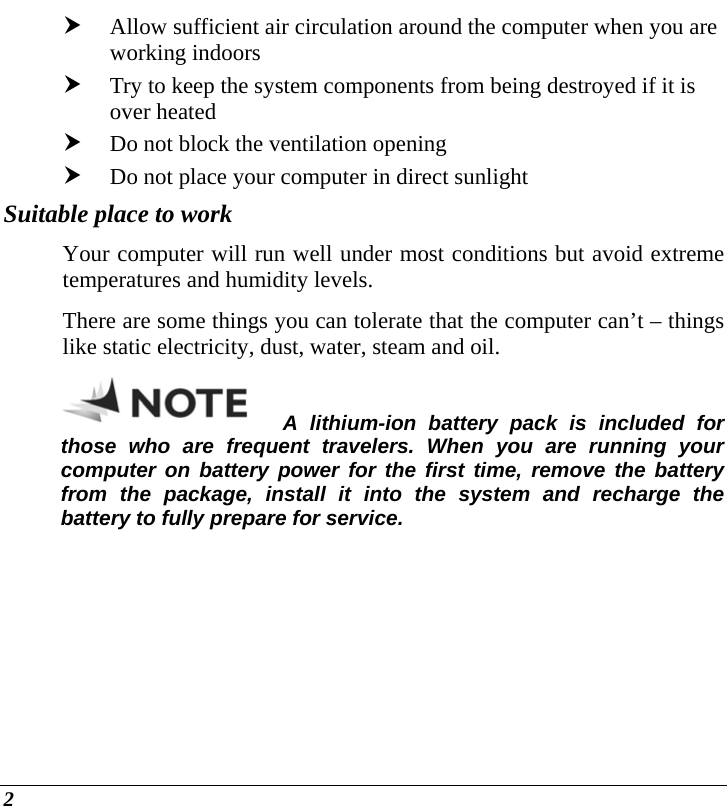

2 h Allow sufficient air circulation around the computer when you are working indoors h Try to keep the system components from being destroyed if it is over heated h Do not block the ventilation opening h Do not place your computer in direct sunlight Suitable place to work Your computer will run well under most conditions but avoid extreme temperatures and humidity levels. There are some things you can tolerate that the computer can’t – things like static electricity, dust, water, steam and oil. A lithium-ion battery pack is included for those who are frequent travelers. When you are running your computer on battery power for the first time, remove the battery from the package, install it into the system and recharge the battery to fully prepare for service.

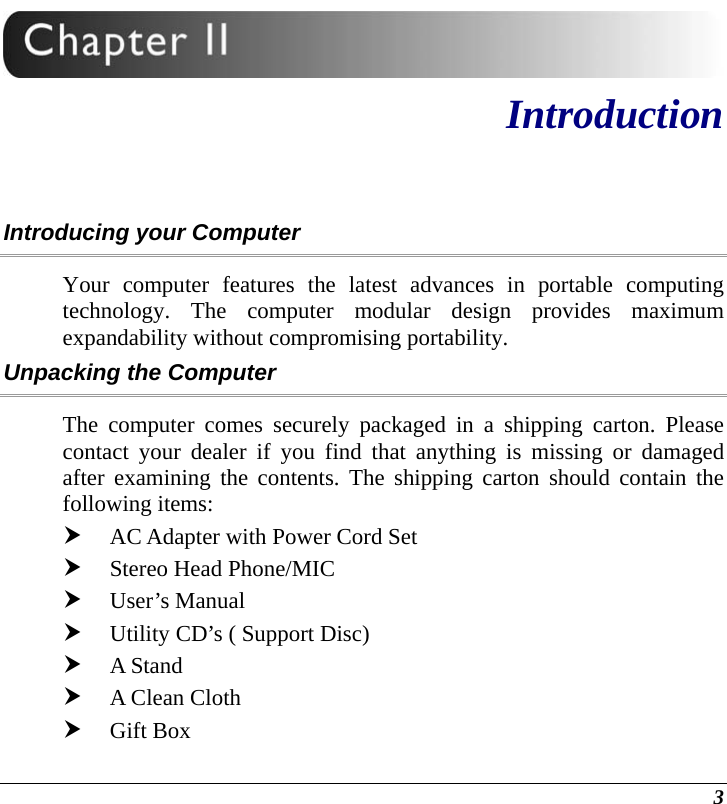

3 Introduction Introducing your Computer Your computer features the latest advances in portable computing technology. The computer modular design provides maximum expandability without compromising portability. Unpacking the Computer The computer comes securely packaged in a shipping carton. Please contact your dealer if you find that anything is missing or damaged after examining the contents. The shipping carton should contain the following items: h AC Adapter with Power Cord Set h Stereo Head Phone/MIC h User’s Manual h Utility CD’s ( Support Disc) h A Stand h A Clean Cloth h Gift Box
4 Do not throw the packaging materials away. You may need them later if you have to ship the computer. Because of different configurations, some of the features mentioned in this manual might not be included on your computer or may differ slightly. Getting to Know Your Computer Top View

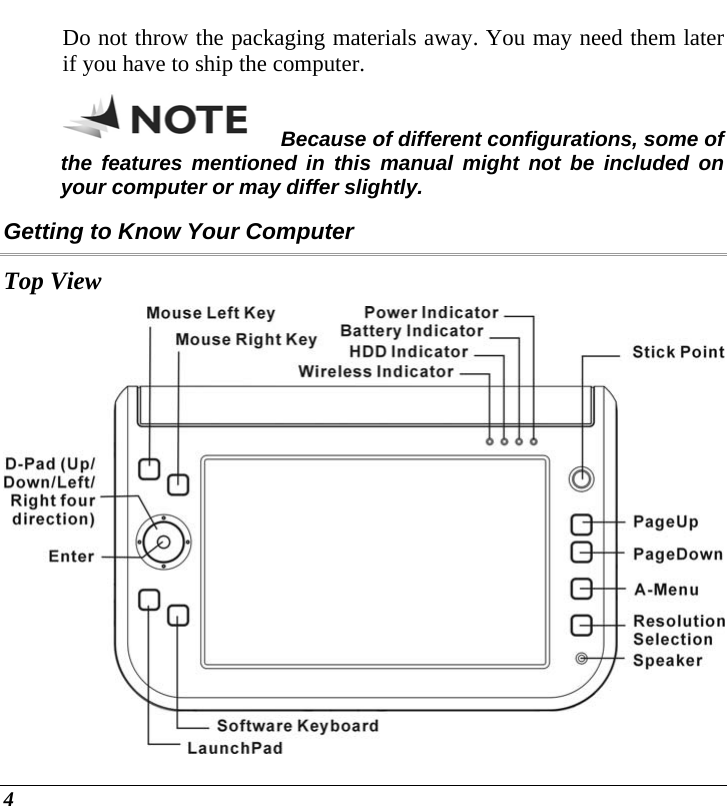

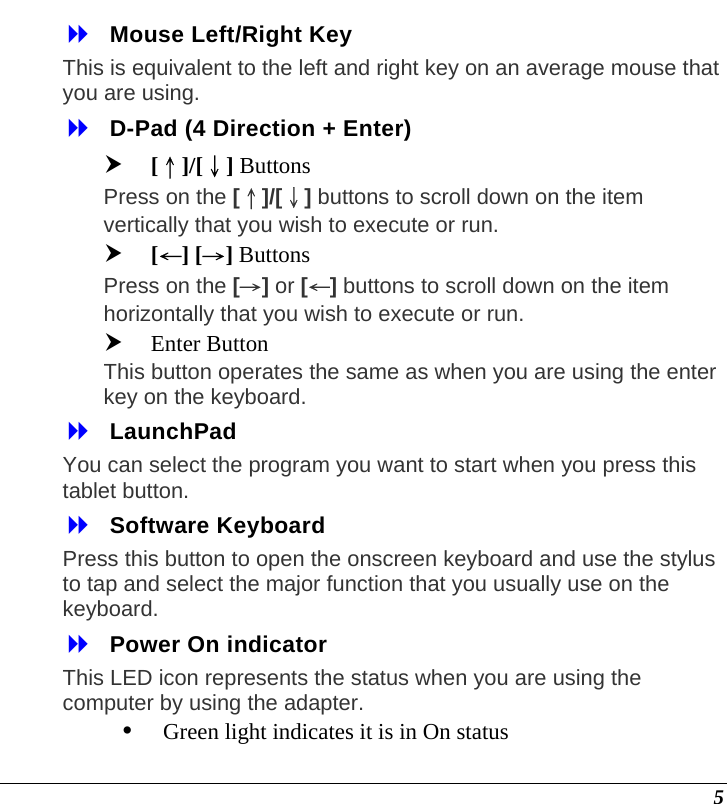

5  Mouse Left/Right Key This is equivalent to the left and right key on an average mouse that you are using.  D-Pad (4 Direction + Enter) h [↑]/[↓] Buttons Press on the [↑]/[↓] buttons to scroll down on the item vertically that you wish to execute or run. h [←] [→] Buttons Press on the [→] or [←] buttons to scroll down on the item horizontally that you wish to execute or run. h Enter Button This button operates the same as when you are using the enter key on the keyboard.  LaunchPad You can select the program you want to start when you press this tablet button.  Software Keyboard Press this button to open the onscreen keyboard and use the stylus to tap and select the major function that you usually use on the keyboard.  Power On indicator This LED icon represents the status when you are using the computer by using the adapter. y Green light indicates it is in On status

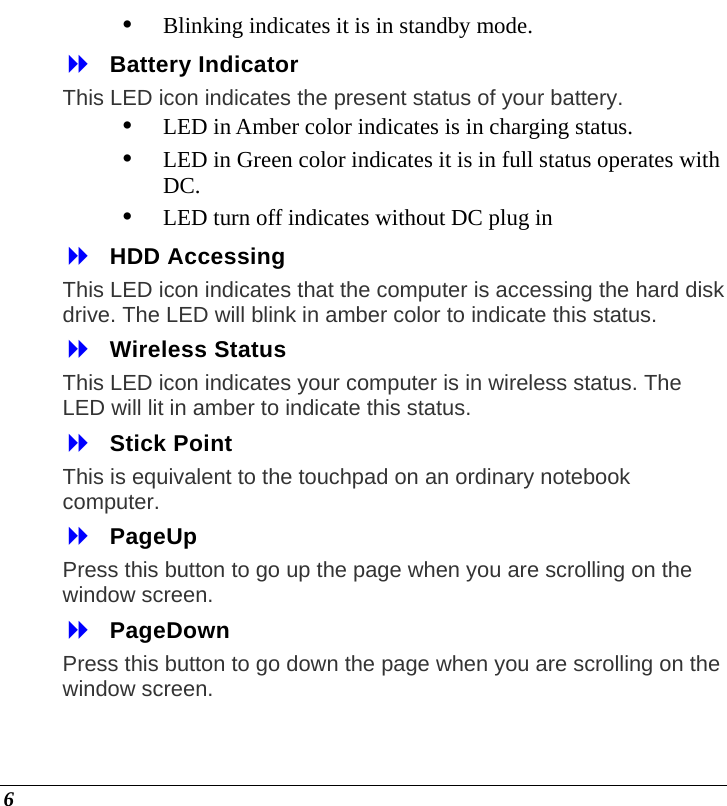

6 y Blinking indicates it is in standby mode.  Battery Indicator This LED icon indicates the present status of your battery. y LED in Amber color indicates is in charging status. y LED in Green color indicates it is in full status operates with DC. y LED turn off indicates without DC plug in  HDD Accessing This LED icon indicates that the computer is accessing the hard disk drive. The LED will blink in amber color to indicate this status.  Wireless Status This LED icon indicates your computer is in wireless status. The LED will lit in amber to indicate this status.  Stick Point This is equivalent to the touchpad on an ordinary notebook computer.  PageUp Press this button to go up the page when you are scrolling on the window screen.  PageDown Press this button to go down the page when you are scrolling on the window screen.

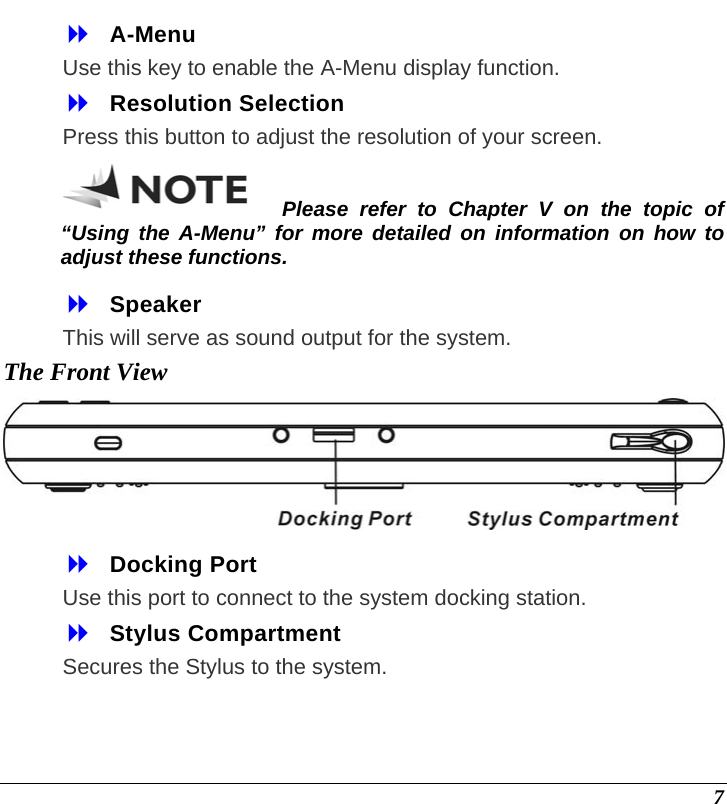

7  A-Menu Use this key to enable the A-Menu display function.  Resolution Selection Press this button to adjust the resolution of your screen. Please refer to Chapter V on the topic of “Using the A-Menu” for more detailed on information on how to adjust these functions.  Speaker This will serve as sound output for the system. The Front View  Docking Port Use this port to connect to the system docking station.  Stylus Compartment Secures the Stylus to the system.

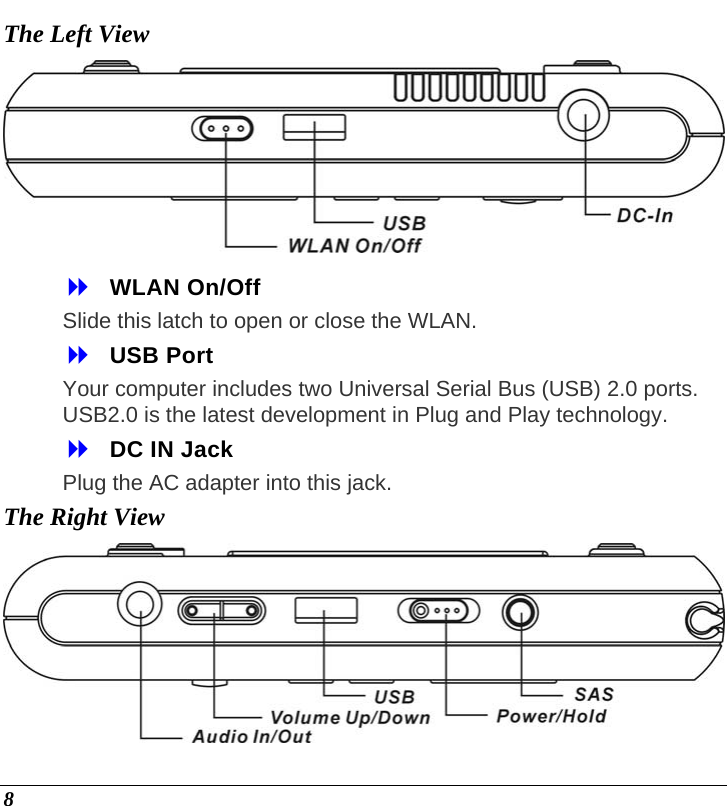

8 The Left View  WLAN On/Off Slide this latch to open or close the WLAN.  USB Port Your computer includes two Universal Serial Bus (USB) 2.0 ports. USB2.0 is the latest development in Plug and Play technology.  DC IN Jack Plug the AC adapter into this jack. The Right View

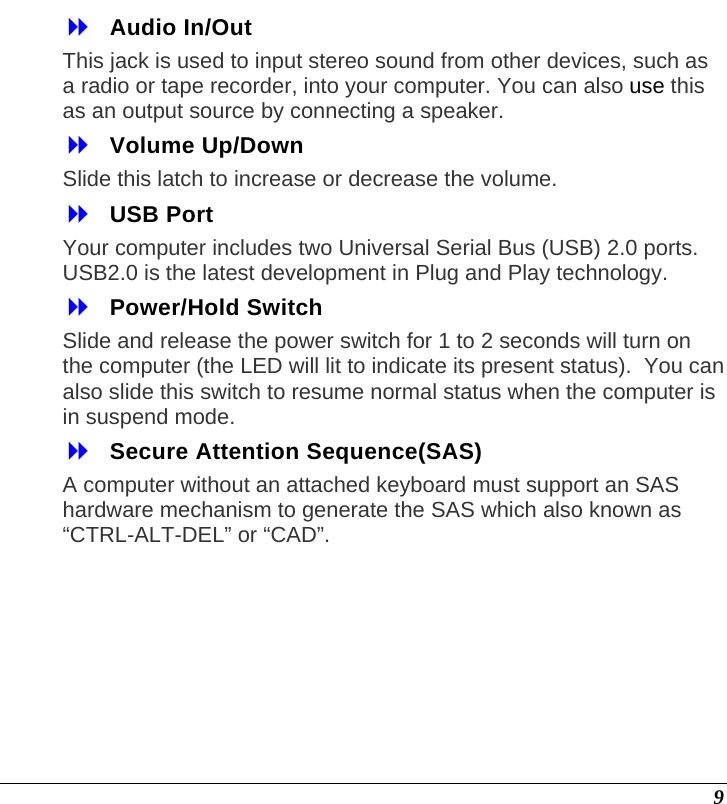

9  Audio In/Out This jack is used to input stereo sound from other devices, such as a radio or tape recorder, into your computer. You can also use this as an output source by connecting a speaker.  Volume Up/Down Slide this latch to increase or decrease the volume.  USB Port Your computer includes two Universal Serial Bus (USB) 2.0 ports. USB2.0 is the latest development in Plug and Play technology.  Power/Hold Switch Slide and release the power switch for 1 to 2 seconds will turn on the computer (the LED will lit to indicate its present status). You can also slide this switch to resume normal status when the computer is in suspend mode.  Secure Attention Sequence(SAS) A computer without an attached keyboard must support an SAS hardware mechanism to generate the SAS which also known as “CTRL-ALT-DEL” or “CAD”.

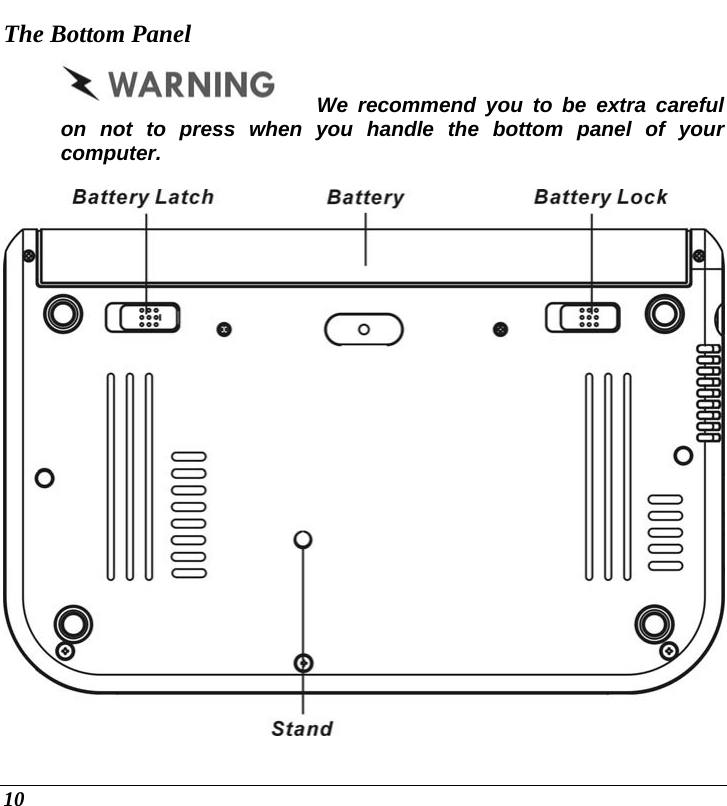

10 The Bottom Panel We recommend you to be extra careful on not to press when you handle the bottom panel of your computer.

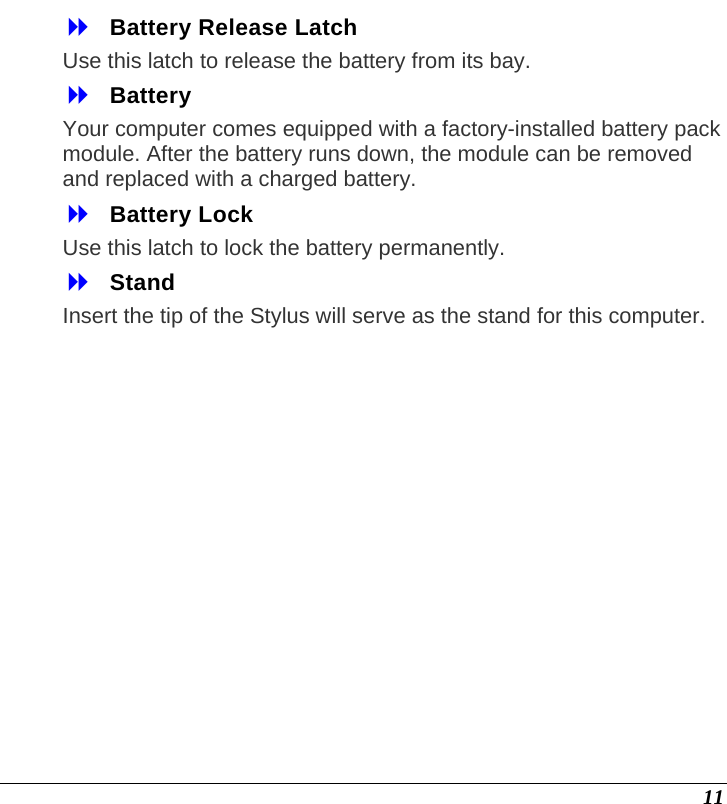

11  Battery Release Latch Use this latch to release the battery from its bay.  Battery Your computer comes equipped with a factory-installed battery pack module. After the battery runs down, the module can be removed and replaced with a charged battery.  Battery Lock Use this latch to lock the battery permanently.  Stand Insert the tip of the Stylus will serve as the stand for this computer.
12 Intentionally Left Blank

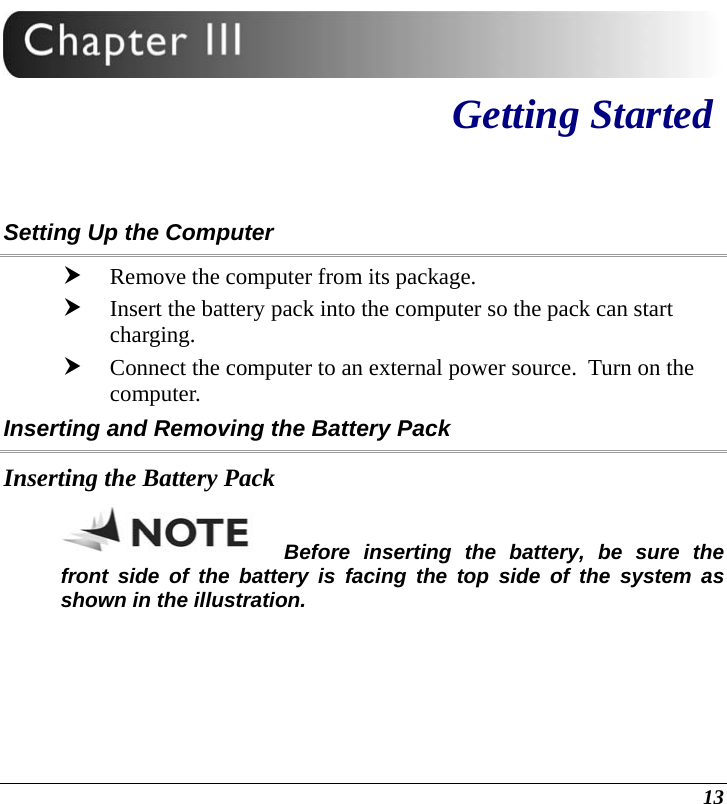

13 Getting Started Setting Up the Computer h Remove the computer from its package. h Insert the battery pack into the computer so the pack can start charging. h Connect the computer to an external power source. Turn on the computer. Inserting and Removing the Battery Pack Inserting the Battery Pack Before inserting the battery, be sure the front side of the battery is facing the top side of the system as shown in the illustration.

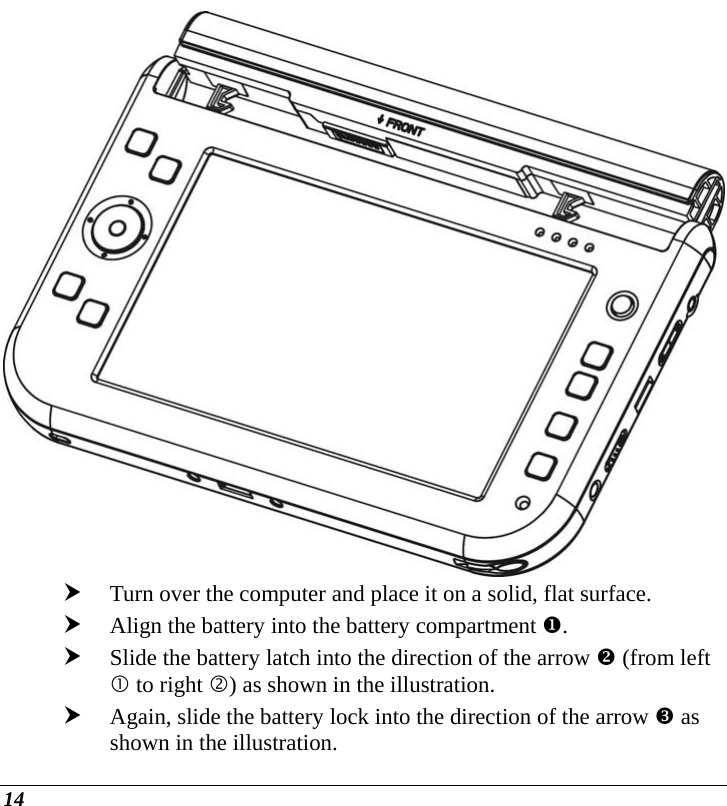

14 h Turn over the computer and place it on a solid, flat surface. h Align the battery into the battery compartment X. h Slide the battery latch into the direction of the arrow Y (from left c to right d) as shown in the illustration. h Again, slide the battery lock into the direction of the arrow Z as shown in the illustration.

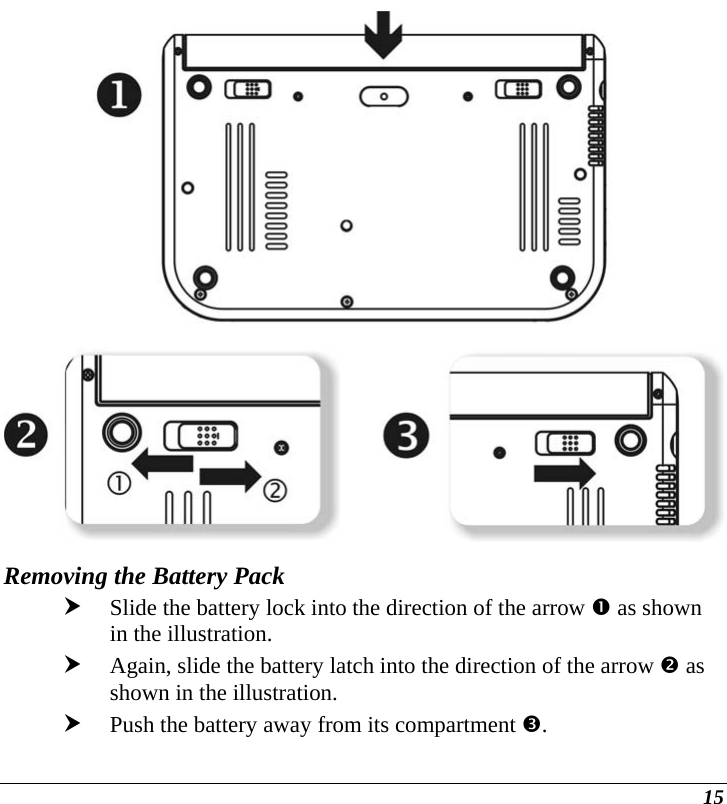

15 Removing the Battery Pack h Slide the battery lock into the direction of the arrow n as shown in the illustration. h Again, slide the battery latch into the direction of the arrow o as shown in the illustration. h Push the battery away from its compartment p.

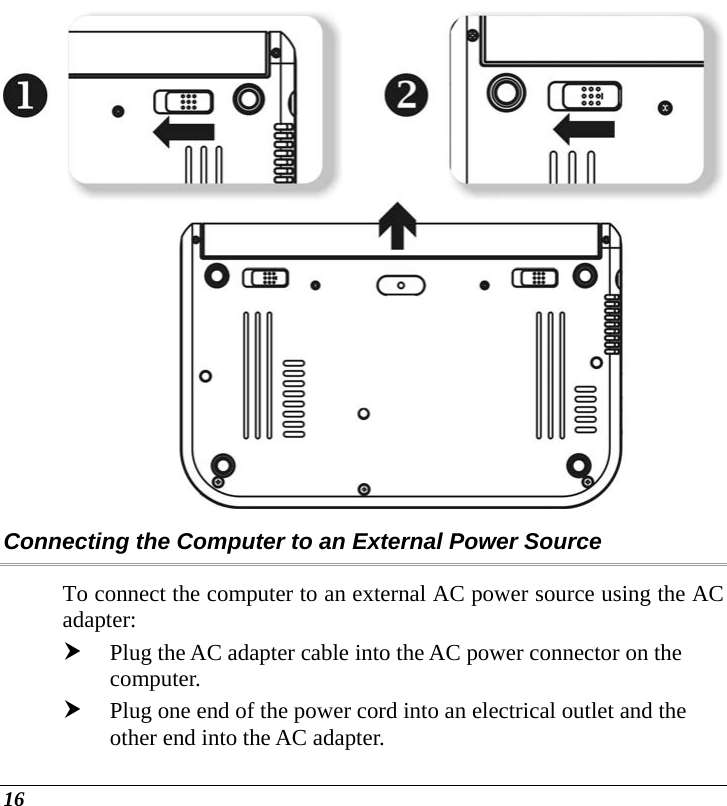

16 Connecting the Computer to an External Power Source To connect the computer to an external AC power source using the AC adapter: h Plug the AC adapter cable into the AC power connector on the computer. h Plug one end of the power cord into an electrical outlet and the other end into the AC adapter.

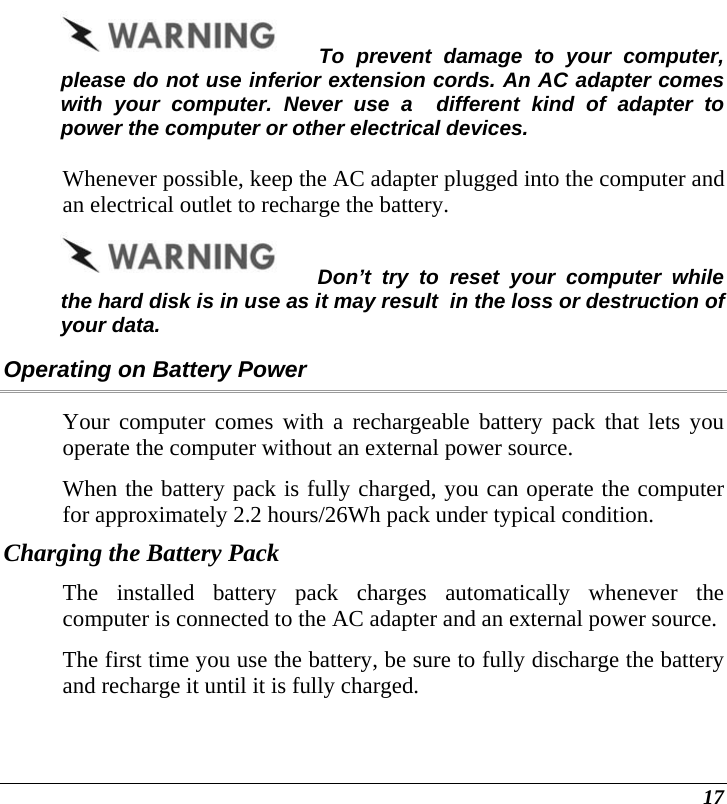

17 To prevent damage to your computer, please do not use inferior extension cords. An AC adapter comes with your computer. Never use a different kind of adapter to power the computer or other electrical devices. Whenever possible, keep the AC adapter plugged into the computer and an electrical outlet to recharge the battery. Don’t try to reset your computer while the hard disk is in use as it may result in the loss or destruction of your data. Operating on Battery Power Your computer comes with a rechargeable battery pack that lets you operate the computer without an external power source. When the battery pack is fully charged, you can operate the computer for approximately 2.2 hours/26Wh pack under typical condition. Charging the Battery Pack The installed battery pack charges automatically whenever the computer is connected to the AC adapter and an external power source. The first time you use the battery, be sure to fully discharge the battery and recharge it until it is fully charged.
18 Intentionally Left Blank

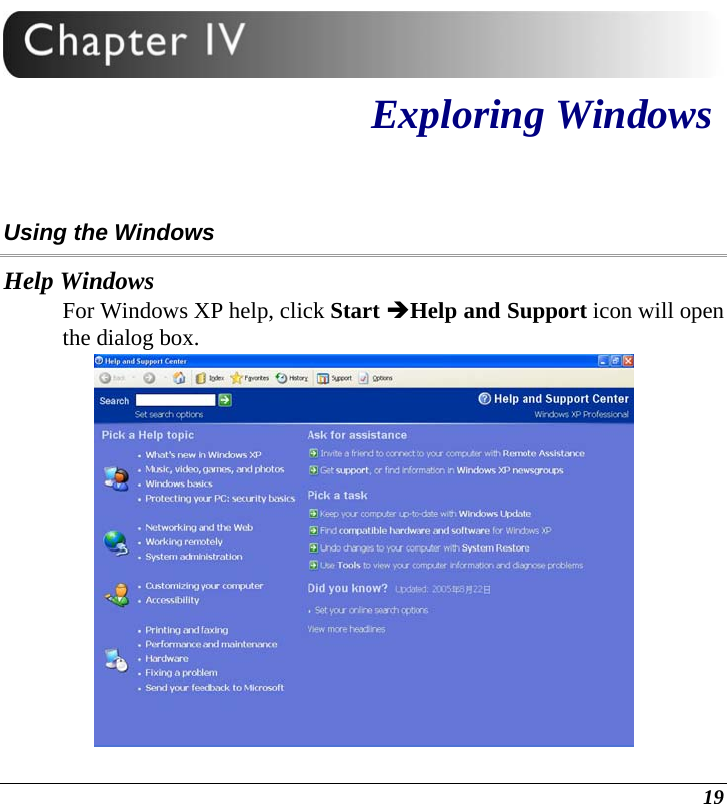

19 Exploring Windows Using the Windows Help Windows For Windows XP help, click Start ÎHelp and Support icon will open the dialog box.

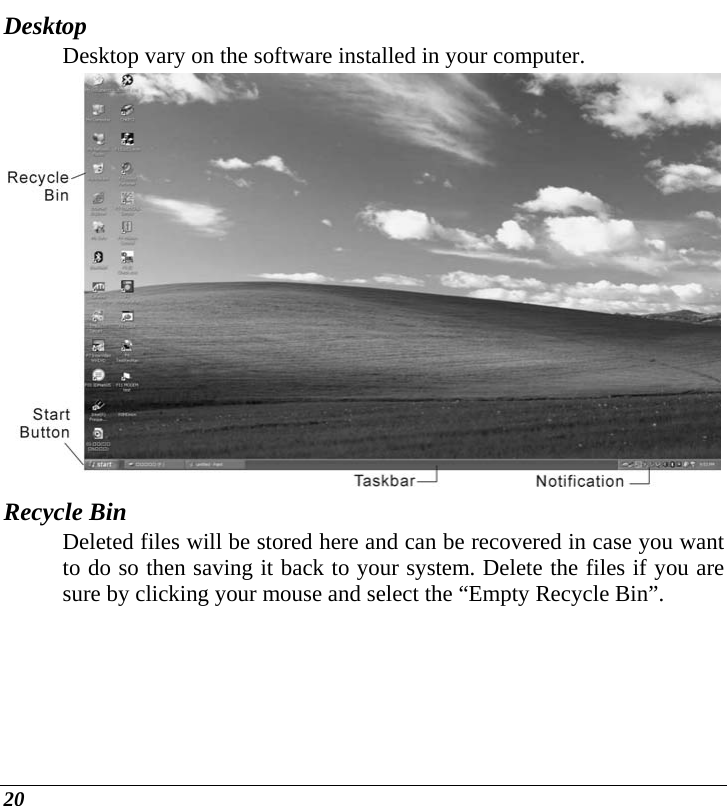

20 Desktop Desktop vary on the software installed in your computer. Recycle Bin Deleted files will be stored here and can be recovered in case you want to do so then saving it back to your system. Delete the files if you are sure by clicking your mouse and select the “Empty Recycle Bin”.

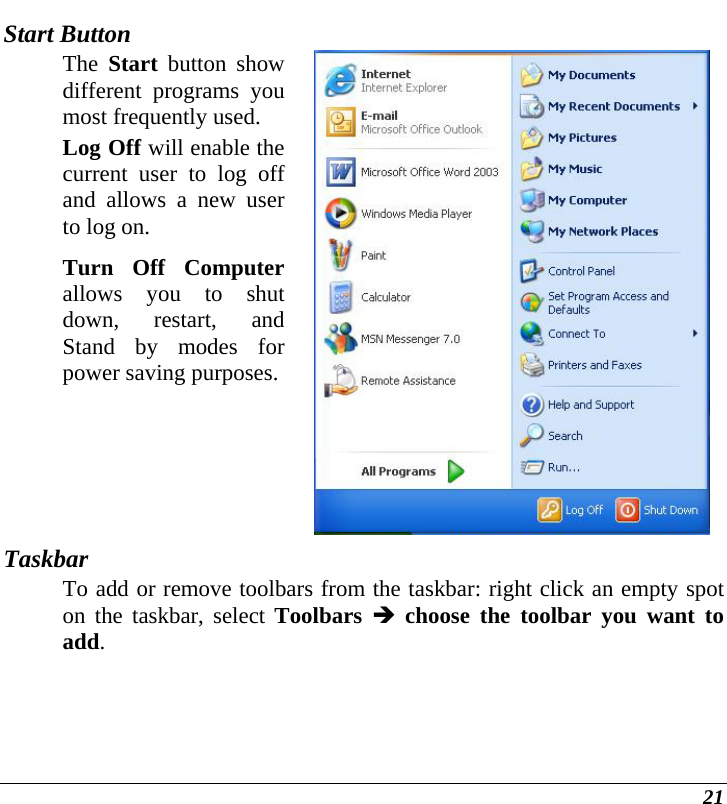

21 Start Button The Start button show different programs you most frequently used. Log Off will enable the current user to log off and allows a new user to log on. Turn Off Computer allows you to shut down, restart, and Stand by modes for power saving purposes. Taskbar To add or remove toolbars from the taskbar: right click an empty spot on the taskbar, select Toolbars Î choose the toolbar you want to add.

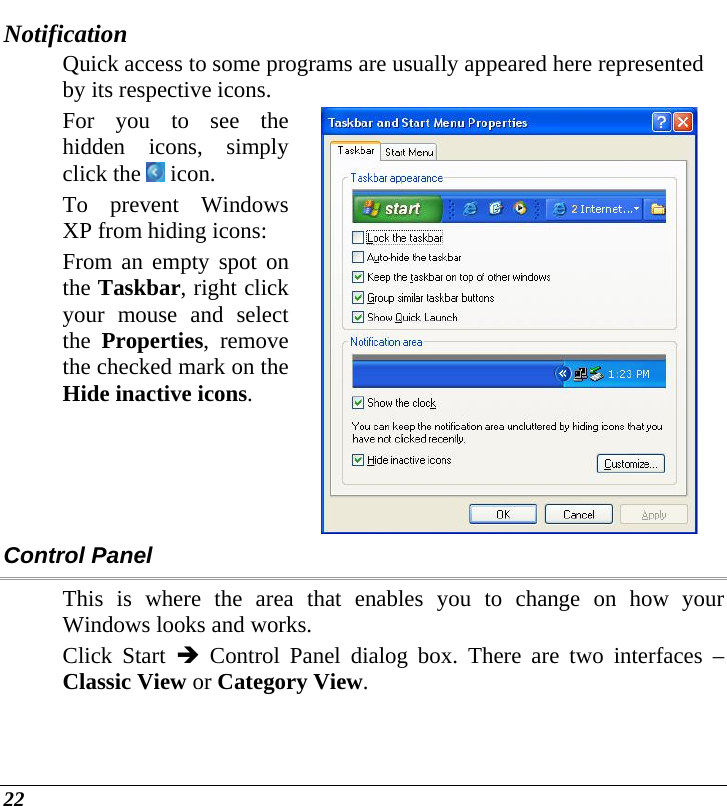

22 Notification Quick access to some programs are usually appeared here represented by its respective icons. For you to see the hidden icons, simply click the icon. To prevent Windows XP from hiding icons: From an empty spot on the Taskbar, right click your mouse and select the Properties, remove the checked mark on the Hide inactive icons. Control Panel This is where the area that enables you to change on how your Windows looks and works. Click Start Î Control Panel dialog box. There are two interfaces – Classic View or Category View.

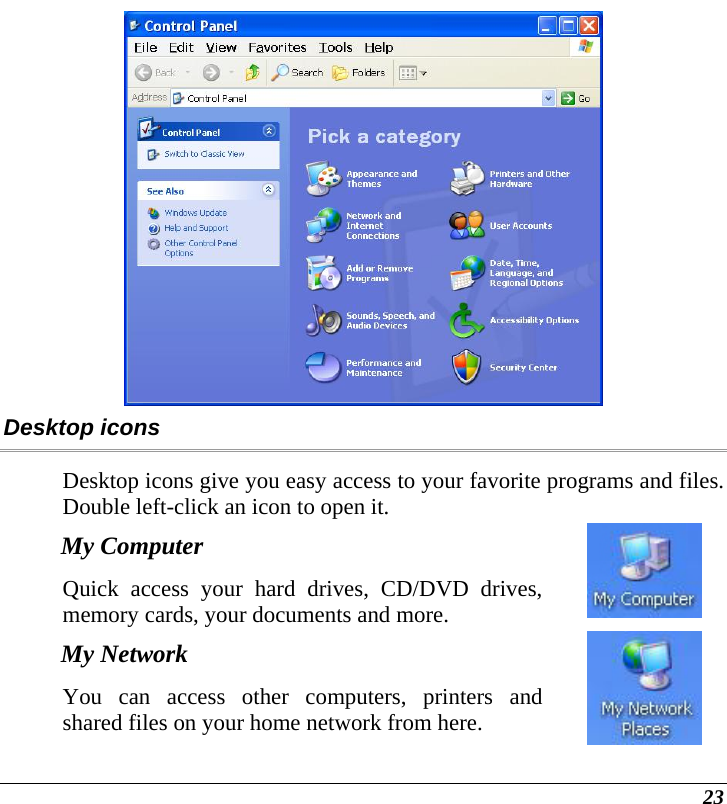

23 Desktop icons Desktop icons give you easy access to your favorite programs and files. Double left-click an icon to open it. My Computer Quick access your hard drives, CD/DVD drives, memory cards, your documents and more. My Network You can access other computers, printers and shared files on your home network from here.

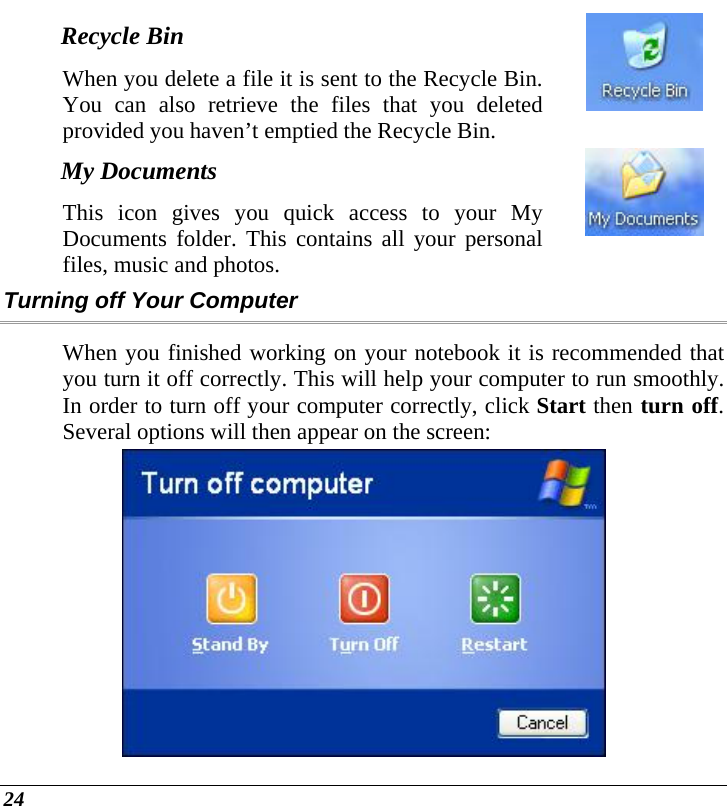

24 Recycle Bin When you delete a file it is sent to the Recycle Bin. You can also retrieve the files that you deleted provided you haven’t emptied the Recycle Bin. My Documents This icon gives you quick access to your My Documents folder. This contains all your personal files, music and photos. Turning off Your Computer When you finished working on your notebook it is recommended that you turn it off correctly. This will help your computer to run smoothly. In order to turn off your computer correctly, click Start then turn off. Several options will then appear on the screen:

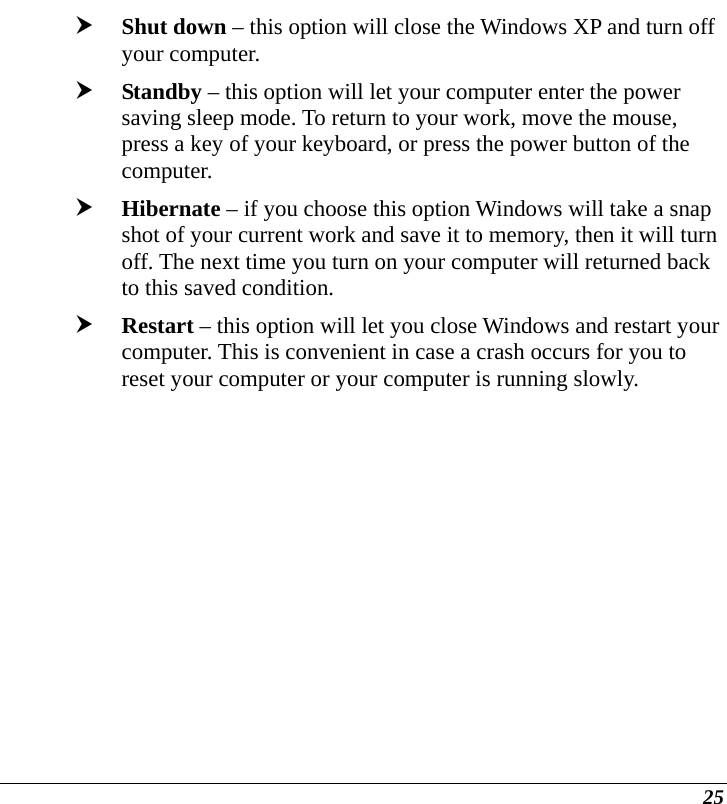

25 h Shut down – this option will close the Windows XP and turn off your computer. h Standby – this option will let your computer enter the power saving sleep mode. To return to your work, move the mouse, press a key of your keyboard, or press the power button of the computer. h Hibernate – if you choose this option Windows will take a snap shot of your current work and save it to memory, then it will turn off. The next time you turn on your computer will returned back to this saved condition. h Restart – this option will let you close Windows and restart your computer. This is convenient in case a crash occurs for you to reset your computer or your computer is running slowly.
26 Intentionally Left Blank

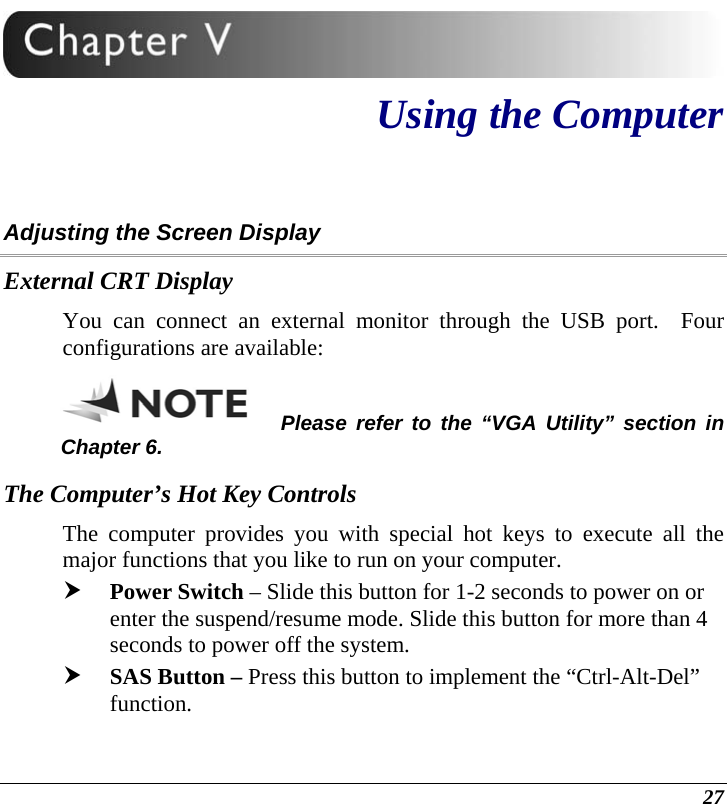

27 Using the Computer Adjusting the Screen Display External CRT Display You can connect an external monitor through the USB port. Four configurations are available: Please refer to the “VGA Utility” section in Chapter 6. The Computer’s Hot Key Controls The computer provides you with special hot keys to execute all the major functions that you like to run on your computer. h Power Switch – Slide this button for 1-2 seconds to power on or enter the suspend/resume mode. Slide this button for more than 4 seconds to power off the system. h SAS Button – Press this button to implement the “Ctrl-Alt-Del” function.

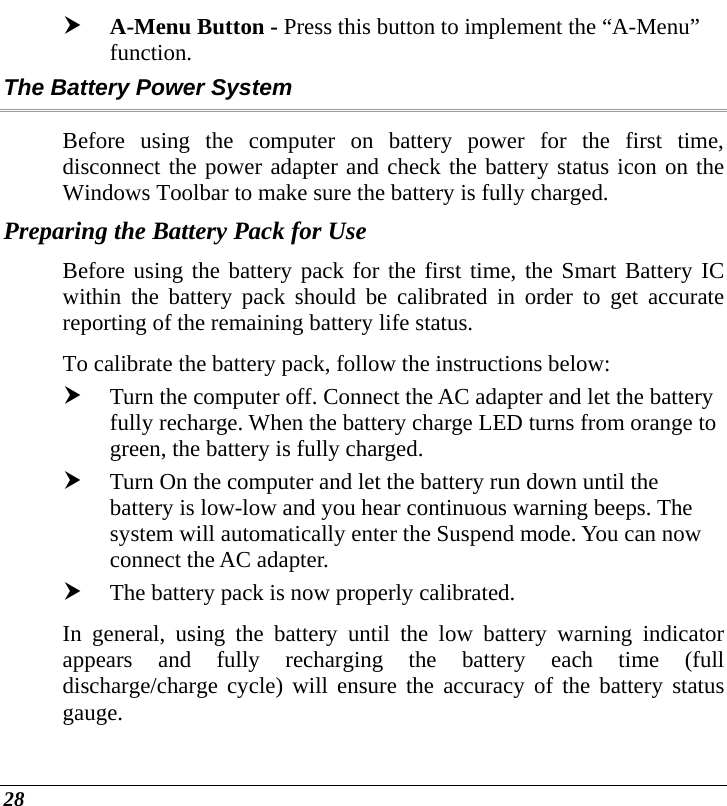

28 h A-Menu Button - Press this button to implement the “A-Menu” function. The Battery Power System Before using the computer on battery power for the first time, disconnect the power adapter and check the battery status icon on the Windows Toolbar to make sure the battery is fully charged. Preparing the Battery Pack for Use Before using the battery pack for the first time, the Smart Battery IC within the battery pack should be calibrated in order to get accurate reporting of the remaining battery life status. To calibrate the battery pack, follow the instructions below: h Turn the computer off. Connect the AC adapter and let the battery fully recharge. When the battery charge LED turns from orange to green, the battery is fully charged. h Turn On the computer and let the battery run down until the battery is low-low and you hear continuous warning beeps. The system will automatically enter the Suspend mode. You can now connect the AC adapter. h The battery pack is now properly calibrated. In general, using the battery until the low battery warning indicator appears and fully recharging the battery each time (full discharge/charge cycle) will ensure the accuracy of the battery status gauge.

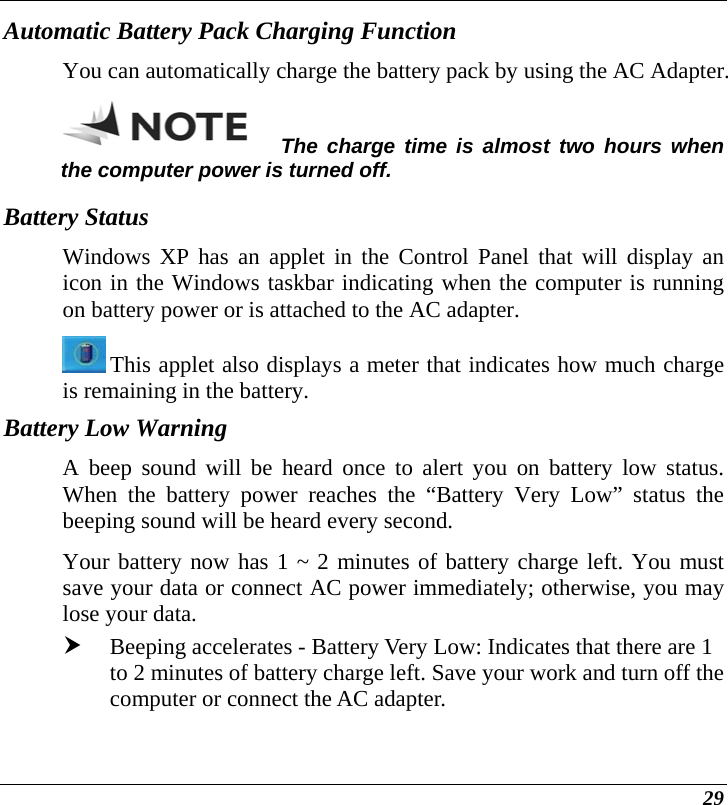

29 Automatic Battery Pack Charging Function You can automatically charge the battery pack by using the AC Adapter. The charge time is almost two hours when the computer power is turned off. Battery Status Windows XP has an applet in the Control Panel that will display an icon in the Windows taskbar indicating when the computer is running on battery power or is attached to the AC adapter. This applet also displays a meter that indicates how much charge is remaining in the battery. Battery Low Warning A beep sound will be heard once to alert you on battery low status. When the battery power reaches the “Battery Very Low” status the beeping sound will be heard every second. Your battery now has 1 ~ 2 minutes of battery charge left. You must save your data or connect AC power immediately; otherwise, you may lose your data. h Beeping accelerates - Battery Very Low: Indicates that there are 1 to 2 minutes of battery charge left. Save your work and turn off the computer or connect the AC adapter.
30 When there is only one minute of battery charge left, the computer will suspend to the HDD and power off. Connect AC power and resume your work. Small Battery for the Real Time Clock There is a small built-in battery pack that supplies power to the system in order to maintain certain system information while the power is off. If the computer is left without a power source for long period of time, this battery will be exhausted and system information will be lost. To avoid damage, only use replacement batteries recommended by System provider. To prevent the loss of data when the system loses power, do not remove the battery pack while the power is on. Using the A-Menu Press the “Menu” button located on the side of the Tablet PC to display the “A-Menu” window dialog box. Some of the most popular functions can be accessed from this menu.

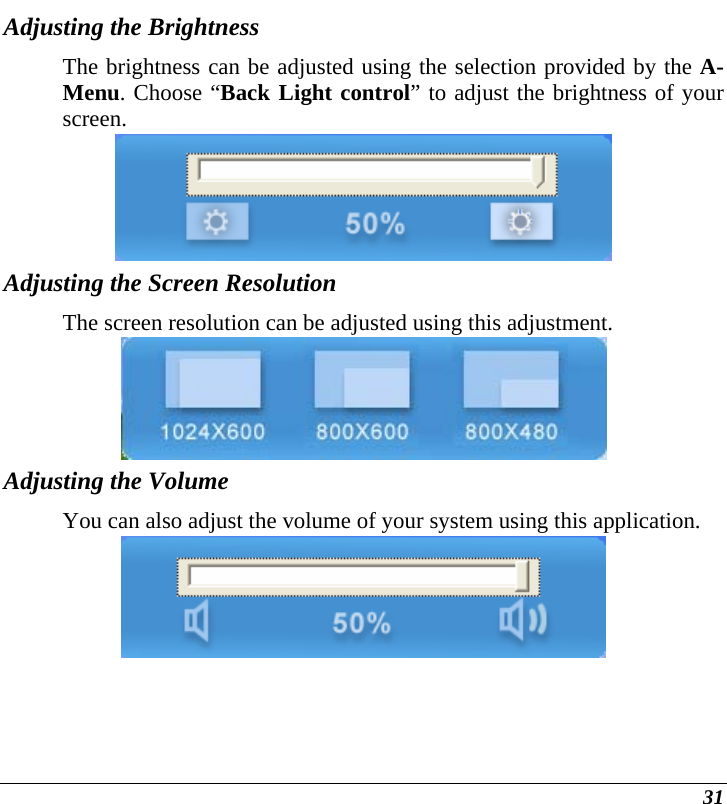

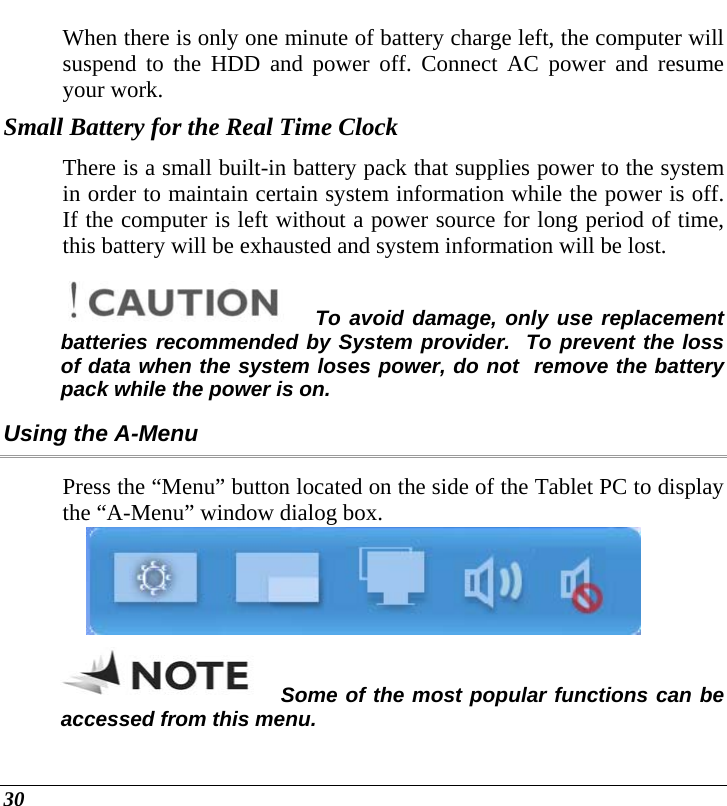

31 Adjusting the Brightness The brightness can be adjusted using the selection provided by the A-Menu. Choose “Back Light control” to adjust the brightness of your screen. Adjusting the Screen Resolution The screen resolution can be adjusted using this adjustment. Adjusting the Volume You can also adjust the volume of your system using this application.

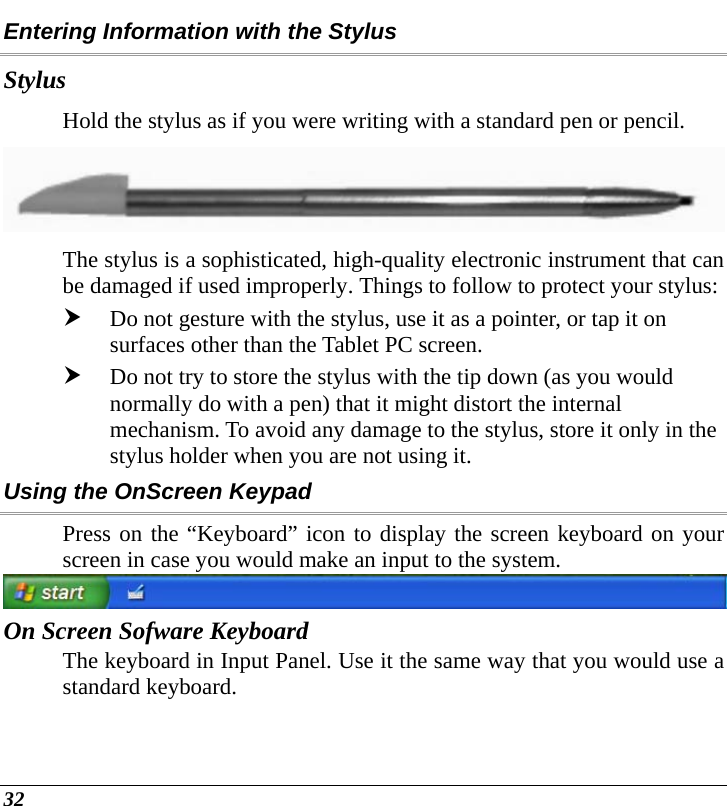

32 Entering Information with the Stylus Stylus Hold the stylus as if you were writing with a standard pen or pencil. The stylus is a sophisticated, high-quality electronic instrument that can be damaged if used improperly. Things to follow to protect your stylus: h Do not gesture with the stylus, use it as a pointer, or tap it on surfaces other than the Tablet PC screen. h Do not try to store the stylus with the tip down (as you would normally do with a pen) that it might distort the internal mechanism. To avoid any damage to the stylus, store it only in the stylus holder when you are not using it. Using the OnScreen Keypad Press on the “Keyboard” icon to display the screen keyboard on your screen in case you would make an input to the system. On Screen Sofware Keyboard The keyboard in Input Panel. Use it the same way that you would use a standard keyboard.

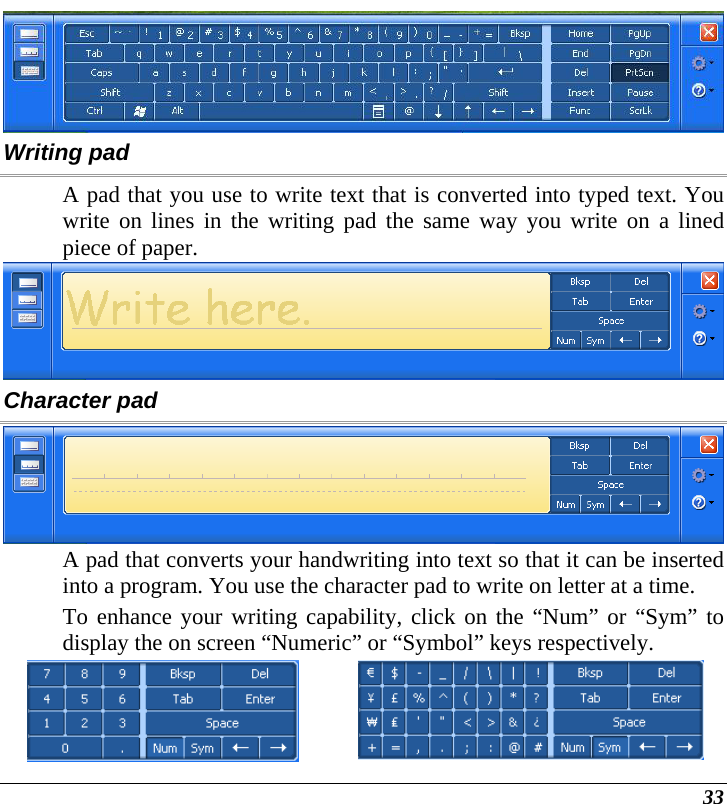

33 Writing pad A pad that you use to write text that is converted into typed text. You write on lines in the writing pad the same way you write on a lined piece of paper. Character pad A pad that converts your handwriting into text so that it can be inserted into a program. You use the character pad to write on letter at a time. To enhance your writing capability, click on the “Num” or “Sym” to display the on screen “Numeric” or “Symbol” keys respectively.

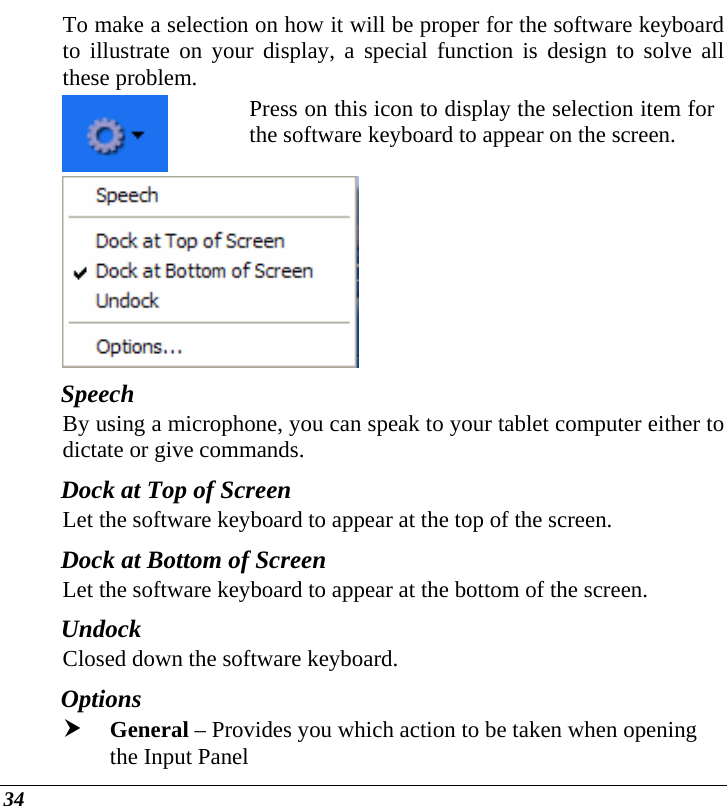

34 To make a selection on how it will be proper for the software keyboard to illustrate on your display, a special function is design to solve all these problem. Press on this icon to display the selection item for the software keyboard to appear on the screen. Speech By using a microphone, you can speak to your tablet computer either to dictate or give commands. Dock at Top of Screen Let the software keyboard to appear at the top of the screen. Dock at Bottom of Screen Let the software keyboard to appear at the bottom of the screen. Undock Closed down the software keyboard. Options h General – Provides you which action to be taken when opening the Input Panel

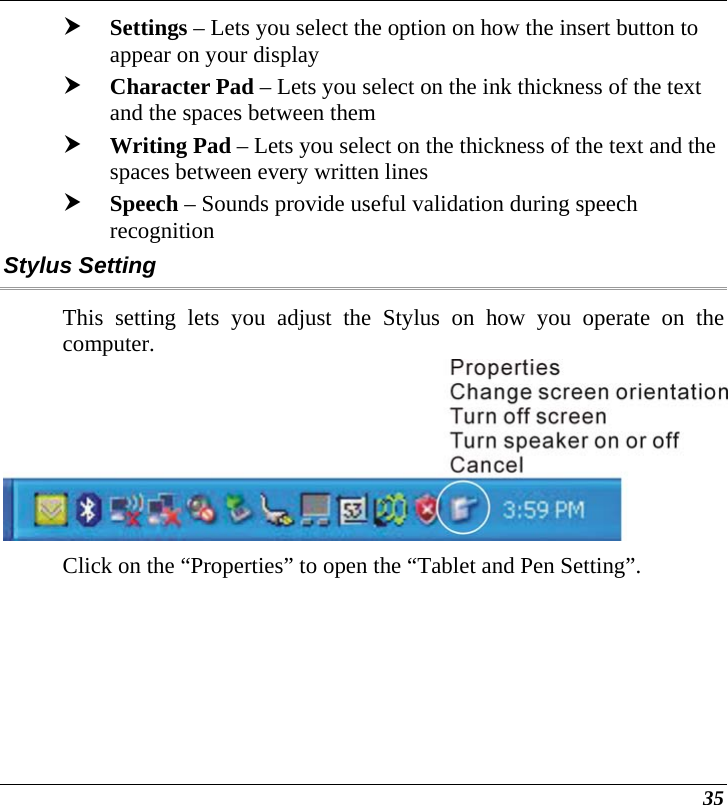

35 h Settings – Lets you select the option on how the insert button to appear on your display h Character Pad – Lets you select on the ink thickness of the text and the spaces between them h Writing Pad – Lets you select on the thickness of the text and the spaces between every written lines h Speech – Sounds provide useful validation during speech recognition Stylus Setting This setting lets you adjust the Stylus on how you operate on the computer. Click on the “Properties” to open the “Tablet and Pen Setting”.

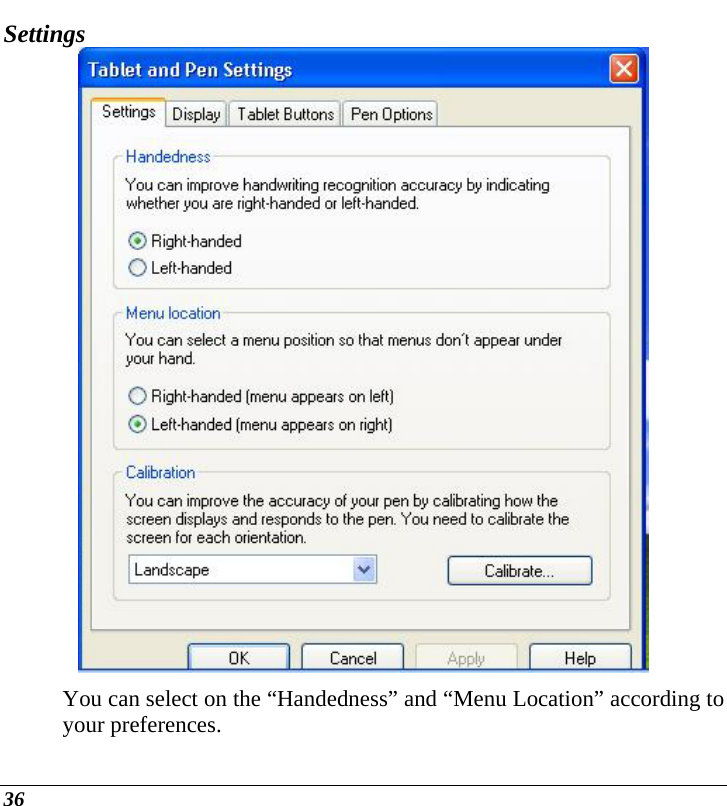

36 Settings You can select on the “Handedness” and “Menu Location” according to your preferences.

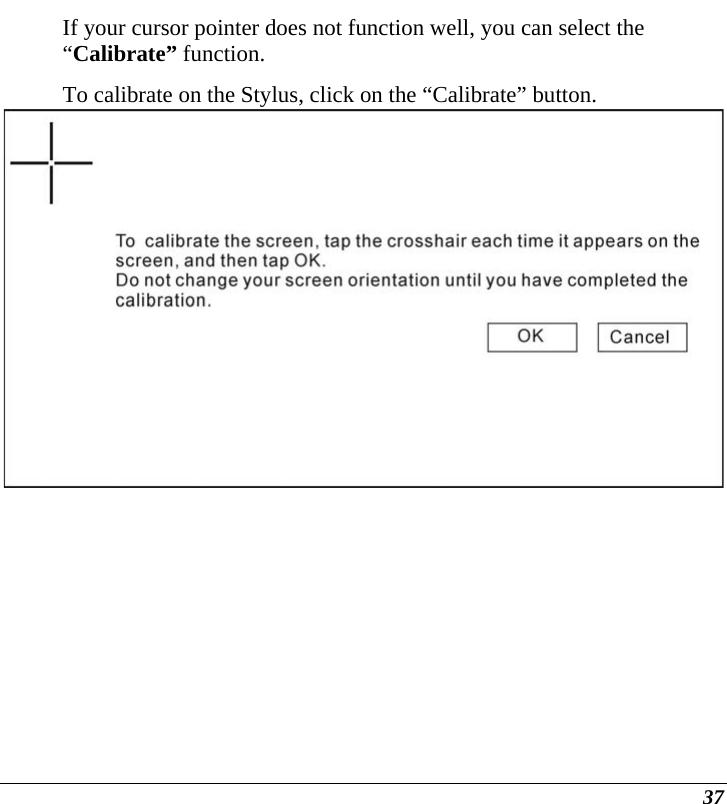

37 If your cursor pointer does not function well, you can select the “Calibrate” function. To calibrate on the Stylus, click on the “Calibrate” button.

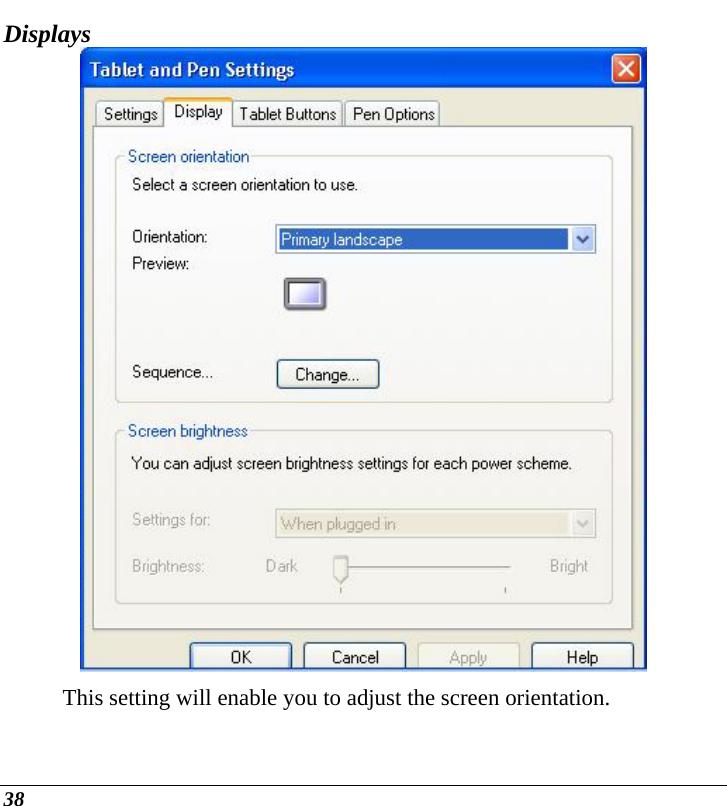

38 Displays This setting will enable you to adjust the screen orientation.

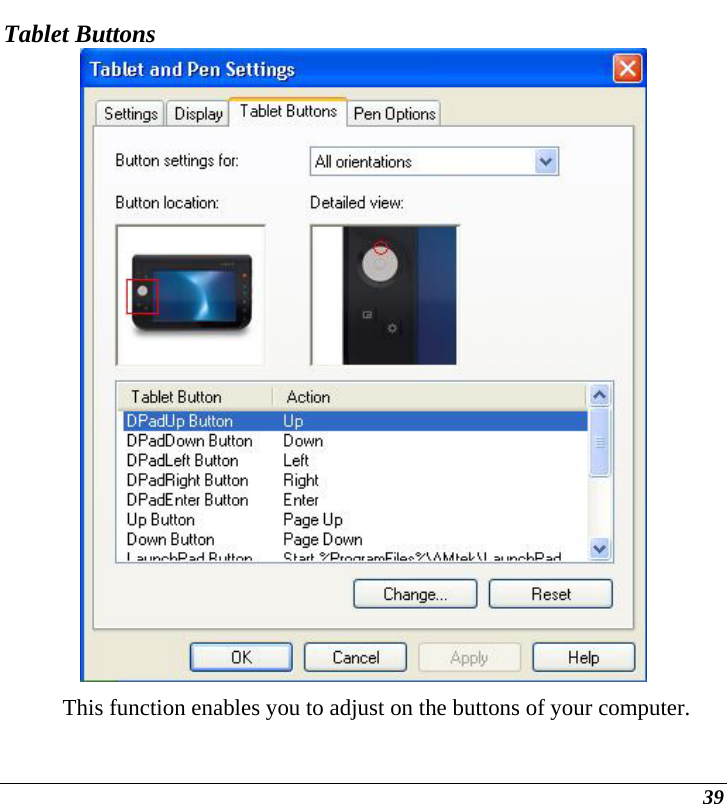

39 Tablet Buttons This function enables you to adjust on the buttons of your computer.

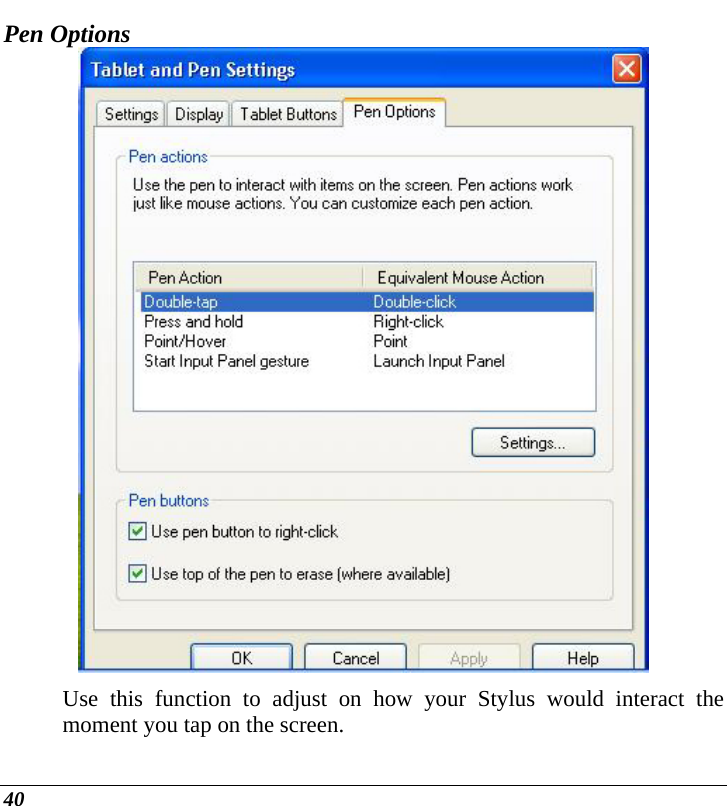

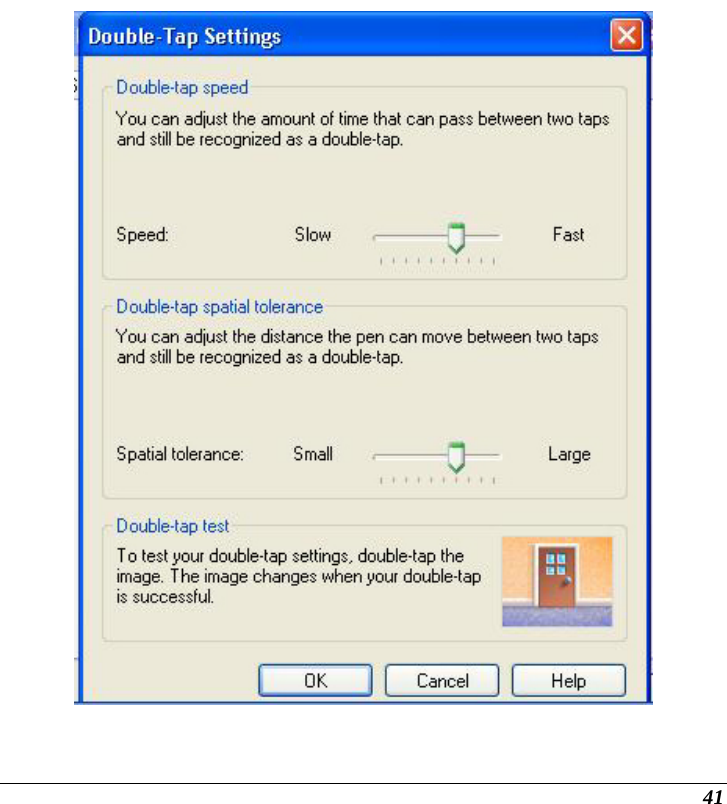

40 Pen Options Use this function to adjust on how your Stylus would interact the moment you tap on the screen.
41

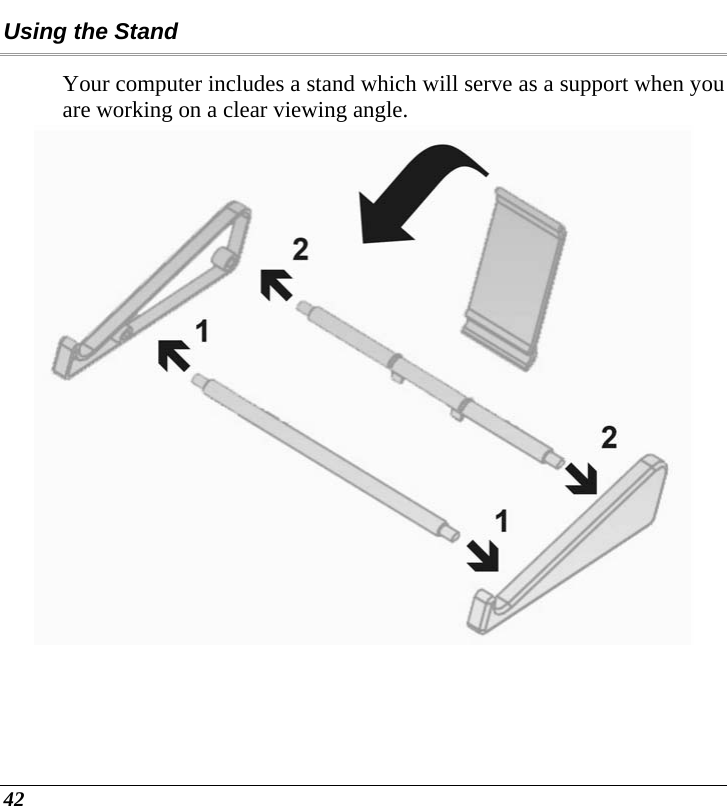

42 Using the Stand Your computer includes a stand which will serve as a support when you are working on a clear viewing angle.

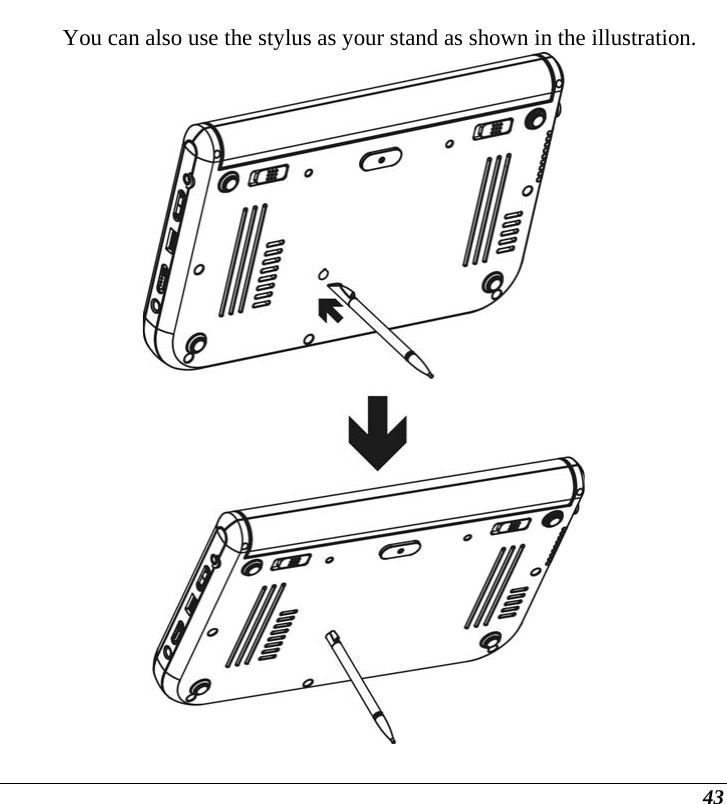

43 You can also use the stylus as your stand as shown in the illustration.
44

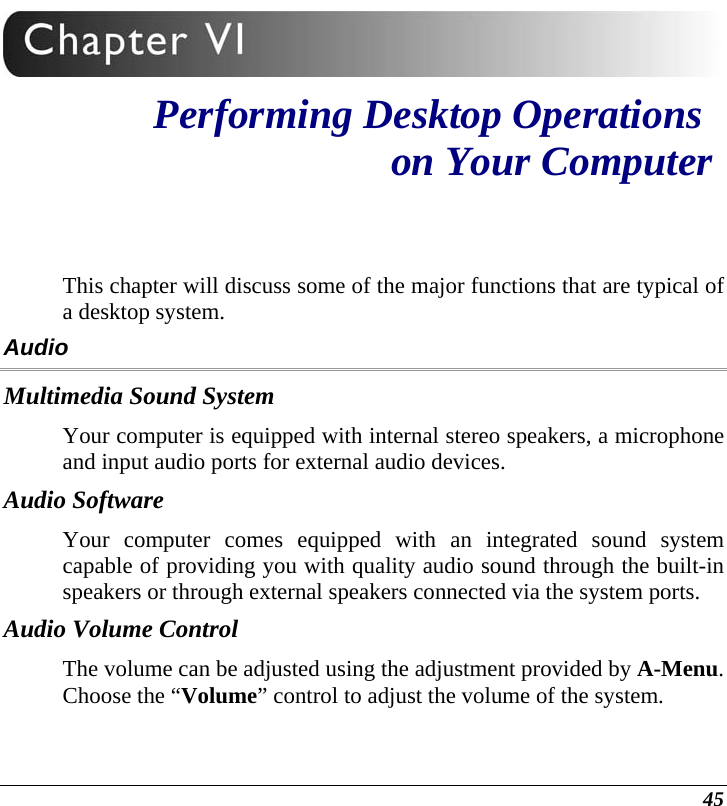

45 Performing Desktop Operations on Your Computer This chapter will discuss some of the major functions that are typical of a desktop system. Audio Multimedia Sound System Your computer is equipped with internal stereo speakers, a microphone and input audio ports for external audio devices. Audio Software Your computer comes equipped with an integrated sound system capable of providing you with quality audio sound through the built-in speakers or through external speakers connected via the system ports. Audio Volume Control The volume can be adjusted using the adjustment provided by A-Menu. Choose the “Volume” control to adjust the volume of the system.

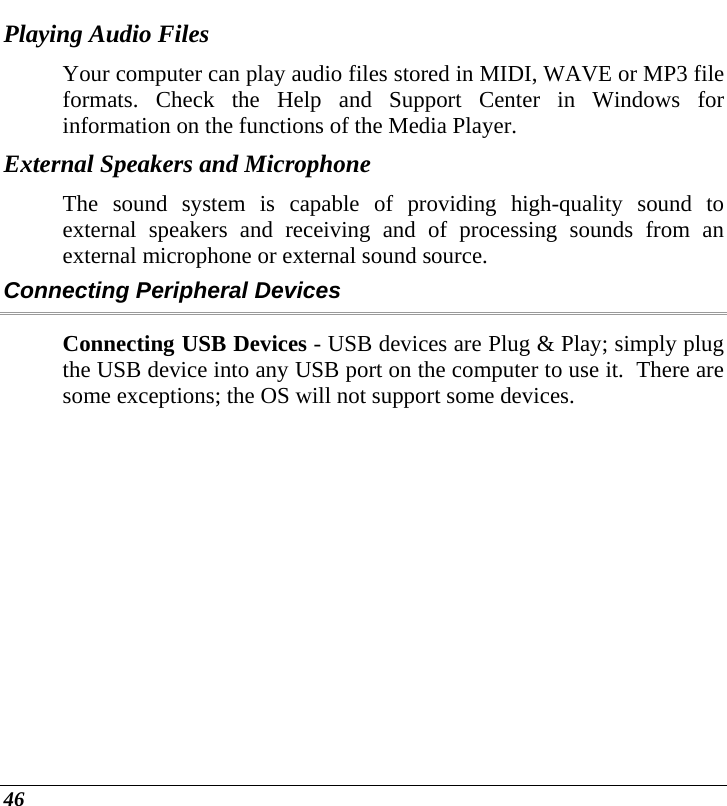

46 Playing Audio Files Your computer can play audio files stored in MIDI, WAVE or MP3 file formats. Check the Help and Support Center in Windows for information on the functions of the Media Player. External Speakers and Microphone The sound system is capable of providing high-quality sound to external speakers and receiving and of processing sounds from an external microphone or external sound source. Connecting Peripheral Devices Connecting USB Devices - USB devices are Plug & Play; simply plug the USB device into any USB port on the computer to use it. There are some exceptions; the OS will not support some devices.

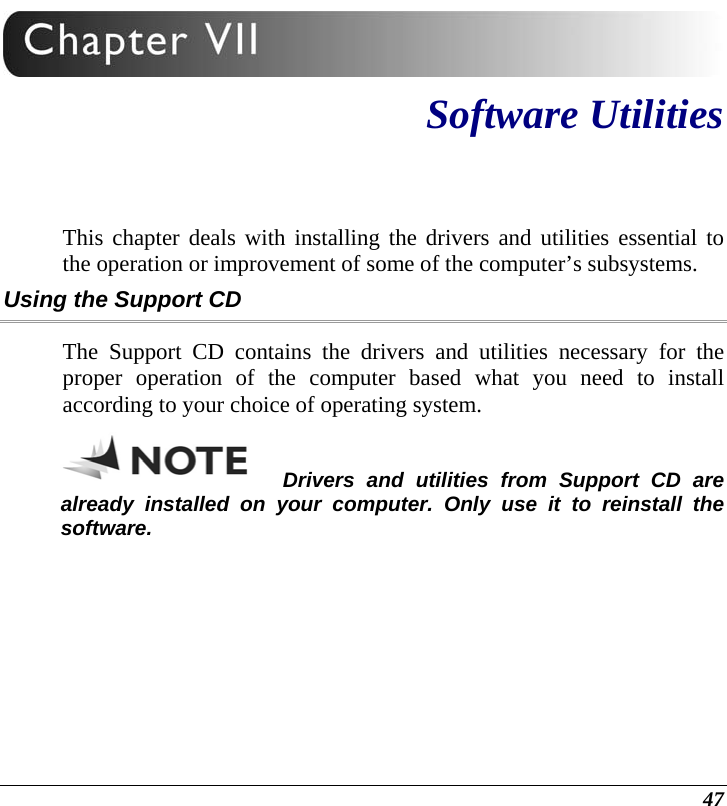

47 Software Utilities This chapter deals with installing the drivers and utilities essential to the operation or improvement of some of the computer’s subsystems. Using the Support CD The Support CD contains the drivers and utilities necessary for the proper operation of the computer based what you need to install according to your choice of operating system. Drivers and utilities from Support CD are already installed on your computer. Only use it to reinstall the software.

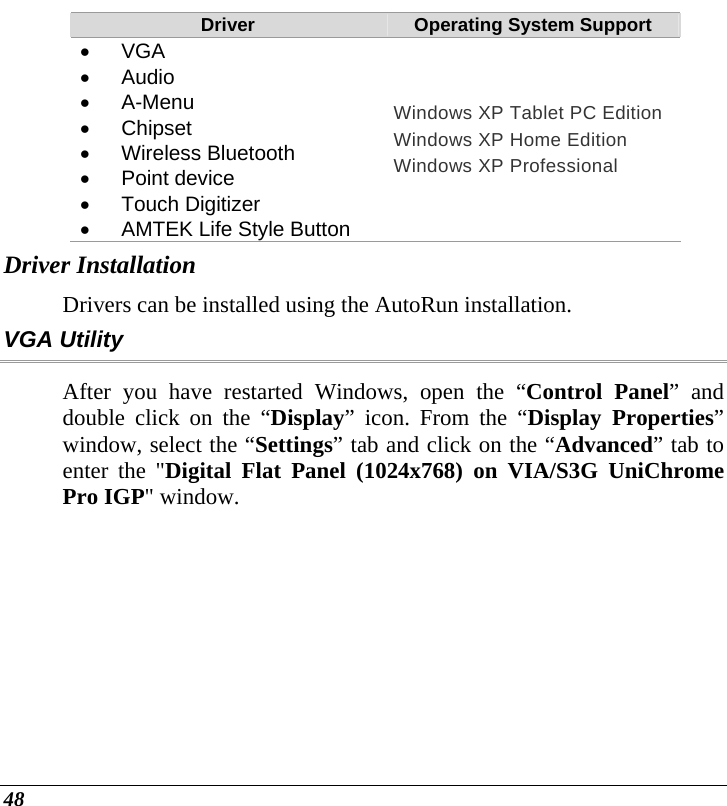

48 Driver Operating System Support • VGA • Audio • A-Menu • Chipset • Wireless Bluetooth • Point device • Touch Digitizer • AMTEK Life Style Button Windows XP Tablet PC EditionWindows XP Home Edition Windows XP Professional Driver Installation Drivers can be installed using the AutoRun installation. VGA Utility After you have restarted Windows, open the “Control Panel” and double click on the “Display” icon. From the “Display Properties” window, select the “Settings” tab and click on the “Advanced” tab to enter the "Digital Flat Panel (1024x768) on VIA/S3G UniChrome Pro IGP" window.

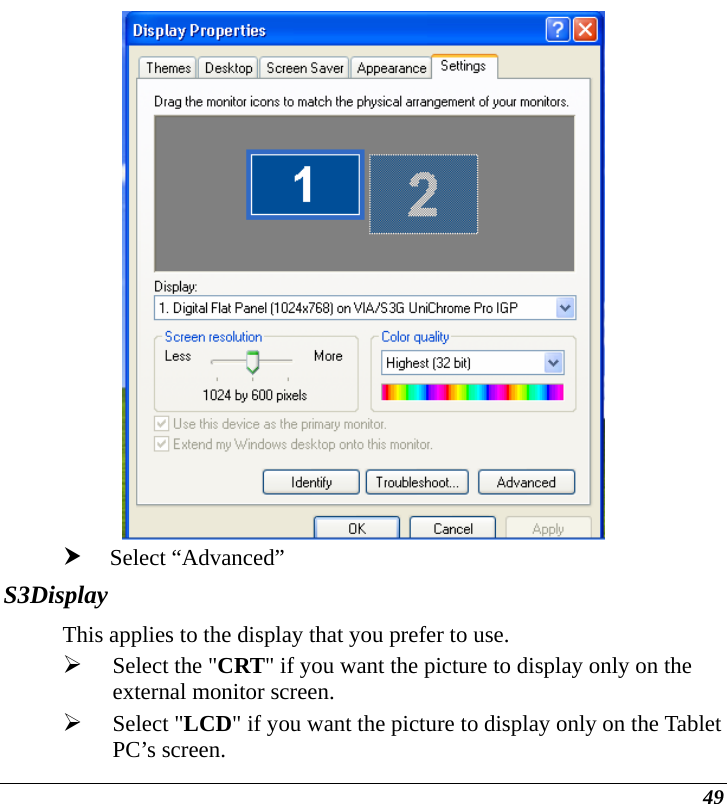

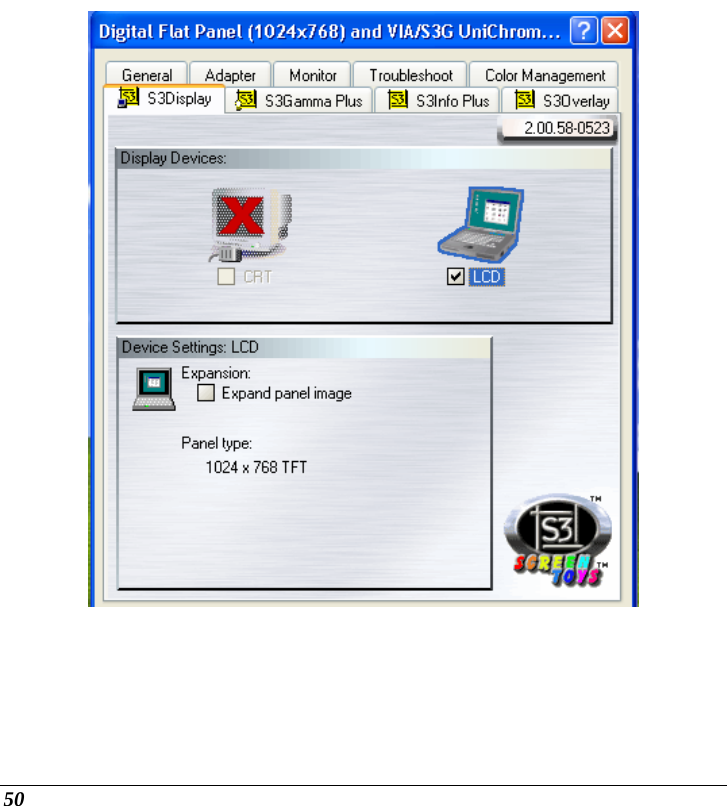

49 h Select “Advanced” S3Display This applies to the display that you prefer to use. ¾ Select the "CRT" if you want the picture to display only on the external monitor screen. ¾ Select "LCD" if you want the picture to display only on the Tablet PC’s screen.
50

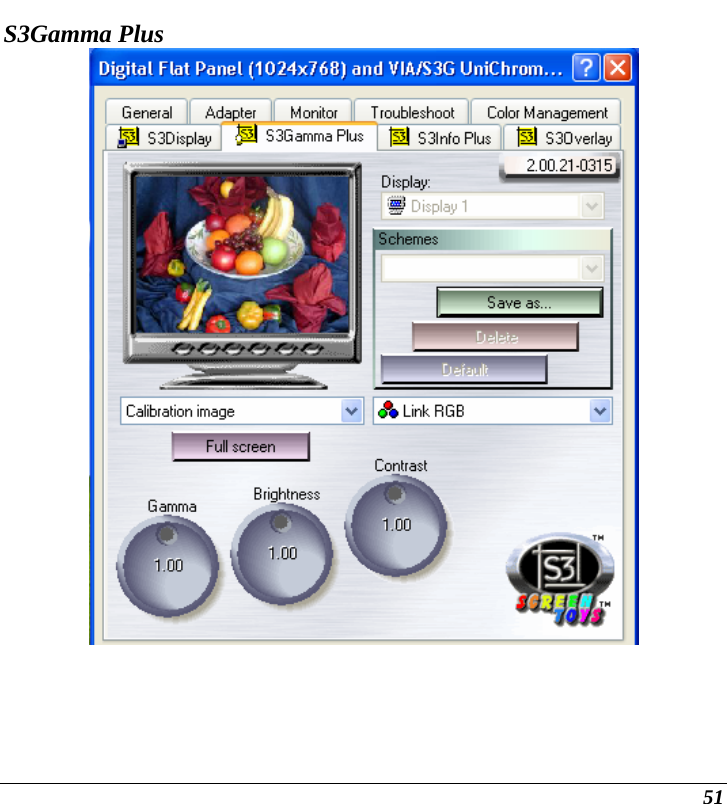

51 S3Gamma Plus
52 S3Overlay

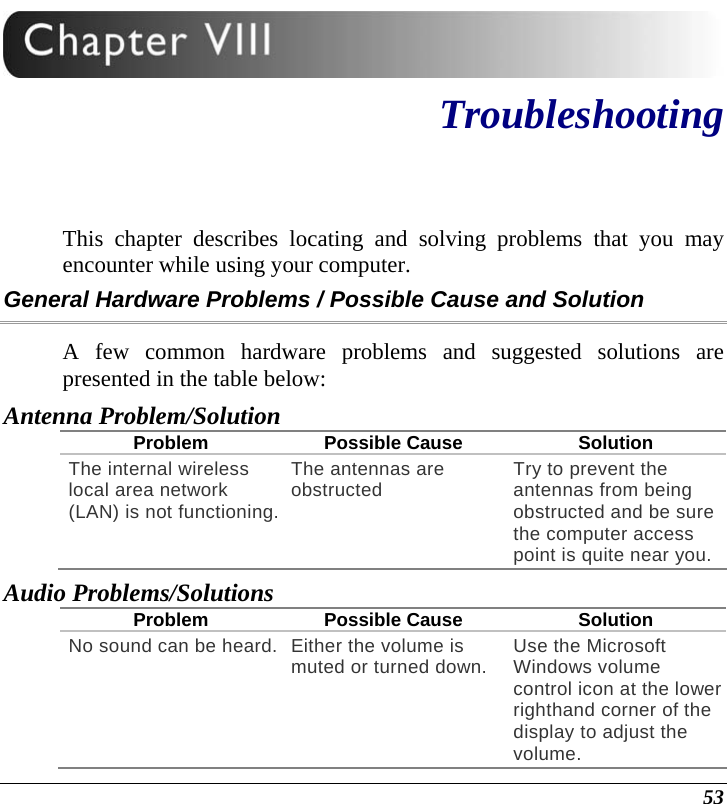

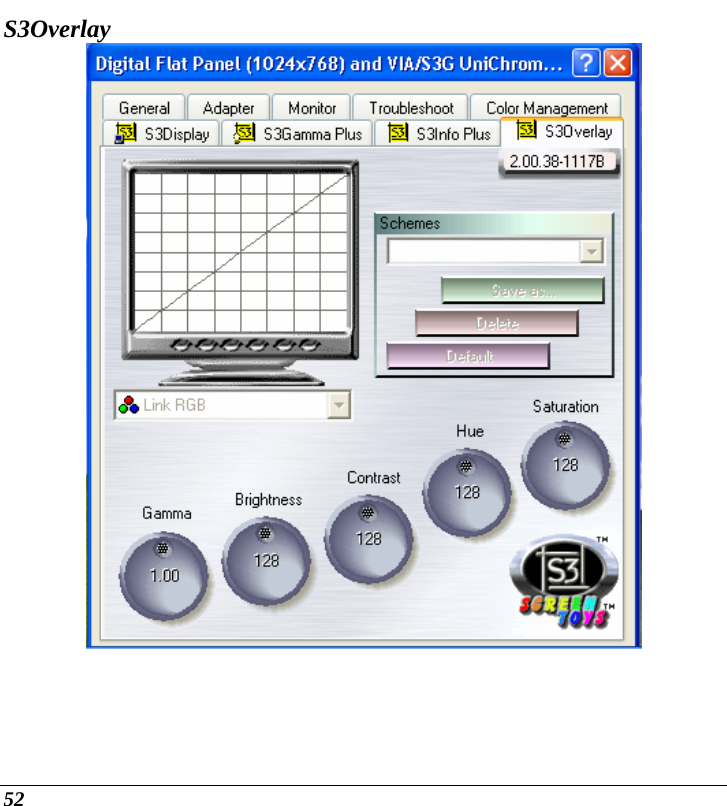

53 Troubleshooting This chapter describes locating and solving problems that you may encounter while using your computer. General Hardware Problems / Possible Cause and Solution A few common hardware problems and suggested solutions are presented in the table below: Antenna Problem/Solution Problem Possible Cause Solution The internal wireless local area network (LAN) is not functioning.The antennas are obstructed Try to prevent the antennas from being obstructed and be sure the computer access point is quite near you. Audio Problems/Solutions Problem Possible Cause Solution No sound can be heard. Either the volume is muted or turned down. Use the Microsoft Windows volume control icon at the lower righthand corner of the display to adjust the volume.

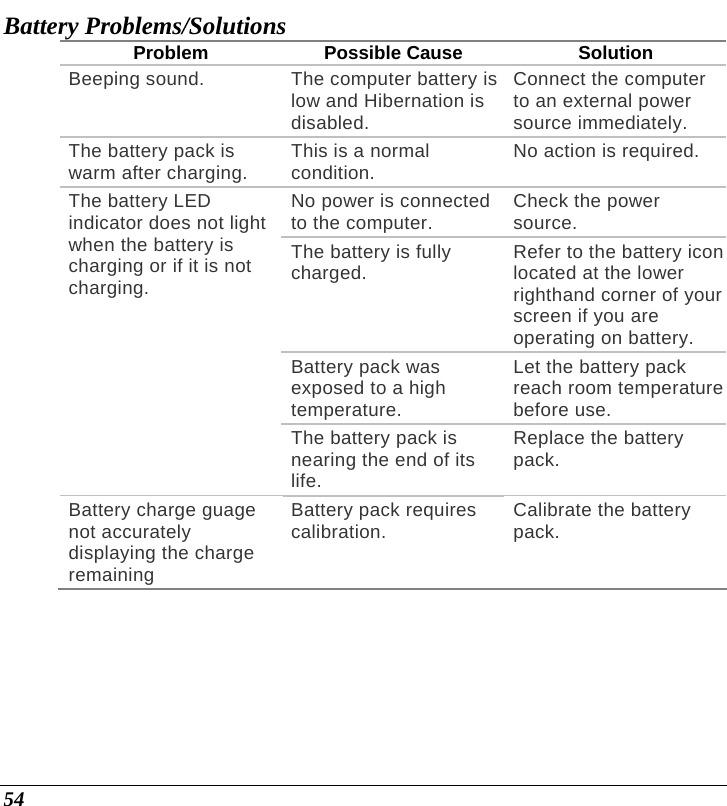

54 Battery Problems/Solutions Problem Possible Cause Solution Beeping sound. The computer battery is low and Hibernation is disabled. Connect the computer to an external power source immediately. The battery pack is warm after charging. This is a normal condition. No action is required. No power is connected to the computer. Check the power source. The battery is fully charged. Refer to the battery icon located at the lower righthand corner of your screen if you are operating on battery. Battery pack was exposed to a high temperature. Let the battery pack reach room temperature before use. The battery LED indicator does not light when the battery is charging or if it is not charging. The battery pack is nearing the end of its life. Replace the battery pack. Battery charge guage not accurately displaying the charge remaining Battery pack requires calibration. Calibrate the battery pack.

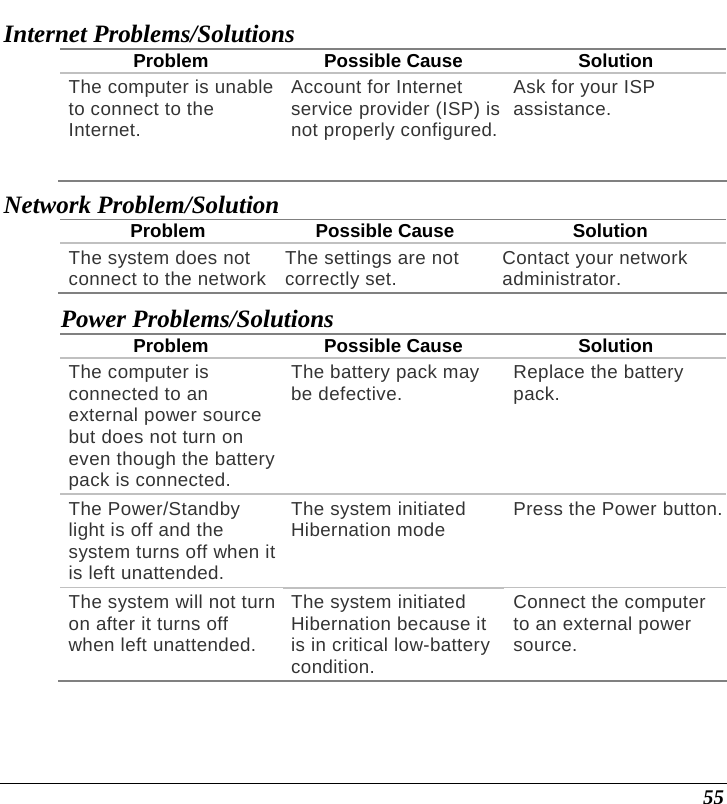

55 Internet Problems/Solutions Problem Possible Cause Solution The computer is unable to connect to the Internet. Account for Internet service provider (ISP) is not properly configured.Ask for your ISP assistance. Network Problem/Solution Problem Possible Cause Solution The system does not connect to the network The settings are not correctly set. Contact your network administrator. Power Problems/Solutions Problem Possible Cause Solution The computer is connected to an external power source but does not turn on even though the battery pack is connected. The battery pack may be defective. Replace the battery pack. The Power/Standby light is off and the system turns off when it is left unattended. The system initiated Hibernation mode Press the Power button.The system will not turn on after it turns off when left unattended. The system initiated Hibernation because it is in critical low-battery condition. Connect the computer to an external power source.

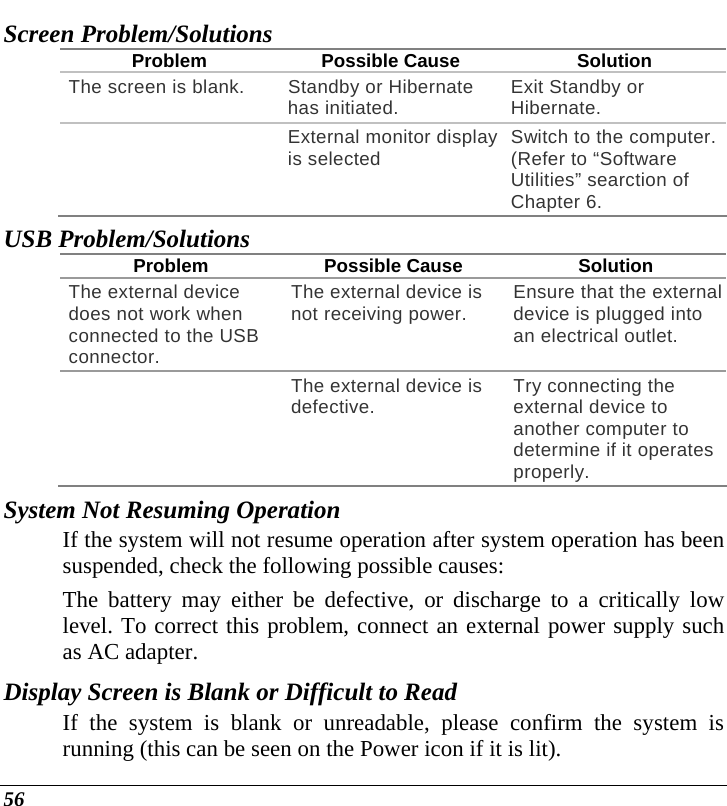

56 Screen Problem/Solutions Problem Possible Cause Solution The screen is blank. Standby or Hibernate has initiated. Exit Standby or Hibernate. External monitor display is selected Switch to the computer. (Refer to “Software Utilities” searction of Chapter 6. USB Problem/Solutions Problem Possible Cause Solution The external device does not work when connected to the USB connector. The external device is not receiving power. Ensure that the external device is plugged into an electrical outlet. The external device is defective. Try connecting the external device to another computer to determine if it operates properly. System Not Resuming Operation If the system will not resume operation after system operation has been suspended, check the following possible causes: The battery may either be defective, or discharge to a critically low level. To correct this problem, connect an external power supply such as AC adapter. Display Screen is Blank or Difficult to Read If the system is blank or unreadable, please confirm the system is running (this can be seen on the Power icon if it is lit).

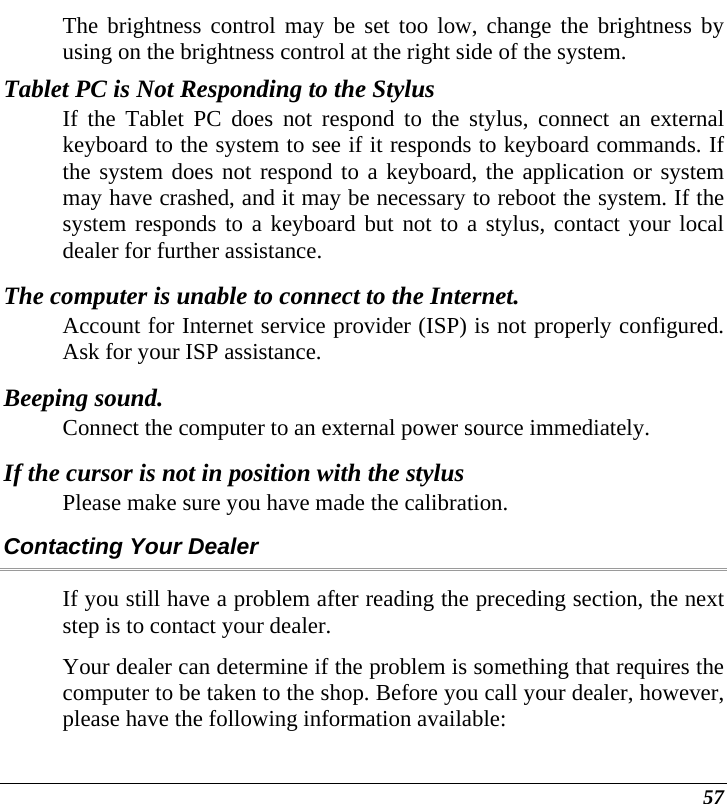

57 The brightness control may be set too low, change the brightness by using on the brightness control at the right side of the system. Tablet PC is Not Responding to the Stylus If the Tablet PC does not respond to the stylus, connect an external keyboard to the system to see if it responds to keyboard commands. If the system does not respond to a keyboard, the application or system may have crashed, and it may be necessary to reboot the system. If the system responds to a keyboard but not to a stylus, contact your local dealer for further assistance. The computer is unable to connect to the Internet. Account for Internet service provider (ISP) is not properly configured. Ask for your ISP assistance. Beeping sound. Connect the computer to an external power source immediately. If the cursor is not in position with the stylus Please make sure you have made the calibration. Contacting Your Dealer If you still have a problem after reading the preceding section, the next step is to contact your dealer. Your dealer can determine if the problem is something that requires the computer to be taken to the shop. Before you call your dealer, however, please have the following information available:

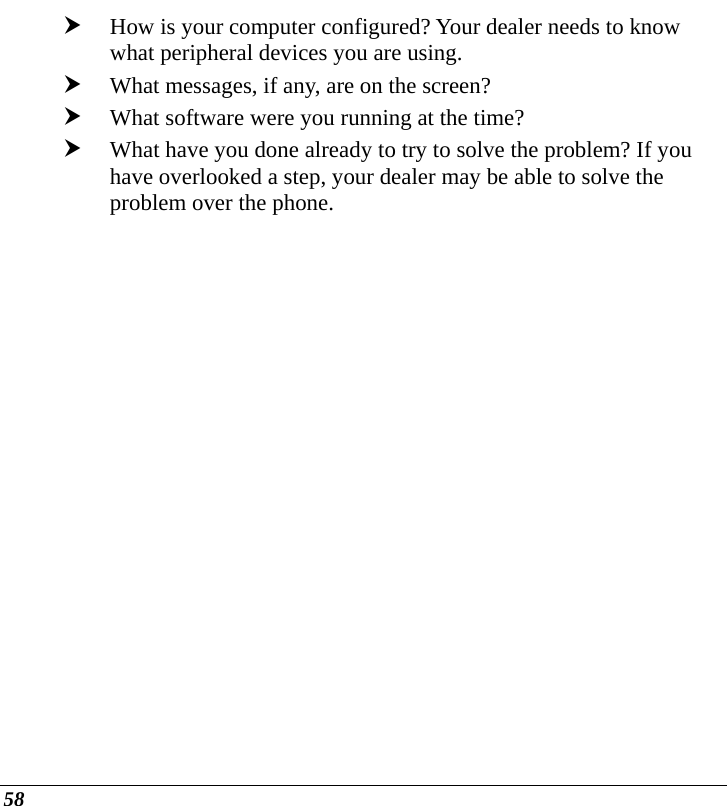

58 h How is your computer configured? Your dealer needs to know what peripheral devices you are using. h What messages, if any, are on the screen? h What software were you running at the time? h What have you done already to try to solve the problem? If you have overlooked a step, your dealer may be able to solve the problem over the phone.

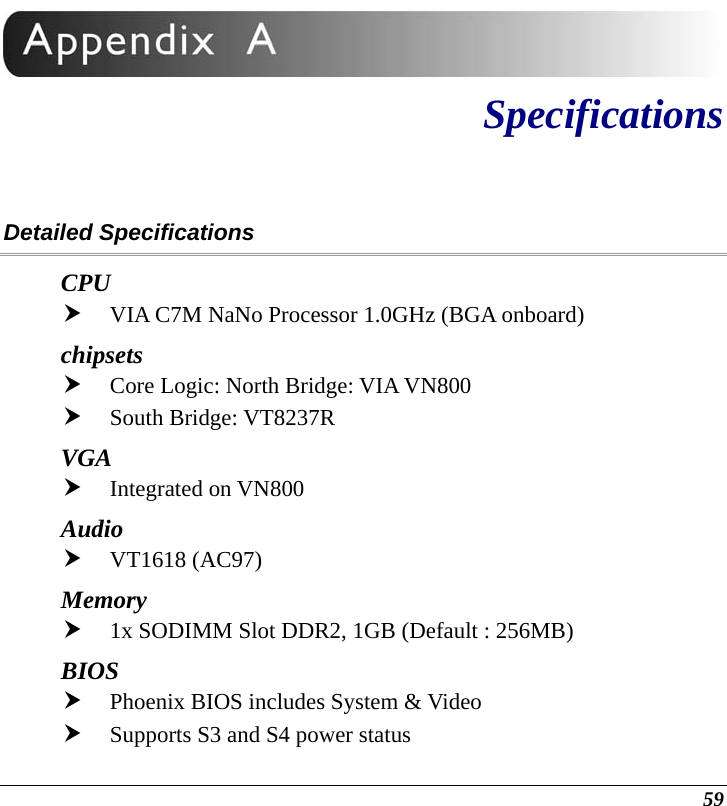

59 Specifications Detailed Specifications CPU h VIA C7M NaNo Processor 1.0GHz (BGA onboard) chipsets h Core Logic: North Bridge: VIA VN800 h South Bridge: VT8237R VGA h Integrated on VN800 Audio h VT1618 (AC97) Memory h 1x SODIMM Slot DDR2, 1GB (Default : 256MB) BIOS h Phoenix BIOS includes System & Video h Supports S3 and S4 power status

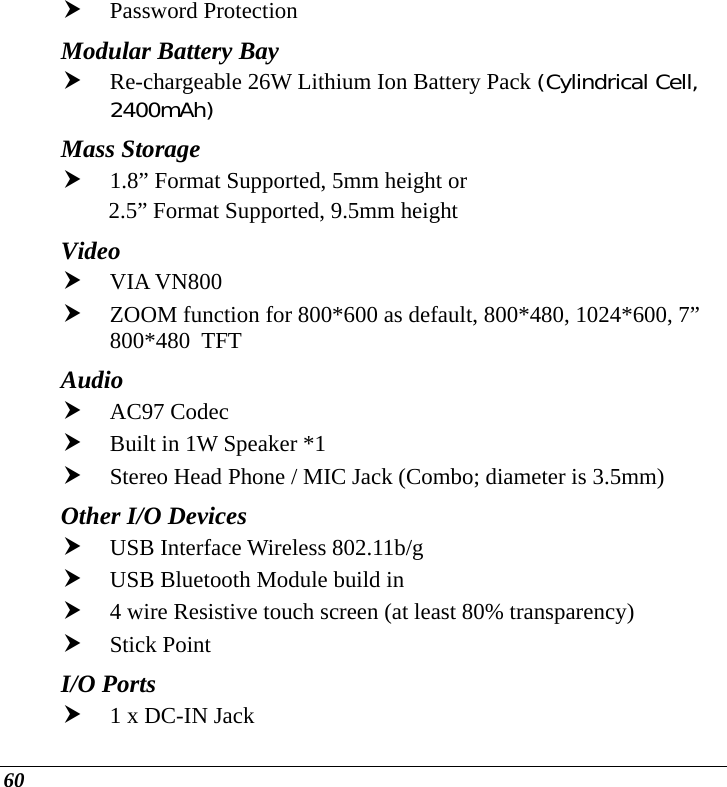

60 h Password Protection Modular Battery Bay h Re-chargeable 26W Lithium Ion Battery Pack (Cylindrical Cell, 2400mAh) Mass Storage h 1.8” Format Supported, 5mm height or 2.5” Format Supported, 9.5mm height Video h VIA VN800 h ZOOM function for 800*600 as default, 800*480, 1024*600, 7” 800*480 TFT Audio h AC97 Codec h Built in 1W Speaker *1 h Stereo Head Phone / MIC Jack (Combo; diameter is 3.5mm) Other I/O Devices h USB Interface Wireless 802.11b/g h USB Bluetooth Module build in h 4 wire Resistive touch screen (at least 80% transparency) h Stick Point I/O Ports h 1 x DC-IN Jack

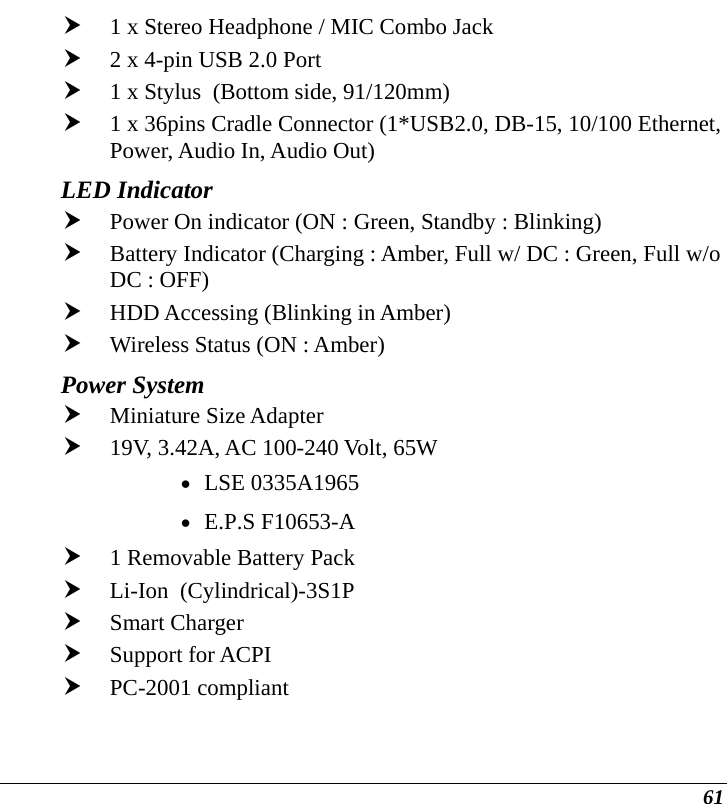

61 h 1 x Stereo Headphone / MIC Combo Jack h 2 x 4-pin USB 2.0 Port h 1 x Stylus (Bottom side, 91/120mm) h 1 x 36pins Cradle Connector (1*USB2.0, DB-15, 10/100 Ethernet, Power, Audio In, Audio Out) LED Indicator h Power On indicator (ON : Green, Standby : Blinking) h Battery Indicator (Charging : Amber, Full w/ DC : Green, Full w/o DC : OFF) h HDD Accessing (Blinking in Amber) h Wireless Status (ON : Amber) Power System h Miniature Size Adapter h 19V, 3.42A, AC 100-240 Volt, 65W • LSE 0335A1965 • E.P.S F10653-A h 1 Removable Battery Pack h Li-Ion (Cylindrical)-3S1P h Smart Charger h Support for ACPI h PC-2001 compliant

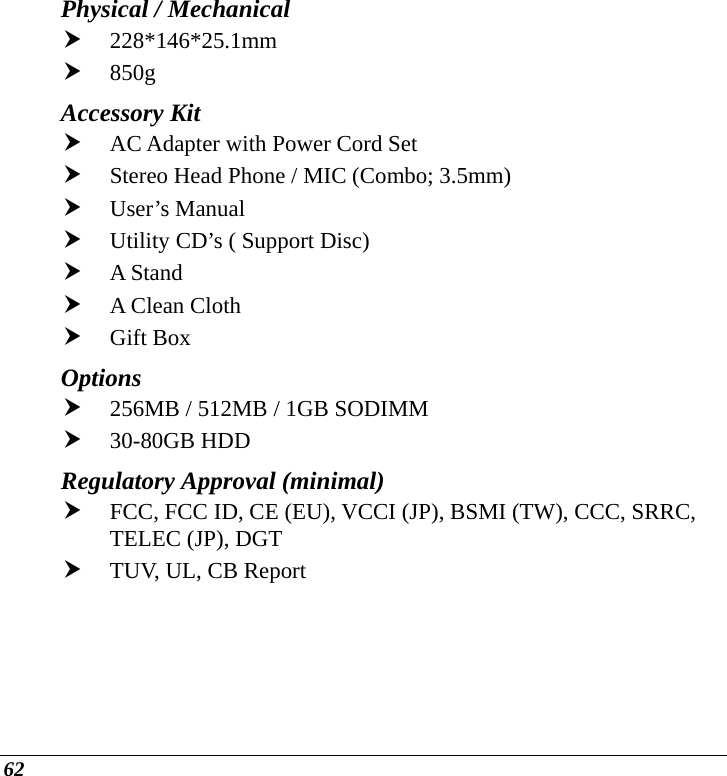

62 Physical / Mechanical h 228*146*25.1mm h 850g Accessory Kit h AC Adapter with Power Cord Set h Stereo Head Phone / MIC (Combo; 3.5mm) h User’s Manual h Utility CD’s ( Support Disc) h A Stand h A Clean Cloth h Gift Box Options h 256MB / 512MB / 1GB SODIMM h 30-80GB HDD Regulatory Approval (minimal) h FCC, FCC ID, CE (EU), VCCI (JP), BSMI (TW), CCC, SRRC, TELEC (JP), DGT h TUV, UL, CB Report
