Amtek System T10GX210ARM Gaming Tablet User Manual T10X English 20101012 2

Amtek System Co., Ltd. Gaming Tablet T10X English 20101012 2

Manual

i 4 X210ARM

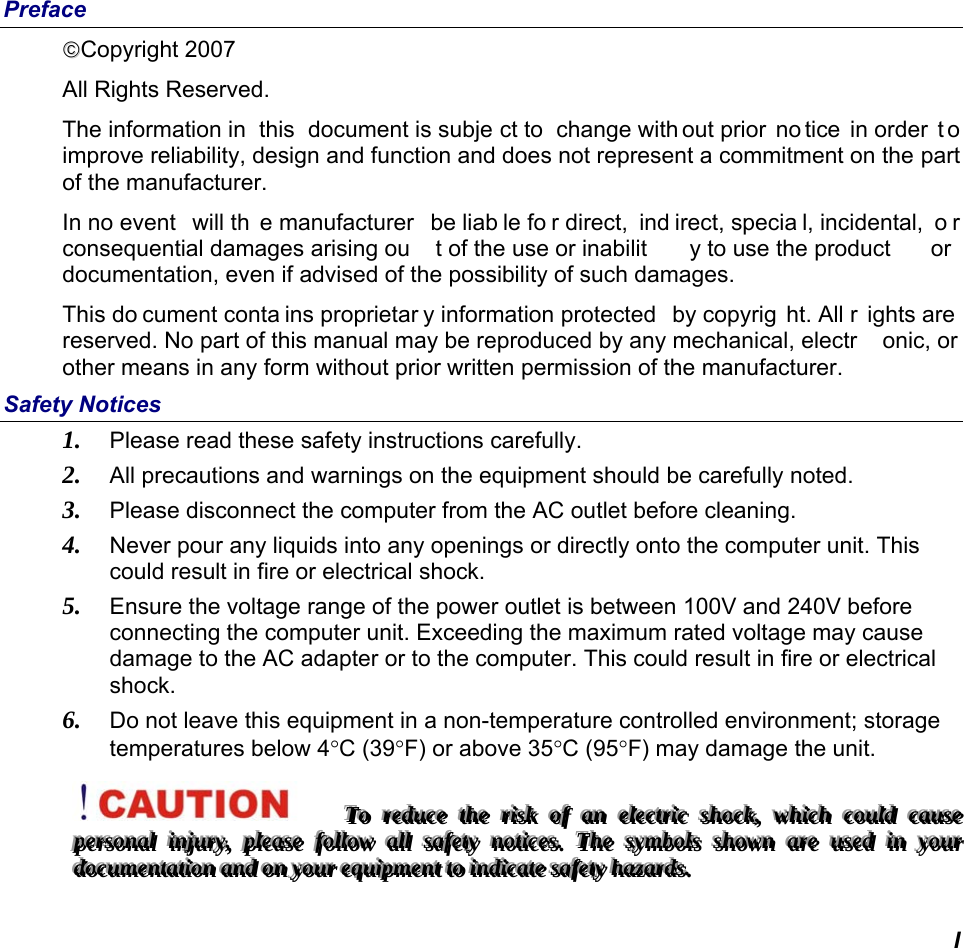

I Preface Copyright 2007 All Rights Reserved. The information in this document is subje ct to change with out prior no tice in order t o improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will th e manufacturer be liab le fo r direct, ind irect, specia l, incidental, o r consequential damages arising ou t of the use or inabilit y to use the product or documentation, even if advised of the possibility of such damages. This do cument conta ins proprietar y information protected by copyrig ht. All r ights are reserved. No part of this manual may be reproduced by any mechanical, electr onic, or other means in any form without prior written permission of the manufacturer. Safety Notices 1. Please read these safety instructions carefully. 2. All precautions and warnings on the equipment should be carefully noted. 3. Please disconnect the computer from the AC outlet before cleaning. 4. Never pour any liquids into any openings or directly onto the computer unit. This could result in fire or electrical shock. 5. Ensure the voltage range of the power outlet is between 100V and 240V before connecting the computer unit. Exceeding the maximum rated voltage may cause damage to the AC adapter or to the computer. This could result in fire or electrical shock. 6. Do not leave this equipment in a non-temperature controlled environment; storage temperatures below 4C (39F) or above 35C (95F) may damage the unit. TTTooo rrreeeddduuuccceee ttthhheee rrriiissskkk ooofff aaannn eeellleeeccctttrrriiiccc ssshhhoooccckkk,,, wwwhhhiiiccchhh cccooouuulllddd cccaaauuussseee pppeeerrrsssooonnnaaalll iiinnnjjjuuurrryyy,,, pppllleeeaaassseee fffooollllllooowww aaallllll sssaaafffeeetttyyy nnnoootttiiiccceeesss... TTThhheee sssyyymmmbbbooolllsss ssshhhooowwwnnn aaarrreee uuussseeeddd iiinnn yyyooouuurrr dddooocccuuummmeeennntttaaatttiiiooonnn aaannnddd ooonnn yyyooouuurrr eeeqqquuuiiipppmmmeeennnttt tttooo iiinnndddiiicccaaattteee sssaaafffeeetttyyy hhhaaazzzaaarrrdddsss...

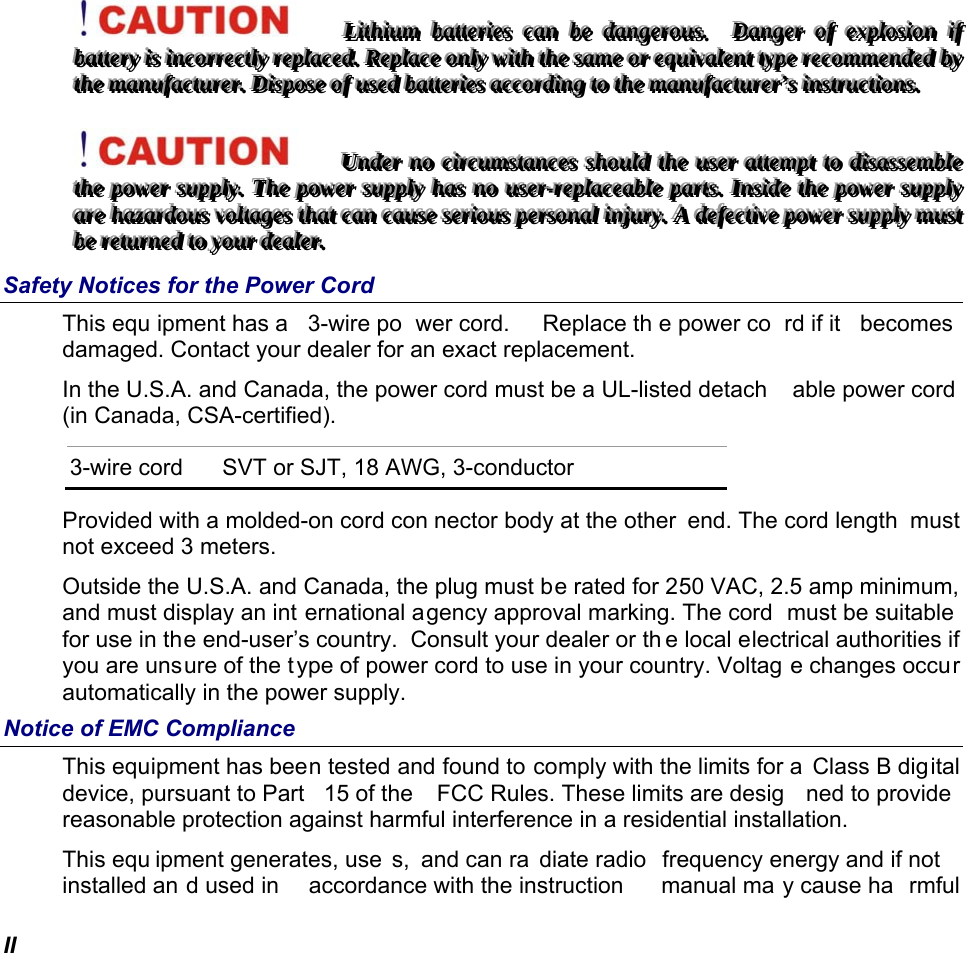

II LLLiiittthhhiiiuuummm bbbaaatttttteeerrriiieeesss cccaaannn bbbeee dddaaannngggeeerrrooouuusss... DDDaaannngggeeerrr ooofff eeexxxppplllooosssiiiooonnn iiifff bbbaaatttttteeerrryyy iiisss iiinnncccooorrrrrreeeccctttlllyyy rrreeeppplllaaaccceeeddd... RRReeeppplllaaaccceee ooonnnlllyyy wwwiiittthhh ttthhheee sssaaammmeee ooorrr eeeqqquuuiiivvvaaallleeennnttt tttyyypppeee rrreeecccooommmmmmeeennndddeeeddd bbbyyy ttthhheee mmmaaannnuuufffaaaccctttuuurrreeerrr... DDDiiissspppooossseee ooofff uuussseeeddd bbbaaatttttteeerrriiieeesss aaaccccccooorrrdddiiinnnggg tttooo ttthhheee mmmaaannnuuufffaaaccctttuuurrreeerrr’’’sss iiinnnssstttrrruuuccctttiiiooonnnsss... UUUnnndddeeerrr nnnooo ccciiirrrcccuuummmssstttaaannnccceeesss ssshhhooouuulllddd ttthhheee uuussseeerrr aaatttttteeemmmpppttt tttooo dddiiisssaaasssssseeemmmbbbllleee ttthhheee pppooowwweeerrr sssuuupppppplllyyy... TTThhheee pppooowwweeerrr sssuuupppppplllyyy hhhaaasss nnnooo uuussseeerrr---rrreeeppplllaaaccceeeaaabbbllleee pppaaarrrtttsss... IIInnnsssiiidddeee ttthhheee pppooowwweeerrr sssuuupppppplllyyy aaarrreee hhhaaazzzaaarrrdddooouuusss vvvooollltttaaagggeeesss ttthhhaaattt cccaaannn cccaaauuussseee ssseeerrriiiooouuusss pppeeerrrsssooonnnaaalll iiinnnjjjuuurrryyy... AAA dddeeefffeeeccctttiiivvveee pppooowwweeerrr sssuuupppppplllyyy mmmuuusssttt bbbeee rrreeetttuuurrrnnneeeddd tttooo yyyooouuurrr dddeeeaaallleeerrr... Safety Notices for the Power Cord This equ ipment has a 3-wire po wer cord. Replace th e power co rd if it becomes damaged. Contact your dealer for an exact replacement. In the U.S.A. and Canada, the power cord must be a UL-listed detach able power cord (in Canada, CSA-certified). 3-wire cord SVT or SJT, 18 AWG, 3-conductor Provided with a molded-on cord con nector body at the other end. The cord length must not exceed 3 meters. Outside the U.S.A. and Canada, the plug must be rated for 250 VAC, 2.5 amp minimum, and must display an int ernational agency approval marking. The cord must be suitable for use in the end-user’s country. Consult your dealer or th e local electrical authorities if you are unsure of the type of power cord to use in your country. Voltag e changes occur automatically in the power supply. Notice of EMC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are desig ned to provide reasonable protection against harmful interference in a residential installation. This equ ipment generates, use s, and can ra diate radio frequency energy and if not installed an d used in accordance with the instruction manual ma y cause ha rmful

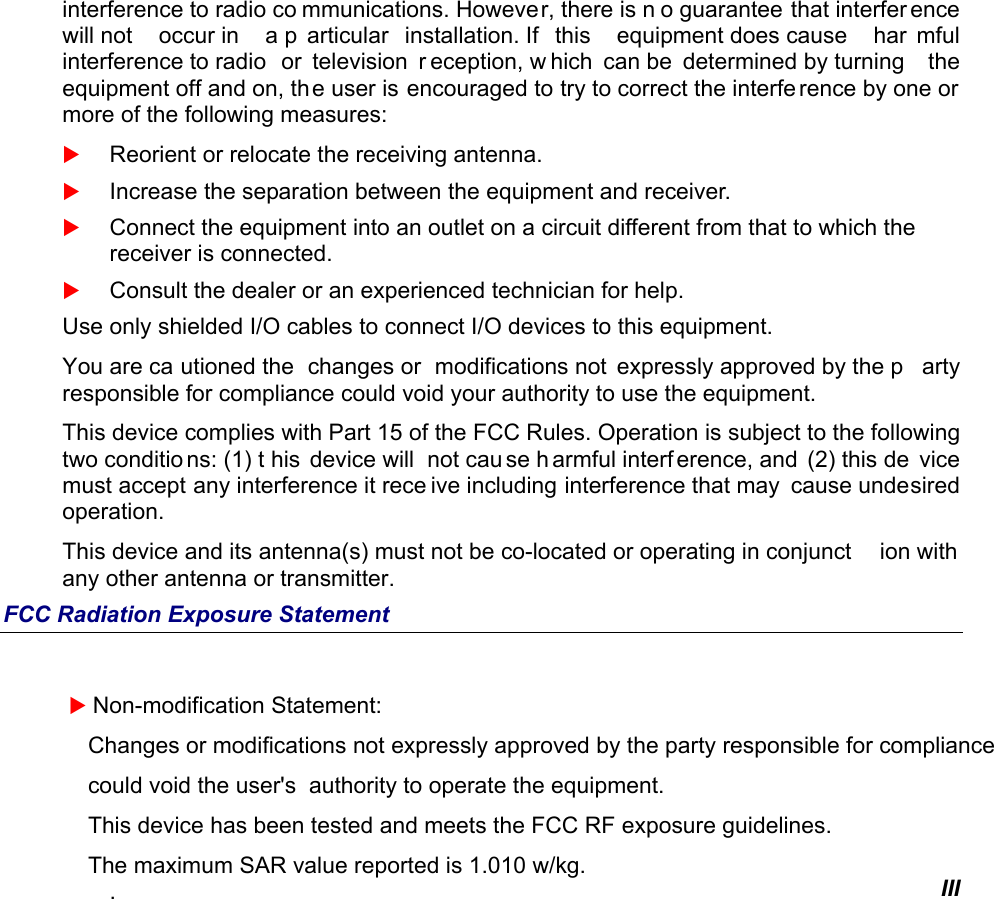

III interference to radio co mmunications. However, there is n o guarantee that interfer ence will not occur in a p articular installation. If this equipment does cause har mful interference to radio or television r eception, w hich can be determined by turning the equipment off and on, th e user is encouraged to try to correct the interfe rence by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced technician for help. Use only shielded I/O cables to connect I/O devices to this equipment. You are ca utioned the changes or modifications not expressly approved by the p arty responsible for compliance could void your authority to use the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditio ns: (1) t his device will not cau se h armful interf erence, and (2) this de vice must accept any interference it rece ive including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunct ion with any other antenna or transmitter. FCC Radiation Exposure Statement  Non-modification Statement: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device has been tested and meets the FCC RF exposure guidelines. The maximum SAR value reported is 1.010 w/kg. .
IV  Canadian EMI Compliance Statement

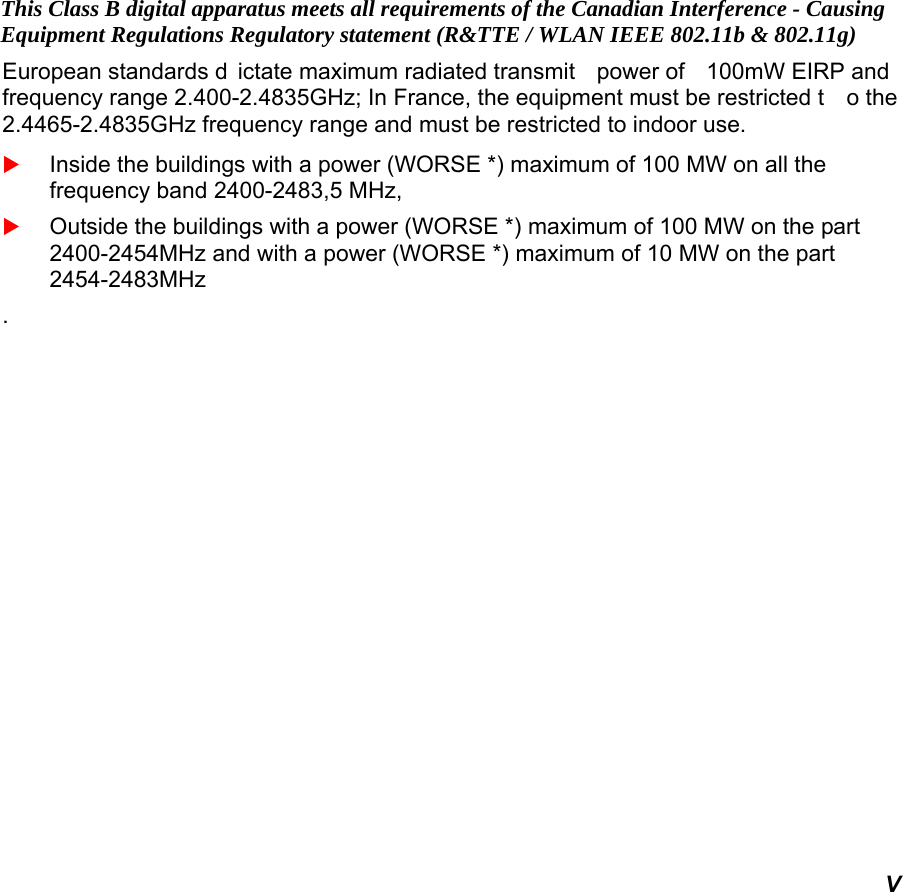

V This Class B digital apparatus meets all requirements of the Canadian Interference - Causing Equipment Regulations Regulatory statement (R&TTE / WLAN IEEE 802.11b & 802.11g) European standards d ictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835GHz; In France, the equipment must be restricted t o the 2.4465-2.4835GHz frequency range and must be restricted to indoor use.  Inside the buildings with a power (WORSE *) maximum of 100 MW on all the frequency band 2400-2483,5 MHz,  Outside the buildings with a power (WORSE *) maximum of 100 MW on the part 2400-2454MHz and with a power (WORSE *) maximum of 10 MW on the part 2454-2483MHz .

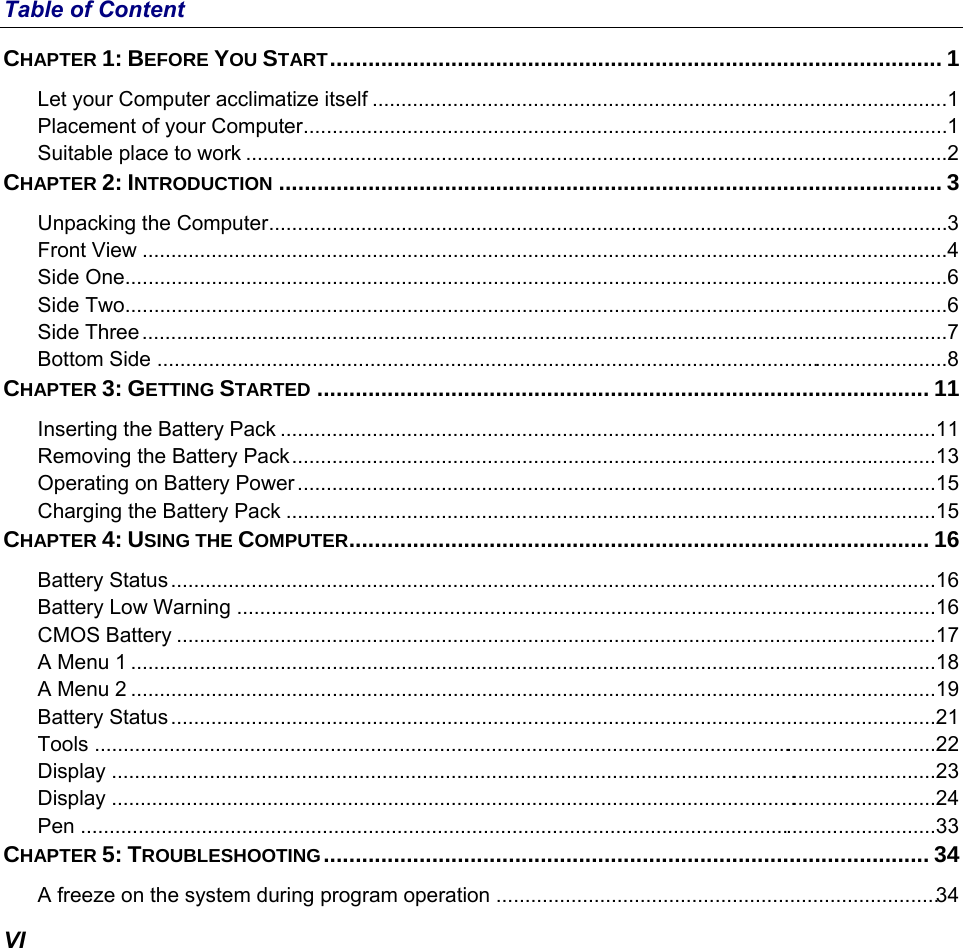

VI Table of Content CHAPTER 1: BEFORE YOU START ................................................................................................ 1 Let your Computer acclimatize itself .................................................................................................... 1 Placement of your Computer ................................................................................................................ 1 Suitable place to work .......................................................................................................................... 2 CHAPTER 2: INTRODUCTION ........................................................................................................ 3 Unpacking the Computer ...................................................................................................................... 3 Front View ............................................................................................................................................ 4 Side One ............................................................................................................................................... 6 Side Two ............................................................................................................................................... 6 Side Three ............................................................................................................................................ 7 Bottom Side .......................................................................................................................................... 8 CHAPTER 3: GETTING STARTED ................................................................................................ 11 Inserting the Battery Pack .................................................................................................................. 11 Removing the Battery Pack ................................................................................................................ 13 Operating on Battery Power ............................................................................................................... 15 Charging the Battery Pack ................................................................................................................. 15 CHAPTER 4: USING THE COMPUTER ........................................................................................... 16 Battery Status ..................................................................................................................................... 16 Battery Low Warning .......................................................................................................................... 16 CMOS Battery .................................................................................................................................... 17 A Menu 1 ............................................................................................................................................ 18 A Menu 2 ............................................................................................................................................ 19 Battery Status ..................................................................................................................................... 21 Tools ................................................................................................................................................... 22 Display ................................................................................................................................................ 23 Display ................................................................................................................................................ 24 Pen ..................................................................................................................................................... 33 CHAPTER 5: TROUBLESHOOTING ............................................................................................... 34 A freeze on the system during program operation ............................................................................. 34

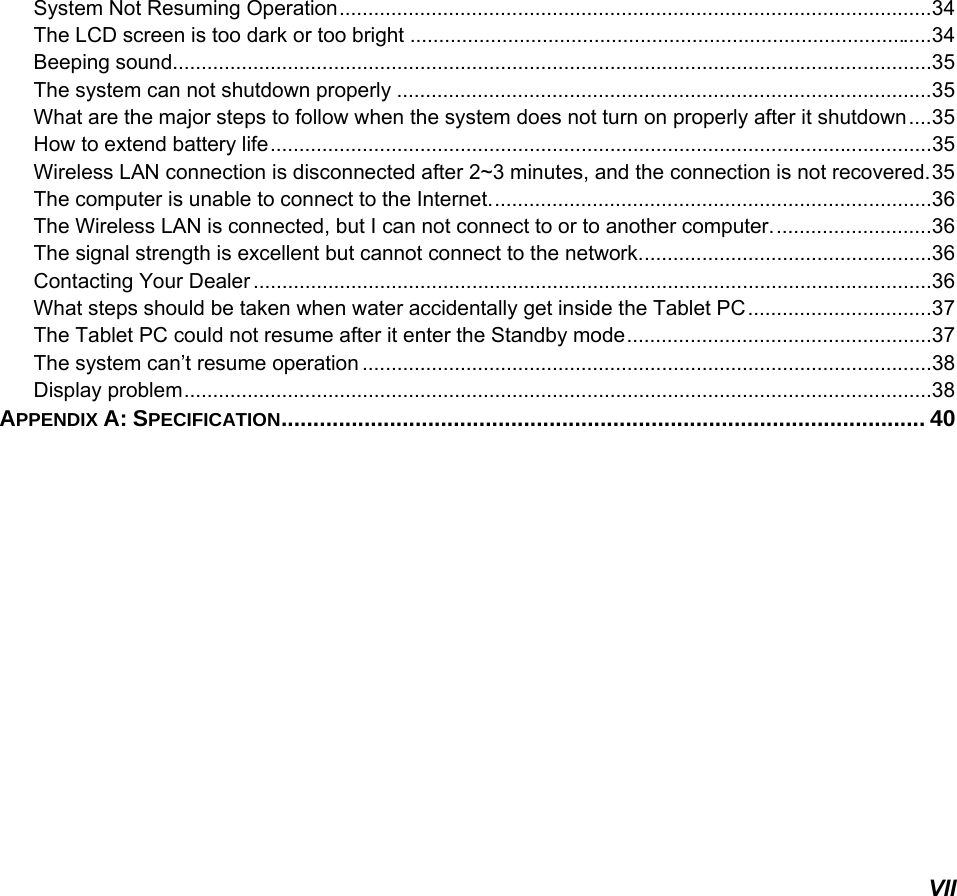

VII System Not Resuming Operation ....................................................................................................... 34 The LCD screen is too dark or too bright ........................................................................................... 34 Beeping sound.................................................................................................................................... 35 The system can not shutdown properly ............................................................................................. 35 What are the major steps to follow when the system does not turn on properly after it shutdown .... 35 How to extend battery life ................................................................................................................... 35 Wireless LAN connection is disconnected after 2~3 minutes, and the connection is not recovered. 35 The computer is unable to connect to the Internet. ............................................................................ 36 The Wireless LAN is connected, but I can not connect to or to another computer. ........................... 36 The signal strength is excellent but cannot connect to the network. .................................................. 36 Contacting Your Dealer ...................................................................................................................... 36 What steps should be taken when water accidentally get inside the Tablet PC ................................ 37 The Tablet PC could not resume after it enter the Standby mode ..................................................... 37 The system can’t resume operation ................................................................................................... 38 Display problem .................................................................................................................................. 38 APPENDIX A: SPECIFICATION ..................................................................................................... 40

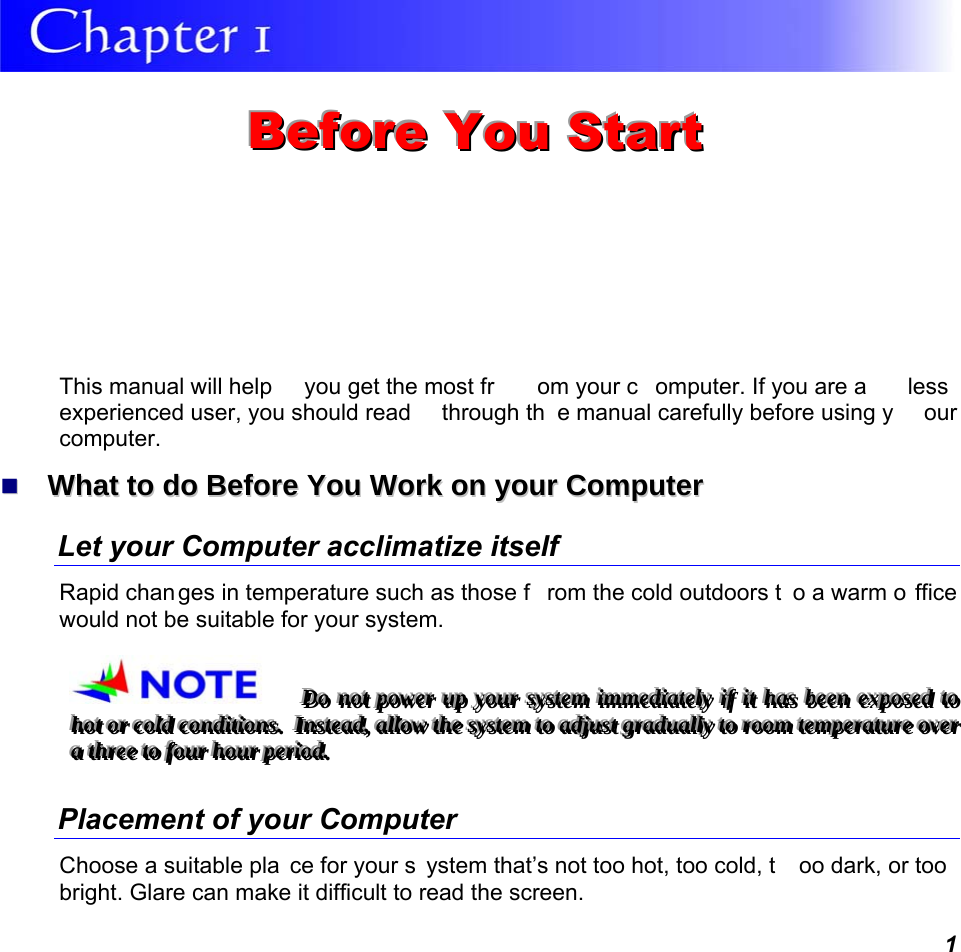

1 BBBeeefffooorrreee YYYooouuu SSStttaaarrrttt This manual will help you get the most fr om your c omputer. If you are a less experienced user, you should read through th e manual carefully before using y our computer.  WWhhaatt ttoo ddoo BBeeffoorree YYoouu WWoorrkk oonn yyoouurr CCoommppuutteerr Let your Computer acclimatize itself Rapid chan ges in temperature such as those f rom the cold outdoors t o a warm o ffice would not be suitable for your system. DDDooo nnnooottt pppooowwweeerrr uuuppp yyyooouuurrr sssyyysssttteeemmm iiimmmmmmeeedddiiiaaattteeelllyyy iiifff iiittt hhhaaasss bbbeeeeeennn eeexxxpppooossseeeddd tttooo hhhooottt ooorrr cccooolllddd cccooonnndddiiitttiiiooonnnsss... IIInnnsssttteeeaaaddd,,, aaallllllooowww ttthhheee sssyyysssttteeemmm tttooo aaadddjjjuuusssttt gggrrraaaddduuuaaallllllyyy tttooo rrroooooommm ttteeemmmpppeeerrraaatttuuurrreee ooovvveeerrr aaa ttthhhrrreeeeee tttooo fffooouuurrr hhhooouuurrr pppeeerrriiioooddd... Placement of your Computer Choose a suitable pla ce for your s ystem that’s not too hot, too cold, t oo dark, or too bright. Glare can make it difficult to read the screen.

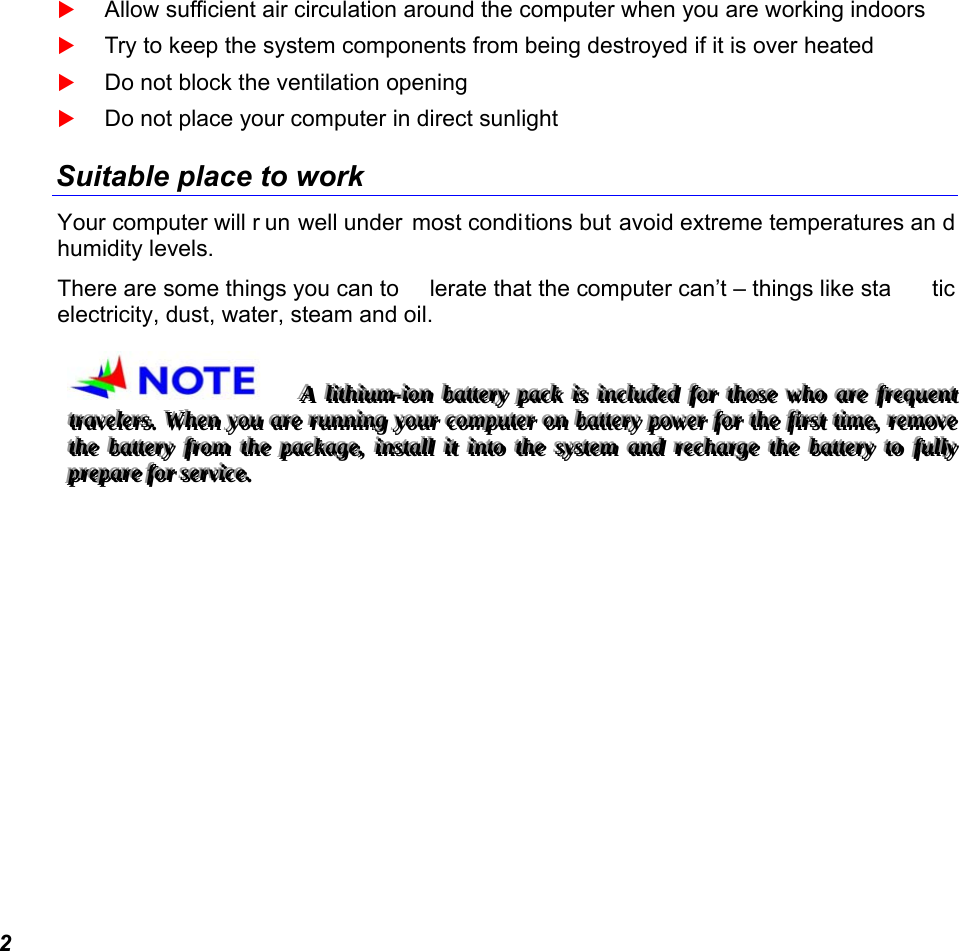

2  Allow sufficient air circulation around the computer when you are working indoors  Try to keep the system components from being destroyed if it is over heated  Do not block the ventilation opening  Do not place your computer in direct sunlight Suitable place to work Your computer will r un well under most conditions but avoid extreme temperatures an d humidity levels. There are some things you can to lerate that the computer can’t – things like sta tic electricity, dust, water, steam and oil. AAA llliiittthhhiiiuuummm---iiiooonnn bbbaaatttttteeerrryyy pppaaaccckkk iiisss iiinnncccllluuudddeeeddd fffooorrr ttthhhooossseee wwwhhhooo aaarrreee fffrrreeeqqquuueeennnttt tttrrraaavvveeellleeerrrsss... WWWhhheeennn yyyooouuu aaarrreee rrruuunnnnnniiinnnggg yyyooouuurrr cccooommmpppuuuttteeerrr ooonnn bbbaaatttttteeerrryyy pppooowwweeerrr fffooorrr ttthhheee fffiiirrrsssttt tttiiimmmeee,,, rrreeemmmooovvveee ttthhheee bbbaaatttttteeerrryyy fffrrrooommm ttthhheee pppaaaccckkkaaagggeee,,, iiinnnssstttaaallllll iiittt iiinnntttooo ttthhheee sssyyysssttteeemmm aaannnddd rrreeeccchhhaaarrrgggeee ttthhheee bbbaaatttttteeerrryyy tttooo fffuuullllllyyy ppprrreeepppaaarrreee fffooorrr ssseeerrrvvviiiccceee...

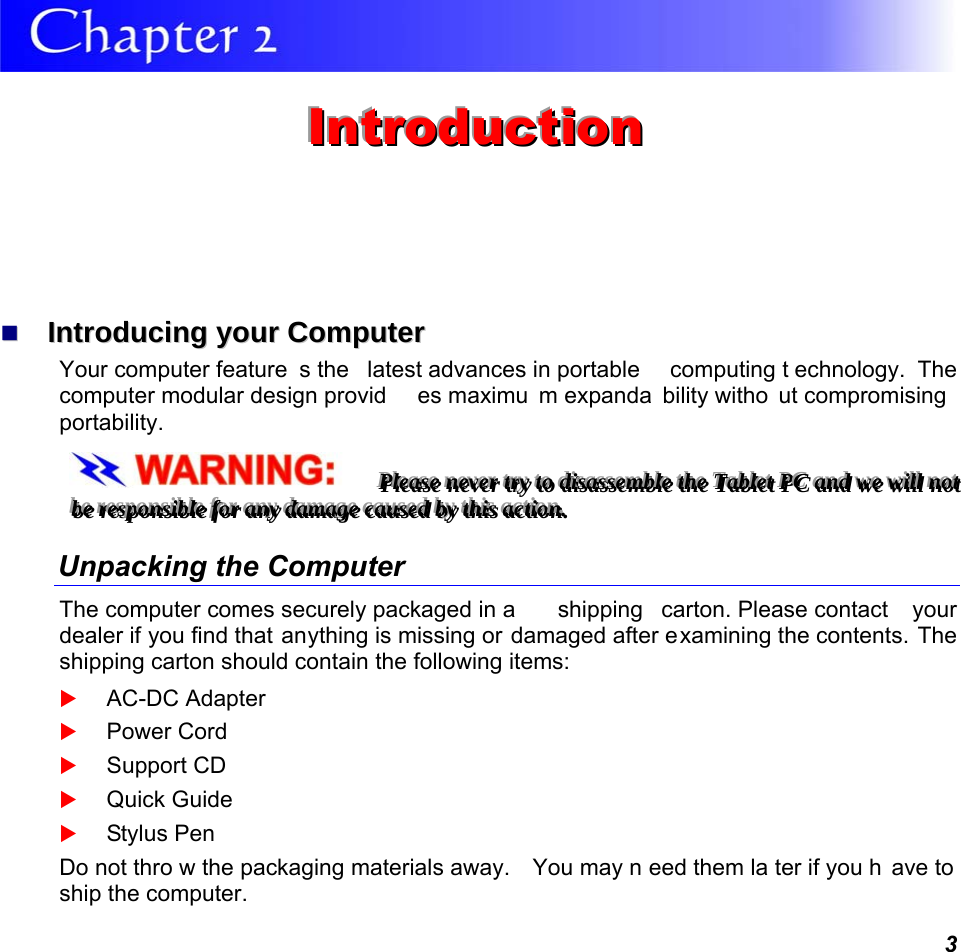

3 IIInnntttrrroooddduuuccctttiiiooonnn  IInnttrroodduucciinngg yyoouurr CCoommppuutteerr Your computer feature s the latest advances in portable computing t echnology. The computer modular design provid es maximu m expanda bility witho ut compromising portability. PPPllleeeaaassseee nnneeevvveeerrr tttrrryyy tttooo dddiiisssaaasssssseeemmmbbbllleee ttthhheee TTTaaabbbllleeettt PPPCCC aaannnddd wwweee wwwiiillllll nnnooottt bbbeee rrreeessspppooonnnsssiiibbbllleee fffooorrr aaannnyyy dddaaammmaaagggeee cccaaauuussseeeddd bbbyyy ttthhhiiisss aaaccctttiiiooonnn... Unpacking the Computer The computer comes securely packaged in a shipping carton. Please contact your dealer if you find that anything is missing or damaged after examining the contents. The shipping carton should contain the following items:  AC-DC Adapter  Power Cord  Support CD  Quick Guide  Stylus Pen Do not thro w the packaging materials away. You may n eed them la ter if you h ave to ship the computer.

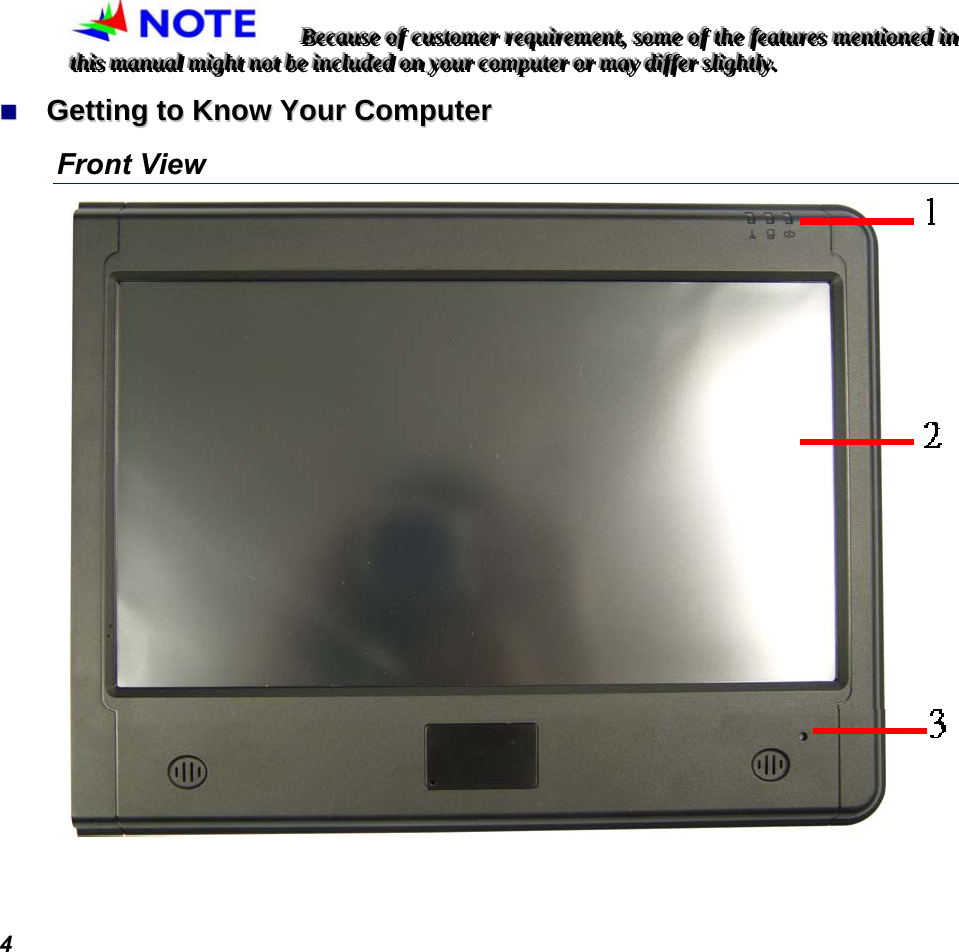

4 BBBeeecccaaauuussseee ooofff cccuuussstttooommmeeerrr rrreeeqqquuuiiirrreeemmmeeennnttt,,, sssooommmeee ooofff ttthhheee fffeeeaaatttuuurrreeesss mmmeeennntttiiiooonnneeeddd iiinnn ttthhhiiisss mmmaaannnuuuaaalll mmmiiiggghhhttt nnnooottt bbbeee iiinnncccllluuudddeeeddd ooonnn yyyooouuurrr cccooommmpppuuuttteeerrr ooorrr mmmaaayyy dddiiiffffffeeerrr sssllliiiggghhhtttlllyyy...  GGeettttiinngg ttoo KKnnooww YYoouurr CCoommppuutteerr Front View

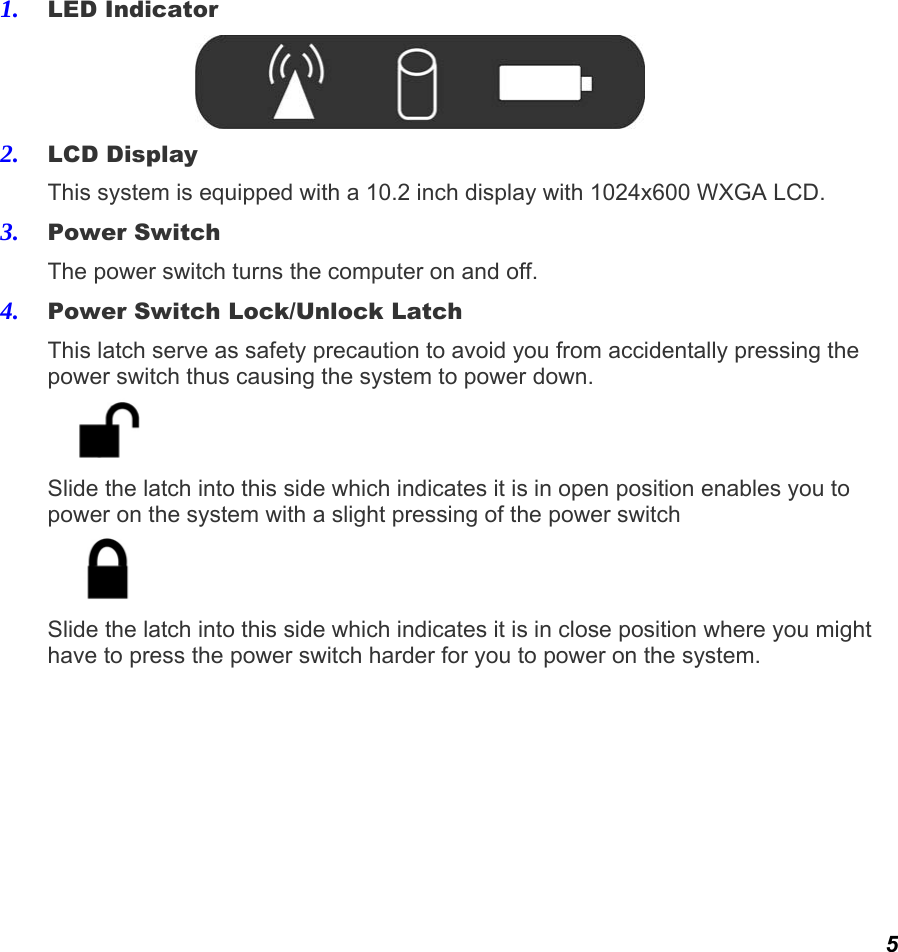

5 1. LED Indicator 2. LCD Display This system is equipped with a 10.2 inch display with 1024x600 WXGA LCD. 3. Power Switch The power switch turns the computer on and off. 4. Power Switch Lock/Unlock Latch This latch serve as safety precaution to avoid you from accidentally pressing the power switch thus causing the system to power down. Slide the latch into this side which indicates it is in open position enables you to power on the system with a slight pressing of the power switch Slide the latch into this side which indicates it is in close position where you might have to press the power switch harder for you to power on the system.

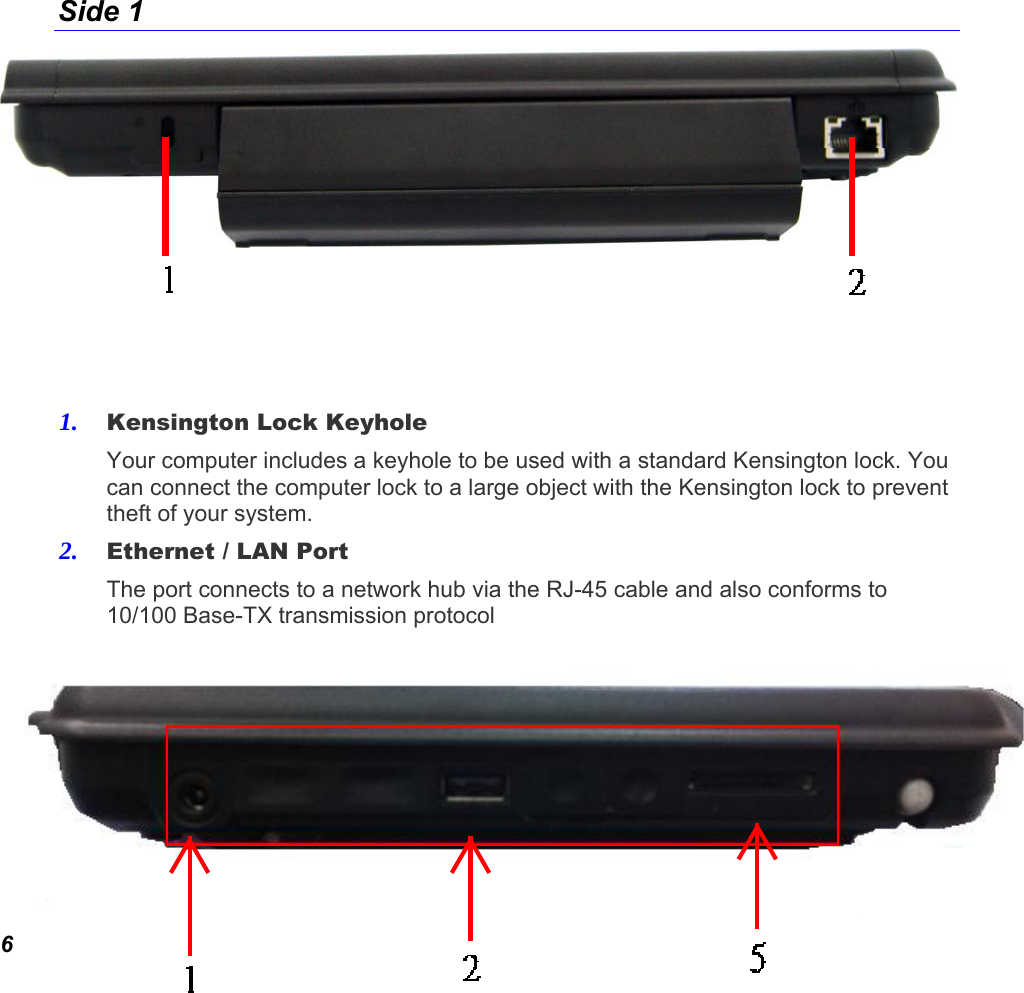

6 Side 1 1. Kensington Lock Keyhole Your computer includes a keyhole to be used with a standard Kensington lock. You can connect the computer lock to a large object with the Kensington lock to prevent theft of your system. 2. Ethernet / LAN Port The port connects to a network hub via the RJ-45 cable and also conforms to 10/100 Base-TX transmission protocol Side Two

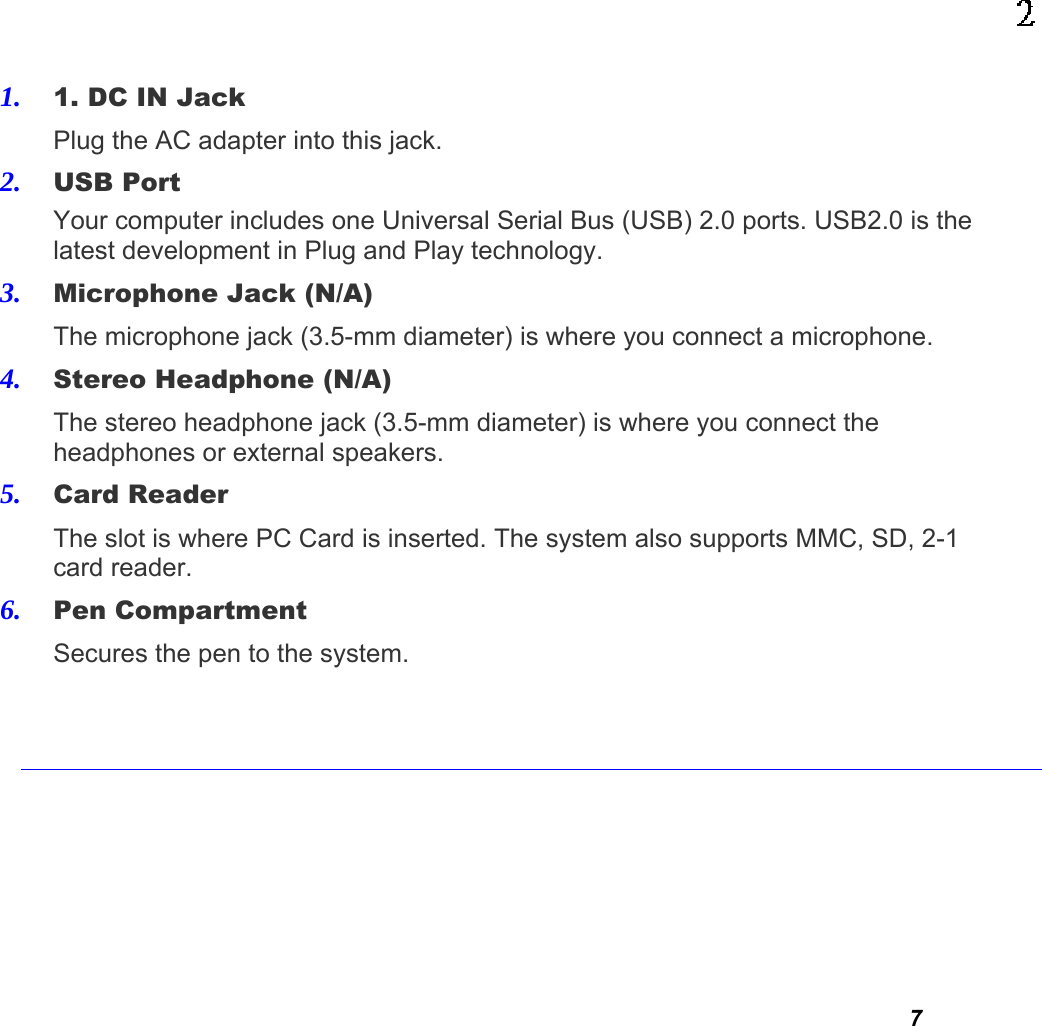

7 1. 1. DC IN Jack Plug the AC adapter into this jack. 2. USB Port Your computer includes one Universal Serial Bus (USB) 2.0 ports. USB2.0 is the latest development in Plug and Play technology. 3. Microphone Jack (N/A)The microphone jack (3.5-mm diameter) is where you connect a microphone. 4. Stereo Headphone (N/A) The stereo headphone jack (3.5-mm diameter) is where you connect the headphones or external speakers. 5. Card Reader The slot is where PC Card is inserted. The system also supports MMC, SD, 2-1 card reader. 6. Pen Compartment Secures the pen to the system.

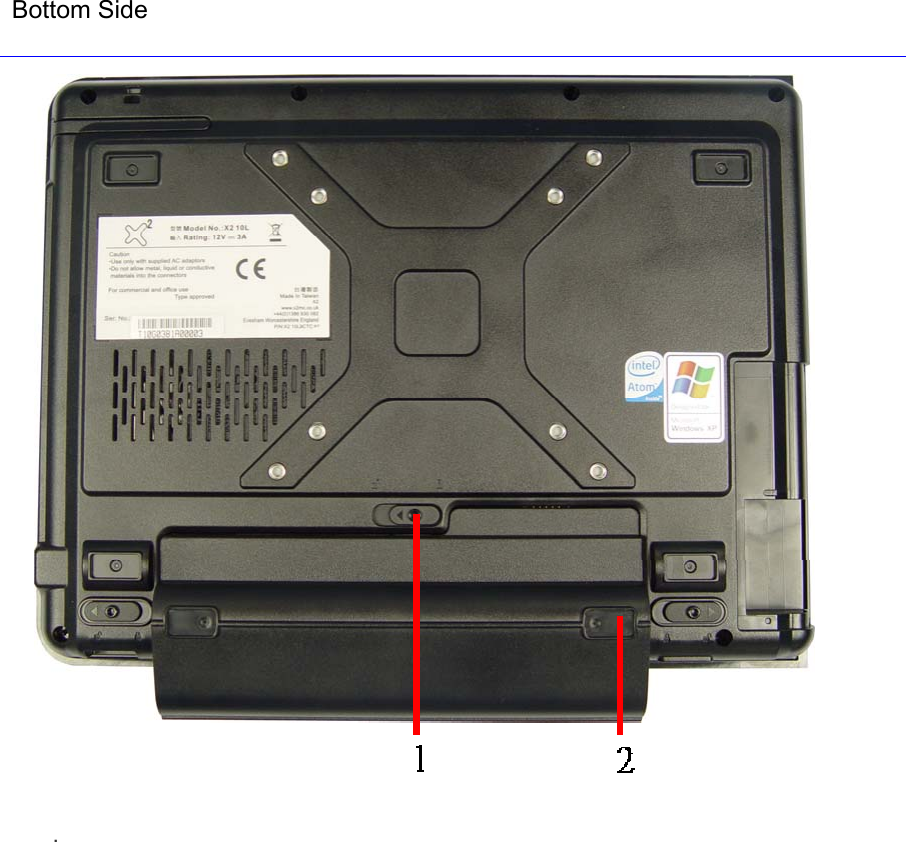

Bottom Side .

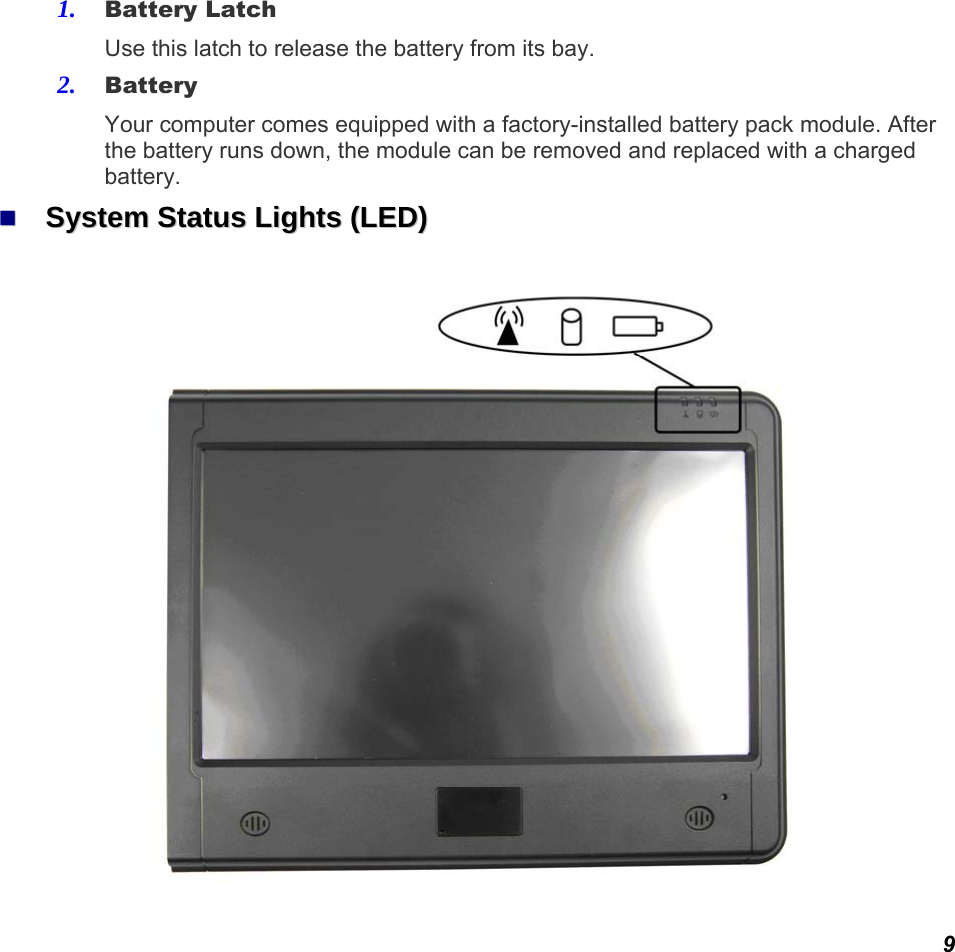

9 1. Battery Latch Use this latch to release the battery from its bay. 2. Battery Your computer comes equipped with a factory-installed battery pack module. After the battery runs down, the module can be removed and replaced with a charged battery.  SSyysstteemm SSttaattuuss LLiigghhttss ((LLEEDD))

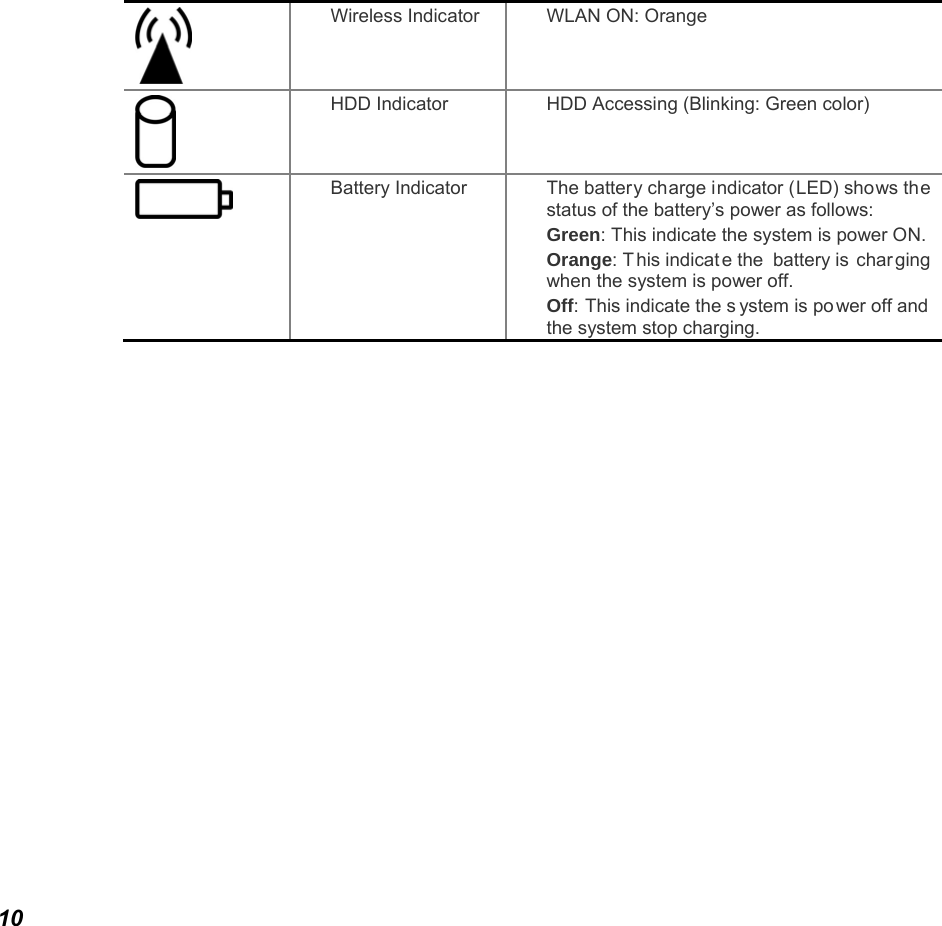

10 Wireless Indicator WLAN ON: Orange HDD Indicator HDD Accessing (Blinking: Green color) Battery Indicator The battery charge indicator (LED) shows the status of the battery’s power as follows: Green: This indicate the system is power ON. Orange: T his indicat e the battery is char ging when the system is power off. Off: This indicate the s ystem is po wer off and the system stop charging.

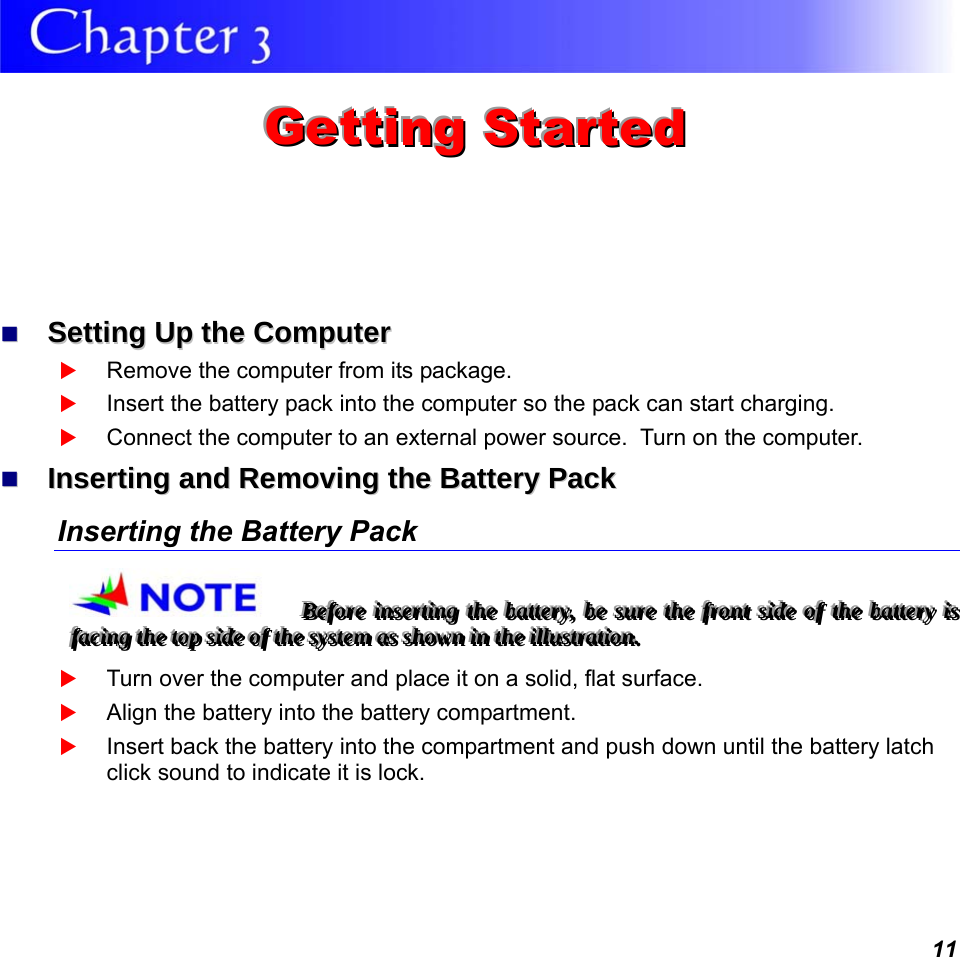

11 GGGeeettttttiiinnnggg SSStttaaarrrttteeeddd  SSeettttiinngg UUpp tthhee CCoommppuutteerr  Remove the computer from its package.  Insert the battery pack into the computer so the pack can start charging.  Connect the computer to an external power source. Turn on the computer.  IInnsseerrttiinngg aanndd RReemmoovviinngg tthhee BBaatttteerryy PPaacckk Inserting the Battery Pack BBBeeefffooorrreee iiinnnssseeerrrtttiiinnnggg ttthhheee bbbaaatttttteeerrryyy,,, bbbeee sssuuurrreee ttthhheee fffrrrooonnnttt sssiiidddeee ooofff ttthhheee bbbaaatttttteeerrryyy iiisss fffaaaccciiinnnggg ttthhheee tttoooppp sssiiidddeee ooofff ttthhheee sssyyysssttteeemmm aaasss ssshhhooowwwnnn iiinnn ttthhheee iiilllllluuussstttrrraaatttiiiooonnn...  Turn over the computer and place it on a solid, flat surface.  Align the battery into the battery compartment.  Insert back the battery into the compartment and push down until the battery latch click sound to indicate it is lock.

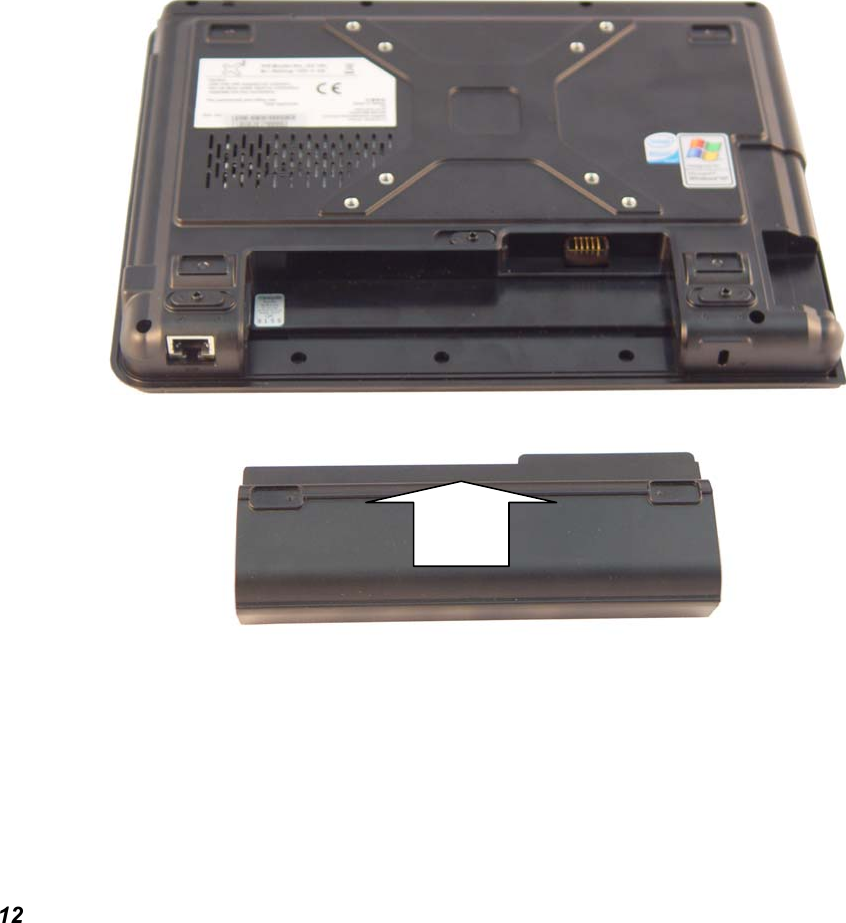

12

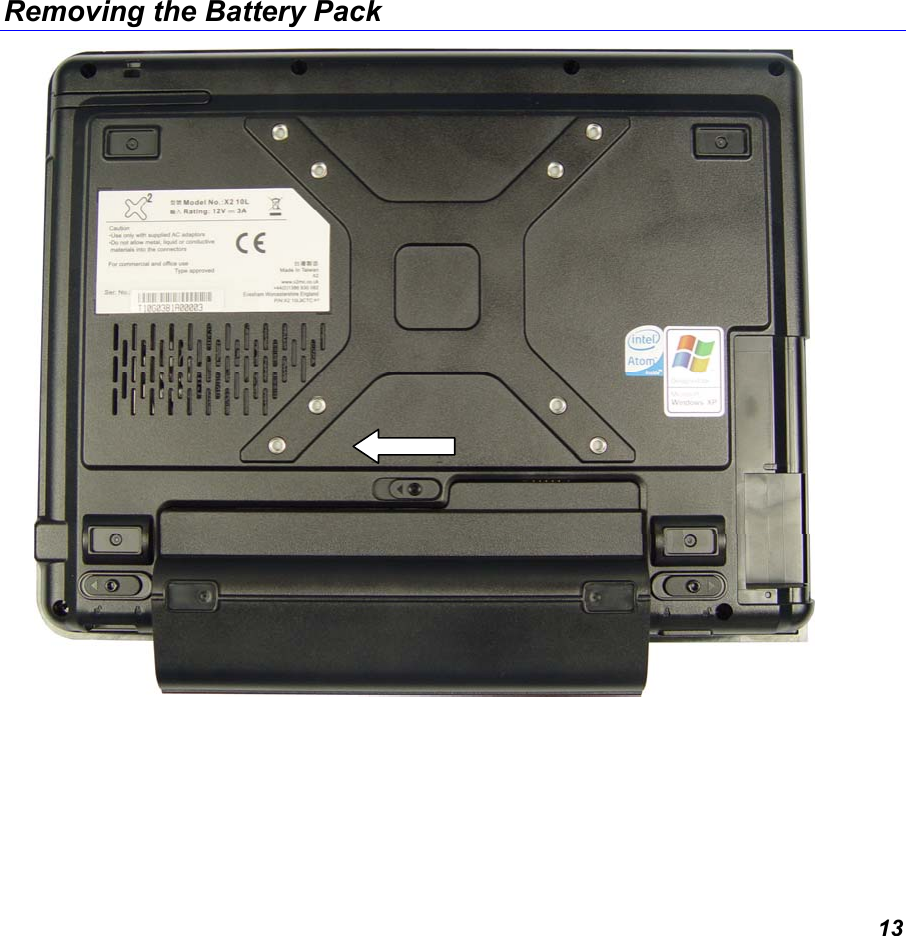

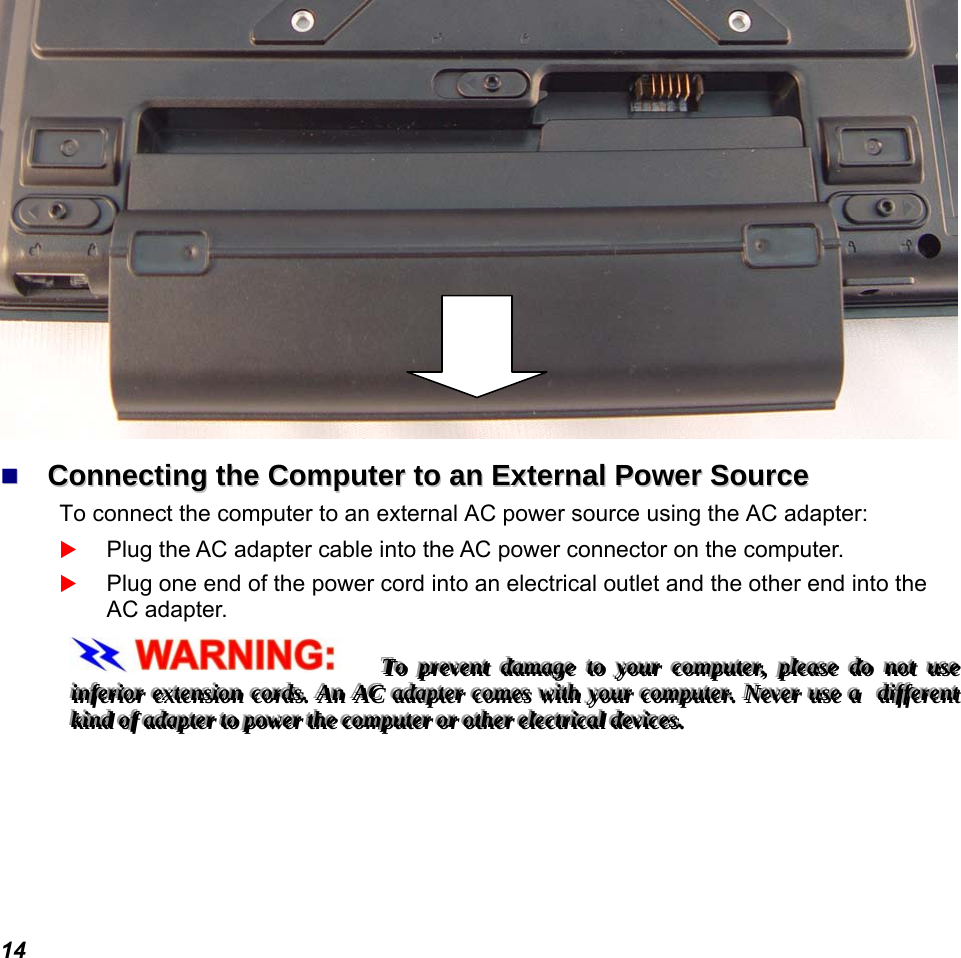

13 Removing the Battery Pack
14  CCoonnnneeccttiinngg tthhee CCoommppuutteerr ttoo aann EExxtteerrnnaall PPoowweerr SSoouurrccee To connect the computer to an external AC power source using the AC adapter:  Plug the AC adapter cable into the AC power connector on the computer.  Plug one end of the power cord into an electrical outlet and the other end into the AC adapter. TTTooo ppprrreeevvveeennnttt dddaaammmaaagggeee tttooo yyyooouuurrr cccooommmpppuuuttteeerrr,,, pppllleeeaaassseee dddooo nnnooottt uuussseee iiinnnfffeeerrriiiooorrr eeexxxttteeennnsssiiiooonnn cccooorrrdddsss... AAAnnn AAACCC aaadddaaapppttteeerrr cccooommmeeesss wwwiiittthhh yyyooouuurrr cccooommmpppuuuttteeerrr... NNNeeevvveeerrr uuussseee aaa dddiiiffffffeeerrreeennnttt kkkiiinnnddd ooofff aaadddaaapppttteeerrr tttooo pppooowwweeerrr ttthhheee cccooommmpppuuuttteeerrr ooorrr ooottthhheeerrr eeellleeeccctttrrriiicccaaalll dddeeevvviiiccceeesss...

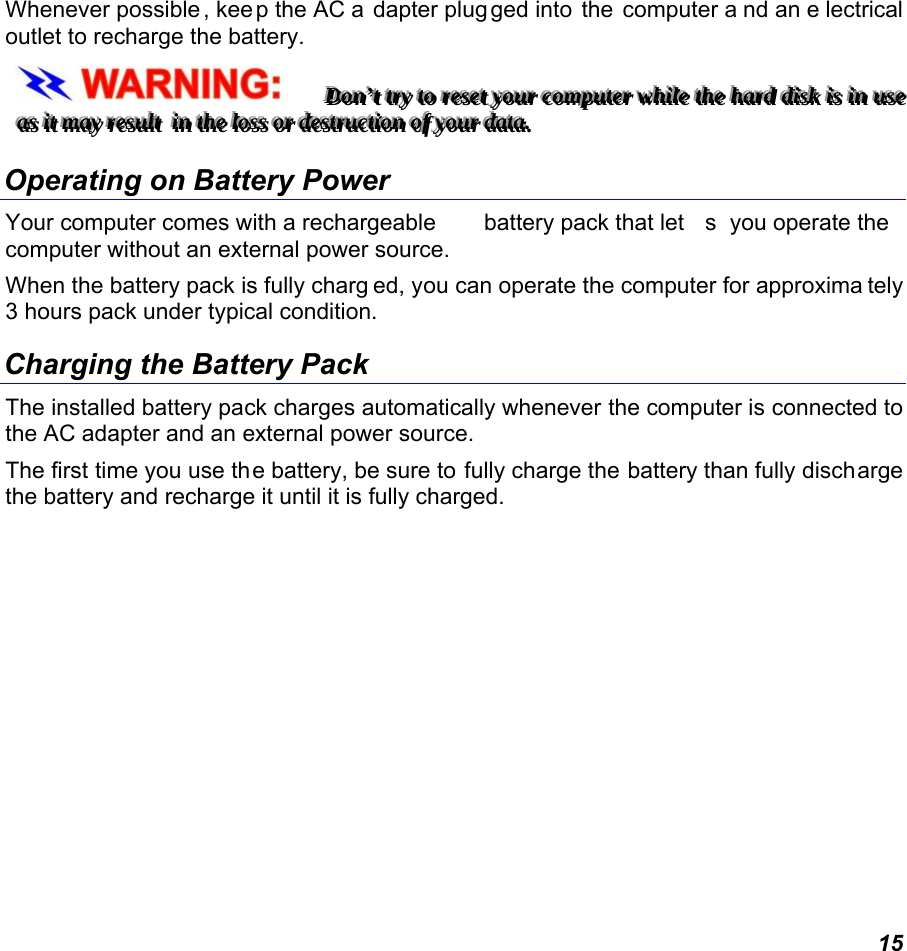

15 Whenever possible , kee p the AC a dapter plug ged into the computer a nd an e lectrical outlet to recharge the battery. DDDooonnn’’’ttt tttrrryyy tttooo rrreeessseeettt yyyooouuurrr cccooommmpppuuuttteeerrr wwwhhhiiillleee ttthhheee hhhaaarrrddd dddiiissskkk iiisss iiinnn uuussseee aaasss iiittt mmmaaayyy rrreeesssuuulllttt iiinnn ttthhheee lllooossssss ooorrr dddeeessstttrrruuuccctttiiiooonnn ooofff yyyooouuurrr dddaaatttaaa... Operating on Battery Power Your computer comes with a rechargeable battery pack that let s you operate the computer without an external power source. When the battery pack is fully charg ed, you can operate the computer for approxima tely 3 hours pack under typical condition. Charging the Battery Pack The installed battery pack charges automatically whenever the computer is connected to the AC adapter and an external power source. The first time you use the battery, be sure to fully charge the battery than fully discharge the battery and recharge it until it is fully charged.

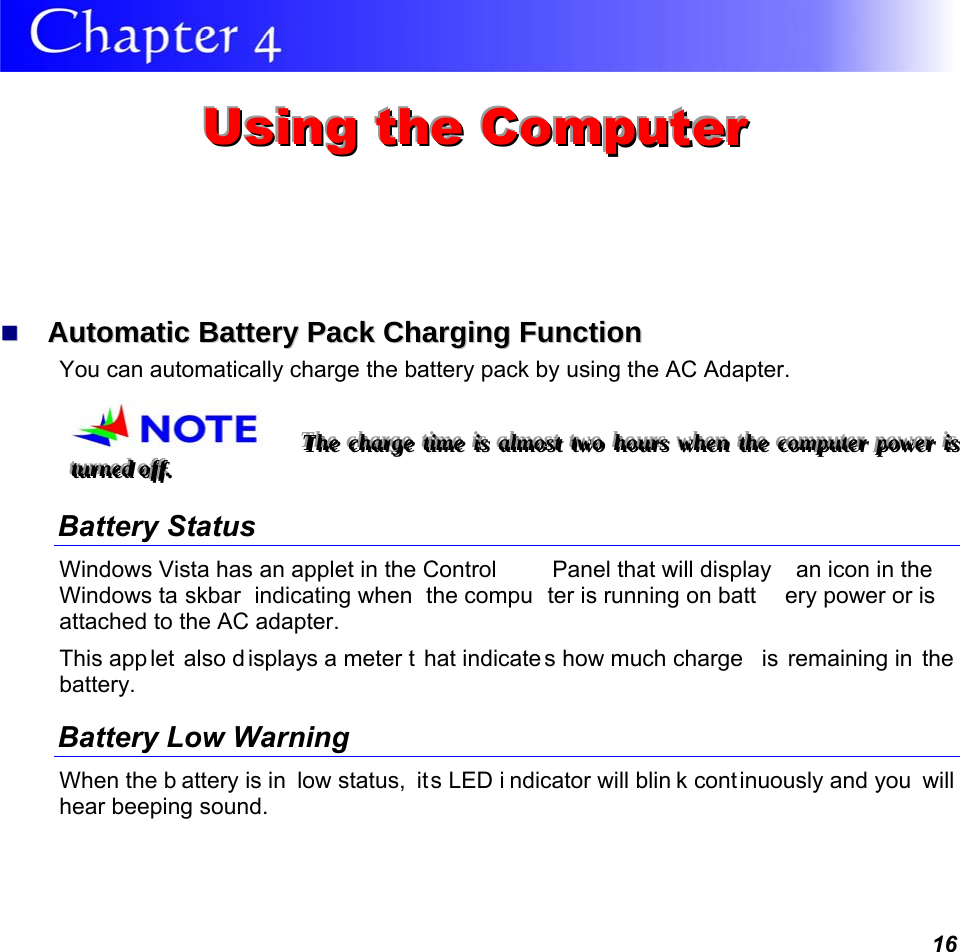

16 UUUsssiiinnnggg ttthhheee CCCooommmpppuuuttteeerrr  AAuuttoommaattiicc BBaatttteerryy PPaacckk CChhaarrggiinngg FFuunnccttiioonn You can automatically charge the battery pack by using the AC Adapter. TTThhheee ccchhhaaarrrgggeee tttiiimmmeee iiisss aaalllmmmooosssttt tttwwwooo hhhooouuurrrsss wwwhhheeennn ttthhheee cccooommmpppuuuttteeerrr pppooowwweeerrr iiisss tttuuurrrnnneeeddd oooffffff... Battery Status Windows Vista has an applet in the Control Panel that will display an icon in the Windows ta skbar indicating when the compu ter is running on batt ery power or is attached to the AC adapter. This app let also d isplays a meter t hat indicate s how much charge is remaining in the battery. Battery Low Warning When the b attery is in low status, its LED i ndicator will blin k cont inuously and you will hear beeping sound.

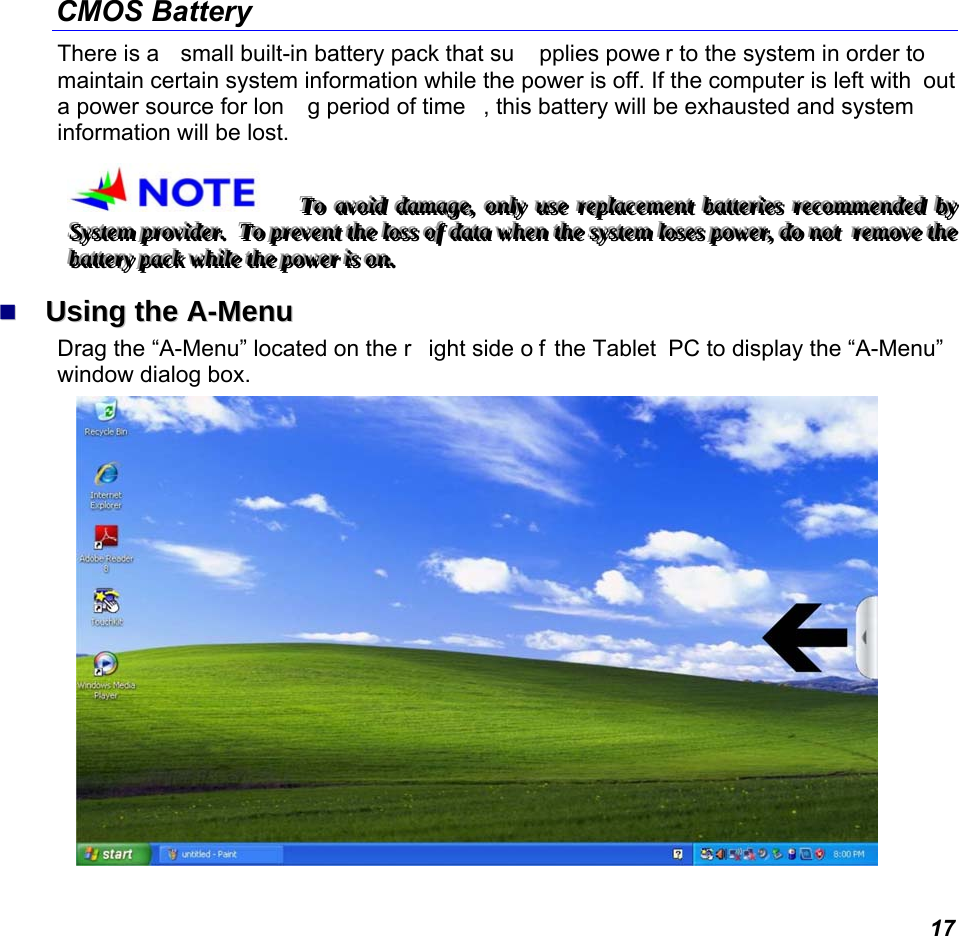

17 CMOS Battery There is a small built-in battery pack that su pplies powe r to the system in order to maintain certain system information while the power is off. If the computer is left with out a power source for lon g period of time , this battery will be exhausted and system information will be lost. TTTooo aaavvvoooiiiddd dddaaammmaaagggeee,,, ooonnnlllyyy uuussseee rrreeeppplllaaaccceeemmmeeennnttt bbbaaatttttteeerrriiieeesss rrreeecccooommmmmmeeennndddeeeddd bbbyyy SSSyyysssttteeemmm ppprrrooovvviiidddeeerrr... TTTooo ppprrreeevvveeennnttt ttthhheee lllooossssss ooofff dddaaatttaaa wwwhhheeennn ttthhheee sssyyysssttteeemmm lllooossseeesss pppooowwweeerrr,,, dddooo nnnooottt rrreeemmmooovvveee ttthhheee bbbaaatttttteeerrryyy pppaaaccckkk wwwhhhiiillleee ttthhheee pppooowwweeerrr iiisss ooonnn...  UUssiinngg tthhee AA--MMeennuu Drag the “A-Menu” located on the r ight side o f the Tablet PC to display the “A-Menu” window dialog box.

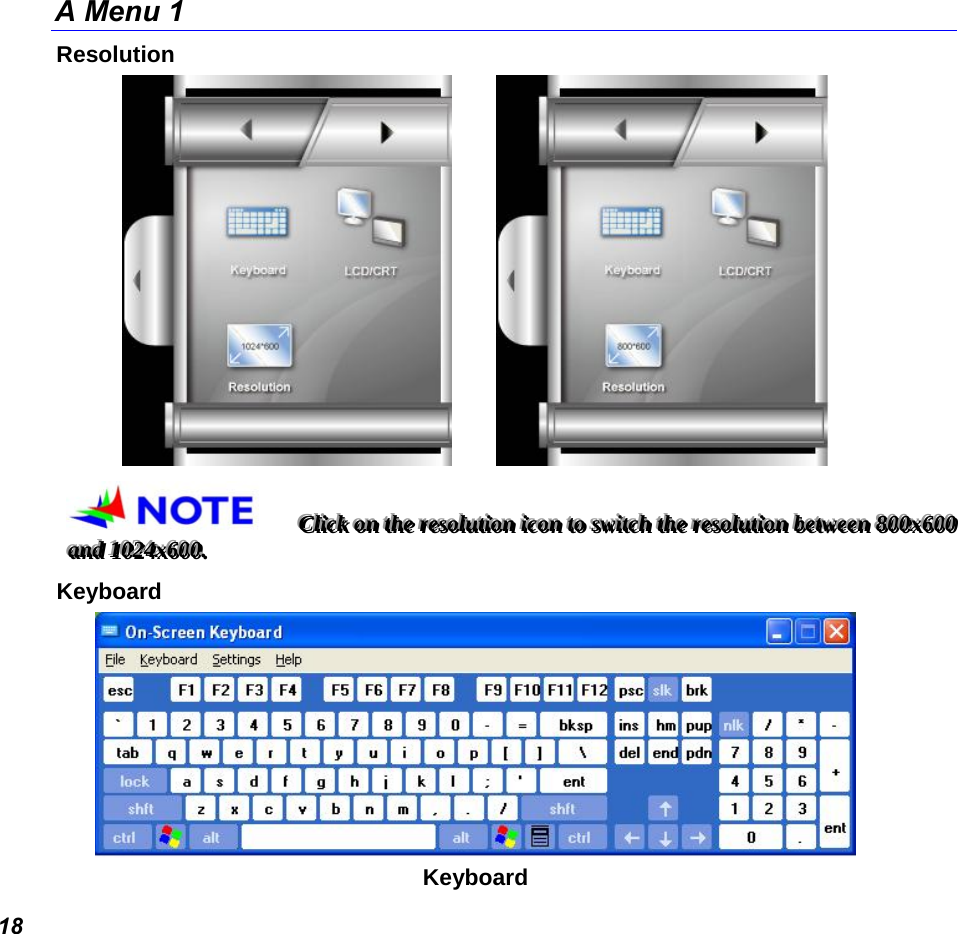

18 A Menu 1 Resolution CCCllliiiccckkk ooonnn ttthhheee rrreeesssooollluuutttiiiooonnn iiicccooonnn tttooo ssswwwiiitttccchhh ttthhheee rrreeesssooollluuutttiiiooonnn bbbeeetttwwweeeeeennn 888000000xxx666000000 aaannnddd 111000222444xxx666000000... Keyboard Keyboard

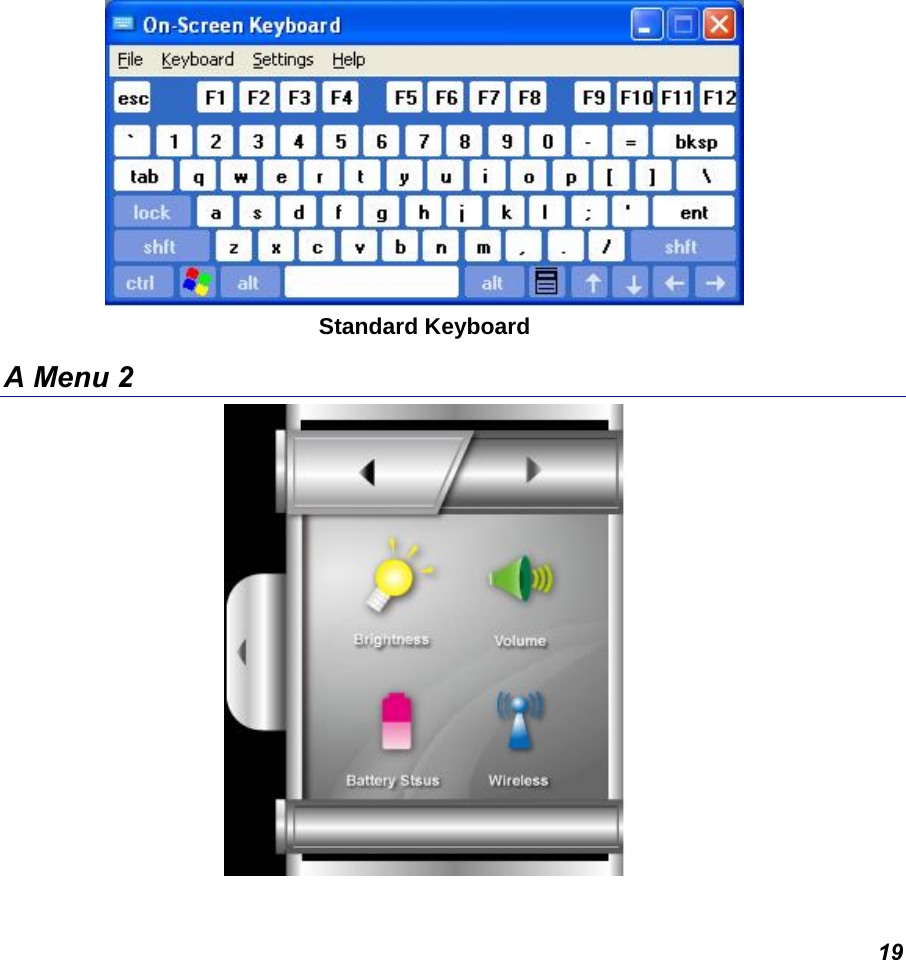

19 Standard Keyboard A Menu 2

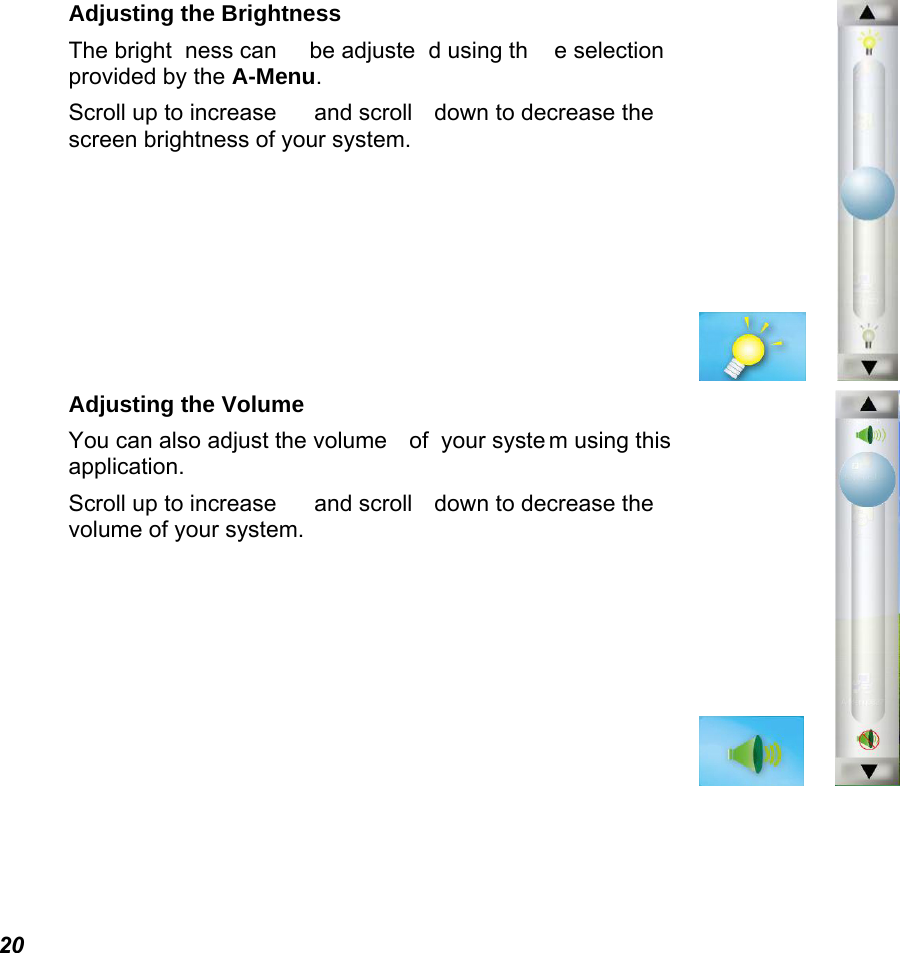

20 Adjusting the Brightness The bright ness can be adjuste d using th e selection provided by the A-Menu. Scroll up to increase and scroll down to decrease the screen brightness of your system. Adjusting the Volume You can also adjust the volume of your syste m using this application. Scroll up to increase and scroll down to decrease the volume of your system.

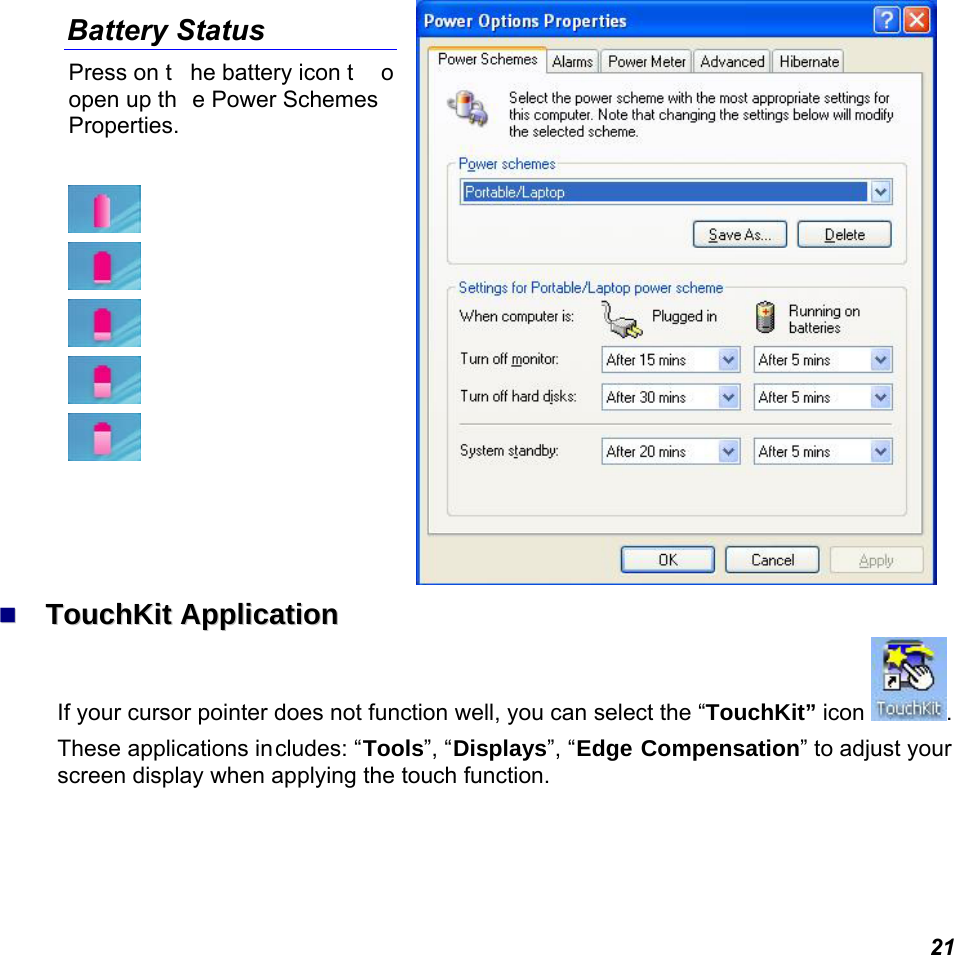

21 Battery Status Press on t he battery icon t o open up th e Power Schemes Properties.  TToouucchhKKiitt AApppplliiccaattiioonn If your cursor pointer does not function well, you can select the “TouchKit” icon . These applications includes: “Tools”, “Displays”, “Edge Compensation” to adjust your screen display when applying the touch function.

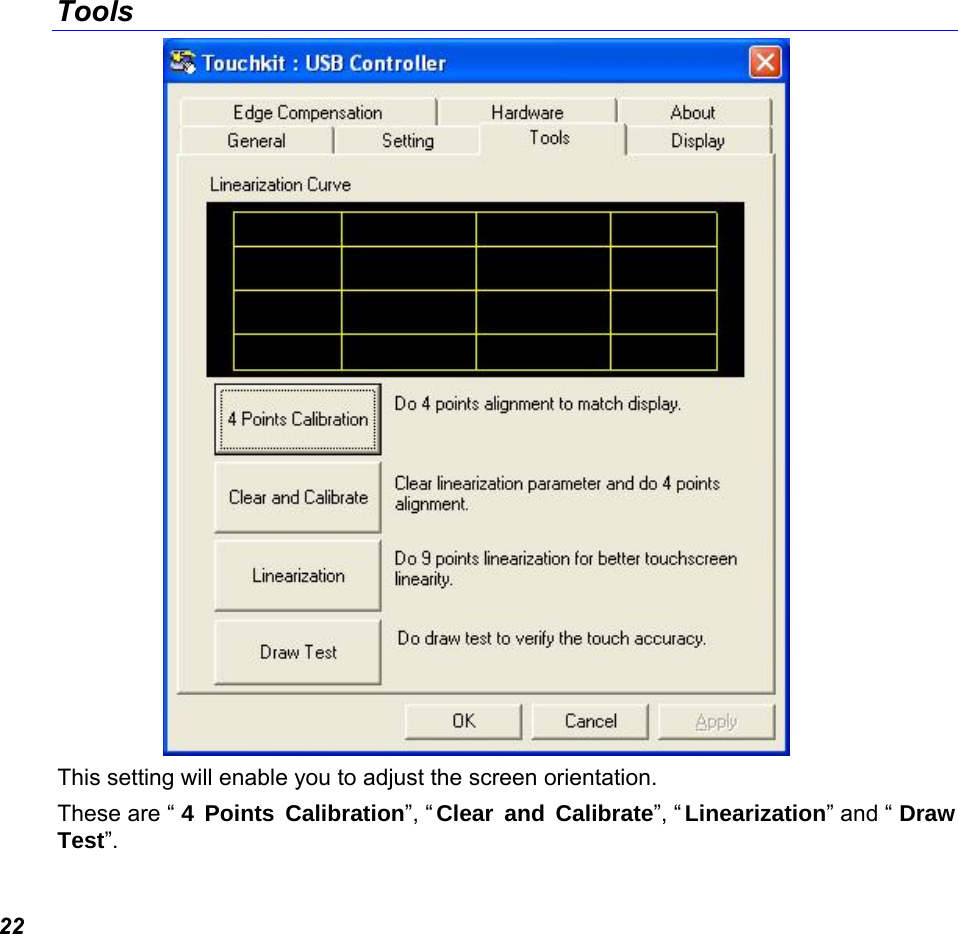

22 Tools This setting will enable you to adjust the screen orientation. These are “ 4 Points Calibration”, “ Clear and Calibrate”, “ Linearization” and “ Draw Test”.

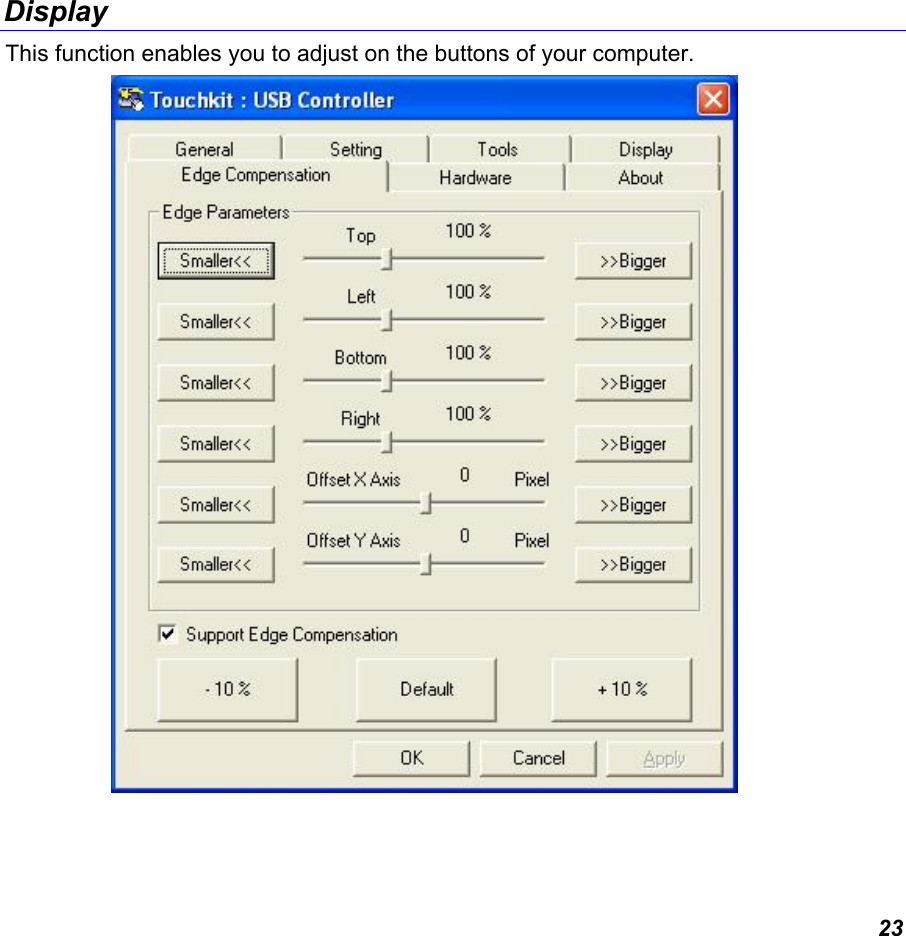

23 Display This function enables you to adjust on the buttons of your computer.

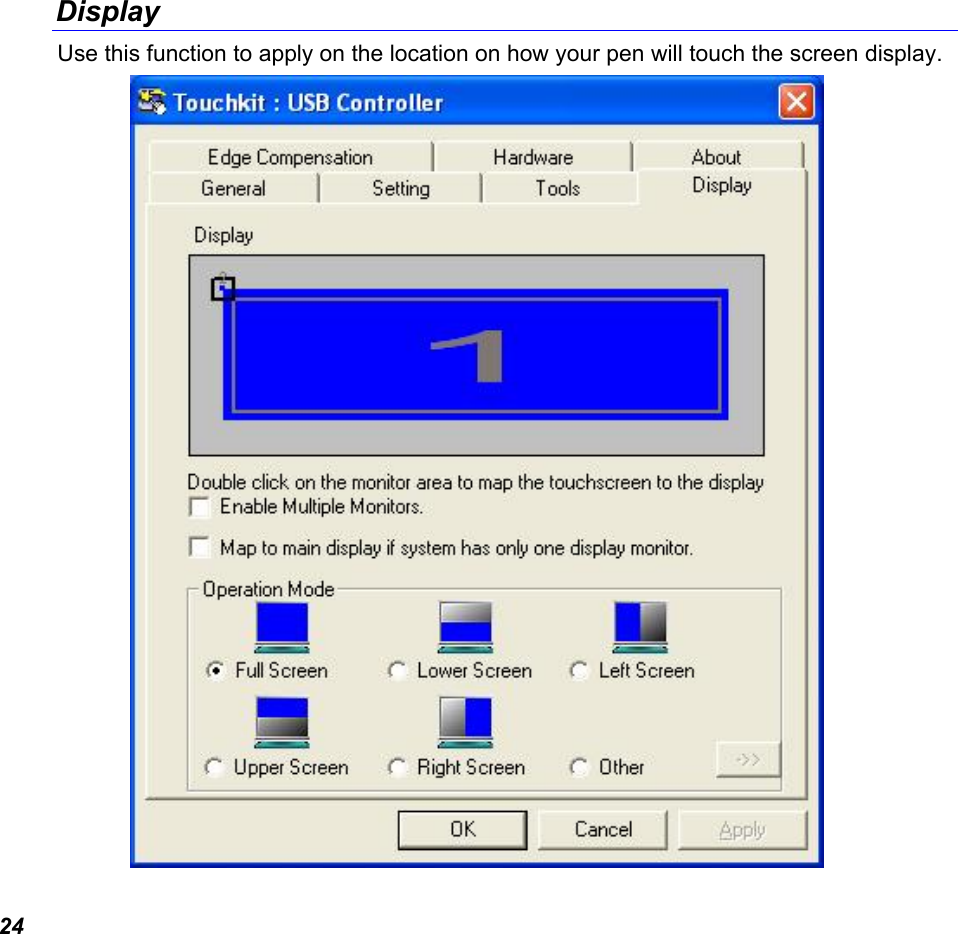

24 Display Use this function to apply on the location on how your pen will touch the screen display.

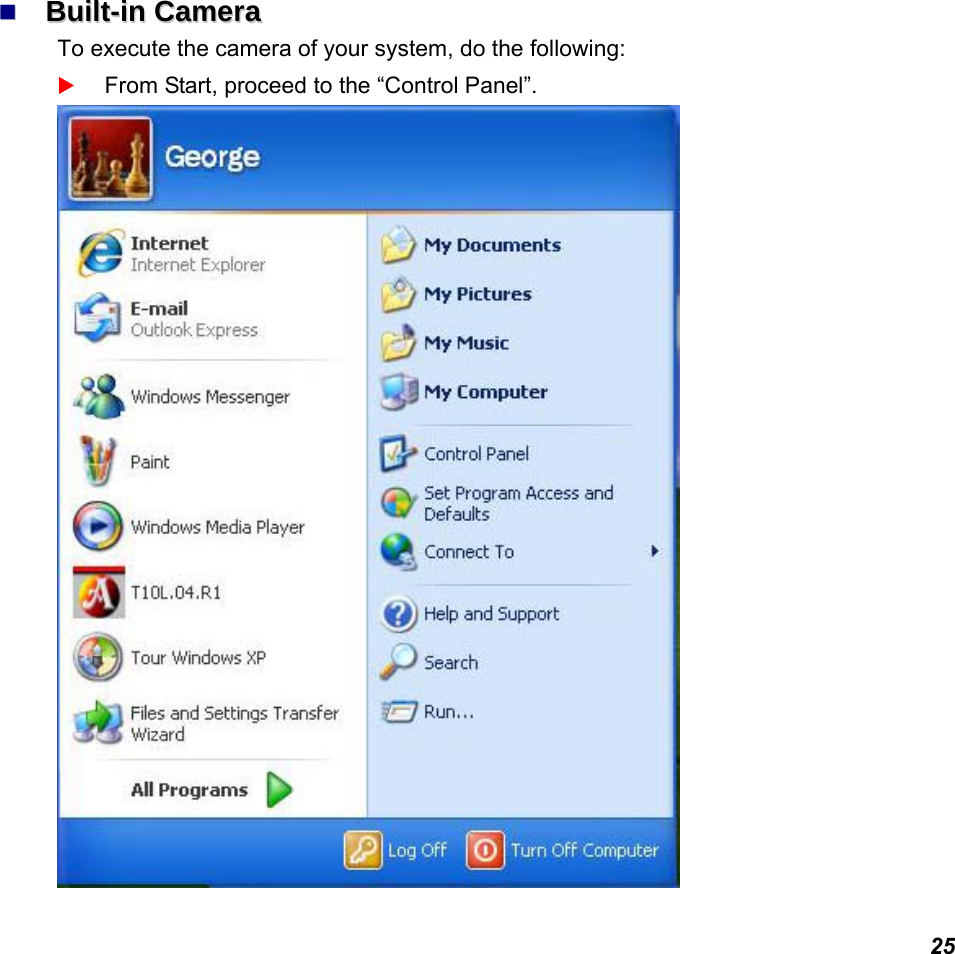

25  BBuuiilltt--iinn CCaammeerraa To execute the camera of your system, do the following:  From Start, proceed to the “Control Panel”.

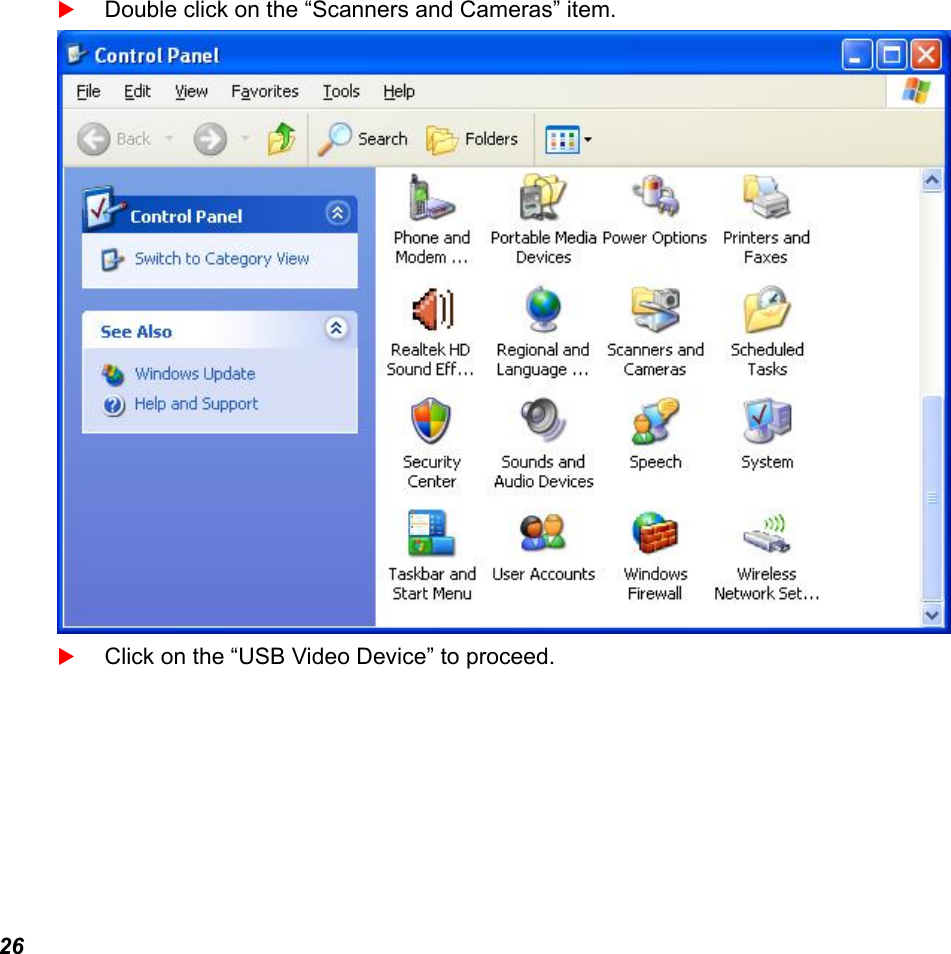

26  Double click on the “Scanners and Cameras” item.  Click on the “USB Video Device” to proceed.

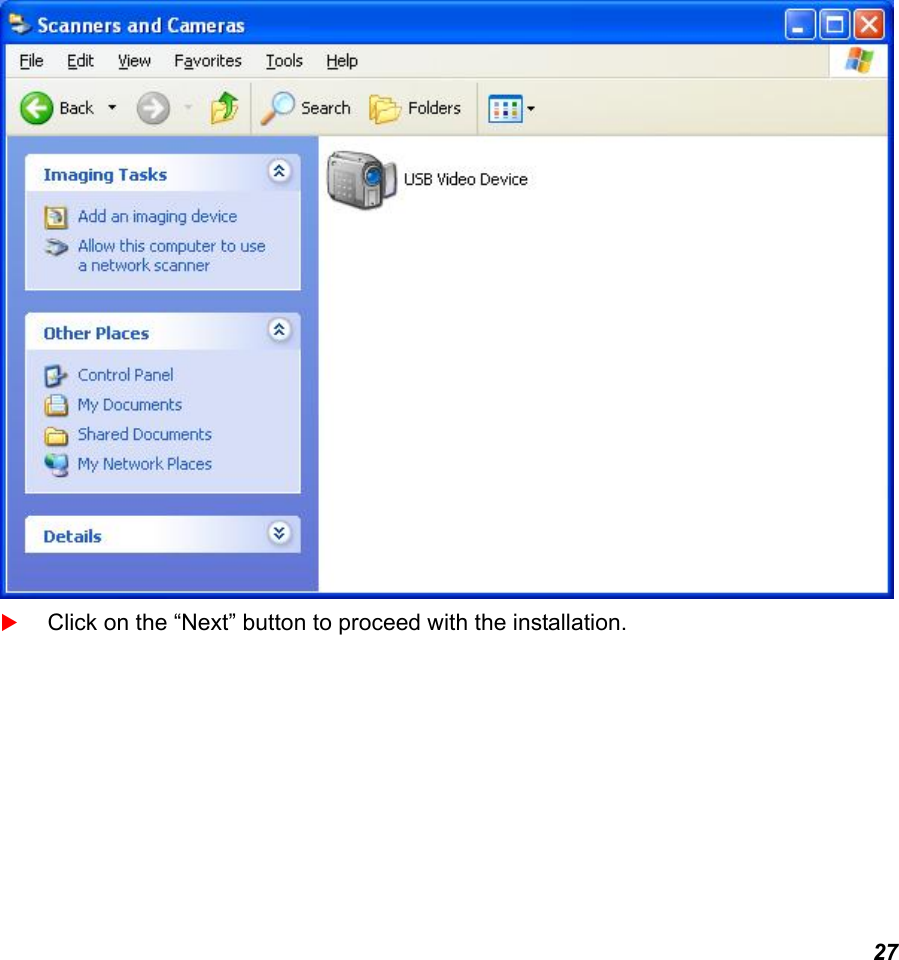

27  Click on the “Next” button to proceed with the installation.

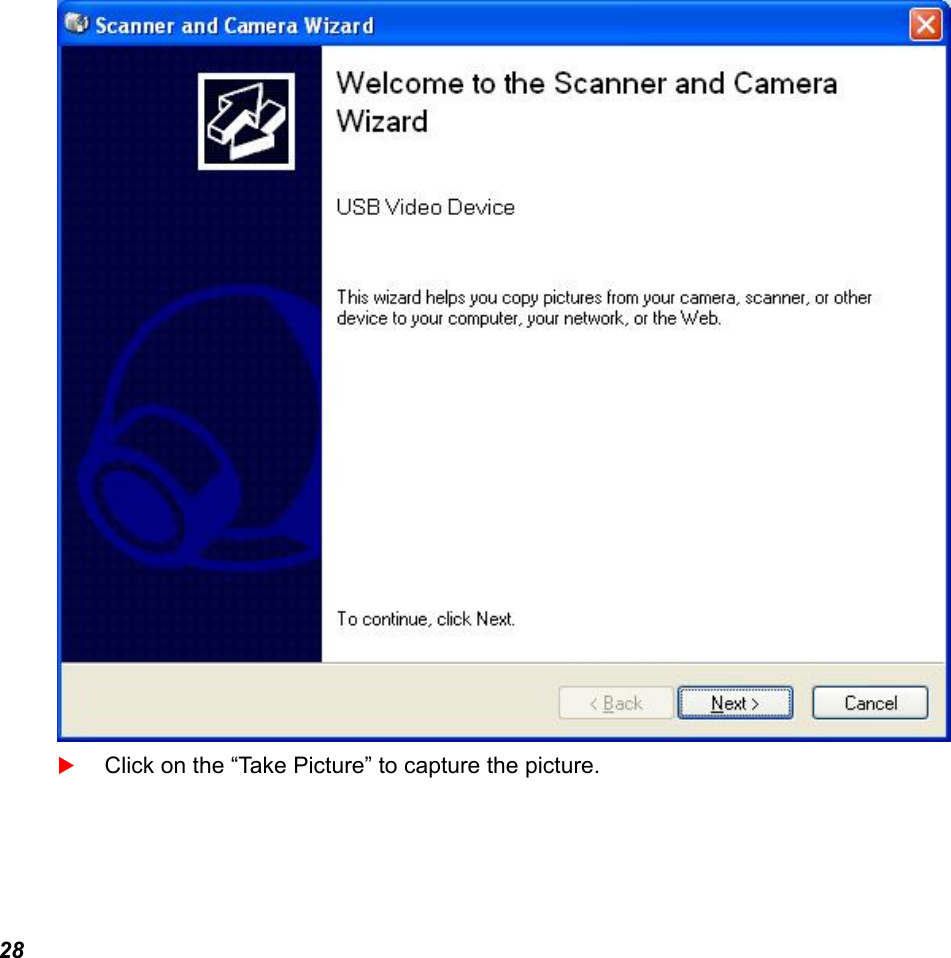

28  Click on the “Take Picture” to capture the picture.

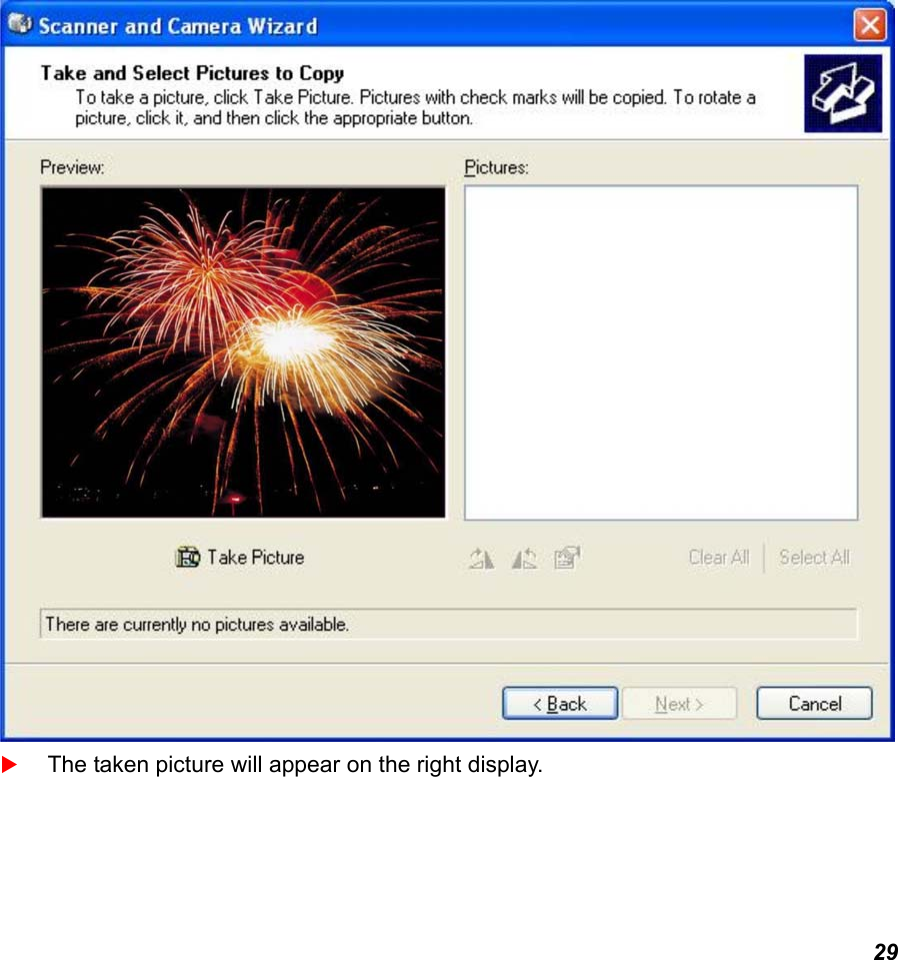

29  The taken picture will appear on the right display.

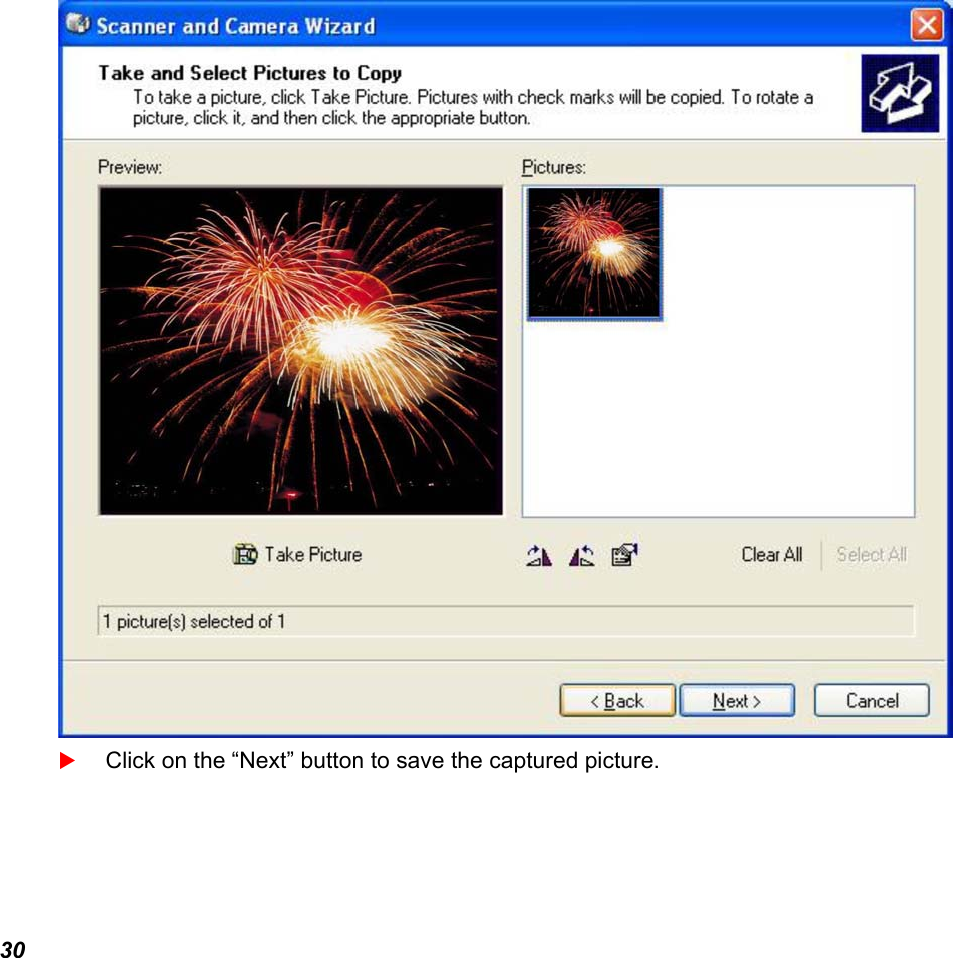

30  Click on the “Next” button to save the captured picture.

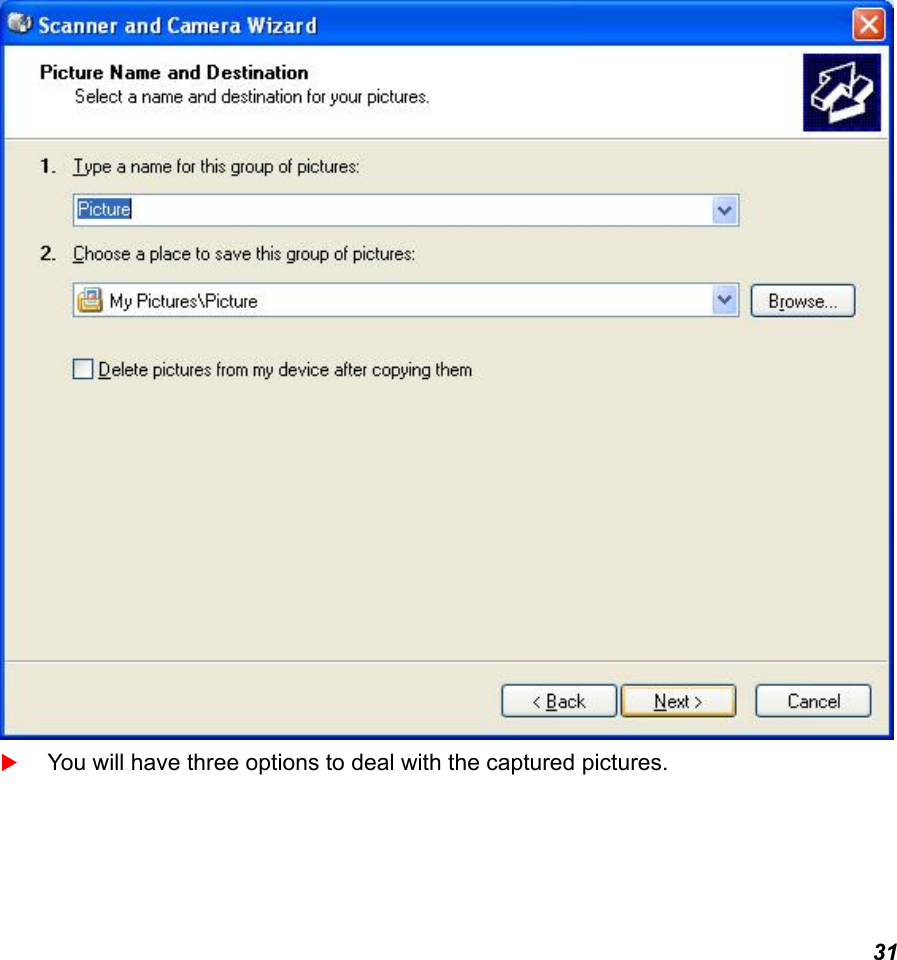

31  You will have three options to deal with the captured pictures.

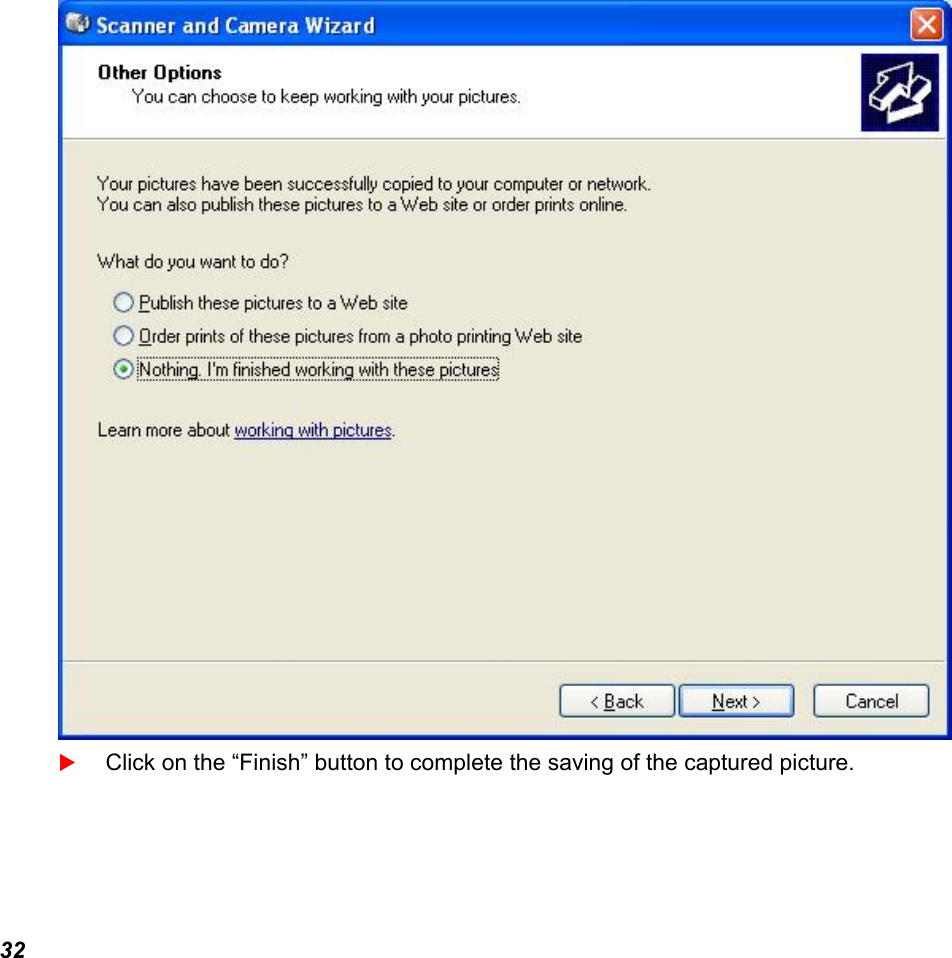

32  Click on the “Finish” button to complete the saving of the captured picture.

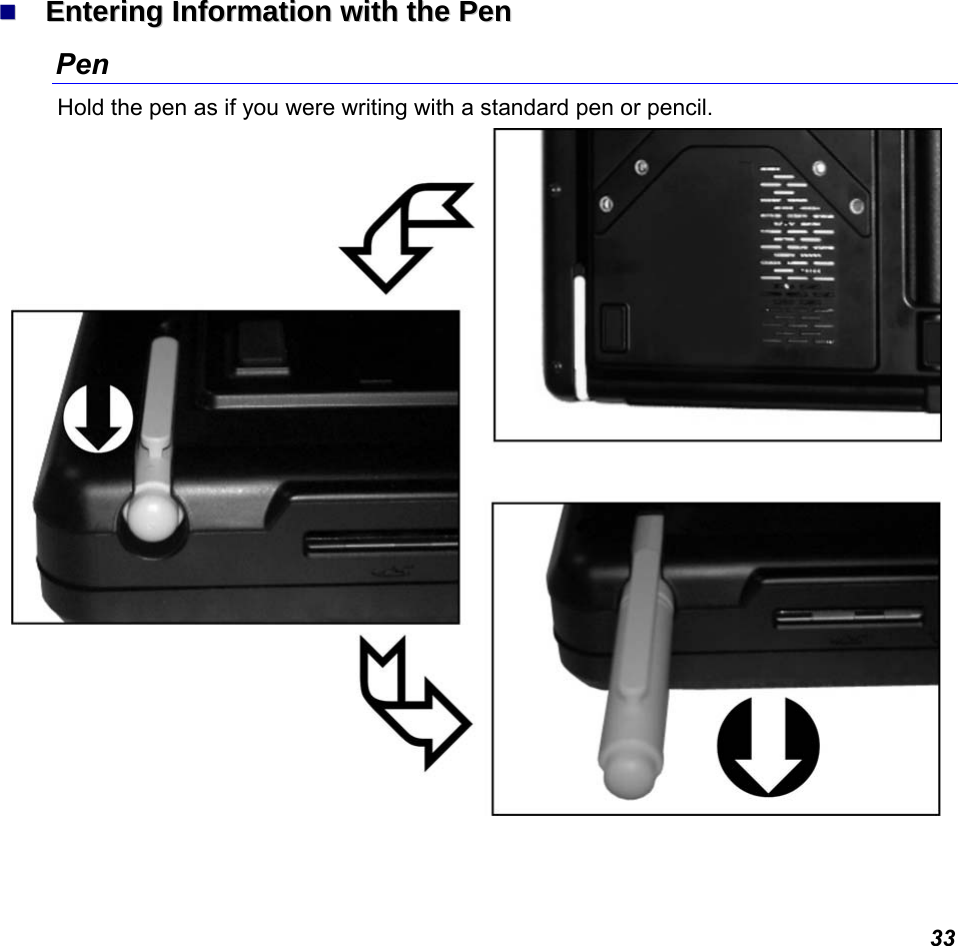

33  EEnntteerriinngg IInnffoorrmmaattiioonn wwiitthh tthhee PPeenn Pen Hold the pen as if you were writing with a standard pen or pencil.

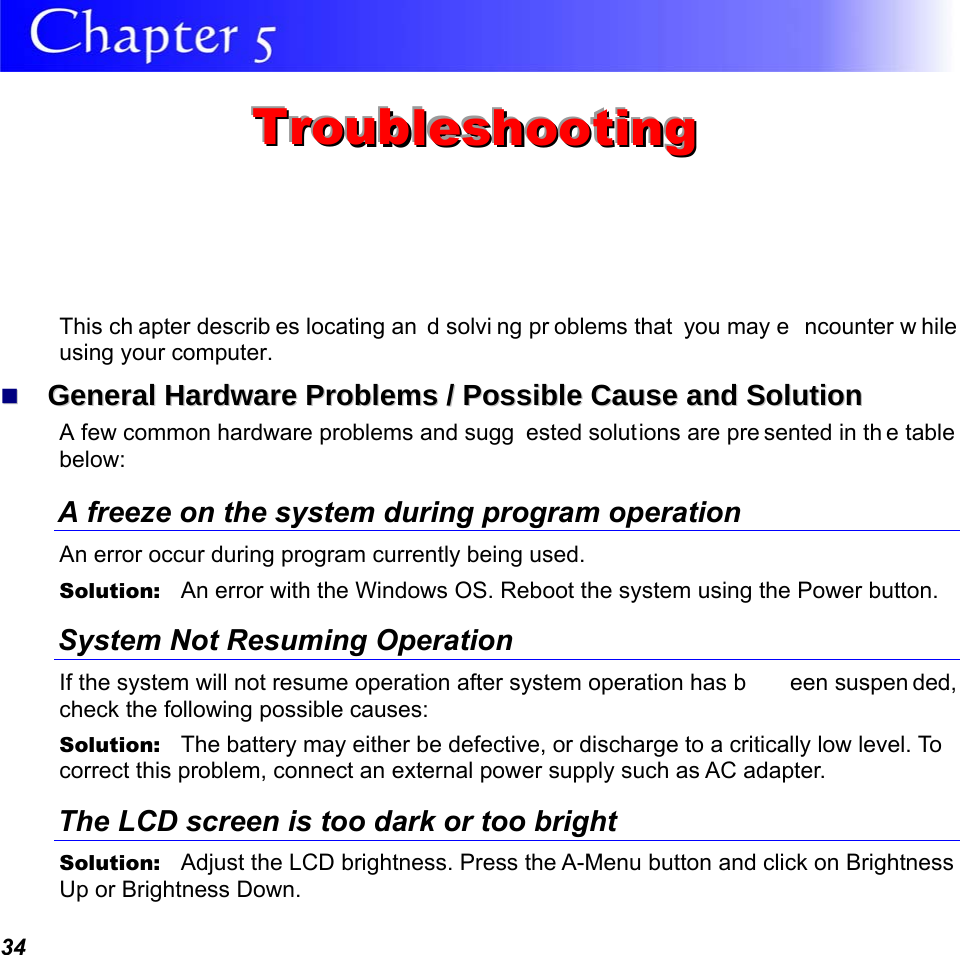

34 TTTrrrooouuubbbllleeessshhhooooootttiiinnnggg This ch apter describ es locating an d solvi ng pr oblems that you may e ncounter w hile using your computer.  GGeenneerraall HHaarrddwwaarree PPrroobblleemmss // PPoossssiibbllee CCaauussee aanndd SSoolluuttiioonn A few common hardware problems and sugg ested solutions are pre sented in th e table below: A freeze on the system during program operation An error occur during program currently being used. Solution: An error with the Windows OS. Reboot the system using the Power button. System Not Resuming Operation If the system will not resume operation after system operation has b een suspen ded, check the following possible causes: Solution: The battery may either be defective, or discharge to a critically low level. To correct this problem, connect an external power supply such as AC adapter. The LCD screen is too dark or too bright Solution: Adjust the LCD brightness. Press the A-Menu button and click on Brightness Up or Brightness Down.

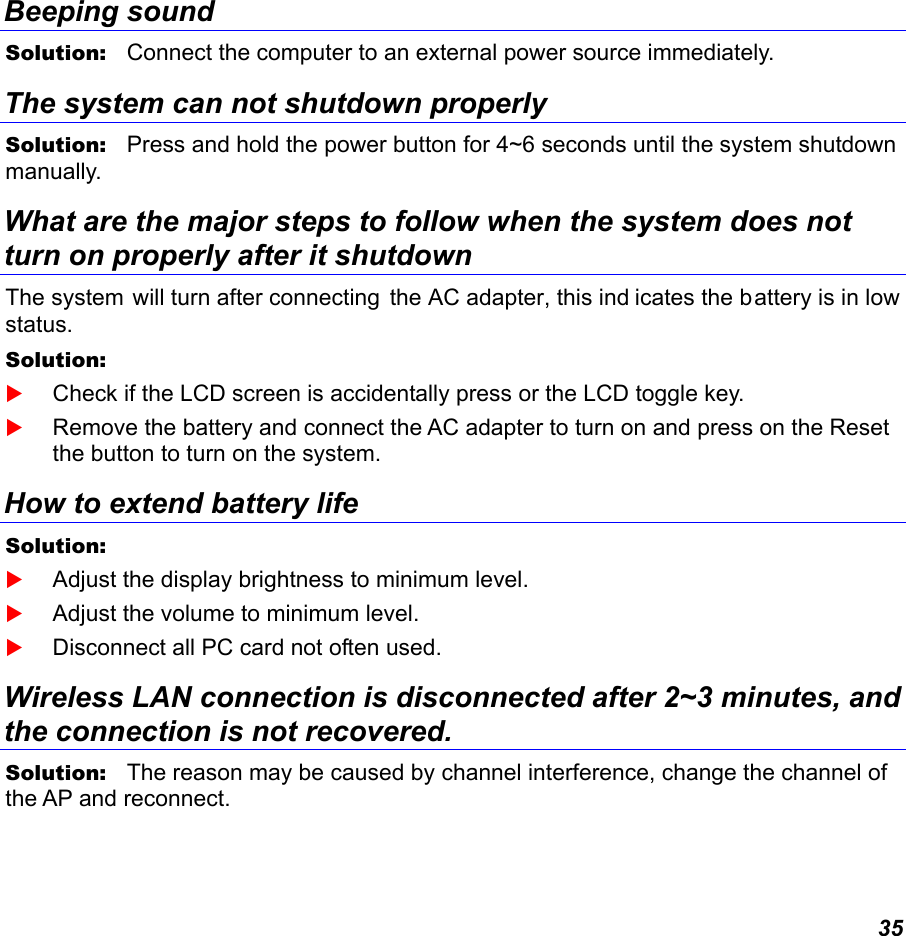

35 Beeping sound Solution: Connect the computer to an external power source immediately. The system can not shutdown properly Solution: Press and hold the power button for 4~6 seconds until the system shutdown manually. What are the major steps to follow when the system does not turn on properly after it shutdown The system will turn after connecting the AC adapter, this ind icates the battery is in low status. Solution:  Check if the LCD screen is accidentally press or the LCD toggle key.  Remove the battery and connect the AC adapter to turn on and press on the Reset the button to turn on the system. How to extend battery life Solution:  Adjust the display brightness to minimum level.  Adjust the volume to minimum level.  Disconnect all PC card not often used. Wireless LAN connection is disconnected after 2~3 minutes, and the connection is not recovered. Solution: The reason may be caused by channel interference, change the channel of the AP and reconnect.

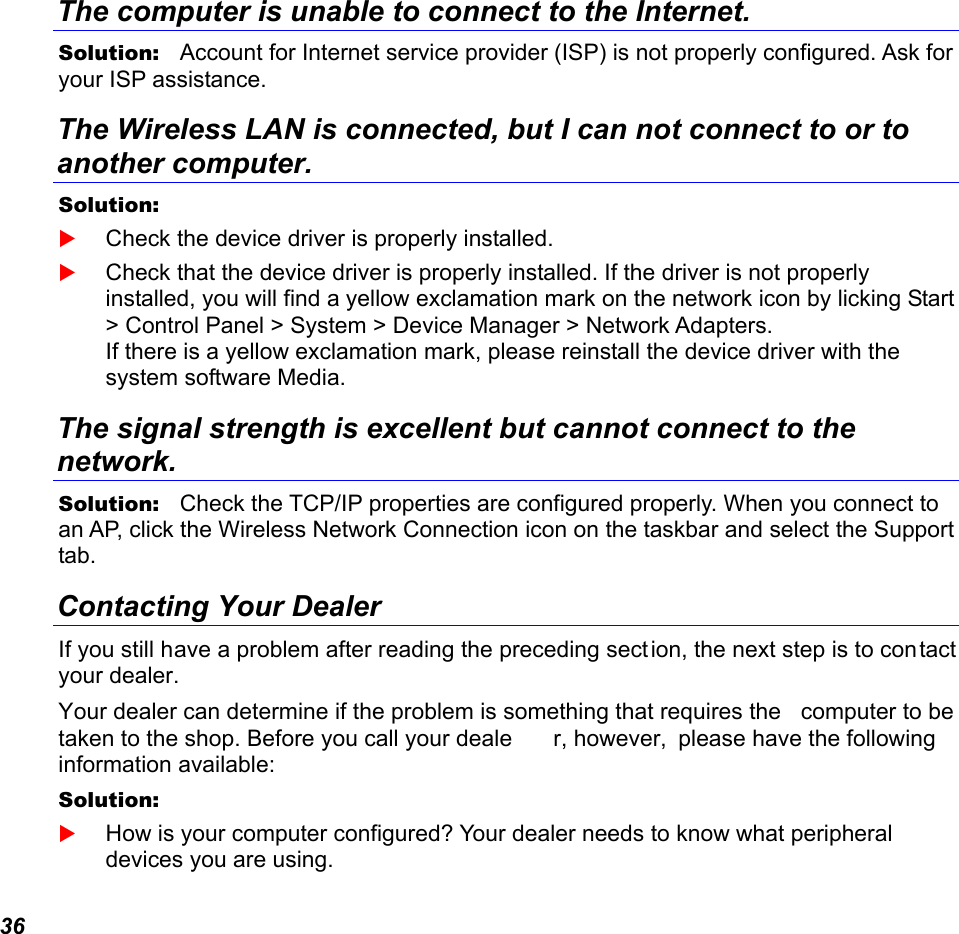

36 The computer is unable to connect to the Internet. Solution: Account for Internet service provider (ISP) is not properly configured. Ask for your ISP assistance. The Wireless LAN is connected, but I can not connect to or to another computer. Solution:  Check the device driver is properly installed.  Check that the device driver is properly installed. If the driver is not properly installed, you will find a yellow exclamation mark on the network icon by licking Start > Control Panel > System > Device Manager > Network Adapters. If there is a yellow exclamation mark, please reinstall the device driver with the system software Media. The signal strength is excellent but cannot connect to the network. Solution: Check the TCP/IP properties are configured properly. When you connect to an AP, click the Wireless Network Connection icon on the taskbar and select the Support tab. Contacting Your Dealer If you still have a problem after reading the preceding section, the next step is to contact your dealer. Your dealer can determine if the problem is something that requires the computer to be taken to the shop. Before you call your deale r, however, please have the following information available: Solution:  How is your computer configured? Your dealer needs to know what peripheral devices you are using.

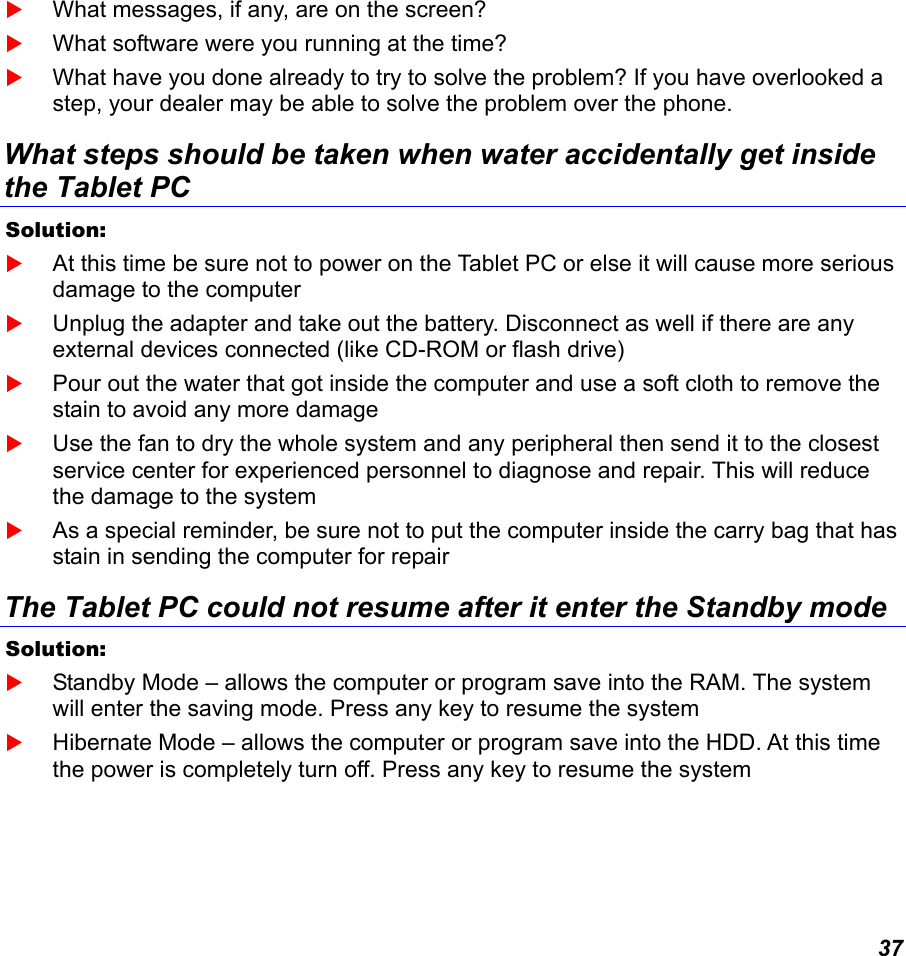

37  What messages, if any, are on the screen?  What software were you running at the time?  What have you done already to try to solve the problem? If you have overlooked a step, your dealer may be able to solve the problem over the phone. What steps should be taken when water accidentally get inside the Tablet PC Solution:  At this time be sure not to power on the Tablet PC or else it will cause more serious damage to the computer  Unplug the adapter and take out the battery. Disconnect as well if there are any external devices connected (like CD-ROM or flash drive)  Pour out the water that got inside the computer and use a soft cloth to remove the stain to avoid any more damage  Use the fan to dry the whole system and any peripheral then send it to the closest service center for experienced personnel to diagnose and repair. This will reduce the damage to the system  As a special reminder, be sure not to put the computer inside the carry bag that has stain in sending the computer for repair The Tablet PC could not resume after it enter the Standby mode Solution:  Standby Mode – allows the computer or program save into the RAM. The system will enter the saving mode. Press any key to resume the system  Hibernate Mode – allows the computer or program save into the HDD. At this time the power is completely turn off. Press any key to resume the system

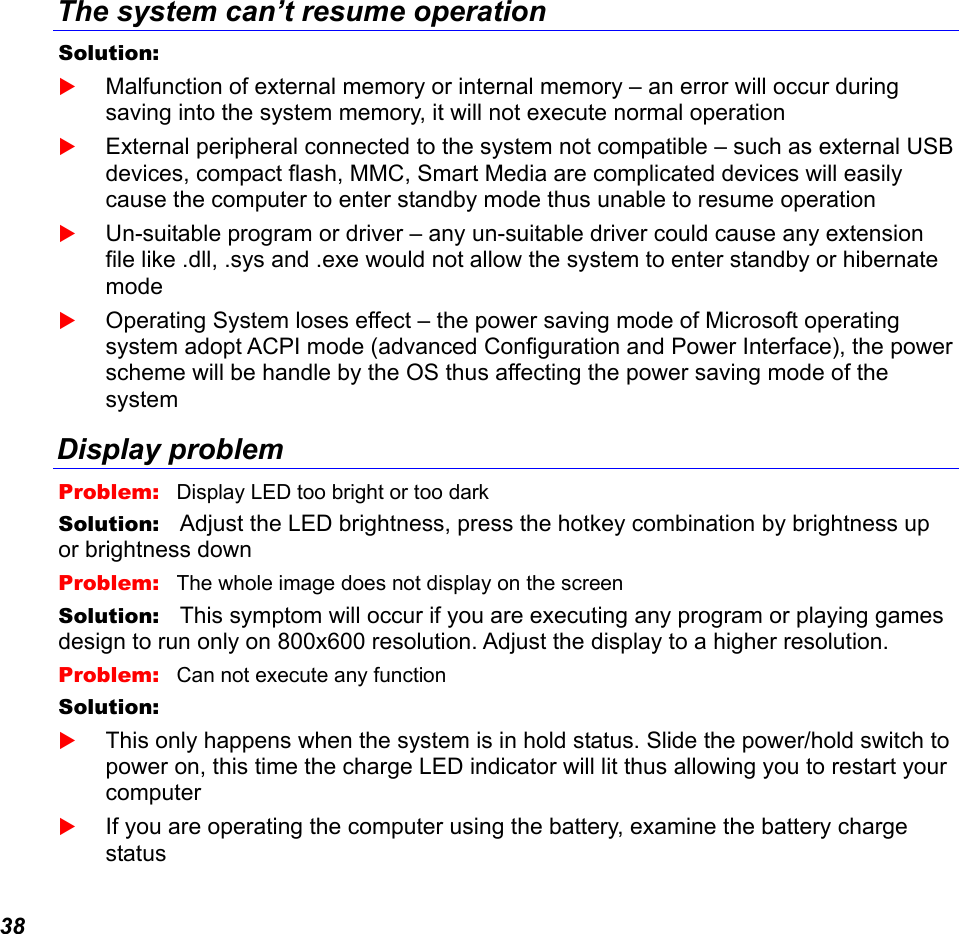

38 The system can’t resume operation Solution:  Malfunction of external memory or internal memory – an error will occur during saving into the system memory, it will not execute normal operation  External peripheral connected to the system not compatible – such as external USB devices, compact flash, MMC, Smart Media are complicated devices will easily cause the computer to enter standby mode thus unable to resume operation  Un-suitable program or driver – any un-suitable driver could cause any extension file like .dll, .sys and .exe would not allow the system to enter standby or hibernate mode  Operating System loses effect – the power saving mode of Microsoft operating system adopt ACPI mode (advanced Configuration and Power Interface), the power scheme will be handle by the OS thus affecting the power saving mode of the system Display problem Problem: Display LED too bright or too dark Solution: Adjust the LED brightness, press the hotkey combination by brightness up or brightness down Problem: The whole image does not display on the screen Solution: This symptom will occur if you are executing any program or playing games design to run only on 800x600 resolution. Adjust the display to a higher resolution. Problem: Can not execute any function Solution:  This only happens when the system is in hold status. Slide the power/hold switch to power on, this time the charge LED indicator will lit thus allowing you to restart your computer  If you are operating the computer using the battery, examine the battery charge status

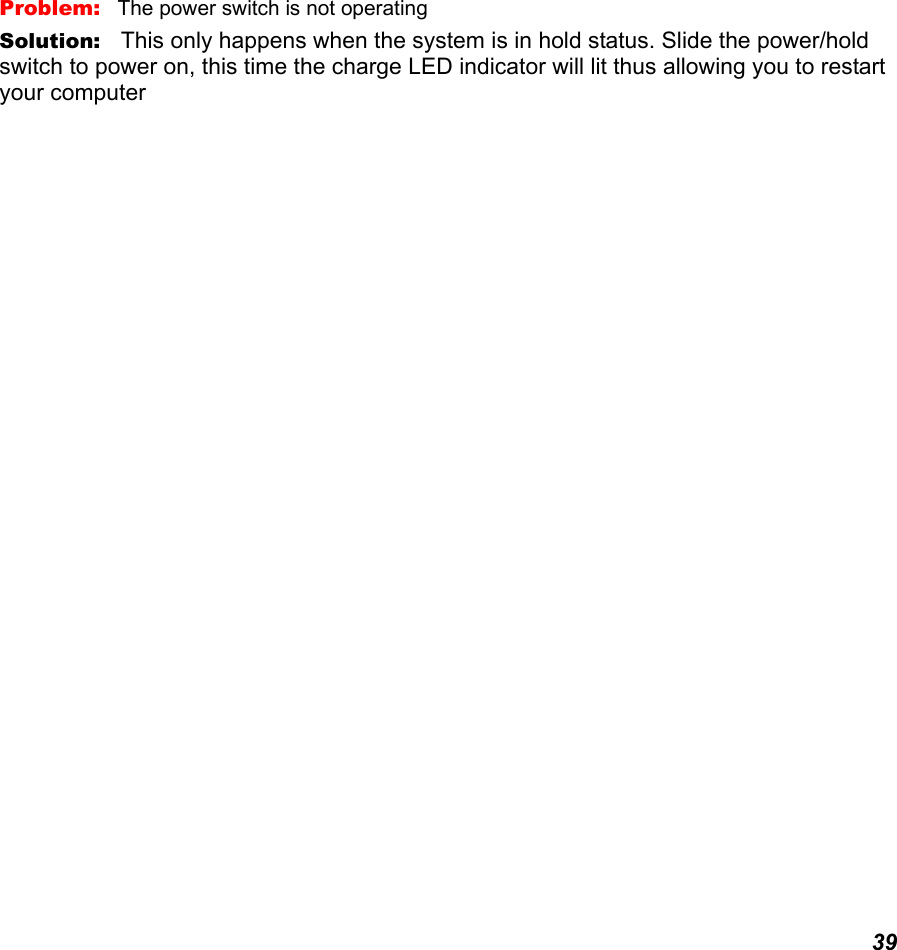

39 Problem: The power switch is not operating Solution: This only happens when the system is in hold status. Slide the power/hold switch to power on, this time the charge LED indicator will lit thus allowing you to restart your computer

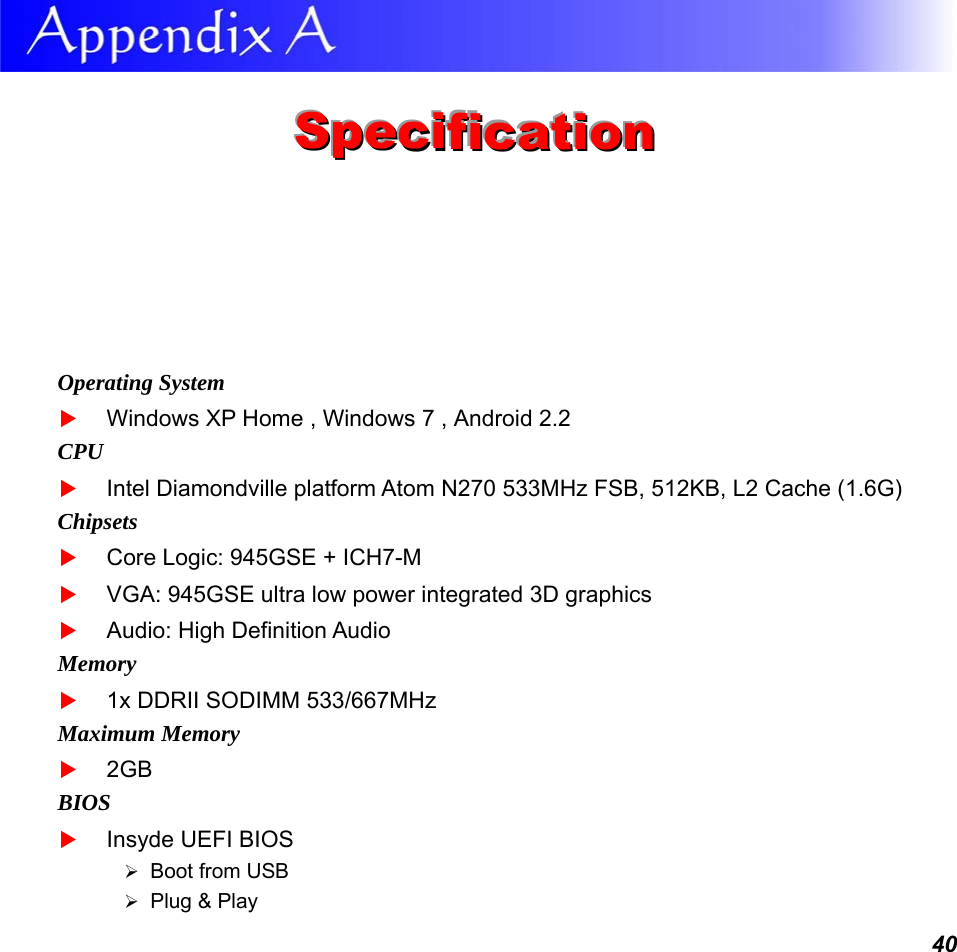

40 SSSpppeeeccciiifffiiicccaaatttiiiooonnn Operating System  Windows XP Home , Windows 7 , Android 2.2CPU  Intel Diamondville platform Atom N270 533MHz FSB, 512KB, L2 Cache (1.6G) Chipsets  Core Logic: 945GSE + ICH7-M  VGA: 945GSE ultra low power integrated 3D graphics  Audio: High Definition Audio Memory  1x DDRII SODIMM 533/667MHz Maximum Memory  2GB BIOS  Insyde UEFI BIOS  Boot from USB  Plug & Play

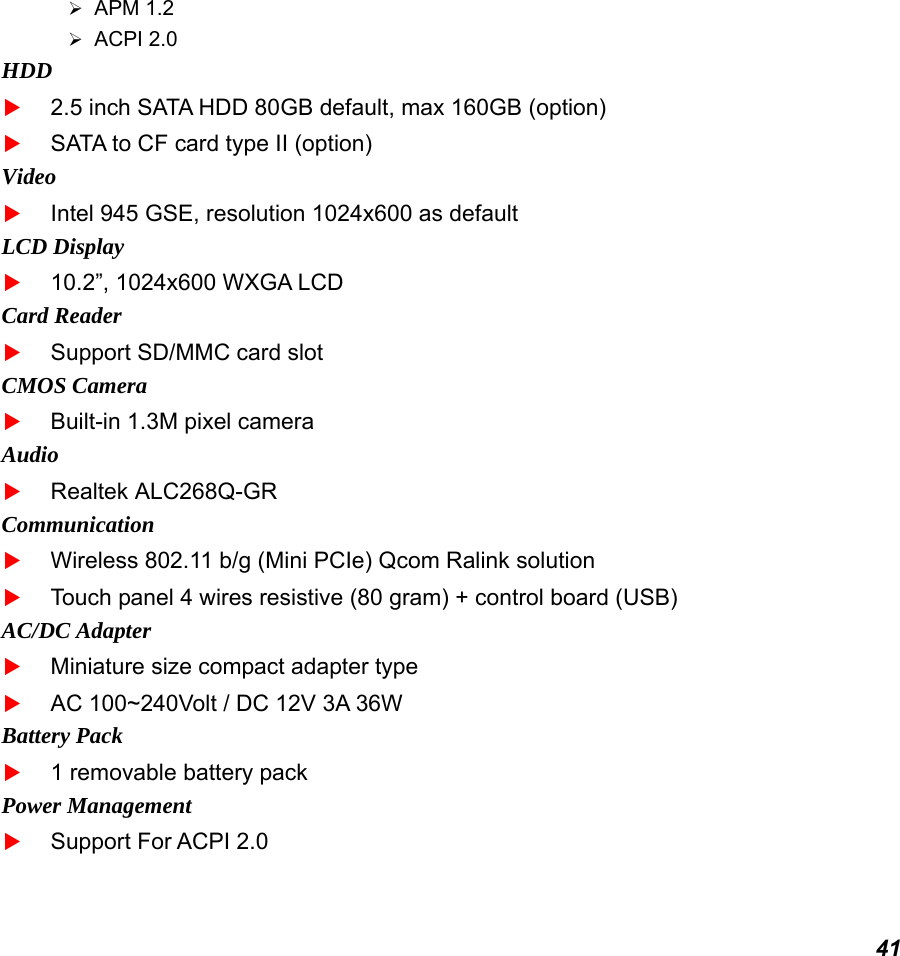

41  APM 1.2  ACPI 2.0 HDD  2.5 inch SATA HDD 80GB default, max 160GB (option)  SATA to CF card type II (option) Video  Intel 945 GSE, resolution 1024x600 as default LCD Display  10.2”, 1024x600 WXGA LCD Card Reader  Support SD/MMC card slot CMOS Camera  Built-in 1.3M pixel camera Audio  Realtek ALC268Q-GR Communication  Wireless 802.11 b/g (Mini PCIe) Qcom Ralink solution  Touch panel 4 wires resistive (80 gram) + control board (USB) AC/DC Adapter  Miniature size compact adapter type  AC 100~240Volt / DC 12V 3A 36W Battery Pack  1 removable battery pack Power Management  Support For ACPI 2.0

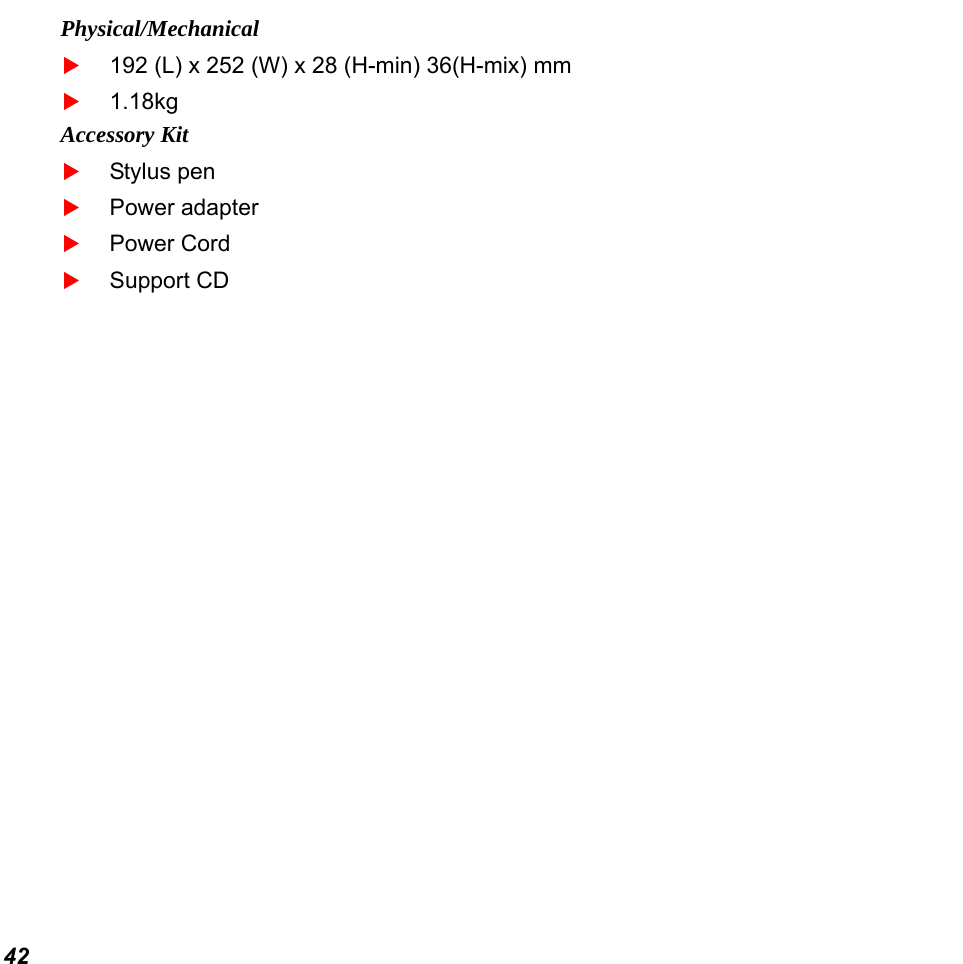

42 Physical/Mechanical  192 (L) x 252 (W) x 28 (H-min) 36(H-mix) mm  1.18kg Accessory Kit  Stylus pen  Power adapter  Power Cord  Support CD
