Amtran Technology Co WN4517R-M 802.11b/g/n 1T1R Wireless Lan USB Module User Manual LiteOn Technology Corp

Amtran Technology Co Ltd 802.11b/g/n 1T1R Wireless Lan USB Module LiteOn Technology Corp

WN4617R(M)_Ralink_11n 2.4G 1x1 USB_Module_Spec_ver1.0(For Certificate).pdf

Page 1/16 PRODUCT SPECIFICATION 802.11n, 2.4G 1T1R Wireless LAN USB Module WN4617R(M) Version 1.0 * This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC

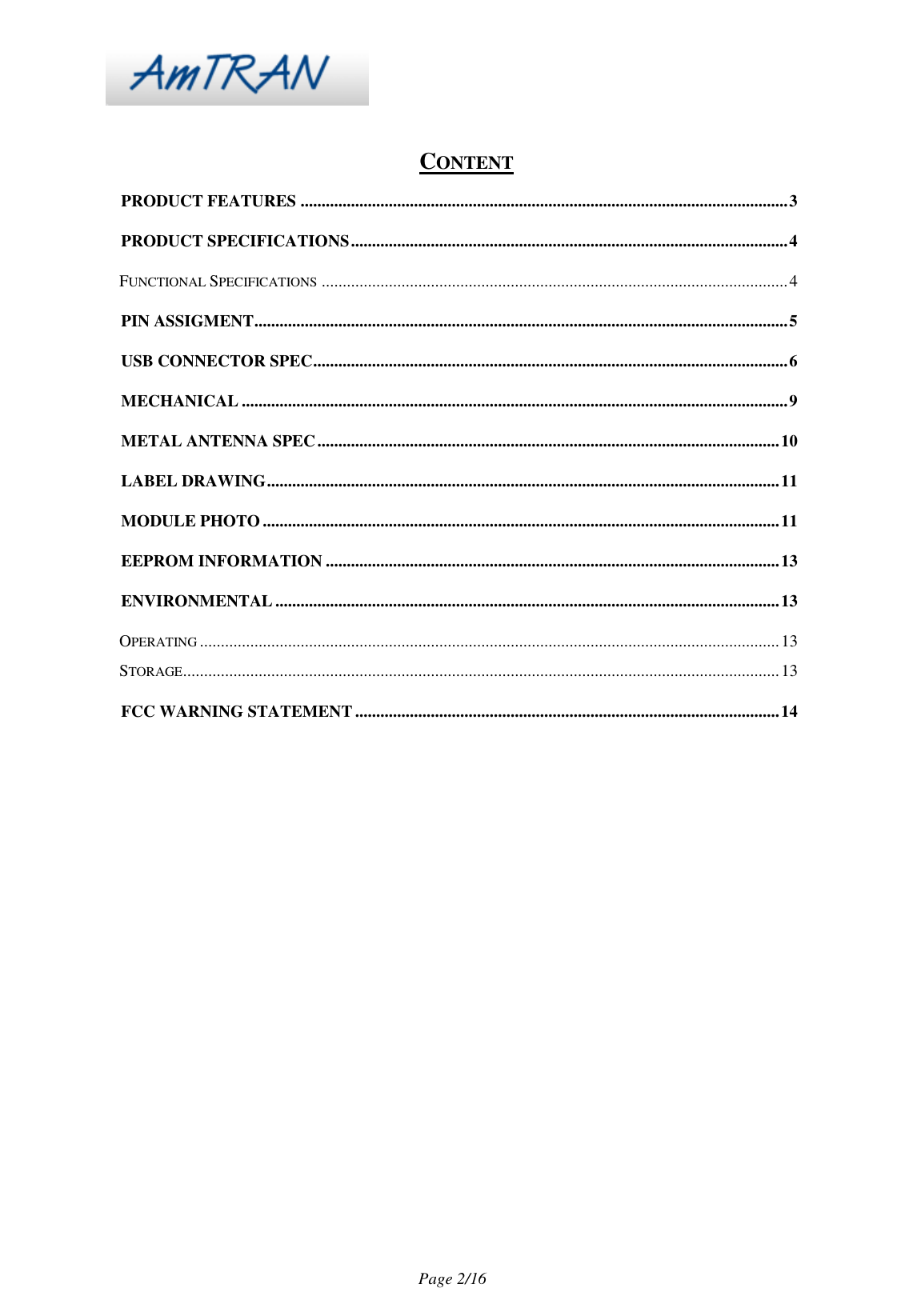

Page 2/16 CONTENT PRODUCT FEATURES .................................................................................................................... 3 PRODUCT SPECIFICATIONS ........................................................................................................ 4 FUNCTIONAL SPECIFICATIONS ............................................................................................................... 4 PIN ASSIGMENT ............................................................................................................................... 5 USB CONNECTOR SPEC ................................................................................................................. 6 MECHANICAL .................................................................................................................................. 9 METAL ANTENNA SPEC .............................................................................................................. 10 LABEL DRAWING .......................................................................................................................... 11 MODULE PHOTO ........................................................................................................................... 11 EEPROM INFORMATION ............................................................................................................ 13 ENVIRONMENTAL ........................................................................................................................ 13 OPERATING .......................................................................................................................................... 13 STORAGE .............................................................................................................................................. 13 FCC WARNING STATEMENT ..................................................................................................... 14

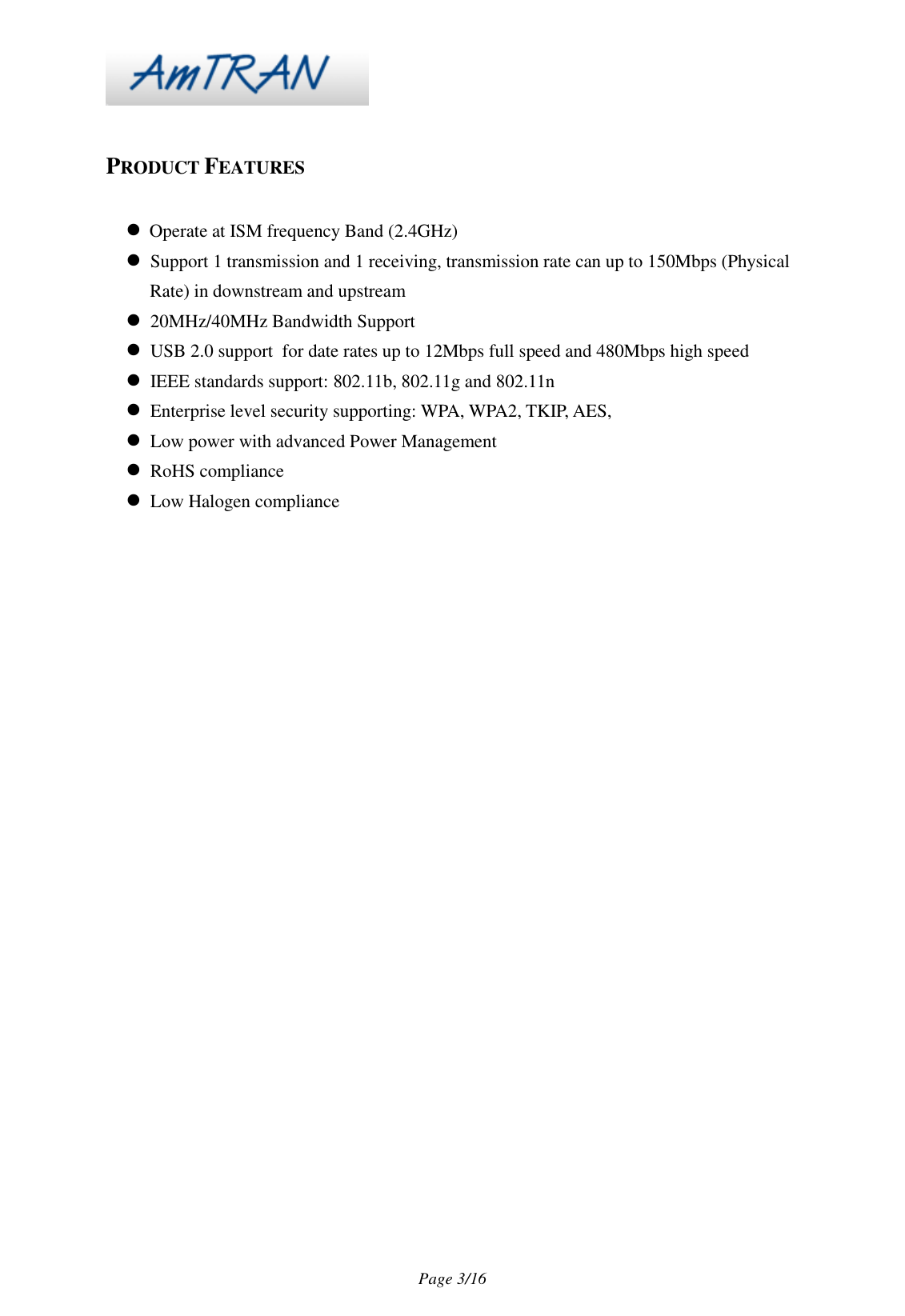

Page 3/16 PRODUCT FEATURES  Operate at ISM frequency Band (2.4GHz)  Support 1 transmission and 1 receiving, transmission rate can up to 150Mbps (Physical Rate) in downstream and upstream  20MHz/40MHz Bandwidth Support  USB 2.0 support for date rates up to 12Mbps full speed and 480Mbps high speed  IEEE standards support: 802.11b, 802.11g and 802.11n  Enterprise level security supporting: WPA, WPA2, TKIP, AES,  Low power with advanced Power Management  RoHS compliance  Low Halogen compliance
Page 4/16 PRODUCT SPECIFICATIONS MAIN CHIPSET MAC/ Baseband/ RF: Ralink RT5370 FUNCTIONAL SPECIFICATIONS Wi-Fi Function Standard IEEE802.11b; IEEE 802.11g; IEEE 802.11n Bus Interface USB2.0 Data Rate 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 7 for HT20MHz MCS 0 to 7 for HT40MHz Media Access Control CSMA/CA with ACK Modulation Techniques 802.11b: CCK, DQPSK, DBPSK 802.11g: 64QAM, 16QAM, QPSK, BPSK 802.11n: BPSK, QPSK, 16QAM, 64QAM Network Architecture Ad-hoc mode (Peer-to-Peer) Infrastructure mode Operation Channel 2.4GHz 11: (Ch. 1-11) – United States Frequency Range 802.11bg 2.412 ~ 2.4835 GHz Transmit Output Power – 1x1 (Tolerance: ±1.5dBm) 802.11b: 17 dBm@1Mbps 17 dBm@11Mbps 802.11g: 15 dBm@6Mbps 15 dBm@54Mbps 802.11n: 20MHz: 14 dBm@MCS0 14 dBm@MCS7 40MHz: 12 dBm@MCS7 12 dBm@MCS7 Receiver Sensitivity 802.11b: -88 dBm@11Mbps 802.11g: -74 dBm@54Mbps

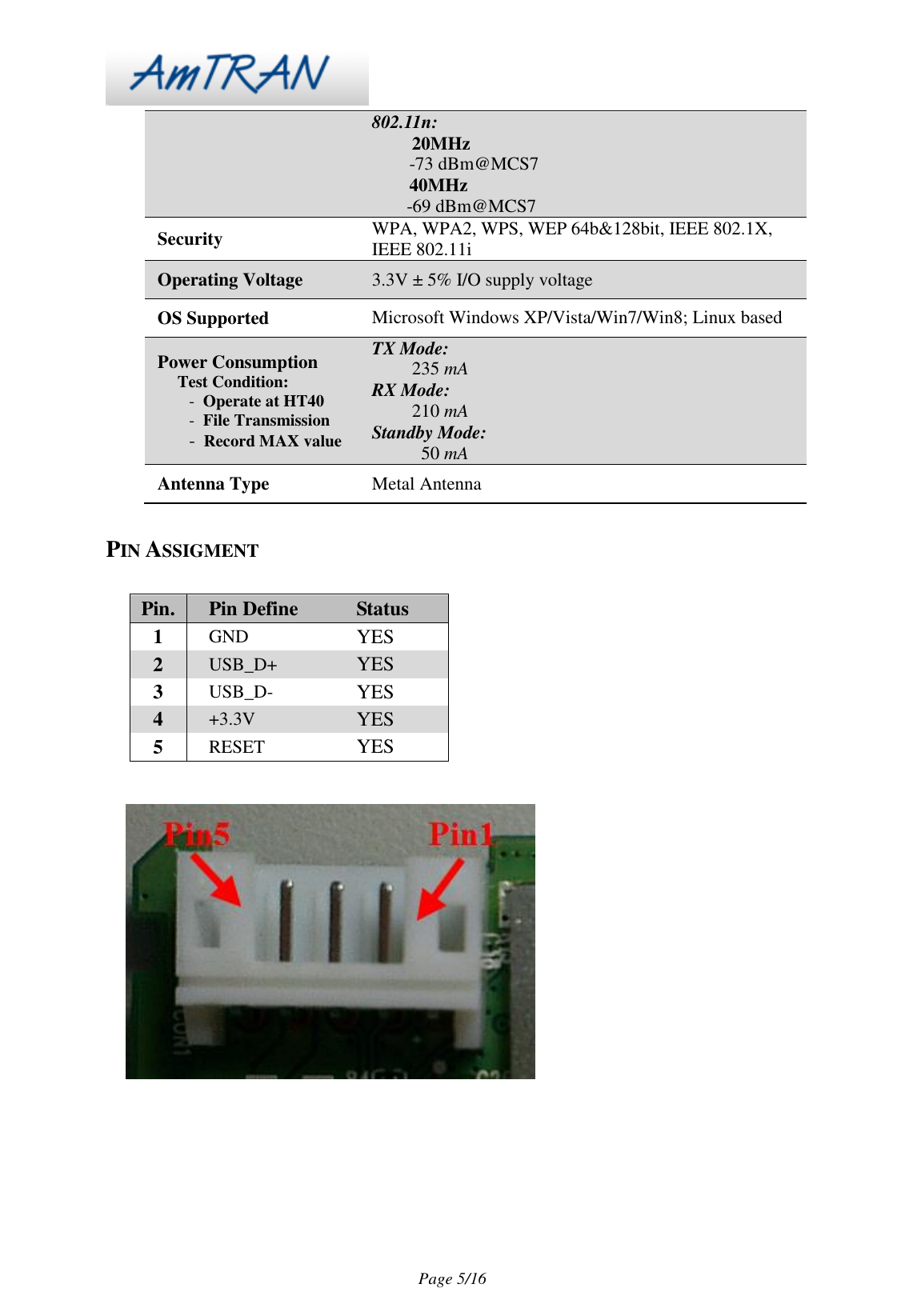

Page 5/16 802.11n: 20MHz -73 dBm@MCS7 40MHz -69 dBm@MCS7 Security WPA, WPA2, WPS, WEP 64b&128bit, IEEE 802.1X, IEEE 802.11i Operating Voltage 3.3V ± 5% I/O supply voltage OS Supported Microsoft Windows XP/Vista/Win7/Win8; Linux based Power Consumption Test Condition: - Operate at HT40 - File Transmission - Record MAX value TX Mode: 235 mA RX Mode: 210 mA Standby Mode: 50 mA Antenna Type Metal Antenna PIN ASSIGMENT Pin. Pin Define Status 1 GND YES 2 USB_D+ YES 3 USB_D- YES 4 +3.3V YES 5 RESET YES

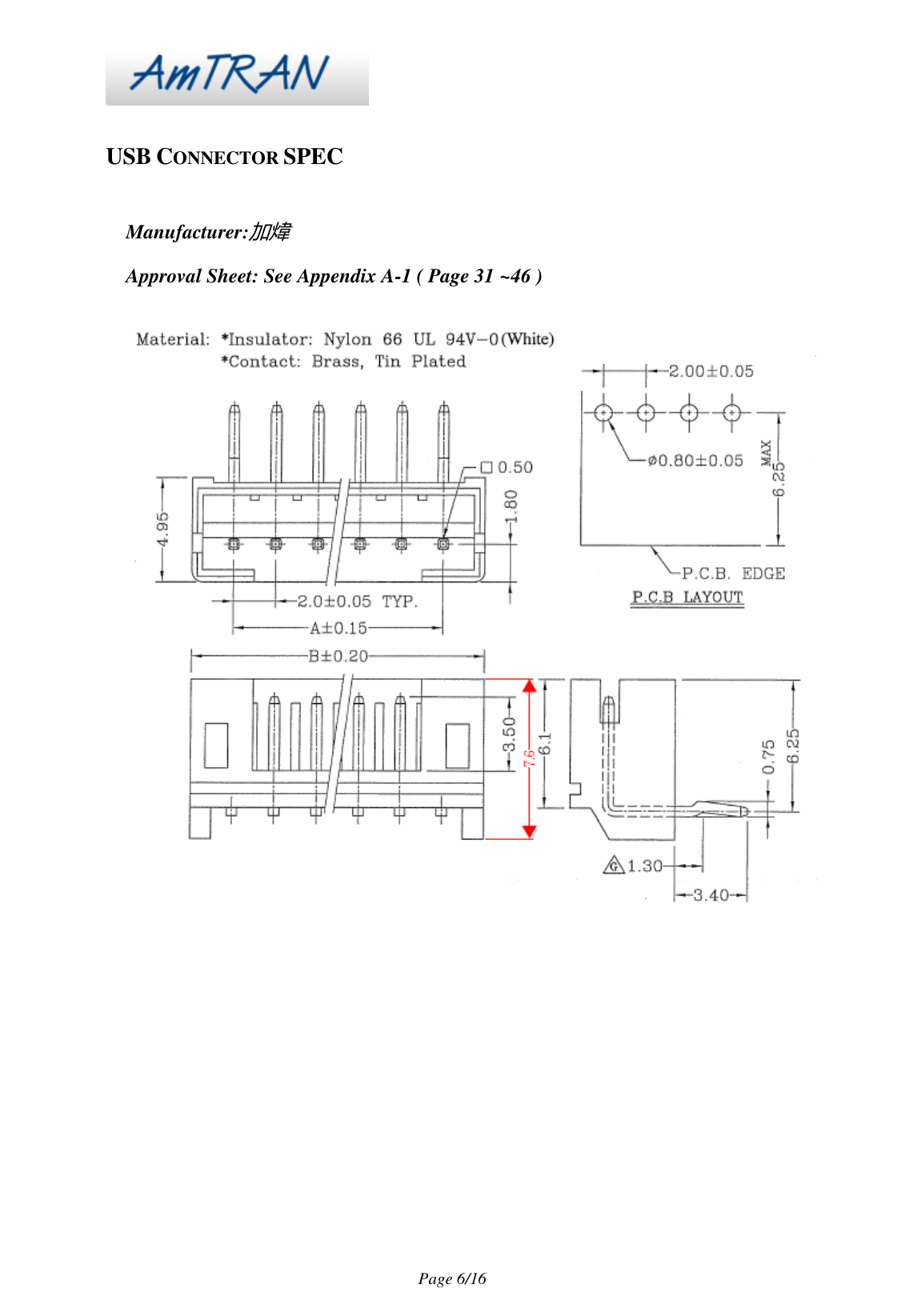

Page 6/16 USB CONNECTOR SPEC Manufacturer:加煒 Approval Sheet: See Appendix A-1 ( Page 31 ~46 )
Page 7/16

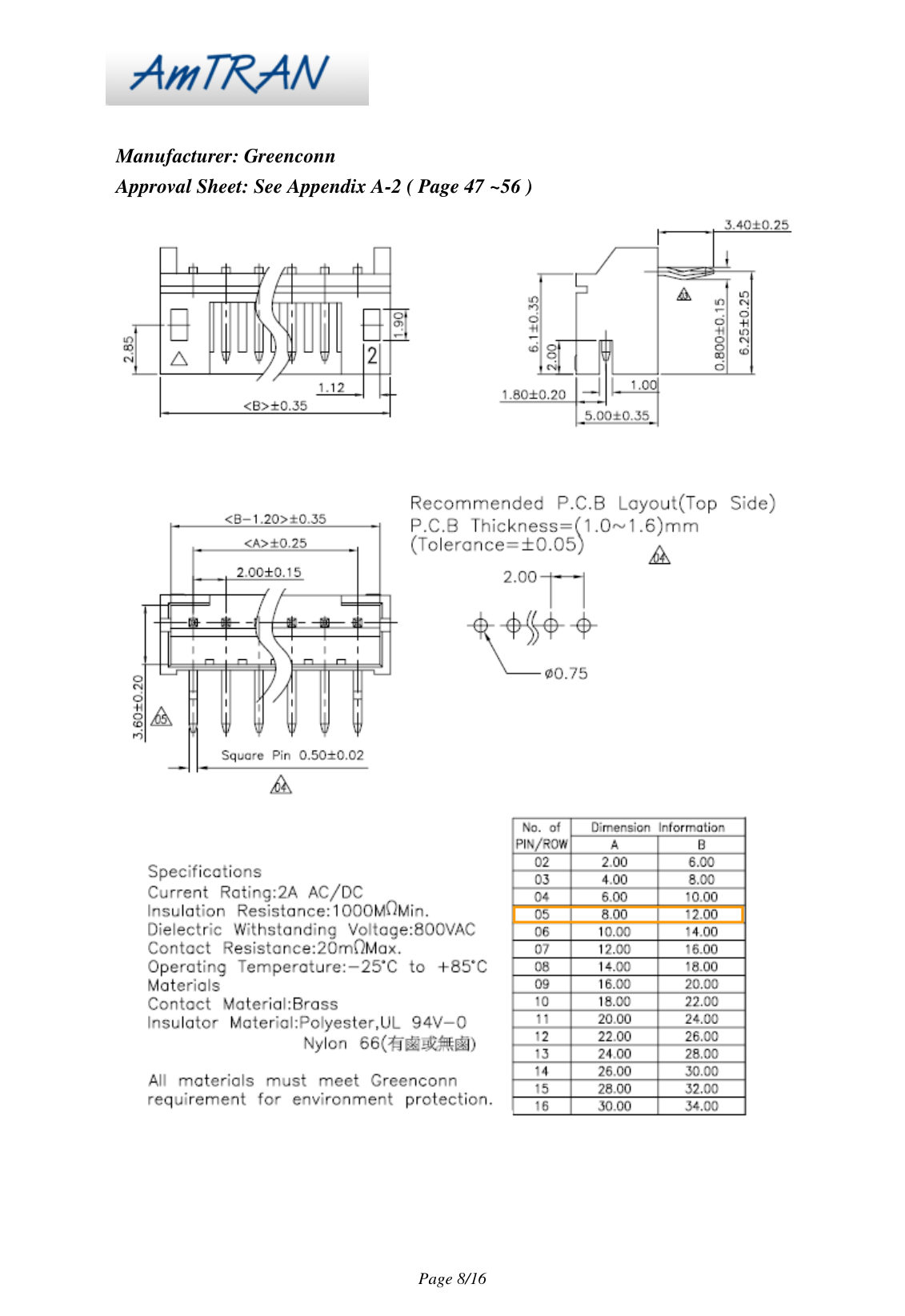

Page 8/16 Manufacturer: Greenconn Approval Sheet: See Appendix A-2 ( Page 47 ~56 )

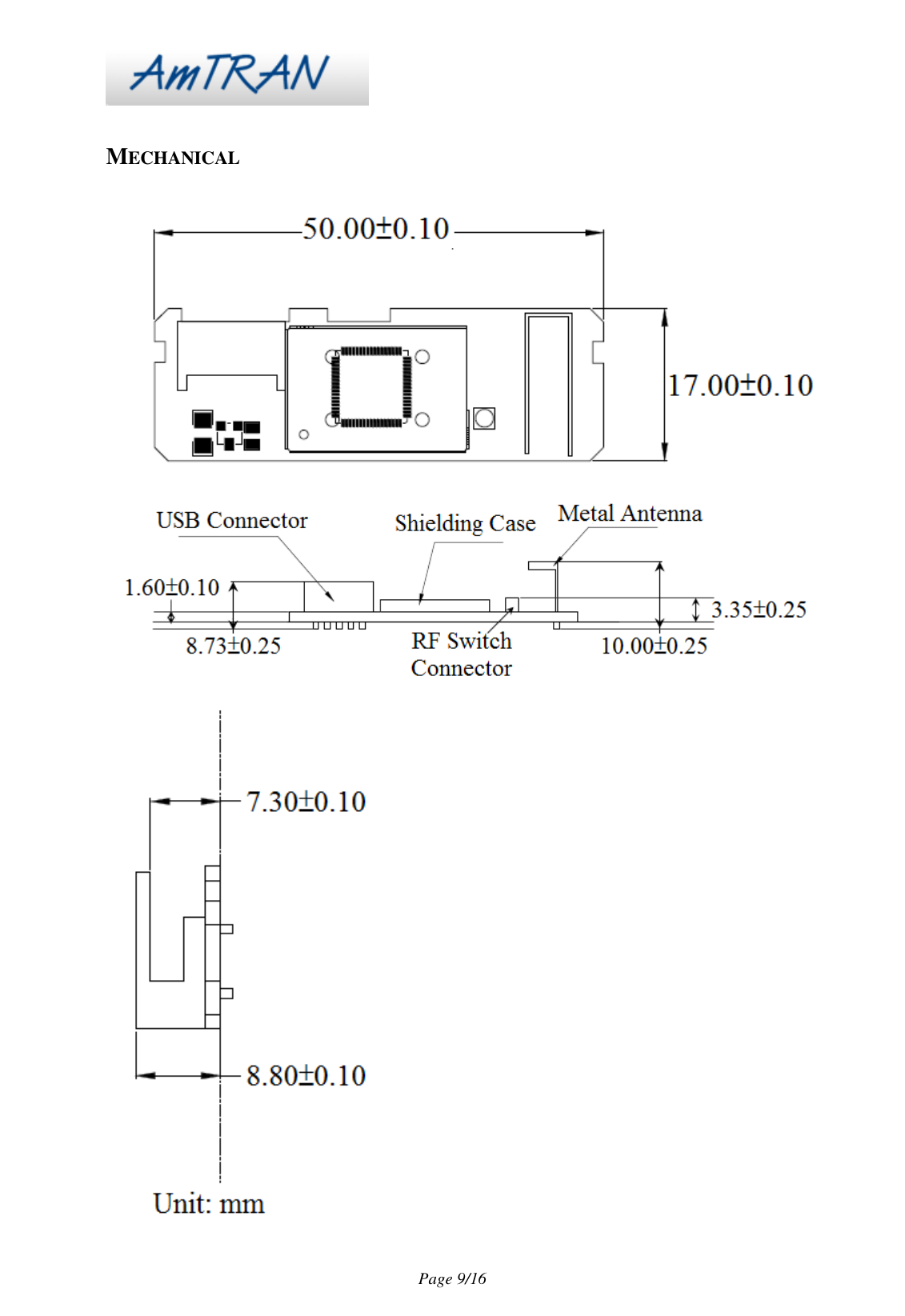

Page 9/16 MECHANICAL

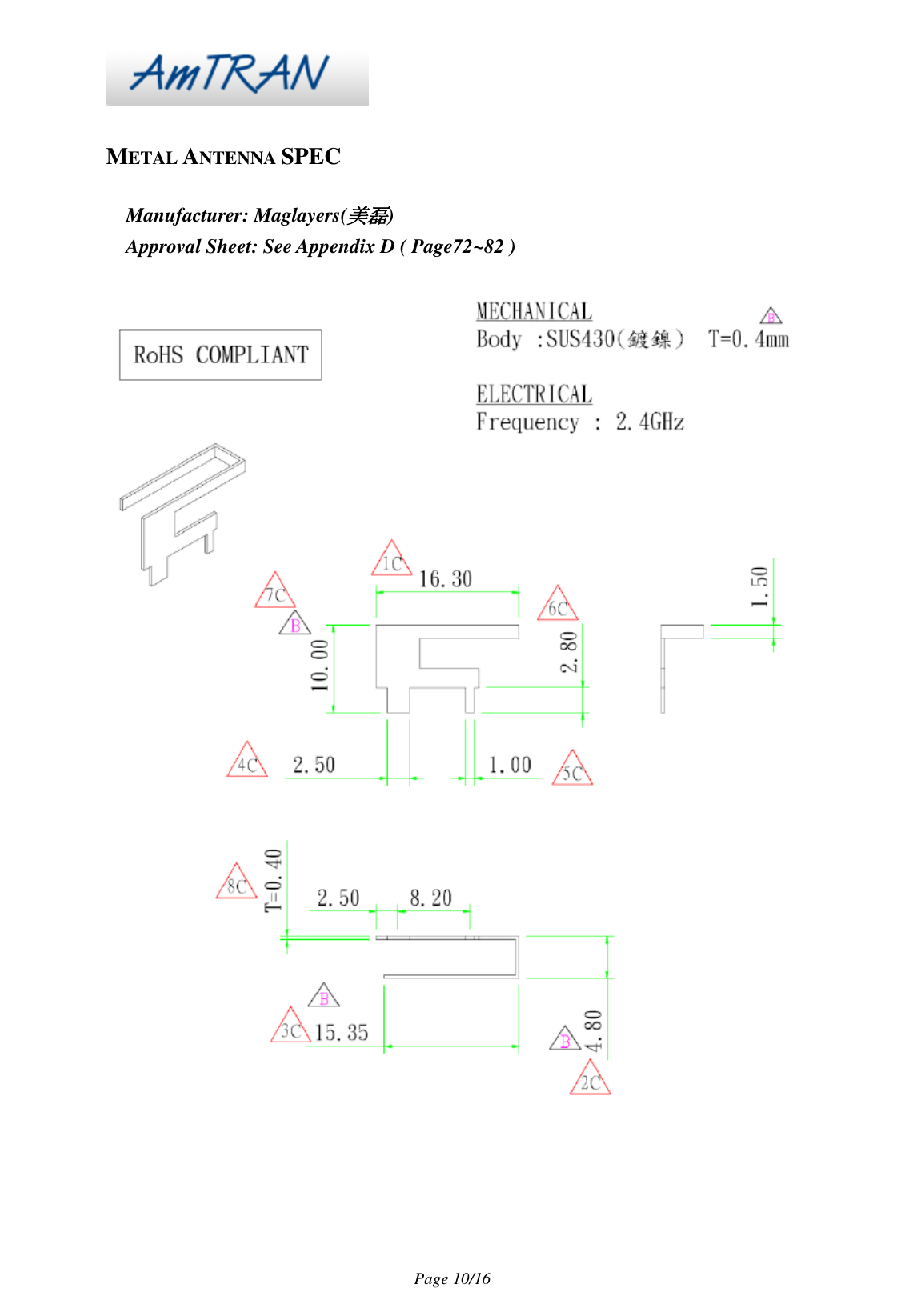

Page 10/16 METAL ANTENNA SPEC Manufacturer: Maglayers(美磊) Approval Sheet: See Appendix D ( Page72~82 )

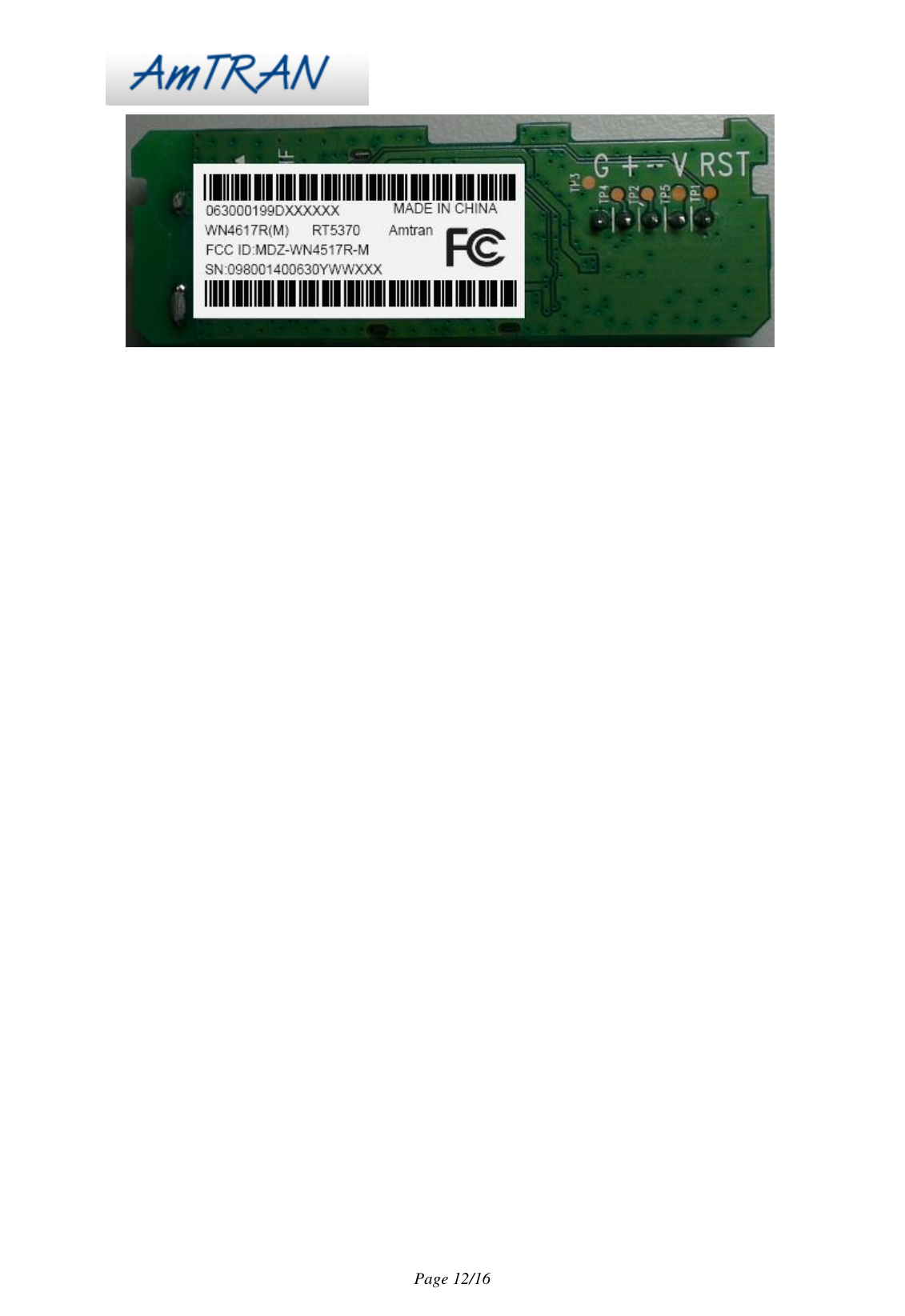

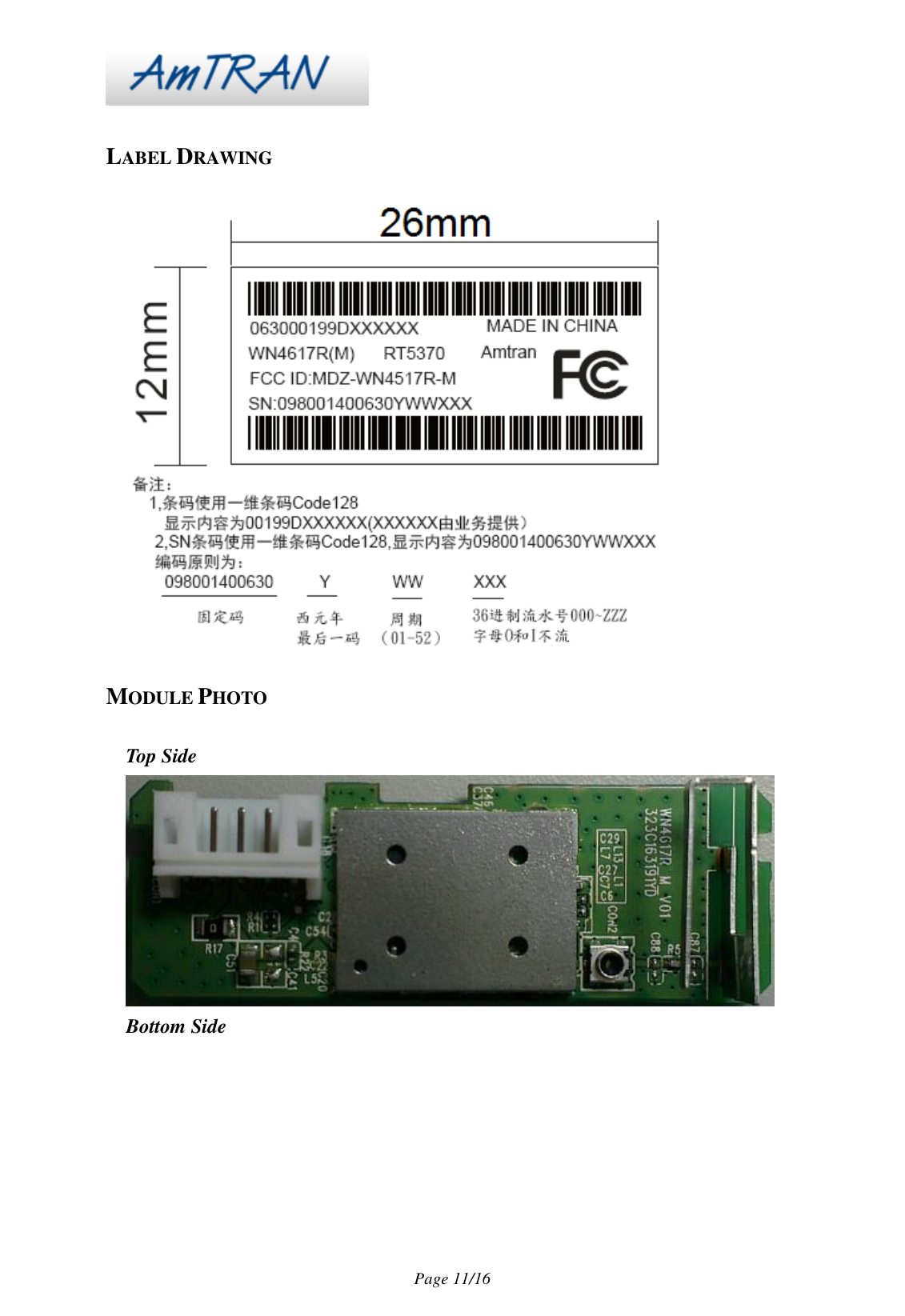

Page 11/16 LABEL DRAWING MODULE PHOTO Top Side Bottom Side
Page 12/16
Page 13/16 EEPROM INFORMATION Reg Domain US Channel 1~11 Active Scan Offset 0x38 for 5G: 0x00 Offset 0x39 for 2.4G: 0x00 Antenna Diversity Control Offset 0x37: 0x30 Vendor ID 0x148F Product ID 0x5370 ENVIRONMENTAL Operating Operating Temperature: 0 to 60 C (32 to 140 F) Relative Humidity: 5-90% (non-condensing) Storage Temperature: -20 to 70 C (-4 to 158 F) Relative Humidity: 5-95% (non-condensing)

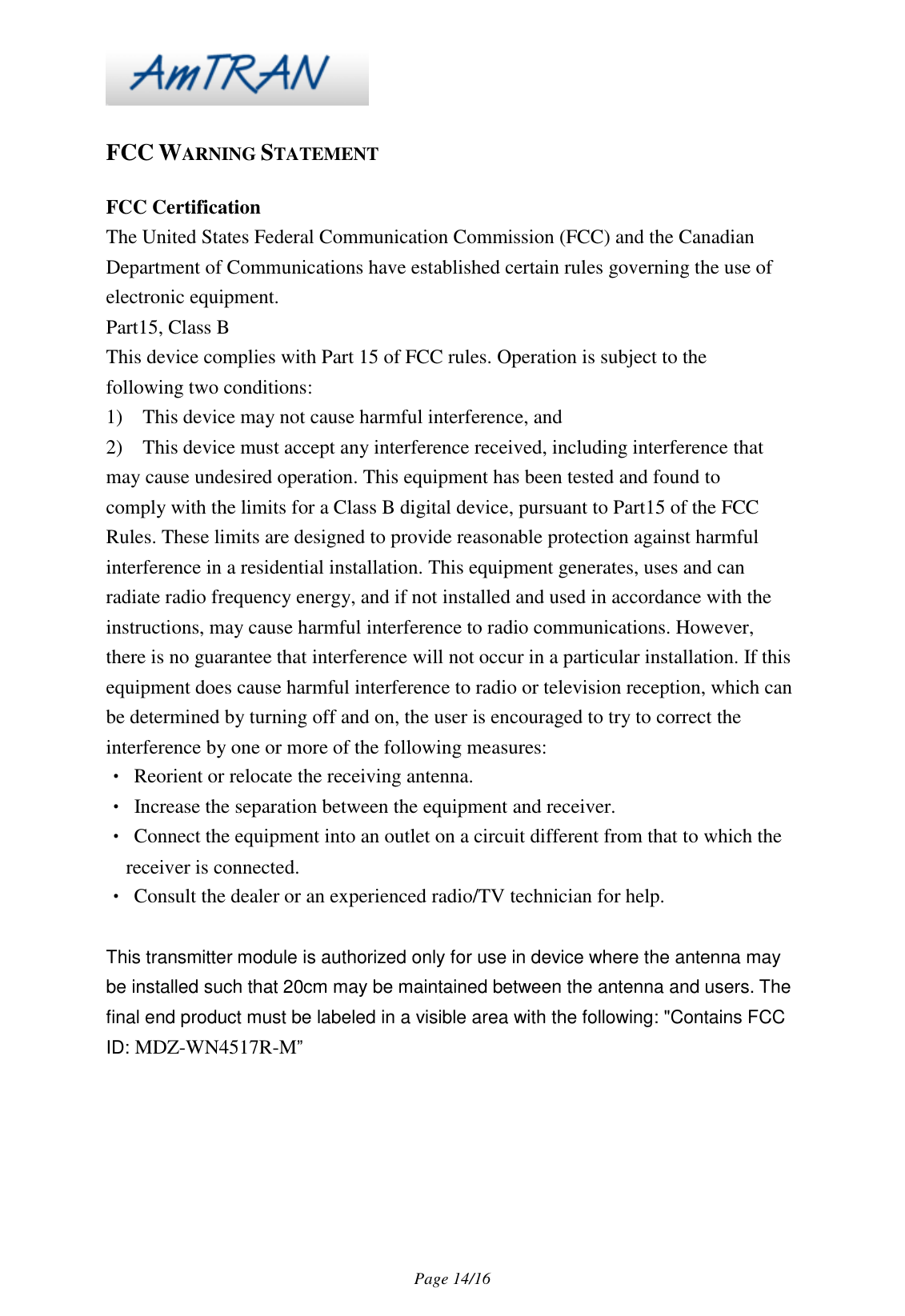

Page 14/16 FCC WARNING STATEMENT FCC Certification The United States Federal Communication Commission (FCC) and the Canadian Department of Communications have established certain rules governing the use of electronic equipment. Part15, Class B This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: "Contains FCC ID: MDZ-WN4517R-M”

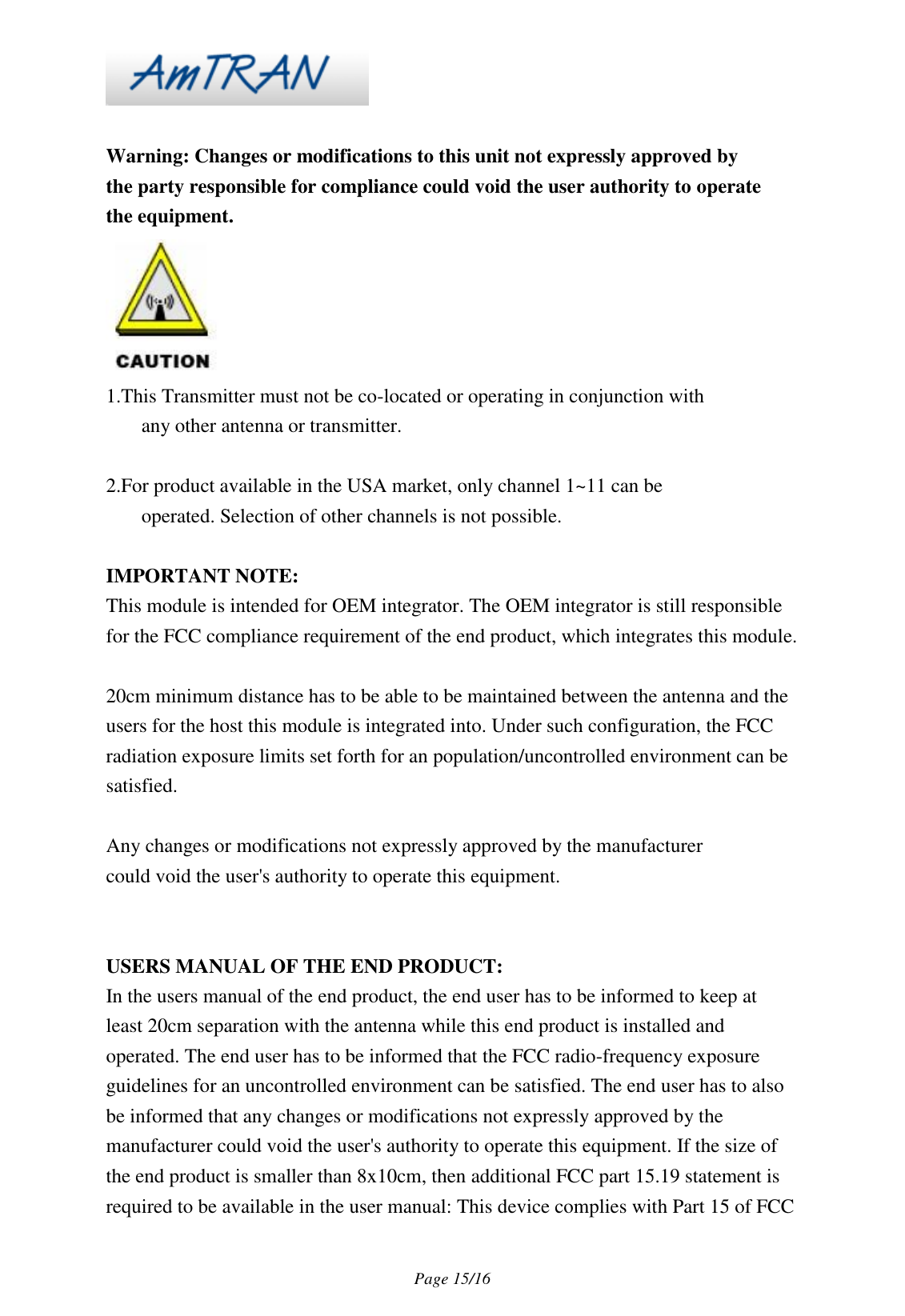

Page 15/16 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. 1.This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.For product available in the USA market, only channel 1~11 can be operated. Selection of other channels is not possible. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the user manual: This device complies with Part 15 of FCC

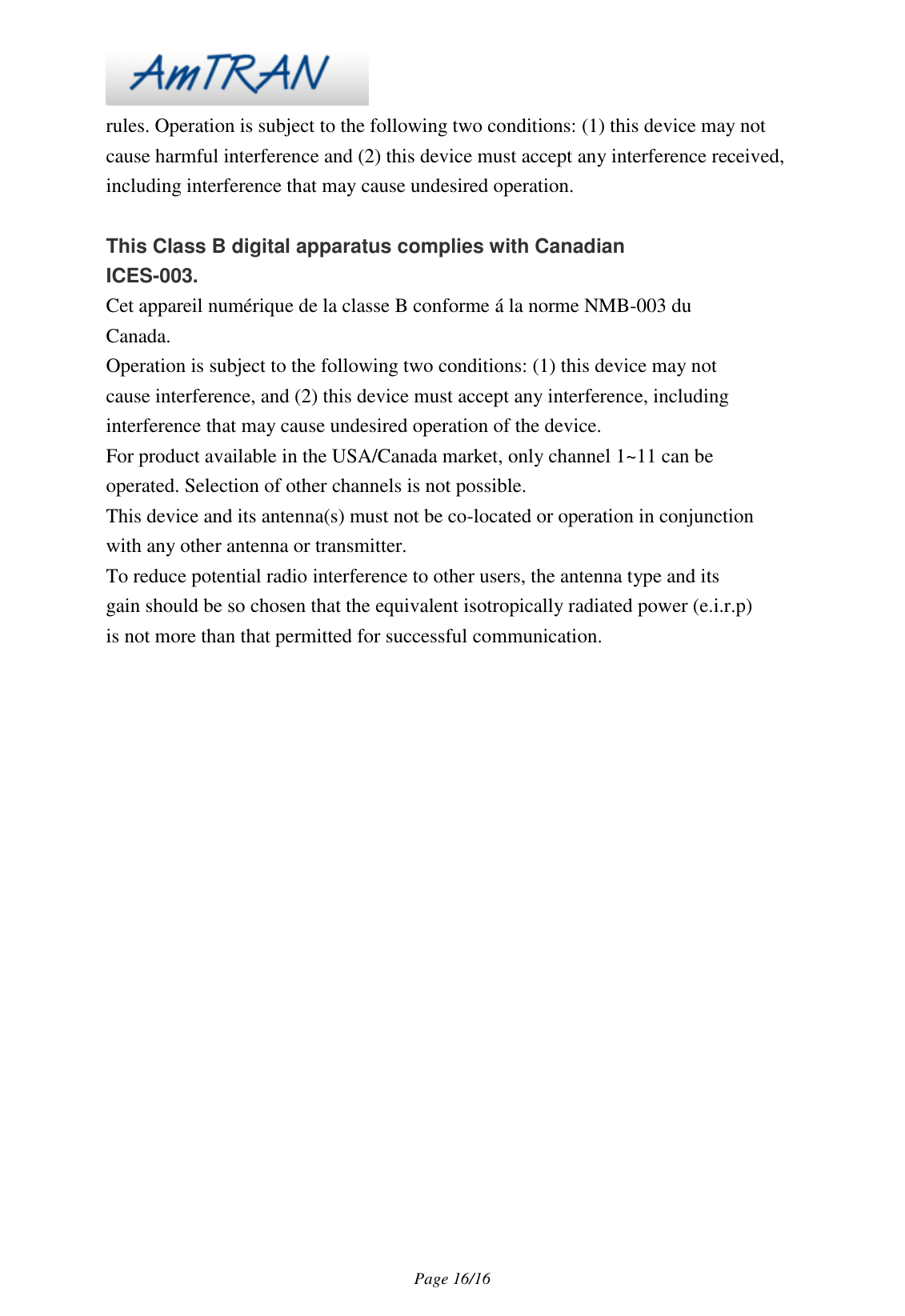

Page 16/16 rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p) is not more than that permitted for successful communication.
