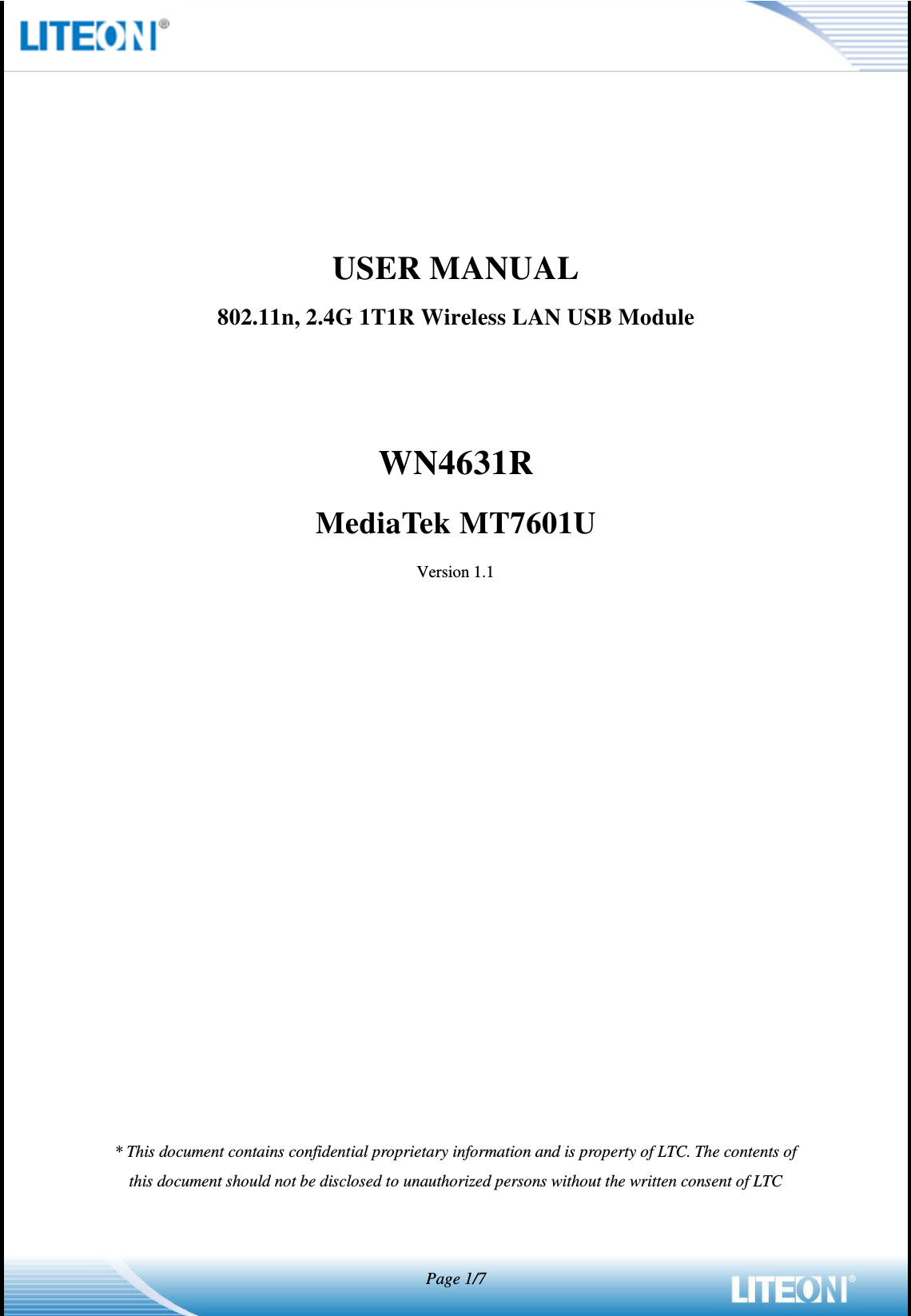

Page 1/7 USER MANUAL 802.11n, 2.4G 1T1R Wireless LAN USB Module WN4631R MediaTek MT7601U Version 1.1 * This document contains confidential proprietary information and is property of LTC. The contents of this document should not be disclosed to unauthorized persons without the written consent of LTC

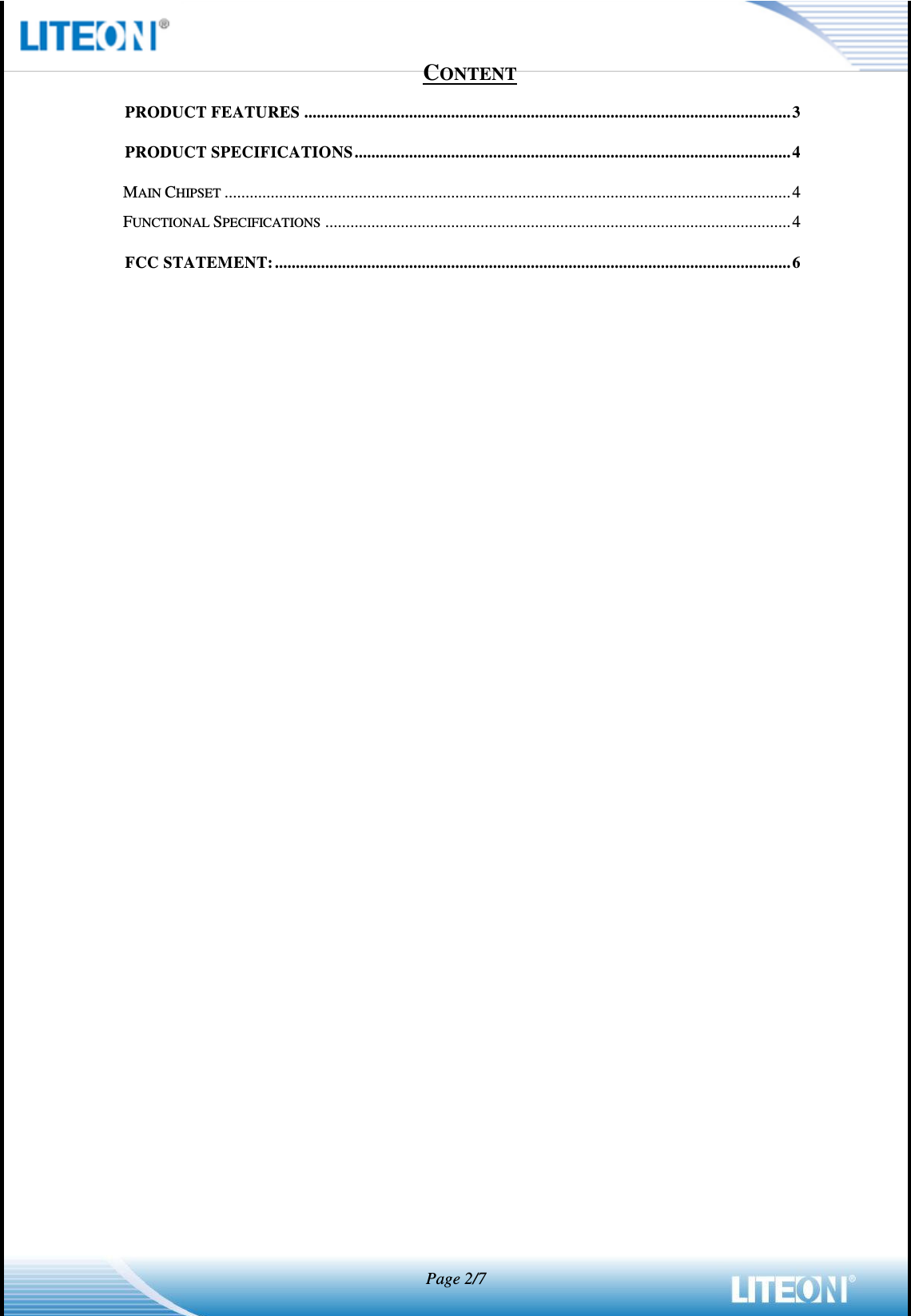

Page 2/7 CONTENT PRODUCT FEATURES .................................................................................................................... 3 PRODUCT SPECIFICATIONS ........................................................................................................ 4 MAIN CHIPSET ....................................................................................................................................... 4 FUNCTIONAL SPECIFICATIONS ............................................................................................................... 4 FCC STATEMENT: ........................................................................................................................... 6

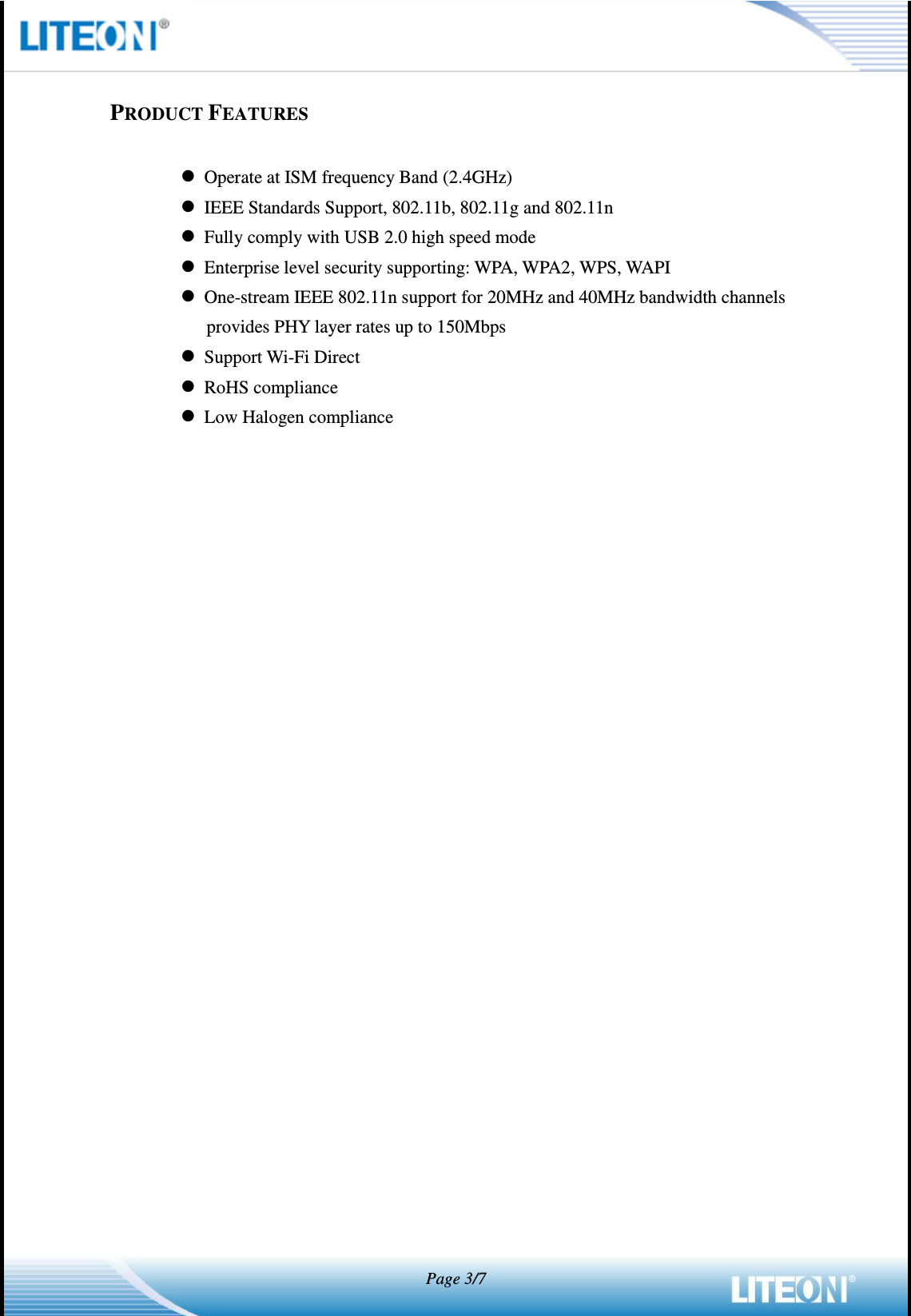

Page 3/7 PRODUCT FEATURES  Operate at ISM frequency Band (2.4GHz)  IEEE Standards Support, 802.11b, 802.11g and 802.11n  Fully comply with USB 2.0 high speed mode  Enterprise level security supporting: WPA, WPA2, WPS, WAPI  One-stream IEEE 802.11n support for 20MHz and 40MHz bandwidth channels provides PHY layer rates up to 150Mbps  Support Wi-Fi Direct  RoHS compliance  Low Halogen compliance

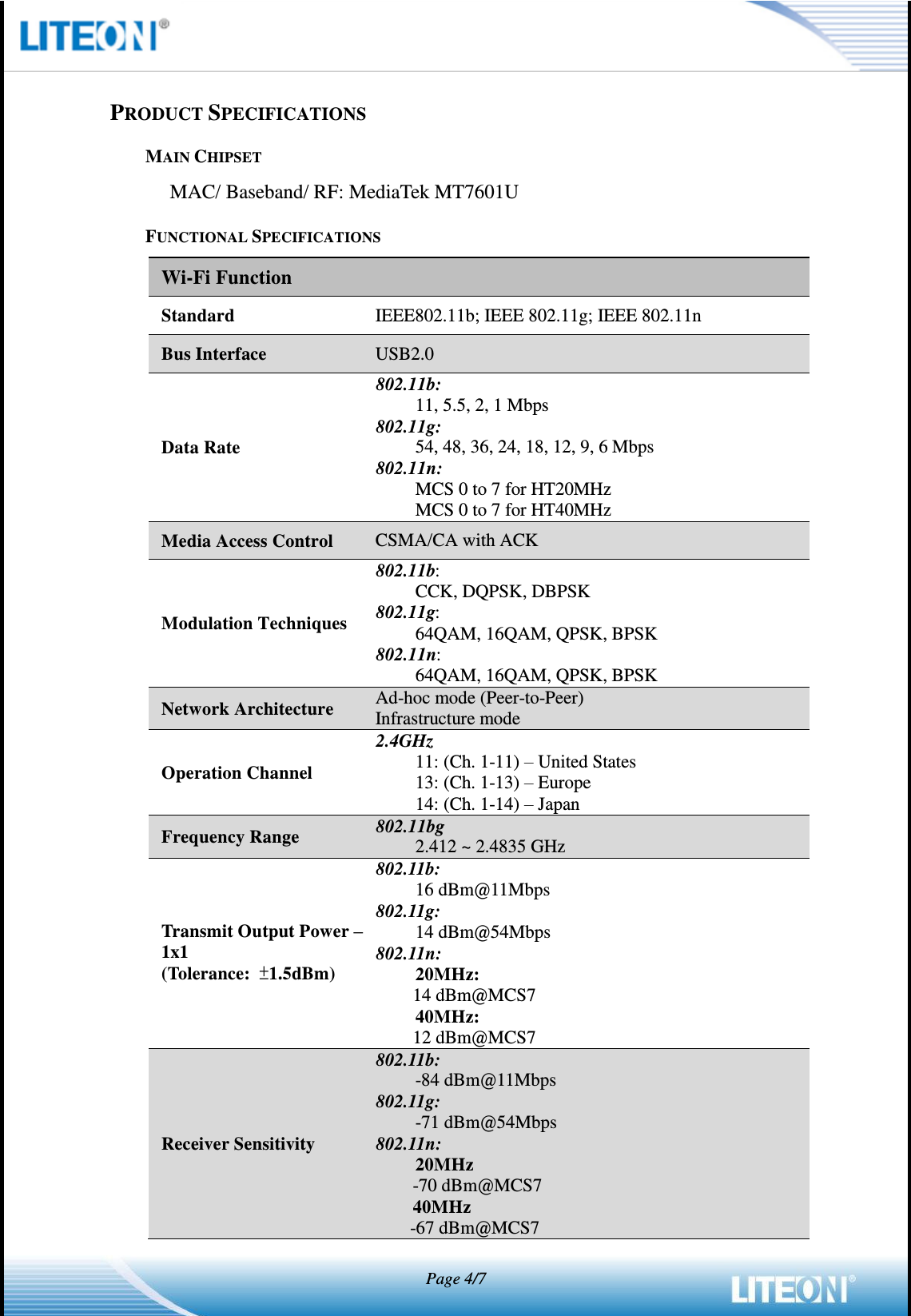

Page 4/7 PRODUCT SPECIFICATIONS MAIN CHIPSET MAC/ Baseband/ RF: MediaTek MT7601U FUNCTIONAL SPECIFICATIONS Wi-Fi Function Standard IEEE802.11b; IEEE 802.11g; IEEE 802.11n Bus Interface USB2.0 Data Rate 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps 802.11n: MCS 0 to 7 for HT20MHz MCS 0 to 7 for HT40MHz Media Access Control CSMA/CA with ACK Modulation Techniques 802.11b: CCK, DQPSK, DBPSK 802.11g: 64QAM, 16QAM, QPSK, BPSK 802.11n: 64QAM, 16QAM, QPSK, BPSK Network Architecture Ad-hoc mode (Peer-to-Peer) Infrastructure mode Operation Channel 2.4GHz 11: (Ch. 1-11) – United States 13: (Ch. 1-13) – Europe 14: (Ch. 1-14) – Japan Frequency Range 802.11bg 2.412 ~ 2.4835 GHz Transmit Output Power – 1x1 (Tolerance: ±1.5dBm) 802.11b: 16 dBm@11Mbps 802.11g: 14 dBm@54Mbps 802.11n: 20MHz: 14 dBm@MCS7 40MHz: 12 dBm@MCS7 Receiver Sensitivity 802.11b: -84 dBm@11Mbps 802.11g: -71 dBm@54Mbps 802.11n: 20MHz -70 dBm@MCS7 40MHz -67 dBm@MCS7

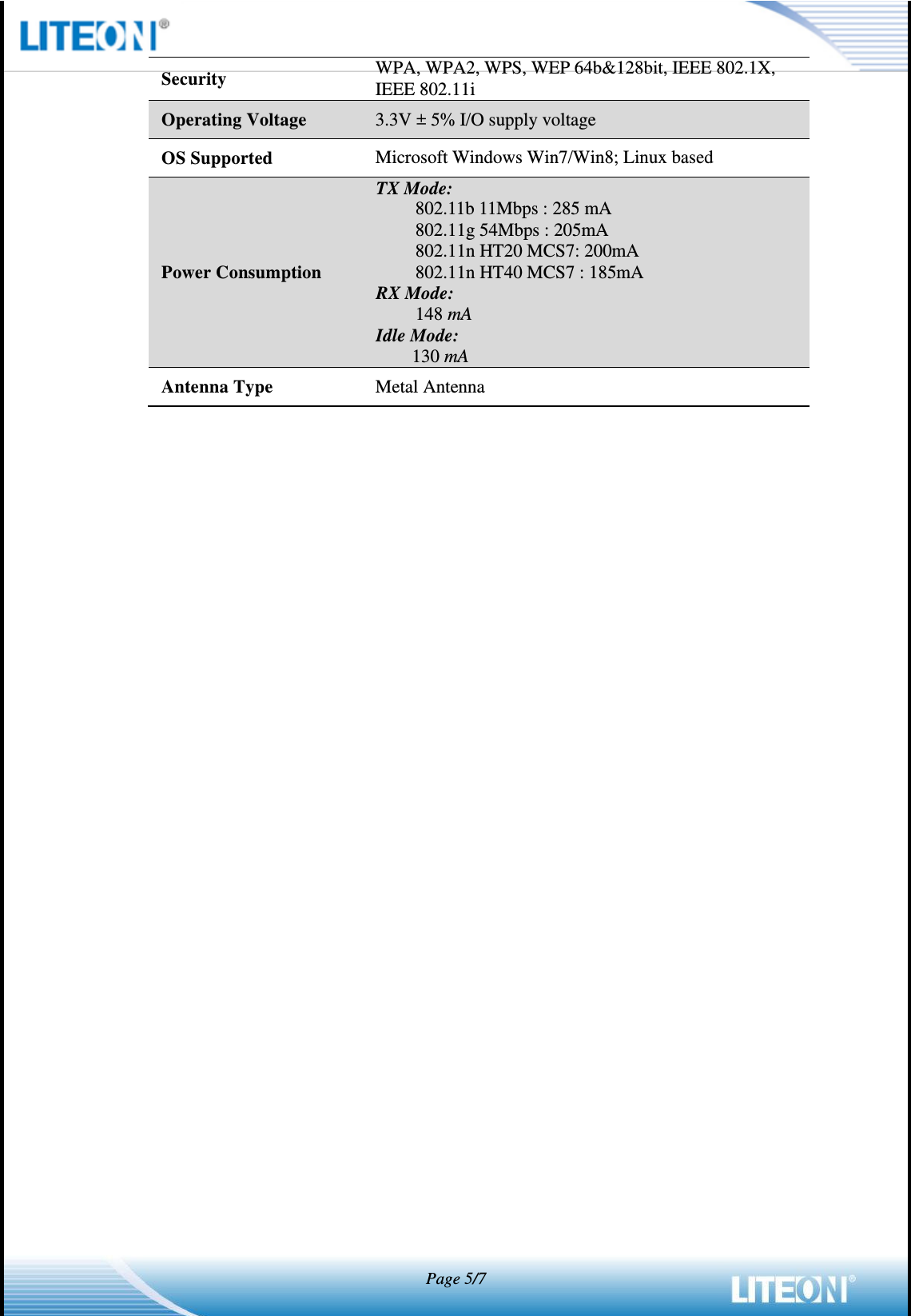

Page 5/7 Security WPA, WPA2, WPS, WEP 64b&128bit, IEEE 802.1X, IEEE 802.11i Operating Voltage 3.3V ± 5% I/O supply voltage OS Supported Microsoft Windows Win7/Win8; Linux based Power Consumption TX Mode: 802.11b 11Mbps : 285 mA 802.11g 54Mbps : 205mA 802.11n HT20 MCS7: 200mA 802.11n HT40 MCS7 : 185mA RX Mode: 148 mA Idle Mode: 130 mA Antenna Type Metal Antenna

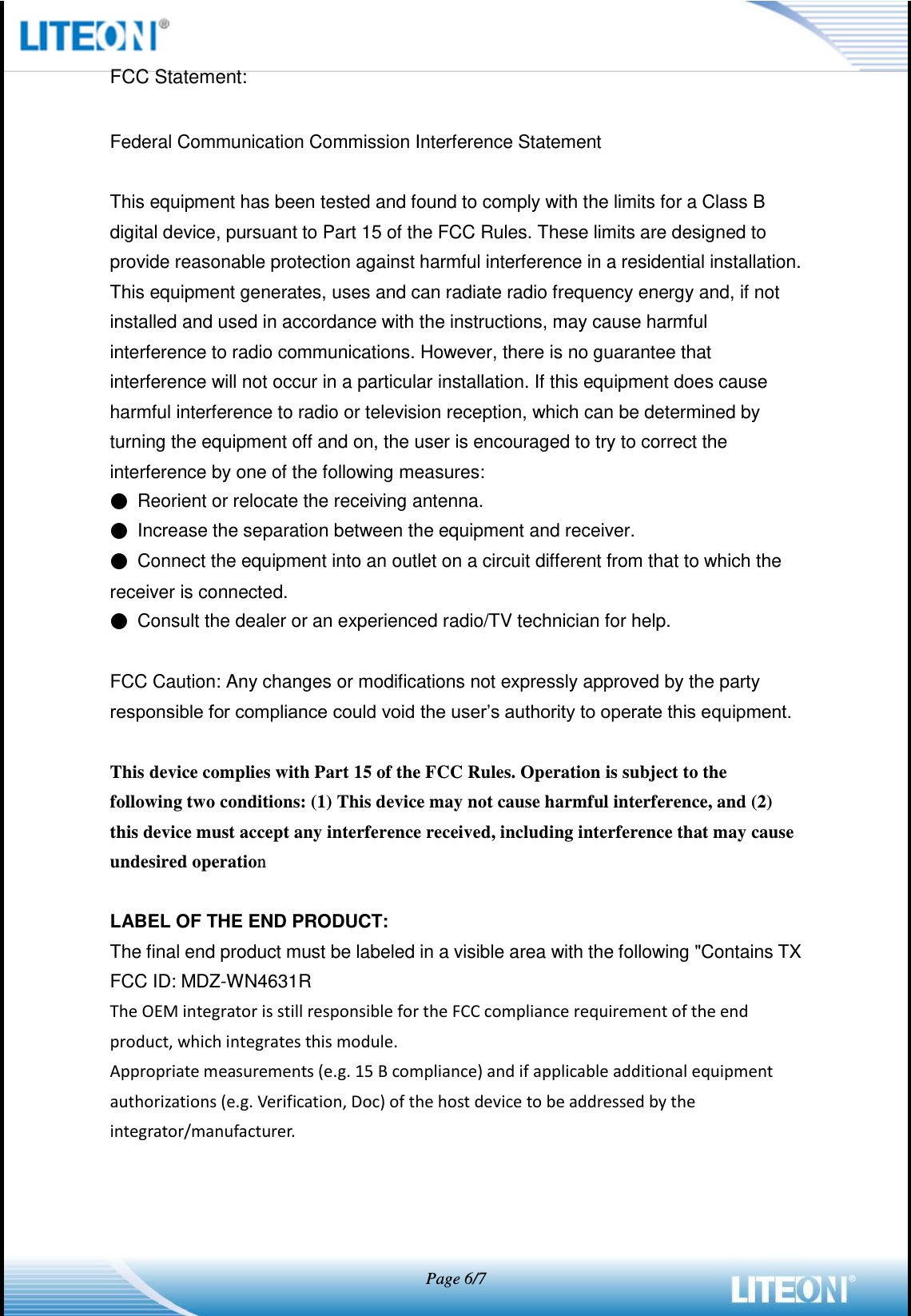

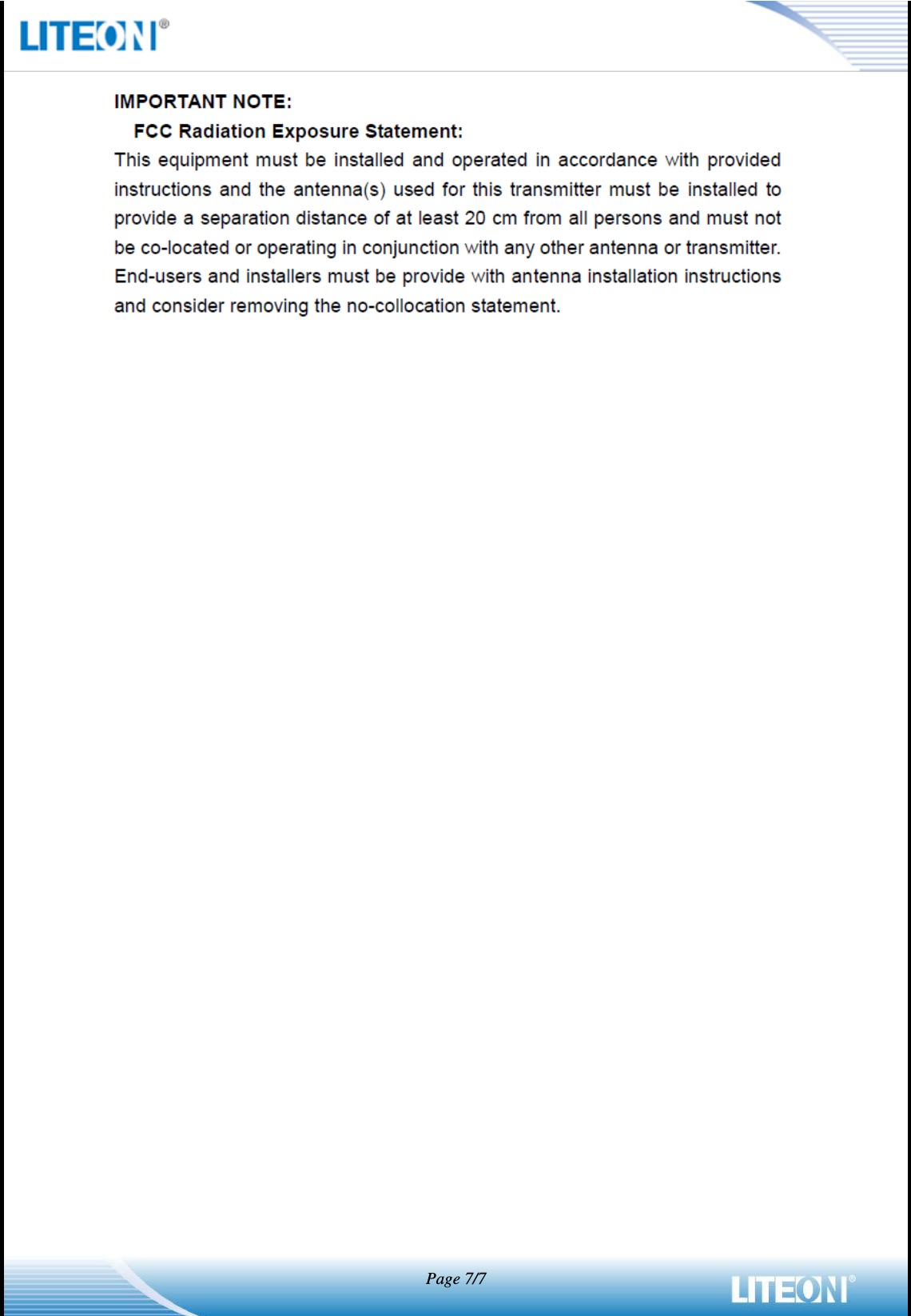

Page 6/7 FCC Statement: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following "Contains TX FCC ID: MDZ-WN4631R The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. Appropriate measurements (e.g. 15 B compliance) and if applicable additional equipment authorizations (e.g. Verification, Doc) of the host device to be addressed by the integrator/manufacturer.
