Andersen CB000106370 Intrusion Detector-400-DH Sensor User Manual

Andersen Corporation Intrusion Detector-400-DH Sensor Users Manual

Users Manual

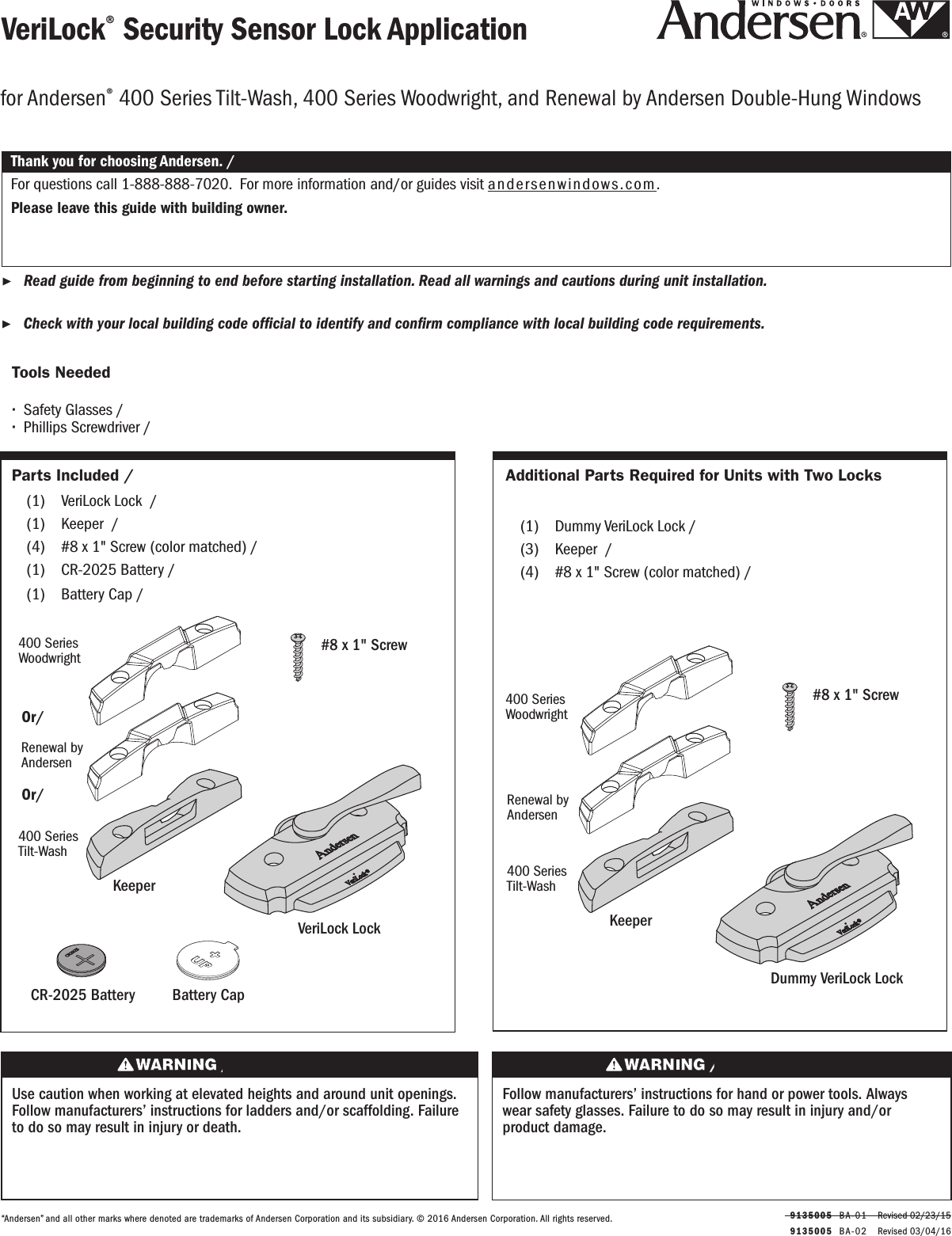

9135005 BA-0 2 Revised 03/04/16 9135005 BA-01 Revised 02/23/15VeriLock® Security Sensor Lock ApplicationVeriLock® Security Sensor Lock Application ▶Read guide from beginning to end before starting installation. Read all warnings and cautions during unit installation. Lea completamente la guía antes de comenzar la instalación. Lea y respete todas las advertencias y precauciones durante la instalación de la unidad. ▶Check with your local building code ofcial to identify and conrm compliance with local building code requirements. Consulte los códigos locales de construcción para identicar y conrmar que se cumplan los requisitos del código de construcción.Thank you for choosing Andersen. / Gracias por elegir Andersen.“Andersen” and all other marks where denoted are trademarks of Andersen Corporation and its subsidiary. © 2016 Andersen Corporation. All rights reserved.“Andersen” y todas las demás marcas que aparezcan son marcas registradas de Andersen Corporation y su subsidiaria © 2016 Andersen Corporation. Todos los derechos reservados.for Andersen® 400 Series Tilt-Wash, 400 Series Woodwright, and Renewal by Andersen Double-Hung Windowsfor Andersen® 400 Series Tilt-Wash, 400 Series Woodwright, and Renewal by Andersen Double-Hung WindowsParts Included / Partes Incluidas (1) VeriLock Lock / VeriLock Cerrojo (1) Keeper / Keeper (4) #8 x 1" Screw (color matched) / #8 x 1" Screw (color matched) (1) CR-2025 Battery / CR-2025 Battery (1) Battery Cap / Battery CapTools Needed Herramientas Necesarias ∙Safety Glasses /Lentes de seguridad ∙Phillips Screwdriver /Destornillador PhillipsUse caution when working at elevated heights and around unit openings. Follow manufacturers’ instructions for ladders and/or scaffolding. Failure to do so may result in injury or death.Sea cauteloso al trabajar en lugares elevados y cerca de las aberturas de la unidad. Siga las instrucciones del fabricante para el uso de escaleras y/o andamios. Si no lo hiciera, podrían producirse lesiones o la muerte.Follow manufacturers’ instructions for hand or power tools. Always wear safety glasses. Failure to do so may result in injury and/or product damage.Siga las instrucciones del fabricante para el uso de herramientas eléctricas o manuales. Utilice siempre gafas de seguridad. Si no lo hiciera, podrían producirse lesiones y/o daños al producto.KeeperPestilloVeriLock Lock VeriLock Lock#8 x 1" Screw Tornillo No. 8 x 1"400 Series Woodwright400 Series WoodwrightRenewal by Andersen 400 Series Tilt-Wash400 Series Tilt-WashCR-2025 BatteryCR-2025 BatteryBattery CapBattery CapOr/ OrOr/ OrAdditional Parts Required for Units with Two LocksAdditional Parts Required for Units with Two Locks (1) Dummy VeriLock Lock / Dummy VeriLock Lock (3) Keeper / Keeper (4) #8 x 1" Screw (color matched) / #8 x 1" Screw (color matched)KeeperPestilloDummy VeriLock Lock Dummy VeriLock Lock #8 x 1" Screw Tornillo No. 8 x 1"400 Series Woodwright400 Series WoodwrightRenewal by Andersen 400 Series Tilt-Wash400 Series Tilt-WashFor questions call 1-888-888-7020. For more information and/or guides visit andersenwindows.com.Please leave this guide with building owner.Si tiene alguna pregunta llame al 1-888-888-7020. Para obtener más información y/o guías, visite andersenwindows.com.Deje esta guía con el dueño de la construcción.

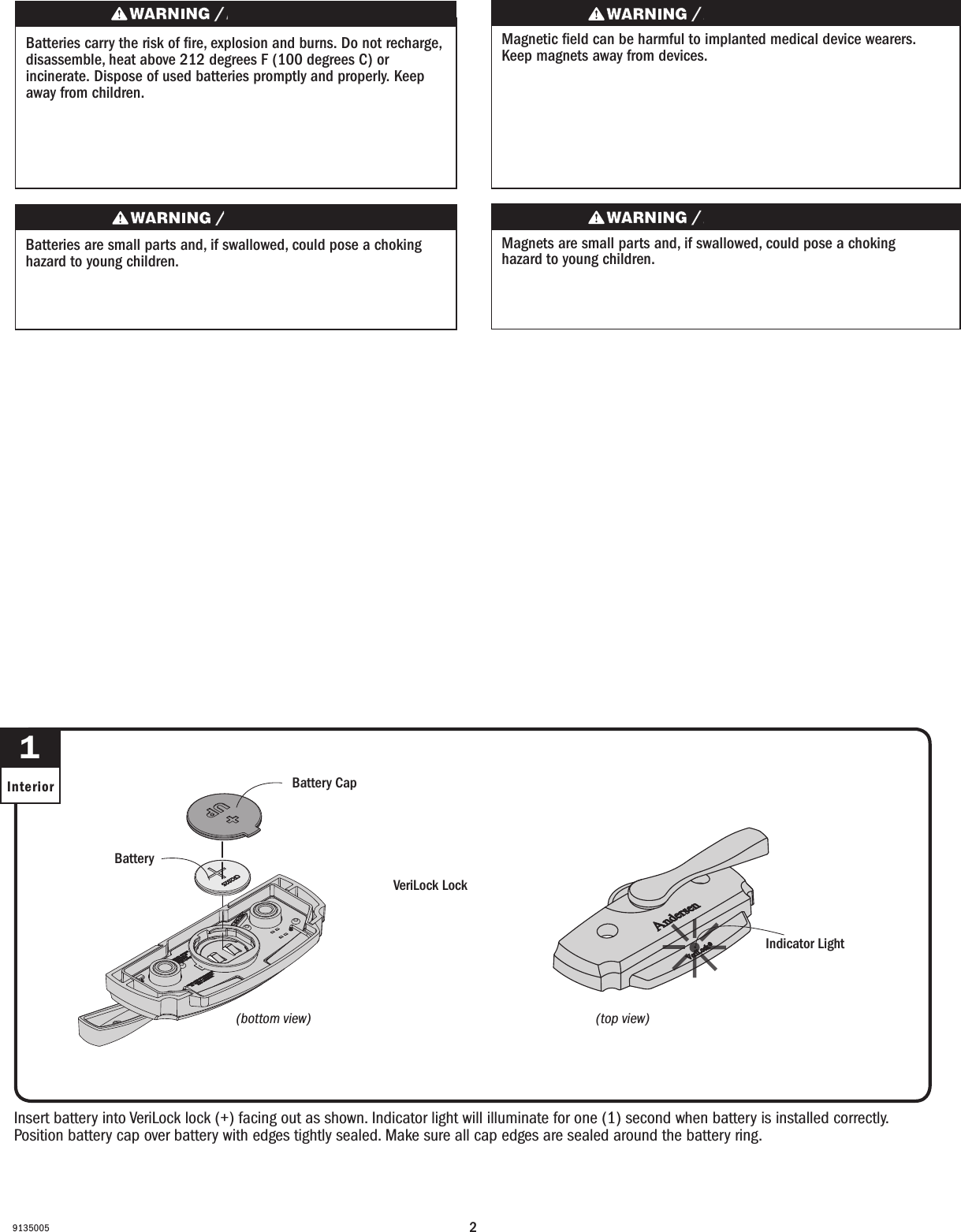

29135005Insert battery into VeriLock lock (+) facing out as shown. Indicator light will illuminate for one (1) second when battery is installed correctly. Position battery cap over battery with edges tightly sealed. Make sure all cap edges are sealed around the battery ring.Insert battery into VeriLock lock (+) facing out as shown. Indicator light will illuminate for one (1) second when battery is installed correctly. Position battery cap over battery with edges tightly sealed. Make sure all cap edges are sealed around the battery ring.1Interior Battery CapBattery CapBatteryBattery VeriLock Lock VeriLock LockBatteries carry the risk of re, explosion and burns. Do not recharge, disassemble, heat above 212 degrees F (100 degrees C) or incinerate. Dispose of used batteries promptly and properly. Keep away from children.Les piles représentent un risque d’incendie, d’explosion et de brûlures. Ne pas recharger, démonter, chauffer à une température excédant 100degrés C (212degrésF) ou incinérer. Éliminer les piles rapidement et de manière appropriée. Garder à l’écart des enfants.Magnets are small parts and, if swallowed, could pose a choking hazard to young children. Los imanes son partes pequeñas que, en caso de ingesta, pueden representar un riesgo de asxia para niños pequeños.Magnetic eld can be harmful to implanted medical device wearers. Keep magnets away from devices.Magnetic eld can be harmful to implanted medical device wearers. Keep magnets away from devices.Batteries are small parts and, if swallowed, could pose a choking hazard to young children. Las baterías son partes pequeñas que, en caso de ingesta, pueden representar un riesgo de asxia para niños pequeños. Indicator LightIndicator Light(top view)(top view)(bottom view)(bottom view)

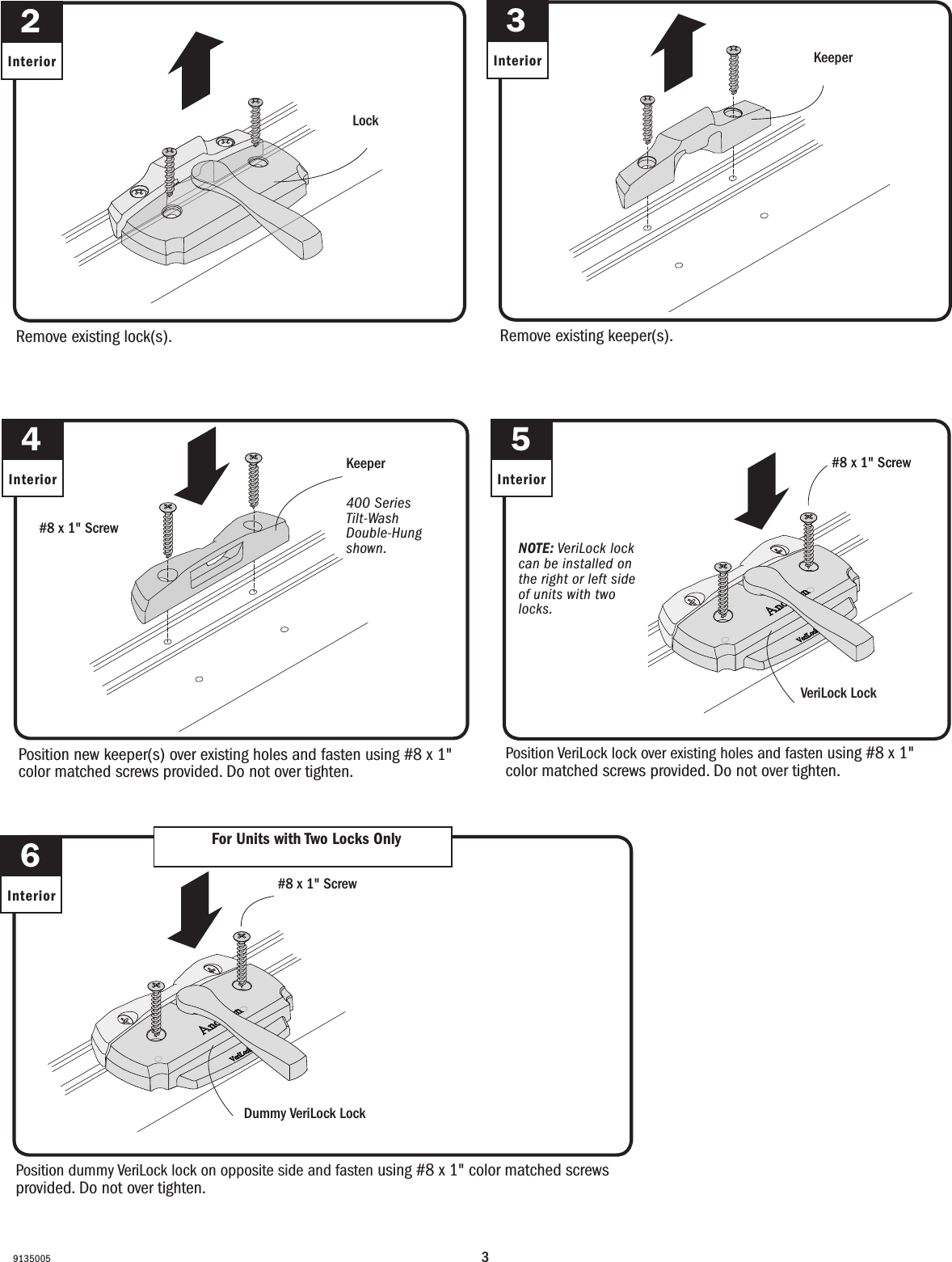

391350055InteriorNOTE: VeriLock lock can be installed on the right or left side of units with two locks.NOTE: VeriLock lock can be installed on the right or left side of units with two locks. VeriLock Lock VeriLock Lock6Interior For Units with Two Locks OnlyFor Units with Two Locks OnlyPosition dummy VeriLock lock on opposite side and fasten using #8 x 1" color matched screws provided. Do not over tighten.Position dummy VeriLock lock on opposite side and fasten using #8 x 1" color matched screws provided. Do not over tighten.Dummy VeriLock Lock Dummy VeriLock Lock Position VeriLock lock over existing holes and fasten using #8 x 1" color matched screws provided. Do not over tighten.Position VeriLock lock over existing holes and fasten using #8 x 1" color matched screws provided. Do not over tighten.#8 x 1" Screw Tornillo No. 8 x 1"#8 x 1" Screw Tornillo No. 8 x 1"Position new keeper(s) over existing holes and fasten using #8 x 1" color matched screws provided. Do not over tighten.Position new keeper(s) over existing holes and fasten using #8 x 1" color matched screws provided. Do not over tighten.4Interior400 Series Tilt-Wash Double-Hung shown.400 Series Tilt-Wash Double-Hung shown.KeeperKeeper#8 x 1" Screw Tornillo No. 8 x 1"Remove existing lock(s). Remove existing lock(s). 2InteriorLockLockRemove existing keeper(s). Remove existing keeper(s). 3Interior KeeperKeeper

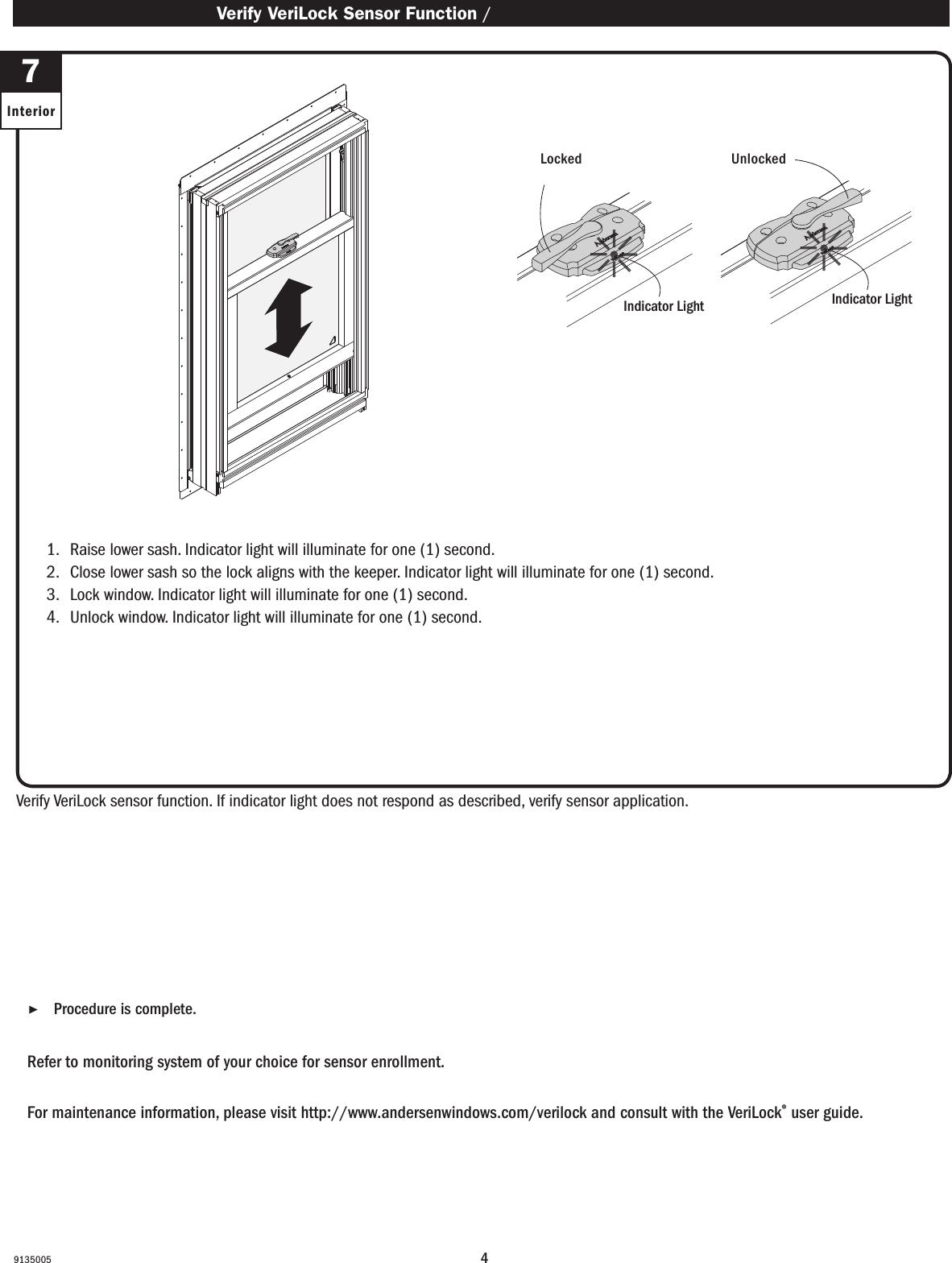

49135005 ▶Procedure is complete. Procedure is complete.Refer to monitoring system of your choice for sensor enrollment. Refer to monitoring system of your choice for sensor enrollment.For maintenance information, please visit http://www.andersenwindows.com/verilock and consult with the VeriLock® user guide.For maintenance information, please visit http://www.andersenwindows.com/verilock and consult with the VeriLock® user guide.1. Raise lower sash. Indicator light will illuminate for one (1) second.2. Close lower sash so the lock aligns with the keeper. Indicator light will illuminate for one (1) second. 3. Lock window. Indicator light will illuminate for one (1) second.4. Unlock window. Indicator light will illuminate for one (1) second.1. Raise lower sash. Indicator light will illuminate for one (1) second.2. Close lower sash so the lock aligns with the keeper. Indicator light will illuminate for one (1) second. 3. Lock window. Indicator light will illuminate for one (1) second.4. Unlock window. Indicator light will illuminate for one (1) second.Verify VeriLock sensor function. If indicator light does not respond as described, verify sensor application.Verify VeriLock sensor function. If indicator light does not respond as described, verify sensor application. Verify VeriLock Sensor Function / Verify VeriLock Sensor Function7InteriorLockedLocked UnlockedUnlockedIndicator LightIndicator LightIndicator LightIndicator Light

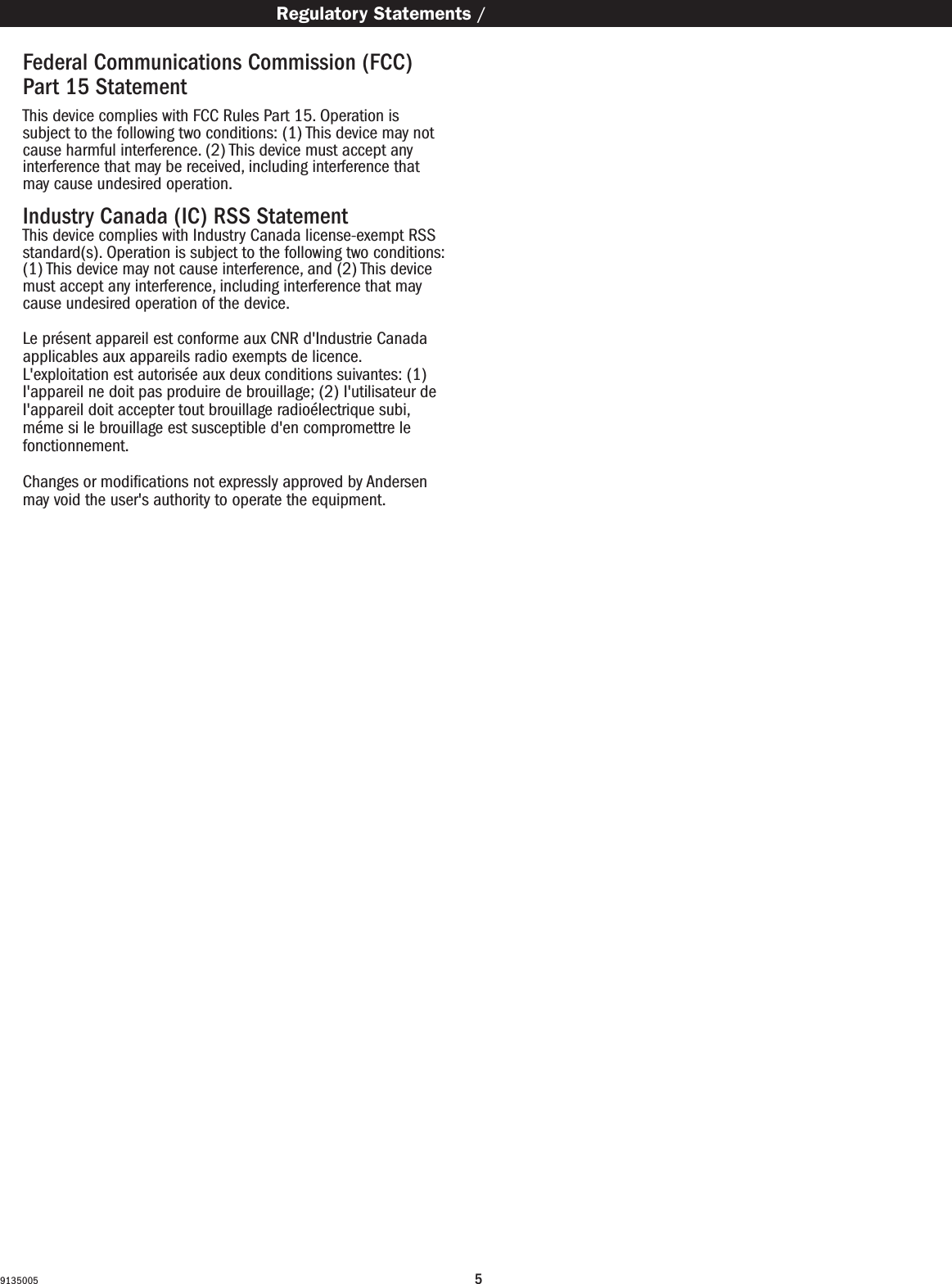

59135005Federal Communications Commission (FCC) Part 15 Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference that may be received, including interference that may cause undesired operation. Industry Canada (IC) RSS StatementThis device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) I'appareil ne doit pas produire de brouillage; (2) I'utilisateur de I'appareil doit accepter tout brouillage radioélectrique subi, méme si le brouillage est susceptible d'en compromettre le fonctionnement. Changes or modifications not expressly approved by Andersen may void the user's authority to operate the equipment. Regulatory Statements / Normas reglamentarias
