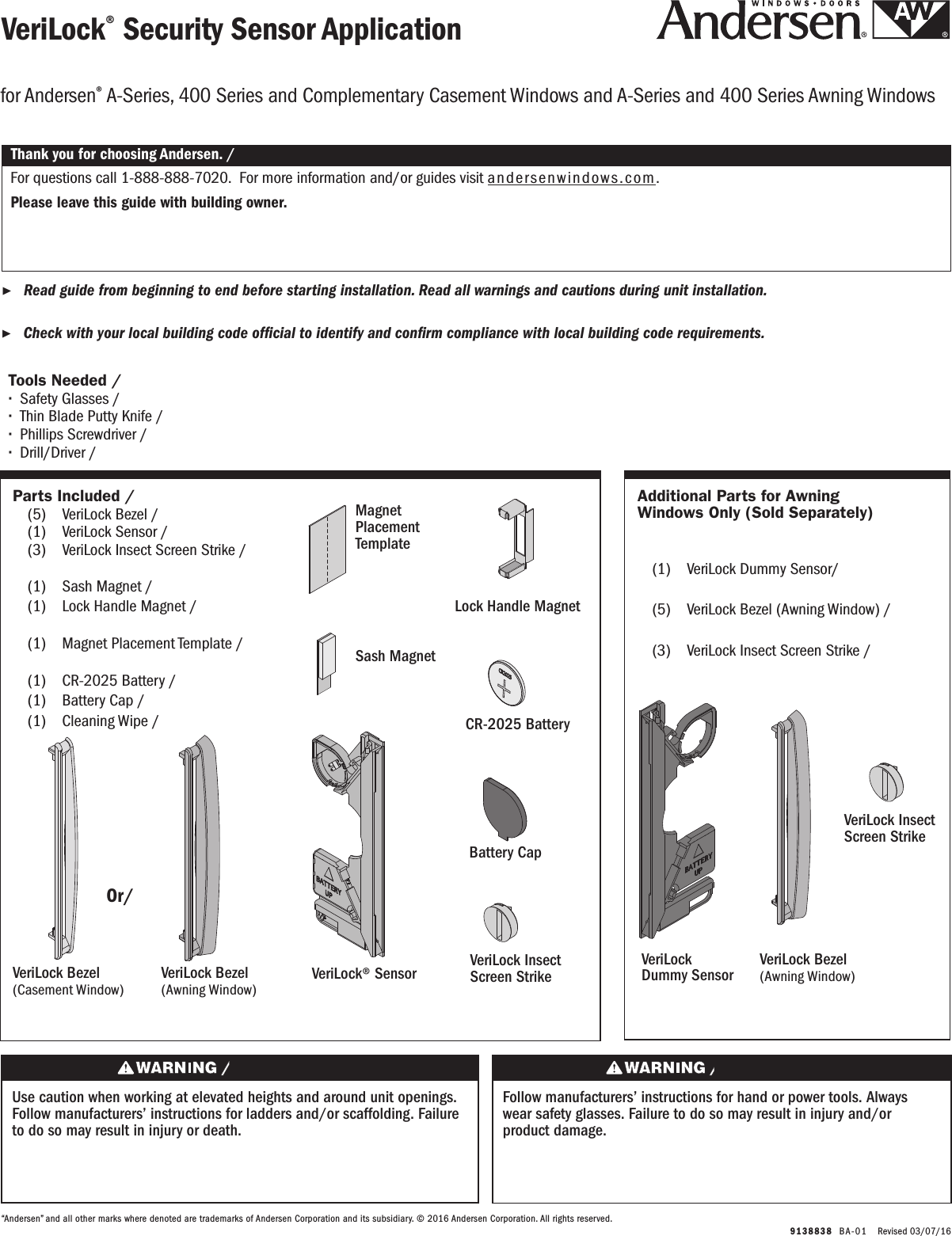

9138838 BA-0 1 Revised 03/07/16VeriLock® Security Sensor ApplicationVeriLock® Security Sensor Application ▶Read guide from beginning to end before starting installation. Read all warnings and cautions during unit installation. Lea completamente la guía antes de comenzar la instalación. Lea y respete todas las advertencias y precauciones durante la instalación de la unidad. ▶Check with your local building code ofcial to identify and conrm compliance with local building code requirements. Consulte los códigos locales de construcción para identicar y conrmar que se cumplan los requisitos del código de construcción.Thank you for choosing Andersen. / Gracias por elegir Andersen.For questions call 1-888-888-7020. For more information and/or guides visit andersenwindows.com.Please leave this guide with building owner.Si tiene alguna pregunta llame al 1-888-888-7020. Para obtener más información y/o guías, visite andersenwindows.com.Deje esta guía con el dueño de la construcción.“Andersen” and all other marks where denoted are trademarks of Andersen Corporation and its subsidiary. © 2016 Andersen Corporation. All rights reserved.“Andersen” y todas las demás marcas que aparezcan son marcas registradas de Andersen Corporation y su subsidiaria © 2016 Andersen Corporation. Todos los derechos reservados.for Andersen® A-Series, 400 Series and Complementary Casement Windows and A-Series and 400 Series Awning Windowsfor Andersen® A-Series, 400 Series and Complementary Casement Windows and A-Series and 400 Series Awning WindowsTools Needed / Herramientas necesarias ∙Safety Glasses / Lentes de seguridad ∙Thin Blade Putty Knife / Espátula de hoja delgada ∙Phillips Screwdriver / Destornillador Phillips ∙Drill/Driver / Taladro/destornilladorOr/ OrUse caution when working at elevated heights and around unit openings. Follow manufacturers’ instructions for ladders and/or scaffolding. Failure to do so may result in injury or death.Sea cauteloso al trabajar en lugares elevados y cerca de las aberturas de la unidad. Siga las instrucciones del fabricante para el uso de escaleras y/o andamios. Si no lo hiciera, podrían producirse lesiones o la muerte.Follow manufacturers’ instructions for hand or power tools. Always wear safety glasses. Failure to do so may result in injury and/or product damage.Siga las instrucciones del fabricante para el uso de herramientas eléctricas o manuales. Utilice siempre gafas de seguridad. Si no lo hiciera, podrían producirse lesiones y/o daños al producto.Parts Included / Partes Incluidas (5) VeriLock Bezel / VeriLock Bezel (1) VeriLock Sensor / VeriLock Sensor (3) VeriLock Insect Screen Strike / VeriLock Insect Screen Strike (1) Sash Magnet / Sash Magnet (1) Lock Handle Magnet / Lock Handle Magnet (1) Magnet Placement Template / Magnet Placement Template (1) CR-2025 Battery / CR-2025 Battery (1) Battery Cap / Battery Cap (1) Cleaning Wipe / Cleaning WipeAdditional Parts for Awning Windows Only (Sold Separately)Additional Parts for Awning Windows Only (Sold Separately) (1) VeriLock Dummy Sensor/ VeriLock Dummy Sensor (5) VeriLock Bezel (Awning Window) / VeriLock Bezel (Awning Window) (3) VeriLock Insect Screen Strike / VeriLock Insect Screen StrikeVeriLock Bezel(Casement Window)VeriLock Bezel(Casement Window)VeriLock® SensorSensor VeriLock® Magnet Placement TemplateMagnet Placement Template Lock Handle MagnetLock Handle MagnetSash MagnetSash MagnetVeriLock Bezel(Awning Window)VeriLock Bezel(Awning Window)VeriLock Dummy SensorVeriLock Dummy SensorVeriLock Insect Screen StrikeVeriLock Insect Screen StrikeCR-2025 BatteryBatería CR-2025Battery CapBattery CapVeriLock Bezel(Awning Window)VeriLock Bezel(Awning Window)VeriLock Insect Screen StrikeVeriLock Insect Screen Strike

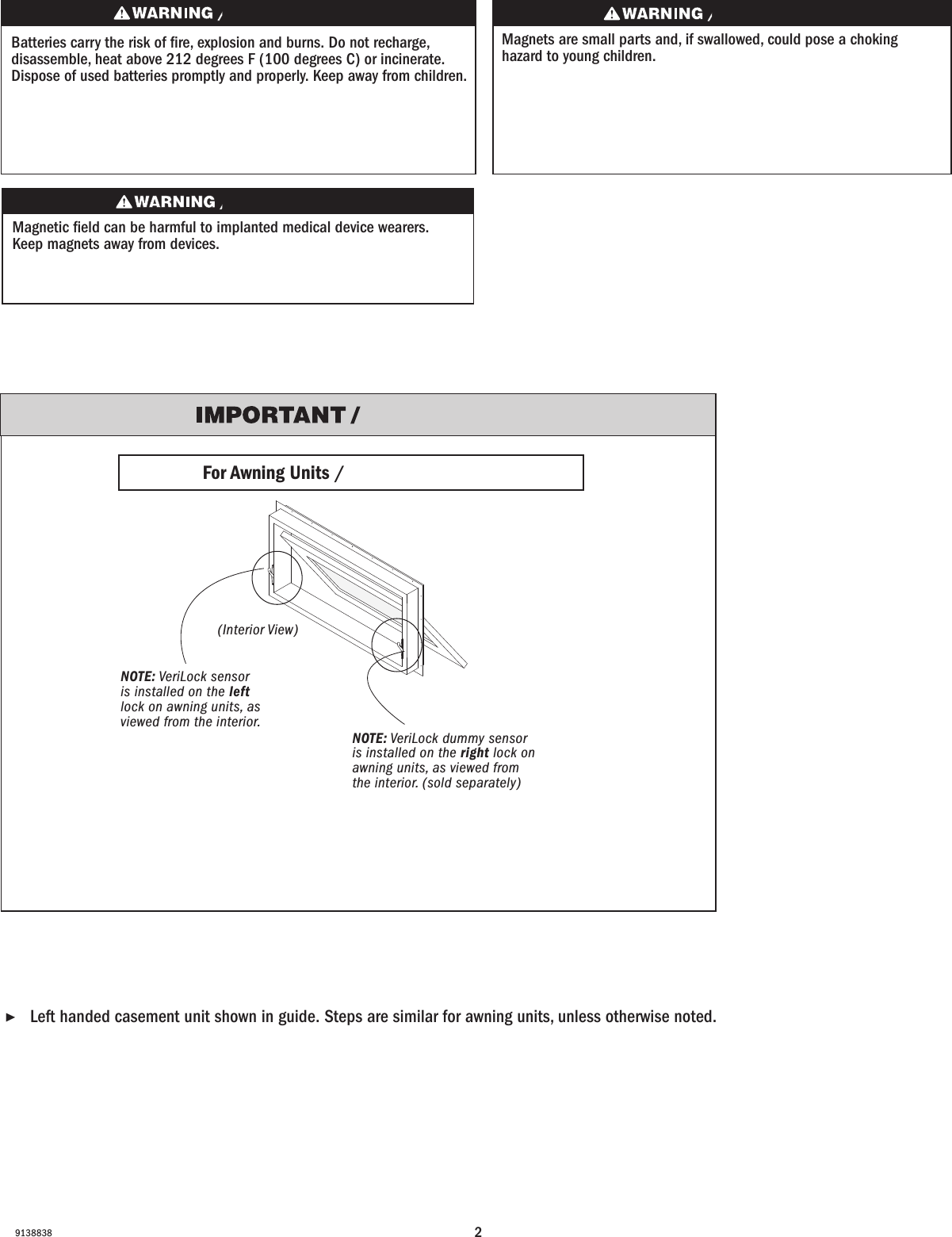

29138838Batteries carry the risk of re, explosion and burns. Do not recharge, disassemble, heat above 212 degrees F (100 degrees C) or incinerate. Dispose of used batteries promptly and properly. Keep away from children.Les piles représentent un risque d’incendie, d’explosion et de brûlures. Ne pas recharger, démonter, chauffer à une température excédant 100degrés C (212degrésF) ou incinérer. Éliminer les piles rapidement et de manière appropriée. Garder à l’écart des enfants.Magnets are small parts and, if swallowed, could pose a choking hazard to young children. Los imanes son partes pequeñas que, en caso de ingesta, pueden representar un riesgo de asxia para niños pequeños. ▶Left handed casement unit shown in guide. Steps are similar for awning units, unless otherwise noted. Left handed casement unit shown in guide. Steps are similar for awning units, unless otherwise noted.NOTE: VeriLock sensor is installed on the left lock on awning units, as viewed from the interior.NOTE: (Active) VeriLock sensor is installed on the left lock on awning units, as viewed from the interior.NOTE: VeriLock dummy sensor is installed on the right lock on awning units, as viewed from the interior. (sold separately)NOTE: VeriLock dummy sensor is installed on the right lock on awning units, as viewed from the interior. (sold separately)Magnetic eld can be harmful to implanted medical device wearers. Keep magnets away from devices.El campo magnético puede dañar a personas con dispositivos médicos implantados. Mantenga los imanes lejos de los dispositivos.For Awning Units / For Awning Units(Interior View)(Interior View)

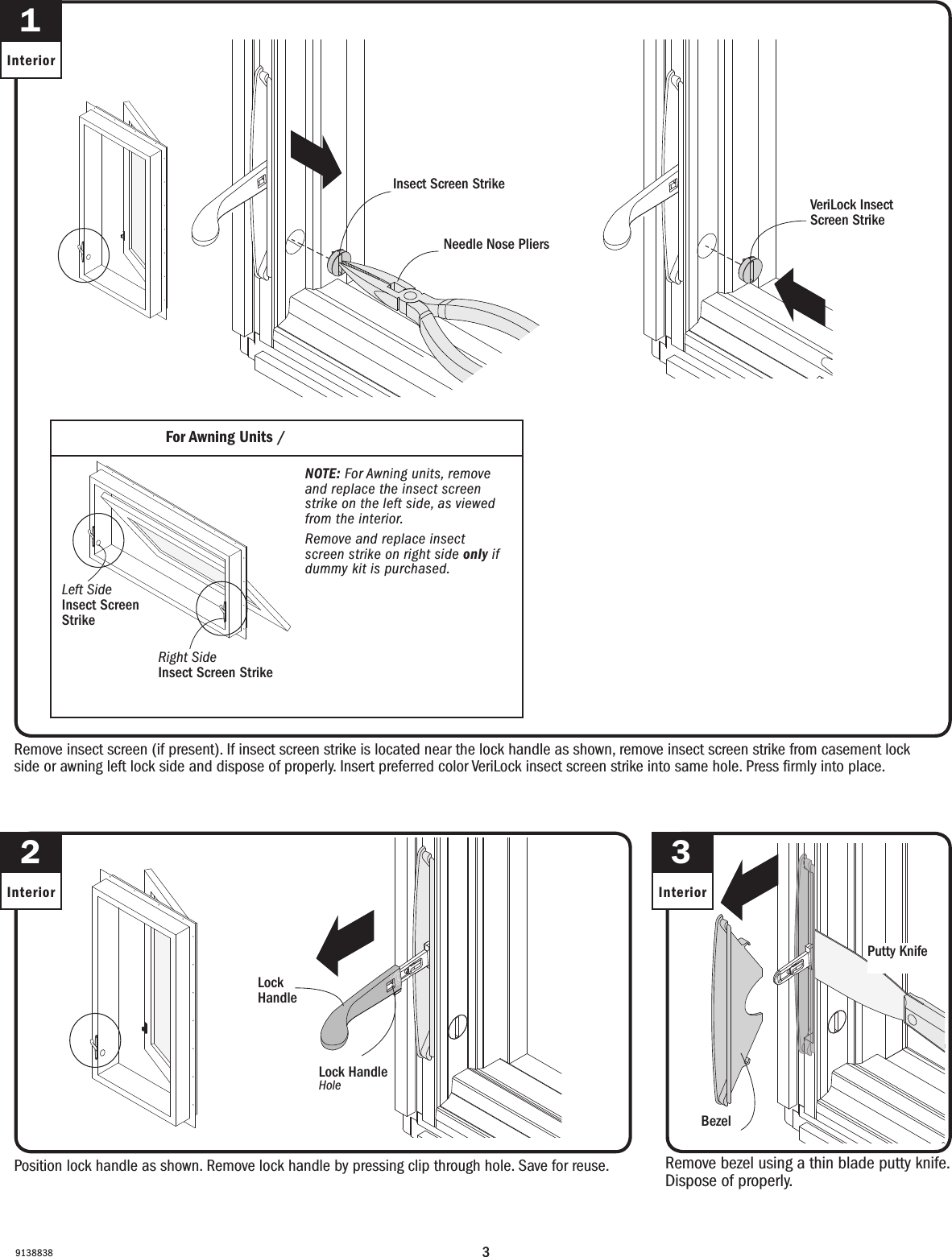

391388382InteriorPosition lock handle as shown. Remove lock handle by pressing clip through hole. Save for reuse.Position lock handle as shown. Remove lock handle by pressing clip through hole. Save for reuse.Remove bezel using a thin blade putty knife. Dispose of properly.Remove bezel using a thin blade putty knife. Dispose of properly.3InteriorLock Handle Lock Handle BezelBezelPutty KnifePutty Knife1InteriorRemove insect screen (if present). If insect screen strike is located near the lock handle as shown, remove insect screen strike from casement lock side or awning left lock side and dispose of properly. Insert preferred color VeriLock insect screen strike into same hole. Press rmly into place.Remove insect screen (if present). If insect screen strike is located near the lock handle as shown, remove insect screen strike from casement lock side or awning left lock side and dispose of properly. Insert preferred color VeriLock insect screen strike into same hole. Press rmly into place.Needle Nose PliersNeedle Nose PliersInsect Screen StrikeScreen Strike VeriLock Insect Screen StrikeVeriLock Insect Screen StrikeNOTE: For Awning units, remove and replace the insect screen strike on the left side, as viewed from the interior.Remove and replace insect screen strike on right side only if dummy kit is purchased. NOTE: For Awning units, remove and replace the insect screen strike on the left side, as viewed from the interior.Remove and replace insect screen strike on right side only if dummy kit is purchased. For Awning Units / For Awning UnitsRight Side Insect Screen Strike Right Side Insect Screen Strike Left Side Insect Screen Strike Left Side Insect Screen Strike Lock HandleHoleLock HandleHole

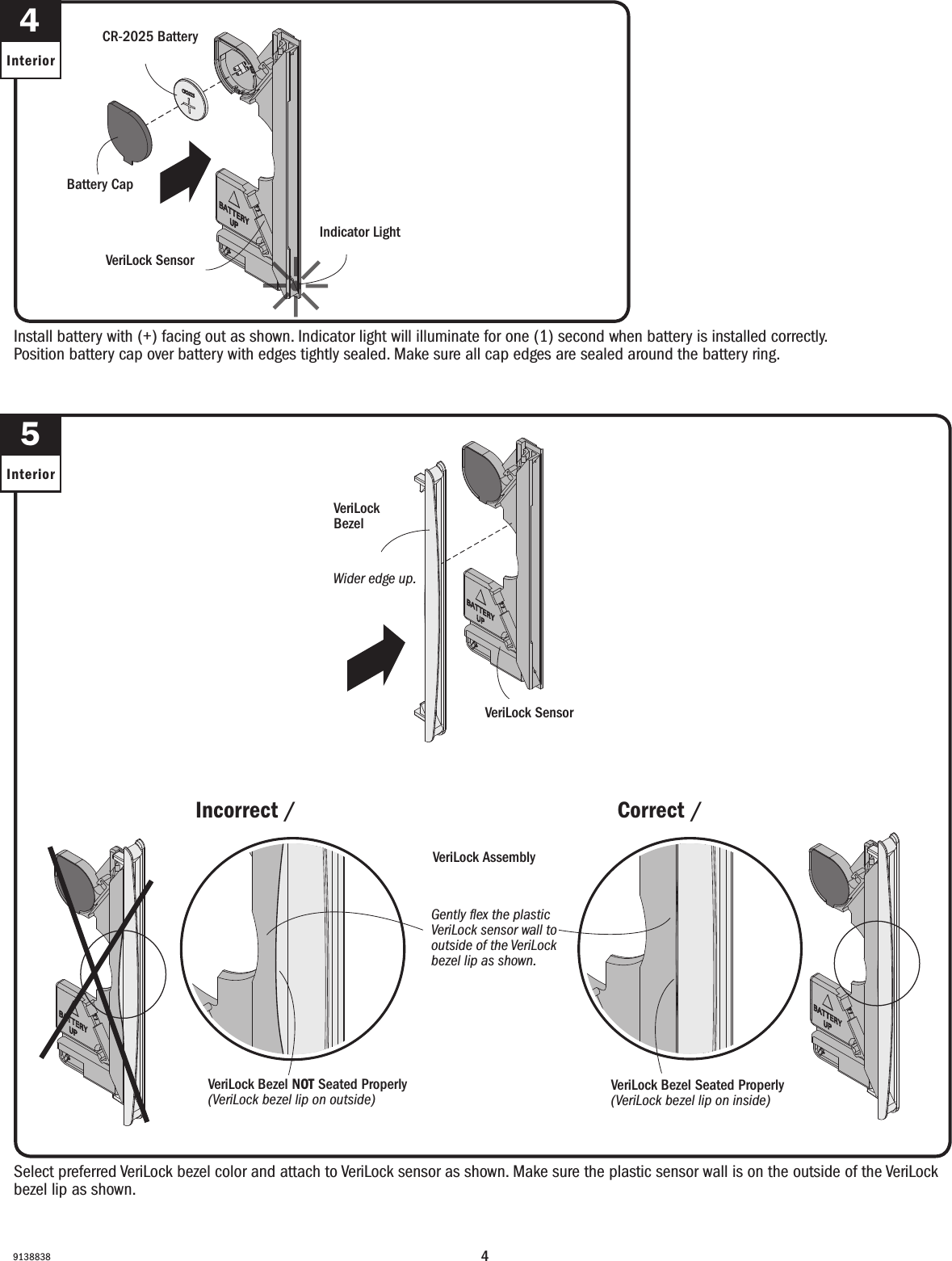

49138838Select preferred VeriLock bezel color and attach to VeriLock sensor as shown. Make sure the plastic sensor wall is on the outside of the VeriLock bezel lip as shown.Select preferred VeriLock bezel color and attach to VeriLock sensor as shown. Make sure the plastic sensor wall is on the outside of the VeriLock bezel lip as shown.5InteriorInstall battery with (+) facing out as shown. Indicator light will illuminate for one (1) second when battery is installed correctly. Position battery cap over battery with edges tightly sealed. Make sure all cap edges are sealed around the battery ring.Install battery with (+) facing out as shown. Indicator light will illuminate for one (1) second when battery is installed correctly. Position battery cap over battery with edges tightly sealed. Make sure all cap edges are sealed around the battery ring.4InteriorWider edge up.Wider edge up.CR-2025 BatteryBatería CR-2025VeriLock AssemblyVeriLock AssemblyVeriLock BezelVeriLock BezelVeriLock SensorSensor VeriLock VeriLock SensorVeriLock SensorBattery CapBattery CapVeriLock Bezel Seated Properly (VeriLock bezel lip on inside)VeriLock Bezel Seated Properly (VeriLock bezel lip on inside)Indicator LightLuz indicadoraVeriLock Bezel NOT Seated Properly (VeriLock bezel lip on outside)VeriLock Bezel NOT Seated Properly (VeriLock bezel lip on outside)Gently flex the plastic VeriLock sensor wall to outside of the VeriLock bezel lip as shown. Gently flex the plastic sensor wall to outside of bezel lip as shown. Correct / CorrectIncorrect / Incorrect

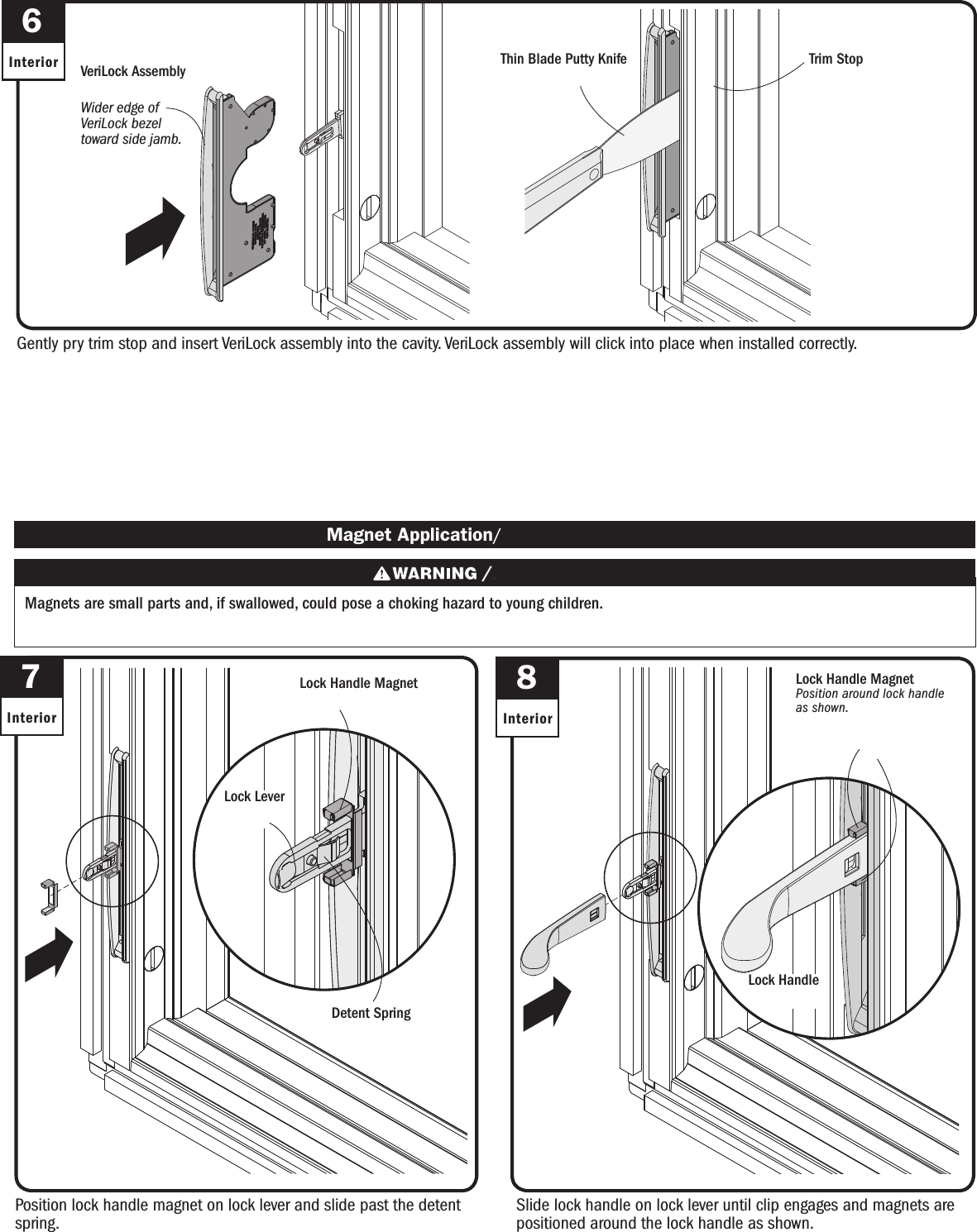

Slide lock handle on lock lever until clip engages and magnets are positioned around the lock handle as shown.Slide lock handle on lock lever until clip engages and magnets are positioned around the lock handle as shown.8Interior7InteriorPosition lock handle magnet on lock lever and slide past the detent spring.Position lock handle magnet on lock lever and slide past the detent spring. Magnet Application/ Magnet ApplicationMagnets are small parts and, if swallowed, could pose a choking hazard to young children. Los imanes son partes pequeñas que, en caso de ingesta, pueden representar un riesgo de asxia para niños pequeños.Detent SpringDetent SpringGently pry trim stop and insert VeriLock assembly into the cavity. VeriLock assembly will click into place when installed correctly.Gently pry trim stop and insert VeriLock assembly into the cavity. VeriLock assembly will click into place when installed correctly.6InteriorWider edge of VeriLock bezel toward side jamb. Wider edge of VeriLock bezel toward side jamb.VeriLock AssemblyVeriLock AssemblyThin Blade Putty KnifeThin Blade Putty Knife Trim StopTrim StopLock HandleLock HandleLock Handle Magnet Lock Handle MagnetLock LeverLock LeverLock Handle MagnetPosition around lock handle as shown.Lock Handle MagnetPosition around lock handle as shown.

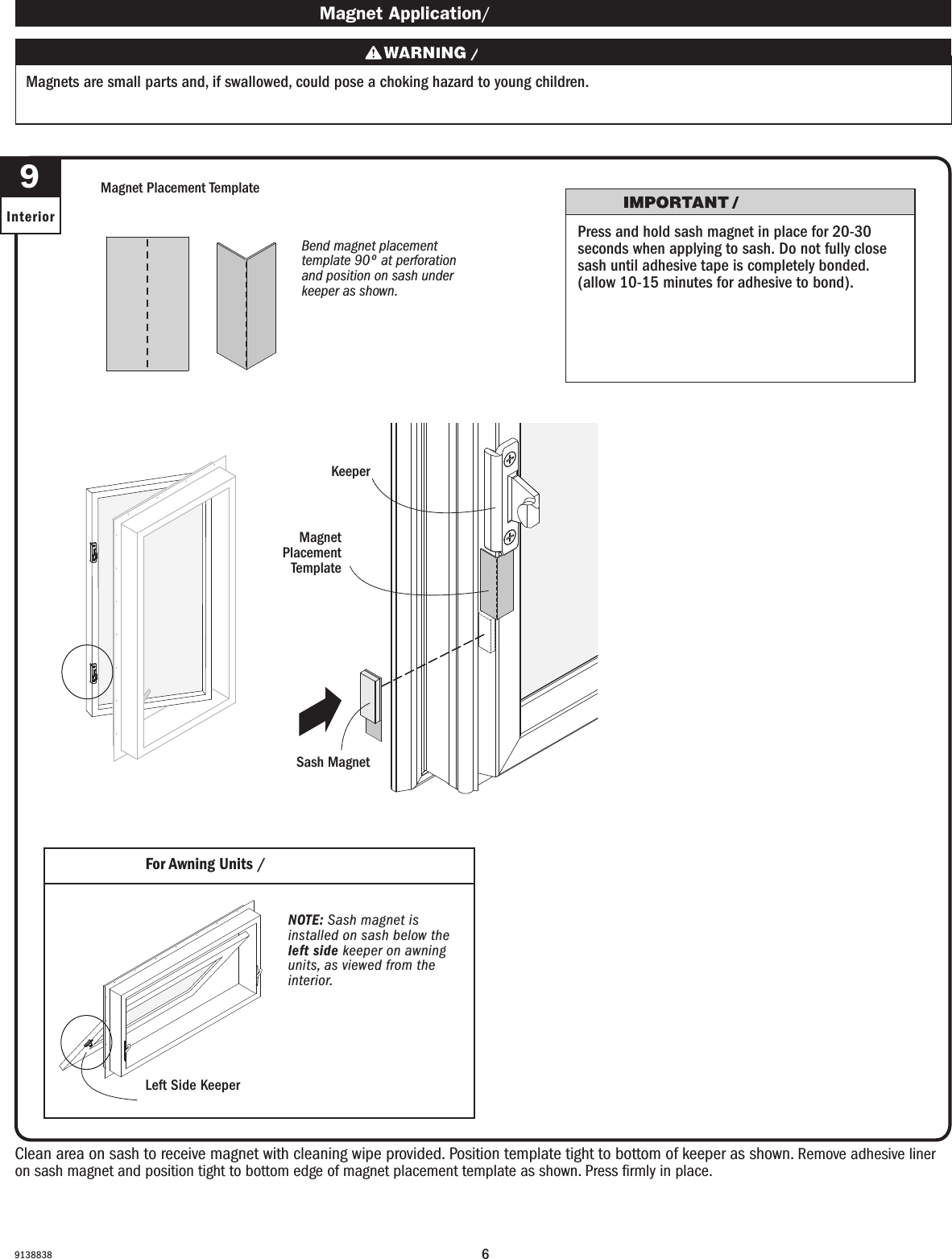

69138838 9InteriorClean area on sash to receive magnet with cleaning wipe provided. Position template tight to bottom of keeper as shown. Remove adhesive liner on sash magnet and position tight to bottom edge of magnet placement template as shown. Press firmly in place.Clean area on sash to receive magnet with cleaning wipe provided. Position template tight to bottom of keeper as shown. Remove adhesive liner on sash magnet and position tight to bottom edge of magnet placement template as shown. Press firmly in place. Magnet Application/ Magnet ApplicationMagnets are small parts and, if swallowed, could pose a choking hazard to young children. Los imanes son partes pequeñas que, en caso de ingesta, pueden representar un riesgo de asxia para niños pequeños.For Awning Units / For Awning UnitsMagnet Placement TemplateMagnet Placement TemplateSash MagnetSash MagnetKeeperKeeperBend magnet placement template 90º at perforation and position on sash under keeper as shown.Bend magnet placement template 90º at perforation and position on sash under keeper as shown.Magnet Placement TemplateMagnet Placement TemplateNOTE: Sash magnet is installed on sash below the left side keeper on awning units, as viewed from the interior.NOTE: Sash magnet is installed on sash below the left side keeper on awning units, as viewed from the interior.Left Side KeeperLeft Side KeeperPress and hold sash magnet in place for 20-30 seconds when applying to sash. Do not fully close sash until adhesive tape is completely bonded. (allow 10-15 minutes for adhesive to bond).Press and hold sash magnet in place for 20-30 seconds when applying to sash. Do not fully close sash until adhesive tape is completely bonded. (allow 10-15 minutes for adhesive to bond).

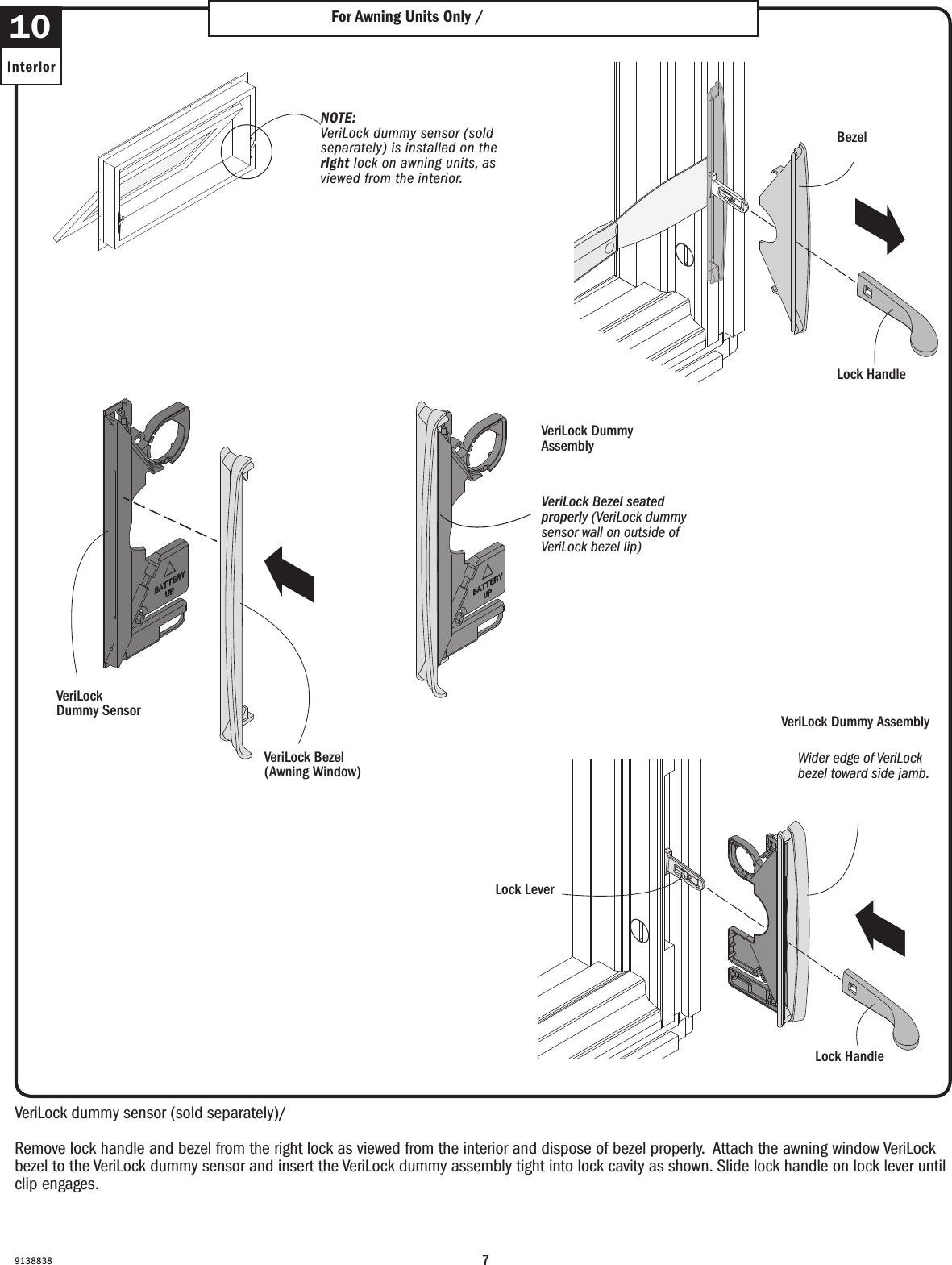

79138838VeriLock dummy sensor (sold separately)/ VeriLock dummy sensor. (sold separately).Remove lock handle and bezel from the right lock as viewed from the interior and dispose of bezel properly. Attach the awning window VeriLock bezel to the VeriLock dummy sensor and insert the VeriLock dummy assembly tight into lock cavity as shown. Slide lock handle on lock lever until clip engages.Remove lock handle and bezel from the right lock as viewed from the interior and dispose of bezel properly. Attach the awning window VeriLock bezel to the VeriLock dummy sensor and insert the VeriLock dummy assembly tight into lock cavity as shown. Slide lock handle on lock lever until clip engages.10InteriorFor Awning Units Only / For Awning Units OnlyNOTE: VeriLock dummy sensor (sold separately) is installed on the right lock on awning units, as viewed from the interior.NOTE: VeriLock dummy sensor (sold separately) is installed on the right lock on awning units, as viewed from the interior.VeriLock Dummy SensorVeriLock Dummy Sensor VeriLock Bezel (Awning Window)VeriLock Bezel (Awning Window)VeriLock Dummy Assembly VeriLock Dummy Assembly VeriLock Bezel seated properly (VeriLock dummy sensor wall on outside of VeriLock bezel lip)VeriLock Bezel seated properly (VeriLock dummy sensor wall on outside of VeriLock bezel lip)Lock Handle Lock Handle Bezel BezelWider edge of VeriLock bezel toward side jamb. Wider edge of VeriLock bezel toward side jamb. Lock LeverLock Lever VeriLock Dummy Assembly VeriLock Dummy Assembly Lock Handle Lock Handle

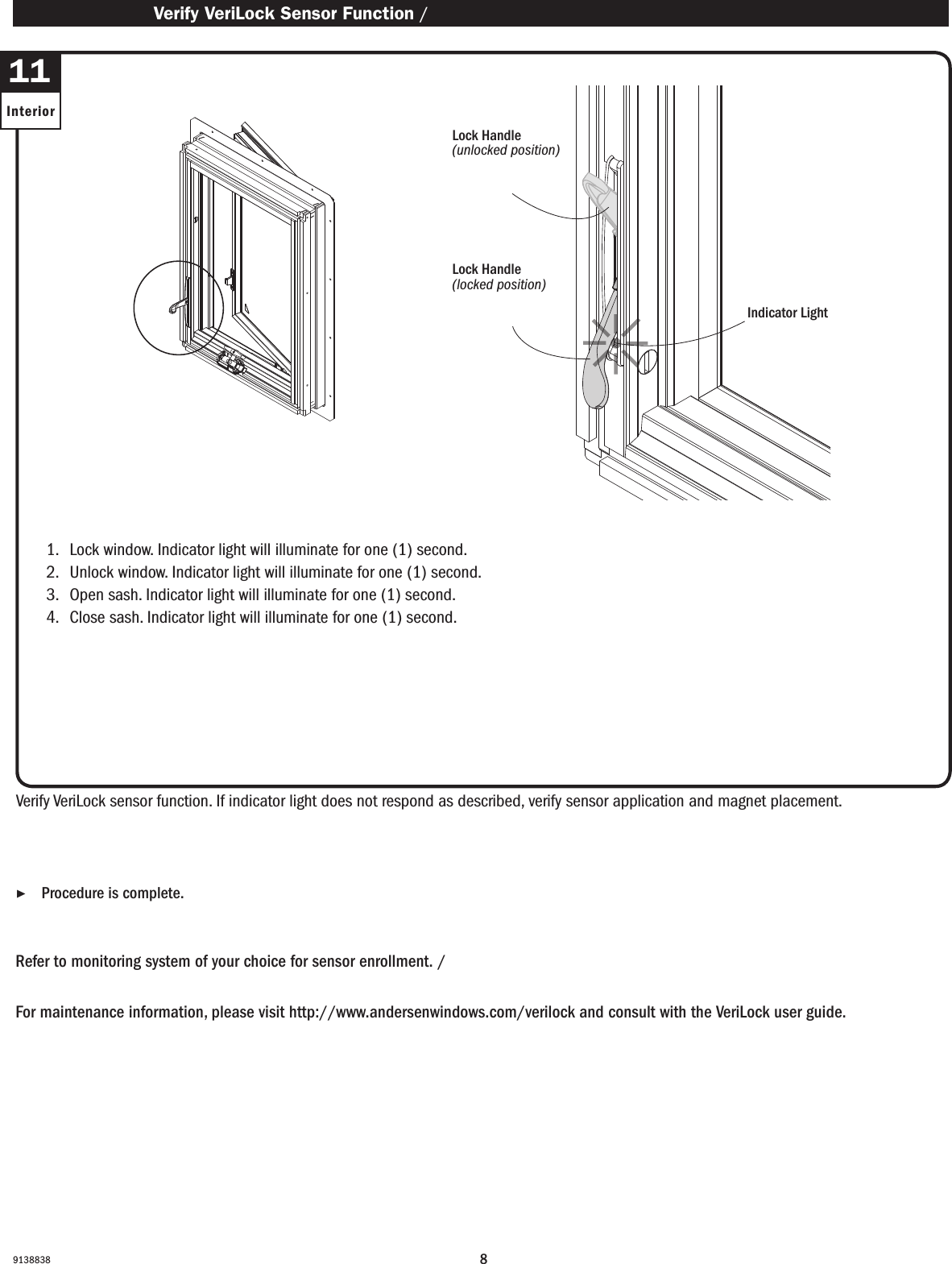

891388381. Lock window. Indicator light will illuminate for one (1) second.2. Unlock window. Indicator light will illuminate for one (1) second.3. Open sash. Indicator light will illuminate for one (1) second.4. Close sash. Indicator light will illuminate for one (1) second.1. Lock window. Indicator light will illuminate for one (1) second.2. Unlock window. Indicator light will illuminate for one (1) second.3. Open sash. Indicator light will illuminate for one (1) second.4. Close sash. Indicator light will illuminate for one (1) second.Verify VeriLock sensor function. If indicator light does not respond as described, verify sensor application and magnet placement.Verique el funcionamiento del sensor VeriLock. Si la luz indicadora no funciona como se describió anteriormente, verique la aplicación del sensor y la ubicación del imán.Refer to monitoring system of your choice for sensor enrollment. / Consulte el sistema de monitoreo de su elección para el registro del sensor.For maintenance information, please visit http://www.andersenwindows.com/verilock and consult with the VeriLock user guide.Para obtener información de mantenimiento, visite http://www.andersenwindows.com/verilock y consulte con la guía del usuario de VeriLock. ▶Procedure is complete. El procedimiento se ha completado. Verify VeriLock Sensor Function / Verique el funcionamiento de sensor VeriLock11InteriorLock Handle(unlocked position)Lock Handle(en posición abierto)Lock Handle(locked position)Lock Handle(en posición cerrado) Indicator LightLuz indicadora

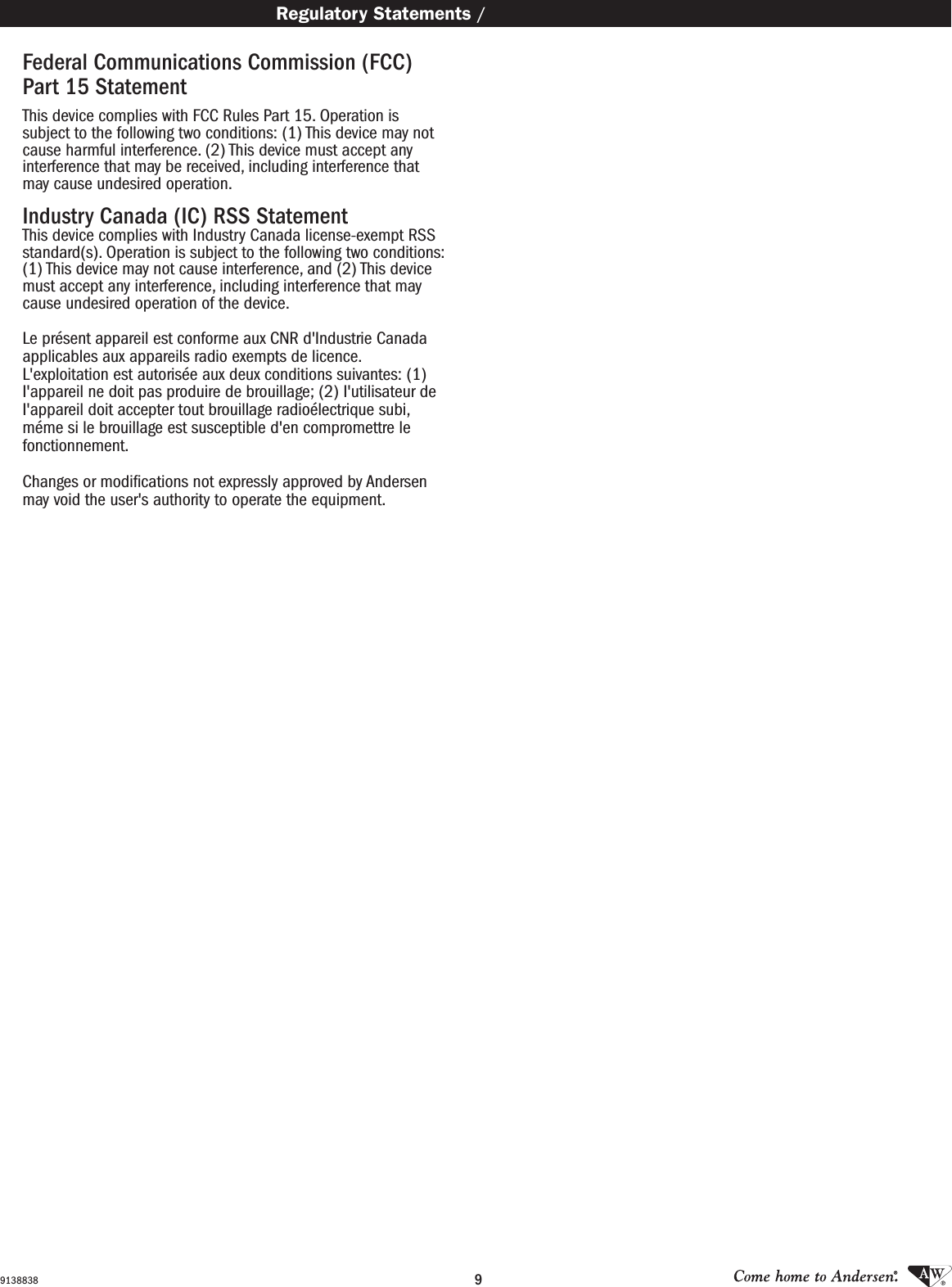

99138838 Regulatory Statements / Normas reglamentariasFederal Communications Commission (FCC) Part 15 Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference that may be received, including interference that may cause undesired operation. Industry Canada (IC) RSS StatementThis device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) I'appareil ne doit pas produire de brouillage; (2) I'utilisateur de I'appareil doit accepter tout brouillage radioélectrique subi, méme si le brouillage est susceptible d'en compromettre le fonctionnement. Changes or modifications not expressly approved by Andersen may void the user's authority to operate the equipment.

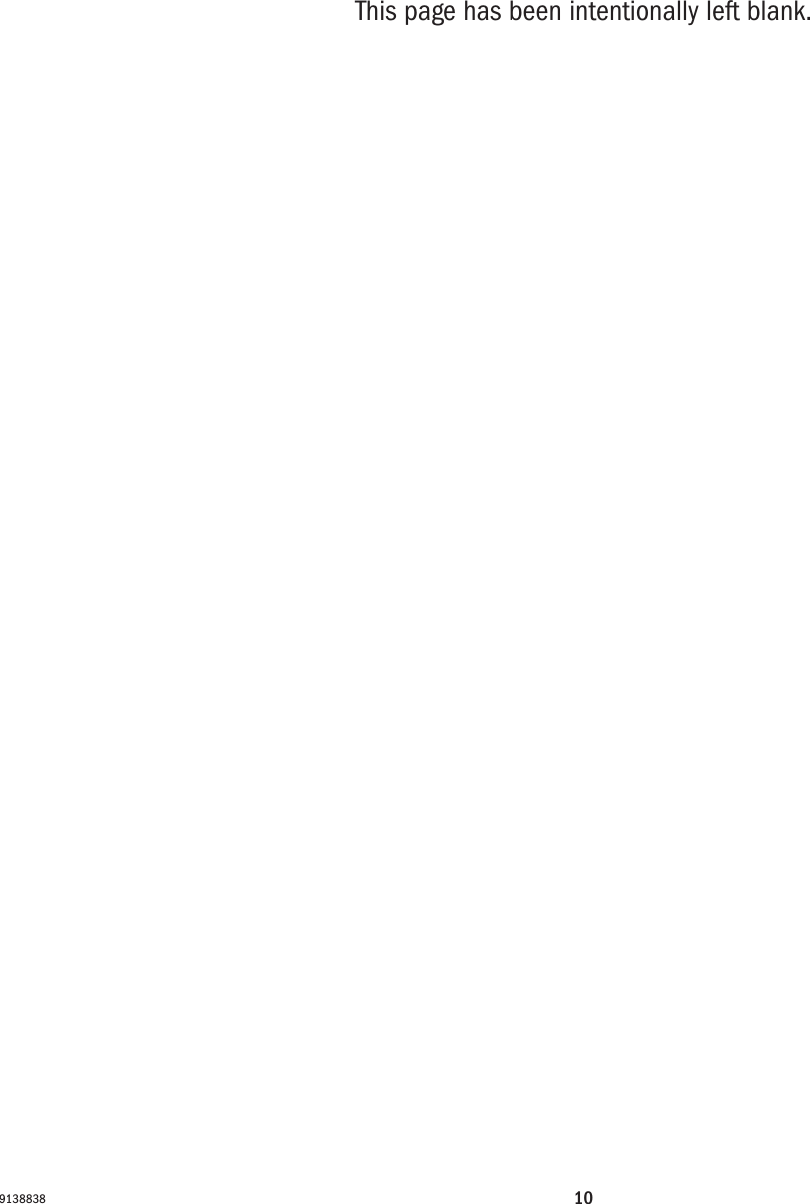

109138838This page has been intentionally left blank.Página intencionalmente en blanco.
