AngSi Technology ANGLEPLUS Bluetooth speaker User Manual angle 3 plus manual v5

Shenzhen AngSi Technology Co., LTD Bluetooth speaker angle 3 plus manual v5

15_OontZ Angle 3 Plus UserMan

Ultra-Portable Bluetooth SpeakerQuick Start GuideDesigned and Engineered ByPlease visit TheOontZ.com

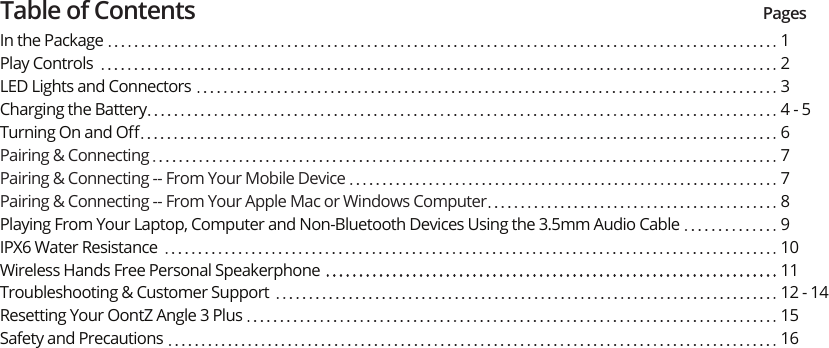

Table of Contents PagesIn the PackagePlay ControlsLED Lights and ConnectorsCharging the BatteryTurning On and OffPairing & ConnectingPairing & Connecting -- From Your Mobile DevicePairing & Connecting -- From Your Apple Mac or Windows Computer Playing From Your Laptop, Computer and Non-Bluetooth Devices Using the 3.5mm Audio CableIPX6 Water ResistanceWireless Hands Free Personal SpeakerphoneTroubleshooting & Customer SupportResetting Your OontZ Angle 3 PlusSafety and Precautions 1234 - 567789101112 - 141516

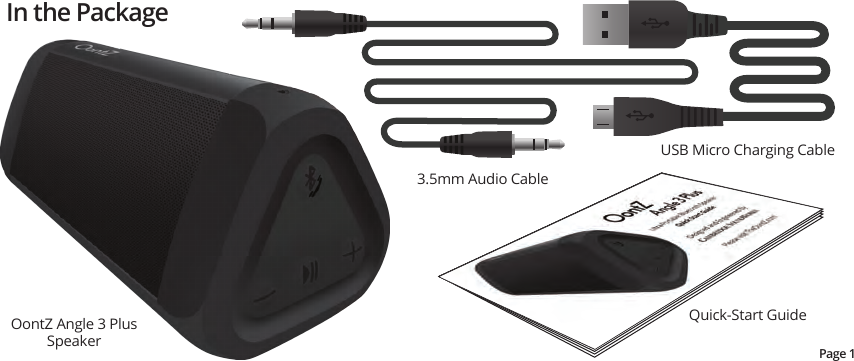

In the PackageUSB Micro Charging CableOontZ Angle 3 PlusSpeaker3.5mm Audio CableQuick-Start GuidePage 1

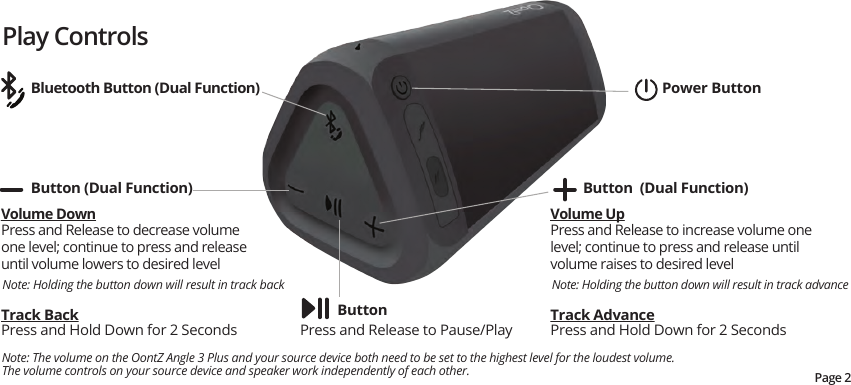

Button (Dual Function) Button (Dual Function)Power ButtonNote: The volume on the OontZ Angle 3 Plus and your source device both need to be set to the highest level for the loudest volume. The volume controls on your source device and speaker work independently of each other. Note: Holding the button down will result in track backButtonPlay ControlsPage 2Bluetooth Button (Dual Function)Press and Release to Pause/PlayTrack BackPress and Hold Down for 2 Seconds Track AdvancePress and Hold Down for 2 SecondsVolume DownPress and Release to decrease volume one level; continue to press and release until volume lowers to desired levelNote: Holding the button down will result in track advanceVolume UpPress and Release to increase volume one level; continue to press and release until volume raises to desired level

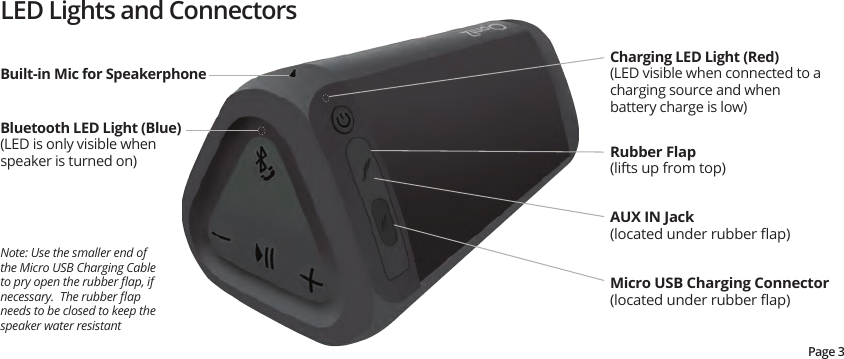

LED Lights and Connectors AUX IN Jack(located under rubber flap)Micro USB Charging Connector(located under rubber flap)Rubber Flap(lifts up from top)Charging LED Light (Red)(LED visible when connected to a charging source and when battery charge is low)Built-in Mic for SpeakerphonePage 3Note: Use the smaller end of the Micro USB Charging Cable to pry open the rubber flap, if necessary. The rubber flap needs to be closed to keep the speaker water resistantBluetooth LED Light (Blue)(LED is only visible when speaker is turned on)

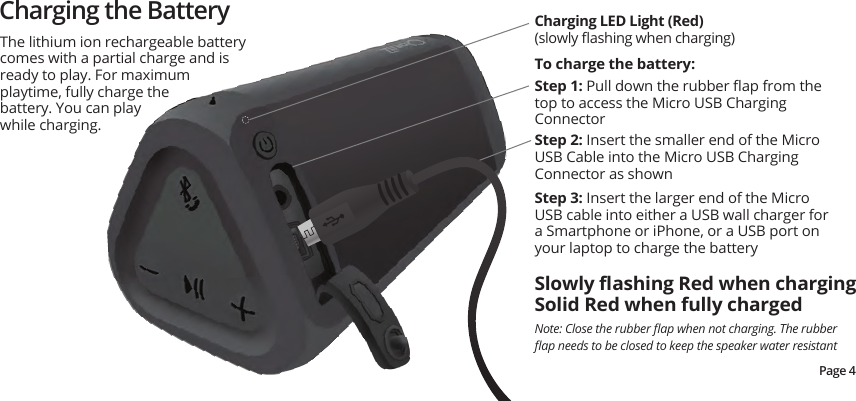

Charging the BatteryStep 2: Insert the smaller end of the Micro USB Cable into the Micro USB Charging Connector as shownStep 3: Insert the larger end of the Micro USB cable into either a USB wall charger for a Smartphone or iPhone, or a USB port on your laptop to charge the batteryStep 1: Pull down the rubber flap from the top to access the Micro USB Charging ConnectorTo charge the battery:The lithium ion rechargeable battery comes with a partial charge and is ready to play. For maximum playtime, fully charge the battery. You can play while charging.Charging LED Light (Red)(slowly flashing when charging)Slowly flashing Red when charging Solid Red when fully charged Page 4Note: Close the rubber flap when not charging. The rubber flap needs to be closed to keep the speaker water resistant

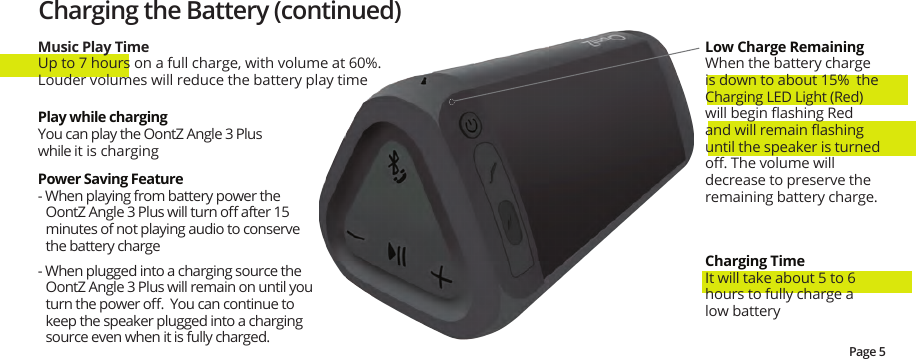

Charging the Battery (continued)Music Play TimeUp to 7 hours on a full charge, with volume at 60%. Louder volumes will reduce the battery play timeLow Charge Remaining When the battery charge is down to about 15% the Charging LED Light (Red) will begin flashing Red and will remain flashing until the speaker is turned off. The volume will decrease to preserve the remaining battery charge.Charging TimeIt will take about 5 to 6 hours to fully charge a low batteryPower Saving Feature- When playing from battery power the OontZ Angle 3 Plus will turn off after 15 minutes of not playing audio to conserve the battery charge- When plugged into a charging source the OontZ Angle 3 Plus will remain on until you turn the power off. You can continue to keep the speaker plugged into a charging source even when it is fully charged.Play while chargingYou can play the OontZ Angle 3 Plus while it is chargingPage 5

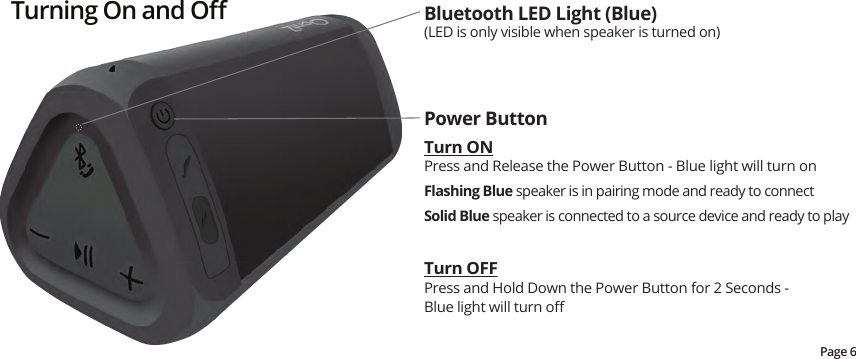

Turning On and OffFlashing Blue speaker is in pairing mode and ready to connectSolid Blue speaker is connected to a source device and ready to playPress and Release the Power Button - Blue light will turn onPress and Hold Down the Power Button for 2 Seconds - Blue light will turn offTurn ONTurn OFFPage 6Bluetooth LED Light (Blue)(LED is only visible when speaker is turned on)Power Button

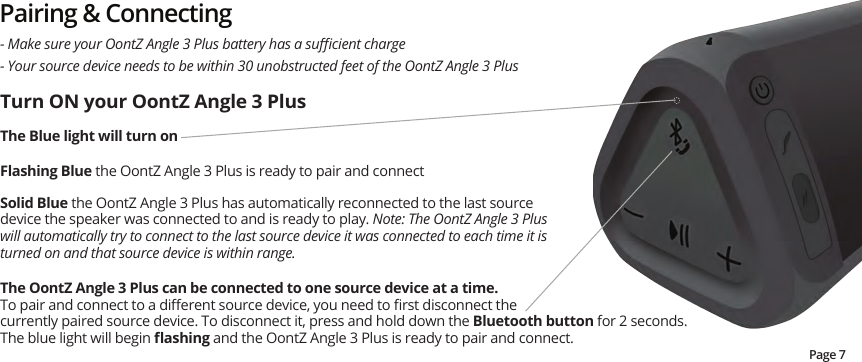

Pairing & Connecting- Your source device needs to be within 30 unobstructed feet of the OontZ Angle 3 Plus- Make sure your OontZ Angle 3 Plus battery has a sufficient chargeTurn ON your OontZ Angle 3 PlusThe Blue light will turn on Flashing Blue the OontZ Angle 3 Plus is ready to pair and connectSolid Blue the OontZ Angle 3 Plus has automatically reconnected to the last source device the speaker was connected to and is ready to play. Note: The OontZ Angle 3 Plus will automatically try to connect to the last source device it was connected to each time it is turned on and that source device is within range.The OontZ Angle 3 Plus can be connected to one source device at a time. To pair and connect to a different source device, you need to first disconnect the currently paired source device. To disconnect it, press and hold down the Bluetooth button for 2 seconds. The blue light will begin flashing and the OontZ Angle 3 Plus is ready to pair and connect. Page 7

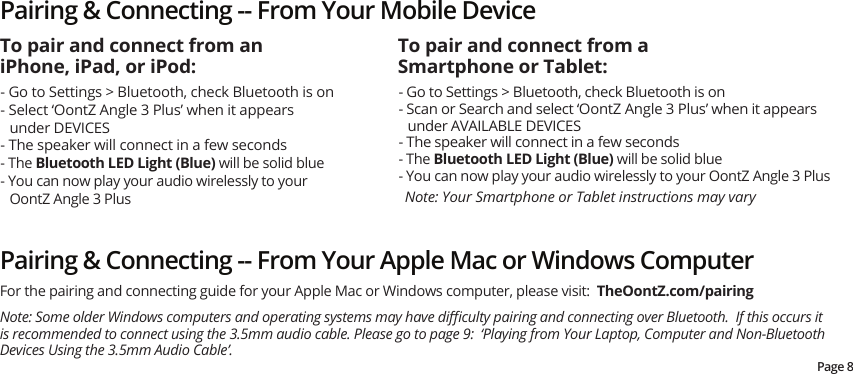

Pairing & Connecting -- From Your Mobile Device- Go to Settings > Bluetooth, check Bluetooth is on- Select ‘OontZ Angle 3 Plus’ when it appears under DEVICES- The speaker will connect in a few seconds - The Bluetooth LED Light (Blue) will be solid blue- You can now play your audio wirelessly to your OontZ Angle 3 PlusNote: Your Smartphone or Tablet instructions may vary- Go to Settings > Bluetooth, check Bluetooth is on- Scan or Search and select ‘OontZ Angle 3 Plus’ when it appears under AVAILABLE DEVICES- The speaker will connect in a few seconds- The Bluetooth LED Light (Blue) will be solid blue- You can now play your audio wirelessly to your OontZ Angle 3 PlusTo pair and connect from an iPhone, iPad, or iPod:To pair and connect from a Smartphone or Tablet:Pairing & Connecting -- From Your Apple Mac or Windows Computer Note: Some older Windows computers and operating systems may have difficulty pairing and connecting over Bluetooth. If this occurs it is recommended to connect using the 3.5mm audio cable. Please go to page 9: ‘Playing from Your Laptop, Computer and Non-Bluetooth Devices Using the 3.5mm Audio Cable’.For the pairing and connecting guide for your Apple Mac or Windows computer, please visit: TheOontZ.com/pairingPage 8

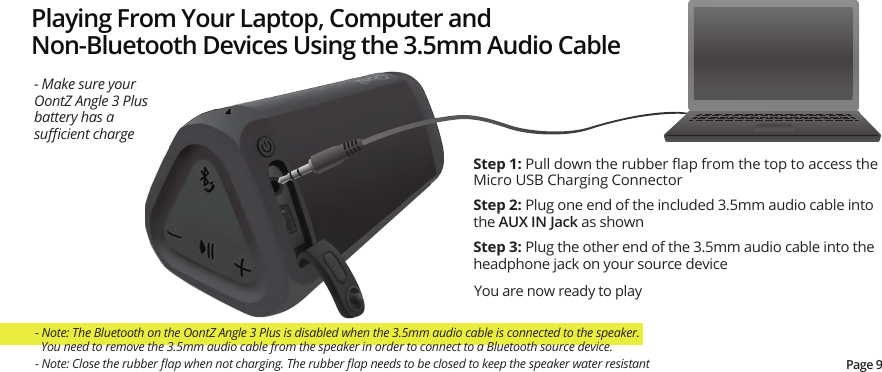

Playing From Your Laptop, Computer and Non-Bluetooth Devices Using the 3.5mm Audio CableStep 1: Pull down the rubber flap from the top to access the Micro USB Charging ConnectorStep 2: Plug one end of the included 3.5mm audio cable into the AUX IN Jack as shownStep 3: Plug the other end of the 3.5mm audio cable into the headphone jack on your source deviceYou are now ready to play- Make sure your OontZ Angle 3 Plus battery has a sufficient charge- Note: The Bluetooth on the OontZ Angle 3 Plus is disabled when the 3.5mm audio cable is connected to the speaker. You need to remove the 3.5mm audio cable from the speaker in order to connect to a Bluetooth source device.Page 9- Note: Close the rubber flap when not charging. The rubber flap needs to be closed to keep the speaker water resistant

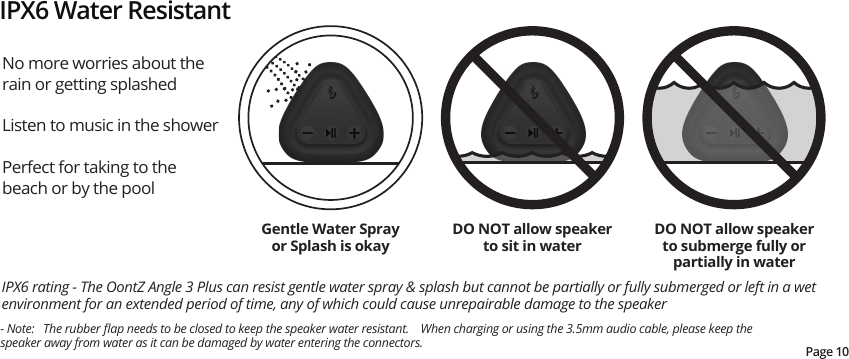

No more worries about the rain or getting splashed Listen to music in the shower Perfect for taking to the beach or by the poolIPX6 rating - The OontZ Angle 3 Plus can resist gentle water spray & splash but cannot be partially or fully submerged or left in a wet environment for an extended period of time, any of which could cause unrepairable damage to the speakerIPX6 Water ResistantDO NOT allow speaker to sit in waterDO NOT allow speaker to submerge fully or partially in waterGentle Water Spray or Splash is okayPage 10- Note: The rubber flap needs to be closed to keep the speaker water resistant. When charging or using the 3.5mm audio cable, please keep the speaker away from water as it can be damaged by water entering the connectors.

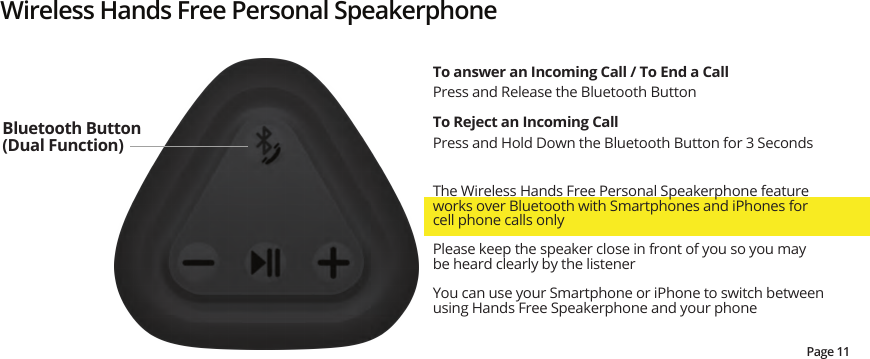

Wireless Hands Free Personal SpeakerphoneThe Wireless Hands Free Personal Speakerphone feature works over Bluetooth with Smartphones and iPhones for cell phone calls only Please keep the speaker close in front of you so you may be heard clearly by the listenerYou can use your Smartphone or iPhone to switch between using Hands Free Speakerphone and your phoneTo answer an Incoming Call / To End a CallPress and Release the Bluetooth ButtonTo Reject an Incoming CallPress and Hold Down the Bluetooth Button for 3 SecondsBluetooth Button (Dual Function)Page 11

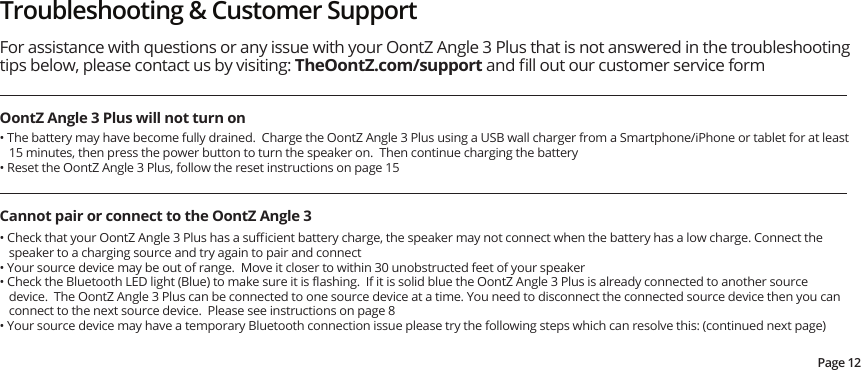

Troubleshooting & Customer SupportOontZ Angle 3 Plus will not turn onFor assistance with questions or any issue with your OontZ Angle 3 Plus that is not answered in the troubleshooting tips below, please contact us by visiting: TheOontZ.com/support and fill out our customer service form • The battery may have become fully drained. Charge the OontZ Angle 3 Plus using a USB wall charger from a Smartphone/iPhone or tablet for at least 15 minutes, then press the power button to turn the speaker on. Then continue charging the battery• Reset the OontZ Angle 3 Plus, follow the reset instructions on page 15Cannot pair or connect to the OontZ Angle 3• Check that your OontZ Angle 3 Plus has a sufficient battery charge, the speaker may not connect when the battery has a low charge. Connect the speaker to a charging source and try again to pair and connect• Your source device may be out of range. Move it closer to within 30 unobstructed feet of your speaker• Check the Bluetooth LED light (Blue) to make sure it is flashing. If it is solid blue the OontZ Angle 3 Plus is already connected to another source device. The OontZ Angle 3 Plus can be connected to one source device at a time. You need to disconnect the connected source device then you can connect to the next source device. Please see instructions on page 8• Your source device may have a temporary Bluetooth connection issue please try the following steps which can resolve this: (continued next page)Page 12

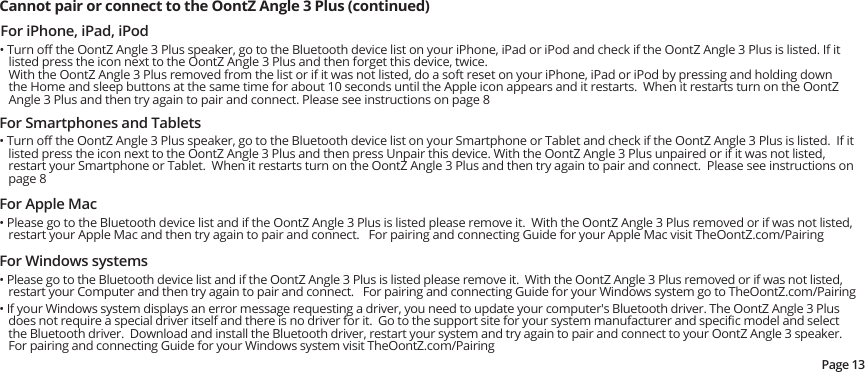

For iPhone, iPad, iPod• Turn off the OontZ Angle 3 Plus speaker, go to the Bluetooth device list on your iPhone, iPad or iPod and check if the OontZ Angle 3 Plus is listed. If it listed press the icon next to the OontZ Angle 3 Plus and then forget this device, twice.With the OontZ Angle 3 Plus removed from the list or if it was not listed, do a soft reset on your iPhone, iPad or iPod by pressing and holding down the Home and sleep buttons at the same time for about 10 seconds until the Apple icon appears and it restarts. When it restarts turn on the OontZ Angle 3 Plus and then try again to pair and connect. Please see instructions on page 8Cannot pair or connect to the OontZ Angle 3 Plus (continued) For Smartphones and Tablets• Turn off the OontZ Angle 3 Plus speaker, go to the Bluetooth device list on your Smartphone or Tablet and check if the OontZ Angle 3 Plus is listed. If it listed press the icon next to the OontZ Angle 3 Plus and then press Unpair this device. With the OontZ Angle 3 Plus unpaired or if it was not listed, restart your Smartphone or Tablet. When it restarts turn on the OontZ Angle 3 Plus and then try again to pair and connect. Please see instructions on page 8For Apple Mac• Please go to the Bluetooth device list and if the OontZ Angle 3 Plus is listed please remove it. With the OontZ Angle 3 Plus removed or if was not listed, restart your Apple Mac and then try again to pair and connect. For pairing and connecting Guide for your Apple Mac visit TheOontZ.com/PairingFor Windows systems• Please go to the Bluetooth device list and if the OontZ Angle 3 Plus is listed please remove it. With the OontZ Angle 3 Plus removed or if was not listed, restart your Computer and then try again to pair and connect. For pairing and connecting Guide for your Windows system go to TheOontZ.com/Pairing• If your Windows system displays an error message requesting a driver, you need to update your computer's Bluetooth driver. The OontZ Angle 3 Plus does not require a special driver itself and there is no driver for it. Go to the support site for your system manufacturer and specific model and select the Bluetooth driver. Download and install the Bluetooth driver, restart your system and try again to pair and connect to your OontZ Angle 3 speaker.For pairing and connecting Guide for your Windows system visit TheOontZ.com/PairingPage 13

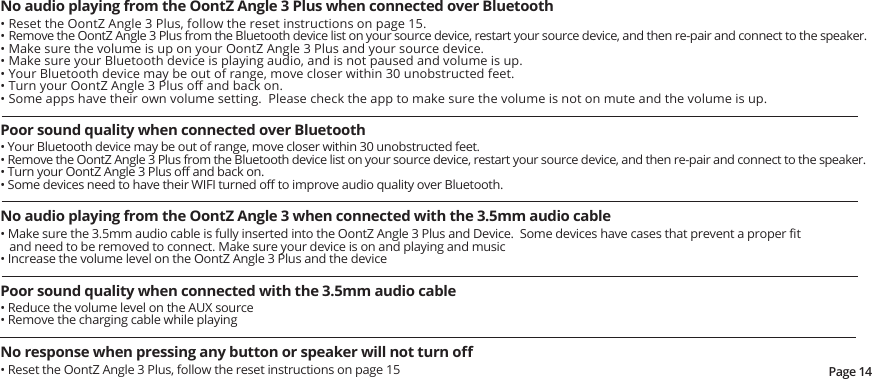

Page 14No audio playing from the OontZ Angle 3 Plus when connected over Bluetooth• Reset the OontZ Angle 3 Plus, follow the reset instructions on page 15.• Remove the OontZ Angle 3 Plus from the Bluetooth device list on your source device, restart your source device, and then re-pair and connect to the speaker.• Make sure the volume is up on your OontZ Angle 3 Plus and your source device.• Make sure your Bluetooth device is playing audio, and is not paused and volume is up.• Your Bluetooth device may be out of range, move closer within 30 unobstructed feet.• Turn your OontZ Angle 3 Plus off and back on.• Some apps have their own volume setting. Please check the app to make sure the volume is not on mute and the volume is up.Poor sound quality when connected over Bluetooth • Your Bluetooth device may be out of range, move closer within 30 unobstructed feet.• Remove the OontZ Angle 3 Plus from the Bluetooth device list on your source device, restart your source device, and then re-pair and connect to the speaker.• Turn your OontZ Angle 3 Plus off and back on.• Some devices need to have their WIFI turned off to improve audio quality over Bluetooth.No audio playing from the OontZ Angle 3 when connected with the 3.5mm audio cable• Make sure the 3.5mm audio cable is fully inserted into the OontZ Angle 3 Plus and Device. Some devices have cases that prevent a proper fit and need to be removed to connect. Make sure your device is on and playing and music• Increase the volume level on the OontZ Angle 3 Plus and the devicePoor sound quality when connected with the 3.5mm audio cable • Reduce the volume level on the AUX source• Remove the charging cable while playingNo response when pressing any button or speaker will not turn off• Reset the OontZ Angle 3 Plus, follow the reset instructions on page 15
Resetting Your OontZ Angle 3 PlusTo reset the OontZ Angle 3 Plus insert either a toothpick or straightened paper clip into the AUX IN jack until it makes contact with the micro switch. Gently push and release the switch and the speaker will reset.Page 15

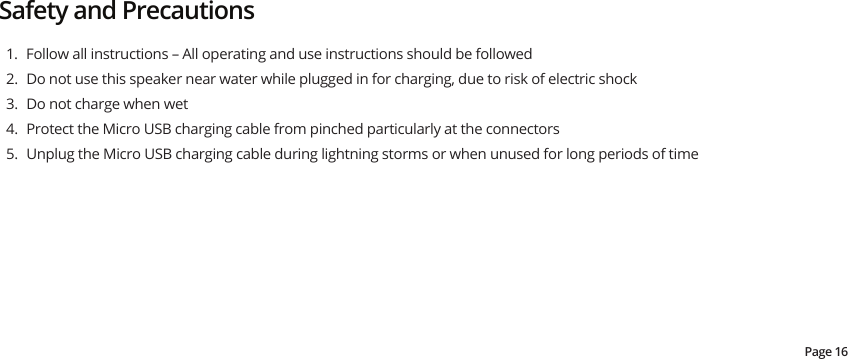

Safety and Precautions1. Follow all instructions – All operating and use instructions should be followed2. Do not use this speaker near water while plugged in for charging, due to risk of electric shock3. Do not charge when wet4. Protect the Micro USB charging cable from pinched particularly at the connectors5. Unplug the Micro USB charging cable during lightning storms or when unused for long periods of timePage 16

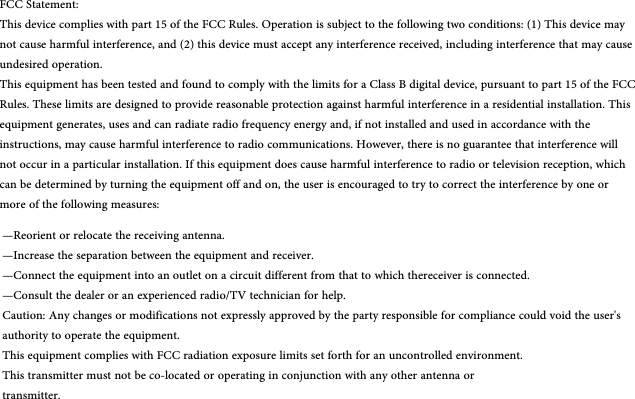

FCC Statement:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Thisequipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.—Consult the dealer or an experienced radio/TV technician for help.Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.This transmitter must not be co-located or operating in conjunction with any other antenna ortransmitter.
