Angelcare Canada AC1200T Angelcare Baby Monitor User Manual AC1200 UserMan 20130930

Angelcare Monitors Inc. Angelcare Baby Monitor AC1200 UserMan 20130930

(AC1200) UserMan_20130930

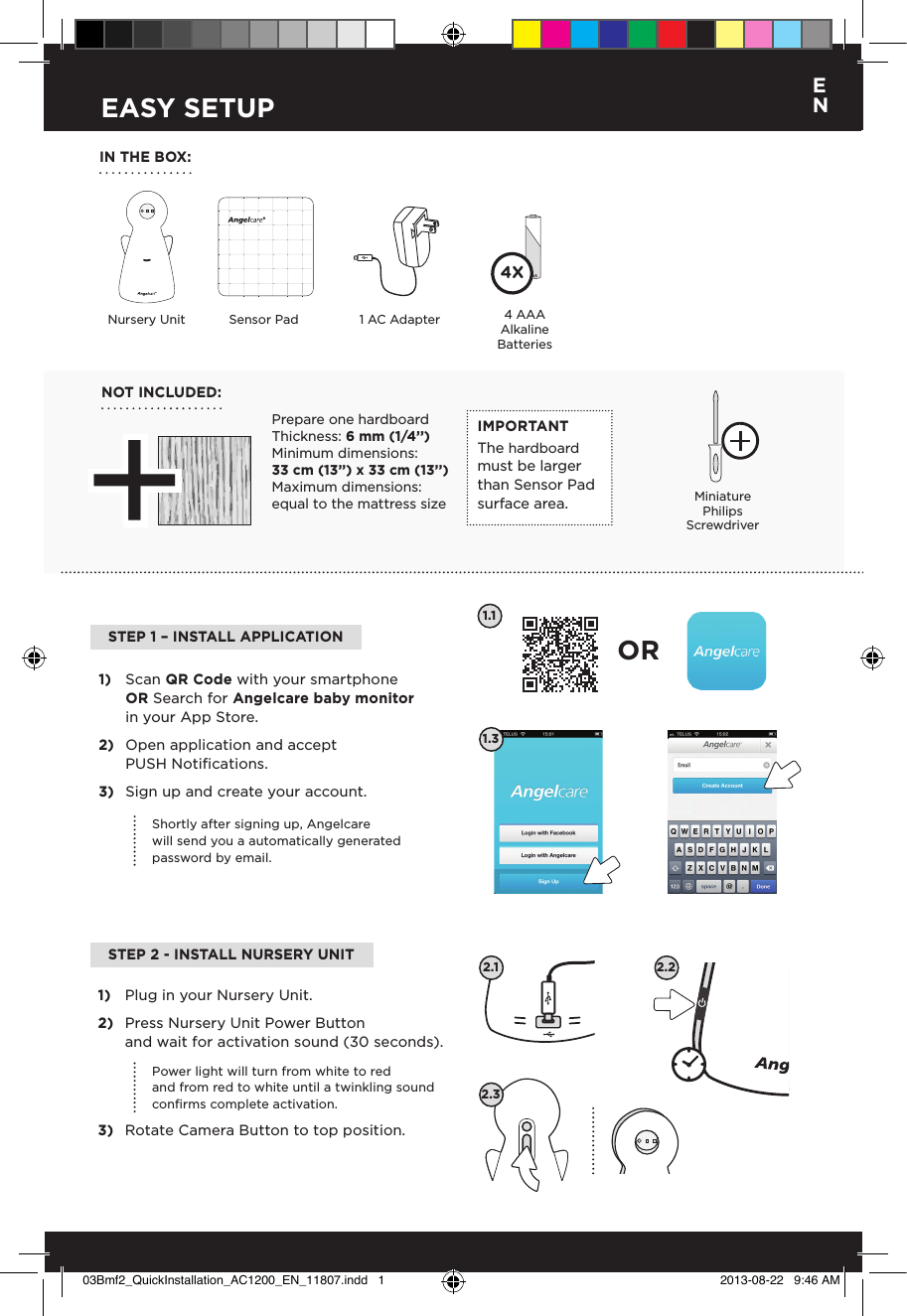

EASY SETUPPrepare one hardboard Thickness: 6 mm (1/4’’) Minimum dimensions: 33 cm (13’’) x 33 cm (13’’) Maximum dimensions: equal to the mattress sizeIN THE BOX:NOT INCLUDED:1 AC AdapterNursery Unit Sensor PadMiniature Philips Screwdriver4 AAA Alkaline BatteriesIMPORTANTThe hardboard must be larger than Sensor Pad surface area.STEP 1 – INSTALL APPLICATION1) Scan QR Code with your smartphone OR Search for Angelcare baby monitor in your App Store.2) Open application and accept PUSH Notifications.3) Sign up and create your account.STEP 2 - INSTALL NURSERY UNIT1) Plug in your Nursery Unit.2) Press Nursery Unit Power Button and wait for activation sound (30 seconds). 3) Rotate Camera Button to top position.+4XE NORShortly after signing up, Angelcare will send you a automatically generated password by email. Power light will turn from white to red and from red to white until a twinkling sound confirms complete activation.1.11.32.12.32.203Bmf2_QuickInstallation_AC1200_EN_11807.indd 1 2013-08-22 9:46 AM

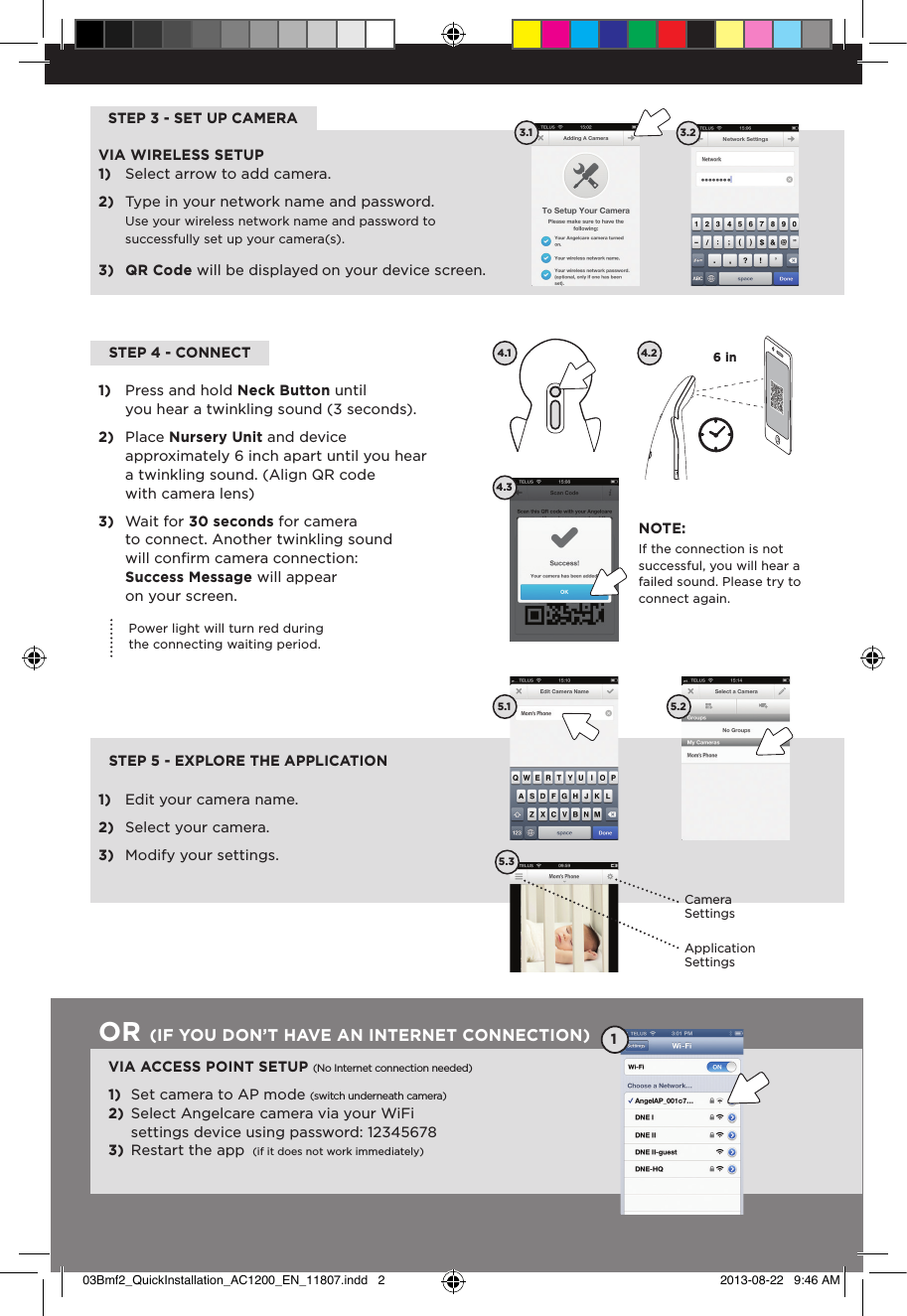

VIA WIRELESS SETUP 1) Select arrow to add camera.2) Type in your network name and password. Use your wireless network name and password to successfully set up your camera(s). 3) QR Code will be displayed on your device screen.1) Press and hold Neck Button until you hear a twinkling sound (3 seconds).2) Place Nursery Unit and device approximately 6 inch apart until you hear a twinkling sound. (Align QR code with camera lens)3) Wait for 30 seconds for camera to connect. Another twinkling sound will confirm camera connection: Success Message will appear on your screen.1) Edit your camera name.2) Select your camera.3) Modify your settings.STEP 3 - SET UP CAMERASTEP 4 - CONNECTSTEP 5 - EXPLORE THE APPLICATIONPower light will turn red during the connecting waiting period.3.15.14.33.25.214.1 4.2 6 in5.3Application SettingsCamera SettingsNOTE:If the connection is not successful, you will hear a failed sound. Please try to connect again. VIA ACCESS POINT SETUP (No Internet connection needed)1) Set camera to AP mode (switch underneath camera) 2) Select Angelcare camera via your WiFi settings device using password: 12345678 3) Restart the app (if it does not work immediately)OR (IF YOU DON’T HAVE AN INTERNET CONNECTION)03Bmf2_QuickInstallation_AC1200_EN_11807.indd 2 2013-08-22 9:46 AM

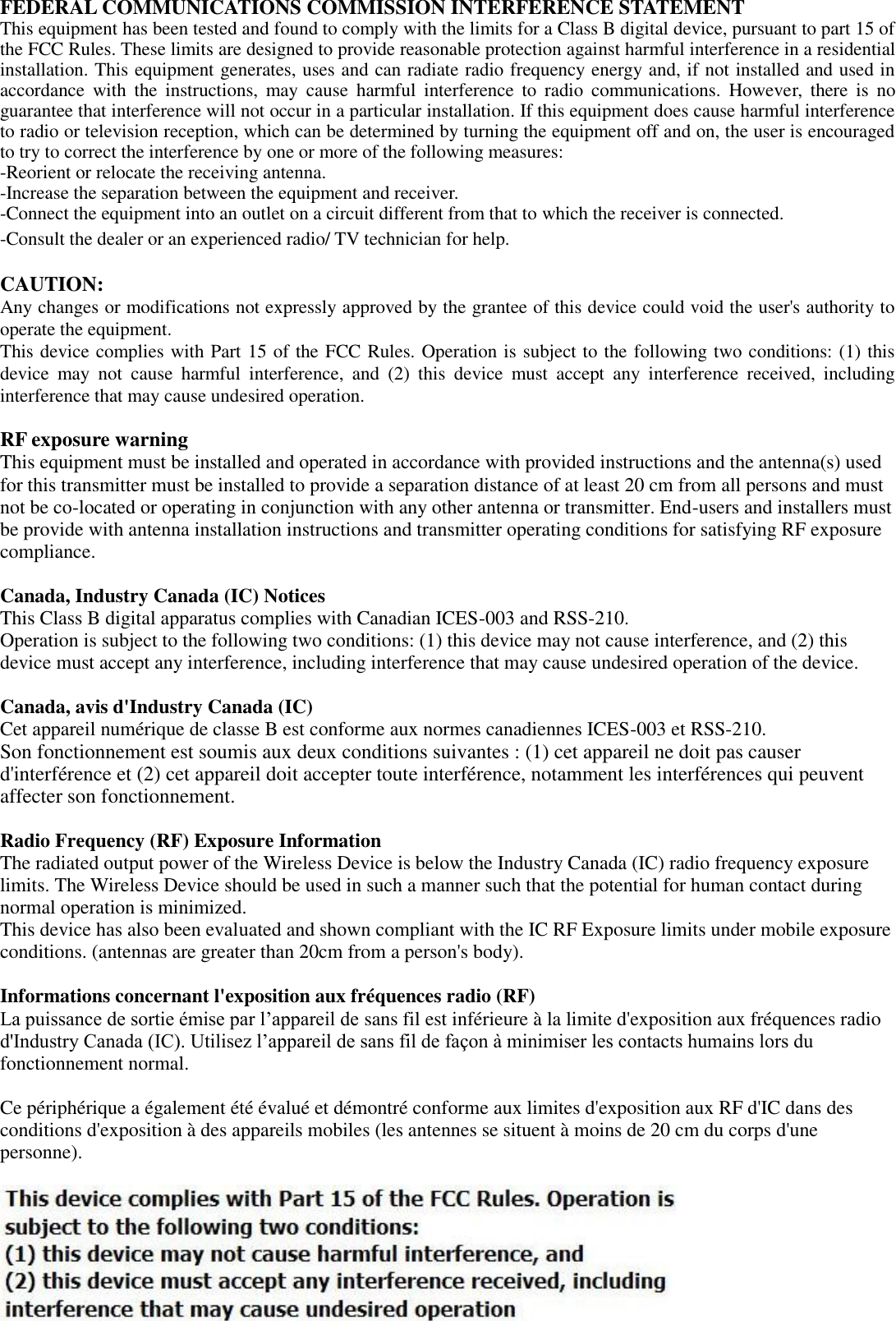

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Canada, Industry Canada (IC) Notices This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Canada, avis d'Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement. Radio Frequency (RF) Exposure Information The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has also been evaluated and shown compliant with the IC RF Exposure limits under mobile exposure conditions. (antennas are greater than 20cm from a person's body). Informations concernant l'exposition aux fréquences radio (RF) La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de sans fil de façon à minimiser les contacts humains lors du fonctionnement normal. Ce périphérique a également été évalué et démontré conforme aux limites d'exposition aux RF d'IC dans des conditions d'exposition à des appareils mobiles (les antennes se situent à moins de 20 cm du corps d'une personne).

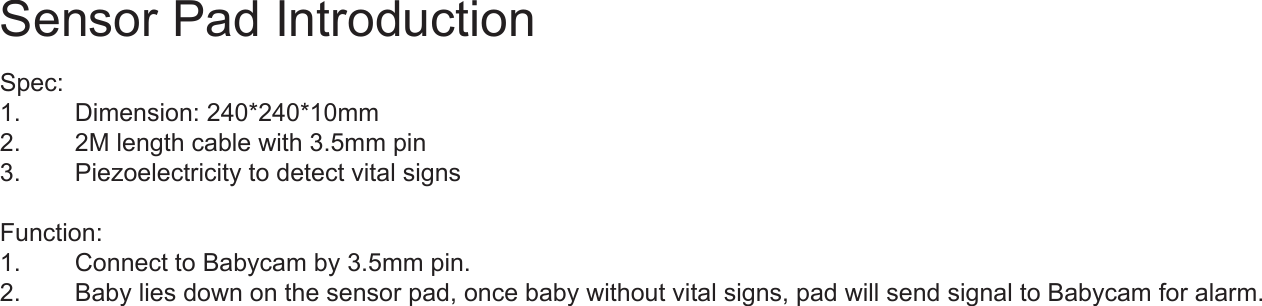

Spec:1. Dimension: 240*240*10mm2. 2M length cable with 3.5mm pin3. Piezoelectricity to detect vital signsFunction:1. Connect to Babycam by 3.5mm pin.2. Baby lies down on the sensor pad, once baby without vital signs, pad will send signal to Babycam for alarm.Sensor Pad Introduction
