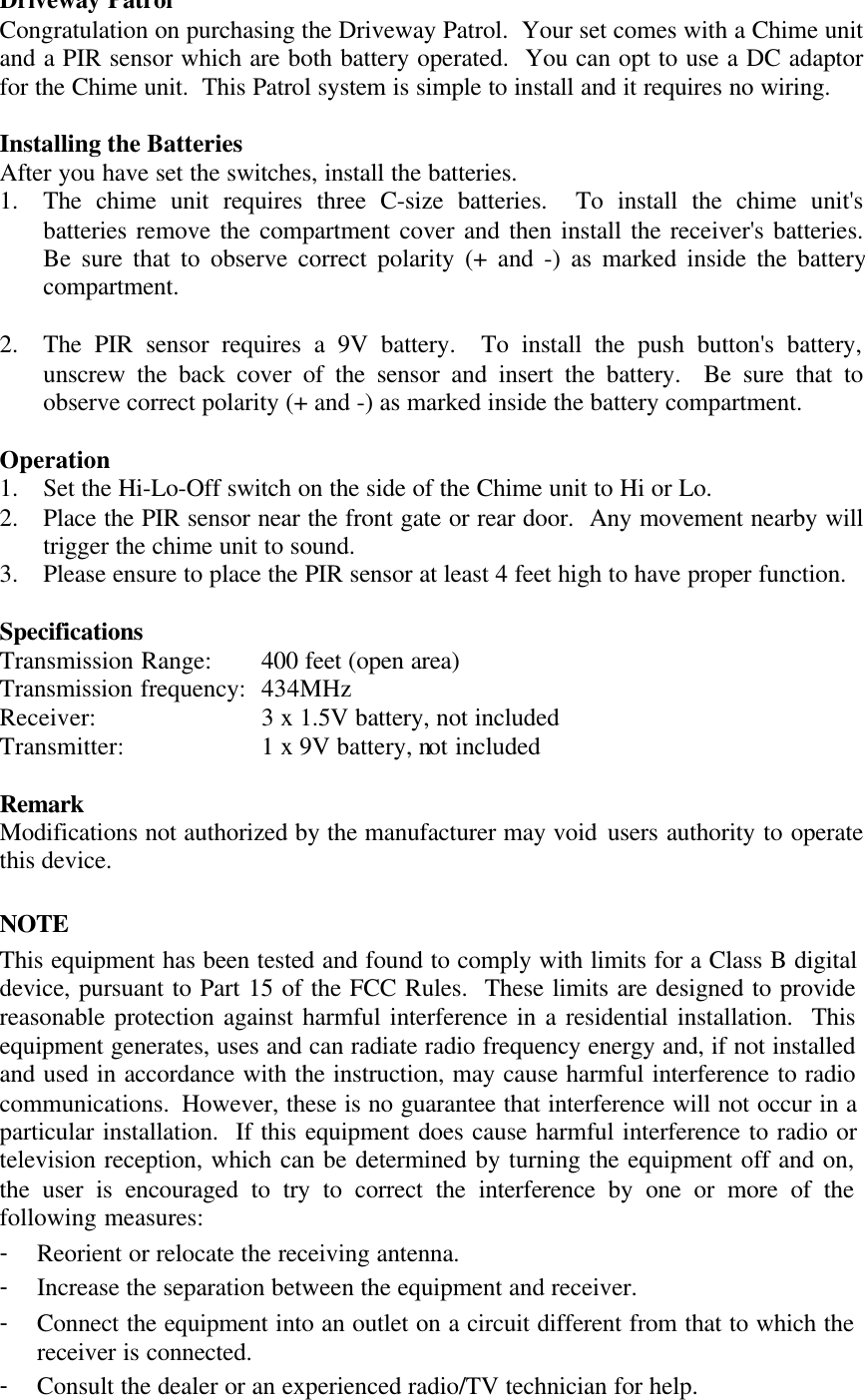

Driveway PatrolCongratulation on purchasing the Driveway Patrol. Your set comes with a Chime unitand a PIR sensor which are both battery operated. You can opt to use a DC adaptorfor the Chime unit. This Patrol system is simple to install and it requires no wiring.Installing the BatteriesAfter you have set the switches, install the batteries.1. The chime unit requires three C-size batteries. To install the chime unit'sbatteries remove the compartment cover and then install the receiver's batteries.Be sure that to observe correct polarity (+ and -) as marked inside the batterycompartment.2. The PIR sensor requires a 9V battery. To install the push button's battery,unscrew the back cover of the sensor and insert the battery. Be sure that toobserve correct polarity (+ and -) as marked inside the battery compartment.Operation1. Set the Hi-Lo-Off switch on the side of the Chime unit to Hi or Lo.2. Place the PIR sensor near the front gate or rear door. Any movement nearby willtrigger the chime unit to sound.3. Please ensure to place the PIR sensor at least 4 feet high to have proper function.SpecificationsTransmission Range: 400 feet (open area)Transmission frequency: 434MHzReceiver: 3 x 1.5V battery, not includedTransmitter: 1 x 9V battery, not includedRemarkModifications not authorized by the manufacturer may void users authority to operatethis device.NOTEThis equipment has been tested and found to comply with limits for a Class B digitaldevice, pursuant to Part 15 of the FCC Rules. These limits are designed to providereasonable protection against harmful interference in a residential installation. Thisequipment generates, uses and can radiate radio frequency energy and, if not installedand used in accordance with the instruction, may cause harmful interference to radiocommunications. However, these is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on,the user is encouraged to try to correct the interference by one or more of thefollowing measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.- Consult the dealer or an experienced radio/TV technician for help.
