Ansen Electronics Co R087GT Soft Mood Light Bluetooth Speaker User Manual L5CR087GT

Ansen Electronics Co Soft Mood Light Bluetooth Speaker L5CR087GT

User Manual

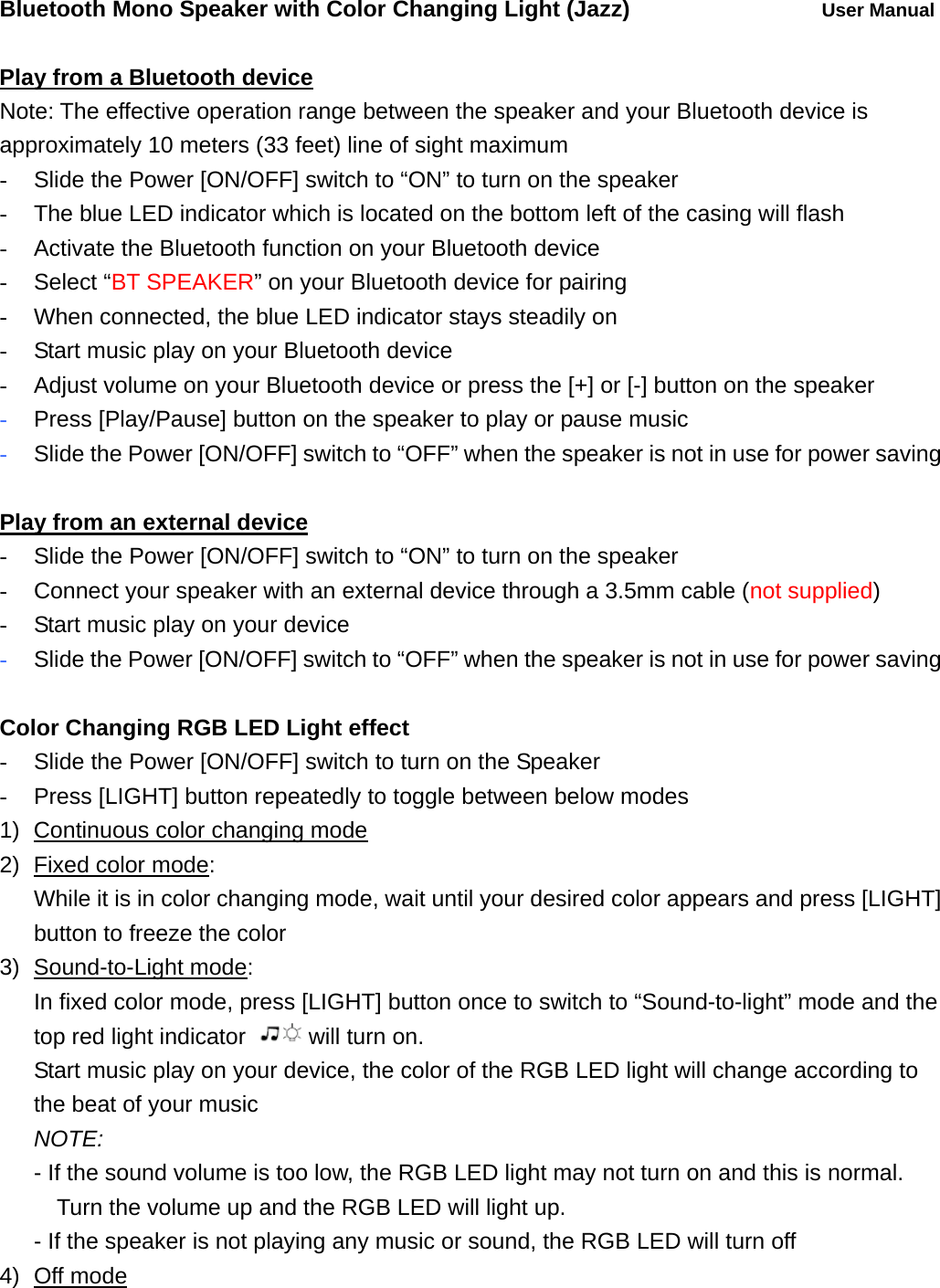

Bluetooth Mono Speaker with Color Changing Light (Jazz) User Manual Play from a Bluetooth device Note: The effective operation range between the speaker and your Bluetooth device is approximately 10 meters (33 feet) line of sight maximum - Slide the Power [ON/OFF] switch to “ON” to turn on the speaker - The blue LED indicator which is located on the bottom left of the casing will flash - Activate the Bluetooth function on your Bluetooth device - Select “BT SPEAKER” on your Bluetooth device for pairing - When connected, the blue LED indicator stays steadily on - Start music play on your Bluetooth device - Adjust volume on your Bluetooth device or press the [+] or [-] button on the speaker - Press [Play/Pause] button on the speaker to play or pause music - Slide the Power [ON/OFF] switch to “OFF” when the speaker is not in use for power saving Play from an external device - Slide the Power [ON/OFF] switch to “ON” to turn on the speaker - Connect your speaker with an external device through a 3.5mm cable (not supplied) - Start music play on your device - Slide the Power [ON/OFF] switch to “OFF” when the speaker is not in use for power saving Color Changing RGB LED Light effect - Slide the Power [ON/OFF] switch to turn on the Speaker - Press [LIGHT] button repeatedly to toggle between below modes 1) Continuous color changing mode 2) Fixed color mode: While it is in color changing mode, wait until your desired color appears and press [LIGHT] button to freeze the color 3) Sound-to-Light mode: In fixed color mode, press [LIGHT] button once to switch to “Sound-to-light” mode and the top red light indicator will turn on. Start music play on your device, the color of the RGB LED light will change according to the beat of your music NOTE: - If the sound volume is too low, the RGB LED light may not turn on and this is normal. Turn the volume up and the RGB LED will light up. - If the speaker is not playing any music or sound, the RGB LED will turn off 4) Off mode

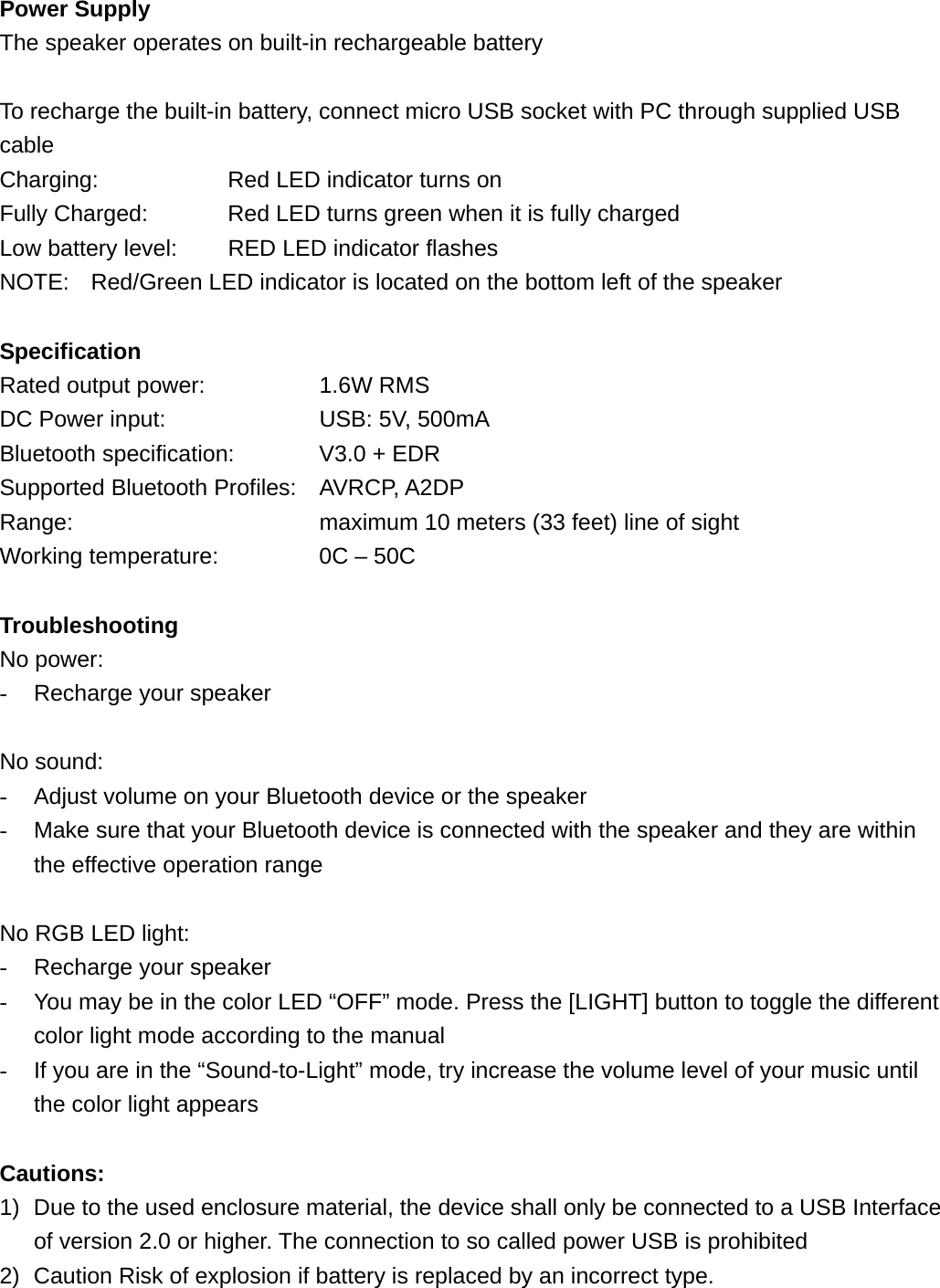

Power Supply The speaker operates on built-in rechargeable battery To recharge the built-in battery, connect micro USB socket with PC through supplied USB cable Charging: Red LED indicator turns on Fully Charged: Red LED turns green when it is fully charged Low battery level: RED LED indicator flashes NOTE: Red/Green LED indicator is located on the bottom left of the speaker Specification Rated output power: 1.6W RMS DC Power input: USB: 5V, 500mA Bluetooth specification: V3.0 + EDR Supported Bluetooth Profiles: AVRCP, A2DP Range: maximum 10 meters (33 feet) line of sight Working temperature: 0C – 50C Troubleshooting No power: - Recharge your speaker No sound: - Adjust volume on your Bluetooth device or the speaker - Make sure that your Bluetooth device is connected with the speaker and they are within the effective operation range No RGB LED light: - Recharge your speaker - You may be in the color LED “OFF” mode. Press the [LIGHT] button to toggle the different color light mode according to the manual - If you are in the “Sound-to-Light” mode, try increase the volume level of your music until the color light appears Cautions: 1) Due to the used enclosure material, the device shall only be connected to a USB Interface of version 2.0 or higher. The connection to so called power USB is prohibited 2) Caution Risk of explosion if battery is replaced by an incorrect type.

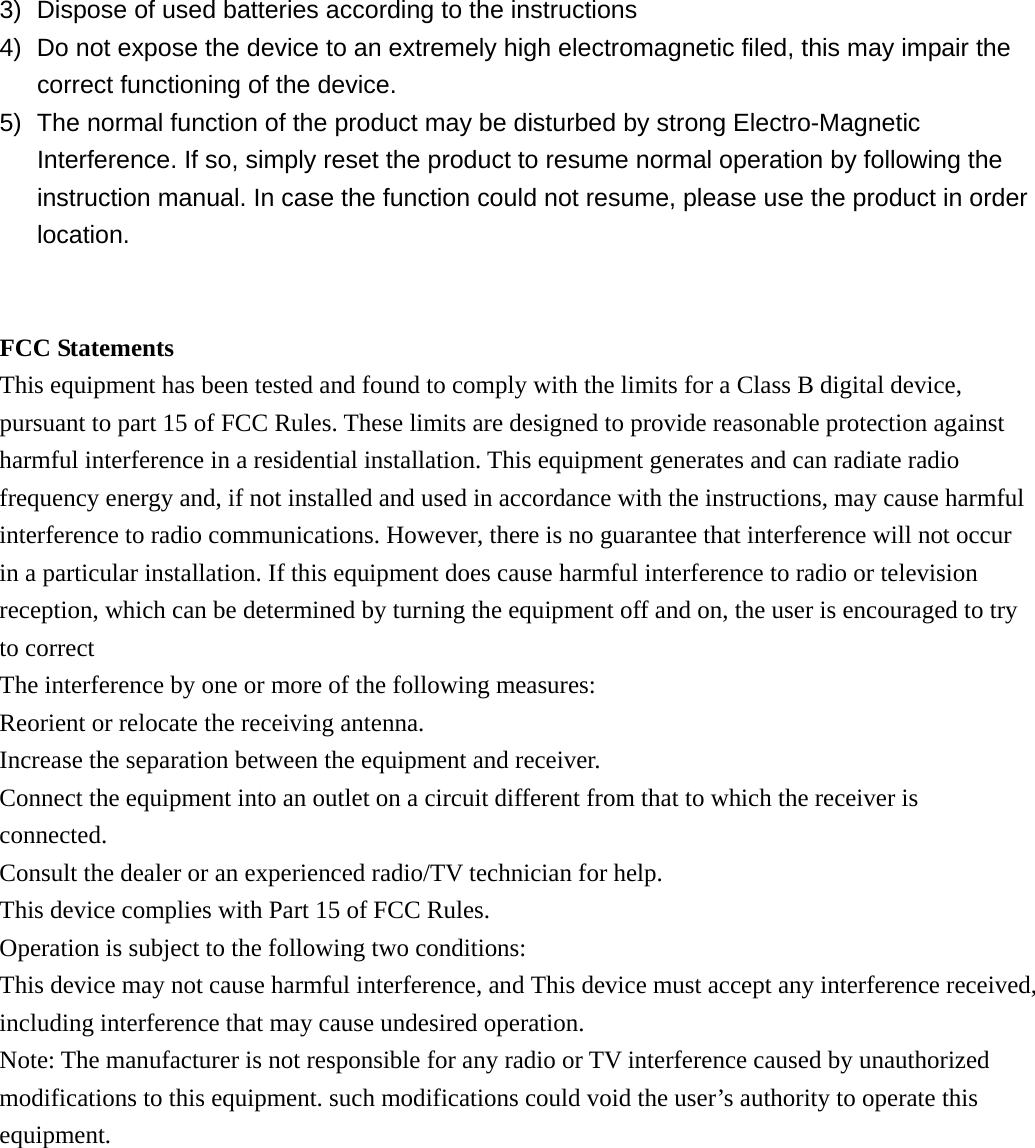

3) Dispose of used batteries according to the instructions 4) Do not expose the device to an extremely high electromagnetic filed, this may impair the correct functioning of the device. 5) The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in order location. FCC Statements This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct The interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. such modifications could void the user’s authority to operate this equipment.
