Apollo Tech USA MOCAM720 Dual Band Wifi Video Camera User Manual

Apollo Tech USA Inc. Dual Band Wifi Video Camera Users Manual

Users Manual

WW--FFII CCAAMMEERRAA UUSSEERR MMAANNUUAALL
2 Contents Introduction 4 Camera LED Indicators 5 Wi-Fi Requirements 6 Mobile Device Requirements 6 Download the Momentum App 7 Create an Account 8 Setup 10  Pairing 10  Connecting to a Wi-Fi Network 14  Pairing additional Momentum Devices 15  Pairing additional Non-Momentum Devices 15 Storage Options 16  Momentum Capture Cloud Storage 16  Micro-SD Card Storage 18 Your Dashboard 19 Camera Functions 21  Watching Live Video 21  Taking Photos 22  Recording Videos 22

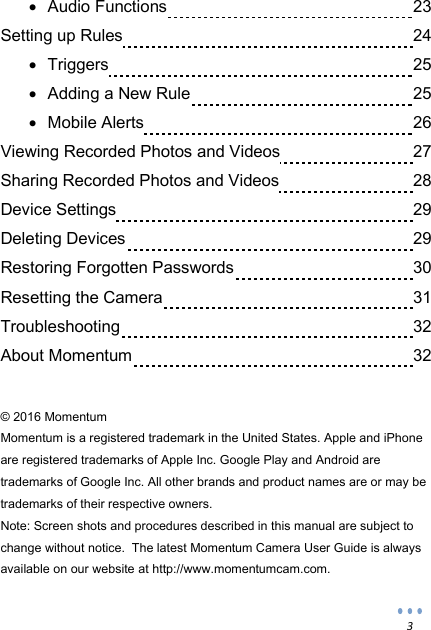

3  Audio Functions 23 Setting up Rules 24  Triggers 25  Adding a New Rule 25  Mobile Alerts 26 Viewing Recorded Photos and Videos 27 Sharing Recorded Photos and Videos 28 Device Settings 29 Deleting Devices 29 Restoring Forgotten Passwords 30 Resetting the Camera 31 Troubleshooting 32 About Momentum 32 © 2016 Momentum Momentum is a registered trademark in the United States. Apple and iPhone are registered trademarks of Apple Inc. Google Play and Android are trademarks of Google Inc. All other brands and product names are or may be trademarks of their respective owners. Note: Screen shots and procedures described in this manual are subject to change without notice. The latest Momentum Camera User Guide is always available on our website at http://www.momentumcam.com.

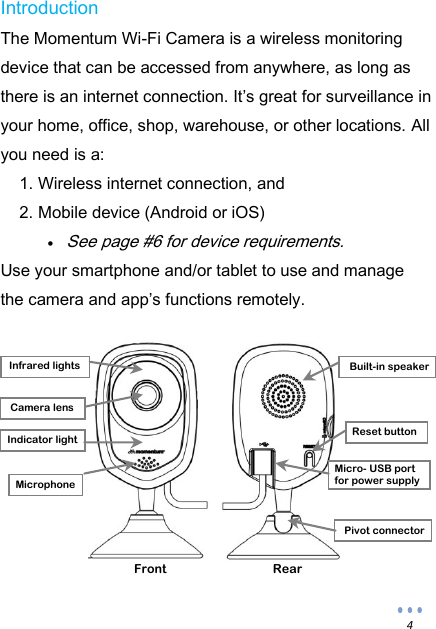

4 Introduction The Momentum Wi-Fi Camera is a wireless monitoring device that can be accessed from anywhere, as long as there is an internet connection. It’s great for surveillance in your home, office, shop, warehouse, or other locations. All you need is a: 1. Wireless internet connection, and 2. Mobile device (Android or iOS)  See page #6 for device requirements. Use your smartphone and/or tablet to use and manage the camera and app’s functions remotely. Front Rear Built-in speaker Infrared lights Camera lens Pivot connector Micro- USB port for power supply Reset button Indicator light Microphone

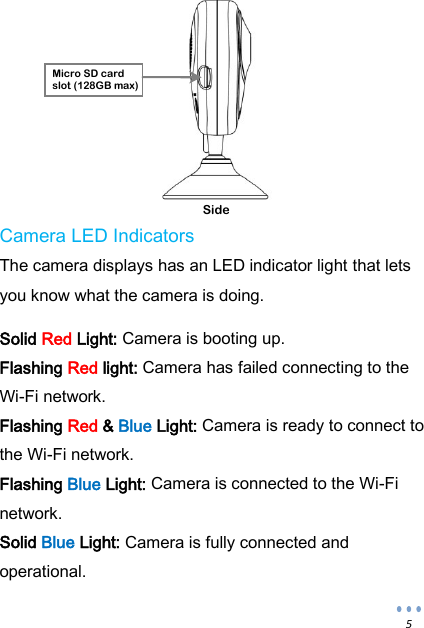

5 Camera LED Indicators The camera displays has an LED indicator light that lets you know what the camera is doing. Solid Red Light: Camera is booting up. Flashing Red light: Camera has failed connecting to the Wi-Fi network. Flashing Red & Blue Light: Camera is ready to connect to the Wi-Fi network. Flashing Blue Light: Camera is connected to the Wi-Fi network. Solid Blue Light: Camera is fully connected and operational. Side Micro SD card slot (128GB max)

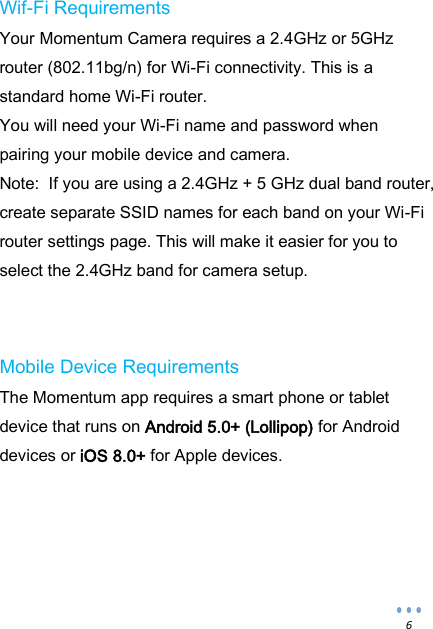

6 Wif-Fi Requirements Your Momentum Camera requires a 2.4GHz or 5GHz router (802.11bg/n) for Wi-Fi connectivity. This is a standard home Wi-Fi router. You will need your Wi-Fi name and password when pairing your mobile device and camera. Note: If you are using a 2.4GHz + 5 GHz dual band router, create separate SSID names for each band on your Wi-Fi router settings page. This will make it easier for you to select the 2.4GHz band for camera setup. Mobile Device Requirements The Momentum app requires a smart phone or tablet device that runs on Android 5.0+ (Lollipop) for Android devices or iOS 8.0+ for Apple devices.

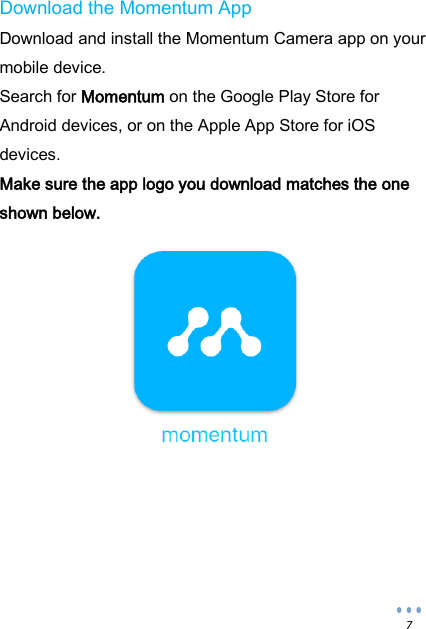

7 Download the Momentum App Download and install the Momentum Camera app on your mobile device. Search for Momentum on the Google Play Store for Android devices, or on the Apple App Store for iOS devices. Make sure the app logo you download matches the one shown below.

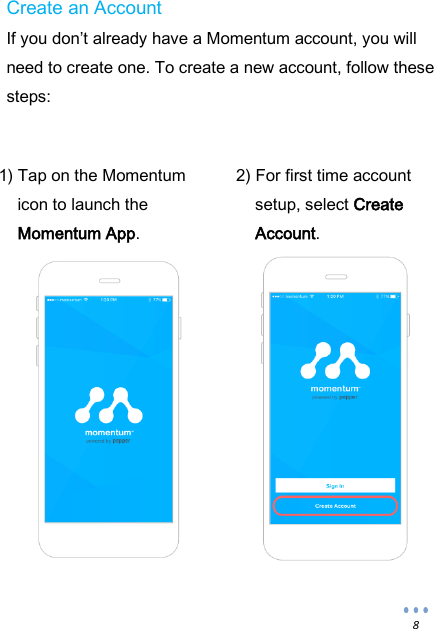

8 Create an Account If you don’t already have a Momentum account, you will need to create one. To create a new account, follow these steps: 1) Tap on the Momentum icon to launch the Momentum App. 2) For first time account setup, select Create Account.

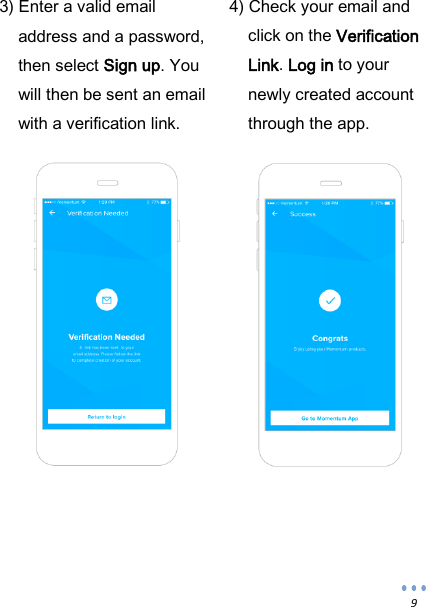

9 3) Enter a valid email address and a password, then select Sign up. You will then be sent an email with a verification link. 4) Check your email and click on the Verification Link. Log in to your newly created account through the app.

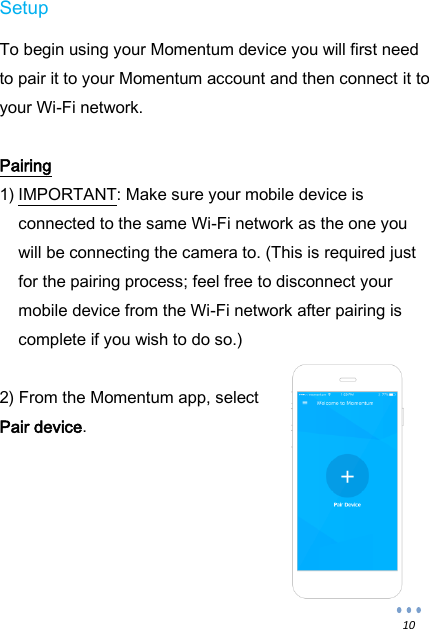

10 Setup To begin using your Momentum device you will first need to pair it to your Momentum account and then connect it to your Wi-Fi network. Pairing 1) IMPORTANT: Make sure your mobile device is connected to the same Wi-Fi network as the one you will be connecting the camera to. (This is required just for the pairing process; feel free to disconnect your mobile device from the Wi-Fi network after pairing is complete if you wish to do so.) 2) From the Momentum app, select Pair device.

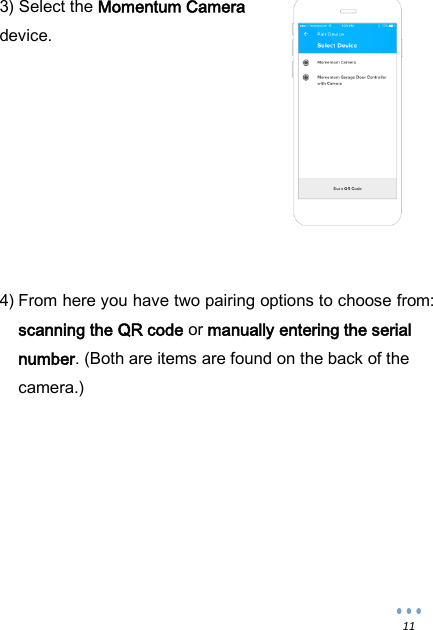

11 3) Select the Momentum Camera device. 4) From here you have two pairing options to choose from: scanning the QR code or manually entering the serial number. (Both are items are found on the back of the camera.)

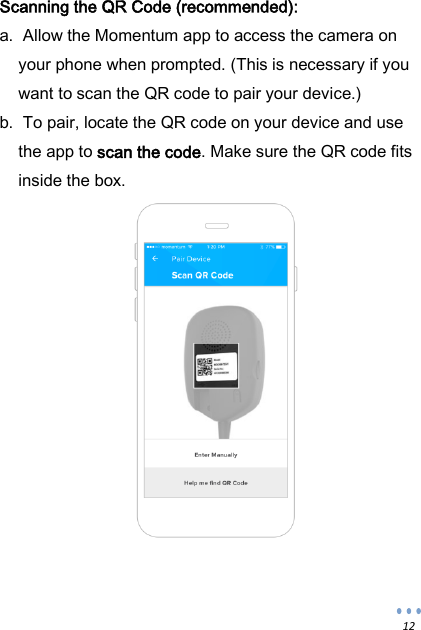

12 Scanning the QR Code (recommended): a. Allow the Momentum app to access the camera on your phone when prompted. (This is necessary if you want to scan the QR code to pair your device.) b. To pair, locate the QR code on your device and use the app to scan the code. Make sure the QR code fits inside the box.

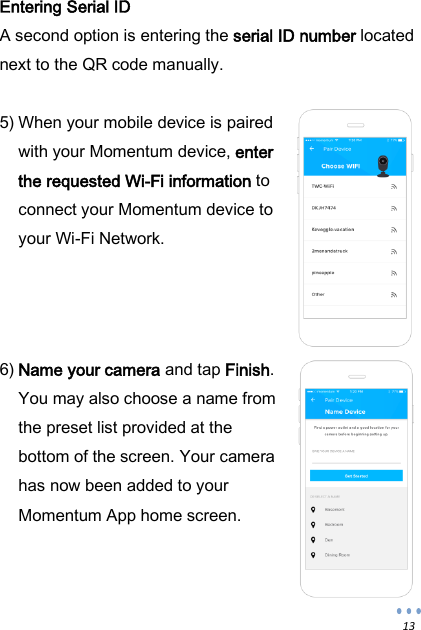

13 Entering Serial ID A second option is entering the serial ID number located next to the QR code manually. 5) When your mobile device is paired with your Momentum device, enter the requested Wi-Fi information to connect your Momentum device to your Wi-Fi Network. 6) Name your camera and tap Finish. You may also choose a name from the preset list provided at the bottom of the screen. Your camera has now been added to your Momentum App home screen.

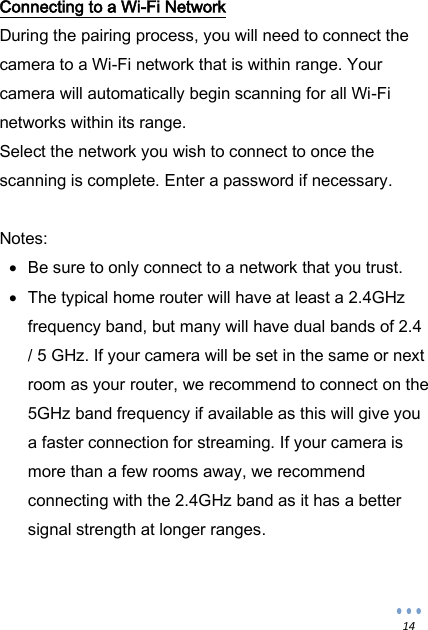

14 Connecting to a Wi-Fi Network During the pairing process, you will need to connect the camera to a Wi-Fi network that is within range. Your camera will automatically begin scanning for all Wi-Fi networks within its range. Select the network you wish to connect to once the scanning is complete. Enter a password if necessary. Notes:  Be sure to only connect to a network that you trust.  The typical home router will have at least a 2.4GHz frequency band, but many will have dual bands of 2.4 / 5 GHz. If your camera will be set in the same or next room as your router, we recommend to connect on the 5GHz band frequency if available as this will give you a faster connection for streaming. If your camera is more than a few rooms away, we recommend connecting with the 2.4GHz band as it has a better signal strength at longer ranges.

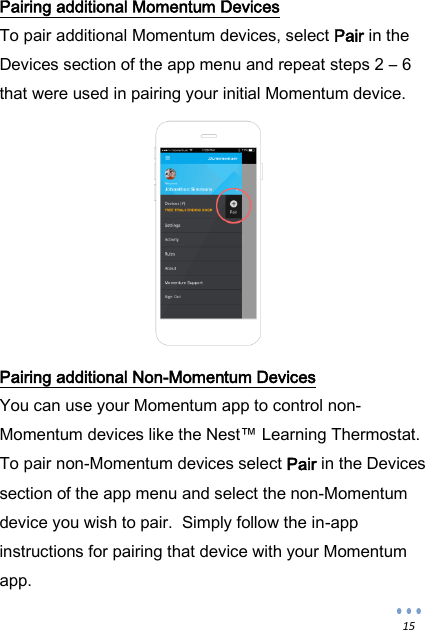

15 Pairing additional Momentum Devices To pair additional Momentum devices, select Pair in the Devices section of the app menu and repeat steps 2 – 6 that were used in pairing your initial Momentum device. Pairing additional Non-Momentum Devices You can use your Momentum app to control non-Momentum devices like the Nest™ Learning Thermostat. To pair non-Momentum devices select Pair in the Devices section of the app menu and select the non-Momentum device you wish to pair. Simply follow the in-app instructions for pairing that device with your Momentum app.

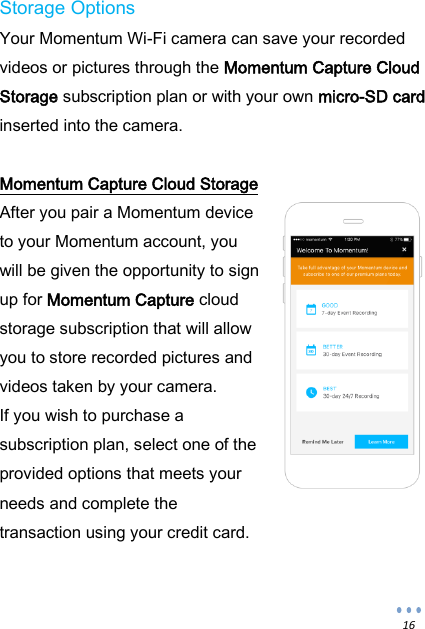

16 Storage Options Your Momentum Wi-Fi camera can save your recorded videos or pictures through the Momentum Capture Cloud Storage subscription plan or with your own micro-SD card inserted into the camera. Momentum Capture Cloud Storage After you pair a Momentum device to your Momentum account, you will be given the opportunity to sign up for Momentum Capture cloud storage subscription that will allow you to store recorded pictures and videos taken by your camera. If you wish to purchase a subscription plan, select one of the provided options that meets your needs and complete the transaction using your credit card.

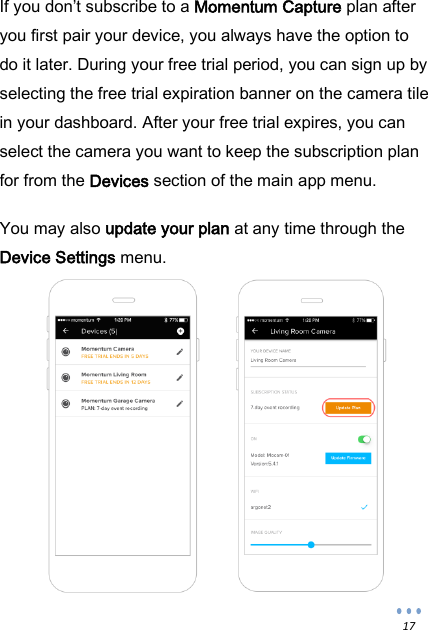

17 If you don’t subscribe to a Momentum Capture plan after you first pair your device, you always have the option to do it later. During your free trial period, you can sign up by selecting the free trial expiration banner on the camera tile in your dashboard. After your free trial expires, you can select the camera you want to keep the subscription plan for from the Devices section of the main app menu. You may also update your plan at any time through the Device Settings menu.

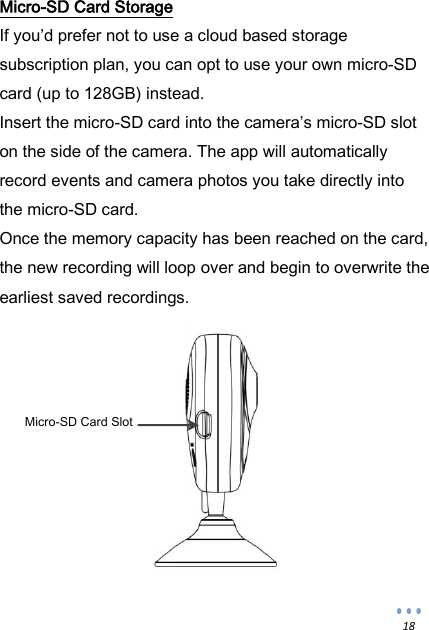

18 Micro-SD Card Storage If you’d prefer not to use a cloud based storage subscription plan, you can opt to use your own micro-SD card (up to 128GB) instead. Insert the micro-SD card into the camera’s micro-SD slot on the side of the camera. The app will automatically record events and camera photos you take directly into the micro-SD card. Once the memory capacity has been reached on the card, the new recording will loop over and begin to overwrite the earliest saved recordings. Micro-SD Card Slot

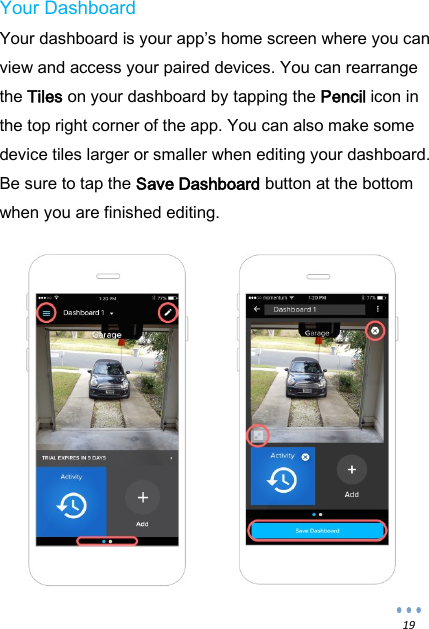

19 Your Dashboard Your dashboard is your app’s home screen where you can view and access your paired devices. You can rearrange the Tiles on your dashboard by tapping the Pencil icon in the top right corner of the app. You can also make some device tiles larger or smaller when editing your dashboard. Be sure to tap the Save Dashboard button at the bottom when you are finished editing.

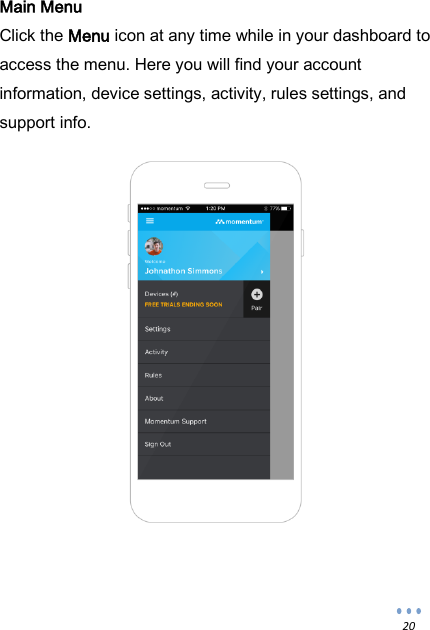

20 Main Menu Click the Menu icon at any time while in your dashboard to access the menu. Here you will find your account information, device settings, activity, rules settings, and support info.

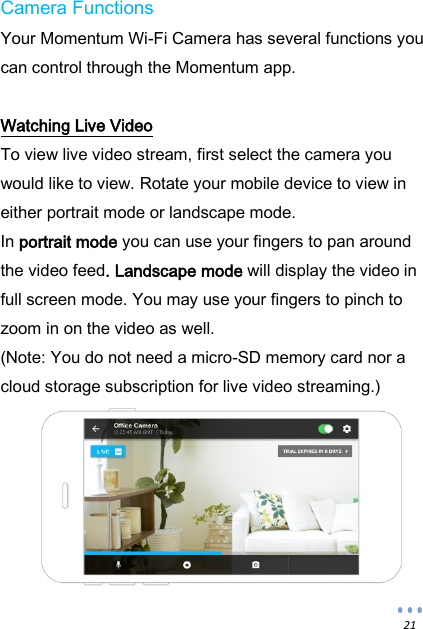

21 Camera Functions Your Momentum Wi-Fi Camera has several functions you can control through the Momentum app. Watching Live Video To view live video stream, first select the camera you would like to view. Rotate your mobile device to view in either portrait mode or landscape mode. In portrait mode you can use your fingers to pan around the video feed. Landscape mode will display the video in full screen mode. You may use your fingers to pinch to zoom in on the video as well. (Note: You do not need a micro-SD memory card nor a cloud storage subscription for live video streaming.)

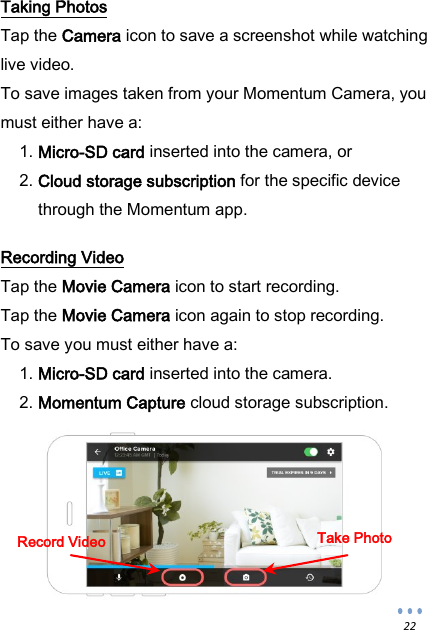

22 Taking Photos Tap the Camera icon to save a screenshot while watching live video. To save images taken from your Momentum Camera, you must either have a: 1. Micro-SD card inserted into the camera, or 2. Cloud storage subscription for the specific device through the Momentum app. Recording Video Tap the Movie Camera icon to start recording. Tap the Movie Camera icon again to stop recording. To save you must either have a: 1. Micro-SD card inserted into the camera. 2. Momentum Capture cloud storage subscription. Record Video Take Photo

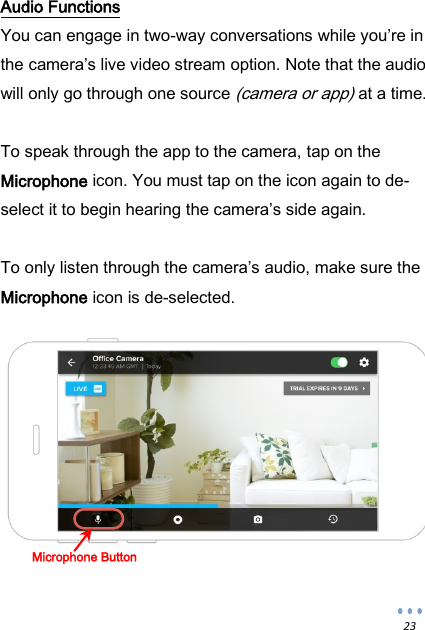

23 Audio Functions You can engage in two-way conversations while you’re in the camera’s live video stream option. Note that the audio will only go through one source (camera or app) at a time. To speak through the app to the camera, tap on the Microphone icon. You must tap on the icon again to de-select it to begin hearing the camera’s side again. To only listen through the camera’s audio, make sure the Microphone icon is de-selected. Microphone Button

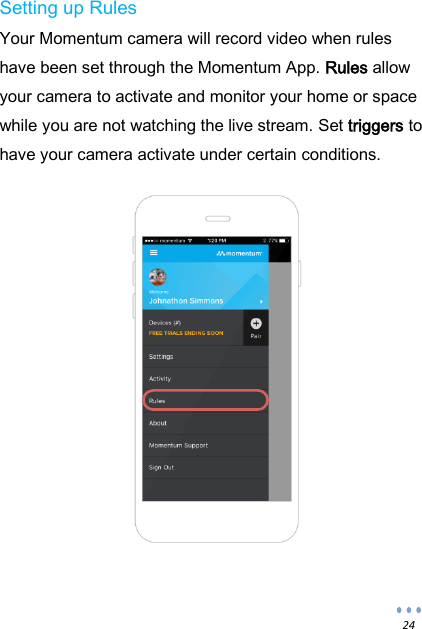

24 Setting up Rules Your Momentum camera will record video when rules have been set through the Momentum App. Rules allow your camera to activate and monitor your home or space while you are not watching the live stream. Set triggers to have your camera activate under certain conditions.

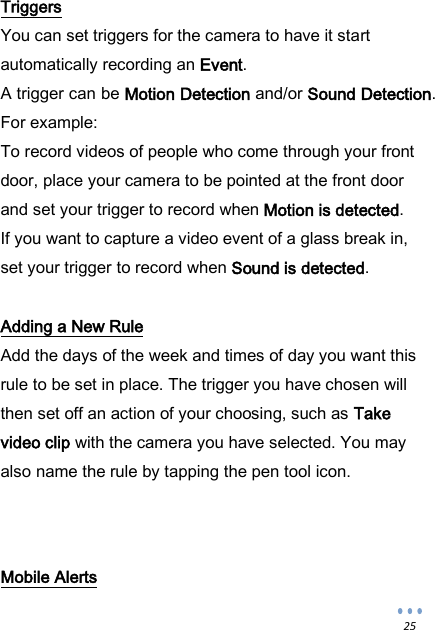

25 Triggers You can set triggers for the camera to have it start automatically recording an Event. A trigger can be Motion Detection and/or Sound Detection. For example: To record videos of people who come through your front door, place your camera to be pointed at the front door and set your trigger to record when Motion is detected. If you want to capture a video event of a glass break in, set your trigger to record when Sound is detected. Adding a New Rule Add the days of the week and times of day you want this rule to be set in place. The trigger you have chosen will then set off an action of your choosing, such as Take video clip with the camera you have selected. You may also name the rule by tapping the pen tool icon. Mobile Alerts

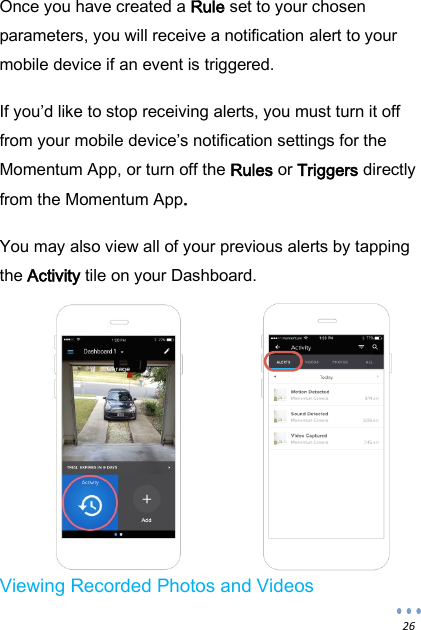

26 Once you have created a Rule set to your chosen parameters, you will receive a notification alert to your mobile device if an event is triggered. If you’d like to stop receiving alerts, you must turn it off from your mobile device’s notification settings for the Momentum App, or turn off the Rules or Triggers directly from the Momentum App. You may also view all of your previous alerts by tapping the Activity tile on your Dashboard. Viewing Recorded Photos and Videos

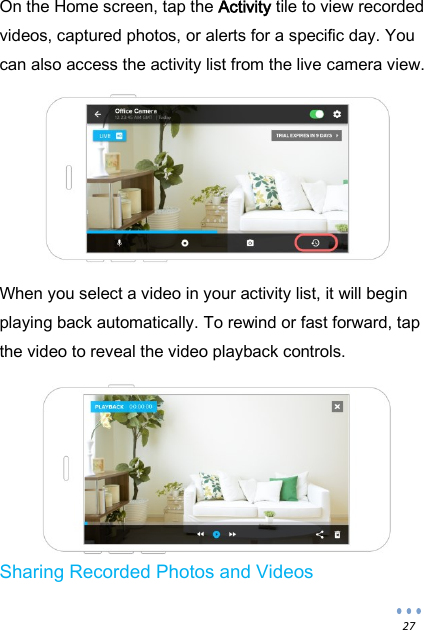

27 On the Home screen, tap the Activity tile to view recorded videos, captured photos, or alerts for a specific day. You can also access the activity list from the live camera view. When you select a video in your activity list, it will begin playing back automatically. To rewind or fast forward, tap the video to reveal the video playback controls. Sharing Recorded Photos and Videos

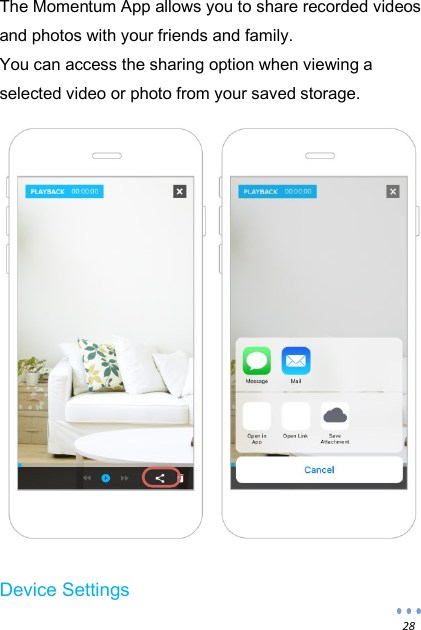

28 The Momentum App allows you to share recorded videos and photos with your friends and family. You can access the sharing option when viewing a selected video or photo from your saved storage. Device Settings

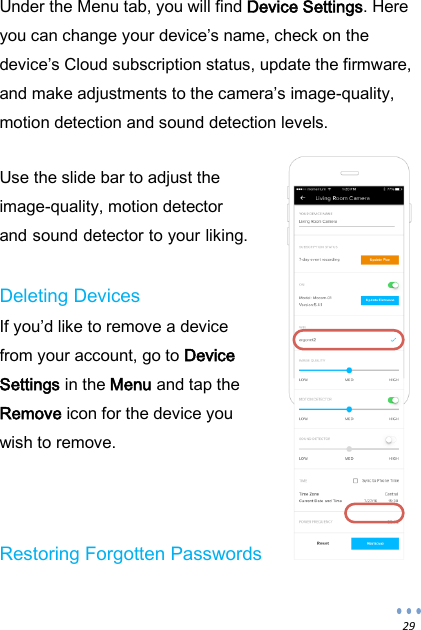

29 Under the Menu tab, you will find Device Settings. Here you can change your device’s name, check on the device’s Cloud subscription status, update the firmware, and make adjustments to the camera’s image-quality, motion detection and sound detection levels. Use the slide bar to adjust the image-quality, motion detector and sound detector to your liking. Deleting Devices If you’d like to remove a device from your account, go to Device Settings in the Menu and tap the Remove icon for the device you wish to remove. Restoring Forgotten Passwords

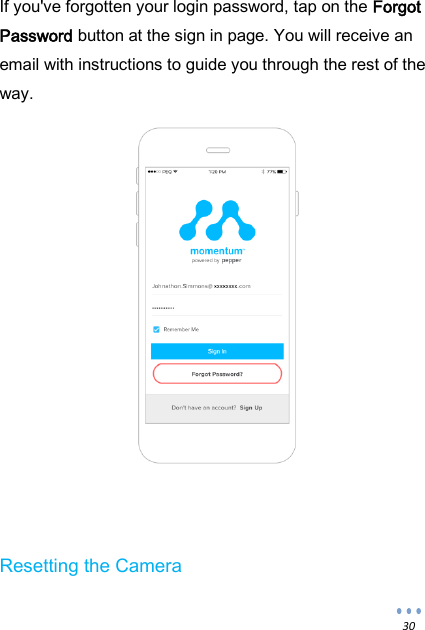

30 If you've forgotten your login password, tap on the Forgot Password button at the sign in page. You will receive an email with instructions to guide you through the rest of the way. Resetting the Camera

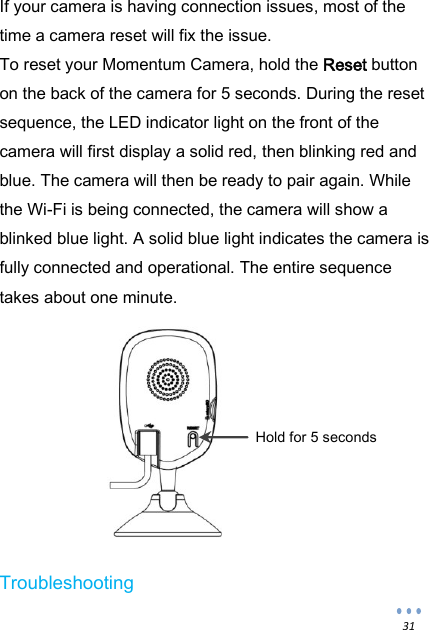

31 If your camera is having connection issues, most of the time a camera reset will fix the issue. To reset your Momentum Camera, hold the Reset button on the back of the camera for 5 seconds. During the reset sequence, the LED indicator light on the front of the camera will first display a solid red, then blinking red and blue. The camera will then be ready to pair again. While the Wi-Fi is being connected, the camera will show a blinked blue light. A solid blue light indicates the camera is fully connected and operational. The entire sequence takes about one minute. Troubleshooting Hold for 5 seconds

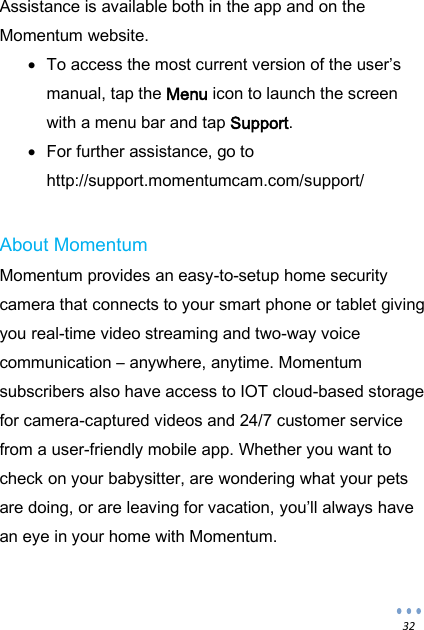

32 Assistance is available both in the app and on the Momentum website.  To access the most current version of the user’s manual, tap the Menu icon to launch the screen with a menu bar and tap Support.  For further assistance, go to http://support.momentumcam.com/support/ About Momentum Momentum provides an easy-to-setup home security camera that connects to your smart phone or tablet giving you real-time video streaming and two-way voice communication – anywhere, anytime. Momentum subscribers also have access to IOT cloud-based storage for camera-captured videos and 24/7 customer service from a user-friendly mobile app. Whether you want to check on your babysitter, are wondering what your pets are doing, or are leaving for vacation, you’ll always have an eye in your home with Momentum.

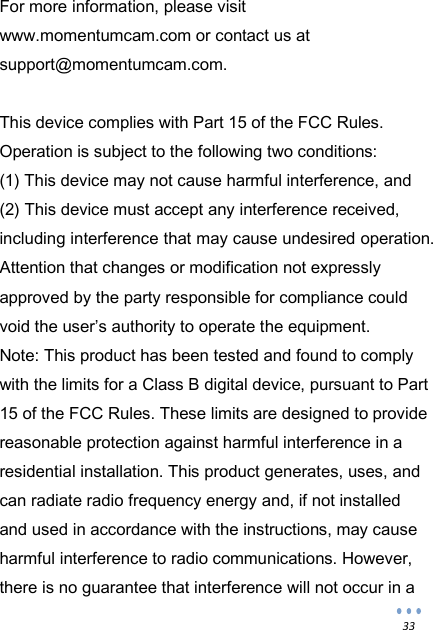

33 For more information, please visit www.momentumcam.com or contact us at support@momentumcam.com. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a

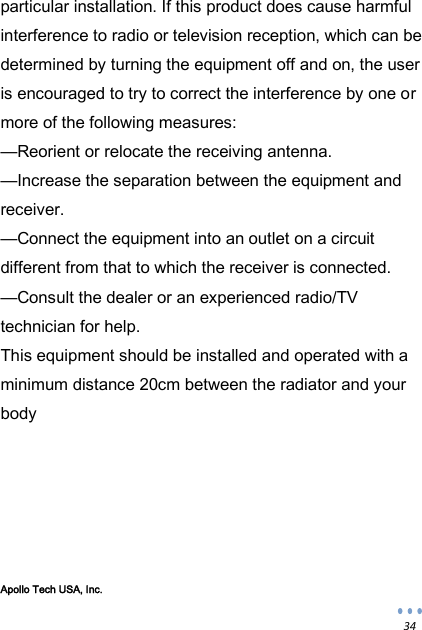

34 particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body Apollo Tech USA, Inc.

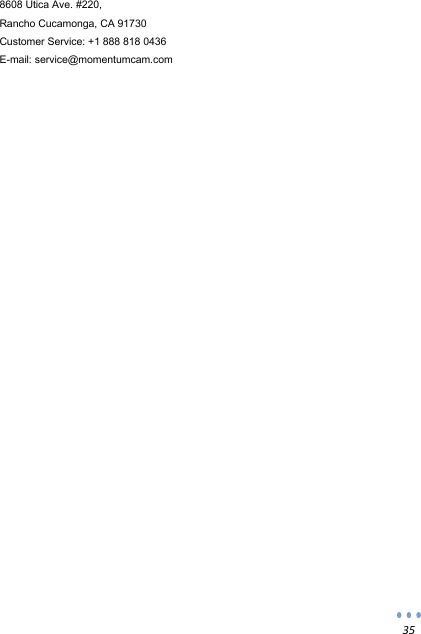

35 8608 Utica Ave. #220, Rancho Cucamonga, CA 91730 Customer Service: +1 888 818 0436 E-mail: service@momentumcam.com
