Argus Technology INSIGHTRX Full HD Digital Transmission System User Manual

Argus Technology (Shenzhen) Co., Ltd Full HD Digital Transmission System

User Manual

User ManualFull HD Digital Transmission SystemModel: Insight rx1. The system boot time about 35 seconds, boot aftercompletion, please search the IN - XXXXX SSID and link INthe beginning, the initial link password 12345678, need tomodify the password or need to download the dedicatedchannel to channel Settings APP.Set the channel itself,please refer to the local laws and regulations allow use ofchannel.2. After our test, we found that the current most cameras onthe market can only output 720 p, may has something to dowith the camera's firmware or hardware.You can try other1080 p resolution, image loading needs to wait for a fewseconds.

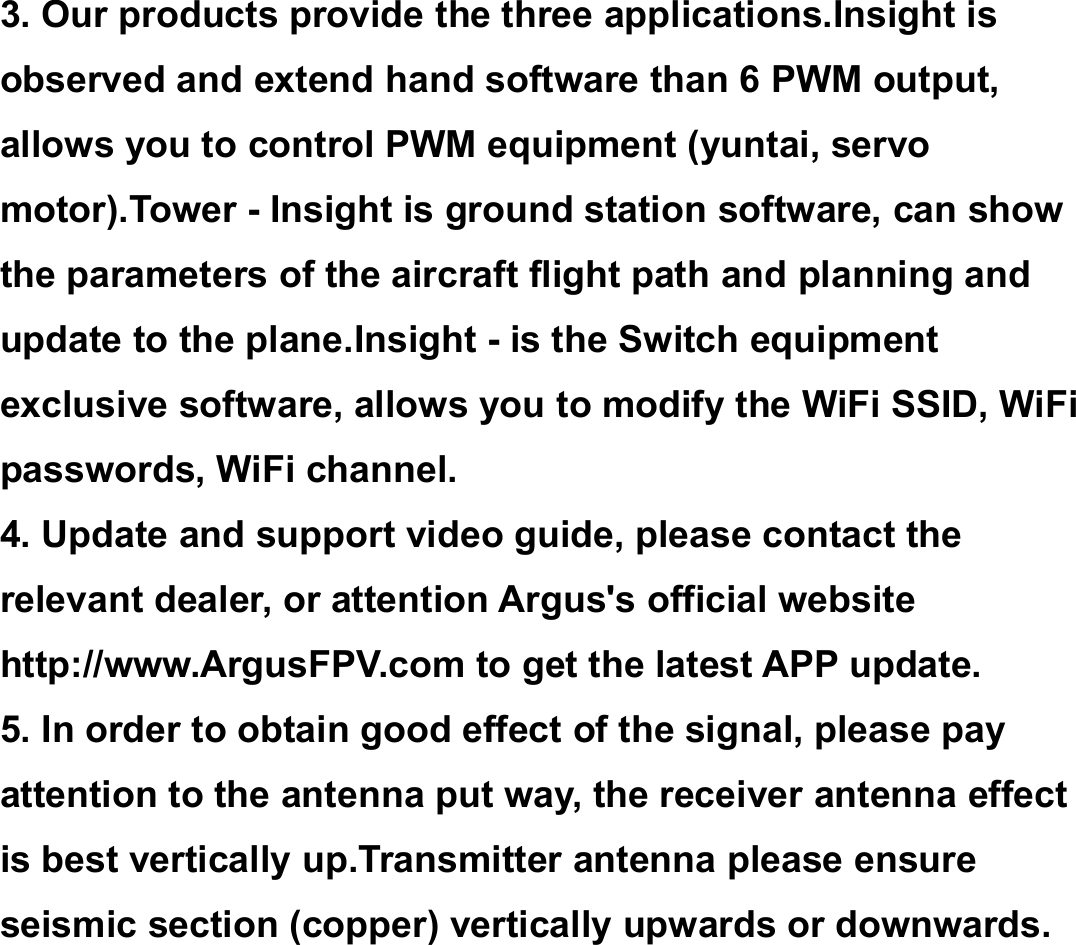

3. Our products provide the three applications.Insight isobserved and extend hand software than 6 PWM output,allows you to control PWM equipment (yuntai, servomotor).Tower - Insight is ground station software, can showthe parameters of the aircraft flight path and planning andupdate to the plane.Insight - is the Switch equipmentexclusive software, allows you to modify the WiFi SSID, WiFipasswords, WiFi channel.4. Update and support video guide, please contact therelevant dealer, or attention Argus's official websitehttp://www.ArgusFPV.com to get the latest APP update.5. In order to obtain good effect of the signal, please payattention to the antenna put way, the receiver antenna effectis best vertically up.Transmitter antenna please ensureseismic section (copper) vertically upwards or downwards.

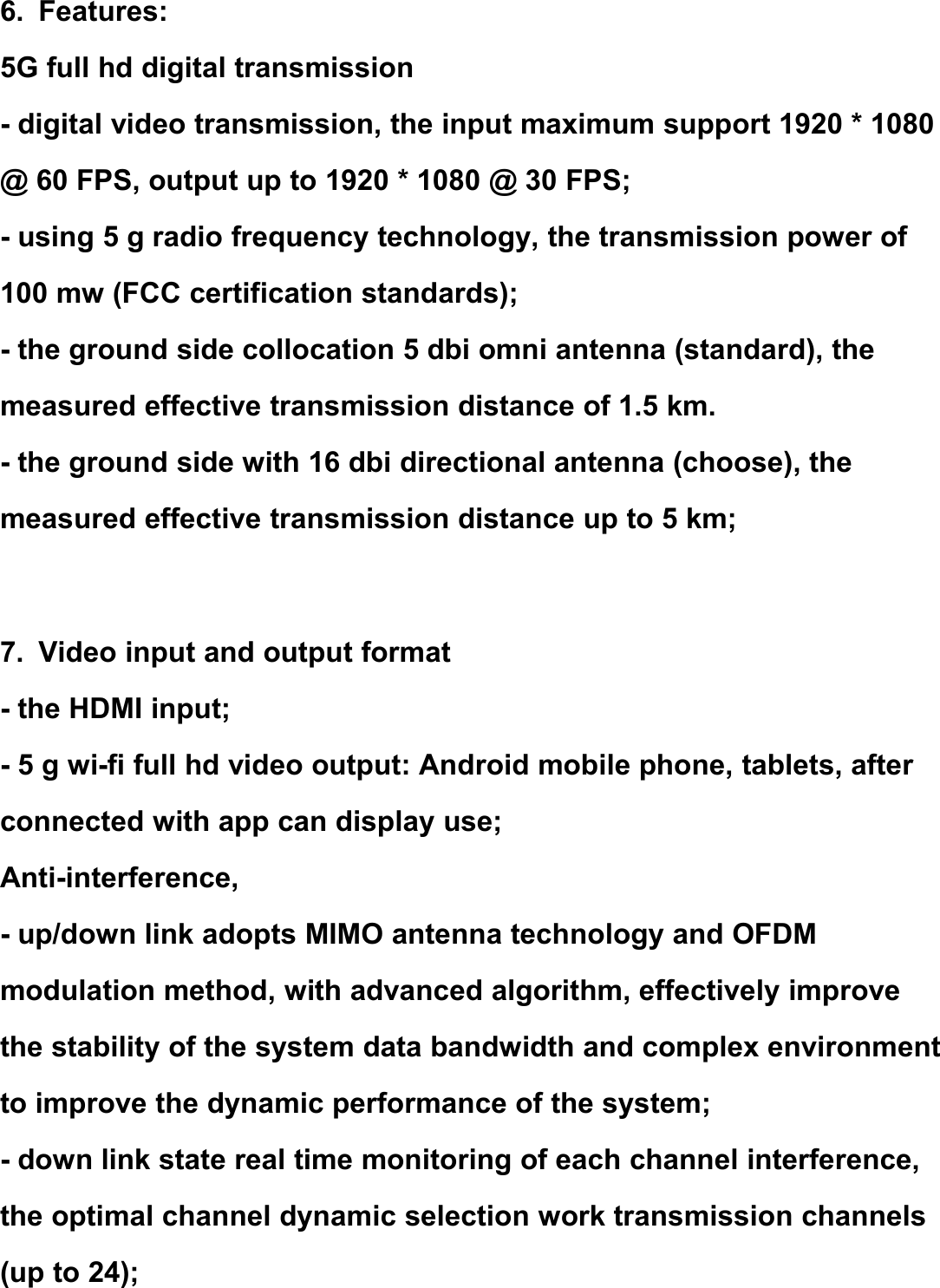

6. Features:5G full hd digital transmission- digital video transmission, the input maximum support 1920 * 1080@ 60 FPS, output up to 1920 * 1080 @ 30 FPS;- using 5 g radio frequency technology, the transmission power of100 mw (FCC certification standards);- the ground side collocation 5 dbi omni antenna (standard), themeasured effective transmission distance of 1.5 km.- the ground side with 16 dbi directional antenna (choose), themeasured effective transmission distance up to 5 km;7. Video input and output format- the HDMI input;- 5 g wi-fi full hd video output: Android mobile phone, tablets, afterconnected with app can display use;Anti-interference,- up/down link adopts MIMO antenna technology and OFDMmodulation method, with advanced algorithm, effectively improvethe stability of the system data bandwidth and complex environmentto improve the dynamic performance of the system;- down link state real time monitoring of each channel interference,the optimal channel dynamic selection work transmission channels(up to 24);
- can support as many as 24 devices at the same place and the sametime work at the same time;Low latency,- system 80 ms delay;Note: the above time delay for the use of computer HDMI outputsignal, comparing with computer screen mobile phone APP that thegap between the data delay, due to the use of a variety of camerahardware and software in hd signal output signal generated by thedifference between different delay will be relatively large.So pleaseas far as possible choose low latency photographic equipment.OSD function,- cooperate with the pix apm pixw without external OSD, when usingthe APP information overlay function can be realized;8. Fit the flight controllers- without any restriction with pix apm pixw APP, insight itself has abuilt-in digital products.- from the machine model and information security- the ground side can link more mobile phone or PAD- data encryption transmission, only after the end of the surface offrequency authorization can receive video data, guarantee theinformation security;

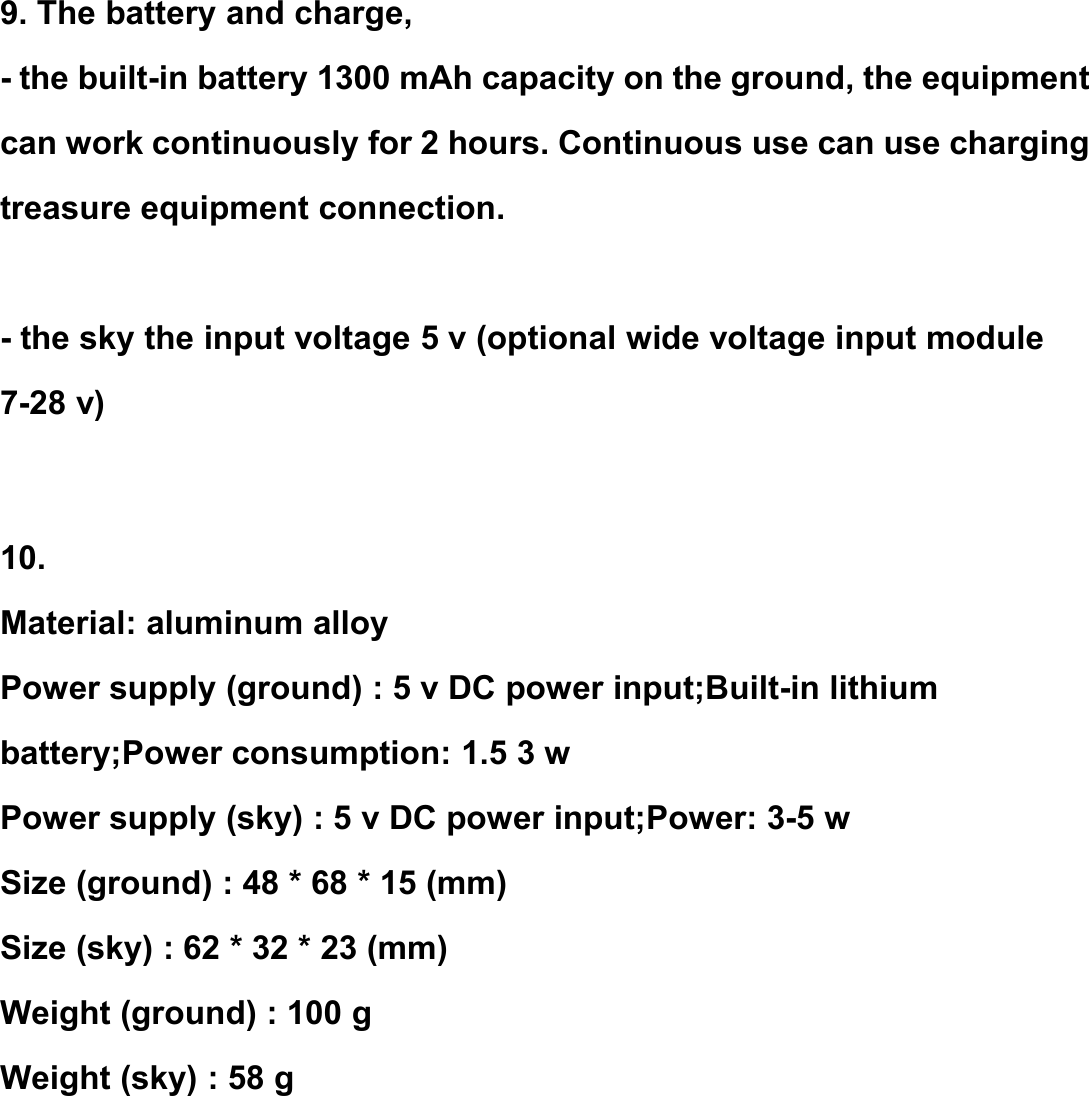

9. The battery and charge,- the built-in battery 1300 mAh capacity on the ground, the equipmentcan work continuously for 2 hours. Continuous use can use chargingtreasure equipment connection.- the sky the input voltage 5 v (optional wide voltage input module7-28 v)10.Material: aluminum alloyPower supply (ground) : 5 v DC power input;Built-in lithiumbattery;Power consumption: 1.5 3 wPower supply (sky) : 5 v DC power input;Power: 3-5 wSize (ground) : 48 * 68 * 15 (mm)Size (sky) : 62 * 32 * 23 (mm)Weight (ground) : 100 gWeight (sky) : 58 g

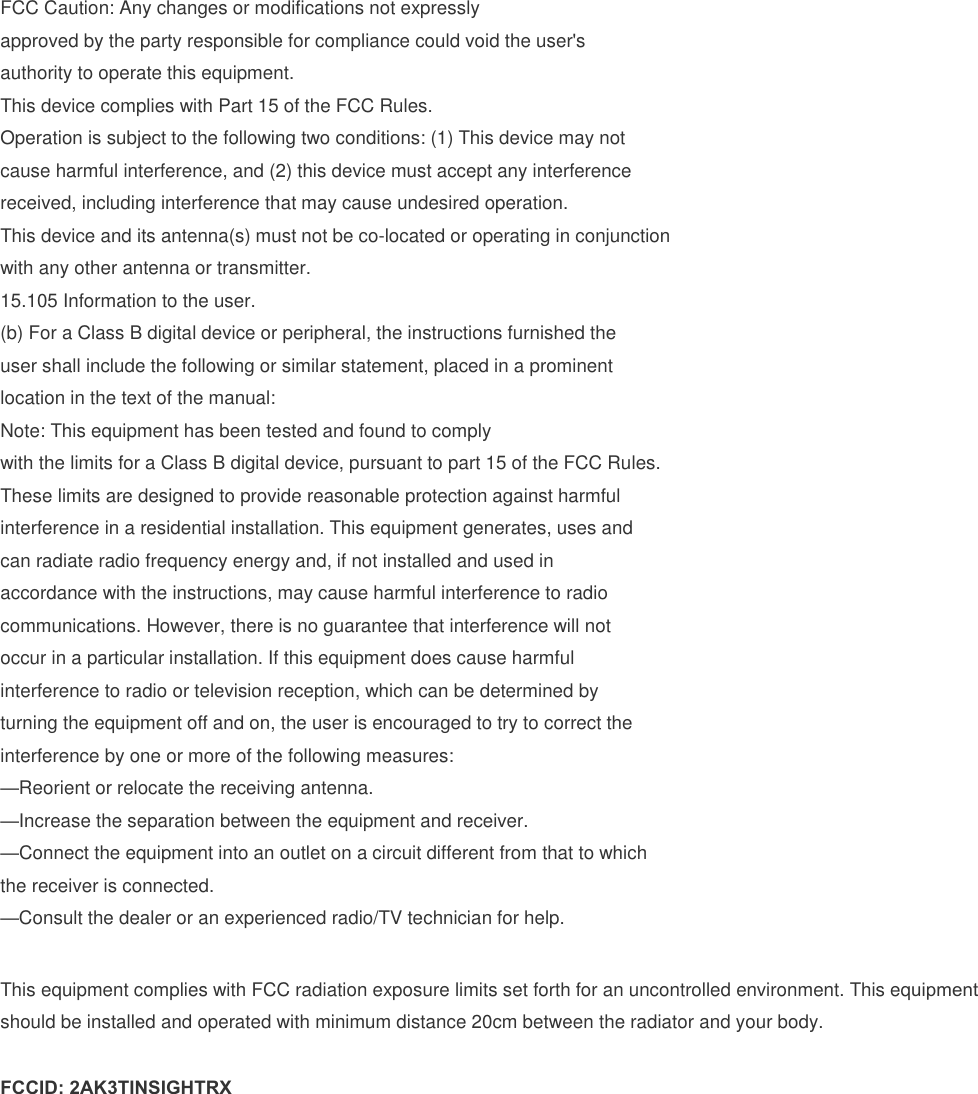

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. 15.105 Information to the user. (b) For a Class B digital device or peripheral, the instructions furnished theuser shall include the following or similar statement, placed in a prominentlocation in the text of the manual:Note: This equipment has been tested and found to complywith the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmfulinterference in a residential installation. This equipment generates, uses andcan radiate radio frequency energy and, if not installed and used inaccordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will notoccur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined byturning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to whichthe receiver is connected.—Consult the dealer or an experienced radio/TV technician for help.This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. FCCID: 2AK3TINSIGHTRX
