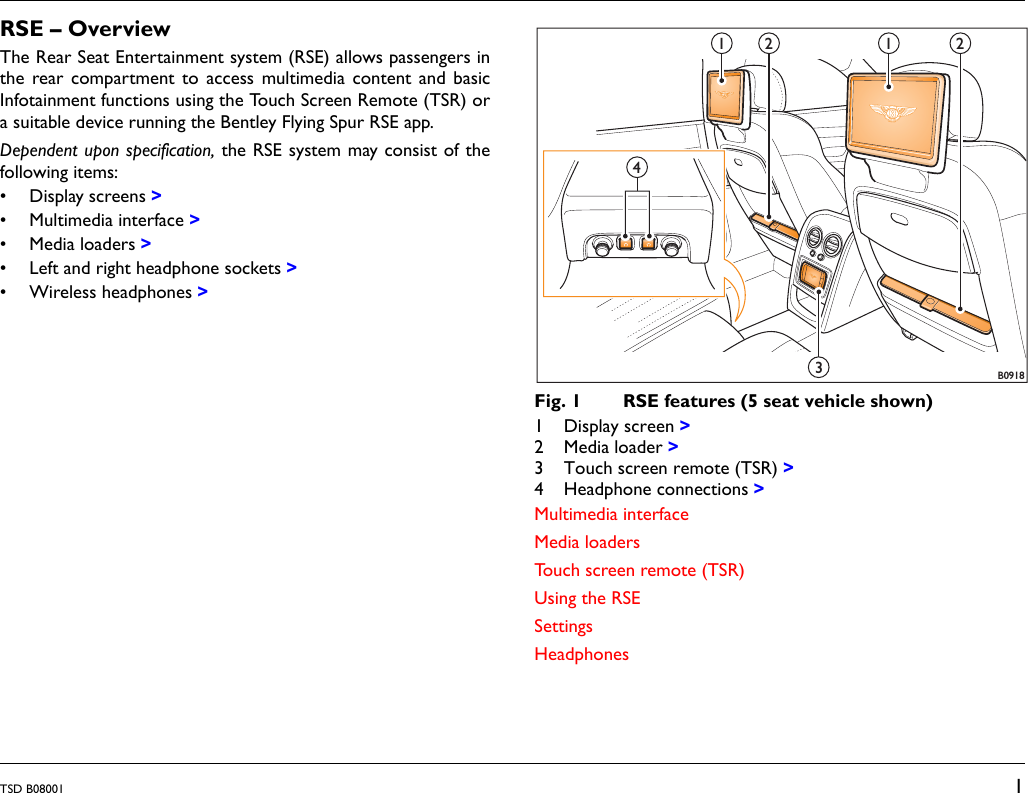

TSD B08001 1RSE – OverviewThe Rear Seat Entertainment system (RSE) allows passengers inthe rear compartment to access multimedia content and basicInfotainment functions using the Touch Screen Remote (TSR) ora suitable device running the Bentley Flying Spur RSE app.Dependent upon specification, the RSE system may consist of thefollowing items:• Display screens >• Multimedia interface >• Media loaders >• Left and right headphone sockets >• Wireless headphones >Fig. 1 RSE features (5 seat vehicle shown)1 Display screen >2 Media loader >3 Touch screen remote (TSR) >4 Headphone connections >Multimedia interfaceMedia loadersTouch screen remote (TSR)Using the RSESettingsHeadphones1 2 1324B0918

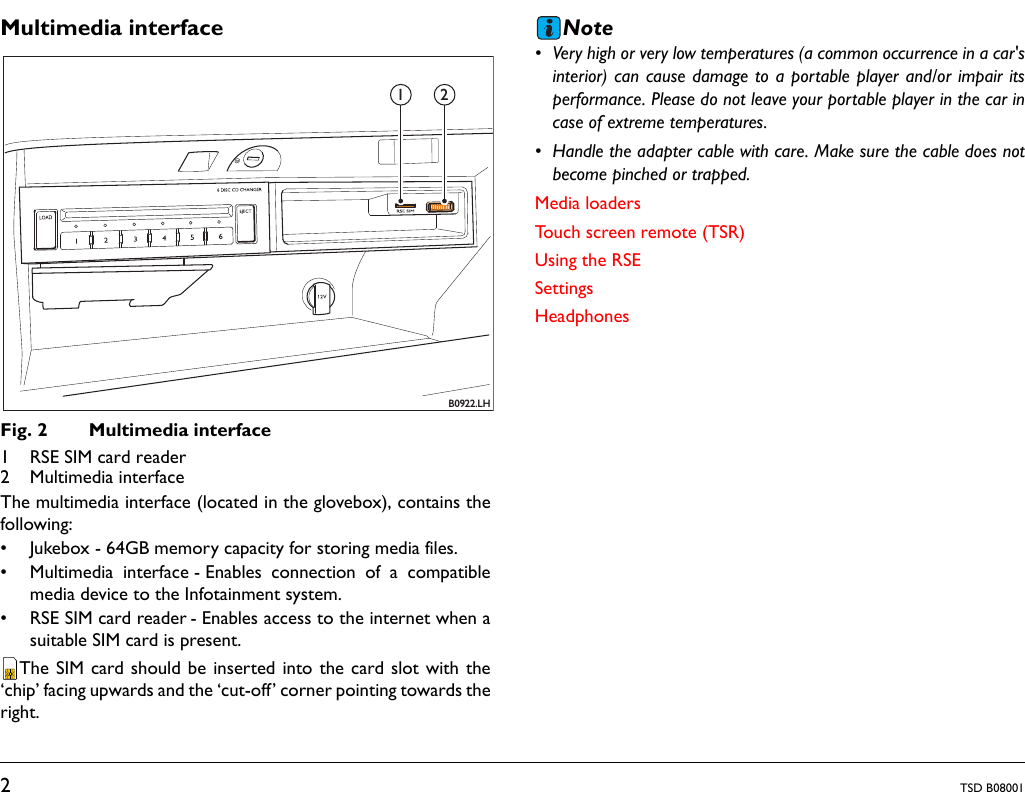

2TSD B08001Multimedia interfaceFig. 2 Multimedia interface1 RSE SIM card reader2 Multimedia interfaceThe multimedia interface (located in the glovebox), contains thefollowing:• Jukebox - 64GB memory capacity for storing media files.• Multimedia interface - Enables connection of a compatiblemedia device to the Infotainment system. • RSE SIM card reader - Enables access to the internet when asuitable SIM card is present.The SIM card should be inserted into the card slot with the‘chip’ facing upwards and the ‘cut-off’ corner pointing towards theright.Note• Very high or very low temperatures (a common occurrence in a car'sinterior) can cause damage to a portable player and/or impair itsperformance. Please do not leave your portable player in the car incase of extreme temperatures.• Handle the adapter cable with care. Make sure the cable does notbecome pinched or trapped.Media loadersTouch screen remote (TSR)Using the RSESettingsHeadphonesB0922.LH1 2

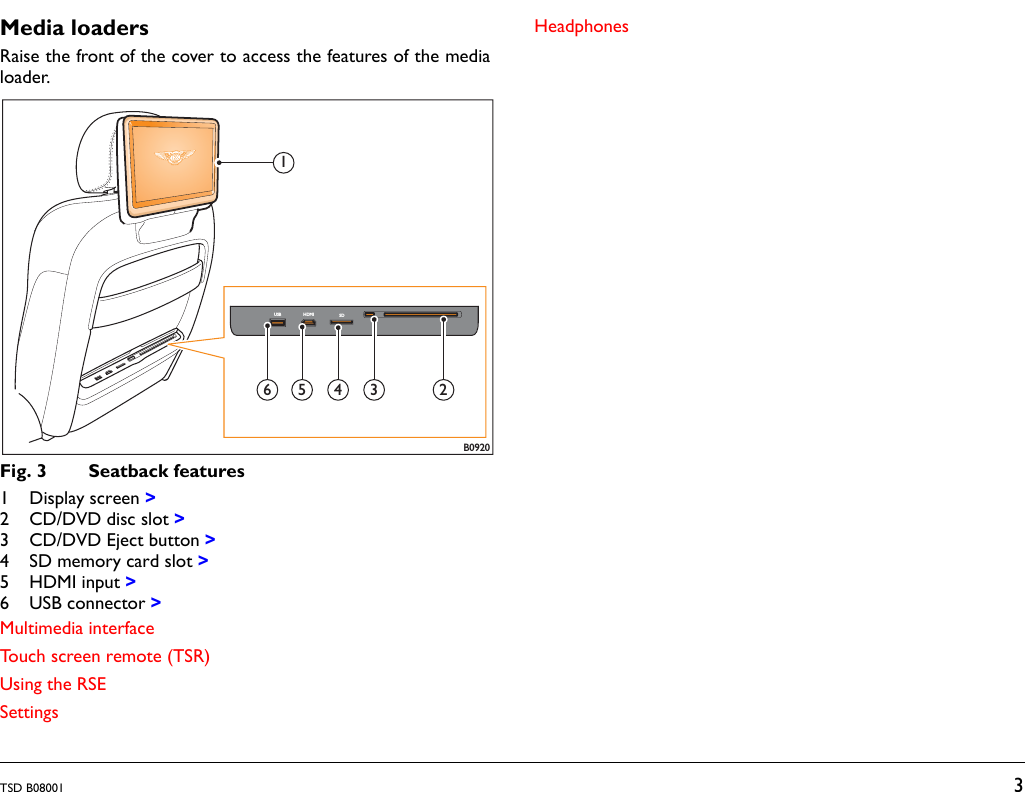

TSD B08001 3Media loadersRaise the front of the cover to access the features of the medialoader.Fig. 3 Seatback features1Display screen>2 CD/DVD disc slot >3 CD/DVD Eject button >4 SD memory card slot >5HDMI input>6 USB connector >Multimedia interfaceTouch screen remote (TSR)Using the RSESettingsHeadphonesB09201USB HDMI SD23456

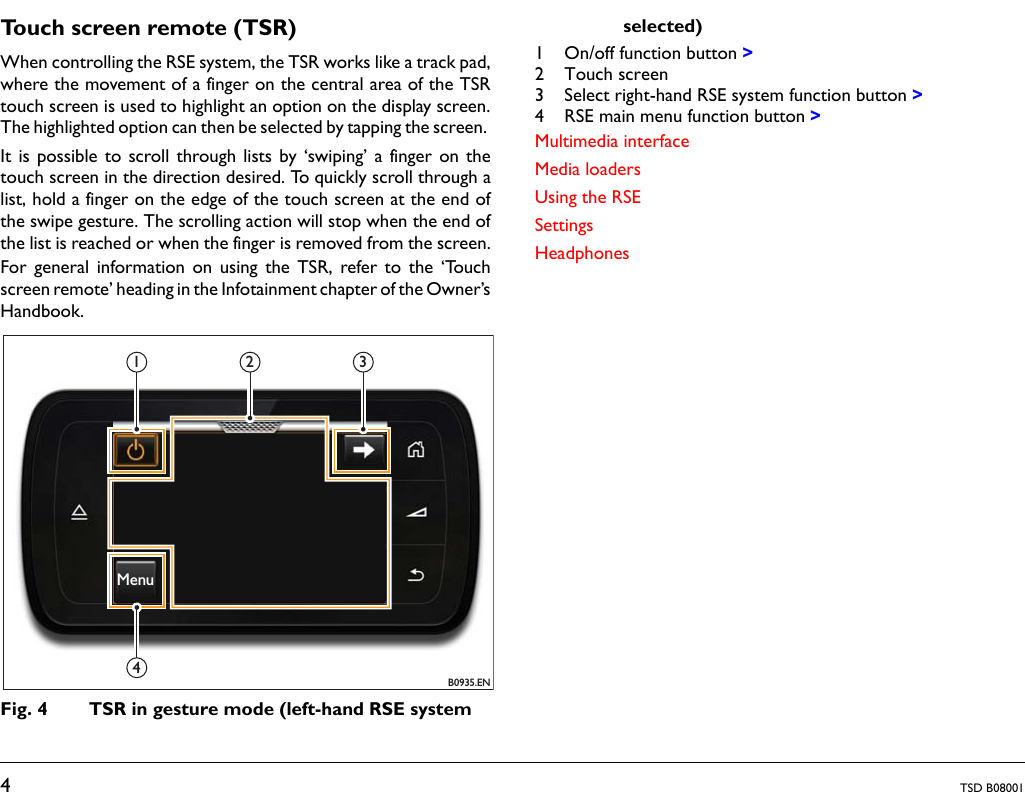

4TSD B08001Touch screen remote (TSR)When controlling the RSE system, the TSR works like a track pad,where the movement of a finger on the central area of the TSRtouch screen is used to highlight an option on the display screen.The highlighted option can then be selected by tapping the screen. It is possible to scroll through lists by ‘swiping’ a finger on thetouch screen in the direction desired. To quickly scroll through alist, hold a finger on the edge of the touch screen at the end ofthe swipe gesture. The scrolling action will stop when the end ofthe list is reached or when the finger is removed from the screen.For general information on using the TSR, refer to the ‘Touchscreen remote’ heading in the Infotainment chapter of the Owner’sHandbook.Fig. 4 TSR in gesture mode (left-hand RSE system selected)1 On/off function button >2 Touch screen3 Select right-hand RSE system function button >4 RSE main menu function button >Multimedia interfaceMedia loadersUsing the RSESettingsHeadphonesB0935.EN1 2 34Menu

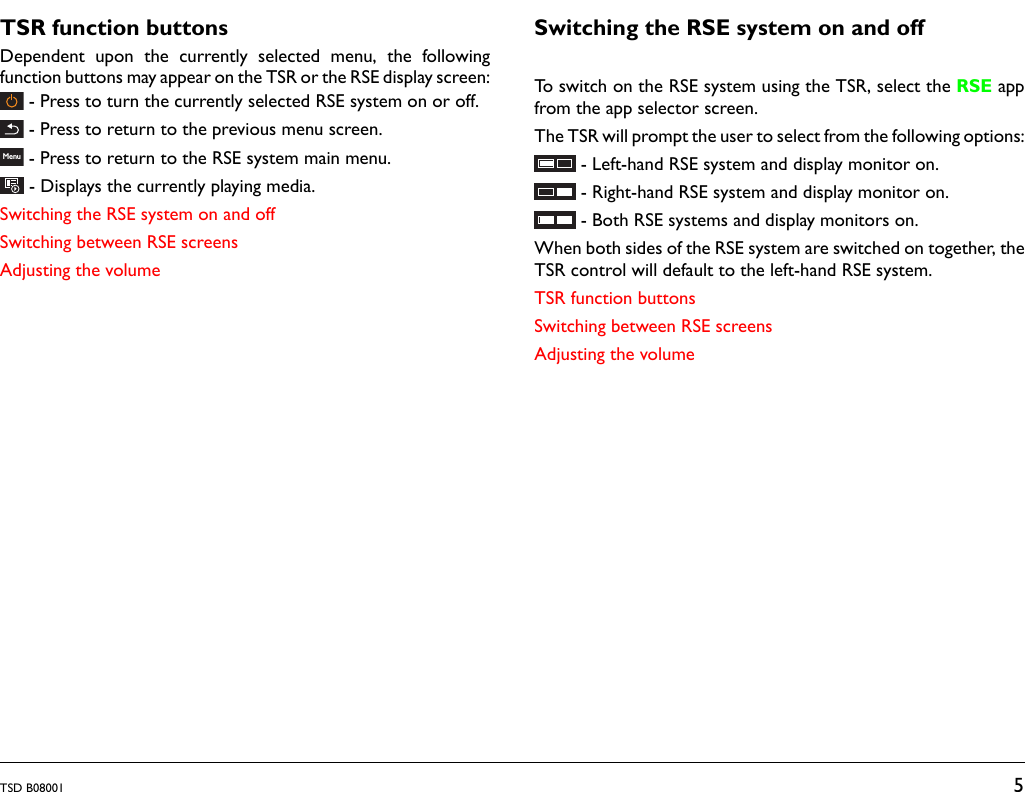

TSD B08001 5TSR function buttonsDependent upon the currently selected menu, the followingfunction buttons may appear on the TSR or the RSE display screen:- Press to turn the currently selected RSE system on or off.- Press to return to the previous menu screen.- Press to return to the RSE system main menu.- Displays the currently playing media.Switching the RSE system on and offSwitching between RSE screensAdjusting the volumeSwitching the RSE system on and offTo switch on the RSE system using the TSR, select the RSE appfrom the app selector screen.The TSR will prompt the user to select from the following options:- Left-hand RSE system and display monitor on.- Right-hand RSE system and display monitor on.- Both RSE systems and display monitors on.When both sides of the RSE system are switched on together, theTSR control will default to the left-hand RSE system.TSR function buttonsSwitching between RSE screensAdjusting the volumeMenu

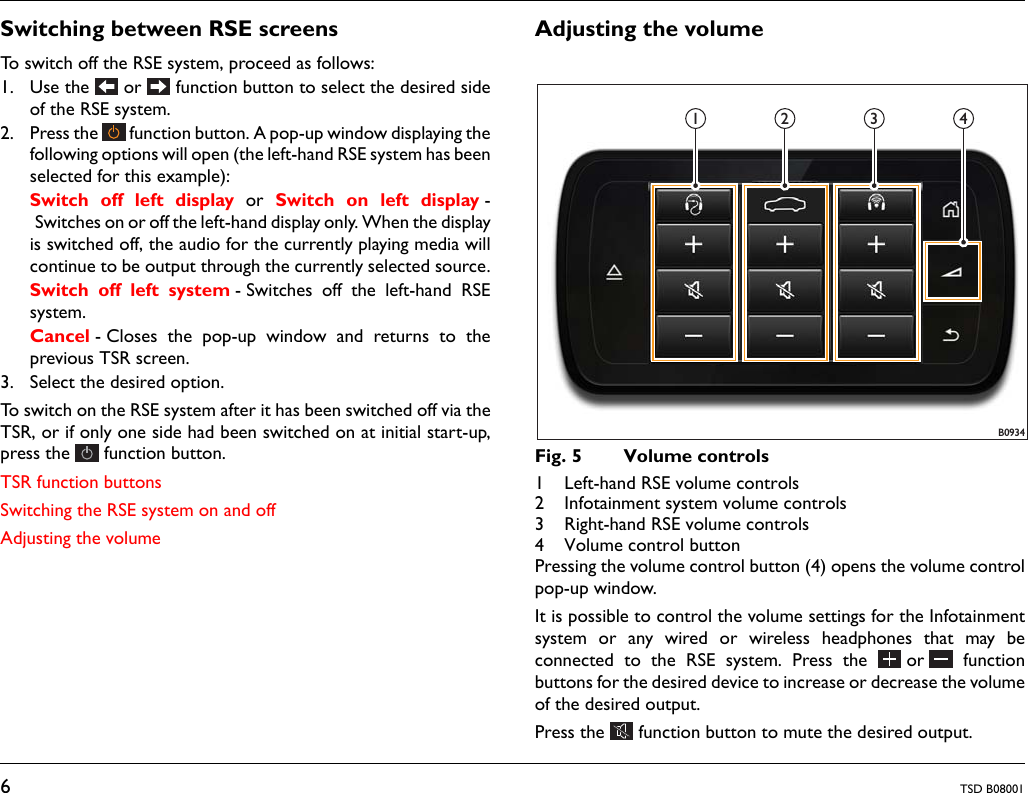

6TSD B08001Switching between RSE screensTo switch off the RSE system, proceed as follows:1. Use the or function button to select the desired sideof the RSE system. 2. Press the function button. A pop-up window displaying thefollowing options will open (the left-hand RSE system has beenselected for this example): Switch off left display or Switch on left display -Switches on or off the left-hand display only. When the displayis switched off, the audio for the currently playing media willcontinue to be output through the currently selected source.Switch off left system - Switches off the left-hand RSEsystem.Cancel - Closes the pop-up window and returns to theprevious TSR screen.3. Select the desired option.To switch on the RSE system after it has been switched off via theTSR, or if only one side had been switched on at initial start-up,press the function button. TSR function buttonsSwitching the RSE system on and offAdjusting the volumeAdjusting the volumeFig. 5 Volume controls1 Left-hand RSE volume controls2 Infotainment system volume controls3 Right-hand RSE volume controls4 Volume control buttonPressing the volume control button (4) opens the volume controlpop-up window. It is possible to control the volume settings for the Infotainmentsystem or any wired or wireless headphones that may beconnected to the RSE system. Press the or functionbuttons for the desired device to increase or decrease the volumeof the desired output.Press the function button to mute the desired output.B09341 2 3 4

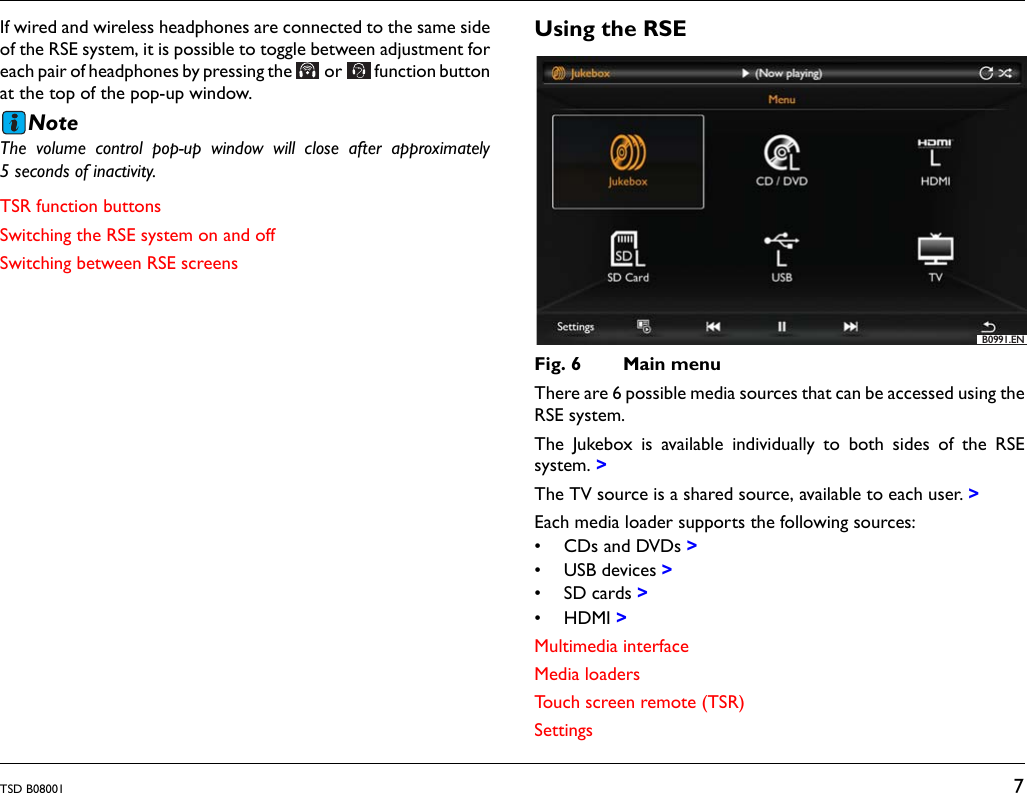

TSD B08001 7If wired and wireless headphones are connected to the same sideof the RSE system, it is possible to toggle between adjustment foreach pair of headphones by pressing the or function buttonat the top of the pop-up window.NoteThe volume control pop-up window will close after approximately5 seconds of inactivity.TSR function buttonsSwitching the RSE system on and offSwitching between RSE screensUsing the RSEFig. 6 Main menuThere are 6 possible media sources that can be accessed using theRSE system. The Jukebox is available individually to both sides of the RSEsystem. >The TV source is a shared source, available to each user. >Each media loader supports the following sources:• CDs and DVDs >• USB devices >•SD cards>•HDMI>Multimedia interfaceMedia loadersTouch screen remote (TSR)SettingsB0991.EN

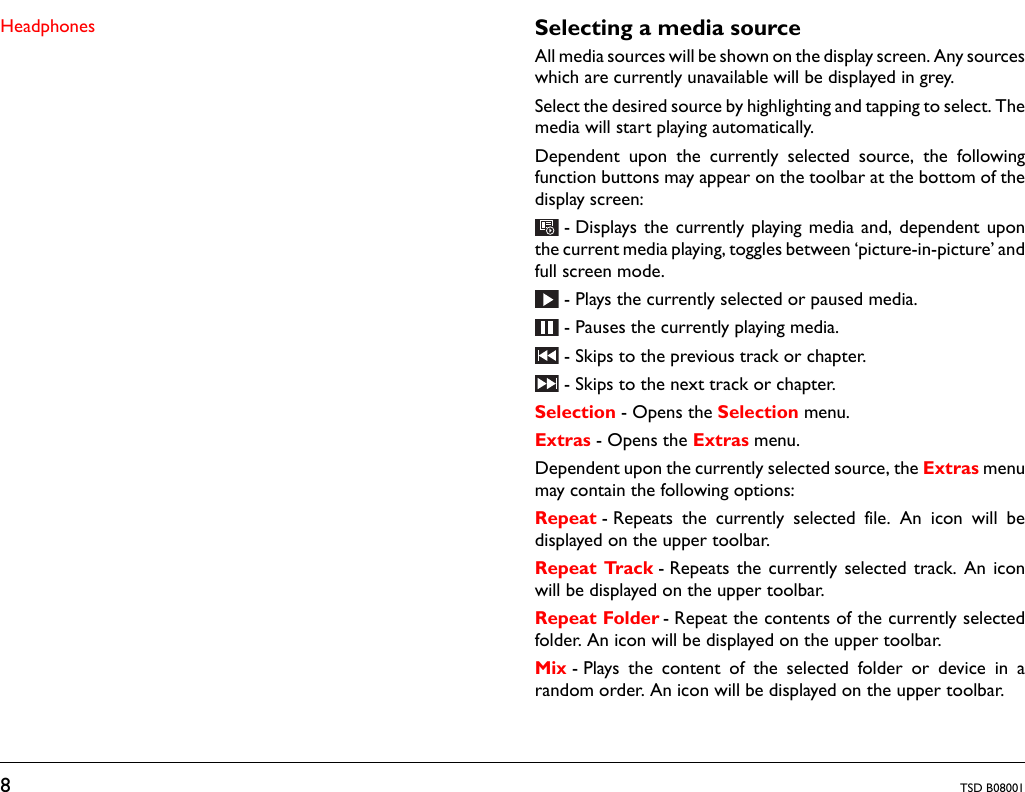

8TSD B08001Headphones Selecting a media sourceAll media sources will be shown on the display screen. Any sourceswhich are currently unavailable will be displayed in grey.Select the desired source by highlighting and tapping to select. Themedia will start playing automatically.Dependent upon the currently selected source, the followingfunction buttons may appear on the toolbar at the bottom of thedisplay screen:- Displays the currently playing media and, dependent uponthe current media playing, toggles between ‘picture-in-picture’ andfull screen mode.- Plays the currently selected or paused media.- Pauses the currently playing media.- Skips to the previous track or chapter. - Skips to the next track or chapter.Selection - Opens the Selection menu. Extras - Opens the Extras menu.Dependent upon the currently selected source, the Extras menumay contain the following options:Repeat - Repeats the currently selected file. An icon will bedisplayed on the upper toolbar.Repeat Track - Repeats the currently selected track. An iconwill be displayed on the upper toolbar.Repeat Folder - Repeat the contents of the currently selectedfolder. An icon will be displayed on the upper toolbar.Mix - Plays the content of the selected folder or device in arandom order. An icon will be displayed on the upper toolbar.

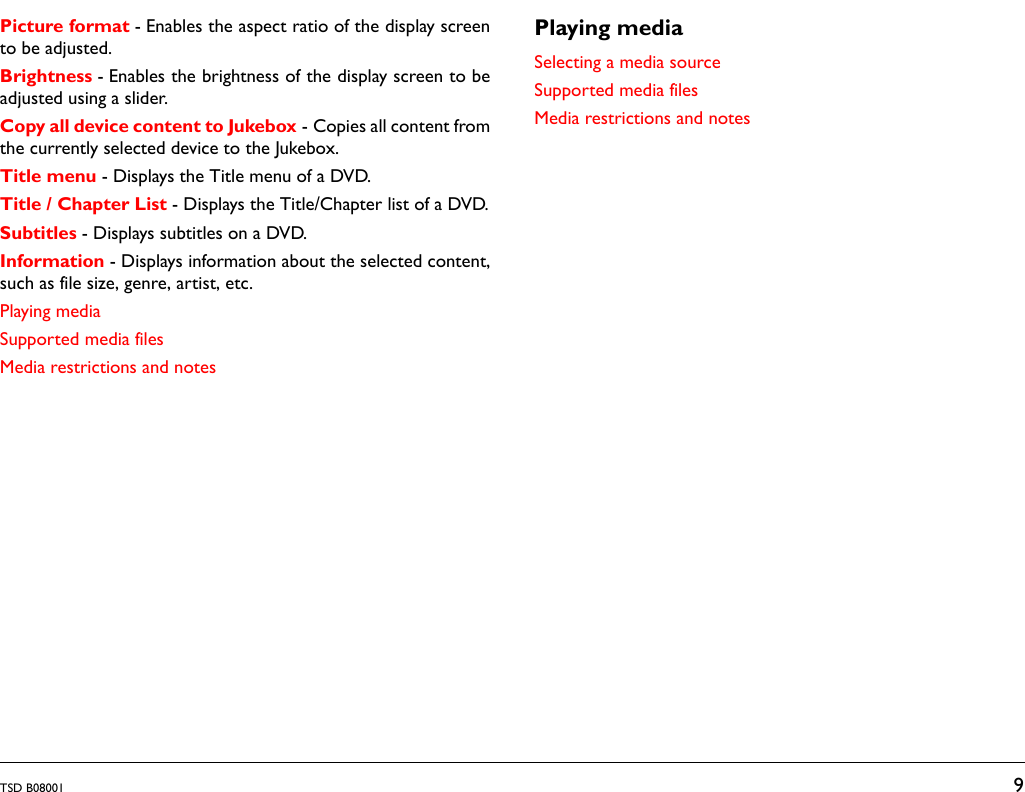

TSD B08001 9Picture format - Enables the aspect ratio of the display screento be adjusted.Brightness - Enables the brightness of the display screen to beadjusted using a slider.Copy all device content to Jukebox - Copies all content fromthe currently selected device to the Jukebox. Title menu - Displays the Title menu of a DVD.Title / Chapter List - Displays the Title/Chapter list of a DVD.Subtitles - Displays subtitles on a DVD.Information - Displays information about the selected content,such as file size, genre, artist, etc.Playing mediaSupported media filesMedia restrictions and notesPlaying mediaSelecting a media sourceSupported media filesMedia restrictions and notes

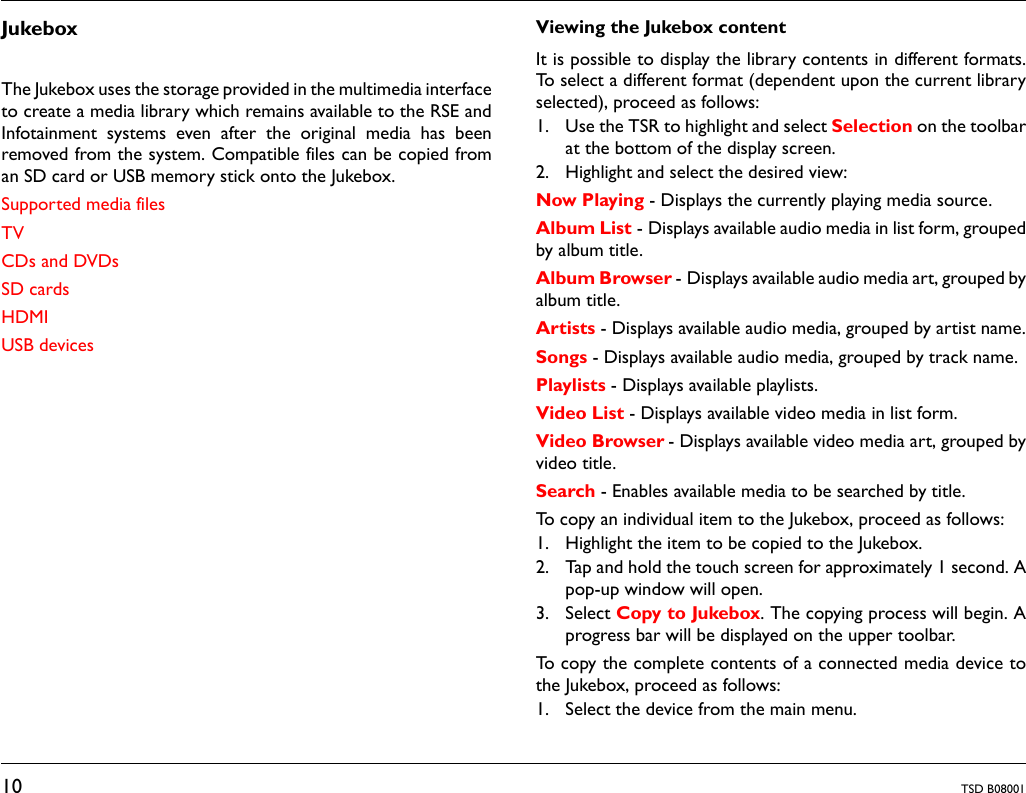

10 TSD B08001JukeboxThe Jukebox uses the storage provided in the multimedia interfaceto create a media library which remains available to the RSE andInfotainment systems even after the original media has beenremoved from the system. Compatible files can be copied froman SD card or USB memory stick onto the Jukebox.Supported media filesTVCDs and DVDsSD cardsHDMIUSB devicesViewing the Jukebox content It is possible to display the library contents in different formats.To select a different format (dependent upon the current libraryselected), proceed as follows:1. Use the TSR to highlight and select Selection on the toolbarat the bottom of the display screen.2. Highlight and select the desired view:Now Playing - Displays the currently playing media source.Album List - Displays available audio media in list form, groupedby album title.Album Browser - Displays available audio media art, grouped byalbum title.Artists - Displays available audio media, grouped by artist name.Songs - Displays available audio media, grouped by track name.Playlists - Displays available playlists.Video List - Displays available video media in list form.Video Browser - Displays available video media art, grouped byvideo title.Search - Enables available media to be searched by title. To copy an individual item to the Jukebox, proceed as follows:1. Highlight the item to be copied to the Jukebox.2. Tap and hold the touch screen for approximately 1 second. Apop-up window will open.3. Select Copy to Jukebox. The copying process will begin. Aprogress bar will be displayed on the upper toolbar.To copy the complete contents of a connected media device tothe Jukebox, proceed as follows:1. Select the device from the main menu.

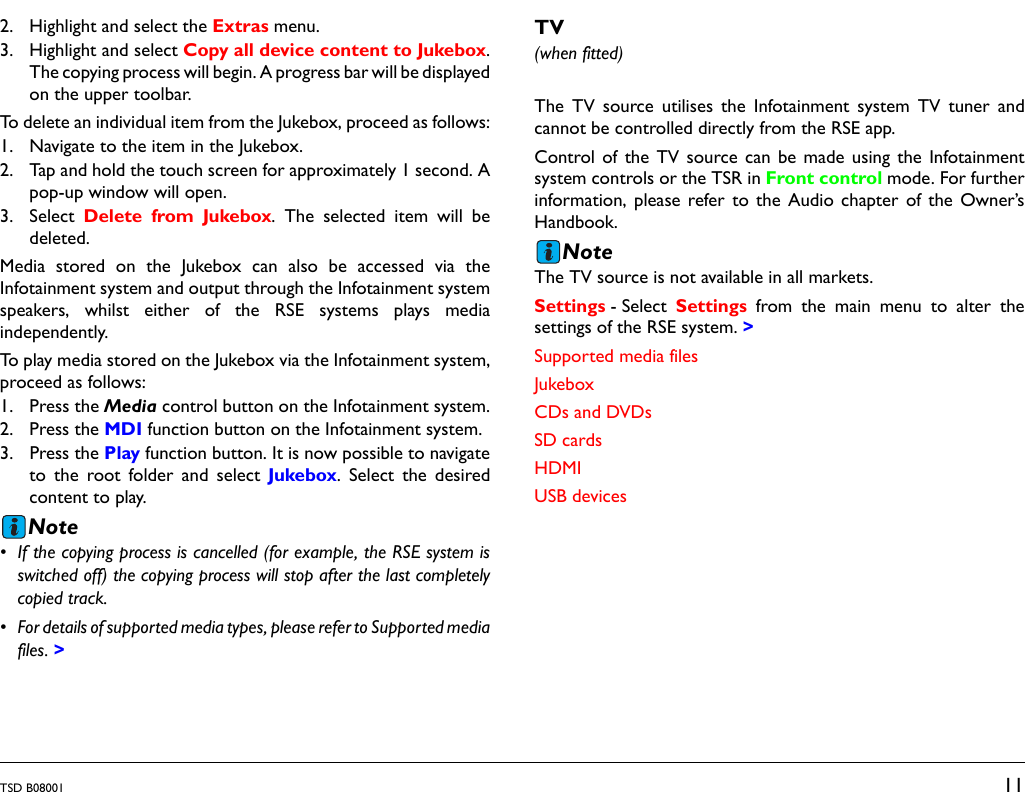

TSD B08001 112. Highlight and select the Extras menu.3. Highlight and select Copy all device content to Jukebox.The copying process will begin. A progress bar will be displayedon the upper toolbar.To delete an individual item from the Jukebox, proceed as follows:1. Navigate to the item in the Jukebox.2. Tap and hold the touch screen for approximately 1 second. Apop-up window will open.3. Select Delete from Jukebox. The selected item will bedeleted.Media stored on the Jukebox can also be accessed via theInfotainment system and output through the Infotainment systemspeakers, whilst either of the RSE systems plays mediaindependently.To play media stored on the Jukebox via the Infotainment system,proceed as follows:1. Press the Media control button on the Infotainment system.2. Press the MDI function button on the Infotainment system.3. Press the Play function button. It is now possible to navigateto the root folder and select Jukebox. Select the desiredcontent to play.Note• If the copying process is cancelled (for example, the RSE system isswitched off) the copying process will stop after the last completelycopied track.• For details of supported media types, please refer to Supported mediafiles. >TV(when fitted)The TV source utilises the Infotainment system TV tuner andcannot be controlled directly from the RSE app. Control of the TV source can be made using the Infotainmentsystem controls or the TSR in Front control mode. For furtherinformation, please refer to the Audio chapter of the Owner’sHandbook.NoteThe TV source is not available in all markets.Settings - Select Settings from the main menu to alter thesettings of the RSE system. >Supported media filesJukeboxCDs and DVDsSD cardsHDMIUSB devices

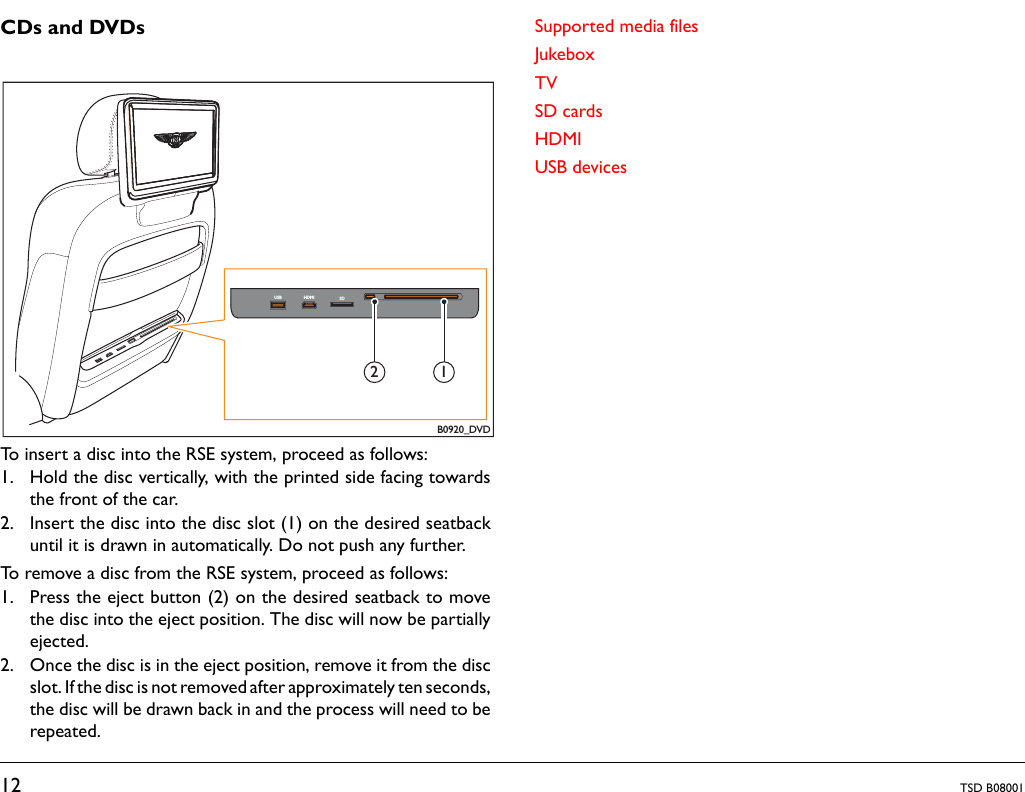

12 TSD B08001CDs and DVDsTo insert a disc into the RSE system, proceed as follows:1. Hold the disc vertically, with the printed side facing towardsthe front of the car.2. Insert the disc into the disc slot (1) on the desired seatbackuntil it is drawn in automatically. Do not push any further.To remove a disc from the RSE system, proceed as follows:1. Press the eject button (2) on the desired seatback to movethe disc into the eject position. The disc will now be partiallyejected.2. Once the disc is in the eject position, remove it from the discslot. If the disc is not removed after approximately ten seconds,the disc will be drawn back in and the process will need to berepeated.Supported media filesJukeboxTVSD cardsHDMIUSB devicesB0920_DVDUSB HDMI SD12

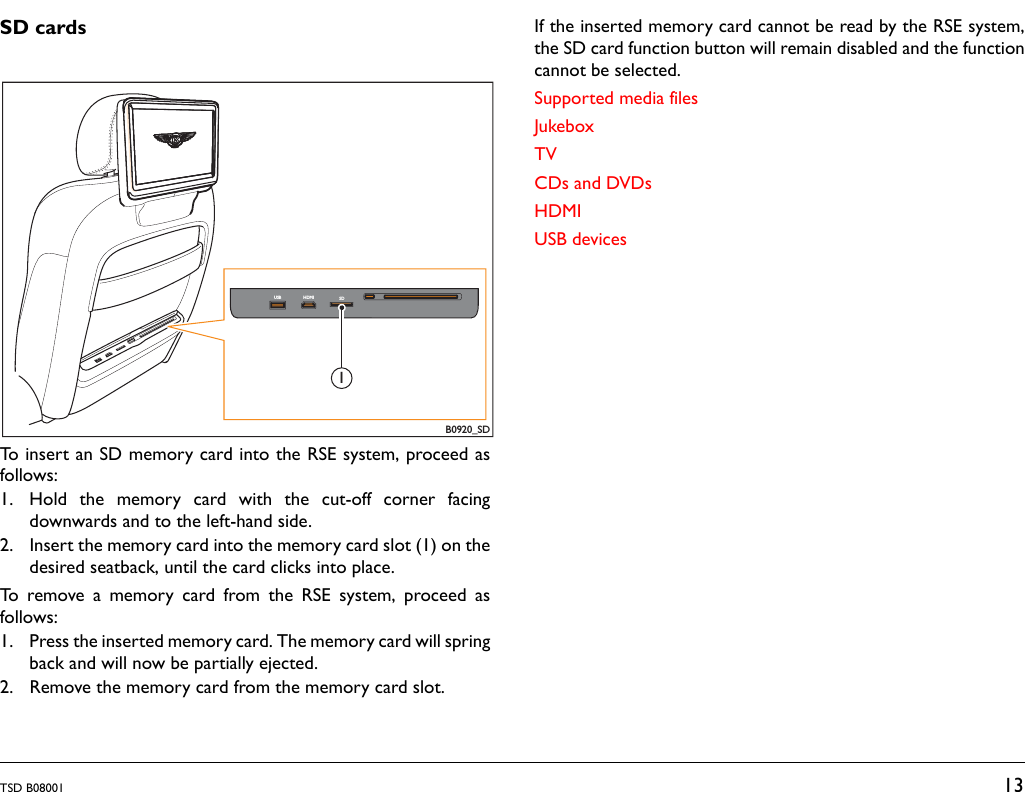

TSD B08001 13SD cardsTo insert an SD memory card into the RSE system, proceed asfollows:1. Hold the memory card with the cut-off corner facingdownwards and to the left-hand side.2. Insert the memory card into the memory card slot (1) on thedesired seatback, until the card clicks into place.To remove a memory card from the RSE system, proceed asfollows:1. Press the inserted memory card. The memory card will springback and will now be partially ejected.2. Remove the memory card from the memory card slot.If the inserted memory card cannot be read by the RSE system,the SD card function button will remain disabled and the functioncannot be selected.Supported media filesJukeboxTVCDs and DVDsHDMIUSB devicesB0920_SDUSB HDMI SD1

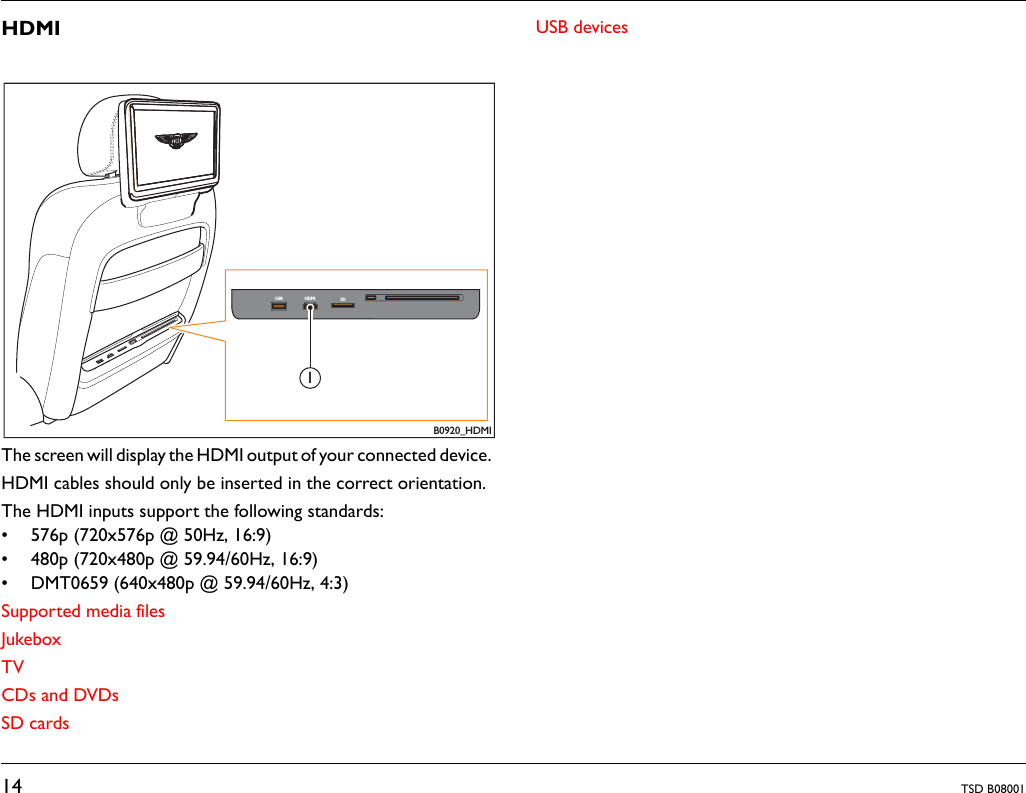

14 TSD B08001HDMIThe screen will display the HDMI output of your connected device.HDMI cables should only be inserted in the correct orientation.The HDMI inputs support the following standards:• 576p (720x576p @ 50Hz, 16:9) • 480p (720x480p @ 59.94/60Hz, 16:9) • DMT0659 (640x480p @ 59.94/60Hz, 4:3) Supported media filesJukeboxTVCDs and DVDsSD cardsUSB devicesB0920_HDMIUSB HDMI SD1

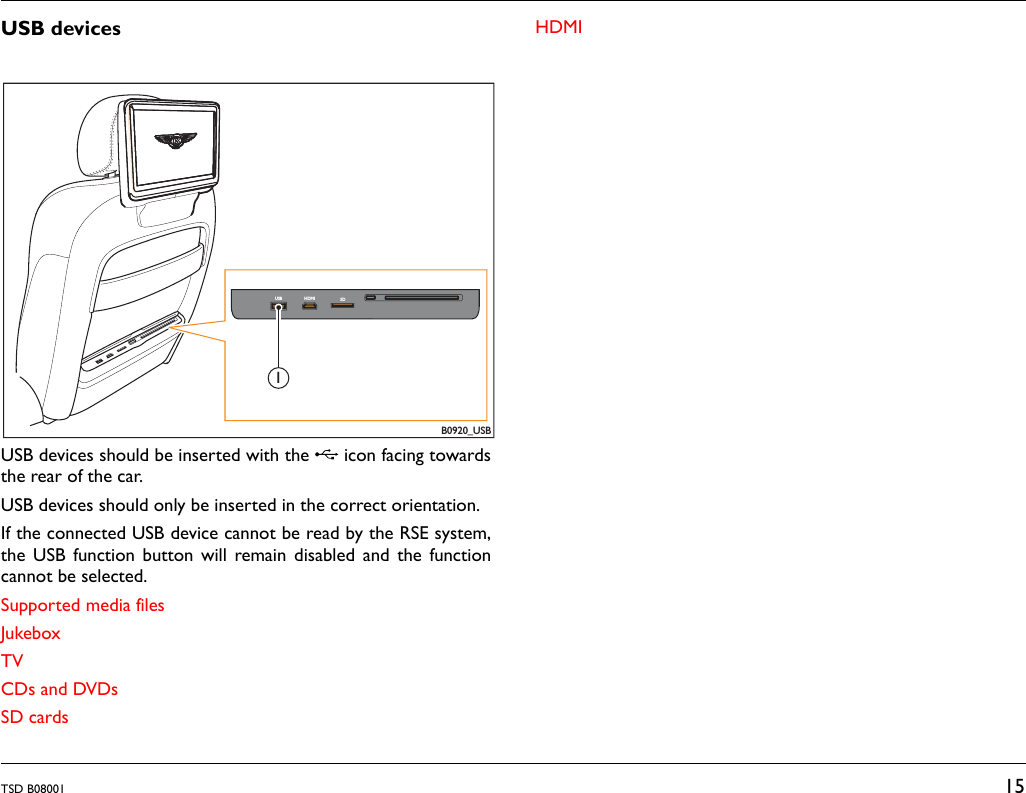

TSD B08001 15USB devicesUSB devices should be inserted with the icon facing towardsthe rear of the car. USB devices should only be inserted in the correct orientation.If the connected USB device cannot be read by the RSE system,the USB function button will remain disabled and the functioncannot be selected.Supported media filesJukeboxTVCDs and DVDsSD cardsHDMIB0920_USBUSB HDMI SD1

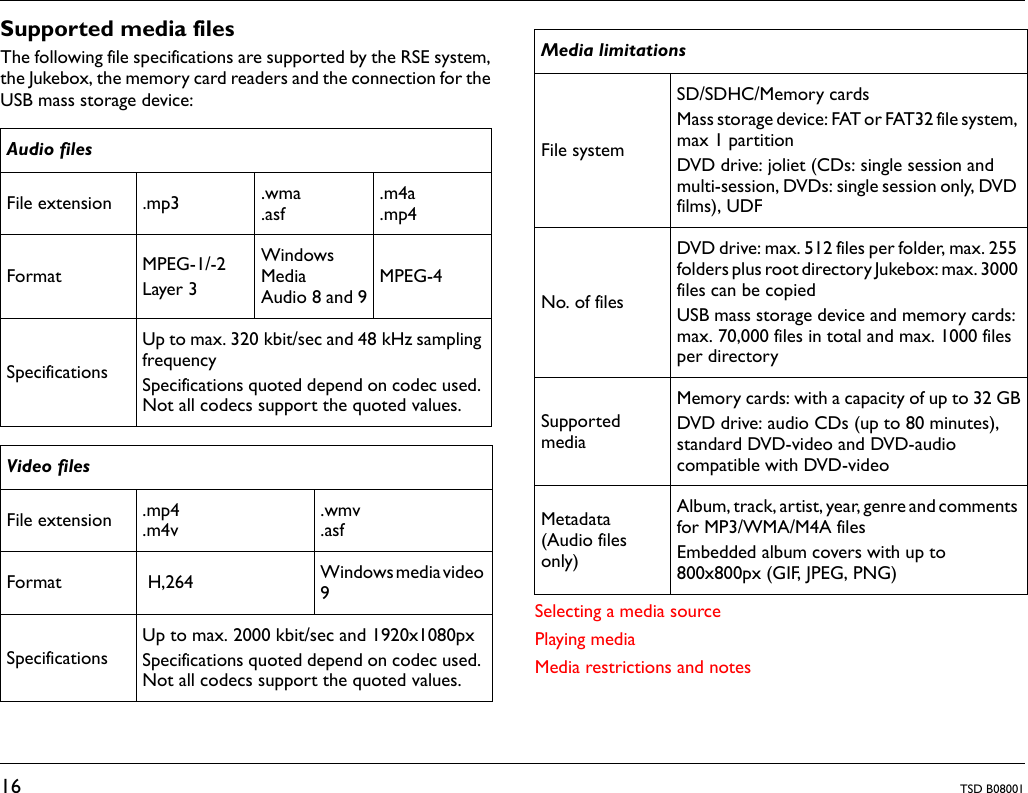

16 TSD B08001Supported media filesThe following file specifications are supported by the RSE system,the Jukebox, the memory card readers and the connection for theUSB mass storage device:Selecting a media sourcePlaying mediaMedia restrictions and notesAudio filesFile extension .mp3 .wma.asf.m4a.mp4Format MPEG-1/-2Layer 3Windows Media Audio 8 and 9MPEG-4SpecificationsUp to max. 320 kbit/sec and 48 kHz sampling frequencySpecifications quoted depend on codec used. Not all codecs support the quoted values.Video filesFile extension .mp4.m4v.wmv.asfFormat H,264 Windows media video 9SpecificationsUp to max. 2000 kbit/sec and 1920x1080pxSpecifications quoted depend on codec used. Not all codecs support the quoted values.Media limitationsFile systemSD/SDHC/Memory cardsMass storage device: FAT or FAT32 file system, max 1 partitionDVD drive: joliet (CDs: single session and multi-session, DVDs: single session only, DVD films), UDFNo. of filesDVD drive: max. 512 files per folder, max. 255 folders plus root directory Jukebox: max. 3000 files can be copiedUSB mass storage device and memory cards: max. 70,000 files in total and max. 1000 files per directorySupported mediaMemory cards: with a capacity of up to 32 GBDVD drive: audio CDs (up to 80 minutes), standard DVD-video and DVD-audio compatible with DVD-videoMetadata (Audio files only)Album, track, artist, year, genre and comments for MP3/WMA/M4A filesEmbedded album covers with up to 800x800px (GIF, JPEG, PNG)

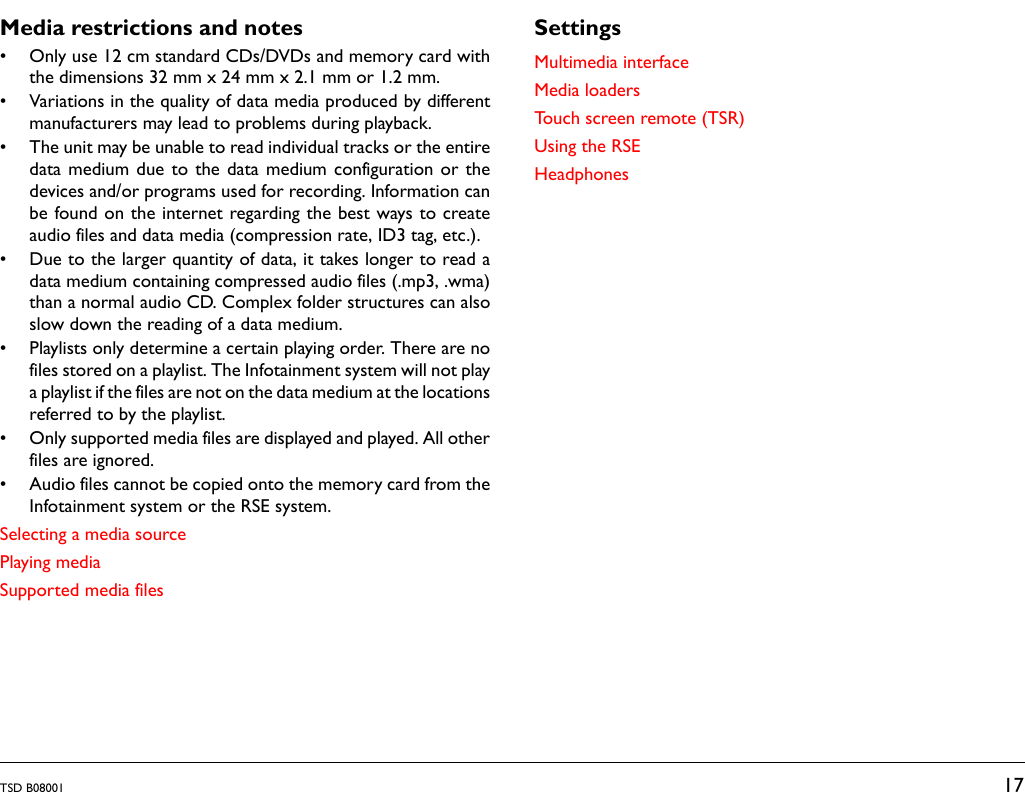

TSD B08001 17Media restrictions and notes• Only use 12 cm standard CDs/DVDs and memory card withthe dimensions 32 mm x 24 mm x 2.1 mm or 1.2 mm.• Variations in the quality of data media produced by differentmanufacturers may lead to problems during playback.• The unit may be unable to read individual tracks or the entiredata medium due to the data medium configuration or thedevices and/or programs used for recording. Information canbe found on the internet regarding the best ways to createaudio files and data media (compression rate, ID3 tag, etc.).• Due to the larger quantity of data, it takes longer to read adata medium containing compressed audio files (.mp3, .wma)than a normal audio CD. Complex folder structures can alsoslow down the reading of a data medium.• Playlists only determine a certain playing order. There are nofiles stored on a playlist. The Infotainment system will not playa playlist if the files are not on the data medium at the locationsreferred to by the playlist.• Only supported media files are displayed and played. All otherfiles are ignored.• Audio files cannot be copied onto the memory card from theInfotainment system or the RSE system.Selecting a media sourcePlaying mediaSupported media filesSettingsMultimedia interfaceMedia loadersTouch screen remote (TSR)Using the RSEHeadphones

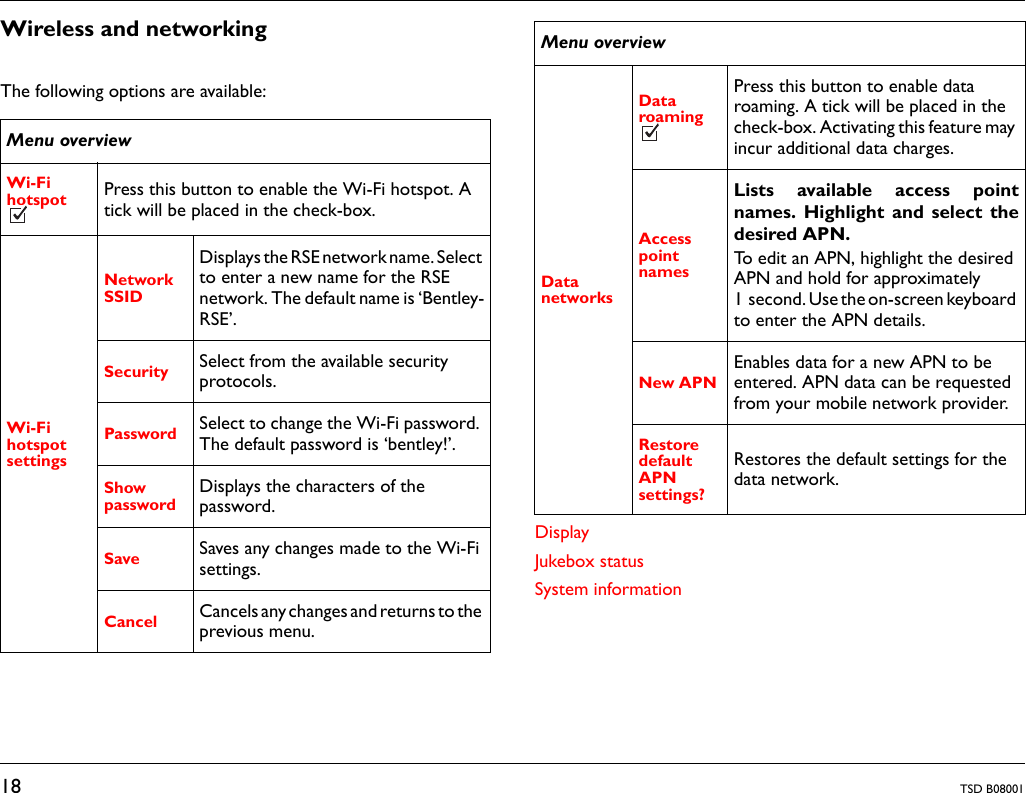

18 TSD B08001Wireless and networkingThe following options are available:DisplayJukebox statusSystem informationMenu overviewWi-Fi hotspot Press this button to enable the Wi-Fi hotspot. A tick will be placed in the check-box.Wi-Fi hotspot settings Network SSID Displays the RSE network name. Select to enter a new name for the RSE network. The default name is ‘Bentley-RSE’.Security Select from the available security protocols.Password Select to change the Wi-Fi password. The default password is ‘bentley!’.Show password Displays the characters of the password.Save Saves any changes made to the Wi-Fi settings.Cancel Cancels any changes and returns to the previous menu.Data networks Data roaming Press this button to enable data roaming. A tick will be placed in the check-box. Activating this feature may incur additional data charges.Access point names Lists available access pointnames. Highlight and select thedesired APN.To edit an APN, highlight the desired APN and hold for approximately 1 second. Use the on-screen keyboard to enter the APN details.New APN Enables data for a new APN to be entered. APN data can be requested from your mobile network provider.Restore default APN settings? Restores the default settings for the data network.Menu overview

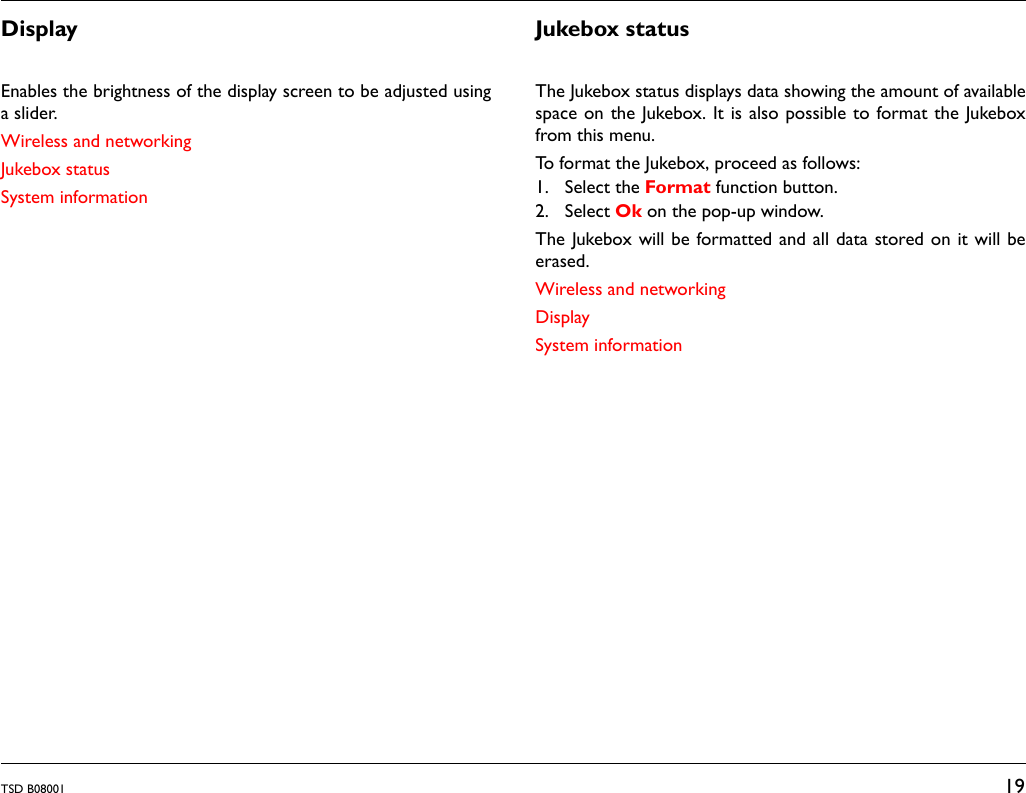

TSD B08001 19DisplayEnables the brightness of the display screen to be adjusted usinga slider. Wireless and networkingJukebox statusSystem informationJukebox statusThe Jukebox status displays data showing the amount of availablespace on the Jukebox. It is also possible to format the Jukeboxfrom this menu.To format the Jukebox, proceed as follows:1. Select the Format function button.2. Select Ok on the pop-up window.The Jukebox will be formatted and all data stored on it will beerased.Wireless and networkingDisplaySystem information

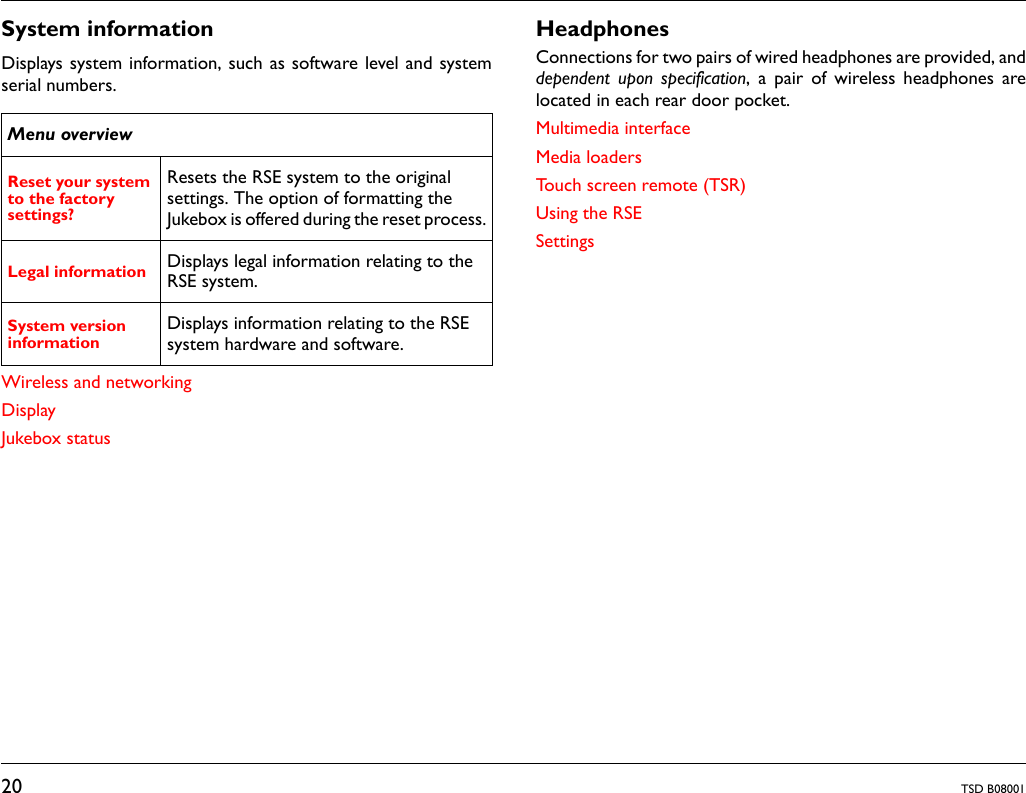

20 TSD B08001System informationDisplays system information, such as software level and systemserial numbers.Wireless and networkingDisplayJukebox statusHeadphonesConnections for two pairs of wired headphones are provided, anddependent upon specification, a pair of wireless headphones arelocated in each rear door pocket.Multimedia interfaceMedia loadersTouch screen remote (TSR)Using the RSESettingsMenu overviewReset your system to the factory settings? Resets the RSE system to the original settings. The option of formatting the Jukebox is offered during the reset process.Legal information Displays legal information relating to the RSE system.System version information Displays information relating to the RSE system hardware and software.

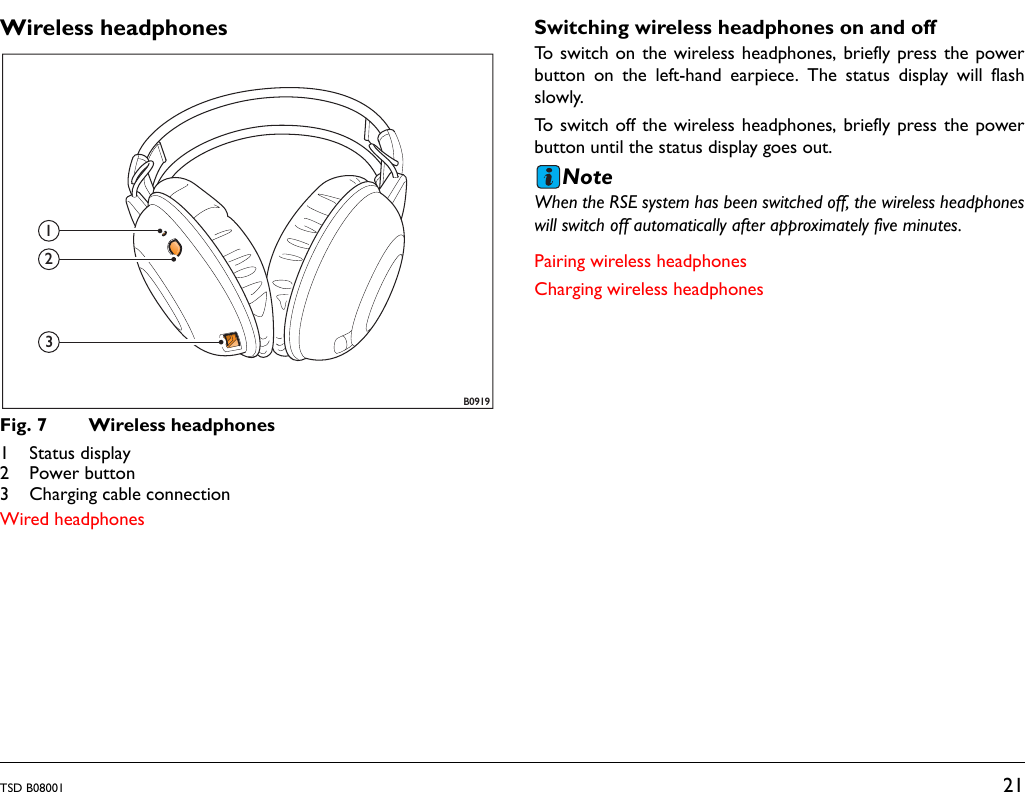

TSD B08001 21Wireless headphonesFig. 7 Wireless headphones1 Status display2 Power button3 Charging cable connectionWired headphonesSwitching wireless headphones on and offTo switch on the wireless headphones, briefly press the powerbutton on the left-hand earpiece. The status display will flashslowly.To switch off the wireless headphones, briefly press the powerbutton until the status display goes out.NoteWhen the RSE system has been switched off, the wireless headphoneswill switch off automatically after approximately five minutes.Pairing wireless headphonesCharging wireless headphonesB0919123

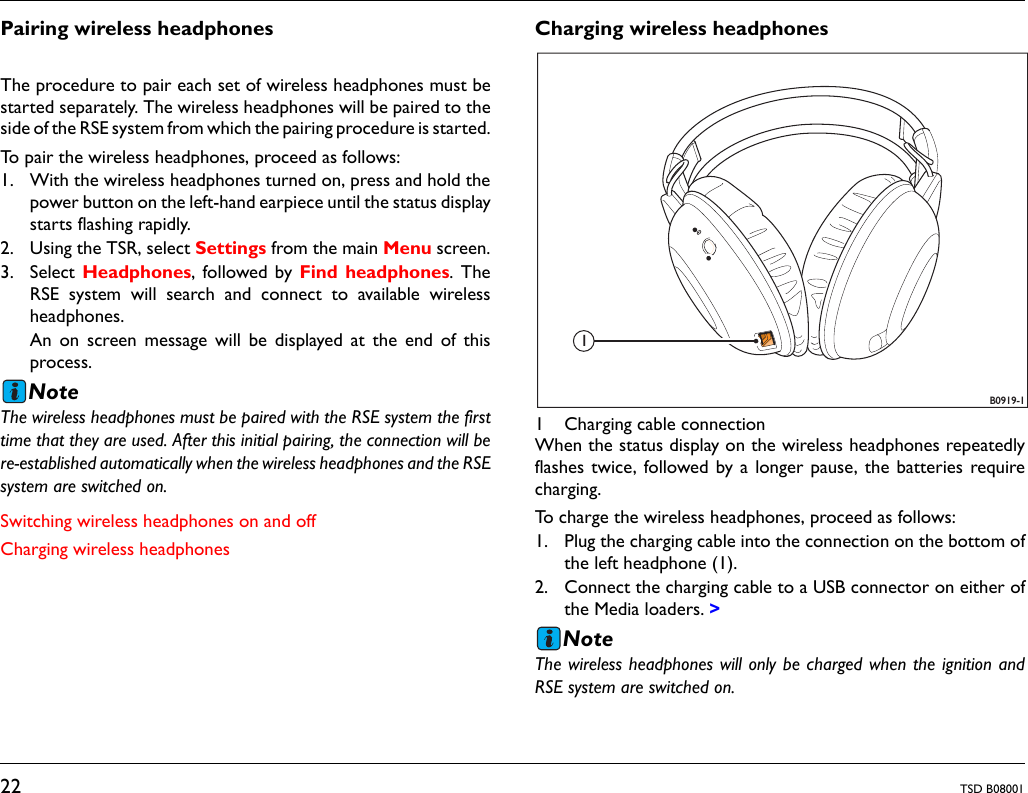

22 TSD B08001Pairing wireless headphonesThe procedure to pair each set of wireless headphones must bestarted separately. The wireless headphones will be paired to theside of the RSE system from which the pairing procedure is started.To pair the wireless headphones, proceed as follows:1. With the wireless headphones turned on, press and hold thepower button on the left-hand earpiece until the status displaystarts flashing rapidly.2. Using the TSR, select Settings from the main Menu screen.3. Select Headphones, followed by Find headphones. TheRSE system will search and connect to available wirelessheadphones.An on screen message will be displayed at the end of thisprocess.NoteThe wireless headphones must be paired with the RSE system the firsttime that they are used. After this initial pairing, the connection will bere-established automatically when the wireless headphones and the RSEsystem are switched on.Switching wireless headphones on and offCharging wireless headphonesCharging wireless headphones1 Charging cable connectionWhen the status display on the wireless headphones repeatedlyflashes twice, followed by a longer pause, the batteries requirecharging.To charge the wireless headphones, proceed as follows:1. Plug the charging cable into the connection on the bottom ofthe left headphone (1).2. Connect the charging cable to a USB connector on either ofthe Media loaders. >NoteThe wireless headphones will only be charged when the ignition andRSE system are switched on.B0919-11

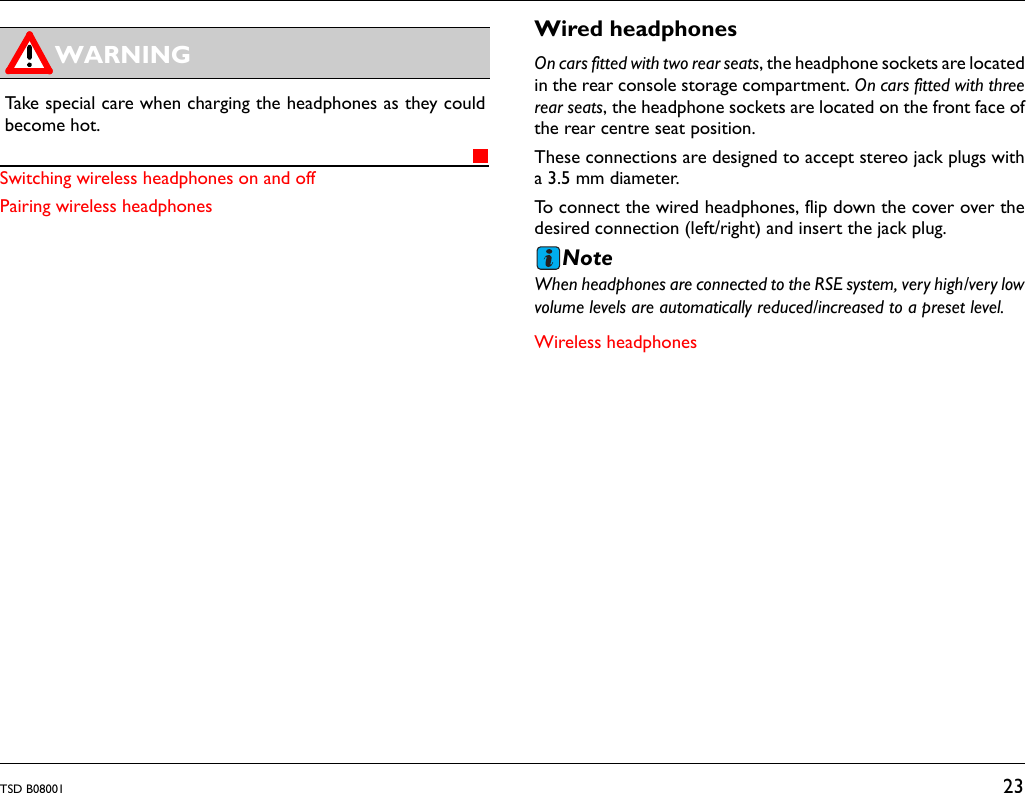

TSD B08001 23Switching wireless headphones on and offPairing wireless headphonesWired headphonesOn cars fitted with two rear seats, the headphone sockets are locatedin the rear console storage compartment. On cars fitted with threerear seats, the headphone sockets are located on the front face ofthe rear centre seat position. These connections are designed to accept stereo jack plugs witha 3.5 mm diameter.To connect the wired headphones, flip down the cover over thedesired connection (left/right) and insert the jack plug.NoteWhen headphones are connected to the RSE system, very high/very lowvolume levels are automatically reduced/increased to a preset level.Wireless headphonesTake special care when charging the headphones as they couldbecome hot.WARNING
