Audiovox Incaar Systems GmbH Rear Seat Entertainment System DVD Loader Installation Guide

Contents

Installation Guide

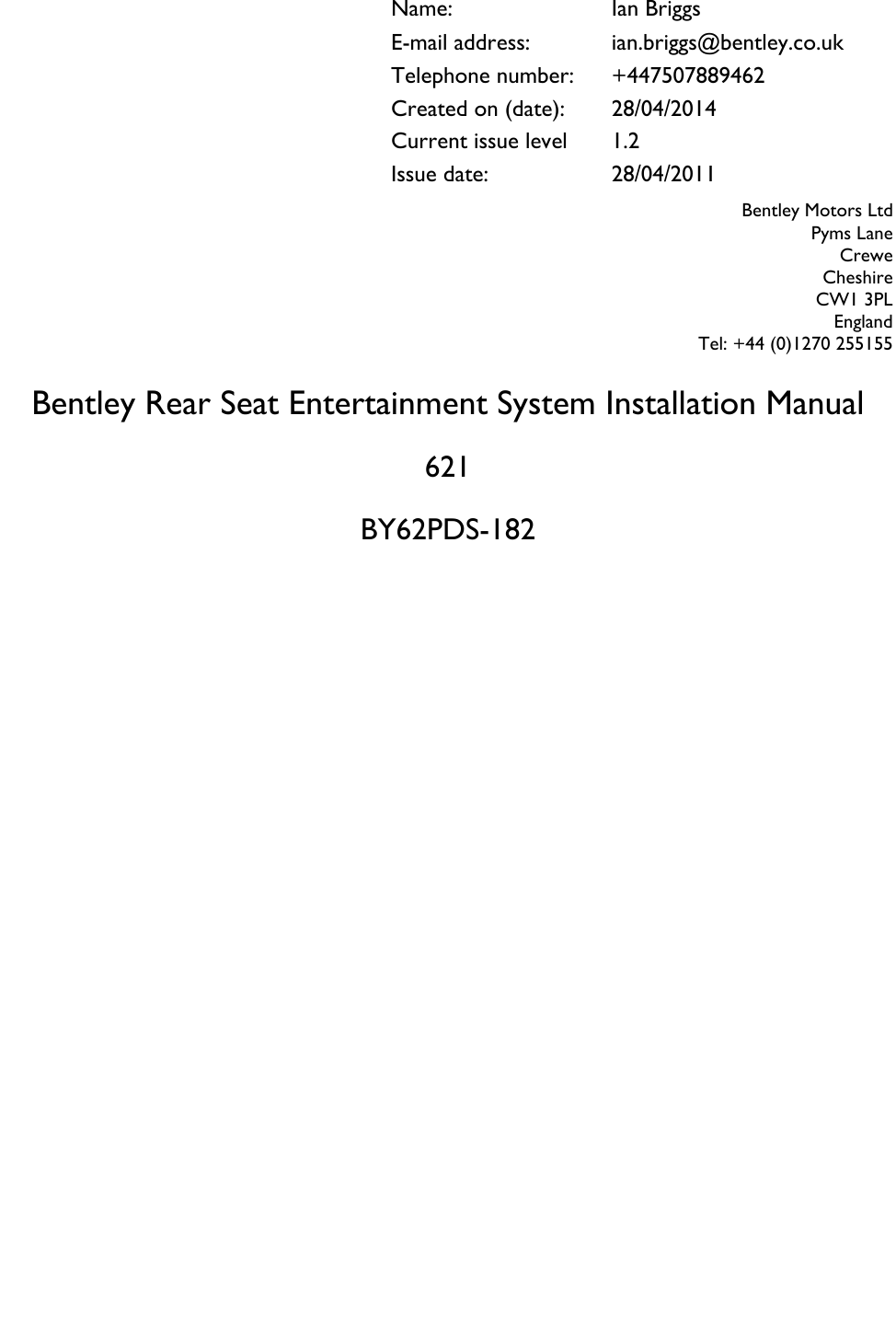

Bentley Rear Seat Entertainment System Installation Manual 621 BY62PDS-182 Name: Ian Briggs E-mail address: ian.briggs@bentley.co.uk Telephone number: +447507889462 Created on (date): 28/04/2014 Current issue level 1.2 Issue date: 28/04/2011 Bentley Motors Ltd Pyms Lane Crewe Cheshire CW1 3PL England Tel: +44 (0)1270 255155

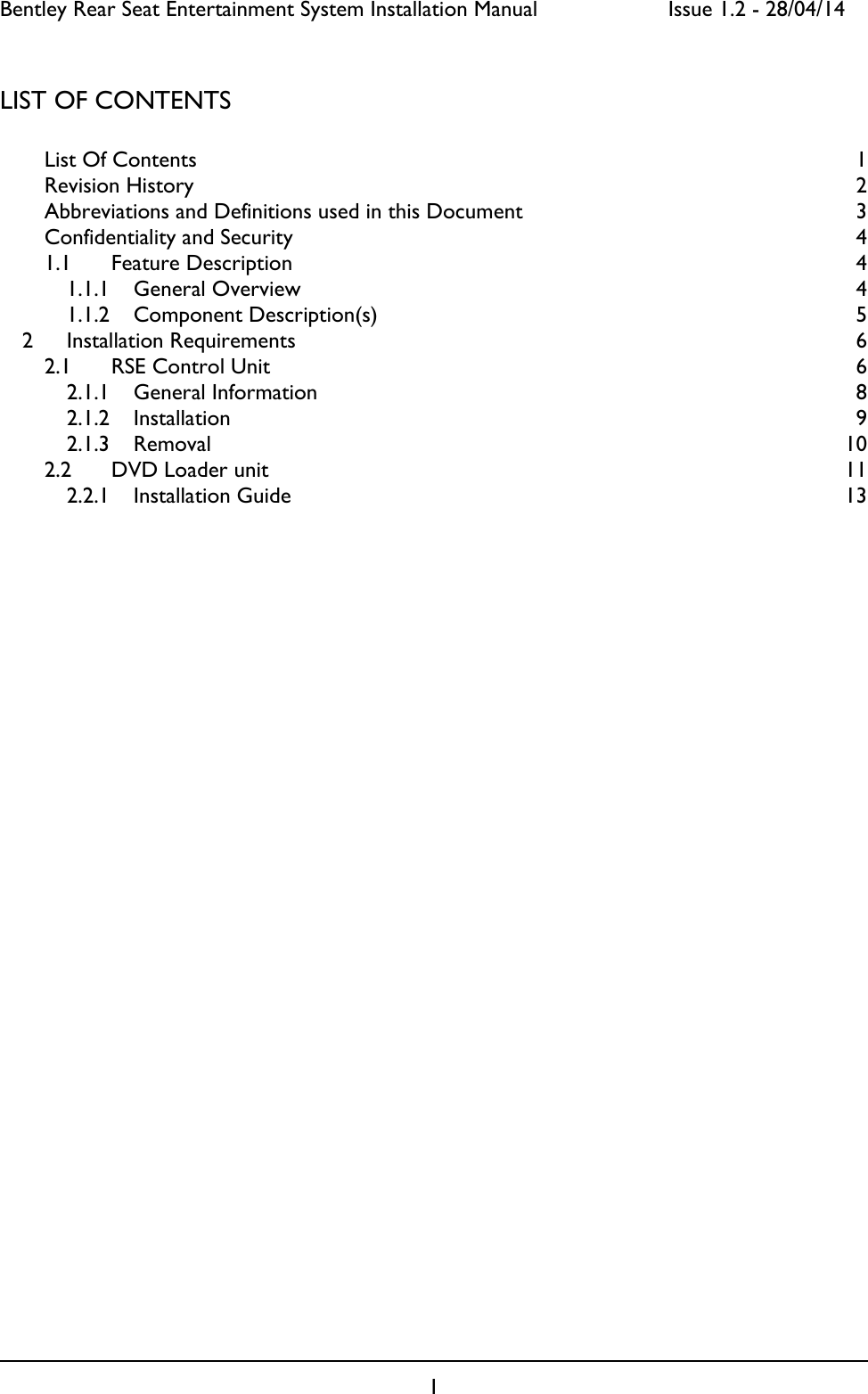

Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 1 LIST OF CONTENTS List Of Contents 1 Revision History 2 Abbreviations and Definitions used in this Document 3 Confidentiality and Security 4 1.1 Feature Description 4 1.1.1 General Overview 4 1.1.2 Component Description(s) 5 2 Installation Requirements 6 2.1 RSE Control Unit 6 2.1.1 General Information 8 2.1.2 Installation 9 2.1.3 Removal 10 2.2 DVD Loader unit 11 2.2.1 Installation Guide 13

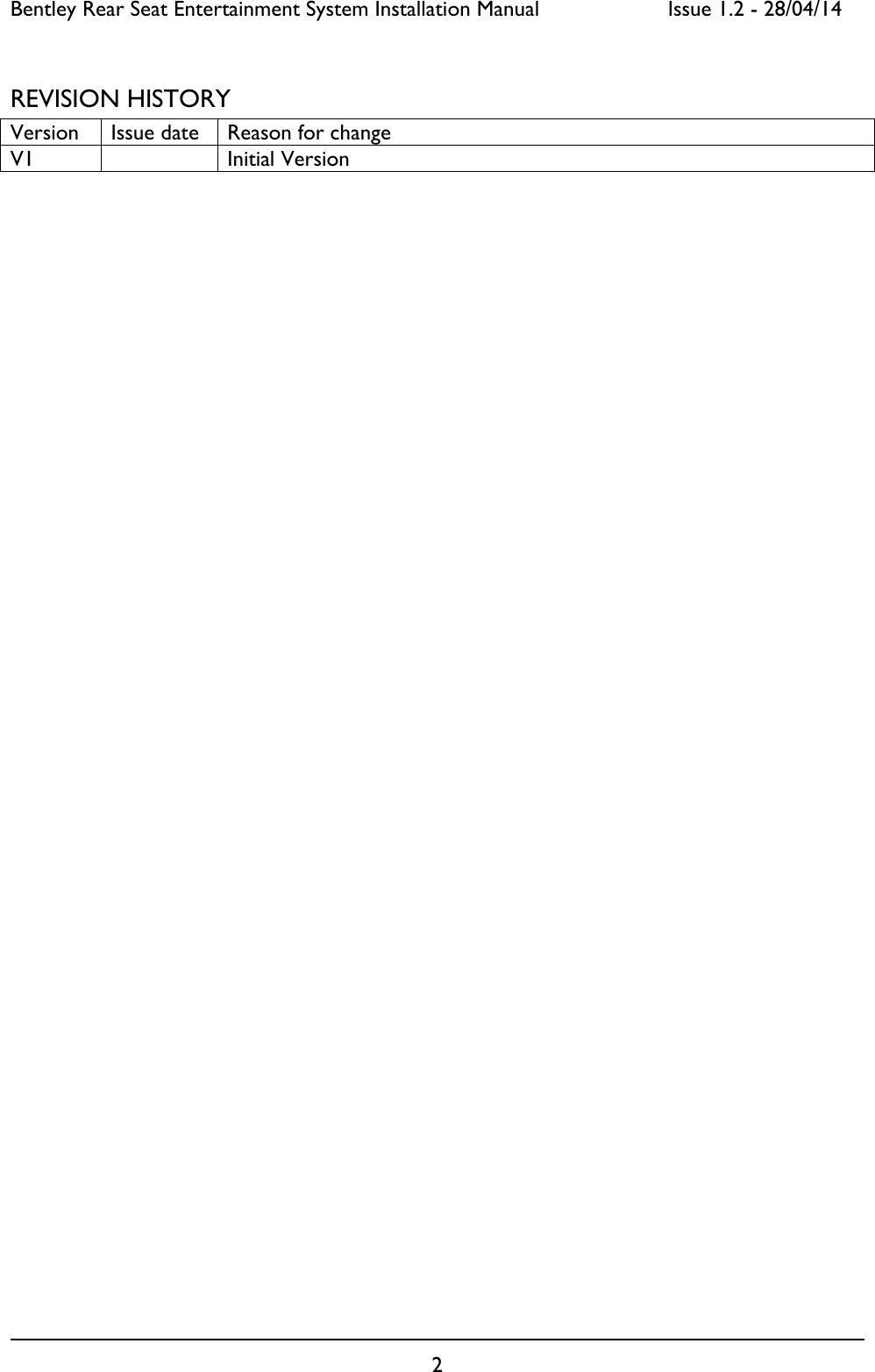

Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 2 REVISION HISTORY Version Issue date Reason for change V1 Initial Version

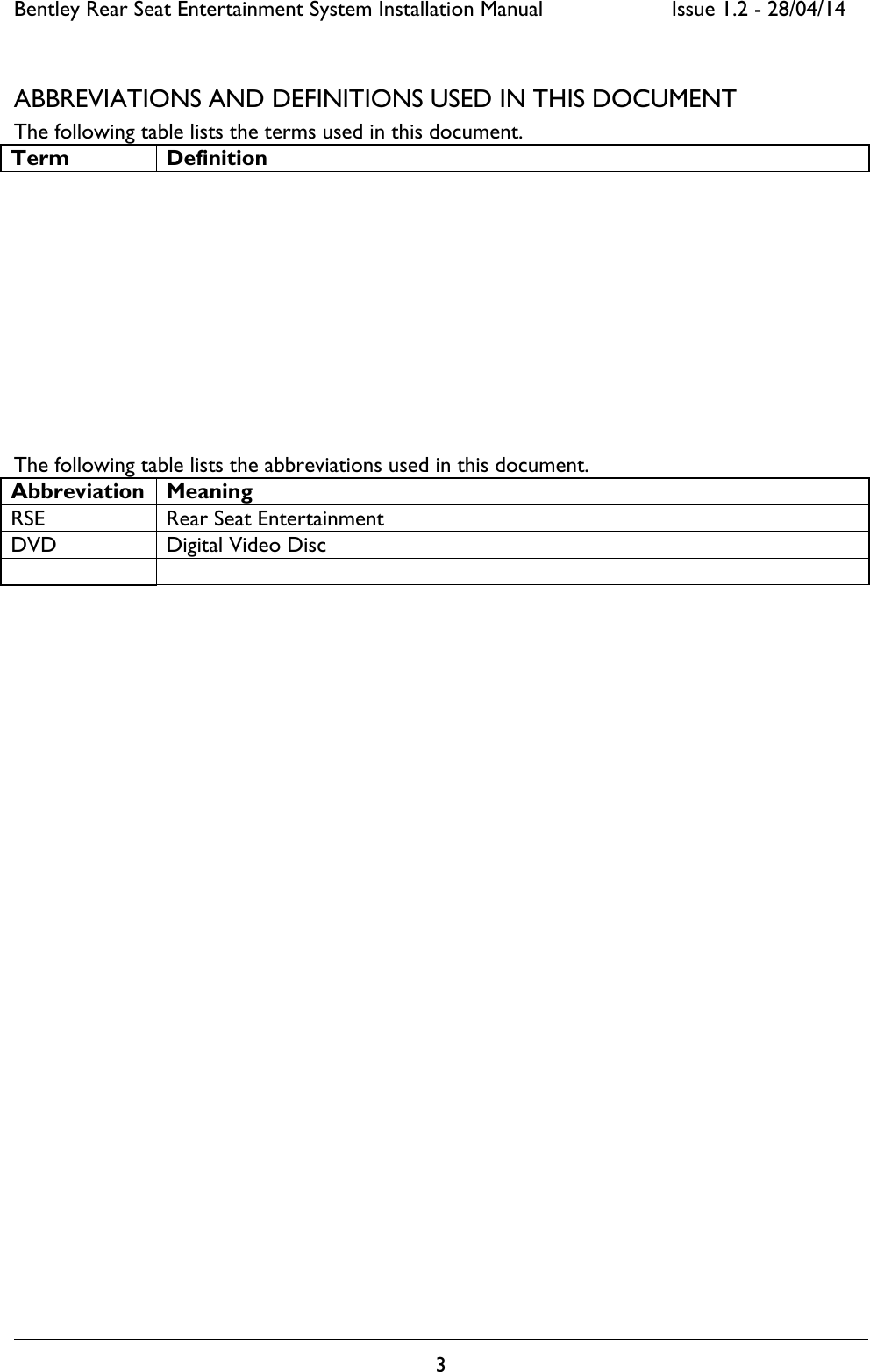

Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 3 ABBREVIATIONS AND DEFINITIONS USED IN THIS DOCUMENT The following table lists the terms used in this document. Term Definition The following table lists the abbreviations used in this document. Abbreviation Meaning RSE Rear Seat Entertainment DVD Digital Video Disc

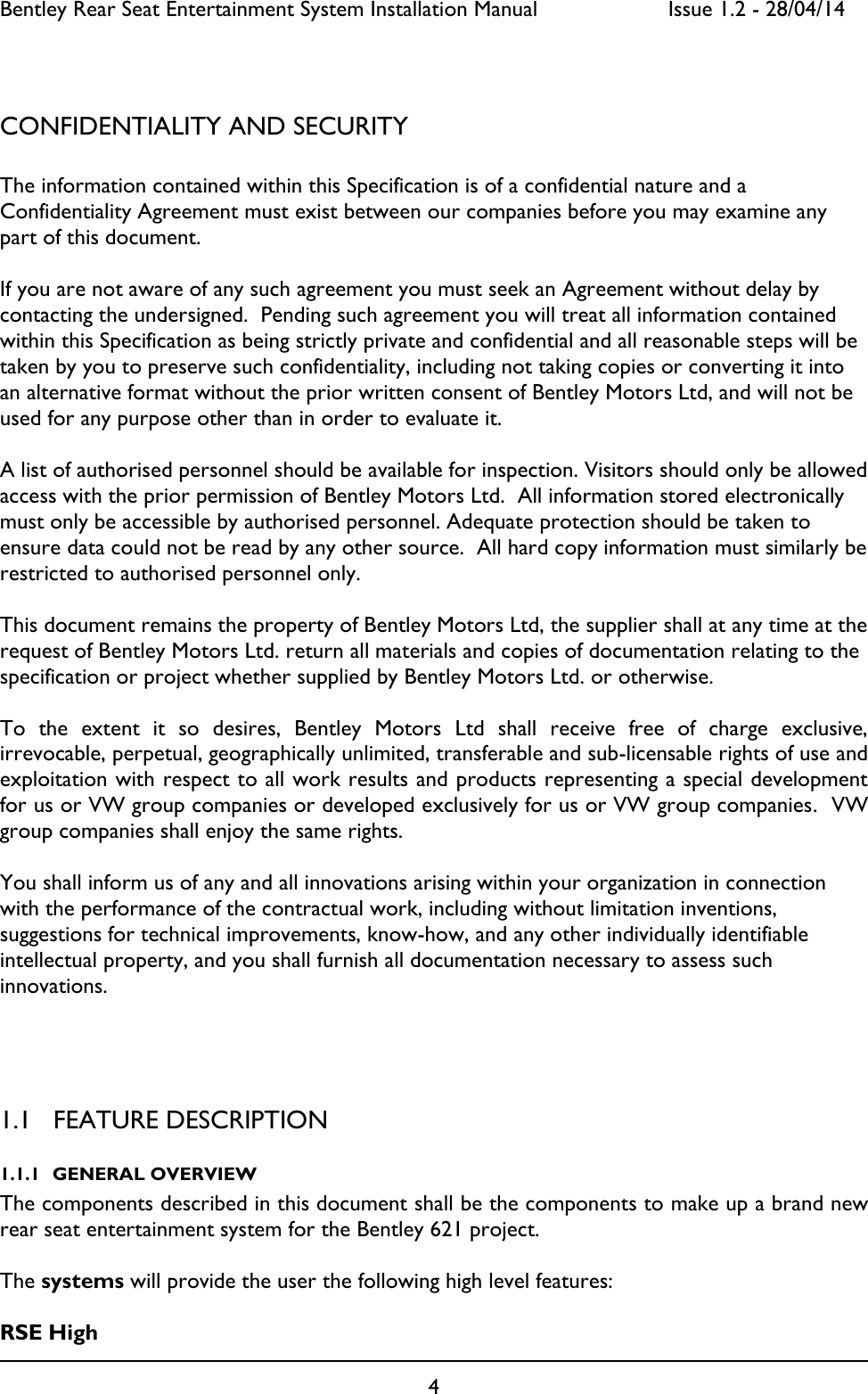

Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 4 CONFIDENTIALITY AND SECURITY The information contained within this Specification is of a confidential nature and a Confidentiality Agreement must exist between our companies before you may examine any part of this document. If you are not aware of any such agreement you must seek an Agreement without delay by contacting the undersigned. Pending such agreement you will treat all information contained within this Specification as being strictly private and confidential and all reasonable steps will be taken by you to preserve such confidentiality, including not taking copies or converting it into an alternative format without the prior written consent of Bentley Motors Ltd, and will not be used for any purpose other than in order to evaluate it. A list of authorised personnel should be available for inspection. Visitors should only be allowed access with the prior permission of Bentley Motors Ltd. All information stored electronically must only be accessible by authorised personnel. Adequate protection should be taken to ensure data could not be read by any other source. All hard copy information must similarly be restricted to authorised personnel only. This document remains the property of Bentley Motors Ltd, the supplier shall at any time at the request of Bentley Motors Ltd. return all materials and copies of documentation relating to the specification or project whether supplied by Bentley Motors Ltd. or otherwise. To the extent it so desires, Bentley Motors Ltd shall receive free of charge exclusive, irrevocable, perpetual, geographically unlimited, transferable and sub-licensable rights of use and exploitation with respect to all work results and products representing a special development for us or VW group companies or developed exclusively for us or VW group companies. VW group companies shall enjoy the same rights. You shall inform us of any and all innovations arising within your organization in connection with the performance of the contractual work, including without limitation inventions, suggestions for technical improvements, know-how, and any other individually identifiable intellectual property, and you shall furnish all documentation necessary to assess such innovations. 1.1 FEATURE DESCRIPTION 1.1.1 GENERAL OVERVIEW The components described in this document shall be the components to make up a brand new rear seat entertainment system for the Bentley 621 project. The systems will provide the user the following high level features: RSE High

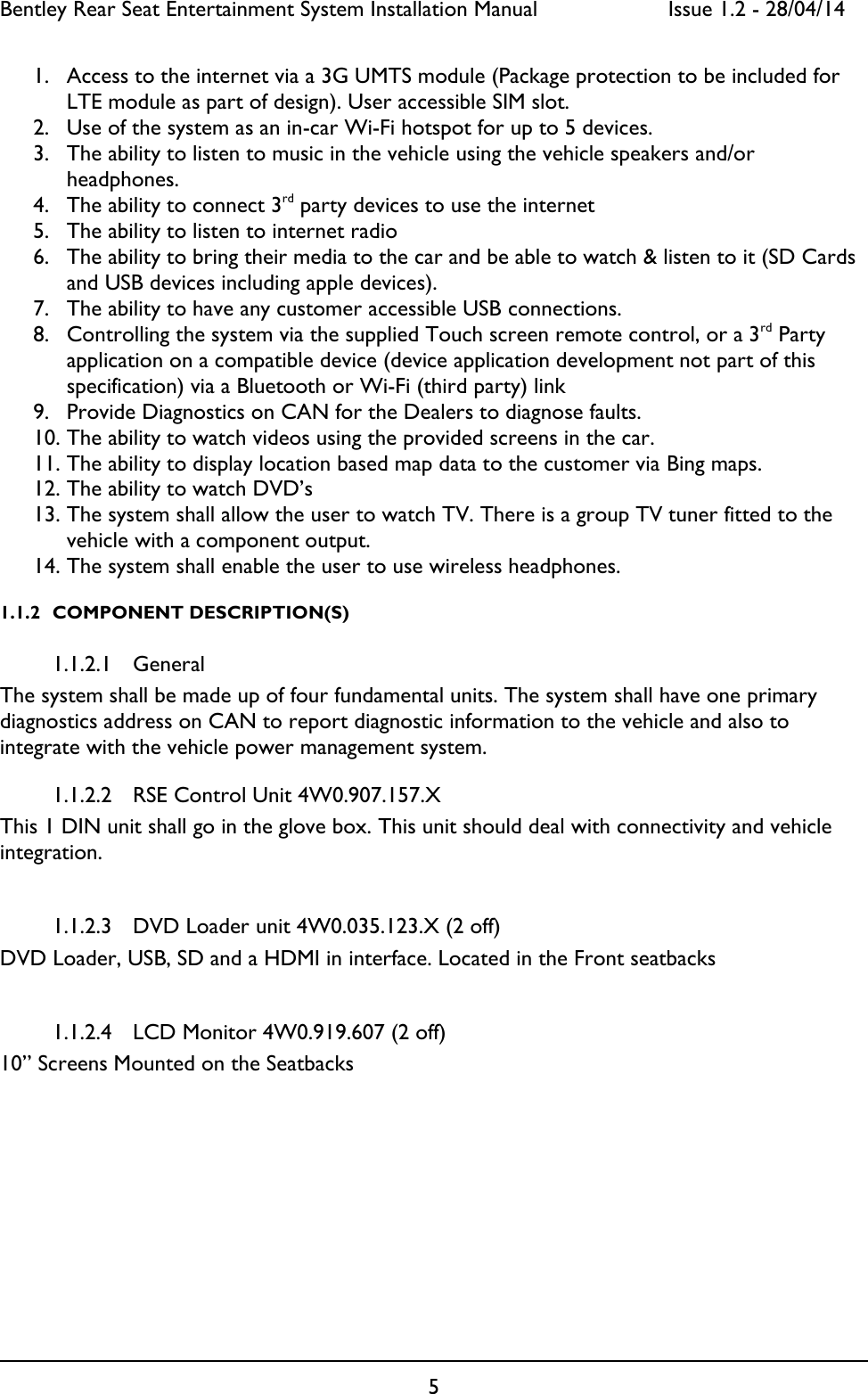

Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 5 1. Access to the internet via a 3G UMTS module (Package protection to be included for LTE module as part of design). User accessible SIM slot. 2. Use of the system as an in-car Wi-Fi hotspot for up to 5 devices. 3. The ability to listen to music in the vehicle using the vehicle speakers and/or headphones. 4. The ability to connect 3rd party devices to use the internet 5. The ability to listen to internet radio 6. The ability to bring their media to the car and be able to watch & listen to it (SD Cards and USB devices including apple devices). 7. The ability to have any customer accessible USB connections. 8. Controlling the system via the supplied Touch screen remote control, or a 3rd Party application on a compatible device (device application development not part of this specification) via a Bluetooth or Wi-Fi (third party) link 9. Provide Diagnostics on CAN for the Dealers to diagnose faults. 10. The ability to watch videos using the provided screens in the car. 11. The ability to display location based map data to the customer via Bing maps. 12. The ability to watch DVD’s 13. The system shall allow the user to watch TV. There is a group TV tuner fitted to the vehicle with a component output. 14. The system shall enable the user to use wireless headphones. 1.1.2 COMPONENT DESCRIPTION(S) 1.1.2.1 General The system shall be made up of four fundamental units. The system shall have one primary diagnostics address on CAN to report diagnostic information to the vehicle and also to integrate with the vehicle power management system. 1.1.2.2 RSE Control Unit 4W0.907.157.X This 1 DIN unit shall go in the glove box. This unit should deal with connectivity and vehicle integration. 1.1.2.3 DVD Loader unit 4W0.035.123.X (2 off) DVD Loader, USB, SD and a HDMI in interface. Located in the Front seatbacks 1.1.2.4 LCD Monitor 4W0.919.607 (2 off) 10” Screens Mounted on the Seatbacks

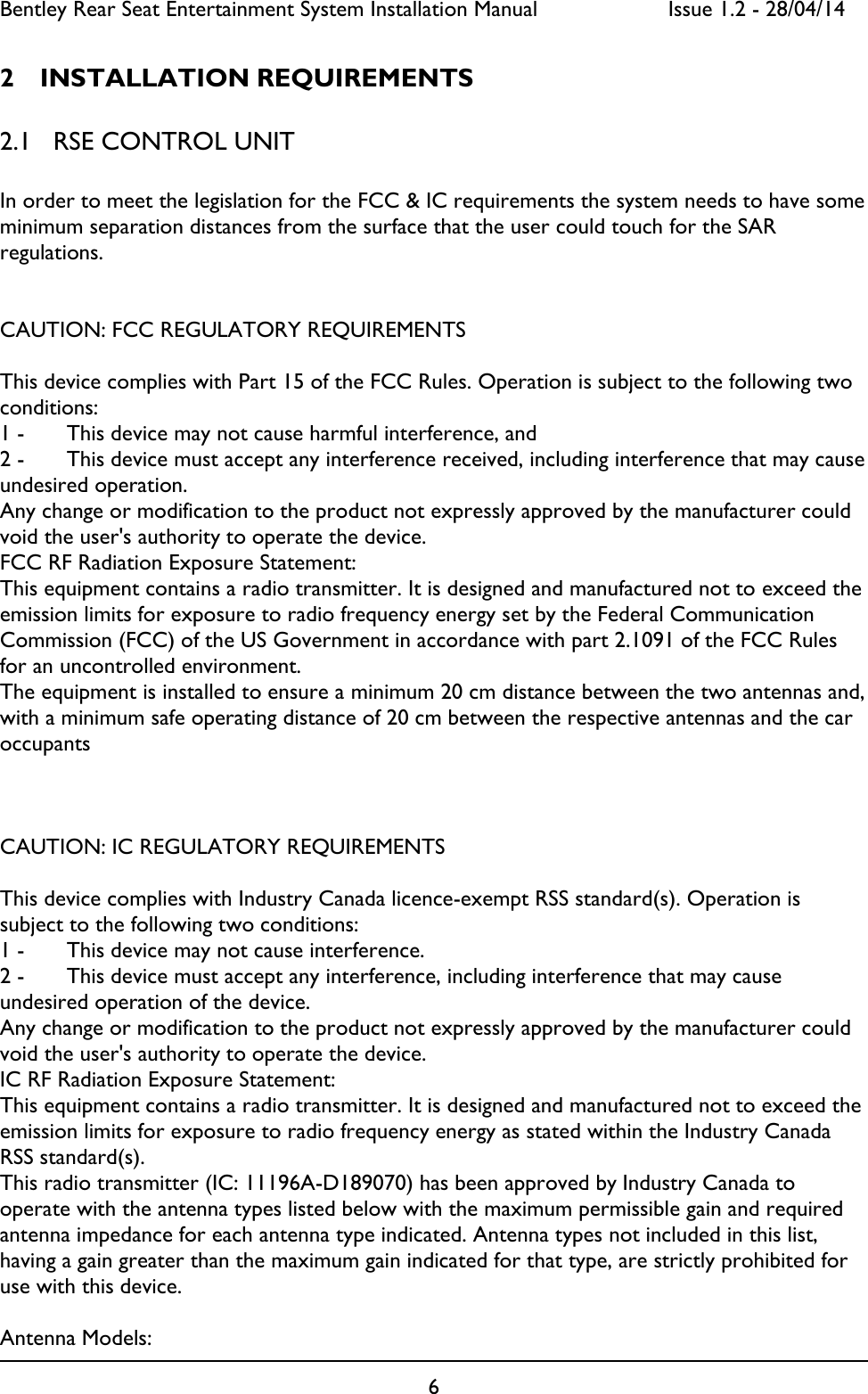

Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 6 2 INSTALLATION REQUIREMENTS 2.1 RSE CONTROL UNIT In order to meet the legislation for the FCC & IC requirements the system needs to have some minimum separation distances from the surface that the user could touch for the SAR regulations. CAUTION: FCC REGULATORY REQUIREMENTS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1 - This device may not cause harmful interference, and 2 - This device must accept any interference received, including interference that may cause undesired operation. Any change or modification to the product not expressly approved by the manufacturer could void the user's authority to operate the device. FCC RF Radiation Exposure Statement: This equipment contains a radio transmitter. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency energy set by the Federal Communication Commission (FCC) of the US Government in accordance with part 2.1091 of the FCC Rules for an uncontrolled environment. The equipment is installed to ensure a minimum 20 cm distance between the two antennas and, with a minimum safe operating distance of 20 cm between the respective antennas and the car occupants CAUTION: IC REGULATORY REQUIREMENTS This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: 1 - This device may not cause interference. 2 - This device must accept any interference, including interference that may cause undesired operation of the device. Any change or modification to the product not expressly approved by the manufacturer could void the user's authority to operate the device. IC RF Radiation Exposure Statement: This equipment contains a radio transmitter. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency energy as stated within the Industry Canada RSS standard(s). This radio transmitter (IC: 11196A-D189070) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Antenna Models:

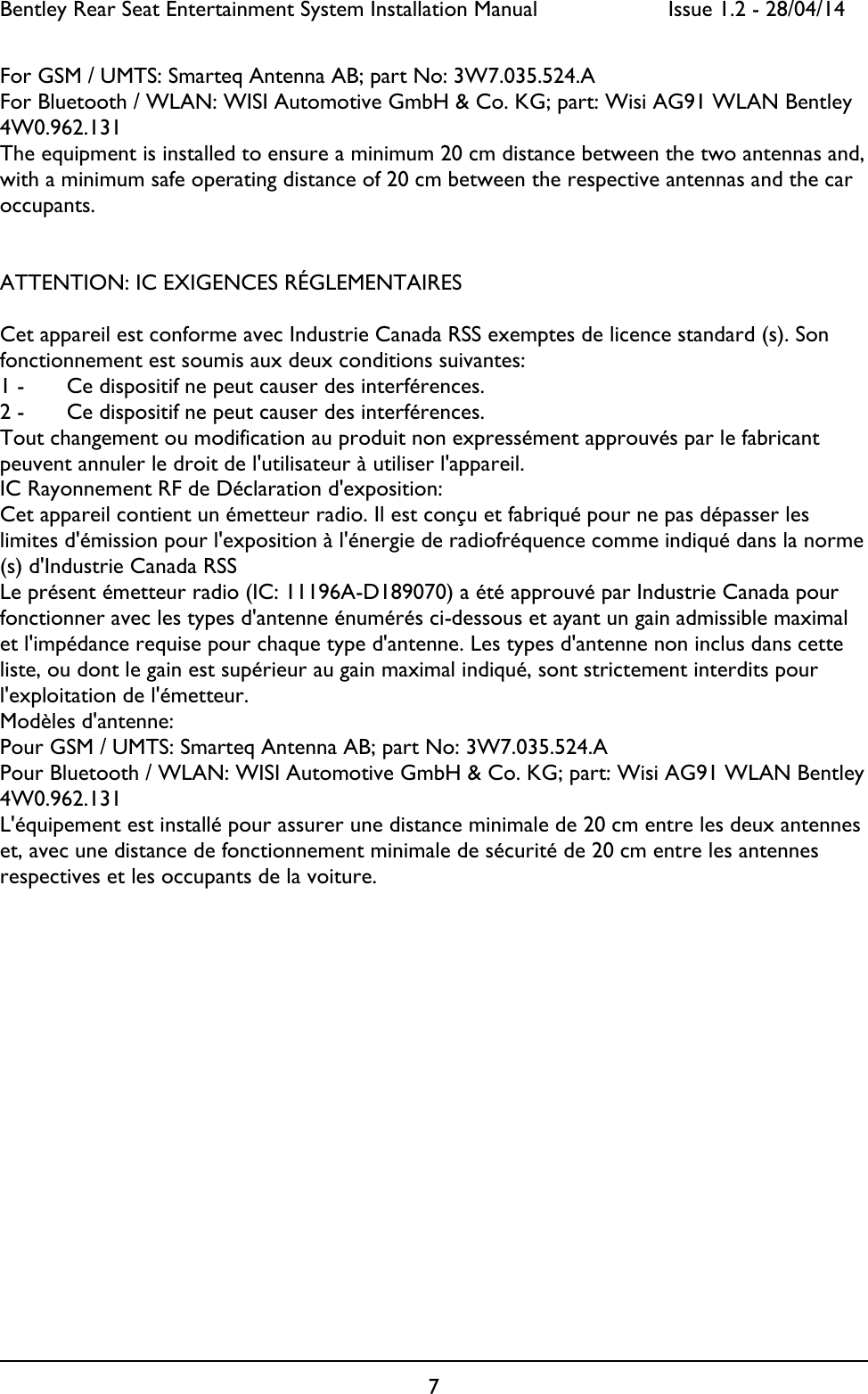

Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 7 For GSM / UMTS: Smarteq Antenna AB; part No: 3W7.035.524.A For Bluetooth / WLAN: WISI Automotive GmbH & Co. KG; part: Wisi AG91 WLAN Bentley 4W0.962.131 The equipment is installed to ensure a minimum 20 cm distance between the two antennas and, with a minimum safe operating distance of 20 cm between the respective antennas and the car occupants. ATTENTION: IC EXIGENCES RÉGLEMENTAIRES Cet appareil est conforme avec Industrie Canada RSS exemptes de licence standard (s). Son fonctionnement est soumis aux deux conditions suivantes: 1 - Ce dispositif ne peut causer des interférences. 2 - Ce dispositif ne peut causer des interférences. Tout changement ou modification au produit non expressément approuvés par le fabricant peuvent annuler le droit de l'utilisateur à utiliser l'appareil. IC Rayonnement RF de Déclaration d'exposition: Cet appareil contient un émetteur radio. Il est conçu et fabriqué pour ne pas dépasser les limites d'émission pour l'exposition à l'énergie de radiofréquence comme indiqué dans la norme (s) d'Industrie Canada RSS Le présent émetteur radio (IC: 11196A-D189070) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur. Modèles d'antenne: Pour GSM / UMTS: Smarteq Antenna AB; part No: 3W7.035.524.A Pour Bluetooth / WLAN: WISI Automotive GmbH & Co. KG; part: Wisi AG91 WLAN Bentley 4W0.962.131 L'équipement est installé pour assurer une distance minimale de 20 cm entre les deux antennes et, avec une distance de fonctionnement minimale de sécurité de 20 cm entre les antennes respectives et les occupants de la voiture.

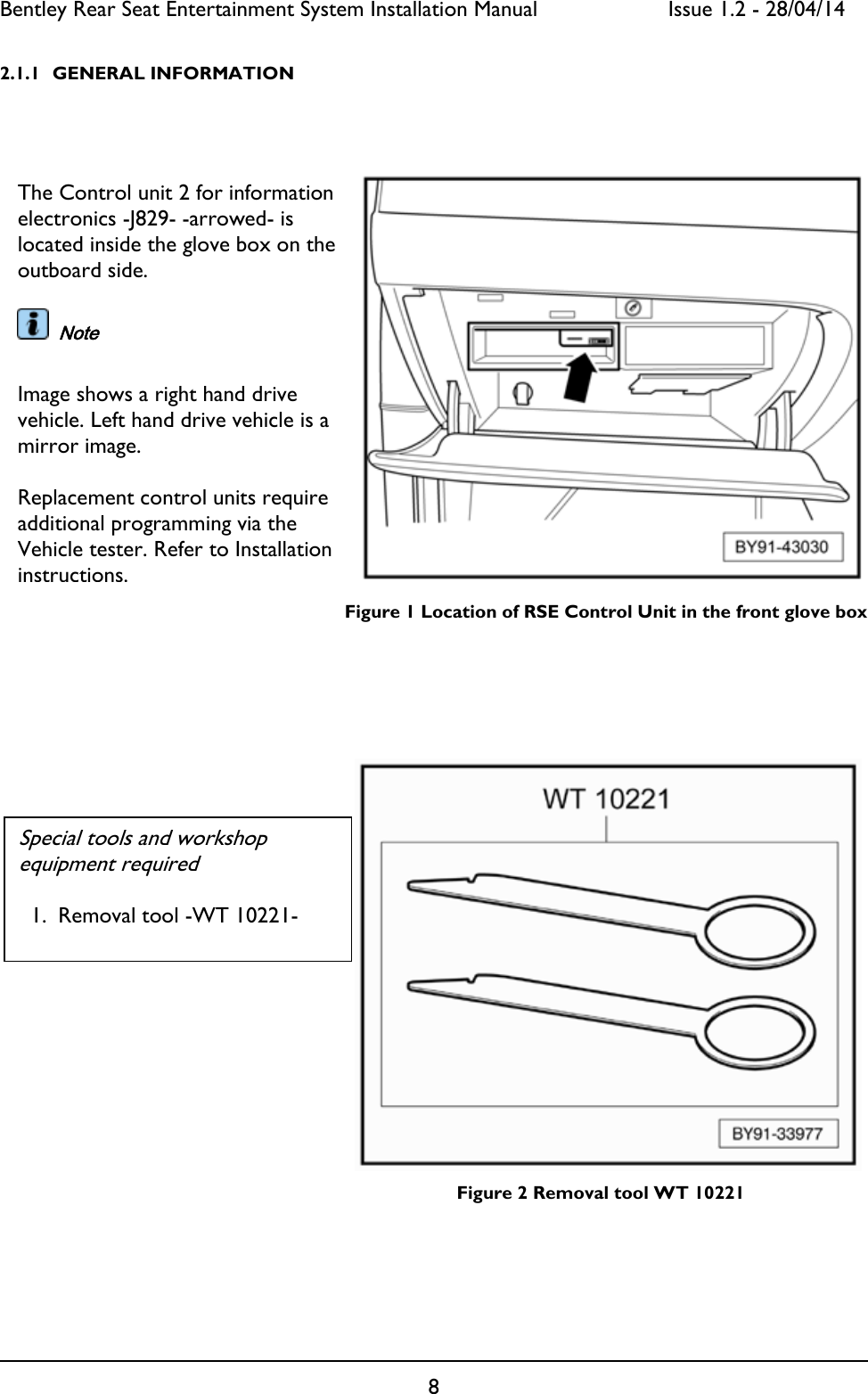

Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 8 2.1.1 GENERAL INFORMATION Figure 1 Location of RSE Control Unit in the front glove box Figure 2 Removal tool WT 10221 The Control unit 2 for information electronics -J829- -arrowed- is located inside the glove box on the outboard side. Note Image shows a right hand drive vehicle. Left hand drive vehicle is a mirror image. Replacement control units require additional programming via the Vehicle tester. Refer to Installation instructions. Special tools and workshop equipment required 1. Removal tool -WT 10221-

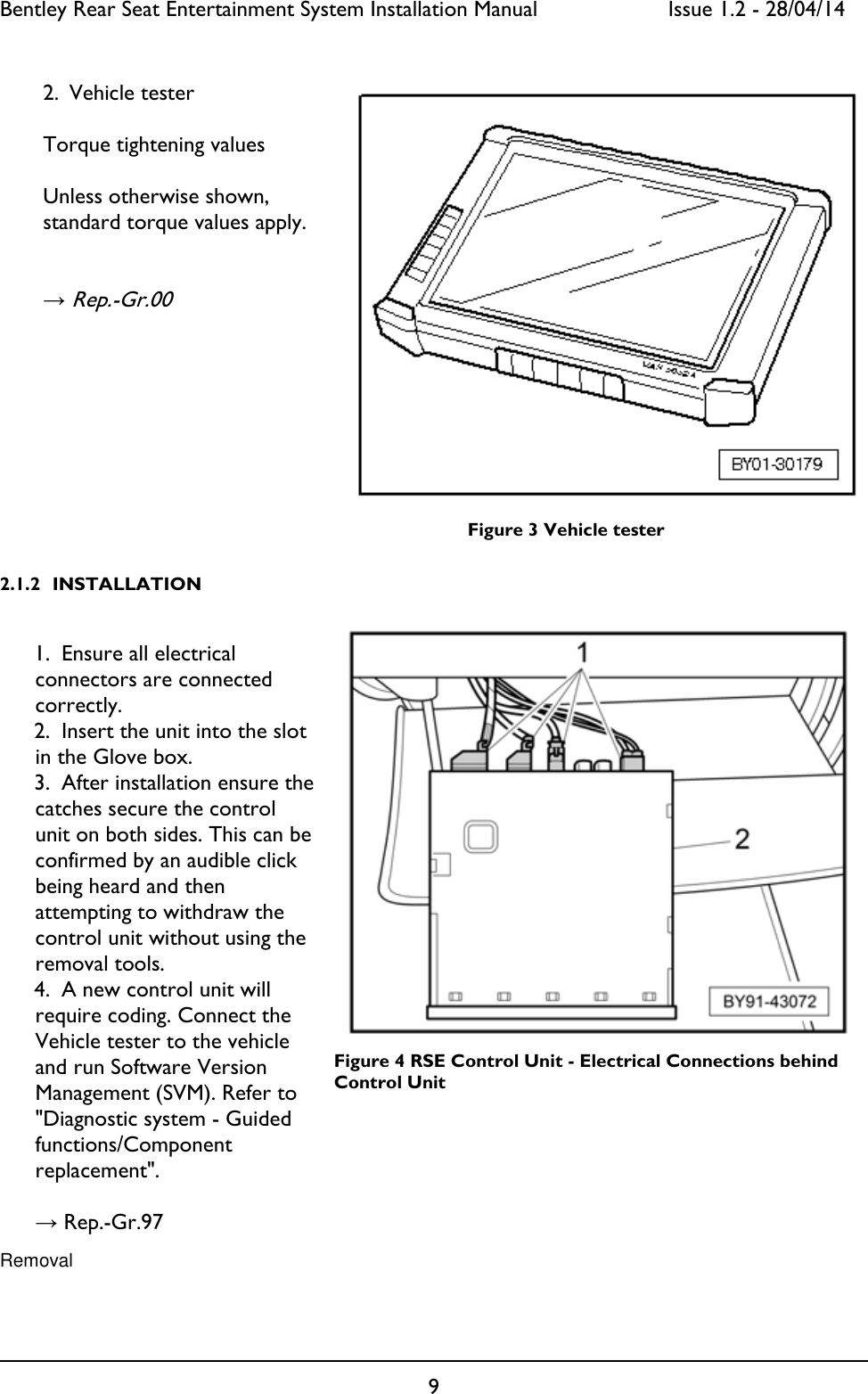

Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 9 Figure 3 Vehicle tester 2.1.2 INSTALLATION Figure 4 RSE Control Unit - Electrical Connections behind RSE Control Unit Removal 2. Vehicle tester Torque tightening values Unless otherwise shown, standard torque values apply. → Rep.-Gr.00 1. Ensure all electrical connectors are connected correctly. 2. Insert the unit into the slot in the Glove box. 3. After installation ensure the catches secure the control unit on both sides. This can be confirmed by an audible click being heard and then attempting to withdraw the control unit without using the removal tools. 4. A new control unit will require coding. Connect the Vehicle tester to the vehicle and run Software Version Management (SVM). Refer to "Diagnostic system - Guided functions/Component replacement". → Rep.-Gr.97

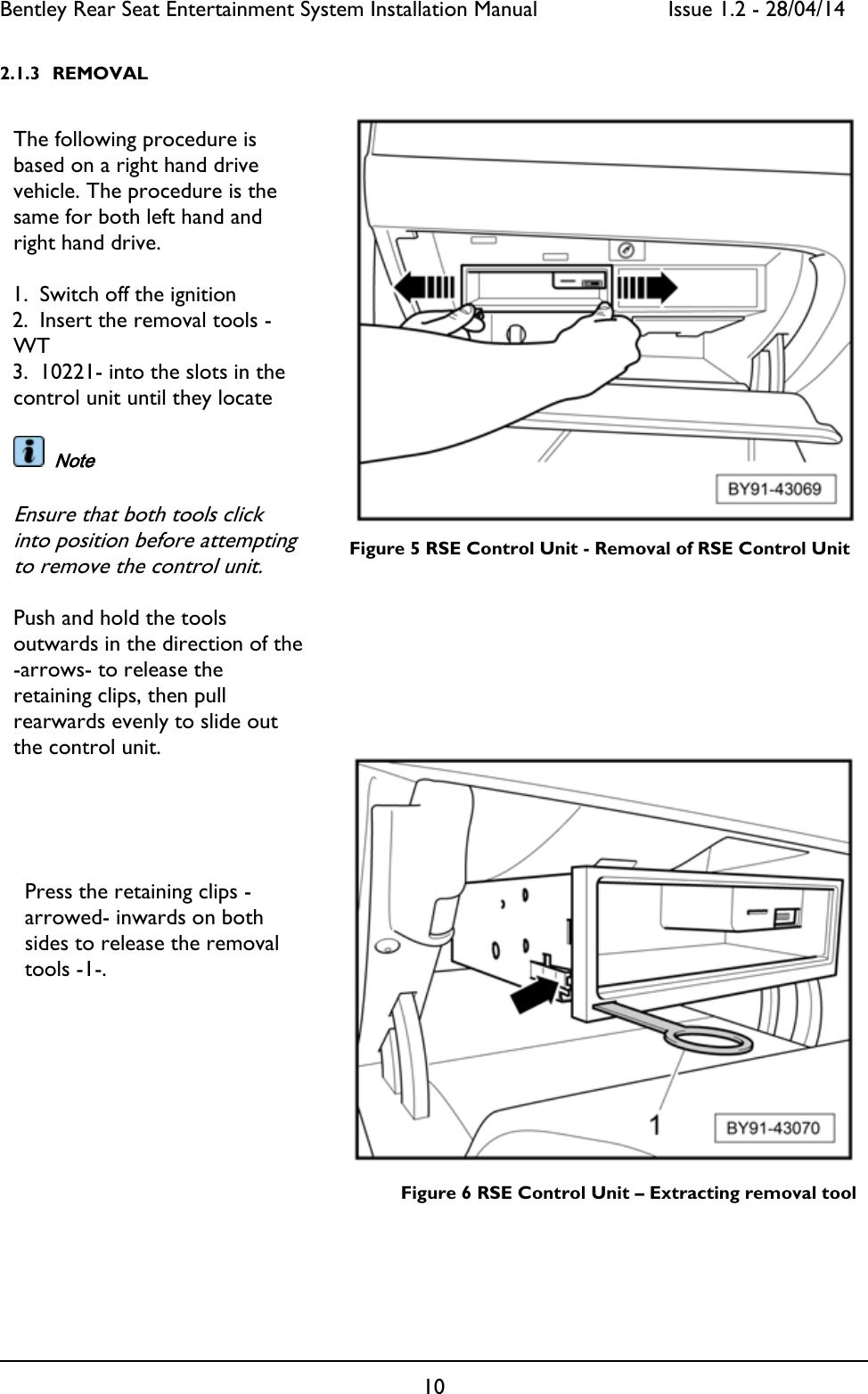

Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 10 2.1.3 REMOVAL Figure 5 RSE Control Unit - Removal of RSE Control Unit Figure 6 RSE Control Unit – Extracting removal tool The following procedure is based on a right hand drive vehicle. The procedure is the same for both left hand and right hand drive. 1. Switch off the ignition 2. Insert the removal tools -WT 3. 10221- into the slots in the control unit until they locate Note Ensure that both tools click into position before attempting to remove the control unit. Push and hold the tools outwards in the direction of the -arrows- to release the retaining clips, then pull rearwards evenly to slide out the control unit. Press the retaining clips -arrowed- inwards on both sides to release the removal tools -1-.

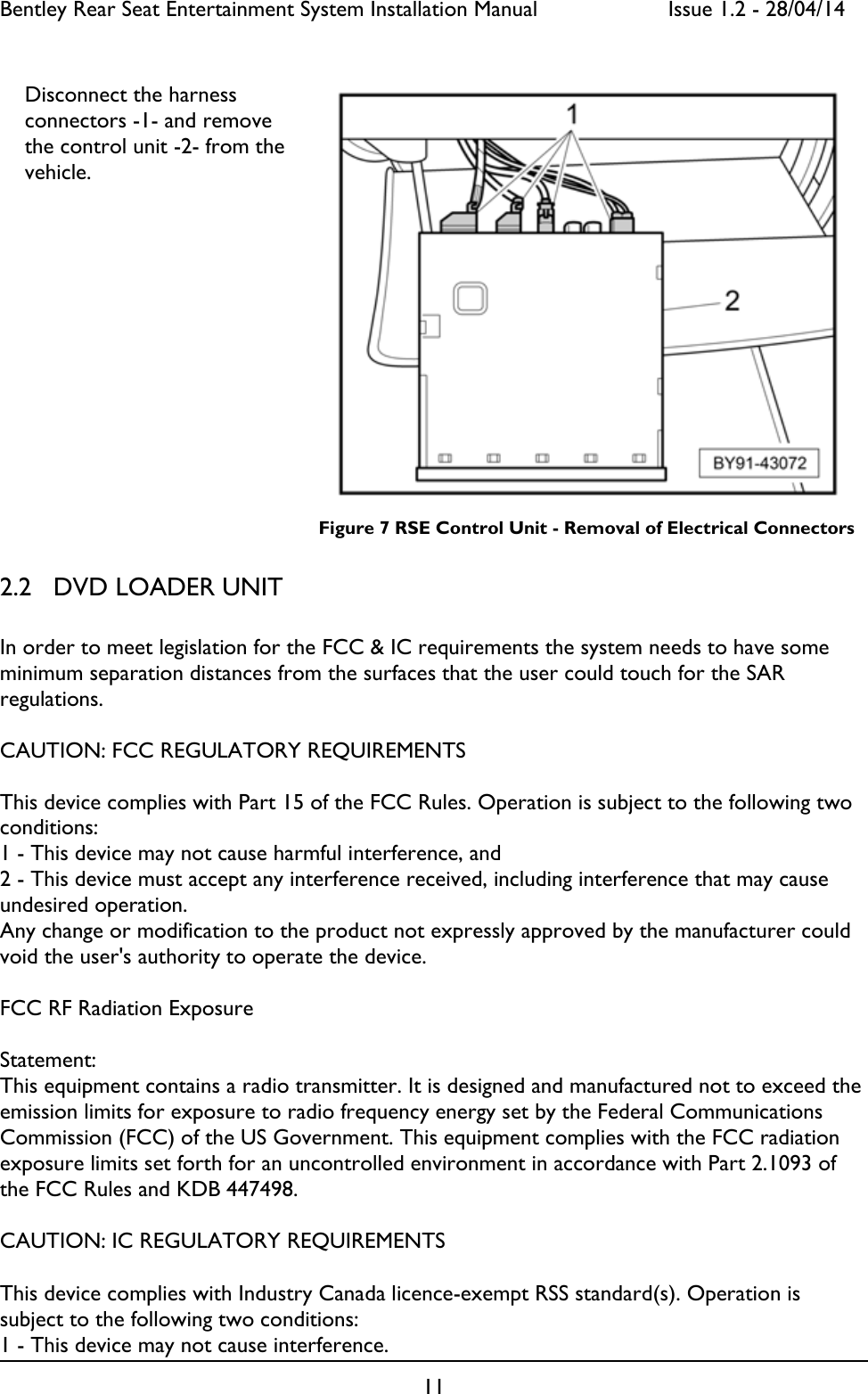

Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 11 Figure 7 RSE Control Unit - Removal of Electrical Connectors 2.2 DVD LOADER UNIT In order to meet legislation for the FCC & IC requirements the system needs to have some minimum separation distances from the surfaces that the user could touch for the SAR regulations. CAUTION: FCC REGULATORY REQUIREMENTS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1 - This device may not cause harmful interference, and 2 - This device must accept any interference received, including interference that may cause undesired operation. Any change or modification to the product not expressly approved by the manufacturer could void the user's authority to operate the device. FCC RF Radiation Exposure Statement: This equipment contains a radio transmitter. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency energy set by the Federal Communications Commission (FCC) of the US Government. This equipment complies with the FCC radiation exposure limits set forth for an uncontrolled environment in accordance with Part 2.1093 of the FCC Rules and KDB 447498. CAUTION: IC REGULATORY REQUIREMENTS This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: 1 - This device may not cause interference. Disconnect the harness connectors -1- and remove the control unit -2- from the vehicle.

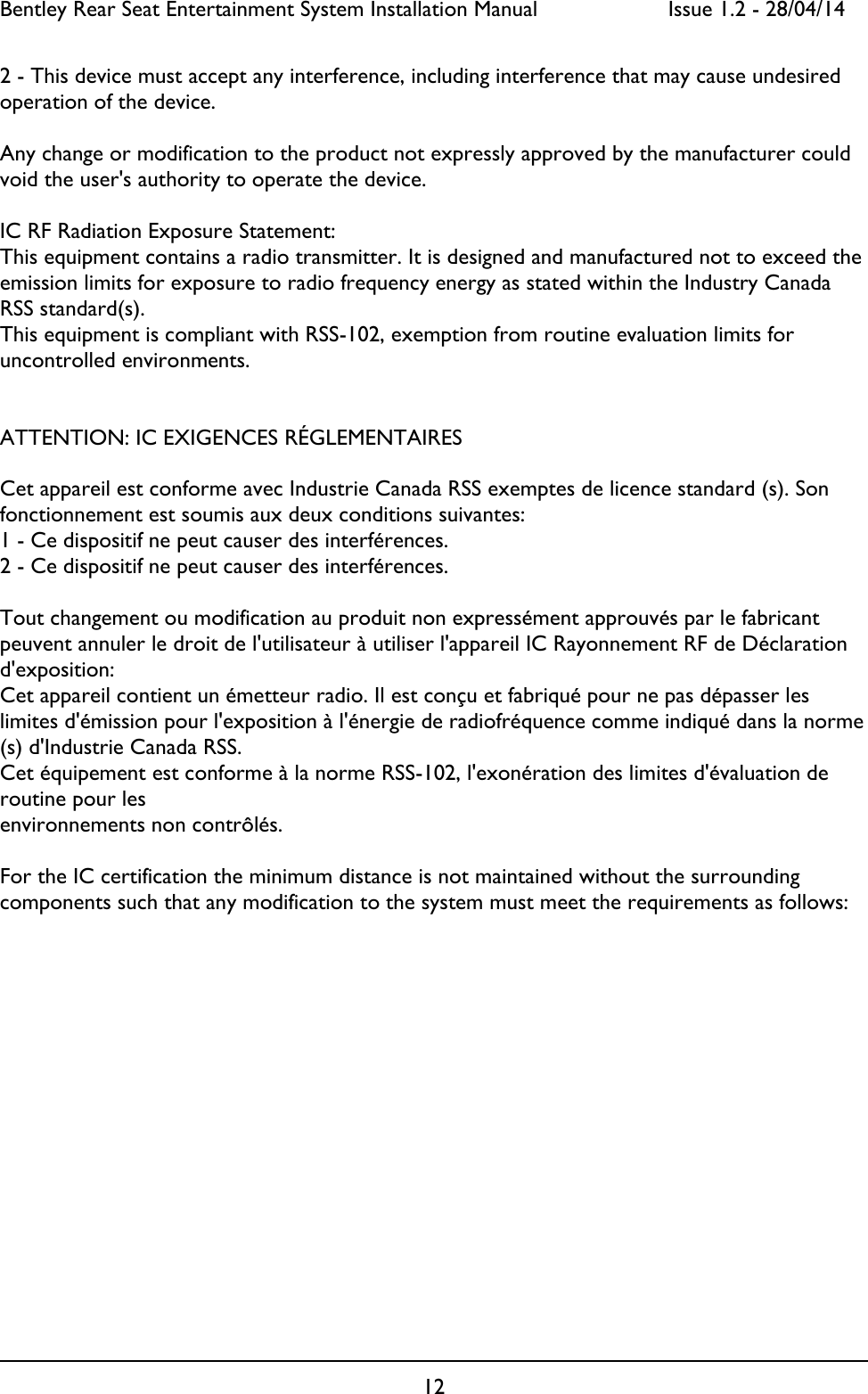

Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 12 2 - This device must accept any interference, including interference that may cause undesired operation of the device. Any change or modification to the product not expressly approved by the manufacturer could void the user's authority to operate the device. IC RF Radiation Exposure Statement: This equipment contains a radio transmitter. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency energy as stated within the Industry Canada RSS standard(s). This equipment is compliant with RSS-102, exemption from routine evaluation limits for uncontrolled environments. ATTENTION: IC EXIGENCES RÉGLEMENTAIRES Cet appareil est conforme avec Industrie Canada RSS exemptes de licence standard (s). Son fonctionnement est soumis aux deux conditions suivantes: 1 - Ce dispositif ne peut causer des interférences. 2 - Ce dispositif ne peut causer des interférences. Tout changement ou modification au produit non expressément approuvés par le fabricant peuvent annuler le droit de l'utilisateur à utiliser l'appareil IC Rayonnement RF de Déclaration d'exposition: Cet appareil contient un émetteur radio. Il est conçu et fabriqué pour ne pas dépasser les limites d'émission pour l'exposition à l'énergie de radiofréquence comme indiqué dans la norme (s) d'Industrie Canada RSS. Cet équipement est conforme à la norme RSS-102, l'exonération des limites d'évaluation de routine pour les environnements non contrôlés. For the IC certification the minimum distance is not maintained without the surrounding components such that any modification to the system must meet the requirements as follows:

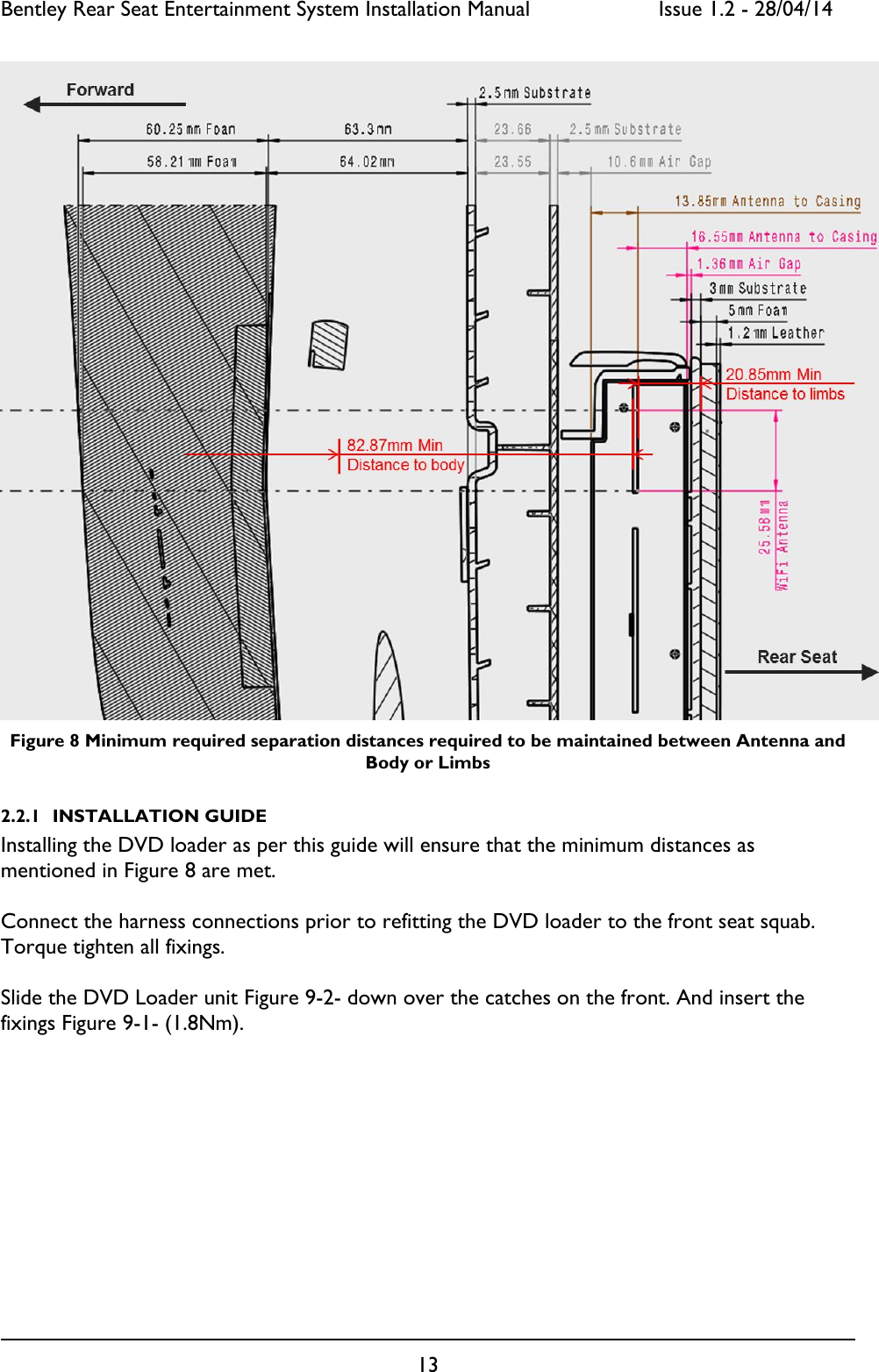

Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 13 Figure 8 Minimum required separation distances required to be maintained between Antenna and Body or Limbs 2.2.1 INSTALLATION GUIDE Installing the DVD loader as per this guide will ensure that the minimum distances as mentioned in Figure 8 are met. Connect the harness connections prior to refitting the DVD loader to the front seat squab. Torque tighten all fixings. Slide the DVD Loader unit Figure 9-2- down over the catches on the front. And insert the fixings Figure 9-1- (1.8Nm).

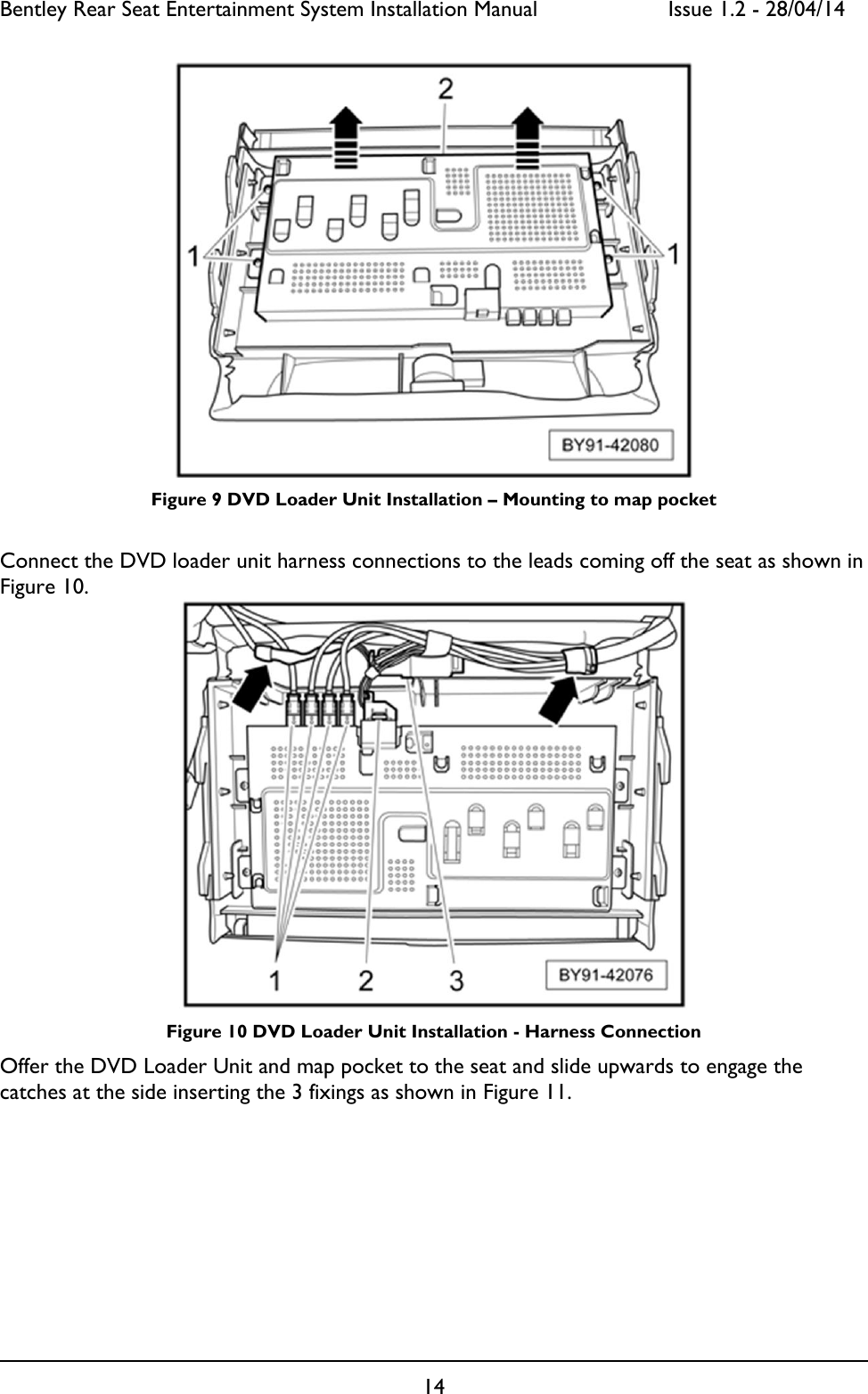

Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 14 Figure 9 DVD Loader Unit Installation – Mounting to map pocket Connect the DVD loader unit harness connections to the leads coming off the seat as shown in Figure 10. Figure 10 DVD Loader Unit Installation - Harness Connection Offer the DVD Loader Unit and map pocket to the seat and slide upwards to engage the catches at the side inserting the 3 fixings as shown in Figure 11.

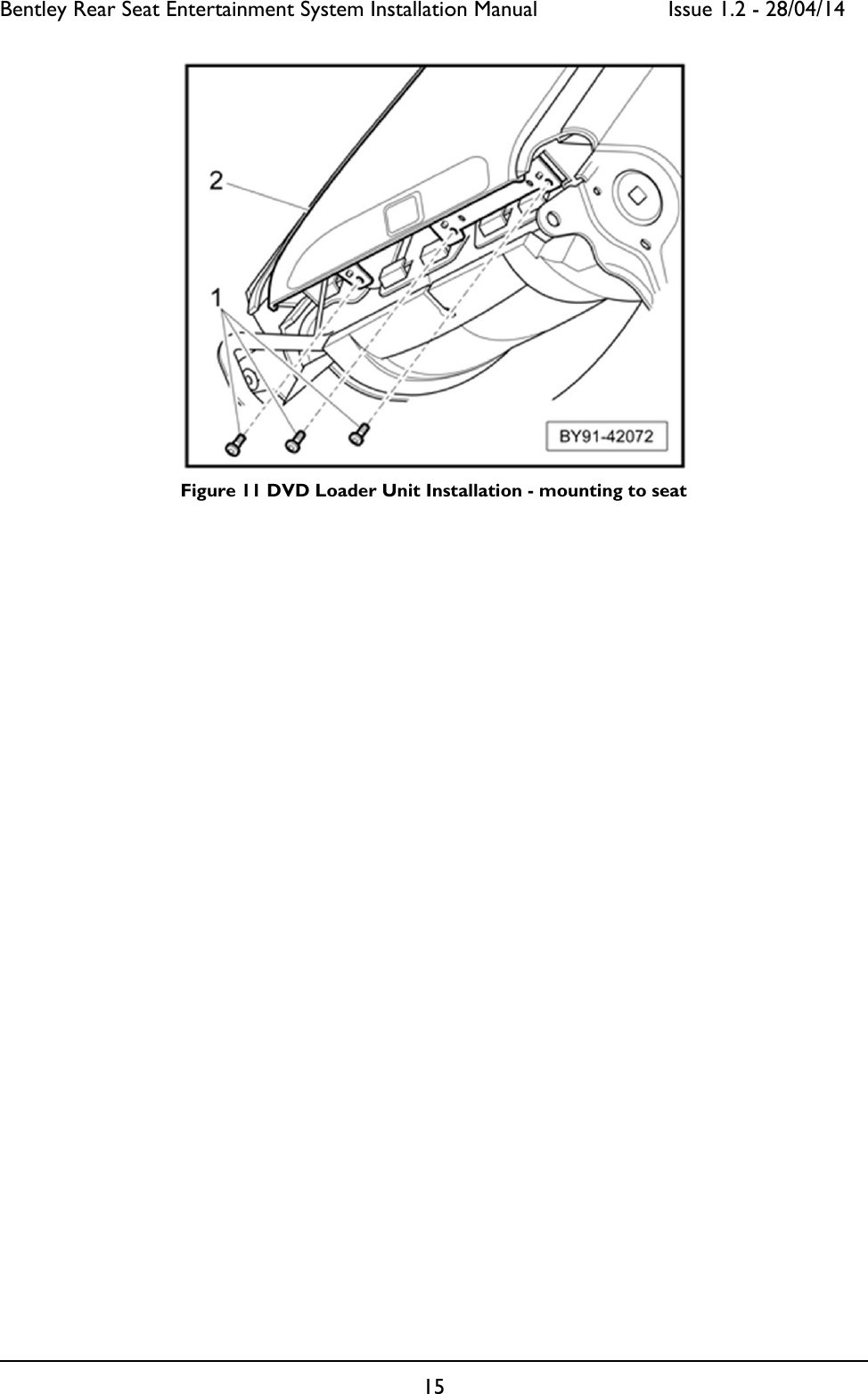

Bentley Rear Seat Entertainment System Installation Manual Issue 1.2 - 28/04/14 15 Figure 11 DVD Loader Unit Installation - mounting to seat
