Important: This manual contains important safety and operating information. Please read, understand, andfollow  the instructions in this manual.  Failure to do so could result in personal injury, death, and/or damageto your Xpress accessories, and/or to your vehicle or property vehicle guideXMC-10A

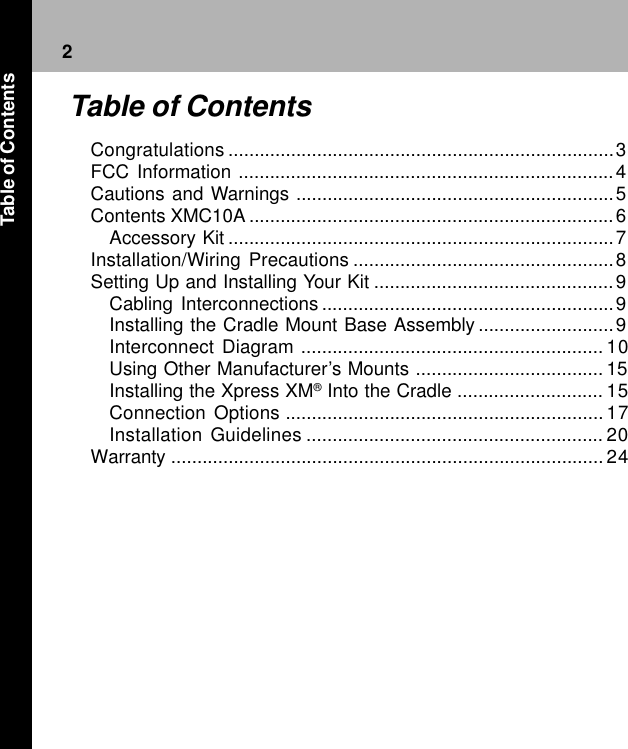

2Congratulations ..........................................................................3FCC Information ........................................................................4Cautions and Warnings .............................................................5Contents XMC10A ......................................................................6Accessory Kit ..........................................................................7Installation/Wiring Precautions ..................................................8Setting Up and Installing Your Kit ..............................................9Cabling Interconnections ........................................................9Installing the Cradle Mount Base Assembly ..........................9Interconnect Diagram .......................................................... 10Using Other Manufacturer’s Mounts .................................... 15Installing the Xpress XM® Into the Cradle ............................ 15Connection Options ............................................................. 17Installation Guidelines ......................................................... 20Warranty ................................................................................... 24Table of ContentsTable of Contents

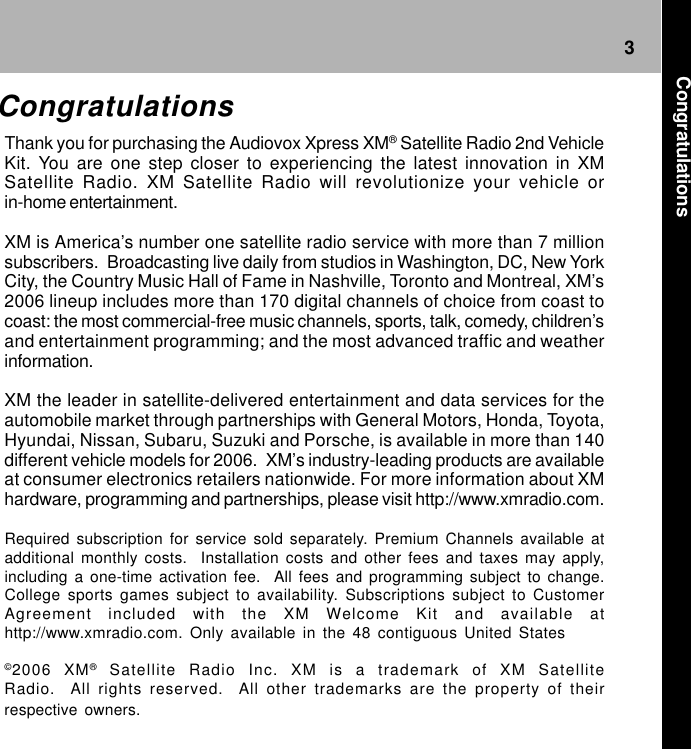

3CongratulationsCongratulationsThank you for purchasing the Audiovox Xpress XM® Satellite Radio 2nd VehicleKit. You are one step closer to experiencing the latest innovation in XMSatellite Radio. XM Satellite Radio will revolutionize your vehicle orin-home entertainment.XM is America’s number one satellite radio service with more than 7 millionsubscribers.  Broadcasting live daily from studios in Washington, DC, New YorkCity, the Country Music Hall of Fame in Nashville, Toronto and Montreal, XM’s2006 lineup includes more than 170 digital channels of choice from coast tocoast: the most commercial-free music channels, sports, talk, comedy, children’sand entertainment programming; and the most advanced traffic and weatherinformation.XM the leader in satellite-delivered entertainment and data services for theautomobile market through partnerships with General Motors, Honda, Toyota,Hyundai, Nissan, Subaru, Suzuki and Porsche, is available in more than 140different vehicle models for 2006.  XM’s industry-leading products are availableat consumer electronics retailers nationwide. For more information about XMhardware, programming and partnerships, please visit http://www.xmradio.com.Required subscription for service sold separately. Premium Channels available atadditional monthly costs.  Installation costs and other fees and taxes may apply,including a one-time activation fee.  All fees and programming subject to change.College sports games subject to availability. Subscriptions subject to CustomerAgreement included with the XM Welcome Kit and available athttp://www.xmradio.com. Only available in the 48 contiguous United States©2006 XM® Satellite Radio Inc. XM is a trademark of XM SatelliteRadio.  All rights reserved.  All other trademarks are the property of theirrespective owners.
4FCC InformationPlease note that the power cable that has been supplied with your device is suppliedwith permanently attached ferrite beads at each end. It is the responsibility of the user touse the cable with the ferrite beads. The user is cautioned that changes or modifications not expressly approved by XM®Satellite Radio Inc. can void the user’s authority to operate this device. This device complies with Part 15 of the FCC Rules. Operation is subject to the followingtwo conditions:   (1) This device may not cause harmful interference, and (2) this devicemust accept any interference received, including interference that may cause undesiredoperation. This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to Part 15 of the FCC Rules. These limits are designed to providereasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if notinstalled and used in accordance with the installation instructions, may cause harmfulinterference to radio communications. However, there is no guarantee that interferencewill not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning theequipment off and on, the user is encouraged to try to correct the interference by one ormore of the following measures: - Reorient or relocate the antenna of the affected receiver. - Increase the separation between the XM equipment and the affected receiver. - Connect the XM equipment into an outlet on a circuit different from that to which   the affected receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Warning: The FCC and FAA have not certified XM Satellite Radio Receivers for use inany aircraft (neither portable nor permanent installation). Therefore, XM SatelliteRadio, Inc. cannot support this type of application or installation.FCC Information

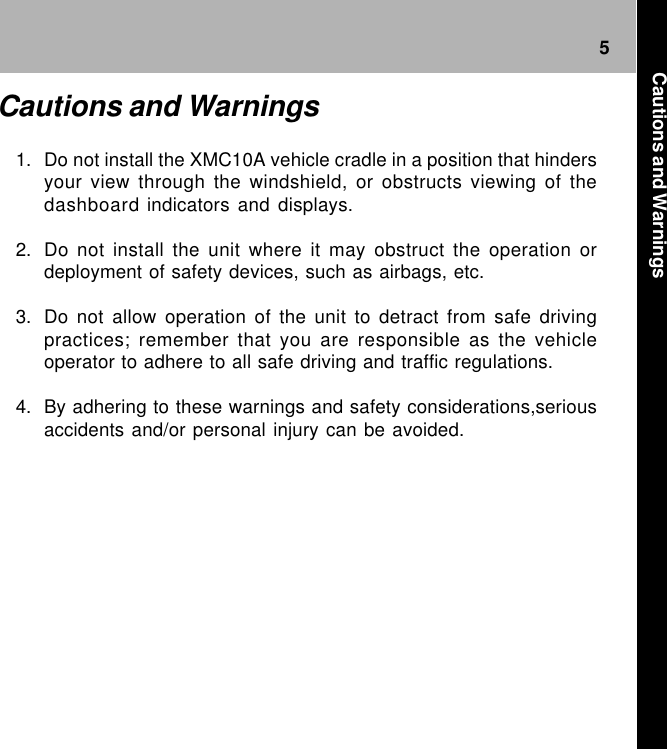

5Cautions and Warnings1. Do not install the XMC10A vehicle cradle in a position that hindersyour view through the windshield, or obstructs viewing of thedashboard indicators and displays.2. Do not install the unit where it may obstruct the operation ordeployment of safety devices, such as airbags, etc.3. Do not allow operation of the unit to detract from safe drivingpractices; remember that you are responsible as the vehicleoperator to adhere to all safe driving and traffic regulations.4. By adhering to these warnings and safety considerations,seriousaccidents and/or personal injury can be avoided.Cautions and Warnings

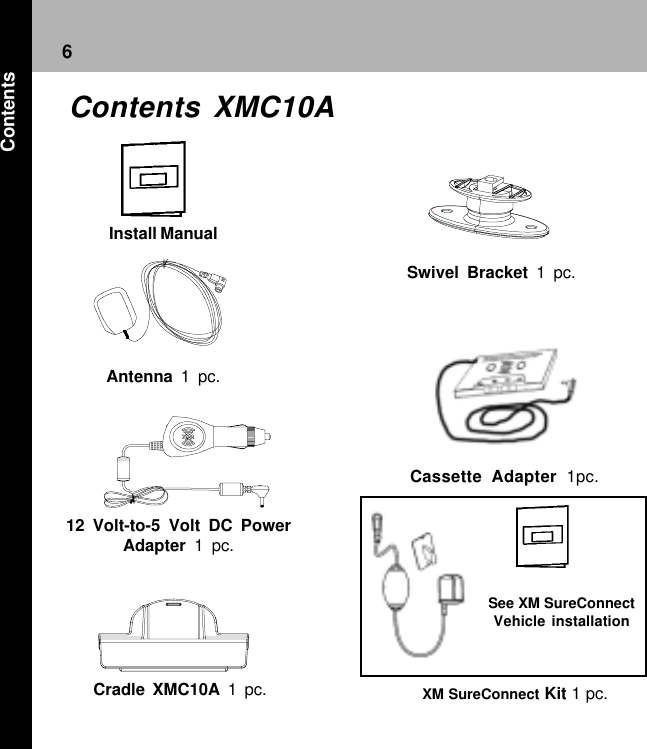

6Swivel Bracket 1 pc.12 Volt-to-5 Volt DC PowerAdapter  1 pc.Install ManualAntenna 1 pc.Cradle XMC10A 1 pc. XM SureConnect Kit 1 pc.Cassette Adapter 1pc.See XM SureConnectVehicle installationContents XMC10AContents

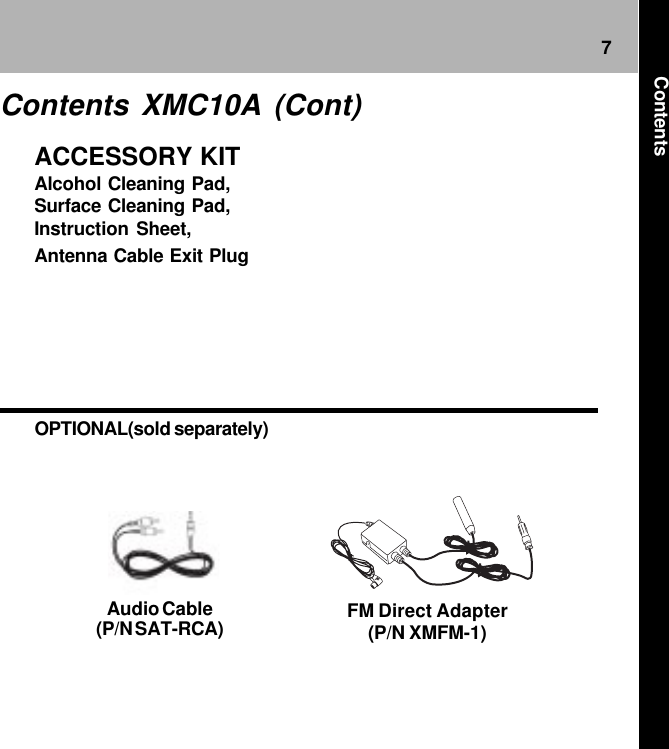

7OPTIONAL(sold separately)FM Direct Adapter(P/N XMFM-1)ACCESSORY KITAlcohol Cleaning Pad,Surface Cleaning Pad,Instruction Sheet,Antenna Cable Exit PlugAudio Cable(P/N SAT-RCA)Contents XMC10A (Cont)Contents

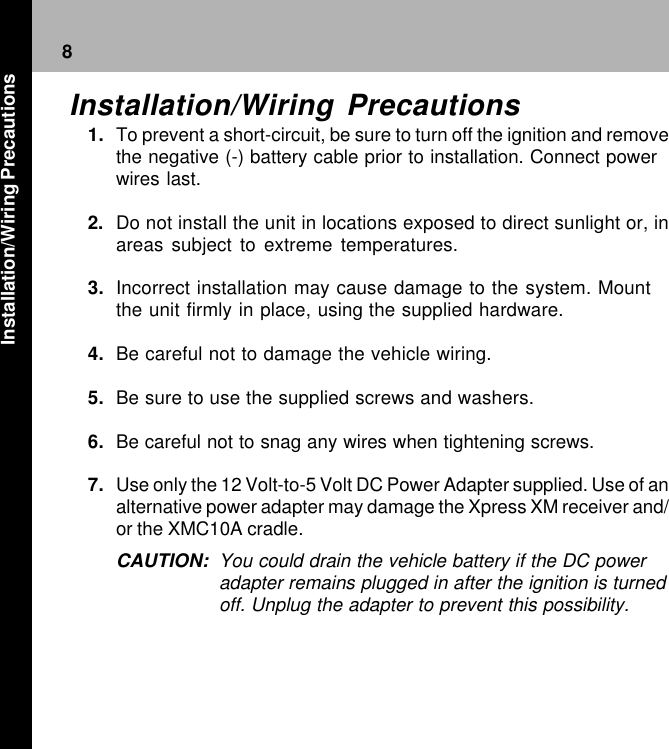

8Installation/Wiring Precautions1. To prevent a short-circuit, be sure to turn off the ignition and removethe negative (-) battery cable prior to installation. Connect powerwires last.2. Do not install the unit in locations exposed to direct sunlight or, inareas subject to extreme temperatures.3. Incorrect installation may cause damage to the system. Mountthe unit firmly in place, using the supplied hardware.4. Be careful not to damage the vehicle wiring.5. Be sure to use the supplied screws and washers.6. Be careful not to snag any wires when tightening screws.7. Use only the 12 Volt-to-5 Volt DC Power Adapter supplied. Use of analternative power adapter may damage the Xpress XM receiver and/or the XMC10A cradle.CAUTION: You could drain the vehicle battery if the DC poweradapter remains plugged in after the ignition is turnedoff. Unplug the adapter to prevent this possibility.Installation/Wiring Precautions

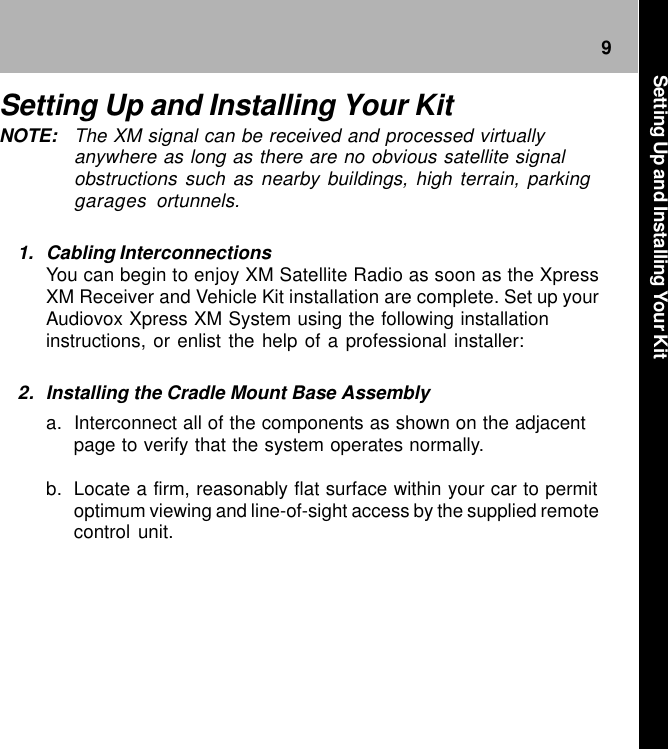

9Setting Up and Installing Your KitNOTE: The XM signal can be received and processed virtuallyanywhere as long as there are no obvious satellite signalobstructions such as nearby buildings, high terrain, parkinggarages ortunnels.1. Cabling InterconnectionsYou can begin to enjoy XM Satellite Radio as soon as the XpressXM Receiver and Vehicle Kit installation are complete. Set up yourAudiovox Xpress XM System using the following installationinstructions, or enlist the help of a professional installer:2. Installing the Cradle Mount Base Assemblya. Interconnect all of the components as shown on the adjacentpage to verify that the system operates normally.b. Locate a firm, reasonably flat surface within your car to permitoptimum viewing and line-of-sight access by the supplied remotecontrol unit.Setting Up and Installing Your Kit

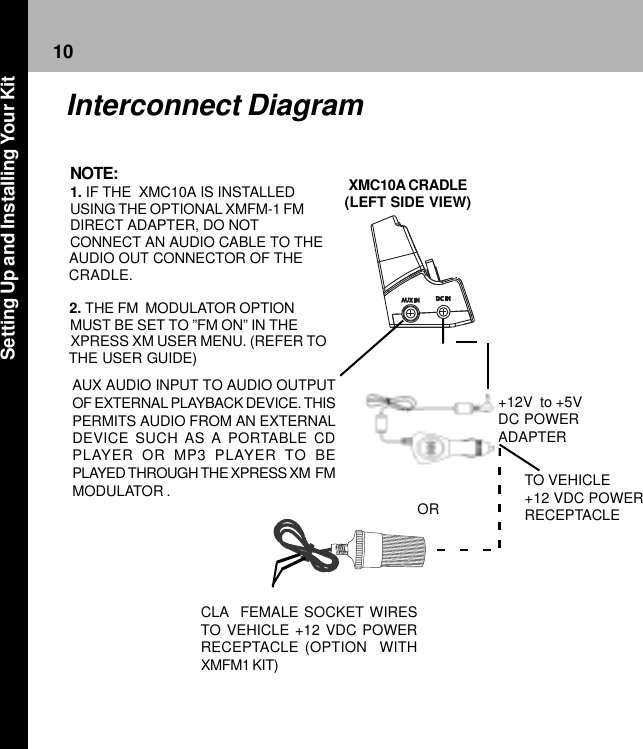

10Interconnect DiagramAUX AUDIO INPUT TO AUDIO OUTPUTOF EXTERNAL PLAYBACK DEVICE. THISPERMITS AUDIO FROM AN EXTERNALDEVICE SUCH AS A PORTABLE CDPLAYER OR MP3 PLAYER TO BEPLAYED THROUGH THE XPRESS XM  FMMODULATOR .NOTE:1. IF THE  XMC10A IS INSTALLEDUSING THE OPTIONAL XMFM-1 FMDIRECT ADAPTER, DO NOTCONNECT AN AUDIO CABLE TO THE    AUDIO OUT CONNECTOR OF THE    CRADLE.       2. THE FM  MODULATOR OPTION     MUST BE SET TO ”FM ON” IN THE     XPRESS XM USER MENU. (REFER TO     THE USER GUIDE)CLA  FEMALE SOCKET WIRESTO VEHICLE +12 VDC POWERRECEPTACLE (OPTION  WITHXMFM1 KIT)+12V  to +5VDC POWERADAPTERTO VEHICLE+12 VDC POWERRECEPTACLEORXMC10A CRADLE(LEFT SIDE VIEW)Setting Up and Installing Your Kit

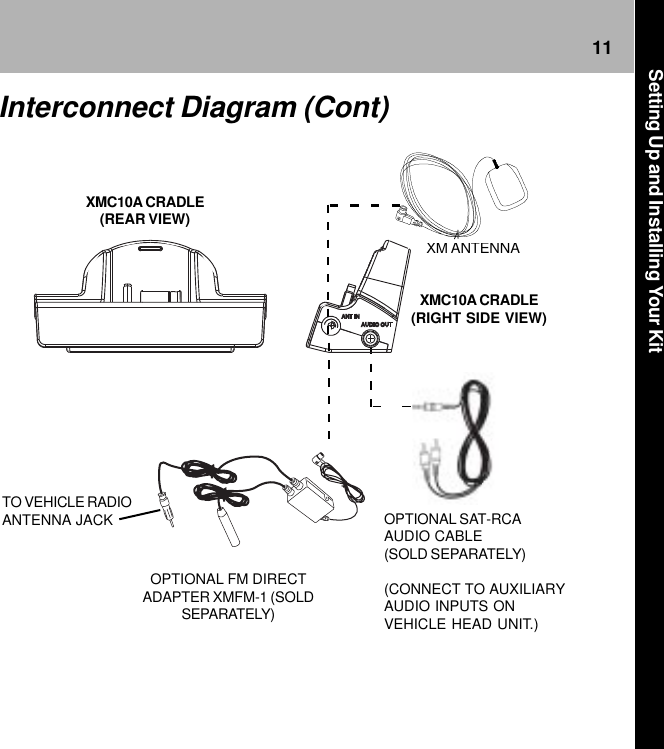

11XMC10A CRADLE(REAR VIEW)XM ANTENNAOPTIONAL SAT-RCAAUDIO CABLE(SOLD SEPARATELY)(CONNECT TO AUXILIARYAUDIO INPUTS ONVEHICLE HEAD UNIT.)OPTIONAL FM DIRECTADAPTER XMFM-1 (SOLDSEPARATELY)TO VEHICLE RADIOANTENNA JACKXMC10A CRADLE(RIGHT SIDE VIEW)Interconnect Diagram (Cont)Setting Up and Installing Your Kit

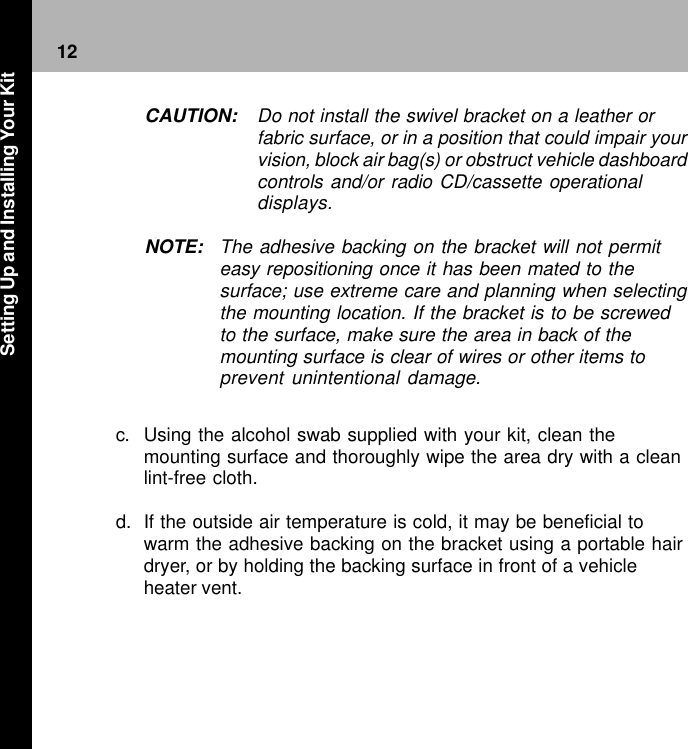

12c. Using the alcohol swab supplied with your kit, clean themounting surface and thoroughly wipe the area dry with a cleanlint-free cloth.d. If the outside air temperature is cold, it may be beneficial towarm the adhesive backing on the bracket using a portable hairdryer, or by holding the backing surface in front of a vehicleheater vent.CAUTION: Do not install the swivel bracket on a leather orfabric surface, or in a position that could impair yourvision, block air bag(s) or obstruct vehicle dashboardcontrols and/or radio CD/cassette operationaldisplays.NOTE: The adhesive backing on the bracket will not permiteasy repositioning once it has been mated to thesurface; use extreme care and planning when selectingthe mounting location. If the bracket is to be screwedto the surface, make sure the area in back of themounting surface is clear of wires or other items toprevent unintentional damage.Setting Up and Installing Your Kit

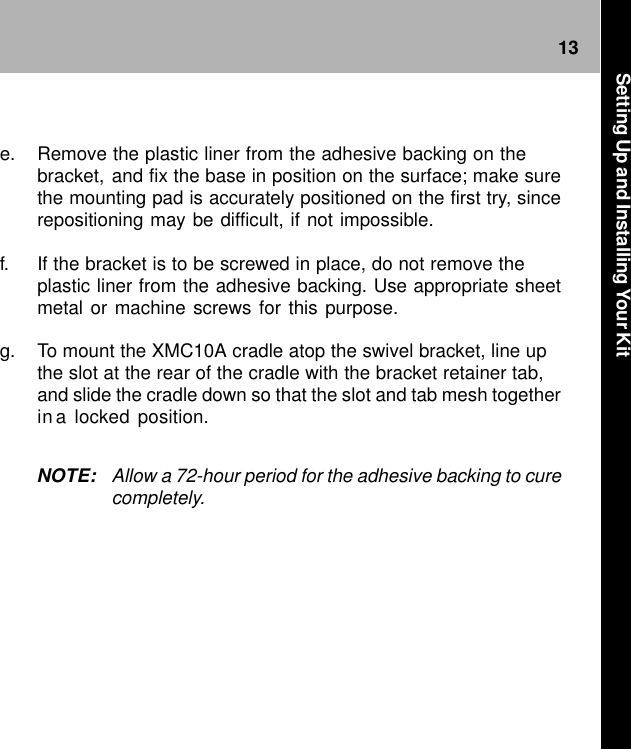

13NOTE: Allow a 72-hour period for the adhesive backing to curecompletely.e. Remove the plastic liner from the adhesive backing on thebracket, and fix the base in position on the surface; make surethe mounting pad is accurately positioned on the first try, sincerepositioning may be difficult, if not impossible.f. If the bracket is to be screwed in place, do not remove theplastic liner from the adhesive backing. Use appropriate sheetmetal or machine screws for this purpose.g. To mount the XMC10A cradle atop the swivel bracket, line upthe slot at the rear of the cradle with the bracket retainer tab,and slide the cradle down so that the slot and tab mesh togetherin a locked position.Setting Up and Installing Your Kit
14SCREW HOLES (2)FOR DIRECT HARDMOUNTINGPLASTIC LINER ANDADHESIVE BACKINGSWIVELADJUSTMENTSCREWSWIVELBRACKETSIDE (HORIZONTAL)MOUNTINGCONFIGURATIONVERTICAL MOUNTINGCONFIGURATIONXMC10ACRADLEASSEMBLYSetting Up and Installing Your Kit

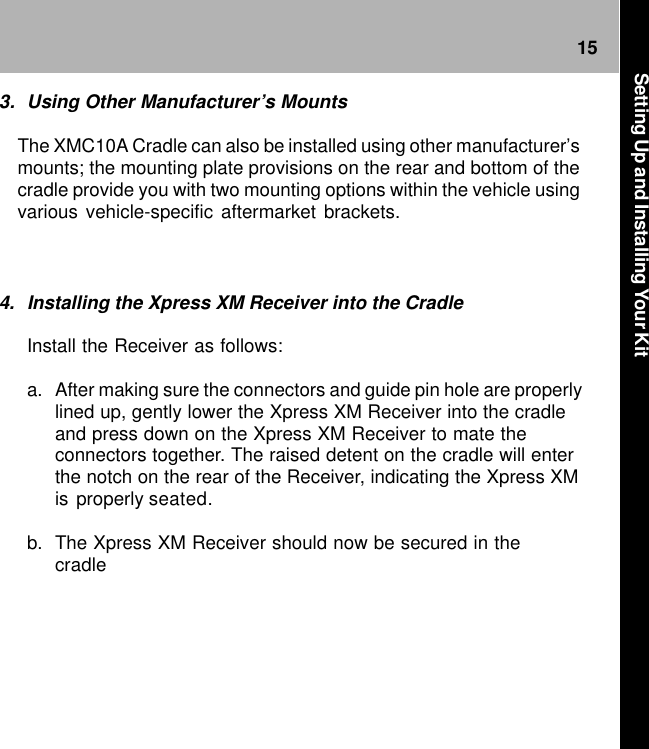

154. Installing the Xpress XM Receiver into the CradleInstall the Receiver as follows:a. After making sure the connectors and guide pin hole are properlylined up, gently lower the Xpress XM Receiver into the cradleand press down on the Xpress XM Receiver to mate theconnectors together. The raised detent on the cradle will enterthe notch on the rear of the Receiver, indicating the Xpress XMis properly seated.b. The Xpress XM Receiver should now be secured in thecradle3. Using Other Manufacturer’s MountsThe XMC10A Cradle can also be installed using other manufacturer’smounts; the mounting plate provisions on the rear and bottom of thecradle provide you with two mounting options within the vehicle usingvarious vehicle-specific aftermarket brackets.Setting Up and Installing Your Kit

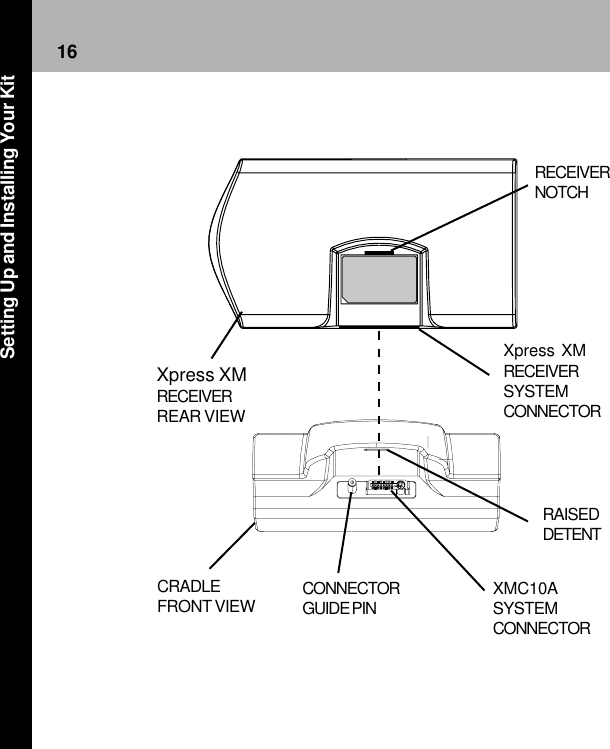

16CRADLEFRONT VIEW CONNECTORGUIDE PIN XMC10ASYSTEMCONNECTORXpress XMRECEIVERSYSTEMCONNECTORXpress XMRECEIVERREAR VIEWRAISEDDETENTRECEIVERNOTCHSetting Up and Installing Your Kit
175. Connection OptionsThe Xpress Receiver and Cradle provide an audio output signalin three ways:a. FM Modulator  - When using the XMC10A cradle with the FMmodulator option, the XM audio signal can be received throughyour vehicle’s radio on selectable FM frequencies using themenu option included in your Xpress Receiver. (Refer to theUser Guide.)  The XM audio signal can then be played throughyour vehicle’s radio when that radio is tuned to one of theavailable frequencies.NOTE: To minimize radiated interference from the XMequipment (antenna and receiver), it will be necessary toincorporate the XM SureConnect Vehicle Installationinstructions provided in the XMC10A.b. FM Direct Wiring - If the FM modulator does not providesatisfactory performance in your vehicle, use the optional FMDirect Adapter, Part # XMFM-1, which provides a hard wired FMoutput.c. Low-Level Audio Output - For vehicles equipped with radio headunits with auxiliary audio inputs, the audio signal can be routedthrough an optional audio cable (Part No. SAT-RCA) and appliedto the auxiliary inputs of a radio or entertainment system. In thiscase, it is best to turn the Xpress Receiver FM modulator optionoff to avoid interference.Setting Up and Installing Your Kit

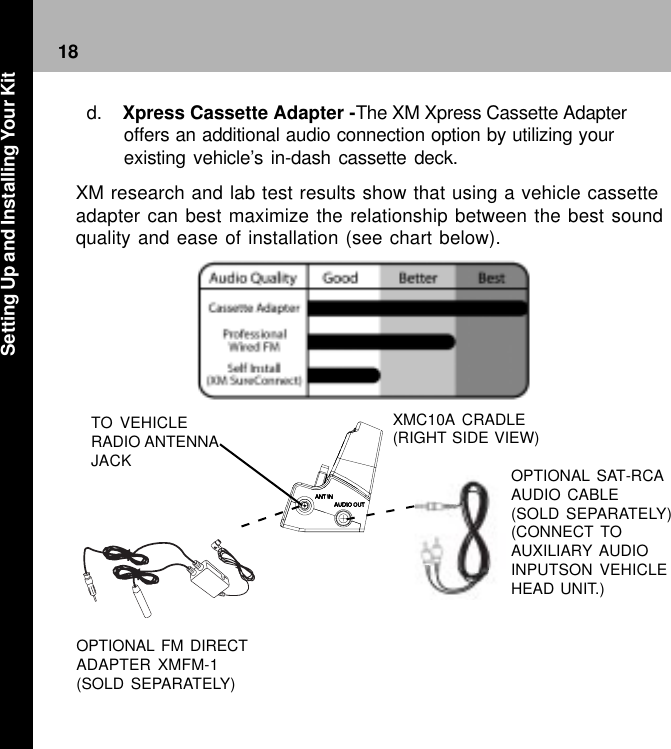

18XM research and lab test results show that using a vehicle cassetteadapter can best maximize the relationship between the best soundquality and ease of installation (see chart below).OPTIONAL SAT-RCAAUDIO CABLE(SOLD SEPARATELY)(CONNECT TOAUXILIARY AUDIOINPUTSON VEHICLEHEAD UNIT.)OPTIONAL FM DIRECTADAPTER XMFM-1(SOLD SEPARATELY)TO VEHICLERADIO ANTENNAJACKXMC10A CRADLE(RIGHT SIDE VIEW)d.    Xpress Cassette Adapter -The XM Xpress Cassette Adapteroffers an additional audio connection option by utilizing yourexisting vehicle’s in-dash cassette deck.Setting Up and Installing Your Kit

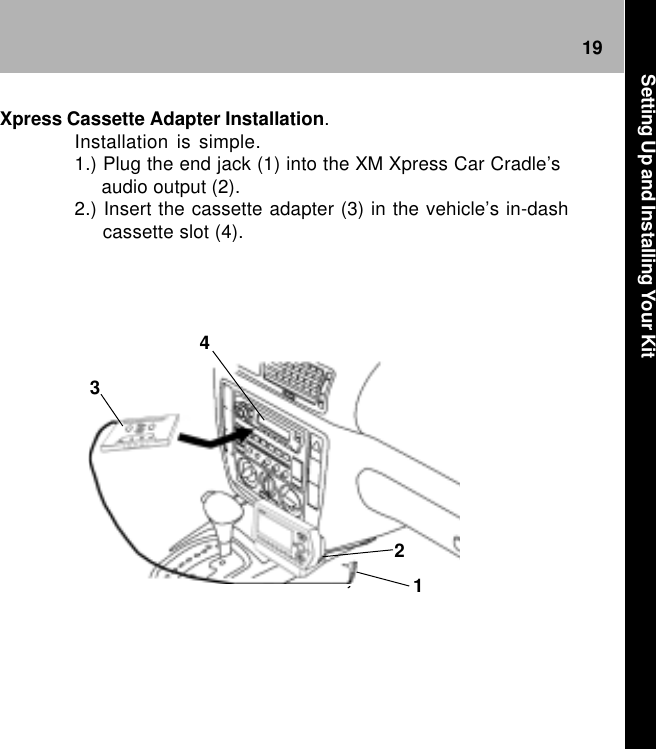

191234Xpress Cassette Adapter Installation.Installation is simple.1.) Plug the end jack (1) into the XM Xpress Car Cradle’s     audio output (2).2.) Insert the cassette adapter (3) in the vehicle’s in-dash     cassette slot (4).Setting Up and Installing Your Kit

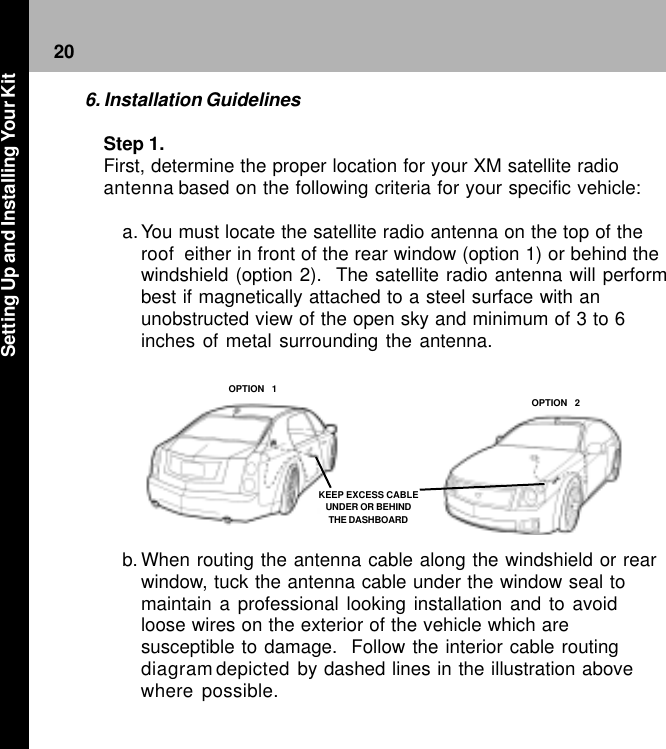

20KEEP EXCESS CABLEUNDER OR BEHINDTHE DASHBOARDOPTION  1OPTION  26. Installation GuidelinesStep 1.First, determine the proper location for your XM satellite radioantenna based on the following criteria for your specific vehicle:a. You must locate the satellite radio antenna on the top of theroof  either in front of the rear window (option 1) or behind thewindshield (option 2).  The satellite radio antenna will performbest if magnetically attached to a steel surface with anunobstructed view of the open sky and minimum of 3 to 6inches of metal surrounding the antenna.b. When routing the antenna cable along the windshield or rearwindow, tuck the antenna cable under the window seal tomaintain a professional looking installation and to avoidloose wires on the exterior of the vehicle which aresusceptible to damage.  Follow the interior cable routingdiagramdepicted by dashed lines in the illustration abovewhere possible.Setting Up and Installing Your Kit

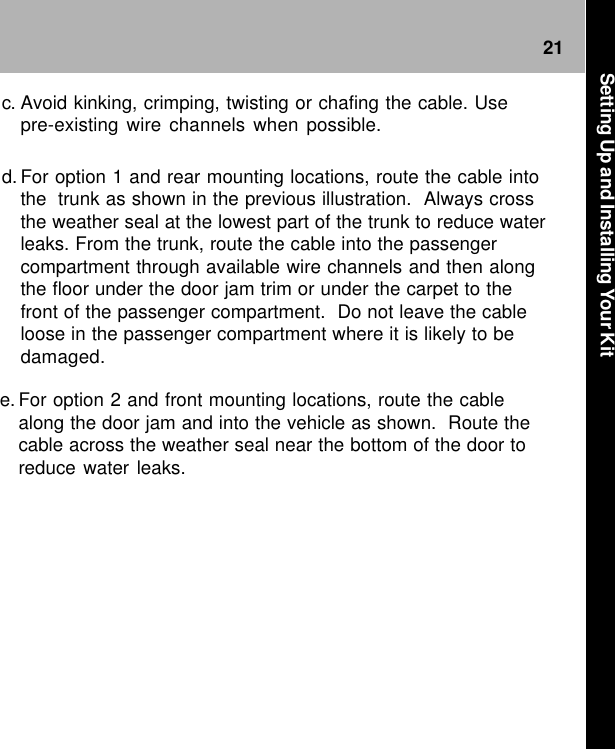

21e. For option 2 and front mounting locations, route the cablealong the door jam and into the vehicle as shown.  Route thecable across the weather seal near the bottom of the door toreduce water leaks.c. Avoid kinking, crimping, twisting or chafing the cable. Usepre-existing wire channels when possible.d. For option 1 and rear mounting locations, route the cable intothe trunk as shown in the previous illustration.  Always crossthe weather seal at the lowest part of the trunk to reduce waterleaks. From the trunk, route the cable into the passengercompartment through available wire channels and then alongthe floor under the door jam trim or under the carpet to thefront of the passenger compartment.  Do not leave the cableloose in the passenger compartment where it is likely to bedamaged.Setting Up and Installing Your Kit
22Be sure to choose a location carefully by taking notice of howdoors and trunks open and close, as well as how seats movewhen they are adjusted so you can be certain there is ampleclearance provided for the cables.Step 2.Once you have plugged the powerand antenna jacks into the vehiclecradle, secure the cables with tapeor wire ties to allow for a cleanappearance.For example, securethe excess cable up under yourdash board, between the seat andthe console, or on the floor under aseat or floor mat. This will help toprevent the excess cable frominterfering with the everyday use ofyour vehicle, improve theappearance of the installation, andavoid any undesirable accidentaldamage to the cables that mightresult in loss of power or satellitesignal.Setting Up and Installing Your Kit
23NOTESNotes
24AUDIOVOX ELECTRONICS CORPORATION (the Company) warrants tothe original retail purchaser of this product that should this product or anypart thereof, under normal use and conditions, be proven defective inmaterial or workmanship within 12 months from the date of originalpurchase, such defect(s) will be repaired or replaced with new orreconditioned product (at the Company's option) without charge for partsand repair labor.To obtain repair or replacement within the terms of this Warranty, theproduct is to be delivered with proof of warranty coverage (e.g. dated billof sale), specification of defect(s), transportation prepaid, to an approvedwarranty station or the Company at the address shown below.This Warranty does not extend to the elimination of externally generatedstatic or noise, to costs incurred for installation, removal or reinstallationof the product, damage to speakers, accessories, or vehicle and homeelectrical systems, malfunction of satellite transmissions, repeater signalor receiver unit.This Warranty does not apply to any product or part thereof which, in theopinion of the Company, has suffered or been damaged throughalteration, improper installation, mishandling, misuse, neglect, accident,or by removal or defacement of the factory serial number/bar code label(s).12 MONTH LIMITED WARRANTYWarranty

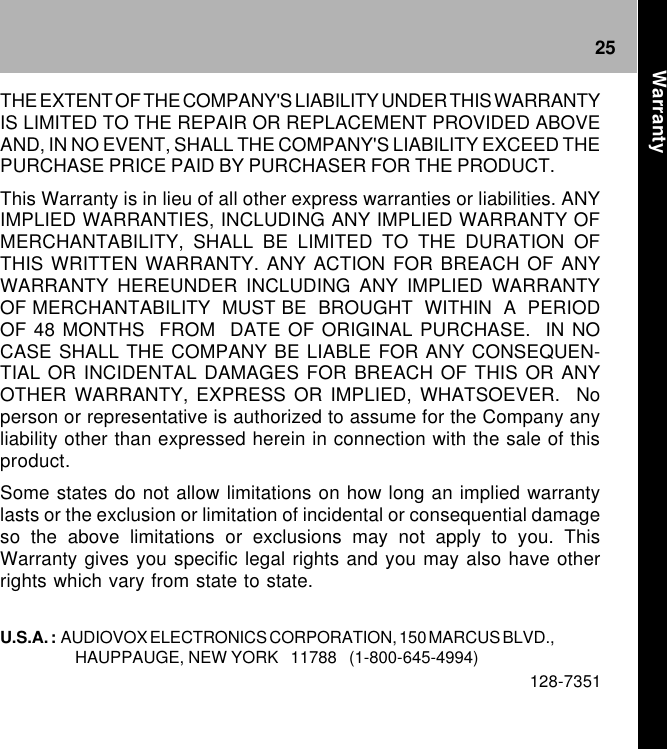

25THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS WARRANTYIS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVEAND, IN NO EVENT, SHALL THE COMPANY'S LIABILITY EXCEED THEPURCHASE PRICE PAID BY PURCHASER FOR THE PRODUCT.This Warranty is in lieu of all other express warranties or liabilities. ANYIMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OFMERCHANTABILITY, SHALL BE LIMITED TO THE DURATION OFTHIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF ANYWARRANTY HEREUNDER INCLUDING ANY IMPLIED WARRANTYOF MERCHANTABILITY  MUST BE  BROUGHT  WITHIN  A  PERIODOF 48 MONTHS  FROM  DATE OF ORIGINAL PURCHASE.  IN NOCASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUEN-TIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANYOTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER.  Noperson or representative is authorized to assume for the Company anyliability other than expressed herein in connection with the sale of thisproduct.Some states do not allow limitations on how long an implied warrantylasts or the exclusion or limitation of incidental or consequential damageso the above limitations or exclusions may not apply to you. ThisWarranty gives you specific legal rights and you may also have otherrights which vary from state to state.U.S.A. :  AUDIOVOX ELECTRONICS CORPORATION, 150 MARCUS BLVD.,HAUPPAUGE, NEW YORK   11788   (1-800-645-4994)128-7351Warranty
Audiovox Electronics Corporation150 Marcus Blvd.Hauppauge, New York 11788U.S.A.1 800 645 4994www.audiovox.com   Printed on Recycled Paper©2006 Audiovox Electronics Corporation. All rights reserved.XM name and related logos are trademarks of XM Satellite Radio Inc.   XMC-10A128-7472H
