Autel Intelligent Technology 2017MAXIAP Wireless Diagnostic Interface User Manual

Autel Intelligent Tech. Corp., Ltd. Wireless Diagnostic Interface

User manual

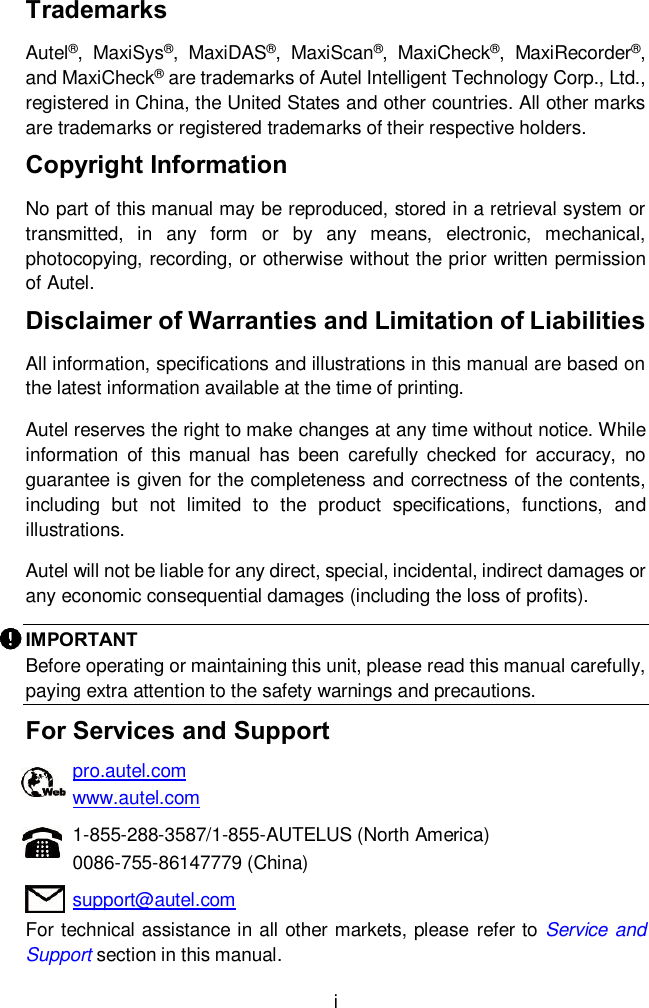

i Trademarks Autel®, MaxiSys®, MaxiDAS®, MaxiScan®, MaxiCheck®, MaxiRecorder®, and MaxiCheck® are trademarks of Autel Intelligent Technology Corp., Ltd., registered in China, the United States and other countries. All other marks are trademarks or registered trademarks of their respective holders. Copyright Information No part of this manual may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise without the prior written permission of Autel. Disclaimer of Warranties and Limitation of Liabilities All information, specifications and illustrations in this manual are based on the latest information available at the time of printing. Autel reserves the right to make changes at any time without notice. While information of this manual has been carefully checked for accuracy, no guarantee is given for the completeness and correctness of the contents, including but not limited to the product specifications, functions, and illustrations. Autel will not be liable for any direct, special, incidental, indirect damages or any economic consequential damages (including the loss of profits). IMPORTANT Before operating or maintaining this unit, please read this manual carefully, paying extra attention to the safety warnings and precautions. For Services and Support pro.autel.com www.autel.com 1-855-288-3587/1-855-AUTELUS (North America) 0086-755-86147779 (China) support@autel.com For technical assistance in all other markets, please refer to Service and Support section in this manual.

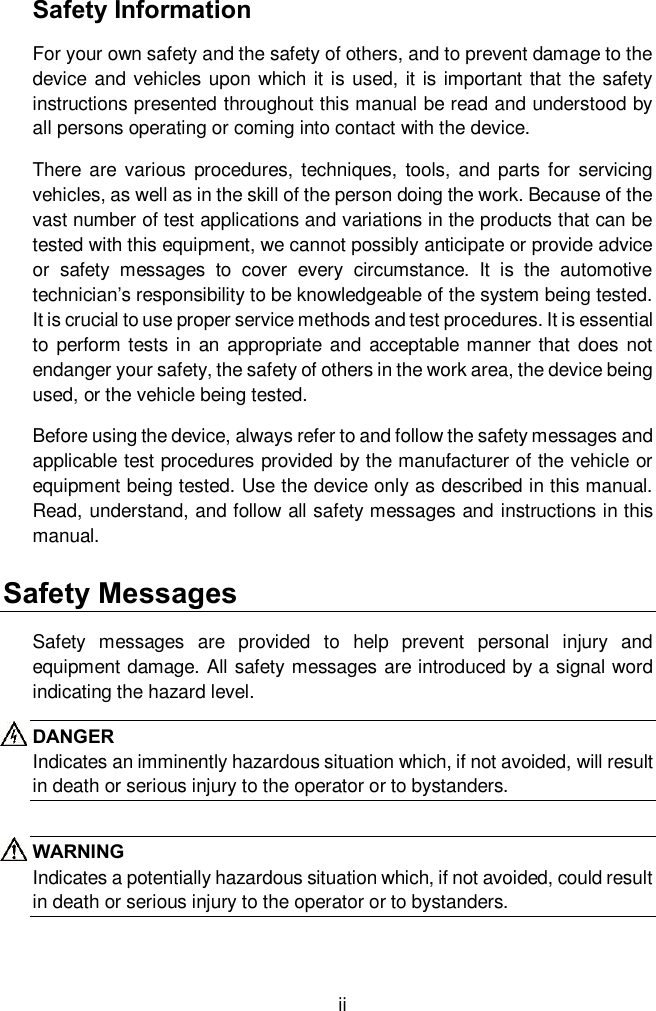

ii Safety Information For your own safety and the safety of others, and to prevent damage to the device and vehicles upon which it is used, it is important that the safety instructions presented throughout this manual be read and understood by all persons operating or coming into contact with the device. There are various procedures, techniques, tools, and parts for servicing vehicles, as well as in the skill of the person doing the work. Because of the vast number of test applications and variations in the products that can be tested with this equipment, we cannot possibly anticipate or provide advice or safety messages to cover every circumstance. It is the automotive technician’s responsibility to be knowledgeable of the system being tested. It is crucial to use proper service methods and test procedures. It is essential to perform tests in an appropriate and acceptable manner that does not endanger your safety, the safety of others in the work area, the device being used, or the vehicle being tested. Before using the device, always refer to and follow the safety messages and applicable test procedures provided by the manufacturer of the vehicle or equipment being tested. Use the device only as described in this manual. Read, understand, and follow all safety messages and instructions in this manual. Safety Messages Safety messages are provided to help prevent personal injury and equipment damage. All safety messages are introduced by a signal word indicating the hazard level. DANGER Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury to the operator or to bystanders. WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury to the operator or to bystanders.

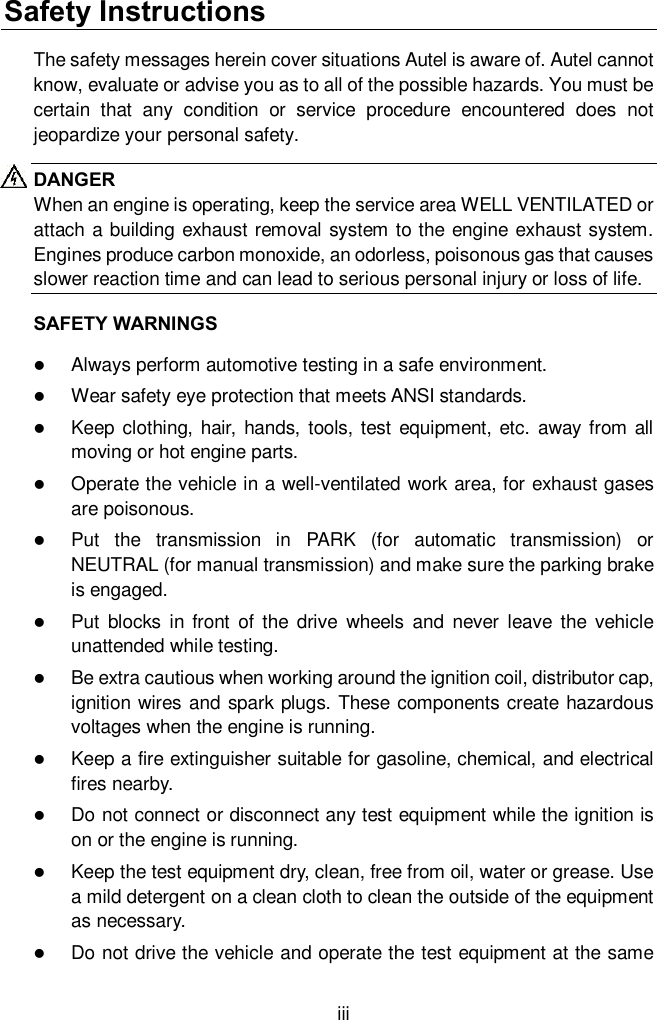

iii Safety Instructions The safety messages herein cover situations Autel is aware of. Autel cannot know, evaluate or advise you as to all of the possible hazards. You must be certain that any condition or service procedure encountered does not jeopardize your personal safety. DANGER When an engine is operating, keep the service area WELL VENTILATED or attach a building exhaust removal system to the engine exhaust system. Engines produce carbon monoxide, an odorless, poisonous gas that causes slower reaction time and can lead to serious personal injury or loss of life. SAFETY WARNINGS  Always perform automotive testing in a safe environment.  Wear safety eye protection that meets ANSI standards.  Keep clothing, hair, hands, tools, test equipment, etc. away from all moving or hot engine parts.  Operate the vehicle in a well-ventilated work area, for exhaust gases are poisonous.  Put the transmission in PARK (for automatic transmission) or NEUTRAL (for manual transmission) and make sure the parking brake is engaged.  Put blocks in front of the drive wheels and never leave the vehicle unattended while testing.  Be extra cautious when working around the ignition coil, distributor cap, ignition wires and spark plugs. These components create hazardous voltages when the engine is running.  Keep a fire extinguisher suitable for gasoline, chemical, and electrical fires nearby.  Do not connect or disconnect any test equipment while the ignition is on or the engine is running.  Keep the test equipment dry, clean, free from oil, water or grease. Use a mild detergent on a clean cloth to clean the outside of the equipment as necessary.  Do not drive the vehicle and operate the test equipment at the same

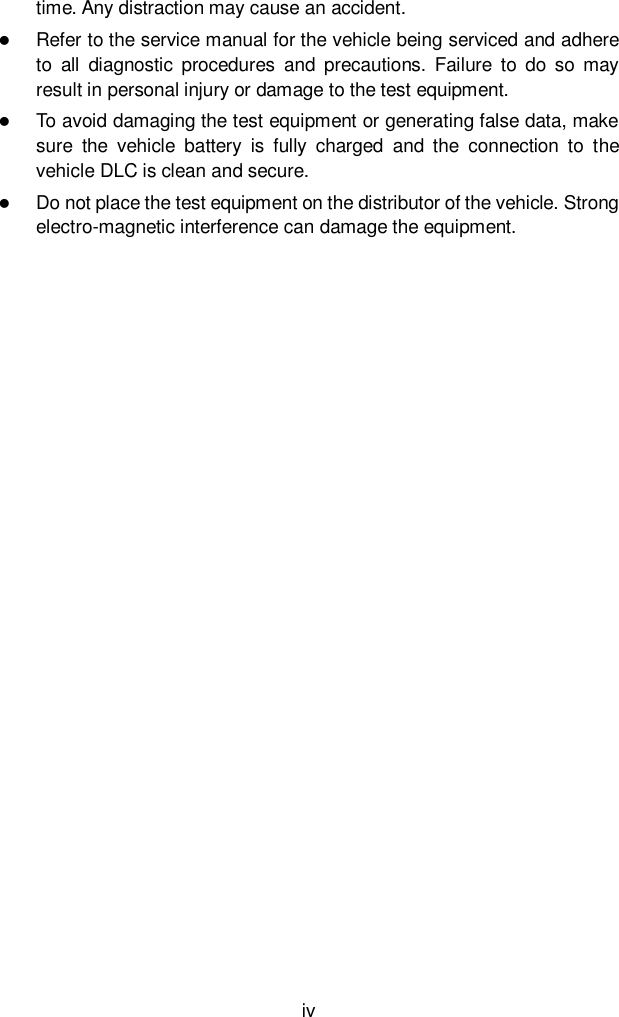

iv time. Any distraction may cause an accident.  Refer to the service manual for the vehicle being serviced and adhere to all diagnostic procedures and precautions. Failure to do so may result in personal injury or damage to the test equipment.  To avoid damaging the test equipment or generating false data, make sure the vehicle battery is fully charged and the connection to the vehicle DLC is clean and secure.  Do not place the test equipment on the distributor of the vehicle. Strong electro-magnetic interference can damage the equipment.

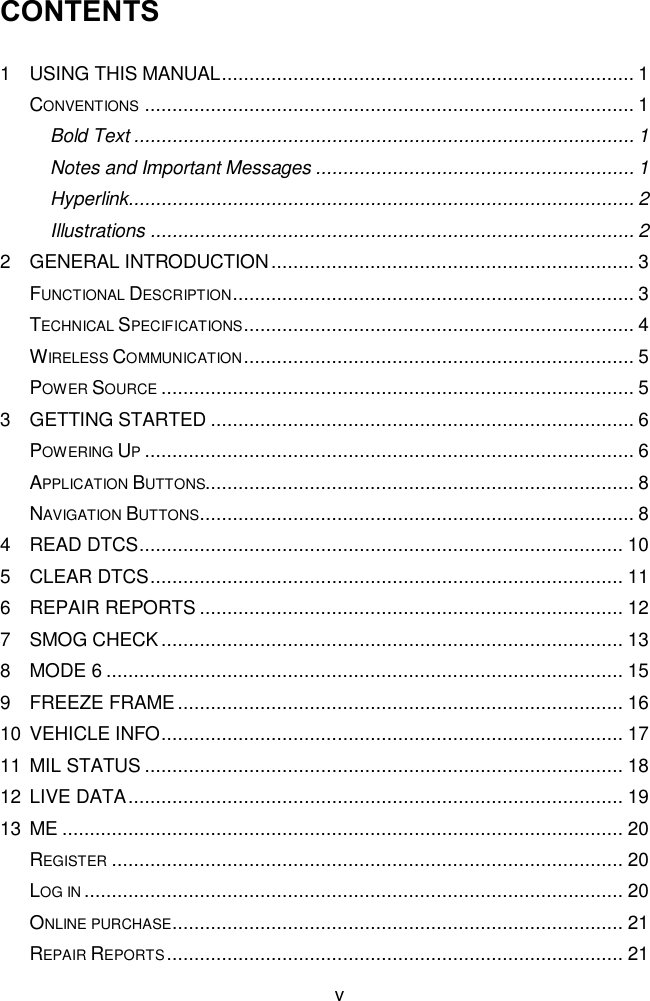

v CONTENTS 1 USING THIS MANUAL ........................................................................... 1 CONVENTIONS ......................................................................................... 1 Bold Text ........................................................................................... 1 Notes and Important Messages .......................................................... 1 Hyperlink............................................................................................ 2 Illustrations ........................................................................................ 2 2 GENERAL INTRODUCTION .................................................................. 3 FUNCTIONAL DESCRIPTION ......................................................................... 3 TECHNICAL SPECIFICATIONS ....................................................................... 4 WIRELESS COMMUNICATION ....................................................................... 5 POWER SOURCE ...................................................................................... 5 3 GETTING STARTED ............................................................................. 6 POWERING UP ......................................................................................... 6 APPLICATION BUTTONS.............................................................................. 8 NAVIGATION BUTTONS ............................................................................... 8 4 READ DTCS ........................................................................................ 10 5 CLEAR DTCS ...................................................................................... 11 6 REPAIR REPORTS ............................................................................. 12 7 SMOG CHECK .................................................................................... 13 8 MODE 6 .............................................................................................. 15 9 FREEZE FRAME ................................................................................. 16 10 VEHICLE INFO .................................................................................... 17 11 MIL STATUS ....................................................................................... 18 12 LIVE DATA .......................................................................................... 19 13 ME ...................................................................................................... 20 REGISTER ............................................................................................. 20 LOG IN .................................................................................................. 20 ONLINE PURCHASE.................................................................................. 21 REPAIR REPORTS ................................................................................... 21

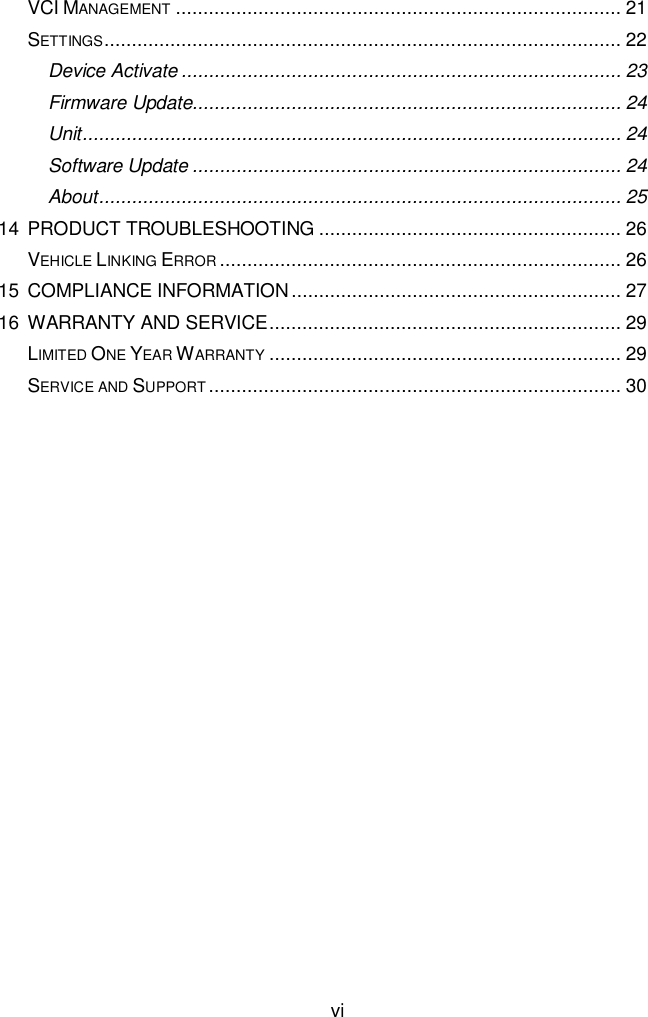

vi VCI MANAGEMENT ................................................................................. 21 SETTINGS .............................................................................................. 22 Device Activate ................................................................................ 23 Firmware Update.............................................................................. 24 Unit .................................................................................................. 24 Software Update .............................................................................. 24 About ............................................................................................... 25 14 PRODUCT TROUBLESHOOTING ....................................................... 26 VEHICLE LINKING ERROR ......................................................................... 26 15 COMPLIANCE INFORMATION ............................................................ 27 16 WARRANTY AND SERVICE ................................................................ 29 LIMITED ONE YEAR WARRANTY ................................................................ 29 SERVICE AND SUPPORT ........................................................................... 30

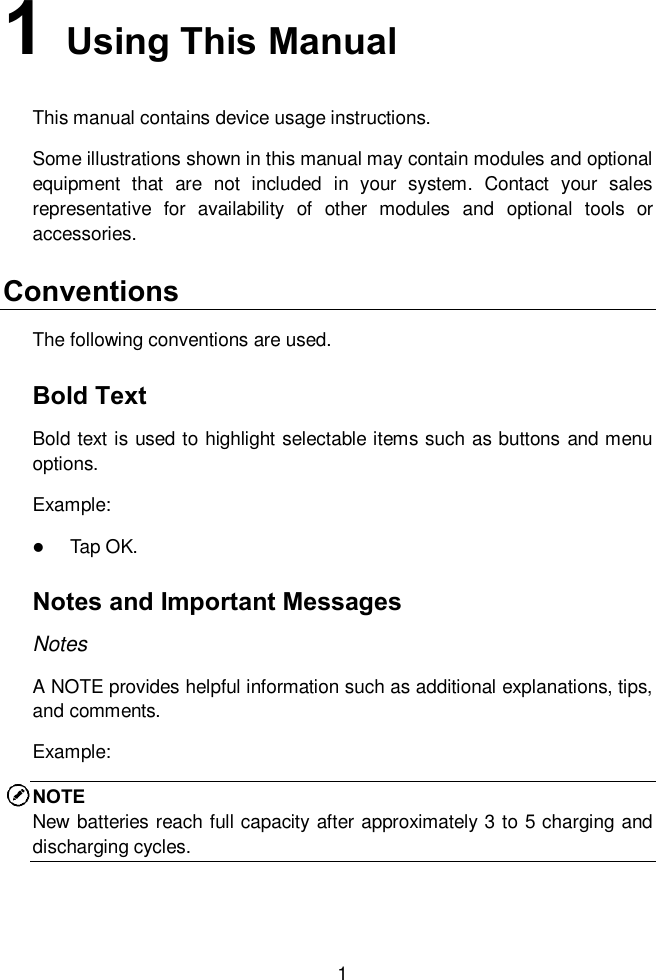

1 1 Using This Manual This manual contains device usage instructions. Some illustrations shown in this manual may contain modules and optional equipment that are not included in your system. Contact your sales representative for availability of other modules and optional tools or accessories. Conventions The following conventions are used. Bold Text Bold text is used to highlight selectable items such as buttons and menu options. Example:  Tap OK. Notes and Important Messages Notes A NOTE provides helpful information such as additional explanations, tips, and comments. Example: NOTE New batteries reach full capacity after approximately 3 to 5 charging and discharging cycles.

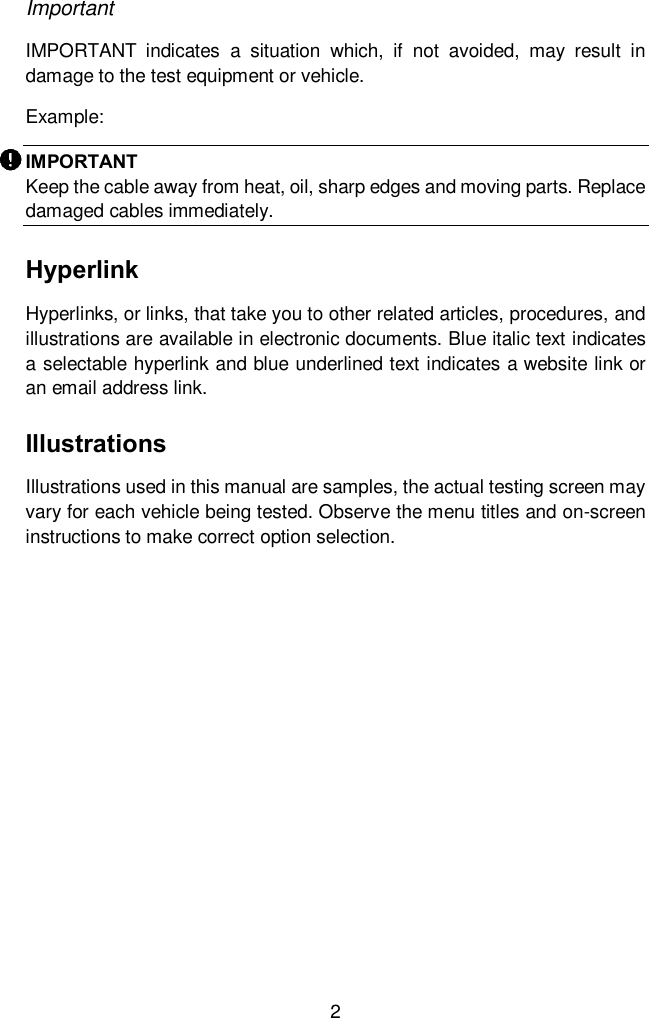

2 Important IMPORTANT indicates a situation which, if not avoided, may result in damage to the test equipment or vehicle. Example: IMPORTANT Keep the cable away from heat, oil, sharp edges and moving parts. Replace damaged cables immediately. Hyperlink Hyperlinks, or links, that take you to other related articles, procedures, and illustrations are available in electronic documents. Blue italic text indicates a selectable hyperlink and blue underlined text indicates a website link or an email address link. Illustrations Illustrations used in this manual are samples, the actual testing screen may vary for each vehicle being tested. Observe the menu titles and on-screen instructions to make correct option selection.

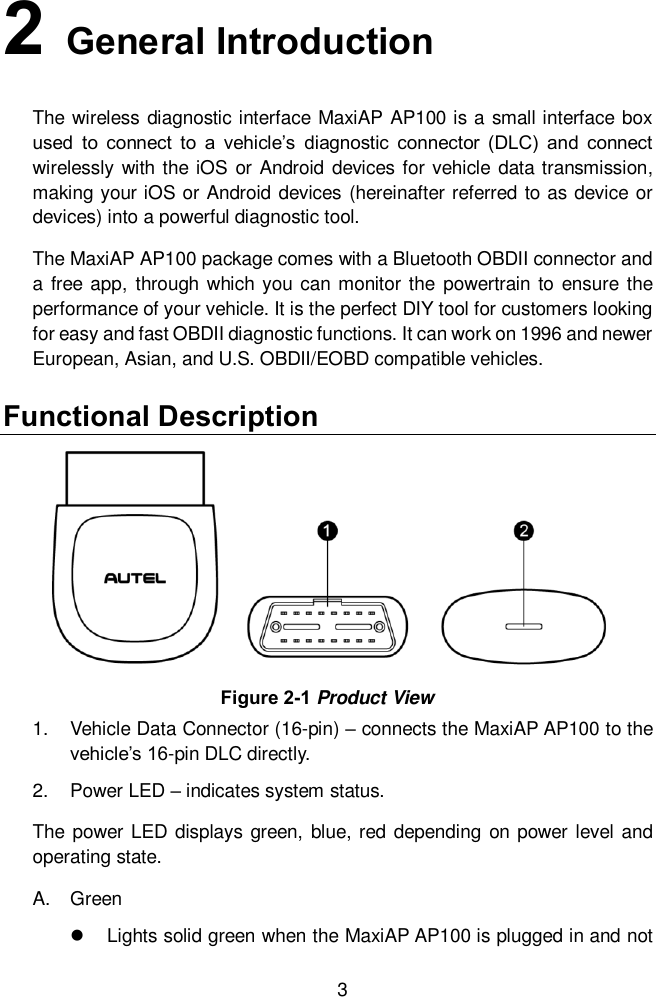

3 2 General Introduction The wireless diagnostic interface MaxiAP AP100 is a small interface box used to connect to a vehicle’s diagnostic connector (DLC) and connect wirelessly with the iOS or Android devices for vehicle data transmission, making your iOS or Android devices (hereinafter referred to as device or devices) into a powerful diagnostic tool. The MaxiAP AP100 package comes with a Bluetooth OBDII connector and a free app, through which you can monitor the powertrain to ensure the performance of your vehicle. It is the perfect DIY tool for customers looking for easy and fast OBDII diagnostic functions. It can work on 1996 and newer European, Asian, and U.S. OBDII/EOBD compatible vehicles. Functional Description 1. Vehicle Data Connector (16-pin) – connects the MaxiAP AP100 to the vehicle’s 16-pin DLC directly. 2. Power LED – indicates system status. The power LED displays green, blue, red depending on power level and operating state. A. Green  Lights solid green when the MaxiAP AP100 is plugged in and not Figure 2-1 Product View

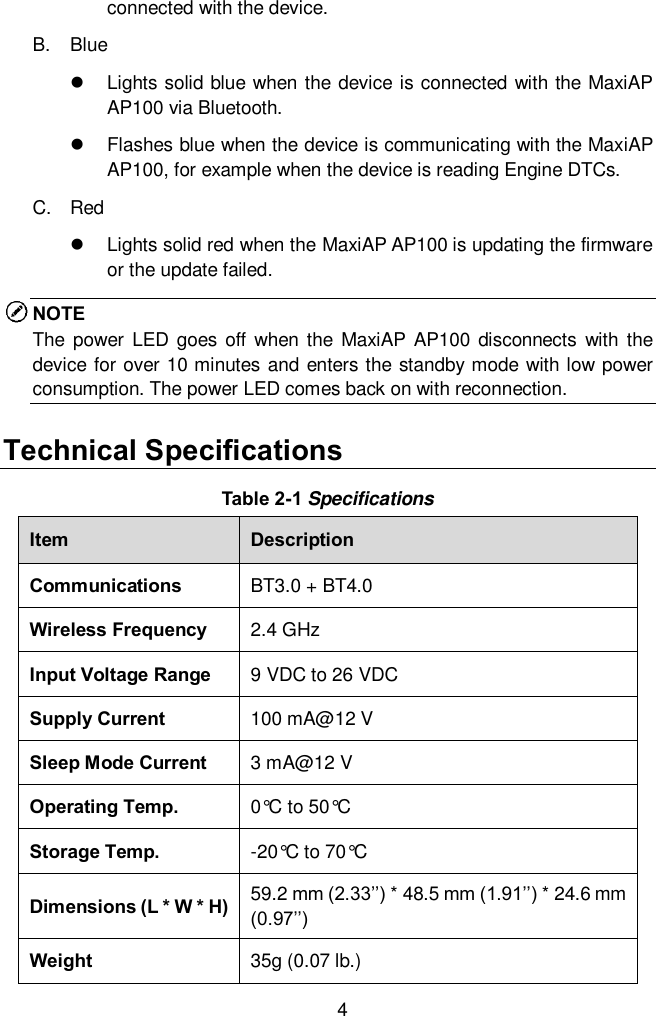

4 connected with the device. B. Blue  Lights solid blue when the device is connected with the MaxiAP AP100 via Bluetooth.  Flashes blue when the device is communicating with the MaxiAP AP100, for example when the device is reading Engine DTCs. C. Red  Lights solid red when the MaxiAP AP100 is updating the firmware or the update failed. NOTE The power LED goes off when the MaxiAP AP100 disconnects with the device for over 10 minutes and enters the standby mode with low power consumption. The power LED comes back on with reconnection. Technical Specifications Table 2-1 Specifications Item Description Communications BT3.0 + BT4.0 Wireless Frequency 2.4 GHz Input Voltage Range 9 VDC to 26 VDC Supply Current 100 mA@12 V Sleep Mode Current 3 mA@12 V Operating Temp. 0°C to 50°C Storage Temp. -20°C to 70°C Dimensions (L * W * H) 59.2 mm (2.33’’) * 48.5 mm (1.91’’) * 24.6 mm (0.97’’) Weight 35g (0.07 lb.)

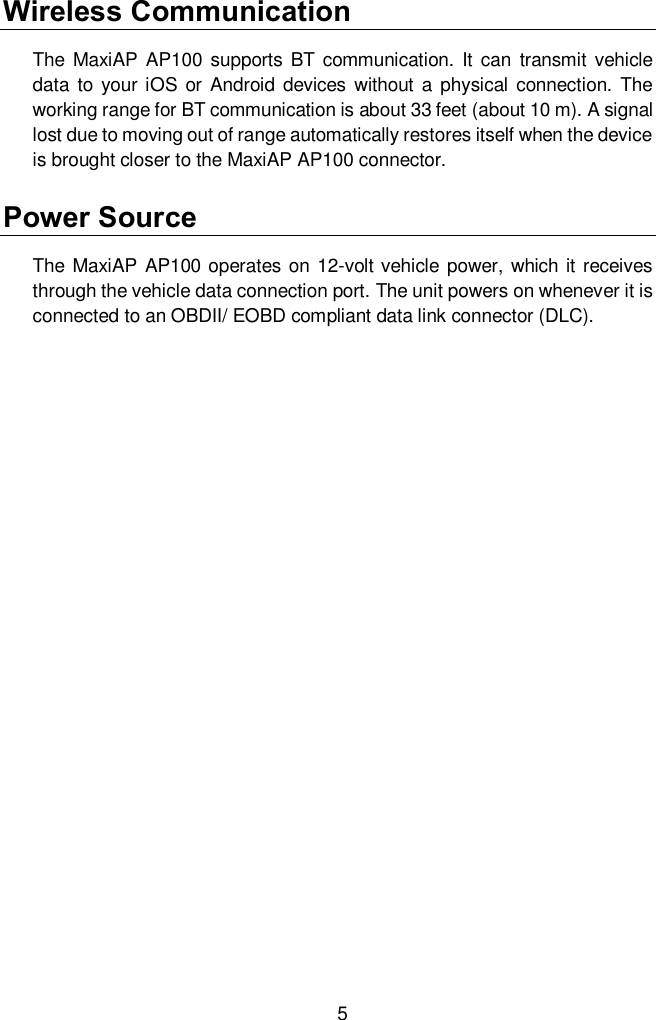

5 Wireless Communication The MaxiAP AP100 supports BT communication. It can transmit vehicle data to your iOS or Android devices without a physical connection. The working range for BT communication is about 33 feet (about 10 m). A signal lost due to moving out of range automatically restores itself when the device is brought closer to the MaxiAP AP100 connector. Power Source The MaxiAP AP100 operates on 12-volt vehicle power, which it receives through the vehicle data connection port. The unit powers on whenever it is connected to an OBDII/ EOBD compliant data link connector (DLC).

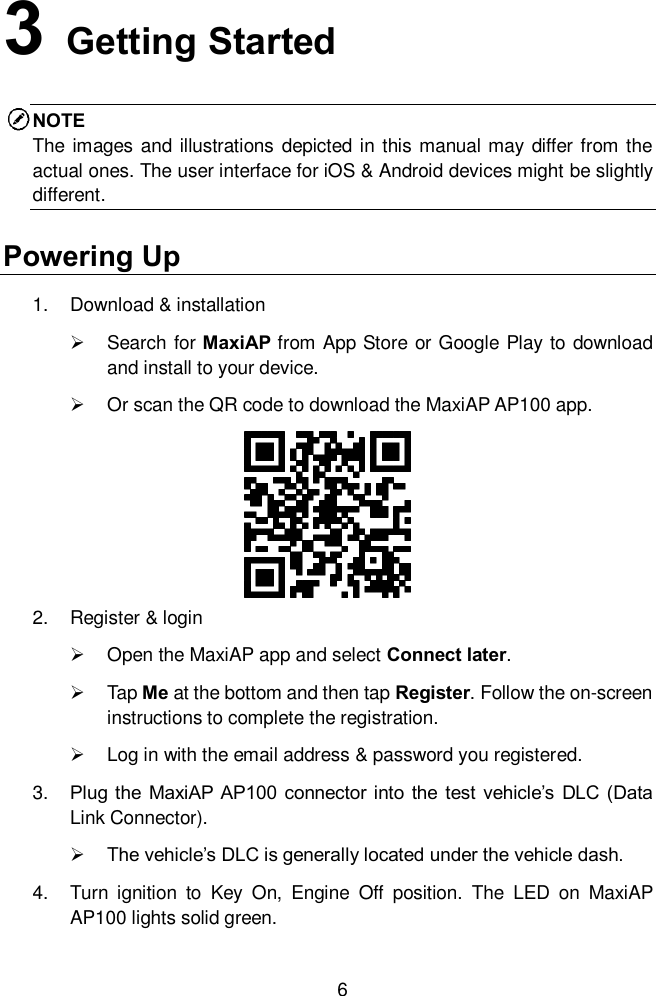

6 3 Getting Started NOTE The images and illustrations depicted in this manual may differ from the actual ones. The user interface for iOS & Android devices might be slightly different. Powering Up 1. Download & installation  Search for MaxiAP from App Store or Google Play to download and install to your device.  Or scan the QR code to download the MaxiAP AP100 app. 2. Register & login  Open the MaxiAP app and select Connect later.  Tap Me at the bottom and then tap Register. Follow the on-screen instructions to complete the registration.  Log in with the email address & password you registered. 3. Plug the MaxiAP AP100 connector into the test vehicle’s DLC (Data Link Connector).  The vehicle’s DLC is generally located under the vehicle dash. 4. Turn ignition to Key On, Engine Off position. The LED on MaxiAP AP100 lights solid green.
7 5. VCI Connection Tap Me>VCI Management or the VCI button on the top left of the Home screen to enter the VCI Management screen. Tap the Bluetooth name of the MaxiAP AP100 and pair up with the device. The Bluetooth name starts with AP followed by the MaxiAP AP100’s serial number.  Turn on the device’s Bluetooth beforehand for connection.  When the device is successfully paired up and communicating with the MaxiAP AP100, the LED on the MaxiAP AP100 lights solid blue.  Tap Done on the VCI Management screen to return to Home screen. 6. Tap Me>Settings>Device Activate in the app to activate the device. 7. Your MaxiAP AP100 is now ready to work. ① Dynamic Rotation Banner – information about other popular Autel products, tap the picture to visit the product page on Autel websites, www.autel.com or www.maxitpms.com. ② Application Buttons Figure 3-1 Sample MaxiAP Job Menu

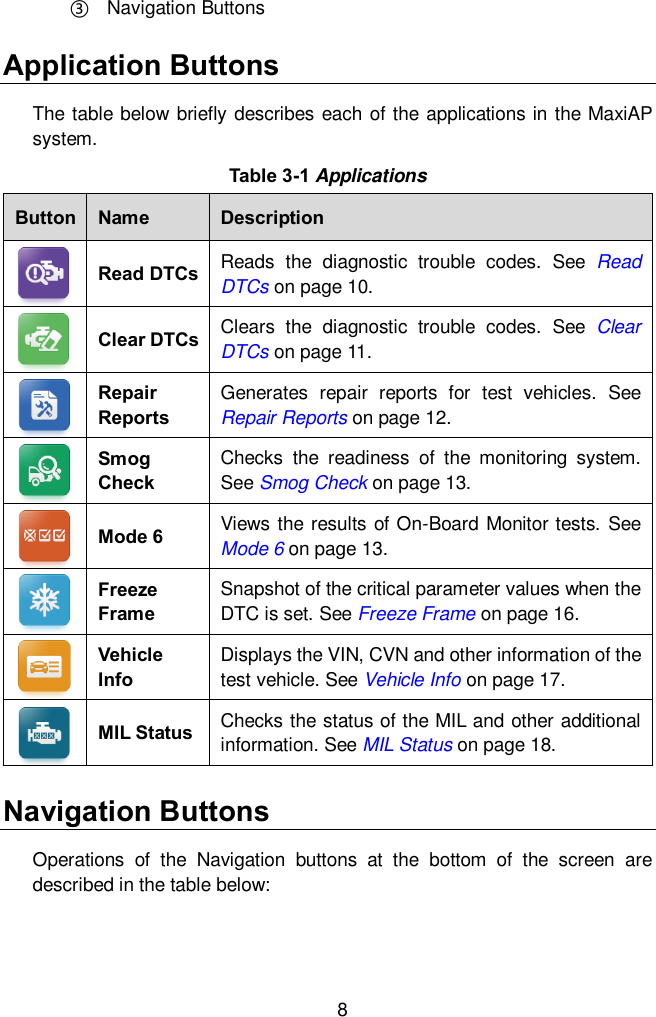

8 ③ Navigation Buttons Application Buttons The table below briefly describes each of the applications in the MaxiAP system. Table 3-1 Applications Button Name Description Read DTCs Reads the diagnostic trouble codes. See Read DTCs on page 10. Clear DTCs Clears the diagnostic trouble codes. See Clear DTCs on page 11. Repair Reports Generates repair reports for test vehicles. See Repair Reports on page 12. Smog Check Checks the readiness of the monitoring system. See Smog Check on page 13. Mode 6 Views the results of On-Board Monitor tests. See Mode 6 on page 13. Freeze Frame Snapshot of the critical parameter values when the DTC is set. See Freeze Frame on page 16. Vehicle Info Displays the VIN, CVN and other information of the test vehicle. See Vehicle Info on page 17. MIL Status Checks the status of the MIL and other additional information. See MIL Status on page 18. Navigation Buttons Operations of the Navigation buttons at the bottom of the screen are described in the table below:

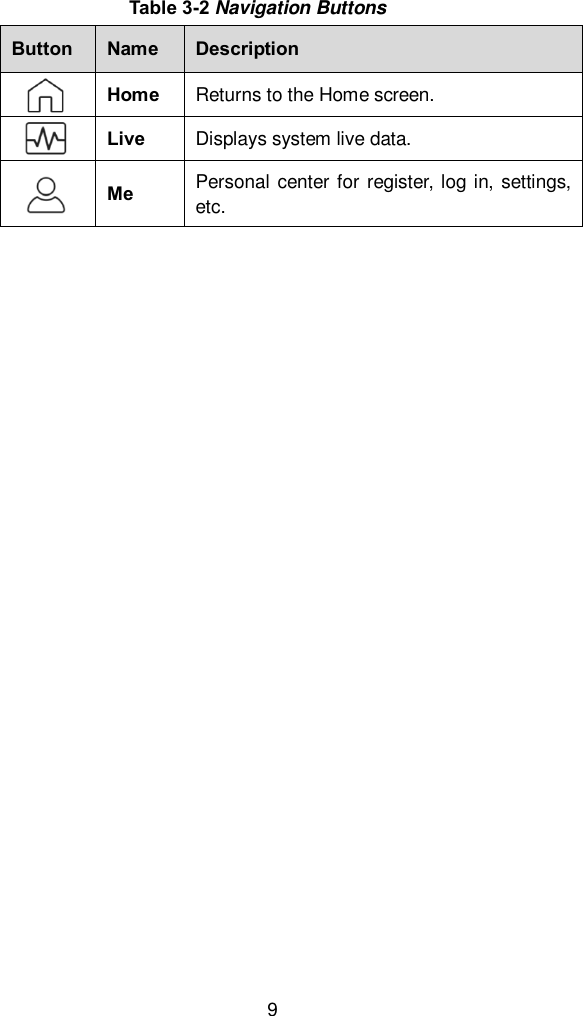

9 Table 3-2 Navigation Buttons Button Name Description Home Returns to the Home screen. Live Displays system live data. Me Personal center for register, log in, settings, etc.

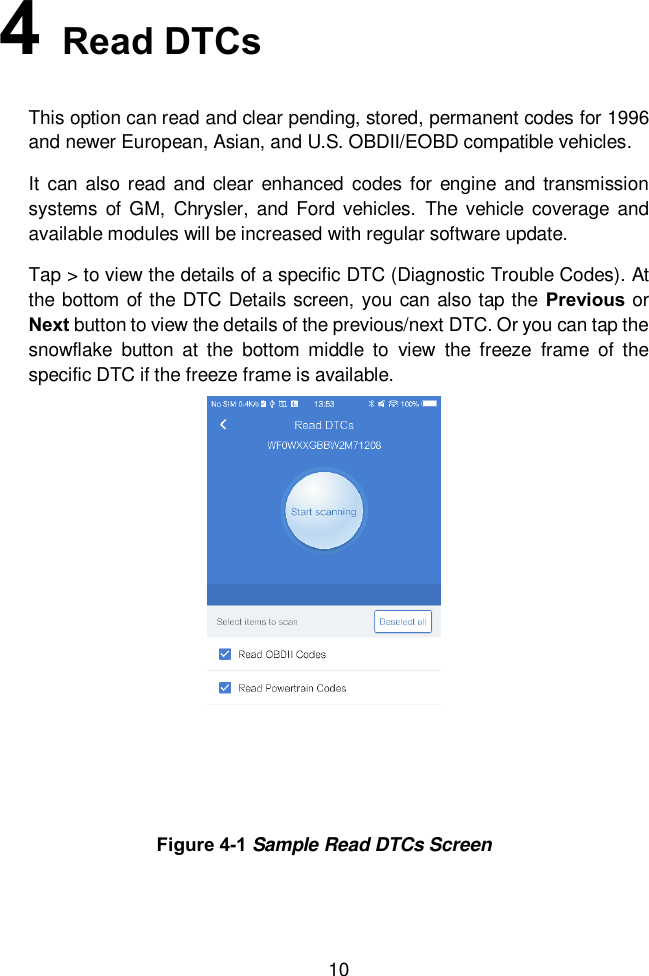

10 4 Read DTCs This option can read and clear pending, stored, permanent codes for 1996 and newer European, Asian, and U.S. OBDII/EOBD compatible vehicles. It can also read and clear enhanced codes for engine and transmission systems of GM, Chrysler, and Ford vehicles. The vehicle coverage and available modules will be increased with regular software update. Tap > to view the details of a specific DTC (Diagnostic Trouble Codes). At the bottom of the DTC Details screen, you can also tap the Previous or Next button to view the details of the previous/next DTC. Or you can tap the snowflake button at the bottom middle to view the freeze frame of the specific DTC if the freeze frame is available. Figure 4-1 Sample Read DTCs Screen

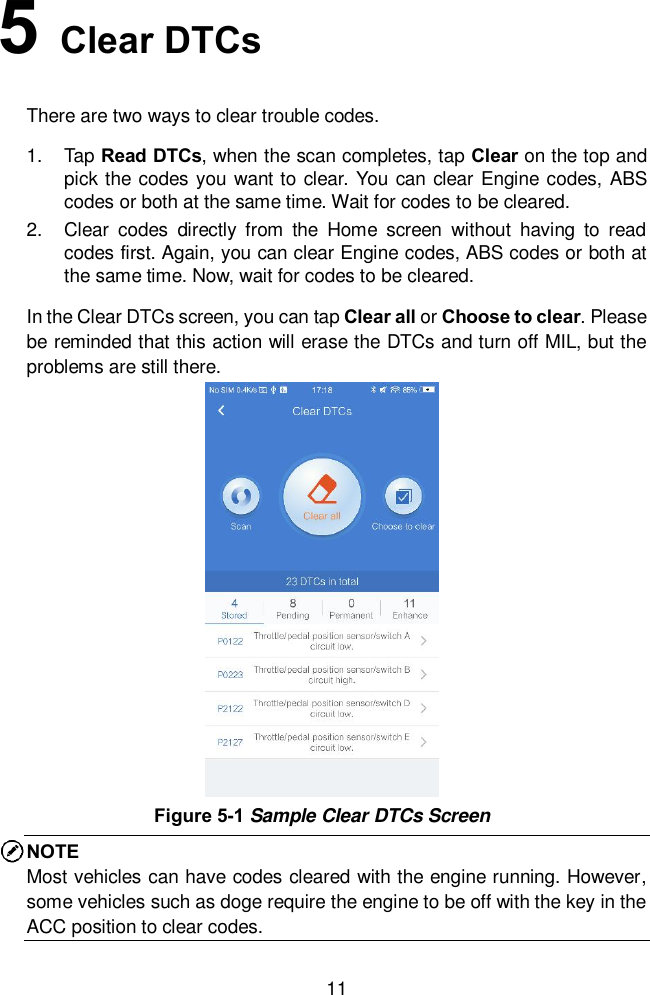

11 5 Clear DTCs There are two ways to clear trouble codes. 1. Tap Read DTCs, when the scan completes, tap Clear on the top and pick the codes you want to clear. You can clear Engine codes, ABS codes or both at the same time. Wait for codes to be cleared. 2. Clear codes directly from the Home screen without having to read codes first. Again, you can clear Engine codes, ABS codes or both at the same time. Now, wait for codes to be cleared. In the Clear DTCs screen, you can tap Clear all or Choose to clear. Please be reminded that this action will erase the DTCs and turn off MIL, but the problems are still there. NOTE Most vehicles can have codes cleared with the engine running. However, some vehicles such as doge require the engine to be off with the key in the ACC position to clear codes. Figure 5-1 Sample Clear DTCs Screen

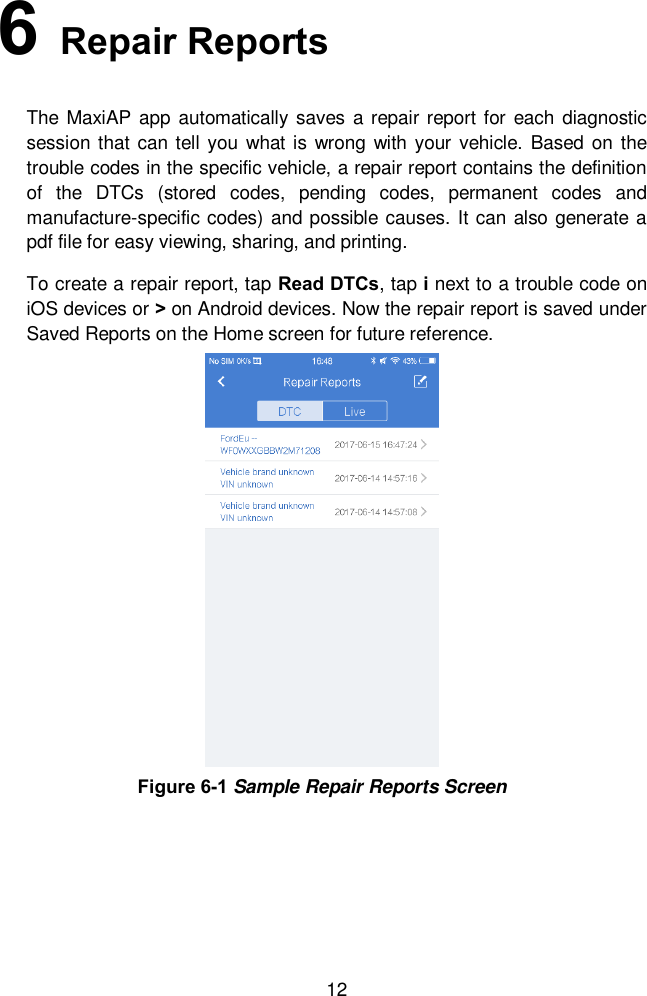

12 6 Repair Reports The MaxiAP app automatically saves a repair report for each diagnostic session that can tell you what is wrong with your vehicle. Based on the trouble codes in the specific vehicle, a repair report contains the definition of the DTCs (stored codes, pending codes, permanent codes and manufacture-specific codes) and possible causes. It can also generate a pdf file for easy viewing, sharing, and printing. To create a repair report, tap Read DTCs, tap i next to a trouble code on iOS devices or > on Android devices. Now the repair report is saved under Saved Reports on the Home screen for future reference. Figure 6-1 Sample Repair Reports Screen

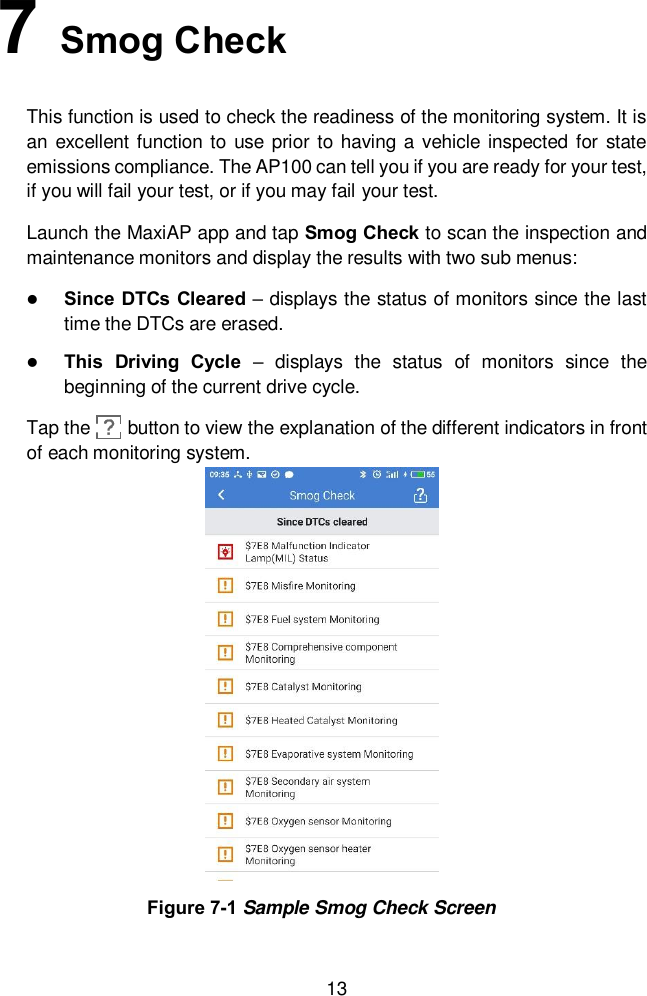

13 7 Smog Check This function is used to check the readiness of the monitoring system. It is an excellent function to use prior to having a vehicle inspected for state emissions compliance. The AP100 can tell you if you are ready for your test, if you will fail your test, or if you may fail your test. Launch the MaxiAP app and tap Smog Check to scan the inspection and maintenance monitors and display the results with two sub menus:  Since DTCs Cleared – displays the status of monitors since the last time the DTCs are erased.  This Driving Cycle – displays the status of monitors since the beginning of the current drive cycle. Tap the button to view the explanation of the different indicators in front of each monitoring system. Figure 7-1 Sample Smog Check Screen

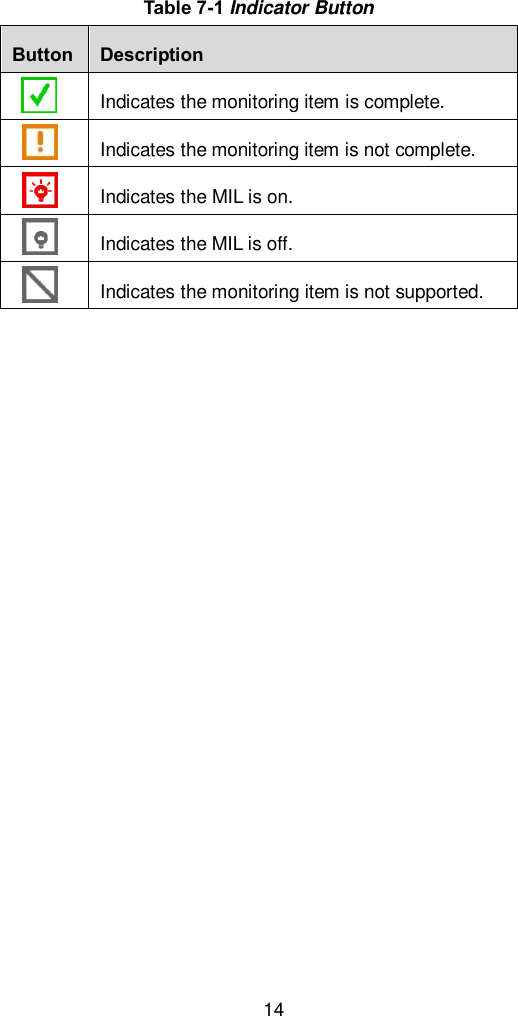

14 Table 7-1 Indicator Button Button Description Indicates the monitoring item is complete. Indicates the monitoring item is not complete. Indicates the MIL is on. Indicates the MIL is off. Indicates the monitoring item is not supported.

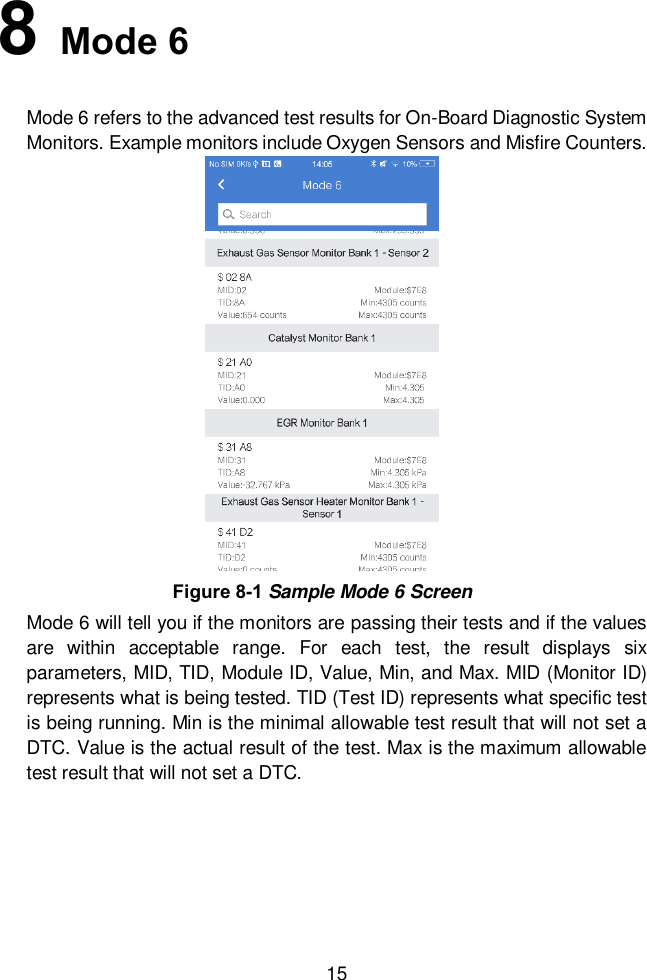

15 8 Mode 6 Mode 6 refers to the advanced test results for On-Board Diagnostic System Monitors. Example monitors include Oxygen Sensors and Misfire Counters. Mode 6 will tell you if the monitors are passing their tests and if the values are within acceptable range. For each test, the result displays six parameters, MID, TID, Module ID, Value, Min, and Max. MID (Monitor ID) represents what is being tested. TID (Test ID) represents what specific test is being running. Min is the minimal allowable test result that will not set a DTC. Value is the actual result of the test. Max is the maximum allowable test result that will not set a DTC. Figure 8-1 Sample Mode 6 Screen
16 9 Freeze Frame Freeze Frame provides a snapshot of vehicle data at the instant the Check Engine Light (CEL) came on. Tap Freeze Frame. When the scan completes, freeze frame data is available to be viewed. Figure 9-1 Sample Freeze Frame Screen

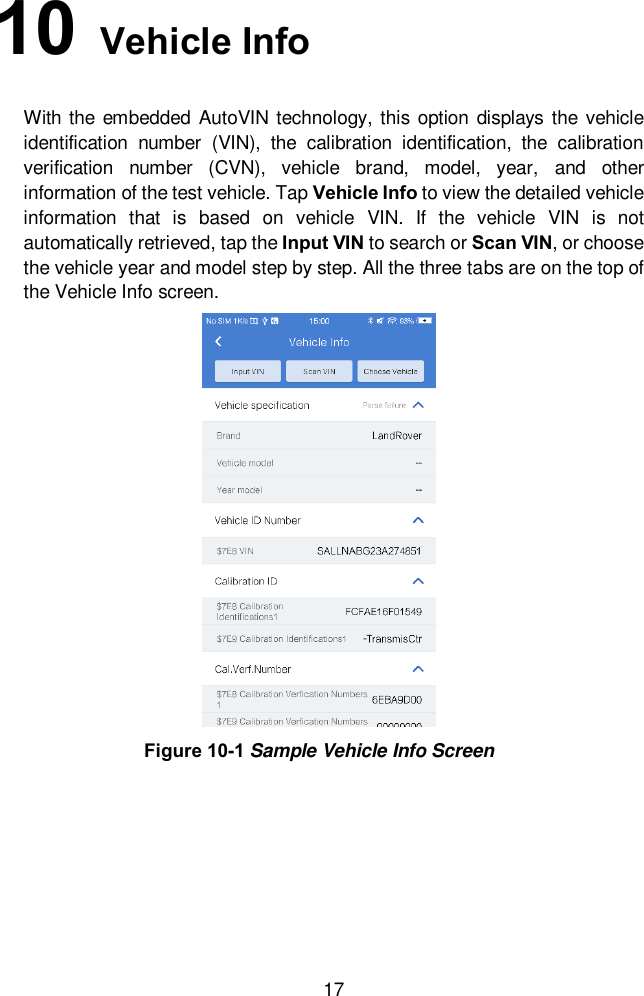

17 10 Vehicle Info With the embedded AutoVIN technology, this option displays the vehicle identification number (VIN), the calibration identification, the calibration verification number (CVN), vehicle brand, model, year, and other information of the test vehicle. Tap Vehicle Info to view the detailed vehicle information that is based on vehicle VIN. If the vehicle VIN is not automatically retrieved, tap the Input VIN to search or Scan VIN, or choose the vehicle year and model step by step. All the three tabs are on the top of the Vehicle Info screen. Figure 10-1 Sample Vehicle Info Screen
18 11 MIL Status The Check Engine Light is also known as the Malfunction Indicator Lamp, or MIL, and has more information to share besides being ON or OFF. Tap MIL Status to display the MIL related information. The information mainly include, MIL Status (ON or OFF), Run Time Since Engine Start, Distance with MIL ON, and Distance Since Trouble Code Cleared. These supported parameters vary by test vehicle. Figure 11-1 Sample MIL Status Screen

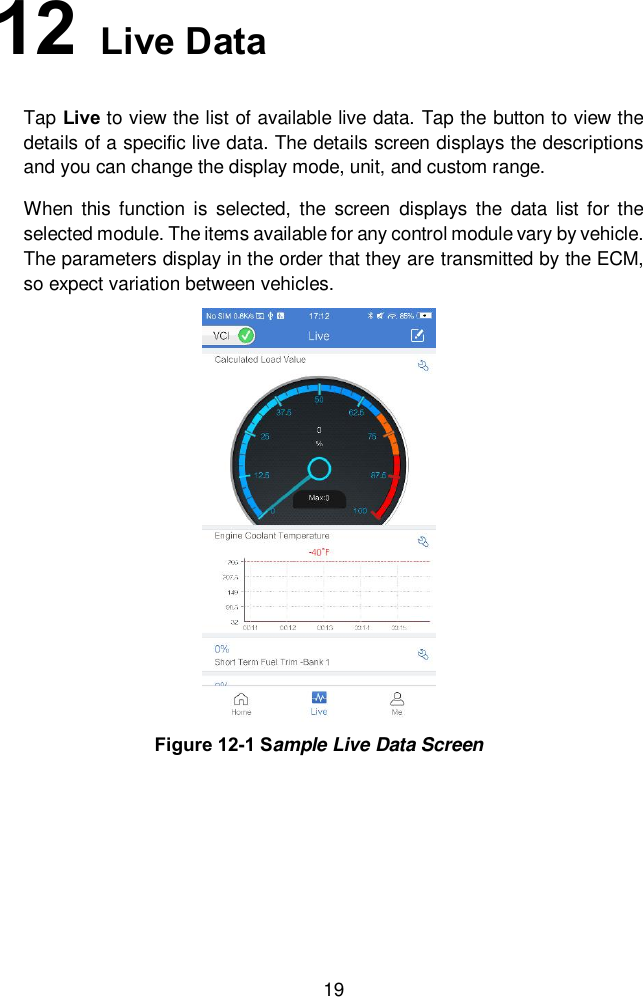

19 12 Live Data Tap Live to view the list of available live data. Tap the button to view the details of a specific live data. The details screen displays the descriptions and you can change the display mode, unit, and custom range. When this function is selected, the screen displays the data list for the selected module. The items available for any control module vary by vehicle. The parameters display in the order that they are transmitted by the ECM, so expect variation between vehicles. Figure 12-1 Sample Live Data Screen

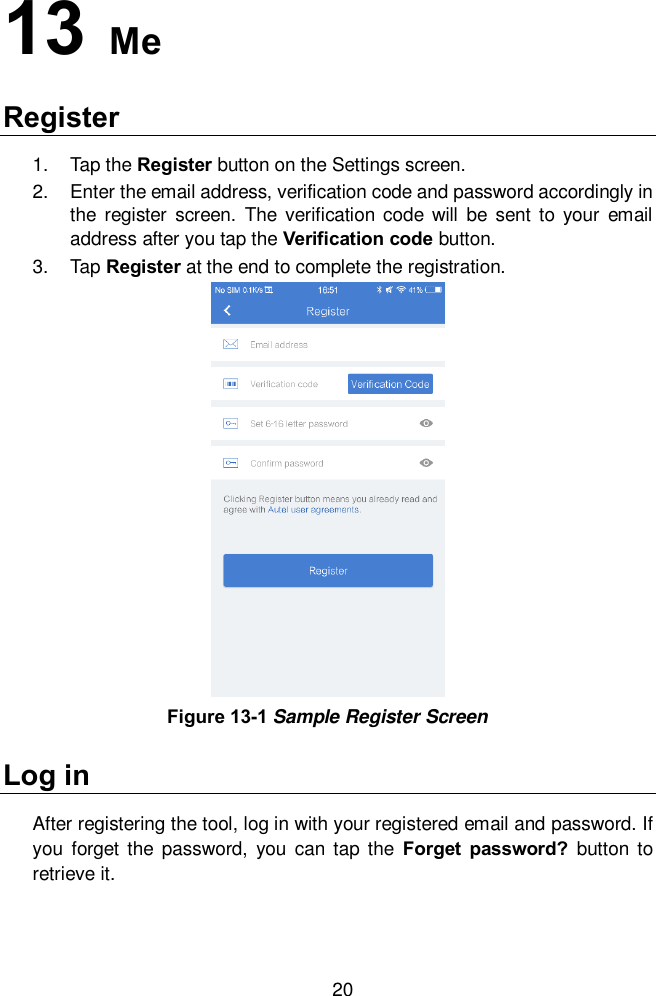

20 13 Me Register 1. Tap the Register button on the Settings screen. 2. Enter the email address, verification code and password accordingly in the register screen. The verification code will be sent to your email address after you tap the Verification code button. 3. Tap Register at the end to complete the registration. Log in After registering the tool, log in with your registered email and password. If you forget the password, you can tap the Forget password? button to retrieve it. Figure 13-1 Sample Register Screen

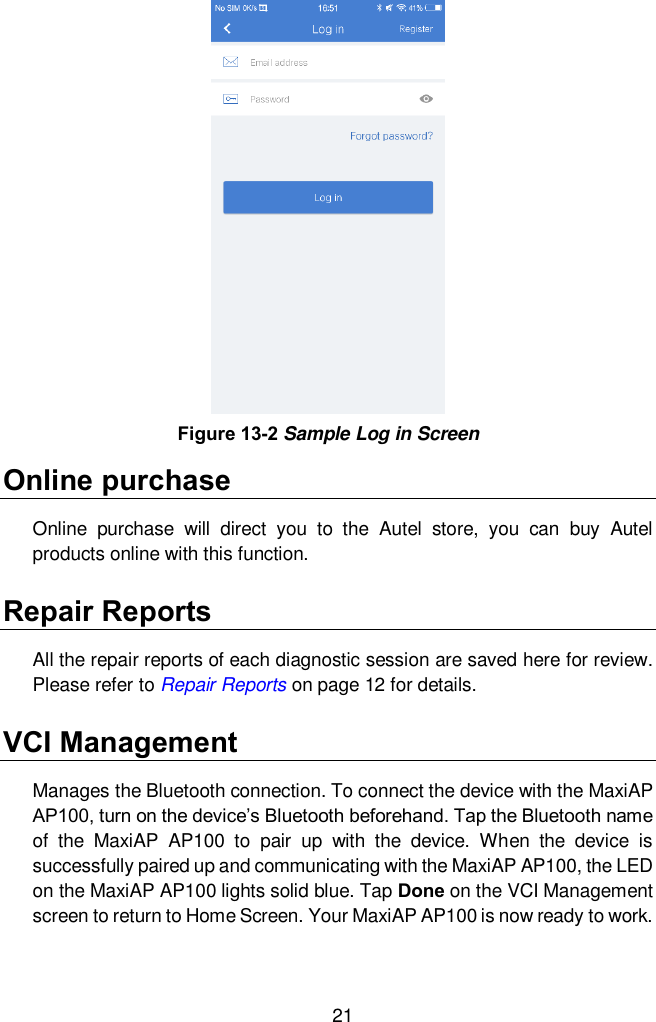

21 Online purchase Online purchase will direct you to the Autel store, you can buy Autel products online with this function. Repair Reports All the repair reports of each diagnostic session are saved here for review. Please refer to Repair Reports on page 12 for details. VCI Management Manages the Bluetooth connection. To connect the device with the MaxiAP AP100, turn on the device’s Bluetooth beforehand. Tap the Bluetooth name of the MaxiAP AP100 to pair up with the device. When the device is successfully paired up and communicating with the MaxiAP AP100, the LED on the MaxiAP AP100 lights solid blue. Tap Done on the VCI Management screen to return to Home Screen. Your MaxiAP AP100 is now ready to work. Figure 13-2 Sample Log in Screen

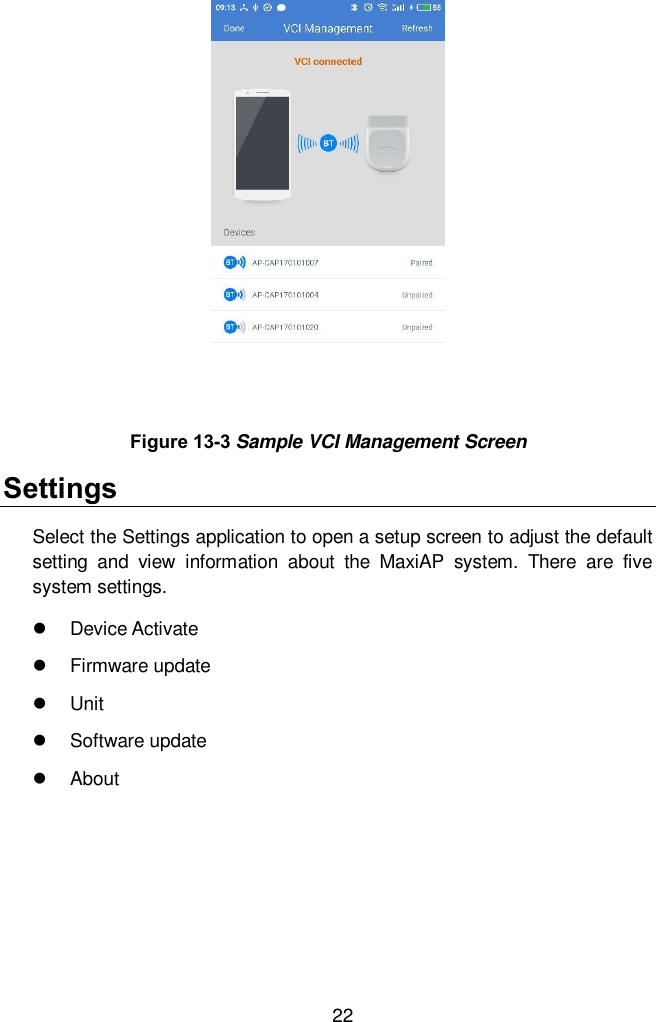

22 Settings Select the Settings application to open a setup screen to adjust the default setting and view information about the MaxiAP system. There are five system settings.  Device Activate  Firmware update  Unit  Software update  About Figure 13-3 Sample VCI Management Screen

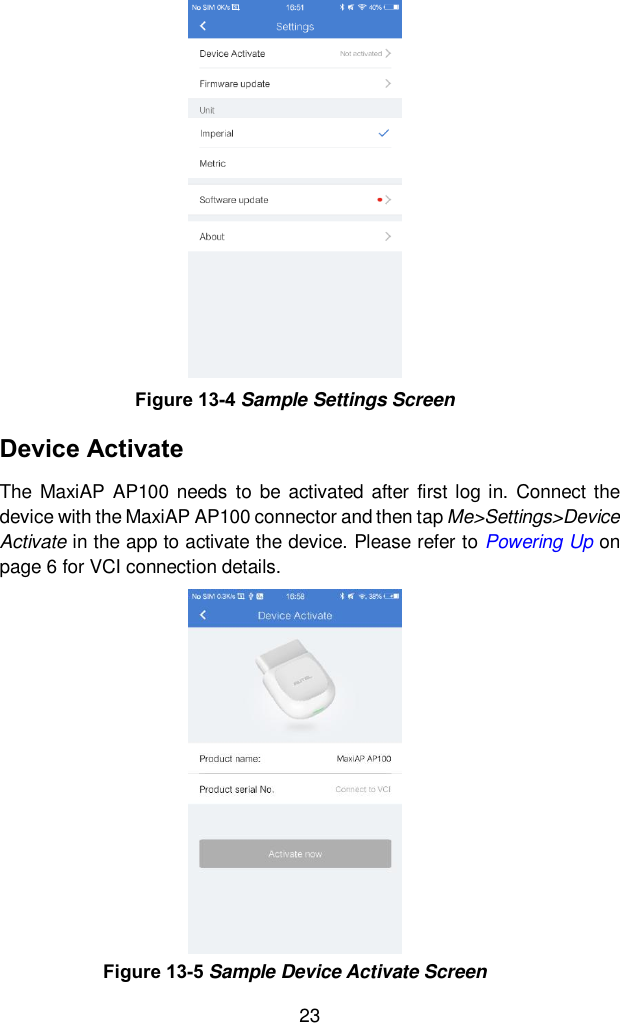

23 Device Activate The MaxiAP AP100 needs to be activated after first log in. Connect the device with the MaxiAP AP100 connector and then tap Me>Settings>Device Activate in the app to activate the device. Please refer to Powering Up on page 6 for VCI connection details. Figure 13-4 Sample Settings Screen Figure 13-5 Sample Device Activate Screen

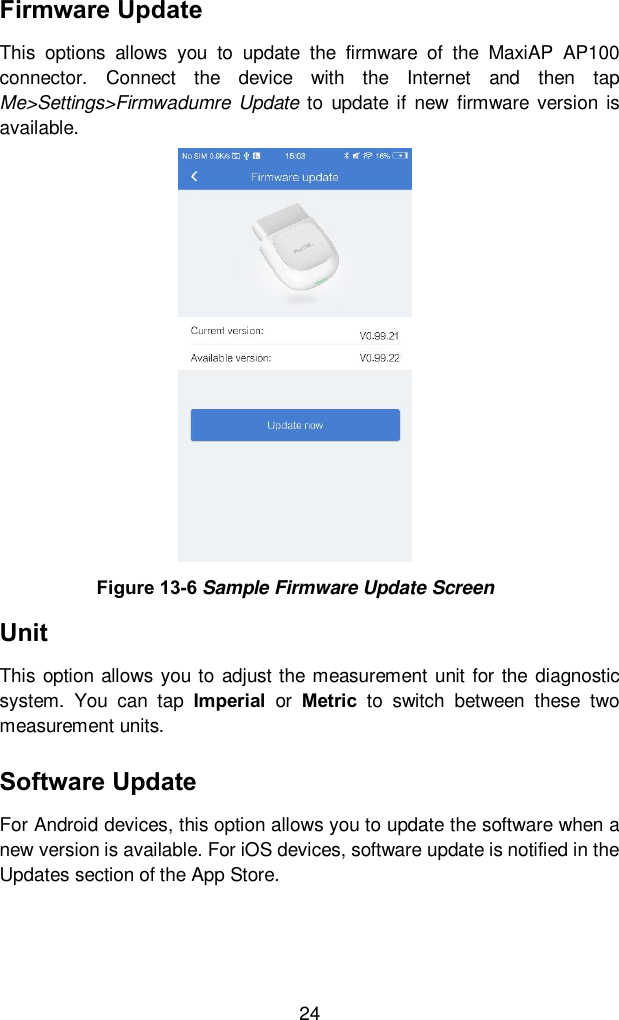

24 Firmware Update This options allows you to update the firmware of the MaxiAP AP100 connector. Connect the device with the Internet and then tap Me>Settings>Firmwadumre Update to update if new firmware version is available. Unit This option allows you to adjust the measurement unit for the diagnostic system. You can tap Imperial or Metric to switch between these two measurement units. Software Update For Android devices, this option allows you to update the software when a new version is available. For iOS devices, software update is notified in the Updates section of the App Store. Figure 13-6 Sample Firmware Update Screen

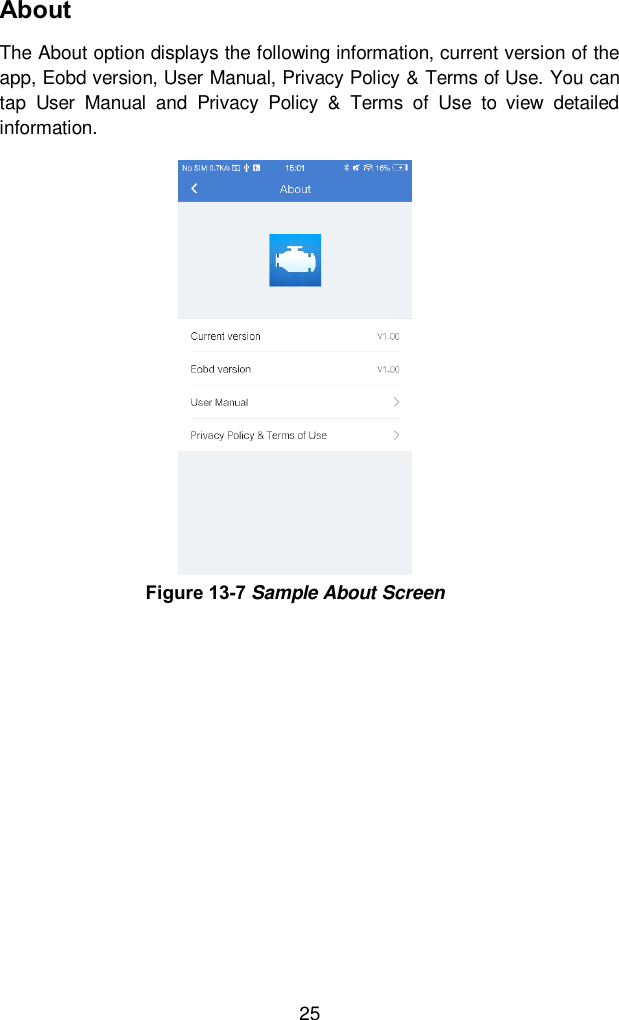

25 About The About option displays the following information, current version of the app, Eobd version, User Manual, Privacy Policy & Terms of Use. You can tap User Manual and Privacy Policy & Terms of Use to view detailed information. Figure 13-7 Sample About Screen

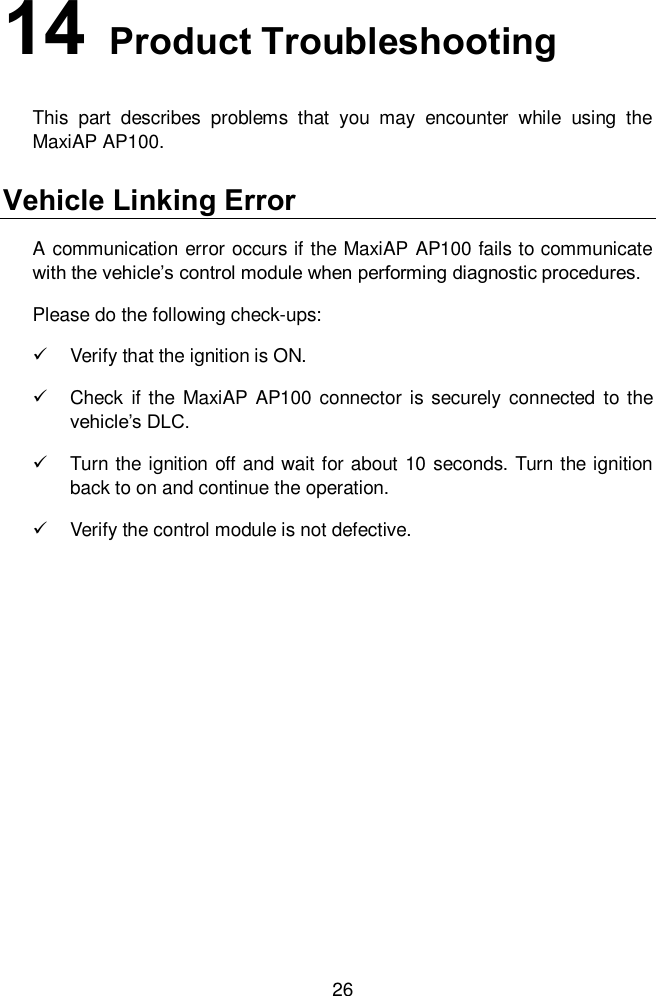

26 14 Product Troubleshooting This part describes problems that you may encounter while using the MaxiAP AP100. Vehicle Linking Error A communication error occurs if the MaxiAP AP100 fails to communicate with the vehicle’s control module when performing diagnostic procedures. Please do the following check-ups:  Verify that the ignition is ON.  Check if the MaxiAP AP100 connector is securely connected to the vehicle’s DLC.  Turn the ignition off and wait for about 10 seconds. Turn the ignition back to on and continue the operation.  Verify the control module is not defective.

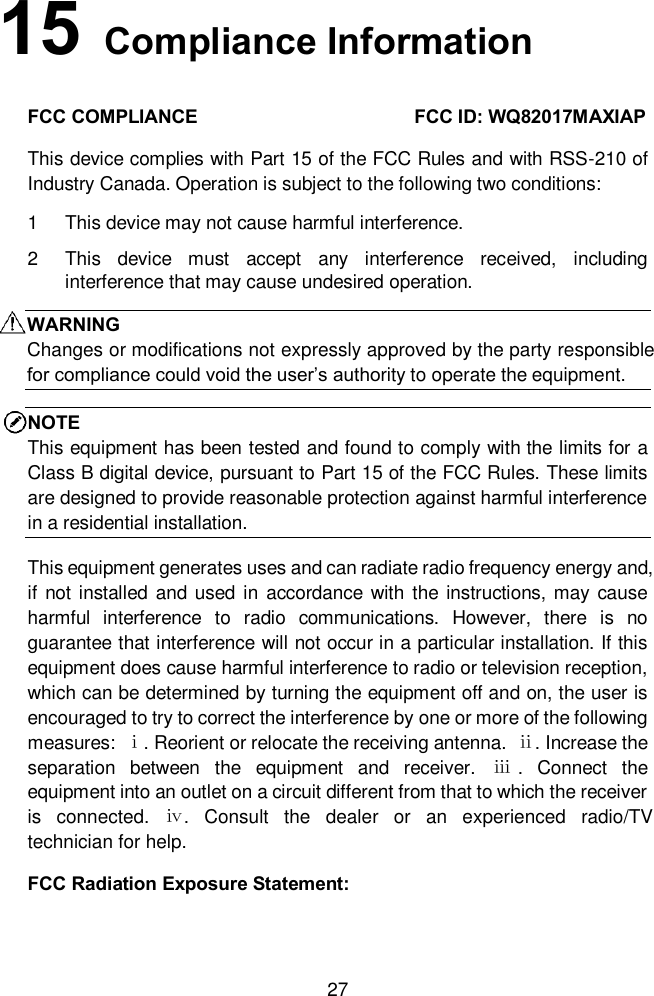

27 15 Compliance InformationFCC COMPLIANCE FCC ID: WQ82017MAXIAP This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: 1 This device may not cause harmful interference. 2 This device must accept any interference received, including interference that may cause undesired operation. WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ⅰ. Reorient or relocate the receiving antenna. ⅱ. Increase the separation between the equipment and receiver. ⅲ . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ⅳ. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement:

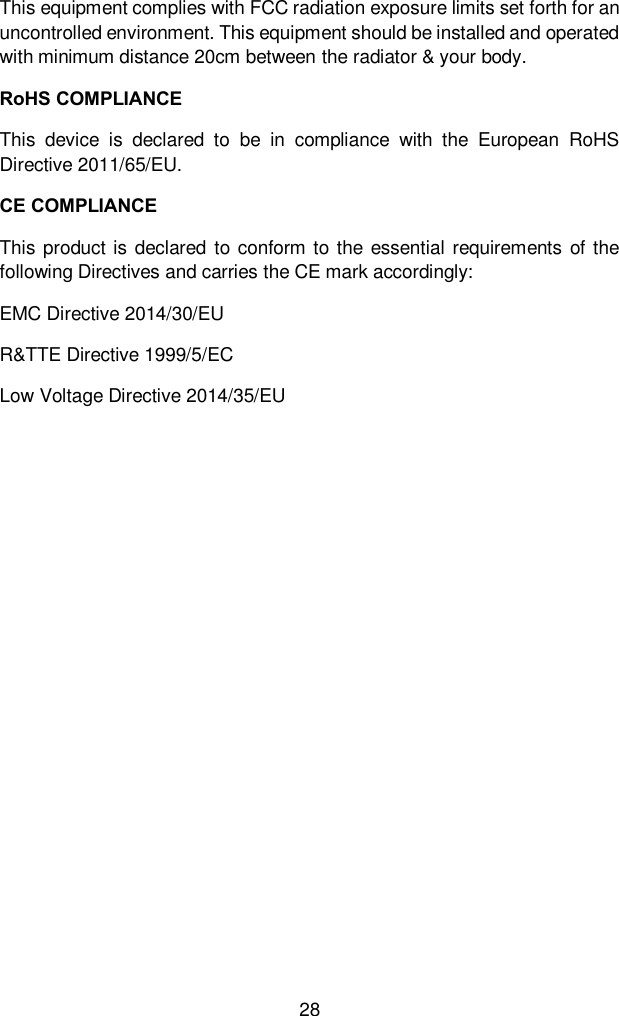

28 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. RoHS COMPLIANCE This device is declared to be in compliance with the European RoHS Directive 2011/65/EU. CE COMPLIANCE This product is declared to conform to the essential requirements of the following Directives and carries the CE mark accordingly: EMC Directive 2014/30/EU R&TTE Directive 1999/5/EC Low Voltage Directive 2014/35/EU

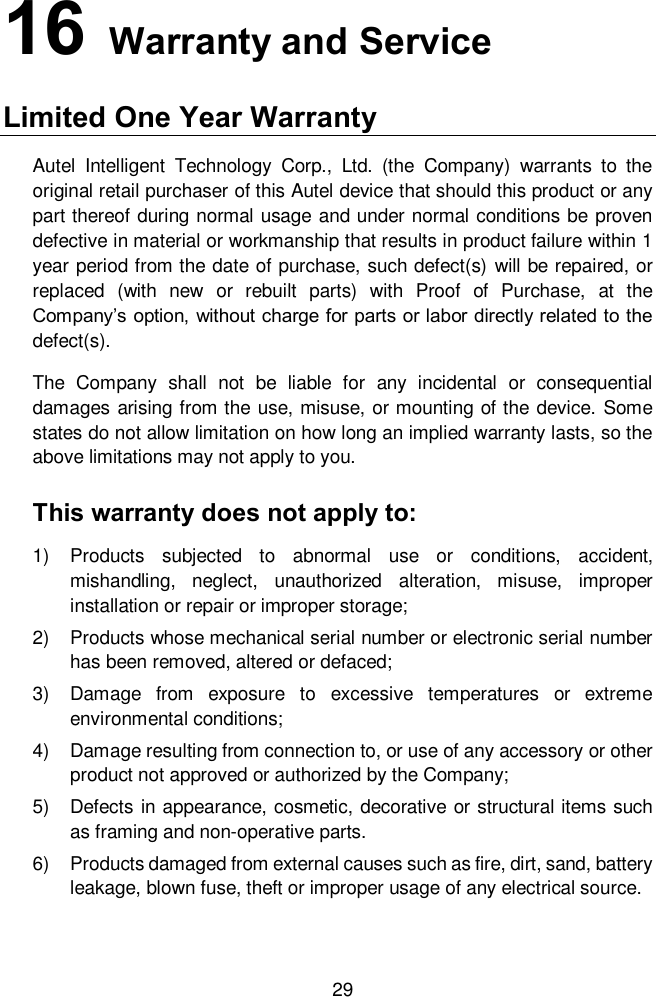

29 16 Warranty and Service Limited One Year Warranty Autel Intelligent Technology Corp., Ltd. (the Company) warrants to the original retail purchaser of this Autel device that should this product or any part thereof during normal usage and under normal conditions be proven defective in material or workmanship that results in product failure within 1 year period from the date of purchase, such defect(s) will be repaired, or replaced (with new or rebuilt parts) with Proof of Purchase, at the Company’s option, without charge for parts or labor directly related to the defect(s). The Company shall not be liable for any incidental or consequential damages arising from the use, misuse, or mounting of the device. Some states do not allow limitation on how long an implied warranty lasts, so the above limitations may not apply to you. This warranty does not apply to: 1) Products subjected to abnormal use or conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair or improper storage; 2) Products whose mechanical serial number or electronic serial number has been removed, altered or defaced; 3) Damage from exposure to excessive temperatures or extreme environmental conditions; 4) Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the Company; 5) Defects in appearance, cosmetic, decorative or structural items such as framing and non-operative parts. 6) Products damaged from external causes such as fire, dirt, sand, battery leakage, blown fuse, theft or improper usage of any electrical source.

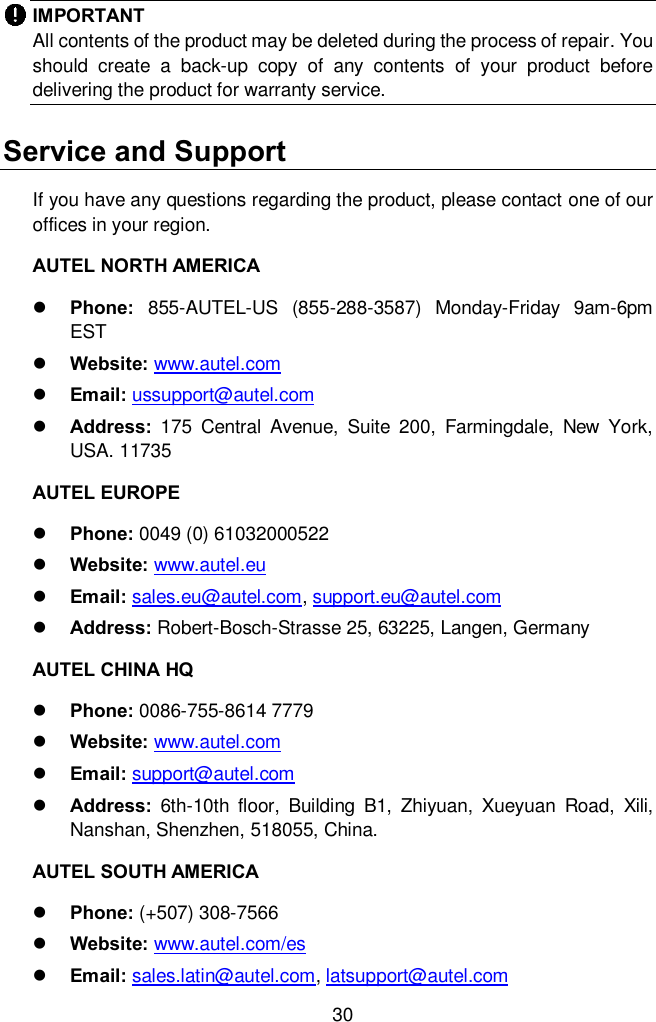

30 IMPORTANT All contents of the product may be deleted during the process of repair. You should create a back-up copy of any contents of your product before delivering the product for warranty service. Service and Support If you have any questions regarding the product, please contact one of our offices in your region. AUTEL NORTH AMERICA  Phone: 855-AUTEL-US (855-288-3587) Monday-Friday 9am-6pm EST  Website: www.autel.com  Email: ussupport@autel.com  Address: 175 Central Avenue, Suite 200, Farmingdale, New York, USA. 11735 AUTEL EUROPE  Phone: 0049 (0) 61032000522  Website: www.autel.eu  Email: sales.eu@autel.com, support.eu@autel.com  Address: Robert-Bosch-Strasse 25, 63225, Langen, Germany AUTEL CHINA HQ  Phone: 0086-755-8614 7779  Website: www.autel.com  Email: support@autel.com  Address: 6th-10th floor, Building B1, Zhiyuan, Xueyuan Road, Xili, Nanshan, Shenzhen, 518055, China. AUTEL SOUTH AMERICA  Phone: (+507) 308-7566  Website: www.autel.com/es  Email: sales.latin@autel.com, latsupport@autel.com

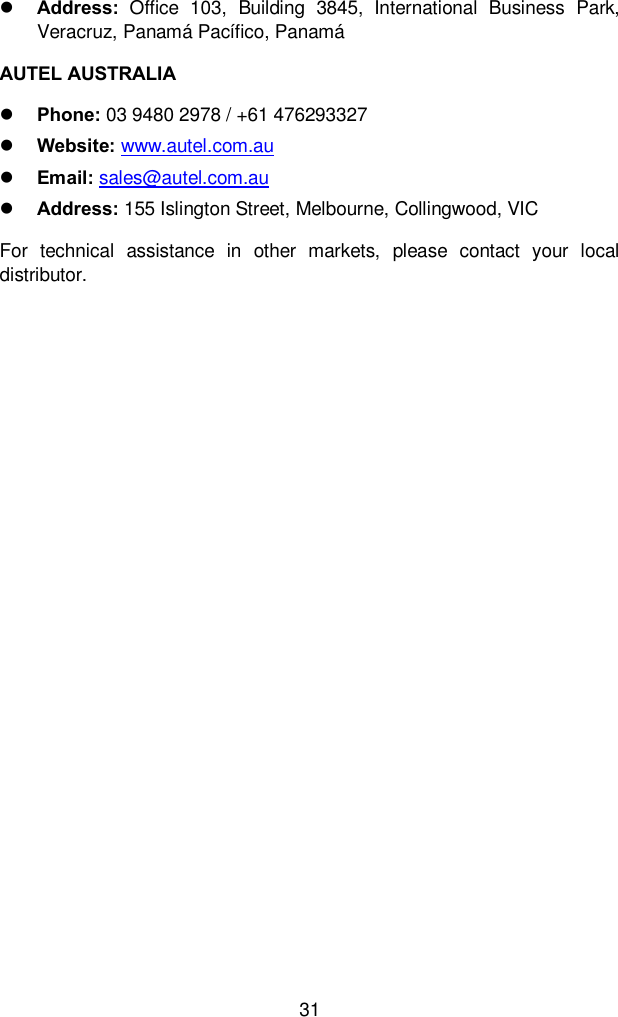

31  Address: Office 103, Building 3845, International Business Park, Veracruz, Panamá Pacífico, Panamá AUTEL AUSTRALIA  Phone: 03 9480 2978 / +61 476293327  Website: www.autel.com.au  Email: sales@autel.com.au  Address: 155 Islington Street, Melbourne, Collingwood, VIC For technical assistance in other markets, please contact your local distributor.
