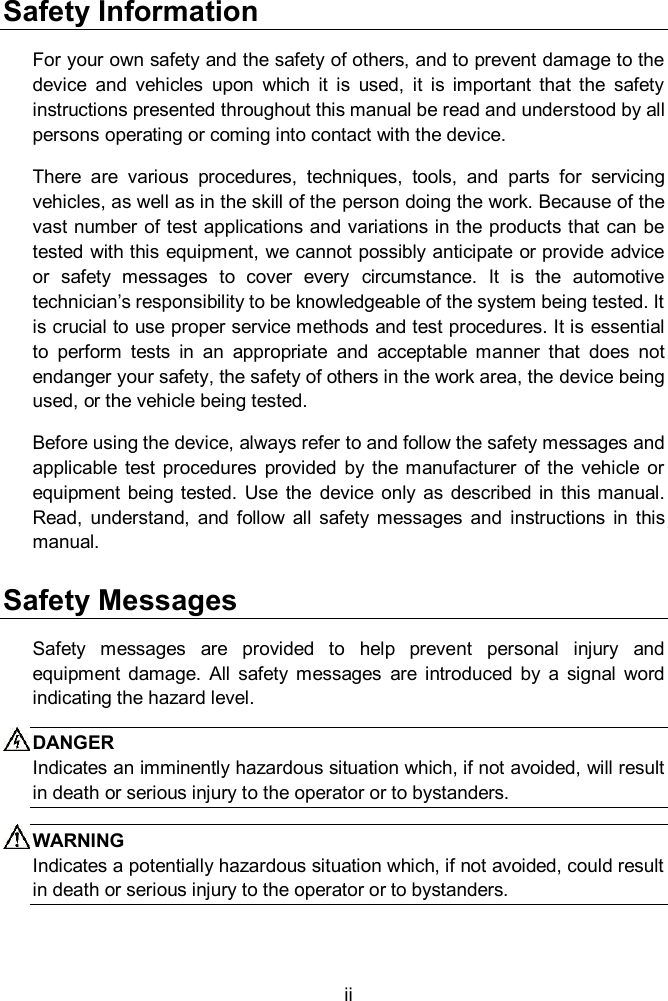

ii Safety Information For your own safety and the safety of others, and to prevent damage to the device and vehicles upon which it is used, it is important that the safety instructions presented throughout this manual be read and understood by all persons operating or coming into contact with the device. There are various procedures, techniques, tools, and parts for servicing vehicles, as well as in the skill of the person doing the work. Because of the vast number of test applications and variations in the products that can be tested with this equipment, we cannot possibly anticipate or provide advice or safety messages to cover every circumstance. It is the automotive technician’s responsibility to be knowledgeable of the system being tested. It is crucial to use proper service methods and test procedures. It is essential to perform tests in an appropriate and acceptable manner that does not endanger your safety, the safety of others in the work area, the device being used, or the vehicle being tested. Before using the device, always refer to and follow the safety messages and applicable test procedures provided by the manufacturer of the vehicle or equipment being tested. Use the device only as described in this manual. Read, understand, and follow all safety messages and instructions in this manual. Safety Messages Safety messages are provided to help prevent personal injury and equipment damage. All safety messages are introduced by a signal word indicating the hazard level. DANGER Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury to the operator or to bystanders. WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury to the operator or to bystanders.

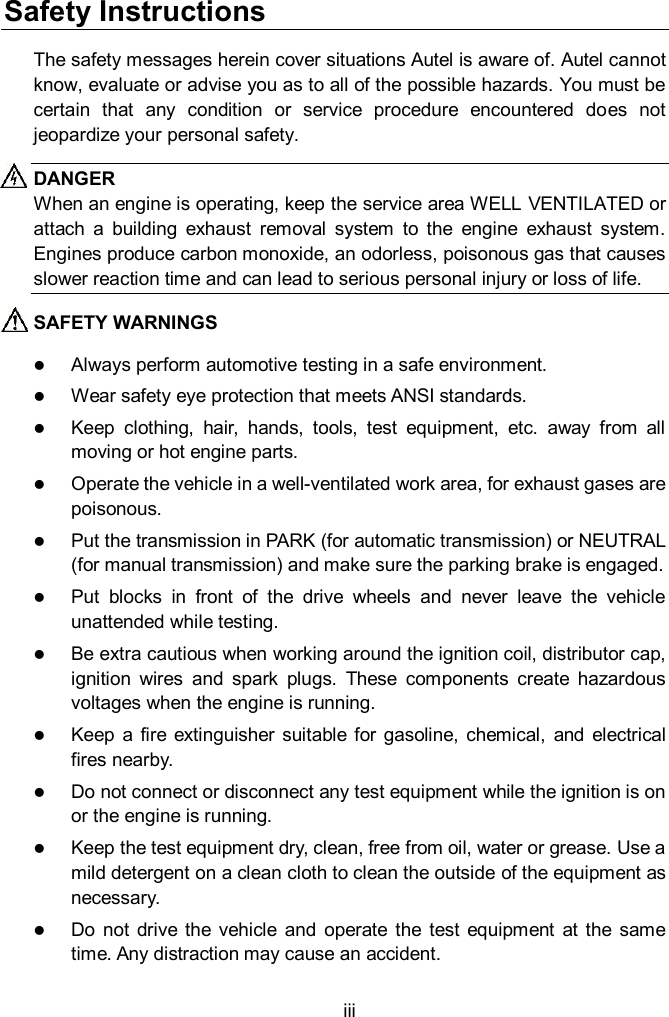

iii Safety Instructions The safety messages herein cover situations Autel is aware of. Autel cannot know, evaluate or advise you as to all of the possible hazards. You must be certain that any condition or service procedure encountered does not jeopardize your personal safety. DANGER When an engine is operating, keep the service area WELL VENTILATED or attach a building exhaust removal system to the engine exhaust system. Engines produce carbon monoxide, an odorless, poisonous gas that causes slower reaction time and can lead to serious personal injury or loss of life. SAFETY WARNINGS  Always perform automotive testing in a safe environment.  Wear safety eye protection that meets ANSI standards.  Keep clothing, hair, hands, tools, test equipment, etc. away from all moving or hot engine parts.  Operate the vehicle in a well-ventilated work area, for exhaust gases are poisonous.  Put the transmission in PARK (for automatic transmission) or NEUTRAL (for manual transmission) and make sure the parking brake is engaged.  Put blocks in front of the drive wheels and never leave the vehicle unattended while testing.  Be extra cautious when working around the ignition coil, distributor cap, ignition wires and spark plugs. These components create hazardous voltages when the engine is running.  Keep a fire extinguisher suitable for gasoline, chemical, and electrical fires nearby.  Do not connect or disconnect any test equipment while the ignition is on or the engine is running.  Keep the test equipment dry, clean, free from oil, water or grease. Use a mild detergent on a clean cloth to clean the outside of the equipment as necessary.  Do not drive the vehicle and operate the test equipment at the same time. Any distraction may cause an accident.

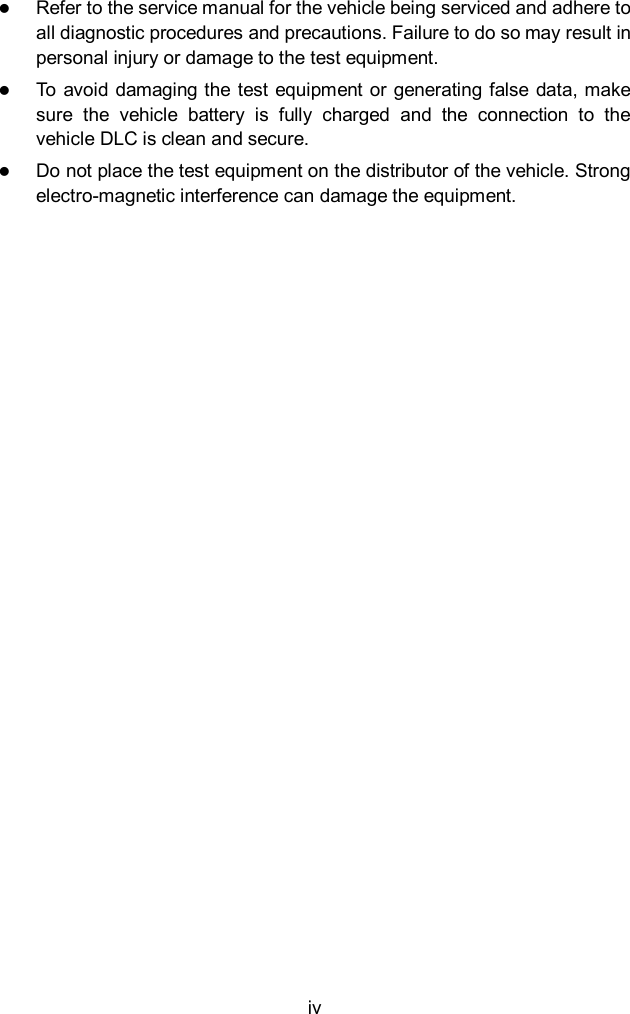

iv  Refer to the service manual for the vehicle being serviced and adhere to all diagnostic procedures and precautions. Failure to do so may result in personal injury or damage to the test equipment.  To avoid damaging the test equipment or generating false data, make sure the vehicle battery is fully charged and the connection to the vehicle DLC is clean and secure.  Do not place the test equipment on the distributor of the vehicle. Strong electro-magnetic interference can damage the equipment.
v Contents 1 USING THIS MANUAL ............................................................................. 1 CONVENTIONS ........................................................................................... 1 2 GENERAL INTRODUCTION .................................................................... 3 MAXICHECK MX808TS DISPLAY TABLET ....................................................... 4 VCI – VEHICLE COMMUNICATION INTERFACE .................................................. 7 OTHER ACCESSORIES ................................................................................10 3 GETTING STARTED ..............................................................................11 POWERING UP ..........................................................................................11 POWERING DOWN......................................................................................15 4 DIAGNOSTICS .......................................................................................17 ESTABLISHING VEHICLE COMMUNICATION ......................................................17 GETTING STARTED ....................................................................................20 VEHICLE IDENTIFICATION .............................................................................21 NAVIGATION..............................................................................................27 DIAGNOSIS ...............................................................................................30 GENERIC OBD II OPERATIONS ....................................................................42 EXITING DIAGNOSTICS ................................................................................47 5 SERVICE ...............................................................................................48 OIL RESET SERVICE...................................................................................48 ELECTRONIC PARKING BRAKE (EPB) SERVICE ...............................................51 BATTERY MANAGEMENT SYSTEM (BMS) SERVICE ..........................................55 STEERING ANGLE SENSOR (SAS) SERVICE ...................................................61 DIESEL PARTICLE FILTER (DPF) SERVICE .....................................................63 IMMOBILIZER (IMMO) SERVICE ....................................................................71 6 TPMS .....................................................................................................74 GETTING STARTED ....................................................................................74 VEHICLE SELECTION ..................................................................................75 OEM PART NO. ........................................................................................96

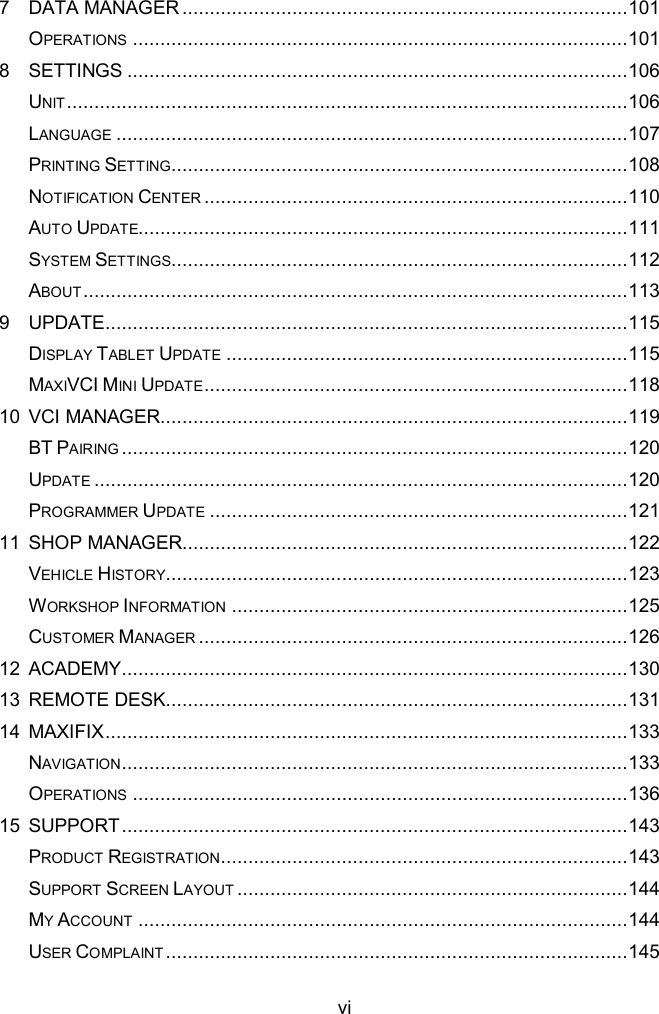

vi 7 DATA MANAGER ................................................................................. 101 OPERATIONS .......................................................................................... 101 8 SETTINGS ........................................................................................... 106 UNIT ...................................................................................................... 106 LANGUAGE ............................................................................................. 107 PRINTING SETTING................................................................................... 108 NOTIFICATION CENTER ............................................................................. 110 AUTO UPDATE......................................................................................... 111 SYSTEM SETTINGS................................................................................... 112 ABOUT ................................................................................................... 113 9 UPDATE ............................................................................................... 115 DISPLAY TABLET UPDATE ......................................................................... 115 MAXIVCI MINI UPDATE ............................................................................. 118 10 VCI MANAGER ..................................................................................... 119 BT PAIRING ............................................................................................ 120 UPDATE ................................................................................................. 120 PROGRAMMER UPDATE ............................................................................ 121 11 SHOP MANAGER ................................................................................. 122 VEHICLE HISTORY.................................................................................... 123 WORKSHOP INFORMATION ........................................................................ 125 CUSTOMER MANAGER .............................................................................. 126 12 ACADEMY ............................................................................................ 130 13 REMOTE DESK .................................................................................... 131 14 MAXIFIX ............................................................................................... 133 NAVIGATION............................................................................................ 133 OPERATIONS .......................................................................................... 136 15 SUPPORT ............................................................................................ 143 PRODUCT REGISTRATION .......................................................................... 143 SUPPORT SCREEN LAYOUT ....................................................................... 144 MY ACCOUNT ......................................................................................... 144 USER COMPLAINT .................................................................................... 145
vii DATA LOGGING ....................................................................................... 148 COMMUNITIES ......................................................................................... 149 TRAINING CHANNELS ................................................................................ 151 FAQ DATABASE ...................................................................................... 151 16 QUICK LINK ......................................................................................... 152 17 FUNCTION VIEWER ............................................................................ 153 18 MAINTENANCE AND SERVICE ............................................................ 156 MAINTENANCE INSTRUCTIONS .................................................................... 156 TROUBLESHOOTING CHECKLIST ................................................................. 157 ABOUT BATTERY USAGE ........................................................................... 157 SERVICE PROCEDURES ............................................................................ 158 19 COMPLIANCE INFORMATION ............................................................. 161 20 WARRANTY ......................................................................................... 164 LIMITED ONE YEAR WARRANTY ................................................................. 164

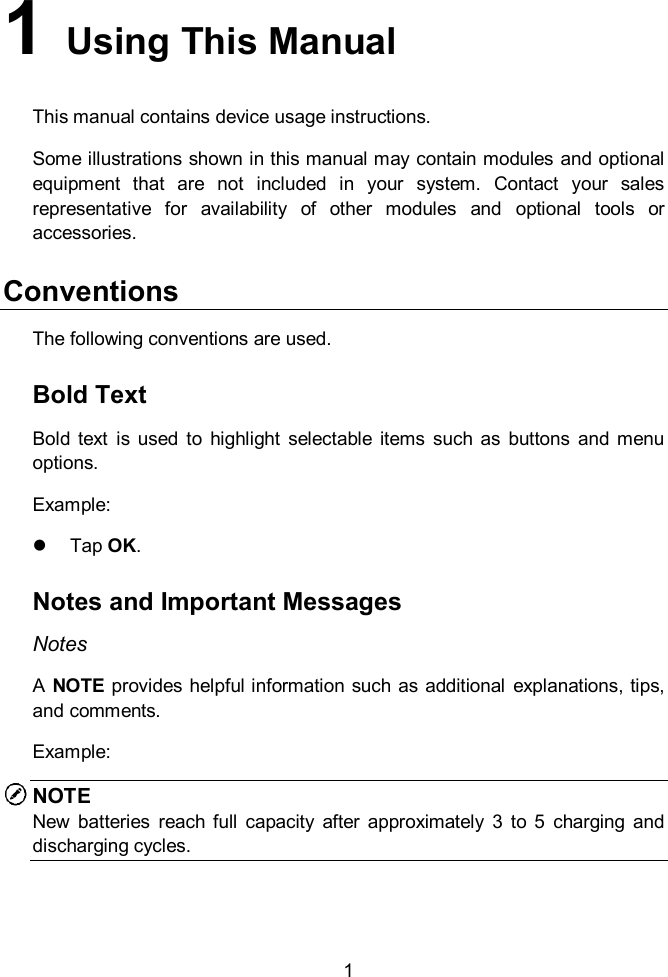

1 1 Using This Manual This manual contains device usage instructions. Some illustrations shown in this manual may contain modules and optional equipment that are not included in your system. Contact your sales representative for availability of other modules and optional tools or accessories. Conventions The following conventions are used. Bold Text Bold text is used to highlight selectable items such as buttons and menu options. Example:  Tap OK. Notes and Important Messages Notes A NOTE provides helpful information such as additional explanations, tips, and comments. Example: NOTE New batteries reach full capacity after approximately 3 to 5 charging and discharging cycles.

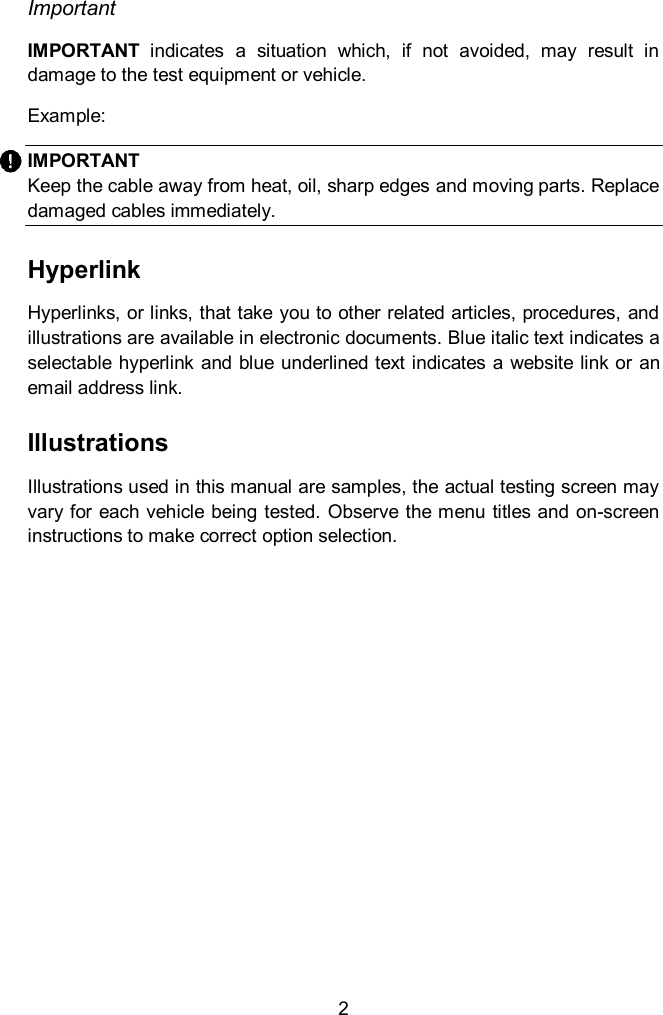

2 Important IMPORTANT indicates a situation which, if not avoided, may result in damage to the test equipment or vehicle. Example: IMPORTANT Keep the cable away from heat, oil, sharp edges and moving parts. Replace damaged cables immediately. Hyperlink Hyperlinks, or links, that take you to other related articles, procedures, and illustrations are available in electronic documents. Blue italic text indicates a selectable hyperlink and blue underlined text indicates a website link or an email address link. Illustrations Illustrations used in this manual are samples, the actual testing screen may vary for each vehicle being tested. Observe the menu titles and on-screen instructions to make correct option selection.

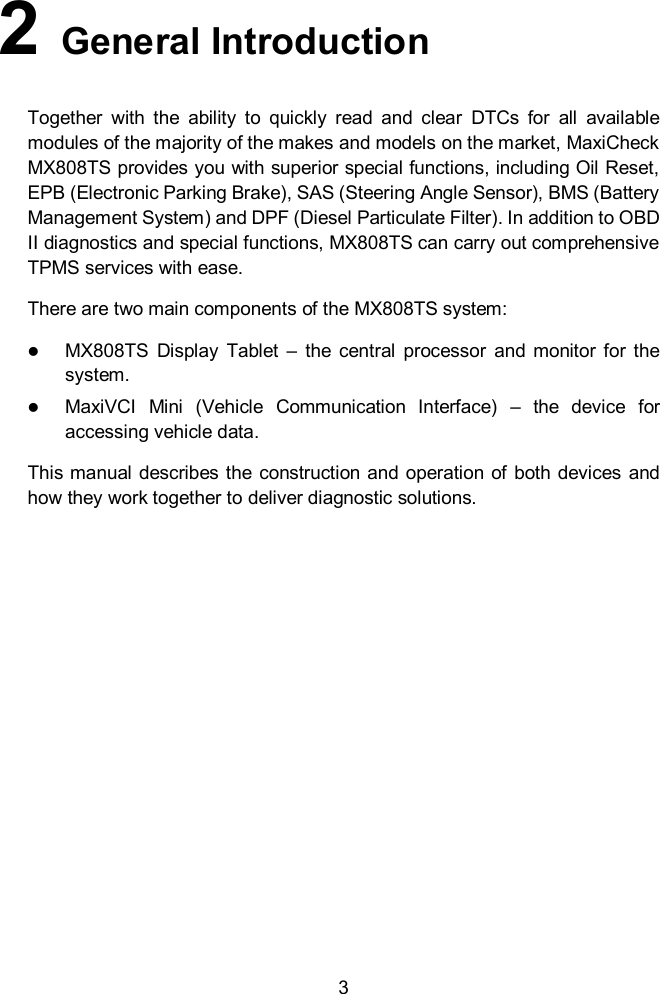

3 2 General Introduction Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, MaxiCheck MX808TS provides you with superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System) and DPF (Diesel Particulate Filter). In addition to OBD II diagnostics and special functions, MX808TS can carry out comprehensive TPMS services with ease. There are two main components of the MX808TS system:  MX808TS Display Tablet – the central processor and monitor for the system.  MaxiVCI Mini (Vehicle Communication Interface) – the device for accessing vehicle data. This manual describes the construction and operation of both devices and how they work together to deliver diagnostic solutions.

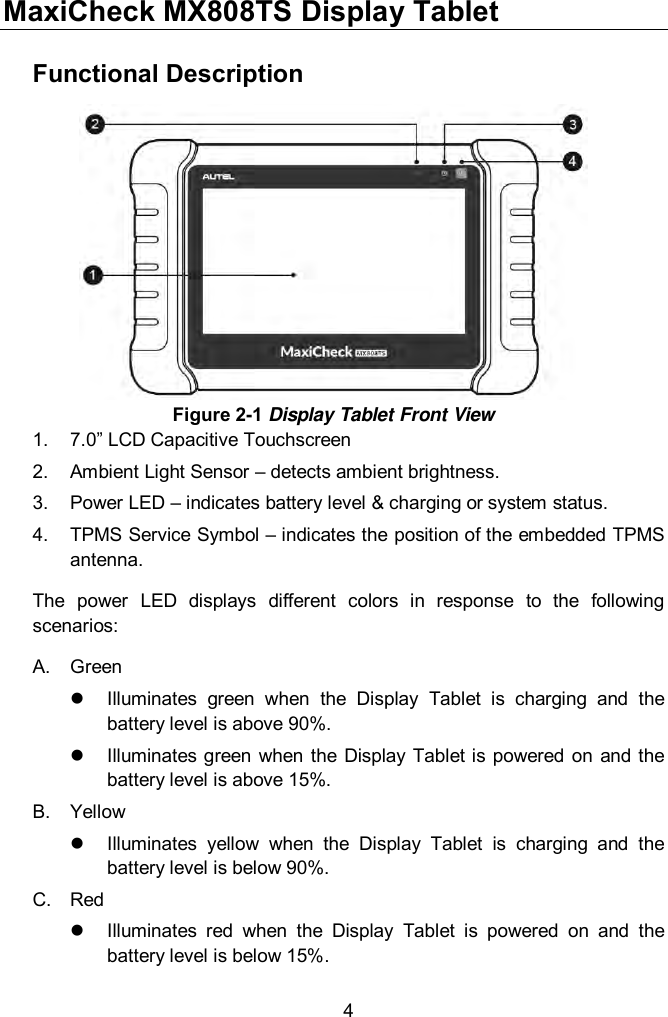

4 MaxiCheck MX808TS Display Tablet Functional Description 1. 7.0” LCD Capacitive Touchscreen 2. Ambient Light Sensor – detects ambient brightness. 3. Power LED – indicates battery level & charging or system status. 4. TPMS Service Symbol – indicates the position of the embedded TPMS antenna. The power LED displays different colors in response to the following scenarios: A. Green  Illuminates green when the Display Tablet is charging and the battery level is above 90%.  Illuminates green when the Display Tablet is powered on and the battery level is above 15%. B. Yellow  Illuminates yellow when the Display Tablet is charging and the battery level is below 90%. C. Red  Illuminates red when the Display Tablet is powered on and the battery level is below 15%. Figure 2-1 Display Tablet Front View

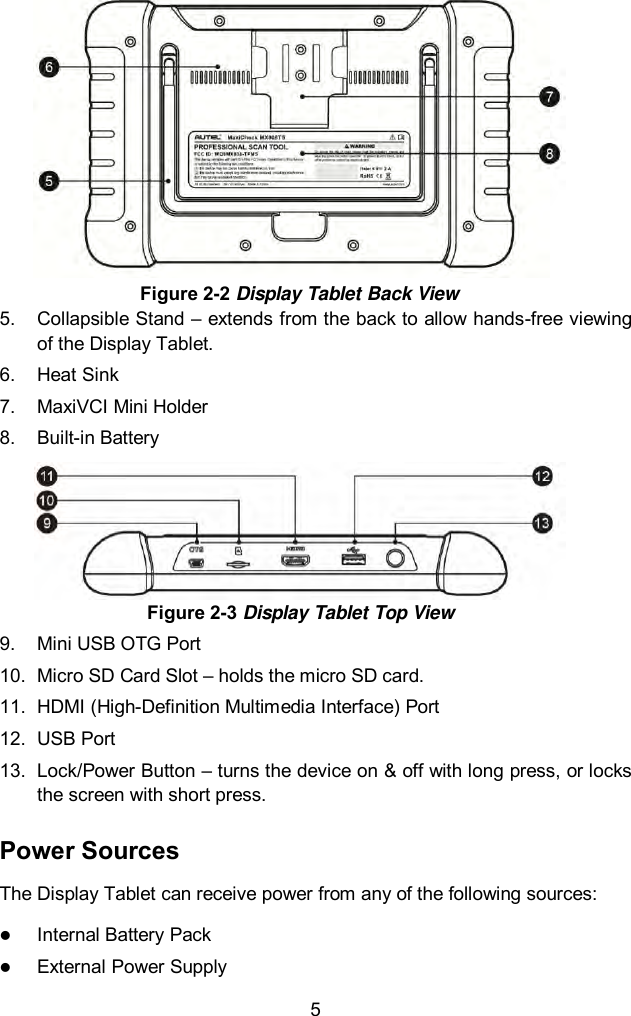

5 5. Collapsible Stand – extends from the back to allow hands-free viewing of the Display Tablet. 6. Heat Sink 7. MaxiVCI Mini Holder 8. Built-in Battery Figure 2-3 Display Tablet Top View 9. Mini USB OTG Port 10. Micro SD Card Slot – holds the micro SD card. 11. HDMI (High-Definition Multimedia Interface) Port 12. USB Port 13. Lock/Power Button – turns the device on & off with long press, or locks the screen with short press. Power Sources The Display Tablet can receive power from any of the following sources:  Internal Battery Pack  External Power Supply Figure 2-2 Display Tablet Back View

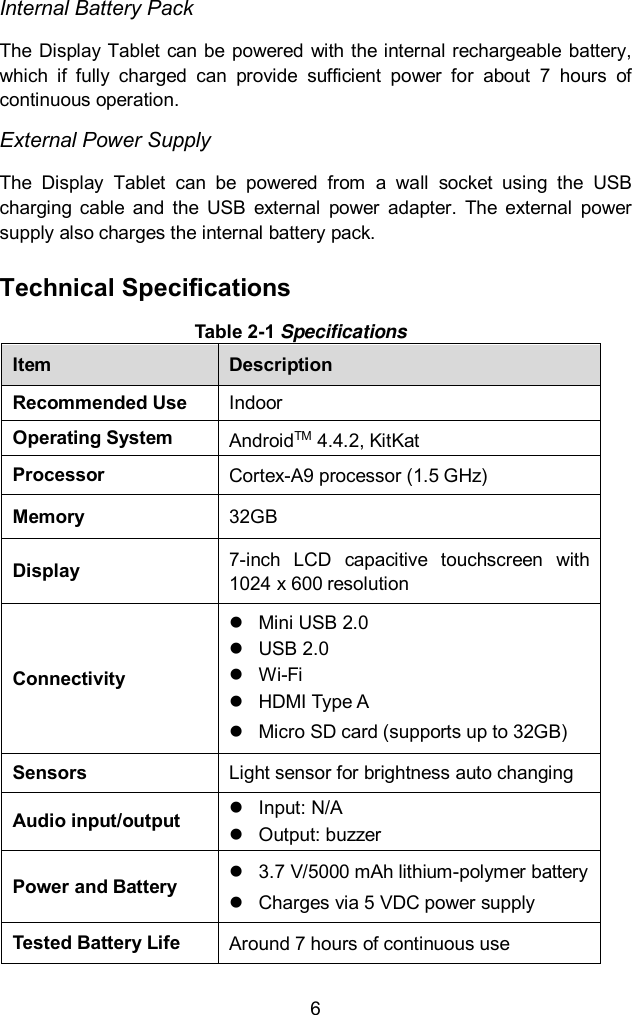

6 Internal Battery Pack The Display Tablet can be powered with the internal rechargeable battery, which if fully charged can provide sufficient power for about 7 hours of continuous operation. External Power Supply The Display Tablet can be powered from a wall socket using the USB charging cable and the USB external power adapter. The external power supply also charges the internal battery pack. Technical Specifications Table 2-1 Specifications Item Description Recommended Use Indoor Operating System AndroidTM 4.4.2, KitKat Processor Cortex-A9 processor (1.5 GHz) Memory 32GB Display 7-inch LCD capacitive touchscreen with 1024 x 600 resolution Connectivity  Mini USB 2.0  USB 2.0  Wi-Fi  HDMI Type A  Micro SD card (supports up to 32GB) Sensors Light sensor for brightness auto changing Audio input/output  Input: N/A  Output: buzzer Power and Battery  3.7 V/5000 mAh lithium-polymer battery  Charges via 5 VDC power supply Tested Battery Life Around 7 hours of continuous use
7 Item Description Battery Charging Input 5 V/1.5 A Power Consumption 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V Operating Temp. -10 to 60°C(14 to 140°F) Storage Temp. -20 to 70°C (-4 to 158°F) Operating Humidity 5% - 95% non-condensing Dimensions (W x H x D) 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”) Net Weight 885 g (2.31 lb.) Protocols ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6 VCI – Vehicle Communication Interface The wireless diagnostic interface MaxiVCI Mini is a small vehicle communication interface (VCI) used to connect to a vehicle’s data link connector (DLC) and connect wirelessly with the Display Tablet, as well as standalone PC, for vehicle data transmission.

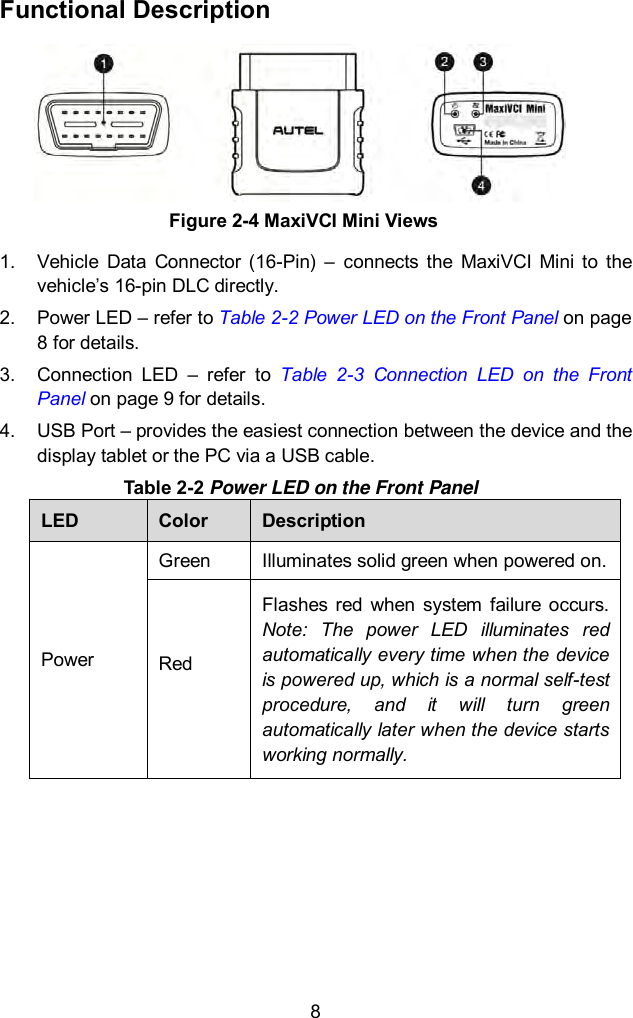

8 Functional Description 1. Vehicle Data Connector (16-Pin) – connects the MaxiVCI Mini to the vehicle’s 16-pin DLC directly. 2. Power LED – refer to Table 2-2 Power LED on the Front Panel on page 8 for details. 3. Connection LED – refer to Table 2-3 Connection LED on the Front Panel on page 9 for details. 4. USB Port – provides the easiest connection between the device and the display tablet or the PC via a USB cable. Table 2-2 Power LED on the Front Panel LED Color Description Power Green Illuminates solid green when powered on. Red Flashes red when system failure occurs. Note: The power LED illuminates red automatically every time when the device is powered up, which is a normal self-test procedure, and it will turn green automatically later when the device starts working normally. Figure 2-4 MaxiVCI Mini Views
9 Table 2-3 Connection LED on the Front Panel LED Color Description Connection Green  Illuminates solid green when the device is successfully connected via USB cable but there is no communication with the vehicle.  Flashes green when the device is successfully connected via USB cable and there is communication with the vehicle. Blue  Illuminates solid blue when the device is successfully connected via BT but there is no communication with the vehicle.  Flashes blue when the device is successfully connected via BT and there is communication with the vehicle. Technical Specifications Table 2-4 Specifications Item Description Communications  BT V.2.1 + EDR  USB 2.0 Wireless Frequency 2.4 GHz Input Voltage Range 12 VDC Supply Current 150 mA @ 12 VDC Operating Temp. 0°C to 50°C (ambient) Storage Temp. -20°C to 70°C (ambient) Dimensions (L x W x H) 87.0 mm (3.43”) x 52.0 mm (2.05”) x24.5 mm (0.96”) Weight 76 g (0.168 lb.)

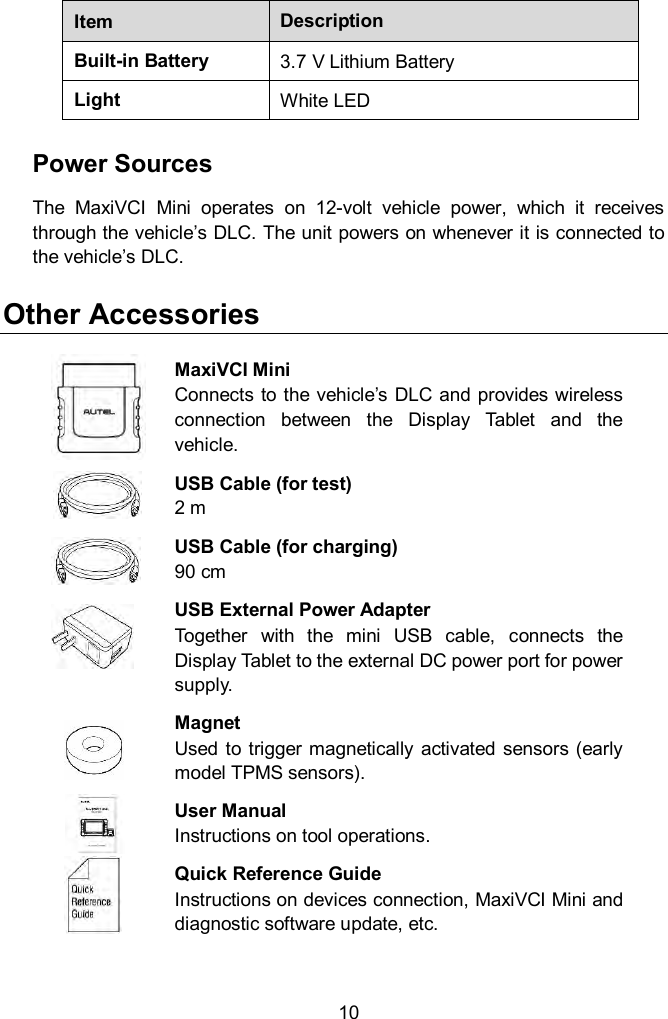

10 Item Description Built-in Battery 3.7 V Lithium Battery Light White LED Power Sources The MaxiVCI Mini operates on 12-volt vehicle power, which it receives through the vehicle’s DLC. The unit powers on whenever it is connected to the vehicle’s DLC. Other Accessories MaxiVCI Mini Connects to the vehicle’s DLC and provides wireless connection between the Display Tablet and the vehicle. USB Cable (for test) 2 m USB Cable (for charging) 90 cm USB External Power Adapter Together with the mini USB cable, connects the Display Tablet to the external DC power port for power supply. Magnet Used to trigger magnetically activated sensors (early model TPMS sensors). User Manual Instructions on tool operations. Quick Reference Guide Instructions on devices connection, MaxiVCI Mini and diagnostic software update, etc.

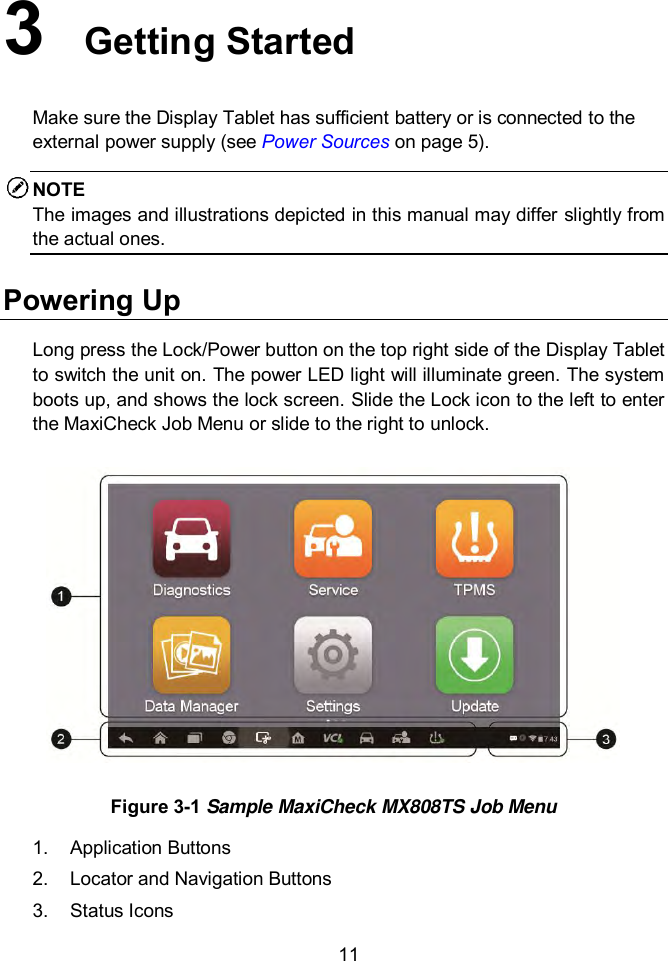

11 3 Getting Started Make sure the Display Tablet has sufficient battery or is connected to the external power supply (see Power Sources on page 5). NOTE The images and illustrations depicted in this manual may differ slightly from the actual ones. Powering Up Long press the Lock/Power button on the top right side of the Display Tablet to switch the unit on. The power LED light will illuminate green. The system boots up, and shows the lock screen. Slide the Lock icon to the left to enter the MaxiCheck Job Menu or slide to the right to unlock. Figure 3-1 Sample MaxiCheck MX808TS Job Menu 1. Application Buttons 2. Locator and Navigation Buttons 3. Status Icons

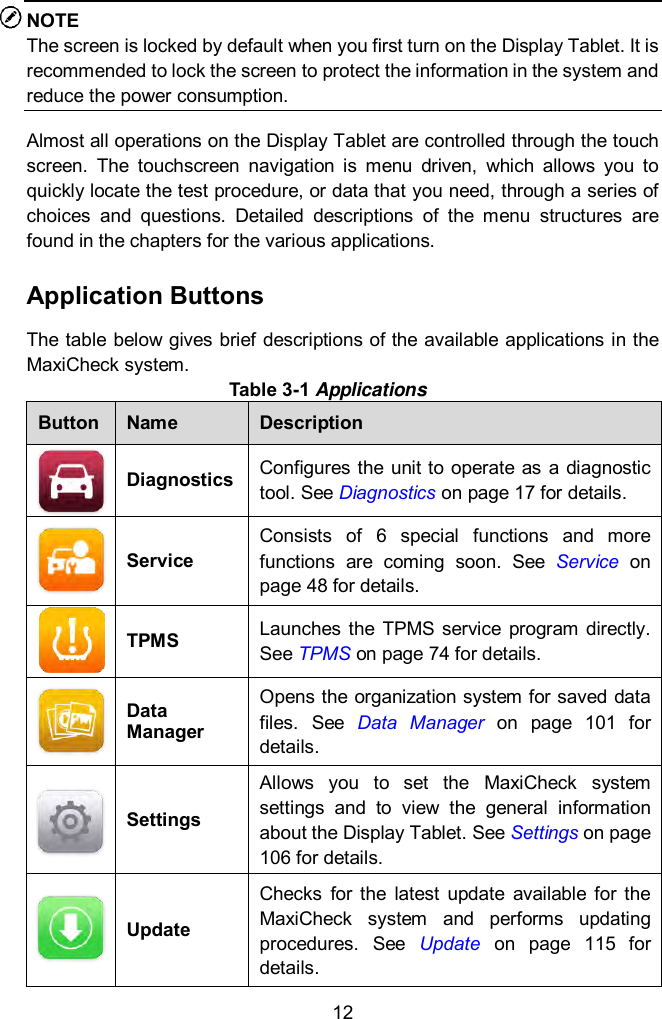

12 NOTE The screen is locked by default when you first turn on the Display Tablet. It is recommended to lock the screen to protect the information in the system and reduce the power consumption. Almost all operations on the Display Tablet are controlled through the touch screen. The touchscreen navigation is menu driven, which allows you to quickly locate the test procedure, or data that you need, through a series of choices and questions. Detailed descriptions of the menu structures are found in the chapters for the various applications. Application Buttons The table below gives brief descriptions of the available applications in the MaxiCheck system. Table 3-1 Applications Button Name Description Diagnostics Configures the unit to operate as a diagnostic tool. See Diagnostics on page 17 for details. Service Consists of 6 special functions and more functions are coming soon. See Service on page 48 for details. TPMS Launches the TPMS service program directly. See TPMS on page 74 for details. Data Manager Opens the organization system for saved data files. See Data Manager on page 101 for details. Settings Allows you to set the MaxiCheck system settings and to view the general information about the Display Tablet. See Settings on page 106 for details. Update Checks for the latest update available for the MaxiCheck system and performs updating procedures. See Update on page 115 for details.

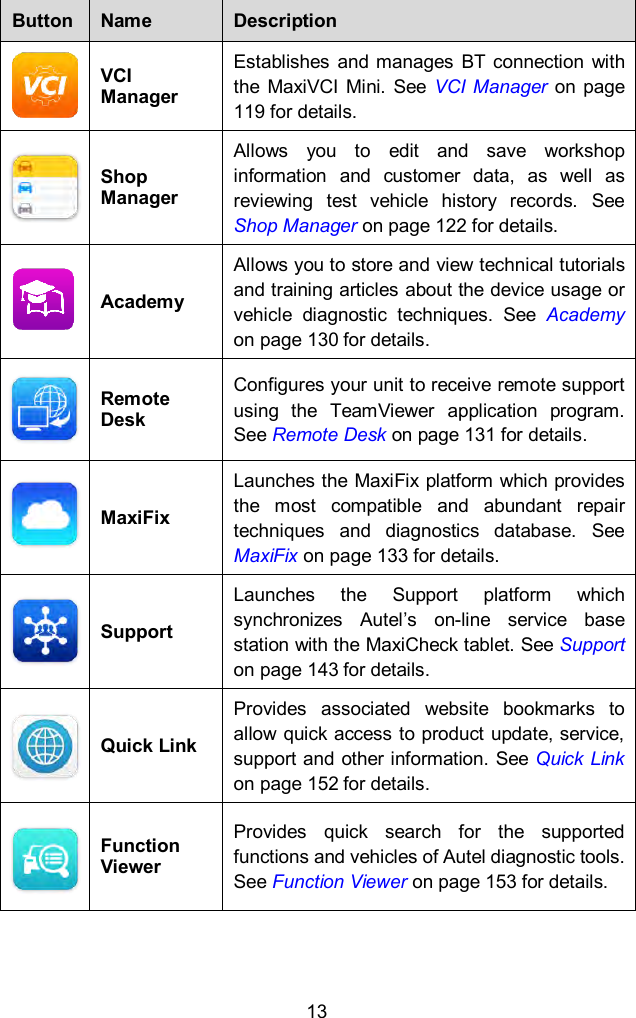

13 Button Name Description VCI Manager Establishes and manages BT connection with the MaxiVCI Mini. See VCI Manager on page 119 for details. Shop Manager Allows you to edit and save workshop information and customer data, as well as reviewing test vehicle history records. See Shop Manager on page 122 for details. Academy Allows you to store and view technical tutorials and training articles about the device usage or vehicle diagnostic techniques. See Academy on page 130 for details. Remote Desk Configures your unit to receive remote support using the TeamViewer application program. See Remote Desk on page 131 for details. MaxiFix Launches the MaxiFix platform which provides the most compatible and abundant repair techniques and diagnostics database. See MaxiFix on page 133 for details. Support Launches the Support platform which synchronizes Autel’s on-line service base station with the MaxiCheck tablet. See Support on page 143 for details. Quick Link Provides associated website bookmarks to allow quick access to product update, service, support and other information. See Quick Link on page 152 for details. Function Viewer Provides quick search for the supported functions and vehicles of Autel diagnostic tools. See Function Viewer on page 153 for details.

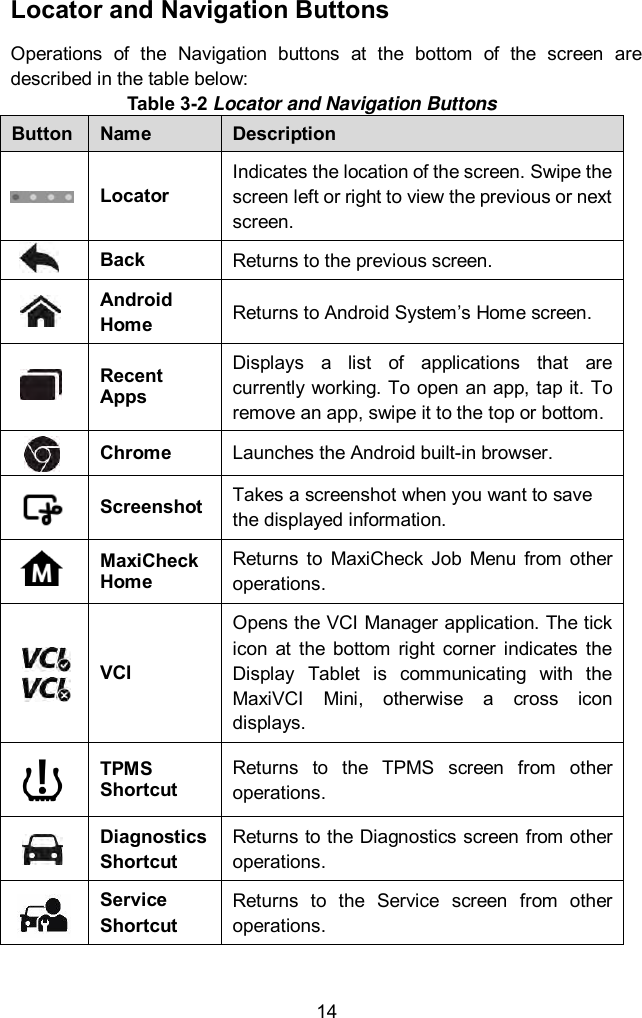

14 Locator and Navigation Buttons Operations of the Navigation buttons at the bottom of the screen are described in the table below: Table 3-2 Locator and Navigation Buttons Button Name Description Locator Indicates the location of the screen. Swipe the screen left or right to view the previous or next screen. Back Returns to the previous screen. Android Home Returns to Android System’s Home screen. Recent Apps Displays a list of applications that are currently working. To open an app, tap it. To remove an app, swipe it to the top or bottom. Chrome Launches the Android built-in browser. Screenshot Takes a screenshot when you want to save the displayed information. MaxiCheck Home Returns to MaxiCheck Job Menu from other operations. VCI Opens the VCI Manager application. The tick icon at the bottom right corner indicates the Display Tablet is communicating with the MaxiVCI Mini, otherwise a cross icon displays. TPMS Shortcut Returns to the TPMS screen from other operations. Diagnostics Shortcut Returns to the Diagnostics screen from other operations. Service Shortcut Returns to the Service screen from other operations.

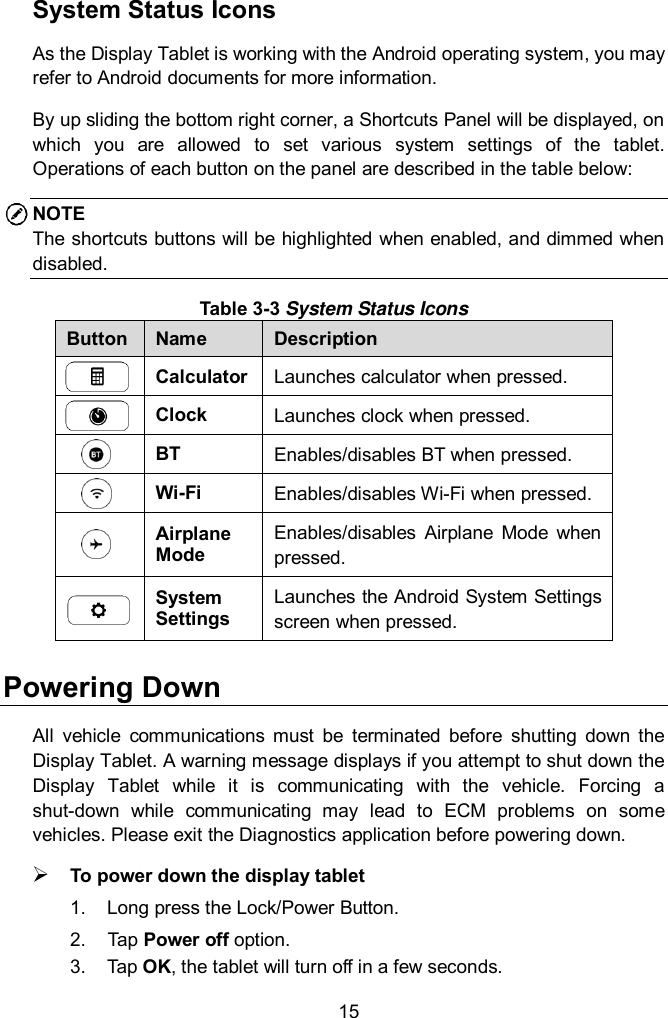

15 System Status Icons As the Display Tablet is working with the Android operating system, you may refer to Android documents for more information. By up sliding the bottom right corner, a Shortcuts Panel will be displayed, on which you are allowed to set various system settings of the tablet. Operations of each button on the panel are described in the table below: NOTE The shortcuts buttons will be highlighted when enabled, and dimmed when disabled. Table 3-3 System Status Icons Button Name Description Calculator Launches calculator when pressed. Clock Launches clock when pressed. BT Enables/disables BT when pressed. Wi-Fi Enables/disables Wi-Fi when pressed. Airplane Mode Enables/disables Airplane Mode when pressed. System Settings Launches the Android System Settings screen when pressed. Powering Down All vehicle communications must be terminated before shutting down the Display Tablet. A warning message displays if you attempt to shut down the Display Tablet while it is communicating with the vehicle. Forcing a shut-down while communicating may lead to ECM problems on some vehicles. Please exit the Diagnostics application before powering down.  To power down the display tablet 1. Long press the Lock/Power Button. 2. Tap Power off option. 3. Tap OK, the tablet will turn off in a few seconds.

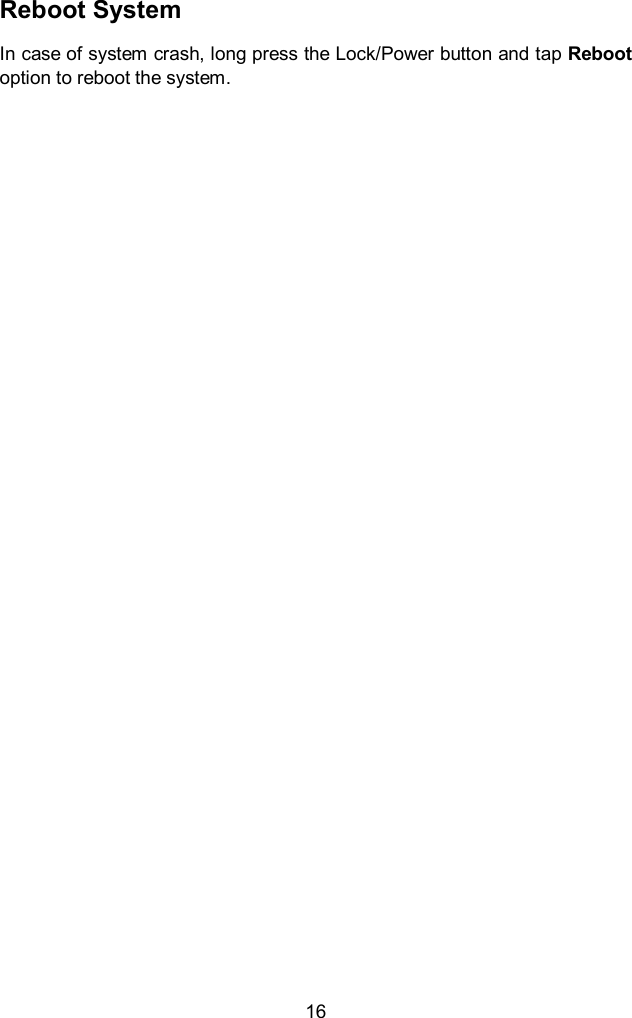

16 Reboot System In case of system crash, long press the Lock/Power button and tap Reboot option to reboot the system.

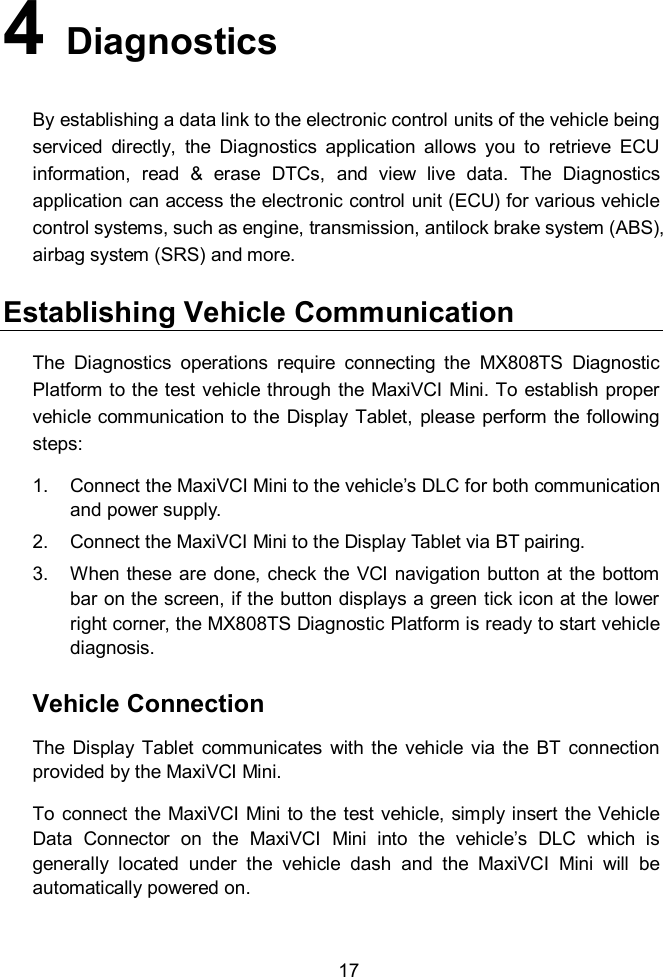

17 4 Diagnostics By establishing a data link to the electronic control units of the vehicle being serviced directly, the Diagnostics application allows you to retrieve ECU information, read & erase DTCs, and view live data. The Diagnostics application can access the electronic control unit (ECU) for various vehicle control systems, such as engine, transmission, antilock brake system (ABS), airbag system (SRS) and more. Establishing Vehicle Communication The Diagnostics operations require connecting the MX808TS Diagnostic Platform to the test vehicle through the MaxiVCI Mini. To establish proper vehicle communication to the Display Tablet, please perform the following steps: 1. Connect the MaxiVCI Mini to the vehicle’s DLC for both communication and power supply. 2. Connect the MaxiVCI Mini to the Display Tablet via BT pairing. 3. When these are done, check the VCI navigation button at the bottom bar on the screen, if the button displays a green tick icon at the lower right corner, the MX808TS Diagnostic Platform is ready to start vehicle diagnosis. Vehicle Connection The Display Tablet communicates with the vehicle via the BT connection provided by the MaxiVCI Mini. To connect the MaxiVCI Mini to the test vehicle, simply insert the Vehicle Data Connector on the MaxiVCI Mini into the vehicle’s DLC which is generally located under the vehicle dash and the MaxiVCI Mini will be automatically powered on.

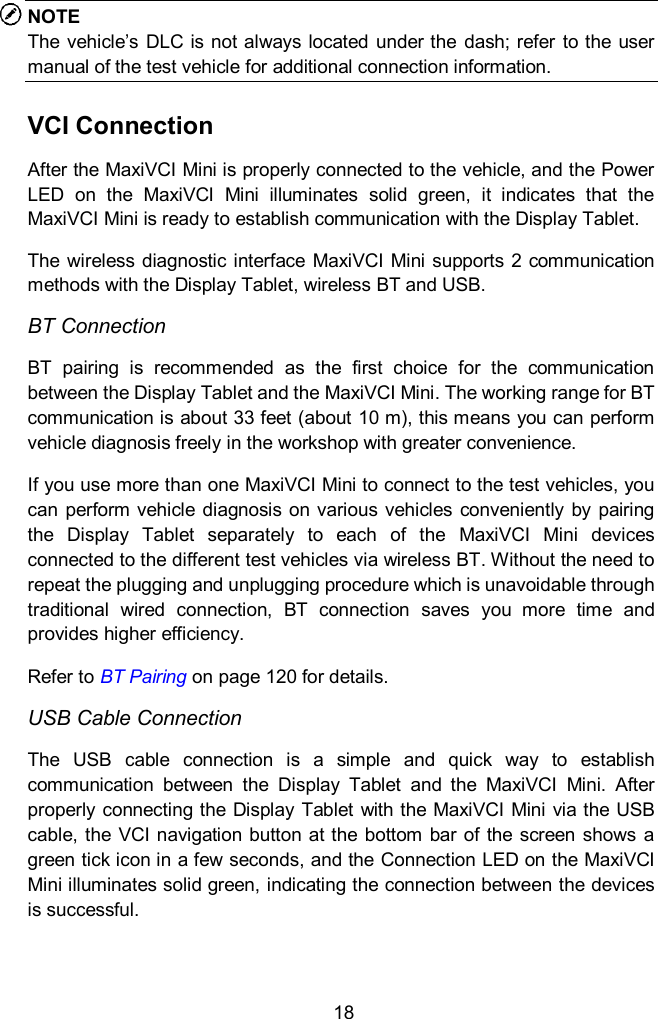

18 NOTE The vehicle’s DLC is not always located under the dash; refer to the user manual of the test vehicle for additional connection information. VCI Connection After the MaxiVCI Mini is properly connected to the vehicle, and the Power LED on the MaxiVCI Mini illuminates solid green, it indicates that the MaxiVCI Mini is ready to establish communication with the Display Tablet. The wireless diagnostic interface MaxiVCI Mini supports 2 communication methods with the Display Tablet, wireless BT and USB. BT Connection BT pairing is recommended as the first choice for the communication between the Display Tablet and the MaxiVCI Mini. The working range for BT communication is about 33 feet (about 10 m), this means you can perform vehicle diagnosis freely in the workshop with greater convenience. If you use more than one MaxiVCI Mini to connect to the test vehicles, you can perform vehicle diagnosis on various vehicles conveniently by pairing the Display Tablet separately to each of the MaxiVCI Mini devices connected to the different test vehicles via wireless BT. Without the need to repeat the plugging and unplugging procedure which is unavoidable through traditional wired connection, BT connection saves you more time and provides higher efficiency. Refer to BT Pairing on page 120 for details. USB Cable Connection The USB cable connection is a simple and quick way to establish communication between the Display Tablet and the MaxiVCI Mini. After properly connecting the Display Tablet with the MaxiVCI Mini via the USB cable, the VCI navigation button at the bottom bar of the screen shows a green tick icon in a few seconds, and the Connection LED on the MaxiVCI Mini illuminates solid green, indicating the connection between the devices is successful.
19 NOTE When both the communication methods are applied at the same time, the MaxiCheck system will use the USB communication as the default priority. No Communication Message A. If the Display Tablet is not connected to the MaxiVCI Mini correctly, an “Error” message may display. This indicates that the Display Tablet cannot access the vehicle control module. In this case, please do the following check-ups:  Check if the MaxiVCI Mini is powered up.  Check if the MaxiVCI Mini is properly positioned.  Check if the Connection LED on the MaxiVCI Mini is illuminated for BT or USB.  In case of BT connection, check if the network is configured correctly, or if the right MaxiVCI Mini has been paired up with the Display Tablet.  If during the diagnosis process, the communication is suddenly interrupted due to the loss of signal, check if there is any object that causes signal interruption.  Try standing closer to the MaxiVCI Mini to obtain more stable signals and faster communication speed.  In case of USB connection, check the cable connection between the Display Tablet and the MaxiVCI Mini.  Check if the Power LED on the MaxiVCI Mini is flashing red and if so, it indicates there is a hardware problem with the MaxiVCI Mini, in this case contact technical support for help. B. If the MaxiVCI Mini is unable to establish a communication link, a prompt message displays with check instructions. The following conditions are the possible causes:  The MaxiVCI Mini is unable to establish a communication link with the vehicle.  The system selected for testing is not equipped on the vehicle.  There is a loose connection.  There is a blown vehicle fuse.
20  There is a wiring fault of the vehicle or the adapter.  There is a circuit fault in the adapter.  Incorrect vehicle identification was entered. Getting Started Prior to first use of the Diagnostics application, make sure a communication link is established between the test vehicle and the Display Tablet via the MaxiVCI Mini. Vehicle Menu Layout When the Display Tablet device is properly connected to the vehicle, the platform is ready to start vehicle diagnosis. Tap on the Diagnostics application button on the MaxiCheck MX808TS Job Menu, the Vehicle Menu then displays. 1. Top Toolbar Buttons 2. Manufacturer Buttons Top Toolbar Buttons The operations of the toolbar buttons at the top of the screen are listed and described in the table below: Figure 4-1 Sample Vehicle Menu

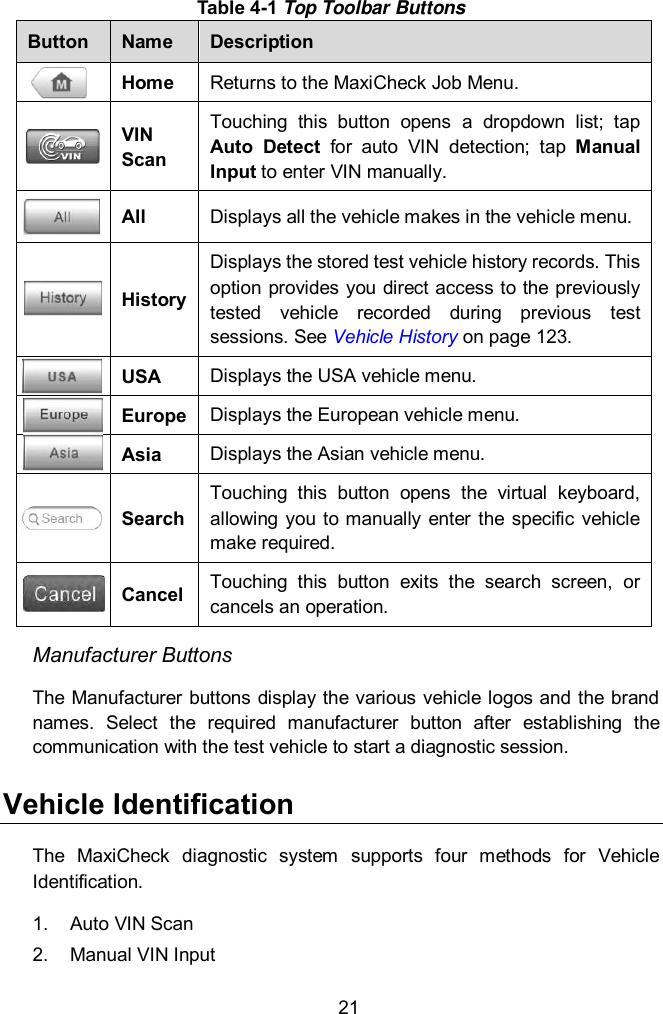

21 Table 4-1 Top Toolbar Buttons Button Name Description Home Returns to the MaxiCheck Job Menu. VIN Scan Touching this button opens a dropdown list; tap Auto Detect for auto VIN detection; tap Manual Input to enter VIN manually. All Displays all the vehicle makes in the vehicle menu. History Displays the stored test vehicle history records. This option provides you direct access to the previously tested vehicle recorded during previous test sessions. See Vehicle History on page 123. USA Displays the USA vehicle menu. Europe Displays the European vehicle menu. Asia Displays the Asian vehicle menu. Search Touching this button opens the virtual keyboard, allowing you to manually enter the specific vehicle make required. Cancel Touching this button exits the search screen, or cancels an operation. Manufacturer Buttons The Manufacturer buttons display the various vehicle logos and the brand names. Select the required manufacturer button after establishing the communication with the test vehicle to start a diagnostic session. Vehicle Identification The MaxiCheck diagnostic system supports four methods for Vehicle Identification. 1. Auto VIN Scan 2. Manual VIN Input

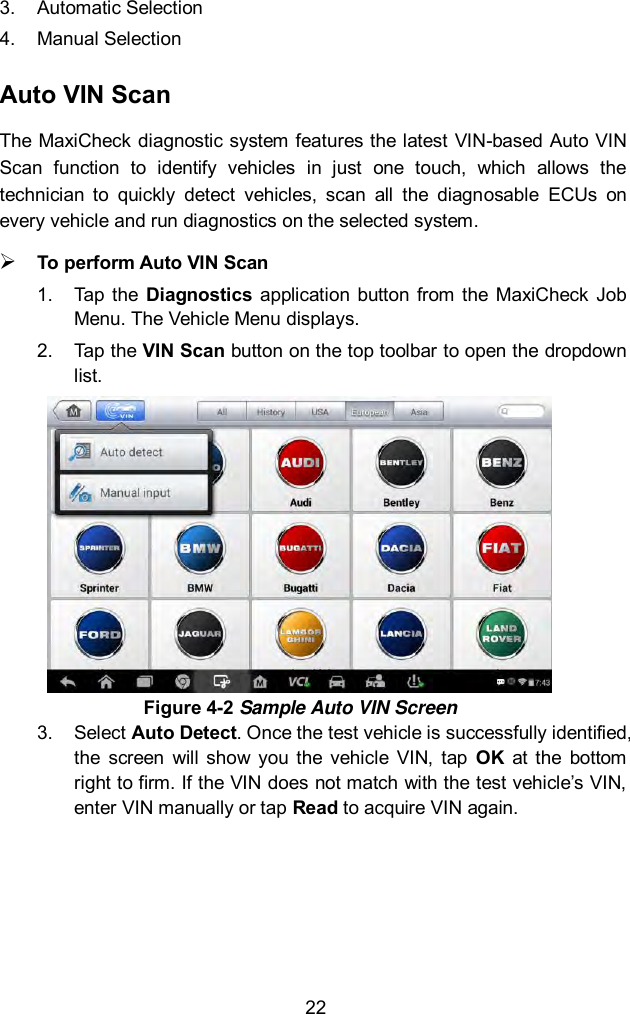

22 3. Automatic Selection 4. Manual Selection Auto VIN Scan The MaxiCheck diagnostic system features the latest VIN-based Auto VIN Scan function to identify vehicles in just one touch, which allows the technician to quickly detect vehicles, scan all the diagnosable ECUs on every vehicle and run diagnostics on the selected system.  To perform Auto VIN Scan 1. Tap the Diagnostics application button from the MaxiCheck Job Menu. The Vehicle Menu displays. 2. Tap the VIN Scan button on the top toolbar to open the dropdown list. 3. Select Auto Detect. Once the test vehicle is successfully identified, the screen will show you the vehicle VIN, tap OK at the bottom right to firm. If the VIN does not match with the test vehicle’s VIN, enter VIN manually or tap Read to acquire VIN again. Figure 4-2 Sample Auto VIN Screen

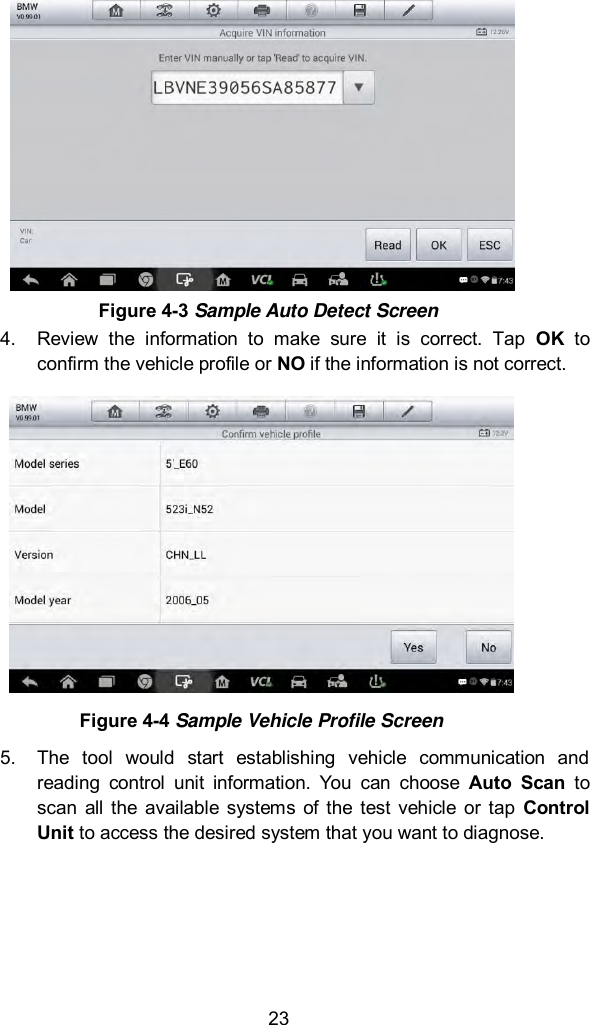

23 4. Review the information to make sure it is correct. Tap OK to confirm the vehicle profile or NO if the information is not correct. Figure 4-4 Sample Vehicle Profile Screen 5. The tool would start establishing vehicle communication and reading control unit information. You can choose Auto Scan to scan all the available systems of the test vehicle or tap Control Unit to access the desired system that you want to diagnose. Figure 4-3 Sample Auto Detect Screen
24 Figure 4-5 Sample Diagnostic Screen Manual VIN Input For some vehicles that do not support the Auto VIN Scan function, the MaxiCheck diagnostic system allows you to enter the vehicle VIN manually.  To perform Manual VIN Input 1. Tap the Diagnostics application button from the MaxiCheck Job Menu. The Vehicle Menu displays. 2. Tap the VIN Scan button on the top toolbar to open the dropdown list. 3. Select Manual Input. 4. Tap the input box and enter the correct VIN.

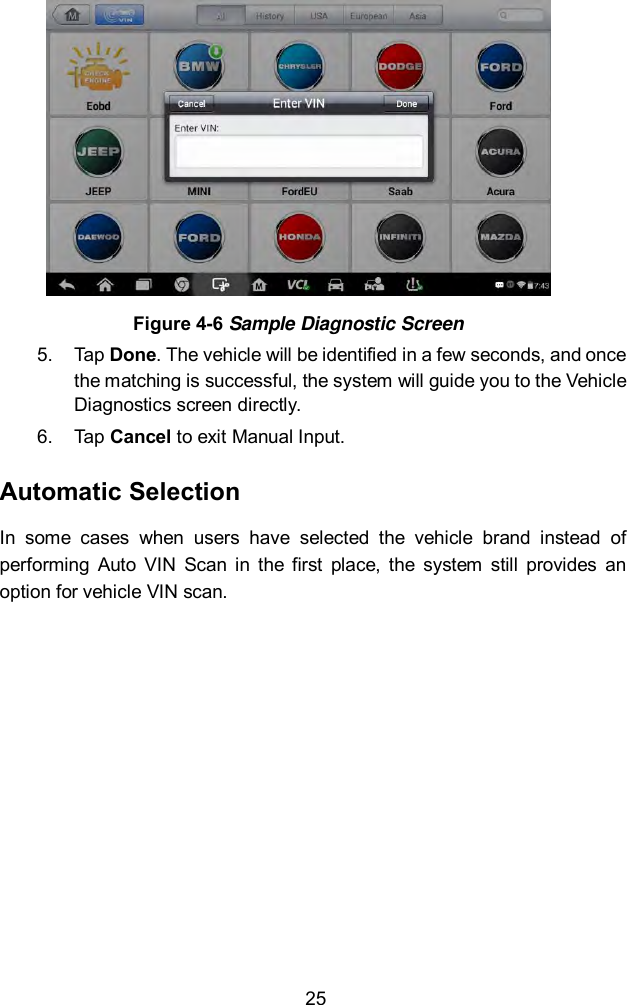

25 Figure 4-6 Sample Diagnostic Screen 5. Tap Done. The vehicle will be identified in a few seconds, and once the matching is successful, the system will guide you to the Vehicle Diagnostics screen directly. 6. Tap Cancel to exit Manual Input. Automatic Selection In some cases when users have selected the vehicle brand instead of performing Auto VIN Scan in the first place, the system still provides an option for vehicle VIN scan.

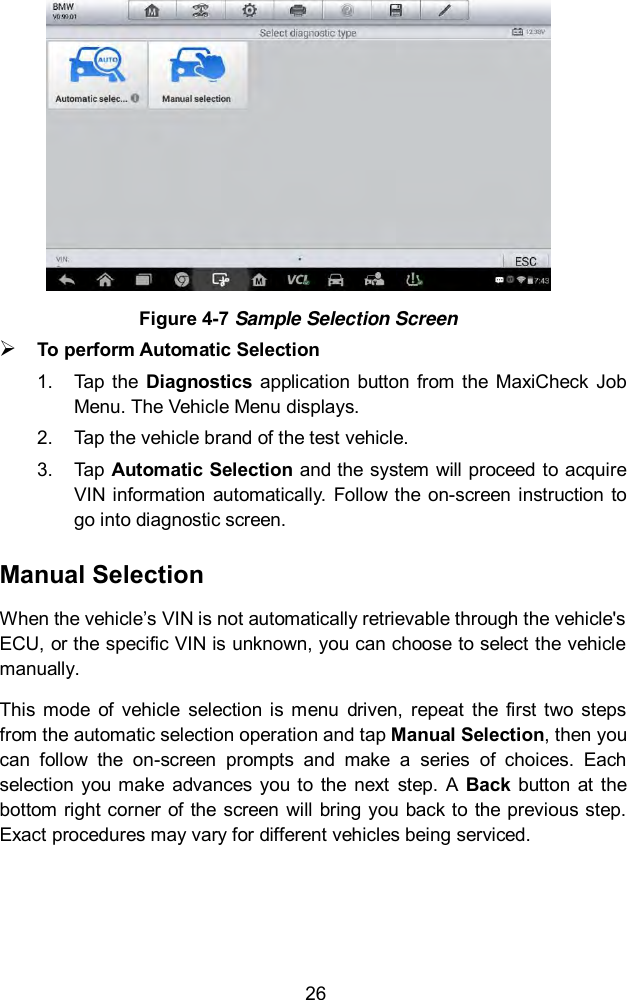

26 Figure 4-7 Sample Selection Screen  To perform Automatic Selection 1. Tap the Diagnostics application button from the MaxiCheck Job Menu. The Vehicle Menu displays. 2. Tap the vehicle brand of the test vehicle. 3. Tap Automatic Selection and the system will proceed to acquire VIN information automatically. Follow the on-screen instruction to go into diagnostic screen. Manual Selection When the vehicle’s VIN is not automatically retrievable through the vehicle's ECU, or the specific VIN is unknown, you can choose to select the vehicle manually. This mode of vehicle selection is menu driven, repeat the first two steps from the automatic selection operation and tap Manual Selection, then you can follow the on-screen prompts and make a series of choices. Each selection you make advances you to the next step. A Back button at the bottom right corner of the screen will bring you back to the previous step. Exact procedures may vary for different vehicles being serviced.

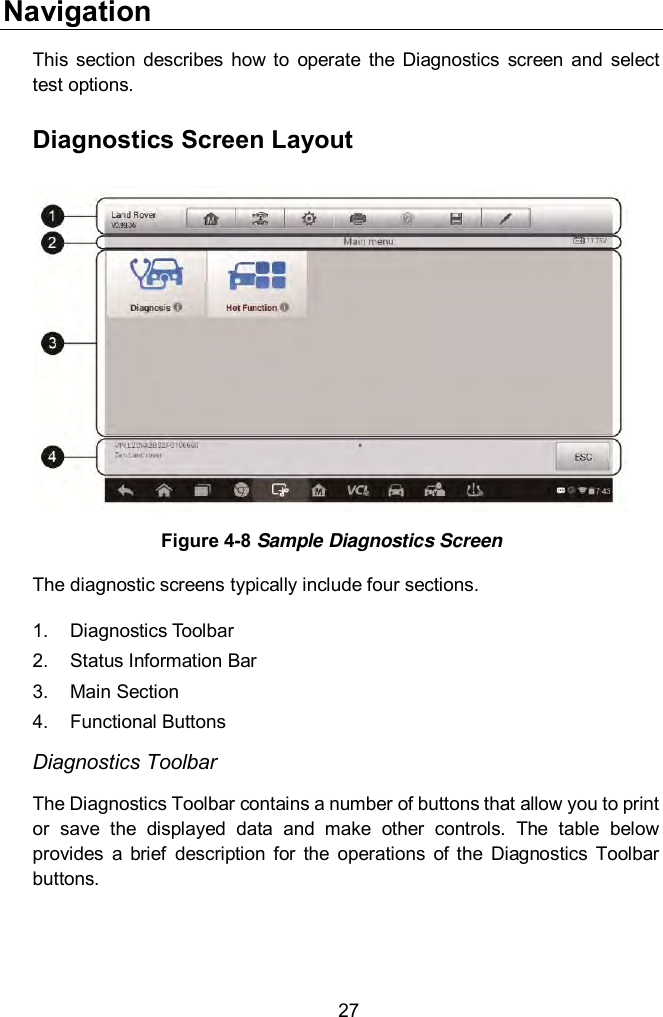

27 Navigation This section describes how to operate the Diagnostics screen and select test options. Diagnostics Screen Layout Figure 4-8 Sample Diagnostics Screen The diagnostic screens typically include four sections. 1. Diagnostics Toolbar 2. Status Information Bar 3. Main Section 4. Functional Buttons Diagnostics Toolbar The Diagnostics Toolbar contains a number of buttons that allow you to print or save the displayed data and make other controls. The table below provides a brief description for the operations of the Diagnostics Toolbar buttons.

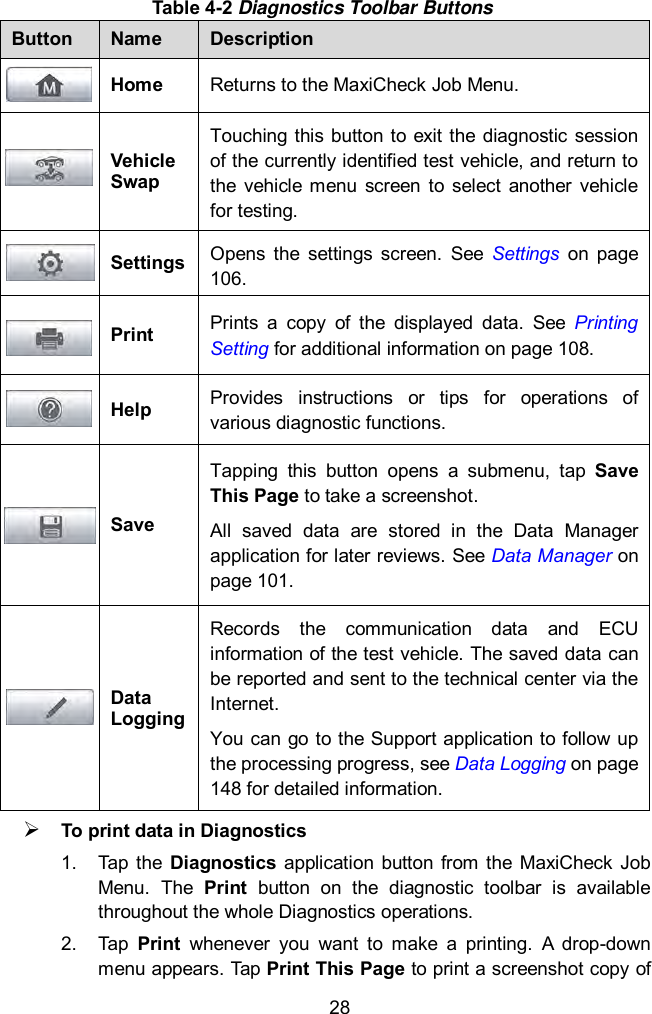

28 Table 4-2 Diagnostics Toolbar Buttons Button Name Description Home Returns to the MaxiCheck Job Menu. Vehicle Swap Touching this button to exit the diagnostic session of the currently identified test vehicle, and return to the vehicle menu screen to select another vehicle for testing. Settings Opens the settings screen. See Settings on page 106. Print Prints a copy of the displayed data. See Printing Setting for additional information on page 108. Help Provides instructions or tips for operations of various diagnostic functions. Save Tapping this button opens a submenu, tap Save This Page to take a screenshot. All saved data are stored in the Data Manager application for later reviews. See Data Manager on page 101. Data Logging Records the communication data and ECU information of the test vehicle. The saved data can be reported and sent to the technical center via the Internet. You can go to the Support application to follow up the processing progress, see Data Logging on page 148 for detailed information.  To print data in Diagnostics 1. Tap the Diagnostics application button from the MaxiCheck Job Menu. The Print button on the diagnostic toolbar is available throughout the whole Diagnostics operations. 2. Tap Print whenever you want to make a printing. A drop-down menu appears. Tap Print This Page to print a screenshot copy of

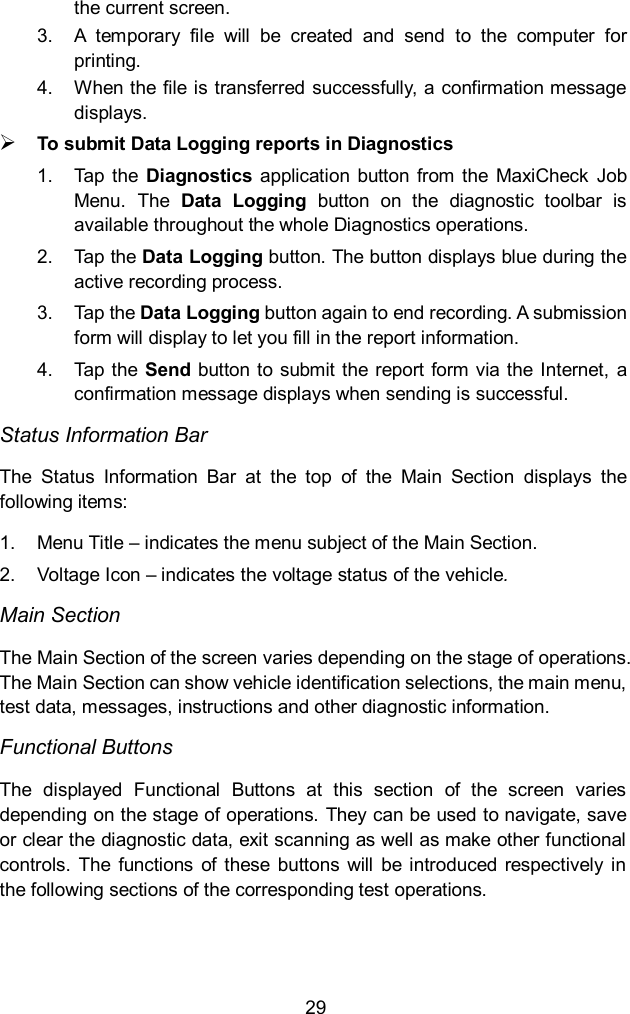

29 the current screen. 3. A temporary file will be created and send to the computer for printing. 4. When the file is transferred successfully, a confirmation message displays.  To submit Data Logging reports in Diagnostics 1. Tap the Diagnostics application button from the MaxiCheck Job Menu. The Data Logging button on the diagnostic toolbar is available throughout the whole Diagnostics operations. 2. Tap the Data Logging button. The button displays blue during the active recording process. 3. Tap the Data Logging button again to end recording. A submission form will display to let you fill in the report information. 4. Tap the Send button to submit the report form via the Internet, a confirmation message displays when sending is successful. Status Information Bar The Status Information Bar at the top of the Main Section displays the following items: 1. Menu Title – indicates the menu subject of the Main Section. 2. Voltage Icon – indicates the voltage status of the vehicle. Main Section The Main Section of the screen varies depending on the stage of operations. The Main Section can show vehicle identification selections, the main menu, test data, messages, instructions and other diagnostic information. Functional Buttons The displayed Functional Buttons at this section of the screen varies depending on the stage of operations. They can be used to navigate, save or clear the diagnostic data, exit scanning as well as make other functional controls. The functions of these buttons will be introduced respectively in the following sections of the corresponding test operations.

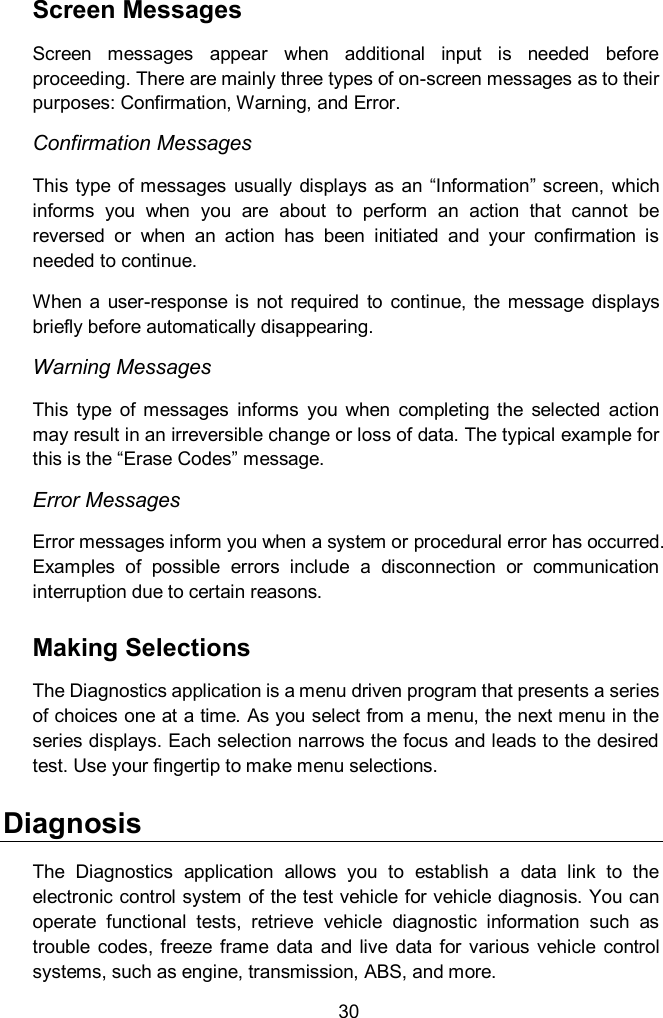

30 Screen Messages Screen messages appear when additional input is needed before proceeding. There are mainly three types of on-screen messages as to their purposes: Confirmation, Warning, and Error. Confirmation Messages This type of messages usually displays as an “Information” screen, which informs you when you are about to perform an action that cannot be reversed or when an action has been initiated and your confirmation is needed to continue. When a user-response is not required to continue, the message displays briefly before automatically disappearing. Warning Messages This type of messages informs you when completing the selected action may result in an irreversible change or loss of data. The typical example for this is the “Erase Codes” message. Error Messages Error messages inform you when a system or procedural error has occurred. Examples of possible errors include a disconnection or communication interruption due to certain reasons. Making Selections The Diagnostics application is a menu driven program that presents a series of choices one at a time. As you select from a menu, the next menu in the series displays. Each selection narrows the focus and leads to the desired test. Use your fingertip to make menu selections. Diagnosis The Diagnostics application allows you to establish a data link to the electronic control system of the test vehicle for vehicle diagnosis. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, freeze frame data and live data for various vehicle control systems, such as engine, transmission, ABS, and more.

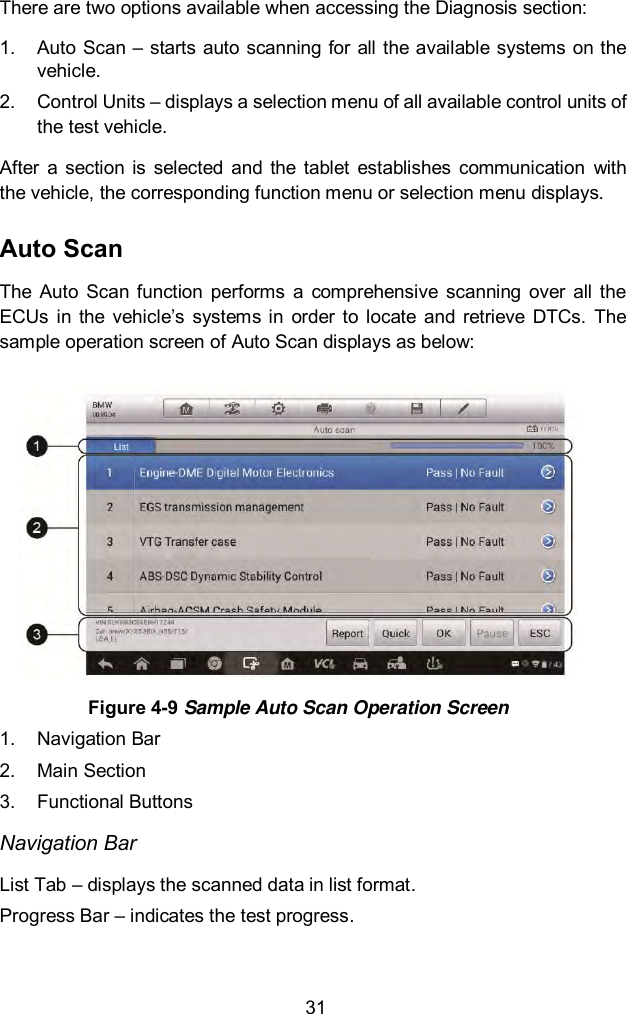

31 There are two options available when accessing the Diagnosis section: 1. Auto Scan – starts auto scanning for all the available systems on the vehicle. 2. Control Units – displays a selection menu of all available control units of the test vehicle. After a section is selected and the tablet establishes communication with the vehicle, the corresponding function menu or selection menu displays. Auto Scan The Auto Scan function performs a comprehensive scanning over all the ECUs in the vehicle’s systems in order to locate and retrieve DTCs. The sample operation screen of Auto Scan displays as below: Figure 4-9 Sample Auto Scan Operation Screen 1. Navigation Bar 2. Main Section 3. Functional Buttons Navigation Bar List Tab – displays the scanned data in list format. Progress Bar – indicates the test progress.
32 Main Section Column 1 – displays the sequence numbers. Column 2 – displays the scanned systems. Column 3 – displays the diagnostic marks indicating different conditions of the test result:  -!-: Indicates that the scanned system may not support the code reading function, or there is a communication error between the Display Tablet and the control system.  -?-: Indicates that the vehicle control system has been detected, but the Display Tablet cannot accurately locate it.  Fault(s) | #: Fault(s) indicates there is/are detected fault code(s) present; “#” indicates the number of the detected faults.  Pass | No Fault: Indicates the system has passed the scanning process and no fault has been detected. Column 4 – tap the ○> button to the right of the test result if you want to perform further diagnosis and other test activities. A Function Menu screen shall then display. Functional Buttons The table below provides a brief description of the Functional Buttons’ operations in Auto Scan: Table 4-3 Functional Buttons Name Description Report Displays the diagnostic data in the report form. Quick Erase Deletes codes. A warning message screen will display to inform you of possible data loss when this function is selected. OK Confirms the test result, and continues system diagnosis after selecting the required system by tapping the item in the Main Section.
33 Name Description Pause Suspends scanning and it will change to Continue button after tapping. ESC Returns to the previous screen or exit Auto Scan. Control Units This option allows you to manually locate a required control system for testing through a series of choices. Please follow the menu driven procedures, and make proper selection each time; the program will guide you to the diagnostic function menu after a few choices you’ve made. Figure 4-10 Sample Function Menu The Function Menu options vary slightly for different vehicles. The function menu may include:  ECU Information – provides the retrieved ECU information in detail. Selecting opens an information screen.  Read Codes – displays detailed information of DTC records retrieved from the test vehicle’s ECU.  Erase Codes – erases DTC records and other data from the test vehicle’s ECU.  Live Data – retrieves and displays live data and parameters from the test vehicle’s ECU.

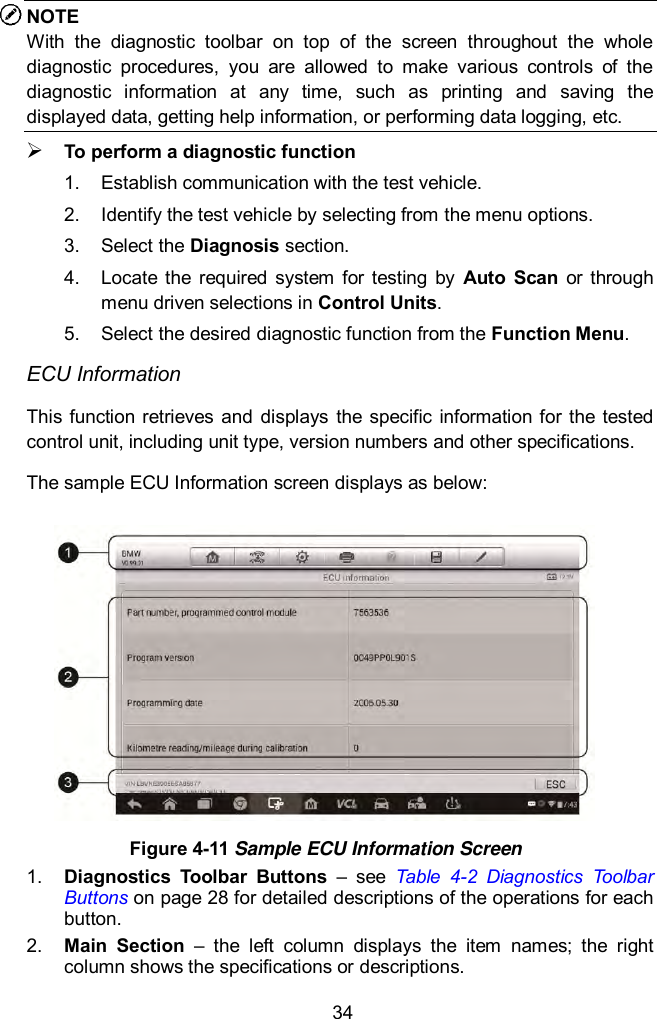

34 NOTE With the diagnostic toolbar on top of the screen throughout the whole diagnostic procedures, you are allowed to make various controls of the diagnostic information at any time, such as printing and saving the displayed data, getting help information, or performing data logging, etc.  To perform a diagnostic function 1. Establish communication with the test vehicle. 2. Identify the test vehicle by selecting from the menu options. 3. Select the Diagnosis section. 4. Locate the required system for testing by Auto Scan or through menu driven selections in Control Units. 5. Select the desired diagnostic function from the Function Menu. ECU Information This function retrieves and displays the specific information for the tested control unit, including unit type, version numbers and other specifications. The sample ECU Information screen displays as below: Figure 4-11 Sample ECU Information Screen 1. Diagnostics Toolbar Buttons – see Table 4-2 Diagnostics Toolbar Buttons on page 28 for detailed descriptions of the operations for each button. 2. Main Section – the left column displays the item names; the right column shows the specifications or descriptions.

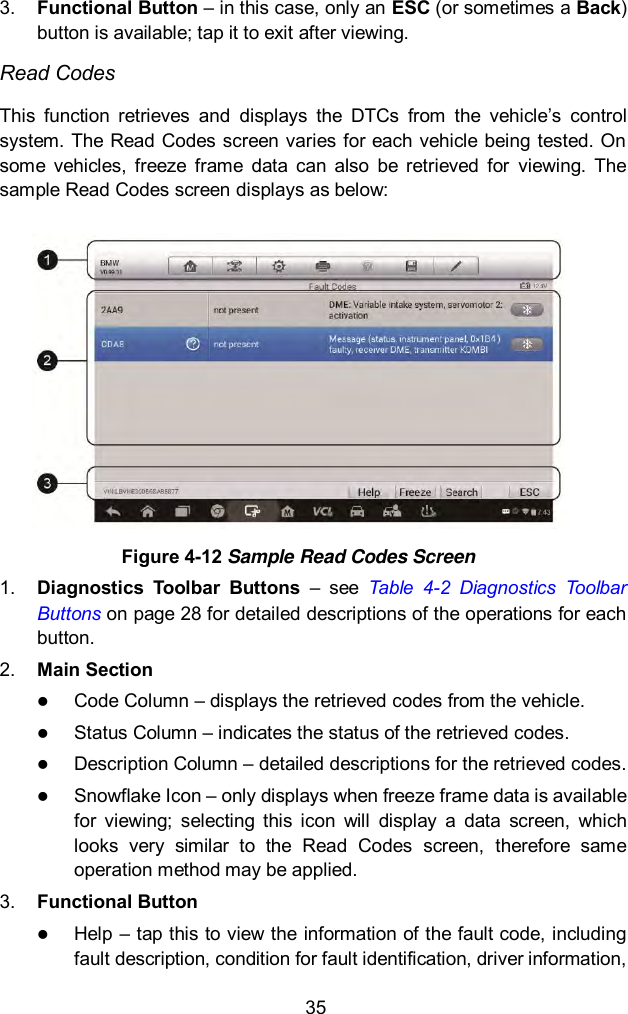

35 3. Functional Button – in this case, only an ESC (or sometimes a Back) button is available; tap it to exit after viewing. Read Codes This function retrieves and displays the DTCs from the vehicle’s control system. The Read Codes screen varies for each vehicle being tested. On some vehicles, freeze frame data can also be retrieved for viewing. The sample Read Codes screen displays as below: Figure 4-12 Sample Read Codes Screen 1. Diagnostics Toolbar Buttons – see Table 4-2 Diagnostics Toolbar Buttons on page 28 for detailed descriptions of the operations for each button. 2. Main Section  Code Column – displays the retrieved codes from the vehicle.  Status Column – indicates the status of the retrieved codes.  Description Column – detailed descriptions for the retrieved codes.  Snowflake Icon – only displays when freeze frame data is available for viewing; selecting this icon will display a data screen, which looks very similar to the Read Codes screen, therefore same operation method may be applied. 3. Functional Button  Help – tap this to view the information of the fault code, including fault description, condition for fault identification, driver information,

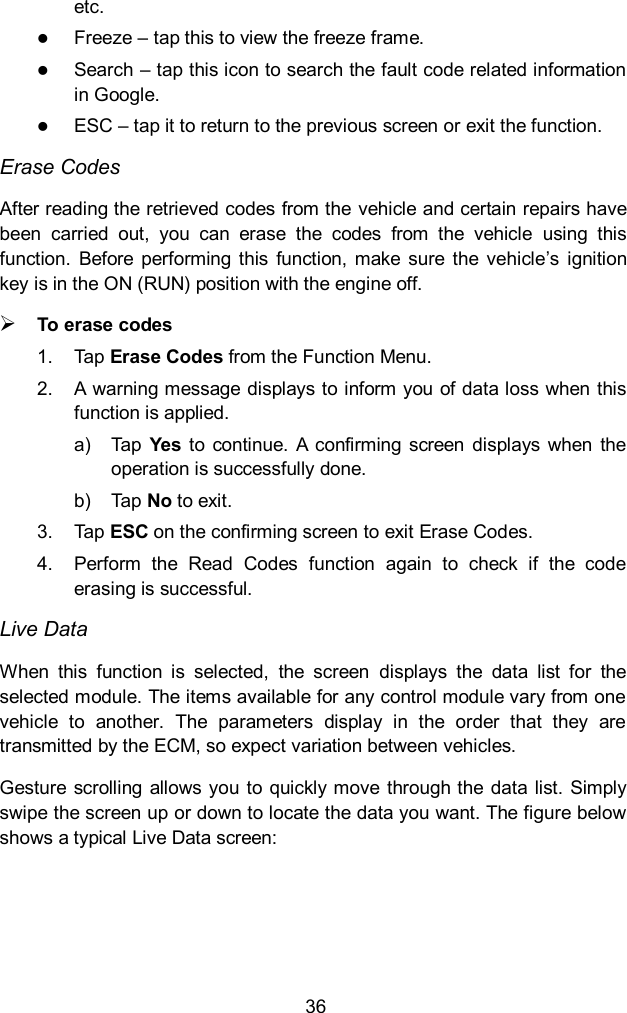

36 etc.  Freeze – tap this to view the freeze frame.  Search – tap this icon to search the fault code related information in Google.  ESC – tap it to return to the previous screen or exit the function. Erase Codes After reading the retrieved codes from the vehicle and certain repairs have been carried out, you can erase the codes from the vehicle using this function. Before performing this function, make sure the vehicle’s ignition key is in the ON (RUN) position with the engine off.  To erase codes 1. Tap Erase Codes from the Function Menu. 2. A warning message displays to inform you of data loss when this function is applied. a) Tap Yes to continue. A confirming screen displays when the operation is successfully done. b) Tap No to exit. 3. Tap ESC on the confirming screen to exit Erase Codes. 4. Perform the Read Codes function again to check if the code erasing is successful. Live Data When this function is selected, the screen displays the data list for the selected module. The items available for any control module vary from one vehicle to another. The parameters display in the order that they are transmitted by the ECM, so expect variation between vehicles. Gesture scrolling allows you to quickly move through the data list. Simply swipe the screen up or down to locate the data you want. The figure below shows a typical Live Data screen:

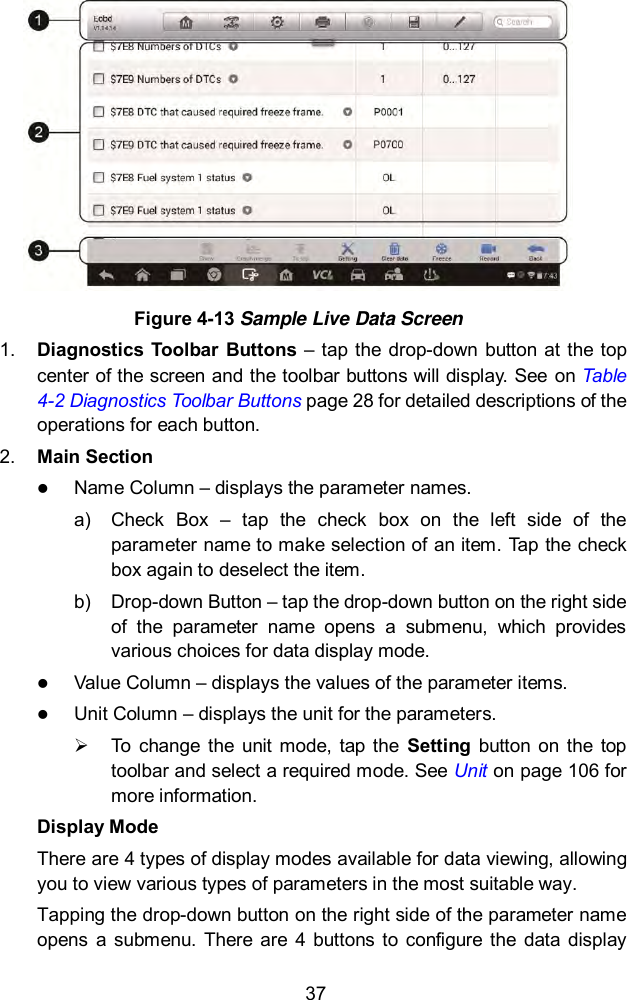

37 Figure 4-13 Sample Live Data Screen 1. Diagnostics Toolbar Buttons – tap the drop-down button at the top center of the screen and the toolbar buttons will display. See on Table 4-2 Diagnostics Toolbar Buttons page 28 for detailed descriptions of the operations for each button. 2. Main Section  Name Column – displays the parameter names. a) Check Box – tap the check box on the left side of the parameter name to make selection of an item. Tap the check box again to deselect the item. b) Drop-down Button – tap the drop-down button on the right side of the parameter name opens a submenu, which provides various choices for data display mode.  Value Column – displays the values of the parameter items.  Unit Column – displays the unit for the parameters.  To change the unit mode, tap the Setting button on the top toolbar and select a required mode. See Unit on page 106 for more information. Display Mode There are 4 types of display modes available for data viewing, allowing you to view various types of parameters in the most suitable way. Tapping the drop-down button on the right side of the parameter name opens a submenu. There are 4 buttons to configure the data display

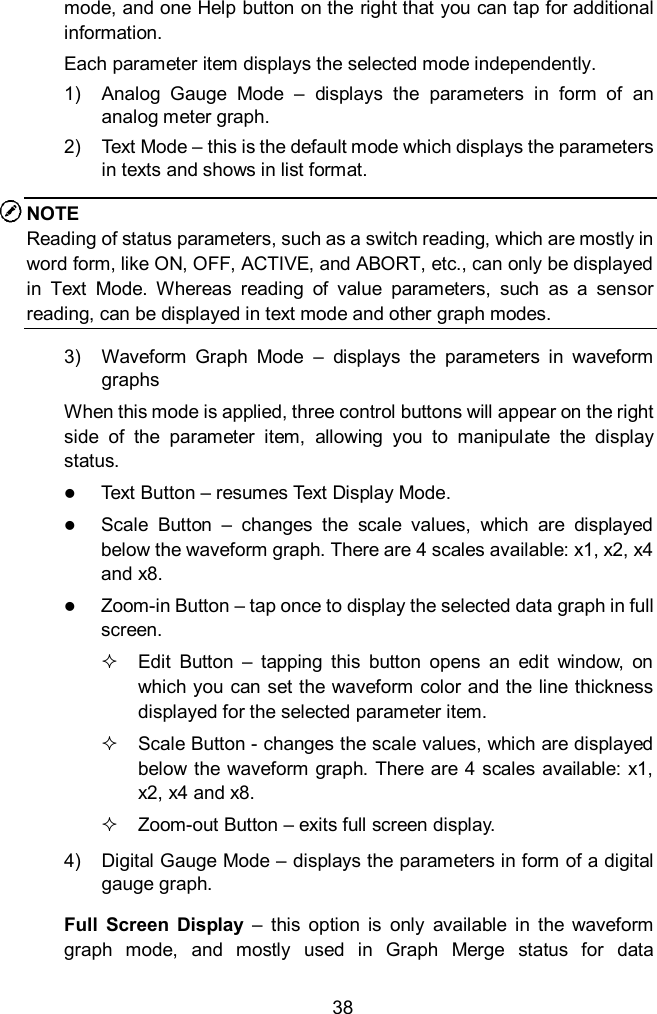

38 mode, and one Help button on the right that you can tap for additional information. Each parameter item displays the selected mode independently. 1) Analog Gauge Mode – displays the parameters in form of an analog meter graph. 2) Text Mode – this is the default mode which displays the parameters in texts and shows in list format. NOTE Reading of status parameters, such as a switch reading, which are mostly in word form, like ON, OFF, ACTIVE, and ABORT, etc., can only be displayed in Text Mode. Whereas reading of value parameters, such as a sensor reading, can be displayed in text mode and other graph modes. 3) Waveform Graph Mode – displays the parameters in waveform graphs When this mode is applied, three control buttons will appear on the right side of the parameter item, allowing you to manipulate the display status.  Text Button – resumes Text Display Mode.  Scale Button – changes the scale values, which are displayed below the waveform graph. There are 4 scales available: x1, x2, x4 and x8.  Zoom-in Button – tap once to display the selected data graph in full screen.  Edit Button – tapping this button opens an edit window, on which you can set the waveform color and the line thickness displayed for the selected parameter item.  Scale Button - changes the scale values, which are displayed below the waveform graph. There are 4 scales available: x1, x2, x4 and x8.  Zoom-out Button – exits full screen display. 4) Digital Gauge Mode – displays the parameters in form of a digital gauge graph. Full Screen Display – this option is only available in the waveform graph mode, and mostly used in Graph Merge status for data

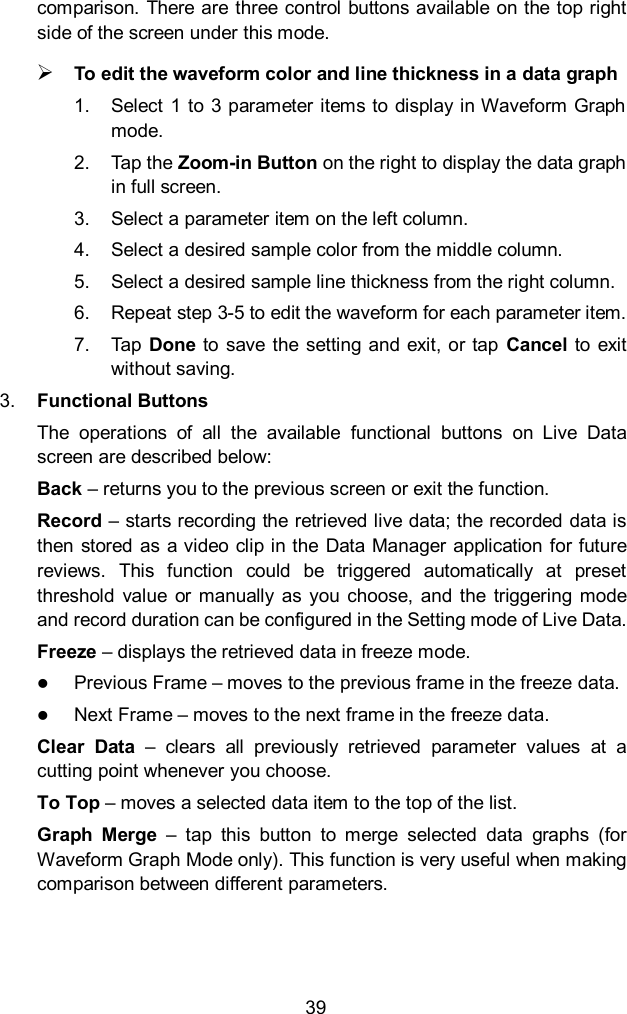

39 comparison. There are three control buttons available on the top right side of the screen under this mode.  To edit the waveform color and line thickness in a data graph 1. Select 1 to 3 parameter items to display in Waveform Graph mode. 2. Tap the Zoom-in Button on the right to display the data graph in full screen. 3. Select a parameter item on the left column. 4. Select a desired sample color from the middle column. 5. Select a desired sample line thickness from the right column. 6. Repeat step 3-5 to edit the waveform for each parameter item. 7. Tap Done to save the setting and exit, or tap Cancel to exit without saving. 3. Functional Buttons The operations of all the available functional buttons on Live Data screen are described below: Back – returns you to the previous screen or exit the function. Record – starts recording the retrieved live data; the recorded data is then stored as a video clip in the Data Manager application for future reviews. This function could be triggered automatically at preset threshold value or manually as you choose, and the triggering mode and record duration can be configured in the Setting mode of Live Data. Freeze – displays the retrieved data in freeze mode.  Previous Frame – moves to the previous frame in the freeze data.  Next Frame – moves to the next frame in the freeze data. Clear Data – clears all previously retrieved parameter values at a cutting point whenever you choose. To Top – moves a selected data item to the top of the list. Graph Merge – tap this button to merge selected data graphs (for Waveform Graph Mode only). This function is very useful when making comparison between different parameters.

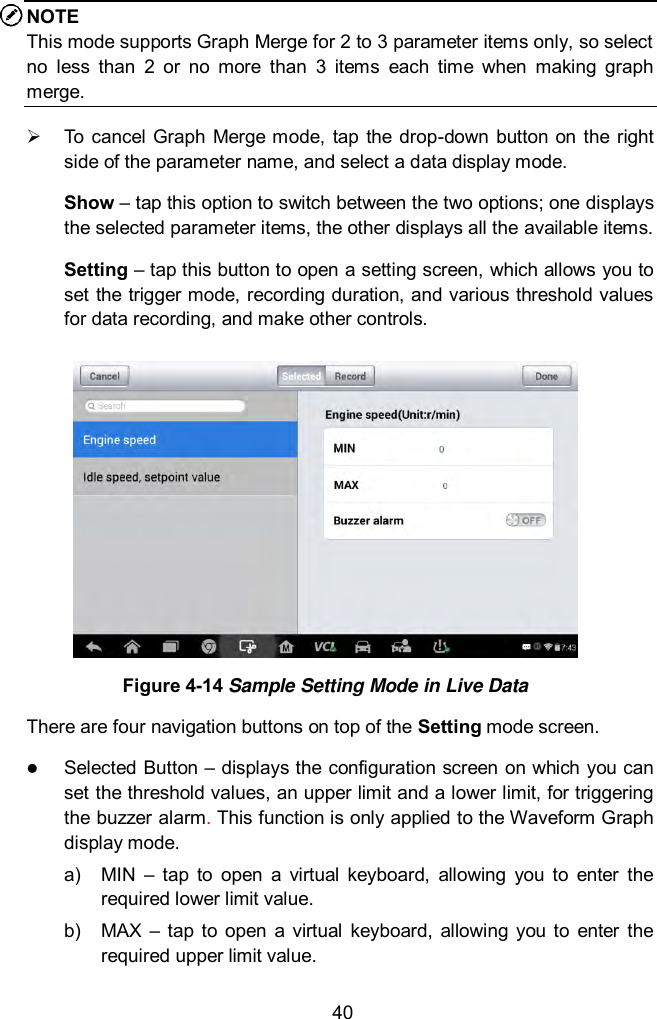

40 NOTE This mode supports Graph Merge for 2 to 3 parameter items only, so select no less than 2 or no more than 3 items each time when making graph merge.  To cancel Graph Merge mode, tap the drop-down button on the right side of the parameter name, and select a data display mode. Show – tap this option to switch between the two options; one displays the selected parameter items, the other displays all the available items. Setting – tap this button to open a setting screen, which allows you to set the trigger mode, recording duration, and various threshold values for data recording, and make other controls. Figure 4-14 Sample Setting Mode in Live Data There are four navigation buttons on top of the Setting mode screen.  Selected Button – displays the configuration screen on which you can set the threshold values, an upper limit and a lower limit, for triggering the buzzer alarm. This function is only applied to the Waveform Graph display mode. a) MIN – tap to open a virtual keyboard, allowing you to enter the required lower limit value. b) MAX – tap to open a virtual keyboard, allowing you to enter the required upper limit value.

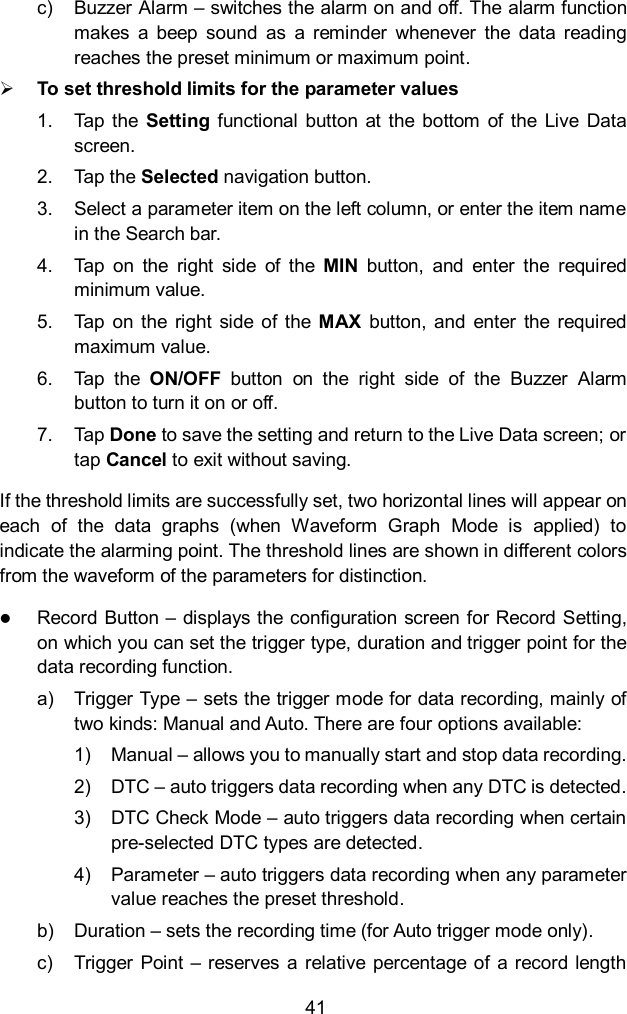

41 c) Buzzer Alarm – switches the alarm on and off. The alarm function makes a beep sound as a reminder whenever the data reading reaches the preset minimum or maximum point.  To set threshold limits for the parameter values 1. Tap the Setting functional button at the bottom of the Live Data screen. 2. Tap the Selected navigation button. 3. Select a parameter item on the left column, or enter the item name in the Search bar. 4. Tap on the right side of the MIN button, and enter the required minimum value. 5. Tap on the right side of the MAX button, and enter the required maximum value. 6. Tap the ON/OFF button on the right side of the Buzzer Alarm button to turn it on or off. 7. Tap Done to save the setting and return to the Live Data screen; or tap Cancel to exit without saving. If the threshold limits are successfully set, two horizontal lines will appear on each of the data graphs (when Waveform Graph Mode is applied) to indicate the alarming point. The threshold lines are shown in different colors from the waveform of the parameters for distinction.  Record Button – displays the configuration screen for Record Setting, on which you can set the trigger type, duration and trigger point for the data recording function. a) Trigger Type – sets the trigger mode for data recording, mainly of two kinds: Manual and Auto. There are four options available: 1) Manual – allows you to manually start and stop data recording. 2) DTC – auto triggers data recording when any DTC is detected. 3) DTC Check Mode – auto triggers data recording when certain pre-selected DTC types are detected. 4) Parameter – auto triggers data recording when any parameter value reaches the preset threshold. b) Duration – sets the recording time (for Auto trigger mode only). c) Trigger Point – reserves a relative percentage of a record length

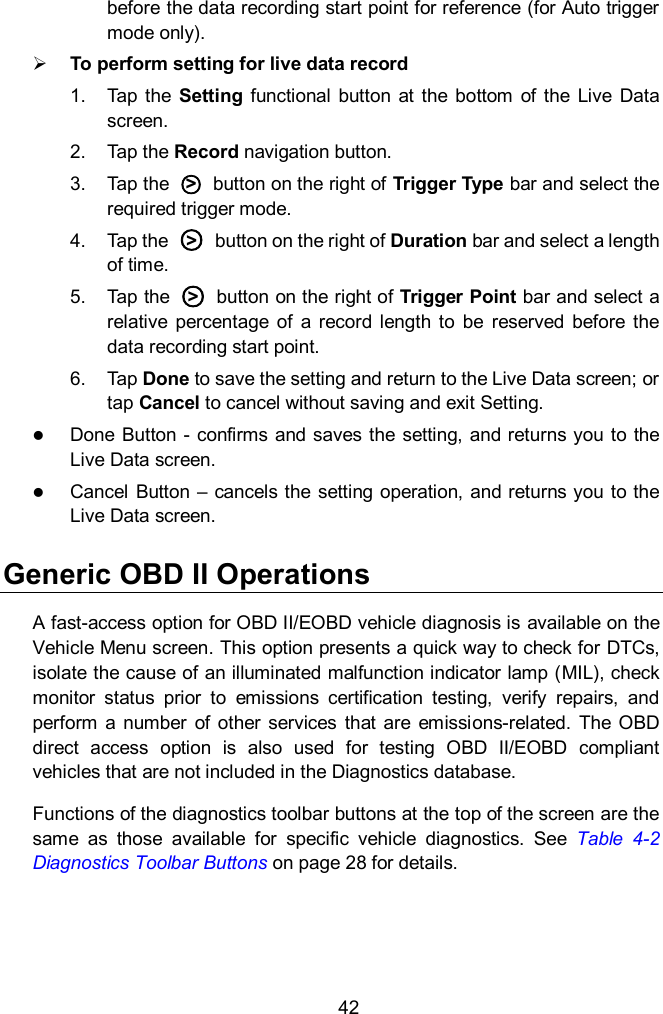

42 before the data recording start point for reference (for Auto trigger mode only).  To perform setting for live data record 1. Tap the Setting functional button at the bottom of the Live Data screen. 2. Tap the Record navigation button. 3. Tap the ○> button on the right of Trigger Type bar and select the required trigger mode. 4. Tap the ○> button on the right of Duration bar and select a length of time. 5. Tap the ○> button on the right of Trigger Point bar and select a relative percentage of a record length to be reserved before the data recording start point. 6. Tap Done to save the setting and return to the Live Data screen; or tap Cancel to cancel without saving and exit Setting.  Done Button - confirms and saves the setting, and returns you to the Live Data screen.  Cancel Button – cancels the setting operation, and returns you to the Live Data screen. Generic OBD II Operations A fast-access option for OBD II/EOBD vehicle diagnosis is available on the Vehicle Menu screen. This option presents a quick way to check for DTCs, isolate the cause of an illuminated malfunction indicator lamp (MIL), check monitor status prior to emissions certification testing, verify repairs, and perform a number of other services that are emissions-related. The OBD direct access option is also used for testing OBD II/EOBD compliant vehicles that are not included in the Diagnostics database. Functions of the diagnostics toolbar buttons at the top of the screen are the same as those available for specific vehicle diagnostics. See Table 4-2 Diagnostics Toolbar Buttons on page 28 for details.

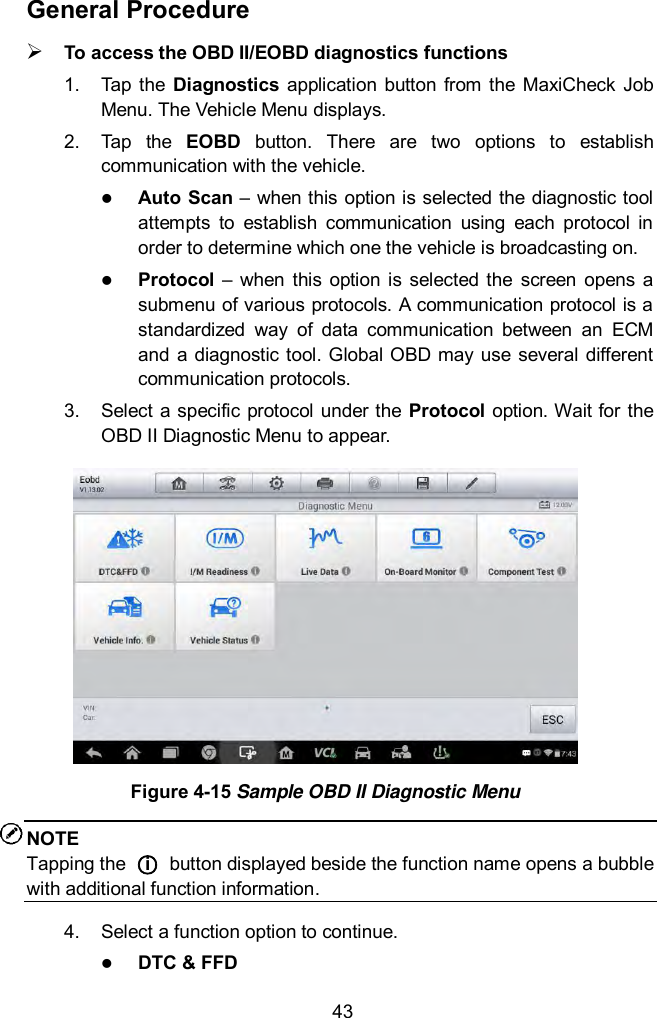

43 General Procedure  To access the OBD II/EOBD diagnostics functions 1. Tap the Diagnostics application button from the MaxiCheck Job Menu. The Vehicle Menu displays. 2. Tap the EOBD button. There are two options to establish communication with the vehicle.  Auto Scan – when this option is selected the diagnostic tool attempts to establish communication using each protocol in order to determine which one the vehicle is broadcasting on.  Protocol – when this option is selected the screen opens a submenu of various protocols. A communication protocol is a standardized way of data communication between an ECM and a diagnostic tool. Global OBD may use several different communication protocols. 3. Select a specific protocol under the Protocol option. Wait for the OBD II Diagnostic Menu to appear. Figure 4-15 Sample OBD II Diagnostic Menu NOTE Tapping the ○i button displayed beside the function name opens a bubble with additional function information. 4. Select a function option to continue.  DTC & FFD
44  I/M Readiness  Live Data  On-Board Monitor  Component Test  Vehicle Information  Vehicle Status NOTE Some functions are supported only on certain vehicle makes. Function Descriptions This section describes the various functions of each diagnostic option: DTC & FFD When this function is selected, the screen displays a list of Stored Codes and Pending Codes. When the Freeze Frame data of certain DTCs are available for viewing, a snowflake button will display on the right side of the DTC item. The erase codes function can be applied by tapping the Clear DTC button at the bottom of the screen. Figure 4-16 Sample DTC & FFD Screen

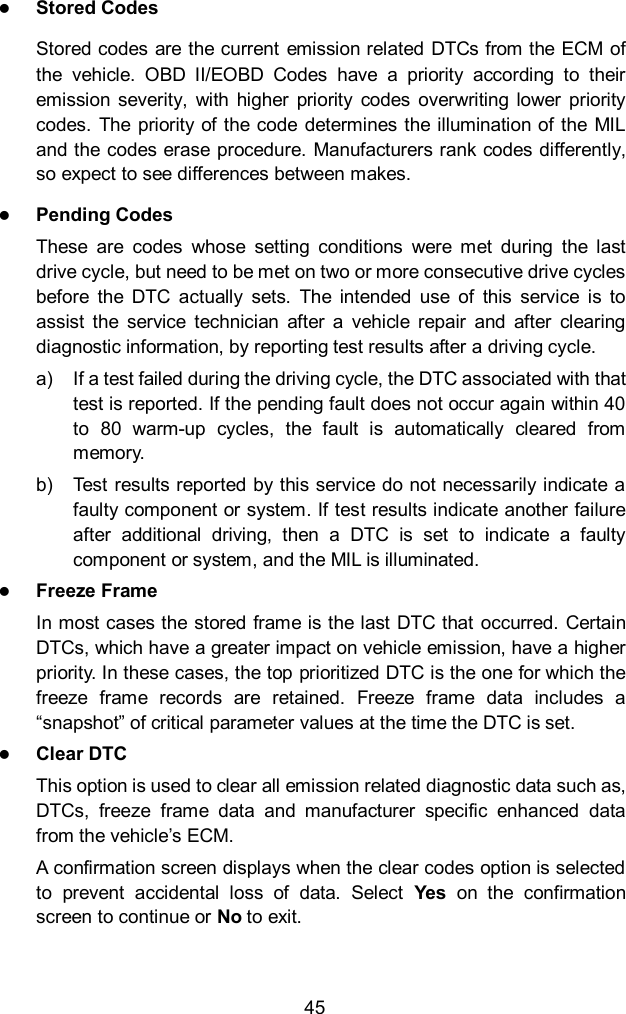

45  Stored Codes Stored codes are the current emission related DTCs from the ECM of the vehicle. OBD II/EOBD Codes have a priority according to their emission severity, with higher priority codes overwriting lower priority codes. The priority of the code determines the illumination of the MIL and the codes erase procedure. Manufacturers rank codes differently, so expect to see differences between makes.  Pending Codes These are codes whose setting conditions were met during the last drive cycle, but need to be met on two or more consecutive drive cycles before the DTC actually sets. The intended use of this service is to assist the service technician after a vehicle repair and after clearing diagnostic information, by reporting test results after a driving cycle. a) If a test failed during the driving cycle, the DTC associated with that test is reported. If the pending fault does not occur again within 40 to 80 warm-up cycles, the fault is automatically cleared from memory. b) Test results reported by this service do not necessarily indicate a faulty component or system. If test results indicate another failure after additional driving, then a DTC is set to indicate a faulty component or system, and the MIL is illuminated.  Freeze Frame In most cases the stored frame is the last DTC that occurred. Certain DTCs, which have a greater impact on vehicle emission, have a higher priority. In these cases, the top prioritized DTC is the one for which the freeze frame records are retained. Freeze frame data includes a “snapshot” of critical parameter values at the time the DTC is set.  Clear DTC This option is used to clear all emission related diagnostic data such as, DTCs, freeze frame data and manufacturer specific enhanced data from the vehicle’s ECM. A confirmation screen displays when the clear codes option is selected to prevent accidental loss of data. Select Yes on the confirmation screen to continue or No to exit.

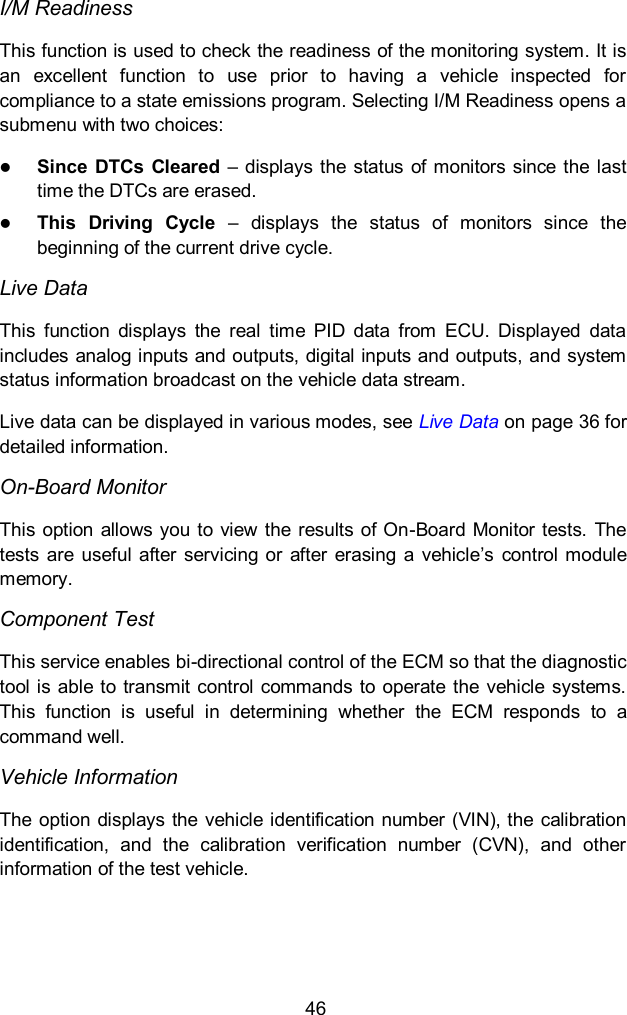

46 I/M Readiness This function is used to check the readiness of the monitoring system. It is an excellent function to use prior to having a vehicle inspected for compliance to a state emissions program. Selecting I/M Readiness opens a submenu with two choices:  Since DTCs Cleared – displays the status of monitors since the last time the DTCs are erased.  This Driving Cycle – displays the status of monitors since the beginning of the current drive cycle. Live Data This function displays the real time PID data from ECU. Displayed data includes analog inputs and outputs, digital inputs and outputs, and system status information broadcast on the vehicle data stream. Live data can be displayed in various modes, see Live Data on page 36 for detailed information. On-Board Monitor This option allows you to view the results of On-Board Monitor tests. The tests are useful after servicing or after erasing a vehicle’s control module memory. Component Test This service enables bi-directional control of the ECM so that the diagnostic tool is able to transmit control commands to operate the vehicle systems. This function is useful in determining whether the ECM responds to a command well. Vehicle Information The option displays the vehicle identification number (VIN), the calibration identification, and the calibration verification number (CVN), and other information of the test vehicle.

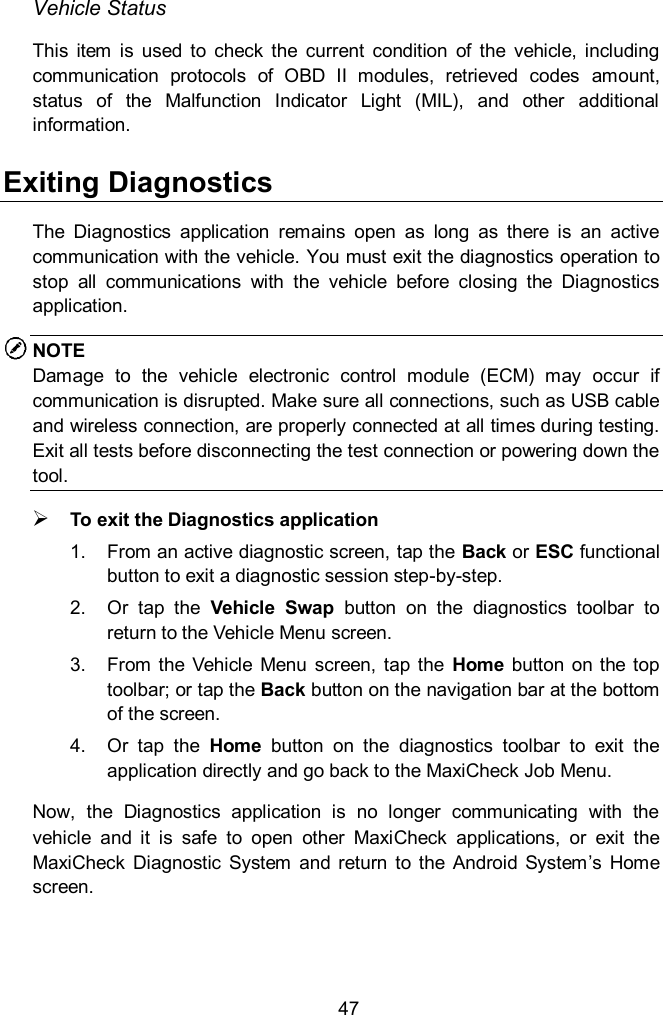

47 Vehicle Status This item is used to check the current condition of the vehicle, including communication protocols of OBD II modules, retrieved codes amount, status of the Malfunction Indicator Light (MIL), and other additional information. Exiting Diagnostics The Diagnostics application remains open as long as there is an active communication with the vehicle. You must exit the diagnostics operation to stop all communications with the vehicle before closing the Diagnostics application. NOTE Damage to the vehicle electronic control module (ECM) may occur if communication is disrupted. Make sure all connections, such as USB cable and wireless connection, are properly connected at all times during testing. Exit all tests before disconnecting the test connection or powering down the tool.  To exit the Diagnostics application 1. From an active diagnostic screen, tap the Back or ESC functional button to exit a diagnostic session step-by-step. 2. Or tap the Vehicle Swap button on the diagnostics toolbar to return to the Vehicle Menu screen. 3. From the Vehicle Menu screen, tap the Home button on the top toolbar; or tap the Back button on the navigation bar at the bottom of the screen. 4. Or tap the Home button on the diagnostics toolbar to exit the application directly and go back to the MaxiCheck Job Menu. Now, the Diagnostics application is no longer communicating with the vehicle and it is safe to open other MaxiCheck applications, or exit the MaxiCheck Diagnostic System and return to the Android System’s Home screen.

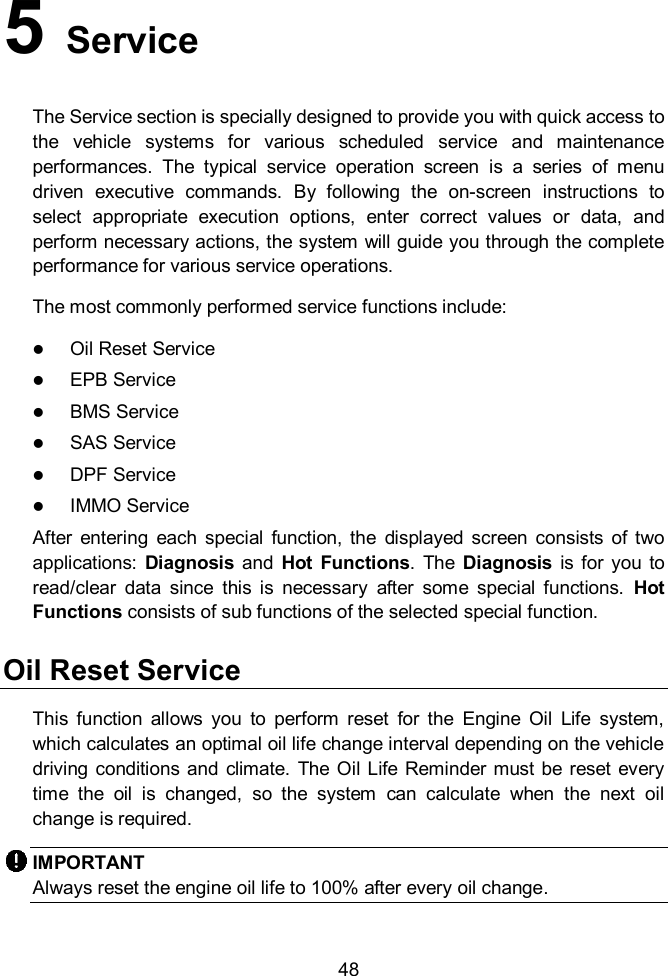

48 5 Service The Service section is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. The typical service operation screen is a series of menu driven executive commands. By following the on-screen instructions to select appropriate execution options, enter correct values or data, and perform necessary actions, the system will guide you through the complete performance for various service operations. The most commonly performed service functions include:  Oil Reset Service  EPB Service  BMS Service  SAS Service  DPF Service  IMMO Service After entering each special function, the displayed screen consists of two applications: Diagnosis and Hot Functions. The Diagnosis is for you to read/clear data since this is necessary after some special functions. Hot Functions consists of sub functions of the selected special function. Oil Reset Service This function allows you to perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate. The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required. IMPORTANT Always reset the engine oil life to 100% after every oil change.

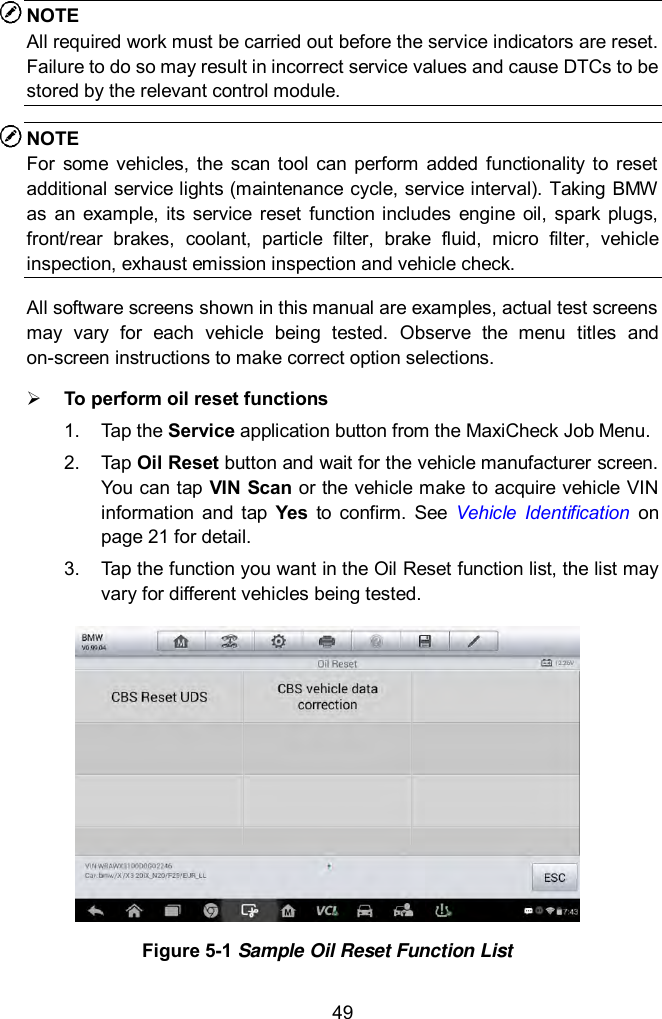

49 NOTE All required work must be carried out before the service indicators are reset. Failure to do so may result in incorrect service values and cause DTCs to be stored by the relevant control module. NOTE For some vehicles, the scan tool can perform added functionality to reset additional service lights (maintenance cycle, service interval). Taking BMW as an example, its service reset function includes engine oil, spark plugs, front/rear brakes, coolant, particle filter, brake fluid, micro filter, vehicle inspection, exhaust emission inspection and vehicle check. All software screens shown in this manual are examples, actual test screens may vary for each vehicle being tested. Observe the menu titles and on-screen instructions to make correct option selections.  To perform oil reset functions 1. Tap the Service application button from the MaxiCheck Job Menu. 2. Tap Oil Reset button and wait for the vehicle manufacturer screen. You can tap VIN Scan or the vehicle make to acquire vehicle VIN information and tap Yes to confirm. See Vehicle Identification on page 21 for detail. 3. Tap the function you want in the Oil Reset function list, the list may vary for different vehicles being tested. Figure 5-1 Sample Oil Reset Function List

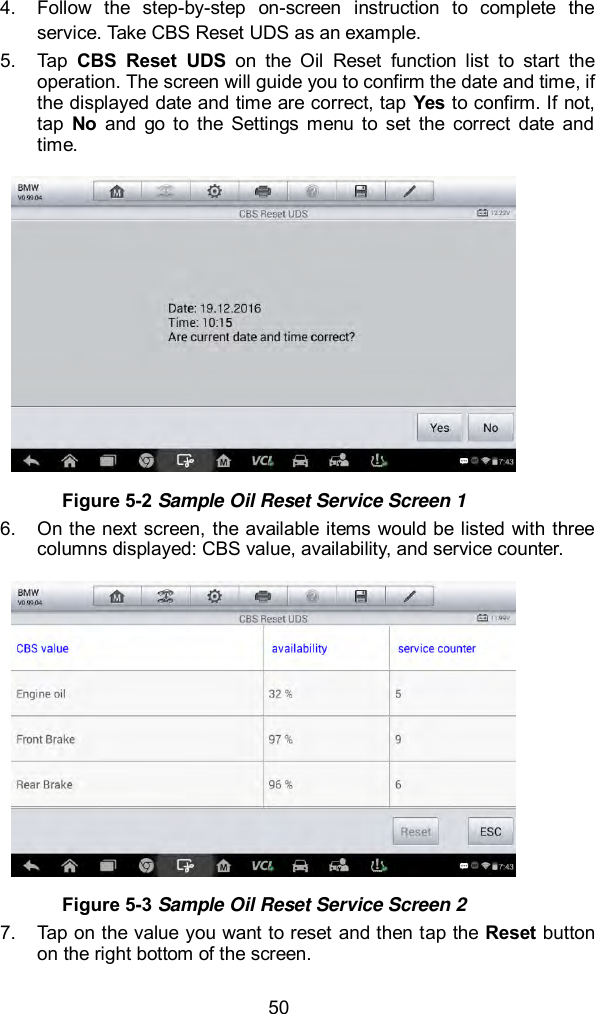

50 4. Follow the step-by-step on-screen instruction to complete the service. Take CBS Reset UDS as an example. 5. Tap CBS Reset UDS on the Oil Reset function list to start the operation. The screen will guide you to confirm the date and time, if the displayed date and time are correct, tap Yes to confirm. If not, tap No and go to the Settings menu to set the correct date and time. Figure 5-2 Sample Oil Reset Service Screen 1 6. On the next screen, the available items would be listed with three columns displayed: CBS value, availability, and service counter. Figure 5-3 Sample Oil Reset Service Screen 2 7. Tap on the value you want to reset and then tap the Reset button on the right bottom of the screen.

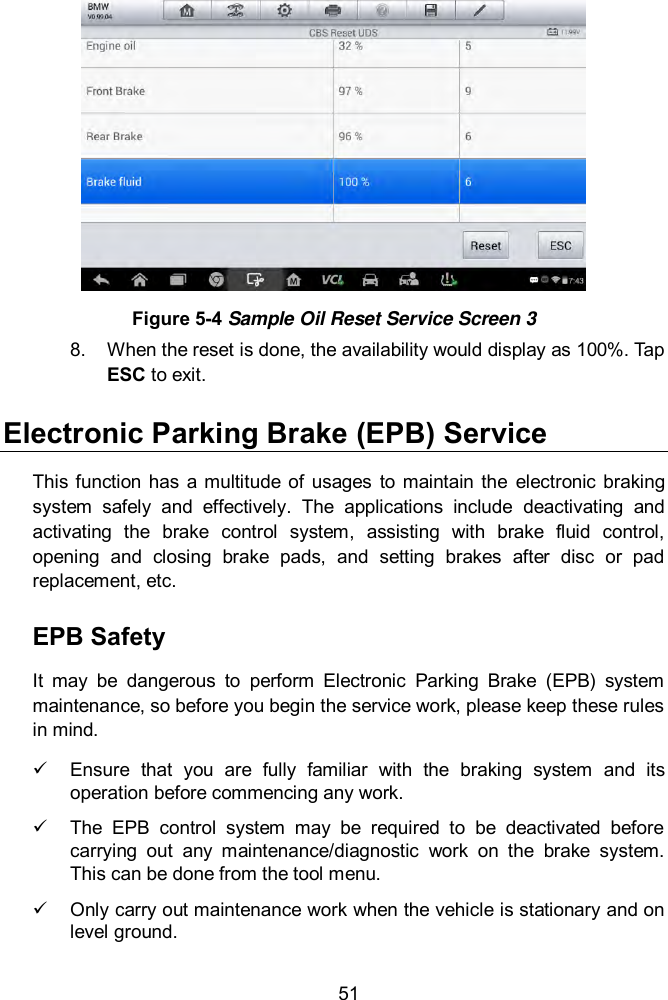

51 Figure 5-4 Sample Oil Reset Service Screen 3 8. When the reset is done, the availability would display as 100%. Tap ESC to exit. Electronic Parking Brake (EPB) Service This function has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc. EPB Safety It may be dangerous to perform Electronic Parking Brake (EPB) system maintenance, so before you begin the service work, please keep these rules in mind.  Ensure that you are fully familiar with the braking system and its operation before commencing any work.  The EPB control system may be required to be deactivated before carrying out any maintenance/diagnostic work on the brake system. This can be done from the tool menu.  Only carry out maintenance work when the vehicle is stationary and on level ground.

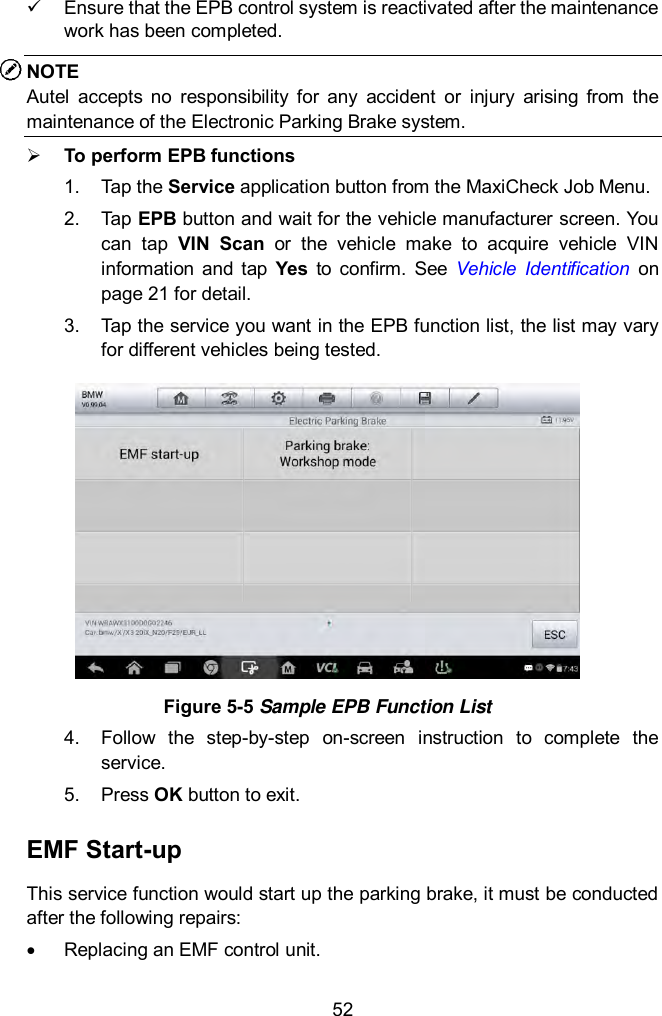

52  Ensure that the EPB control system is reactivated after the maintenance work has been completed. NOTE Autel accepts no responsibility for any accident or injury arising from the maintenance of the Electronic Parking Brake system.  To perform EPB functions 1. Tap the Service application button from the MaxiCheck Job Menu. 2. Tap EPB button and wait for the vehicle manufacturer screen. You can tap VIN Scan or the vehicle make to acquire vehicle VIN information and tap Yes to confirm. See Vehicle Identification on page 21 for detail. 3. Tap the service you want in the EPB function list, the list may vary for different vehicles being tested. Figure 5-5 Sample EPB Function List 4. Follow the step-by-step on-screen instruction to complete the service. 5. Press OK button to exit. EMF Start-up This service function would start up the parking brake, it must be conducted after the following repairs:  Replacing an EMF control unit.

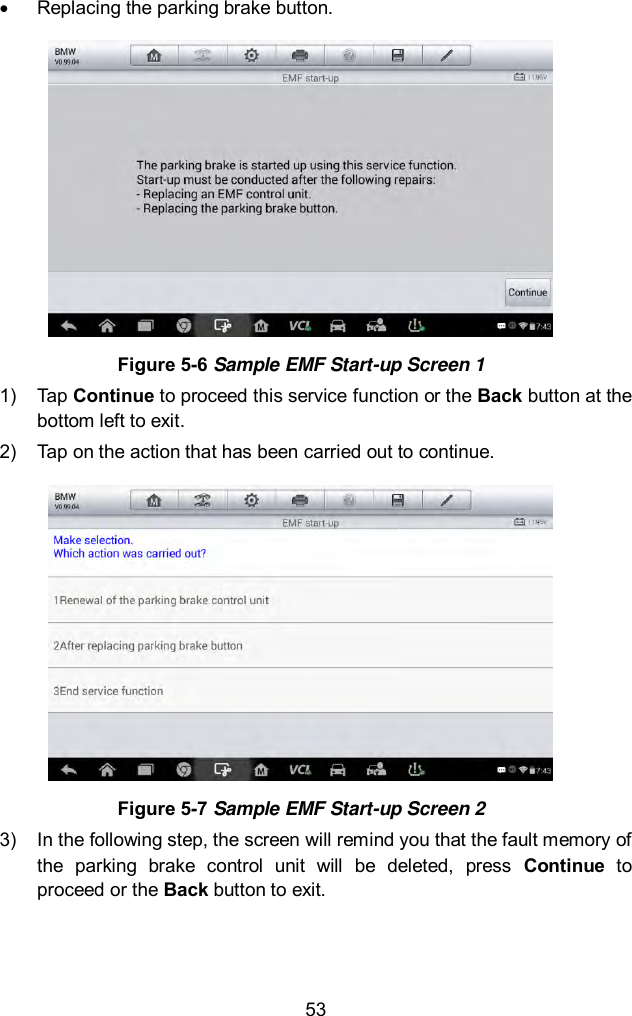

53  Replacing the parking brake button. Figure 5-6 Sample EMF Start-up Screen 1 1) Tap Continue to proceed this service function or the Back button at the bottom left to exit. 2) Tap on the action that has been carried out to continue. Figure 5-7 Sample EMF Start-up Screen 2 3) In the following step, the screen will remind you that the fault memory of the parking brake control unit will be deleted, press Continue to proceed or the Back button to exit.

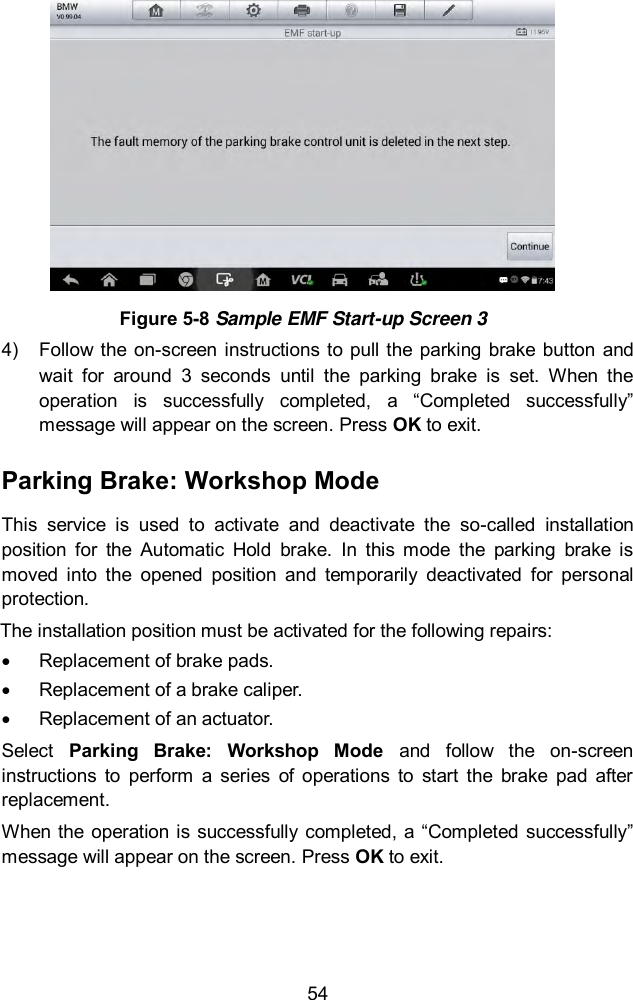

54 Figure 5-8 Sample EMF Start-up Screen 3 4) Follow the on-screen instructions to pull the parking brake button and wait for around 3 seconds until the parking brake is set. When the operation is successfully completed, a “Completed successfully” message will appear on the screen. Press OK to exit. Parking Brake: Workshop Mode This service is used to activate and deactivate the so-called installation position for the Automatic Hold brake. In this mode the parking brake is moved into the opened position and temporarily deactivated for personal protection. The installation position must be activated for the following repairs:  Replacement of brake pads.  Replacement of a brake caliper.  Replacement of an actuator. Select Parking Brake: Workshop Mode and follow the on-screen instructions to perform a series of operations to start the brake pad after replacement. When the operation is successfully completed, a “Completed successfully” message will appear on the screen. Press OK to exit.

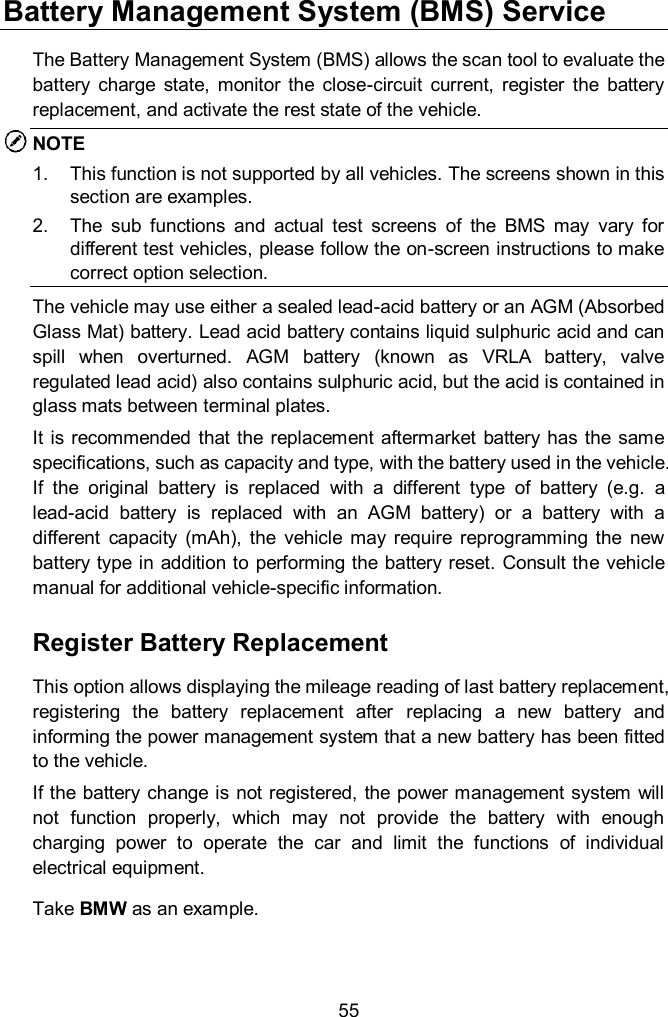

55 Battery Management System (BMS) Service The Battery Management System (BMS) allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle. NOTE 1. This function is not supported by all vehicles. The screens shown in this section are examples. 2. The sub functions and actual test screens of the BMS may vary for different test vehicles, please follow the on-screen instructions to make correct option selection. The vehicle may use either a sealed lead-acid battery or an AGM (Absorbed Glass Mat) battery. Lead acid battery contains liquid sulphuric acid and can spill when overturned. AGM battery (known as VRLA battery, valve regulated lead acid) also contains sulphuric acid, but the acid is contained in glass mats between terminal plates. It is recommended that the replacement aftermarket battery has the same specifications, such as capacity and type, with the battery used in the vehicle. If the original battery is replaced with a different type of battery (e.g. a lead-acid battery is replaced with an AGM battery) or a battery with a different capacity (mAh), the vehicle may require reprogramming the new battery type in addition to performing the battery reset. Consult the vehicle manual for additional vehicle-specific information. Register Battery Replacement This option allows displaying the mileage reading of last battery replacement, registering the battery replacement after replacing a new battery and informing the power management system that a new battery has been fitted to the vehicle. If the battery change is not registered, the power management system will not function properly, which may not provide the battery with enough charging power to operate the car and limit the functions of individual electrical equipment. Take BMW as an example.

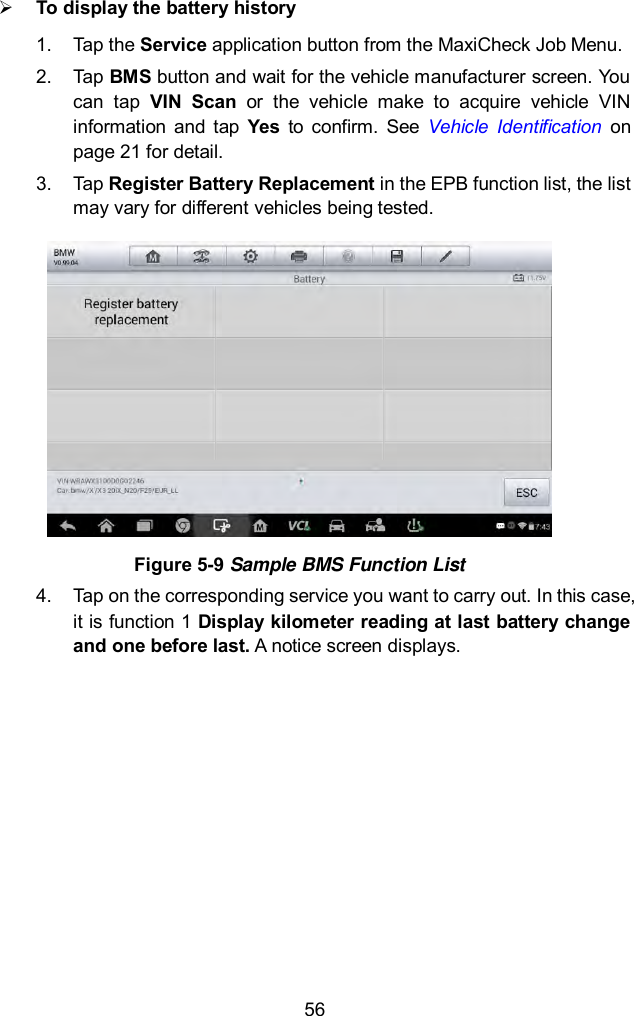

56  To display the battery history 1. Tap the Service application button from the MaxiCheck Job Menu. 2. Tap BMS button and wait for the vehicle manufacturer screen. You can tap VIN Scan or the vehicle make to acquire vehicle VIN information and tap Yes to confirm. See Vehicle Identification on page 21 for detail. 3. Tap Register Battery Replacement in the EPB function list, the list may vary for different vehicles being tested. Figure 5-9 Sample BMS Function List 4. Tap on the corresponding service you want to carry out. In this case, it is function 1 Display kilometer reading at last battery change and one before last. A notice screen displays.

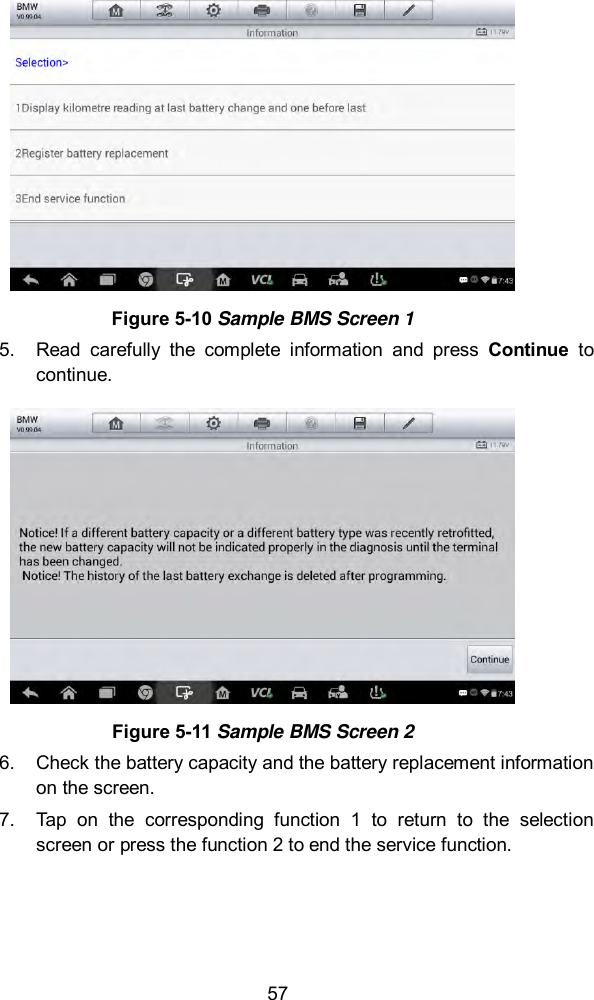

57 Figure 5-10 Sample BMS Screen 1 5. Read carefully the complete information and press Continue to continue. Figure 5-11 Sample BMS Screen 2 6. Check the battery capacity and the battery replacement information on the screen. 7. Tap on the corresponding function 1 to return to the selection screen or press the function 2 to end the service function.
58 Figure 5-12 Sample BMS Screen 3  To register the battery replacement 1. Tap on the corresponding service you want to carry out. In this case, it is function 2 Register battery replacement. Figure 5-13 Sample BMS Screen 4 2. Read carefully the information on the screen and slide up/down to view all the functions listed. There are four functions listed:
59 Figure 5-14 Sample BMS Screen 5 1) Enter battery replacement: Same capacity 2) Enter battery replacement: Different capacity 3) Enter battery replacement: Changing from the normal lead-acid battery (white housing) to AGM battery (black housing) 4) End service function. Take the first function as an example. Figure 5-15 Sample BMS Screen 6

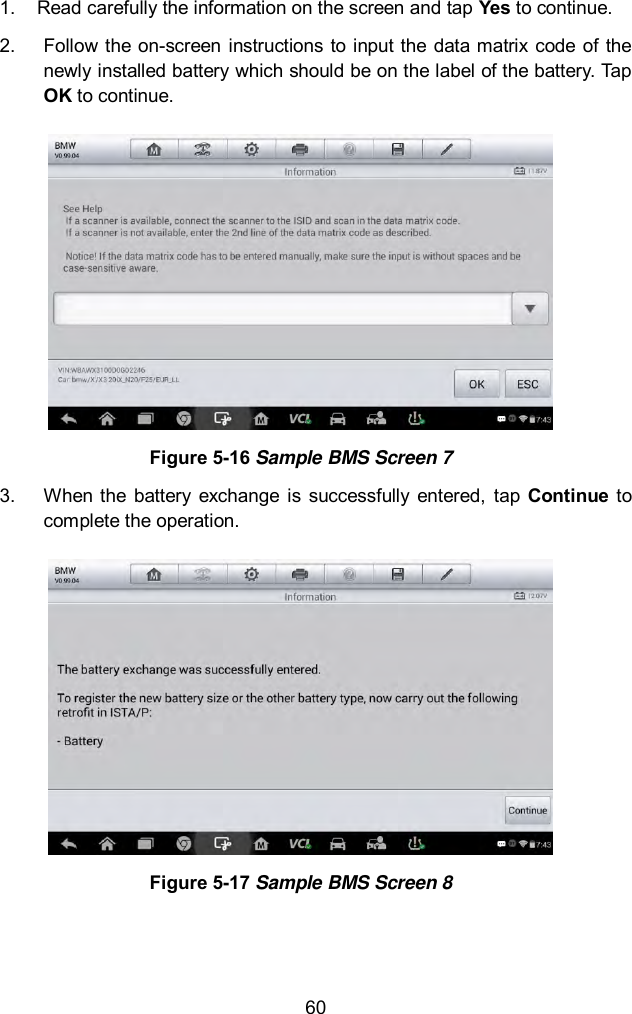

60 1. Read carefully the information on the screen and tap Yes to continue. 2. Follow the on-screen instructions to input the data matrix code of the newly installed battery which should be on the label of the battery. Tap OK to continue. Figure 5-16 Sample BMS Screen 7 3. When the battery exchange is successfully entered, tap Continue to complete the operation. Figure 5-17 Sample BMS Screen 8
61 Steering Angle Sensor (SAS) Service Steering Angle Sensor Calibration permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. Therefore, the front wheels and the steering wheel must be set exactly to the straight-ahead position before calibration. In addition, the vehicle identification number is also read from the instrument cluster and stored permanently in the steering angle sensor EEPROM. On successful completion of calibration, the steering angle sensor fault memory is automatically cleared. Calibration must always be carried out after the following operations:  Steering wheel replacement  Steering angle sensor replacement  Any maintenance that involves opening the connector hub from the steering angle sensor to the column  Any maintenance or repair work on the steering linkage, steering gear or other related mechanism  Wheel alignment or wheel track adjustment  Accident repairs where damage to the steering angle sensor or assembly, or any part of the steering system may have occurred NOTE 1. AUTEL accepts no responsibility for any accident or injury arising from servicing the SAS system. When interpreting DTCs retrieved from the vehicle, always follow the manufacturer’s recommendation for repair. 2. All software screens shown in this manual are examples, actual test screens may vary for each vehicle being tested. Observe the menu titles and on-screen instructions to make correct option selections. 3. Before starting the procedure, make sure the vehicle has ESC. Look for the button on dash. Take Land Rover as an example. 1. Tap the Service application button from the MaxiCheck Job Menu. 2. Tap SAS button and wait for the vehicle manufacturer screen. You can tap VIN Scan or the vehicle make to acquire vehicle VIN information

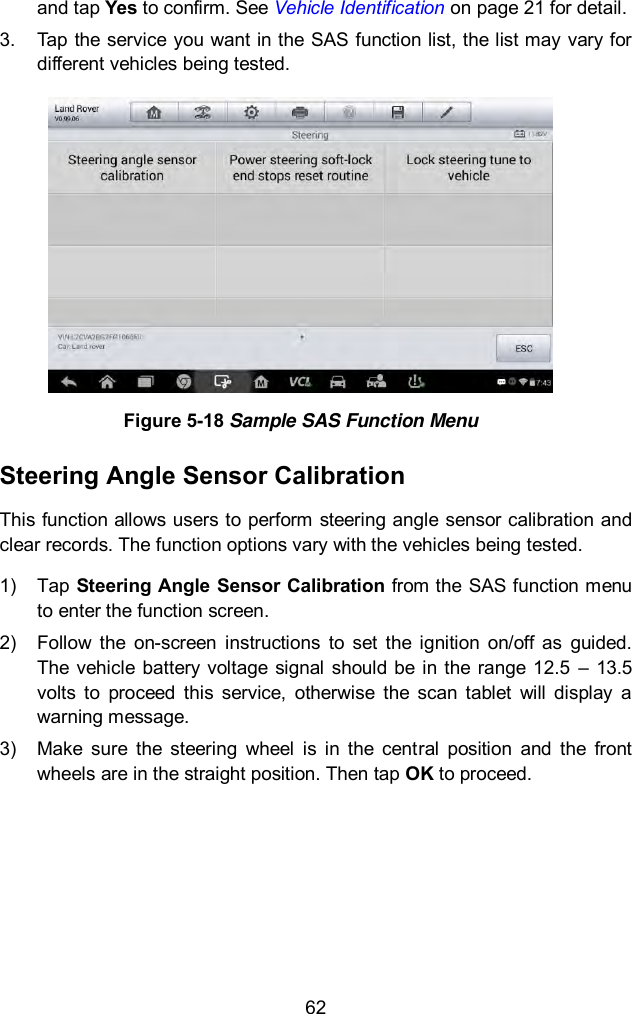

62 and tap Yes to confirm. See Vehicle Identification on page 21 for detail. 3. Tap the service you want in the SAS function list, the list may vary for different vehicles being tested. Figure 5-18 Sample SAS Function Menu Steering Angle Sensor Calibration This function allows users to perform steering angle sensor calibration and clear records. The function options vary with the vehicles being tested. 1) Tap Steering Angle Sensor Calibration from the SAS function menu to enter the function screen. 2) Follow the on-screen instructions to set the ignition on/off as guided. The vehicle battery voltage signal should be in the range 12.5 – 13.5 volts to proceed this service, otherwise the scan tablet will display a warning message. 3) Make sure the steering wheel is in the central position and the front wheels are in the straight position. Then tap OK to proceed.

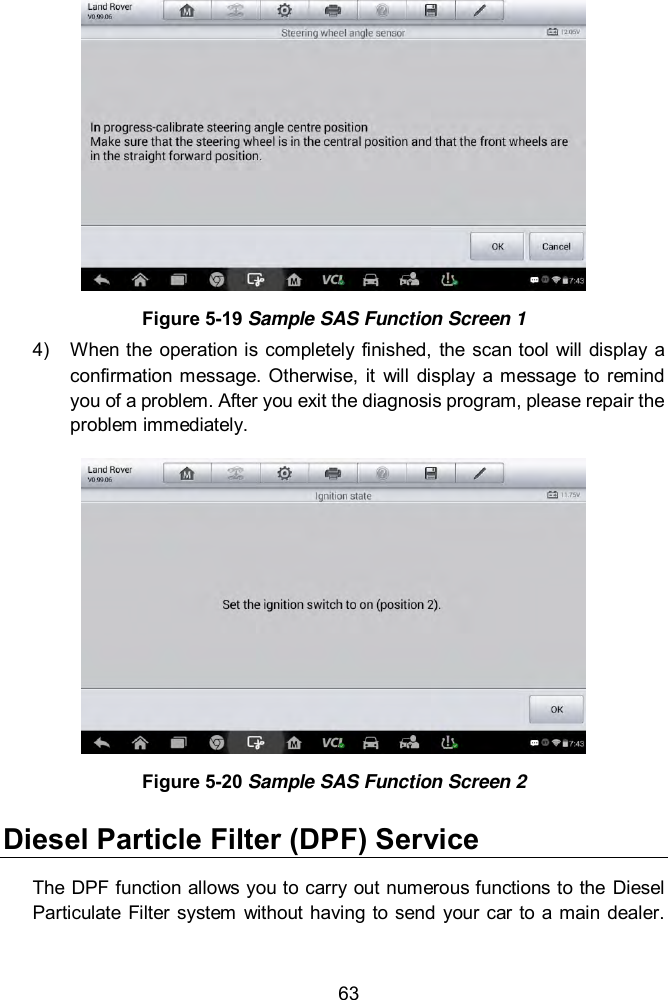

63 Figure 5-19 Sample SAS Function Screen 1 4) When the operation is completely finished, the scan tool will display a confirmation message. Otherwise, it will display a message to remind you of a problem. After you exit the diagnosis program, please repair the problem immediately. Figure 5-20 Sample SAS Function Screen 2 Diesel Particle Filter (DPF) Service The DPF function allows you to carry out numerous functions to the Diesel Particulate Filter system without having to send your car to a main dealer.
64 The tool will manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit. ECM monitors driving style and selects a suitable time to employ regeneration. Cars driven a lot at idling speed and low load will attempt to regenerate earlier than cars driven more with high load and high speed. In order for regeneration to take place, a prolonged high exhaust temperature must be obtained. In the event of the car being driven in such a way that regeneration is not possible, i.e. frequent short journeys, a diagnostic trouble code will eventually be registered, DPF light and “Check Engine” indicator comes on. A service regeneration can be requested in the workshop, using the diagnostic tool. Before carrying out a forced DPF regeneration using the tool, check the following items:  The fuel light is not on.  No DPF-relevant faults stored in system.  The vehicle has the correct spec engine oil.  The oil for diesel is not contaminated. IMPORTANT Before diagnosing a problem vehicle and attempting to perform an emergency regeneration, it is important to obtain a full diagnostic log and read out relevant measured value blocks. NOTE 1. The DPF will not regenerate if the engine management light is on, or there is a faulty EGR valve. 2. The ECU must be re-adapted when replacing the DPF and when topping up the fuel additive Eolys. 3. If the vehicle needs to be driven in order to perform a DPF service, ALWAYS have a second person help you. One person should drive the vehicle while the other person observes the screen on the Tool. Trying to drive and observe the Scan Tool at the same time is dangerous, and could cause a serious traffic accident.
65 Figure 5-21 Sample DPF Service Function Menu Starting Basic Inspection Quantity This function enables you to start fuel delivery matching. 1. Tap Starting Basic Inspection Quantity from the service functions menu to enter the service screen. 2. The tool communicates with the vehicle and reads the fault codes memory. Follow the on-screen instructions to finish this procedure. 3. The tool will display a function list menu as below. Press the corresponding number button to perform the desired function. Figure 5-22 Sample Starting Basic Inspection Quantity

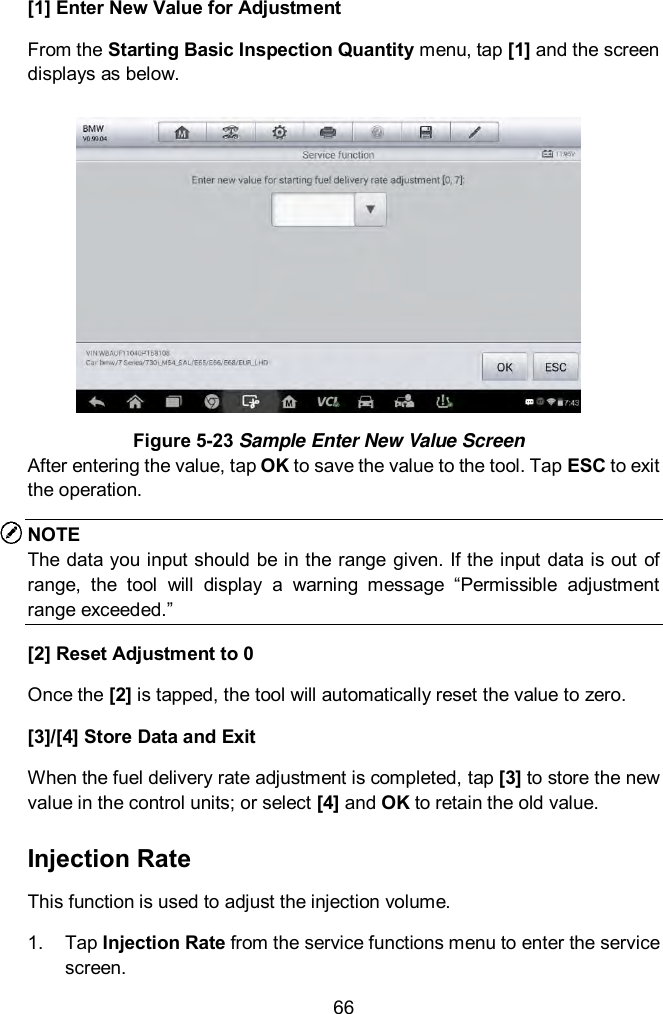

66 [1] Enter New Value for Adjustment From the Starting Basic Inspection Quantity menu, tap [1] and the screen displays as below. Figure 5-23 Sample Enter New Value Screen After entering the value, tap OK to save the value to the tool. Tap ESC to exit the operation. NOTE The data you input should be in the range given. If the input data is out of range, the tool will display a warning message “Permissible adjustment range exceeded.” [2] Reset Adjustment to 0 Once the [2] is tapped, the tool will automatically reset the value to zero. [3]/[4] Store Data and Exit When the fuel delivery rate adjustment is completed, tap [3] to store the new value in the control units; or select [4] and OK to retain the old value. Injection Rate This function is used to adjust the injection volume. 1. Tap Injection Rate from the service functions menu to enter the service screen.
67 2. The tool communicates with the vehicle and reads the fault codes memory. Follow the on-screen instructions to finish this procedure. 3. Then the tool will display as below. Press the corresponding number button to perform the desired function. Figure 5-24 Sample Injection Rate Screen [1] Enter New Value for Adjustment From the Injection Rate menu, tap [1] and the screen displays as below. Figure 5-25 Sample Enter Value Screen

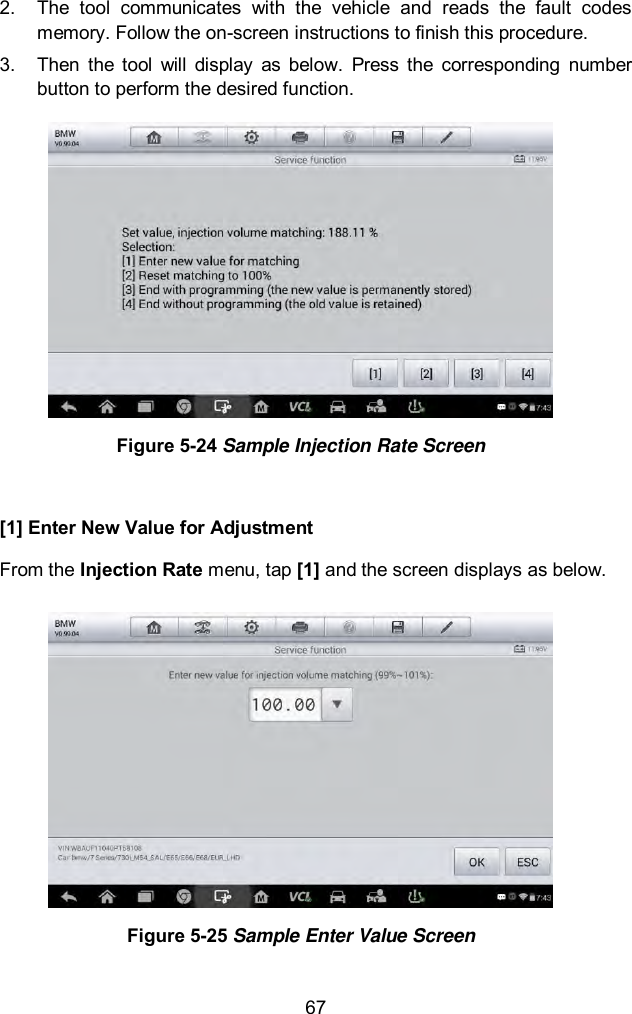

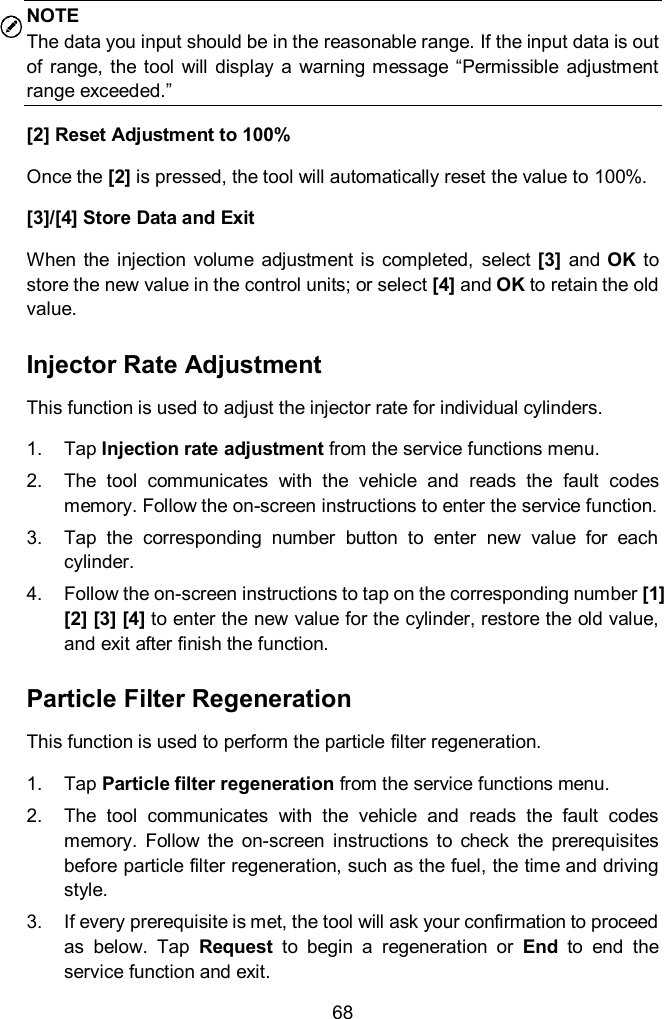

68 NOTE The data you input should be in the reasonable range. If the input data is out of range, the tool will display a warning message “Permissible adjustment range exceeded.” [2] Reset Adjustment to 100% Once the [2] is pressed, the tool will automatically reset the value to 100%. [3]/[4] Store Data and Exit When the injection volume adjustment is completed, select [3] and OK to store the new value in the control units; or select [4] and OK to retain the old value. Injector Rate Adjustment This function is used to adjust the injector rate for individual cylinders. 1. Tap Injection rate adjustment from the service functions menu. 2. The tool communicates with the vehicle and reads the fault codes memory. Follow the on-screen instructions to enter the service function. 3. Tap the corresponding number button to enter new value for each cylinder. 4. Follow the on-screen instructions to tap on the corresponding number [1] [2] [3] [4] to enter the new value for the cylinder, restore the old value, and exit after finish the function. Particle Filter Regeneration This function is used to perform the particle filter regeneration. 1. Tap Particle filter regeneration from the service functions menu. 2. The tool communicates with the vehicle and reads the fault codes memory. Follow the on-screen instructions to check the prerequisites before particle filter regeneration, such as the fuel, the time and driving style. 3. If every prerequisite is met, the tool will ask your confirmation to proceed as below. Tap Request to begin a regeneration or End to end the service function and exit.
69 Figure 5-26 Sample Regeneration Confirmation Screen 4. A series of instruction screens appears for users to perform the particle filter regeneration step by step. Follow the onscreen instructions and tap OK button until the tool reads off the regeneration status as below. Figure 5-27 Sample Regeneration Status Screen 5. When the particle filter regeneration is complete, the tool will ask your confirmation to exit the display. Tap Repeat to check the status again or End to end the service function and exit.

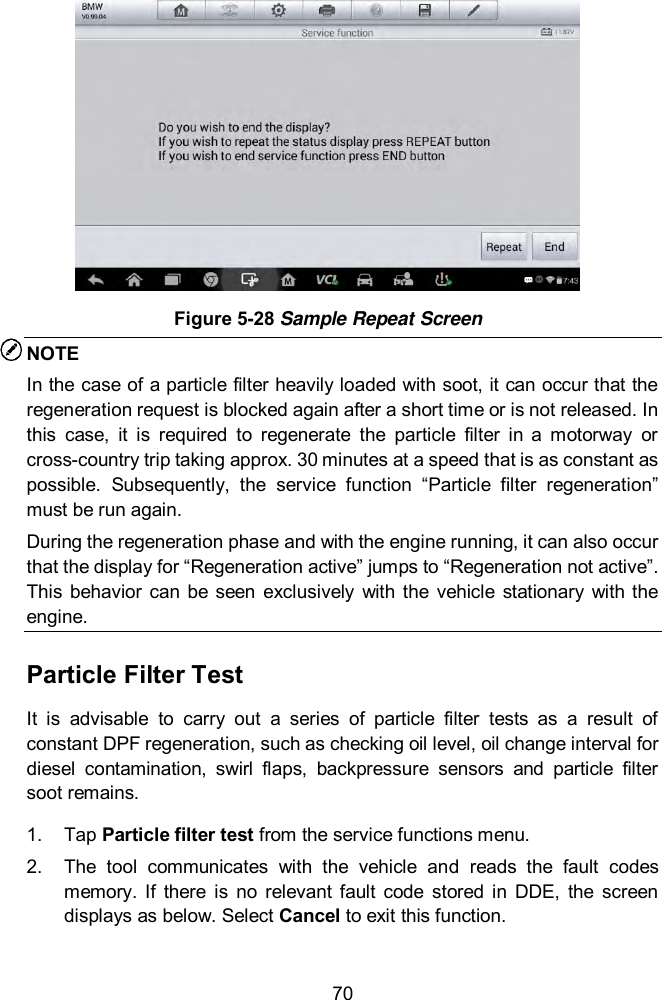

70 Figure 5-28 Sample Repeat Screen NOTE In the case of a particle filter heavily loaded with soot, it can occur that the regeneration request is blocked again after a short time or is not released. In this case, it is required to regenerate the particle filter in a motorway or cross-country trip taking approx. 30 minutes at a speed that is as constant as possible. Subsequently, the service function “Particle filter regeneration” must be run again. During the regeneration phase and with the engine running, it can also occur that the display for “Regeneration active” jumps to “Regeneration not active”. This behavior can be seen exclusively with the vehicle stationary with the engine. Particle Filter Test It is advisable to carry out a series of particle filter tests as a result of constant DPF regeneration, such as checking oil level, oil change interval for diesel contamination, swirl flaps, backpressure sensors and particle filter soot remains. 1. Tap Particle filter test from the service functions menu. 2. The tool communicates with the vehicle and reads the fault codes memory. If there is no relevant fault code stored in DDE, the screen displays as below. Select Cancel to exit this function.

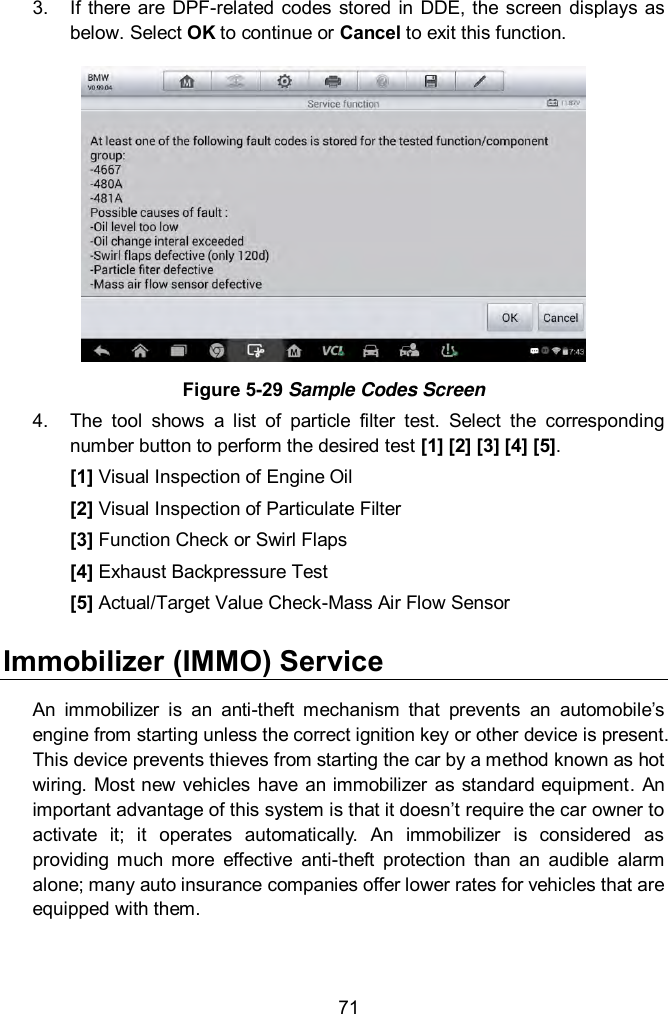

71 3. If there are DPF-related codes stored in DDE, the screen displays as below. Select OK to continue or Cancel to exit this function. Figure 5-29 Sample Codes Screen 4. The tool shows a list of particle filter test. Select the corresponding number button to perform the desired test [1] [2] [3] [4] [5]. [1] Visual Inspection of Engine Oil [2] Visual Inspection of Particulate Filter [3] Function Check or Swirl Flaps [4] Exhaust Backpressure Test [5] Actual/Target Value Check-Mass Air Flow Sensor Immobilizer (IMMO) Service An immobilizer is an anti-theft mechanism that prevents an automobile’s engine from starting unless the correct ignition key or other device is present. This device prevents thieves from starting the car by a method known as hot wiring. Most new vehicles have an immobilizer as standard equipment. An important advantage of this system is that it doesn’t require the car owner to activate it; it operates automatically. An immobilizer is considered as providing much more effective anti-theft protection than an audible alarm alone; many auto insurance companies offer lower rates for vehicles that are equipped with them.

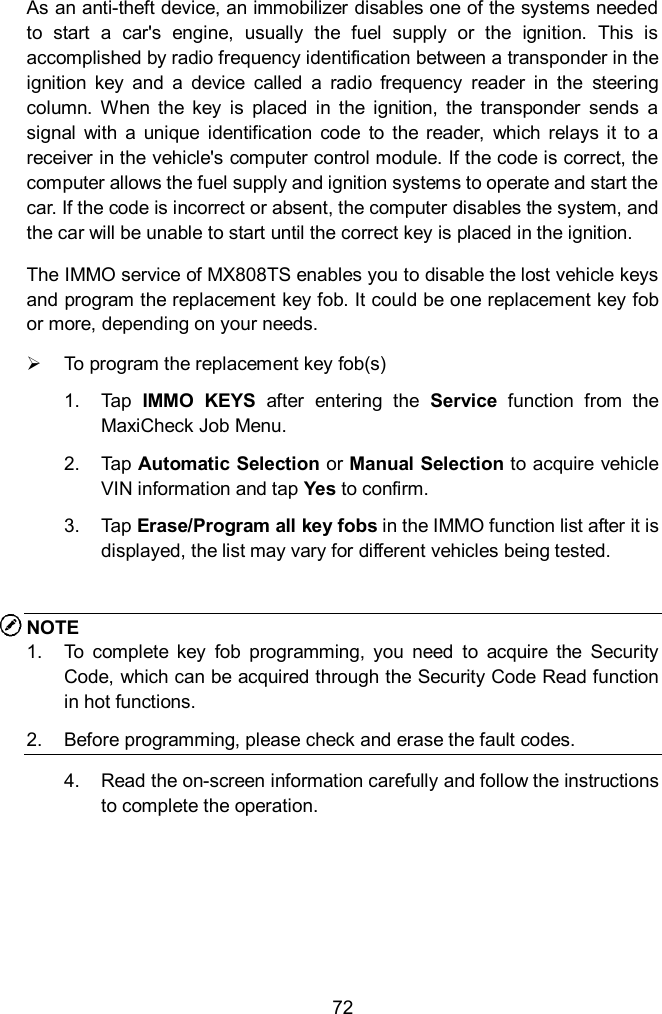

72 As an anti-theft device, an immobilizer disables one of the systems needed to start a car's engine, usually the fuel supply or the ignition. This is accomplished by radio frequency identification between a transponder in the ignition key and a device called a radio frequency reader in the steering column. When the key is placed in the ignition, the transponder sends a signal with a unique identification code to the reader, which relays it to a receiver in the vehicle's computer control module. If the code is correct, the computer allows the fuel supply and ignition systems to operate and start the car. If the code is incorrect or absent, the computer disables the system, and the car will be unable to start until the correct key is placed in the ignition. The IMMO service of MX808TS enables you to disable the lost vehicle keys and program the replacement key fob. It could be one replacement key fob or more, depending on your needs.  To program the replacement key fob(s) 1. Tap IMMO KEYS after entering the Service function from the MaxiCheck Job Menu. 2. Tap Automatic Selection or Manual Selection to acquire vehicle VIN information and tap Yes to confirm. 3. Tap Erase/Program all key fobs in the IMMO function list after it is displayed, the list may vary for different vehicles being tested. NOTE 1. To complete key fob programming, you need to acquire the Security Code, which can be acquired through the Security Code Read function in hot functions. 2. Before programming, please check and erase the fault codes. 4. Read the on-screen information carefully and follow the instructions to complete the operation.
73 Figure 5-30 Sample IMMO Note Screen Figure 5-31 Sample Program Key FOB Screen
74 6 TPMS MX808TS provides the most comprehensive TPMS services for technicians to quickly solve TPMS related problems in the shortest time and with the highest efficiency. Getting Started Prior to first use of the TPMS application, make sure a communication link is established between the test vehicle and the Display Tablet via the MaxiVCI Mini. Please refer to Establishing Vehicle Communication on page 17 to establish a communication link between the vehicle and the Display Tablet. TPMS Service Menu Layout Tap TPMS on the MaxiCheck Job Menu, the screen then opens the TPMS Vehicle Menu. Figure 6-1 Sample TPMS Vehicle Menu Screen 1. Top Toolbar Buttons – refer to Table 4-1 Top Toolbar Buttons on page 21 for details.

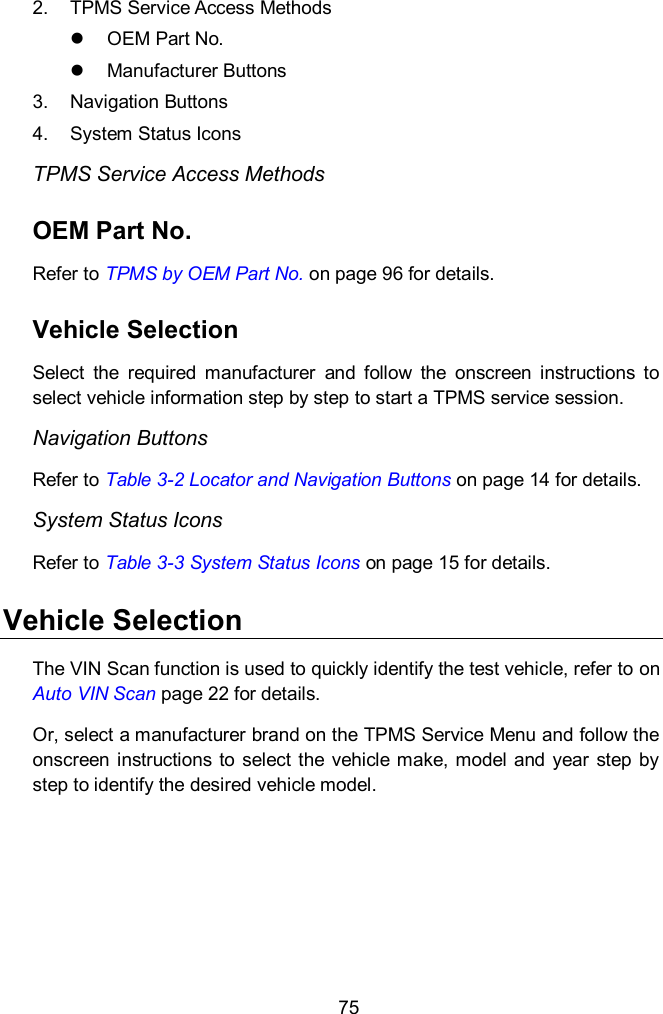

75 2. TPMS Service Access Methods  OEM Part No.  Manufacturer Buttons 3. Navigation Buttons 4. System Status Icons TPMS Service Access Methods OEM Part No. Refer to TPMS by OEM Part No. on page 96 for details. Vehicle Selection Select the required manufacturer and follow the onscreen instructions to select vehicle information step by step to start a TPMS service session. Navigation Buttons Refer to Table 3-2 Locator and Navigation Buttons on page 14 for details. System Status Icons Refer to Table 3-3 System Status Icons on page 15 for details. Vehicle Selection The VIN Scan function is used to quickly identify the test vehicle, refer to on Auto VIN Scan page 22 for details. Or, select a manufacturer brand on the TPMS Service Menu and follow the onscreen instructions to select the vehicle make, model and year step by step to identify the desired vehicle model.

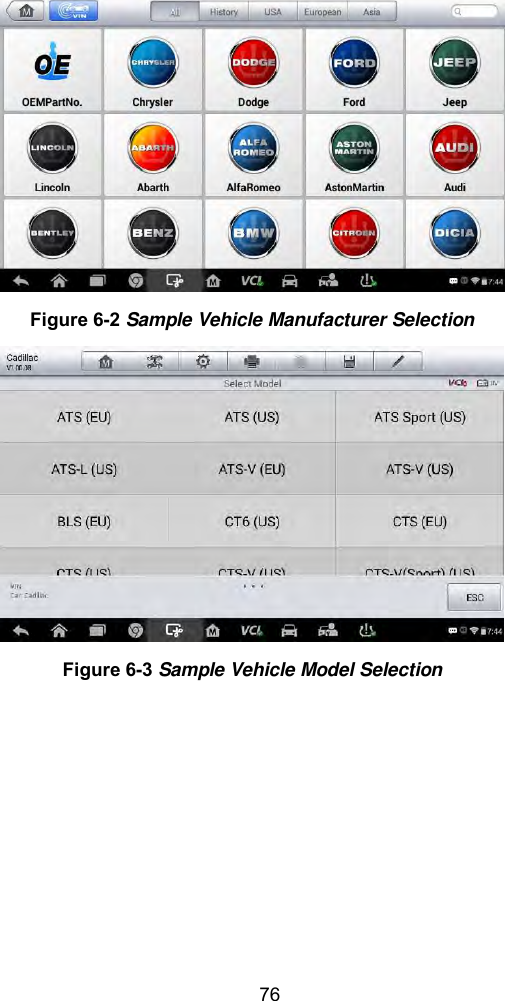

76 Figure 6-2 Sample Vehicle Manufacturer Selection Figure 6-3 Sample Vehicle Model Selection
77 Figure 6-4 Sample Vehicle Year Selection For some vehicles that adopt an indirect TPMS, the following screen displays. 6-5 Sample Indirect TPMS Selection Screen For indirect TPMS vehicle, only the Relearn function is supported. Tap the vehicle year information button, in the case of the above figure – 2008/08-2017/01 (indirect), the screen will turn to the Relearn procedure, follow the onscreen instructions to complete the operation.

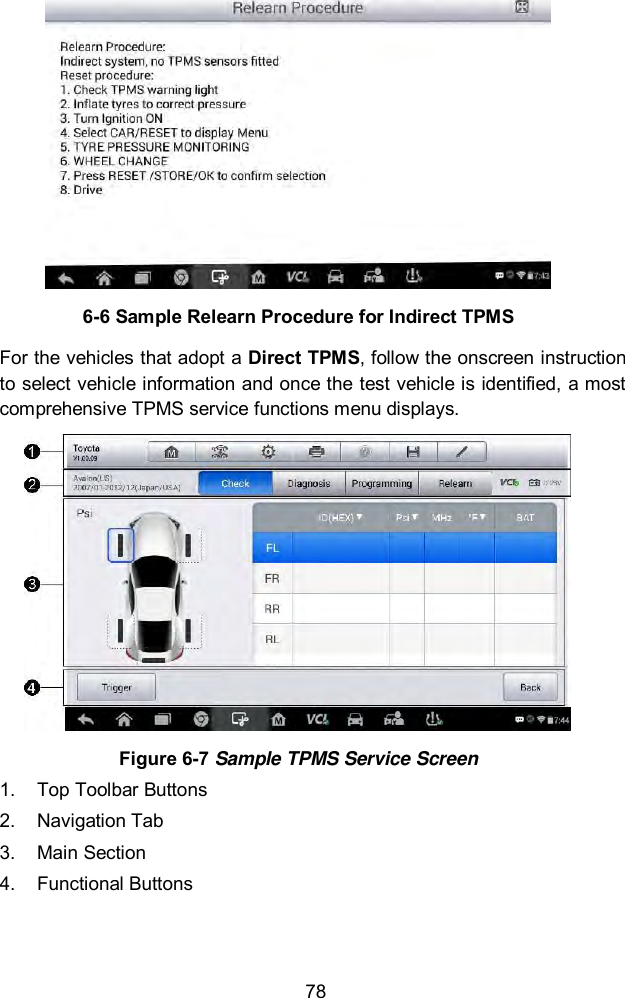

78 6-6 Sample Relearn Procedure for Indirect TPMS For the vehicles that adopt a Direct TPMS, follow the onscreen instruction to select vehicle information and once the test vehicle is identified, a most comprehensive TPMS service functions menu displays. Figure 6-7 Sample TPMS Service Screen 1. Top Toolbar Buttons 2. Navigation Tab 3. Main Section 4. Functional Buttons

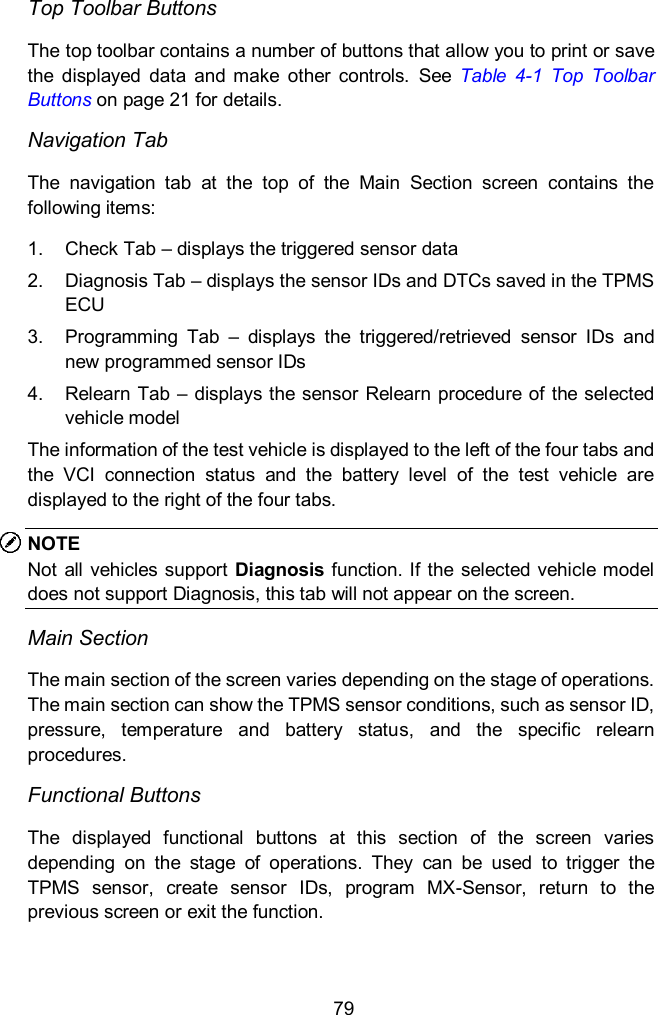

79 Top Toolbar Buttons The top toolbar contains a number of buttons that allow you to print or save the displayed data and make other controls. See Table 4-1 Top Toolbar Buttons on page 21 for details. Navigation Tab The navigation tab at the top of the Main Section screen contains the following items: 1. Check Tab – displays the triggered sensor data 2. Diagnosis Tab – displays the sensor IDs and DTCs saved in the TPMS ECU 3. Programming Tab – displays the triggered/retrieved sensor IDs and new programmed sensor IDs 4. Relearn Tab – displays the sensor Relearn procedure of the selected vehicle model The information of the test vehicle is displayed to the left of the four tabs and the VCI connection status and the battery level of the test vehicle are displayed to the right of the four tabs. NOTE Not all vehicles support Diagnosis function. If the selected vehicle model does not support Diagnosis, this tab will not appear on the screen. Main Section The main section of the screen varies depending on the stage of operations. The main section can show the TPMS sensor conditions, such as sensor ID, pressure, temperature and battery status, and the specific relearn procedures. Functional Buttons The displayed functional buttons at this section of the screen varies depending on the stage of operations. They can be used to trigger the TPMS sensor, create sensor IDs, program MX-Sensor, return to the previous screen or exit the function.
80 TPMS Check The Check function allows user to activate TPMS sensor to view sensor data such as sensor ID, tire pressure, tire temperature, battery condition and sensor position.  To check the sensors 1. Follow the steps in Vehicle Identification on page 21 to identify the test vehicle. 2. Place the Display Tablet near the wheel with the top right corner (the TPMS antenna locates) of the tablet close to the sensor mounted on the wheel. 3. Move the cursor to the corresponding wheel on the screen and then tap Trigger to activate this sensor. 4. Once the sensor is successfully triggered, the information of the sensor will be displayed on the right table on the screen. NOTE The default check order on the Display Tablet is FL, FR, RR, RL and the wheel positions are associated with the rows in the right table. If you select FR in the right table, the cursor on the left vehicle icon will be automatically moved to FR position. You can also change the check order by manually move the cursor to other wheels. If the battery level of a sensor is low, a red low battery icon appears beside the sensor on the screen. The colors appear on the wheel icons on the screen show different triggering results. Refer to Table 6-1 Possible Results for Triggering on page 81 for details.

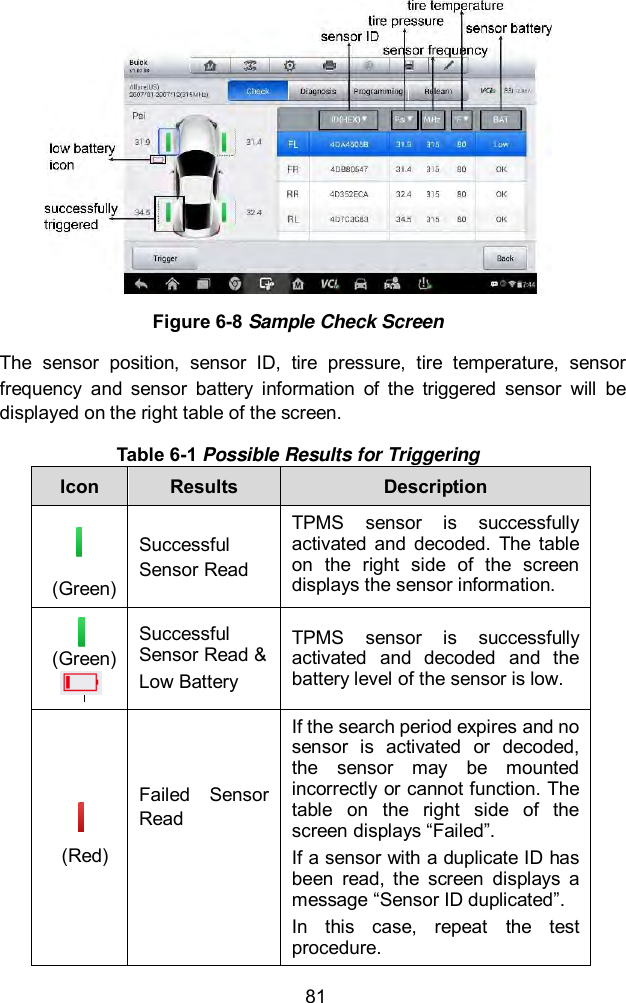

81 Figure 6-8 Sample Check Screen The sensor position, sensor ID, tire pressure, tire temperature, sensor frequency and sensor battery information of the triggered sensor will be displayed on the right table of the screen. Table 6-1 Possible Results for Triggering Icon Results Description (Green) Successful Sensor Read TPMS sensor is successfully activated and decoded. The table on the right side of the screen displays the sensor information. (Green) Successful Sensor Read & Low Battery TPMS sensor is successfully activated and decoded and the battery level of the sensor is low. (Red) Failed Sensor Read If the search period expires and no sensor is activated or decoded, the sensor may be mounted incorrectly or cannot function. The table on the right side of the screen displays “Failed”. If a sensor with a duplicate ID has been read, the screen displays a message “Sensor ID duplicated”. In this case, repeat the test procedure.
82 TPMS Diagnosis The Diagnosis function is used to check the health of the TPMS ECU. This function requires connection with the test vehicle. Refer to Establishing Vehicle Communication on page 17 for details. Diagnosis Operations Tap Diagnosis, the Display Tablet will automatically communicate with the vehicle. Figure 6-9 Sample Diagnosis Communication Screen Figure 6-10 Sample Diagnosis Screen 1

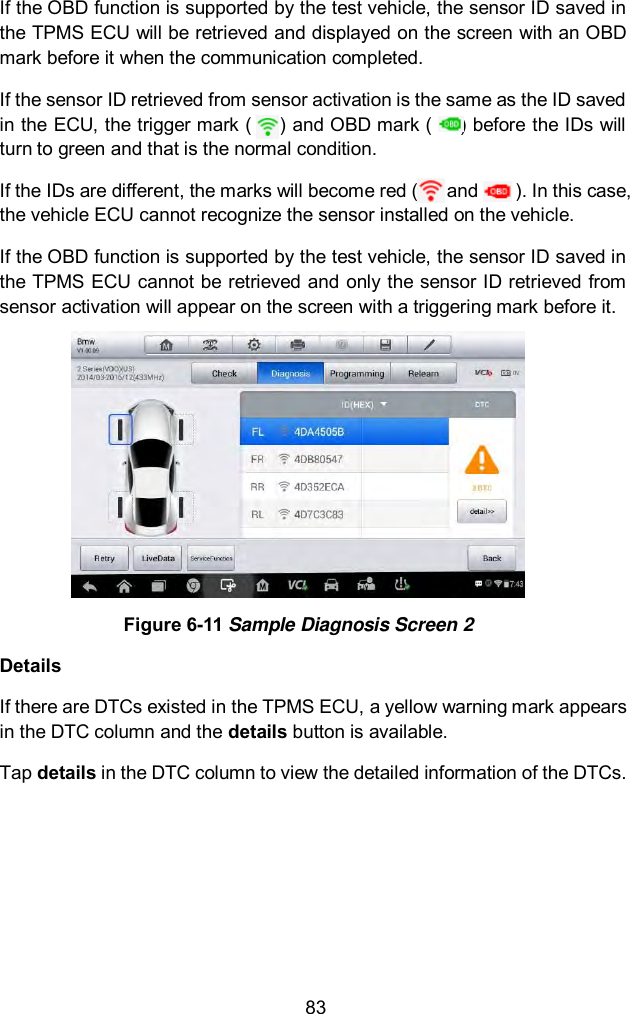

83 If the OBD function is supported by the test vehicle, the sensor ID saved in the TPMS ECU will be retrieved and displayed on the screen with an OBD mark before it when the communication completed. If the sensor ID retrieved from sensor activation is the same as the ID saved in the ECU, the trigger mark ( ) and OBD mark ( ) before the IDs will turn to green and that is the normal condition. If the IDs are different, the marks will become red ( and ). In this case, the vehicle ECU cannot recognize the sensor installed on the vehicle. If the OBD function is supported by the test vehicle, the sensor ID saved in the TPMS ECU cannot be retrieved and only the sensor ID retrieved from sensor activation will appear on the screen with a triggering mark before it. Figure 6-11 Sample Diagnosis Screen 2 Details If there are DTCs existed in the TPMS ECU, a yellow warning mark appears in the DTC column and the details button is available. Tap details in the DTC column to view the detailed information of the DTCs.
84 Figure 6-12 Sample DTCs Screen In this screen, the detailed fault definition will be displayed. Select one of the DTC and tap Search, the tablet will automatically connect the Internet and more details will be displayed on the tablet. If there is no DTC exited in the TPMS ECU, a green “No DTC” message appears in the DTC column. Figure 6-13 Sample No DTC Screen Retry Tap Retry, the tablet will communication with ECU again to retrieve the sensor IDs and the DTCs existed in the ECU.

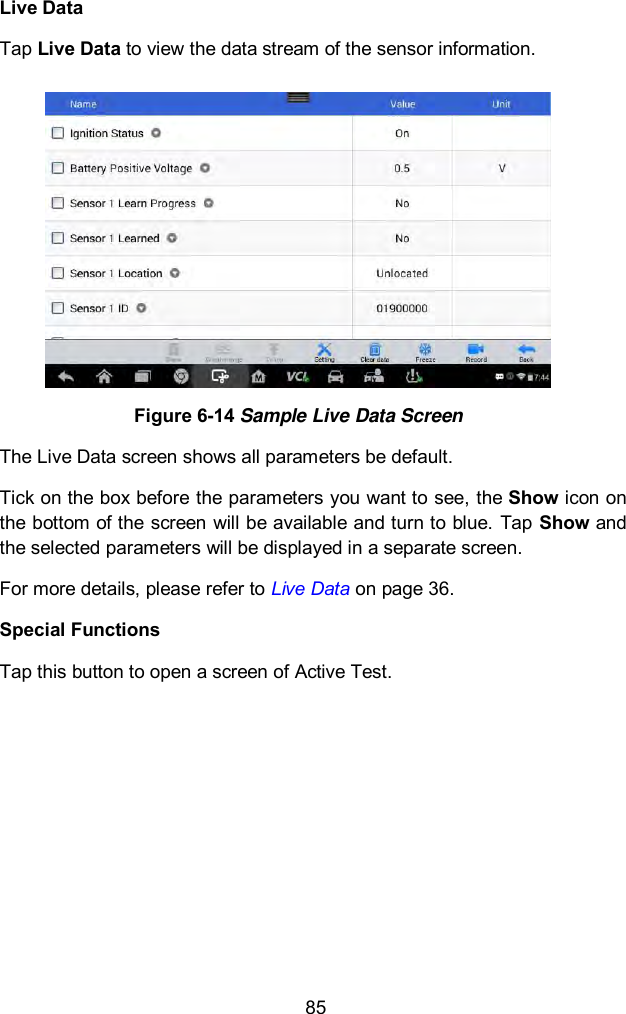

85 Live Data Tap Live Data to view the data stream of the sensor information. Figure 6-14 Sample Live Data Screen The Live Data screen shows all parameters be default. Tick on the box before the parameters you want to see, the Show icon on the bottom of the screen will be available and turn to blue. Tap Show and the selected parameters will be displayed in a separate screen. For more details, please refer to Live Data on page 36. Special Functions Tap this button to open a screen of Active Test.

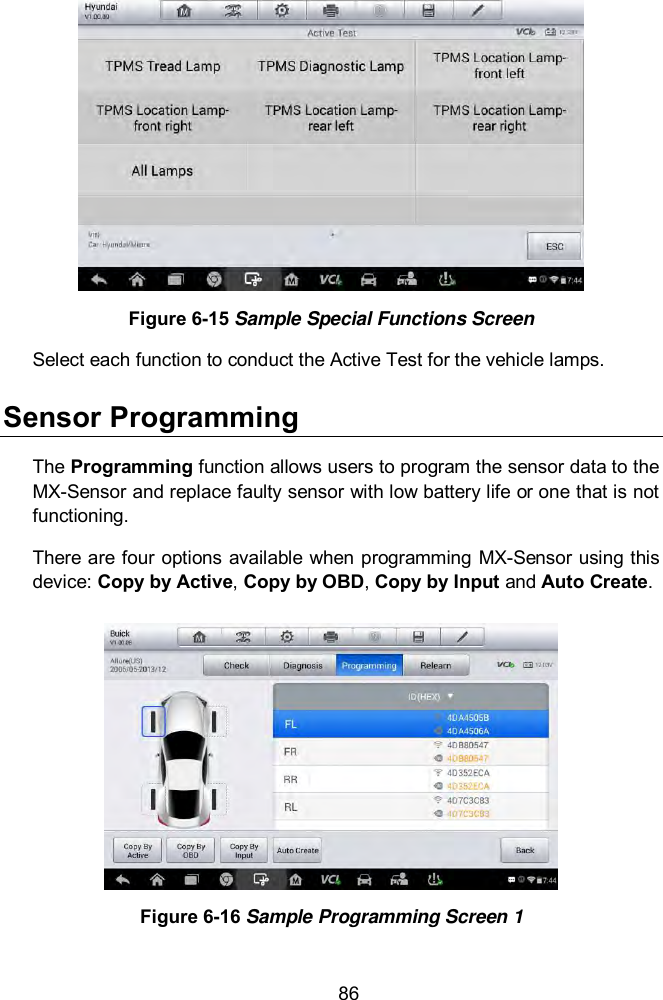

86 Figure 6-15 Sample Special Functions Screen Select each function to conduct the Active Test for the vehicle lamps. Sensor Programming The Programming function allows users to program the sensor data to the MX-Sensor and replace faulty sensor with low battery life or one that is not functioning. There are four options available when programming MX-Sensor using this device: Copy by Active, Copy by OBD, Copy by Input and Auto Create. Figure 6-16 Sample Programming Screen 1
87 The sensor IDs retrieved from sensor activation and TPMS ECU will automatically appear on the left column of the table on the screen with the trigger and OBD marks before them. If the OBD function is not supported by the test vehicle and the sensor ID saved in the ECU cannot be retrieved, the Programming screen appears as below. Figure 6-17 Sample Programming Screen 2 And in this case, the Copy by OBD function is not available. Copy by Active If the sensors that are mounted on the vehicle can be successfully triggered and the detailed information of the sensors have already been retrieved by using Check function. You can use Copy by Active to program a new MX-Sensor. Select one sensor position and place a MX-Sensor near the TPMS antenna of the tablet (the top right corner), and then tap Copy by Active to program the new MX-Sensor.

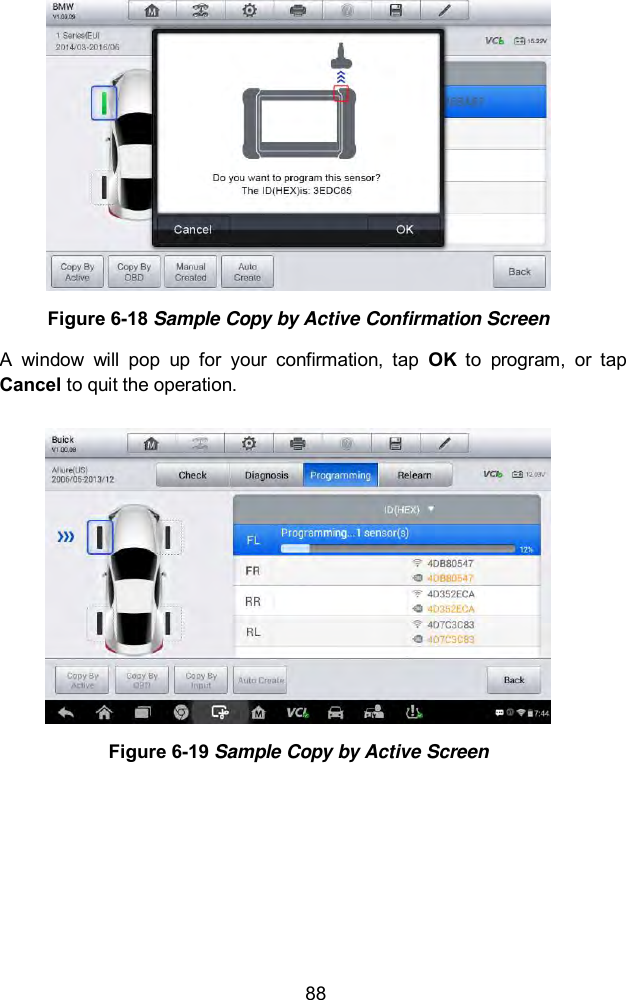

88 Figure 6-18 Sample Copy by Active Confirmation Screen A window will pop up for your confirmation, tap OK to program, or tap Cancel to quit the operation. Figure 6-19 Sample Copy by Active Screen

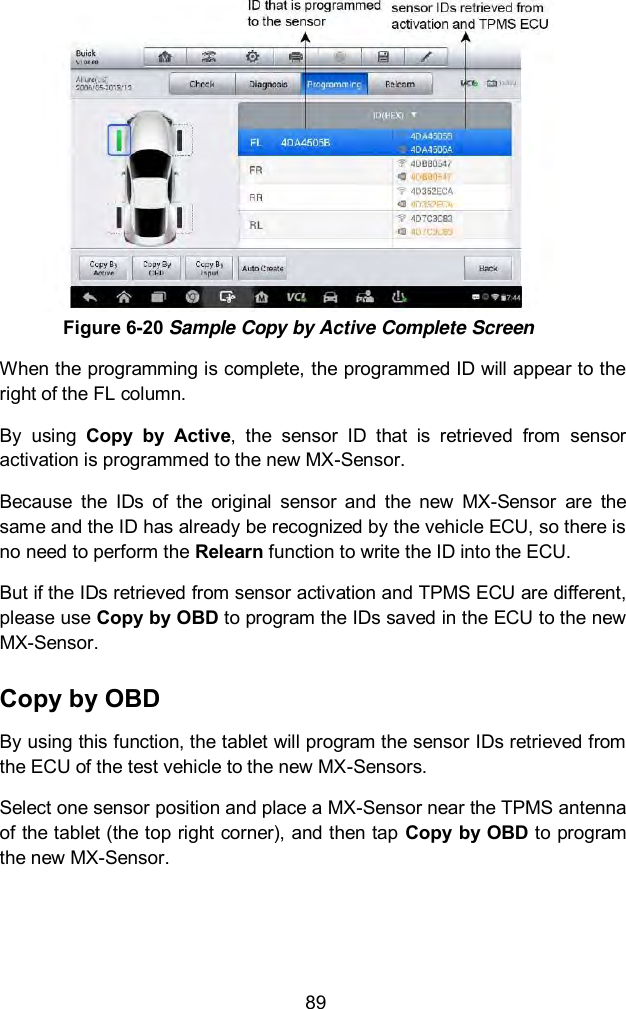

89 Figure 6-20 Sample Copy by Active Complete Screen When the programming is complete, the programmed ID will appear to the right of the FL column. By using Copy by Active, the sensor ID that is retrieved from sensor activation is programmed to the new MX-Sensor. Because the IDs of the original sensor and the new MX-Sensor are the same and the ID has already be recognized by the vehicle ECU, so there is no need to perform the Relearn function to write the ID into the ECU. But if the IDs retrieved from sensor activation and TPMS ECU are different, please use Copy by OBD to program the IDs saved in the ECU to the new MX-Sensor. Copy by OBD By using this function, the tablet will program the sensor IDs retrieved from the ECU of the test vehicle to the new MX-Sensors. Select one sensor position and place a MX-Sensor near the TPMS antenna of the tablet (the top right corner), and then tap Copy by OBD to program the new MX-Sensor.
90 Figure 6-21 Sample Copy by OBD Screen When the programming is complete, the programmed ID will appear to the right of the FR column. By using Copy by OBD, the sensor ID that is retrieved from TPMS ECU is programmed to the new MX-Sensor. In this case, there is no need to perform the Relearn function to write the ID into the ECU. It is highly recommended to use Copy by OBD, if available, to program new MX-Sensors for the IDs are definitely correct and there is no need for Relearn. Copy by Input The Copy by Input allows users to program a new MX-Sensor with the ID of an original TPMS sensor. Select one sensor position and place a MX-Sensor near the TPMS antenna of the tablet (the top right corner), and then tap Copy by Input to program the new MX-Sensor.

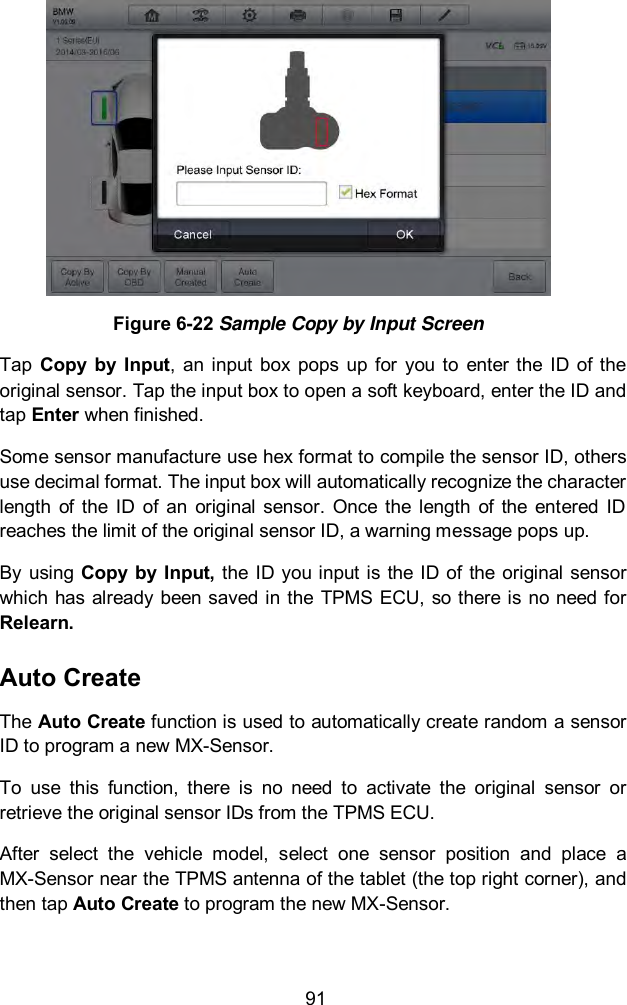

91 Figure 6-22 Sample Copy by Input Screen Tap Copy by Input, an input box pops up for you to enter the ID of the original sensor. Tap the input box to open a soft keyboard, enter the ID and tap Enter when finished. Some sensor manufacture use hex format to compile the sensor ID, others use decimal format. The input box will automatically recognize the character length of the ID of an original sensor. Once the length of the entered ID reaches the limit of the original sensor ID, a warning message pops up. By using Copy by Input, the ID you input is the ID of the original sensor which has already been saved in the TPMS ECU, so there is no need for Relearn. Auto Create The Auto Create function is used to automatically create random a sensor ID to program a new MX-Sensor. To use this function, there is no need to activate the original sensor or retrieve the original sensor IDs from the TPMS ECU. After select the vehicle model, select one sensor position and place a MX-Sensor near the TPMS antenna of the tablet (the top right corner), and then tap Auto Create to program the new MX-Sensor.

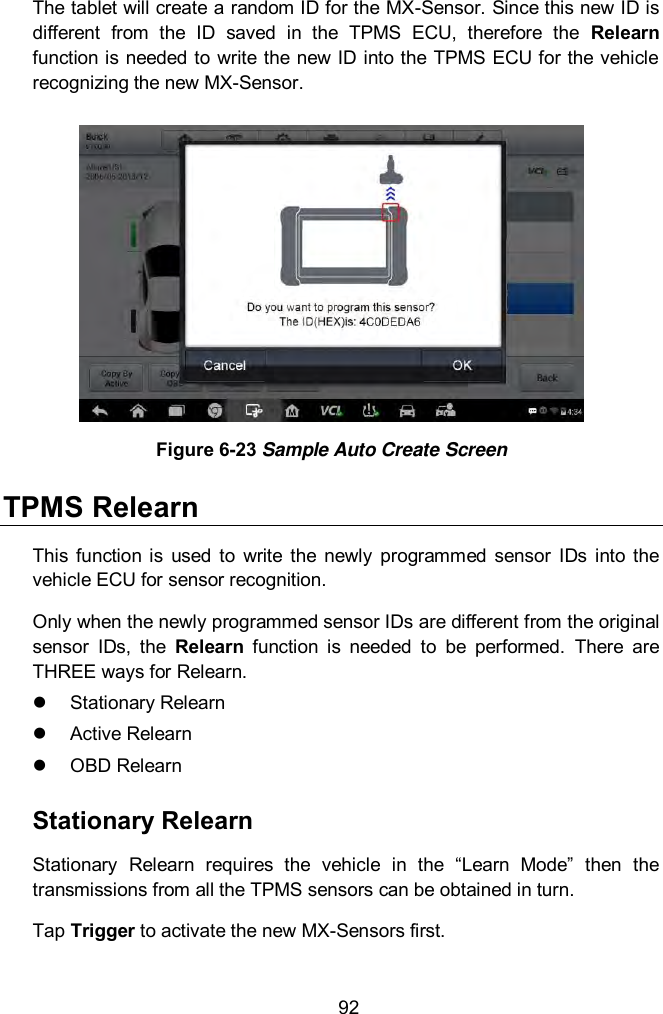

92 The tablet will create a random ID for the MX-Sensor. Since this new ID is different from the ID saved in the TPMS ECU, therefore the Relearn function is needed to write the new ID into the TPMS ECU for the vehicle recognizing the new MX-Sensor. Figure 6-23 Sample Auto Create Screen TPMS Relearn This function is used to write the newly programmed sensor IDs into the vehicle ECU for sensor recognition. Only when the newly programmed sensor IDs are different from the original sensor IDs, the Relearn function is needed to be performed. There are THREE ways for Relearn.  Stationary Relearn  Active Relearn  OBD Relearn Stationary Relearn Stationary Relearn requires the vehicle in the “Learn Mode” then the transmissions from all the TPMS sensors can be obtained in turn. Tap Trigger to activate the new MX-Sensors first.

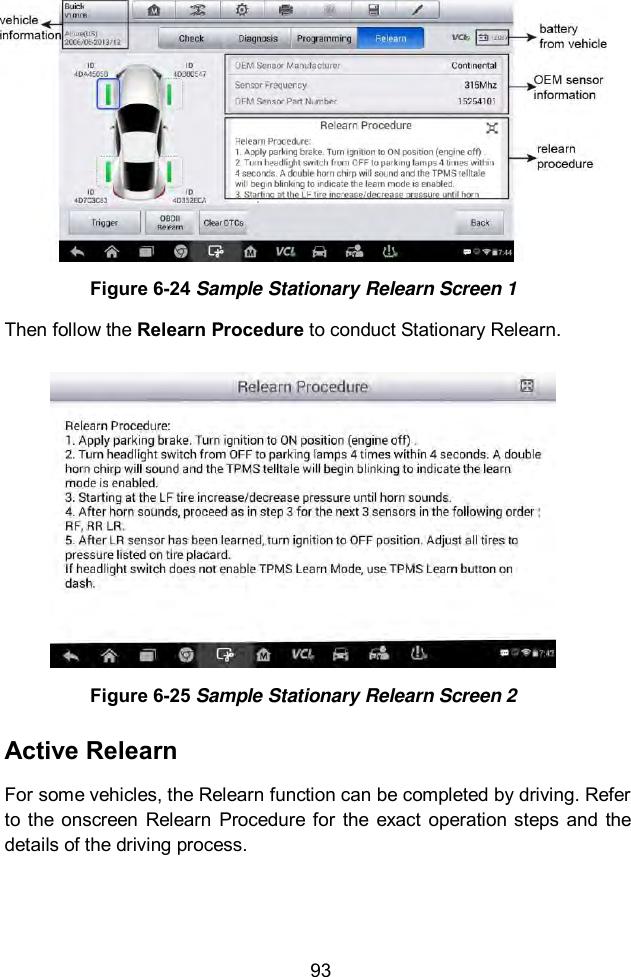

93 Figure 6-24 Sample Stationary Relearn Screen 1 Then follow the Relearn Procedure to conduct Stationary Relearn. Figure 6-25 Sample Stationary Relearn Screen 2 Active Relearn For some vehicles, the Relearn function can be completed by driving. Refer to the onscreen Relearn Procedure for the exact operation steps and the details of the driving process.

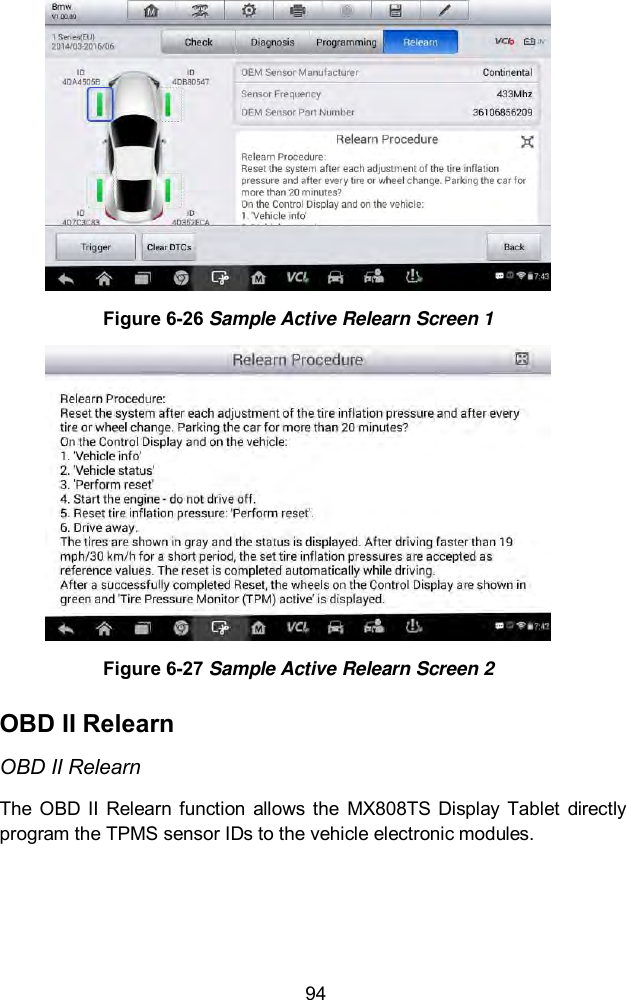

94 Figure 6-26 Sample Active Relearn Screen 1 Figure 6-27 Sample Active Relearn Screen 2 OBD II Relearn OBD II Relearn The OBD II Relearn function allows the MX808TS Display Tablet directly program the TPMS sensor IDs to the vehicle electronic modules.

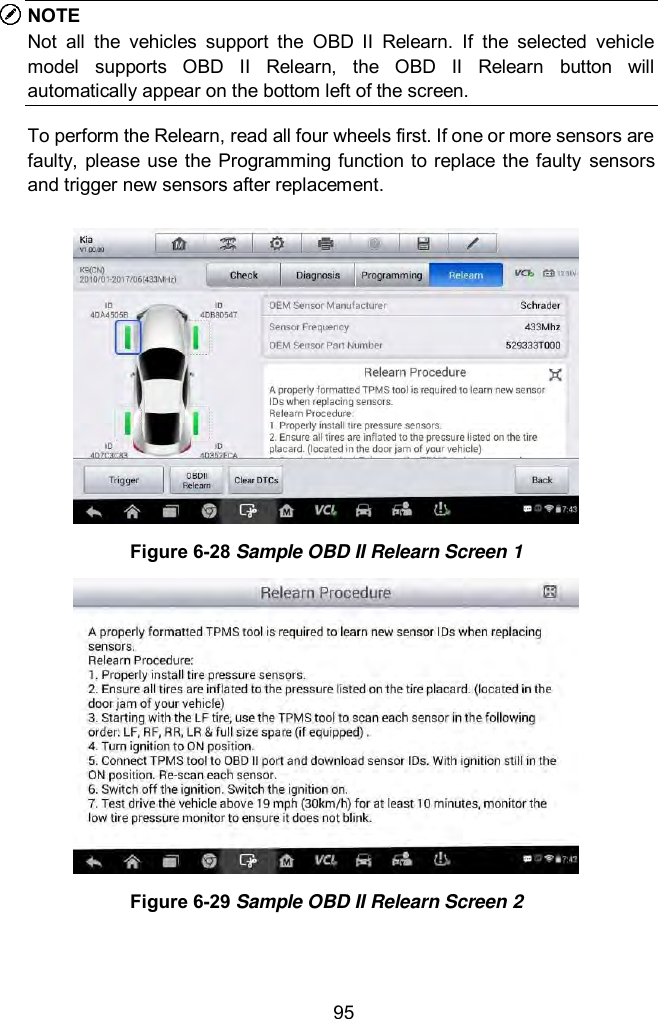

95 NOTE Not all the vehicles support the OBD II Relearn. If the selected vehicle model supports OBD II Relearn, the OBD II Relearn button will automatically appear on the bottom left of the screen. To perform the Relearn, read all four wheels first. If one or more sensors are faulty, please use the Programming function to replace the faulty sensors and trigger new sensors after replacement. Figure 6-28 Sample OBD II Relearn Screen 1 Figure 6-29 Sample OBD II Relearn Screen 2

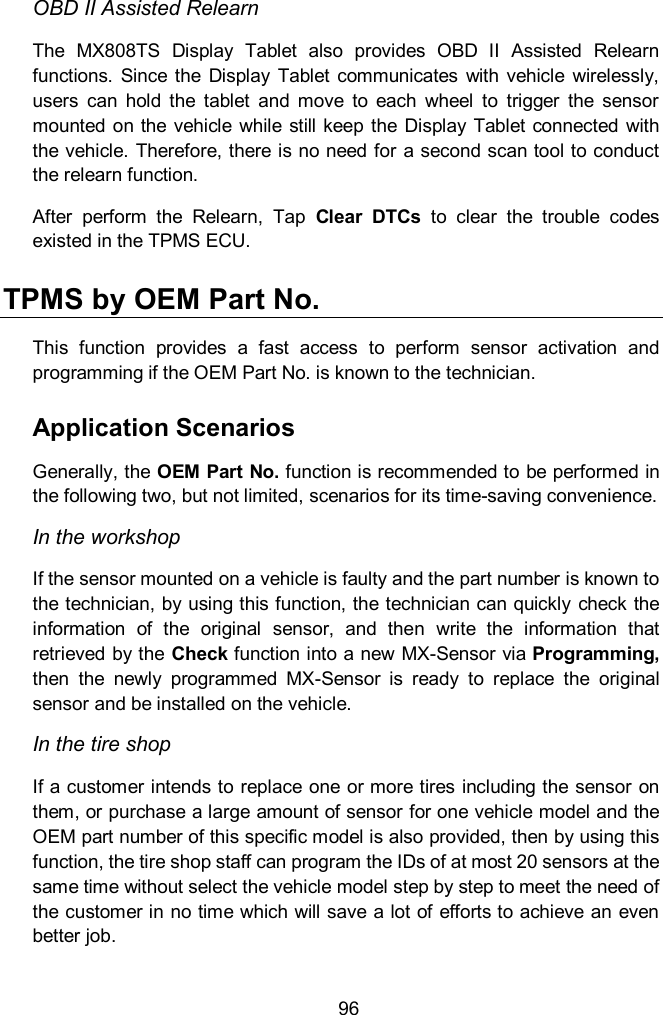

96 OBD II Assisted Relearn The MX808TS Display Tablet also provides OBD II Assisted Relearn functions. Since the Display Tablet communicates with vehicle wirelessly, users can hold the tablet and move to each wheel to trigger the sensor mounted on the vehicle while still keep the Display Tablet connected with the vehicle. Therefore, there is no need for a second scan tool to conduct the relearn function. After perform the Relearn, Tap Clear DTCs to clear the trouble codes existed in the TPMS ECU. TPMS by OEM Part No. This function provides a fast access to perform sensor activation and programming if the OEM Part No. is known to the technician. Application Scenarios Generally, the OEM Part No. function is recommended to be performed in the following two, but not limited, scenarios for its time-saving convenience. In the workshop If the sensor mounted on a vehicle is faulty and the part number is known to the technician, by using this function, the technician can quickly check the information of the original sensor, and then write the information that retrieved by the Check function into a new MX-Sensor via Programming, then the newly programmed MX-Sensor is ready to replace the original sensor and be installed on the vehicle. In the tire shop If a customer intends to replace one or more tires including the sensor on them, or purchase a large amount of sensor for one vehicle model and the OEM part number of this specific model is also provided, then by using this function, the tire shop staff can program the IDs of at most 20 sensors at the same time without select the vehicle model step by step to meet the need of the customer in no time which will save a lot of efforts to achieve an even better job.

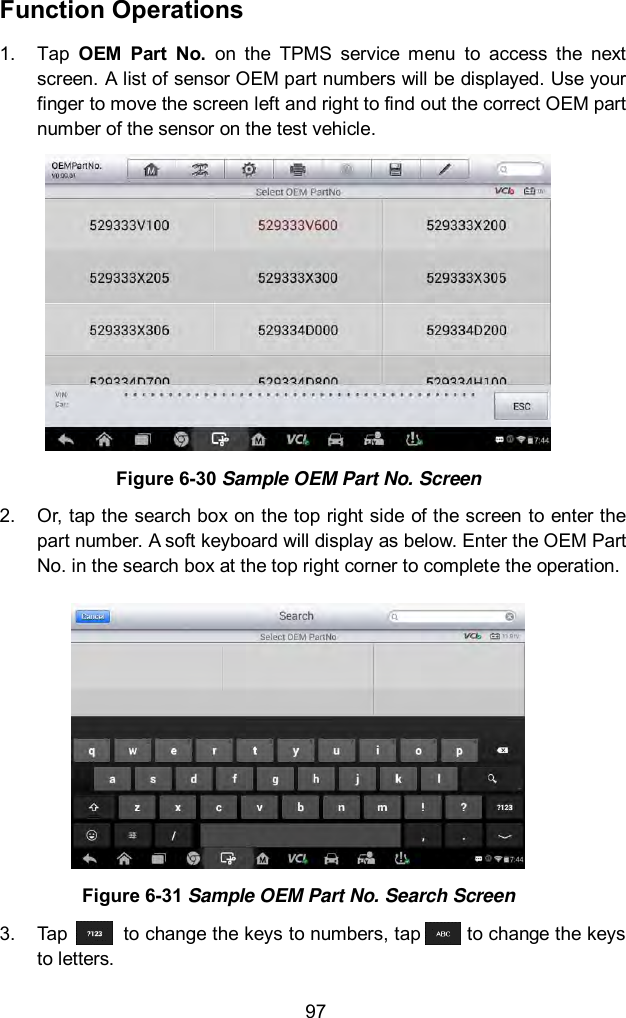

97 Function Operations 1. Tap OEM Part No. on the TPMS service menu to access the next screen. A list of sensor OEM part numbers will be displayed. Use your finger to move the screen left and right to find out the correct OEM part number of the sensor on the test vehicle. Figure 6-30 Sample OEM Part No. Screen 2. Or, tap the search box on the top right side of the screen to enter the part number. A soft keyboard will display as below. Enter the OEM Part No. in the search box at the top right corner to complete the operation. Figure 6-31 Sample OEM Part No. Search Screen 3. Tap to change the keys to numbers, tap to change the keys to letters.

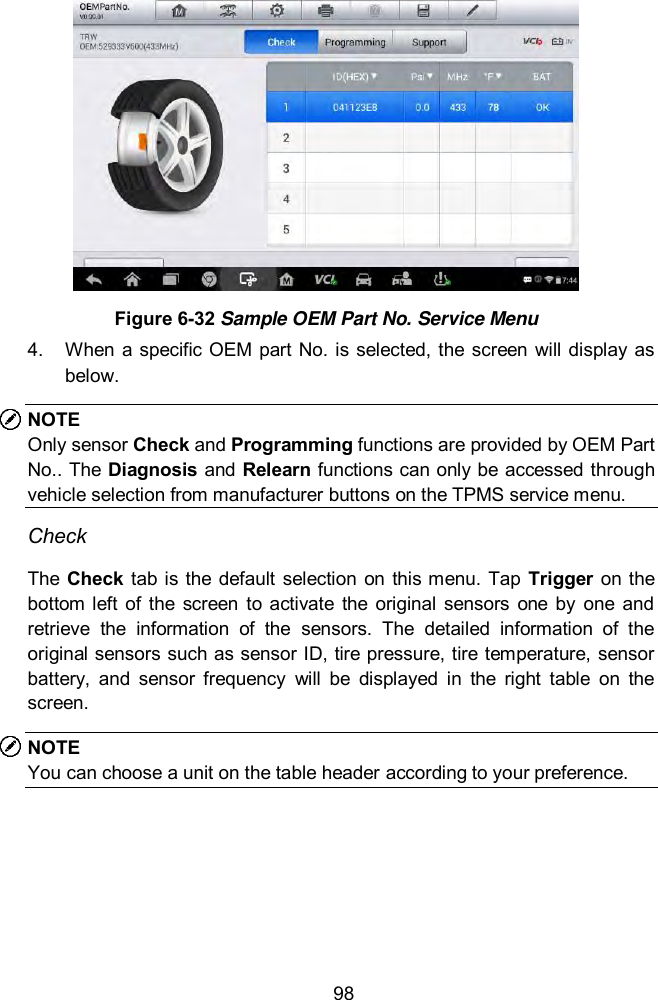

98 Figure 6-32 Sample OEM Part No. Service Menu 4. When a specific OEM part No. is selected, the screen will display as below. NOTE Only sensor Check and Programming functions are provided by OEM Part No.. The Diagnosis and Relearn functions can only be accessed through vehicle selection from manufacturer buttons on the TPMS service menu. Check The Check tab is the default selection on this menu. Tap Trigger on the bottom left of the screen to activate the original sensors one by one and retrieve the information of the sensors. The detailed information of the original sensors such as sensor ID, tire pressure, tire temperature, sensor battery, and sensor frequency will be displayed in the right table on the screen. NOTE You can choose a unit on the table header according to your preference.
99 Figure 6-33 Sample Check Screen via OEM Part No. Programming The programming function is used to program the sensor data to the MX-Sensor and replace the faulty senor (poor battery life or malfunction). There are three options available when programming MX-Sensor using the OEM Part No. function: Copy by Active, Copy by Input, and Auto Create. Refer to Sensor Programming on page 86 for details. Figure 6-34 Sample Programming Screen via OEM Part No. NOTE Auto Create in this section can program at most 20 MX-Sensors at a time.
100 The PSN Code here is used to remind you the programmed ID of each MX-Sensor. When you have programmed more than 1 MX-Sensor at a time, you can read the PSN Code printed on the MX-Sensor as an index to find out the corresponding ID programmed to each MX-Sensor. Support By using Support, the applied vehicle types of this specific OEM part number will be displayed and you can confirm whether the entered OEM part number is correct by finding out the desired vehicle type from this list. Besides, from this applied vehicle model list, you can select the correct test vehicle model and then tap Enter Vehicle at the bottom left of the screen to enter a menu with more comprehensive TPMS service to conduct Diagnosis, Relearn and more functions. Refer to TPMS Diagnosis on page 82 and TPMS Relearn on page 92 for more details about the comprehensive TPMS functions menu. Figure 6-35 Sample Support Screen

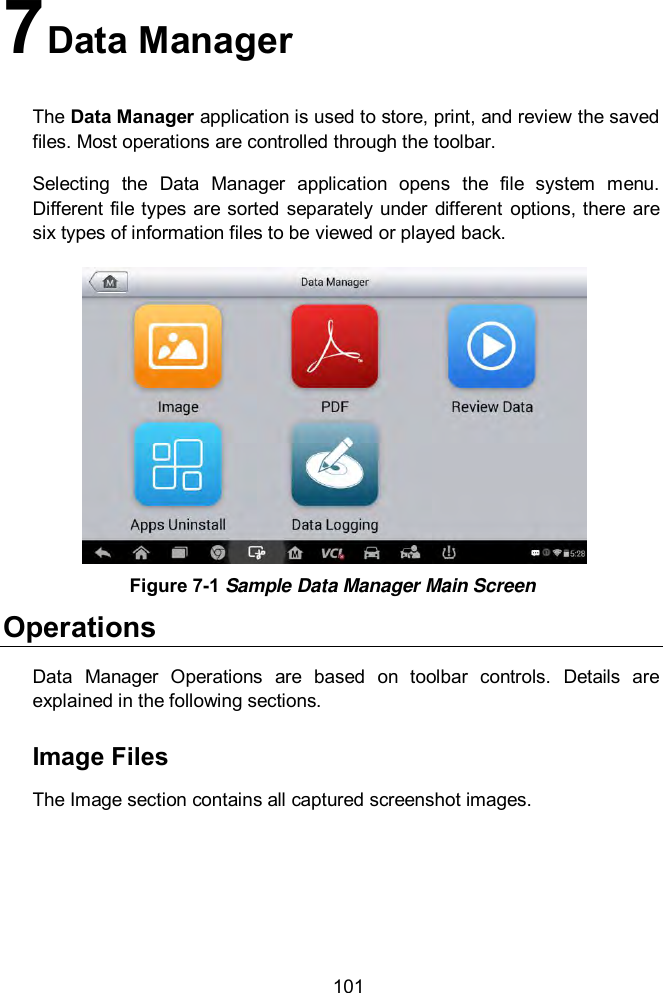

101 7 Data Manager The Data Manager application is used to store, print, and review the saved files. Most operations are controlled through the toolbar. Selecting the Data Manager application opens the file system menu. Different file types are sorted separately under different options, there are six types of information files to be viewed or played back. Operations Data Manager Operations are based on toolbar controls. Details are explained in the following sections. Image Files The Image section contains all captured screenshot images. Figure 7-1 Sample Data Manager Main Screen

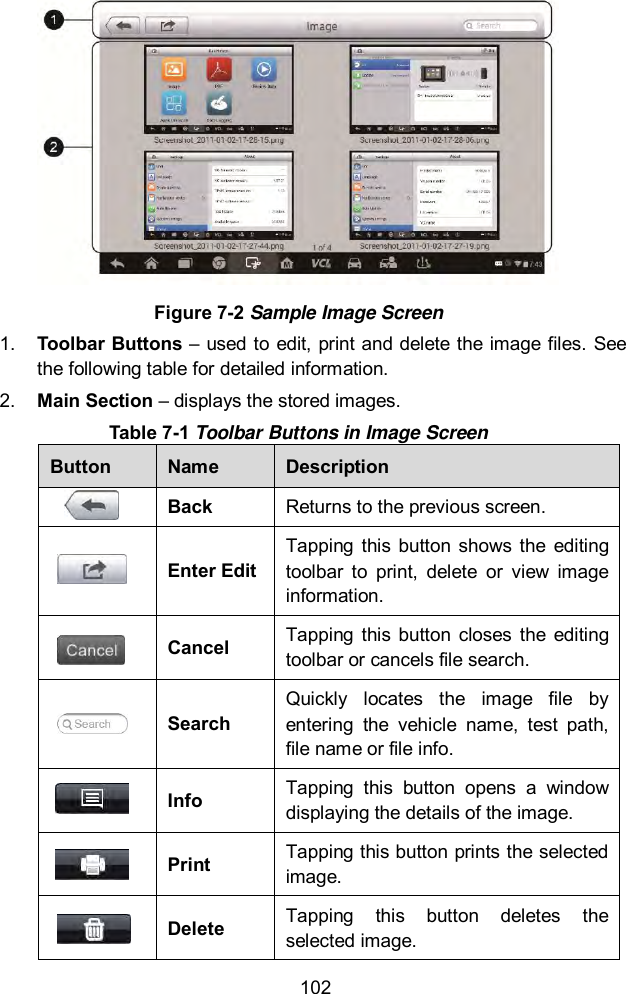

102 Figure 7-2 Sample Image Screen 1. Toolbar Buttons – used to edit, print and delete the image files. See the following table for detailed information. 2. Main Section – displays the stored images. Table 7-1 Toolbar Buttons in Image Screen Button Name Description Back Returns to the previous screen. Enter Edit Tapping this button shows the editing toolbar to print, delete or view image information. Cancel Tapping this button closes the editing toolbar or cancels file search. Search Quickly locates the image file by entering the vehicle name, test path, file name or file info. Info Tapping this button opens a window displaying the details of the image. Print Tapping this button prints the selected image. Delete Tapping this button deletes the selected image.

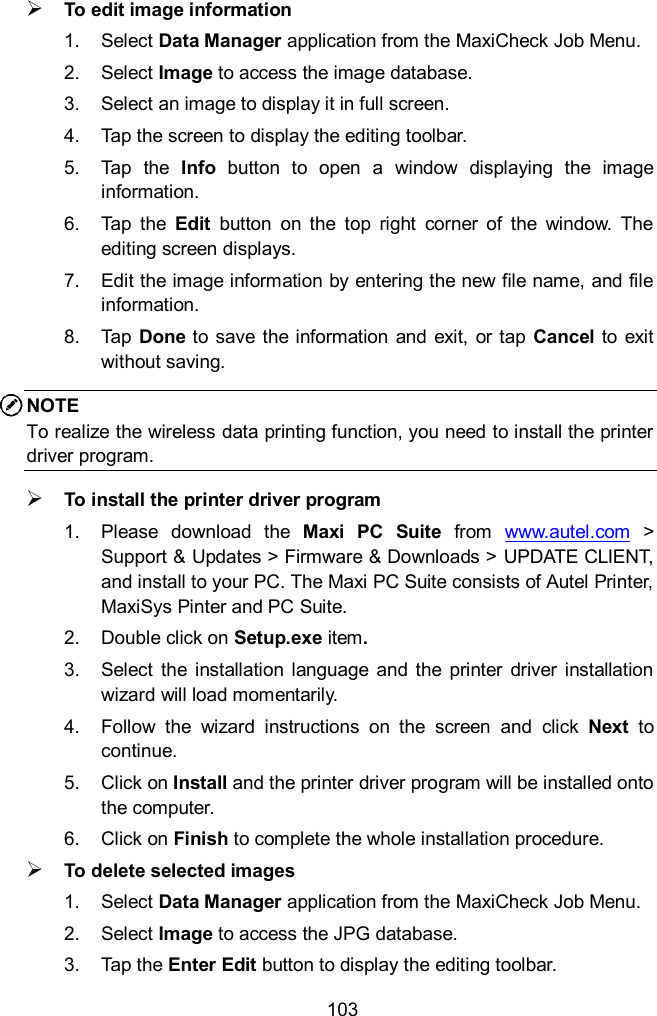

103  To edit image information 1. Select Data Manager application from the MaxiCheck Job Menu. 2. Select Image to access the image database. 3. Select an image to display it in full screen. 4. Tap the screen to display the editing toolbar. 5. Tap the Info button to open a window displaying the image information. 6. Tap the Edit button on the top right corner of the window. The editing screen displays. 7. Edit the image information by entering the new file name, and file information. 8. Tap Done to save the information and exit, or tap Cancel to exit without saving. NOTE To realize the wireless data printing function, you need to install the printer driver program.  To install the printer driver program 1. Please download the Maxi PC Suite from www.autel.com > Support & Updates > Firmware & Downloads > UPDATE CLIENT, and install to your PC. The Maxi PC Suite consists of Autel Printer, MaxiSys Pinter and PC Suite. 2. Double click on Setup.exe item. 3. Select the installation language and the printer driver installation wizard will load momentarily. 4. Follow the wizard instructions on the screen and click Next to continue. 5. Click on Install and the printer driver program will be installed onto the computer. 6. Click on Finish to complete the whole installation procedure.  To delete selected images 1. Select Data Manager application from the MaxiCheck Job Menu. 2. Select Image to access the JPG database. 3. Tap the Enter Edit button to display the editing toolbar.

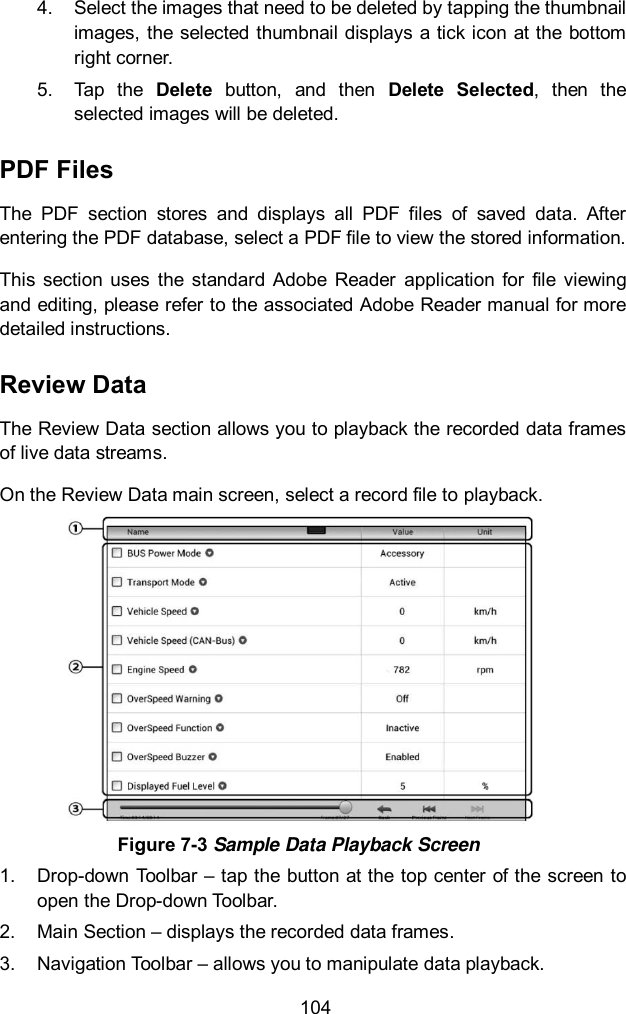

104 4. Select the images that need to be deleted by tapping the thumbnail images, the selected thumbnail displays a tick icon at the bottom right corner. 5. Tap the Delete button, and then Delete Selected, then the selected images will be deleted. PDF Files The PDF section stores and displays all PDF files of saved data. After entering the PDF database, select a PDF file to view the stored information. This section uses the standard Adobe Reader application for file viewing and editing, please refer to the associated Adobe Reader manual for more detailed instructions. Review Data The Review Data section allows you to playback the recorded data frames of live data streams. On the Review Data main screen, select a record file to playback. Figure 7-3 Sample Data Playback Screen 1. Drop-down Toolbar – tap the button at the top center of the screen to open the Drop-down Toolbar. 2. Main Section – displays the recorded data frames. 3. Navigation Toolbar – allows you to manipulate data playback.

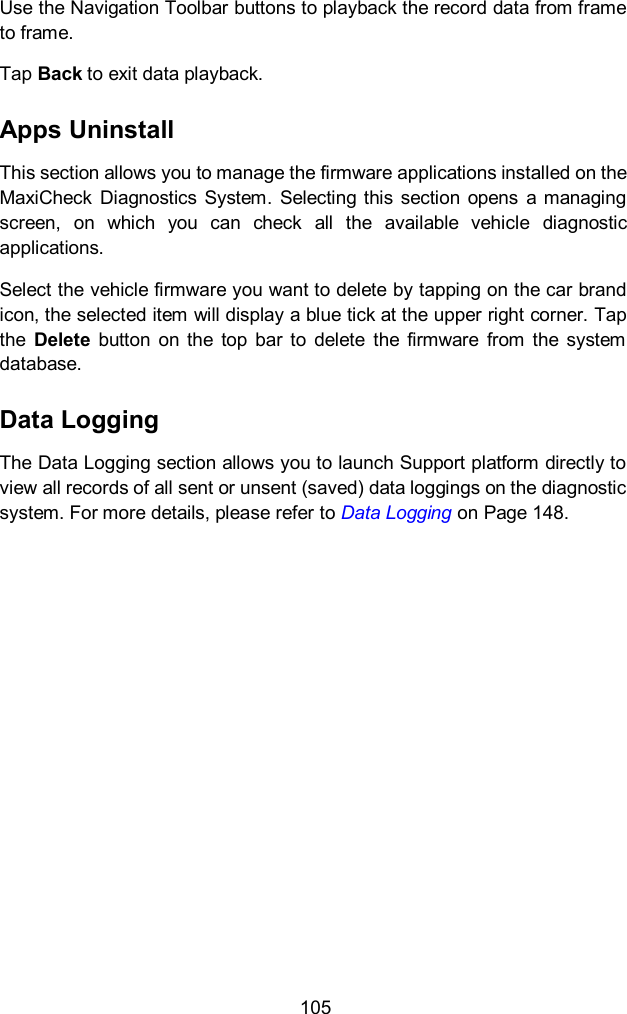

105 Use the Navigation Toolbar buttons to playback the record data from frame to frame. Tap Back to exit data playback. Apps Uninstall This section allows you to manage the firmware applications installed on the MaxiCheck Diagnostics System. Selecting this section opens a managing screen, on which you can check all the available vehicle diagnostic applications. Select the vehicle firmware you want to delete by tapping on the car brand icon, the selected item will display a blue tick at the upper right corner. Tap the Delete button on the top bar to delete the firmware from the system database. Data Logging The Data Logging section allows you to launch Support platform directly to view all records of all sent or unsent (saved) data loggings on the diagnostic system. For more details, please refer to Data Logging on Page 148.

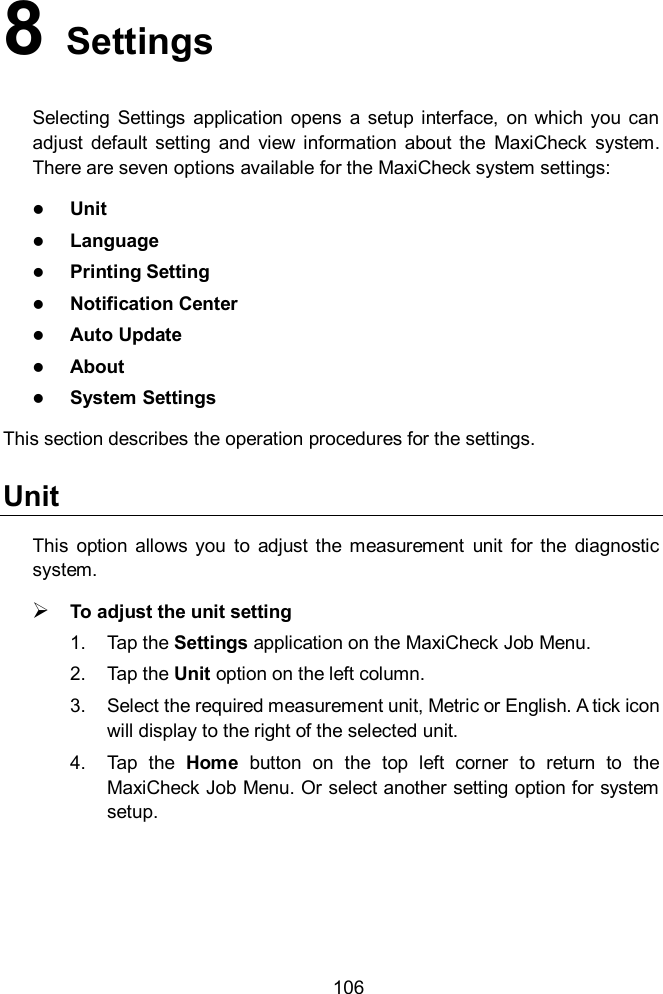

106 8 Settings Selecting Settings application opens a setup interface, on which you can adjust default setting and view information about the MaxiCheck system. There are seven options available for the MaxiCheck system settings:  Unit  Language  Printing Setting  Notification Center  Auto Update  About  System Settings This section describes the operation procedures for the settings. Unit This option allows you to adjust the measurement unit for the diagnostic system.  To adjust the unit setting 1. Tap the Settings application on the MaxiCheck Job Menu. 2. Tap the Unit option on the left column. 3. Select the required measurement unit, Metric or English. A tick icon will display to the right of the selected unit. 4. Tap the Home button on the top left corner to return to the MaxiCheck Job Menu. Or select another setting option for system setup.

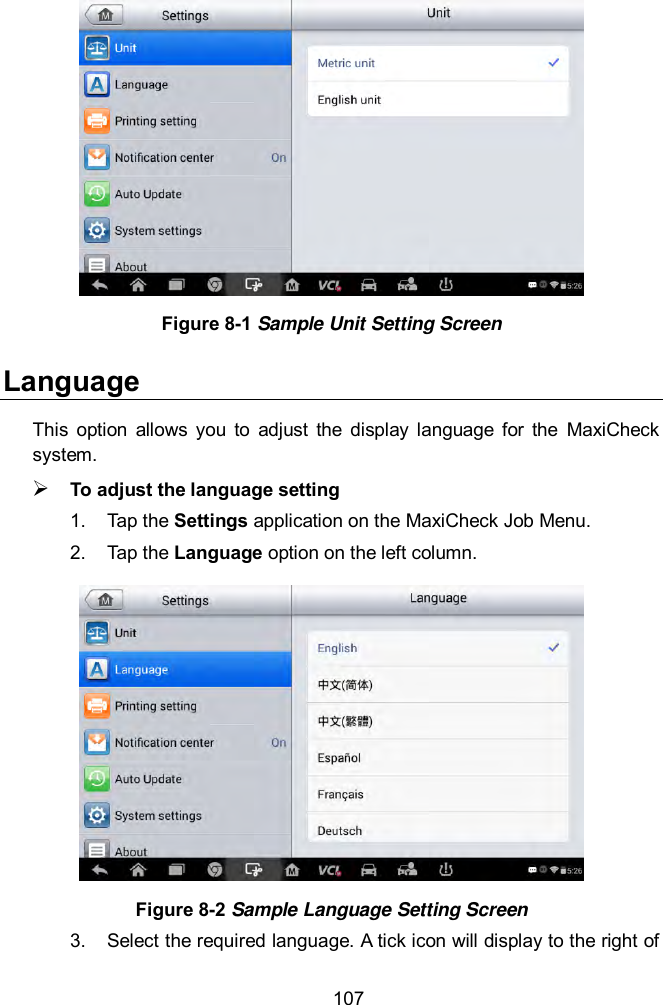

107 Figure 8-1 Sample Unit Setting Screen Language This option allows you to adjust the display language for the MaxiCheck system.  To adjust the language setting 1. Tap the Settings application on the MaxiCheck Job Menu. 2. Tap the Language option on the left column. Figure 8-2 Sample Language Setting Screen 3. Select the required language. A tick icon will display to the right of
108 the selected language. 4. Tap the Home button on the top left corner to return to the MaxiCheck Job Menu. Or select another setting option for system setup. Printing Setting This option allows you to print any data or information anywhere and anytime via Wi-Fi connection.  To setup the printer connection 1. Tap the Settings application on the MaxiCheck Job Menu. 2. Tap the Printing Setting option on the left column. 3. Tap the Print via Network item to activate the printing function, which enables the device to send files to the printer through the PC via Wi-Fi connection. 4. Tap the Home button on the top left corner to return to the MaxiCheck Job Menu. Or select another setting option for the system setup. Figure 8-3 Sample Printing Setting Screen Printing via APP MX808TS provides the most convenient printing method, printing via APP.

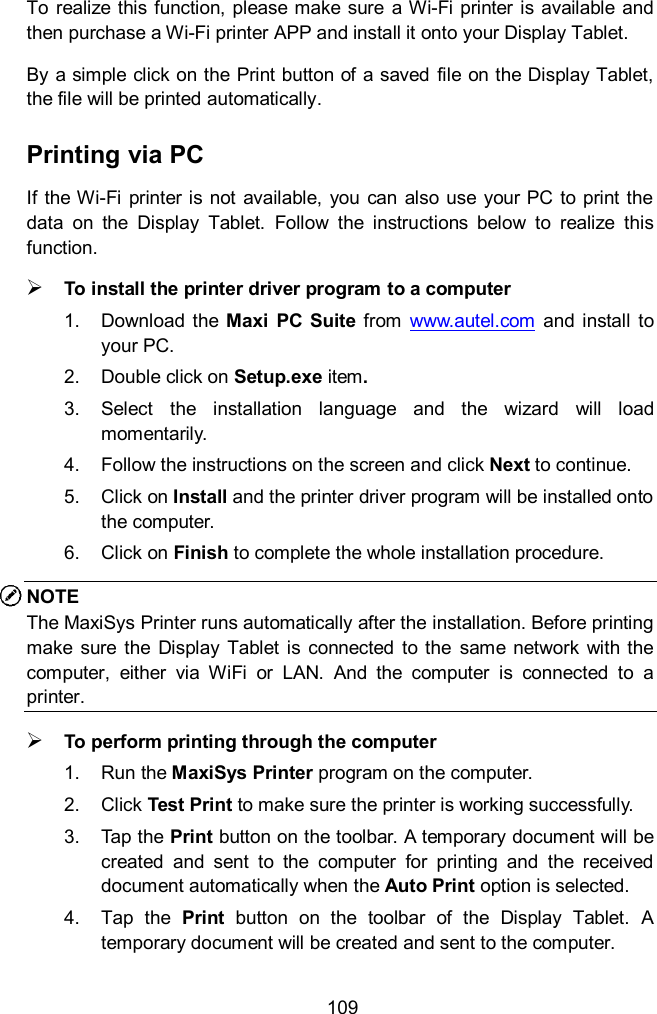

109 To realize this function, please make sure a Wi-Fi printer is available and then purchase a Wi-Fi printer APP and install it onto your Display Tablet. By a simple click on the Print button of a saved file on the Display Tablet, the file will be printed automatically. Printing via PC If the Wi-Fi printer is not available, you can also use your PC to print the data on the Display Tablet. Follow the instructions below to realize this function.  To install the printer driver program to a computer 1. Download the Maxi PC Suite from www.autel.com and install to your PC. 2. Double click on Setup.exe item. 3. Select the installation language and the wizard will load momentarily. 4. Follow the instructions on the screen and click Next to continue. 5. Click on Install and the printer driver program will be installed onto the computer. 6. Click on Finish to complete the whole installation procedure. NOTE The MaxiSys Printer runs automatically after the installation. Before printing make sure the Display Tablet is connected to the same network with the computer, either via WiFi or LAN. And the computer is connected to a printer.  To perform printing through the computer 1. Run the MaxiSys Printer program on the computer. 2. Click Test Print to make sure the printer is working successfully. 3. Tap the Print button on the toolbar. A temporary document will be created and sent to the computer for printing and the received document automatically when the Auto Print option is selected. 4. Tap the Print button on the toolbar of the Display Tablet. A temporary document will be created and sent to the computer.

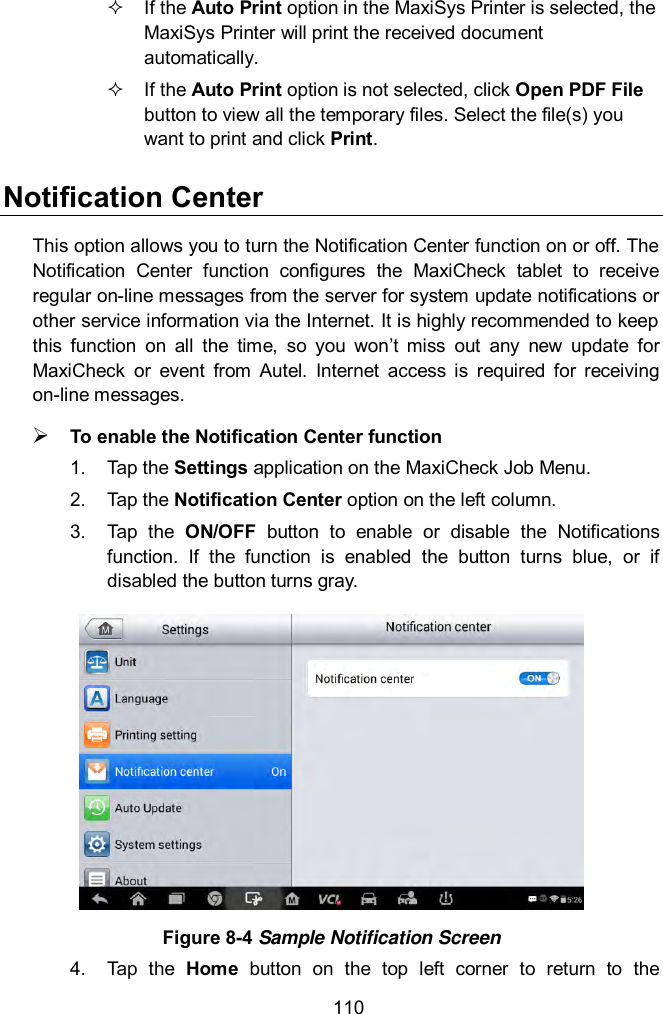

110  If the Auto Print option in the MaxiSys Printer is selected, the MaxiSys Printer will print the received document automatically.  If the Auto Print option is not selected, click Open PDF File button to view all the temporary files. Select the file(s) you want to print and click Print. Notification Center This option allows you to turn the Notification Center function on or off. The Notification Center function configures the MaxiCheck tablet to receive regular on-line messages from the server for system update notifications or other service information via the Internet. It is highly recommended to keep this function on all the time, so you won’t miss out any new update for MaxiCheck or event from Autel. Internet access is required for receiving on-line messages.  To enable the Notification Center function 1. Tap the Settings application on the MaxiCheck Job Menu. 2. Tap the Notification Center option on the left column. 3. Tap the ON/OFF button to enable or disable the Notifications function. If the function is enabled the button turns blue, or if disabled the button turns gray. Figure 8-4 Sample Notification Screen 4. Tap the Home button on the top left corner to return to the
111 MaxiCheck Job Menu. Or select another setting option for the system setup. When the Notification Center function is turned on, and new messages are received by the MaxiCheck device, a notification message displays on the MaxiCheck Job Menu. Press on the message bar and drag it down, and the received messages are shown in the list, slide the list up or down to view all if the message list covers more than one screen. Tapping a specific message launches the corresponding application. For example, if you tap on an Update notification message, the Update application will be launched. Auto Update The Auto Update allows the tool to automatically update the OS, the MaxiCheck system, and the Vehicle. All you need to do is to switch ON by tapping the button on the right side of each and set the desired automatic update time.  To set auto system or vehicle update 1. Tap the Settings application on the MaxiCheck Job Menu. 2. Tap the Auto Update option on the left column. The three auto update items list on the right. Figure 8-5 Sample Auto Update Screen 3. Switch the ON the button on the right of item that you want to auto update.

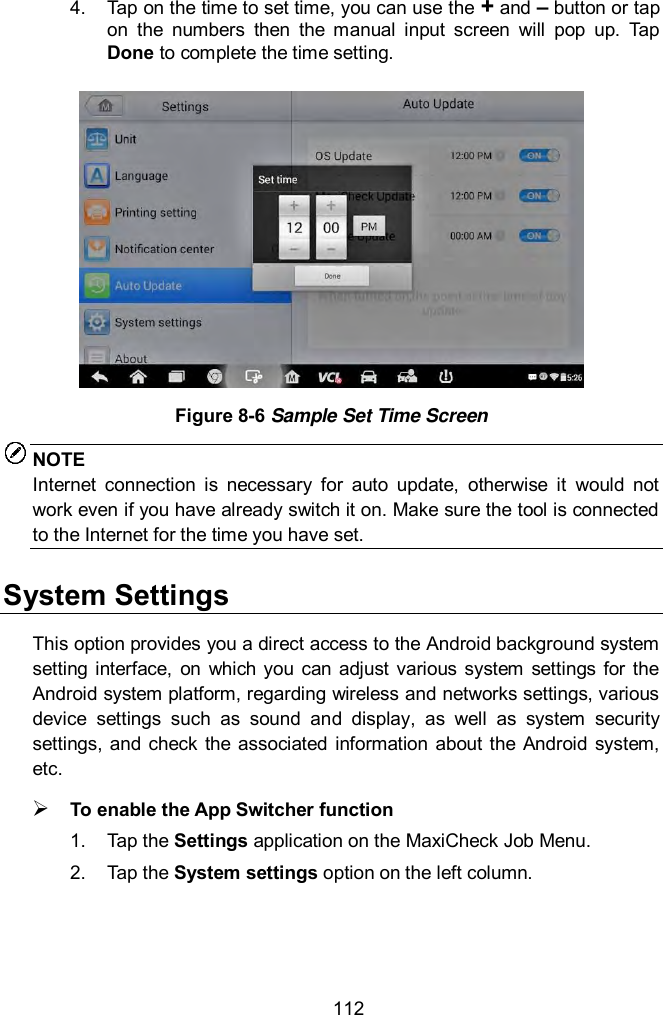

112 4. Tap on the time to set time, you can use the + and – button or tap on the numbers then the manual input screen will pop up. Tap Done to complete the time setting. Figure 8-6 Sample Set Time Screen NOTE Internet connection is necessary for auto update, otherwise it would not work even if you have already switch it on. Make sure the tool is connected to the Internet for the time you have set. System Settings This option provides you a direct access to the Android background system setting interface, on which you can adjust various system settings for the Android system platform, regarding wireless and networks settings, various device settings such as sound and display, as well as system security settings, and check the associated information about the Android system, etc.  To enable the App Switcher function 1. Tap the Settings application on the MaxiCheck Job Menu. 2. Tap the System settings option on the left column.
113 Figure 8-7 Sample System Settings Screen 3. Tap the App Switcher option on the left column. 4. Mark the checkbox beside “Always show the App Switcher” on the right side of the screen, then the App Switcher icon shows. Short pressing the App Switcher icon opens a control panel:  Tapping a specific app shortcut button enables you to switch directly to the selected application screen.  Long pressing a specific app shortcut button displays the app menu, on which you can select and change the app shortcut.  Pressing and dragging the App Switcher icon around allows you to change the icon position alongside the edge of the screen. You may refer to Android documentation for additional information about Android system settings. About The About option provides information of the MaxiCheck diagnostic device regarding the product name, version, hardware, and serial number, etc.  To check the MaxiCheck product information in About 1. Tap the Settings application on the MaxiCheck Job Menu. 2. Tap the About option on the left column. The product information screen displays on the right.

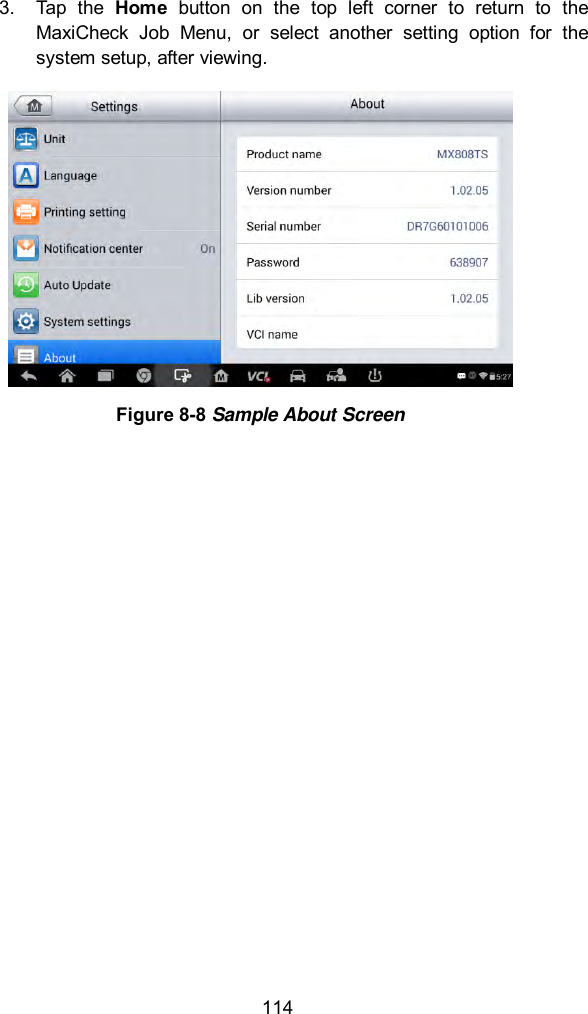

114 3. Tap the Home button on the top left corner to return to the MaxiCheck Job Menu, or select another setting option for the system setup, after viewing. Figure 8-8 Sample About Screen

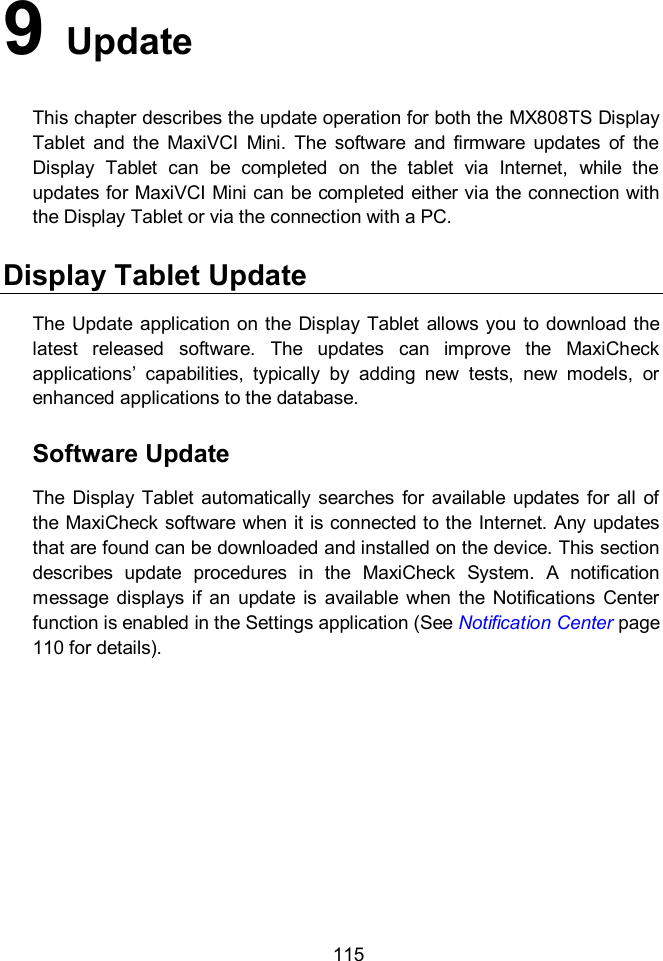

115 9 Update This chapter describes the update operation for both the MX808TS Display Tablet and the MaxiVCI Mini. The software and firmware updates of the Display Tablet can be completed on the tablet via Internet, while the updates for MaxiVCI Mini can be completed either via the connection with the Display Tablet or via the connection with a PC. Display Tablet Update The Update application on the Display Tablet allows you to download the latest released software. The updates can improve the MaxiCheck applications’ capabilities, typically by adding new tests, new models, or enhanced applications to the database. Software Update The Display Tablet automatically searches for available updates for all of the MaxiCheck software when it is connected to the Internet. Any updates that are found can be downloaded and installed on the device. This section describes update procedures in the MaxiCheck System. A notification message displays if an update is available when the Notifications Center function is enabled in the Settings application (See Notification Center page 110 for details).

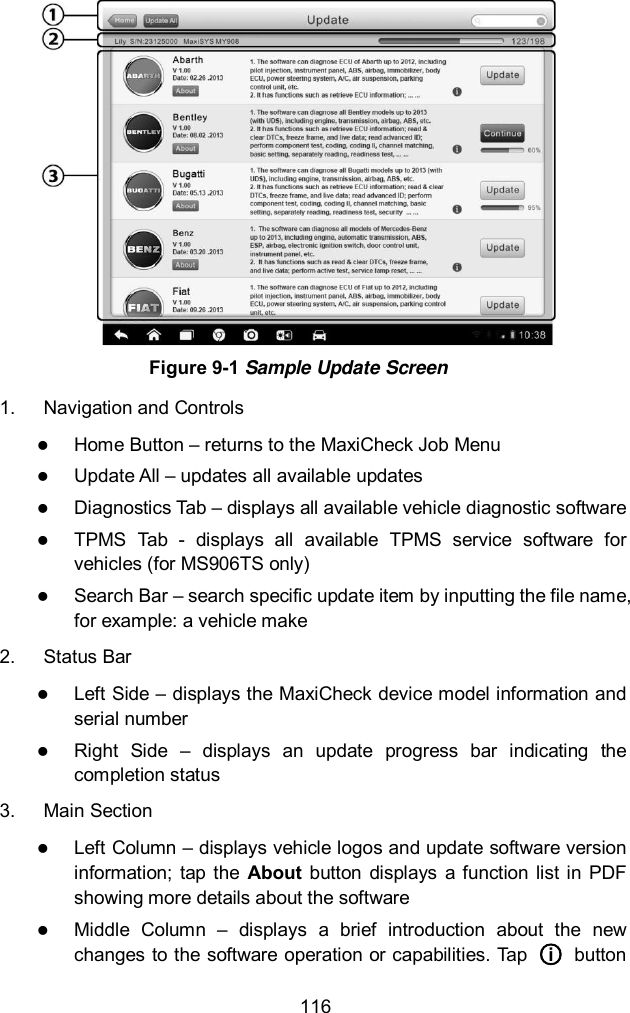

116 Figure 9-1 Sample Update Screen 1. Navigation and Controls  Home Button – returns to the MaxiCheck Job Menu  Update All – updates all available updates  Diagnostics Tab – displays all available vehicle diagnostic software  TPMS Tab - displays all available TPMS service software for vehicles (for MS906TS only)  Search Bar – search specific update item by inputting the file name, for example: a vehicle make 2. Status Bar  Left Side – displays the MaxiCheck device model information and serial number  Right Side – displays an update progress bar indicating the completion status 3. Main Section  Left Column – displays vehicle logos and update software version information; tap the About button displays a function list in PDF showing more details about the software  Middle Column – displays a brief introduction about the new changes to the software operation or capabilities. Tap ○i button

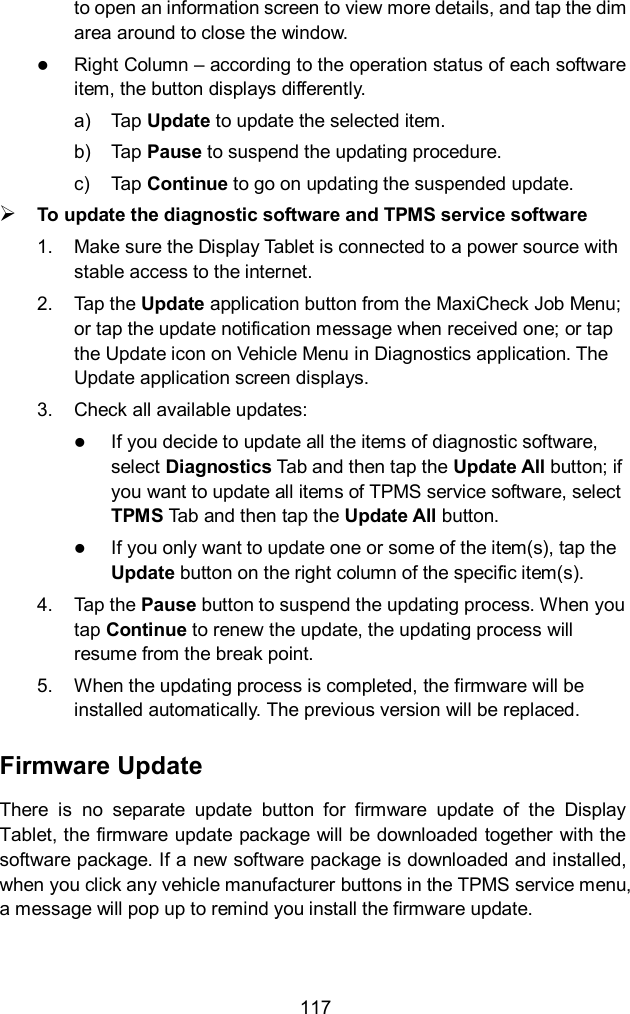

117 to open an information screen to view more details, and tap the dim area around to close the window.  Right Column – according to the operation status of each software item, the button displays differently. a) Tap Update to update the selected item. b) Tap Pause to suspend the updating procedure. c) Tap Continue to go on updating the suspended update.  To update the diagnostic software and TPMS service software 1. Make sure the Display Tablet is connected to a power source with stable access to the internet. 2. Tap the Update application button from the MaxiCheck Job Menu; or tap the update notification message when received one; or tap the Update icon on Vehicle Menu in Diagnostics application. The Update application screen displays. 3. Check all available updates:  If you decide to update all the items of diagnostic software, select Diagnostics Tab and then tap the Update All button; if you want to update all items of TPMS service software, select TPMS Tab and then tap the Update All button.  If you only want to update one or some of the item(s), tap the Update button on the right column of the specific item(s). 4. Tap the Pause button to suspend the updating process. When you tap Continue to renew the update, the updating process will resume from the break point. 5. When the updating process is completed, the firmware will be installed automatically. The previous version will be replaced. Firmware Update There is no separate update button for firmware update of the Display Tablet, the firmware update package will be downloaded together with the software package. If a new software package is downloaded and installed, when you click any vehicle manufacturer buttons in the TPMS service menu, a message will pop up to remind you install the firmware update.

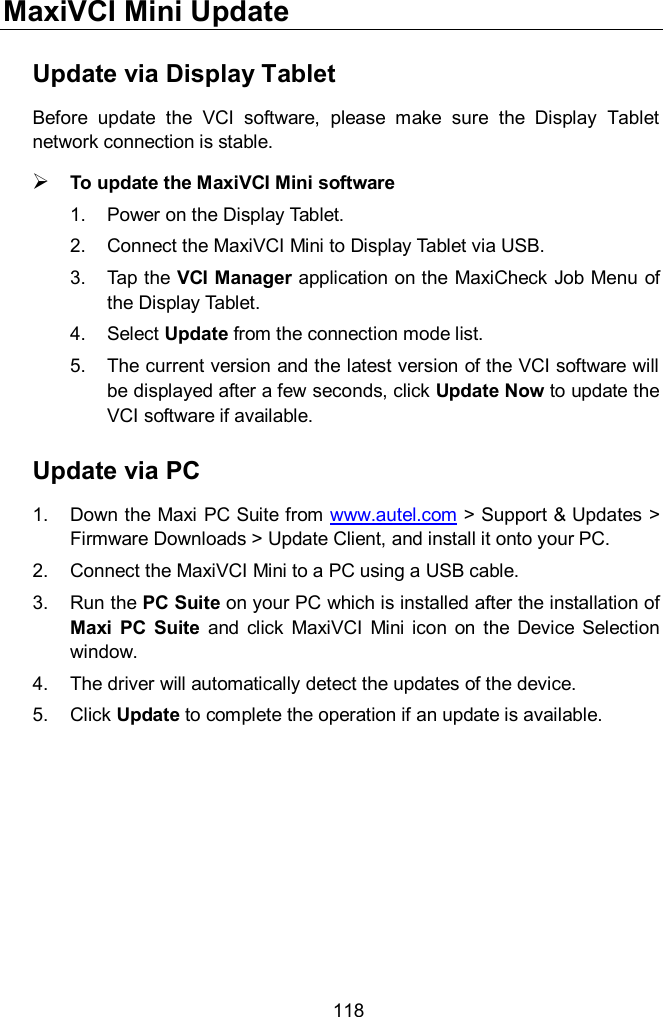

118 MaxiVCI Mini Update Update via Display Tablet Before update the VCI software, please make sure the Display Tablet network connection is stable.  To update the MaxiVCI Mini software 1. Power on the Display Tablet. 2. Connect the MaxiVCI Mini to Display Tablet via USB. 3. Tap the VCI Manager application on the MaxiCheck Job Menu of the Display Tablet. 4. Select Update from the connection mode list. 5. The current version and the latest version of the VCI software will be displayed after a few seconds, click Update Now to update the VCI software if available. Update via PC 1. Down the Maxi PC Suite from www.autel.com > Support & Updates > Firmware Downloads > Update Client, and install it onto your PC. 2. Connect the MaxiVCI Mini to a PC using a USB cable. 3. Run the PC Suite on your PC which is installed after the installation of Maxi PC Suite and click MaxiVCI Mini icon on the Device Selection window. 4. The driver will automatically detect the updates of the device. 5. Click Update to complete the operation if an update is available.

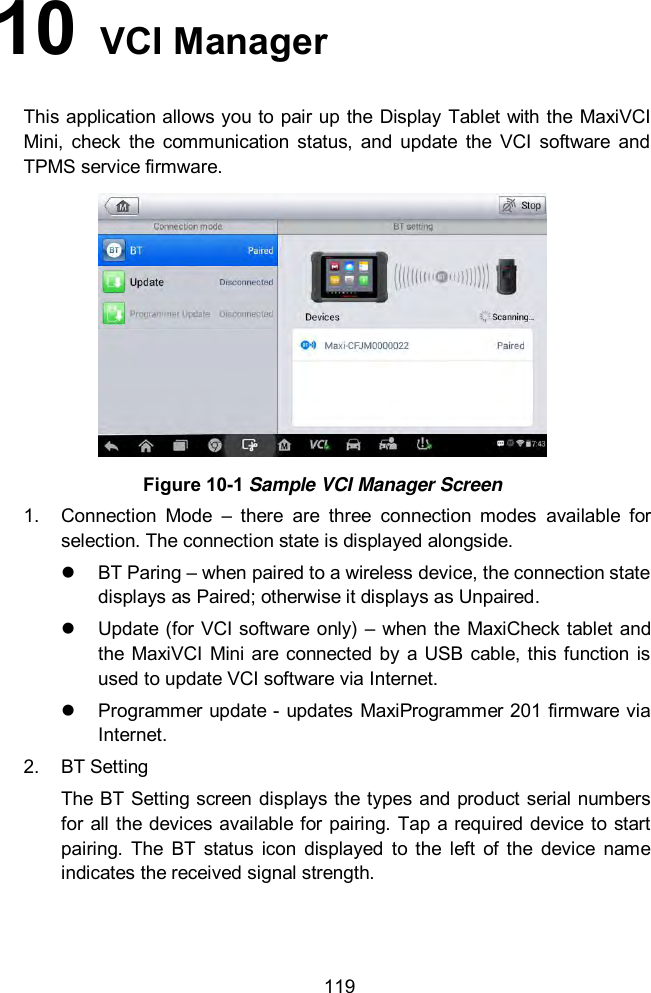

119 10 VCI Manager This application allows you to pair up the Display Tablet with the MaxiVCI Mini, check the communication status, and update the VCI software and TPMS service firmware. Figure 10-1 Sample VCI Manager Screen 1. Connection Mode – there are three connection modes available for selection. The connection state is displayed alongside.  BT Paring – when paired to a wireless device, the connection state displays as Paired; otherwise it displays as Unpaired.  Update (for VCI software only) – when the MaxiCheck tablet and the MaxiVCI Mini are connected by a USB cable, this function is used to update VCI software via Internet.  Programmer update - updates MaxiProgrammer 201 firmware via Internet. 2. BT Setting The BT Setting screen displays the types and product serial numbers for all the devices available for pairing. Tap a required device to start pairing. The BT status icon displayed to the left of the device name indicates the received signal strength.

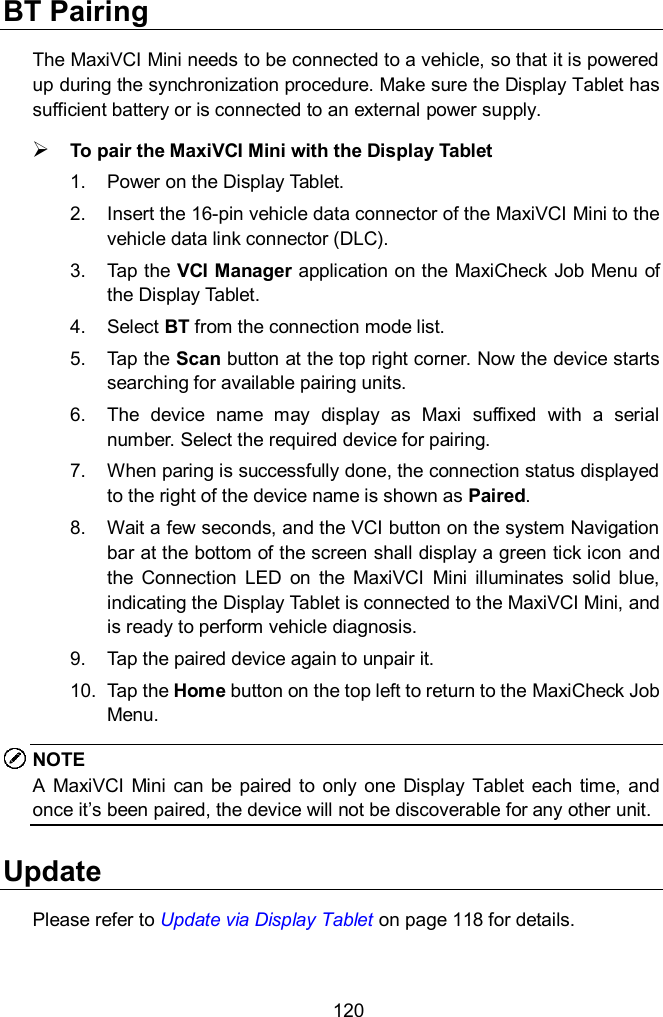

120 BT Pairing The MaxiVCI Mini needs to be connected to a vehicle, so that it is powered up during the synchronization procedure. Make sure the Display Tablet has sufficient battery or is connected to an external power supply.  To pair the MaxiVCI Mini with the Display Tablet 1. Power on the Display Tablet. 2. Insert the 16-pin vehicle data connector of the MaxiVCI Mini to the vehicle data link connector (DLC). 3. Tap the VCI Manager application on the MaxiCheck Job Menu of the Display Tablet. 4. Select BT from the connection mode list. 5. Tap the Scan button at the top right corner. Now the device starts searching for available pairing units. 6. The device name may display as Maxi suffixed with a serial number. Select the required device for pairing. 7. When paring is successfully done, the connection status displayed to the right of the device name is shown as Paired. 8. Wait a few seconds, and the VCI button on the system Navigation bar at the bottom of the screen shall display a green tick icon and the Connection LED on the MaxiVCI Mini illuminates solid blue, indicating the Display Tablet is connected to the MaxiVCI Mini, and is ready to perform vehicle diagnosis. 9. Tap the paired device again to unpair it. 10. Tap the Home button on the top left to return to the MaxiCheck Job Menu. NOTE A MaxiVCI Mini can be paired to only one Display Tablet each time, and once it’s been paired, the device will not be discoverable for any other unit. Update Please refer to Update via Display Tablet on page 118 for details.

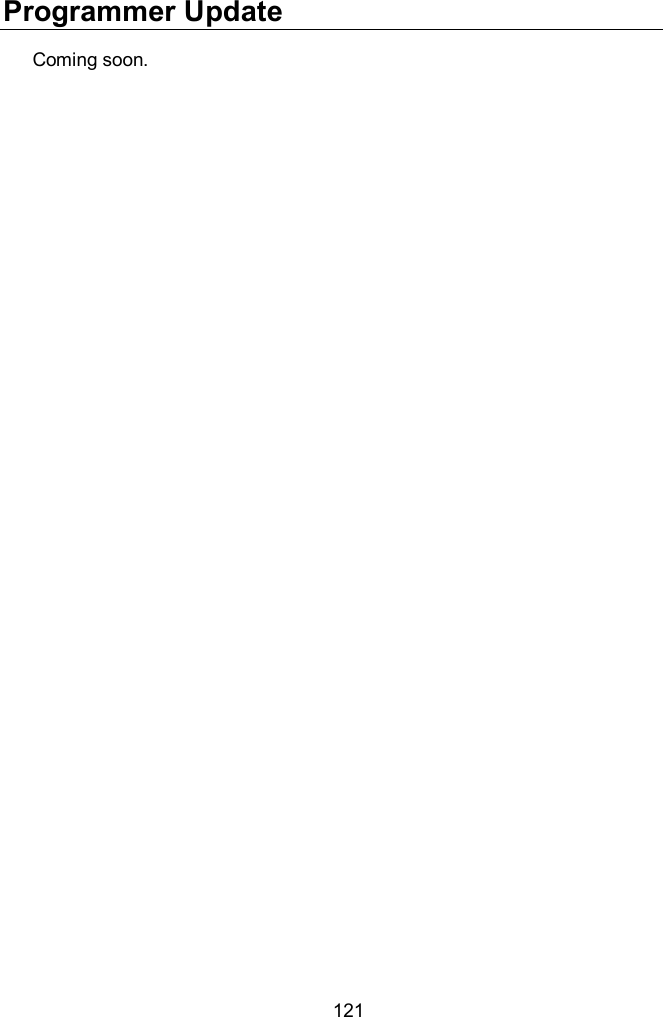

121 Programmer Update Coming soon.
122 11 Shop Manager The Shop Manager application helps you to manage the workshop information, customer information records, and keep test vehicle history records, which can be a great assist in dealing with daily workshop business and improves customer service. There are three main functions available:  Vehicle History  Workshop Information  Customer Manager The operations of these functions of the Shop Manager application are mainly manipulated by the toolbar buttons, which are listed and described in the table below: Table 11-1 Top Toolbar Buttons in Shop Manager Button Name Description Back Returns to the previous screen. Diagnostics Touching this button directs you to the vehicle’s Diagnostics screen to activate a direct test session. Enter Edit Touching this button shows the editing toolbar to print or delete the selected file. Delete Touching this button deletes the selected vehicle record item from the list. Search Quickly locates the vehicle record by entering the vehicle name or test path. Cancel Touching this button to cancel edit or file search. Edit Touching this button allows you to edit information for the displayed file.
123 Button Name Description Add Account Touching this button to create a new customer account file. History Notes Touching this button opens a note form, which allows you to create audio record, attach picture or video, or edit text notes, etc. Vehicle History Touching this button opens the Vehicle History screen which displays the correlated test vehicle records. Done Complete editing and save the file. Vehicle History This function stores records of test vehicle history, including vehicle information and the retrieved DTCs from previous diagnostic sessions, and displays all information in an easy-to-check table list, on which you can view summarized details and manually input other information about the test vehicle and diagnostic loggings, etc. The Vehicle History also provides direct access to the previously tested vehicle and allows you to restart a diagnostic session without the need to do vehicle identification again. Figure 11-1 Sample Vehicle History Screen

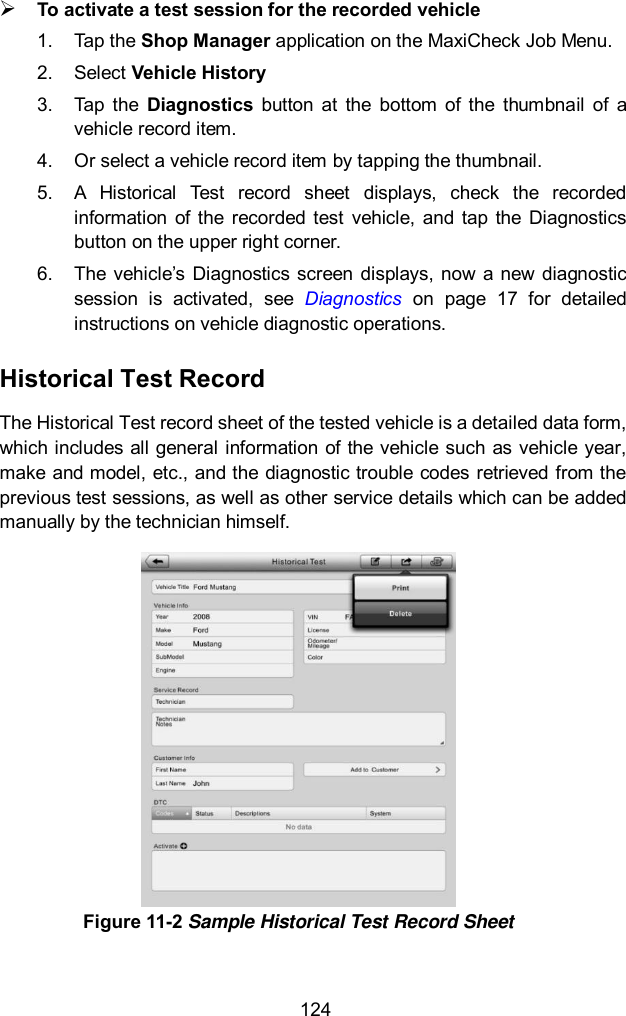

124  To activate a test session for the recorded vehicle 1. Tap the Shop Manager application on the MaxiCheck Job Menu. 2. Select Vehicle History 3. Tap the Diagnostics button at the bottom of the thumbnail of a vehicle record item. 4. Or select a vehicle record item by tapping the thumbnail. 5. A Historical Test record sheet displays, check the recorded information of the recorded test vehicle, and tap the Diagnostics button on the upper right corner. 6. The vehicle’s Diagnostics screen displays, now a new diagnostic session is activated, see Diagnostics on page 17 for detailed instructions on vehicle diagnostic operations. Historical Test Record The Historical Test record sheet of the tested vehicle is a detailed data form, which includes all general information of the vehicle such as vehicle year, make and model, etc., and the diagnostic trouble codes retrieved from the previous test sessions, as well as other service details which can be added manually by the technician himself. Figure 11-2 Sample Historical Test Record Sheet

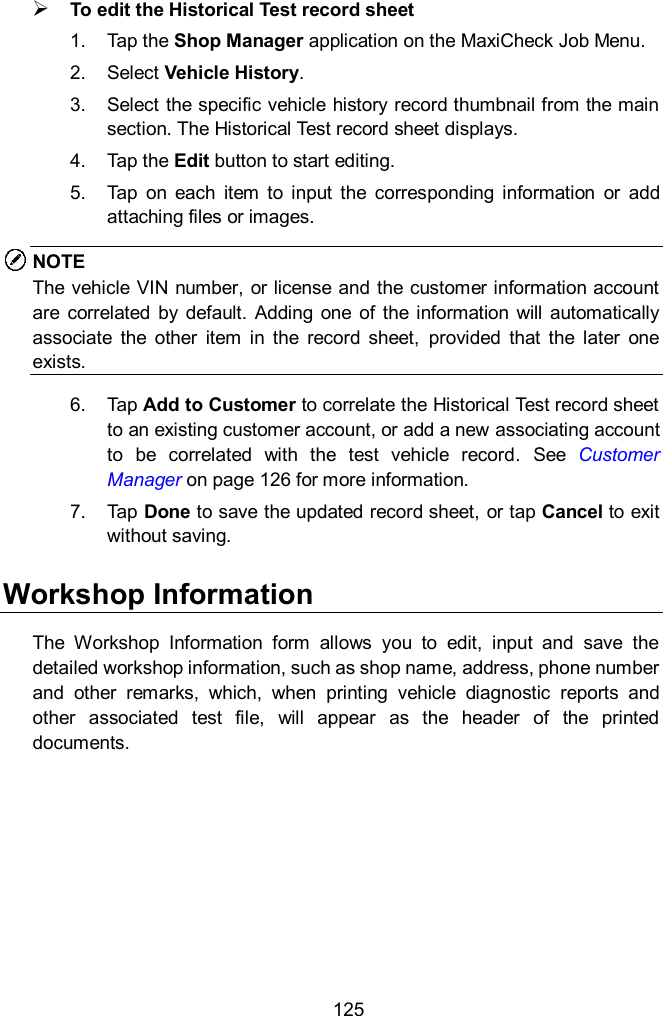

125  To edit the Historical Test record sheet 1. Tap the Shop Manager application on the MaxiCheck Job Menu. 2. Select Vehicle History. 3. Select the specific vehicle history record thumbnail from the main section. The Historical Test record sheet displays. 4. Tap the Edit button to start editing. 5. Tap on each item to input the corresponding information or add attaching files or images. NOTE The vehicle VIN number, or license and the customer information account are correlated by default. Adding one of the information will automatically associate the other item in the record sheet, provided that the later one exists. 6. Tap Add to Customer to correlate the Historical Test record sheet to an existing customer account, or add a new associating account to be correlated with the test vehicle record. See Customer Manager on page 126 for more information. 7. Tap Done to save the updated record sheet, or tap Cancel to exit without saving. Workshop Information The Workshop Information form allows you to edit, input and save the detailed workshop information, such as shop name, address, phone number and other remarks, which, when printing vehicle diagnostic reports and other associated test file, will appear as the header of the printed documents.

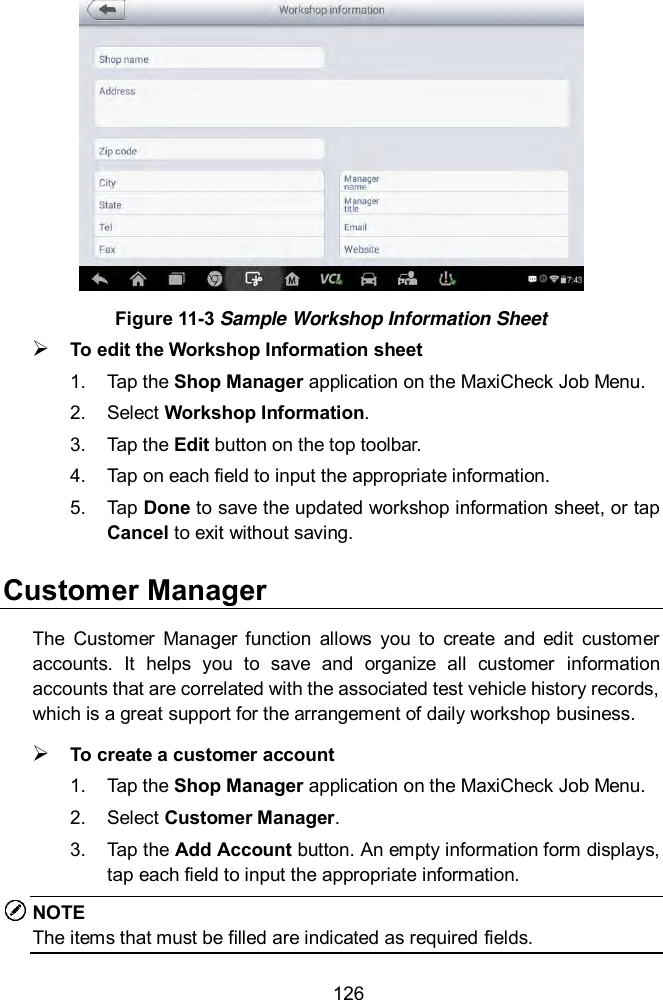

126 Figure 11-3 Sample Workshop Information Sheet  To edit the Workshop Information sheet 1. Tap the Shop Manager application on the MaxiCheck Job Menu. 2. Select Workshop Information. 3. Tap the Edit button on the top toolbar. 4. Tap on each field to input the appropriate information. 5. Tap Done to save the updated workshop information sheet, or tap Cancel to exit without saving. Customer Manager The Customer Manager function allows you to create and edit customer accounts. It helps you to save and organize all customer information accounts that are correlated with the associated test vehicle history records, which is a great support for the arrangement of daily workshop business.  To create a customer account 1. Tap the Shop Manager application on the MaxiCheck Job Menu. 2. Select Customer Manager. 3. Tap the Add Account button. An empty information form displays, tap each field to input the appropriate information. NOTE The items that must be filled are indicated as required fields.

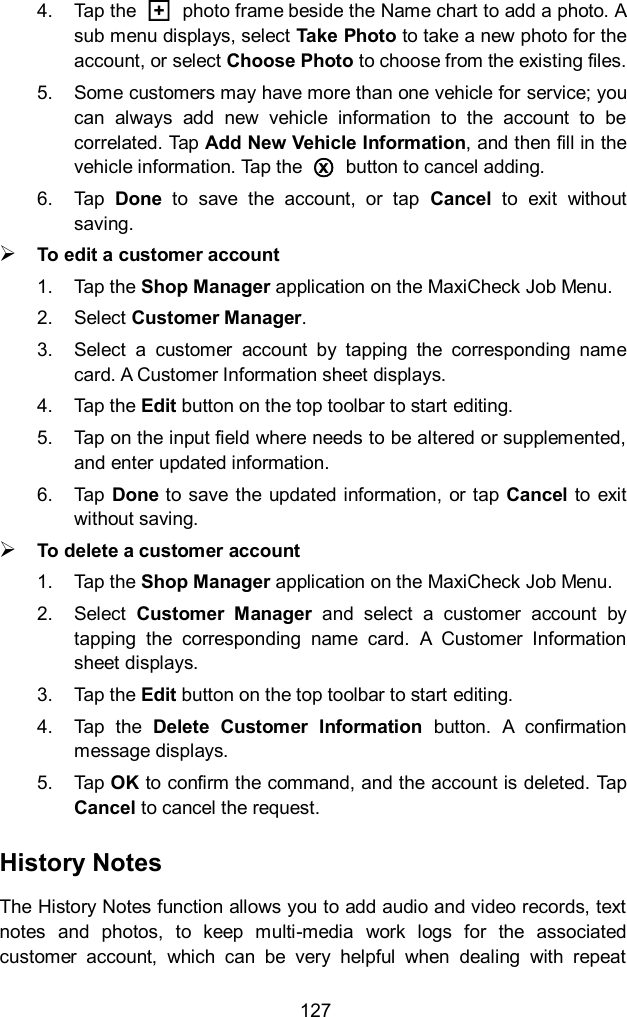

127 4. Tap the □+ photo frame beside the Name chart to add a photo. A sub menu displays, select Take Photo to take a new photo for the account, or select Choose Photo to choose from the existing files. 5. Some customers may have more than one vehicle for service; you can always add new vehicle information to the account to be correlated. Tap Add New Vehicle Information, and then fill in the vehicle information. Tap the ○x button to cancel adding. 6. Tap Done to save the account, or tap Cancel to exit without saving.  To edit a customer account 1. Tap the Shop Manager application on the MaxiCheck Job Menu. 2. Select Customer Manager. 3. Select a customer account by tapping the corresponding name card. A Customer Information sheet displays. 4. Tap the Edit button on the top toolbar to start editing. 5. Tap on the input field where needs to be altered or supplemented, and enter updated information. 6. Tap Done to save the updated information, or tap Cancel to exit without saving.  To delete a customer account 1. Tap the Shop Manager application on the MaxiCheck Job Menu. 2. Select Customer Manager and select a customer account by tapping the corresponding name card. A Customer Information sheet displays. 3. Tap the Edit button on the top toolbar to start editing. 4. Tap the Delete Customer Information button. A confirmation message displays. 5. Tap OK to confirm the command, and the account is deleted. Tap Cancel to cancel the request. History Notes The History Notes function allows you to add audio and video records, text notes and photos, to keep multi-media work logs for the associated customer account, which can be very helpful when dealing with repeat

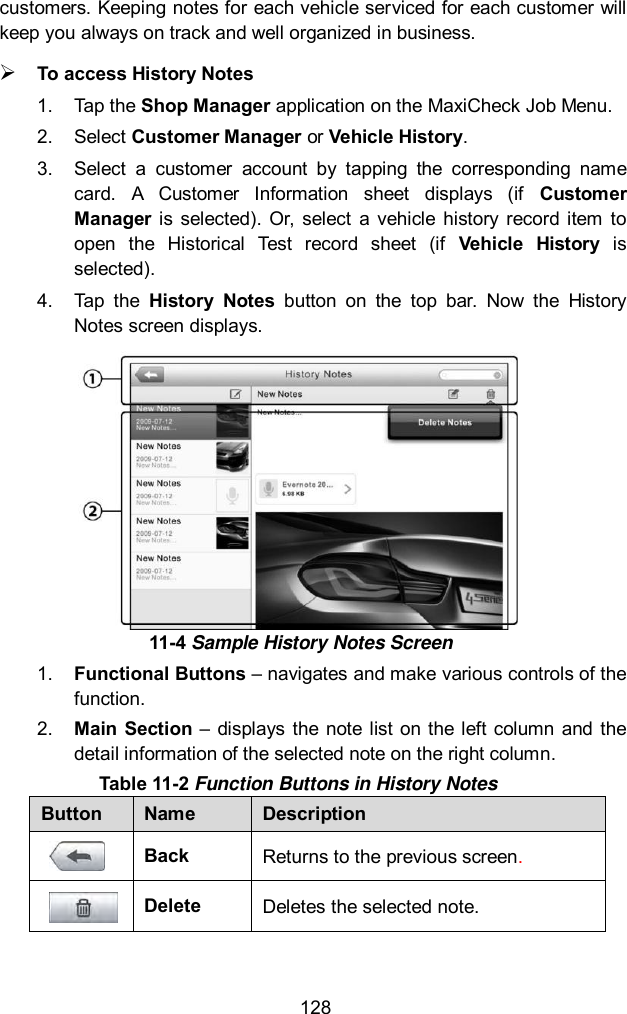

128 customers. Keeping notes for each vehicle serviced for each customer will keep you always on track and well organized in business.  To access History Notes 1. Tap the Shop Manager application on the MaxiCheck Job Menu. 2. Select Customer Manager or Vehicle History. 3. Select a customer account by tapping the corresponding name card. A Customer Information sheet displays (if Customer Manager is selected). Or, select a vehicle history record item to open the Historical Test record sheet (if Vehicle History is selected). 4. Tap the History Notes button on the top bar. Now the History Notes screen displays. 1. Functional Buttons – navigates and make various controls of the function. 2. Main Section – displays the note list on the left column and the detail information of the selected note on the right column. Table 11-2 Function Buttons in History Notes Button Name Description Back Returns to the previous screen. Delete Deletes the selected note. 11-4 Sample History Notes Screen

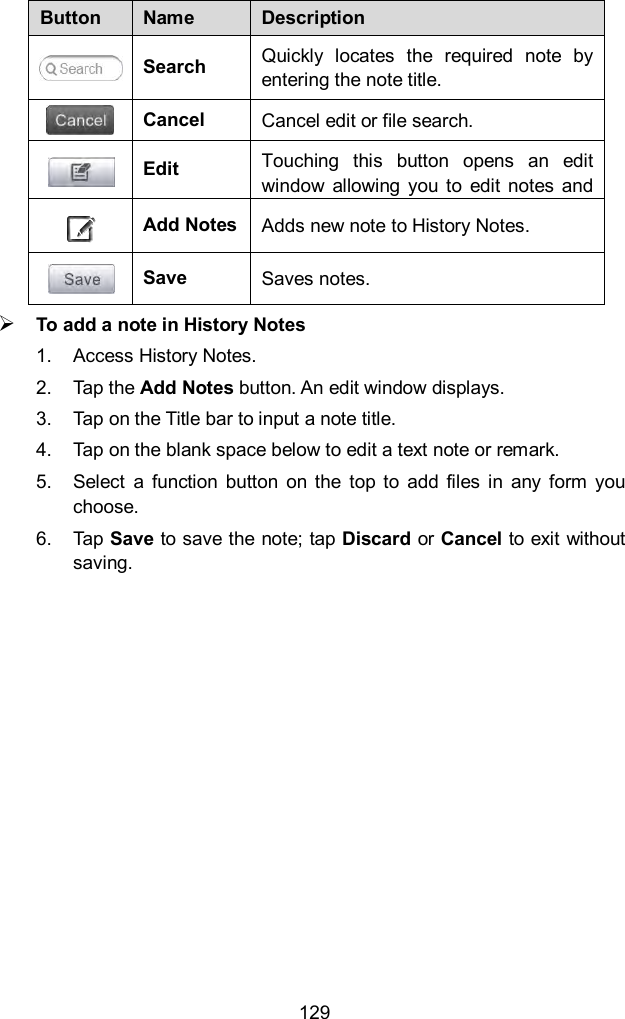

129 Button Name Description Search Quickly locates the required note by entering the note title. Cancel Cancel edit or file search. Edit Touching this button opens an edit window allowing you to edit notes and attach files. Add Notes Adds new note to History Notes. Save Saves notes.  To add a note in History Notes 1. Access History Notes. 2. Tap the Add Notes button. An edit window displays. 3. Tap on the Title bar to input a note title. 4. Tap on the blank space below to edit a text note or remark. 5. Select a function button on the top to add files in any form you choose. 6. Tap Save to save the note; tap Discard or Cancel to exit without saving.

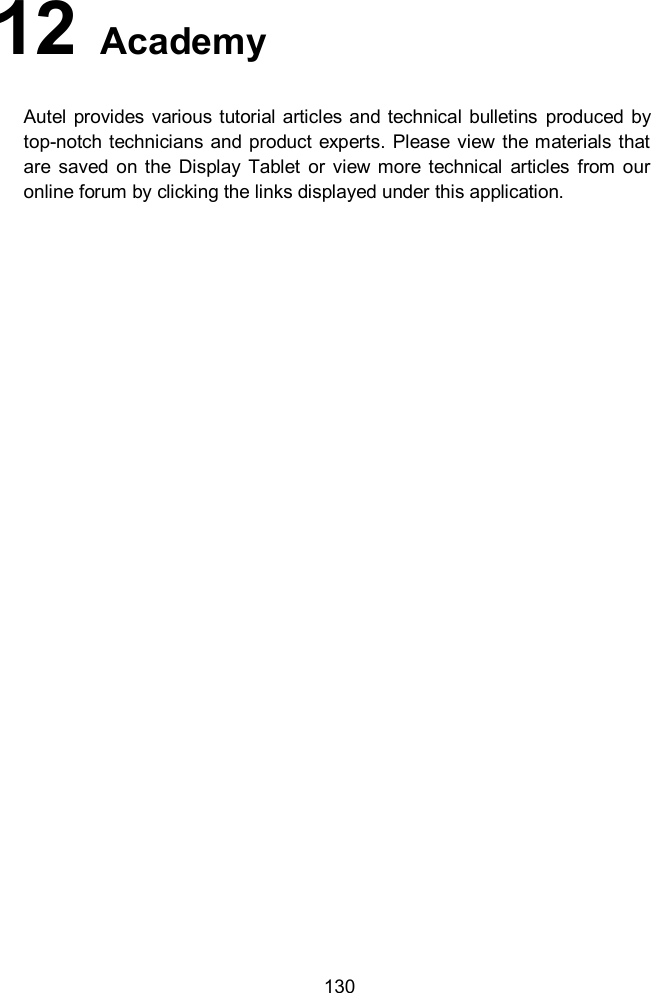

130 12 Academy Autel provides various tutorial articles and technical bulletins produced by top-notch technicians and product experts. Please view the materials that are saved on the Display Tablet or view more technical articles from our online forum by clicking the links displayed under this application.

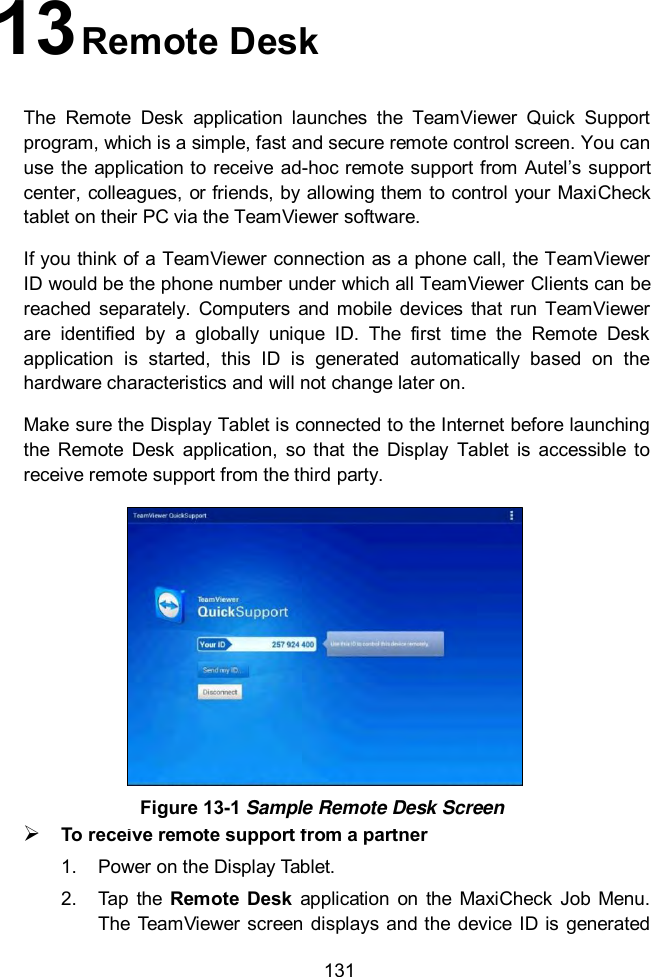

131 13 Remote Desk The Remote Desk application launches the TeamViewer Quick Support program, which is a simple, fast and secure remote control screen. You can use the application to receive ad-hoc remote support from Autel’s support center, colleagues, or friends, by allowing them to control your MaxiCheck tablet on their PC via the TeamViewer software. If you think of a TeamViewer connection as a phone call, the TeamViewer ID would be the phone number under which all TeamViewer Clients can be reached separately. Computers and mobile devices that run TeamViewer are identified by a globally unique ID. The first time the Remote Desk application is started, this ID is generated automatically based on the hardware characteristics and will not change later on. Make sure the Display Tablet is connected to the Internet before launching the Remote Desk application, so that the Display Tablet is accessible to receive remote support from the third party.  To receive remote support from a partner 1. Power on the Display Tablet. 2. Tap the Remote Desk application on the MaxiCheck Job Menu. The TeamViewer screen displays and the device ID is generated Figure 13-1 Sample Remote Desk Screen
132 and shown. 3. Your partner must install the Remote Control software to his/her computer by downloading the TeamViewer full version program online (http://www.teamviewer.com), and then start the software on his/her computer at the same time, in order to provide support and take control of the Display Tablet remotely. 4. Provide your ID to the partner, and wait for him/her to send you a remote control request. 5. A popup displays to ask for your confirmation to allow remote control on your device. 6. Tap Allow to accept, or tap Deny to reject. Refer to the associated TeamViewer documents for additional information.

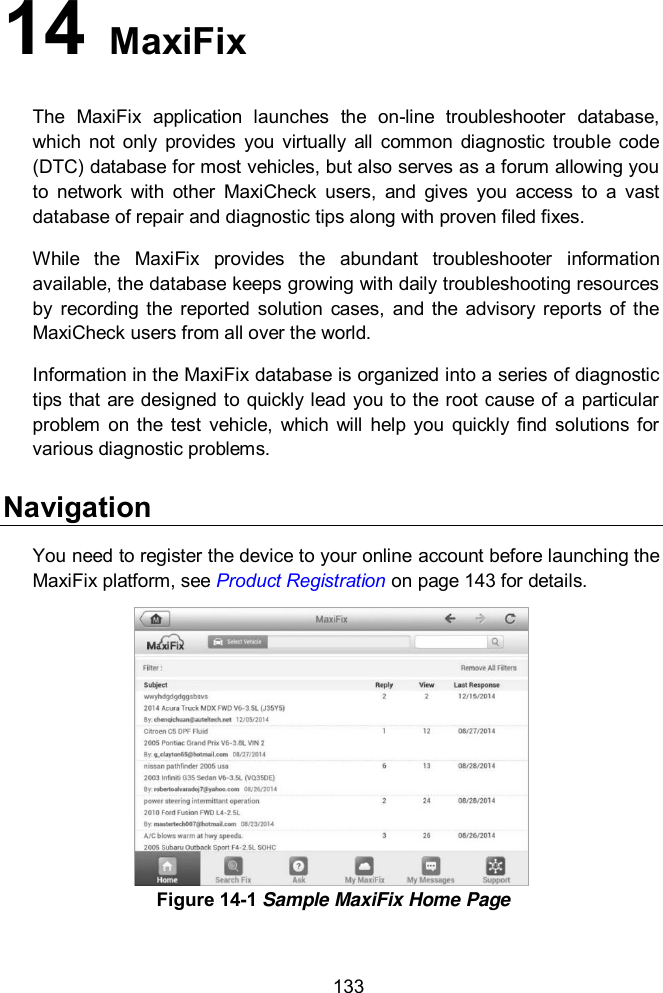

133 14 MaxiFix The MaxiFix application launches the on-line troubleshooter database, which not only provides you virtually all common diagnostic trouble code (DTC) database for most vehicles, but also serves as a forum allowing you to network with other MaxiCheck users, and gives you access to a vast database of repair and diagnostic tips along with proven filed fixes. While the MaxiFix provides the abundant troubleshooter information available, the database keeps growing with daily troubleshooting resources by recording the reported solution cases, and the advisory reports of the MaxiCheck users from all over the world. Information in the MaxiFix database is organized into a series of diagnostic tips that are designed to quickly lead you to the root cause of a particular problem on the test vehicle, which will help you quickly find solutions for various diagnostic problems. Navigation You need to register the device to your online account before launching the MaxiFix platform, see Product Registration on page 143 for details. Figure 14-1 Sample MaxiFix Home Page

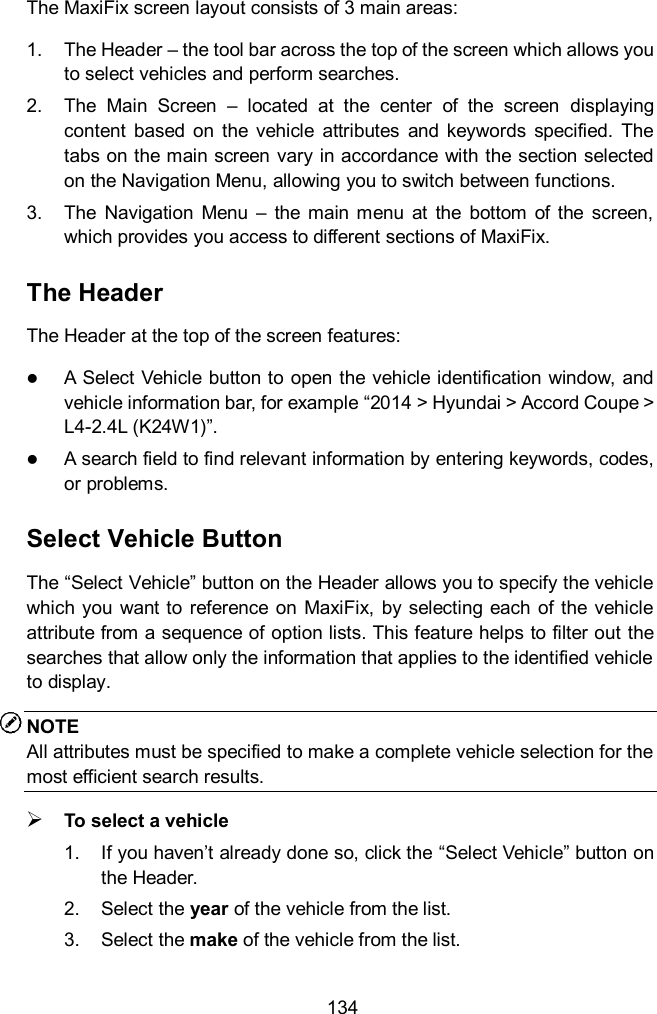

134 The MaxiFix screen layout consists of 3 main areas: 1. The Header – the tool bar across the top of the screen which allows you to select vehicles and perform searches. 2. The Main Screen – located at the center of the screen displaying content based on the vehicle attributes and keywords specified. The tabs on the main screen vary in accordance with the section selected on the Navigation Menu, allowing you to switch between functions. 3. The Navigation Menu – the main menu at the bottom of the screen, which provides you access to different sections of MaxiFix. The Header The Header at the top of the screen features:  A Select Vehicle button to open the vehicle identification window, and vehicle information bar, for example “2014 > Hyundai > Accord Coupe > L4-2.4L (K24W1)”.  A search field to find relevant information by entering keywords, codes, or problems. Select Vehicle Button The “Select Vehicle” button on the Header allows you to specify the vehicle which you want to reference on MaxiFix, by selecting each of the vehicle attribute from a sequence of option lists. This feature helps to filter out the searches that allow only the information that applies to the identified vehicle to display. NOTE All attributes must be specified to make a complete vehicle selection for the most efficient search results.  To select a vehicle 1. If you haven’t already done so, click the “Select Vehicle” button on the Header. 2. Select the year of the vehicle from the list. 3. Select the make of the vehicle from the list.

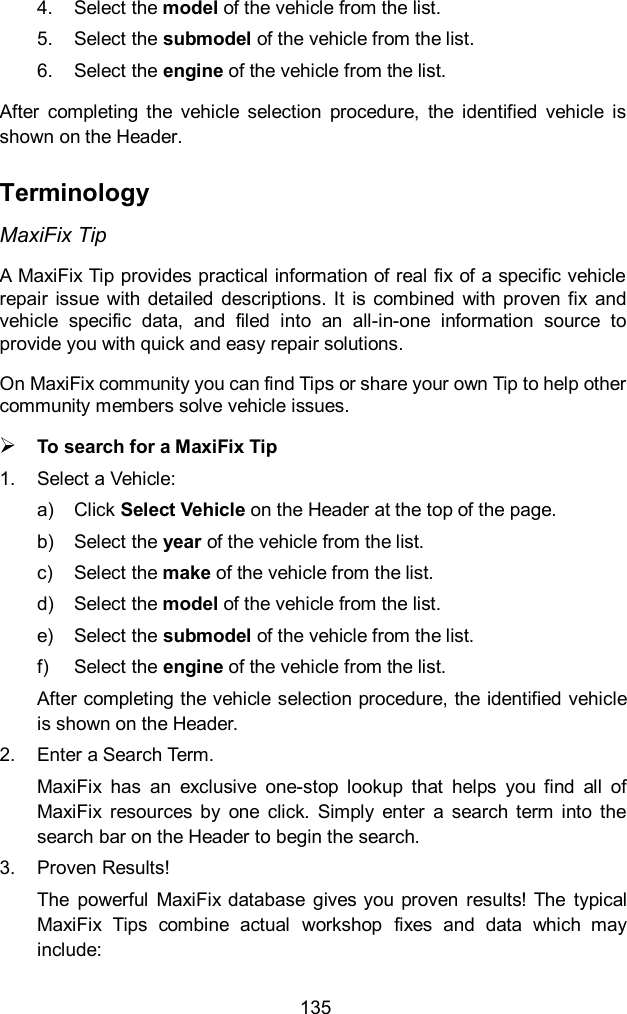

135 4. Select the model of the vehicle from the list. 5. Select the submodel of the vehicle from the list. 6. Select the engine of the vehicle from the list. After completing the vehicle selection procedure, the identified vehicle is shown on the Header. Terminology MaxiFix Tip A MaxiFix Tip provides practical information of real fix of a specific vehicle repair issue with detailed descriptions. It is combined with proven fix and vehicle specific data, and filed into an all-in-one information source to provide you with quick and easy repair solutions. On MaxiFix community you can find Tips or share your own Tip to help other community members solve vehicle issues.  To search for a MaxiFix Tip 1. Select a Vehicle: a) Click Select Vehicle on the Header at the top of the page. b) Select the year of the vehicle from the list. c) Select the make of the vehicle from the list. d) Select the model of the vehicle from the list. e) Select the submodel of the vehicle from the list. f) Select the engine of the vehicle from the list. After completing the vehicle selection procedure, the identified vehicle is shown on the Header. 2. Enter a Search Term. MaxiFix has an exclusive one-stop lookup that helps you find all of MaxiFix resources by one click. Simply enter a search term into the search bar on the Header to begin the search. 3. Proven Results! The powerful MaxiFix database gives you proven results! The typical MaxiFix Tips combine actual workshop fixes and data which may include:
136 a) OBD II Fault Codes description and reference — helps in diagnostic assessment by making clear the nature of an automotive problem so that beginner and advanced technicians can make effective repairs. b) Real Fix Tips – provides repair tips from actual shop practices and are presented in an easy to understand Complaint, Cause, Correction format. If you still can’t find the information you want, you can ask the MaxiFix community for help by clicking “Ask” on the Navigation Menu at the bottom of the screen. Adopted! The “Adopted!” icon that displays at the top right side of a Tip page indicates that the related Tip has been adopted by at least 1 technician in the community. If a tip has helped you to solve a repair problem, you are encouraged to give an Adopted! count to the tip. Each member is allowed to click the “Adopted!” once for a tip, and each click will add 1 count to the total number of “Adopted!” The “Adopted!” count helps you easily identify which tips are really helpful for repairing vehicle issues. You can also post a comment about how the tip has helped you as reference to other members. Operations The Navigation Menu is at the bottom of the screen. Selecting the items on the Navigation Menu allows you to switch between the main sections on MaxiFix. These main sections include:  Home – shows all questions and allows you to specify questions about one or multiple makes.  Search Fix – allows you to search for information from all available resources on MaxiFix, including: Open Questions, Tips, and Real Fixes, and displays search results.  Ask – allows you to ask a question in the community.  My MaxiFix – shows all your posts including Questions and Fixes in the community, and allows you to view your personal profile, select your vehicle preference, and share your tips.  My Messages – shows a list of message notifications which is relevant

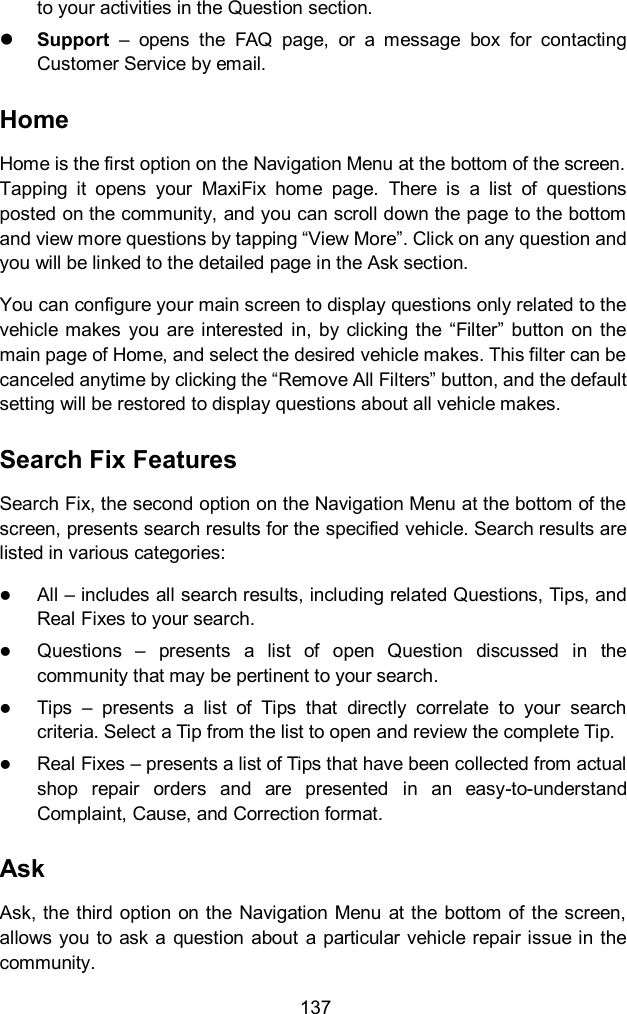

137 to your activities in the Question section.  Support – opens the FAQ page, or a message box for contacting Customer Service by email. Home Home is the first option on the Navigation Menu at the bottom of the screen. Tapping it opens your MaxiFix home page. There is a list of questions posted on the community, and you can scroll down the page to the bottom and view more questions by tapping “View More”. Click on any question and you will be linked to the detailed page in the Ask section. You can configure your main screen to display questions only related to the vehicle makes you are interested in, by clicking the “Filter” button on the main page of Home, and select the desired vehicle makes. This filter can be canceled anytime by clicking the “Remove All Filters” button, and the default setting will be restored to display questions about all vehicle makes. Search Fix Features Search Fix, the second option on the Navigation Menu at the bottom of the screen, presents search results for the specified vehicle. Search results are listed in various categories:  All – includes all search results, including related Questions, Tips, and Real Fixes to your search.  Questions – presents a list of open Question discussed in the community that may be pertinent to your search.  Tips – presents a list of Tips that directly correlate to your search criteria. Select a Tip from the list to open and review the complete Tip.  Real Fixes – presents a list of Tips that have been collected from actual shop repair orders and are presented in an easy-to-understand Complaint, Cause, and Correction format. Ask Ask, the third option on the Navigation Menu at the bottom of the screen, allows you to ask a question about a particular vehicle repair issue in the community.

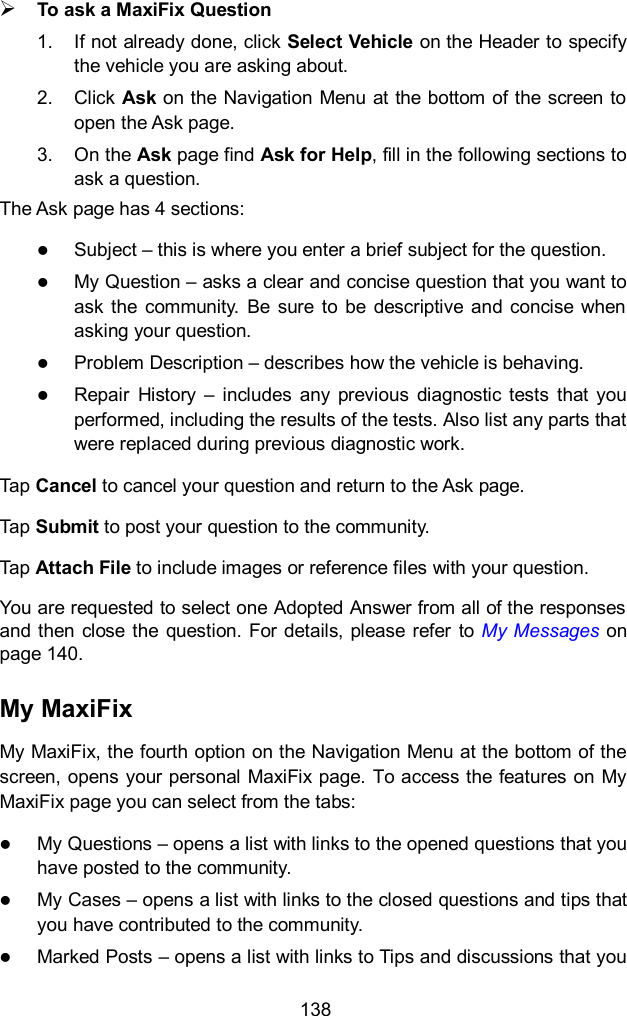

138  To ask a MaxiFix Question 1. If not already done, click Select Vehicle on the Header to specify the vehicle you are asking about. 2. Click Ask on the Navigation Menu at the bottom of the screen to open the Ask page. 3. On the Ask page find Ask for Help, fill in the following sections to ask a question. The Ask page has 4 sections:  Subject – this is where you enter a brief subject for the question.  My Question – asks a clear and concise question that you want to ask the community. Be sure to be descriptive and concise when asking your question.  Problem Description – describes how the vehicle is behaving.  Repair History – includes any previous diagnostic tests that you performed, including the results of the tests. Also list any parts that were replaced during previous diagnostic work. Tap Cancel to cancel your question and return to the Ask page. Tap Submit to post your question to the community. Tap Attach File to include images or reference files with your question. You are requested to select one Adopted Answer from all of the responses and then close the question. For details, please refer to My Messages on page 140. My MaxiFix My MaxiFix, the fourth option on the Navigation Menu at the bottom of the screen, opens your personal MaxiFix page. To access the features on My MaxiFix page you can select from the tabs:  My Questions – opens a list with links to the opened questions that you have posted to the community.  My Cases – opens a list with links to the closed questions and tips that you have contributed to the community.  Marked Posts – opens a list with links to Tips and discussions that you

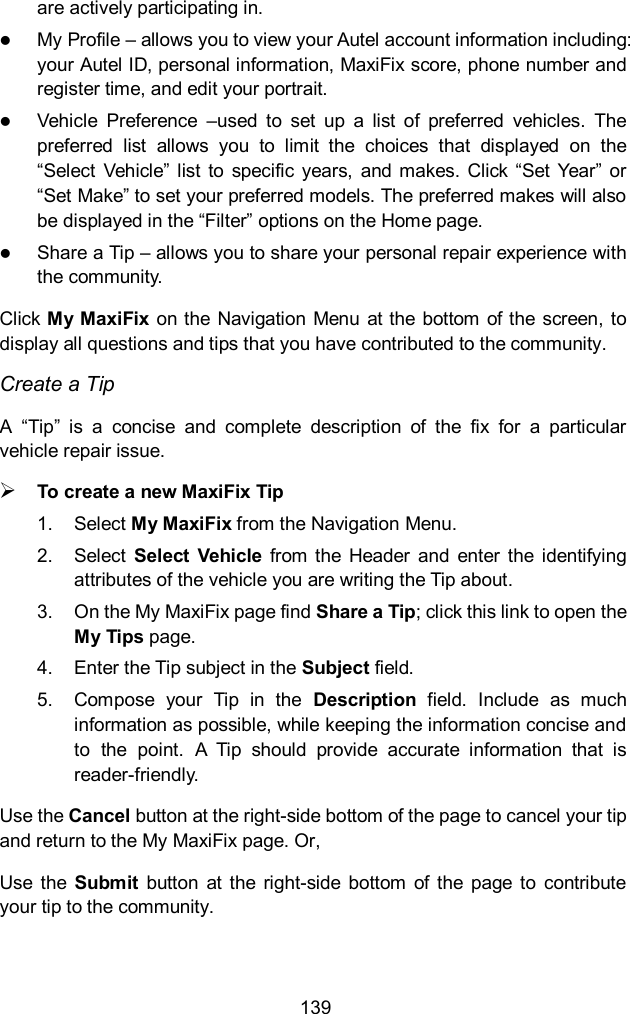

139 are actively participating in.  My Profile – allows you to view your Autel account information including: your Autel ID, personal information, MaxiFix score, phone number and register time, and edit your portrait.  Vehicle Preference –used to set up a list of preferred vehicles. The preferred list allows you to limit the choices that displayed on the “Select Vehicle” list to specific years, and makes. Click “Set Year” or “Set Make” to set your preferred models. The preferred makes will also be displayed in the “Filter” options on the Home page.  Share a Tip – allows you to share your personal repair experience with the community. Click My MaxiFix on the Navigation Menu at the bottom of the screen, to display all questions and tips that you have contributed to the community. Create a Tip A “Tip” is a concise and complete description of the fix for a particular vehicle repair issue.  To create a new MaxiFix Tip 1. Select My MaxiFix from the Navigation Menu. 2. Select Select Vehicle from the Header and enter the identifying attributes of the vehicle you are writing the Tip about. 3. On the My MaxiFix page find Share a Tip; click this link to open the My Tips page. 4. Enter the Tip subject in the Subject field. 5. Compose your Tip in the Description field. Include as much information as possible, while keeping the information concise and to the point. A Tip should provide accurate information that is reader-friendly. Use the Cancel button at the right-side bottom of the page to cancel your tip and return to the My MaxiFix page. Or, Use the Submit button at the right-side bottom of the page to contribute your tip to the community.

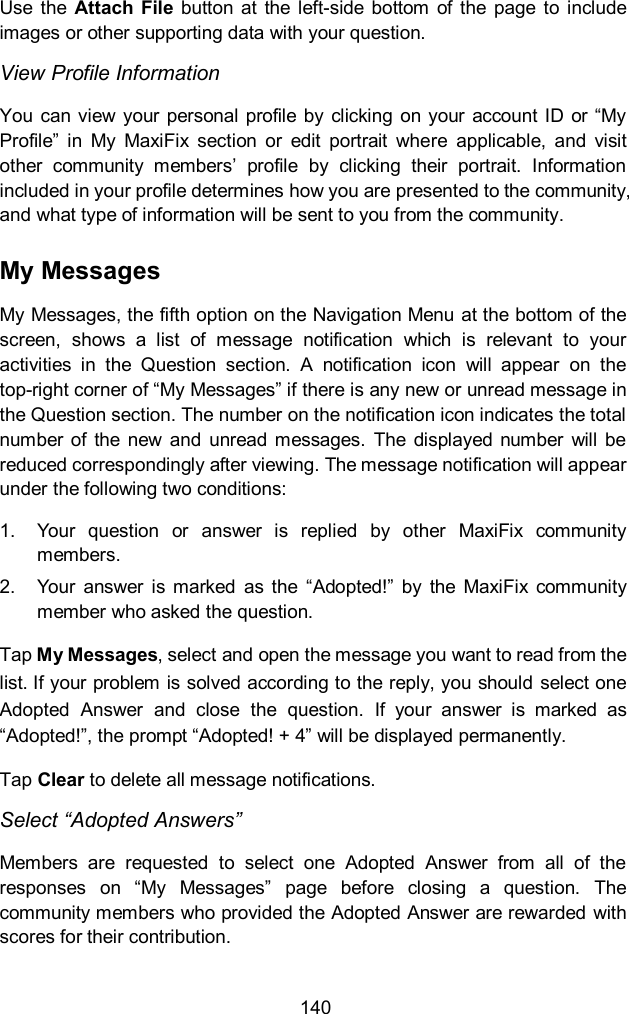

140 Use the Attach File button at the left-side bottom of the page to include images or other supporting data with your question. View Profile Information You can view your personal profile by clicking on your account ID or “My Profile” in My MaxiFix section or edit portrait where applicable, and visit other community members’ profile by clicking their portrait. Information included in your profile determines how you are presented to the community, and what type of information will be sent to you from the community. My Messages My Messages, the fifth option on the Navigation Menu at the bottom of the screen, shows a list of message notification which is relevant to your activities in the Question section. A notification icon will appear on the top-right corner of “My Messages” if there is any new or unread message in the Question section. The number on the notification icon indicates the total number of the new and unread messages. The displayed number will be reduced correspondingly after viewing. The message notification will appear under the following two conditions: 1. Your question or answer is replied by other MaxiFix community members. 2. Your answer is marked as the “Adopted!” by the MaxiFix community member who asked the question. Tap My Messages, select and open the message you want to read from the list. If your problem is solved according to the reply, you should select one Adopted Answer and close the question. If your answer is marked as “Adopted!”, the prompt “Adopted! + 4” will be displayed permanently. Tap Clear to delete all message notifications. Select “Adopted Answers” Members are requested to select one Adopted Answer from all of the responses on “My Messages” page before closing a question. The community members who provided the Adopted Answer are rewarded with scores for their contribution.

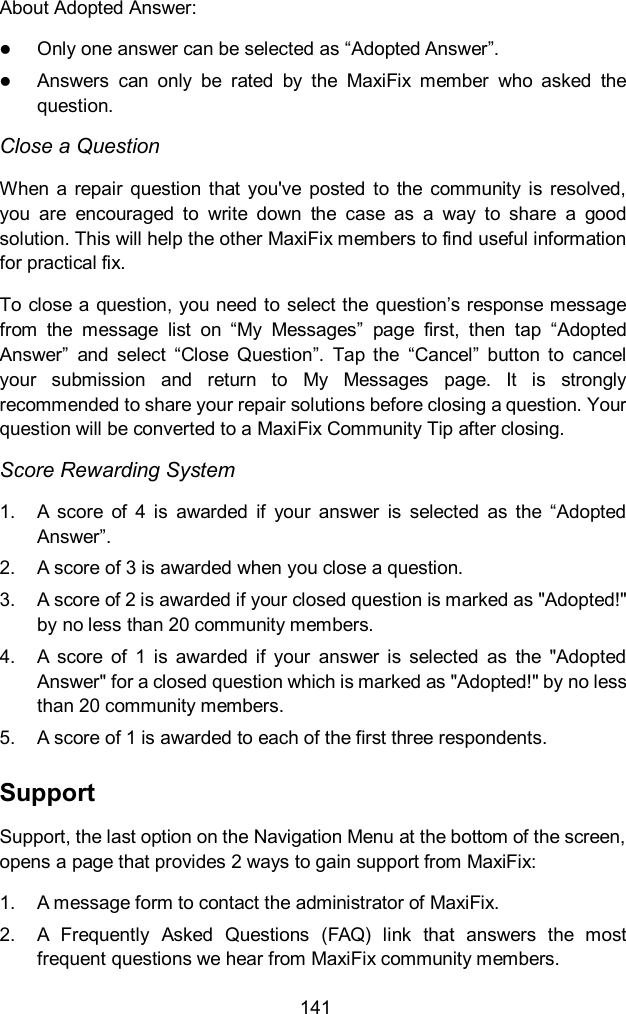

141 About Adopted Answer:  Only one answer can be selected as “Adopted Answer”.  Answers can only be rated by the MaxiFix member who asked the question. Close a Question When a repair question that you've posted to the community is resolved, you are encouraged to write down the case as a way to share a good solution. This will help the other MaxiFix members to find useful information for practical fix. To close a question, you need to select the question’s response message from the message list on “My Messages” page first, then tap “Adopted Answer” and select “Close Question”. Tap the “Cancel” button to cancel your submission and return to My Messages page. It is strongly recommended to share your repair solutions before closing a question. Your question will be converted to a MaxiFix Community Tip after closing. Score Rewarding System 1. A score of 4 is awarded if your answer is selected as the “Adopted Answer”. 2. A score of 3 is awarded when you close a question. 3. A score of 2 is awarded if your closed question is marked as "Adopted!" by no less than 20 community members. 4. A score of 1 is awarded if your answer is selected as the "Adopted Answer" for a closed question which is marked as "Adopted!" by no less than 20 community members. 5. A score of 1 is awarded to each of the first three respondents. Support Support, the last option on the Navigation Menu at the bottom of the screen, opens a page that provides 2 ways to gain support from MaxiFix: 1. A message form to contact the administrator of MaxiFix. 2. A Frequently Asked Questions (FAQ) link that answers the most frequent questions we hear from MaxiFix community members.

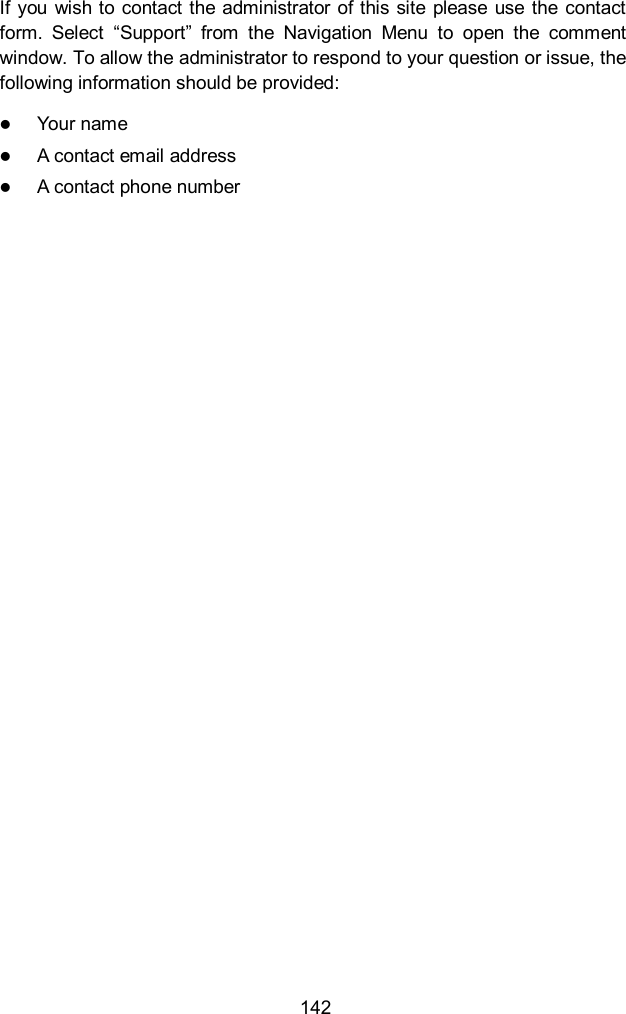

142 If you wish to contact the administrator of this site please use the contact form. Select “Support” from the Navigation Menu to open the comment window. To allow the administrator to respond to your question or issue, the following information should be provided:  Your name  A contact email address  A contact phone number

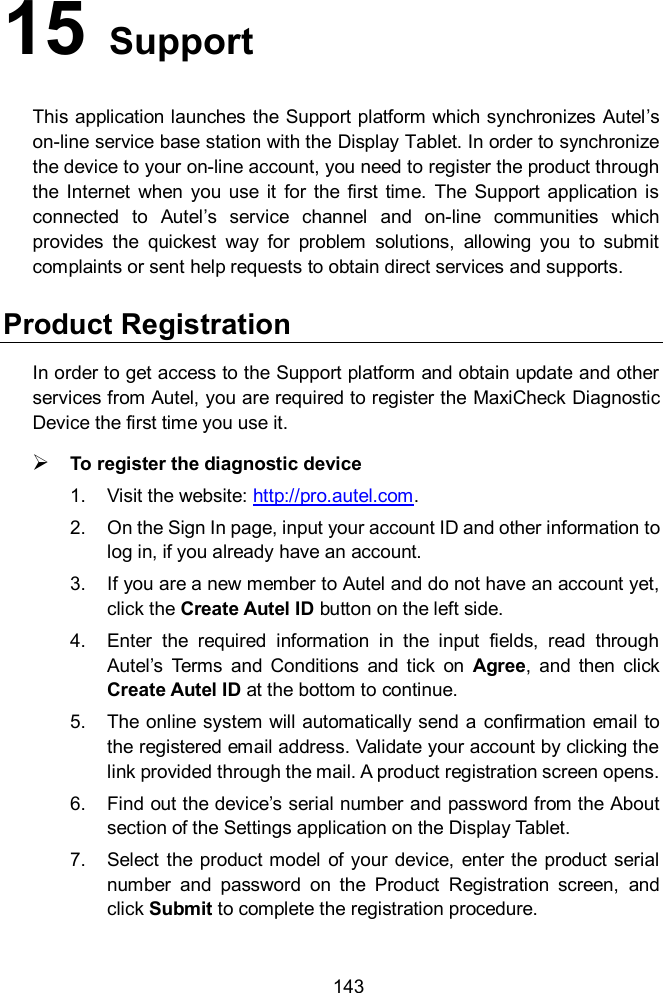

143 15 Support This application launches the Support platform which synchronizes Autel’s on-line service base station with the Display Tablet. In order to synchronize the device to your on-line account, you need to register the product through the Internet when you use it for the first time. The Support application is connected to Autel’s service channel and on-line communities which provides the quickest way for problem solutions, allowing you to submit complaints or sent help requests to obtain direct services and supports. Product Registration In order to get access to the Support platform and obtain update and other services from Autel, you are required to register the MaxiCheck Diagnostic Device the first time you use it.  To register the diagnostic device 1. Visit the website: http://pro.autel.com. 2. On the Sign In page, input your account ID and other information to log in, if you already have an account. 3. If you are a new member to Autel and do not have an account yet, click the Create Autel ID button on the left side. 4. Enter the required information in the input fields, read through Autel’s Terms and Conditions and tick on Agree, and then click Create Autel ID at the bottom to continue. 5. The online system will automatically send a confirmation email to the registered email address. Validate your account by clicking the link provided through the mail. A product registration screen opens. 6. Find out the device’s serial number and password from the About section of the Settings application on the Display Tablet. 7. Select the product model of your device, enter the product serial number and password on the Product Registration screen, and click Submit to complete the registration procedure.
144 Support Screen Layout The Support application interface is navigated by 4 simple buttons on the top navigation bar, operation of each is described below in turn from left to right:  Home Button – returns to the MaxiCheck Job Menu.  Back – returns to the previous screen, each press takes you back one step.  Forward – each press moves forward one screen until you’ve reached the last screen visited.  Refresh – reload and update the screen. The main section of the Support screen is divided into two sections. The narrow column on the left is the main menu; selecting one subject from the main menu displays the corresponding functional interface on the right. My Account The My Account screen displays the comprehensive information of the user and the product, which is synchronized with the on-line registered account, including User Info, Device Info, Update Info and Service Info. Personal Info The User Info and Device Info are both included under the Personal Info section. Figure 15-1 Sample Support Application Screen

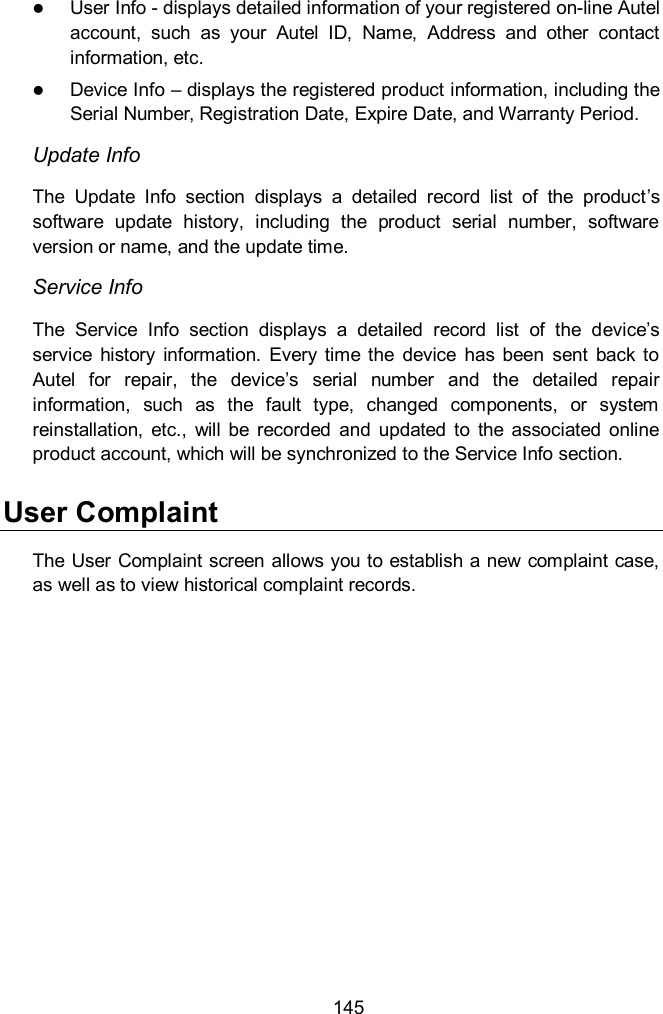

145  User Info - displays detailed information of your registered on-line Autel account, such as your Autel ID, Name, Address and other contact information, etc.  Device Info – displays the registered product information, including the Serial Number, Registration Date, Expire Date, and Warranty Period. Update Info The Update Info section displays a detailed record list of the product’s software update history, including the product serial number, software version or name, and the update time. Service Info The Service Info section displays a detailed record list of the device’s service history information. Every time the device has been sent back to Autel for repair, the device’s serial number and the detailed repair information, such as the fault type, changed components, or system reinstallation, etc., will be recorded and updated to the associated online product account, which will be synchronized to the Service Info section. User Complaint The User Complaint screen allows you to establish a new complaint case, as well as to view historical complaint records.

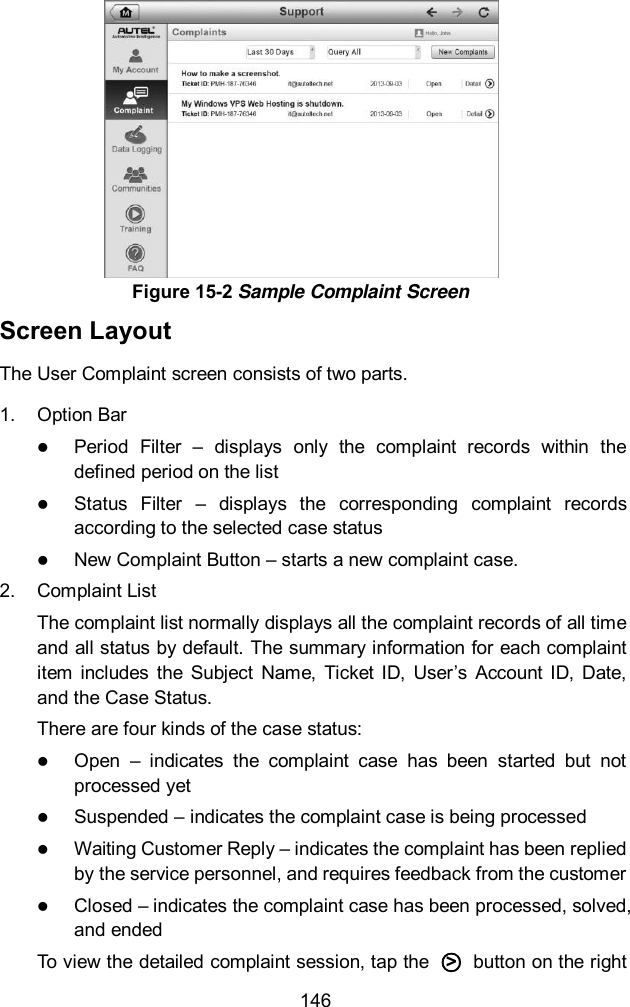

146 Screen Layout The User Complaint screen consists of two parts. 1. Option Bar  Period Filter – displays only the complaint records within the defined period on the list  Status Filter – displays the corresponding complaint records according to the selected case status  New Complaint Button – starts a new complaint case. 2. Complaint List The complaint list normally displays all the complaint records of all time and all status by default. The summary information for each complaint item includes the Subject Name, Ticket ID, User’s Account ID, Date, and the Case Status. There are four kinds of the case status:  Open – indicates the complaint case has been started but not processed yet  Suspended – indicates the complaint case is being processed  Waiting Customer Reply – indicates the complaint has been replied by the service personnel, and requires feedback from the customer  Closed – indicates the complaint case has been processed, solved, and ended To view the detailed complaint session, tap the ○> button on the right Figure 15-2 Sample Complaint Screen

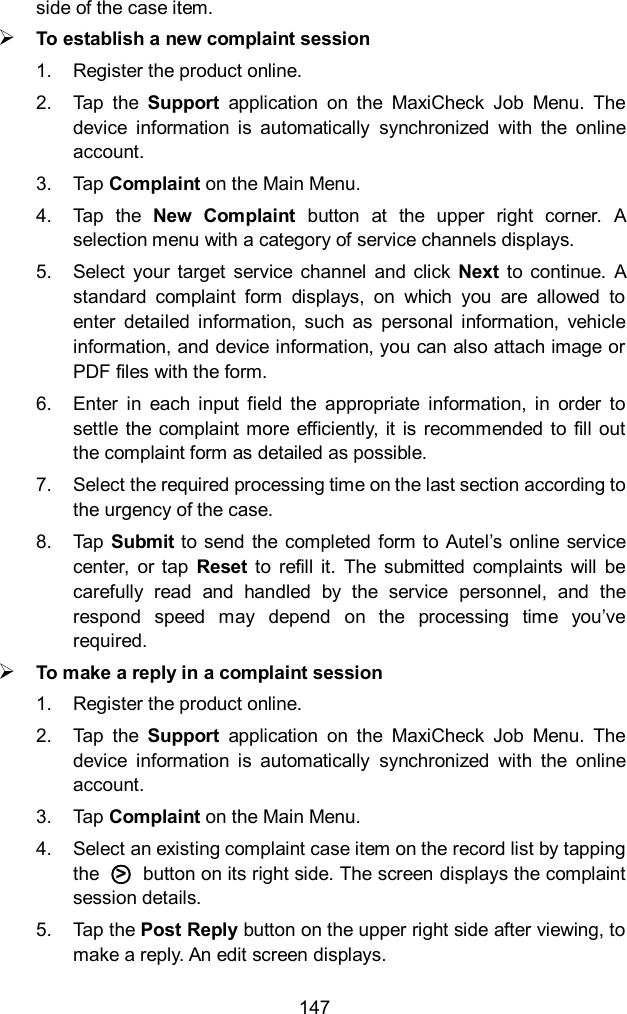

147 side of the case item.  To establish a new complaint session 1. Register the product online. 2. Tap the Support application on the MaxiCheck Job Menu. The device information is automatically synchronized with the online account. 3. Tap Complaint on the Main Menu. 4. Tap the New Complaint button at the upper right corner. A selection menu with a category of service channels displays. 5. Select your target service channel and click Next to continue. A standard complaint form displays, on which you are allowed to enter detailed information, such as personal information, vehicle information, and device information, you can also attach image or PDF files with the form. 6. Enter in each input field the appropriate information, in order to settle the complaint more efficiently, it is recommended to fill out the complaint form as detailed as possible. 7. Select the required processing time on the last section according to the urgency of the case. 8. Tap Submit to send the completed form to Autel’s online service center, or tap Reset to refill it. The submitted complaints will be carefully read and handled by the service personnel, and the respond speed may depend on the processing time you’ve required.  To make a reply in a complaint session 1. Register the product online. 2. Tap the Support application on the MaxiCheck Job Menu. The device information is automatically synchronized with the online account. 3. Tap Complaint on the Main Menu. 4. Select an existing complaint case item on the record list by tapping the ○> button on its right side. The screen displays the complaint session details. 5. Tap the Post Reply button on the upper right side after viewing, to make a reply. An edit screen displays.
148 6. Input the content in the input field, and if necessary, upload an attaching file. 7. Tap Submit to post the reply. 8. Tap the States selection drop-down menu to reset a case state. 9. Tap the Update button to commit the newest update. Data Logging The Data Logging section keeps records of all sent or unsent (saved) data loggings on the diagnostic system. The support personnel receive and process the submitted reports through the Support platform, and send back problem solutions within 48 hours to the corresponding Data Logging session, on which you are also allowed to have a direct conversation with the support personnel.  To make a reply in a Data Logging session 1. Tap on the Sent tag to view a list of submitted data loggings. 2. Select a specific item to view the latest update of the processing progress. 3. Tap on the input field at the bottom of the screen, and enter the texts. Or tap the Audio button to record a voice message, or camera button to take a picture. 4. Tap Send to deliver your message to the technical center. Figure 15-3 Sample Data Logging Screen

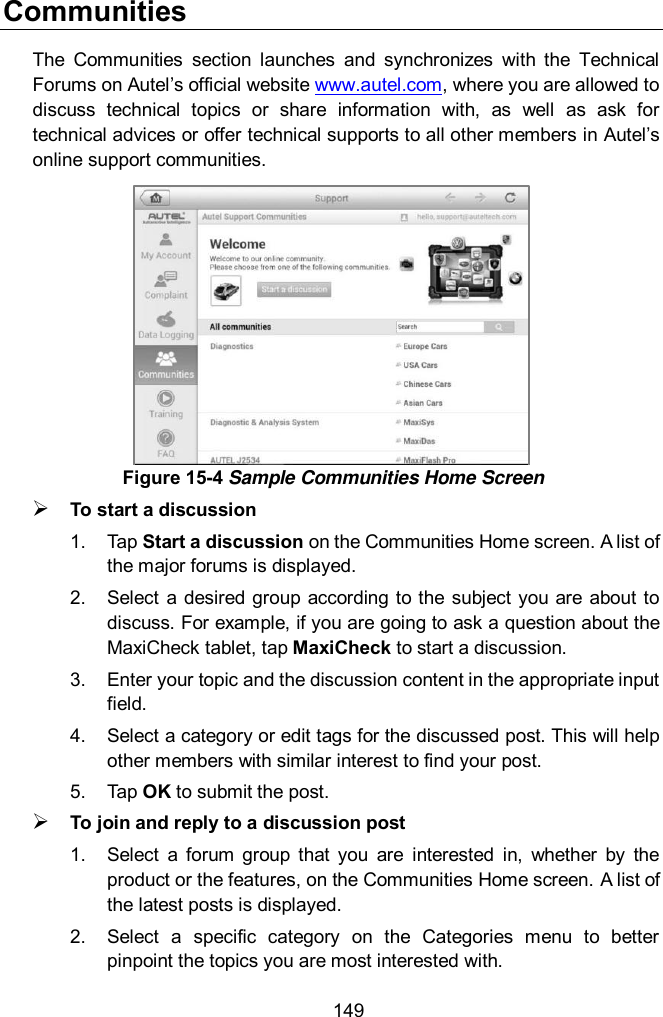

149 Communities The Communities section launches and synchronizes with the Technical Forums on Autel’s official website www.autel.com, where you are allowed to discuss technical topics or share information with, as well as ask for technical advices or offer technical supports to all other members in Autel’s online support communities.  To start a discussion 1. Tap Start a discussion on the Communities Home screen. A list of the major forums is displayed. 2. Select a desired group according to the subject you are about to discuss. For example, if you are going to ask a question about the MaxiCheck tablet, tap MaxiCheck to start a discussion. 3. Enter your topic and the discussion content in the appropriate input field. 4. Select a category or edit tags for the discussed post. This will help other members with similar interest to find your post. 5. Tap OK to submit the post.  To join and reply to a discussion post 1. Select a forum group that you are interested in, whether by the product or the features, on the Communities Home screen. A list of the latest posts is displayed. 2. Select a specific category on the Categories menu to better pinpoint the topics you are most interested with. Figure 15-4 Sample Communities Home Screen

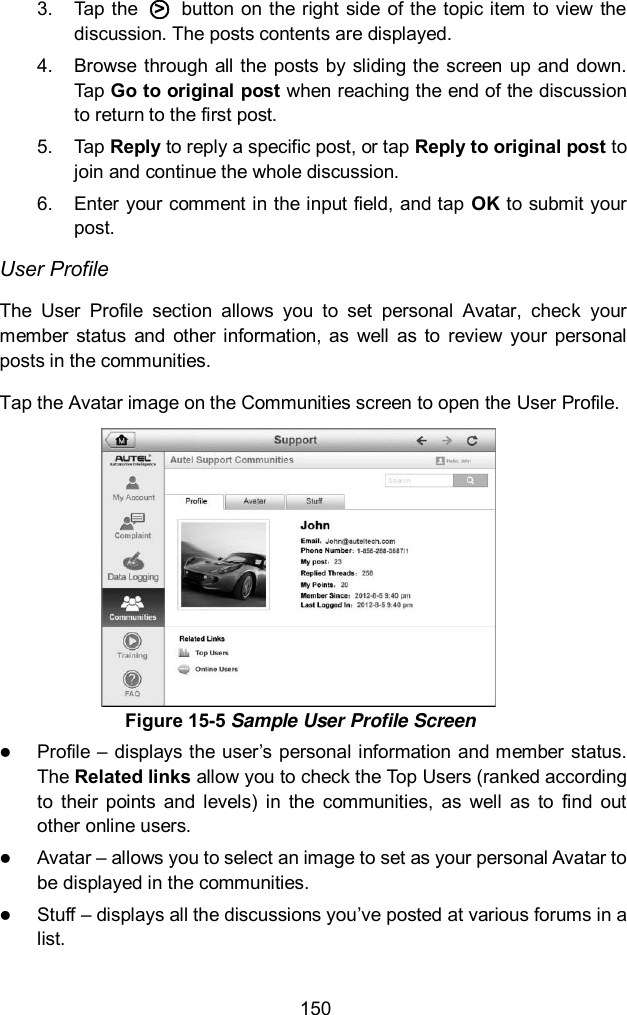

150 3. Tap the ○> button on the right side of the topic item to view the discussion. The posts contents are displayed. 4. Browse through all the posts by sliding the screen up and down. Tap Go to original post when reaching the end of the discussion to return to the first post. 5. Tap Reply to reply a specific post, or tap Reply to original post to join and continue the whole discussion. 6. Enter your comment in the input field, and tap OK to submit your post. User Profile The User Profile section allows you to set personal Avatar, check your member status and other information, as well as to review your personal posts in the communities. Tap the Avatar image on the Communities screen to open the User Profile.  Profile – displays the user’s personal information and member status. The Related links allow you to check the Top Users (ranked according to their points and levels) in the communities, as well as to find out other online users.  Avatar – allows you to select an image to set as your personal Avatar to be displayed in the communities.  Stuff – displays all the discussions you’ve posted at various forums in a list. Figure 15-5 Sample User Profile Screen

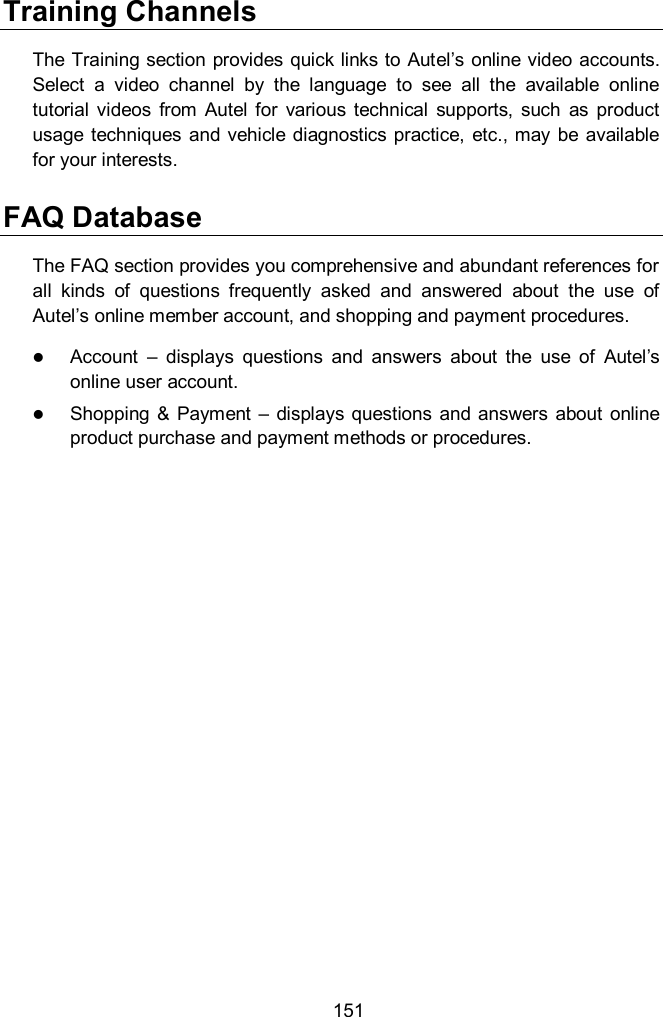

151 Training Channels The Training section provides quick links to Autel’s online video accounts. Select a video channel by the language to see all the available online tutorial videos from Autel for various technical supports, such as product usage techniques and vehicle diagnostics practice, etc., may be available for your interests. FAQ Database The FAQ section provides you comprehensive and abundant references for all kinds of questions frequently asked and answered about the use of Autel’s online member account, and shopping and payment procedures.  Account – displays questions and answers about the use of Autel’s online user account.  Shopping & Payment – displays questions and answers about online product purchase and payment methods or procedures.

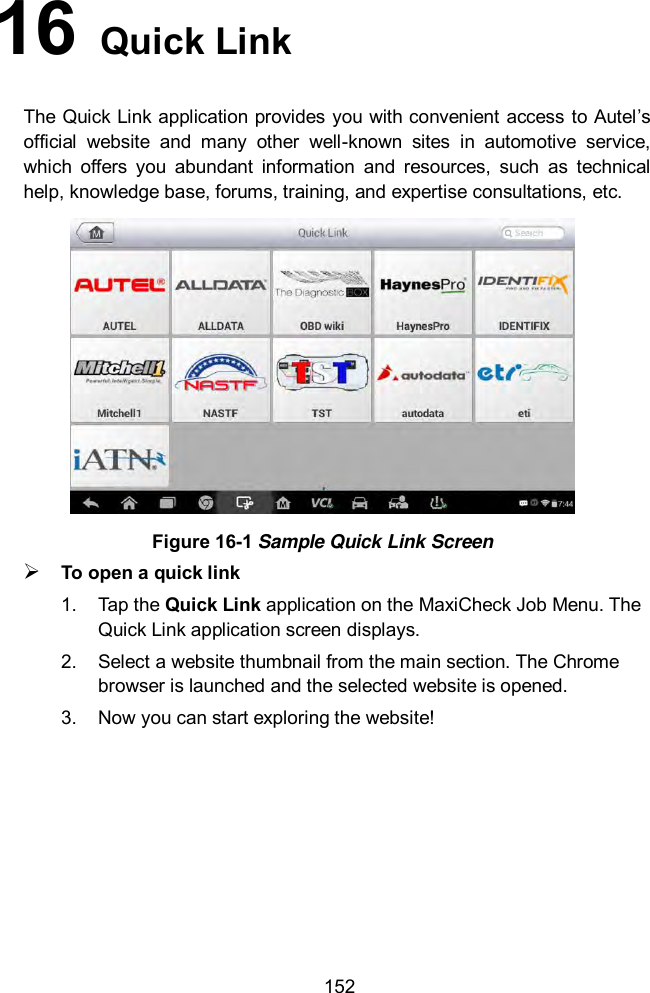

152 16 Quick Link The Quick Link application provides you with convenient access to Autel’s official website and many other well-known sites in automotive service, which offers you abundant information and resources, such as technical help, knowledge base, forums, training, and expertise consultations, etc. Figure 16-1 Sample Quick Link Screen  To open a quick link 1. Tap the Quick Link application on the MaxiCheck Job Menu. The Quick Link application screen displays. 2. Select a website thumbnail from the main section. The Chrome browser is launched and the selected website is opened. 3. Now you can start exploring the website!

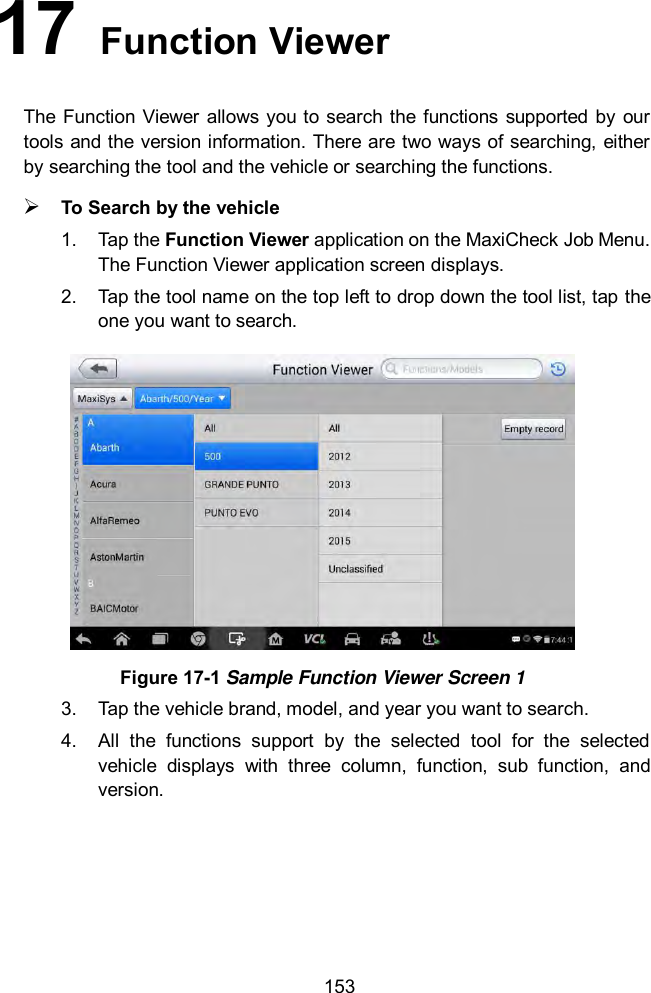

153 17 Function Viewer The Function Viewer allows you to search the functions supported by our tools and the version information. There are two ways of searching, either by searching the tool and the vehicle or searching the functions.  To Search by the vehicle 1. Tap the Function Viewer application on the MaxiCheck Job Menu. The Function Viewer application screen displays. 2. Tap the tool name on the top left to drop down the tool list, tap the one you want to search. Figure 17-1 Sample Function Viewer Screen 1 3. Tap the vehicle brand, model, and year you want to search. 4. All the functions support by the selected tool for the selected vehicle displays with three column, function, sub function, and version.

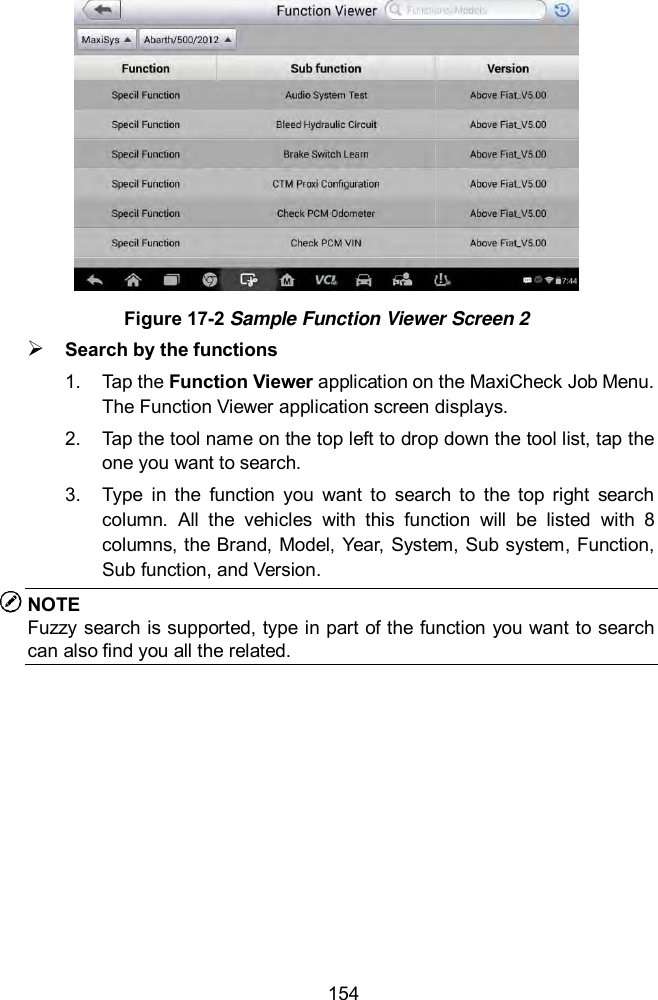

154 Figure 17-2 Sample Function Viewer Screen 2  Search by the functions 1. Tap the Function Viewer application on the MaxiCheck Job Menu. The Function Viewer application screen displays. 2. Tap the tool name on the top left to drop down the tool list, tap the one you want to search. 3. Type in the function you want to search to the top right search column. All the vehicles with this function will be listed with 8 columns, the Brand, Model, Year, System, Sub system, Function, Sub function, and Version. NOTE Fuzzy search is supported, type in part of the function you want to search can also find you all the related.

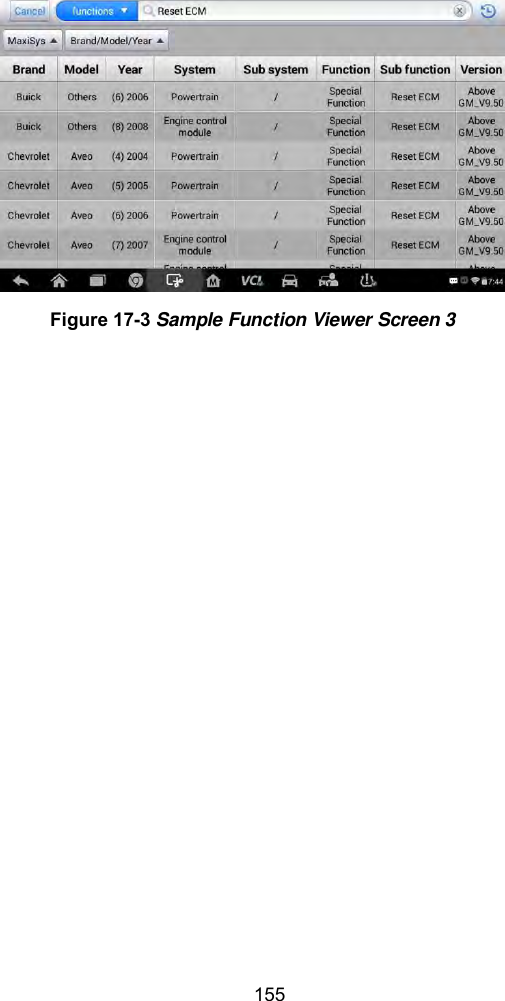

155 Figure 17-3 Sample Function Viewer Screen 3
156 18 Maintenance and Service Maintenance Instructions The following shows how to maintain your devices, together with precautions to take.  Use a soft cloth and alcohol or a mild window cleaner to clean the touch screen of the tablet.  Do not use any abrasive cleansers, detergent, or automotive chemicals to the tablet.  Maintain the devices in dry conditions and keep them within normal operating temperatures.  Dry your hands before using the tablet. The touch screen of the tablet may not work if the touch screen is moist, or if you tap the touch screen with wet hands.  Do not store the devices in humid, dusty or dirty areas.  Check the housing, wiring, and connectors for dirt and damage before and after each use.  At the end of each work day, wipe the device housing, wiring, and connectors clean with a damp cloth.  Do not attempt to disassemble your tablet or the MaxiVCI Mini.  Do not drop or cause severe impact to the devices.  Use only authorized battery chargers and accessories. Any malfunction or damage caused by the use of unauthorized battery charger and accessories will void the limited product warranty.  Ensure that the battery charger does not come in contact with conductive objects.  Do not use the tablet beside microwave ovens, cordless phones and some medical or scientific instruments to prevent signal interference.

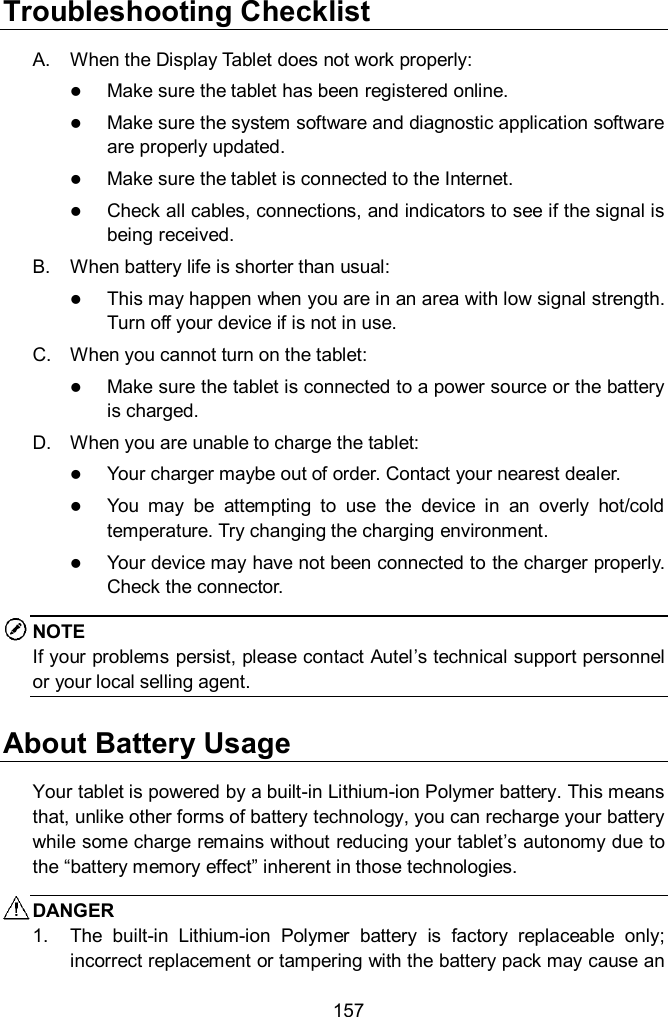

157 Troubleshooting Checklist A. When the Display Tablet does not work properly:  Make sure the tablet has been registered online.  Make sure the system software and diagnostic application software are properly updated.  Make sure the tablet is connected to the Internet.  Check all cables, connections, and indicators to see if the signal is being received. B. When battery life is shorter than usual:  This may happen when you are in an area with low signal strength. Turn off your device if is not in use. C. When you cannot turn on the tablet:  Make sure the tablet is connected to a power source or the battery is charged. D. When you are unable to charge the tablet:  Your charger maybe out of order. Contact your nearest dealer.  You may be attempting to use the device in an overly hot/cold temperature. Try changing the charging environment.  Your device may have not been connected to the charger properly. Check the connector. NOTE If your problems persist, please contact Autel’s technical support personnel or your local selling agent. About Battery Usage Your tablet is powered by a built-in Lithium-ion Polymer battery. This means that, unlike other forms of battery technology, you can recharge your battery while some charge remains without reducing your tablet’s autonomy due to the “battery memory effect” inherent in those technologies. DANGER 1. The built-in Lithium-ion Polymer battery is factory replaceable only; incorrect replacement or tampering with the battery pack may cause an
158 explosion. 2. Do not use a damaged battery charger.  Do not disassemble or open crush, bend or deform, puncture or shred.  Do not modify or remanufacture, attempt to insert foreign objects into the battery, expose to fire, explosion or other hazard.  Make sure to use the charger and USB cables only that come together in the package. If you use the other charger and USB cables, you might incur malfunction or failure of the device.  Only use the charging device that has been qualified with device per the standard. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard.  Avoid dropping the tablet. If the tablet is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection.  The closer you are to your network’s base station, the longer your tablet usage time because less battery power is consumed for the connection.  The battery recharging time varies depending on the remaining battery capacity.  Battery life inevitably shortens over time.  Since over charging may shorten battery life, remove the tablet from its charger once it is fully charged. Unplug the charger, once charging is complete.  Leaving the tablet in hot or cold places, especially inside a car in summer or winter, may reduce the capacity and life of the battery. Always keep the battery within normal temperatures. Service Procedures This section introduces information for technical support, repair service, and application for replacement or optional parts. Technical Support If you have any question or problem on the operation of the product, please contact us (see the following contact info) or your local distributor.
159 AUTEL CHINA HQ  Phone: 0086-755-8614 7779  Website: www.autel.com  Email: support@autel.com  Address: 6th-10th floor, Building B1, Zhiyuan, Xueyuan Road, Xili, Nanshan, Shenzhen, 518055, China AUTEL NORTH AMERICA  Phone: 855-AUTEL-US (855-288-3587) Monday-Friday 9am-6pm EST  Website: www.autel.com  Email: ussupport@autel.com  Address: Suite 200, 175 Central Avenue, Farmingdale, New York, USA. 11735 AUTEL EUROPE  Phone: 0049 (0) 61032000522  Website: www.autel.eu  Email: sales.eu@autel.com/support.eu@autel.com  Address: Robert-Bosch-Strasse 25, 63225, Langen, Germany AUTEL SOUTH AMERICA  Phone: (+507) 308-7566  Website: www.autel.com/es  Email: sales.latin@autel.com/latsupport@autel.com  Address: Office 103, Building 3845, International Business Park, Veracruz, Panamá Pacífico, Panamá AUTEL AUSTRALIA  Phone: 03 9480 2978 / +61 476293327  Website: www.autel.com.au  Email: sales@autel.com.au  Address: 155 Islington Street, Melbourne, Collingwood, VIC

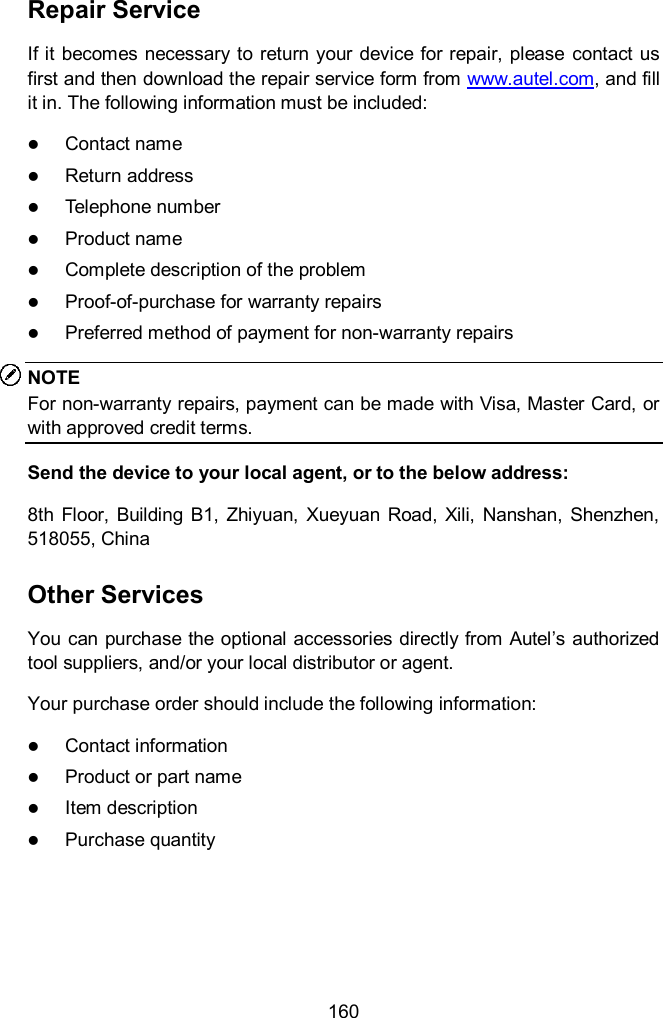

160 Repair Service If it becomes necessary to return your device for repair, please contact us first and then download the repair service form from www.autel.com, and fill it in. The following information must be included:  Contact name  Return address  Telephone number  Product name  Complete description of the problem  Proof-of-purchase for warranty repairs  Preferred method of payment for non-warranty repairs NOTE For non-warranty repairs, payment can be made with Visa, Master Card, or with approved credit terms. Send the device to your local agent, or to the below address: 8th Floor, Building B1, Zhiyuan, Xueyuan Road, Xili, Nanshan, Shenzhen, 518055, China Other Services You can purchase the optional accessories directly from Autel’s authorized tool suppliers, and/or your local distributor or agent. Your purchase order should include the following information:  Contact information  Product or part name  Item description  Purchase quantity
161 19 Compliance Information FCC Compliance FCC ID: WQ8MX808-TPMS This device complies with Part 15 of the FCC rules and Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme aux CNR exempts de licence d’Industrie Canada. Son fonctionnement est soumis aux deux conditions suivantes: 1. Ce dispositif ne peut causer des interferences; et 2. Ce dispositif doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement de l’appareil. WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

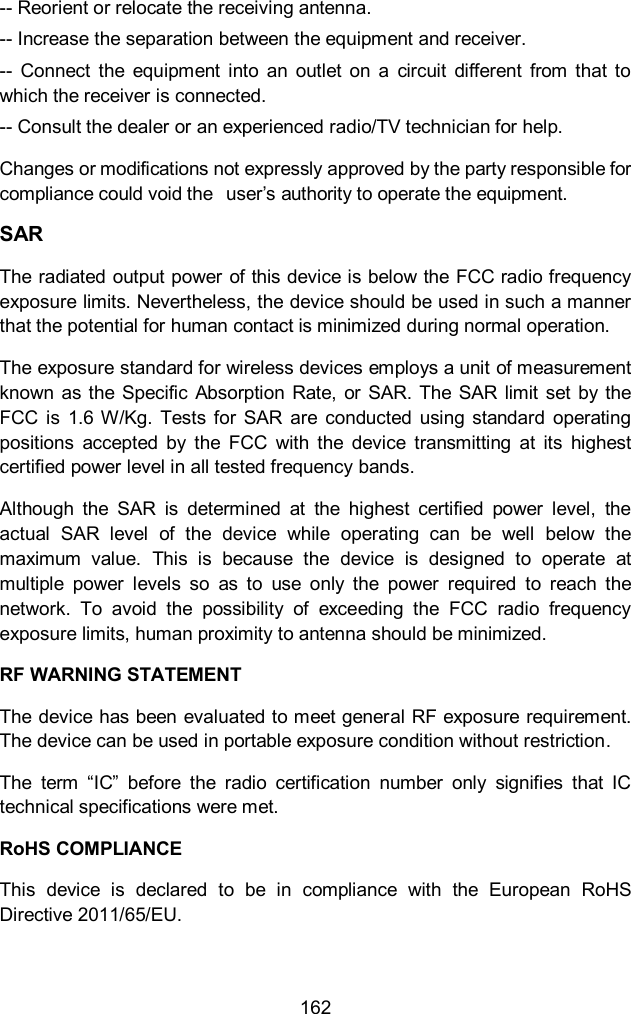

162 -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. SAR The radiated output power of this device is below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such a manner that the potential for human contact is minimized during normal operation. The exposure standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/Kg. Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the power required to reach the network. To avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to antenna should be minimized. RF WARNING STATEMENT The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. The term “IC” before the radio certification number only signifies that IC technical specifications were met. RoHS COMPLIANCE This device is declared to be in compliance with the European RoHS Directive 2011/65/EU.

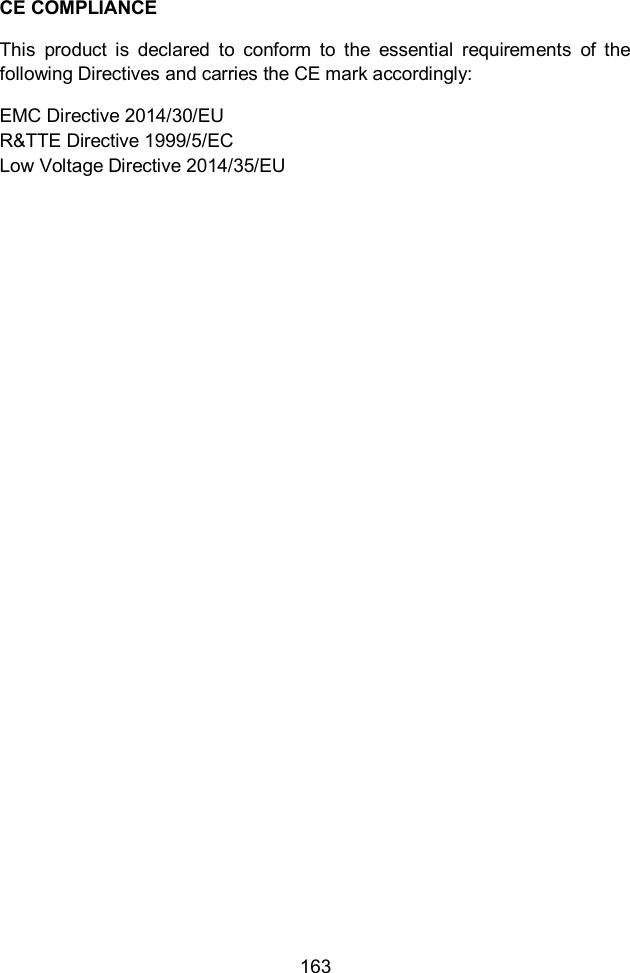

163 CE COMPLIANCE This product is declared to conform to the essential requirements of the following Directives and carries the CE mark accordingly: EMC Directive 2014/30/EU R&TTE Directive 1999/5/EC Low Voltage Directive 2014/35/EU

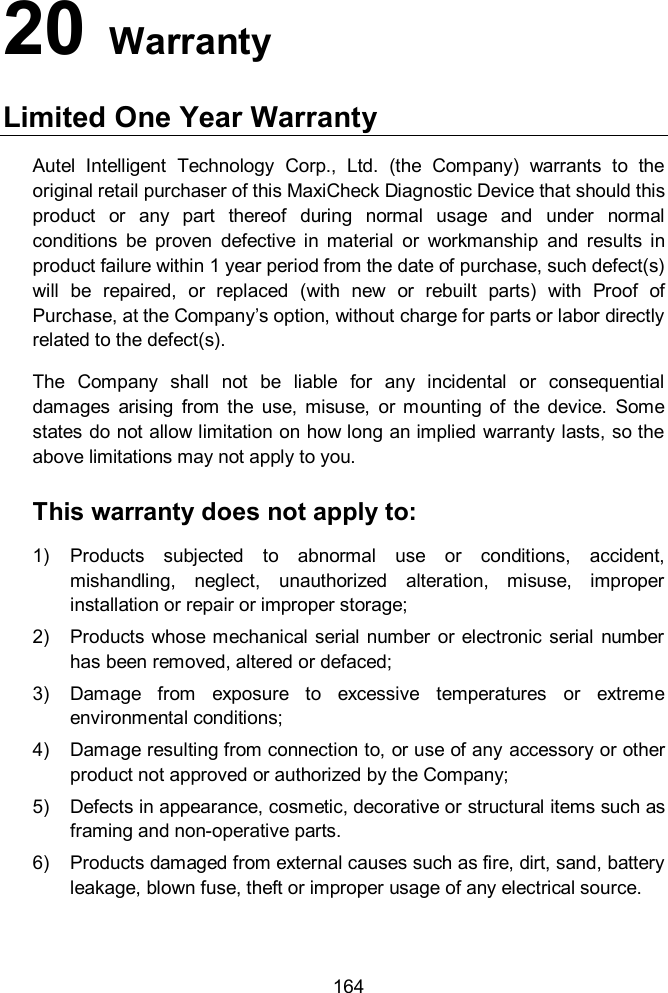

164 20 Warranty Limited One Year Warranty Autel Intelligent Technology Corp., Ltd. (the Company) warrants to the original retail purchaser of this MaxiCheck Diagnostic Device that should this product or any part thereof during normal usage and under normal conditions be proven defective in material or workmanship and results in product failure within 1 year period from the date of purchase, such defect(s) will be repaired, or replaced (with new or rebuilt parts) with Proof of Purchase, at the Company’s option, without charge for parts or labor directly related to the defect(s). The Company shall not be liable for any incidental or consequential damages arising from the use, misuse, or mounting of the device. Some states do not allow limitation on how long an implied warranty lasts, so the above limitations may not apply to you. This warranty does not apply to: 1) Products subjected to abnormal use or conditions, accident, mishandling, neglect, unauthorized alteration, misuse, improper installation or repair or improper storage; 2) Products whose mechanical serial number or electronic serial number has been removed, altered or defaced; 3) Damage from exposure to excessive temperatures or extreme environmental conditions; 4) Damage resulting from connection to, or use of any accessory or other product not approved or authorized by the Company; 5) Defects in appearance, cosmetic, decorative or structural items such as framing and non-operative parts. 6) Products damaged from external causes such as fire, dirt, sand, battery leakage, blown fuse, theft or improper usage of any electrical source.

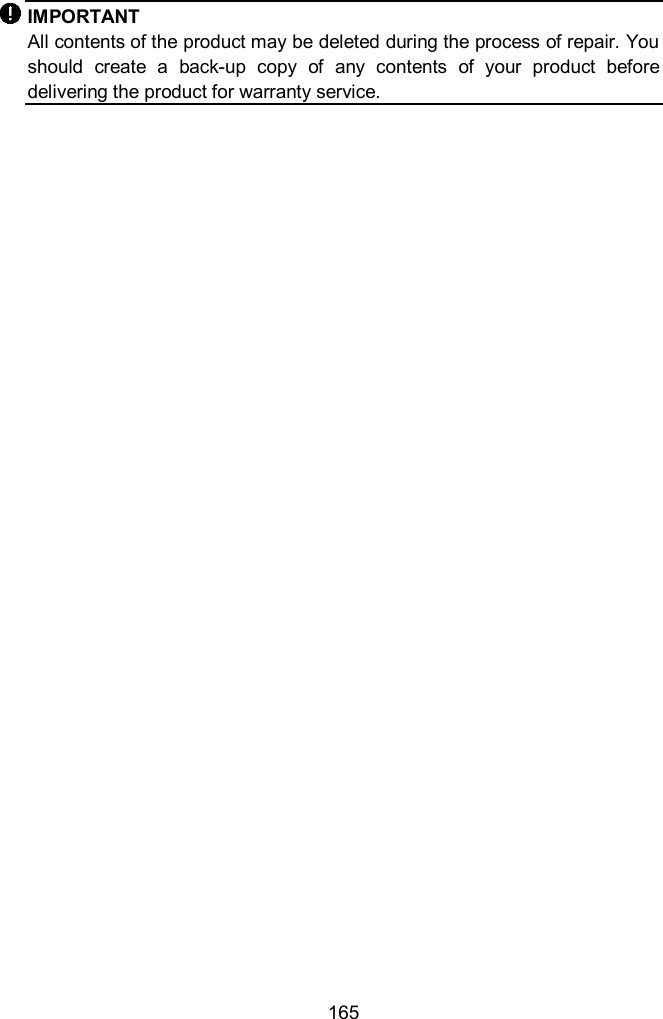

165 IMPORTANT All contents of the product may be deleted during the process of repair. You should create a back-up copy of any contents of your product before delivering the product for warranty service.

Navigation menu
