Automotive Data Solutions TR2410A REMOTE STARTER (TWO WAY) User Manual

Automotive Data Solutions Inc. REMOTE STARTER (TWO WAY)

User manual

OWNER’S MANUAL®/MDVW2 (VW2410A)INSTRUCTIONS EN FRANÇAIS AU VERSO2016/06

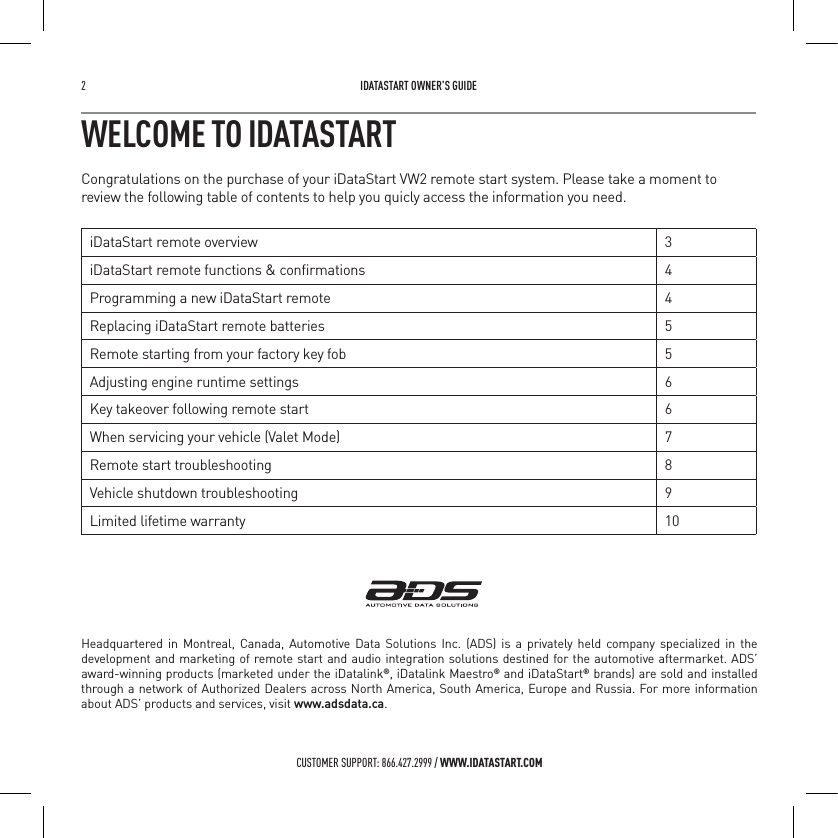

2   IDATASTART OWNER’S GUIDECUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMWELCOME TO IDATASTARTCongratulations on the purchase of your iDataStart VW2 remote start system. Please take a moment to review the following table of contents to help you quicly access the information you need.iDataStart remote overview 3iDataStart remote functions & confirmations 4Programming a new iDataStart remote 4Replacing iDataStart remote batteries 5Remote starting from your factory key fob 5Adjusting engine runtime settings 6Key takeover following remote start 6When servicing your vehicle (Valet Mode) 7Remote start troubleshooting 8Vehicle shutdown troubleshooting 9Limited lifetime warranty 10Headquartered in Montreal, Canada, Automotive Data Solutions Inc. (ADS) is a privately held company specialized in the development and marketing of remote start and audio integration solutions destined for the automotive aftermarket. ADS’ award-winning products (marketed under the iDatalink®, iDatalink Maestro® and iDataStart® brands) are sold and installed through a network of Authorized Dealers across North America, South America, Europe and Russia. For more information about ADS’ products and services, visit www.adsdata.ca.

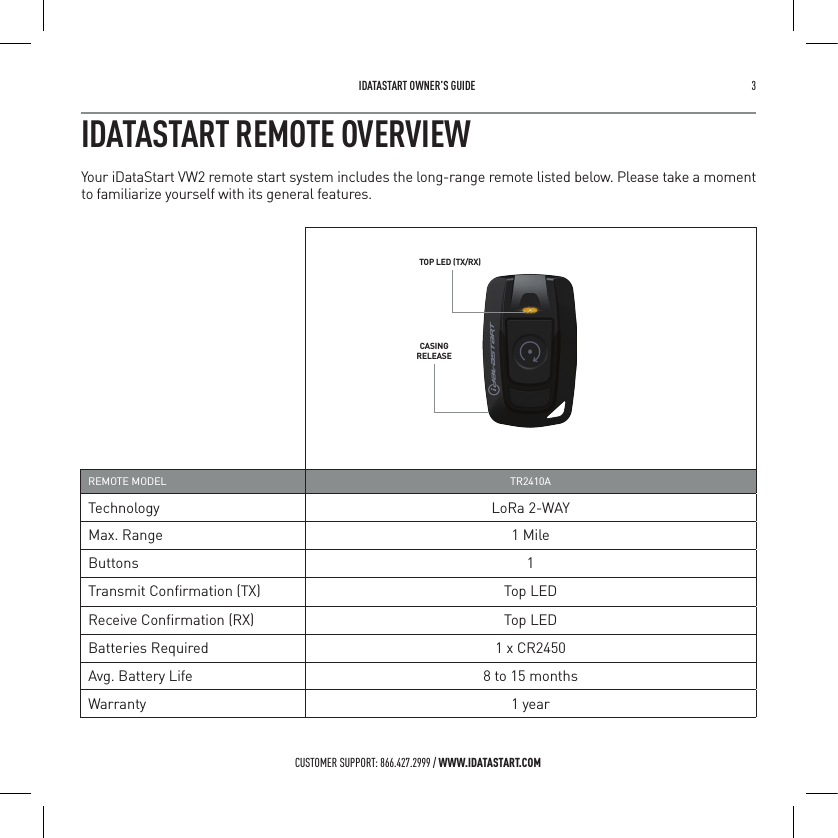

 IDATASTART OWNER’S GUIDE 3 CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMREMOTE MODEL  TR2410ATechnology LoRa 2-WAYMax. Range 1 MileButtons 1Transmit Confirmation (TX)  Top LEDReceive Confirmation (RX)  Top LEDBatteries Required 1 x CR2450Avg. Battery Life 8 to 15 monthsWarranty 1 yearIDATASTART REMOTE OVERVIEWYour iDataStart VW2 remote start system includes the long-range remote listed below. Please take a moment to familiarize yourself with its general features.TOP LED (TX/RX)CASINGRELEASE
4   IDATASTART OWNER’S GUIDECUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMIDATASTART REMOTE FUNCTIONS & CONFIRMATIONSThanks to their multiplexing technology, iDataStart remotes can start, stop, lock and unlock your vehicle using only 1 button. Please take a moment to get acquainted with the following functions below:NOTES:1.  Non-highlighted icons = Press & release button2.  Coma (,) between icons = Press buttons one after the other3.  Highlighted (grey) icons = Press & hold button for 2.5 seconds4.  Timeout between each button press = 3 seconds5.  Confirmations are only available with TR2310A (2-way) remoteBUTTONS FUNCTION CONFIRMATION 2WAY ONLY FUNCTION DESCRIPTION Lock & Arm 1 chime + 1 flash Secures your vehicle by locking the doors and arming the alarm.  ,  Unlock & Disarm 2 chimes + 2 flashes Access your vehicle by unlocking the doors and disarming the alarm. Start/Stop 4 chimes + 4 flashes Starts and stops the engine.PROGRAMMING A NEW IDATASTART REMOTEAre you replacing a lost or damaged remote or simply adding an extra remote to your iDataStart system?  Please take note of the following: 1.  A functional iDataStart system must already be installed in your vehicle.2.  All new remotes must be installed by an iDataStart Authorized Dealer.3.  A maximum of 4 remotes can be programmed to your iDataStart system.

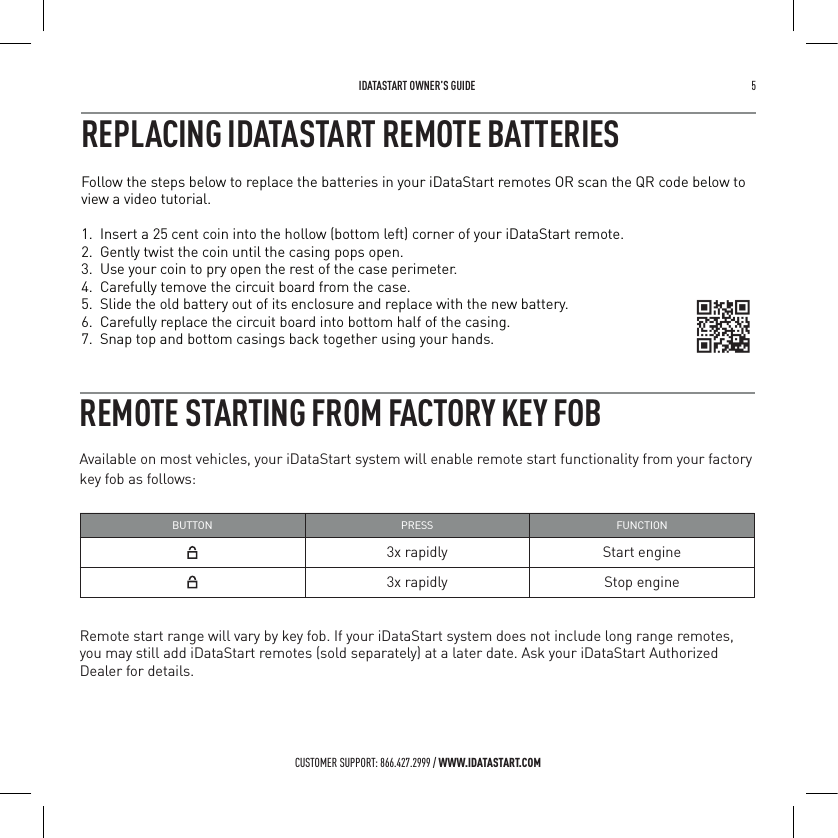

 IDATASTART OWNER’S GUIDE 5 CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMREMOTE STARTING FROM FACTORY KEY FOBAvailable on most vehicles, your iDataStart system will enable remote start functionality from your factory key fob as follows:BUTTON PRESS FUNCTION3x rapidly Start engine3x rapidly Stop engineRemote start range will vary by key fob. If your iDataStart system does not include long range remotes, you may still add iDataStart remotes (sold separately) at a later date. Ask your iDataStart Authorized Dealer for details.Follow the steps below to replace the batteries in your iDataStart remotes OR scan the QR code below to view a video tutorial. 1.  Insert a 25 cent coin into the hollow (bottom left) corner of your iDataStart remote.2.  Gently twist the coin until the casing pops open.3.  Use your coin to pry open the rest of the case perimeter.4.  Carefully temove the circuit board from the case.5.  Slide the old battery out of its enclosure and replace with the new battery.6.  Carefully replace the circuit board into bottom half of the casing. 7.  Snap top and bottom casings back together using your hands.REPLACING IDATASTART REMOTE BATTERIES

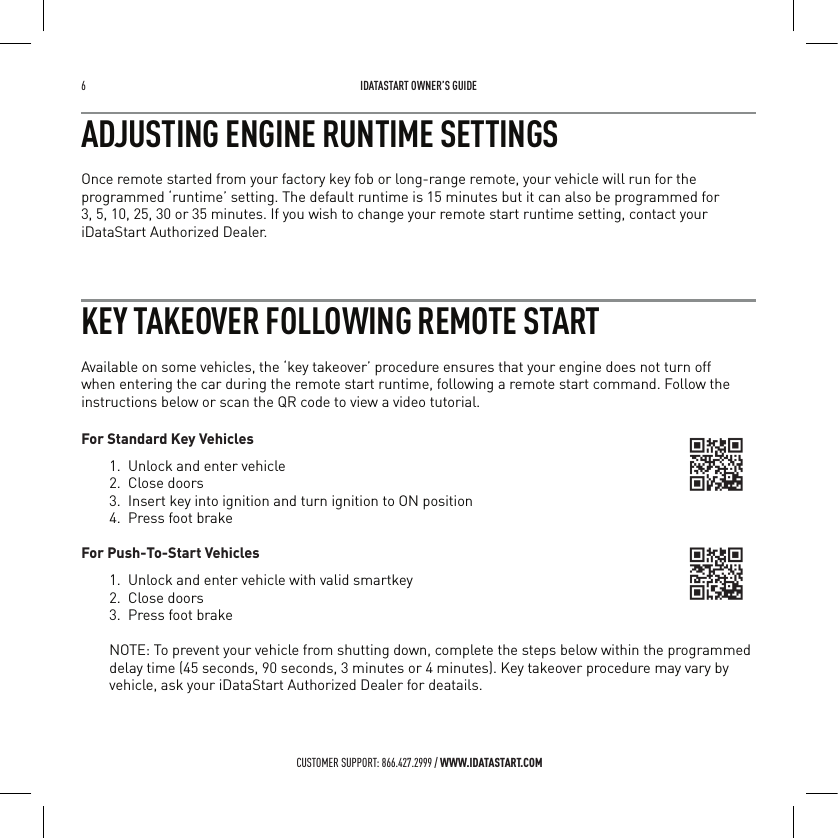

6   IDATASTART OWNER’S GUIDECUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMADJUSTING ENGINE RUNTIME SETTINGSOnce remote started from your factory key fob or long-range remote, your vehicle will run for the programmed ‘runtime’ setting. The default runtime is 15 minutes but it can also be programmed for  3, 5, 10, 25, 30 or 35 minutes. If you wish to change your remote start runtime setting, contact your iDataStart Authorized Dealer.KEY TAKEOVER FOLLOWING REMOTE STARTAvailable on some vehicles, the ‘key takeover’ procedure ensures that your engine does not turn off when entering the car during the remote start runtime, following a remote start command. Follow the instructions below or scan the QR code to view a video tutorial.For Standard Key Vehicles1.  Unlock and enter vehicle2.  Close doors3.  Insert key into ignition and turn ignition to ON position4.  Press foot brake For Push-To-Start Vehicles1.  Unlock and enter vehicle with valid smartkey2.  Close doors3.  Press foot brakeNOTE: To prevent your vehicle from shutting down, complete the steps below within the programmed delay time (45 seconds, 90 seconds, 3 minutes or 4 minutes). Key takeover procedure may vary by vehicle, ask your iDataStart Authorized Dealer for deatails.

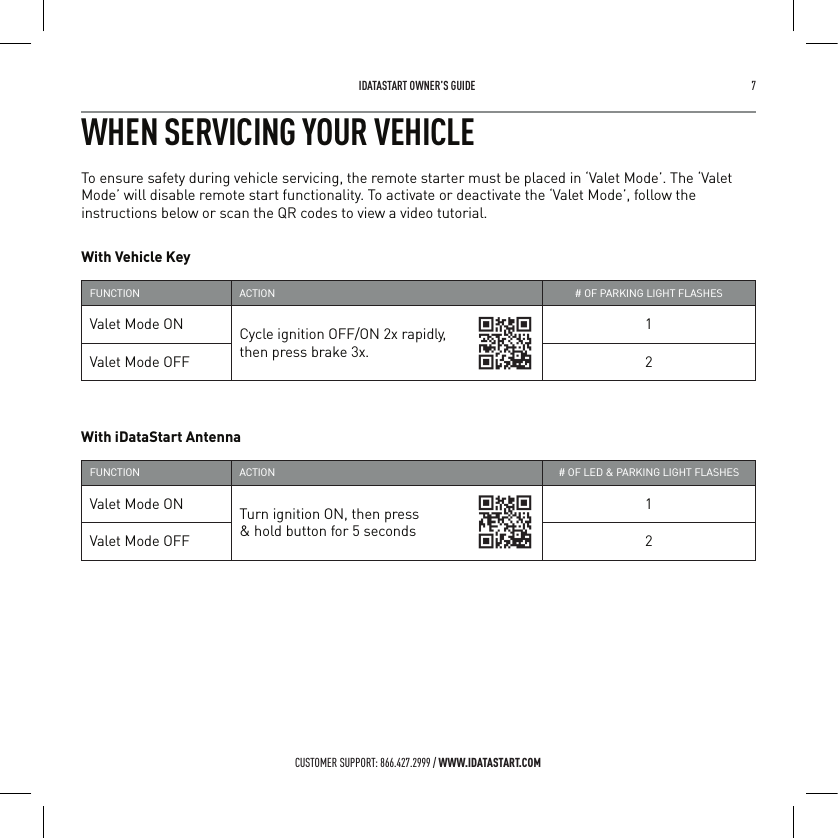

 IDATASTART OWNER’S GUIDE 7 CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMWHEN SERVICING YOUR VEHICLETo ensure safety during vehicle servicing, the remote starter must be placed in ‘Valet Mode’. The ‘Valet Mode’ will disable remote start functionality. To activate or deactivate the ‘Valet Mode’, follow the instructions below or scan the QR codes to view a video tutorial.With Vehicle Key FUNCTION ACTION # OF PARKING LIGHT FLASHESValet Mode ON Cycle ignition OFF/ON 2x rapidly,  then press brake 3x.1Valet Mode OFF 2With iDataStart Antenna FUNCTION ACTION # OF LED & PARKING LIGHT FLASHESValet Mode ON Turn ignition ON, then press  & hold button for 5 seconds1Valet Mode OFF 2

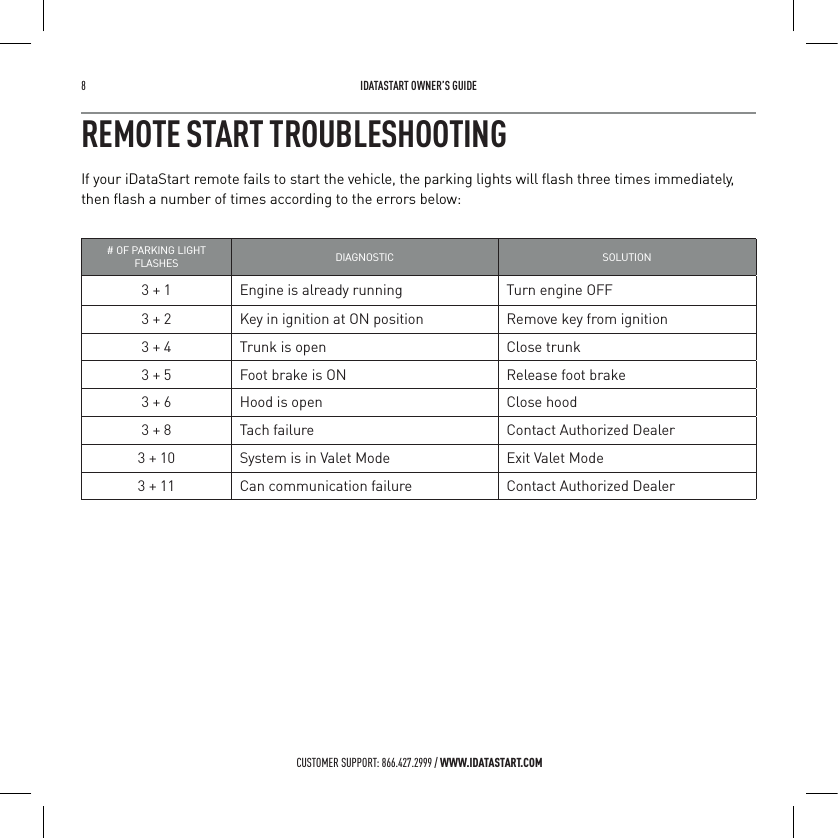

8   IDATASTART OWNER’S GUIDECUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMREMOTE START TROUBLESHOOTINGIf your iDataStart remote fails to start the vehicle, the parking lights will flash three times immediately, then flash a number of times according to the errors below:# OF PARKING LIGHT FLASHES DIAGNOSTIC SOLUTION3 + 1 Engine is already running Turn engine OFF3 + 2 Key in ignition at ON position Remove key from ignition3 + 4 Trunk is open Close trunk3 + 5 Foot brake is ON Release foot brake3 + 6 Hood is open Close hood3 + 8 Tach failure Contact Authorized Dealer3 + 10 System is in Valet Mode Exit Valet Mode3 + 11 Can communication failure Contact Authorized Dealer

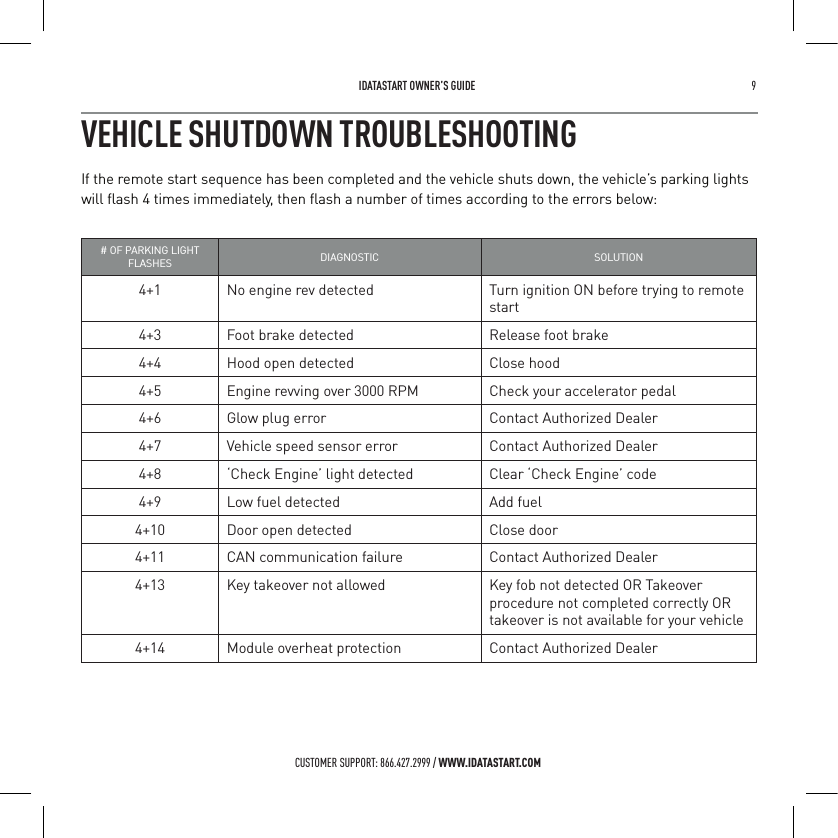

 IDATASTART OWNER’S GUIDE 9 CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMVEHICLE SHUTDOWN TROUBLESHOOTINGIf the remote start sequence has been completed and the vehicle shuts down, the vehicle’s parking lights  will flash 4 times immediately, then flash a number of times according to the errors below:# OF PARKING LIGHT FLASHES DIAGNOSTIC SOLUTION4+1 No engine rev detected Turn ignition ON before trying to remote start4+3 Foot brake detected Release foot brake4+4 Hood open detected Close hood4+5 Engine revving over 3000 RPM Check your accelerator pedal4+6 Glow plug error Contact Authorized Dealer4+7 Vehicle speed sensor error Contact Authorized Dealer4+8 ‘Check Engine’ light detected Clear ‘Check Engine’ code4+9 Low fuel detected Add fuel4+10 Door open detected Close door4+11 CAN communication failure Contact Authorized Dealer4+13 Key takeover not allowed  Key fob not detected OR Takeover procedure not completed correctly OR takeover is not available for your vehicle4+14 Module overheat protection  Contact Authorized Dealer

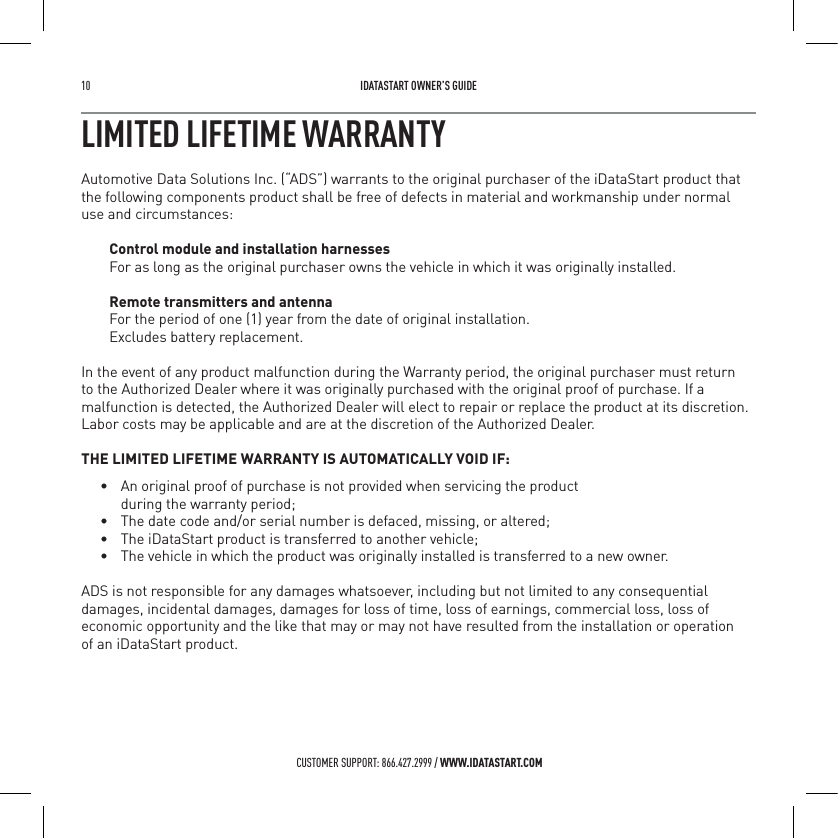

10   IDATASTART OWNER’S GUIDECUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMLIMITED LIFETIME WARRANTYAutomotive Data Solutions Inc. (“ADS”) warrants to the original purchaser of the iDataStart product that the following components product shall be free of defects in material and workmanship under normal use and circumstances:Control module and installation harnessesFor as long as the original purchaser owns the vehicle in which it was originally installed.Remote transmitters and antennaFor the period of one (1) year from the date of original installation.  Excludes battery replacement. In the event of any product malfunction during the Warranty period, the original purchaser must return to the Authorized Dealer where it was originally purchased with the original proof of purchase. If a malfunction is detected, the Authorized Dealer will elect to repair or replace the product at its discretion. Labor costs may be applicable and are at the discretion of the Authorized Dealer. THE LIMITED LIFETIME WARRANTY IS AUTOMATICALLY VOID IF:•  An original proof of purchase is not provided when servicing the product    during the warranty period;•  The date code and/or serial number is defaced, missing, or altered;•  The iDataStart product is transferred to another vehicle;•  The vehicle in which the product was originally installed is transferred to a new owner.ADS is not responsible for any damages whatsoever, including but not limited to any consequential damages, incidental damages, damages for loss of time, loss of earnings, commercial loss, loss of economic opportunity and the like that may or may not have resulted from the installation or operation  of an iDataStart product.

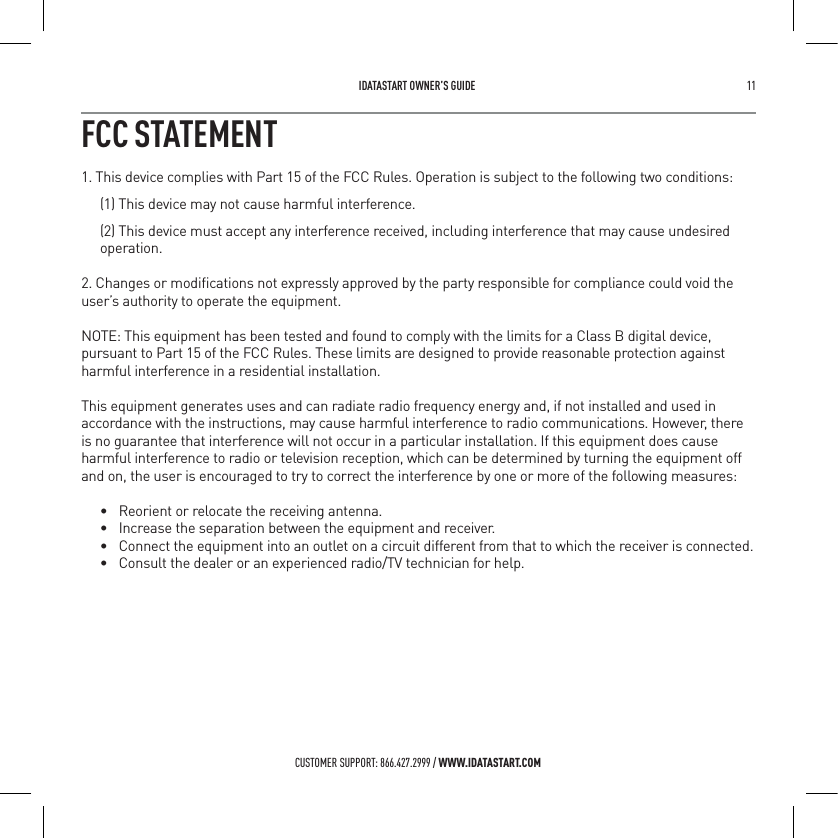

 IDATASTART OWNER’S GUIDE 11 CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMFCC STATEMENT1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference.(2) This device must accept any interference received, including interference that may cause undesired operation.2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.

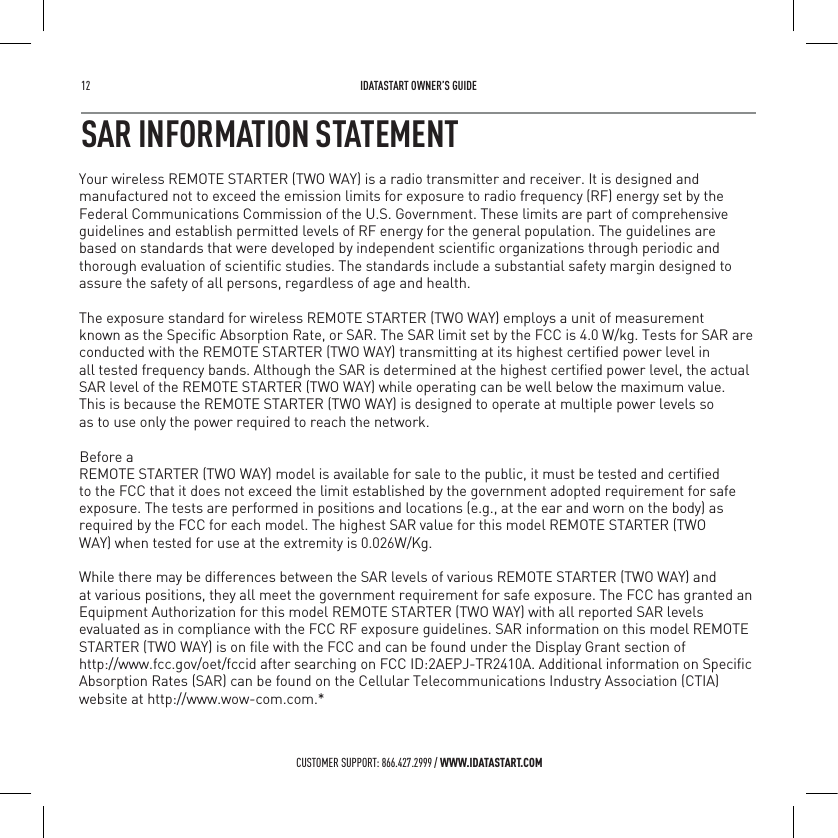

12   IDATASTART OWNER’S GUIDECUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMSAR INFORMATION STATEMENT   Your wireless REMOTE STARTER (TWO WAY) is a radio transmitter and receiver. It is designed andmanufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by theFederal Communications Commission of the U.S. Government. These limits are part of comprehensiveguidelines and establish permitted levels of RF energy for the general population. The guidelines arebased on standards that were developed by independent scientific organizations through periodic andthorough evaluation of scientific studies. The standards include a substantial safety margin designed toassure the safety of all persons, regardless of age and health.The exposure standard for wireless REMOTE STARTER (TWO WAY) employs a unit of measurementknown as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 4.0 W/kg. Tests for SAR areconducted with the REMOTE STARTER (TWO WAY) transmitting at its highest certified power level inall tested frequency bands. Although the SAR is determined at the highest certified power level, the actualSAR level of the REMOTE STARTER (TWO WAY) while operating can be well below the maximum value.This is because the REMOTE STARTER (TWO WAY) is designed to operate at multiple power levels soas to use only the power required to reach the network. Before aREMOTE STARTER (TWO WAY) model is available for sale to the public, it must be tested and certifiedto the FCC that it does not exceed the limit established by the government adopted requirement for safeexposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) asrequired by the FCC for each model. The highest SAR value for this model REMOTE STARTER (TWOWAY) when tested for use at the extremity is 0.026W/Kg.While there may be differences between the SAR levels of various REMOTE STARTER (TWO WAY) andat various positions, they all meet the government requirement for safe exposure. The FCC has granted anEquipment Authorization for this model REMOTE STARTER (TWO WAY) with all reported SAR levelsevaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model REMOTESTARTER (TWO WAY) is on file with the FCC and can be found under the Display Grant section ofhttp://www.fcc.gov/oet/fccid after searching on FCC ID:2AEPJ-TR2410A. Additional information on SpecificAbsorption Rates (SAR) can be found on the Cellular Telecommunications Industry Association (CTIA)website at http://www.wow-com.com.*

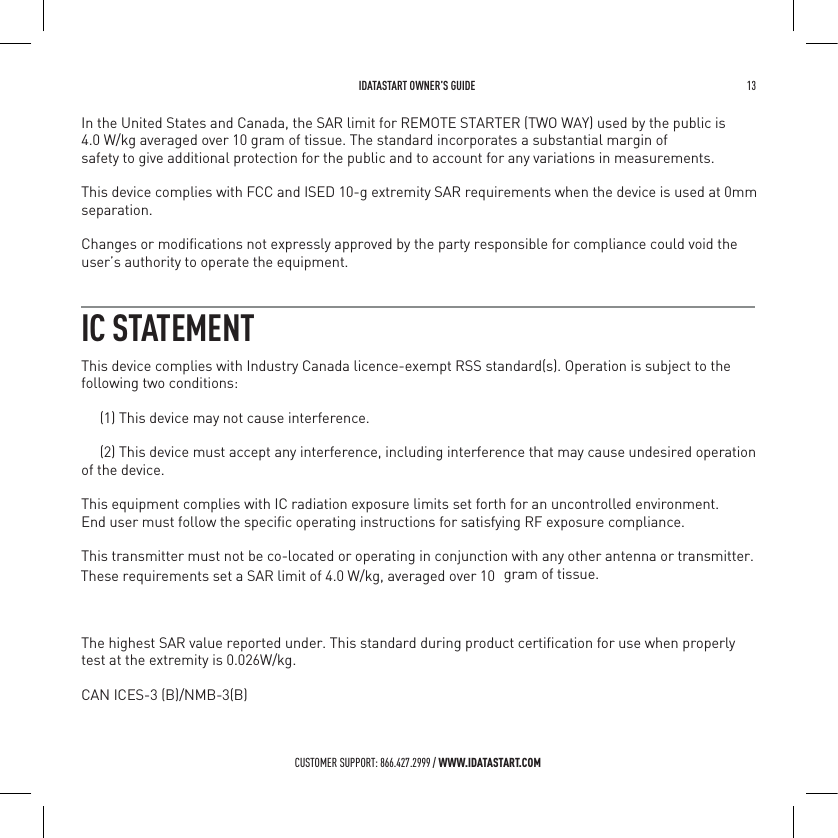

 IDATASTART OWNER’S GUIDE 13 CUSTOMER SUPPORT: 866.427.2999 / WWW.IDATASTART.COMIC STATEMENT  In the United States and Canada, the SAR limit for REMOTE STARTER (TWO WAY) used by the public is 4.0 W/kg averaged over 10 gram of tissue. The standard incorporates a substantial margin ofsafety to give additional protection for the public and to account for any variations in measurements.This device complies with FCC and ISED 10-g extremity SAR requirements when the device is used at 0mm separation.Changes or modifications not expressly approved by the party responsible for compliance could void theuser’s authority to operate the equipment.This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to thefollowing two conditions:     (1) This device may not cause interference.     (2) This device must accept any interference, including interference that may cause undesired operationof the device.This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment.End user must follow the specific operating instructions for satisfying RF exposure compliance.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. These requirements set a SAR limit of 4.0 W/kg, averaged over 10 gram of tissue.The highest SAR value reported under. This standard during product certification for use when properly test at the extremity is 0.026W/kg.CAN ICES-3 (B)/NMB-3(B)
 GUIDE D’UTILISATION IDATASTART 11 SERVICE À LA CLIENTÈLE: 866.427.2999 / WWW.IDATASTART.COMCONFORME AUX RÈGLES D’INDUSTRIE CANADA Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:(1) l’appareil ne doit pas produire de brouillage, et(2) l’utilisateur de l’appareil doit accepter tout brouillage radio électrique subi, même si le brouillage       est susceptible d’en compromettre le fonctionnement.Cet équipement est conforme aux limites d’exposition aux rayonnements de la IC définies pour un environnement non contrôlé. L’utilisateur final doit respecter les instructions de fonctionnement spécifiques pour satisfaire la conformité aux expositions RF. Cet émetteur ne doit pas être co-localisées ou opérant en conjonction avec une autre antenne ou émetteur.Ces exigences défnissent la valeur SAR limiteà 4.0 W/kg, en moyenne pour 10 gramme de tissu. La valeur SAR la plus élevée pour ce modèle d’alarme de voiture (deux voies) lorsqu’il est testé pour une utilisation à l’extrémité est de 0.026W/ Kg.Cet appareil respecte les exigences de 10 g extrémité SAR FCC et ISED lorsque l’appareil est utilisé lors de la séparation de 0 mm.CAN ICES-3 (B)/NMB-3(B)
10   GUIDE D’UTILISATION IDATASTARTSERVICE À LA CLIENTÈLE: 866.427.2999 / WWW.IDATASTART.COMGARANTIE À VIE LIMITÉEAutomotive Data Solutions Inc. (ADS) garantit à l’acheteur original du produit iDataStart que les composantes du produit inscrites ci-dessous sont exemptes de défauts dans les matériels et de fabrication, et ce, dans des conditions normales d’utilisation et dans les circonstances suivantes:Le module de contrôle et les câblages d’installation Sous garantie tant et aussi longtemps que l’acheteur original est propriétaire du véhicule dans lequel le produit a été initialement installé.Les télécommandes et l’antenne Sous garantie pour une période d’un (1) an à compter de la date d’installation initiale. Le remplacement des batteries n’est pas couvert par la garantie.Si le produit ne fonctionne pas correctement alors qu’il est encore sous garantie, l’acheteur original doit retourner chez le détaillant autorisé où il a acheté son produit avec la preuve d’achat originale. Si le détaillant autorisé détecte une quelconque anomalie, il réparera ou de remplacera le produit, et ce, à sa discrétion. Des frais de main d’oeuvre peuvent s’appliquer et sont à la discrétion du détaillant autorisé.LA GARANTIE À VIE LIMITÉE EST AUTOMATIQUEMENT ANNULÉE SI:•  La preuve d’achat originale n’est pas présentée lors de l’entretien du produit durant la période    couverte par la garantie;•  Le code de date et/ou le numéro de série sont raturés, manquants ou altérés;•  Le produit iDataStart est transféré à un autre véhicule;•  Le véhicule dans lequel le produit a été installé initialement est transféré à un nouveau propriétaire.ADS n’accepte aucune responsabilité pour tout dommage, y compris, sans s’y limiter, aux dommages consécutifs, dommages indirects, dommages pour pertes de temps, pour pertes de revenus, pour pertes commerciales, pour pertes de possibilités économiques qui pourraient ou non avoir résulté de l’installation ou du fonctionnement d’un produit iDataStart.
 GUIDE D’UTILISATION IDATASTART 9 SERVICE À LA CLIENTÈLE: 866.427.2999 / WWW.IDATASTART.COMDÉPANNAGE EN CAS D'ARRÊT DU MOTEURSi le moteur s’éteint suite au démarrage à distance, les feux de stationnement clignoteront un certain nombre de fois pour signaler une erreur. Veuillez consulter le tableau ci-dessous pour déterminer la cause de l’erreur ainsi que la solution.# DE CLIGNOTTEMENTS DES FEUX  DE STATIONNEMENTERREUR SOLUTION4+1 Aucune révolution de moteur détectée Tournez la clé à ON avant d’essayer le démarrage à distance4+3 Frein à main détecté Désactivez le frein à main4+4 Capot ouvert détecté Fermez la capot4+5 Moteur tourne à plus de 3000 RPM Vérifiez votre accélérateur4+6 Erreur de bougies de préchauffage Contactez votre détaillant autorisé4+7 Erreur du capteur de vitesse du véhiculeContactez votre détaillant autorisé4+8 Lumière ‘Check Engine’ détectée Effacez le code ‘Check Engine’4+9 Niveau d’essence trop bas Ajoutez de l’essence4+10 Porte ouverte détectée Fermez la porte4+11 Échec de la communication CAN Contactez votre détaillant autorisé4+13 Key takeover not allowed  Clé non-détectée OU procédure de prise en charge de la clé n’est pas complétée OU procédure de prise en charge de la clé ne s’applique pas à votre véhicule4+14 Protection de surchauffe du module Contactez votre détaillant autorisé
8   GUIDE D’UTILISATION IDATASTARTSERVICE À LA CLIENTÈLE: 866.427.2999 / WWW.IDATASTART.COMDÉPANNAGE EN CAS D’ERREUR DE DÉMARRAGESi le véhicule ne démarre pas suite à l’envoi d’une commande de démarrage à distance, les feux de stationnement clignoteront un certain nombre de fois pour signaler une erreur. Veuillez consulter le tableau ci-dessous pour déterminer la cause de l’erreur ainsi que la solution.# DE CLIGNOTTEMENTS DES FEUX  DE STATIONNEMENTERREUR SOLUTION3 + 1 Le moteur est déjà en marche Éteignez le moteur3 + 2 Clé dans le contact à la postion ON Retirez la clé du contact3 + 4 Le coffre est ouvert Fermez le coffre3 + 5 La pédale de frein est activée Relâchez la pédale de frein3 + 6 Le capot est ouvert Fermez le capot3 + 8 Échec du tachymètre Contactez votre détaillant autorisé3 + 10 Le système est en mode valet Désactivez le mode valet3 + 11 Échec de la communication CAN Contactez votre détaillant autorisé
 GUIDE D’UTILISATION IDATASTART 7 SERVICE À LA CLIENTÈLE: 866.427.2999 / WWW.IDATASTART.COMLORS D'UN ENTRETIEN DE VÉHICULE (MODE VALET)Pour éviter que le moteur soit accidentellement mis en marche lors d’un entretien de véhicule ou par un service de voiturier, le démarreur à distance doit être mis en ‘Mode valet’. Pour activer ou désactiver le Mode valet, suivez une des trois procédures ci-dessous ou lisez les codes QR pour voir un vidéo didacticiel. Avec clé du véhicule FONCTION ACTION # DE CLIGNOTTEMENTS DES FEUX  DE STATIONNEMENTMode valet ON Tournez la clé à ON 2x rapidement,  appuyez ensuite sur la pédale  de frein 3x.1Mode valet OFF 2Avec antenne iDataStart FONCTION ACTION # DE CLIGNOTTEMENTS DES FEUX  DE STATIONNEMENTMode valet ON Tournez la clé à ON, appuyez ensuite sur le bouton pour 5 secondes1Mode valet OFF 2
6   GUIDE D’UTILISATION IDATASTARTSERVICE À LA CLIENTÈLE: 866.427.2999 / WWW.IDATASTART.COMTEMPS DE MARCHE DU MOTEURUne fois activé par votre télécommande d’origine ou par votre télécommande longue portée, votre démarreur à distance mettra en marche votre véhicule pour une durée prédéterminée. Par défaut, le réglage du temps de marche est de 15 minutes. Il est possible de changer ce réglage pour une durée de 3, 5, 10, 25, 30 ou 35 minutes. Si vous souhaitez changer le temps de marche de votre démarrage à distance, contactez votre détaillant autorisé iDataStart.PRISE EN CHARGE DE LA CLÉ D'ORIGINEDisponible sur certains véhicules, la procédure de ‘prise en charge’ de la clé d’origine assure que votre moteur ne s’éteigne pas lorsque vous entrez dans le véhicule pendant le temps de marche du moteur à la suite d’un démarage à distance. Suivez les instructions ci-dessous ou scanner les codes QR pour visionner un vidéo didacticiel.Pour véhicules à clé standard1.  Déverrouillez les portes et entrez dans le véhicule2.  Fermez les portes3.  Insérez la clé dans l’allumage et tournez la clé à la position ON4.  Appuyez sur la pédale de frein Pour véhicules à bouton poussoir1.  Déverrouillez les portes et entrez dans le véhicule2.  Fermez les portes3.  Appuyez sur la pédale de freinNOTE: Pour éviter que le moteur s’éteigne, complétez la procédure ci-dessus dans le délai programmé (45 secondes, 90 secondes, 3 minutes ou 4 minutes). La procédure de prise  en charge de clé peut varier selon les véhicules, demandez à votre détaillant autorisé iDataStart  pour plus de détails.
 GUIDE D’UTILISATION IDATASTART 5 SERVICE À LA CLIENTÈLE: 866.427.2999 / WWW.IDATASTART.COMDÉMARRER À DISTANCE AVEC LA CLÉ D’ORIGINE Disponible pour la plupart des véhicules, votre système iDataStart permet de démarrer à distance à partir de votre clé d’origine comme suit: BOUTON ACTION FONCTIONAppuyer et relâcher 3x rapidement Démarrer le moteurAppuyer et relâcher 3x rapidement Éteindre le moteurLa portée varie selon la télécommande d’origine. Si votre système iDataStart n’inclut pas de télécommandes à longue portée, l’ajout de télécommandes iDataStart vendues séparément est possible. Demandez à votre détaillant autorisé iDataStart pour plus de détails.Suivez les étapes ci-dessous pour remplacer les batteries de vos télécommandes iDataStart ou lisez  le code QR ci-dessous pour visionner un didacticiel vidéo.1.  Insérez une pièce de 25 cents dans le coin creux (en bas à gauche) de votre télécommande iDataStart.2.  Tournez doucement la pièce jusqu’à ce que le boîtier s’ouvre.3.  Utilisez votre pièce pour soulever le reste du périmètre de la télécommande.4.  Enlever soigneusement la carte de circuit imprimé du boîtier inférieur.5.  Enlevez la pile usagée de son enceinte et la remplacer par la nouvelle pile.6.  Replacez soigneusement la carte de circuit dans la moitié inférieure du boîtier.7.  Alignez le haut et le bas du boîtier et réassemblez-le à l’aide de vos mains.REMPLACER LES BATTERIES
4   GUIDE D’UTILISATION IDATASTARTSERVICE À LA CLIENTÈLE: 866.427.2999 / WWW.IDATASTART.COMFONCTIONS ET CONFIRMATIONSGrâce à leur technologie de multiplexage, les télécommandes à longue portée iDataStart peuvent démarrer, verrouiller et déverrouiller votre voiture en n’employant qu’un seul bouton. Afin de profiter de vos télécommandes, veuillez vous familiariser avec les fonctions et confirmations ci-dessous:NOTES:1.  Icônes non soulignées = appuyer et relâcher le bouton rapidement2.  Virgule (,) entre les icônes = Appuyez sur les boutons l’un après l’autre3.  Icônes soulignées (gris) = Appuyez et maintenez le bouton pendant 2,5 secondes4.  Délai entre chaque pression de touche = 3 secondes5.  Fonction * = Disponible en Mode 2e voiture6.  Les confirmations sont uniquement disponibles avec la télécommande TR2310A (bidirectionnelle)BOUTONS FONCTION CONFIRMATION 2 VOIES DESCRIPTIONVerrouiller & Armer* 1 carillon + 1 flash Sécurise le véhicule en verrouillant les portes et armant votre alarme. ,  Déverrouiller & Désarmer* 2 carillons + 2 flashs Permet l’accès au véhicule en déverrouil-lant les portes et en désarmant l’alarme.Démarrage/Arrêt* 4 carillons + 4 flashs Démarre et arrête le moteur.PROGRAMMER UNE NOUVELLE TÉLÉCOMMANDERemplacez-vous une télécommande perdue ou endommagée ou désirez-vous ajouter une télécommande additionnelle à votre système iDataStart? Veuillez prendre note de ce qui suit: 1.  Un système iDataStart fonctionnel doit déjà être installé dans votre véhicule.2.  Toutes les nouvelles télécommandes doivent être installées par un détaillant autorisé iDataStart.3.  Un maximum de 4 télécommandes peuvent être programmées pour votre système iDataStart.
 GUIDE D’UTILISATION IDATASTART 3 SERVICE À LA CLIENTÈLE: 866.427.2999 / WWW.IDATASTART.COMSURVOL DES TÉLÉCOMMANDES IDATASTARTVotre système iDataStart VW2 comprend la télécommande à longue portée ci-dessous. Veuillez prendre un moment pour vous familiariser avec ses caractéristiques générales.MODÈLE DE TÉLÉCOMMANDE TR2410ATechnologie LoRa 2 voiesPortée Maximale 1 MileNombre de boutons 1Témoin de transmission (TX)  DEL principalTémoin de réception (RX)  DEL principal + CarillonBatteries requises 1 x CR2450Durée de vie des batteries 8 à 15 moisGarantie limitée 1 anDEL PRINCIPAL (TX/RX)OUVERTUREBOÎTIER
2   GUIDE D’UTILISATION IDATASTARTSERVICE À LA CLIENTÈLE: 866.427.2999 / WWW.IDATASTART.COMBIENVENUE À IDATASTARTFélicitations pour l’achat de votre système de démarrage à distance iDataStart VW2. Veuillez prendre un moment pour examiner la table des matières ci-dessous afin de vous aider à accéder les informations dont vous avez besoin rapidement.Survol des télécommandes iDataStart 3Fonctions et confirmations des télécommandes iDataStart 4Programmer un nouvelle télécommande iDataStart 4Remplacer les batteries de télécommandes iDataStart 5Démarrer à distance avec la clé d’origine 5Temps de marche du moteur 6Prise en charge de la clé d’origine suite au démarrage à distance 6Lors d’un entretien de véhicule (Mode valet) 7En cas d’erreur de démarrage 8En cas d’arrêt du moteur  9Garantie à vie limitée 10Basée à Montréal, Canada, Automotive Data Solutions Inc. (ADS) est une société privée spécialisée dans le développement et la commercialisation de solutions de démarrage à distance et d’intégration audio destinées au marché de l’après-vente automobile. Les produits primés d’ADS (commercialisés sous les marques iDatalinkMD, iDatalink MaestroMD et iDataStartMD) sont vendus et installés par un réseau de concessionnaires agréés à travers l’Amérique du Nord, l’Amérique du Sud, l’Europe et la Russie. Pour plus de rensignements sur les produits et services d’ADS, visitez le www.adsdata.ca.
GUIDE D’UTILISATION®/MDVW2 (VW2410A)ENGLISH INSTRUCTIONS ON REVERSE2016/06
