Avalan Wireless Systems orporated AW900MR AW900mTR User Manual ARC PA0913B01 DS

Avalan Wireless Systems Incorporated AW900mTR ARC PA0913B01 DS

Contents

User Manual

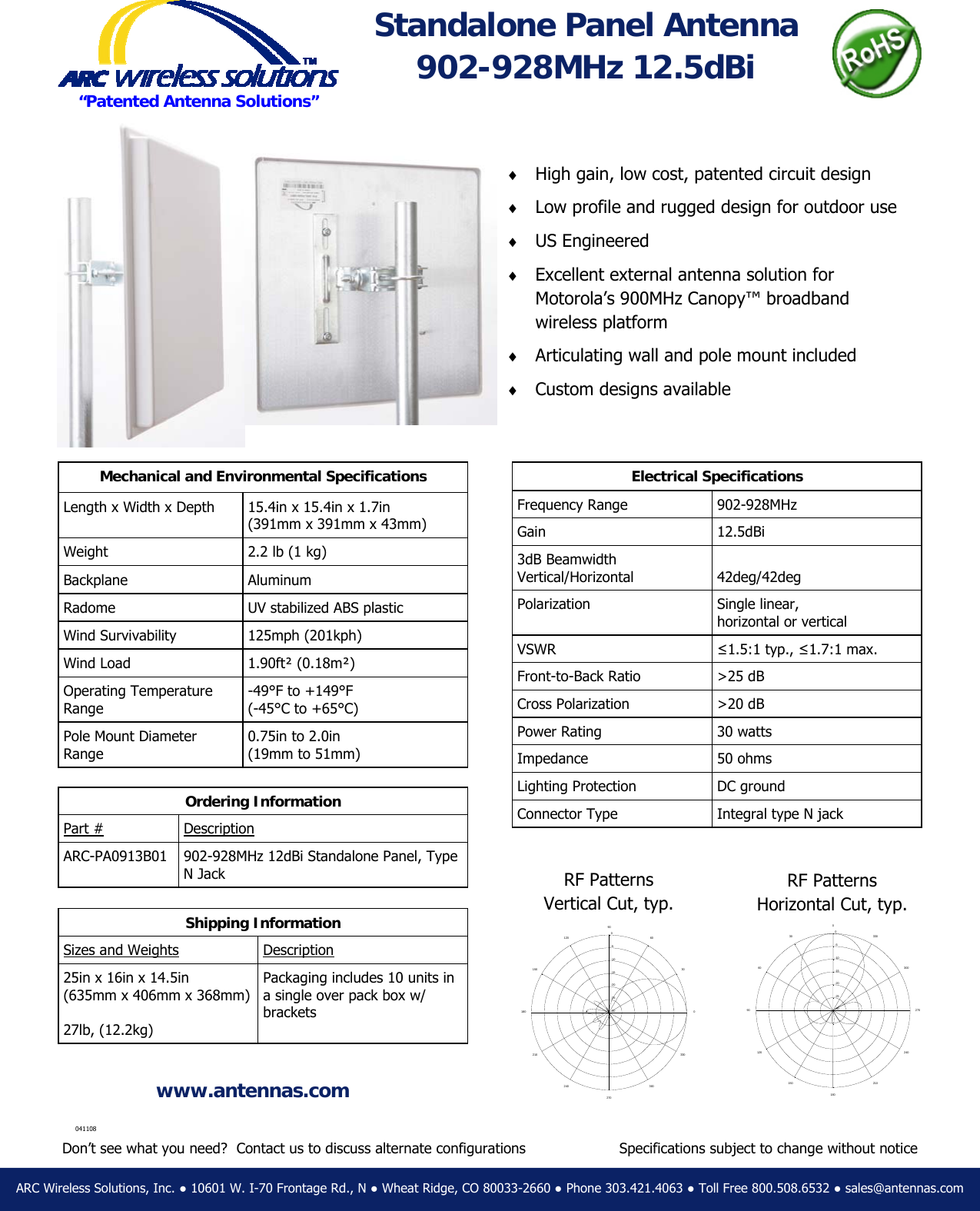

♦ High gain, low cost, patented circuit design ♦ Low profile and rugged design for outdoor use ♦ US Engineered ♦ Excellent external antenna solution for Motorola’s 900MHz Canopy™ broadband wireless platform ♦ Articulating wall and pole mount included ♦ Custom designs available ARC Wireless Solutions, Inc. ● 10601 W. I-70 Frontage Rd., N ● Wheat Ridge, CO 80033-2660 ● Phone 303.421.4063 ● Toll Free 800.508.6532 ● sales@antennas.com www.antennas.com “Patented Antenna Solutions” Specifications subject to change without notice Electrical Specifications Frequency Range 902-928MHz Gain 12.5dBi 3dB Beamwidth Vertical/Horizontal 42deg/42deg Polarization Single linear, horizontal or vertical VSWR ≤1.5:1 typ., ≤1.7:1 max. Front-to-Back Ratio >25 dB Cross Polarization >20 dB Power Rating 30 watts Impedance 50 ohms Lighting Protection DC ground Connector Type Integral type N jack Standalone Panel Antenna 902-928MHz 12.5dBi Ordering Information Part # Description ARC-PA0913B01 902-928MHz 12dBi Standalone Panel, Type N Jack Shipping Information Sizes and Weights Description 25in x 16in x 14.5in (635mm x 406mm x 368mm) 27lb, (12.2kg) Packaging includes 10 units in a single over pack box w/ brackets Don’t see what you need? Contact us to discuss alternate configurations Mechanical and Environmental Specifications Length x Width x Depth 15.4in x 15.4in x 1.7in (391mm x 391mm x 43mm) Weight 2.2 lb (1 kg) Backplane Aluminum Radome UV stabilized ABS plastic Wind Survivability 125mph (201kph) Wind Load 1.90ft² (0.18m²) Operating Temperature Range -49°F to +149°F (-45°C to +65°C) Pole Mount Diameter Range 0.75in to 2.0in (19mm to 51mm) 041108 -30 -25 -20 -15 -10 -5 0302106024090270120300150330180 0RF Patterns Horizontal Cut, typ. RF Patterns Vertical Cut, typ. -30 -25 -20 -15 -10 -5 0302106024090 2701203001503301800
