Avantech Mobile CT7558 GSM 900/1800/1900 Mobile Phone User Manual Philips755 GB 4311 255 58341

Avantech Mobile GSM 900/1800/1900 Mobile Phone Philips755 GB 4311 255 58341

Contents

User Manual

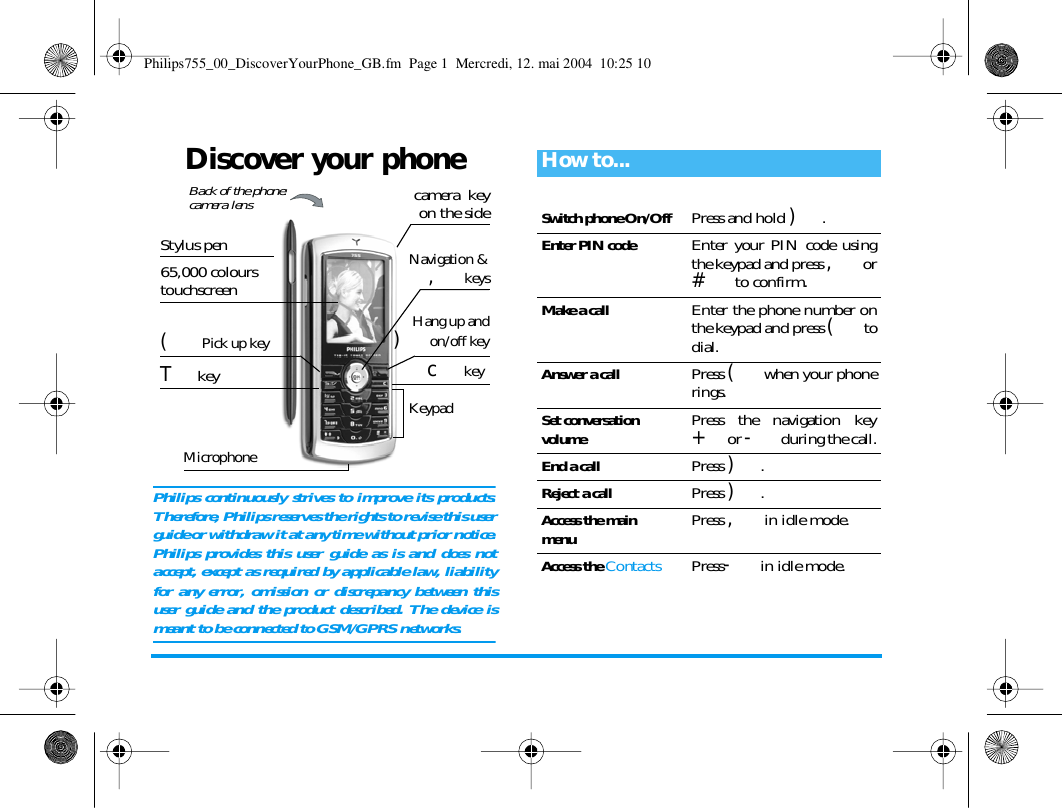

Discover your phonePhilips continuously strives to improve its products.Therefore, Philips reserves the rights to revise this userguide or withdraw it at any time without prior notice.Philips provides this user guide as is and does notaccept, except as required by applicable law, liabilityfor any error, omission or discrepancy between thisuser guide and the product described. The device ismeant to be connected to GSM/GPRS networks. KeypadMicrophoneNavigation &, keys65,000 colours touchscreencamera keyon the sidec key( Pick up key Hang up and) on/off keyBack of the phone:camera lens T keyStylus penHow to...Switch phone On/OffPress and hold ).Enter PIN codeEnter your PIN code usingthe keypad and press , or# to confirm.Make a callEnter the phone number onthe keypad and press ( todial.Answer a callPress ( when your phonerings.Set conversationvolumePress the navigation key+ or - during the call.End a callPress ).Reject a callPress ).Access the main menuPress , in idle mode.Access the ContactsPress- in idle mode.Philips755_00_DiscoverYourPhone_GB.fm Page 1 Mercredi, 12. mai 2004 10:25 10

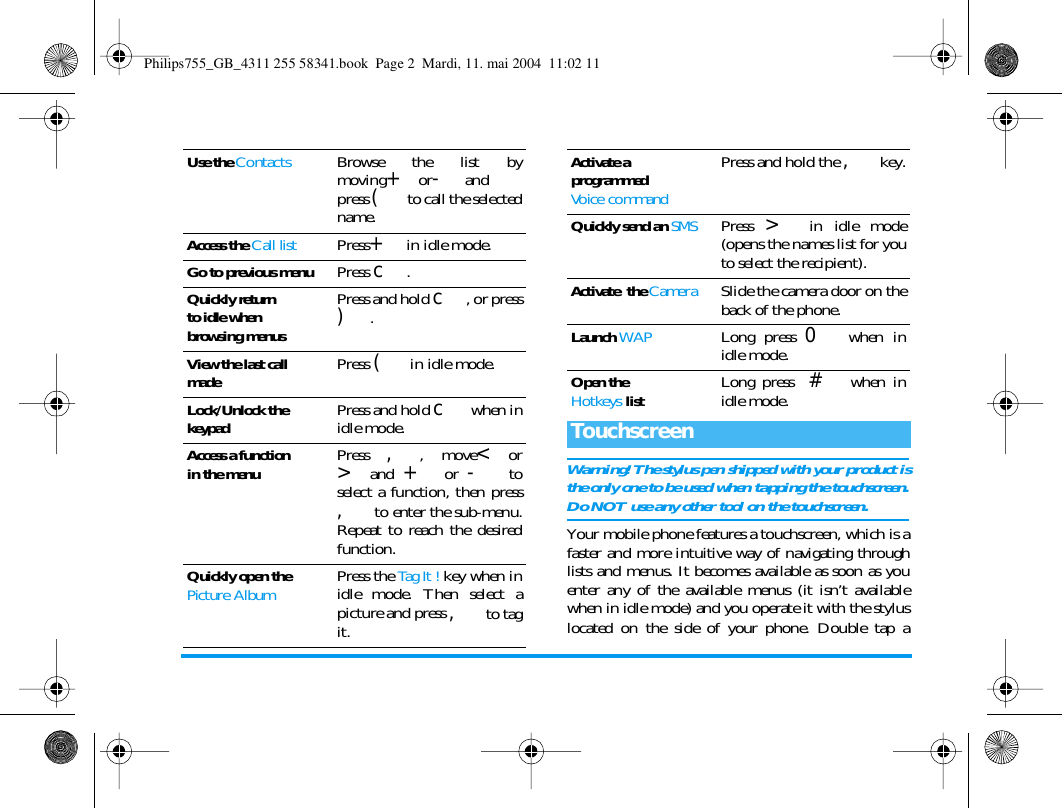

Warning! The stylus pen shipped with your product isthe only one to be used when tapping the touchscreen.Do NOT use any other tool on the touchscreen.Your mobile phone features a touchscreen, which is afaster and more intuitive way of navigating throughlists and menus. It becomes available as soon as youenter any of the available menus (it isn’t availablewhen in idle mode) and you operate it with the styluslocated on the side of your phone. Double tap aUse the ContactsBrowse the list bymoving+or-andpress ( to call the selectedname.Access the Call listPress+ in idle mode.Go to previous menuPress c.Quickly returnto idle when browsing menusPress and hold c, or press).View the last call madePress ( in idle mode.Lock/Unlock the keypadPress and hold c when inidle mode.Access a functionin the menuPress ,, move<or>and + or - toselect a function, then press, to enter the sub-menu.Repeat to reach the desiredfunction.Quickly open the Picture AlbumPress the Tag It ! key when inidle mode. Then select apicture and press , to tagit.Activate a programmedVoice commandPress and hold the , key.Quickly send an SMSPress > in idle mode(opens the names list for youto select the recipient).Activate the CameraSlide the camera door on theback of the phone.Launch WAPLong press 0 when inidle mode.Open theHotkeys listLong press # when inidle mode.TouchscreenPhilips755_GB_4311 255 58341.book Page 2 Mardi, 11. mai 2004 11:02 11

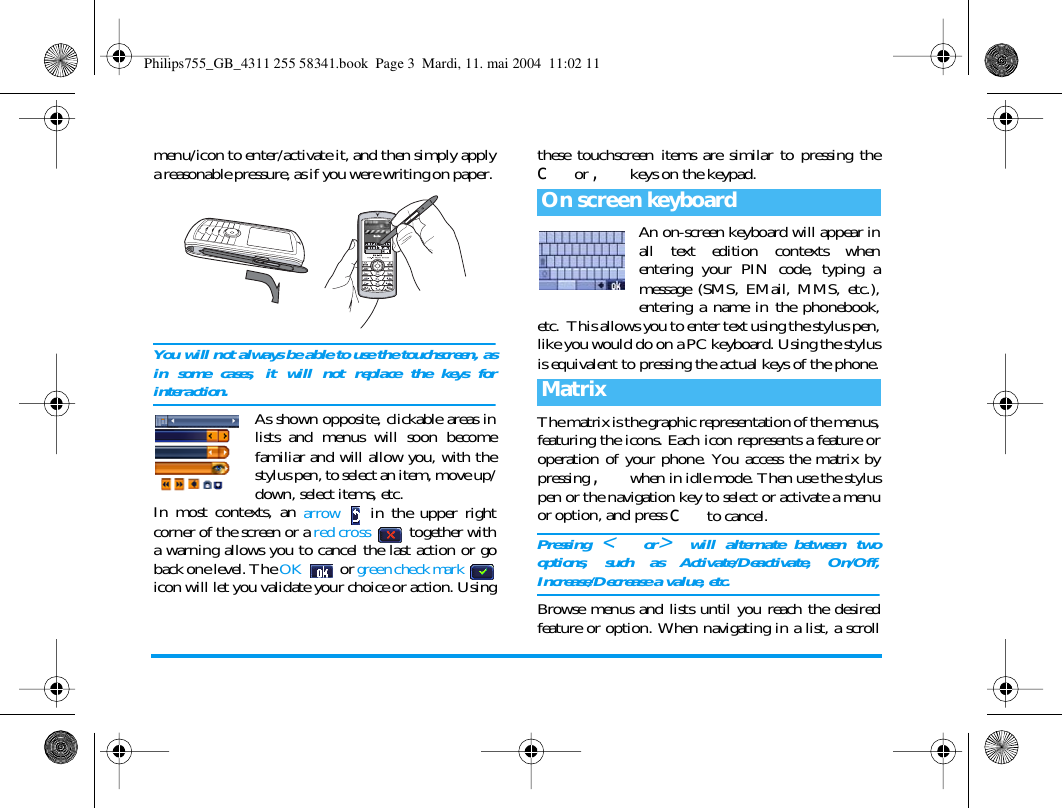

menu/icon to enter/activate it, and then simply applya reasonable pressure, as if you were writing on paper. You will not always be able to use the touchscreen, asin some cases, it will not replace the keys forinteraction.As shown opposite, clickable areas inlists and menus will soon becomefamiliar and will allow you, with thestylus pen, to select an item, move up/down, select items, etc.In most contexts, an arrow in the upper rightcorner of the screen or a red cross together witha warning allows you to cancel the last action or goback one level. The OK or green check mark icon will let you validate your choice or action. Usingthese touchscreen items are similar to pressing thec or , keys on the keypad.An on-screen keyboard will appear inall text edition contexts whenentering your PIN code, typing amessage (SMS, EMail, MMS, etc.),entering a name in the phonebook,etc. This allows you to enter text using the stylus pen,like you would do on a PC keyboard. Using the stylusis equivalent to pressing the actual keys of the phone.The matrix is the graphic representation of the menus,featuring the icons. Each icon represents a feature oroperation of your phone. You access the matrix bypressing , when in idle mode. Then use the styluspen or the navigation key to select or activate a menuor option, and press c to cancel. Pressing < or>will alternate between twooptions, such as Activate/Deactivate, On/Off,Increase/Decrease a value, etc.Browse menus and lists until you reach the desiredfeature or option. When navigating in a list, a scrollOn screen keyboardMatrixPhilips755_GB_4311 255 58341.book Page 3 Mardi, 11. mai 2004 11:02 11

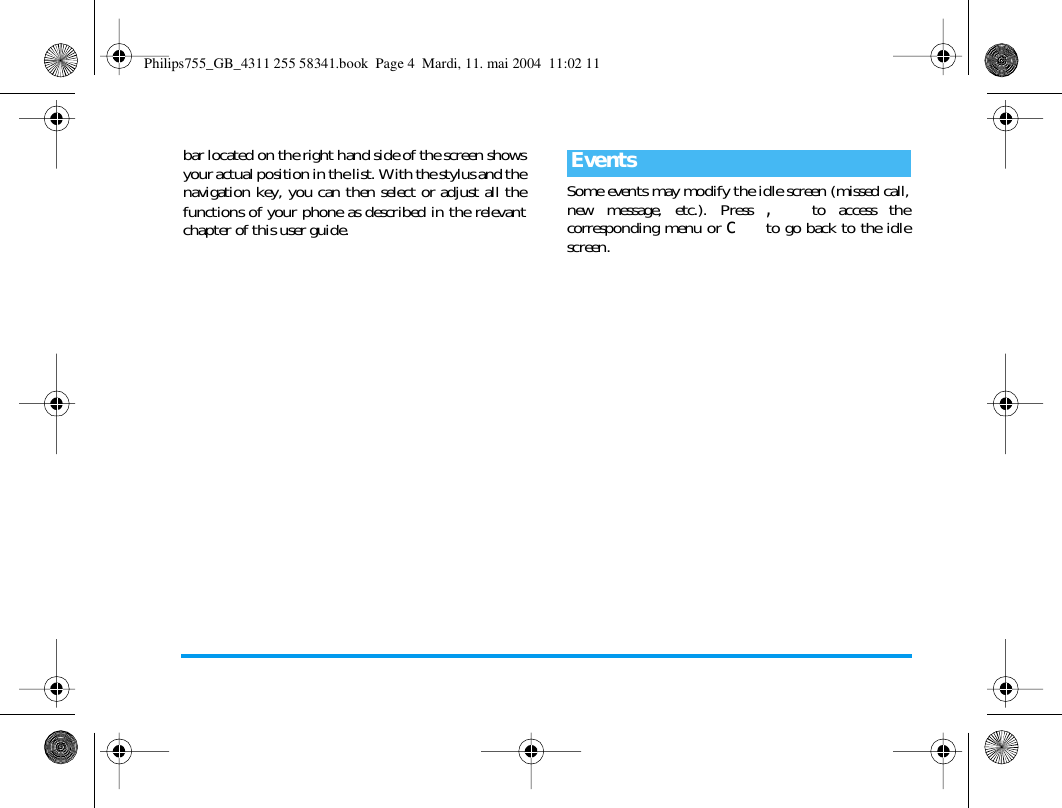

bar located on the right hand side of the screen showsyour actual position in the list. With the stylus and thenavigation key, you can then select or adjust all thefunctions of your phone as described in the relevantchapter of this user guide.Some events may modify the idle screen (missed call,new message, etc.). Press , to access thecorresponding menu or c to go back to the idlescreen.EventsPhilips755_GB_4311 255 58341.book Page 4 Mardi, 11. mai 2004 11:02 11

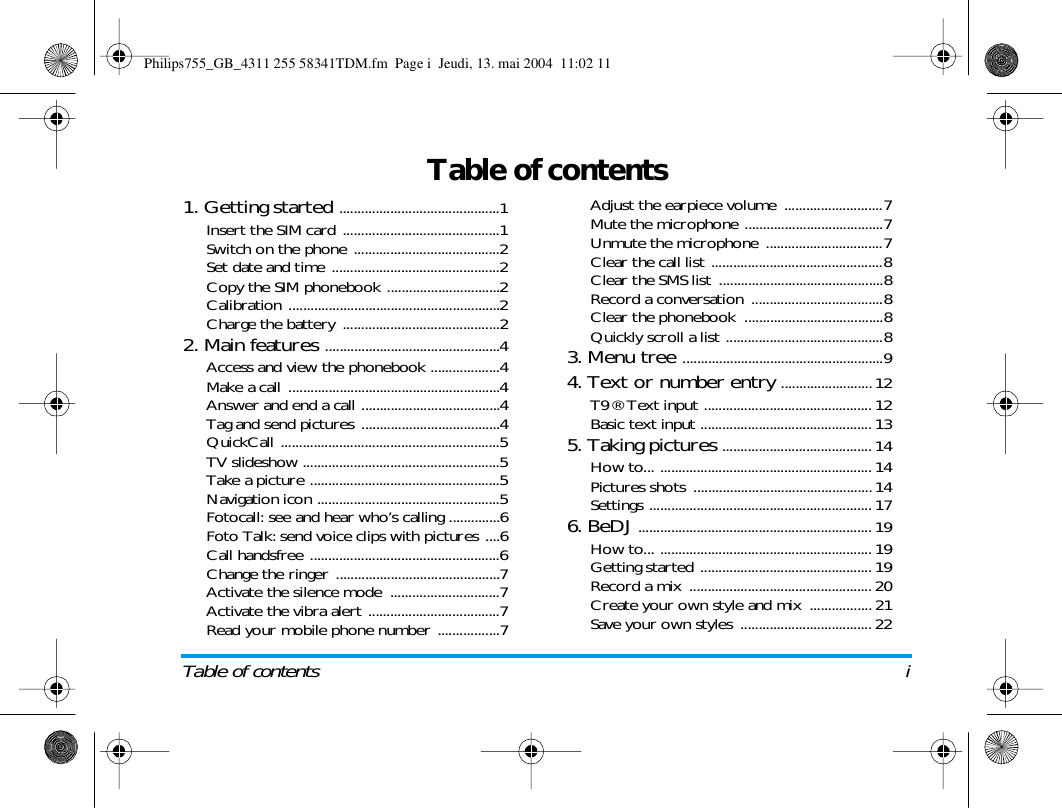

Table of contents iTable of contents1. Getting started ............................................1Insert the SIM card ...........................................1Switch on the phone ........................................2Set date and time ..............................................2Copy the SIM phonebook ...............................2Calibration ..........................................................2Charge the battery ...........................................22. Main features ................................................4Access and view the phonebook ...................4Make a call ..........................................................4Answer and end a call ......................................4Tag and send pictures ......................................4QuickCall ............................................................5TV slideshow ......................................................5Take a picture ....................................................5Navigation icon ..................................................5Fotocall: see and hear who’s calling ..............6Foto Talk: send voice clips with pictures ....6Call handsfree ....................................................6Change the ringer .............................................7Activate the silence mode ..............................7Activate the vibra alert ....................................7Read your mobile phone number .................7Adjust the earpiece volume ...........................7Mute the microphone ......................................7Unmute the microphone ................................7Clear the call list ...............................................8Clear the SMS list .............................................8Record a conversation ....................................8Clear the phonebook ......................................8Quickly scroll a list ...........................................83. Menu tree .......................................................94. Text or number entry .........................12T9® Text input .............................................. 12Basic text input ............................................... 135. Taking pictures ......................................... 14How to... .......................................................... 14Pictures shots ................................................. 14Settings ............................................................. 176. BeDJ ................................................................ 19How to... .......................................................... 19Getting started ............................................... 19Record a mix .................................................. 20Create your own style and mix ................. 21Save your own styles .................................... 22Philips755_GB_4311 255 58341TDM.fm Page i Jeudi, 13. mai 2004 11:02 11

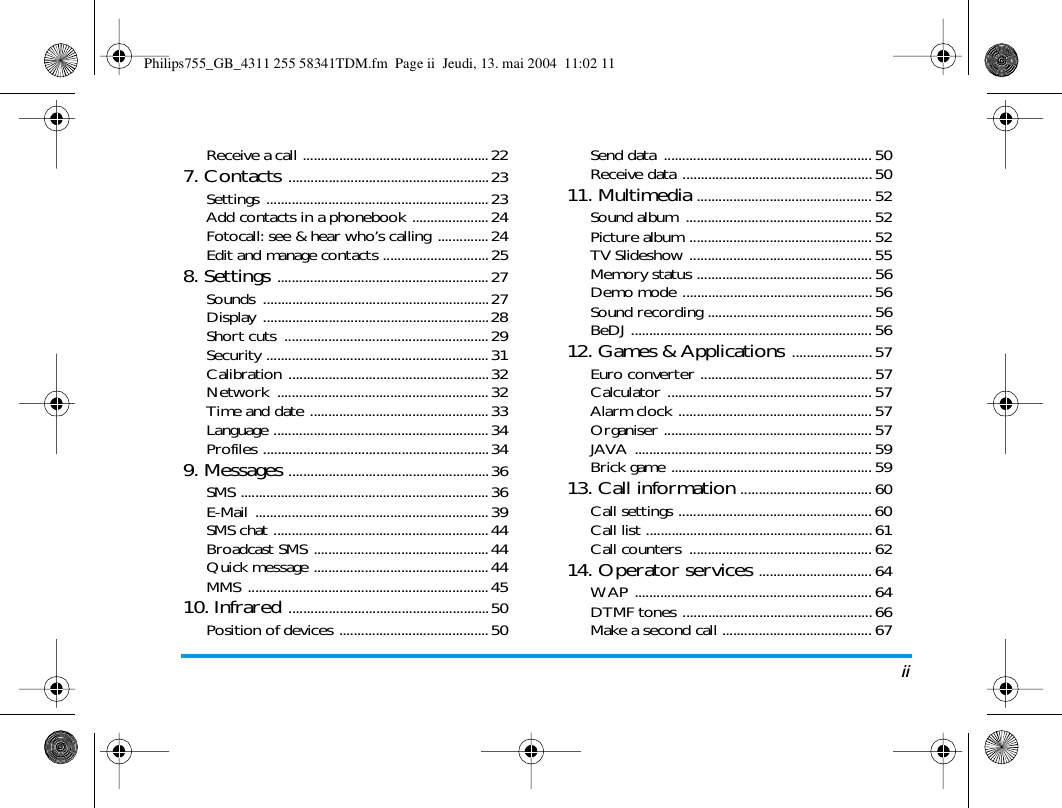

iiReceive a call ................................................... 227. Contacts .......................................................23Settings .............................................................23Add contacts in a phonebook ..................... 24Fotocall: see & hear who’s calling ..............24Edit and manage contacts .............................258. Settings .......................................................... 27Sounds ..............................................................27Display ..............................................................28Short cuts ........................................................ 29Security ............................................................. 31Calibration .......................................................32Network ..........................................................32Time and date .................................................33Language ...........................................................34Profiles ..............................................................349. Messages .......................................................36SMS .................................................................... 36E-Mail ................................................................ 39SMS chat ...........................................................44Broadcast SMS ................................................ 44Quick message ................................................ 44MMS .................................................................. 4510. Infrared .......................................................50Position of devices ......................................... 50Send data ......................................................... 50Receive data .................................................... 5011. Multimedia ................................................ 52Sound album ................................................... 52Picture album .................................................. 52TV Slideshow .................................................. 55Memory status ................................................ 56Demo mode ....................................................56Sound recording ............................................. 56BeDJ .................................................................. 5612. Games & Applications ...................... 57Euro converter ............................................... 57Calculator ........................................................ 57Alarm clock ..................................................... 57Organiser ......................................................... 57JAVA ................................................................. 59Brick game ....................................................... 5913. Call information .................................... 60Call settings ..................................................... 60Call list .............................................................. 61Call counters .................................................. 6214. Operator services ............................... 64WAP ................................................................. 64DTMF tones ....................................................66Make a second call ......................................... 67Philips755_GB_4311 255 58341TDM.fm Page ii Jeudi, 13. mai 2004 11:02 11

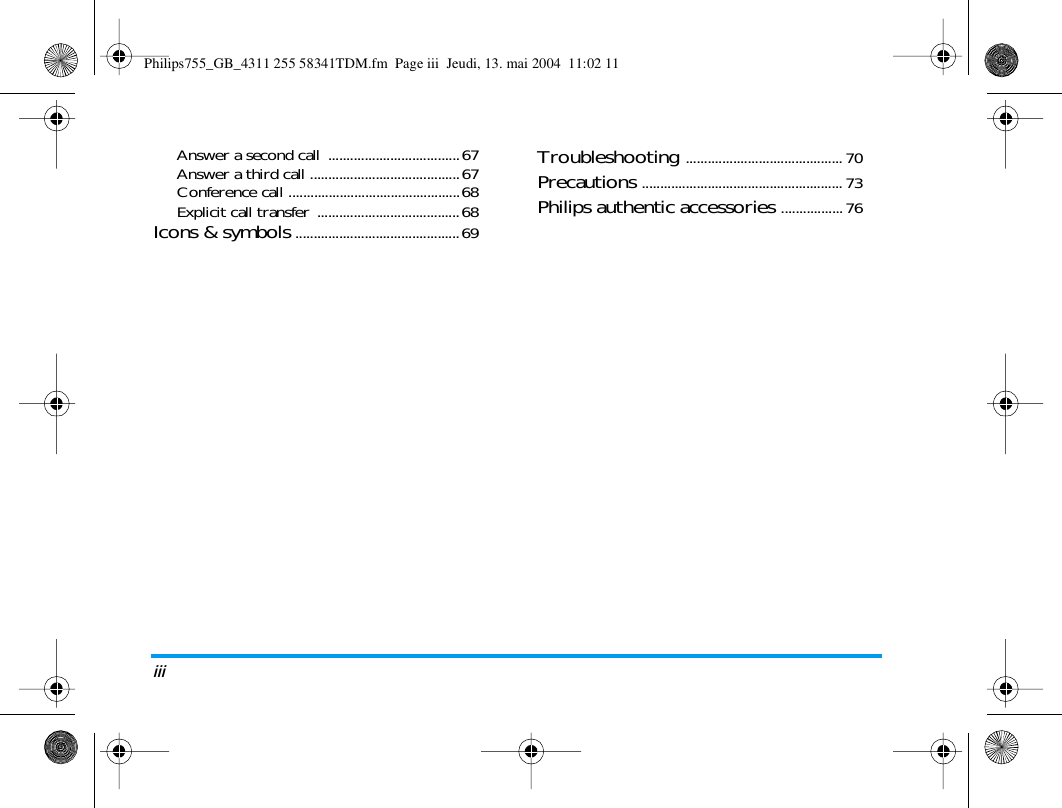

iiiAnswer a second call ....................................67Answer a third call .........................................67Conference call ...............................................68Explicit call transfer .......................................68Icons & symbols .............................................69Troubleshooting ........................................... 70Precautions ....................................................... 73Philips authentic accessories .................76Philips755_GB_4311 255 58341TDM.fm Page iii Jeudi, 13. mai 2004 11:02 11

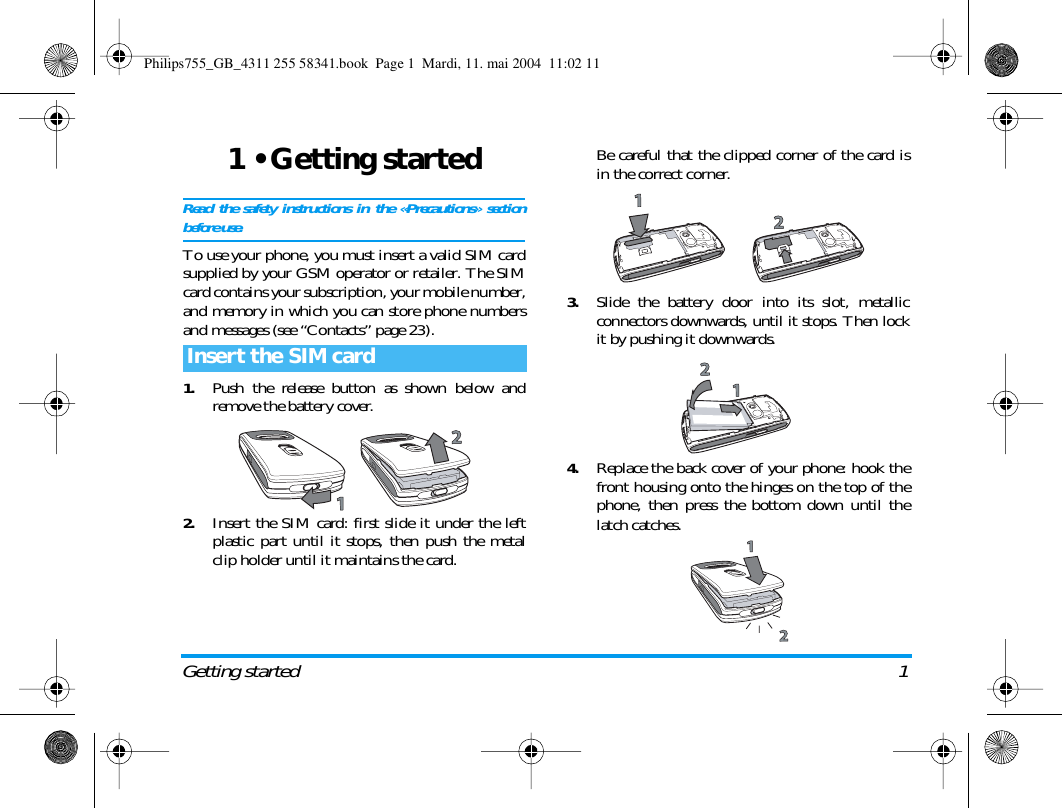

Getting started 11 • Getting startedRead the safety instructions in the «Precautions» sectionbefore use.To use your phone, you must insert a valid SIM cardsupplied by your GSM operator or retailer. The SIMcard contains your subscription, your mobile number,and memory in which you can store phone numbersand messages (see “Contacts” page 23).1.Push the release button as shown below andremove the battery cover.2.Insert the SIM card: first slide it under the leftplastic part until it stops, then push the metalclip holder until it maintains the card.Be careful that the clipped corner of the card isin the correct corner.3.Slide the battery door into its slot, metallicconnectors downwards, until it stops. Then lockit by pushing it downwards.4.Replace the back cover of your phone: hook thefront housing onto the hinges on the top of thephone, then press the bottom down until thelatch catches.Insert the SIM cardPhilips755_GB_4311 255 58341.book Page 1 Mardi, 11. mai 2004 11:02 11

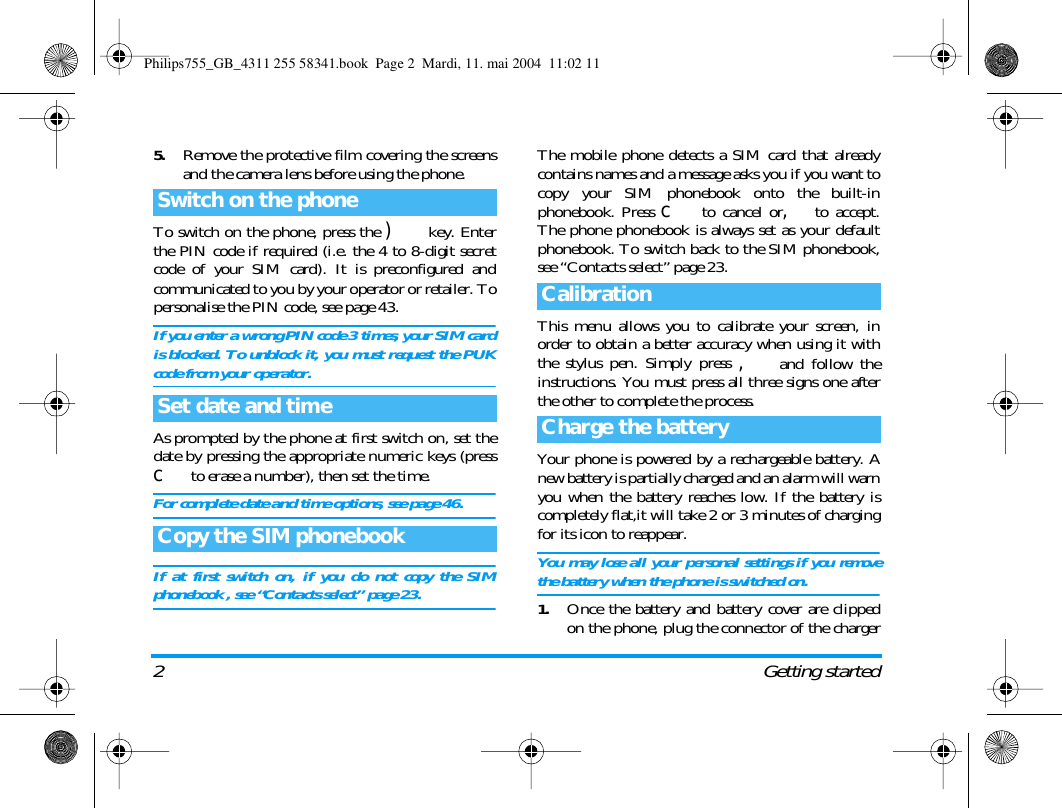

2Getting started5.Remove the protective film covering the screensand the camera lens before using the phone.To switch on the phone, press the ) key. Enterthe PIN code if required (i.e. the 4 to 8-digit secretcode of your SIM card). It is preconfigured andcommunicated to you by your operator or retailer. Topersonalise the PIN code, see page 43.If you enter a wrong PIN code 3 times, your SIM cardis blocked. To unblock it, you must request the PUKcode from your operator.As prompted by the phone at first switch on, set thedate by pressing the appropriate numeric keys (pressc to erase a number), then set the time.For complete date and time options, see page 46.If at first switch on, if you do not copy the SIMphonebook , see “Contacts select” page 23.The mobile phone detects a SIM card that alreadycontains names and a message asks you if you want tocopy your SIM phonebook onto the built-inphonebook. Press c to cancel or,to accept.The phone phonebook is always set as your defaultphonebook. To switch back to the SIM phonebook,see “Contacts select” page 23.This menu allows you to calibrate your screen, inorder to obtain a better accuracy when using it withthe stylus pen. Simply press , and follow theinstructions. You must press all three signs one afterthe other to complete the process.Your phone is powered by a rechargeable battery. Anew battery is partially charged and an alarm will warnyou when the battery reaches low. If the battery iscompletely flat,it will take 2 or 3 minutes of chargingfor its icon to reappear.You may lose all your personal settings if you removethe battery when the phone is switched on.1.Once the battery and battery cover are clippedon the phone, plug the connector of the chargerSwitch on the phoneSet date and timeCopy the SIM phonebookCalibrationCharge the batteryPhilips755_GB_4311 255 58341.book Page 2 Mardi, 11. mai 2004 11:02 11

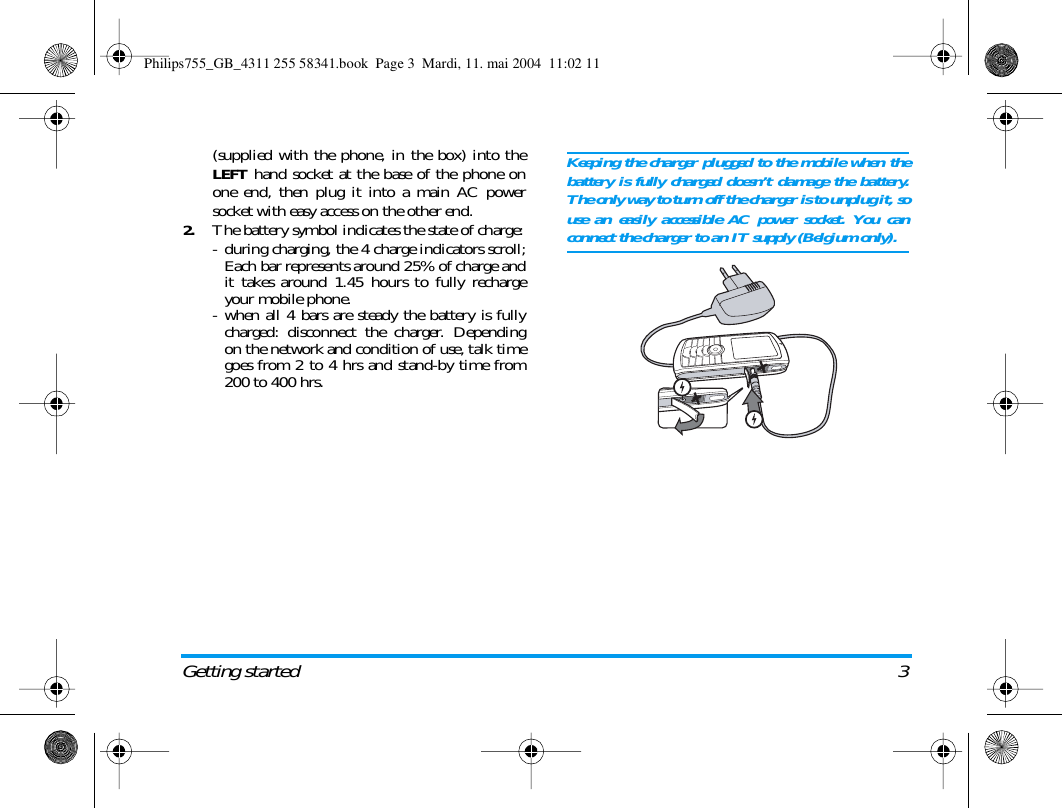

Getting started 3(supplied with the phone, in the box) into theLEFT hand socket at the base of the phone onone end, then plug it into a main AC powersocket with easy access on the other end.2.The battery symbol indicates the state of charge:- during charging, the 4 charge indicators scroll;Each bar represents around 25% of charge andit takes around 1.45 hours to fully rechargeyour mobile phone.- when all 4 bars are steady the battery is fullycharged: disconnect the charger. Dependingon the network and condition of use, talk timegoes from 2 to 4 hrs and stand-by time from200 to 400 hrs.Keeping the charger plugged to the mobile when thebattery is fully charged doesn’t damage the battery.The only way to turn off the charger is to unplug it, souse an easily accessible AC power socket. You canconnect the charger to an IT supply (Belgium only).Philips755_GB_4311 255 58341.book Page 3 Mardi, 11. mai 2004 11:02 11

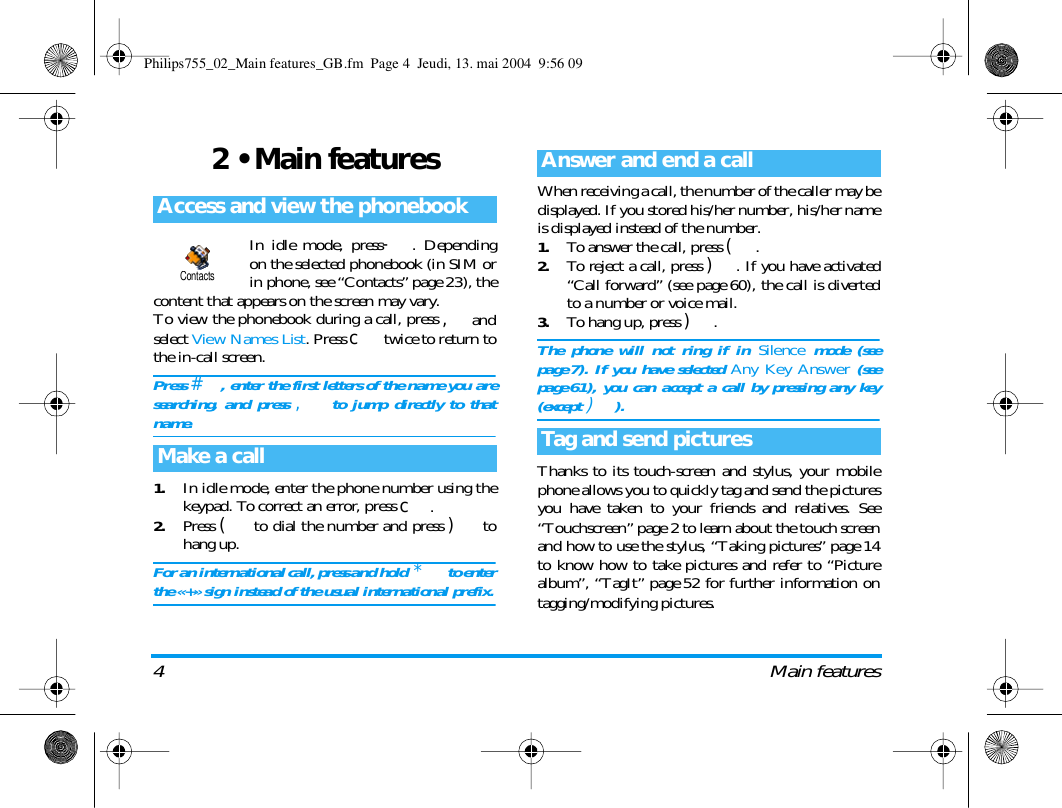

4 Main features2 • Main featuresIn idle mode, press-. Dependingon the selected phonebook (in SIM orin phone, see “Contacts” page 23), thecontent that appears on the screen may vary.To view the phonebook during a call, press ,andselect View Names List. Press c twice to return tothe in-call screen.Press #, enter the first letters of the name you aresearching, and press , to jump directly to thatname.1.In idle mode, enter the phone number using thekeypad. To correct an error, press c.2.Press ( to dial the number and press ) tohang up.For an international call, press and hold * to enterthe «+» sign instead of the usual international prefix.When receiving a call, the number of the caller may bedisplayed. If you stored his/her number, his/her nameis displayed instead of the number.1.To answer the call, press (.2.To reject a call, press ). If you have activated“Call forward” (see page 60), the call is divertedto a number or voice mail.3.To hang up, press ).The phone will not ring if in Silence mode (seepage 7). If you have selected Any Key Answer (seepage 61), you can accept a call by pressing any key(except )).Thanks to its touch-screen and stylus, your mobilephone allows you to quickly tag and send the picturesyou have taken to your friends and relatives. See“Touchscreen” page 2 to learn about the touch screenand how to use the stylus, “Taking pictures” page 14to know how to take pictures and refer to “Picturealbum”, “TagIt” page 52 for further information ontagging/modifying pictures. Access and view the phonebookMake a callContactsAnswer and end a callTag and send picturesPhilips755_02_Main features_GB.fm Page 4 Jeudi, 13. mai 2004 9:56 09

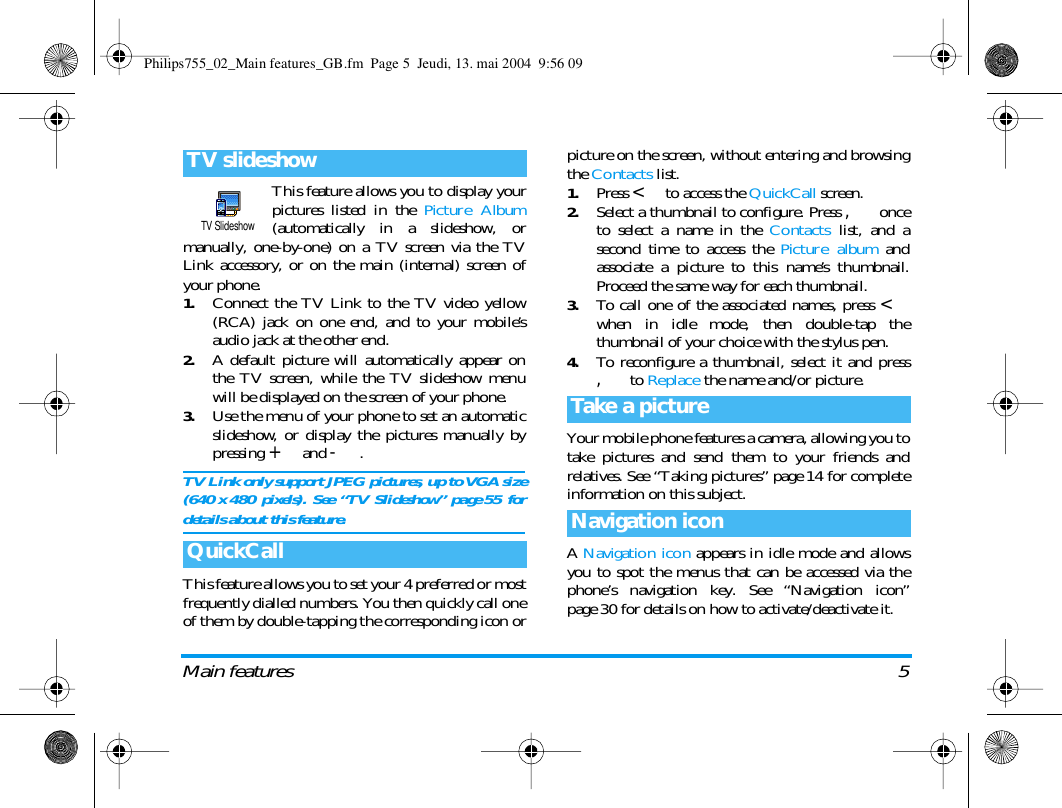

Main features 5This feature allows you to display yourpictures listed in the Picture Album(automatically in a slideshow, ormanually, one-by-one) on a TV screen via the TVLink accessory, or on the main (internal) screen ofyour phone.1.Connect the TV Link to the TV video yellow(RCA) jack on one end, and to your mobile’saudio jack at the other end.2.A default picture will automatically appear onthe TV screen, while the TV slideshow menuwill be displayed on the screen of your phone.3.Use the menu of your phone to set an automaticslideshow, or display the pictures manually bypressing + and -.TV Link only support JPEG pictures, up to VGA size(640 x 480 pixels). See “TV Slideshow” page 55 fordetails about this feature.This feature allows you to set your 4 preferred or mostfrequently dialled numbers. You then quickly call oneof them by double-tapping the corresponding icon orpicture on the screen, without entering and browsingthe Contacts list.1.Press < to access the QuickCall screen.2.Select a thumbnail to configure. Press , onceto select a name in the Contacts list, and asecond time to access the Picture album andassociate a picture to this name’s thumbnail.Proceed the same way for each thumbnail.3.To call one of the associated names, press <when in idle mode, then double-tap thethumbnail of your choice with the stylus pen.4.To reconfigure a thumbnail, select it and press, to Replace the name and/or picture.Your mobile phone features a camera, allowing you totake pictures and send them to your friends andrelatives. See “Taking pictures” page 14 for completeinformation on this subject.A Navigation icon appears in idle mode and allowsyou to spot the menus that can be accessed via thephone’s navigation key. See “Navigation icon”page 30 for details on how to activate/deactivate it.TV slideshowQuickCallTV SlideshowTake a pictureNavigation iconPhilips755_02_Main features_GB.fm Page 5 Jeudi, 13. mai 2004 9:56 09

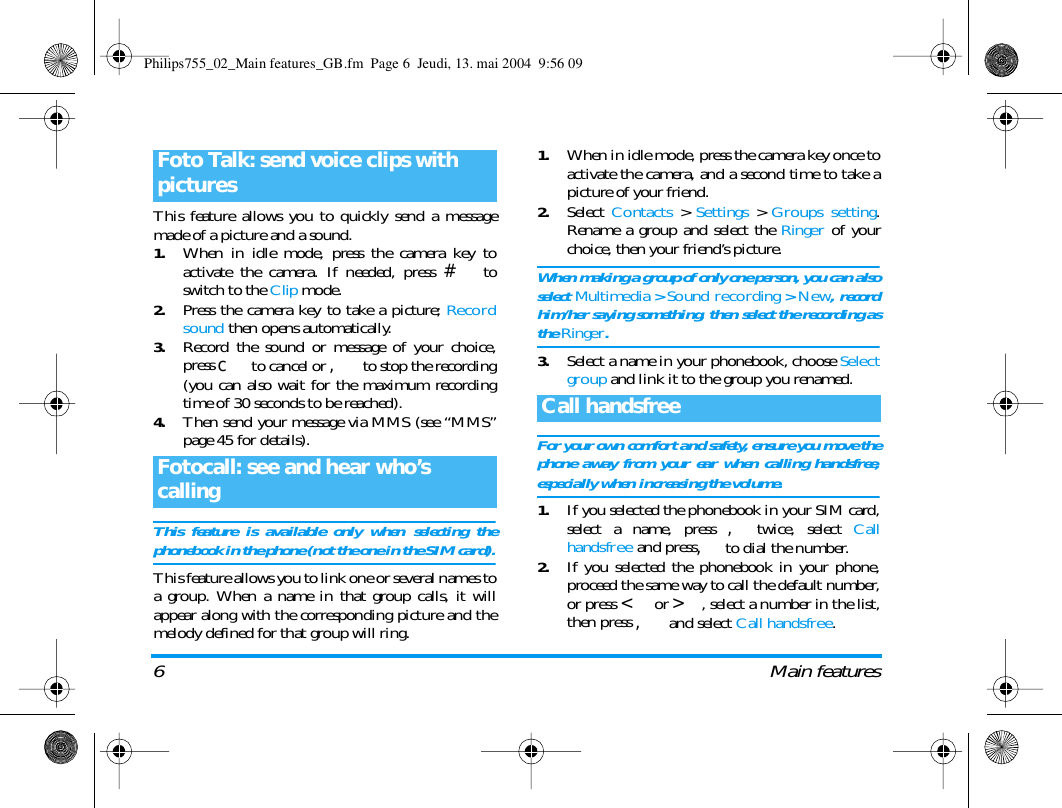

6 Main featuresThis feature allows you to quickly send a messagemade of a picture and a sound.1.When in idle mode, press the camera key toactivate the camera. If needed, press # toswitch to the Clip mode.2.Press the camera key to take a picture; Recordsound then opens automatically.3.Record the sound or message of your choice,press c to cancel or , to stop the recording(you can also wait for the maximum recordingtime of 30 seconds to be reached).4.Then send your message via MMS (see “MMS”page 45 for details).This feature is available only when selecting thephonebook in the phone (not the one in the SIM card).This feature allows you to link one or several names toa group. When a name in that group calls, it willappear along with the corresponding picture and themelody defined for that group will ring.1.When in idle mode, press the camera key once toactivate the camera, and a second time to take apicture of your friend.2.Select Contacts > Settings > Groups setting.Rename a group and select the Ringer of yourchoice, then your friend’s picture.When making a group of only one person, you can alsoselect Multimedia > Sound recording > New, recordhim/her saying something, then select the recording asthe Ringer.3.Select a name in your phonebook, choose Selectgroup and link it to the group you renamed.For your own comfort and safety, ensure you move thephone away from your ear when calling handsfree,especially when increasing the volume.1.If you selected the phonebook in your SIM card,select a name, press ,twice, select Callhandsfree and press,to dial the number.2.If you selected the phonebook in your phone,proceed the same way to call the default number,or press < or >, select a number in the list,then press , and select Call handsfree.Foto Talk: send voice clips with picturesFotocall: see and hear who’s callingCall handsfreePhilips755_02_Main features_GB.fm Page 6 Jeudi, 13. mai 2004 9:56 09

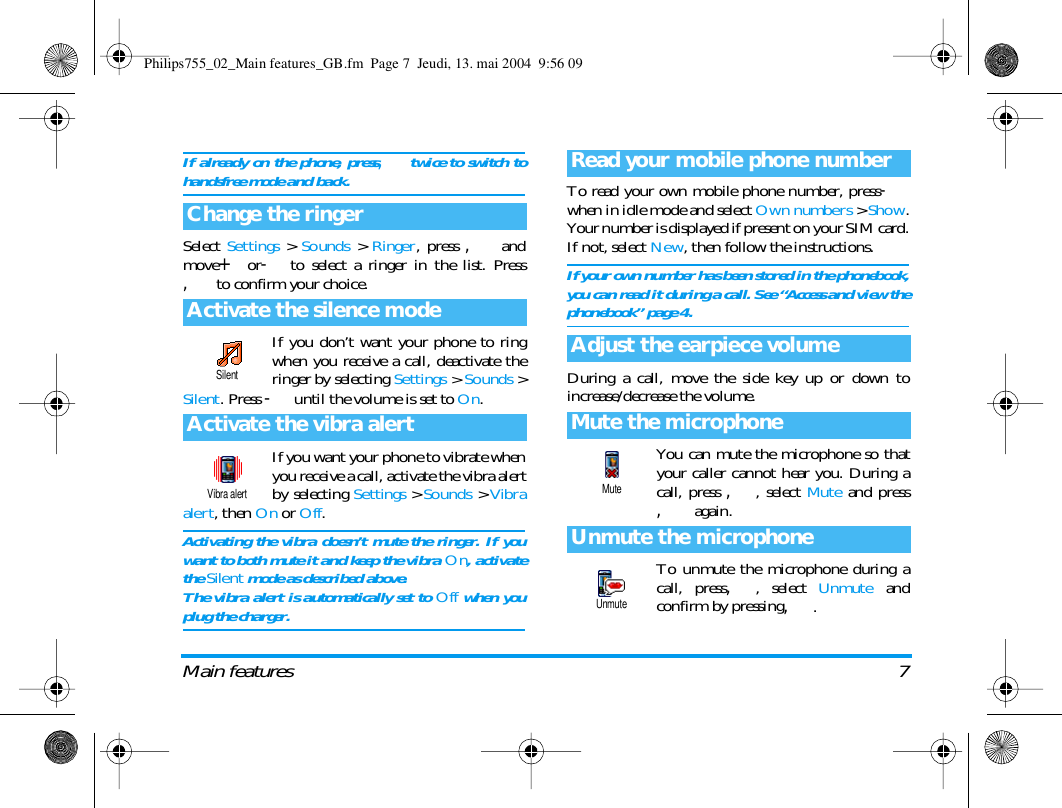

Main features 7If already on the phone, press,twice to switch tohandsfree mode and back.Select Settings > Sounds > Ringer, press , andmove+or-to select a ringer in the list. Press, to confirm your choice.If you don’t want your phone to ringwhen you receive a call, deactivate theringer by selecting Settings > Sounds >Silent. Press -until the volume is set to On.If you want your phone to vibrate whenyou receive a call, activate the vibra alertby selecting Settings >Sounds >Vibraalert, then On or Off.Activating the vibra doesn’t mute the ringer. If youwant to both mute it and keep the vibra On, activatethe Silent mode as described above.The vibra alert is automatically set to Off when youplug the charger.To read your own mobile phone number, press-when in idle mode and select Own numbers > Show.Your number is displayed if present on your SIM card.If not, select New, then follow the instructions.If your own number has been stored in the phonebook,you can read it during a call. See “Access and view thephonebook” page 4.During a call, move the side key up or down toincrease/decrease the volume.You can mute the microphone so thatyour caller cannot hear you. During acall, press ,, select Mute and press, again.To unmute the microphone during acall, press,, select Unmute andconfirm by pressing,.Change the ringerActivate the silence modeActivate the vibra alertSilentVibra alertRead your mobile phone numberAdjust the earpiece volumeMute the microphoneUnmute the microphoneMuteUnmutePhilips755_02_Main features_GB.fm Page 7 Jeudi, 13. mai 2004 9:56 09

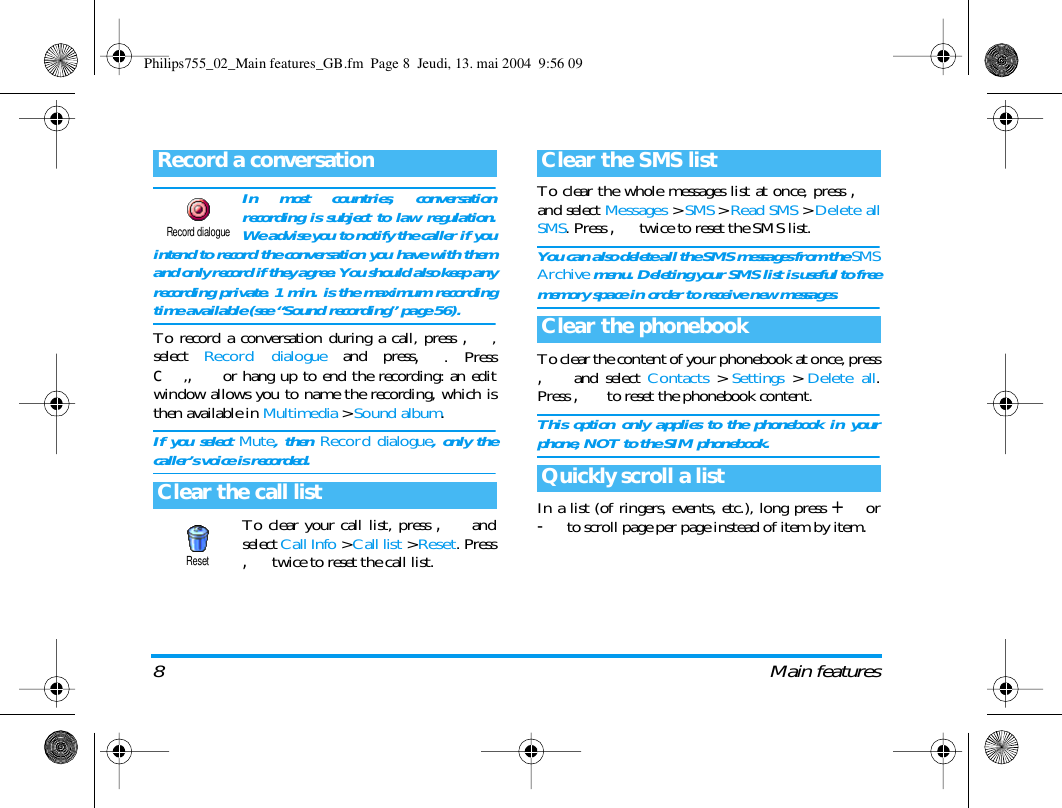

8 Main featuresIn most countries, conversationrecording is subject to law regulation.We advise you to notify the caller if youintend to record the conversation you have with themand only record if they agree. You should also keep anyrecording private. 1 min. is the maximum recordingtime available (see “Sound recording” page 56).To record a conversation during a call, press ,,select Record dialogue and press,. Pressc,, or hang up to end the recording: an editwindow allows you to name the recording, which isthen available in Multimedia > Sound album.If you select Mute, then Record dialogue, only thecaller’s voice is recorded.To clear your call list, press , andselect Call Info > Call list > Reset. Press,twice to reset the call list.To clear the whole messages list at once, press ,and select Messages > SMS > Read SMS > Delete allSMS. Press ,twice to reset the SMS list.You can also delete all the SMS messages from the SMSArchive menu. Deleting your SMS list is useful to freememory space in order to receive new messages.To clear the content of your phonebook at once, press, and select Contacts > Settings > Delete all.Press , to reset the phonebook content.This option only applies to the phonebook in yourphone, NOT to the SIM phonebook.In a list (of ringers, events, etc.), long press + or-to scroll page per page instead of item by item.Record a conversationClear the call listRecord dialogueResetClear the SMS listClear the phonebookQuickly scroll a listPhilips755_02_Main features_GB.fm Page 8 Jeudi, 13. mai 2004 9:56 09

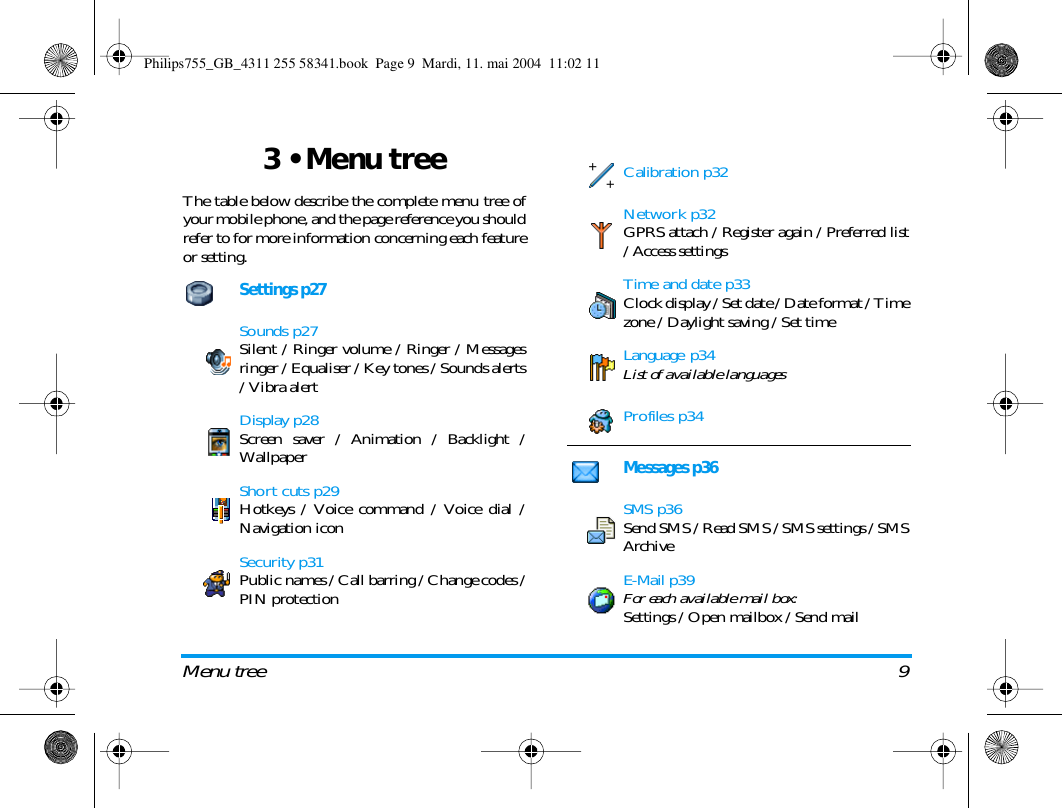

Menu tree 93 • Menu treeThe table below describe the complete menu tree ofyour mobile phone, and the page reference you shouldrefer to for more information concerning each featureor setting.Settings p27Sounds p27Silent / Ringer volume / Ringer / Messagesringer / Equaliser / Key tones / Sounds alerts/ Vibra alertDisplay p28Screen saver / Animation / Backlight /WallpaperShort cuts p29Hotkeys / Voice command / Voice dial /Navigation iconSecurity p31Public names / Call barring / Change codes /PIN protectionCalibration p32Network p32GPRS attach / Register again / Preferred list/ Access settingsTime and date p33Clock display / Set date / Date format / Timezone / Daylight saving / Set timeLanguage p34List of available languagesProfiles p34Messages p36SMS p36Send SMS / Read SMS / SMS settings / SMSArchiveE-Mail p39For each available mail box:Settings / Open mailbox / Send mailPhilips755_GB_4311 255 58341.book Page 9 Mardi, 11. mai 2004 11:02 11
10 Menu treeBroadcast SMS p44Reception / Topics / District codesSMS chat p44Quick message p44MMS p45New MMS / Receive an MMS / Managefolders / SettingsContacts p23View names listPhonebook settingsDelete all / Contacts select / Group settings /Copy to phoneGames & Applications p57Euro converter p57Calculator p57Alarm clock p57Organiser p57Brick game p59Call information p60Call settings p60Call forward / Mailboxes / Auto redial / Anykey answer / Call waiting / Caller ID Call list p61Call list / ResetCall counters p62GSM counters / GPRS countersInfrared p50Philips755_GB_4311 255 58341.book Page 10 Mardi, 11. mai 2004 11:02 11

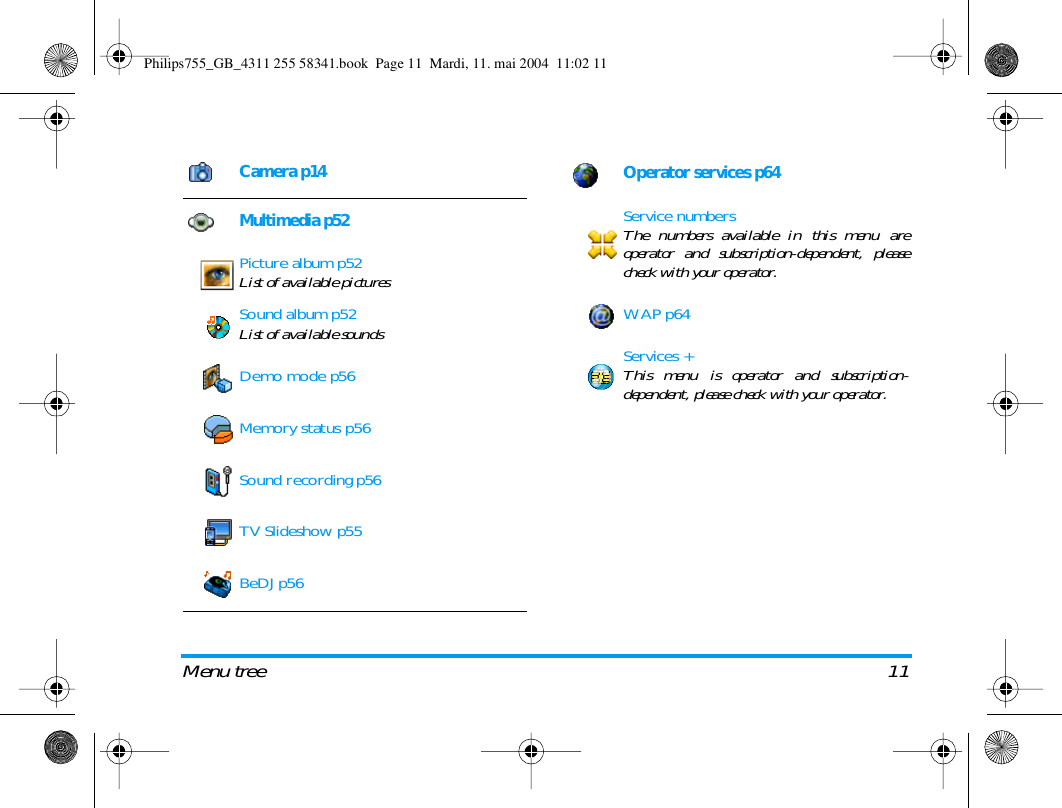

Menu tree 11Camera p14Multimedia p52Picture album p52List of available picturesSound album p52List of available soundsDemo mode p56Memory status p56Sound recording p56TV Slideshow p55BeDJ p56Operator services p64Service numbersThe numbers available in this menu areoperator and subscription-dependent, pleasecheck with your operator.WAP p64Services +This menu is operator and subscription-dependent, please check with your operator.Philips755_GB_4311 255 58341.book Page 11 Mardi, 11. mai 2004 11:02 11
12 Text or number entry4 • Text or number entryText can be entered in editing screens in two differentways: by using T9® predictive Text Input, or basictext input. Two other modes for numbers andpunctuation marks are also available. Icons appearingon the screen show the active text mode.Reminder: the on-screen keyboard allows you to entertext using the stylus pen, like you would do on a PCkeyboard. Using the stylus is equivalent to pressing theactual keys.T9® predictive Text Input is anintelligent editing mode for messages,including a comprehensive dictionary.It allows you to quickly enter text. Pressonly once on the key corresponding toeach letter needed to spell a word:keystrokes input are analysed and the word suggestedby T9® is displayed in the edit screen. If several wordsare available according to the keys used, the word youentered is highlighted: press < or > to browsethe list and to choose from those proposed by the T9®built-in dictionary (see example below).How to use it?Alphabets and symbols represented by each key are asfollows:Example: how to enter the word "home":1.Press 4 6 6 3The screen displays the first word of a list: Good.2.Press > to scroll and select Home.3.Press , or 1 to confirm selection of theword Home.T9® Text inputTegic Euro. Pat. App. 08424632 to 9To key in letters.< or >To browse the list of candidate words.,or 1To confirm entry.c Short press to clear one entry, longpress to clear all text.0Shift from standard, to lower, to uppercase.*Shift from T9® to basic mode, tonumeric mode.#Shift to symbols and punctuationmode.Philips755_GB_4311 255 58341.book Page 12 Mardi, 11. mai 2004 11:02 11

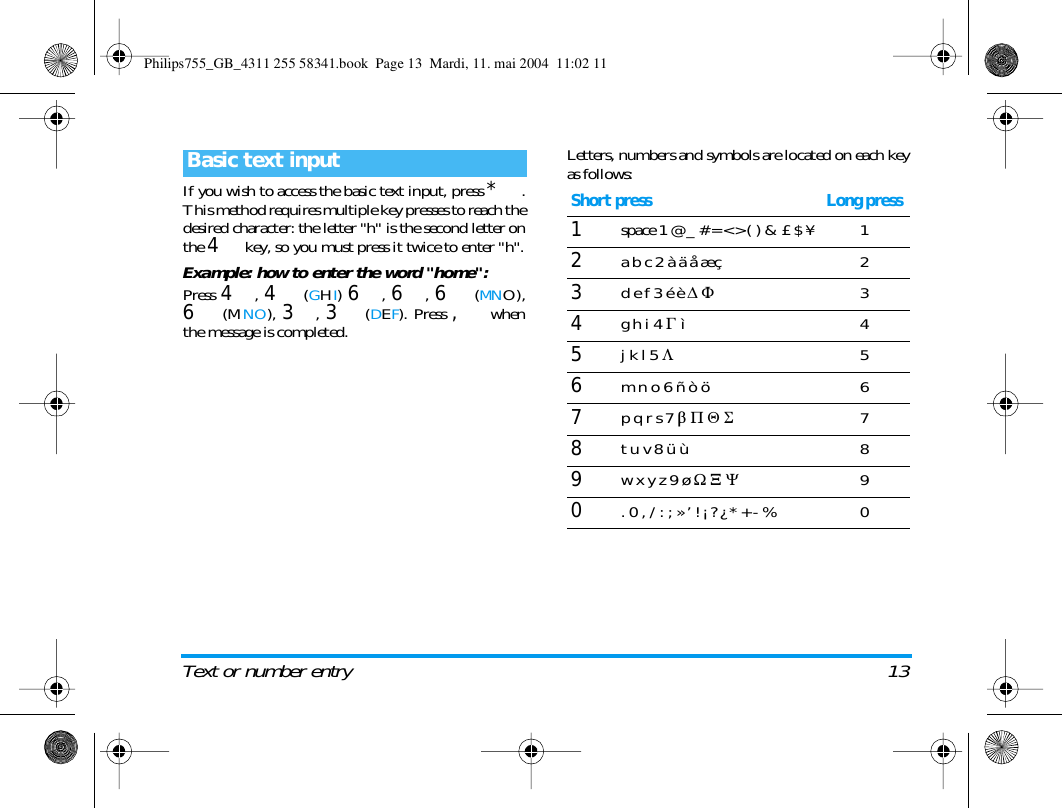

Text or number entry 13If you wish to access the basic text input, press *.This method requires multiple key presses to reach thedesired character: the letter "h" is the second letter onthe 4 key, so you must press it twice to enter "h".Example: how to enter the word "home":Press 4, 4 (GHI) 6, 6, 6 (MNO),6 (MNO), 3, 3 (DEF). Press , whenthe message is completed.Letters, numbers and symbols are located on each keyas follows:Basic text inputShort press Long press1space 1 @ _ # = < > ( ) & £ $ ¥ 12a b c 2 à ä å æ ç 23d e f 3 é è D F34g h i 4 G ì45j k l 5 L56m n o 6 ñ ò ö 67p q r s 7 b P Q S78t u v 8 ü ù 89w x y z 9 ø W X Y90. 0 , / : ; » ’ ! ¡ ? ¿ * + - % 0Philips755_GB_4311 255 58341.book Page 13 Mardi, 11. mai 2004 11:02 11

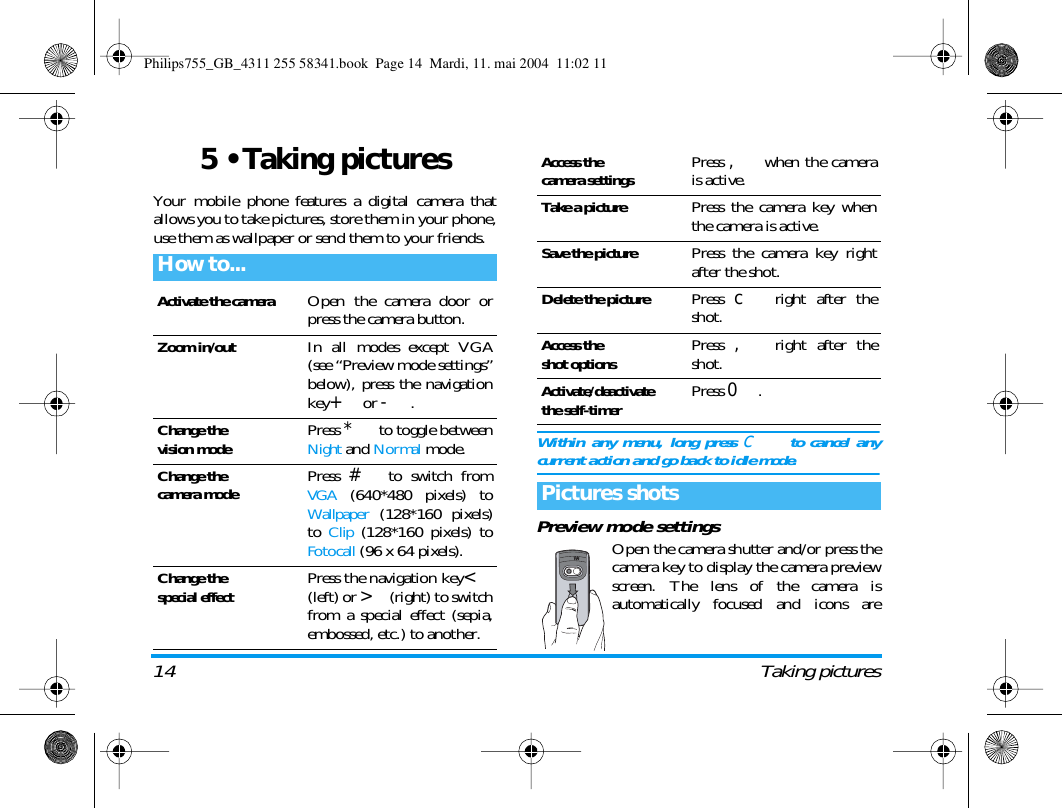

14 Taking pictures5 • Taking picturesYour mobile phone features a digital camera thatallows you to take pictures, store them in your phone,use them as wallpaper or send them to your friends.Within any menu, long press c to cancel anycurrent action and go back to idle mode.Preview mode settingsOpen the camera shutter and/or press thecamera key to display the camera previewscreen. The lens of the camera isautomatically focused and icons areHow to...Activate the cameraOpen the camera door orpress the camera button.Zoom in/outIn all modes except VGA(see “Preview mode settings”below), press the navigationkey+ or -.Change thevision modePress * to toggle betweenNight and Normal mode.Change thecamera modePress # to switch fromVGA (640*480 pixels) toWallpaper (128*160 pixels)to Clip (128*160 pixels) toFotocall (96 x 64 pixels).Change thespecial effectPress the navigation key<(left) or >(right) to switchfrom a special effect (sepia,embossed, etc.) to another.Access thecamera settingsPress , when the camerais active.Take a picturePress the camera key whenthe camera is active.Save the picturePress the camera key rightafter the shot.Delete the picturePress c right after theshot.Access theshot optionsPress , right after theshot.Activate/deactivatethe self-timerPress 0.Pictures shotsPhilips755_GB_4311 255 58341.book Page 14 Mardi, 11. mai 2004 11:02 11

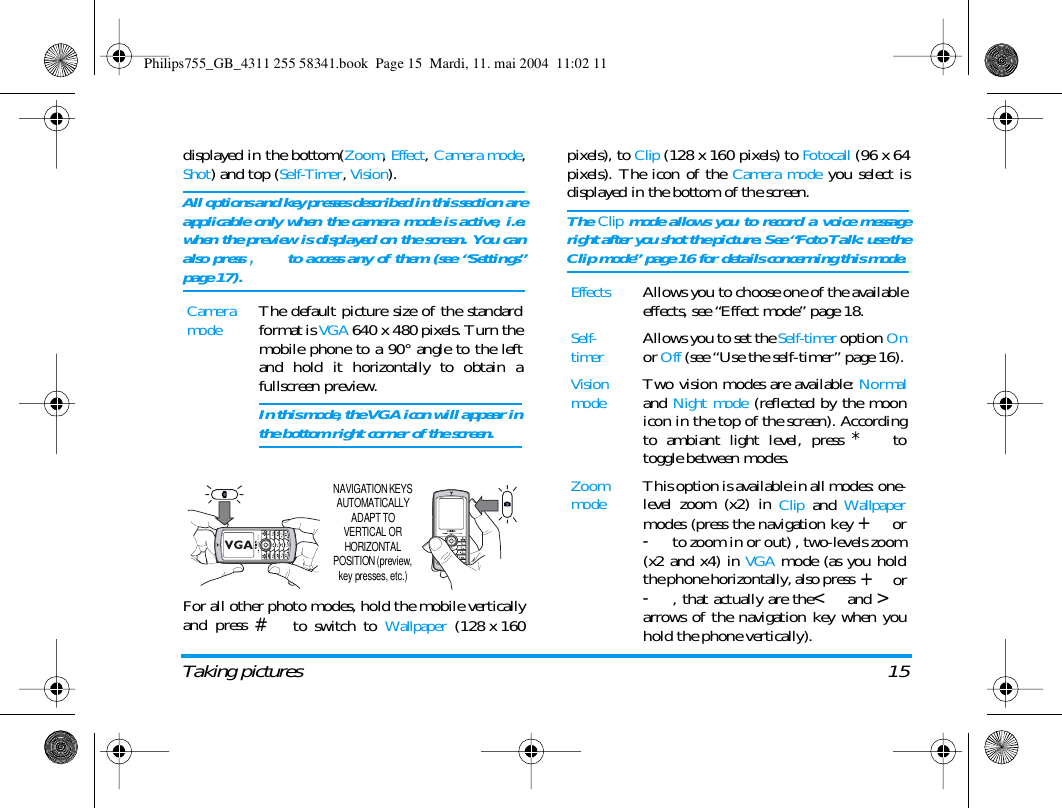

Taking pictures 15displayed in the bottom(Zoom, Effect, Camera mode,Shot) and top (Self-Timer, Vision).All options and key presses described in this section areapplicable only when the camera mode is active, i.e.when the preview is displayed on the screen. You canalso press , to access any of them (see “Settings”page 17).For all other photo modes, hold the mobile verticallyand press # to switch to Wallpaper (128 x 160pixels), to Clip (128 x 160 pixels) to Fotocall (96 x 64pixels). The icon of the Camera mode you select isdisplayed in the bottom of the screen.The Clip mode allows you to record a voice messageright after you shot the picture. See “Foto Talk: use theClip mode” page 16 for details concerning this mode.Camera modeThe default picture size of the standardformat is VGA 640 x 480 pixels. Turn themobile phone to a 90° angle to the leftand hold it horizontally to obtain afullscreen preview.In this mode, the VGA icon will appear inthe bottom right corner of the screen.NAVIGATION KEYS AUTOMATICALLY ADAPT TO VERTICAL OR HORIZONTAL POSITION (preview, key presses, etc.)EffectsAllows you to choose one of the availableeffects, see “Effect mode” page 18.Self-timerAllows you to set the Self-timer option Onor Off (see “Use the self-timer” page 16).Vision modeTwo vision modes are available: Normaland Night mode (reflected by the moonicon in the top of the screen). Accordingto ambiant light level, press * totoggle between modes.Zoom modeThis option is available in all modes: one-level zoom (x2) in Clip and Wallpapermodes (press the navigation key + or-to zoom in or out) , two-levels zoom(x2 and x4) in VGA mode (as you holdthe phone horizontally, also press + or-, that actually are the< and >arrows of the navigation key when youhold the phone vertically).Philips755_GB_4311 255 58341.book Page 15 Mardi, 11. mai 2004 11:02 11

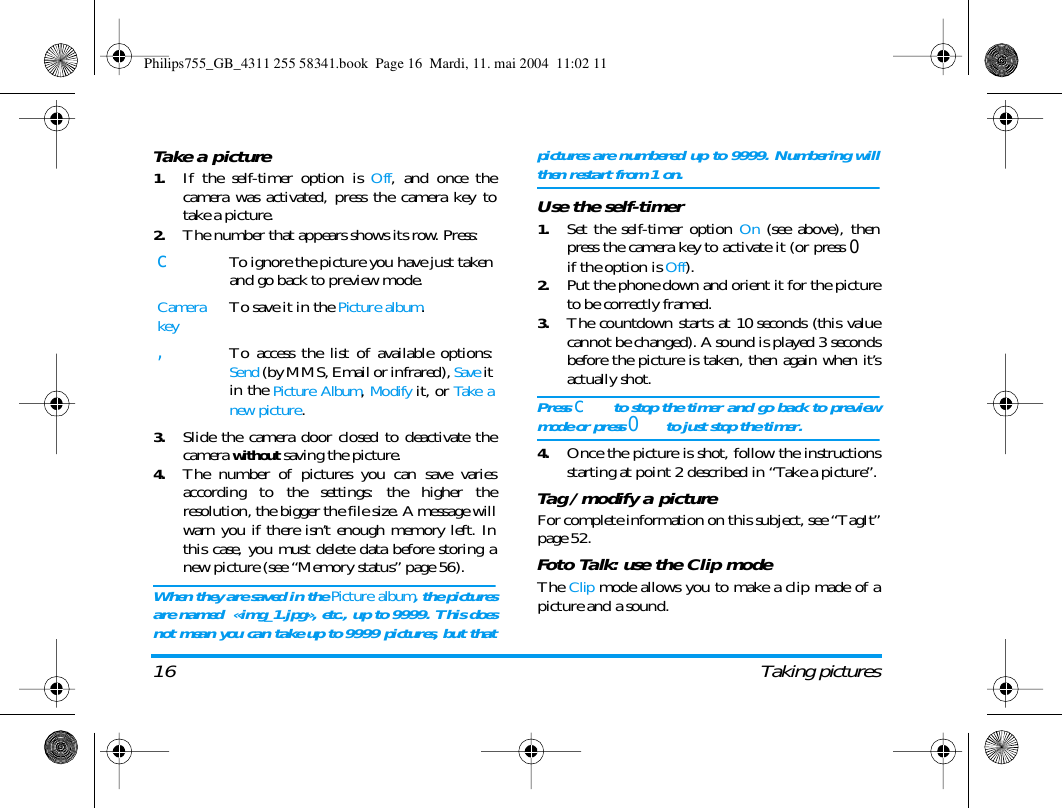

16 Taking picturesTake a picture1.If the self-timer option is Off, and once thecamera was activated, press the camera key totake a picture.2.The number that appears shows its row. Press:3.Slide the camera door closed to deactivate thecamera without saving the picture.4.The number of pictures you can save variesaccording to the settings: the higher theresolution, the bigger the file size. A message willwarn you if there isn’t enough memory left. Inthis case, you must delete data before storing anew picture (see “Memory status” page 56).When they are saved in the Picture album, the picturesare named «img_1.jpg», etc., up to 9999. This doesnot mean you can take up to 9999 pictures, but thatpictures are numbered up to 9999. Numbering willthen restart from 1 on.Use the self-timer1.Set the self-timer option On (see above), thenpress the camera key to activate it (or press 0if the option is Off).2.Put the phone down and orient it for the pictureto be correctly framed.3.The countdown starts at 10 seconds (this valuecannot be changed). A sound is played 3 secondsbefore the picture is taken, then again when it’sactually shot.Press c to stop the timer and go back to previewmode or press 0 to just stop the timer.4.Once the picture is shot, follow the instructionsstarting at point 2 described in “Take a picture”.Tag / modify a pictureFor complete information on this subject, see “TagIt”page 52.Foto Talk: use the Clip modeThe Clip mode allows you to make a clip made of apicture and a sound.cTo ignore the picture you have just takenand go back to preview mode.Camera keyTo save it in the Picture album.,To access the list of available options:Send (by MMS, Email or infrared), Save itin the Picture Album, Modify it, or Take anew picture.Philips755_GB_4311 255 58341.book Page 16 Mardi, 11. mai 2004 11:02 11

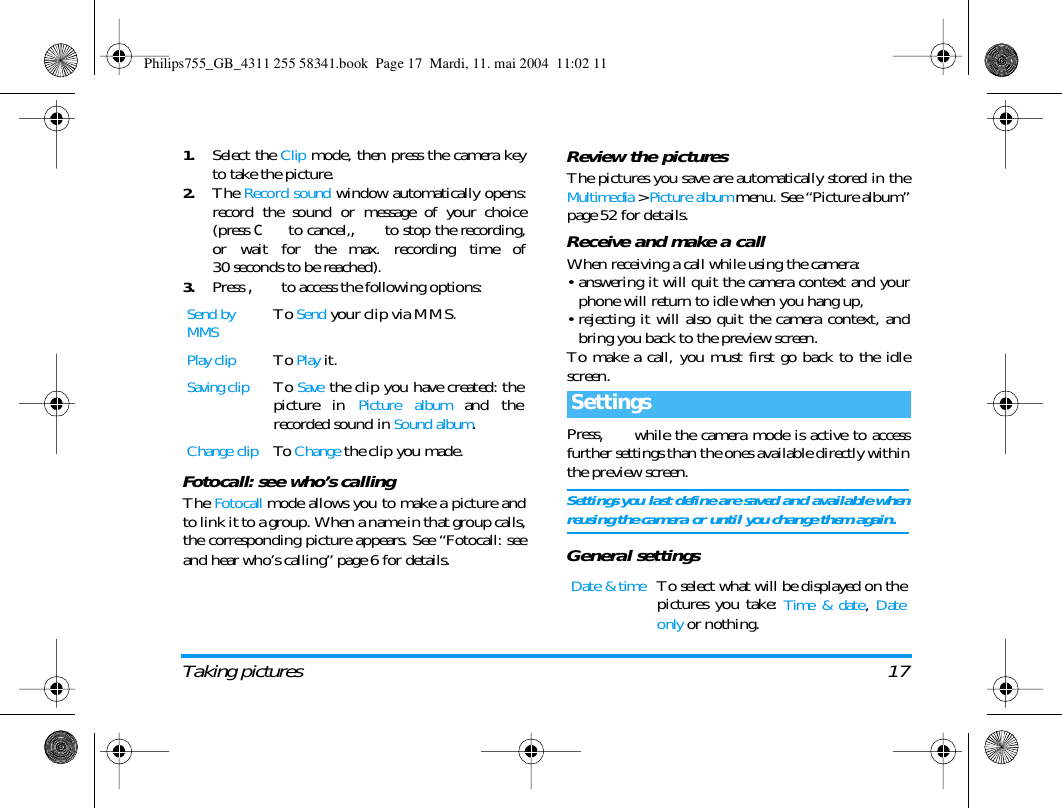

Taking pictures 171.Select the Clip mode, then press the camera keyto take the picture.2.The Record sound window automatically opens:record the sound or message of your choice(press c to cancel,, to stop the recording,or wait for the max. recording time of30 seconds to be reached).3.Press , to access the following options:Fotocall: see who’s callingThe Fotocall mode allows you to make a picture andto link it to a group. When a name in that group calls,the corresponding picture appears. See “Fotocall: seeand hear who’s calling” page 6 for details.Review the picturesThe pictures you save are automatically stored in theMultimedia > Picture album menu. See “Picture album”page 52 for details.Receive and make a callWhen receiving a call while using the camera:• answering it will quit the camera context and yourphone will return to idle when you hang up,• rejecting it will also quit the camera context, andbring you back to the preview screen.To make a call, you must first go back to the idlescreen.Press, while the camera mode is active to accessfurther settings than the ones available directly withinthe preview screen.Settings you last define are saved and available whenreusing the camera or until you change them again.General settingsSend by MMSTo Send your clip via MMS.Play clipTo Play it.Saving clipTo Save the clip you have created: thepicture in Picture album and therecorded sound in Sound album.Change clipTo Change the clip you made.SettingsDate & timeTo select what will be displayed on thepictures you take: Time & date, Dateonly or nothing.Philips755_GB_4311 255 58341.book Page 17 Mardi, 11. mai 2004 11:02 11

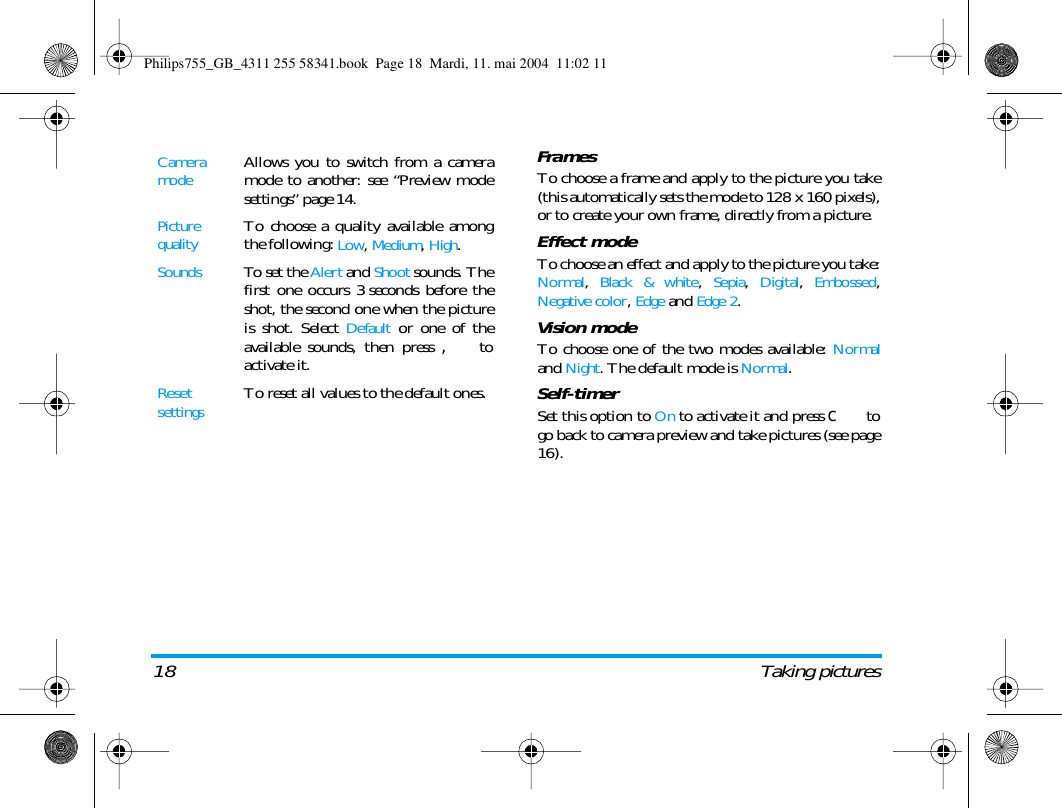

18 Taking picturesFramesTo choose a frame and apply to the picture you take(this automatically sets the mode to 128 x 160 pixels),or to create your own frame, directly from a picture.Effect modeTo choose an effect and apply to the picture you take:Normal, Black & white, Sepia, Digital, Embossed,Negative color, Edge and Edge 2.Vision modeTo choose one of the two modes available: Normaland Night. The default mode is Normal.Self-timerSet this option to On to activate it and press c togo back to camera preview and take pictures (see page16).Camera modeAllows you to switch from a cameramode to another: see “Preview modesettings” page 14.Picture qualityTo choose a quality available amongthe following: Low, Medium, High.SoundsTo set the Alert and Shoot sounds. Thefirst one occurs 3 seconds before theshot, the second one when the pictureis shot. Select Default or one of theavailable sounds, then press , toactivate it.Reset settingsTo reset all values to the default ones.Philips755_GB_4311 255 58341.book Page 18 Mardi, 11. mai 2004 11:02 11

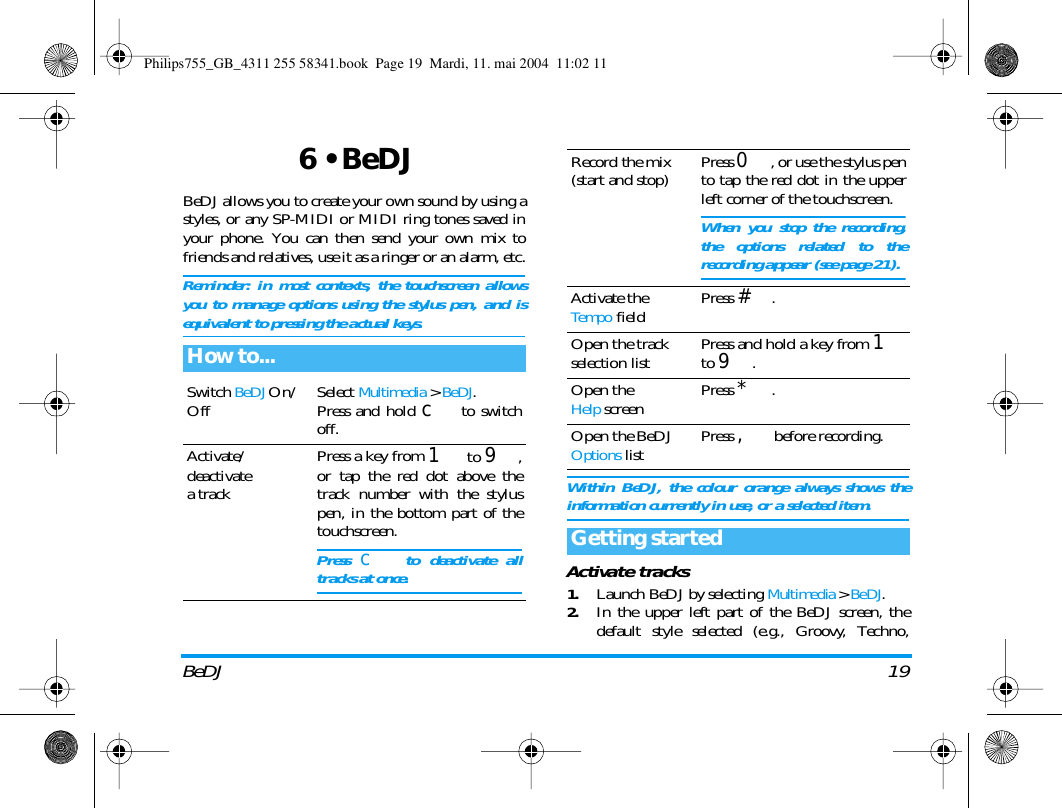

BeDJ 196 • BeDJBeDJ allows you to create your own sound by using astyles, or any SP-MIDI or MIDI ring tones saved inyour phone. You can then send your own mix tofriends and relatives, use it as a ringer or an alarm, etc.Reminder: in most contexts, the touchscreen allowsyou to manage options using the stylus pen, and isequivalent to pressing the actual keys.Within BeDJ, the colour orange always shows theinformation currently in use, or a selected item.Activate tracks1.Launch BeDJ by selecting Multimedia > BeDJ.2.In the upper left part of the BeDJ screen, thedefault style selected (e.g., Groovy, Techno,How to...Switch BeDJ On/Off Select Multimedia > BeDJ.Press and hold c to switchoff.Activate/deactivatea trackPress a key from 1 to 9,or tap the red dot above thetrack number with the styluspen, in the bottom part of thetouchscreen.Press c to deactivate alltracks at once.Record the mix(start and stop) Press 0, or use the stylus pento tap the red dot in the upperleft corner of the touchscreen.When you stop the recording,the options related to therecording appear (see page 21).Activate theTempo field Press #.Open the trackselection list Press and hold a key from 1to 9.Open theHelp screen Press *.Open the BeDJ Options list Press , before recording.Getting startedPhilips755_GB_4311 255 58341.book Page 19 Mardi, 11. mai 2004 11:02 11

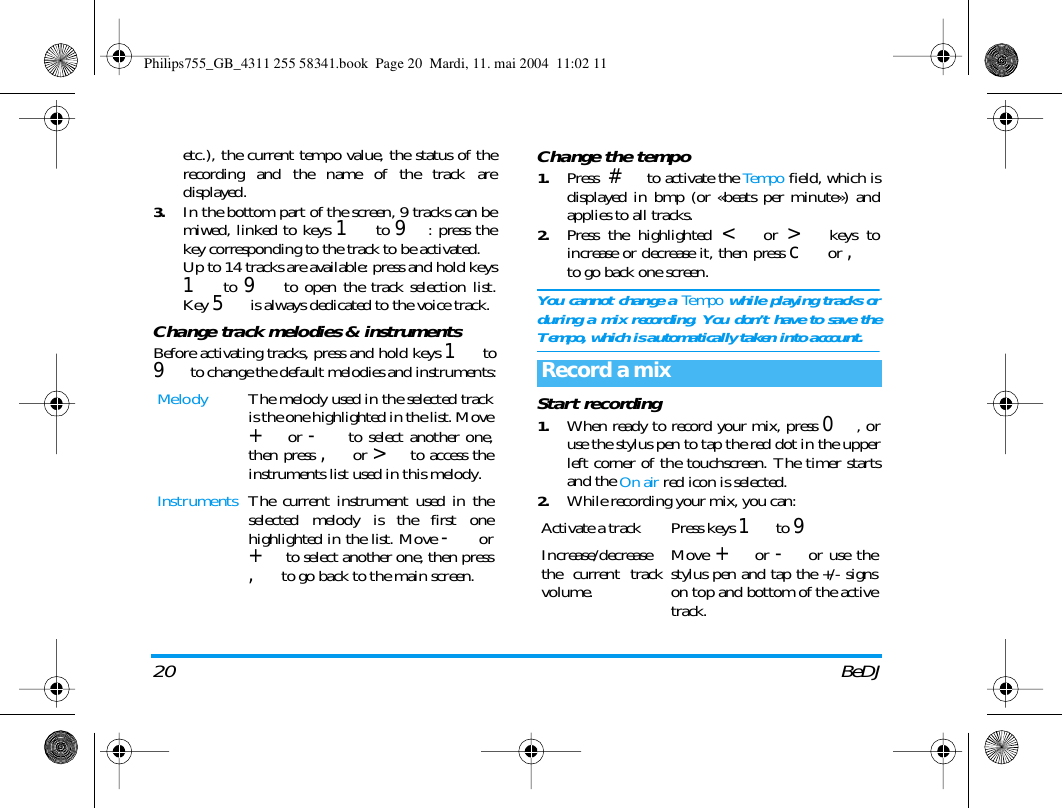

20 BeDJetc.), the current tempo value, the status of therecording and the name of the track aredisplayed.3.In the bottom part of the screen, 9 tracks can bemiwed, linked to keys 1 to 9: press thekey corresponding to the track to be activated.Up to 14 tracks are available: press and hold keys1 to 9 to open the track selection list.Key 5 is always dedicated to the voice track.Change track melodies & instrumentsBefore activating tracks, press and hold keys 1 to9 to change the default melodies and instruments:Change the tempo1.Press # to activate the Tempo field, which isdisplayed in bmp (or «beats per minute») andapplies to all tracks.2.Press the highlighted < or > keys toincrease or decrease it, then press c or ,to go back one screen.You cannot change a Tempo while playing tracks orduring a mix recording. You don’t have to save theTempo, which is automatically taken into account. Start recording1.When ready to record your mix, press 0, oruse the stylus pen to tap the red dot in the upperleft corner of the touchscreen. The timer startsand the On air red icon is selected.2.While recording your mix, you can:Melody The melody used in the selected trackis the one highlighted in the list. Move+ or - to select another one,then press ,or > to access theinstruments list used in this melody.Instruments The current instrument used in theselected melody is the first onehighlighted in the list. Move - or+ to select another one, then press,to go back to the main screen.Record a mixActivate a track Press keys 1 to 9Increase/decreasethe current trackvolume.Move + or -or use thestylus pen and tap the +/- signson top and bottom of the activetrack.Philips755_GB_4311 255 58341.book Page 20 Mardi, 11. mai 2004 11:02 11

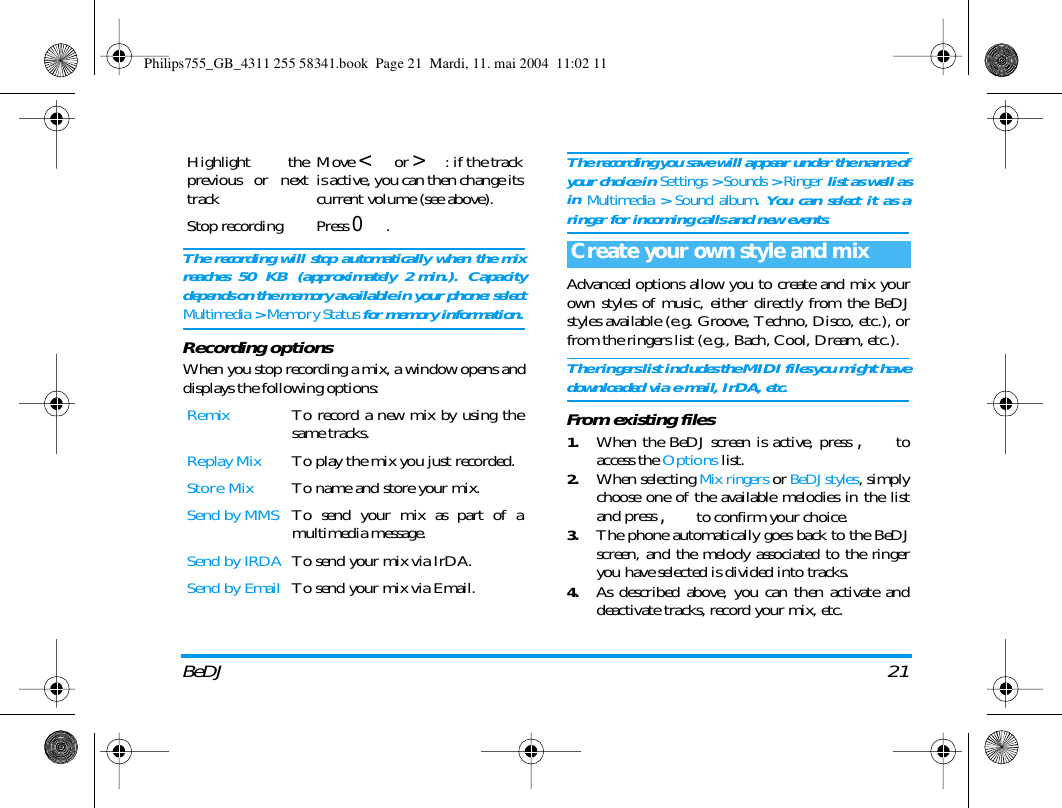

BeDJ 21The recording will stop automatically when the mixreaches 50 KB (approximately 2 min.). Capacitydepends on the memory available in your phone: selectMultimedia > Memory Status for memory information.Recording optionsWhen you stop recording a mix, a window opens anddisplays the following options:The recording you save will appear under the name ofyour choice in Settings > Sounds > Ringer list as well asin Multimedia > Sound album. You can select it as aringer for incoming calls and new events.Advanced options allow you to create and mix yourown styles of music, either directly from the BeDJstyles available (e.g. Groove, Techno, Disco, etc.), orfrom the ringers list (e.g., Bach, Cool, Dream, etc.).The ringers list includes the MIDI files you might havedownloaded via e-mail, IrDA, etc.From existing files1.When the BeDJ screen is active, press , toaccess the Options list.2.When selecting Mix ringers or BeDJ styles, simplychoose one of the available melodies in the listand press , to confirm your choice.3.The phone automatically goes back to the BeDJscreen, and the melody associated to the ringeryou have selected is divided into tracks.4.As described above, you can then activate anddeactivate tracks, record your mix, etc.Highlight theprevious or nexttrackMove < or >: if the trackis active, you can then change itscurrent volume (see above).Stop recording Press 0.Remix To record a new mix by using thesame tracks.Replay Mix To play the mix you just recorded.Store Mix To name and store your mix.Send by MMS To send your mix as part of amultimedia message.Send by IRDA To send your mix via IrDA. Send by Email To send your mix via Email.Create your own style and mixPhilips755_GB_4311 255 58341.book Page 21 Mardi, 11. mai 2004 11:02 11

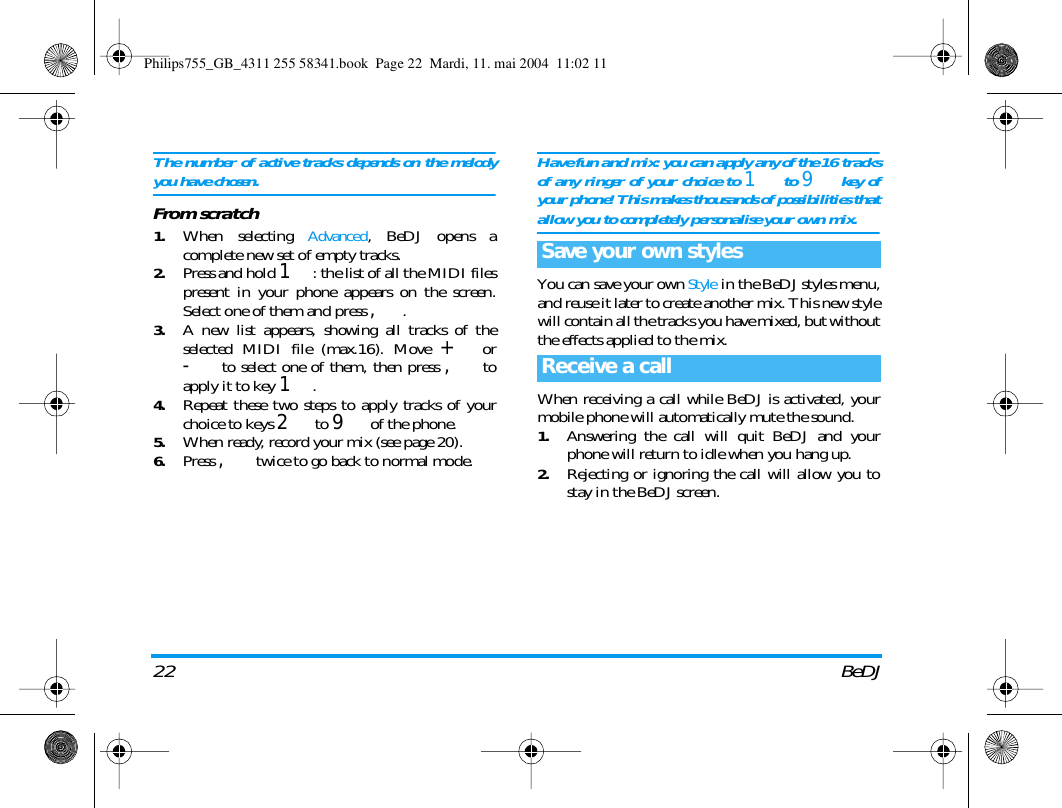

22 BeDJThe number of active tracks depends on the melodyyou have chosen.From scratch1.When selecting Advanced, BeDJ opens acomplete new set of empty tracks.2.Press and hold 1: the list of all the MIDI filespresent in your phone appears on the screen.Select one of them and press ,.3.A new list appears, showing all tracks of theselected MIDI file (max.16). Move + or- to select one of them, then press , toapply it to key 1.4.Repeat these two steps to apply tracks of yourchoice to keys 2 to 9 of the phone.5.When ready, record your mix (see page 20).6.Press , twice to go back to normal mode.Have fun and mix: you can apply any of the 16 tracksof any ringer of your choice to 1 to 9 key ofyour phone! This makes thousands of possibilities thatallow you to completely personalise your own mix.You can save your own Style in the BeDJ styles menu,and reuse it later to create another mix. This new stylewill contain all the tracks you have mixed, but withoutthe effects applied to the mix.When receiving a call while BeDJ is activated, yourmobile phone will automatically mute the sound.1.Answering the call will quit BeDJ and yourphone will return to idle when you hang up.2.Rejecting or ignoring the call will allow you tostay in the BeDJ screen.Save your own stylesReceive a callPhilips755_GB_4311 255 58341.book Page 22 Mardi, 11. mai 2004 11:02 11

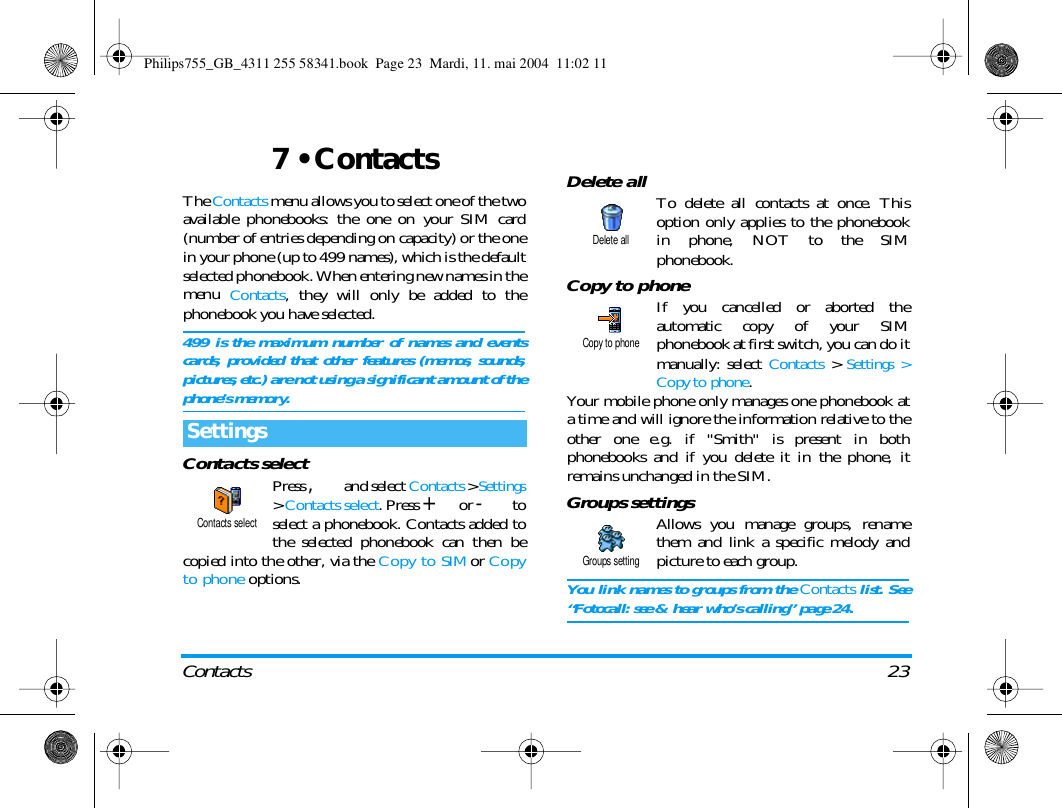

Contacts 237 • ContactsThe Contacts menu allows you to select one of the twoavailable phonebooks: the one on your SIM card(number of entries depending on capacity) or the onein your phone (up to 499 names), which is the defaultselected phonebook. When entering new names in themenu Contacts, they will only be added to thephonebook you have selected.499 is the maximum number of names and eventscards, provided that other features (memos, sounds,pictures, etc.) are not using a significant amount of thephone’s memory.Contacts selectPress , and select Contacts > Settings> Contacts select. Press + or - toselect a phonebook. Contacts added tothe selected phonebook can then becopied into the other, via the Copy to SIM or Copyto phone options.Delete all To delete all contacts at once. Thisoption only applies to the phonebookin phone, NOT to the SIMphonebook.Copy to phoneIf you cancelled or aborted theautomatic copy of your SIMphonebook at first switch, you can do itmanually: select Contacts > Settings >Copy to phone.Your mobile phone only manages one phonebook ata time and will ignore the information relative to theother one e.g. if "Smith" is present in bothphonebooks and if you delete it in the phone, itremains unchanged in the SIM.Groups settingsAllows you manage groups, renamethem and link a specific melody andpicture to each group.You link names to groups from the Contacts list. See“Fotocall: see & hear who’s calling” page 24.SettingsContacts selectDelete allCopy to phoneGroups settingPhilips755_GB_4311 255 58341.book Page 23 Mardi, 11. mai 2004 11:02 11

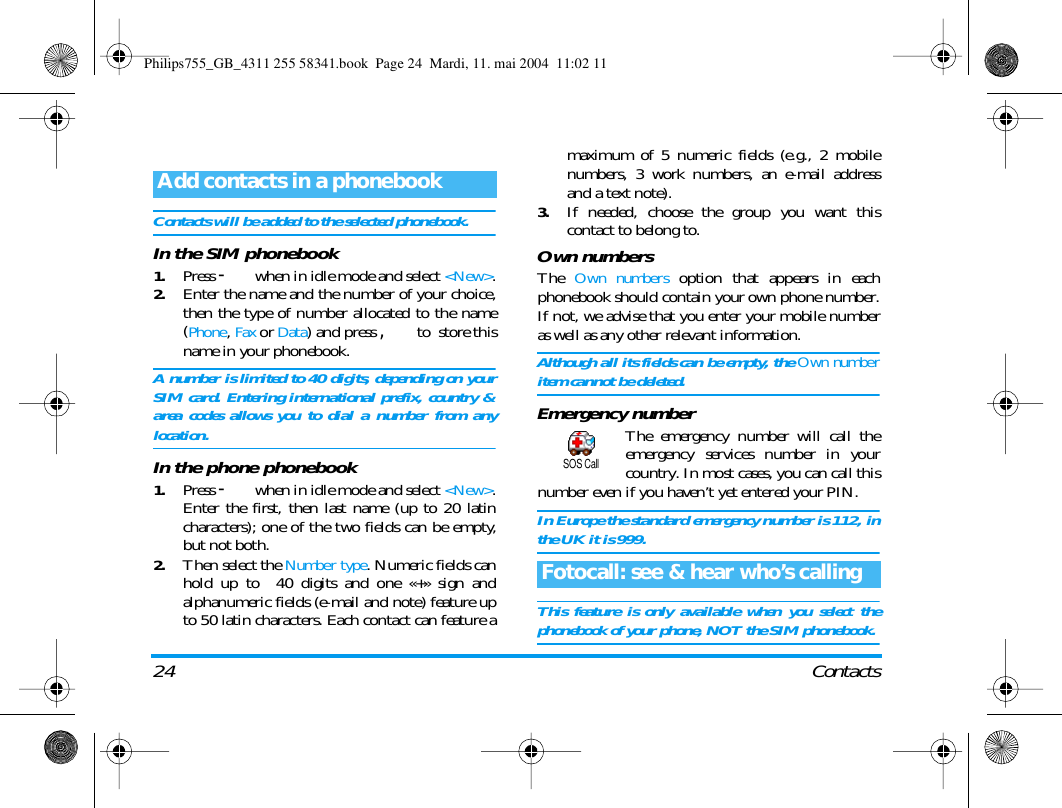

24 ContactsContacts will be added to the selected phonebook.In the SIM phonebook1.Press - when in idle mode and select <New>.2.Enter the name and the number of your choice,then the type of number allocated to the name(Phone, Fax or Data) and press , to store thisname in your phonebook.A number is limited to 40 digits, depending on yourSIM card. Entering international prefix, country &area codes allows you to dial a number from anylocation.In the phone phonebook1.Press - when in idle mode and select <New>.Enter the first, then last name (up to 20 latincharacters); one of the two fields can be empty,but not both.2.Then select the Number type. Numeric fields canhold up to 40 digits and one «+» sign andalphanumeric fields (e-mail and note) feature upto 50 latin characters. Each contact can feature amaximum of 5 numeric fields (e.g., 2 mobilenumbers, 3 work numbers, an e-mail addressand a text note).3.If needed, choose the group you want thiscontact to belong to. Own numbersThe Own numbers option that appears in eachphonebook should contain your own phone number.If not, we advise that you enter your mobile numberas well as any other relevant information.Although all its fields can be empty, the Own numberitem cannot be deleted.Emergency numberThe emergency number will call theemergency services number in yourcountry. In most cases, you can call thisnumber even if you haven’t yet entered your PIN.In Europe the standard emergency number is 112, inthe UK it is 999. This feature is only available when you select thephonebook of your phone, NOT the SIM phonebook.Add contacts in a phonebookFotocall: see & hear who’s callingSOS CallPhilips755_GB_4311 255 58341.book Page 24 Mardi, 11. mai 2004 11:02 11

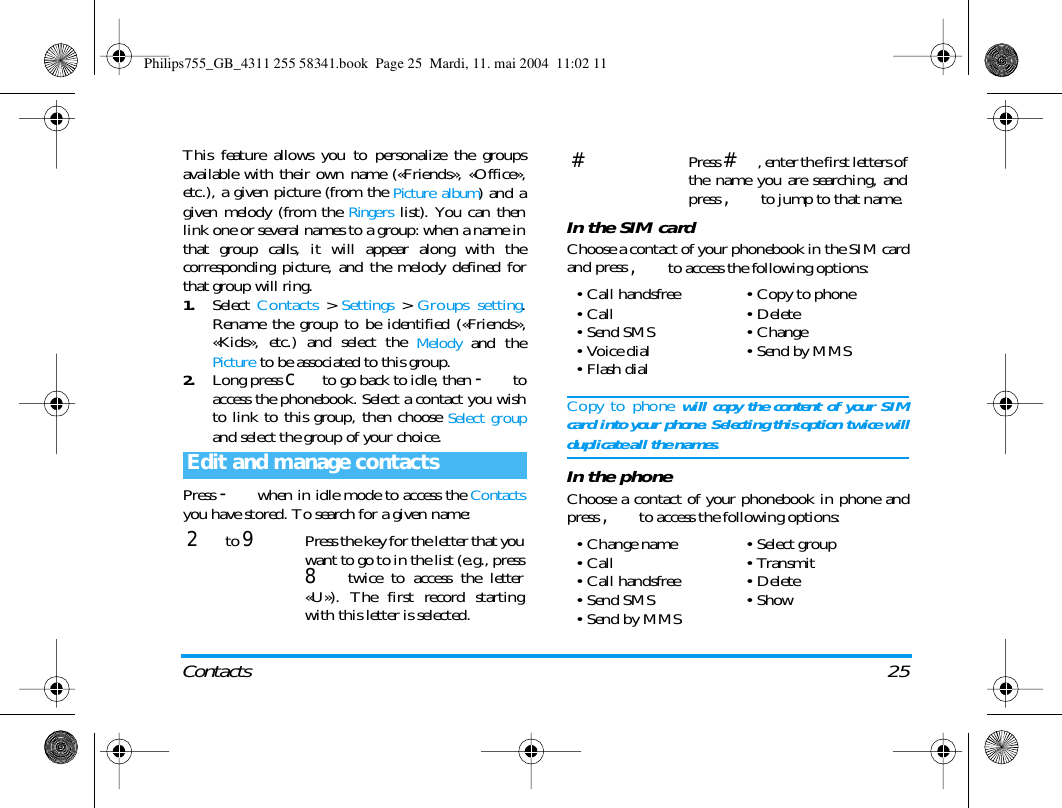

Contacts 25This feature allows you to personalize the groupsavailable with their own name («Friends», «Office»,etc.), a given picture (from the Picture album) and agiven melody (from the Ringers list). You can thenlink one or several names to a group: when a name inthat group calls, it will appear along with thecorresponding picture, and the melody defined forthat group will ring.1.Select Contacts > Settings > Groups setting.Rename the group to be identified («Friends»,«Kids», etc.) and select the Melody and thePicture to be associated to this group.2.Long press c to go back to idle, then - toaccess the phonebook. Select a contact you wishto link to this group, then choose Select groupand select the group of your choice.Press - when in idle mode to access the Contactsyou have stored. To search for a given name:In the SIM cardChoose a contact of your phonebook in the SIM cardand press , to access the following options:Copy to phone will copy the content of your SIMcard into your phone. Selecting this option twice willduplicate all the names.In the phoneChoose a contact of your phonebook in phone andpress , to access the following options:Edit and manage contacts2 to 9Press the key for the letter that youwant to go to in the list (e.g., press8 twice to access the letter«U»). The first record startingwith this letter is selected.#Press #, enter the first letters ofthe name you are searching, andpress , to jump to that name.• Call handsfree•Call•Send SMS•Voice dial•Flash dial• Copy to phone•Delete•Change•Send by MMS•Change name•Call• Call handsfree•Send SMS• Send by MMS•Select group•Transmit•Delete•ShowPhilips755_GB_4311 255 58341.book Page 25 Mardi, 11. mai 2004 11:02 11
26 ContactsSelect Show to access the list of all numbers or fieldssaved for this contact, then <New> to create a newfield for this contact. Select one of the fields and press, to access a second set of options, which are:Alphanumeric fields (note and e-mail) can only bechanged or deleted.Make default The first number you enterbecomes the default number: itappears in first position in thelist and is automatically dialledwhen pressing the pick-up key.This option allows you to makeanother number default.Copy to SIM card To copy a contact of your phonephonebook into the SIM card (itis then always updated whenswitching phonebooks or whenusing another phone).Show To display the details of theselected field.Change type To change or to define the fieldtype of the selected number.Philips755_GB_4311 255 58341.book Page 26 Mardi, 11. mai 2004 11:02 11

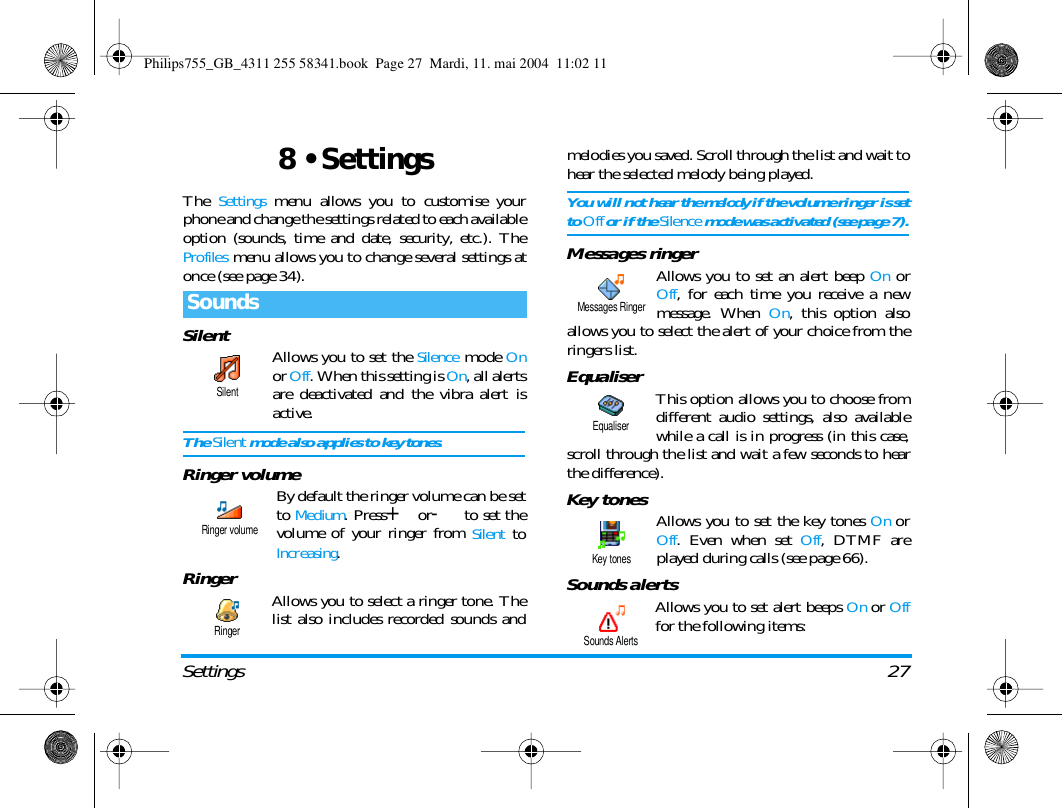

Settings 278 • SettingsThe Settings menu allows you to customise yourphone and change the settings related to each availableoption (sounds, time and date, security, etc.). TheProfiles menu allows you to change several settings atonce (see page 34).Silent Allows you to set the Silence mode Onor Off. When this setting is On, all alertsare deactivated and the vibra alert isactive.The Silent mode also applies to key tones.Ringer volume By default the ringer volume can be setto Medium. Press+or-to set thevolume of your ringer from Silent toIncreasing.Ringer Allows you to select a ringer tone. Thelist also includes recorded sounds andmelodies you saved. Scroll through the list and wait tohear the selected melody being played.You will not hear the melody if the volume ringer is setto Off or if the Silence mode was activated (see page 7).Messages ringerAllows you to set an alert beep On orOff, for each time you receive a newmessage. When On, this option alsoallows you to select the alert of your choice from theringers list.Equaliser This option allows you to choose fromdifferent audio settings, also availablewhile a call is in progress (in this case,scroll through the list and wait a few seconds to hearthe difference).Key tones Allows you to set the key tones On orOff. Even when set Off, DTMF areplayed during calls (see page 66).Sounds alertsAllows you to set alert beeps On or Offfor the following items:SoundsSilentRinger volumeRingerMessages RingerEqualiserKey tonesSounds AlertsPhilips755_GB_4311 255 58341.book Page 27 Mardi, 11. mai 2004 11:02 11

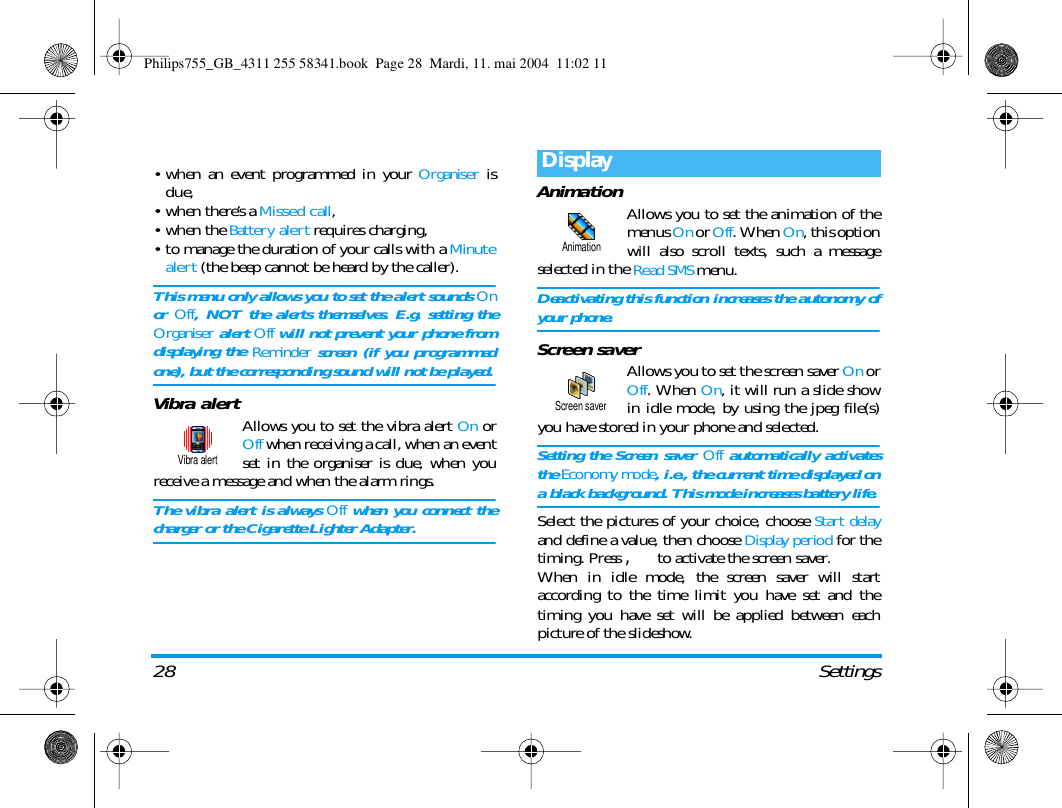

28 Settings• when an event programmed in your Organiser isdue,•when there’s a Missed call,•when the Battery alert requires charging,• to manage the duration of your calls with a Minutealert (the beep cannot be heard by the caller).This menu only allows you to set the alert sounds Onor Off, NOT the alerts themselves. E.g. setting theOrganiser alert Off will not prevent your phone fromdisplaying the Reminder screen (if you programmedone), but the corresponding sound will not be played.Vibra alertAllows you to set the vibra alert On orOff when receiving a call, when an eventset in the organiser is due, when youreceive a message and when the alarm rings.The vibra alert is always Off when you connect thecharger or the Cigarette Lighter Adapter.Animation Allows you to set the animation of themenus On or Off. When On, this optionwill also scroll texts, such a messageselected in the Read SMS menu.Deactivating this function increases the autonomy ofyour phone.Screen saverAllows you to set the screen saver On orOff. When On, it will run a slide showin idle mode, by using the jpeg file(s)you have stored in your phone and selected.Setting the Screen saver Off automatically activatesthe Economy mode, i.e., the current time displayed ona black background. This mode increases battery life.Select the pictures of your choice, choose Start delayand define a value, then choose Display period for thetiming. Press ,to activate the screen saver.When in idle mode, the screen saver will startaccording to the time limit you have set and thetiming you have set will be applied between eachpicture of the slideshow.Vibra alertDisplayAnimationScreen saverPhilips755_GB_4311 255 58341.book Page 28 Mardi, 11. mai 2004 11:02 11

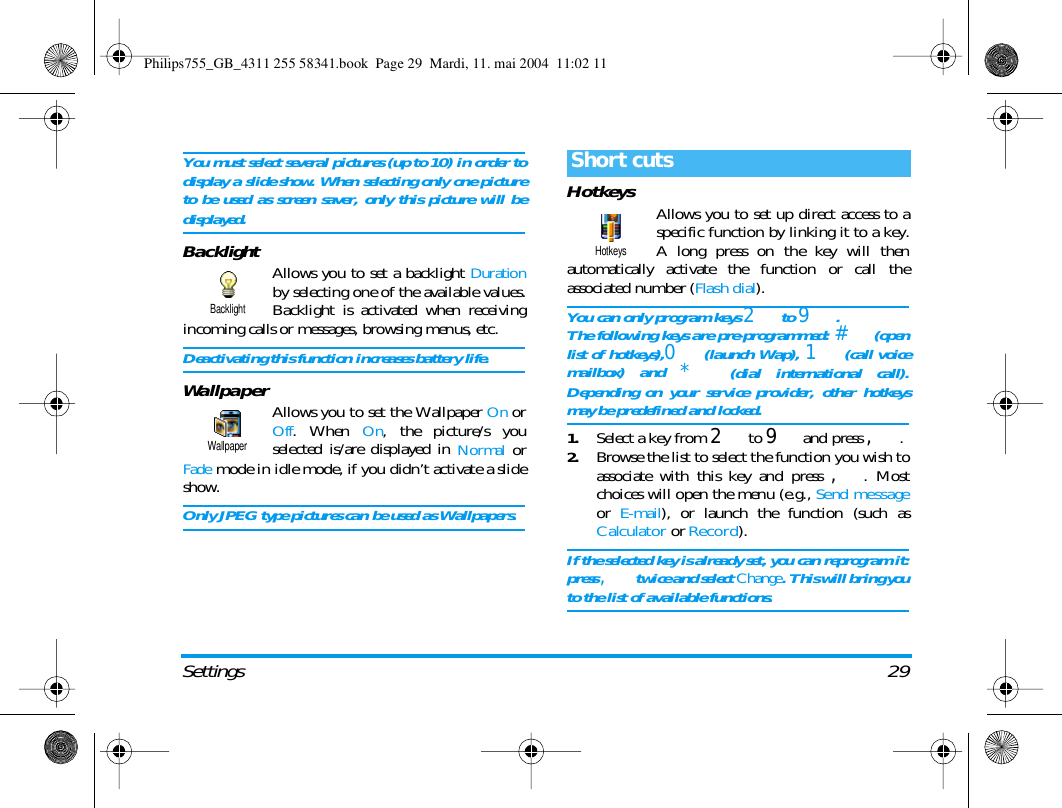

Settings 29You must select several pictures (up to 10) in order todisplay a slide show. When selecting only one pictureto be used as screen saver, only this picture will bedisplayed.Backlight Allows you to set a backlight Durationby selecting one of the available values.Backlight is activated when receivingincoming calls or messages, browsing menus, etc.Deactivating this function increases battery life.Wallpaper Allows you to set the Wallpaper On orOff. When On, the picture/s youselected is/are displayed in Normal orFade mode in idle mode, if you didn’t activate a slideshow.Only JPEG type pictures can be used as Wallpapers.Hotkeys Allows you to set up direct access to aspecific function by linking it to a key.A long press on the key will thenautomatically activate the function or call theassociated number (Flash dial).You can only program keys 2 to 9 .The following keys are pre-programmed: # (openlist of hotkeys),0 (launch Wap), 1 (call voicemailbox) and * (dial international call).Depending on your service provider, other hotkeysmay be predefined and locked.1.Select a key from 2 to 9 and press ,.2.Browse the list to select the function you wish toassociate with this key and press ,. Mostchoices will open the menu (e.g., Send messageor E-mail), or launch the function (such asCalculator or Record).If the selected key is already set, you can reprogram it:press , twice and select Change. This will bring youto the list of available functions.BacklightWallpaperShort cutsHotkeysPhilips755_GB_4311 255 58341.book Page 29 Mardi, 11. mai 2004 11:02 11

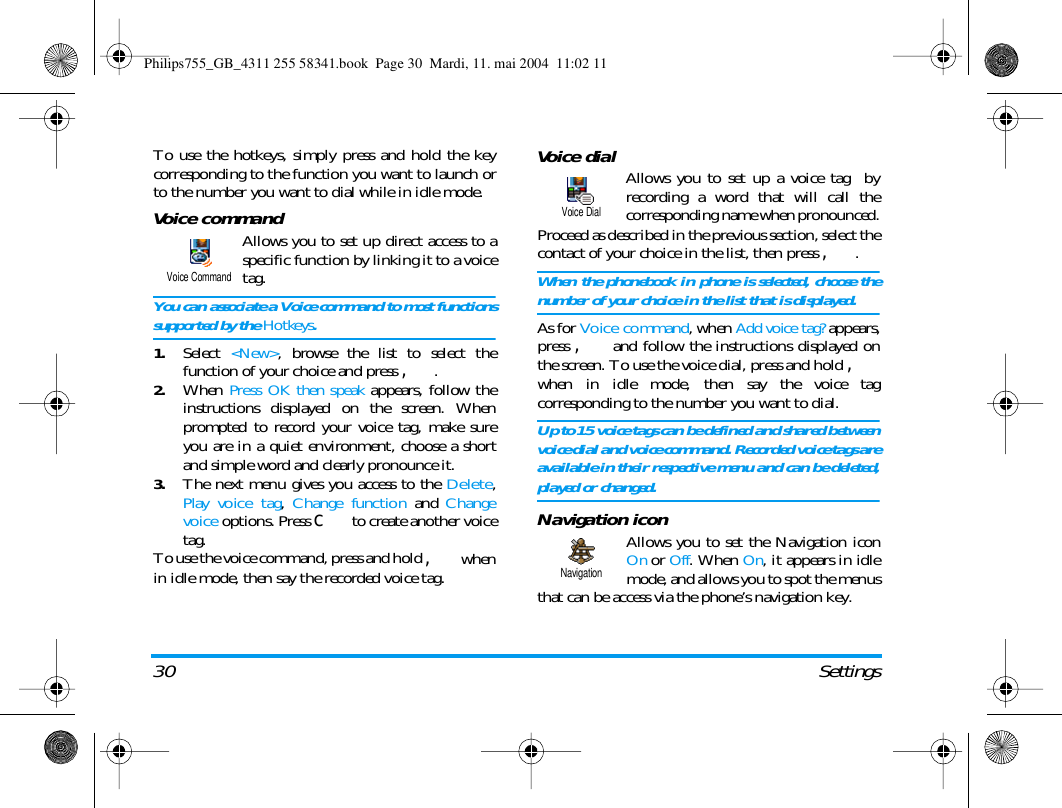

30 SettingsTo use the hotkeys, simply press and hold the keycorresponding to the function you want to launch orto the number you want to dial while in idle mode.Voice commandAllows you to set up direct access to aspecific function by linking it to a voicetag.You can associate a Voice command to most functionssupported by the Hotkeys.1.Select <New>, browse the list to select thefunction of your choice and press ,.2.When Press OK then speak appears, follow theinstructions displayed on the screen. Whenprompted to record your voice tag, make sureyou are in a quiet environment, choose a shortand simple word and clearly pronounce it.3.The next menu gives you access to the Delete,Play voice tag, Change function and Changevoice options. Press c to create another voicetag.To use the voice command, press and hold , whenin idle mode, then say the recorded voice tag.Voice dial Allows you to set up a voice tag byrecording a word that will call thecorresponding name when pronounced.Proceed as described in the previous section, select thecontact of your choice in the list, then press ,.When the phonebook in phone is selected, choose thenumber of your choice in the list that is displayed.As for Voice command, when Add voice tag? appears,press , and follow the instructions displayed onthe screen. To use the voice dial, press and hold ,when in idle mode, then say the voice tagcorresponding to the number you want to dial.Up to 15 voice tags can be defined and shared betweenvoice dial and voice command. Recorded voice tags areavailable in their respective menu and can be deleted,played or changed.Navigation iconAllows you to set the Navigation iconOn or Off. When On, it appears in idlemode, and allows you to spot the menusthat can be access via the phone’s navigation key.Voice CommandVoice DialNavigationPhilips755_GB_4311 255 58341.book Page 30 Mardi, 11. mai 2004 11:02 11

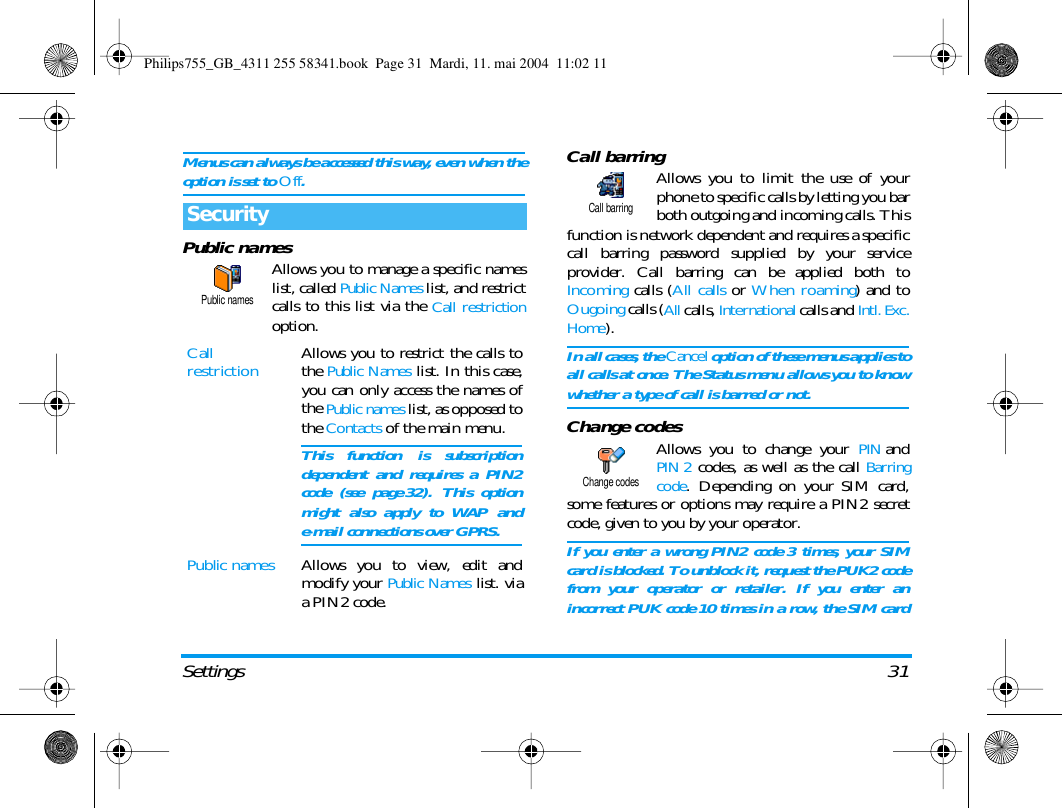

Settings 31Menus can always be accessed this way, even when theoption is set to Off.Public namesAllows you to manage a specific nameslist, called Public Names list, and restrictcalls to this list via the Call restrictionoption.Call barringAllows you to limit the use of yourphone to specific calls by letting you barboth outgoing and incoming calls. Thisfunction is network dependent and requires a specificcall barring password supplied by your serviceprovider. Call barring can be applied both toIncoming calls (All calls or When roaming) and toOugoing calls (All calls, International calls and Intl. Exc.Home). In all cases, the Cancel option of these menus applies toall calls at once. The Status menu allows you to knowwhether a type of call is barred or not.Change codesAllows you to change your PINandPIN 2 codes, as well as the call Barringcode. Depending on your SIM card,some features or options may require a PIN2 secretcode, given to you by your operator.If you enter a wrong PIN2 code 3 times, your SIMcard is blocked. To unblock it, request the PUK2 codefrom your operator or retailer. If you enter anincorrect PUK code 10 times in a row, the SIM cardSecurityCallrestriction Allows you to restrict the calls tothe Public Names list. In this case,you can only access the names ofthe Public names list, as opposed tothe Contacts of the main menu.This function is subscriptiondependent and requires a PIN2code (see page 32). This optionmight also apply to WAP ande-mail connections over GPRS.Public names Allows you to view, edit andmodify your Public Names list. viaa PIN2 code.Public namesCall barringChange codesPhilips755_GB_4311 255 58341.book Page 31 Mardi, 11. mai 2004 11:02 11

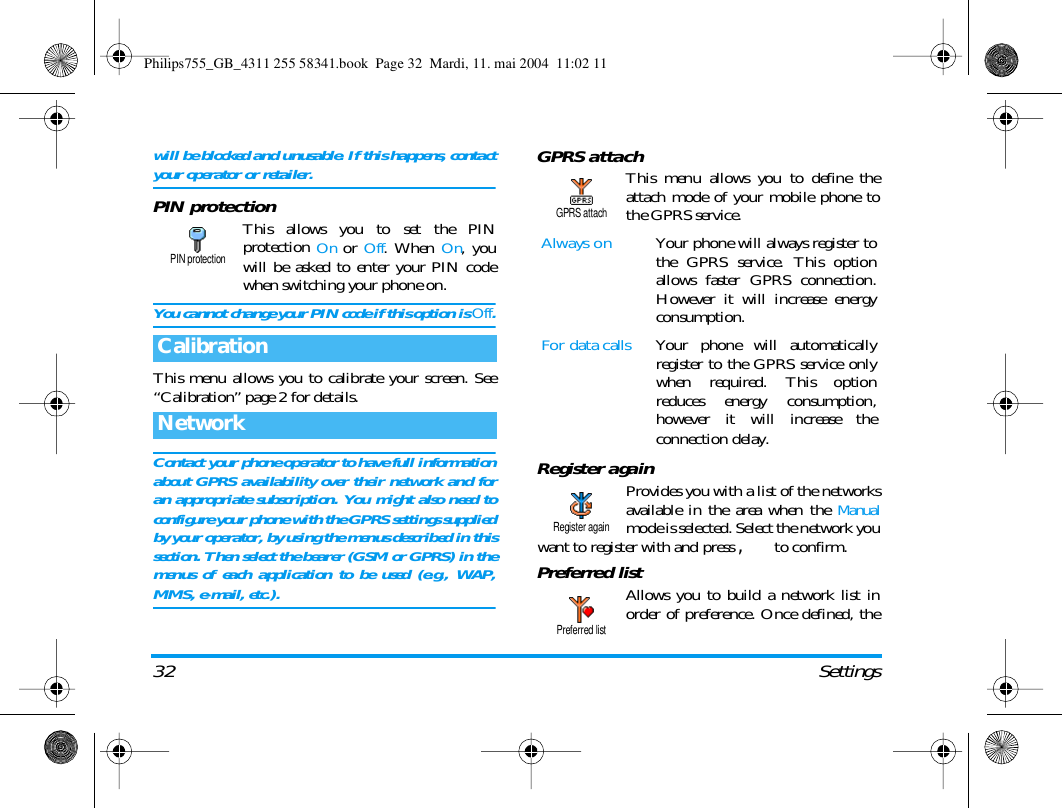

32 Settingswill be blocked and unusable. If this happens, contactyour operator or retailer.PIN protectionThis allows you to set the PINprotection On or Off. When On, youwill be asked to enter your PIN codewhen switching your phone on.You cannot change your PIN code if this option is Off.This menu allows you to calibrate your screen. See“Calibration” page 2 for details.Contact your phone operator to have full informationabout GPRS availability over their network and foran appropriate subscription. You might also need toconfigure your phone with the GPRS settings suppliedby your operator, by using the menus described in thissection. Then select the bearer (GSM or GPRS) in themenus of each application to be used (e.g., WAP,MMS, e-mail, etc.).GPRS attachThis menu allows you to define theattach mode of your mobile phone tothe GPRS service.Register againProvides you with a list of the networksavailable in the area when the Manualmode is selected. Select the network youwant to register with and press , to confirm.Preferred listAllows you to build a network list inorder of preference. Once defined, theCalibrationNetworkPIN protectionAlways on Your phone will always register tothe GPRS service. This optionallows faster GPRS connection.However it will increase energyconsumption.For data calls Your phone will automaticallyregister to the GPRS service onlywhen required. This optionreduces energy consumption,however it will increase theconnection delay.GPRS attachRegister againPreferred listPhilips755_GB_4311 255 58341.book Page 32 Mardi, 11. mai 2004 11:02 11

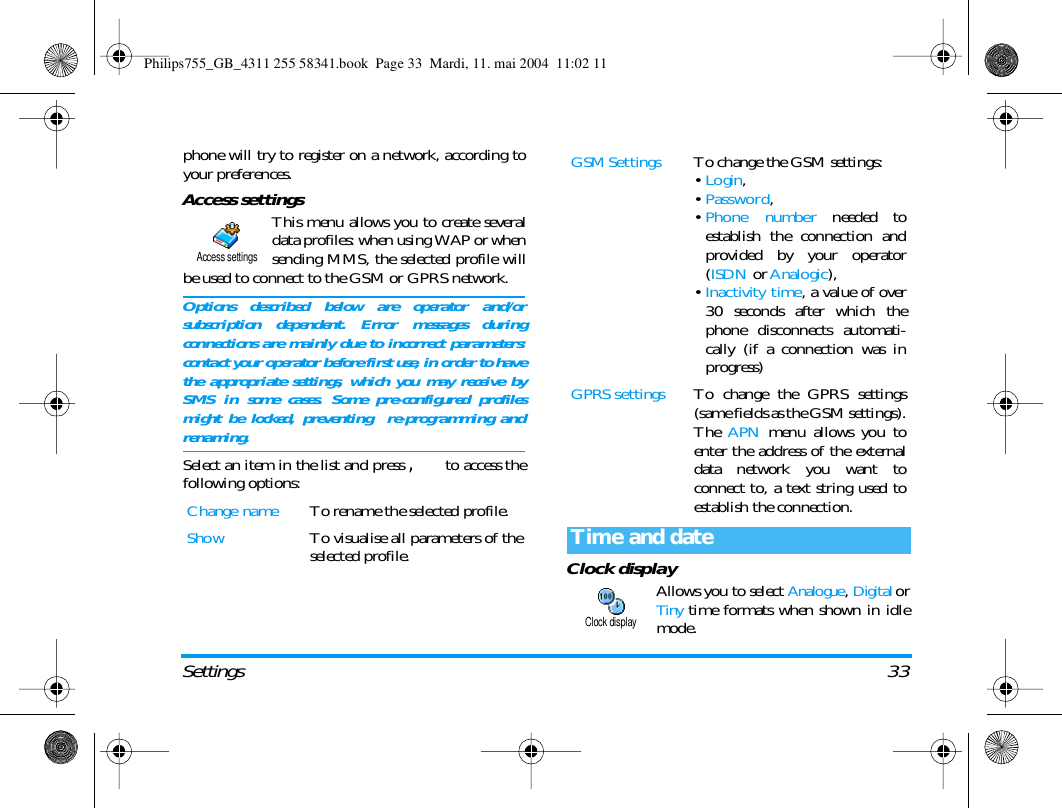

Settings 33phone will try to register on a network, according toyour preferences.Access settingsThis menu allows you to create severaldata profiles: when using WAP or whensending MMS, the selected profile willbe used to connect to the GSM or GPRS network.Options described below are operator and/orsubscription dependent. Error messages duringconnections are mainly due to incorrect parameters:contact your operator before first use, in order to havethe appropriate settings, which you may receive bySMS in some cases. Some pre-configured profilesmight be locked, preventing re-programming andrenaming.Select an item in the list and press , to access thefollowing options:Clock displayAllows you to select Analogue, Digital orTiny time formats when shown in idlemode.Change name To rename the selected profile.Show To visualise all parameters of theselected profile.Access settingsGSM Settings To change the GSM settings:•Login,•Password,•Phone number needed toestablish the connection andprovided by your operator(ISDN or Analogic),•Inactivity time, a value of over30 seconds after which thephone disconnects automati-cally (if a connection was inprogress)GPRS settings To change the GPRS settings(same fields as the GSM settings).The APN menu allows you toenter the address of the externaldata network you want toconnect to, a text string used toestablish the connection.Time and dateClock displayPhilips755_GB_4311 255 58341.book Page 33 Mardi, 11. mai 2004 11:02 11

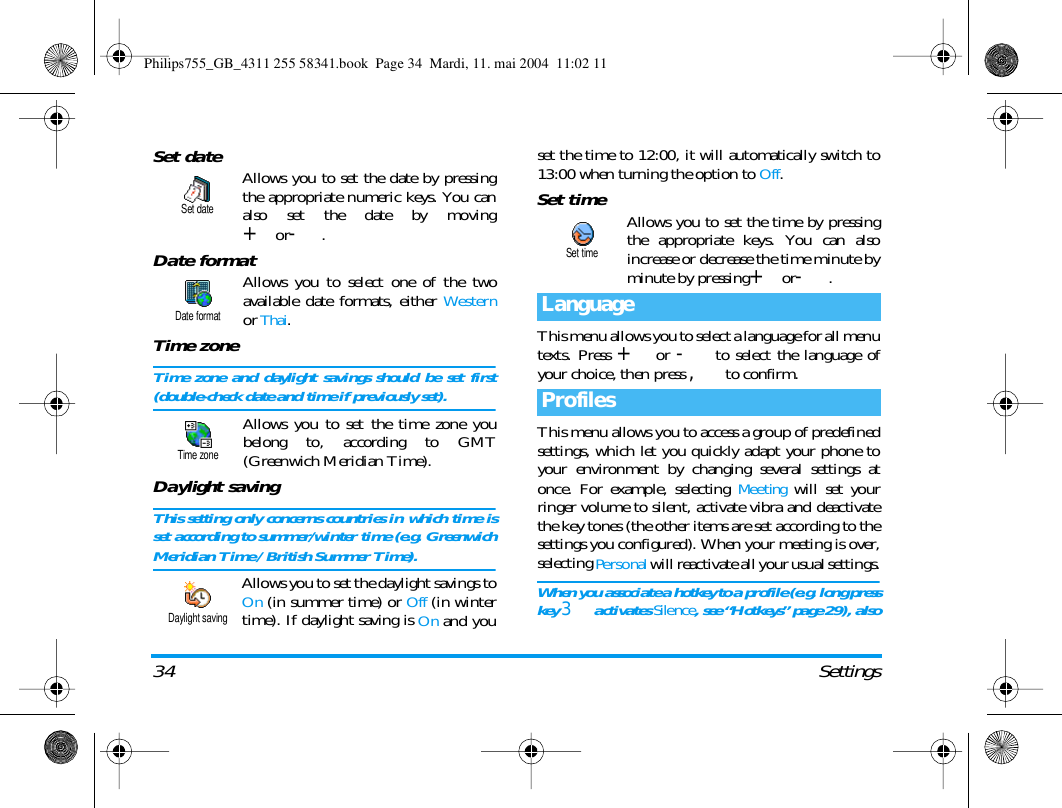

34 SettingsSet date Allows you to set the date by pressingthe appropriate numeric keys. You canalso set the date by moving+or-.Date formatAllows you to select one of the twoavailable date formats, either Westernor Thai.Time zoneTime zone and daylight savings should be set first(double-check date and time if previously set).Allows you to set the time zone youbelong to, according to GMT(Greenwich Meridian Time).Daylight savingThis setting only concerns countries in which time isset according to summer/winter time (e.g. GreenwichMeridian Time / British Summer Time).Allows you to set the daylight savings toOn (in summer time) or Off (in wintertime). If daylight saving is On and youset the time to 12:00, it will automatically switch to13:00 when turning the option to Off.Set time Allows you to set the time by pressingthe appropriate keys. You can alsoincrease or decrease the time minute byminute by pressing+or-.This menu allows you to select a language for all menutexts. Press + or - to select the language ofyour choice, then press , to confirm. This menu allows you to access a group of predefinedsettings, which let you quickly adapt your phone toyour environment by changing several settings atonce. For example, selecting Meeting will set yourringer volume to silent, activate vibra and deactivatethe key tones (the other items are set according to thesettings you configured). When your meeting is over,selecting Personal will reactivate all your usual settings.When you associate a hotkey to a profile (e.g. long presskey 3 activates Silence, see “Hotkeys” page 29), alsoSet dateDate formatTime zoneDaylight savingLanguageProfilesSet timePhilips755_GB_4311 255 58341.book Page 34 Mardi, 11. mai 2004 11:02 11

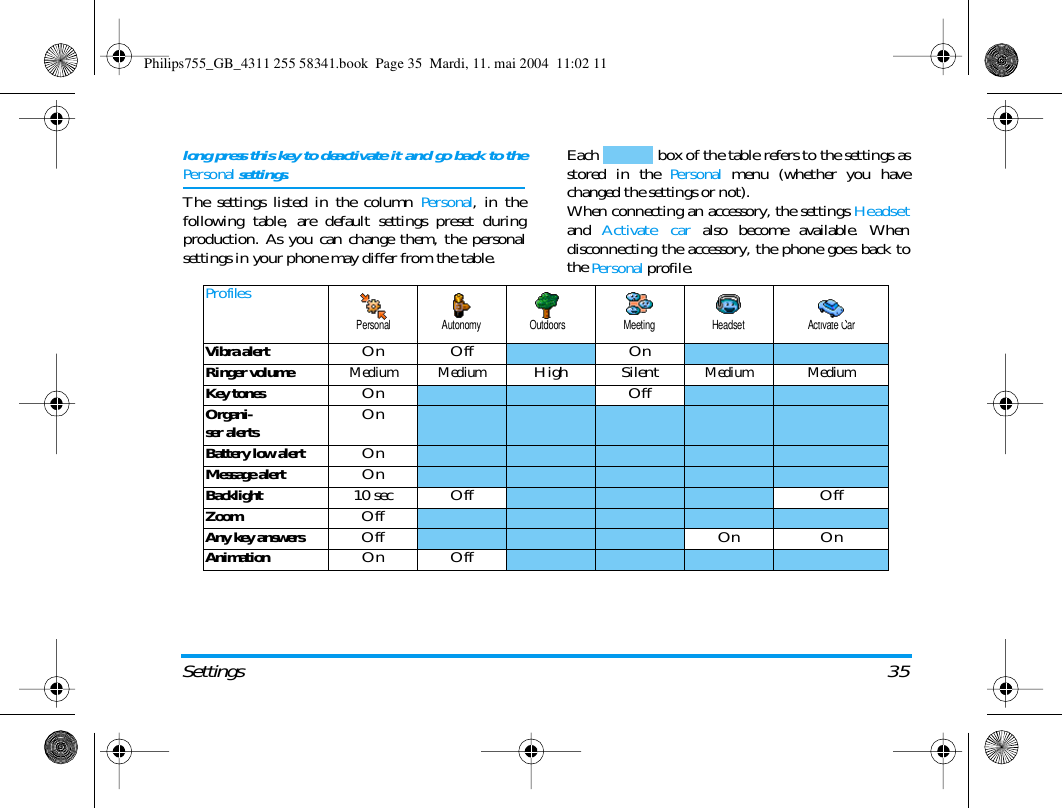

Settings 35long press this key to deactivate it and go back to thePersonal settings.The settings listed in the column Personal, in thefollowing table, are default settings preset duringproduction. As you can change them, the personalsettings in your phone may differ from the table.Each box of the table refers to the settings asstored in the Personal menu (whether you havechanged the settings or not).When connecting an accessory, the settings Headsetand Activate car also become available. Whendisconnecting the accessory, the phone goes back tothe Personal profile.ProfilesVibra alertOn Off OnRinger volumeMedium MediumHigh SilentMedium MediumKey tonesOn OffOrgani-ser alertsOnBattery low alertOnMessage alertOnBacklight10 sec Off OffZoomOffAny key answersOff On OnAnimationOn OffPersonal Autonomy Outdoors Meeting Headset Activate CarPhilips755_GB_4311 255 58341.book Page 35 Mardi, 11. mai 2004 11:02 11

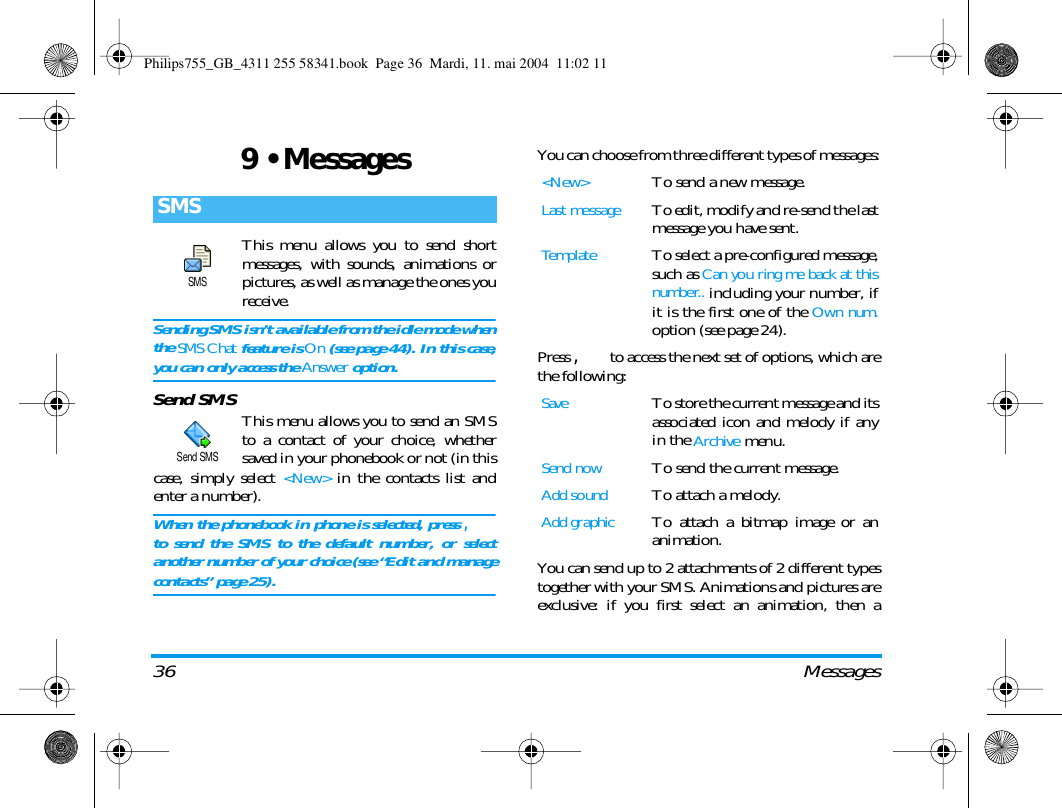

36 Messages9 • MessagesThis menu allows you to send shortmessages, with sounds, animations orpictures, as well as manage the ones youreceive.Sending SMS isn’t available from the idle mode whenthe SMS Chat feature is On (see page 44). In this case,you can only access the Answer option.Send SMS This menu allows you to send an SMSto a contact of your choice, whethersaved in your phonebook or not (in thiscase, simply select <New> in the contacts list andenter a number).When the phonebook in phone is selected, press ,to send the SMS to the default number, or selectanother number of your choice (see “Edit and managecontacts” page 25).You can choose from three different types of messages:Press , to access the next set of options, which arethe following:You can send up to 2 attachments of 2 different typestogether with your SMS. Animations and pictures areexclusive: if you first select an animation, then aSMSSMSSend SMS<New>To send a new message.Last messageTo edit, modify and re-send the lastmessage you have sent.TemplateTo select a pre-configured message,such as Can you ring me back at thisnumber.. including your number, ifit is the first one of the Own num.option (see page 24).SaveTo store the current message and itsassociated icon and melody if anyin the Archive menu.Send nowTo send the current message.Add soundTo attach a melody.Add graphicTo attach a bitmap image or ananimation.Philips755_GB_4311 255 58341.book Page 36 Mardi, 11. mai 2004 11:02 11

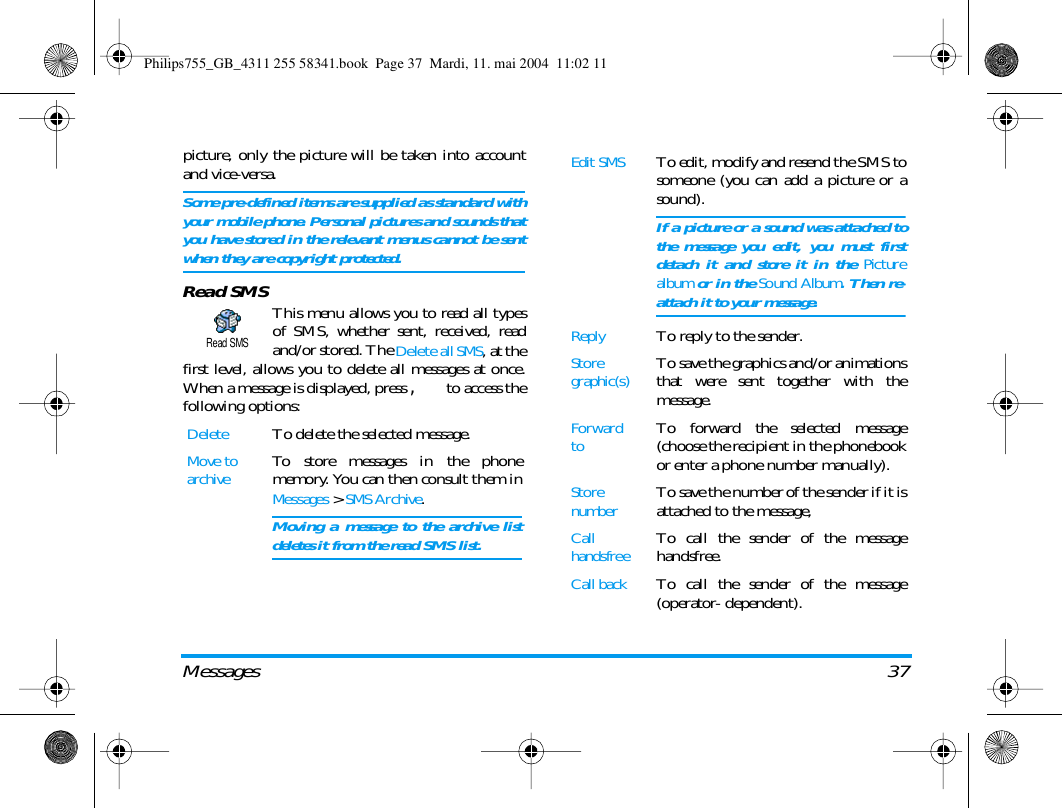

Messages 37picture, only the picture will be taken into accountand vice-versa.Some pre-defined items are supplied as standard withyour mobile phone. Personal pictures and sounds thatyou have stored in the relevant menus cannot be sentwhen they are copyright protected.Read SMS This menu allows you to read all typesof SMS, whether sent, received, readand/or stored. The Delete all SMS, at thefirst level, allows you to delete all messages at once.When a message is displayed, press , to access thefollowing options:DeleteTo delete the selected message.Move toarchiveTo store messages in the phonememory. You can then consult them inMessages > SMS Archive.Moving a message to the archive listdeletes it from the read SMS list.Read SMSEdit SMSTo edit, modify and resend the SMS tosomeone (you can add a picture or asound).If a picture or a sound was attached tothe message you edit, you must firstdetach it and store it in the Picturealbum or in the Sound Album. Then re-attach it to your message.ReplyTo reply to the sender.Storegraphic(s)To save the graphics and/or animationsthat were sent together with themessage.Forward toTo forward the selected message(choose the recipient in the phonebookor enter a phone number manually).StorenumberTo save the number of the sender if it isattached to the message,Call handsfreeTo call the sender of the messagehandsfree.Call back To call the sender of the message(operator- dependent).Philips755_GB_4311 255 58341.book Page 37 Mardi, 11. mai 2004 11:02 11

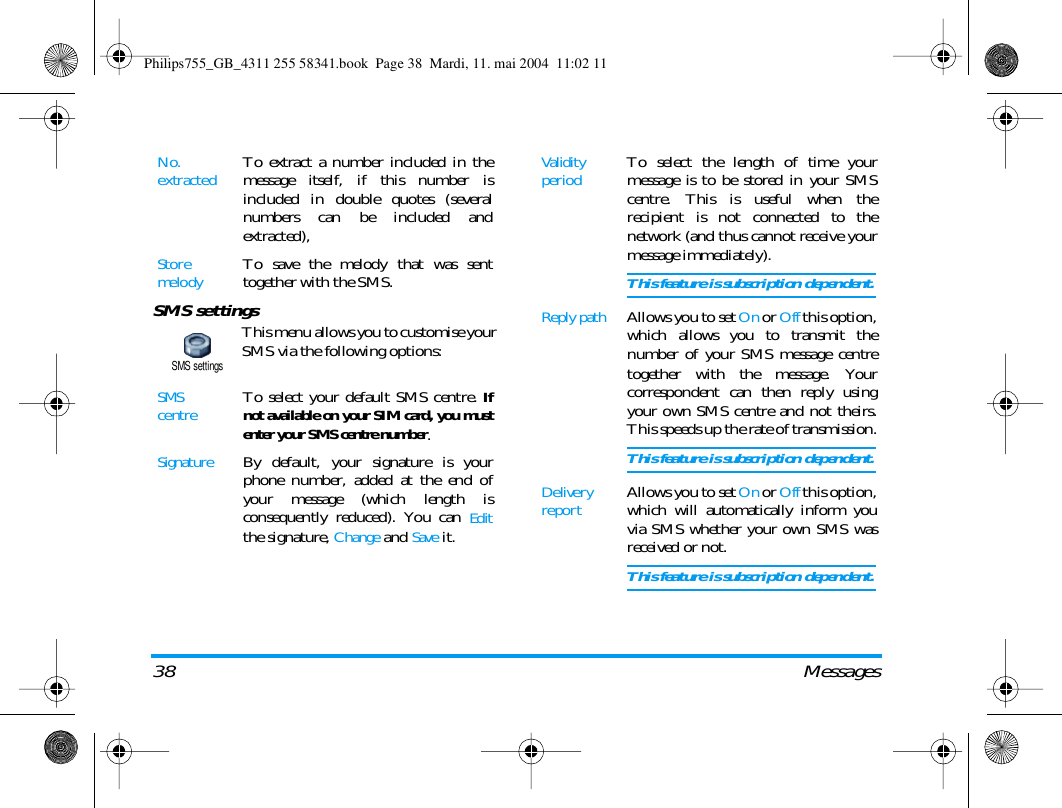

38 MessagesSMS settingsThis menu allows you to customise yourSMS via the following options:No. extractedTo extract a number included in themessage itself, if this number isincluded in double quotes (severalnumbers can be included andextracted),StoremelodyTo save the melody that was senttogether with the SMS.SMS centreTo select your default SMS centre. Ifnot available on your SIM card, you mustenter your SMS centre number.SignatureBy default, your signature is yourphone number, added at the end ofyour message (which length isconsequently reduced). You can Editthe signature, Change and Save it.SMS settingsValidity periodTo select the length of time yourmessage is to be stored in your SMScentre. This is useful when therecipient is not connected to thenetwork (and thus cannot receive yourmessage immediately).This feature is subscription dependent.Reply pathAllows you to set On or Off this option,which allows you to transmit thenumber of your SMS message centretogether with the message. Yourcorrespondent can then reply usingyour own SMS centre and not theirs.This speeds up the rate of transmission.This feature is subscription dependent.Delivery reportAllows you to set On or Off this option,which will automatically inform youvia SMS whether your own SMS wasreceived or not.This feature is subscription dependent.Philips755_GB_4311 255 58341.book Page 38 Mardi, 11. mai 2004 11:02 11

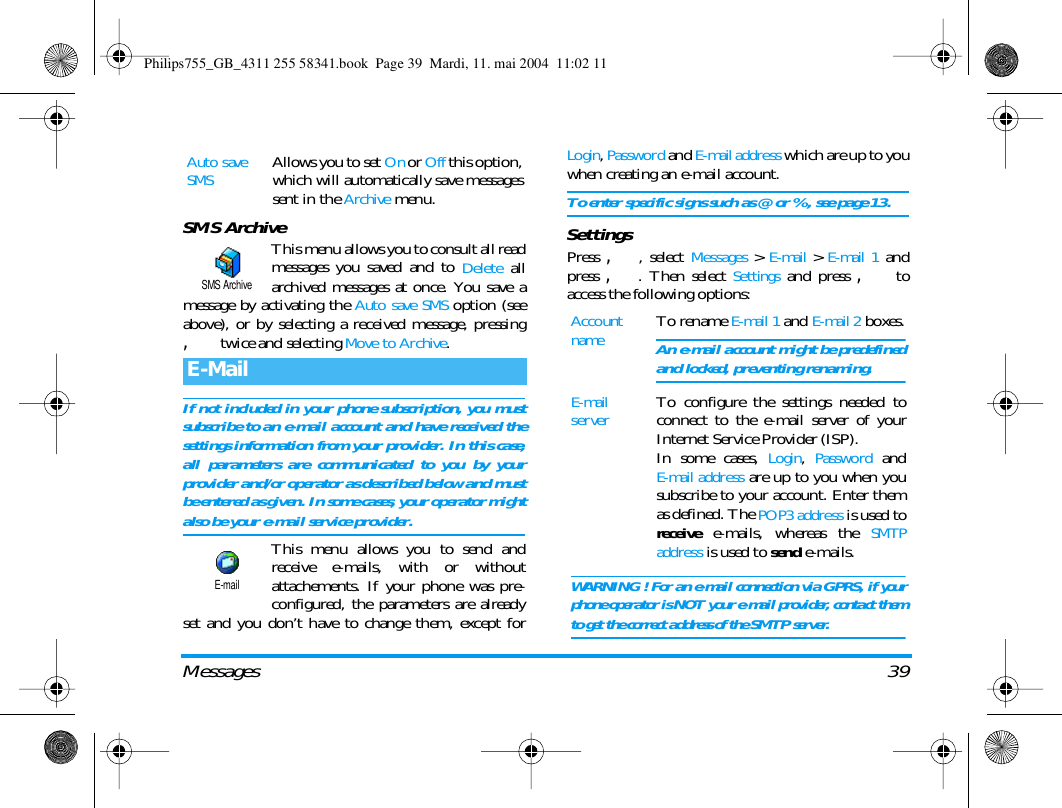

Messages 39SMS ArchiveThis menu allows you to consult all readmessages you saved and to Delete allarchived messages at once. You save amessage by activating the Auto save SMS option (seeabove), or by selecting a received message, pressing, twice and selecting Move to Archive.If not included in your phone subscription, you mustsubscribe to an e-mail account and have received thesettings information from your provider. In this case,all parameters are communicated to you by yourprovider and/or operator as described below and mustbe entered as given. In some cases, your operator mightalso be your e-mail service provider.This menu allows you to send andreceive e-mails, with or withoutattachements. If your phone was pre-configured, the parameters are alreadyset and you don’t have to change them, except forLogin, Password and E-mail address which are up to youwhen creating an e-mail account.To enter specific signs such as @ or %, see page 13.SettingsPress ,, select Messages > E-mail > E-mail 1 andpress ,. Then select Settings and press , toaccess the following options:Auto save SMSAllows you to set On or Off this option,which will automatically save messagessent in the Archive menu.E-MailSMS ArchiveE-mailAccount nameTo rename E-mail 1 and E-mail 2 boxes.An e-mail account might be predefinedand locked, preventing renaming.E-mail serverTo configure the settings needed toconnect to the e-mail server of yourInternet Service Provider (ISP).In some cases, Login, Password andE-mail address are up to you when yousubscribe to your account. Enter themas defined. The POP3 address is used toreceive e-mails, whereas the SMTPaddress is used to send e-mails. WARNING! For an e-mail connection via GPRS, if yourphone operator is NOT your e-mail provider, contact themto get the correct address of the SMTP server.Philips755_GB_4311 255 58341.book Page 39 Mardi, 11. mai 2004 11:02 11
40 MessagesError messages during connections are mainly due toincorrect parameters: contact your operator if neededbefore first use, in order to have the correct settings.AdvancedThis menu features advanced settingsthat you shouldn’t have to change.If the fields of these menus are empty, orif you encounter connection problems,contact your ISP.The SMPT authenticat. menu should beOff in most European countries: youre-mails will NOT be sent if set to On.Contact your provider for completeinformation.Network accessTo select the type of network usedwhen launching a connection, and toconfigure the corresponding settings.Bearer•GSM or GPRS: your mobile willonly use the GSM or the GPRSnetwork for e-mail connections.•GPRS first: your mobile will firsttry to connect to the GPRS net-work, then to the GSM network ifthe GPRS network isn’t available.Selecting this option you need to haveboth GSM and GPRS settingsconfigured.GSM SettingsTo change the GSM settings:•Login & Password,•Phone number (ISDN or Analogic)needed to establish the connectionand provided by your operator,•Auto disconnect, a value of over 30seconds after which the phonedisconnects automatically (if aconnection was in progress).The lack of exchanges with the networkdefines the inactivity time periodleading to auto disconnection.GPRS settingsTo change the GPRS settings (samefields as the GSM settings). The APNmenu lets you enter the address of theexternal network you will connect to.Philips755_GB_4311 255 58341.book Page 40 Mardi, 11. mai 2004 11:02 11

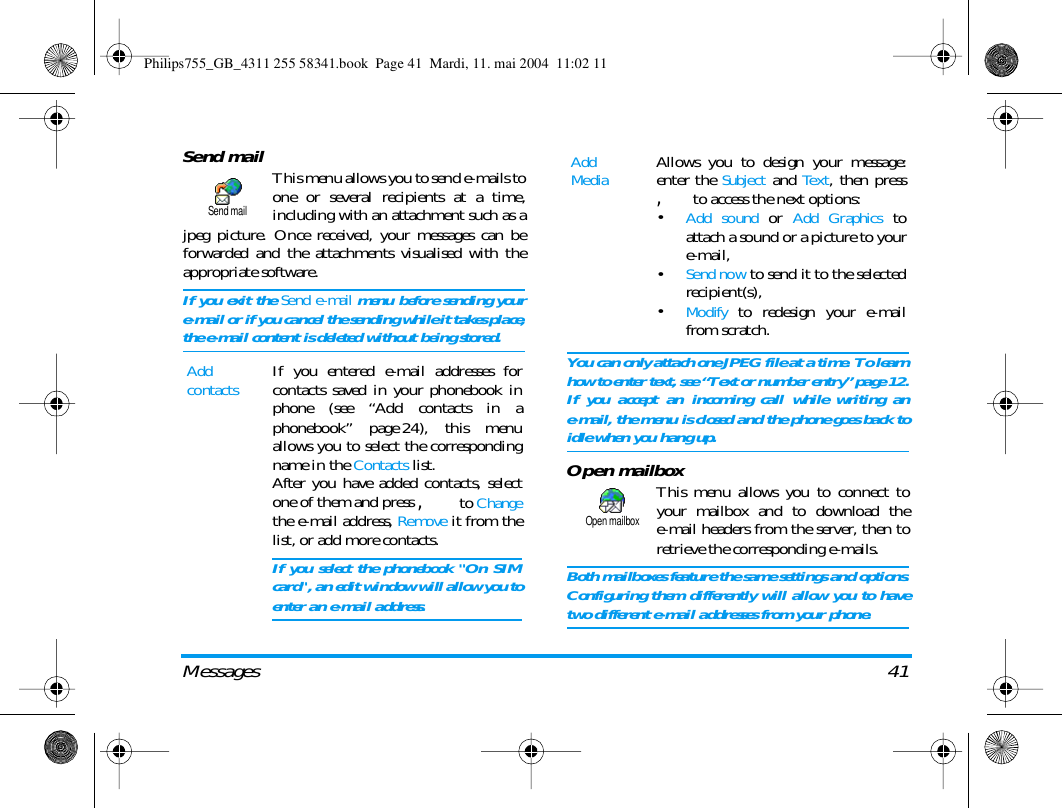

Messages 41Send mail This menu allows you to send e-mails toone or several recipients at a time,including with an attachment such as ajpeg picture. Once received, your messages can beforwarded and the attachments visualised with theappropriate software.If you exit the Send e-mail menu before sending youre-mail or if you cancel the sending while it takes place,the e-mail content is deleted without being stored. You can only attach one JPEG file at a time. To learnhow to enter text, see “Text or number entry” page 12.If you accept an incoming call while writing ane-mail, the menu is closed and the phone goes back toidle when you hang up.Open mailboxThis menu allows you to connect toyour mailbox and to download thee-mail headers from the server, then toretrieve the corresponding e-mails.Both mailboxes feature the same settings and options.Configuring them differently will allow you to havetwo different e-mail addresses from your phone.Add contactsIf you entered e-mail addresses forcontacts saved in your phonebook inphone (see “Add contacts in aphonebook” page 24), this menuallows you to select the correspondingname in the Contacts list.After you have added contacts, selectone of them and press , to Changethe e-mail address, Remove it from thelist, or add more contacts.If you select the phonebook "On SIMcard", an edit window will allow you toenter an e-mail address.Send mailAdd MediaAllows you to design your message:enter the Subject and Text, then press, to access the next options:•Add sound or Add Graphics toattach a sound or a picture to youre-mail,•Send now to send it to the selectedrecipient(s),•Modify to redesign your e-mailfrom scratch.Open mailboxPhilips755_GB_4311 255 58341.book Page 41 Mardi, 11. mai 2004 11:02 11

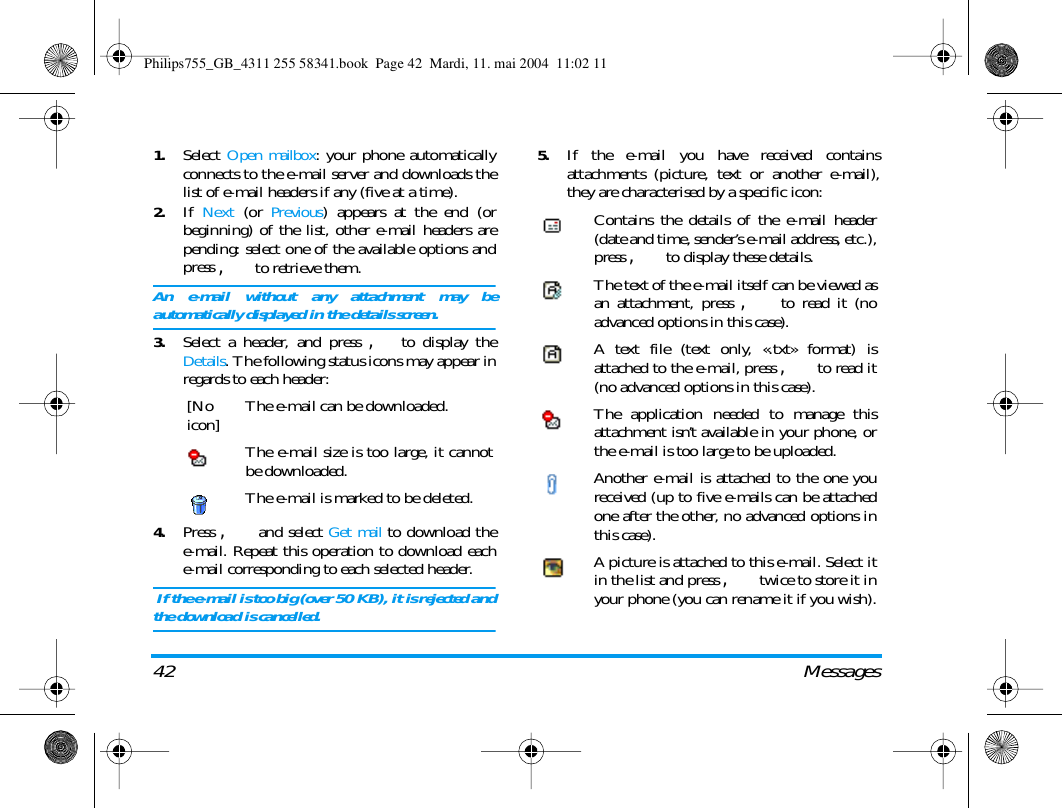

42 Messages1.Select Open mailbox: your phone automaticallyconnects to the e-mail server and downloads thelist of e-mail headers if any (five at a time).2.If Next (or Previous) appears at the end (orbeginning) of the list, other e-mail headers arepending: select one of the available options andpress , to retrieve them.An e-mail without any attachment may beautomatically displayed in the details screen.3.Select a header, and press ,to display theDetails. The following status icons may appear inregards to each header:4.Press , and select Get mail to download thee-mail. Repeat this operation to download eache-mail corresponding to each selected header. If the e-mail is too big (over 50 KB), it is rejected andthe download is cancelled.5.If the e-mail you have received containsattachments (picture, text or another e-mail),they are characterised by a specific icon:[Noicon] The e-mail can be downloaded.The e-mail size is too large, it cannotbe downloaded.The e-mail is marked to be deleted.Contains the details of the e-mail header(date and time, sender’s e-mail address, etc.),press , to display these details.The text of the e-mail itself can be viewed asan attachment, press , to read it (noadvanced options in this case).A text file (text only, «.txt» format) isattached to the e-mail, press , to read it(no advanced options in this case).The application needed to manage thisattachment isn’t available in your phone, orthe e-mail is too large to be uploaded.Another e-mail is attached to the one youreceived (up to five e-mails can be attachedone after the other, no advanced options inthis case).A picture is attached to this e-mail. Select itin the list and press , twice to store it inyour phone (you can rename it if you wish).Philips755_GB_4311 255 58341.book Page 42 Mardi, 11. mai 2004 11:02 11

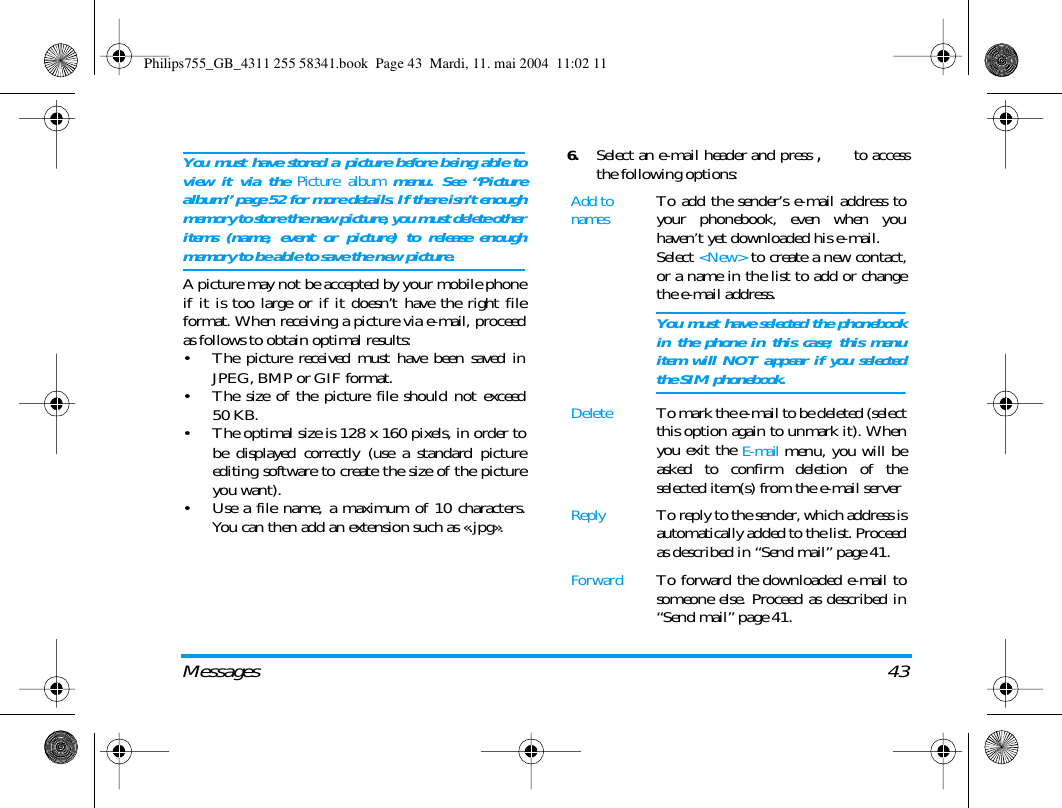

Messages 43You must have stored a picture before being able toview it via the Picture album menu. See “Picturealbum” page 52 for more details. If there isn’t enoughmemory to store the new picture, you must delete otheritems (name, event or picture) to release enoughmemory to be able to save the new picture.A picture may not be accepted by your mobile phoneif it is too large or if it doesn’t have the right fileformat. When receiving a picture via e-mail, proceedas follows to obtain optimal results:• The picture received must have been saved inJPEG, BMP or GIF format.• The size of the picture file should not exceed50 KB.• The optimal size is 128 x 160 pixels, in order tobe displayed correctly (use a standard pictureediting software to create the size of the pictureyou want).• Use a file name, a maximum of 10 characters.You can then add an extension such as «.jpg».6.Select an e-mail header and press , to accessthe following options:Add to namesTo add the sender’s e-mail address toyour phonebook, even when youhaven’t yet downloaded his e-mail.Select <New> to create a new contact,or a name in the list to add or changethe e-mail address.You must have selected the phonebookin the phone in this case; this menuitem will NOT appear if you selectedthe SIM phonebook.DeleteTo mark the e-mail to be deleted (selectthis option again to unmark it). Whenyou exit the E-mail menu, you will beasked to confirm deletion of theselected item(s) from the e-mail serverReplyTo reply to the sender, which address isautomatically added to the list. Proceedas described in “Send mail” page 41.ForwardTo forward the downloaded e-mail tosomeone else. Proceed as described in“Send mail” page 41.Philips755_GB_4311 255 58341.book Page 43 Mardi, 11. mai 2004 11:02 11

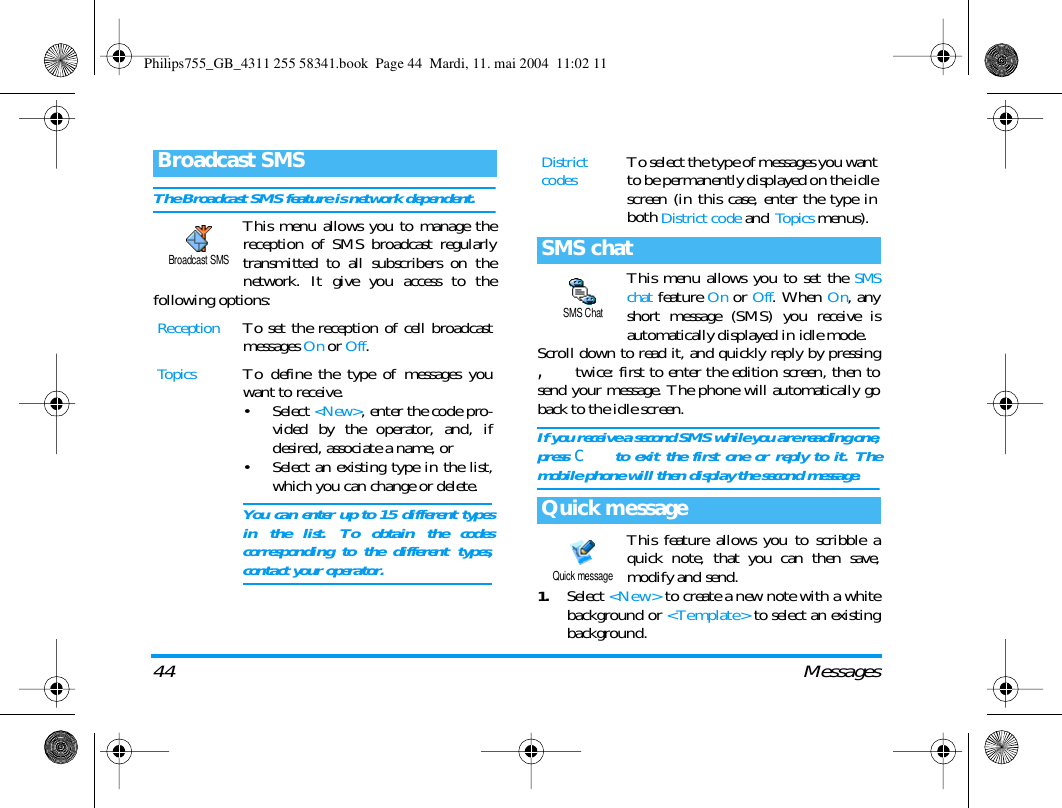

44 MessagesThe Broadcast SMS feature is network dependent.This menu allows you to manage thereception of SMS broadcast regularlytransmitted to all subscribers on thenetwork. It give you access to thefollowing options: This menu allows you to set the SMSchat feature On or Off. When On, anyshort message (SMS) you receive isautomatically displayed in idle mode.Scroll down to read it, and quickly reply by pressing, twice: first to enter the edition screen, then tosend your message. The phone will automatically goback to the idle screen.If you receive a second SMS while you are reading one,press c to exit the first one or reply to it. Themobile phone will then display the second message.This feature allows you to scribble aquick note, that you can then save,modify and send.1.Select <New> to create a new note with a whitebackground or <Template> to select an existingbackground.Broadcast SMSReceptionTo set the reception of cell broadcastmessages On or Off.TopicsTo define the type of messages youwant to receive.• Select <New>, enter the code pro-vided by the operator, and, ifdesired, associate a name, or• Select an existing type in the list,which you can change or delete.You can enter up to 15 different typesin the list. To obtain the codescorresponding to the different types,contact your operator.Broadcast SMSDistrict codesTo select the type of messages you wantto be permanently displayed on the idlescreen (in this case, enter the type inboth District code and To p ics menus).SMS chatQuick messageSMS ChatQuick messagePhilips755_GB_4311 255 58341.book Page 44 Mardi, 11. mai 2004 11:02 11

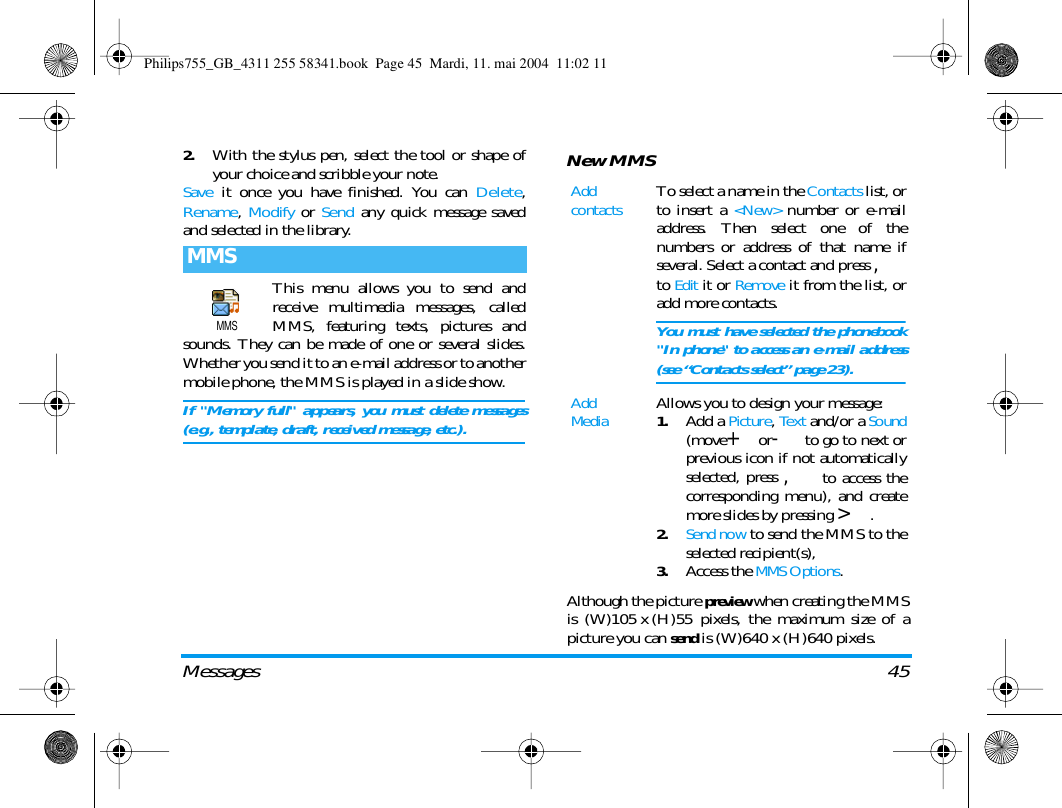

Messages 452.With the stylus pen, select the tool or shape ofyour choice and scribble your note.Save it once you have finished. You can Delete,Rename, Modify or Send any quick message savedand selected in the library.This menu allows you to send andreceive multimedia messages, calledMMS, featuring texts, pictures andsounds. They can be made of one or several slides.Whether you send it to an e-mail address or to anothermobile phone, the MMS is played in a slide show.If "Memory full" appears, you must delete messages(e.g., template, draft, received message, etc.).New MMSAlthough the picture preview when creating the MMSis (W)105 x (H)55 pixels, the maximum size of apicture you can send is (W)640 x (H)640 pixels.MMSMMSAdd contactsTo select a name in the Contacts list, orto insert a <New> number or e-mailaddress. Then select one of thenumbers or address of that name ifseveral. Select a contact and press ,to Edit it or Remove it from the list, oradd more contacts.You must have selected the phonebook"In phone" to access an e-mail address(see “Contacts select” page 23).Add MediaAllows you to design your message:1.Add a Picture, Text and/or a Sound(move+or-to go to next orprevious icon if not automaticallyselected, press , to access thecorresponding menu), and createmore slides by pressing >.2.Send now to send the MMS to theselected recipient(s),3.Access the MMS Options.Philips755_GB_4311 255 58341.book Page 45 Mardi, 11. mai 2004 11:02 11

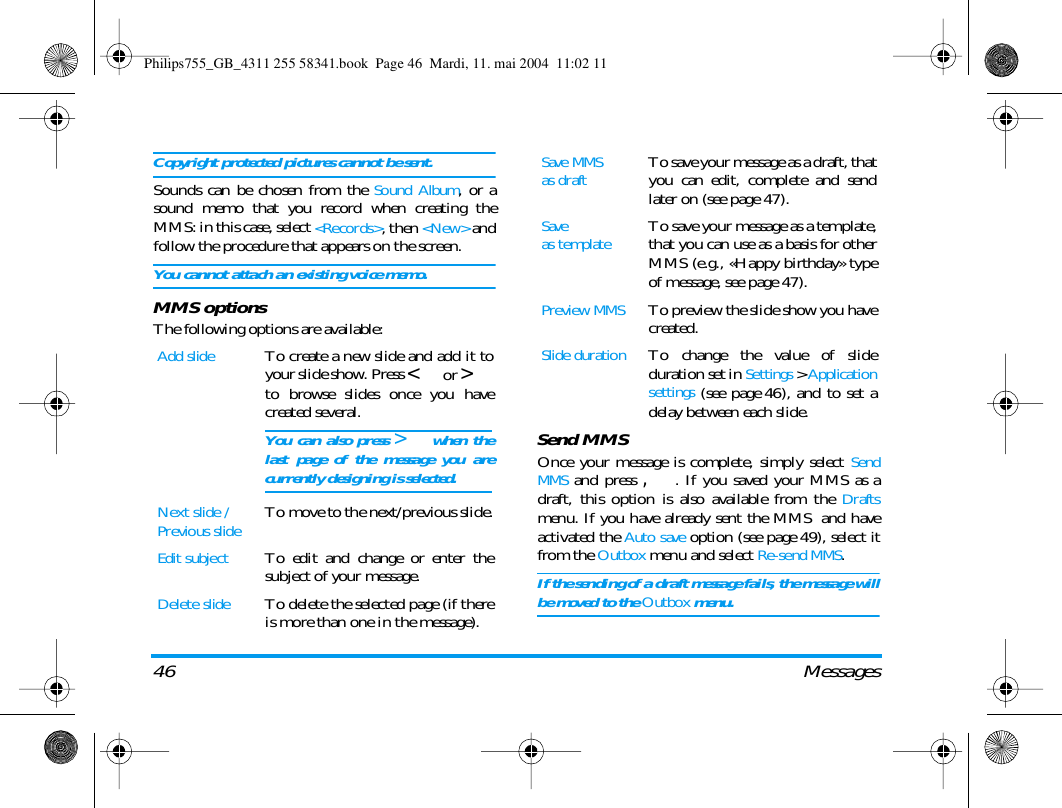

46 MessagesCopyright protected pictures cannot be sent.Sounds can be chosen from the Sound Album, or asound memo that you record when creating theMMS: in this case, select <Records>, then <New> andfollow the procedure that appears on the screen.You cannot attach an existing voice memo.MMS optionsThe following options are available:Send MMSOnce your message is complete, simply select SendMMS and press ,. If you saved your MMS as adraft, this option is also available from the Draftsmenu. If you have already sent the MMS and haveactivated the Auto save option (see page 49), select itfrom the Outbox menu and select Re-send MMS.If the sending of a draft message fails, the message willbe moved to the Outbox menu.Add slideTo create a new slide and add it toyour slide show. Press < or >to browse slides once you havecreated several.You can also press > when thelast page of the message you arecurrently designing is selected.Next slide /Previous slideTo move to the next/previous slide.Edit subjectTo edit and change or enter thesubject of your message.Delete slideTo delete the selected page (if thereis more than one in the message).Save MMSas draftTo save your message as a draft, thatyou can edit, complete and sendlater on (see page 47).Saveas templateTo save your message as a template,that you can use as a basis for otherMMS (e.g., «Happy birthday» typeof message, see page 47).Preview MMSTo preview the slide show you havecreated.Slide durationTo change the value of slideduration set in Settings > Applicationsettings (see page 46), and to set adelay between each slide.Philips755_GB_4311 255 58341.book Page 46 Mardi, 11. mai 2004 11:02 11

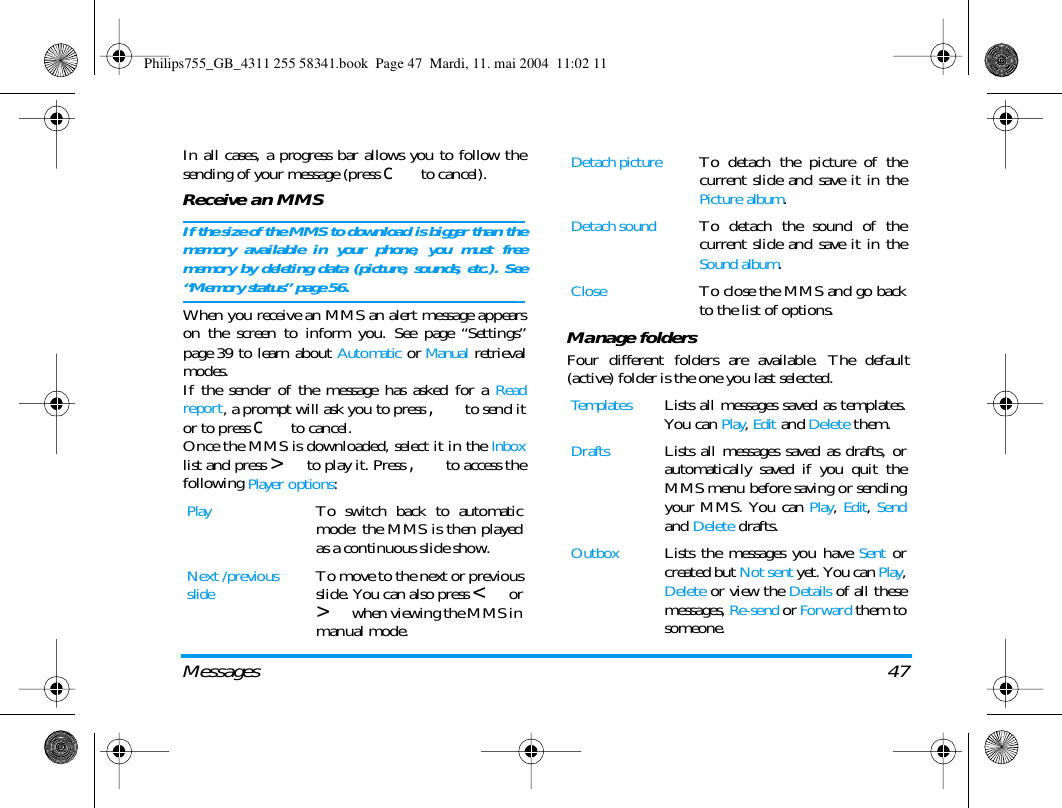

Messages 47In all cases, a progress bar allows you to follow thesending of your message (press c to cancel).Receive an MMSIf the size of the MMS to download is bigger than thememory available in your phone, you must freememory by deleting data (picture, sounds, etc.). See“Memory status” page 56.When you receive an MMS an alert message appearson the screen to inform you. See page “Settings”page 39 to learn about Automatic or Manual retrievalmodes. If the sender of the message has asked for a Readreport, a prompt will ask you to press , to send itor to press c to cancel.Once the MMS is downloaded, select it in the Inboxlist and press > to play it. Press , to access thefollowing Player options:Manage foldersFour different folders are available. The default(active) folder is the one you last selected.PlayTo switch back to automaticmode: the MMS is then playedas a continuous slide show.Next /previousslideTo move to the next or previousslide. You can also press < or> when viewing the MMS inmanual mode.Detach pictureTo detach the picture of thecurrent slide and save it in thePicture album.Detach soundTo detach the sound of thecurrent slide and save it in theSound album.CloseTo close the MMS and go backto the list of options.TemplatesLists all messages saved as templates.You can Play, Edit and Delete them.DraftsLists all messages saved as drafts, orautomatically saved if you quit theMMS menu before saving or sendingyour MMS. You can Play, Edit, Sendand Delete drafts.OutboxLists the messages you have Sent orcreated but Not sent yet. You can Play,Delete or view the Details of all thesemessages, Re-send or Forward them tosomeone.Philips755_GB_4311 255 58341.book Page 47 Mardi, 11. mai 2004 11:02 11

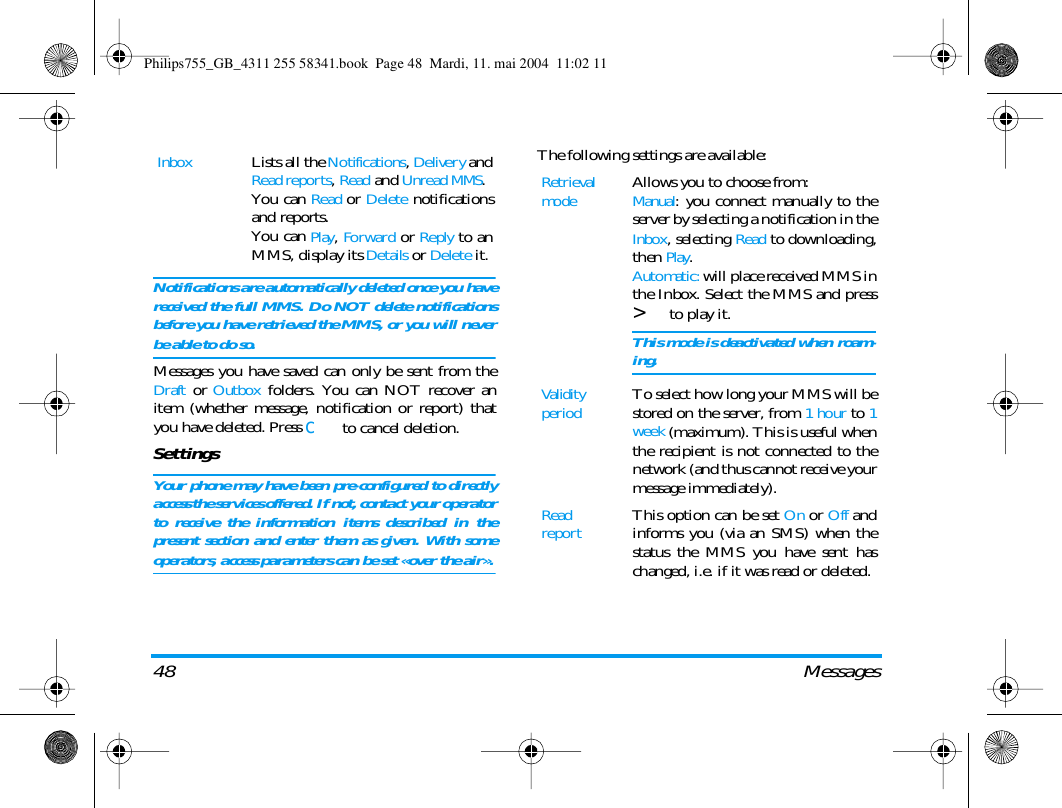

48 MessagesNotifications are automatically deleted once you havereceived the full MMS. Do NOT delete notificationsbefore you have retrieved the MMS, or you will neverbe able to do so.Messages you have saved can only be sent from theDraft or Outbox folders. You can NOT recover anitem (whether message, notification or report) thatyou have deleted. Press c to cancel deletion.SettingsYour phone may have been pre-configured to directlyaccess the services offered. If not, contact your operatorto receive the information items described in thepresent section and enter them as given. With someoperators, access parameters can be set «over the air».The following settings are available:InboxLists all the Notifications, Delivery andRead reports, Read and Unread MMS.You can Read or Delete notificationsand reports.You can Play, Forward or Reply to anMMS, display its Details or Delete it.Retrieval modeAllows you to choose from:Manual: you connect manually to theserver by selecting a notification in theInbox, selecting Read to downloading,then Play.Automatic: will place received MMS inthe Inbox. Select the MMS and press> to play it.This mode is deactivated when roam-ing.Validity periodTo select how long your MMS will bestored on the server, from 1 hour to 1week (maximum). This is useful whenthe recipient is not connected to thenetwork (and thus cannot receive yourmessage immediately).Read reportThis option can be set On or Off andinforms you (via an SMS) when thestatus the MMS you have sent haschanged, i.e. if it was read or deleted.Philips755_GB_4311 255 58341.book Page 48 Mardi, 11. mai 2004 11:02 11

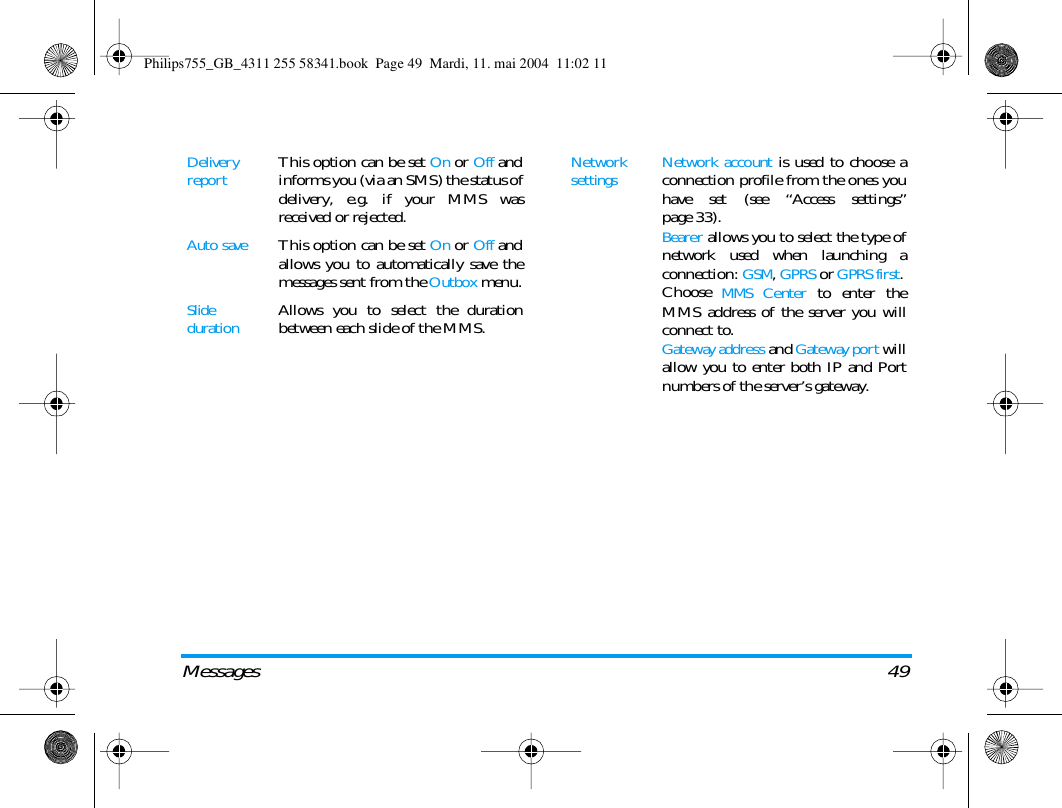

Messages 49Delivery reportThis option can be set On or Off andinforms you (via an SMS) the status ofdelivery, e.g. if your MMS wasreceived or rejected.Auto saveThis option can be set On or Off andallows you to automatically save themessages sent from the Outbox menu.Slide durationAllows you to select the durationbetween each slide of the MMS.Network settings Network account is used to choose aconnection profile from the ones youhave set (see “Access settings”page 33).Bearer allows you to select the type ofnetwork used when launching aconnection: GSM, GPRS or GPRS first.Choose MMS Center to enter theMMS address of the server you willconnect to.Gateway address and Gateway port willallow you to enter both IP and Portnumbers of the server’s gateway.Philips755_GB_4311 255 58341.book Page 49 Mardi, 11. mai 2004 11:02 11

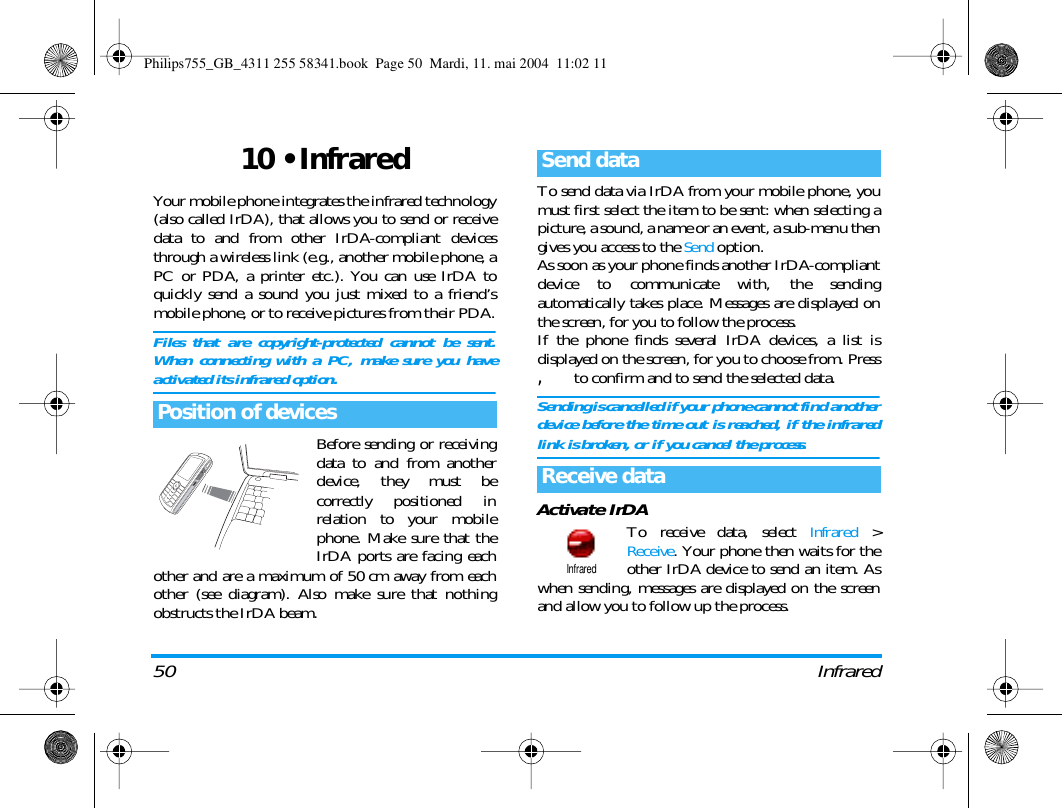

50 Infrared10 • InfraredYour mobile phone integrates the infrared technology(also called IrDA), that allows you to send or receivedata to and from other IrDA-compliant devicesthrough a wireless link (e.g., another mobile phone, aPC or PDA, a printer etc.). You can use IrDA toquickly send a sound you just mixed to a friend’smobile phone, or to receive pictures from their PDA.Files that are copyright-protected cannot be sent.When connecting with a PC, make sure you haveactivated its infrared option.Before sending or receivingdata to and from anotherdevice, they must becorrectly positioned inrelation to your mobilephone. Make sure that theIrDA ports are facing eachother and are a maximum of 50 cm away from eachother (see diagram). Also make sure that nothingobstructs the IrDA beam.To send data via IrDA from your mobile phone, youmust first select the item to be sent: when selecting apicture, a sound, a name or an event, a sub-menu thengives you access to the Send option.As soon as your phone finds another IrDA-compliantdevice to communicate with, the sendingautomatically takes place. Messages are displayed onthe screen, for you to follow the process.If the phone finds several IrDA devices, a list isdisplayed on the screen, for you to choose from. Press, to confirm and to send the selected data.Sending is cancelled if your phone cannot find anotherdevice before the time out is reached, if the infraredlink is broken, or if you cancel the process.Activate IrDATo receive data, select Infrared >Receive. Your phone then waits for theother IrDA device to send an item. Aswhen sending, messages are displayed on the screenand allow you to follow up the process.Position of devicesSend dataReceive dataInfraredPhilips755_GB_4311 255 58341.book Page 50 Mardi, 11. mai 2004 11:02 11

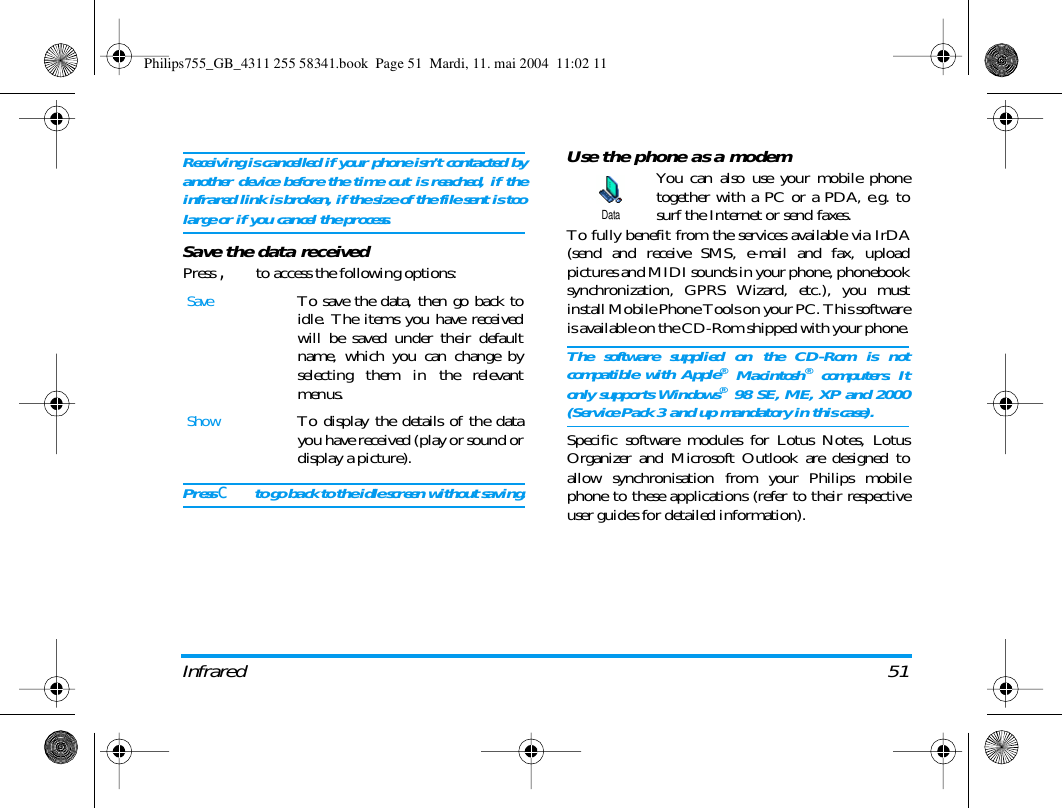

Infrared 51Receiving is cancelled if your phone isn’t contacted byanother device before the time out is reached, if theinfrared link is broken, if the size of the file sent is toolarge or if you cancel the process.Save the data receivedPress , to access the following options:Press c to go back to the idle screen without saving.Use the phone as a modemYou can also use your mobile phonetogether with a PC or a PDA, e.g. tosurf the Internet or send faxes.To fully benefit from the services available via IrDA(send and receive SMS, e-mail and fax, uploadpictures and MIDI sounds in your phone, phonebooksynchronization, GPRS Wizard, etc.), you mustinstall Mobile Phone Tools on your PC. This softwareis available on the CD-Rom shipped with your phone.The software supplied on the CD-Rom is notcompatible with Apple® Macintosh® computers. Itonly supports Windows® 98 SE, ME, XP and 2000(Service Pack 3 and up mandatory in this case).Specific software modules for Lotus Notes, LotusOrganizer and Microsoft Outlook are designed toallow synchronisation from your Philips mobilephone to these applications (refer to their respectiveuser guides for detailed information).SaveTo save the data, then go back toidle. The items you have receivedwill be saved under their defaultname, which you can change byselecting them in the relevantmenus.ShowTo display the details of the datayou have received (play or sound ordisplay a picture).DataPhilips755_GB_4311 255 58341.book Page 51 Mardi, 11. mai 2004 11:02 11

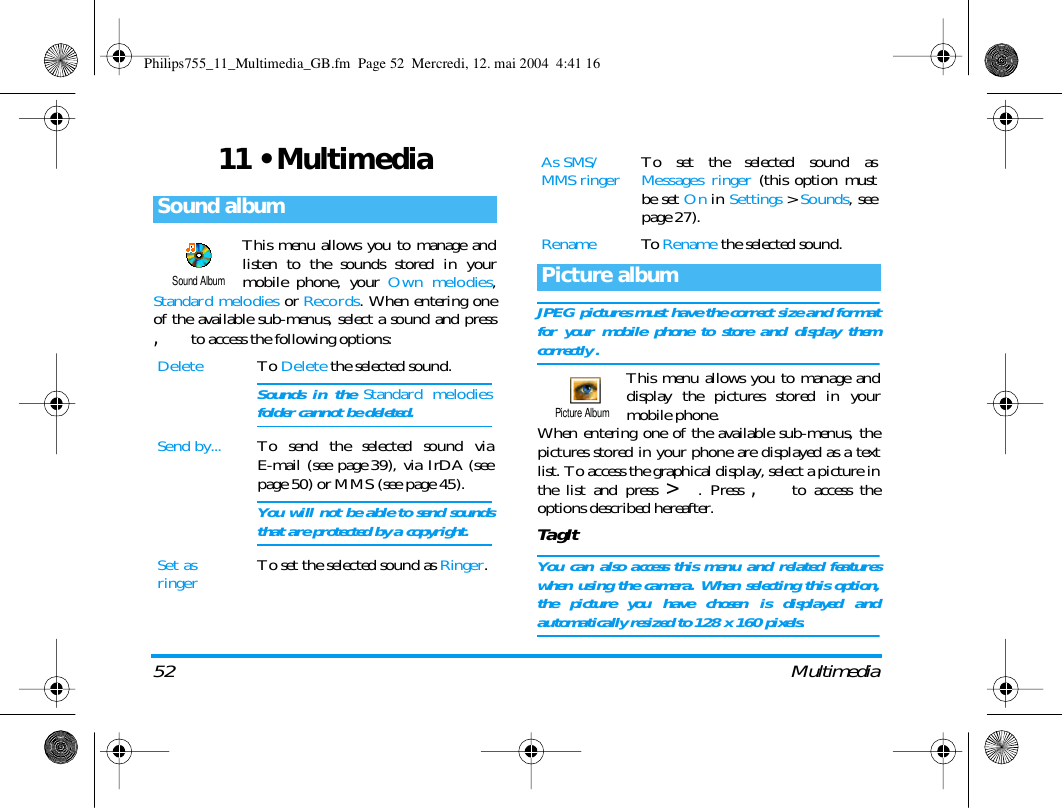

52 Multimedia11 • MultimediaThis menu allows you to manage andlisten to the sounds stored in yourmobile phone, your Own melodies,Standard melodies or Records. When entering oneof the available sub-menus, select a sound and press, to access the following options:JPEG pictures must have the correct size and formatfor your mobile phone to store and display themcorrectly .This menu allows you to manage anddisplay the pictures stored in yourmobile phone.When entering one of the available sub-menus, thepictures stored in your phone are displayed as a textlist. To access the graphical display, select a picture inthe list and press >. Press , to access theoptions described hereafter.TagItYou can also access this menu and related featureswhen using the camera. When selecting this option,the picture you have chosen is displayed andautomatically resized to 128 x 160 pixels.Sound albumDelete To Delete the selected sound.Sounds in the Standard melodiesfolder cannot be deleted.Send by... To send the selected sound viaE-mail (see page 39), via IrDA (seepage 50) or MMS (see page 45).You will not be able to send soundsthat are protected by a copyright.Set as ringer To set the selected sound as Ringer.Sound AlbumAs SMS/MMS ringer To set the selected sound asMessages ringer (this option mustbe set On in Settings > Sounds, seepage 27).Rename To Rename the selected sound.Picture albumPicture AlbumPhilips755_11_Multimedia_GB.fm Page 52 Mercredi, 12. mai 2004 4:41 16

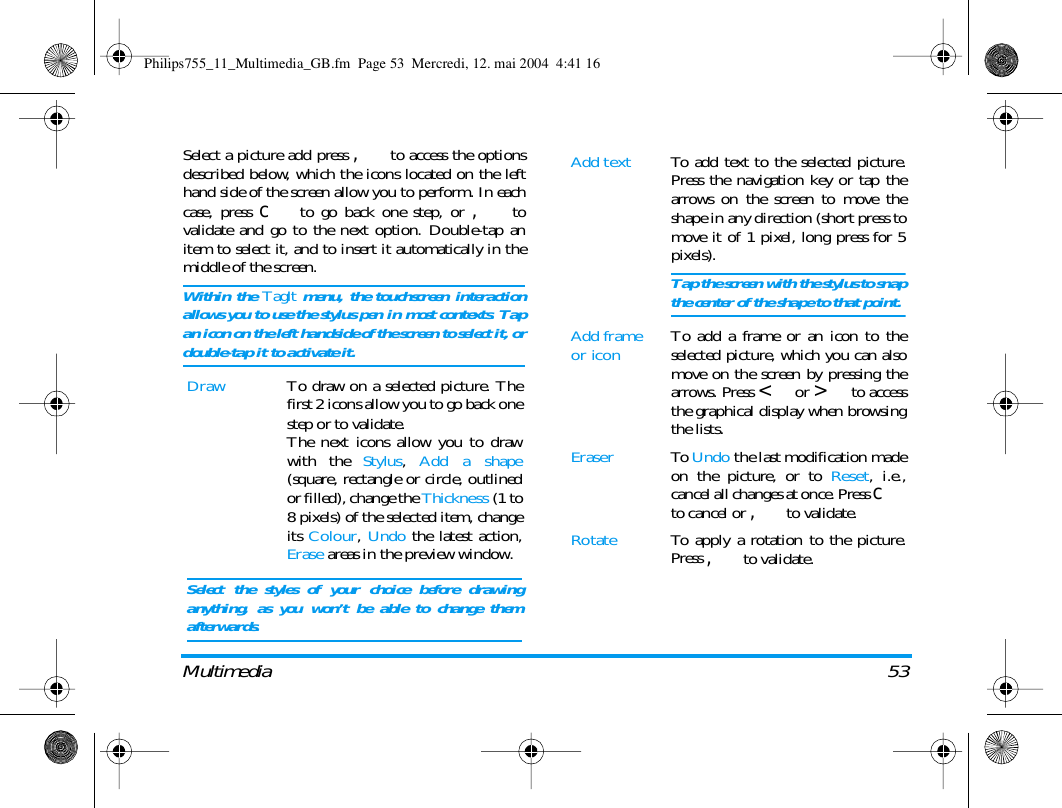

Multimedia 53Select a picture add press , to access the optionsdescribed below, which the icons located on the lefthand side of the screen allow you to perform. In eachcase, press c to go back one step, or , tovalidate and go to the next option. Double-tap anitem to select it, and to insert it automatically in themiddle of the screen.Within the TagIt menu, the touchscreen interactionallows you to use the stylus pen in most contexts. Tapan icon on the left handside of the screen to select it, ordouble-tap it to activate it.Draw To draw on a selected picture. Thefirst 2 icons allow you to go back onestep or to validate.The next icons allow you to drawwith the Stylus, Add a shape(square, rectangle or circle, outlinedor filled), change the Thickness (1 to8 pixels) of the selected item, changeits Colour, Undo the latest action,Erase areas in the preview window.Select the styles of your choice before drawinganything, as you won’t be able to change themafterwards.Add text To add text to the selected picture.Press the navigation key or tap thearrows on the screen to move theshape in any direction (short press tomove it of 1 pixel, long press for 5pixels).Tap the screen with the stylus to snapthe center of the shape to that point.Add frame or icon To add a frame or an icon to theselected picture, which you can alsomove on the screen by pressing thearrows. Press < or > to accessthe graphical display when browsingthe lists.Eraser To Undo the last modification madeon the picture, or to Reset, i.e.,cancel all changes at once. Press cto cancel or , to validate.Rotate To apply a rotation to the picture.Press , to validate.Philips755_11_Multimedia_GB.fm Page 53 Mercredi, 12. mai 2004 4:41 16

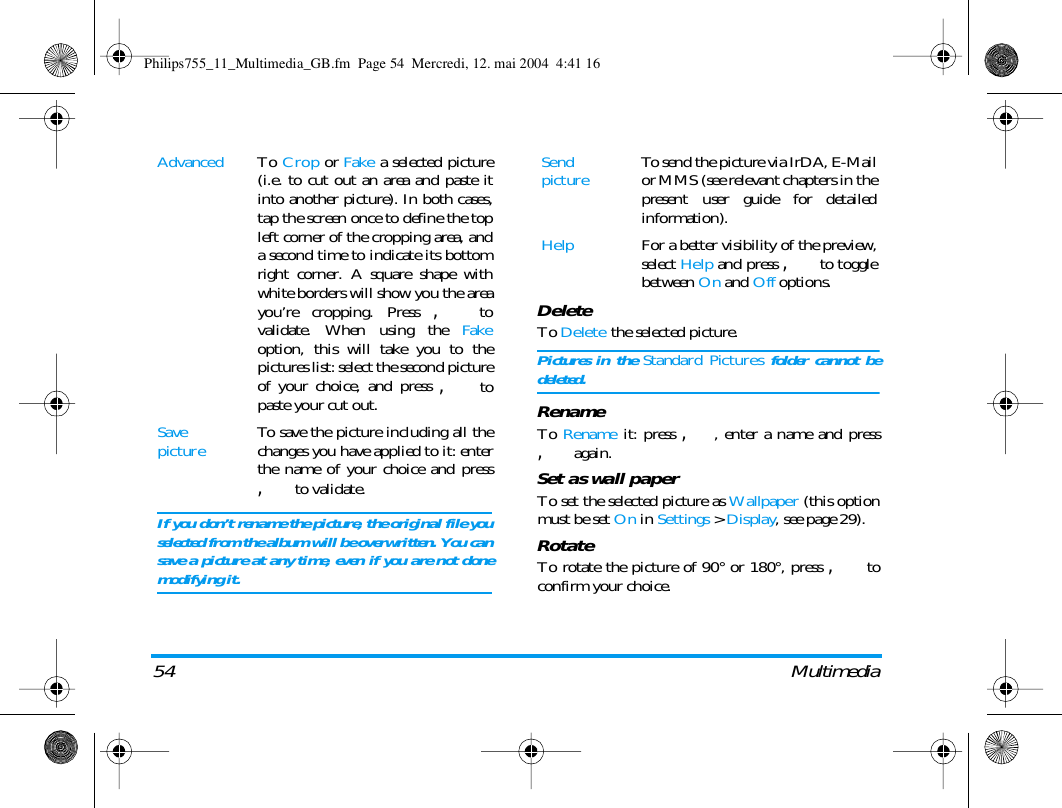

54 MultimediaDeleteTo Delete the selected picture.Pictures in the Standard Pictures folder cannot bedeleted.RenameTo Rename it: press ,, enter a name and press, again.Set as wall paperTo set the selected picture as Wallpaper (this optionmust be set On in Settings > Display, see page 29).RotateTo rotate the picture of 90° or 180°, press , toconfirm your choice.Advanced To Crop or Fake a selected picture(i.e. to cut out an area and paste itinto another picture). In both cases,tap the screen once to define the topleft corner of the cropping area, anda second time to indicate its bottomright corner. A square shape withwhite borders will show you the areayou’re cropping. Press , tovalidate. When using the Fakeoption, this will take you to thepictures list: select the second pictureof your choice, and press , topaste your cut out.Save picture To save the picture including all thechanges you have applied to it: enterthe name of your choice and press, to validate.If you don’t rename the picture, the original file youselected from the album will be overwritten. You cansave a picture at any time, even if you are not donemodifying it.Send picture To send the picture via IrDA, E-Mailor MMS (see relevant chapters in thepresent user guide for detailedinformation).Help For a better visibility of the preview,select Help and press , to togglebetween On and Off options.Philips755_11_Multimedia_GB.fm Page 54 Mercredi, 12. mai 2004 4:41 16

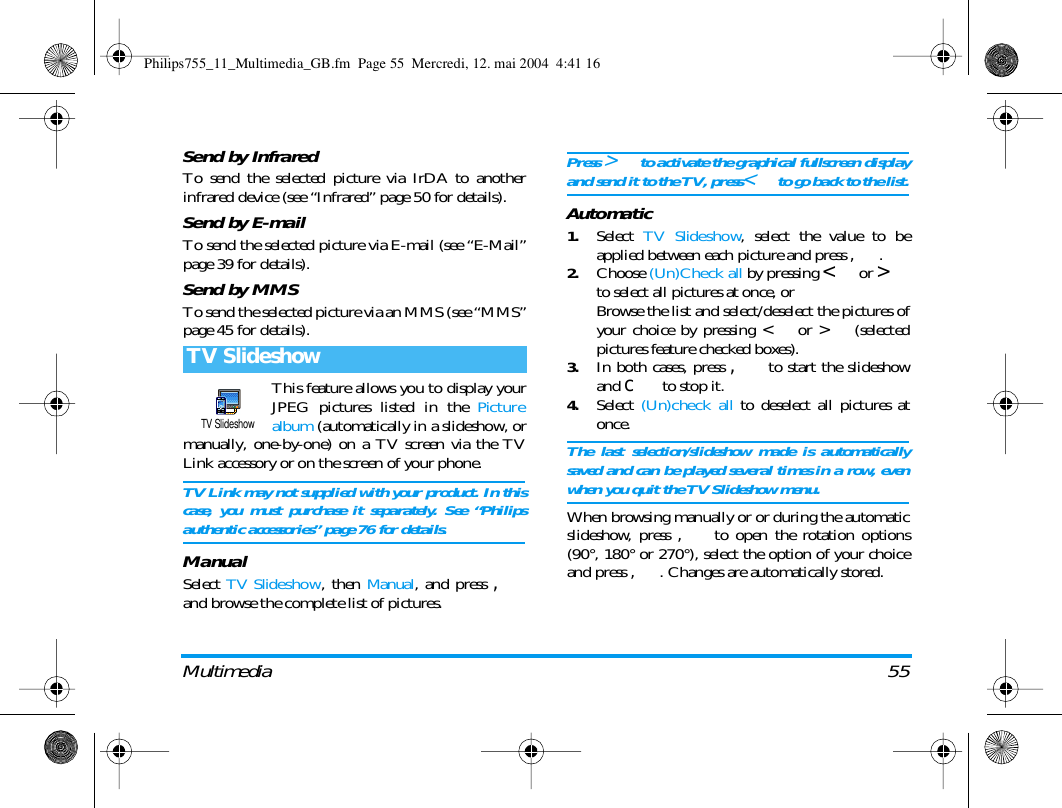

Multimedia 55Send by InfraredTo send the selected picture via IrDA to anotherinfrared device (see “Infrared” page 50 for details).Send by E-mailTo send the selected picture via E-mail (see “E-Mail”page 39 for details).Send by MMSTo send the selected picture via an MMS (see “MMS”page 45 for details).This feature allows you to display yourJPEG pictures listed in the Picturealbum (automatically in a slideshow, ormanually, one-by-one) on a TV screen via the TVLink accessory or on the screen of your phone.TV Link may not supplied with your product. In thiscase, you must purchase it separately. See “Philipsauthentic accessories” page 76 for details.ManualSelect TV Slideshow, then Manual, and press ,and browse the complete list of pictures.Press > to activate the graphical fullscreen displayand send it to the TV, press< to go back to the list.Automatic1.Select TV Slideshow, select the value to beapplied between each picture and press ,.2.Choose (Un)Check all by pressing < or >to select all pictures at once, orBrowse the list and select/deselect the pictures ofyour choice by pressing < or > (selectedpictures feature checked boxes).3.In both cases, press , to start the slideshowand c to stop it.4.Select (Un)check all to deselect all pictures atonce.The last selection/slideshow made is automaticallysaved and can be played several times in a row, evenwhen you quit the TV Slideshow menu.When browsing manually or or during the automaticslideshow, press , to open the rotation options(90°, 180° or 270°), select the option of your choiceand press ,. Changes are automatically stored.TV SlideshowTV SlideshowPhilips755_11_Multimedia_GB.fm Page 55 Mercredi, 12. mai 2004 4:41 16

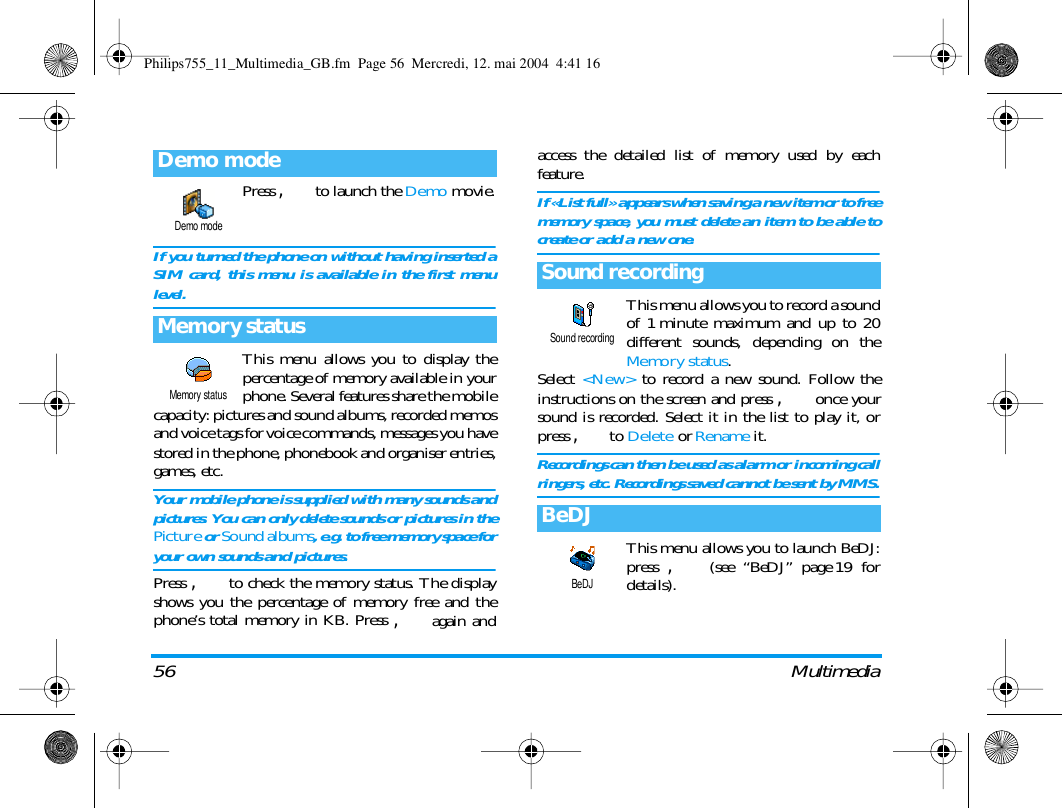

56 MultimediaPress , to launch the Demo movie.If you turned the phone on without having inserted aSIM card, this menu is available in the first menulevel.This menu allows you to display thepercentage of memory available in yourphone. Several features share the mobilecapacity: pictures and sound albums, recorded memosand voice tags for voice commands, messages you havestored in the phone, phonebook and organiser entries,games, etc.Your mobile phone is supplied with many sounds andpictures. You can only delete sounds or pictures in thePicture or Sound albums, e.g. to free memory space foryour own sounds and pictures.Press , to check the memory status. The displayshows you the percentage of memory free and thephone’s total memory in KB. Press , again andaccess the detailed list of memory used by eachfeature.If «List full» appears when saving a new item or to freememory space, you must delete an item to be able tocreate or add a new one.This menu allows you to record a soundof 1 minute maximum and up to 20different sounds, depending on theMemory status.Select <New> to record a new sound. Follow theinstructions on the screen and press , once yoursound is recorded. Select it in the list to play it, orpress , to Delete or Rename it.Recordings can then be used as alarm or incoming callringers, etc. Recordings saved cannot be sent by MMS.This menu allows you to launch BeDJ:press , (see “BeDJ” page 19 fordetails).Demo modeMemory statusDemo modeMemory statusSound recordingBeDJSound recordingBeDJPhilips755_11_Multimedia_GB.fm Page 56 Mercredi, 12. mai 2004 4:41 16

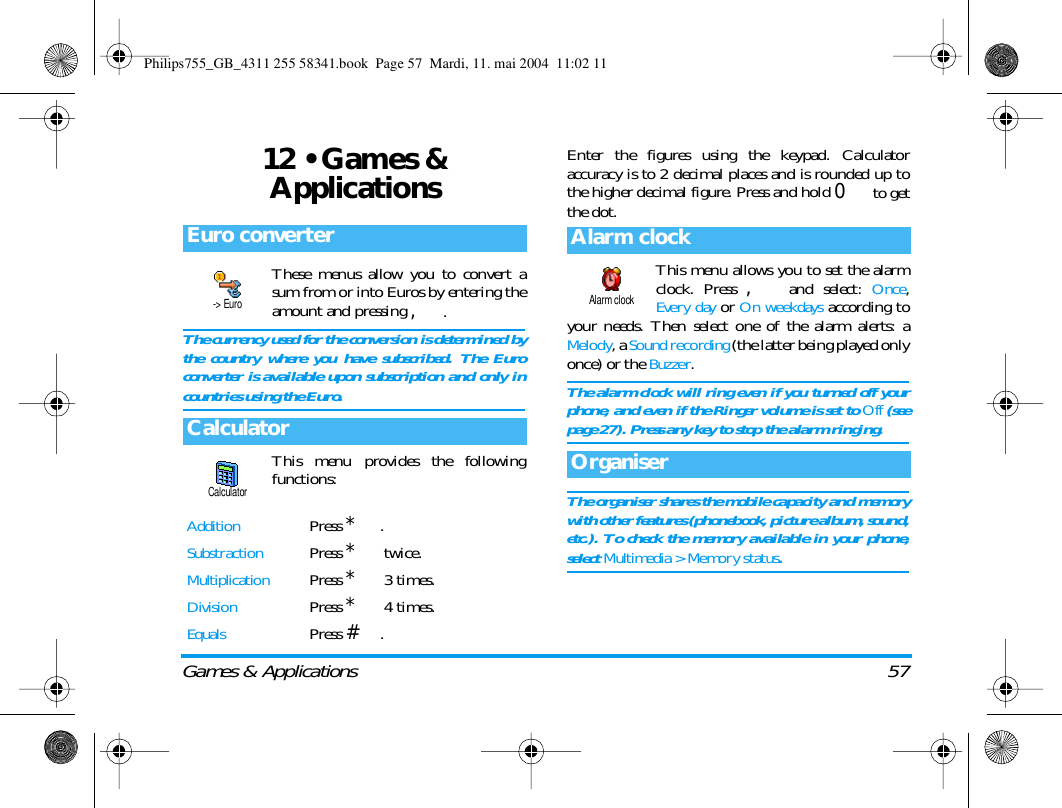

Games & Applications 5712 • Games & ApplicationsThese menus allow you to convert asum from or into Euros by entering theamount and pressing ,.The currency used for the conversion is determined bythe country where you have subscribed. The Euroconverter is available upon subscription and only incountries using the Euro.This menu provides the followingfunctions:Enter the figures using the keypad. Calculatoraccuracy is to 2 decimal places and is rounded up tothe higher decimal figure. Press and hold 0 to getthe dot.This menu allows you to set the alarmclock. Press , and select: Once,Every day or On weekdays according toyour needs. Then select one of the alarm alerts: aMelody, a Sound recording (the latter being played onlyonce) or the Buzzer.The alarm clock will ring even if you turned off yourphone, and even if the Ringer volume is set to Off (seepage 27). Press any key to stop the alarm ringing.The organiser shares the mobile capacity and memorywith other features (phonebook, picture album, sound,etc.). To check the memory available in your phone,select Multimedia > Memory status.Euro converterCalculatorAdditionPress *.SubstractionPress * twice.MultiplicationPress * 3 times.DivisionPress * 4 times.EqualsPress #.-> EuroCalculatorAlarm clockOrganiserAlarm clockPhilips755_GB_4311 255 58341.book Page 57 Mardi, 11. mai 2004 11:02 11

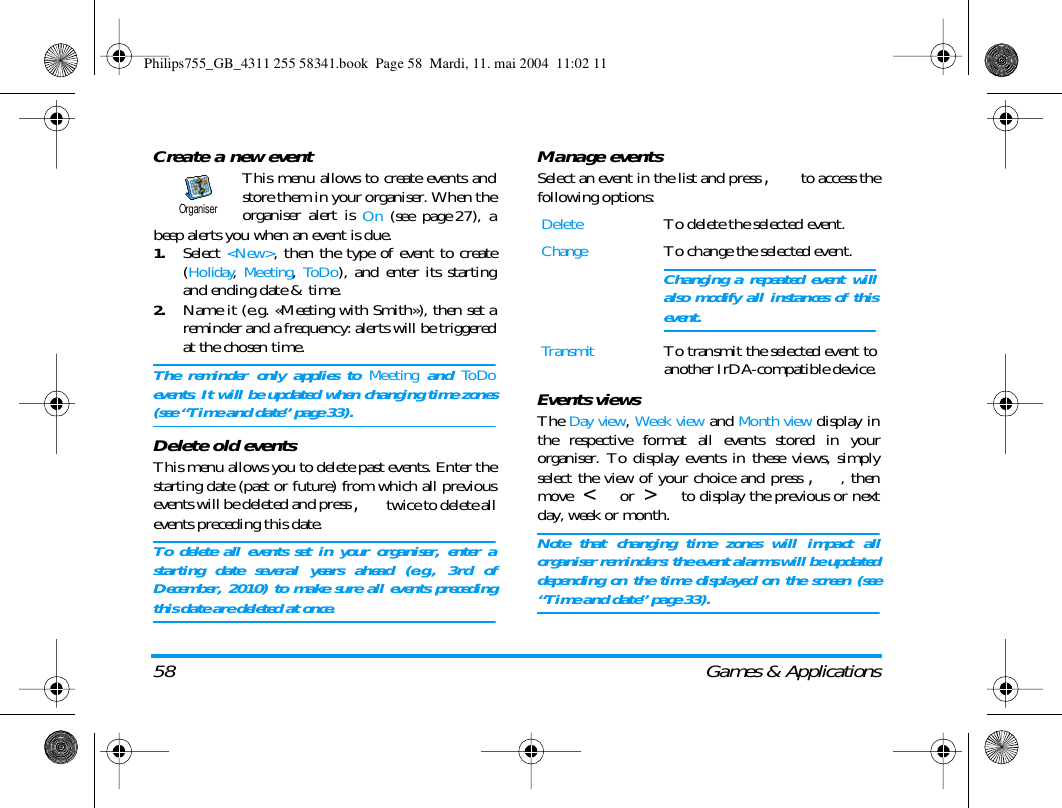

58 Games & ApplicationsCreate a new eventThis menu allows to create events andstore them in your organiser. When theorganiser alert is On (see page 27), abeep alerts you when an event is due.1.Select <New>, then the type of event to create(Holiday, Meeting, ToDo), and enter its startingand ending date & time.2.Name it (e.g. «Meeting with Smith»), then set areminder and a frequency: alerts will be triggeredat the chosen time. The reminder only applies to Meeting and ToDoevents. It will be updated when changing time zones(see “Time and date” page 33).Delete old eventsThis menu allows you to delete past events. Enter thestarting date (past or future) from which all previousevents will be deleted and press ,twice to delete allevents preceding this date.To delete all events set in your organiser, enter astarting date several years ahead (e.g., 3rd ofDecember, 2010) to make sure all events precedingthis date are deleted at once.Manage eventsSelect an event in the list and press , to access thefollowing options:Events viewsThe Day view, Week view and Month view display inthe respective format all events stored in yourorganiser. To display events in these views, simplyselect the view of your choice and press ,, thenmove < or > to display the previous or nextday, week or month.Note that changing time zones will impact allorganiser reminders: the event alarms will be updateddepending on the time displayed on the screen (see“Time and date” page 33).OrganiserDeleteTo delete the selected event.ChangeTo change the selected event.Changing a repeated event willalso modify all instances of thisevent.TransmitTo transmit the selected event toanother IrDA-compatible device.Philips755_GB_4311 255 58341.book Page 58 Mardi, 11. mai 2004 11:02 11

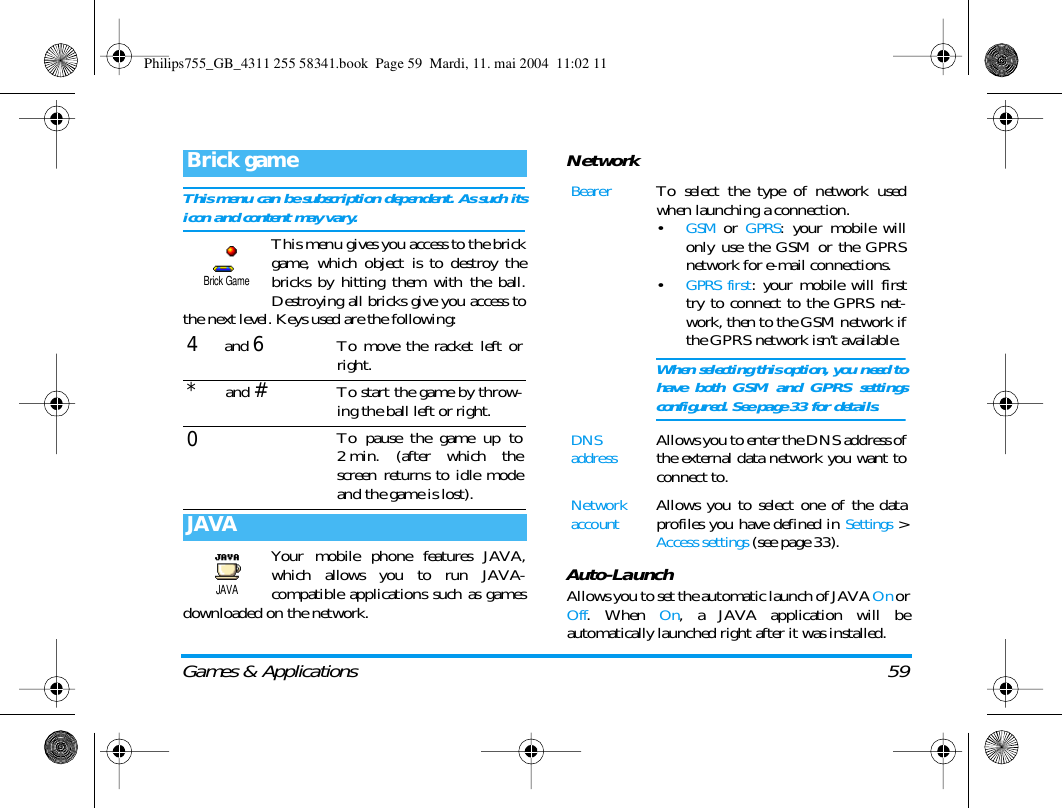

Games & Applications 59This menu can be subscription dependent. As such itsicon and content may vary.This menu gives you access to the brickgame, which object is to destroy thebricks by hitting them with the ball.Destroying all bricks give you access tothe next level. Keys used are the following:Your mobile phone features JAVA,which allows you to run JAVA-compatible applications such as gamesdownloaded on the network.NetworkAuto-LaunchAllows you to set the automatic launch of JAVA On orOff. When On, a JAVA application will beautomatically launched right after it was installed.Brick game4 and 6To move the racket left orright.* and #To start the game by throw-ing the ball left or right.0To pause the game up to2 min. (after which thescreen returns to idle modeand the game is lost).JAVABrick GameJAVABearerTo select the type of network usedwhen launching a connection.•GSM or GPRS: your mobile willonly use the GSM or the GPRSnetwork for e-mail connections.•GPRS first: your mobile will firsttry to connect to the GPRS net-work, then to the GSM network ifthe GPRS network isn’t available.When selecting this option, you need tohave both GSM and GPRS settingsconfigured. See page 33 for details.DNS addressAllows you to enter the DNS address ofthe external data network you want toconnect to.Network accountAllows you to select one of the dataprofiles you have defined in Settings >Access settings (see page 33).Philips755_GB_4311 255 58341.book Page 59 Mardi, 11. mai 2004 11:02 11

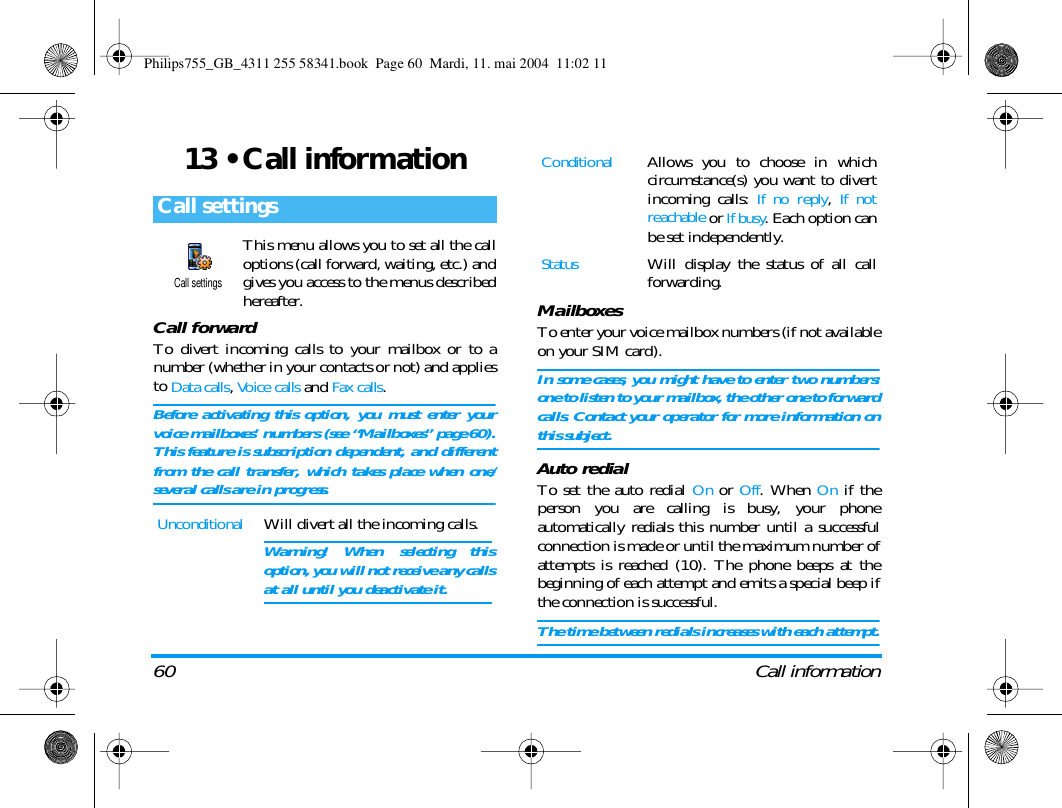

60 Call information13 • Call informationThis menu allows you to set all the calloptions (call forward, waiting, etc.) andgives you access to the menus describedhereafter.Call forwardTo divert incoming calls to your mailbox or to anumber (whether in your contacts or not) and appliesto Data calls, Voice calls and Fax calls.Before activating this option, you must enter yourvoice mailboxes’ numbers (see “Mailboxes” page 60).This feature is subscription dependent, and differentfrom the call transfer, which takes place when one/several calls are in progress.MailboxesTo enter your voice mailbox numbers (if not availableon your SIM card).In some cases, you might have to enter two numbers:one to listen to your mailbox, the other one to forwardcalls. Contact your operator for more information onthis subject.Auto redialTo set the auto redial On or Off. When On if theperson you are calling is busy, your phoneautomatically redials this number until a successfulconnection is made or until the maximum number ofattempts is reached (10). The phone beeps at thebeginning of each attempt and emits a special beep ifthe connection is successful.The time between redials increases with each attempt.Call settingsUnconditionalWill divert all the incoming calls.Warning! When selecting thisoption, you will not receive any callsat all until you deactivate it.Call settingsConditionalAllows you to choose in whichcircumstance(s) you want to divertincoming calls: If no reply, If notreachable or If busy. Each option canbe set independently.StatusWill display the status of all callforwarding.Philips755_GB_4311 255 58341.book Page 60 Mardi, 11. mai 2004 11:02 11

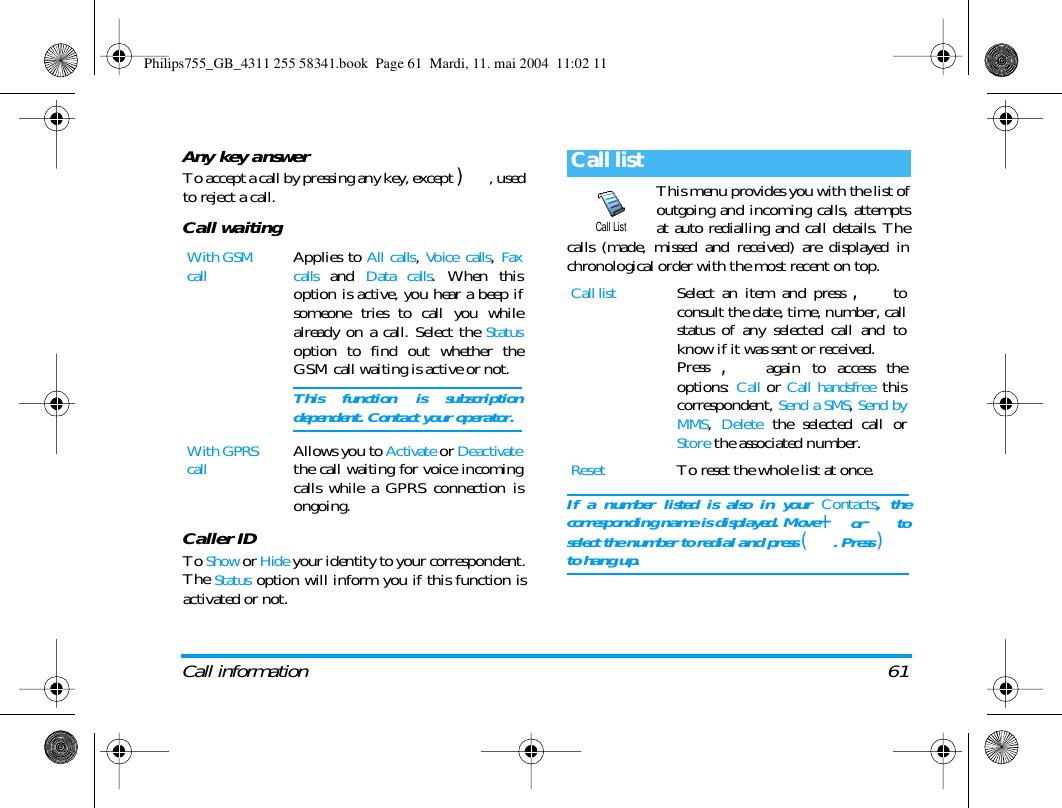

Call information 61Any key answerTo accept a call by pressing any key, except ), usedto reject a call.Call waitingCaller IDTo Show or Hide your identity to your correspondent.The Status option will inform you if this function isactivated or not.This menu provides you with the list ofoutgoing and incoming calls, attemptsat auto redialling and call details. Thecalls (made, missed and received) are displayed inchronological order with the most recent on top.If a number listed is also in your Contacts, thecorresponding name is displayed. Move+or-toselect the number to redial and press (. Press )to hang up.With GSM callApplies to All calls, Voice calls, Faxcalls and Data calls. When thisoption is active, you hear a beep ifsomeone tries to call you whilealready on a call. Select the Statusoption to find out whether theGSM call waiting is active or not. This function is subscriptiondependent. Contact your operator.With GPRS callAllows you to Activate or Deactivatethe call waiting for voice incomingcalls while a GPRS connection isongoing.Call listCall listSelect an item and press , toconsult the date, time, number, callstatus of any selected call and toknow if it was sent or received. Press , again to access theoptions: Call or Call handsfree thiscorrespondent, Send a SMS, Send byMMS, Delete the selected call orStore the associated number.ResetTo reset the whole list at once.Call ListPhilips755_GB_4311 255 58341.book Page 61 Mardi, 11. mai 2004 11:02 11

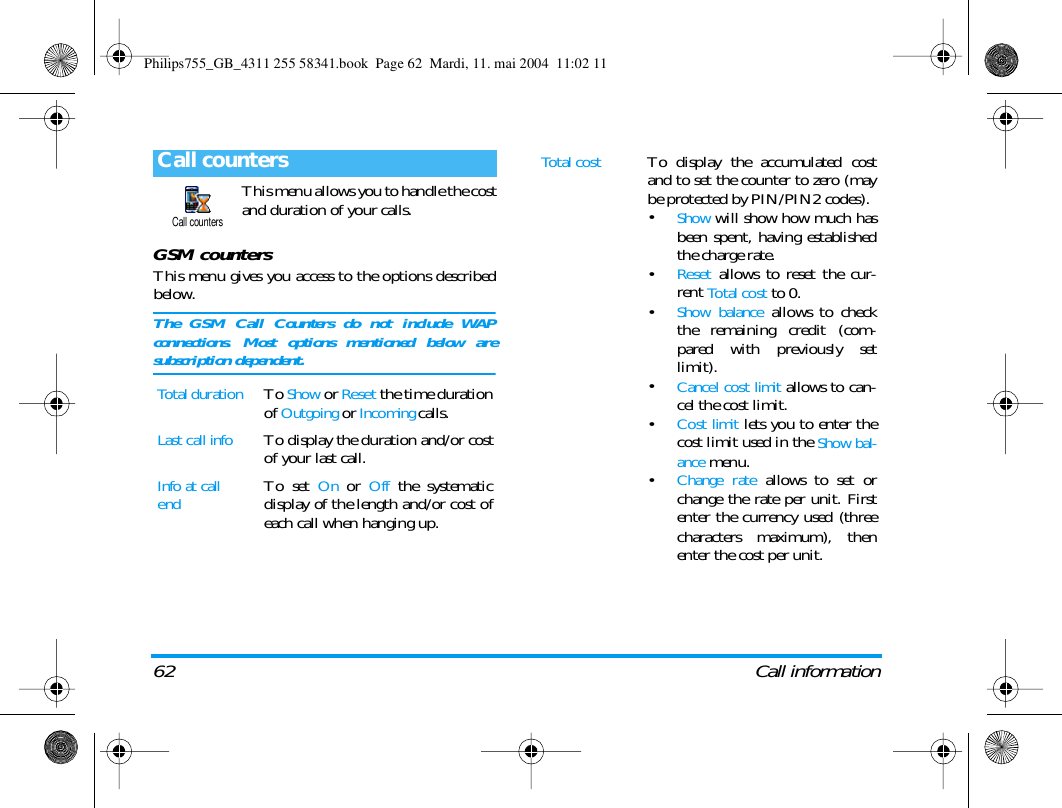

62 Call informationThis menu allows you to handle the costand duration of your calls.GSM countersThis menu gives you access to the options describedbelow.The GSM Call Counters do not include WAPconnections. Most options mentioned below aresubscription dependent.Call countersTotal durationTo Show or Reset the time durationof Outgoing or Incoming calls.Last call infoTo display the duration and/or costof your last call.Info at call endTo set On or Off the systematicdisplay of the length and/or cost ofeach call when hanging up.Call countersTotal costTo display the accumulated costand to set the counter to zero (maybe protected by PIN/PIN2 codes).•Show will show how much hasbeen spent, having establishedthe charge rate.•Reset allows to reset the cur-rent Total cost to 0.•Show balance allows to checkthe remaining credit (com-pared with previously setlimit).•Cancel cost limit allows to can-cel the cost limit.•Cost limit lets you to enter thecost limit used in the Show bal-ance menu.•Change rate allows to set orchange the rate per unit. Firstenter the currency used (threecharacters maximum), thenenter the cost per unit.Philips755_GB_4311 255 58341.book Page 62 Mardi, 11. mai 2004 11:02 11

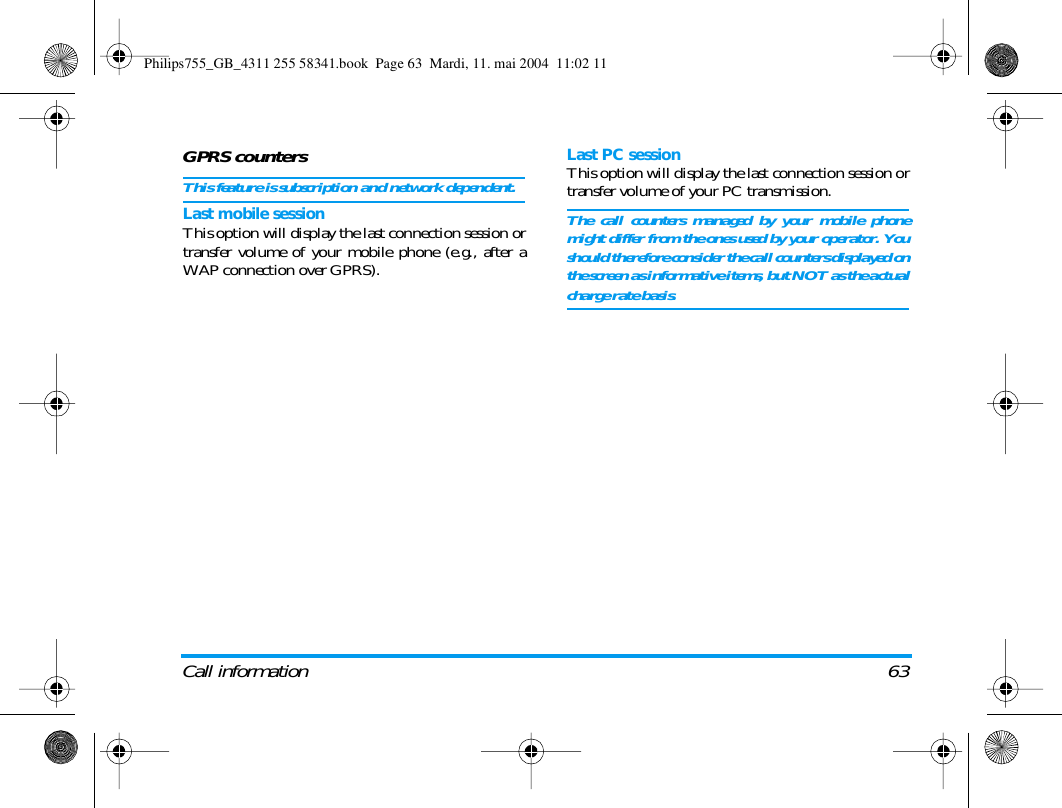

Call information 63GPRS countersThis feature is subscription and network dependent.Last mobile sessionThis option will display the last connection session ortransfer volume of your mobile phone (e.g., after aWAP connection over GPRS).Last PC sessionThis option will display the last connection session ortransfer volume of your PC transmission.The call counters managed by your mobile phonemight differ from the ones used by your operator. Youshould therefore consider the call counters displayed onthe screen as informative items, but NOT as the actualcharge rate basis.Philips755_GB_4311 255 58341.book Page 63 Mardi, 11. mai 2004 11:02 11

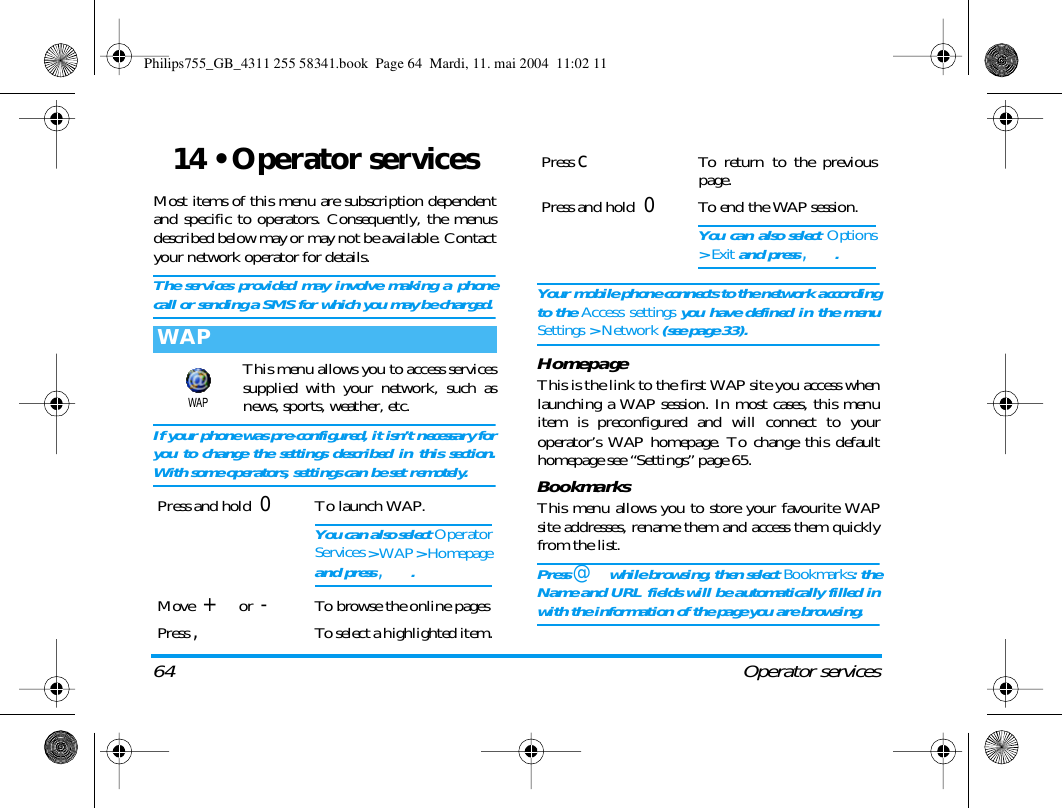

64 Operator services14 • Operator servicesMost items of this menu are subscription dependentand specific to operators. Consequently, the menusdescribed below may or may not be available. Contactyour network operator for details.The services provided may involve making a phonecall or sending a SMS for which you may be charged.This menu allows you to access servicessupplied with your network, such asnews, sports, weather, etc.If your phone was pre-configured, it isn’t necessary foryou to change the settings described in this section.With some operators, settings can be set remotely.Your mobile phone connects to the network accordingto the Access settings you have defined in the menuSettings > Network (see page 33).HomepageThis is the link to the first WAP site you access whenlaunching a WAP session. In most cases, this menuitem is preconfigured and will connect to youroperator’s WAP homepage. To change this defaulthomepage see “Settings” page 65.BookmarksThis menu allows you to store your favourite WAPsite addresses, rename them and access them quicklyfrom the list.Press @ while browsing, then select Bookmarks: theName and URL fields will be automatically filled inwith the information of the page you are browsing.WAPPress and hold 0To launch WAP.You can also select OperatorServices > WAP > Homepageand press ,.Move + or -To browse the online pagesPress ,To select a highlighted item.WAPPress cTo return to the previouspage.Press and hold 0To end the WAP session.You can also select Options> Exit and press ,.Philips755_GB_4311 255 58341.book Page 64 Mardi, 11. mai 2004 11:02 11

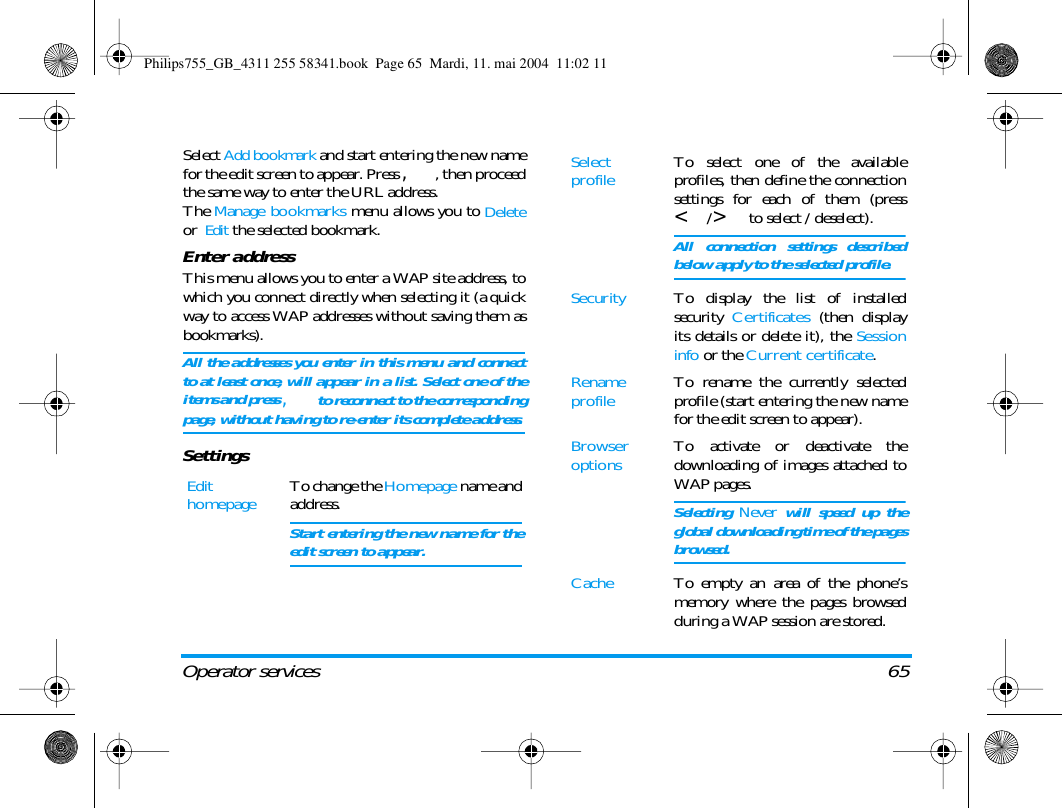

Operator services 65Select Add bookmark and start entering the new namefor the edit screen to appear. Press ,, then proceedthe same way to enter the URL address.The Manage bookmarks menu allows you to Deleteor Edit the selected bookmark.Enter addressThis menu allows you to enter a WAP site address, towhich you connect directly when selecting it (a quickway to access WAP addresses without saving them asbookmarks).All the addresses you enter in this menu and connectto at least once, will appear in a list. Select one of theitems and press , to reconnect to the correspondingpage, without having to re-enter its complete address.SettingsEdit homepage To change the Homepage name andaddress.Start entering the new name for theedit screen to appear.Select profile To select one of the availableprofiles, then define the connectionsettings for each of them (press</> to select / deselect).All connection settings describedbelow apply to the selected profile.Security To display the list of installedsecurity Certificates (then displayits details or delete it), the Sessioninfo or the Current certificate.Rename profile To rename the currently selectedprofile (start entering the new namefor the edit screen to appear).Browser options To activate or deactivate thedownloading of images attached toWAP pages.Selecting Never will speed up theglobal downloading time of the pagesbrowsed.Cache To empty an area of the phone’smemory where the pages browsedduring a WAP session are stored.Philips755_GB_4311 255 58341.book Page 65 Mardi, 11. mai 2004 11:02 11

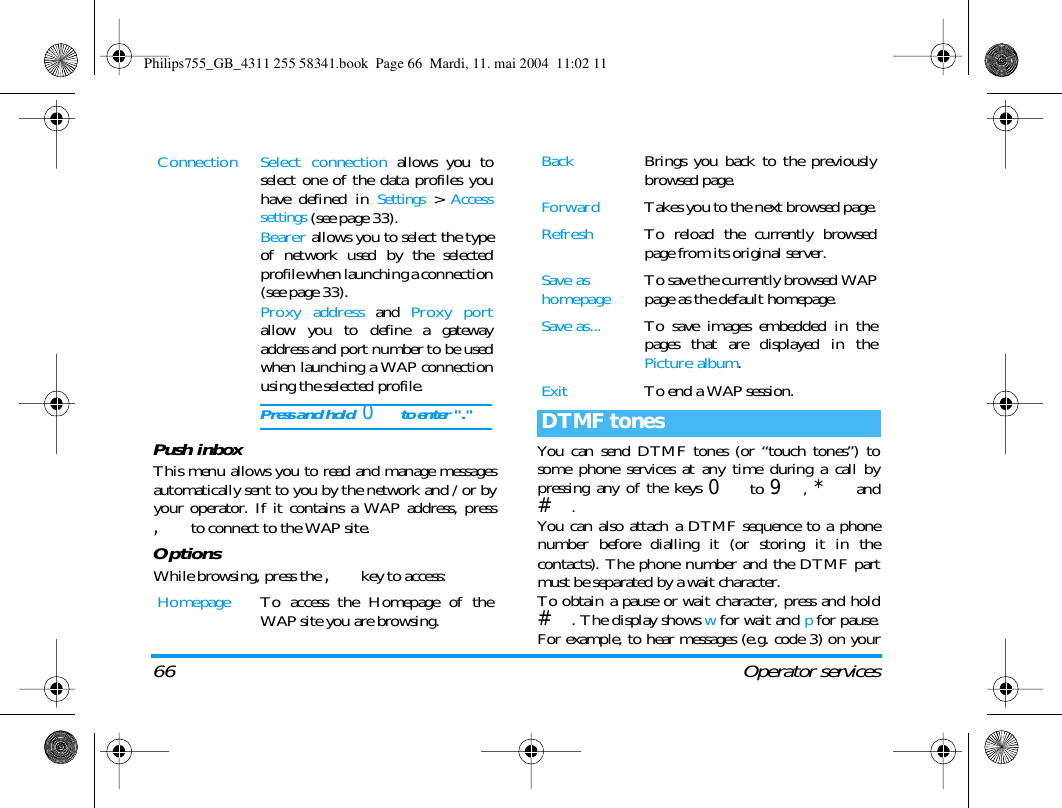

66 Operator servicesPush inboxThis menu allows you to read and manage messagesautomatically sent to you by the network and / or byyour operator. If it contains a WAP address, press, to connect to the WAP site.OptionsWhile browsing, press the , key to access:You can send DTMF tones (or “touch tones”) tosome phone services at any time during a call bypressing any of the keys 0 to 9, * and#.You can also attach a DTMF sequence to a phonenumber before dialling it (or storing it in thecontacts). The phone number and the DTMF partmust be separated by a wait character.To obtain a pause or wait character, press and hold#. The display shows w for wait and p for pause.For example, to hear messages (e.g. code 3) on yourConnection Select connection allows you toselect one of the data profiles youhave defined in Settings > Accesssettings (see page 33).Bearer allows you to select the typeof network used by the selectedprofile when launching a connection(see page 33).Proxy address and Proxy portallow you to define a gatewayaddress and port number to be usedwhen launching a WAP connectionusing the selected profile.Press and hold 0 to enter "."Homepage To access the Homepage of theWAP site you are browsing.Back Brings you back to the previouslybrowsed page.Forward Takes you to the next browsed page.Refresh To reload the currently browsedpage from its original server.Save as homepage To save the currently browsed WAPpage as the default homepage.Save as... To save images embedded in thepages that are displayed in thePicture album.Exit To end a WAP session.DTMF tonesPhilips755_GB_4311 255 58341.book Page 66 Mardi, 11. mai 2004 11:02 11

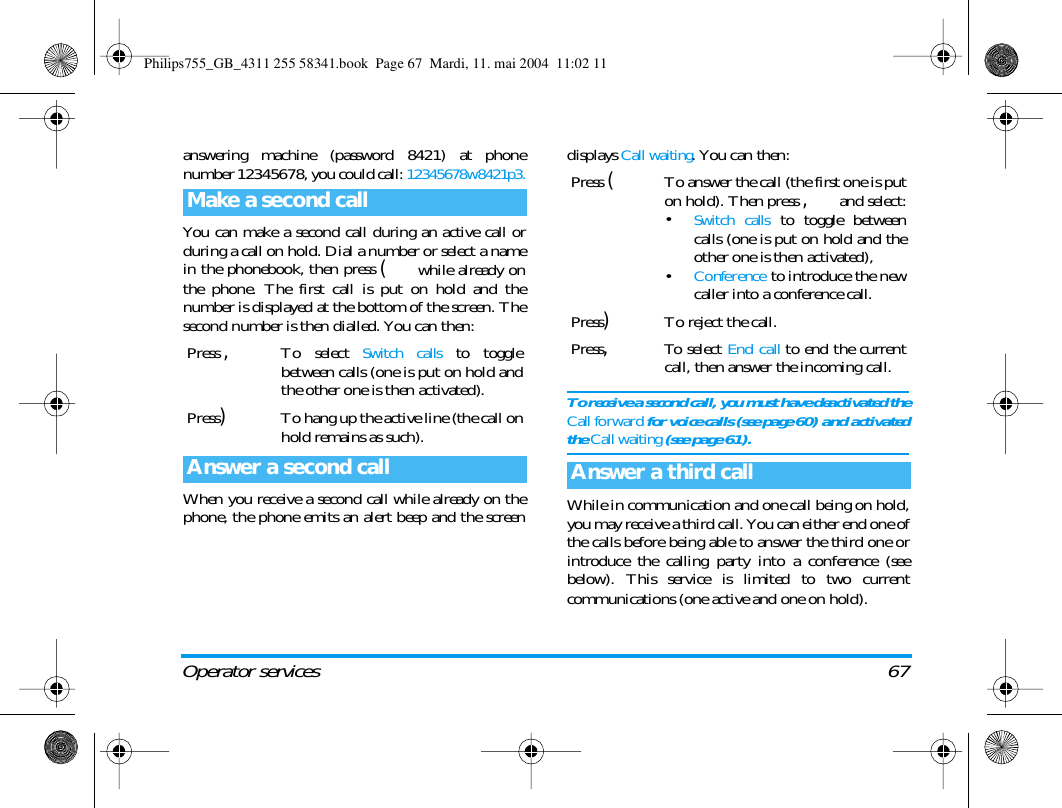

Operator services 67answering machine (password 8421) at phonenumber 12345678, you could call: 12345678w8421p3.You can make a second call during an active call orduring a call on hold. Dial a number or select a namein the phonebook, then press ( while already onthe phone. The first call is put on hold and thenumber is displayed at the bottom of the screen. Thesecond number is then dialled. You can then:When you receive a second call while already on thephone, the phone emits an alert beep and the screendisplays Call waiting. You can then:To receive a second call, you must have deactivated theCall forward for voice calls (see page 60) and activatedthe Call waiting (see page 61).While in communication and one call being on hold,you may receive a third call. You can either end one ofthe calls before being able to answer the third one orintroduce the calling party into a conference (seebelow). This service is limited to two currentcommunications (one active and one on hold).Make a second callPress ,To select Switch calls to togglebetween calls (one is put on hold andthe other one is then activated).Press)To hang up the active line (the call onhold remains as such).Answer a second callPress (To answer the call (the first one is puton hold). Then press , and select:•Switch calls to toggle betweencalls (one is put on hold and theother one is then activated),•Conference to introduce the newcaller into a conference call.Press)To reject the call.Press,To select End call to end the currentcall, then answer the incoming call.Answer a third callPhilips755_GB_4311 255 58341.book Page 67 Mardi, 11. mai 2004 11:02 11

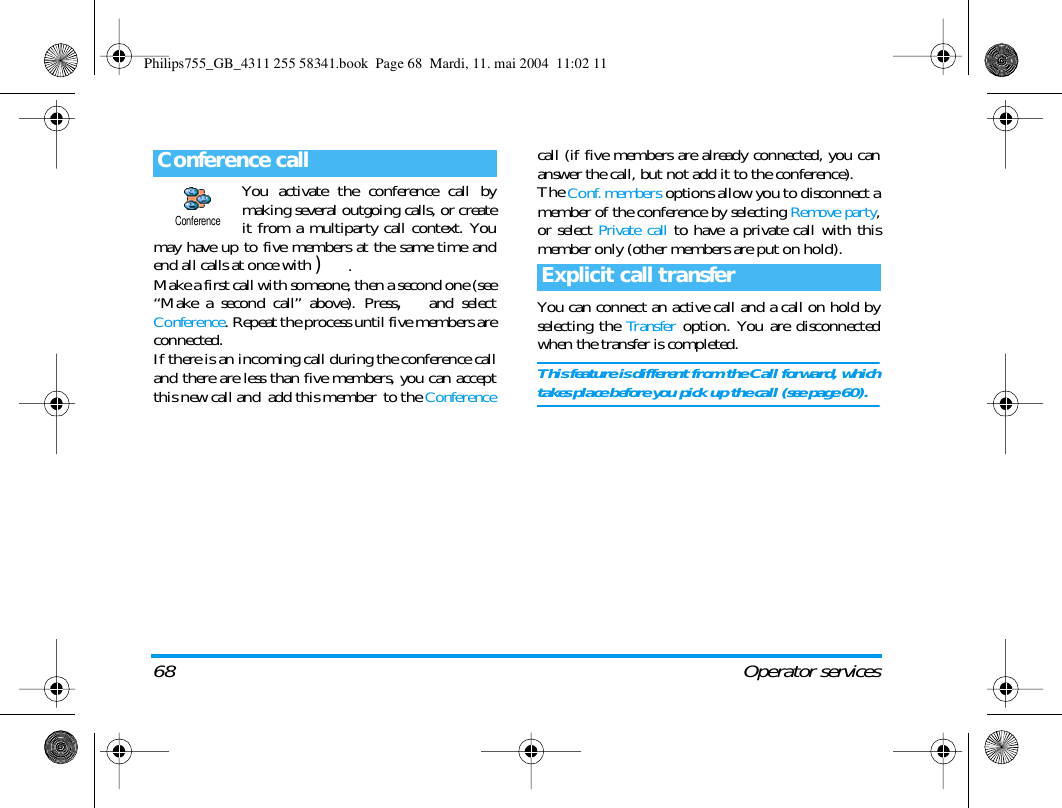

68 Operator servicesYou activate the conference call bymaking several outgoing calls, or createit from a multiparty call context. Youmay have up to five members at the same time andend all calls at once with ).Make a first call with someone, then a second one (see“Make a second call” above). Press,and selectConference. Repeat the process until five members areconnected.If there is an incoming call during the conference calland there are less than five members, you can acceptthis new call and add this member to the Conferencecall (if five members are already connected, you cananswer the call, but not add it to the conference).The Conf. members options allow you to disconnect amember of the conference by selecting Remove party,or select Private call to have a private call with thismember only (other members are put on hold).You can connect an active call and a call on hold byselecting the Transfer option. You are disconnectedwhen the transfer is completed.This feature is different from the Call forward, whichtakes place before you pick up the call (see page 60).Conference callConferenceExplicit call transferPhilips755_GB_4311 255 58341.book Page 68 Mardi, 11. mai 2004 11:02 11

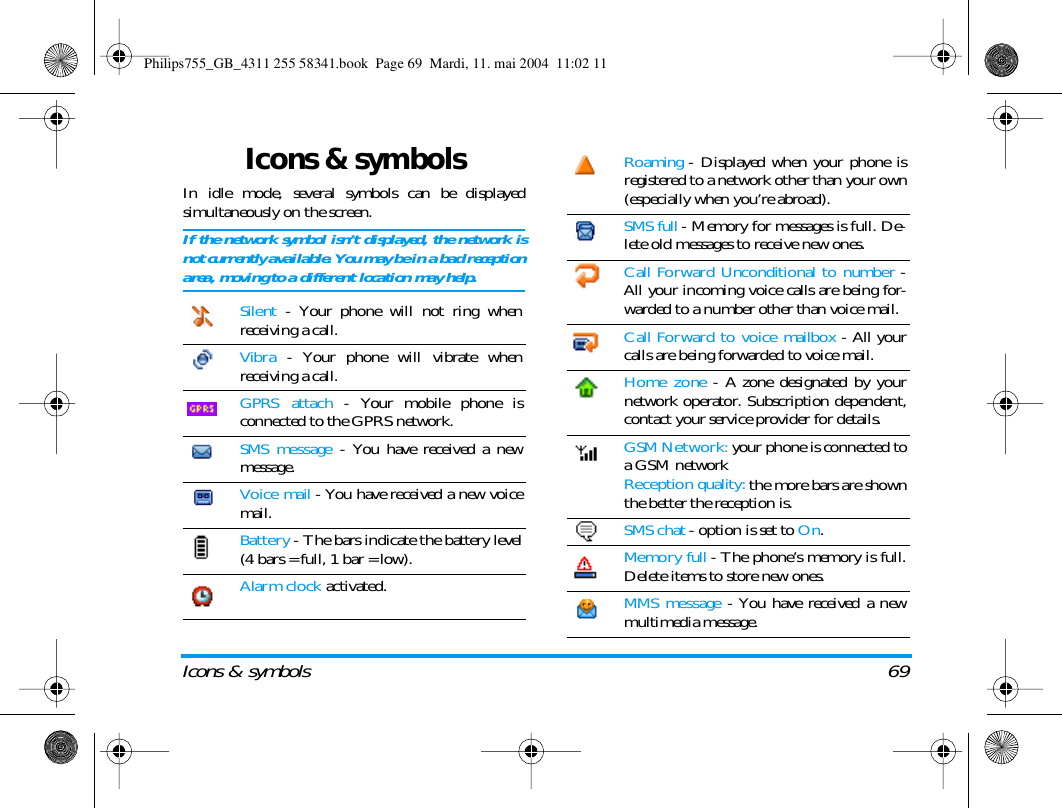

Icons & symbols 69Icons & symbolsIn idle mode, several symbols can be displayedsimultaneously on the screen.If the network symbol isn’t displayed, the network isnot currently available. You may be in a bad receptionarea, moving to a different location may help.Silent - Your phone will not ring whenreceiving a call.Vibra - Your phone will vibrate whenreceiving a call.GPRS attach - Your mobile phone isconnected to the GPRS network.SMS message - You have received a newmessage. Voice mail - You have received a new voicemail.Battery - The bars indicate the battery level(4 bars = full, 1 bar = low).Alarm clock activated.Roaming - Displayed when your phone isregistered to a network other than your own(especially when you’re abroad).SMS full - Memory for messages is full. De-lete old messages to receive new ones.Call Forward Unconditional to number -All your incoming voice calls are being for-warded to a number other than voice mail.Call Forward to voice mailbox - All yourcalls are being forwarded to voice mail.Home zone - A zone designated by yournetwork operator. Subscription dependent,contact your service provider for details.GSM Network: your phone is connected toa GSM networkReception quality: the more bars are shownthe better the reception is.SMS chat - option is set to On.Memory full - The phone’s memory is full.Delete items to store new ones.MMS message - You have received a newmultimedia message.Philips755_GB_4311 255 58341.book Page 69 Mardi, 11. mai 2004 11:02 11

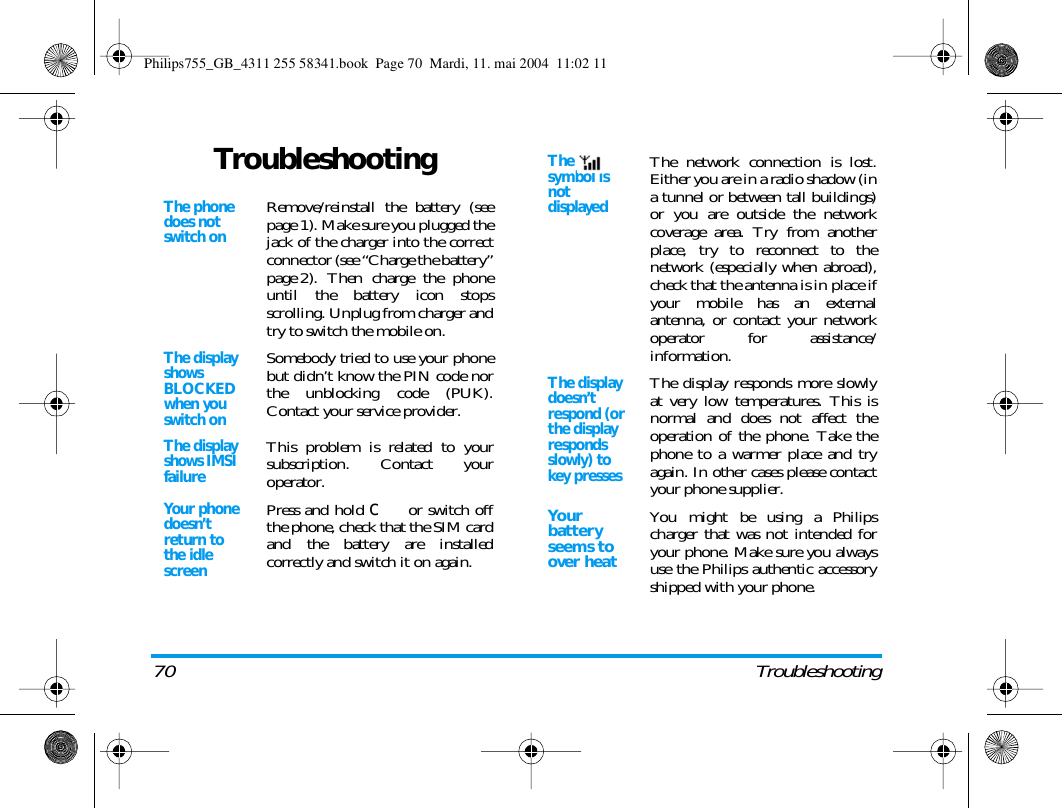

70 TroubleshootingTroubleshootingThe phone does not switch onRemove/reinstall the battery (seepage 1). Make sure you plugged thejack of the charger into the correctconnector (see “Charge the battery”page 2). Then charge the phoneuntil the battery icon stopsscrolling. Unplug from charger andtry to switch the mobile on.The display shows BLOCKED when you switch onSomebody tried to use your phonebut didn’t know the PIN code northe unblocking code (PUK).Contact your service provider.The display shows IMSI failureThis problem is related to yoursubscription. Contact youroperator.Your phone doesn’t return to the idle screenPress and hold c or switch offthe phone, check that the SIM cardand the battery are installedcorrectly and switch it on again.The symbol is not displayedThe network connection is lost.Either you are in a radio shadow (ina tunnel or between tall buildings)or you are outside the networkcoverage area. Try from anotherplace, try to reconnect to thenetwork (especially when abroad),check that the antenna is in place ifyour mobile has an externalantenna, or contact your networkoperator for assistance/information.The display doesn’t respond (or the display responds slowly) to key pressesThe display responds more slowlyat very low temperatures. This isnormal and does not affect theoperation of the phone. Take thephone to a warmer place and tryagain. In other cases please contactyour phone supplier.Yo u r battery seems to over heatYou might be using a Philipscharger that was not intended foryour phone. Make sure you alwaysuse the Philips authentic accessoryshipped with your phone.Philips755_GB_4311 255 58341.book Page 70 Mardi, 11. mai 2004 11:02 11

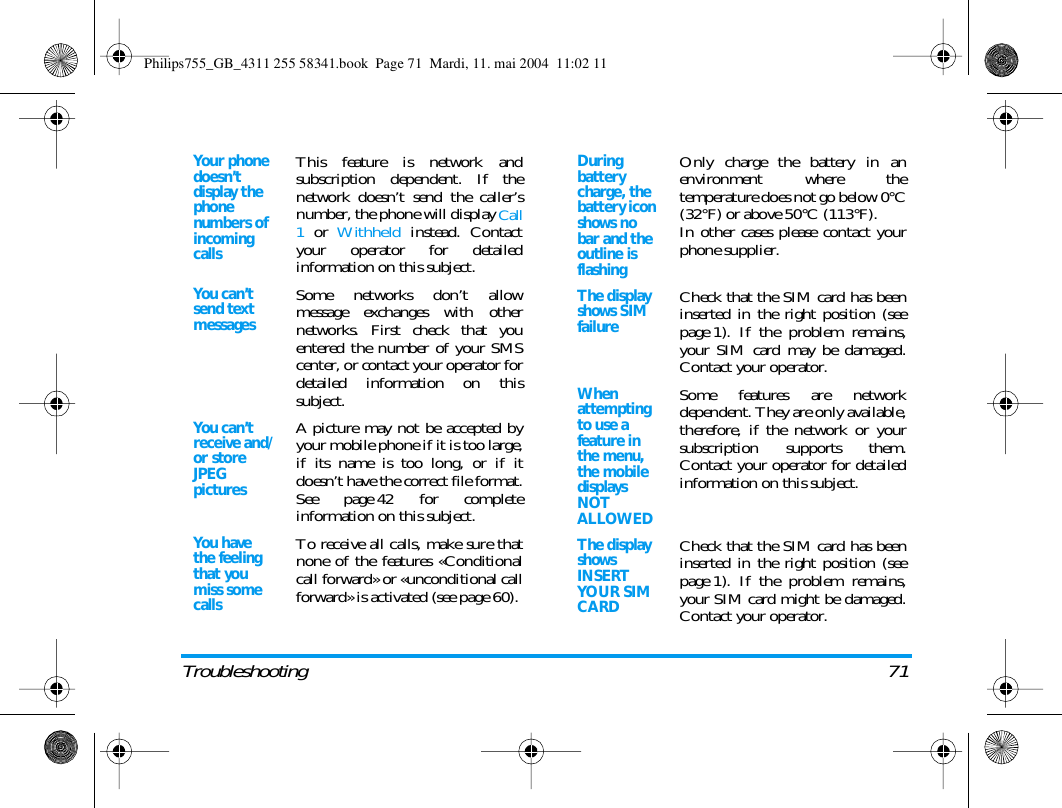

Troubleshooting 71Your phone doesn’t display the phone numbers of incoming callsThis feature is network andsubscription dependent. If thenetwork doesn’t send the caller’snumber, the phone will display Call1 or Withheld instead. Contactyour operator for detailedinformation on this subject.You can’t send text messagesSome networks don’t allowmessage exchanges with othernetworks. First check that youentered the number of your SMScenter, or contact your operator fordetailed information on thissubject.You can’t receive and/or store JPEG picturesA picture may not be accepted byyour mobile phone if it is too large,if its name is too long, or if itdoesn’t have the correct file format.See page 42 for completeinformation on this subject.You have the feeling that you miss some callsTo receive all calls, make sure thatnone of the features «Conditionalcall forward» or «unconditional callforward» is activated (see page 60). During battery charge, the battery icon shows no bar and the outline is flashingOnly charge the battery in anenvironment where thetemperature does not go below 0°C(32°F) or above 50°C (113°F).In other cases please contact yourphone supplier.The display shows SIM failureCheck that the SIM card has beeninserted in the right position (seepage 1). If the problem remains,your SIM card may be damaged.Contact your operator.When attempting to use a feature in the menu, the mobile displays NOT ALLOWEDSome features are networkdependent. They are only available,therefore, if the network or yoursubscription supports them.Contact your operator for detailedinformation on this subject.The display shows INSERT YOUR SIM CARDCheck that the SIM card has beeninserted in the right position (seepage 1). If the problem remains,your SIM card might be damaged.Contact your operator.Philips755_GB_4311 255 58341.book Page 71 Mardi, 11. mai 2004 11:02 11

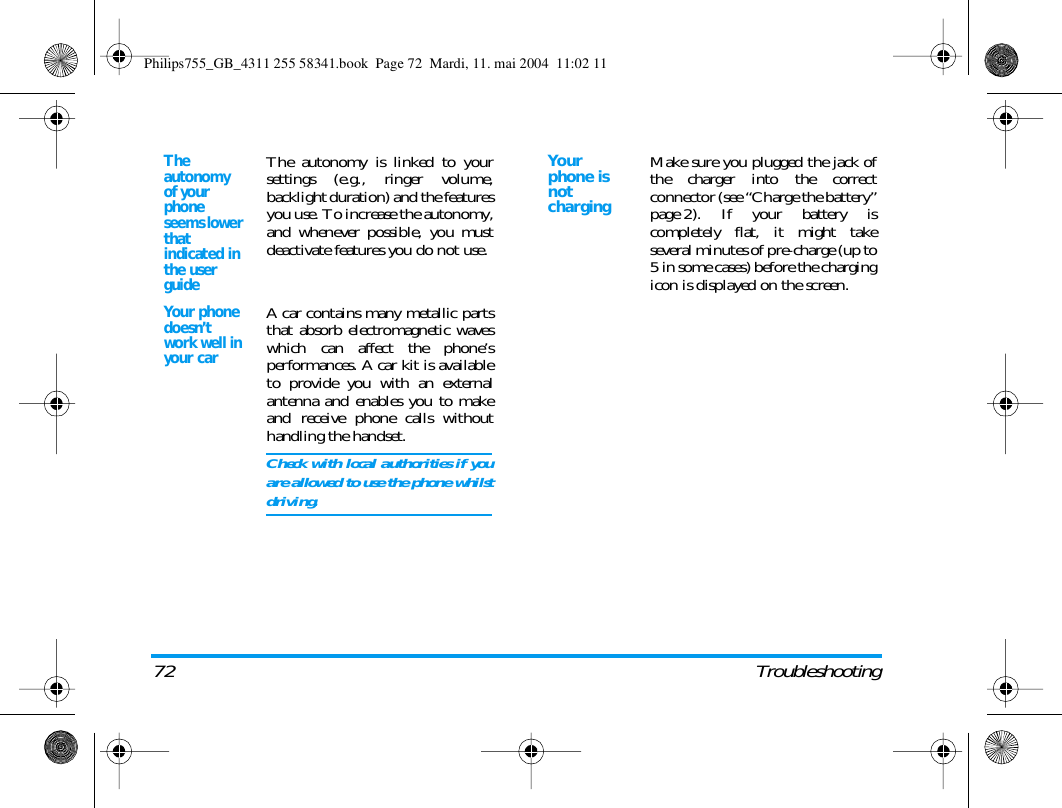

72 TroubleshootingThe autonomy of your phone seems lower that indicated in the user guideThe autonomy is linked to yoursettings (e.g., ringer volume,backlight duration) and the featuresyou use. To increase the autonomy,and whenever possible, you mustdeactivate features you do not use.Your phone doesn’t work well in your carA car contains many metallic partsthat absorb electromagnetic waveswhich can affect the phone’sperformances. A car kit is availableto provide you with an externalantenna and enables you to makeand receive phone calls withouthandling the handset.Check with local authorities if youare allowed to use the phone whilstdriving.Yo u r phone is not chargingMake sure you plugged the jack ofthe charger into the correctconnector (see “Charge the battery”page 2). If your battery iscompletely flat, it might takeseveral minutes of pre-charge (up to5 in some cases) before the chargingicon is displayed on the screen.Philips755_GB_4311 255 58341.book Page 72 Mardi, 11. mai 2004 11:02 11

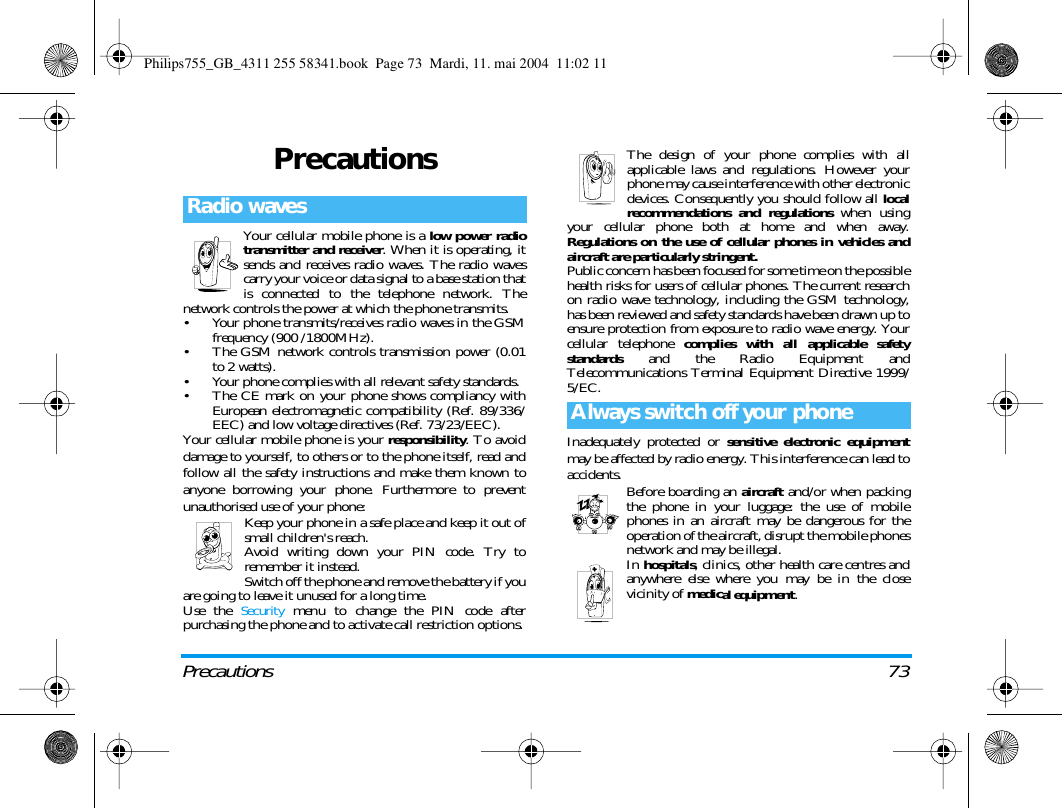

Precautions 73PrecautionsYour cellular mobile phone is a low power radiotransmitter and receiver. When it is operating, itsends and receives radio waves. The radio wavescarry your voice or data signal to a base station thatis connected to the telephone network. Thenetwork controls the power at which the phone transmits.• Your phone transmits/receives radio waves in the GSMfrequency (900 /1800MHz).• The GSM network controls transmission power (0.01to 2 watts).• Your phone complies with all relevant safety standards.• The CE mark on your phone shows compliancy withEuropean electromagnetic compatibility (Ref. 89/336/EEC) and low voltage directives (Ref. 73/23/EEC).Your cellular mobile phone is your responsibility. To avoiddamage to yourself, to others or to the phone itself, read andfollow all the safety instructions and make them known toanyone borrowing your phone. Furthermore to preventunauthorised use of your phone:Keep your phone in a safe place and keep it out ofsmall children's reach.Avoid writing down your PIN code. Try toremember it instead. Switch off the phone and remove the battery if youare going to leave it unused for a long time.Use the Security menu to change the PIN code afterpurchasing the phone and to activate call restriction options.The design of your phone complies with allapplicable laws and regulations. However yourphone may cause interference with other electronicdevices. Consequently you should follow all localrecommendations and regulations when usingyour cellular phone both at home and when away.Regulations on the use of cellular phones in vehicles andaircraft are particularly stringent.Public concern has been focused for some time on the possiblehealth risks for users of cellular phones. The current researchon radio wave technology, including the GSM technology,has been reviewed and safety standards have been drawn up toensure protection from exposure to radio wave energy. Yourcellular telephone complies with all applicable safetystandards and the Radio Equipment andTelecommunications Terminal Equipment Directive 1999/5/EC.Inadequately protected or sensitive electronic equipmentmay be affected by radio energy. This interference can lead toaccidents. Before boarding an aircraft and/or when packingthe phone in your luggage: the use of mobilephones in an aircraft may be dangerous for theoperation of the aircraft, disrupt the mobile phonesnetwork and may be illegal.In hospitals, clinics, other health care centres andanywhere else where you may be in the closevicinity of medical equipment.Radio wavesAlways switch off your phonePhilips755_GB_4311 255 58341.book Page 73 Mardi, 11. mai 2004 11:02 11

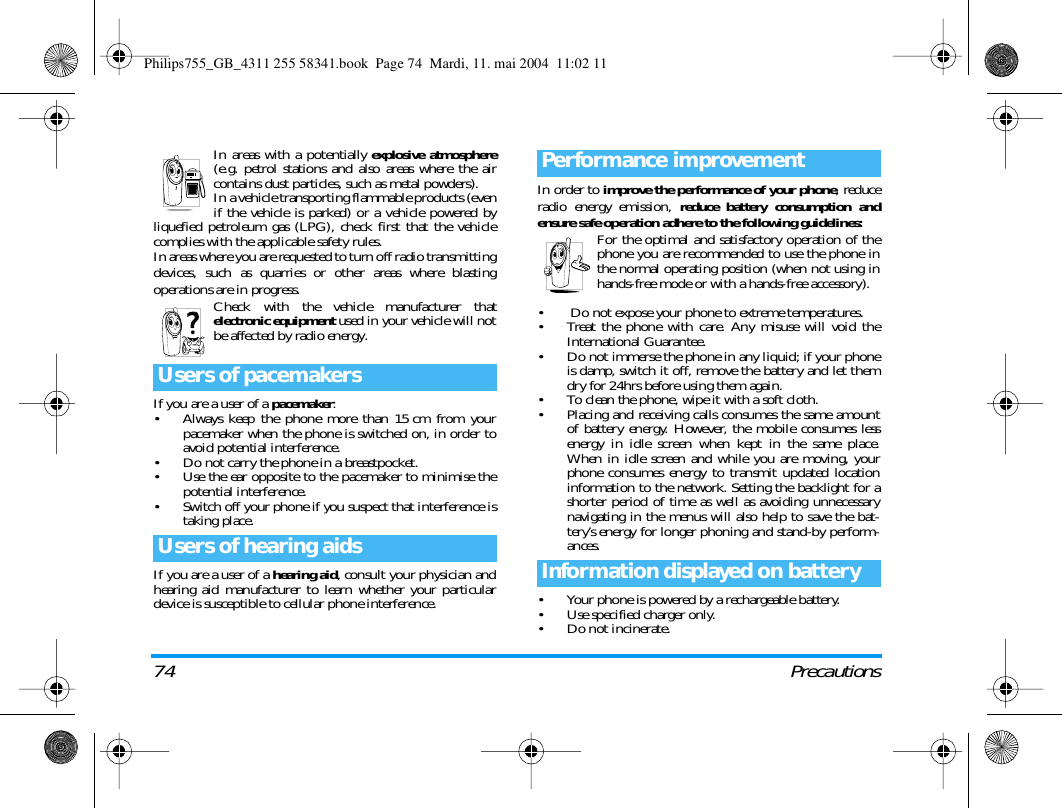

74 PrecautionsIn areas with a potentially explosive atmosphere(e.g. petrol stations and also areas where the aircontains dust particles, such as metal powders).In a vehicle transporting flammable products (evenif the vehicle is parked) or a vehicle powered byliquefied petroleum gas (LPG), check first that the vehiclecomplies with the applicable safety rules.In areas where you are requested to turn off radio transmittingdevices, such as quarries or other areas where blastingoperations are in progress.Check with the vehicle manufacturer thatelectronic equipment used in your vehicle will notbe affected by radio energy.If you are a user of a pacemaker:• Always keep the phone more than 15cm from yourpacemaker when the phone is switched on, in order toavoid potential interference.• Do not carry the phone in a breastpocket.• Use the ear opposite to the pacemaker to minimise thepotential interference.• Switch off your phone if you suspect that interference istaking place.If you are a user of a hearing aid, consult your physician andhearing aid manufacturer to learn whether your particulardevice is susceptible to cellular phone interference.In order to improve the performance of your phone, reduceradio energy emission, reduce battery consumption andensure safe operation adhere to the following guidelines:For the optimal and satisfactory operation of thephone you are recommended to use the phone inthe normal operating position (when not using inhands-free mode or with a hands-free accessory).• Do not expose your phone to extreme temperatures.• Treat the phone with care. Any misuse will void theInternational Guarantee.• Do not immerse the phone in any liquid; if your phoneis damp, switch it off, remove the battery and let themdry for 24hrs before using them again.• To clean the phone, wipe it with a soft cloth.• Placing and receiving calls consumes the same amountof battery energy. However, the mobile consumes lessenergy in idle screen when kept in the same place.When in idle screen and while you are moving, yourphone consumes energy to transmit updated locationinformation to the network. Setting the backlight for ashorter period of time as well as avoiding unnecessarynavigating in the menus will also help to save the bat-tery’s energy for longer phoning and stand-by perform-ances.• Your phone is powered by a rechargeable battery.• Use specified charger only.• Do not incinerate.Users of pacemakersUsers of hearing aidsPerformance improvementInformation displayed on batteryPhilips755_GB_4311 255 58341.book Page 74 Mardi, 11. mai 2004 11:02 11

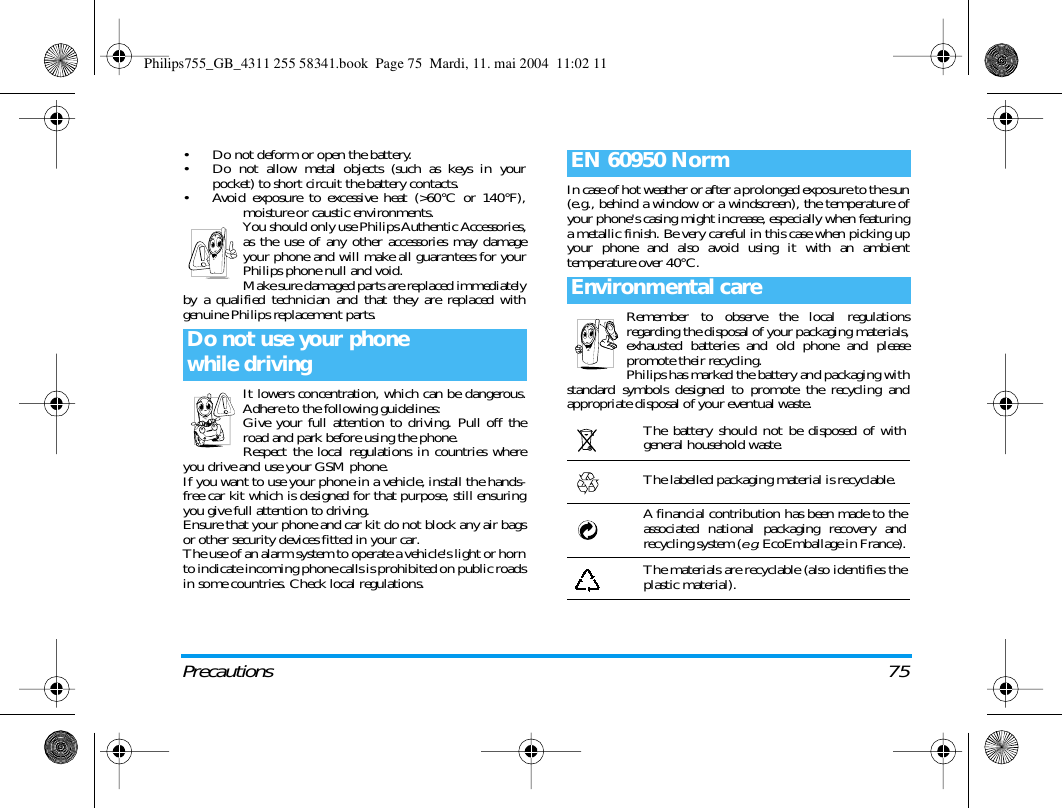

Precautions 75• Do not deform or open the battery.• Do not allow metal objects (such as keys in yourpocket) to short circuit the battery contacts.• Avoid exposure to excessive heat (>60°C or 140°F),moisture or caustic environments.You should only use Philips Authentic Accessories,as the use of any other accessories may damageyour phone and will make all guarantees for yourPhilips phone null and void.Make sure damaged parts are replaced immediatelyby a qualified technician and that they are replaced withgenuine Philips replacement parts.It lowers concentration, which can be dangerous.Adhere to the following guidelines:Give your full attention to driving. Pull off theroad and park before using the phone.Respect the local regulations in countries whereyou drive and use your GSM phone.If you want to use your phone in a vehicle, install the hands-free car kit which is designed for that purpose, still ensuringyou give full attention to driving.Ensure that your phone and car kit do not block any air bagsor other security devices fitted in your car.The use of an alarm system to operate a vehicle's light or hornto indicate incoming phone calls is prohibited on public roadsin some countries. Check local regulations.In case of hot weather or after a prolonged exposure to the sun(e.g., behind a window or a windscreen), the temperature ofyour phone's casing might increase, especially when featuringa metallic finish. Be very careful in this case when picking upyour phone and also avoid using it with an ambienttemperature over 40°C.Remember to observe the local regulationsregarding the disposal of your packaging materials,exhausted batteries and old phone and pleasepromote their recycling.Philips has marked the battery and packaging withstandard symbols designed to promote the recycling andappropriate disposal of your eventual waste.Do not use your phonewhile drivingEN 60950 NormEnvironmental careThe battery should not be disposed of withgeneral household waste.The labelled packaging material is recyclable.A financial contribution has been made to theassociated national packaging recovery andrecycling system (e.g. EcoEmballage in France).The materials are recyclable (also identifies theplastic material).Philips755_GB_4311 255 58341.book Page 75 Mardi, 11. mai 2004 11:02 11
76 Philips authentic accessoriesPhilips authentic accessoriesCharges your battery in any AC outlet. Small enoughto carry in a briefcase/handbag.Designed to operate your Philips mobile phonehands-free and easy to use, this compact hands-freesolution offers a high audio quality. Simply plug thekit into the vehicle auxiliary outlet.In-line answer button offers you a simplifiedalternative to searching for the phone. Simply answeran incoming call by pressing the button. In idle mode,press to activate voice dial.In certain countries, telephoning whilst driving isprohibited. For safe and trouble free installation, werecommend that specialized technicians install hands-free car kits.A black leather carry case allows easy key presses whilstprotecting your phone from nicks and scratches.Supplied with necklace.To maximise the performance of your Philips phoneand not to void the warranty, always purchase PhilipsAuthentic Accessories that are specially designed foruse with your phone. Philips Consumer Electronicscannot be held liable for any damage due to use withnon authorised accessories. Ask for Philips AuthenticAccessories where you purchased your Philips Phone.This data cable allows you to display a slide show onyour TV. Simply connect the data end of the cable tothe headset (top) connector on the right handside ofyour phone, then connect the video end to the videoIN connector of your TV or VCR.See “TV Slideshow” page 55 for detailed informationon how to select pictures and display them in aslideshow.This software is based in part on the work of theIndependent JPEG group.ChargerUniversal car kitXTra deluxe headsetCarry caseTV LinkPhilips755_GB_4311 255 58341.book Page 76 Mardi, 11. mai 2004 11:02 11

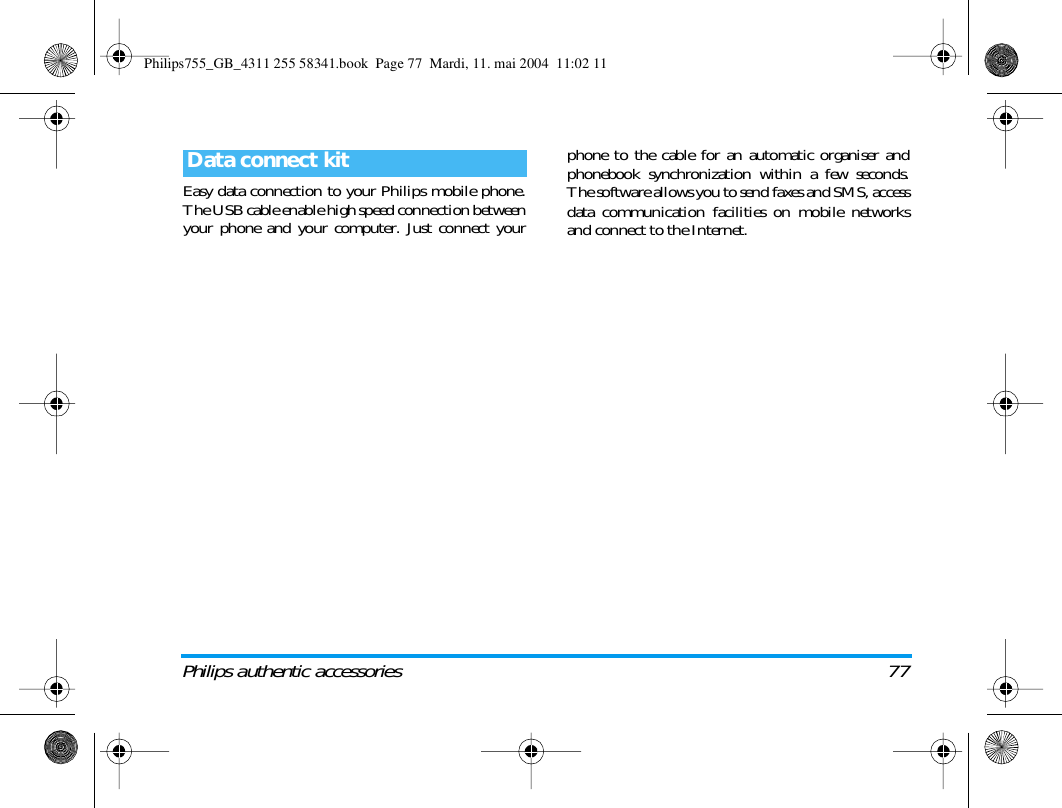

Philips authentic accessories 77Easy data connection to your Philips mobile phone.The USB cable enable high speed connection betweenyour phone and your computer. Just connect yourphone to the cable for an automatic organiser andphonebook synchronization within a few seconds.The software allows you to send faxes and SMS, accessdata communication facilities on mobile networksand connect to the Internet.Data connect kitPhilips755_GB_4311 255 58341.book Page 77 Mardi, 11. mai 2004 11:02 11

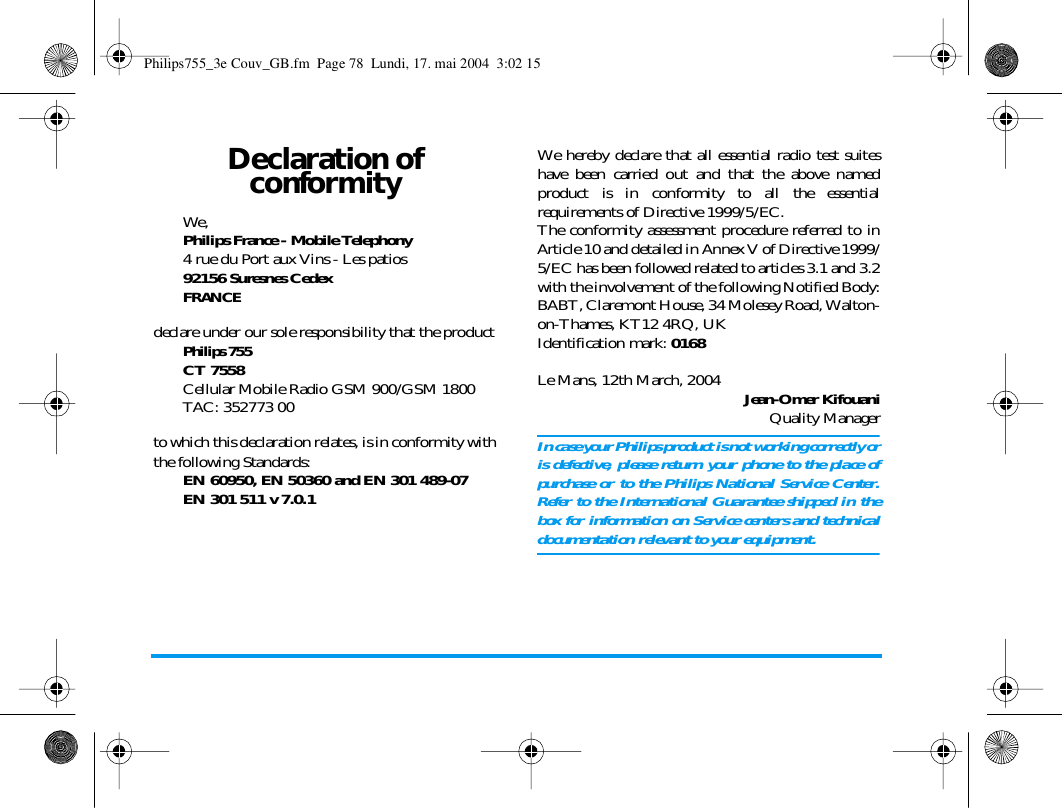

Declaration of conformityWe, Philips France - Mobile Telephony4 rue du Port aux Vins - Les patios92156 Suresnes CedexFRANCEdeclare under our sole responsibility that the productPhilips 755CT 7558Cellular Mobile Radio GSM 900/GSM 1800TAC: 352773 00to which this declaration relates, is in conformity withthe following Standards:EN 60950, EN 50360 and EN 301 489-07EN 301 511 v 7.0.1We hereby declare that all essential radio test suiteshave been carried out and that the above namedproduct is in conformity to all the essentialrequirements of Directive 1999/5/EC.The conformity assessment procedure referred to inArticle 10 and detailed in Annex V of Directive 1999/5/EC has been followed related to articles 3.1 and 3.2with the involvement of the following Notified Body:BABT, Claremont House, 34 Molesey Road, Walton-on-Thames, KT12 4RQ, UKIdentification mark: 0168Le Mans, 12th March, 2004 Jean-Omer KifouaniQuality ManagerIn case your Philips product is not working correctly oris defective, please return your phone to the place ofpurchase or to the Philips National Service Center.Refer to the International Guarantee shipped in thebox for information on Service centers and technicaldocumentation relevant to your equipment.Philips755_3e Couv_GB.fm Page 78 Lundi, 17. mai 2004 3:02 15
