BAICHUAN SECURITY TECHNOLOGY 470CAM WIFI IP Camera User Manual USERS MANUAL

SHENZHEN BAICHUAN SECURITY TECHNOLOGY CO., LTD WIFI IP Camera USERS MANUAL

USERS MANUAL

1SwannSecureEN INSTRUCTION MANUAL

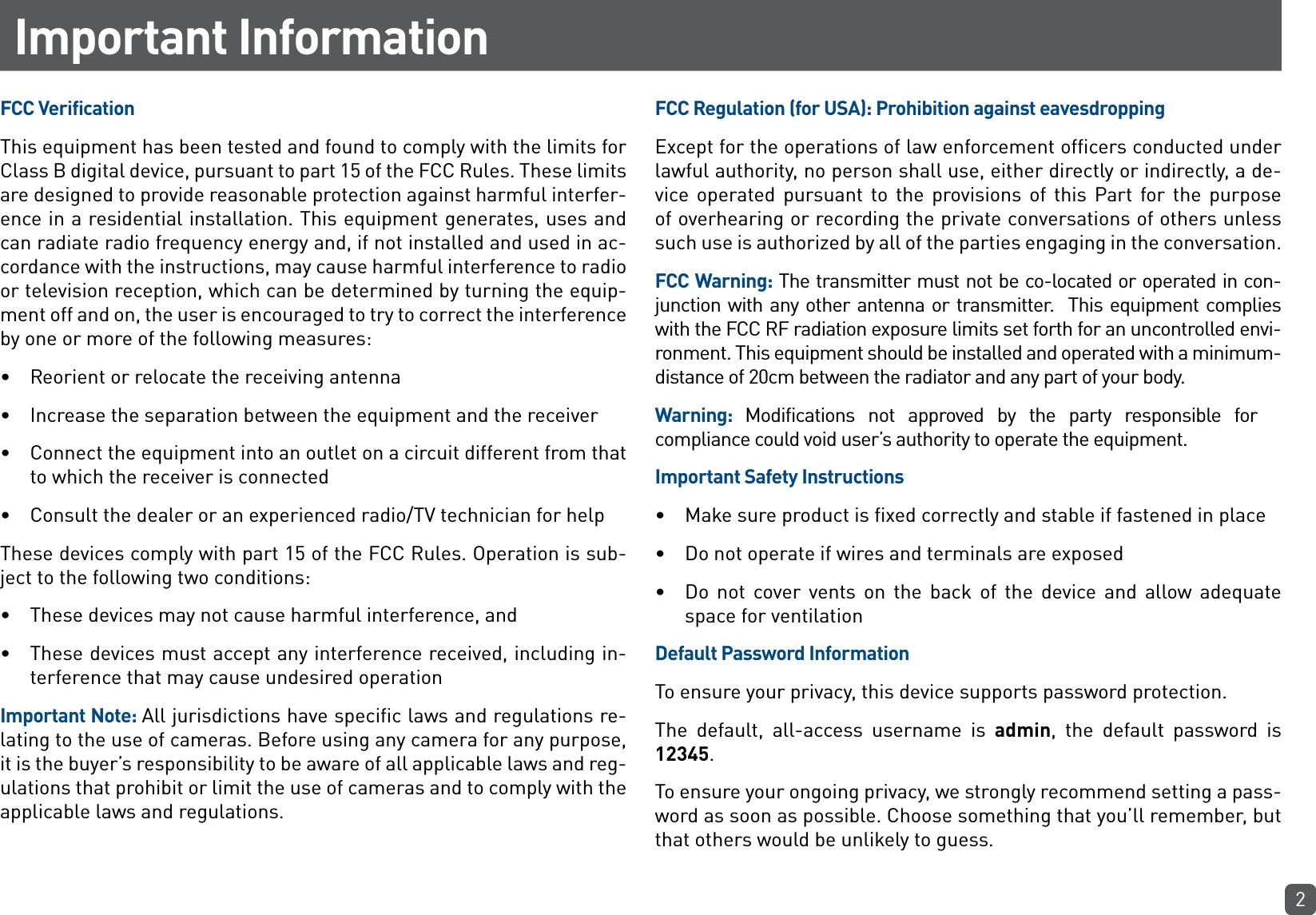

2Important InformationFCC VerificationThis equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer-ence in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in ac-cordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equip-ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna• Increase the separation between the equipment and the receiver• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected• Consult the dealer or an experienced radio/TV technician for helpThese devices comply with part 15 of the FCC Rules. Operation is sub-ject to the following two conditions: • These devices may not cause harmful interference, and • These devices must accept any interference received, including in-terference that may cause undesired operationImportant Note: All jurisdictions have specific laws and regulations re-lating to the use of cameras. Before using any camera for any purpose, it is the buyer’s responsibility to be aware of all applicable laws and reg-ulations that prohibit or limit the use of cameras and to comply with the applicable laws and regulations.FCC Regulation (for USA): Prohibition against eavesdroppingExcept for the operations of law enforcement officers conducted under lawful authority, no person shall use, either directly or indirectly, a de-vice operated pursuant to the provisions of this Part for the purpose of overhearing or recording the private conversations of others unless such use is authorized by all of the parties engaging in the conversation.FCC Warning: The transmitter must not be co-located or operated in con-junction with any other antenna or transmitter. This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled envi-ronment. This equipment should be installed and operated with a minimum-distance of 20cm between the radiator and any part of your body.Warning: Modifications not approved by the party responsible for compliance could void user’s authority to operate the equipment.Important Safety Instructions• Make sure product is fixed correctly and stable if fastened in place• Do not operate if wires and terminals are exposed• Do not cover vents on the back of the device and allow adequate space for ventilationDefault Password InformationTo ensure your privacy, this device supports password protection.The default, all-access username is admin, the default password is 12345.To ensure your ongoing privacy, we strongly recommend setting a pass-word as soon as possible. Choose something that you’ll remember, but that others would be unlikely to guess.

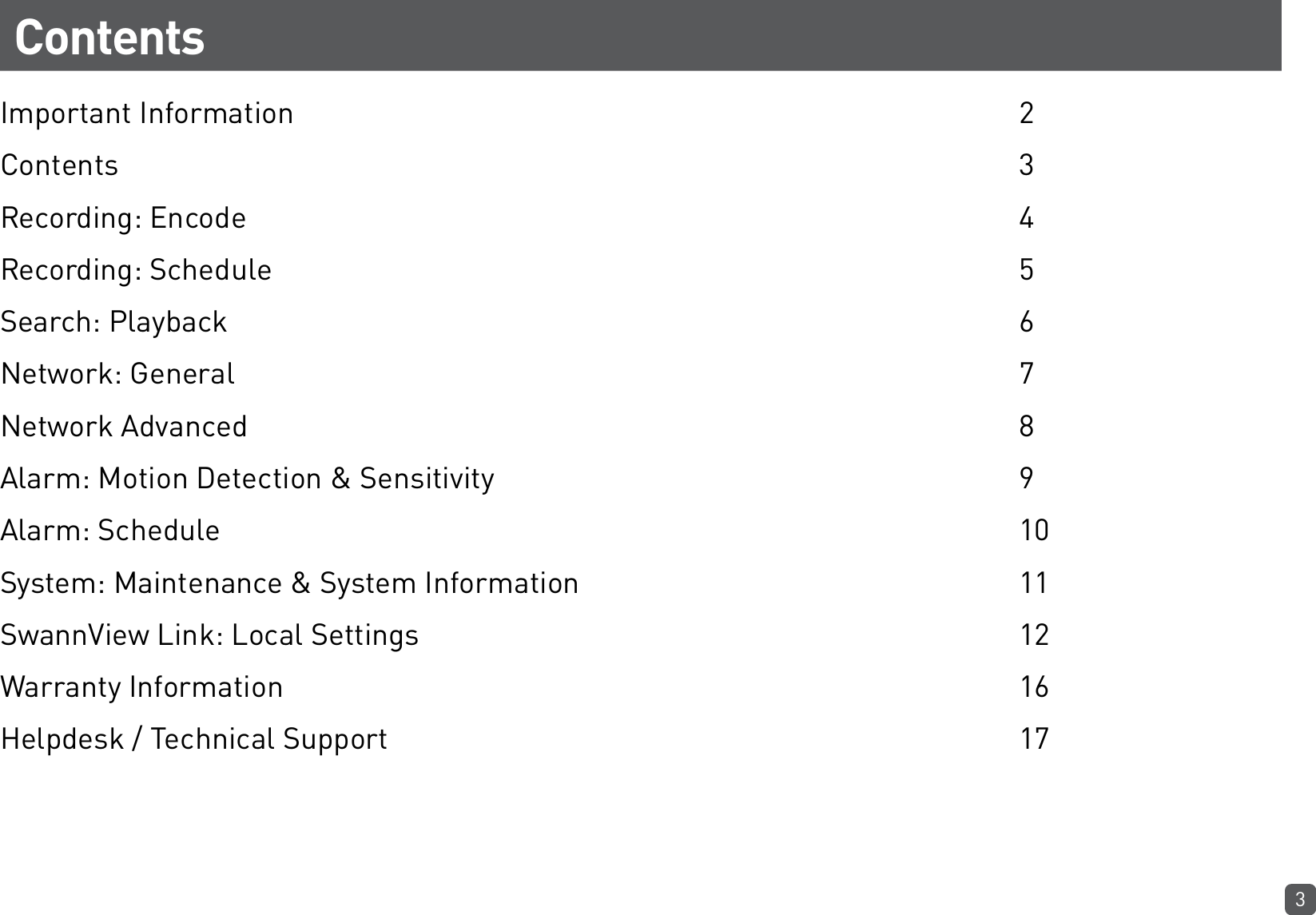

3ContentsImportant Information 2Contents 3Recording: Encode 4Recording: Schedule 5Search: Playback 6Network: General 7Network Advanced 8Alarm: Motion Detection & Sensitivity 9Alarm: Schedule 10System: Maintenance & System Information 11SwannView Link: Local Settings 12Warranty Information 16Helpdesk / Technical Support 17

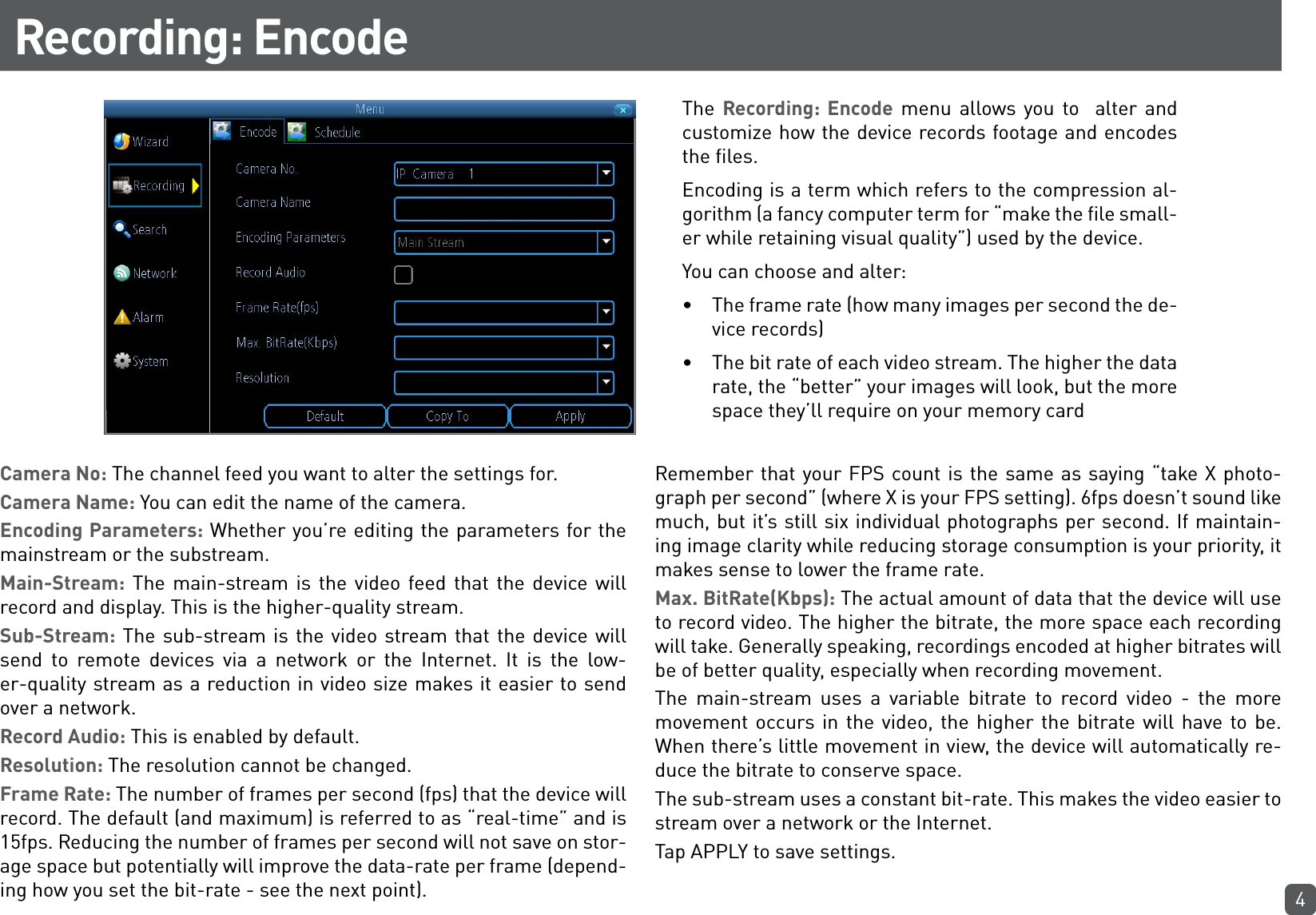

4Recording: EncodeThe Recording: Encode menu allows you to alter and customize how the device records footage and encodes the files.Encoding is a term which refers to the compression al-gorithm (a fancy computer term for “make the file small-er while retaining visual quality”) used by the device.You can choose and alter:• The frame rate (how many images per second the de-vice records)• The bit rate of each video stream. The higher the data rate, the “better” your images will look, but the more space they’ll require on your memory cardCamera No: The channel feed you want to alter the settings for. Camera Name: You can edit the name of the camera. Encoding Parameters: Whether you’re editing the parameters for the mainstream or the substream. Main-Stream: The main-stream is the video feed that the device will record and display. This is the higher-quality stream.Sub-Stream: The sub-stream is the video stream that the device will send to remote devices via a network or the Internet. It is the low-er-quality stream as a reduction in video size makes it easier to send over a network.Record Audio: This is enabled by default.Resolution: The resolution cannot be changed.Frame Rate: The number of frames per second (fps) that the device will record. The default (and maximum) is referred to as “real-time” and is 15fps. Reducing the number of frames per second will not save on stor-age space but potentially will improve the data-rate per frame (depend-ing how you set the bit-rate - see the next point).Remember that your FPS count is the same as saying “take X photo-graph per second” (where X is your FPS setting). 6fps doesn’t sound like much, but it’s still six individual photographs per second. If maintain-ing image clarity while reducing storage consumption is your priority, it makes sense to lower the frame rate.Max. BitRate(Kbps): The actual amount of data that the device will use to record video. The higher the bitrate, the more space each recording will take. Generally speaking, recordings encoded at higher bitrates will be of better quality, especially when recording movement.The main-stream uses a variable bitrate to record video - the more movement occurs in the video, the higher the bitrate will have to be. When there’s little movement in view, the device will automatically re-duce the bitrate to conserve space.The sub-stream uses a constant bit-rate. This makes the video easier to stream over a network or the Internet.Tap APPLY to save settings.

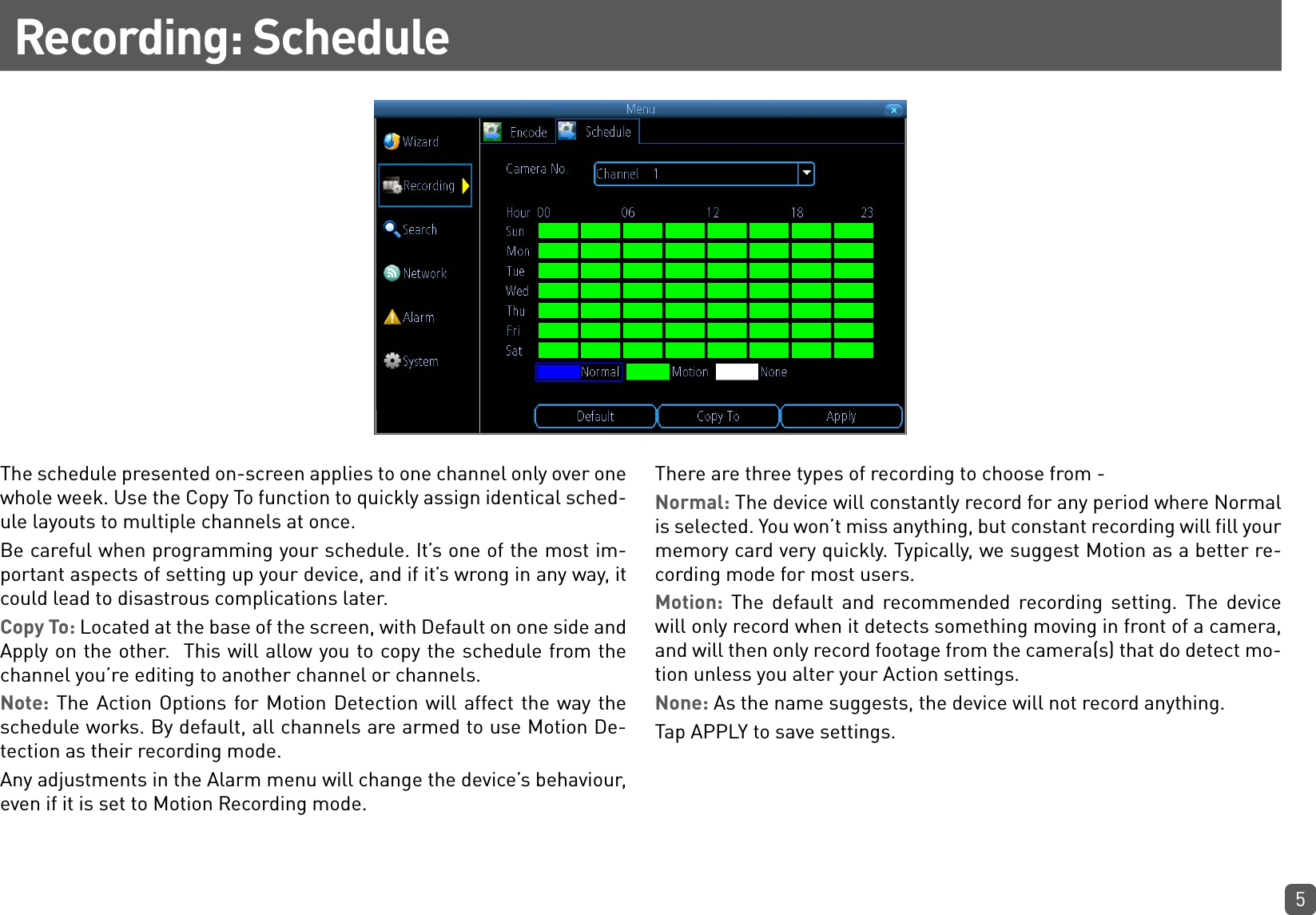

5Recording: ScheduleThe schedule presented on-screen applies to one channel only over one whole week. Use the Copy To function to quickly assign identical sched-ule layouts to multiple channels at once.Be careful when programming your schedule. It’s one of the most im-portant aspects of setting up your device, and if it’s wrong in any way, it could lead to disastrous complications later.Copy To: Located at the base of the screen, with Default on one side and Apply on the other. This will allow you to copy the schedule from the channel you’re editing to another channel or channels.Note: The Action Options for Motion Detection will affect the way the schedule works. By default, all channels are armed to use Motion De-tection as their recording mode.Any adjustments in the Alarm menu will change the device’s behaviour, even if it is set to Motion Recording mode.There are three types of recording to choose from -Normal: The device will constantly record for any period where Normal is selected. You won’t miss anything, but constant recording will fill your memory card very quickly. Typically, we suggest Motion as a better re-cording mode for most users. Motion: The default and recommended recording setting. The device will only record when it detects something moving in front of a camera, and will then only record footage from the camera(s) that do detect mo-tion unless you alter your Action settings.None: As the name suggests, the device will not record anything.Tap APPLY to save settings.

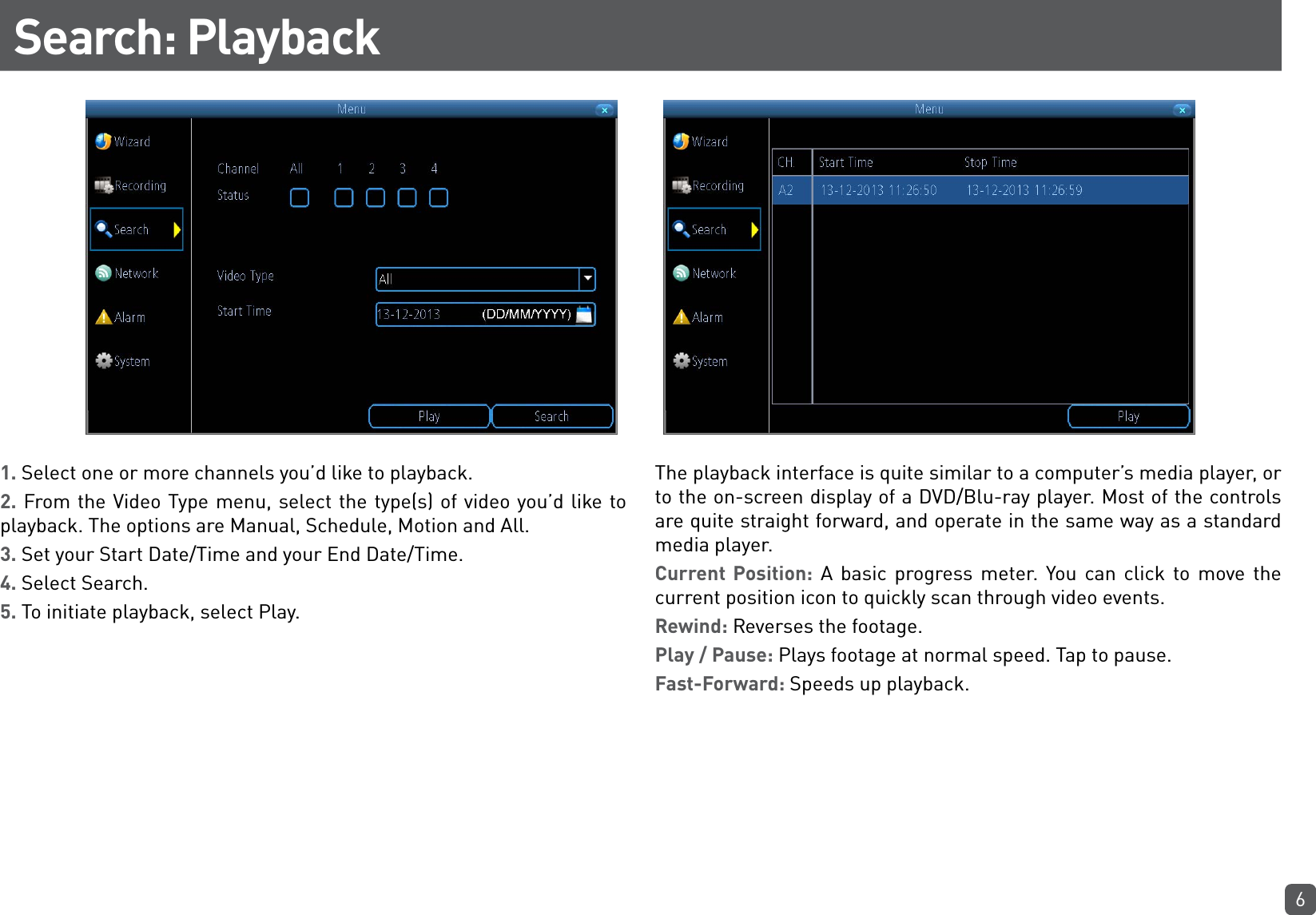

6Search: Playback1. Select one or more channels you’d like to playback.2. From the Video Type menu, select the type(s) of video you’d like to playback. The options are Manual, Schedule, Motion and All.3. Set your Start Date/Time and your End Date/Time.4. Select Search.5. To initiate playback, select Play.The playback interface is quite similar to a computer’s media player, or to the on-screen display of a DVD/Blu-ray player. Most of the controls are quite straight forward, and operate in the same way as a standard media player.Current Position: A basic progress meter. You can click to move the current position icon to quickly scan through video events.Rewind: Reverses the footage.Play / Pause: Plays footage at normal speed. Tap to pause.Fast-Forward: Speeds up playback.

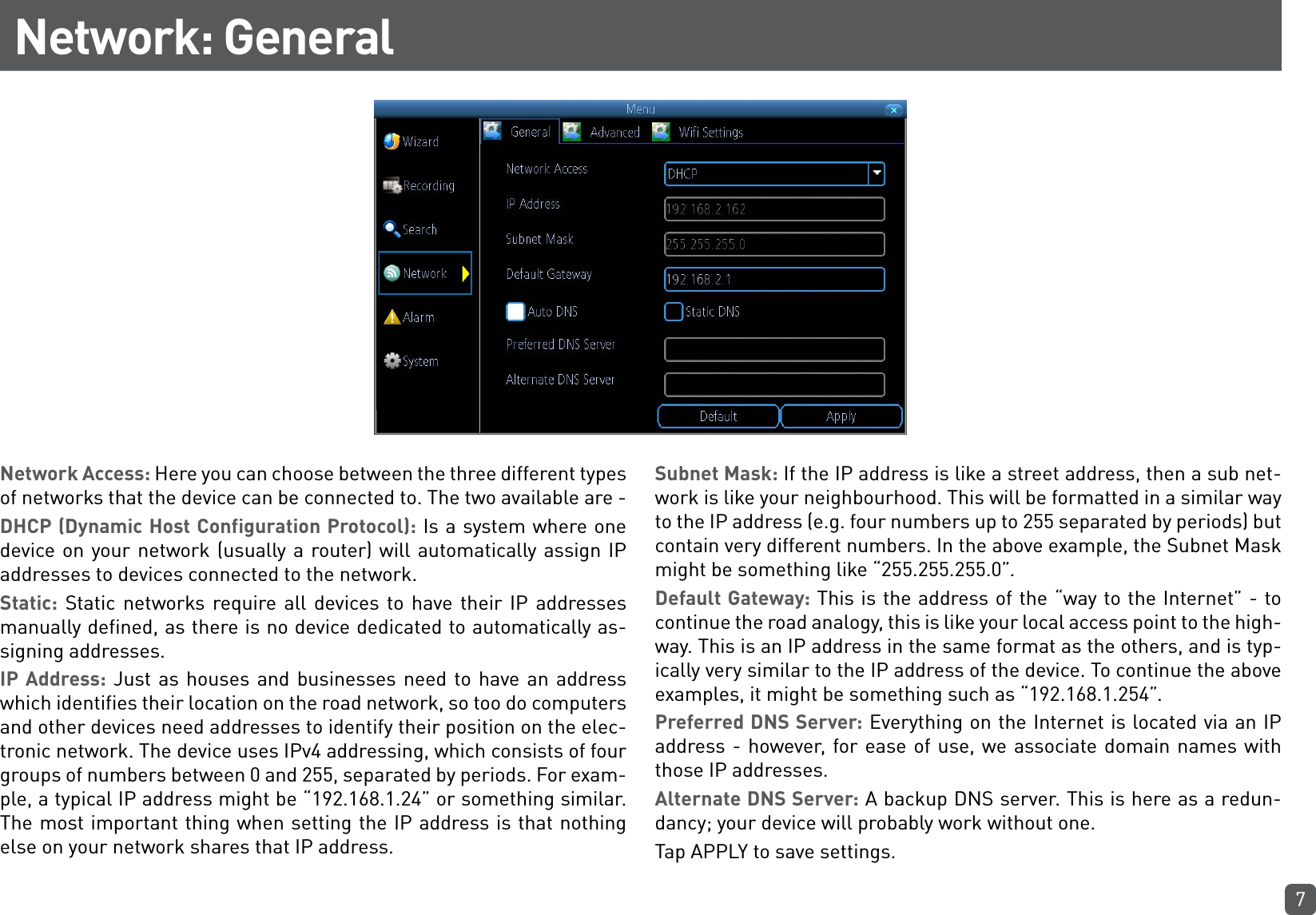

7Network: GeneralNetwork Access: Here you can choose between the three different types of networks that the device can be connected to. The two available are - DHCP (Dynamic Host Configuration Protocol): Is a system where one device on your network (usually a router) will automatically assign IP addresses to devices connected to the network.Static: Static networks require all devices to have their IP addresses manually defined, as there is no device dedicated to automatically as-signing addresses.IP Address: Just as houses and businesses need to have an address which identifies their location on the road network, so too do computers and other devices need addresses to identify their position on the elec-tronic network. The device uses IPv4 addressing, which consists of four groups of numbers between 0 and 255, separated by periods. For exam-ple, a typical IP address might be “192.168.1.24” or something similar. The most important thing when setting the IP address is that nothing else on your network shares that IP address.Subnet Mask: If the IP address is like a street address, then a sub net-work is like your neighbourhood. This will be formatted in a similar way to the IP address (e.g. four numbers up to 255 separated by periods) but contain very different numbers. In the above example, the Subnet Mask might be something like “255.255.255.0”.Default Gateway: This is the address of the “way to the Internet” - to continue the road analogy, this is like your local access point to the high-way. This is an IP address in the same format as the others, and is typ-ically very similar to the IP address of the device. To continue the above examples, it might be something such as “192.168.1.254”.Preferred DNS Server: Everything on the Internet is located via an IP address - however, for ease of use, we associate domain names with those IP addresses.Alternate DNS Server: A backup DNS server. This is here as a redun-dancy; your device will probably work without one.Tap APPLY to save settings.
8Network: AdvancedEmail Settings: This section has been covered in the quick start guide.Server Port: This is the port that the device will use to send information through. You’ll need to enable UPnP on your router so your router can selectively open these ports, allowing the device to communicate via the Internet.HTTP Port: This is the port through which you will be able to log in to the device.UPnP Enable: This is enabled by default.Tap APPLY to save settings.WiFi Settings: This section has been covered in the quick start guide. Many of the following networking settings are not required when using SwannLink P2P for remote access.

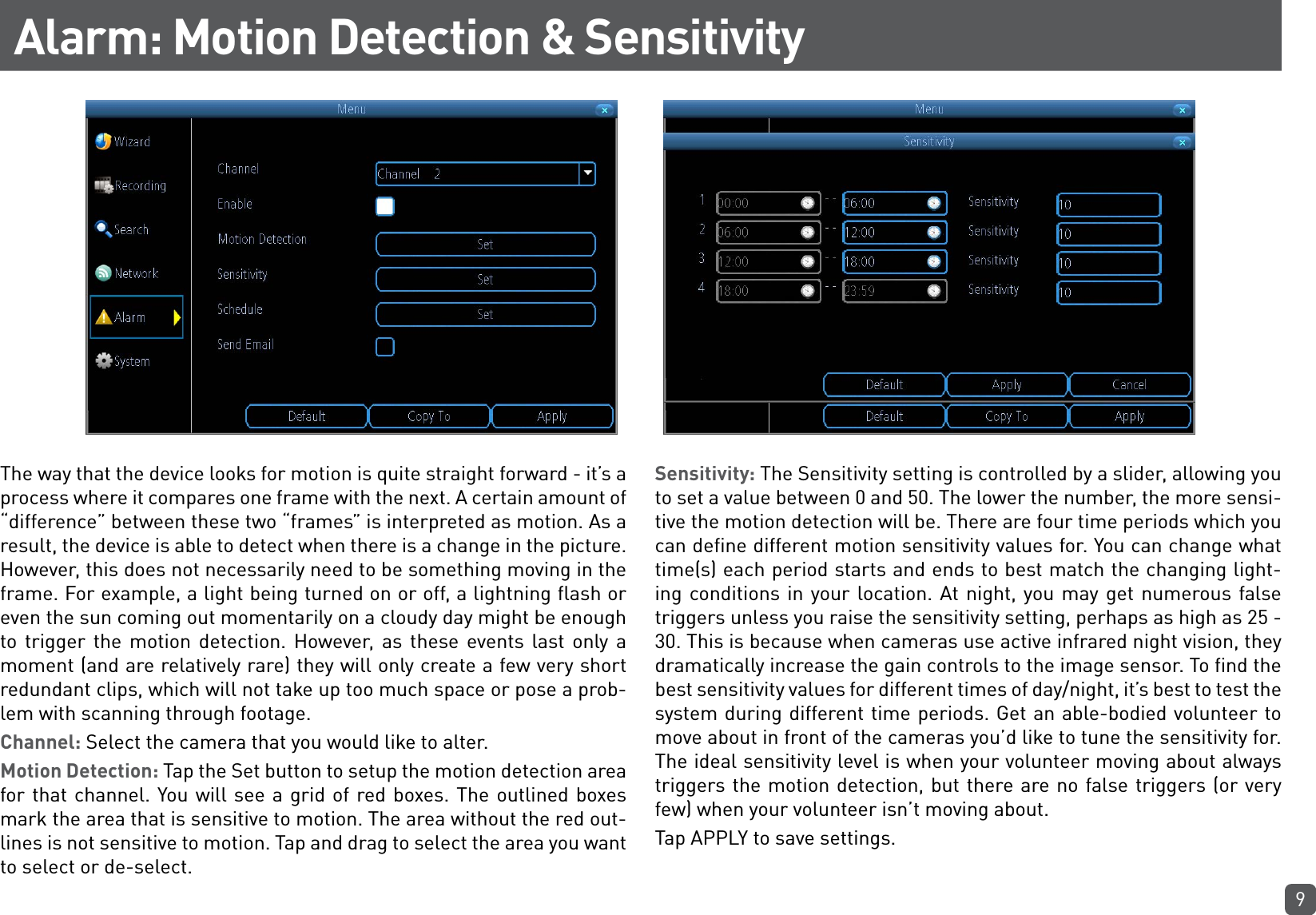

9Alarm: Motion Detection & SensitivityThe way that the device looks for motion is quite straight forward - it’s a process where it compares one frame with the next. A certain amount of “difference” between these two “frames” is interpreted as motion. As a result, the device is able to detect when there is a change in the picture. However, this does not necessarily need to be something moving in the frame. For example, a light being turned on or off, a lightning flash or even the sun coming out momentarily on a cloudy day might be enough to trigger the motion detection. However, as these events last only a moment (and are relatively rare) they will only create a few very short redundant clips, which will not take up too much space or pose a prob-lem with scanning through footage.Channel: Select the camera that you would like to alter.Motion Detection: Tap the Set button to setup the motion detection area for that channel. You will see a grid of red boxes. The outlined boxes mark the area that is sensitive to motion. The area without the red out-lines is not sensitive to motion. Tap and drag to select the area you want to select or de-select.Sensitivity: The Sensitivity setting is controlled by a slider, allowing you to set a value between 0 and 50. The lower the number, the more sensi-tive the motion detection will be. There are four time periods which you can define different motion sensitivity values for. You can change what time(s) each period starts and ends to best match the changing light-ing conditions in your location. At night, you may get numerous false triggers unless you raise the sensitivity setting, perhaps as high as 25 - 30. This is because when cameras use active infrared night vision, they dramatically increase the gain controls to the image sensor. To find the best sensitivity values for different times of day/night, it’s best to test the system during different time periods. Get an able-bodied volunteer to move about in front of the cameras you’d like to tune the sensitivity for. The ideal sensitivity level is when your volunteer moving about always triggers the motion detection, but there are no false triggers (or very few) when your volunteer isn’t moving about.Tap APPLY to save settings.

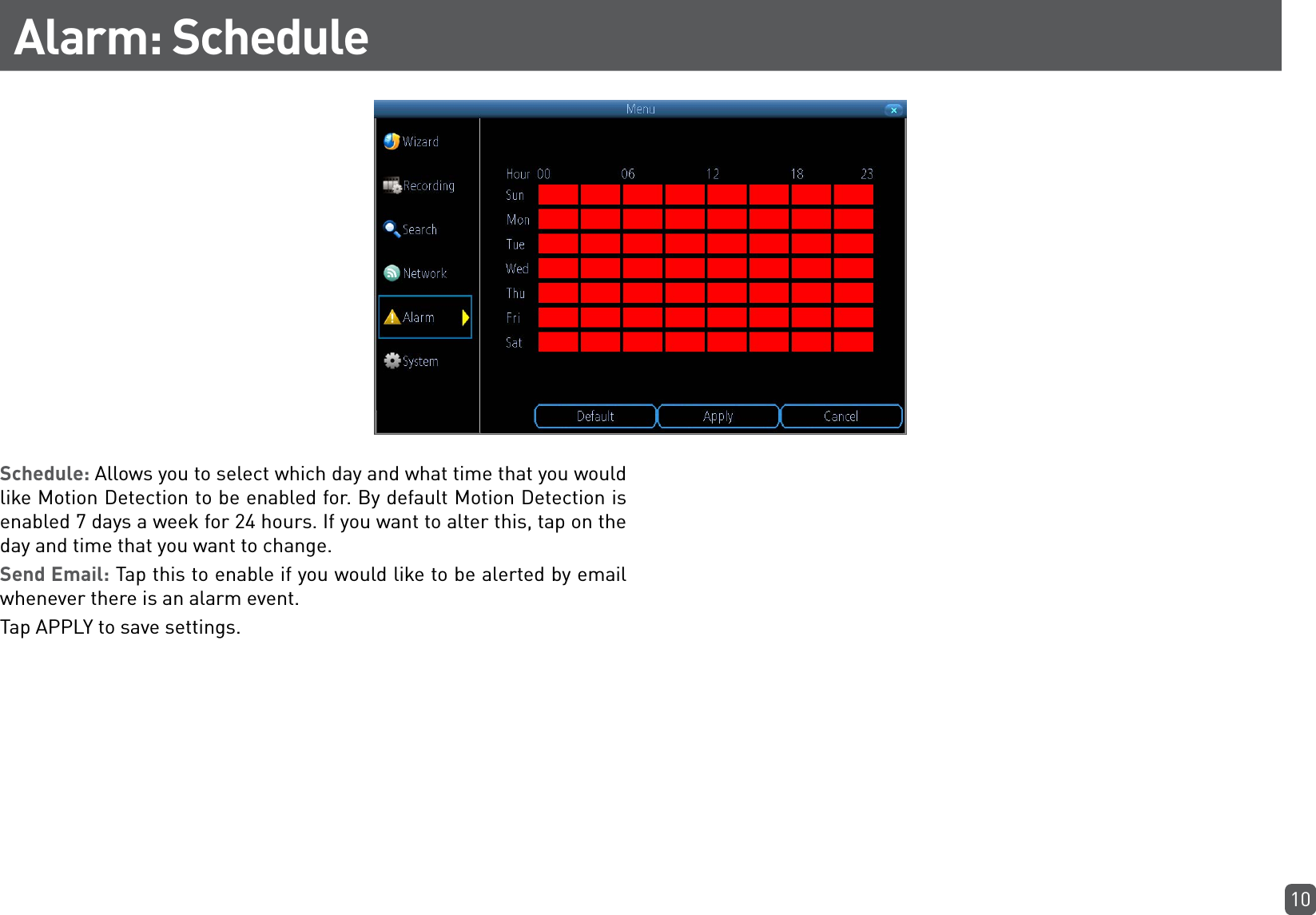

10Alarm: ScheduleSchedule: Allows you to select which day and what time that you would like Motion Detection to be enabled for. By default Motion Detection is enabled 7 days a week for 24 hours. If you want to alter this, tap on the day and time that you want to change. Send Email: Tap this to enable if you would like to be alerted by email whenever there is an alarm event.Tap APPLY to save settings.

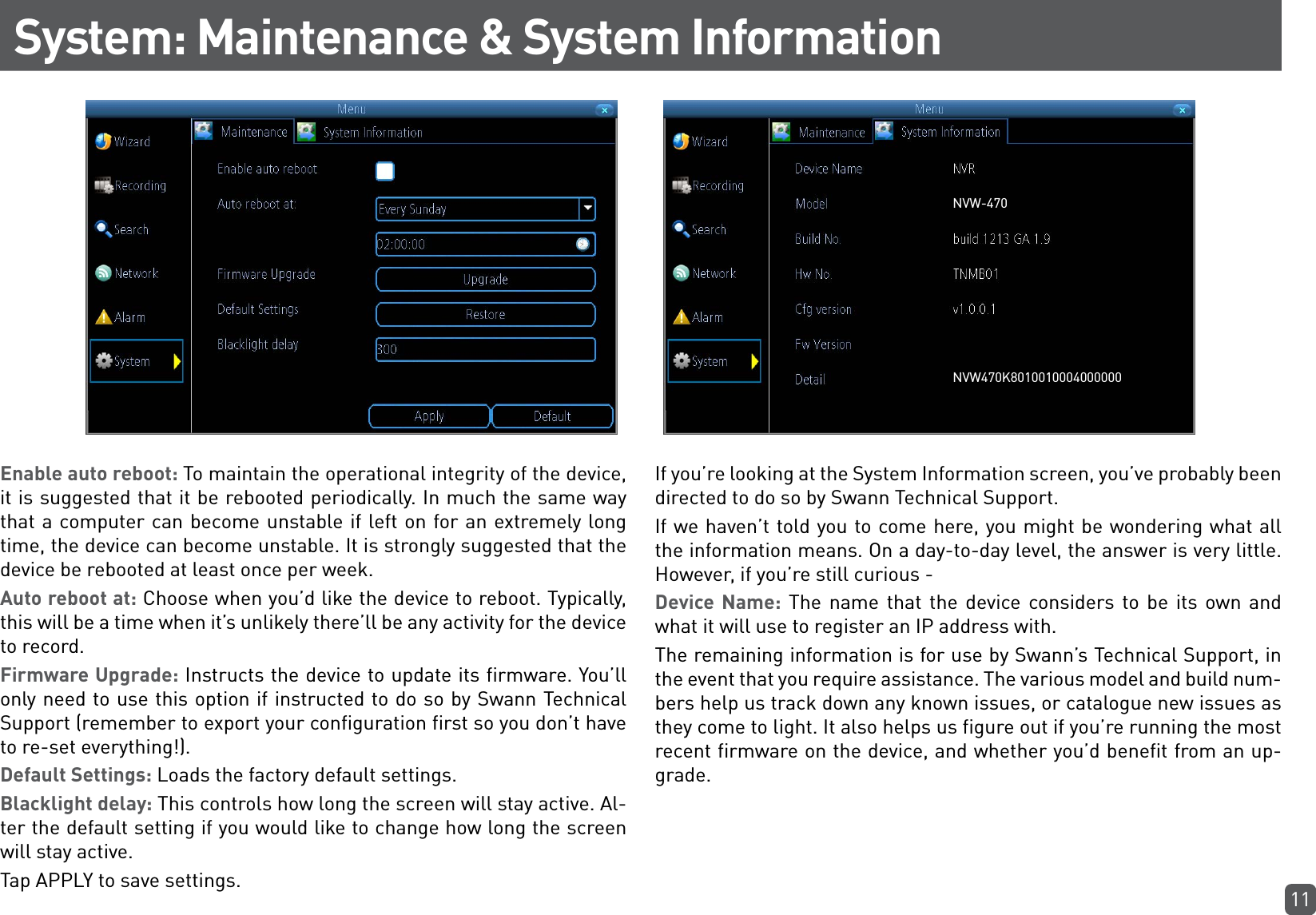

11System: Maintenance & System InformationEnable auto reboot: To maintain the operational integrity of the device, it is suggested that it be rebooted periodically. In much the same way that a computer can become unstable if left on for an extremely long time, the device can become unstable. It is strongly suggested that the device be rebooted at least once per week.Auto reboot at: Choose when you’d like the device to reboot. Typically, this will be a time when it’s unlikely there’ll be any activity for the device to record.Firmware Upgrade: Instructs the device to update its firmware. You’ll only need to use this option if instructed to do so by Swann Technical Support (remember to export your configuration first so you don’t have to re-set everything!).Default Settings: Loads the factory default settings.Blacklight delay: This controls how long the screen will stay active. Al-ter the default setting if you would like to change how long the screen will stay active.Tap APPLY to save settings.If you’re looking at the System Information screen, you’ve probably been directed to do so by Swann Technical Support. If we haven’t told you to come here, you might be wondering what all the information means. On a day-to-day level, the answer is very little. However, if you’re still curious - Device Name: The name that the device considers to be its own and what it will use to register an IP address with.The remaining information is for use by Swann’s Technical Support, in the event that you require assistance. The various model and build num-bers help us track down any known issues, or catalogue new issues as they come to light. It also helps us figure out if you’re running the most recent firmware on the device, and whether you’d benefit from an up-grade.NVW-470NVW470K8010010004000000

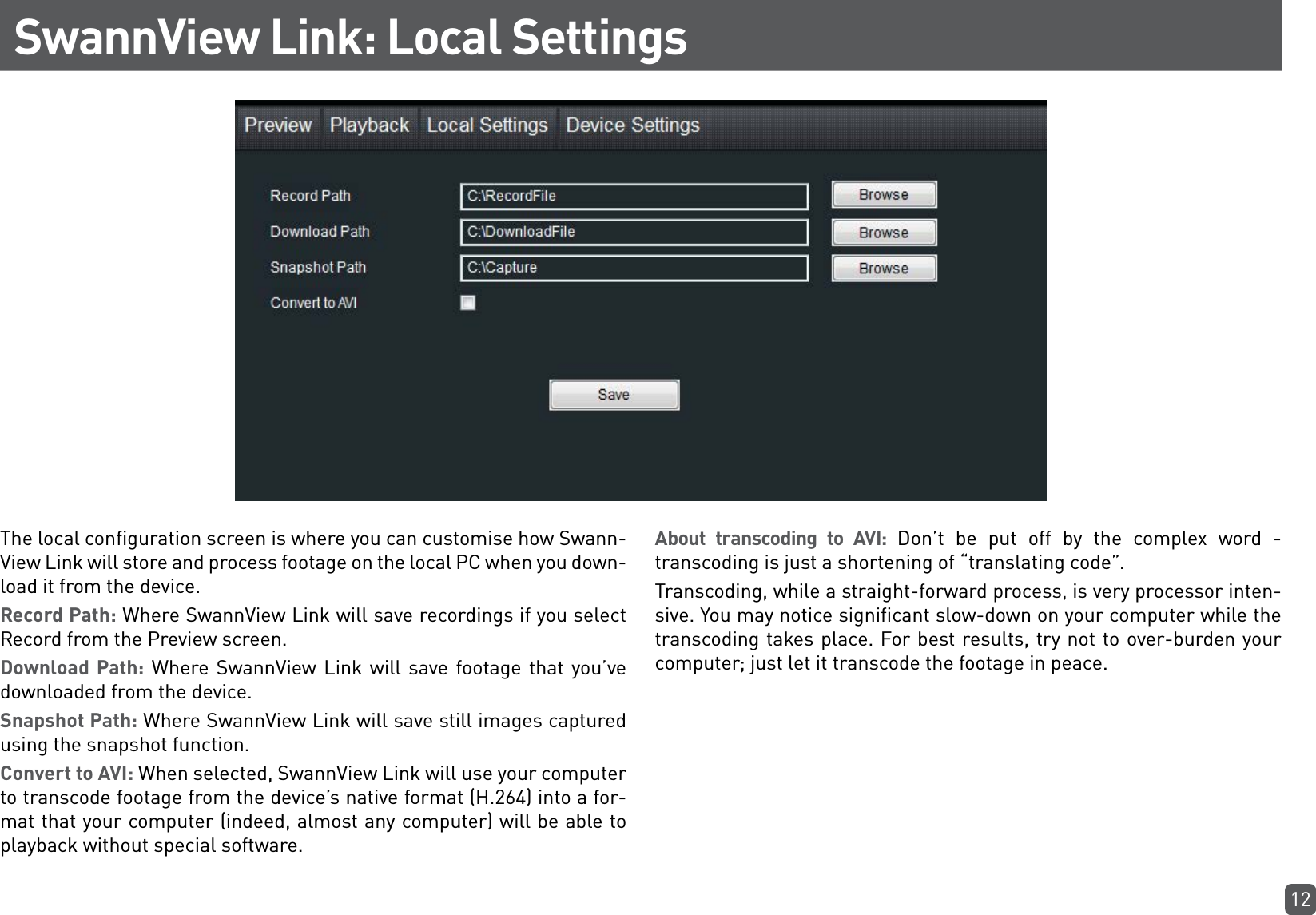

12SwannView Link: Local SettingsThe local configuration screen is where you can customise how Swann-View Link will store and process footage on the local PC when you down-load it from the device.Record Path: Where SwannView Link will save recordings if you select Record from the Preview screen.Download Path: Where SwannView Link will save footage that you’ve downloaded from the device.Snapshot Path: Where SwannView Link will save still images captured using the snapshot function. Convert to AVI: When selected, SwannView Link will use your computer to transcode footage from the device’s native format (H.264) into a for-mat that your computer (indeed, almost any computer) will be able to playback without special software.About transcoding to AVI: Don’t be put off by the complex word - transcoding is just a shortening of “translating code”. Transcoding, while a straight-forward process, is very processor inten-sive. You may notice significant slow-down on your computer while the transcoding takes place. For best results, try not to over-burden your computer; just let it transcode the footage in peace.

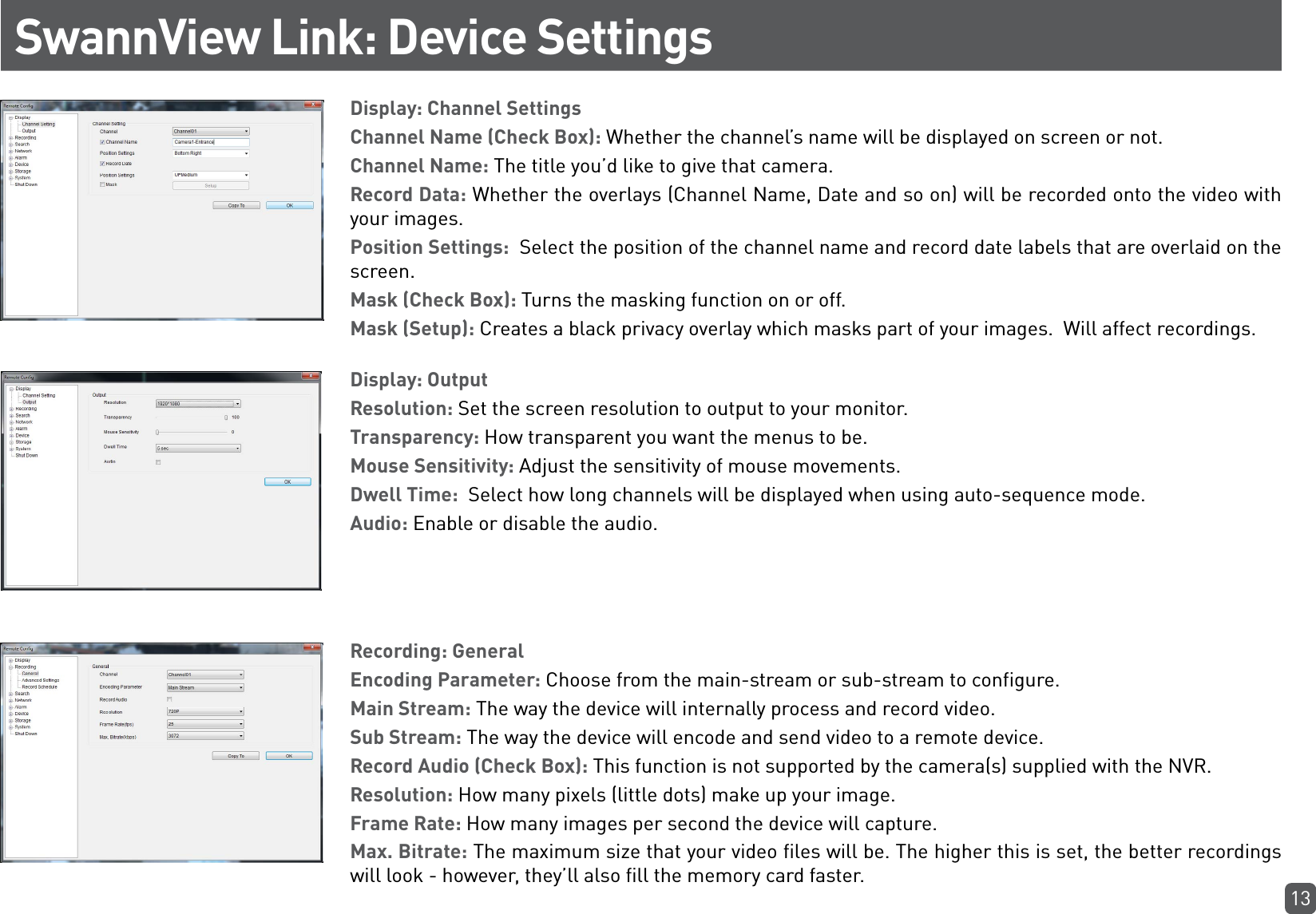

13SwannView Link: Device SettingsDisplay: Channel SettingsChannel Name (Check Box): Whether the channel’s name will be displayed on screen or not. Channel Name: The title you’d like to give that camera.Record Data: Whether the overlays (Channel Name, Date and so on) will be recorded onto the video with your images.Position Settings: Select the position of the channel name and record date labels that are overlaid on the screen.Mask (Check Box): Turns the masking function on or off.Mask (Setup): Creates a black privacy overlay which masks part of your images. Will affect recordings.Display: OutputResolution: Set the screen resolution to output to your monitor.Transparency: How transparent you want the menus to be.Mouse Sensitivity: Adjust the sensitivity of mouse movements.Dwell Time: Select how long channels will be displayed when using auto-sequence mode.Audio: Enable or disable the audio.Recording: GeneralEncoding Parameter: Choose from the main-stream or sub-stream to configure.Main Stream: The way the device will internally process and record video. Sub Stream: The way the device will encode and send video to a remote device.Record Audio (Check Box): This function is not supported by the camera(s) supplied with the NVR.Resolution: How many pixels (little dots) make up your image. Frame Rate: How many images per second the device will capture.Max. Bitrate: The maximum size that your video files will be. The higher this is set, the better recordings will look - however, they’ll also fill the memory card faster.
14Recording: Advanced ConfigOverwrite: Whether the device will erase old recordings to make room for new ones, or not. Pre-record: Whether the device will cache and save footage that occurs immediately before an alarm/mo-tion event.Delay: How long after an alarm event or motion the device will continue to record for. Pack Duration: The amount of video that will be stored as a single “pack”. Unless you have very specific requirements, leave this at the default value.Recording: ScheduleUse the Copy To functions to quickly assign identical schedule layouts to multiple channels at once.Be careful when programming your schedule. It’s one of the most important aspects of setting up your de-vice, and if it’s wrong in any way, it could lead to complications later.Note: Do NOT select Normal and Motion/Alarm-based recording at the same time on the same channel - this can cause conflicts in the way that the device interprets footage and event information.Network Access: How your network is addressed - either DHCP or STATIC IP addressing.Subnet Mask: A required additional piece of IP addressing information.Gateway: The way “out” of your network, to the Internet.Auto DNS / Static DNS: Whether the device will automatically select a DNS server, or use one you assign.Preferred / Alternate DNS: The device has two DNS servers, essentially a primary and a backup.MAC Address: The Media Access Control address. For some advanced networking, it can help to know this value.
15Network: Advanced SettingsDDNS Setup: Opens the DDNS setup window.NTP Setup: Opens the Network Time Protocol setup window.Email Setting: Opens the Email Setup window.Server Port: One of the two ports the device needs to communicate over your network. Ensure nothing else uses this port. The default value is 9000. This is the port number you’ll use when logging in over the Internet from the SwannView Link software or remote access from a mobile device.HTTP Port: The second of two ports the device needs to communicate over your network. Ensure nothing else uses this port. The default value is 85. Alarm: Motion DetectionChannel: The channel you’re configuring the motion detection settings for.Enable: Whether the motion detection is enabled for the channel currently selected.Sensitivity: A sliding scale between 1 and 50. The number refers to the number of pixels (as a percentage) that have to change between frames.Action: What you’d like the device to do when it detects motion. Typically (assuming the schedule is config-ured to do so) this will be to record video. It can also be a cue to trigger an email alert.Alarm: ExceptionException Type: What event type you’d like the device to react to. By configuring the Action for these events, you can create any combination of audio alerts or auto-emails to be sent for different event types.Audio Warning: Not supported by this device.Send Email: Commands the device to send an email alert.Show Exception: Shows any alerts that occur at the bottom right corner of the main screen. Double-click on the alert notification to see details.

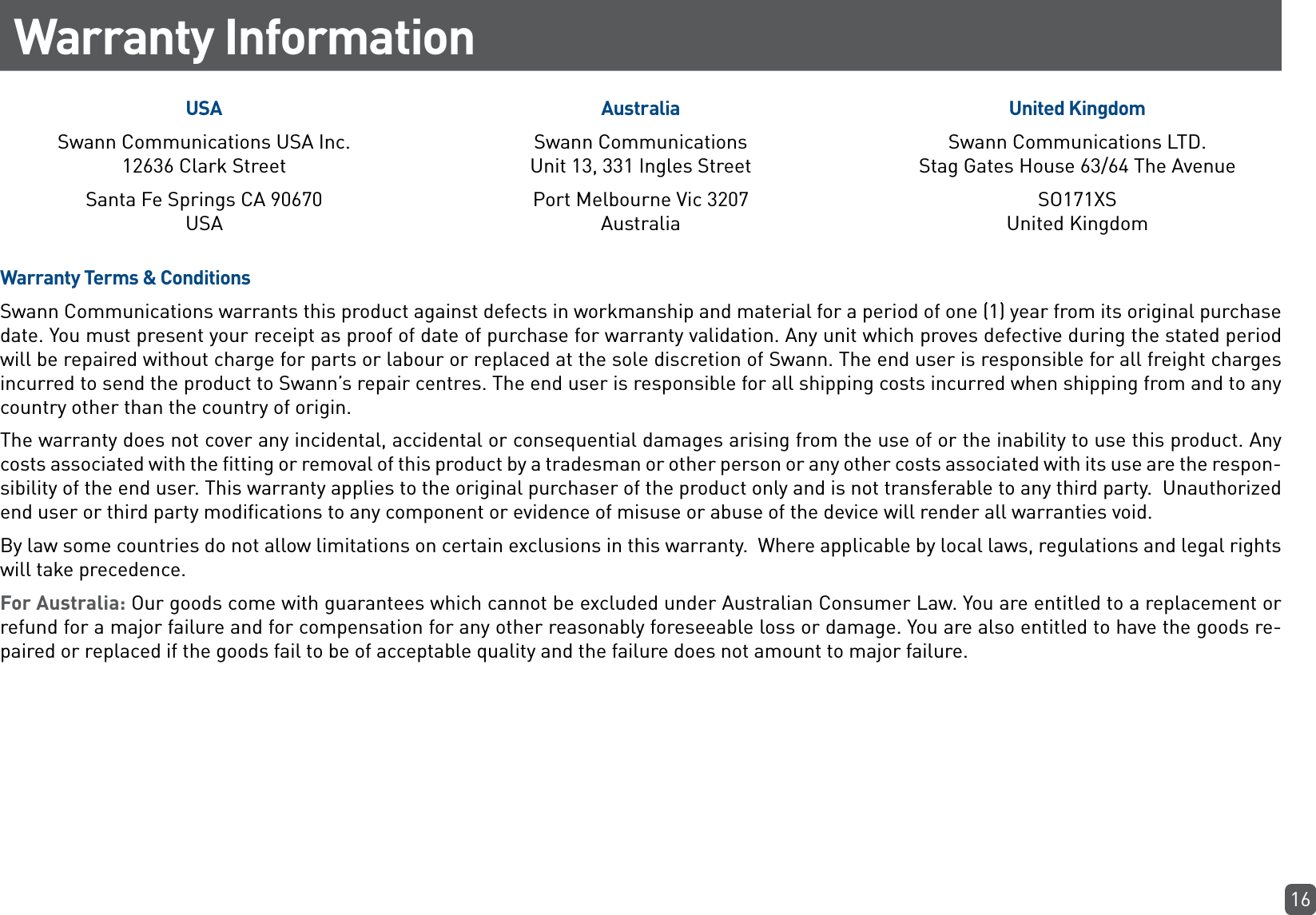

16Warranty InformationUSASwann Communications USA Inc. 12636 Clark Street Santa Fe Springs CA 90670 USAAustraliaSwann Communications Unit 13, 331 Ingles Street Port Melbourne Vic 3207 AustraliaUnited KingdomSwann Communications LTD. Stag Gates House 63/64 The AvenueSO171XS United KingdomWarranty Terms & ConditionsSwann Communications warrants this product against defects in workmanship and material for a period of one (1) year from its original purchase date. You must present your receipt as proof of date of purchase for warranty validation. Any unit which proves defective during the stated period will be repaired without charge for parts or labour or replaced at the sole discretion of Swann. The end user is responsible for all freight charges incurred to send the product to Swann’s repair centres. The end user is responsible for all shipping costs incurred when shipping from and to any country other than the country of origin. The warranty does not cover any incidental, accidental or consequential damages arising from the use of or the inability to use this product. Any costs associated with the fitting or removal of this product by a tradesman or other person or any other costs associated with its use are the respon-sibility of the end user. This warranty applies to the original purchaser of the product only and is not transferable to any third party. Unauthorized end user or third party modifications to any component or evidence of misuse or abuse of the device will render all warranties void.By law some countries do not allow limitations on certain exclusions in this warranty. Where applicable by local laws, regulations and legal rights will take precedence.For Australia: Our goods come with guarantees which cannot be excluded under Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods re-paired or replaced if the goods fail to be of acceptable quality and the failure does not amount to major failure.

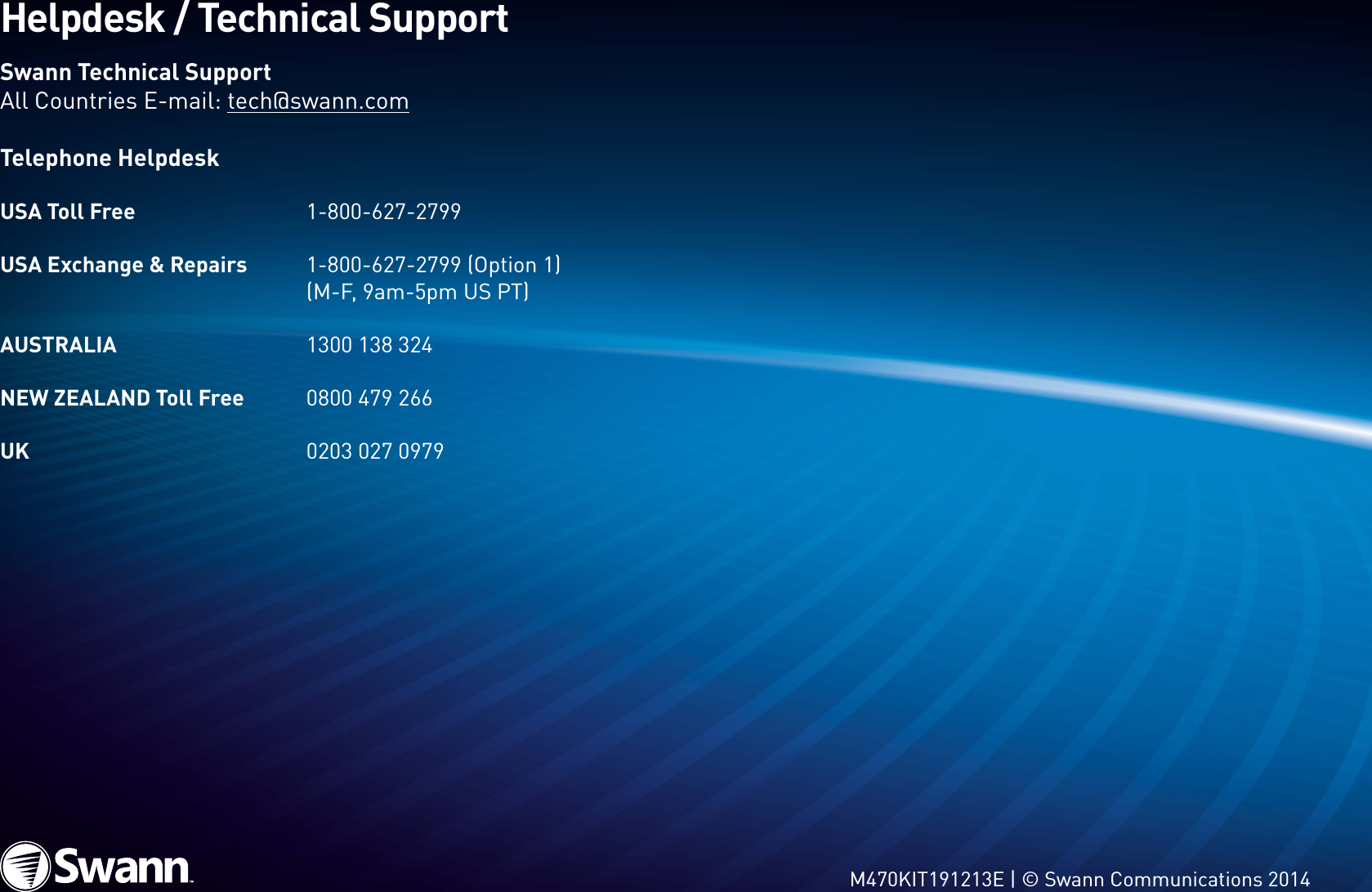

17Helpdesk / Technical SupportSwann Technical SupportAll Countries E-mail: tech@swann.comTelephone HelpdeskUSA Toll Free 1-800-627-2799USA Exchange & Repairs 1-800-627-2799 (Option 1) (M-F, 9am-5pm US PT)AUSTRALIA 1300 138 324 NEW ZEALAND Toll Free 0800 479 266 UK 0203 027 0979M470KIT191213E | © Swann Communications 2014

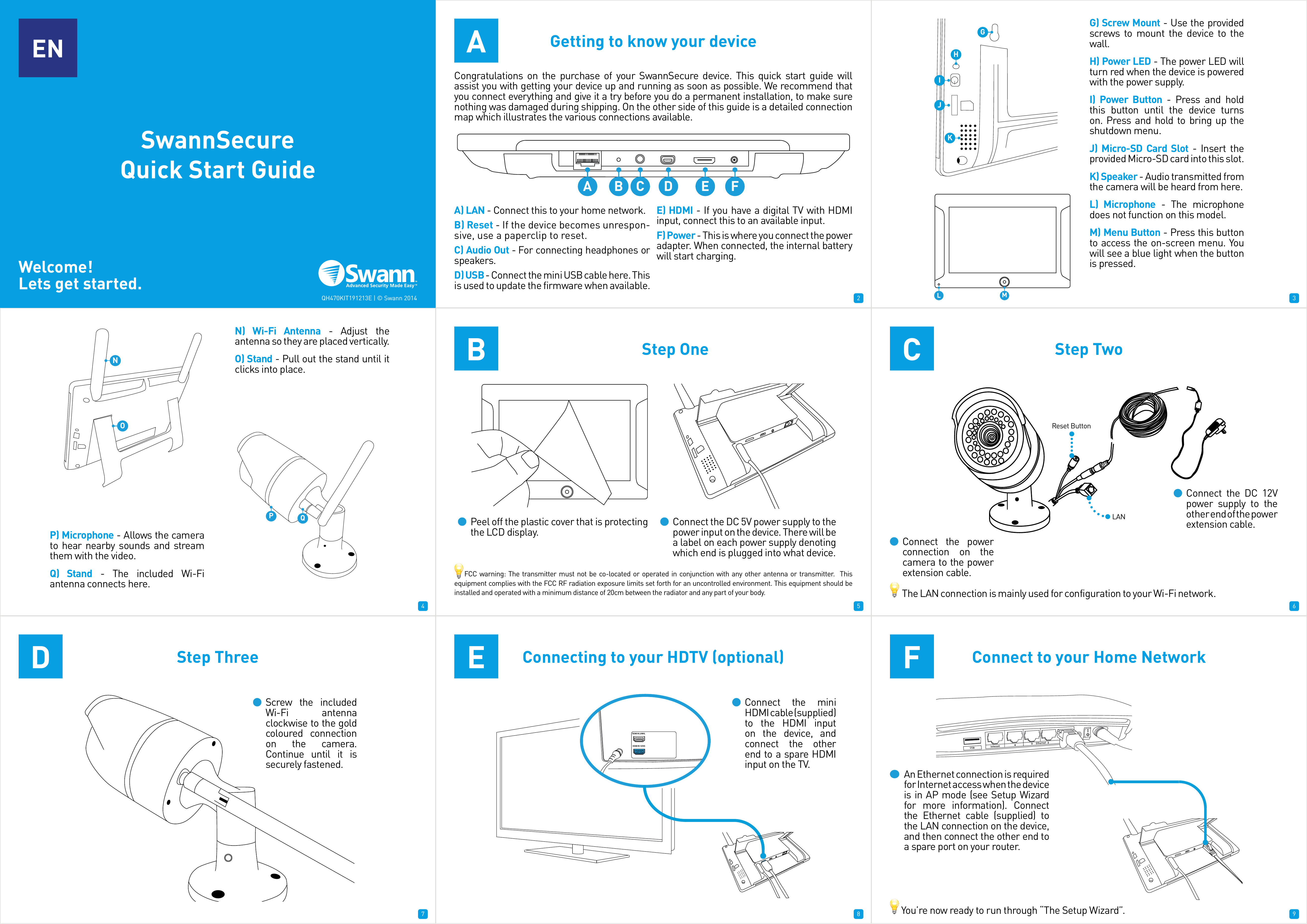

1 2 34 5 67 8 91ENSwannSecure Quick Start GuideWelcome!Lets get started.Congratulations on the purchase of your SwannSecure device. This quick start guide will assist you with getting your device up and running as soon as possible. We recommend that you connect everything and give it a try before you do a permanent installation, to make sure nothing was damaged during shipping. On the other side of this guide is a detailed connection map which illustrates the various connections available.A) LAN - Connect this to your home network.B) Reset - If the device becomes unrespon-sive, use a paperclip to reset.C) Audio Out - For connecting headphones or speakers.D) USB - Connect the mini USB cable here. This is used to update the firmware when available.E) HDMI - If you have a digital TV with HDMI input, connect this to an available input. F) Power - This is where you connect the power adapter. When connected, the internal battery will start charging.QH470KIT191213E | © Swann 2014AGetting to know your deviceBStep One CStep TwoDStep Three EConnecting to your HDTV (optional) FConnect to your Home NetworkA B C D E FGHIJKNOLMG) Screw Mount - Use the provided screws to mount the device to the wall.H) Power LED - The power LED will turn red when the device is powered with the power supply.I) Power Button - Press and hold this button until the device turns on. Press and hold to bring up the shutdown menu.J) Micro-SD Card Slot - Insert the provided Micro-SD card into this slot.K) Speaker - Audio transmitted from the camera will be heard from here.L) Microphone - The microphone does not function on this model.M) Menu Button - Press this button to access the on-screen menu. You will see a blue light when the button is pressed.N) Wi-Fi Antenna - Adjust the antenna so they are placed vertically.O) Stand - Pull out the stand until it clicks into place.QPP) Microphone - Allows the camera to hear nearby sounds and stream them with the video.Q) Stand - The included Wi-Fi antenna connects here.Peel off the plastic cover that is protecting the LCD display. Connect the DC 5V power supply to the power input on the device. There will be a label on each power supply denoting which end is plugged into what device.Connect the power connection on the camera to the power extension cable.Connect the DC 12V power supply to the other end of the power extension cable.LANReset ButtonScrew the included Wi-Fi antenna clockwise to the gold coloured connection on the camera. Continue until it is securely fastened.HDMI IN 2/MHLHDMI IN 1(DVI)Connect the mini HDMI cable (supplied) to the HDMI input on the device, and connect the other end to a spare HDMI input on the TV.USB Internet Ethernet432An Ethernet connection is required for Internet access when the device is in AP mode (see Setup Wizard for more information). Connect the Ethernet cable (supplied) to the LAN connection on the device, and then connect the other end to a spare port on your router. You’re now ready to run through “The Setup Wizard”. The LAN connection is mainly used for configuration to your Wi-Fi network. FCC warning: The transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.

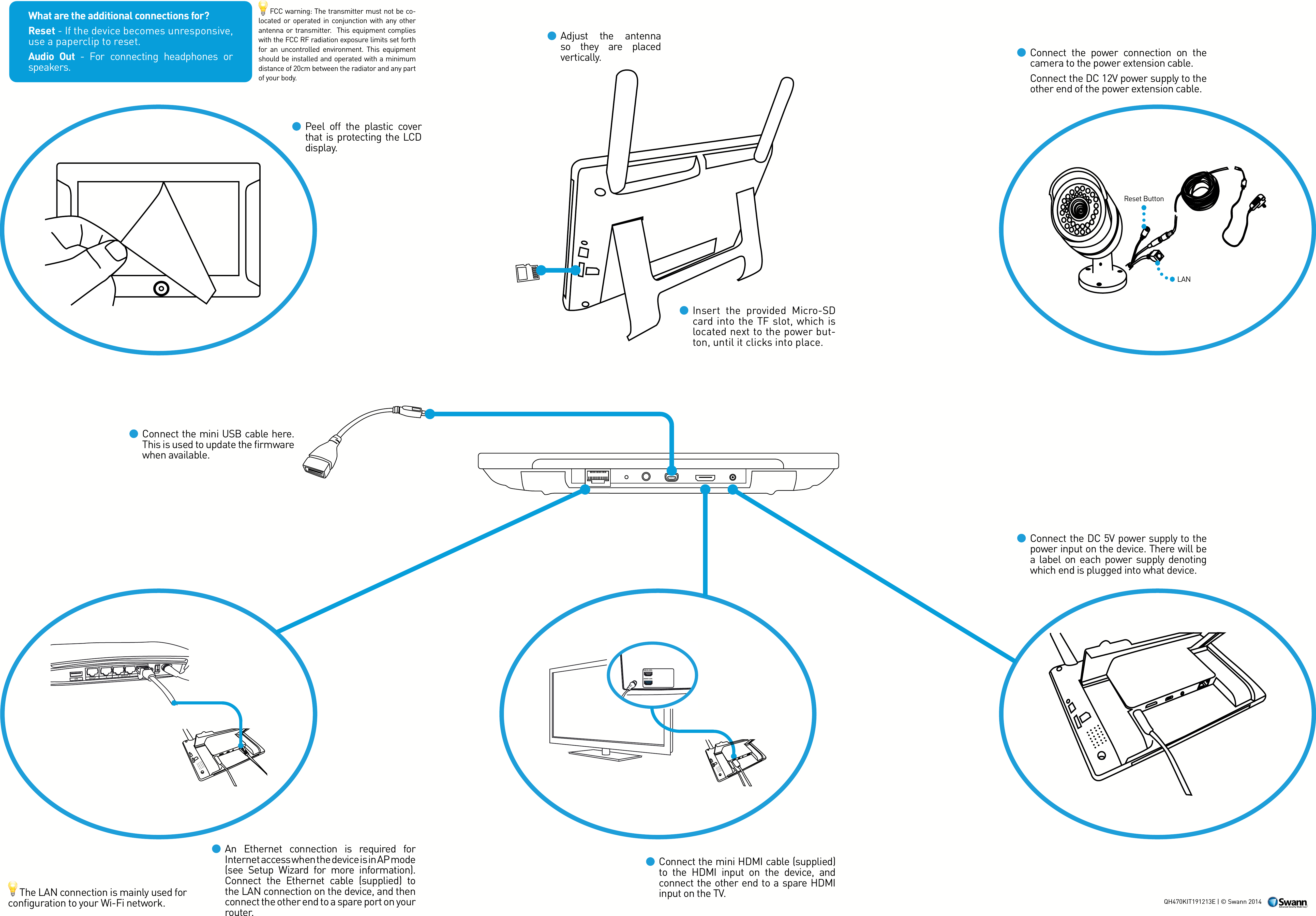

10 11 1213 14 1516 17 1810Welcome!Lets get started.QH48_1550H181013E | © Swann 2013Connect the mini HDMI cable (supplied) to the HDMI input on the device, and connect the other end to a spare HDMI input on the TV.Insert the provided Micro-SD card into the TF slot, which is located next to the power but-ton, until it clicks into place.Connect the power connection on the camera to the power extension cable.Connect the DC 12V power supply to the other end of the power extension cable.QH470KIT191213E | © Swann 2014Peel off the plastic cover that is protecting the LCD display.USB Intern et Ethernet432HDMI IN 2/MHLHDMI IN 1(DVI)Connect the DC 5V power supply to the power input on the device. There will be a label on each power supply denoting which end is plugged into what device.An Ethernet connection is required for Internet access when the device is in AP mode (see Setup Wizard for more information). Connect the Ethernet cable (supplied) to the LAN connection on the device, and then connect the other end to a spare port on your router.Connect the mini USB cable here. This is used to update the firmware when available.Reset ButtonLANWhat are the additional connections for?Reset - If the device becomes unresponsive, use a paperclip to reset.Audio Out - For connecting headphones or speakers.Adjust the antenna so they are placed vertically. The LAN connection is mainly used for configuration to your Wi-Fi network. FCC warning: The transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.
