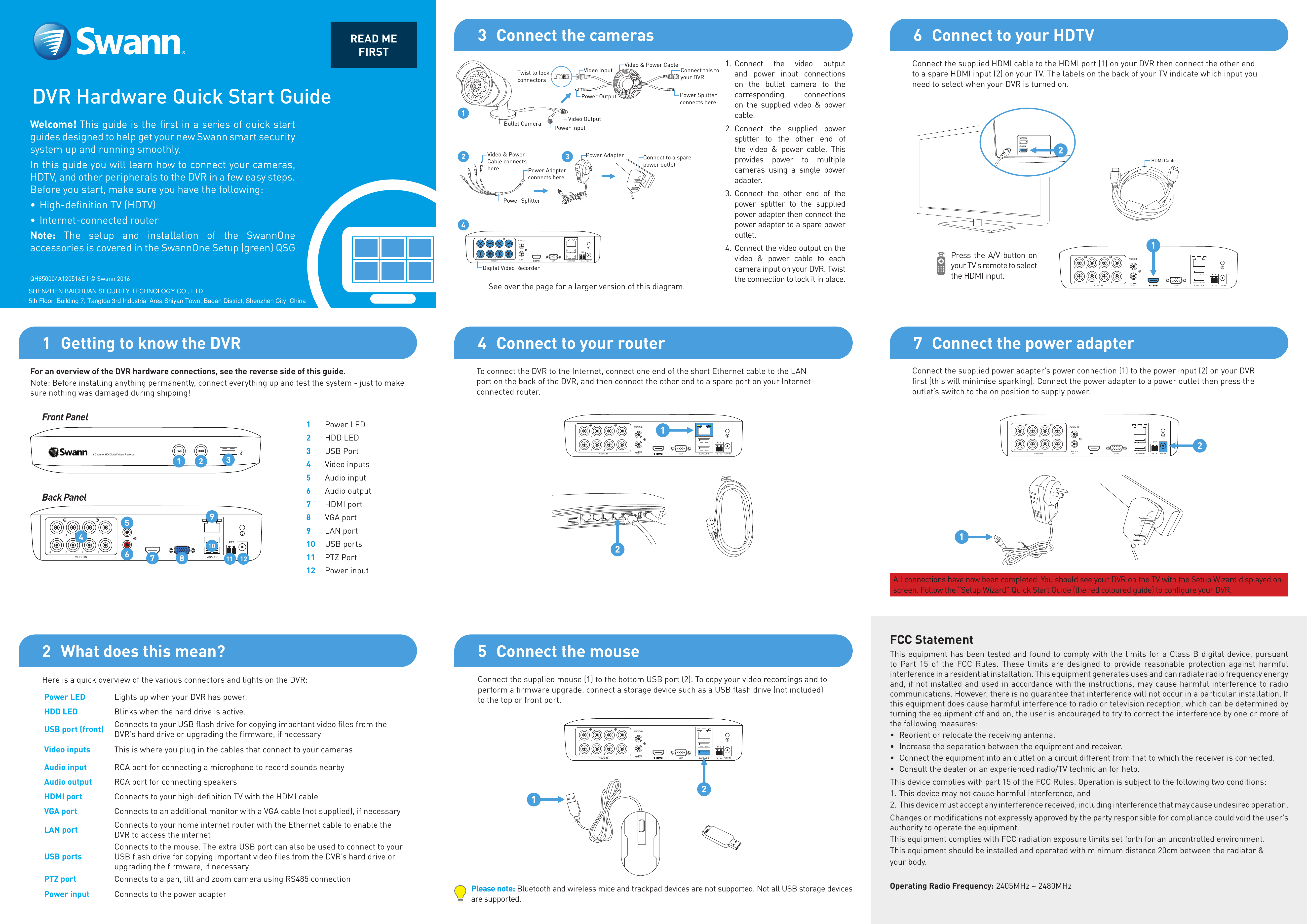

1. Connect the video output and power input connections on the bullet camera to the corresponding connections on the supplied video & power cable.2. Connect the supplied power splitter to the other end of the video & power cable. This provides power to multiple cameras using a single power adapter.3. Connect the other end of the power splitter to the supplied power adapter then connect the power adapter to a spare power outlet.4. Connect the video output on the video & power cable to each camera input on your DVR. Twist the connection to lock it in place.1DVR Hardware Quick Start GuideQH850004A120516E | © Swann 2016Welcome! This guide is the first in a series of quick start guides designed to help get your new Swann smart security system up and running smoothly. In this guide you will learn how to connect your cameras, HDTV, and other peripherals to the DVR in a few easy steps. Before you start, make sure you have the following:• High-definition TV (HDTV)• Internet-connected routerNote: The setup and installation of the SwannOne accessories is covered in the SwannOne Setup (green) QSGPlease note: Bluetooth and wireless mice and trackpad devices are not supported. Not all USB storage devices are supported.All connections have now been completed. You should see your DVR on the TV with the Setup Wizard displayed on-screen. Follow the “Setup Wizard” Quick Start Guide (the red coloured guide) to configure your DVR.USB Internet 4321 Getting to know the DVR2 What does this mean?3 Connect the cameras4 Connect to your router25 Connect the mouse1HDMI IN 1HDMI IN 2Press the A/V button on your TV’s remote to select the HDMI input.2HDMI Cable6 Connect to your HDTV7 Connect the power adapter12 3Power InputVideo Output1Twist to lock connectorsVideo Input Video & Power Cable Connect this to your DVRPower Splitterconnects herePower OutputPower Adapterconnects herePower SplitterPower AdapterVideo & Power Cable connects hereConnect to a spare power outletBullet CameraVGA 12V INVIDEO INAUDIOOUT LAN&USB78563412AUDIO INB APTZDigital Video Recorder4VGA 12V INVIDEO INAUDIOOUT LAN&USB78563412AUDIO INB APTZ1VGA 12V INVIDEO INAUDIOOUT LAN&USB78563412AUDIO INB APTZ2VGA 12V INVIDEO INAUDIOOUT LAN&USB78563412AUDIO INB APTZ1VGA 12V INVIDEO INAUDIOOUT LAN&USB78563412AUDIO INB APTZ2READ ME FIRSTFor an overview of the DVR hardware connections, see the reverse side of this guide.Note: Before installing anything permanently, connect everything up and test the system - just to make sure nothing was damaged during shipping!PWR HDD8 Channel HD Digital Video Recorder111213VGA 12V INVIDEO INAUDIOOUT LAN&USB78563412AUDIO INB APTZ14319151816AUDIOOUT171101111121 Power LED2 HDD LED3 USB Port4 Video inputs5 Audio input6 Audio output7 HDMI port8 VGA port9 LAN port10 USB ports11 PTZ Port12 Power inputFront PanelBack PanelHere is a quick overview of the various connectors and lights on the DVR:Power LED Lights up when your DVR has power.HDD LED Blinks when the hard drive is active.USB port (front) Connects to your USB flash drive for copying important video files from the DVR’s hard drive or upgrading the firmware, if necessaryVideo inputs This is where you plug in the cables that connect to your camerasAudio input RCA port for connecting a microphone to record sounds nearbyAudio output RCA port for connecting speakersHDMI port Connects to your high-definition TV with the HDMI cableVGA port Connects to an additional monitor with a VGA cable (not supplied), if necessaryLAN port Connects to your home internet router with the Ethernet cable to enable the DVR to access the internetUSB portsConnects to the mouse. The extra USB port can also be used to connect to your USB flash drive for copying important video files from the DVR’s hard drive or upgrading the firmware, if necessaryPTZ port Connects to a pan, tilt and zoom camera using RS485 connectionPower input Connects to the power adapterTo connect the DVR to the Internet, connect one end of the short Ethernet cable to the LAN port on the back of the DVR, and then connect the other end to a spare port on your Internet-connected router.Connect the supplied mouse (1) to the bottom USB port (2). To copy your video recordings and to perform a firmware upgrade, connect a storage device such as a USB flash drive (not included) to the top or front port.Connect the supplied power adapter’s power connection (1) to the power input (2) on your DVR first (this will minimise sparking). Connect the power adapter to a power outlet then press the outlet’s switch to the on position to supply power.Connect the supplied HDMI cable to the HDMI port (1) on your DVR then connect the other end to a spare HDMI input (2) on your TV. The labels on the back of your TV indicate which input you need to select when your DVR is turned on.FCC StatementThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.This equipment should be installed and operated with minimum distance 20cm between the radiator &your body.Operating Radio Frequency: 2405MHz ~ 2480MHzSee over the page for a larger version of this diagram.SHENZHEN BAICHUAN SECURITY TECHNOLOGY CO., LTD5th Floor, Building 7, Tangtou 3rd Industrial Area Shiyan Town, Baoan District, Shenzhen City, China

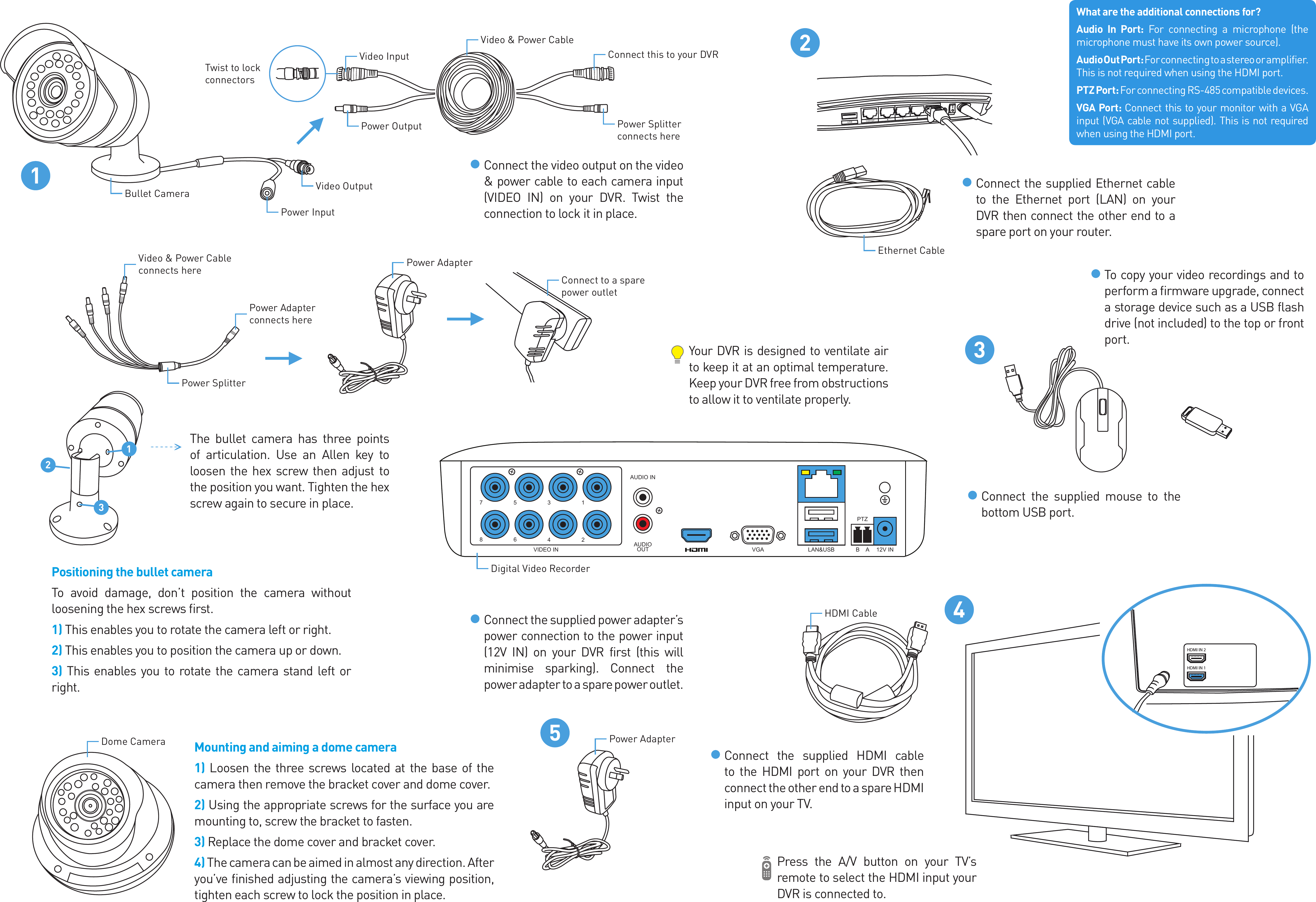

Power InputVideo OutputTwist to lock connectorsVideo InputVideo & Power CableConnect this to your DVRPower Splitterconnects herePower OutputPower Adapterconnects herePower SplitterPower AdapterVideo & Power Cable connects hereConnect to a spare power outletBullet CameraUSB Internet 432HDMI IN 1HDMI IN 2Power Adapter12345HDMI CableEthernet CableDome Camera213VGA 12V INVIDEO INAUDIOOUT LAN&USB78563412AUDIO INB APTZDigital Video RecorderConnect the video output on the video & power cable to each camera input (VIDEO IN) on your DVR. Twist the connection to lock it in place.Connect the supplied Ethernet cable to the Ethernet port (LAN) on your DVR then connect the other end to a spare port on your router.Connect the supplied mouse to the bottom USB port.To copy your video recordings and to perform a firmware upgrade, connect a storage device such as a USB flash drive (not included) to the top or front port.Your DVR is designed to ventilate air to keep it at an optimal temperature. Keep your DVR free from obstructions to allow it to ventilate properly.Connect the supplied HDMI cable to the HDMI port on your DVR then connect the other end to a spare HDMI input on your TV.Press the A/V button on your TV’s remote to select the HDMI input your DVR is connected to.Connect the supplied power adapter’s power connection to the power input (12V IN) on your DVR first (this will minimise sparking). Connect the power adapter to a spare power outlet.The bullet camera has three points of articulation. Use an Allen key to loosen the hex screw then adjust to the position you want. Tighten the hex screw again to secure in place.What are the additional connections for? Audio In Port: For connecting a microphone (the microphone must have its own power source).Audio Out Port: For connecting to a stereo or amplifier. This is not required when using the HDMI port.PTZ Port: For connecting RS-485 compatible devices.VGA Port: Connect this to your monitor with a VGA input (VGA cable not supplied). This is not required when using the HDMI port.Mounting and aiming a dome camera1) Loosen the three screws located at the base of the camera then remove the bracket cover and dome cover.2) Using the appropriate screws for the surface you are mounting to, screw the bracket to fasten.3) Replace the dome cover and bracket cover.4) The camera can be aimed in almost any direction. After you’ve finished adjusting the camera’s viewing position, tighten each screw to lock the position in place.Positioning the bullet cameraTo avoid damage, don’t position the camera without loosening the hex screws first.1) This enables you to rotate the camera left or right.2) This enables you to position the camera up or down.3) This enables you to rotate the camera stand left or right.
