BAOLONG AUTOMOTIVE TPMS201-JS18G1 Tyre Pressure Monitoring System User Manual

SHANGHAI BAOLONG AUTOMOTIVE CORPORATION Tyre Pressure Monitoring System

Users Manual

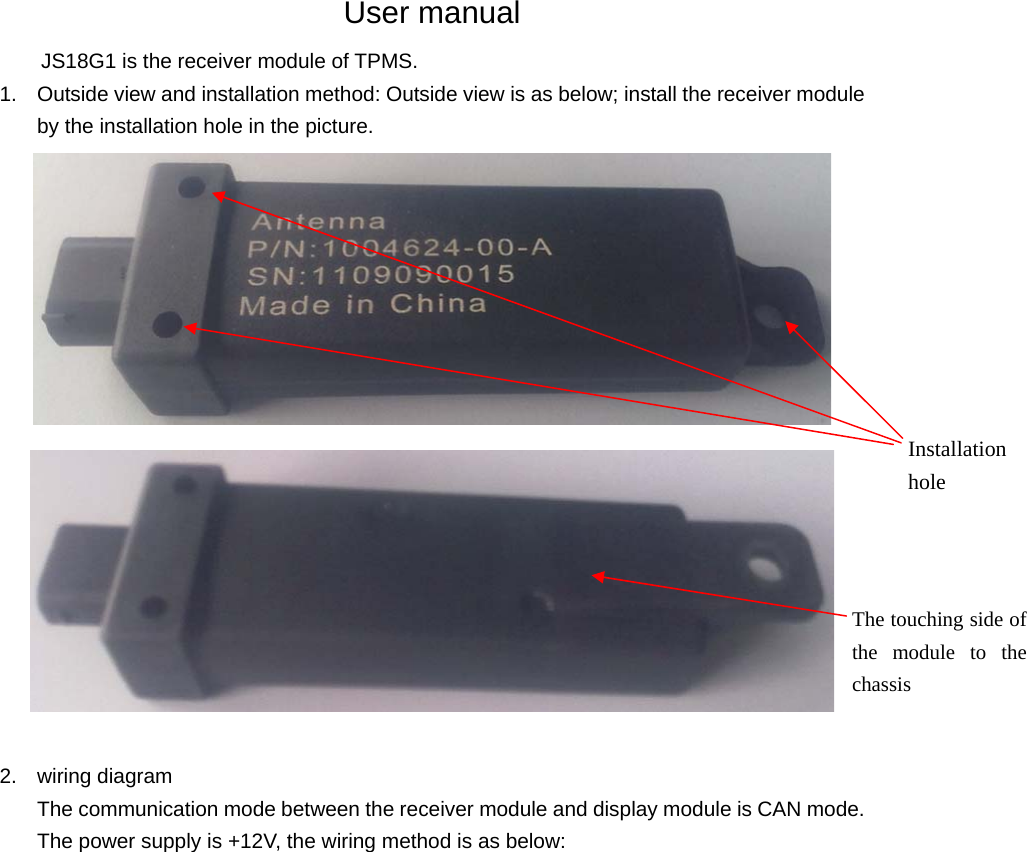

User manual JS18G1 is the receiver module of TPMS. 1. Outside view and installation method: Outside view is as below; install the receiver module by the installation hole in the picture. 2. wiring diagram The communication mode between the receiver module and display module is CAN mode. The power supply is +12V, the wiring method is as below: Installation hole The touching side of the module to the chassis

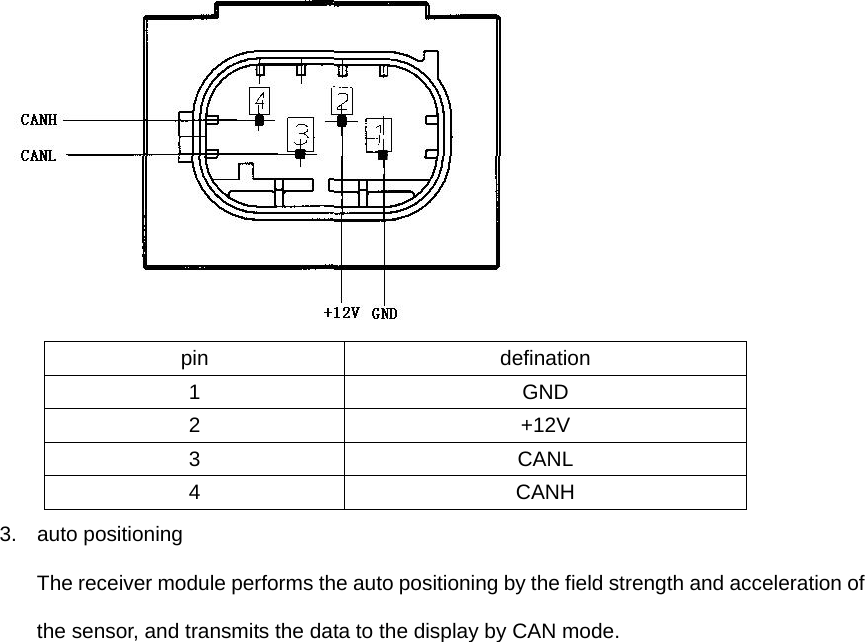

pin defination 1 GND 2 +12V 3 CANL 4 CANH 3. auto positioning The receiver module performs the auto positioning by the field strength and acceleration of the sensor, and transmits the data to the display by CAN mode.

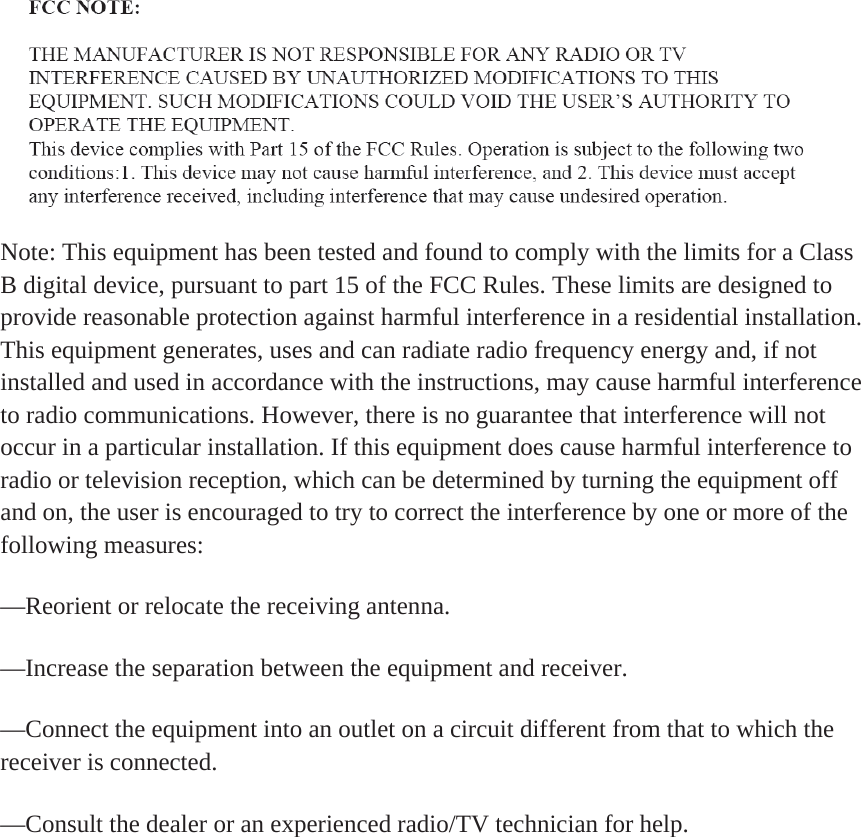

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for help.
