User's Manual TPMS-C is the transmitter module in the TPMS system. 1、Appearance as below，the user can install the corresponding matching valve in the tire on the rim. 2、Testing Methods Testing Tools: Wakeup Handle Testing Steps: a)、Direct the front of the wakeup handle at the transmitter module b)、Turn on the power of the wakeup handle Arrow Pointing 1.Read Sensor→Press ENTER, then step into the

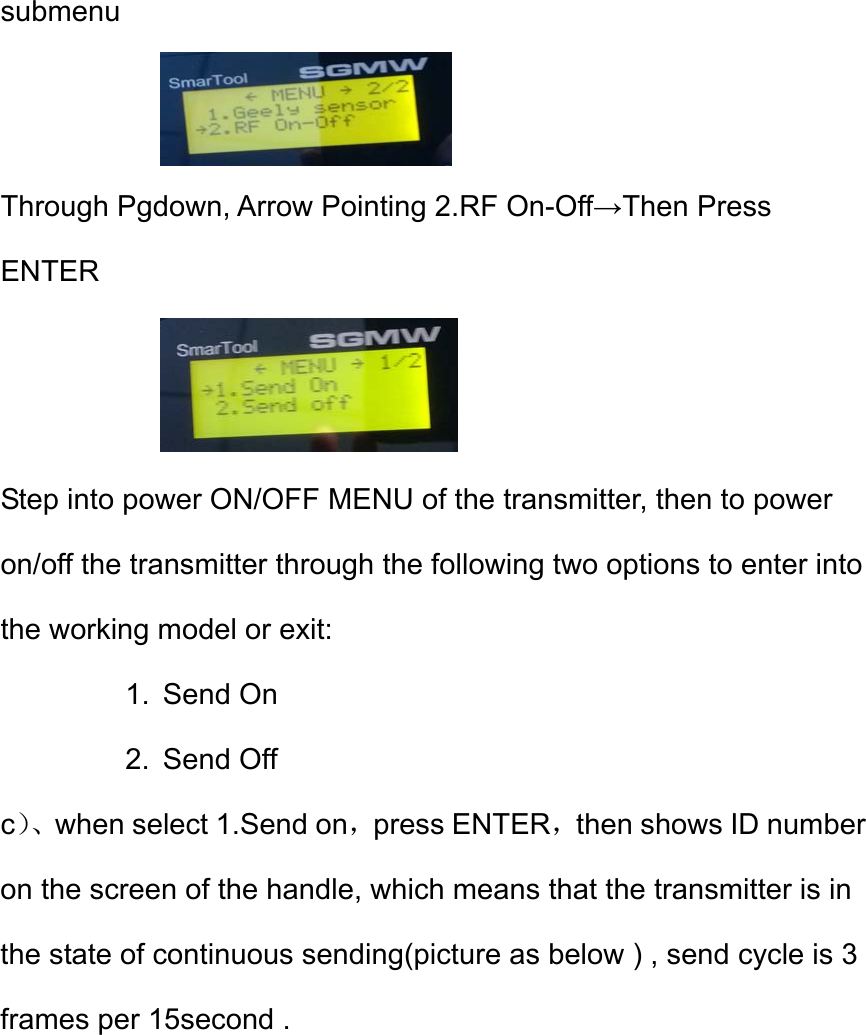

submenu Through Pgdown, Arrow Pointing 2.RF On-Off→Then Press ENTER Step into power ON/OFF MENU of the transmitter, then to power on/off the transmitter through the following two options to enter into the working model or exit: 1. Send On 2. Send Off c）、when select 1.Send on，press ENTER，then shows ID number on the screen of the handle, which means that the transmitter is in the state of continuous sending(picture as below ) , send cycle is 3 frames per 15second .

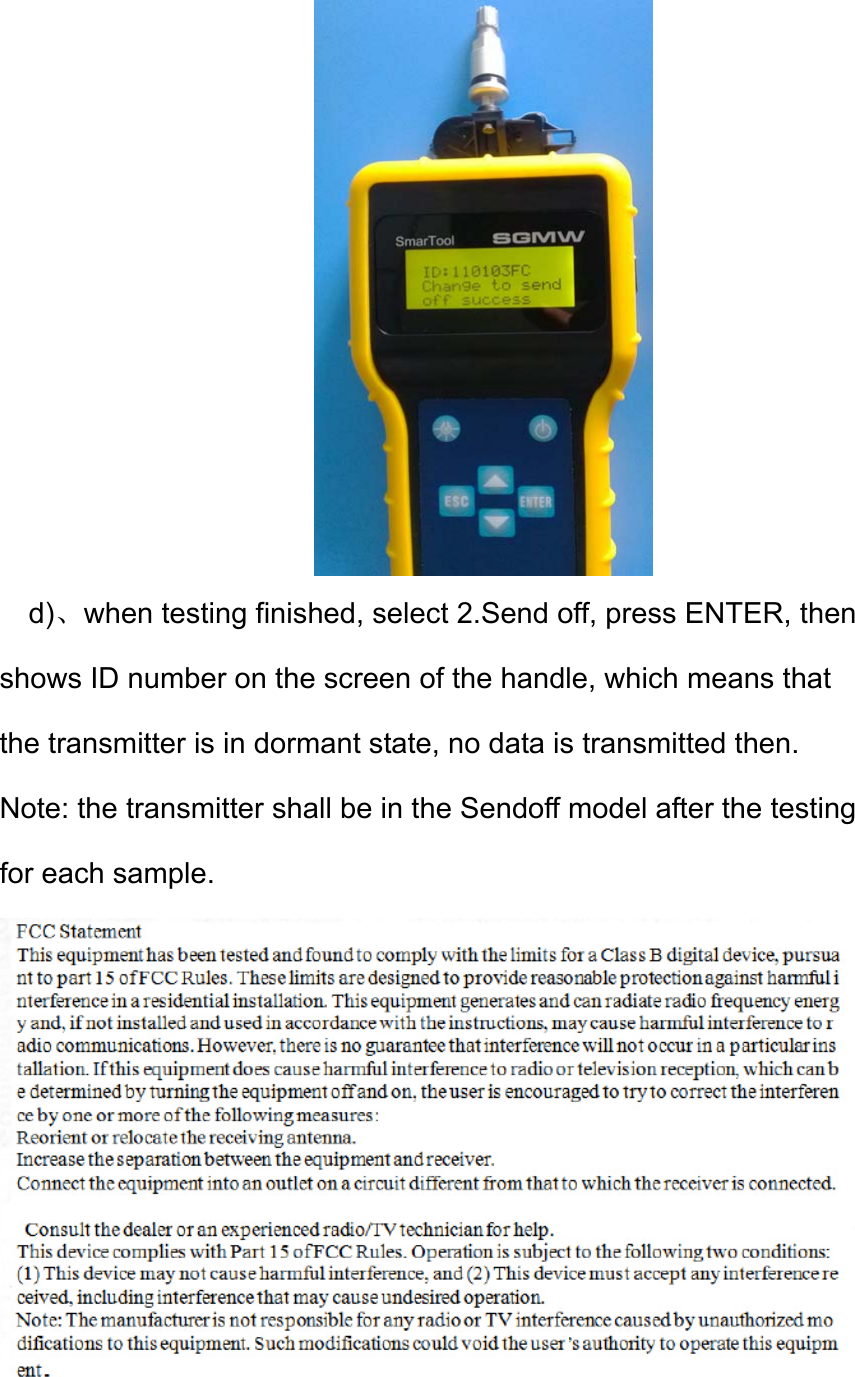

d)、when testing finished, select 2.Send off, press ENTER, then shows ID number on the screen of the handle, which means that the transmitter is in dormant state, no data is transmitted then. Note: the transmitter shall be in the Sendoff model after the testing for each sample.

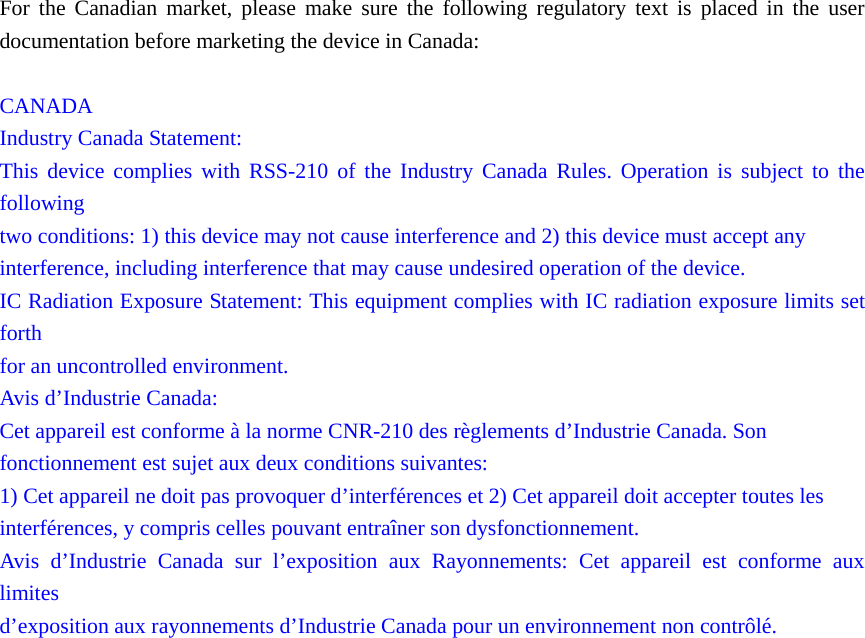

For the Canadian market, please make sure the following regulatory text is placed in the user documentation before marketing the device in Canada: CANADA Industry Canada Statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device. IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. Avis d’Industrie Canada: Cet appareil est conforme à la norme CNR-210 des règlements d’Industrie Canada. Son fonctionnement est sujet aux deux conditions suivantes: 1) Cet appareil ne doit pas provoquer d’interférences et 2) Cet appareil doit accepter toutes les interférences, y compris celles pouvant entraîner son dysfonctionnement. Avis d’Industrie Canada sur l’exposition aux Rayonnements: Cet appareil est conforme aux limites d’exposition aux rayonnements d’Industrie Canada pour un environnement non contrôlé.
