Duo-ScanGO Quick Guide v.10 AW HR

This quick guide outlines the primary user instructions forDou-Scan:Go (DSGC01) and Duo-Scan:Go Plus (DSGC02)First time use – activation Press and hold the power button on the scanner until the blue LED switches on. Download the BCF Go Scan app from Google Play Store or the App Store. Once downloaded launch the app. To activate the scanner successfully you will need ensure your scanner is charged and that you have an internet connection.Normal start up processAfter a few seconds, the ultrasound image will appear. Touch anywhere on the screen to bring up the live scanning menu.Quick Guide1. App requests to connect to scanner Note – if the LED flashes on the scanner it is not connected to any smart device.1. App requests to connect to scanner 3. App requests to connect to the internet4. Select your local Wi-Fi network to connect to the internet5. App requests to connect back to the scanner 2. Select DUOSCAN from the Wi-Fi page2. Select DUOSCAN from the Wi-Fi page6. Select DUOSCAN from the Wi-Fi pageYou are now ready to scanAdjust scanning depthStart recordingFreeze ultrasound Open SettingsAdjust gainYour animal imaging partner

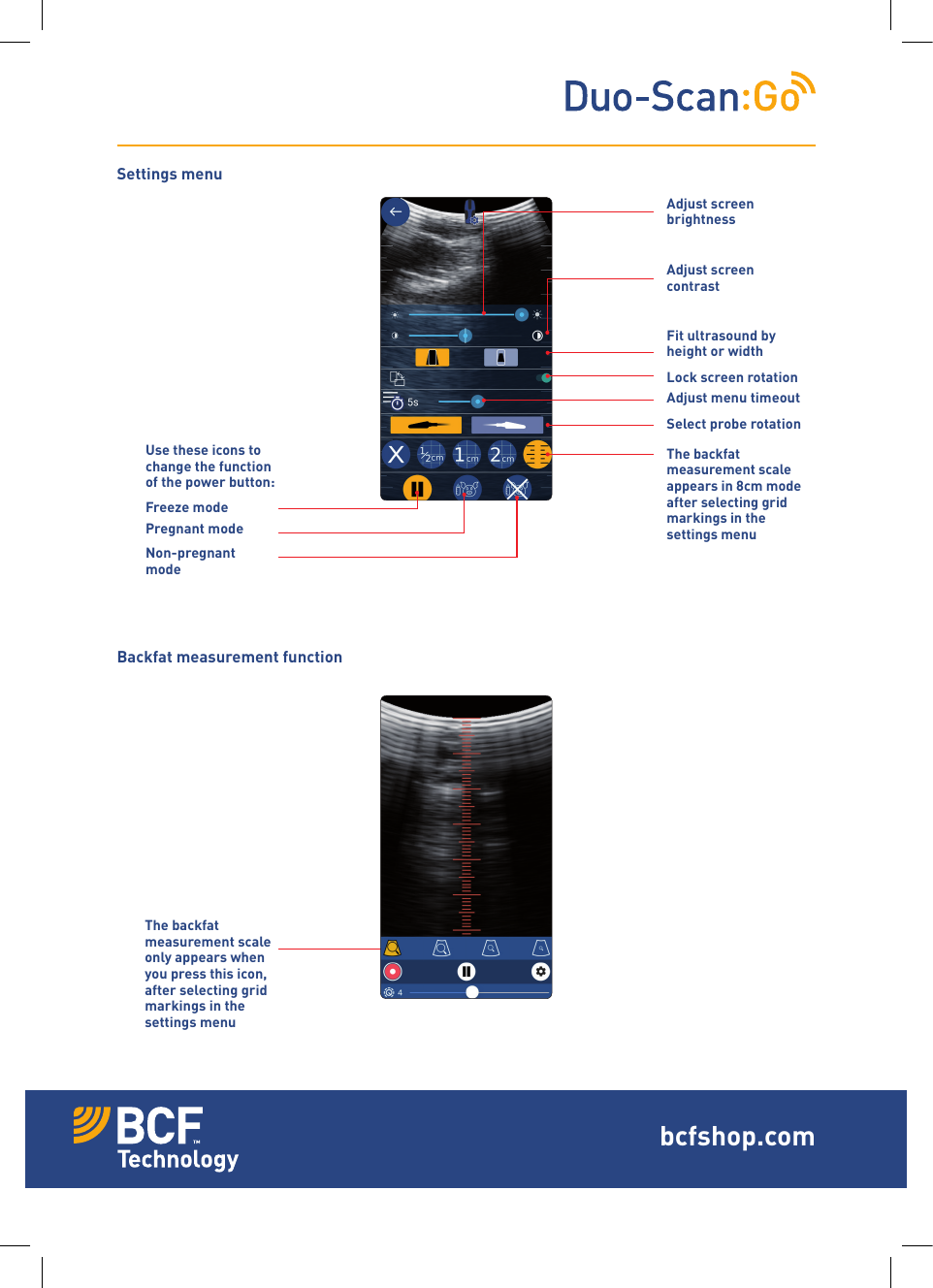

Settings menu Backfat measurement functionAdjust screen brightnessFit ultrasound by height or widthAdjust screen contrastLock screen rotationAdjust menu timeoutSelect probe rotationThe backfatmeasurement scale appears in 8cm modeafter selecting gridmarkings in thesettings menuFreeze modeUse these icons to change the function of the power button:Pregnant modeNon-pregnant modeThe backfat measurement scale only appears when you press this icon, after selecting grid markings in the settings menubcfshop.com

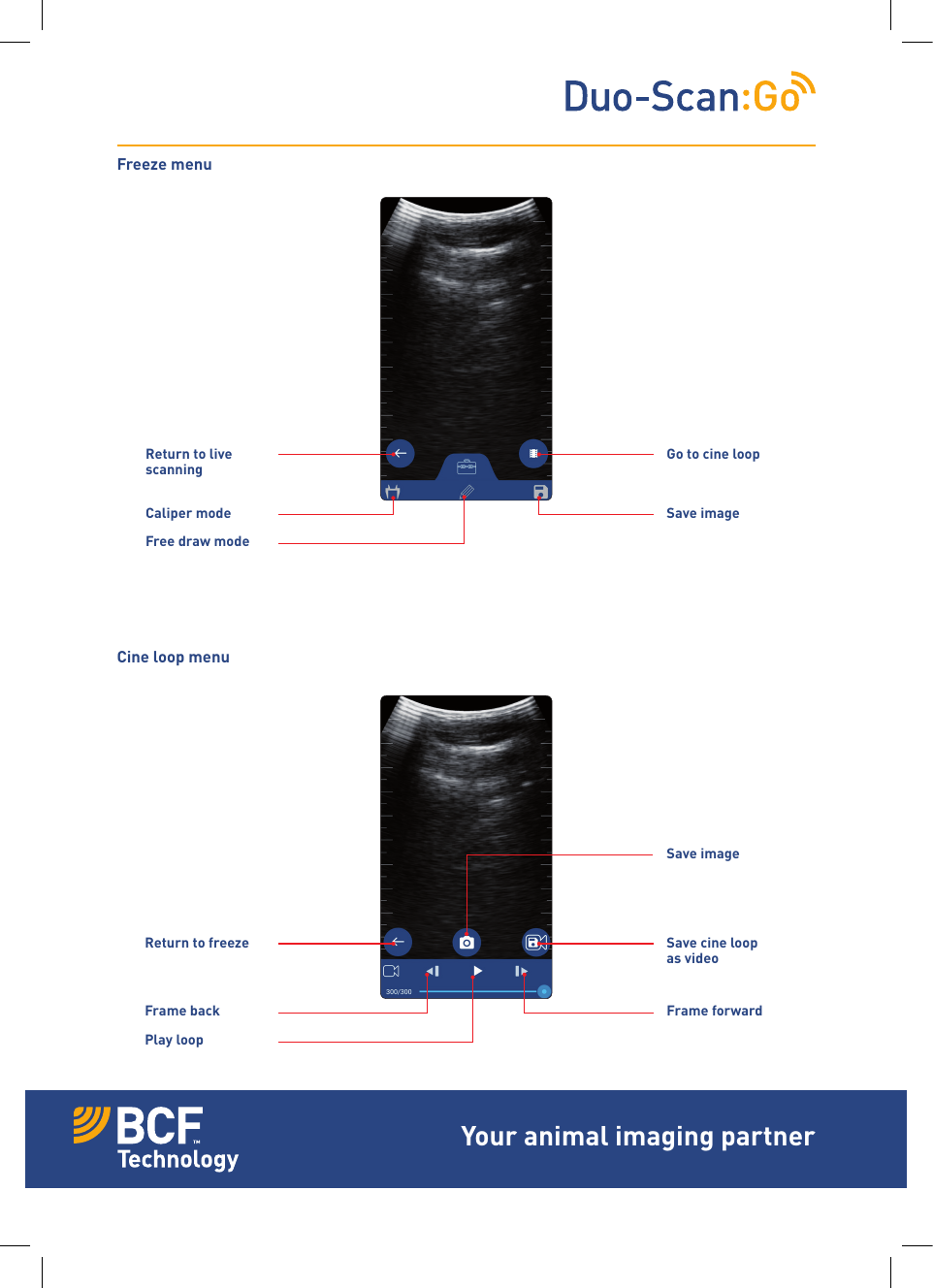

Cine loop menuFreeze menuReturn to live scanningGo to cine loopCaliper modeFree draw modeSave imageReturn to freeze Save cine loop as videoSave imageFrame backPlay loopFrame forwardYour animal imaging partner

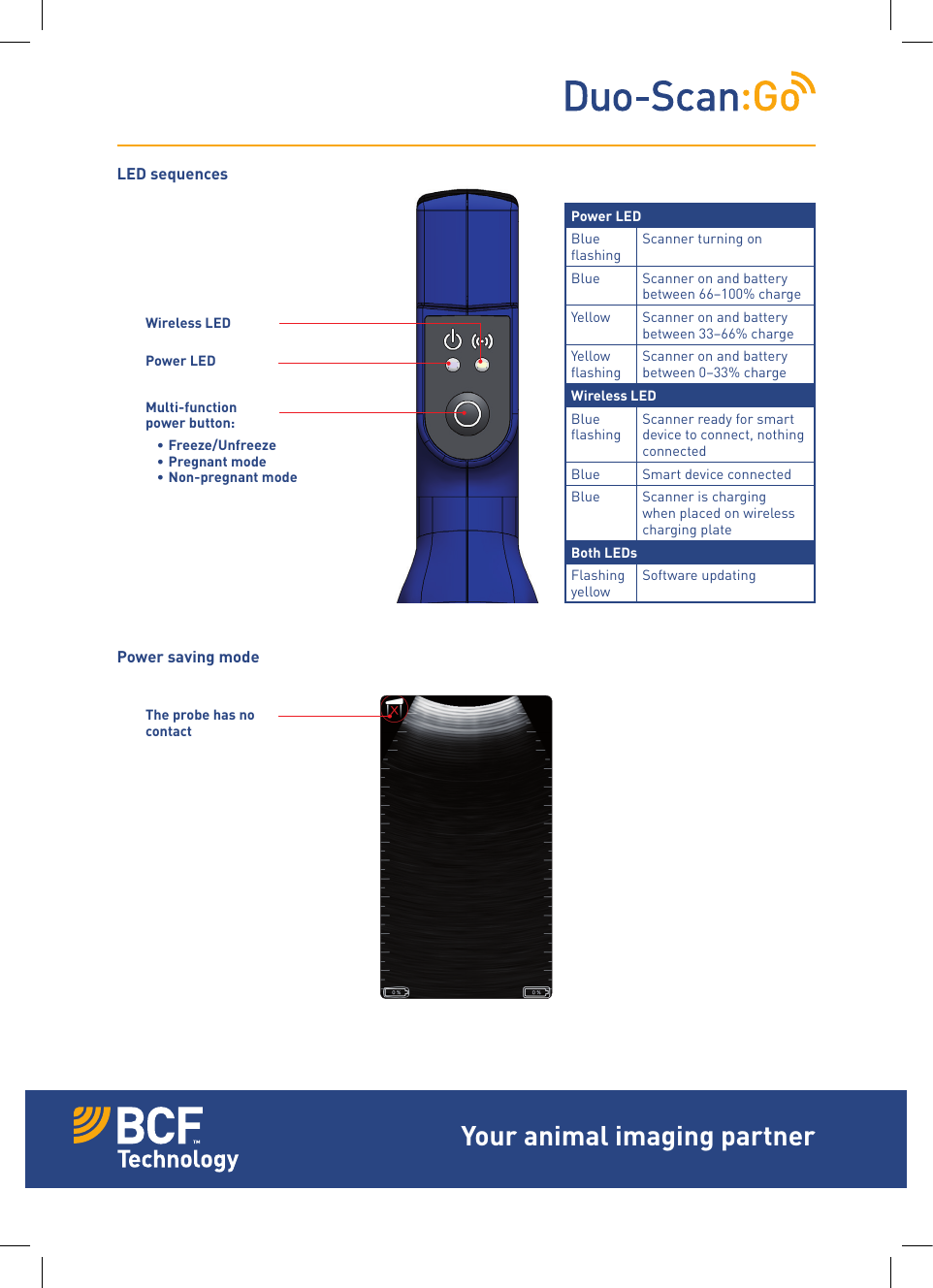

Power LEDBlue flashingScanner turning onBlue Scanner on and battery between 66–100% chargeYellow Scanner on and battery between 33–66% chargeYellow flashingScanner on and battery between 0–33% chargeWireless LEDBlue flashingScanner ready for smart device to connect, nothing connectedBlue Smart device connectedBlue Scanner is charging when placed on wireless charging plateBoth LEDsFlashing yellowSoftware updatingMulti-function power button:• Freeze/Unfreeze• Pregnant mode • Non-pregnant modePower saving modeLED sequencesThe probe has no contactPower LEDWireless LEDYour animal imaging partner
© BCF Technology V.10 Jan 2018Freeze modeThis function allows you to freeze a live ultrasound image. It will also allow you to review the previous 10 secs of scanning through the app’s cine loop functionality. This is good if your sow has run off! All images and clips can be saved in the app by pressing the save icon. Pregnant mode When in pregnant mode, short pressing the power button will increment the pregnant count. This allows the number of pregnant sows to be easily recorded.Non-pregnant modeWhen in non pregnant mode, short pressing the power button will increment the non-pregnant count. This allows the number of non-pregnant sows to be easily recorded.Saved imagesAll images and video clips are stored in the smart device’s photo and video gallery. Care & maintenanceWe have built the Duo-Scan:Go to be rugged and water resistant. It does however contain fragile sensitive electronics.Duo-Scan:Go housing is water resistant enough for gentle washing and rinsing. It will not withstand powerful jets of water (e.g. tap full on or hosing it down).Charging The scanner is charged via a wireless induction plate. To charge the scanner place it on the plate, with the charging symbol facing down. The scanner should be charged in a cool environment, ideally around 20 ˚C. When the LED turns off the charger is fully charged. Duo- Scan:Go is compatible with all WPC Qi-v1.2 compliant wireless chargers and has been certified using chargers with an output up to 5V/1A and a charge frequency of 110kHz to 190kHz.Specification Size: 235 mm x 50 mm x 70 mmWeight: 246 gramsConnection: SoundlinkTM Power: Rechargable lithium batterySealing: Splash & dust proofOperating temperature: -20 ˚C to 35 ˚CBattery life: 2 hours approxCertification Duo-Scan:Go is compliant with all CE requirements. It is RoHS and WEEE compliant.Note: All BCF Technology products are for animal applications only. CC – This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. If the user changes any modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.Need more help?Please visit our website bcfshop.com for video manuals and FAQs.Contact our customer care team:UK +44 (0)1506 460 023North America + 1 (507) 529 8200Head office: BCF Technology Ltd Imaging House Phoenix Crescent Bellshill ML4 3NJ Scotland, UKbcfshop.com
