BEA orporated 10TD900PTRI Transmitter operating in the ISM band (902-928 MHz), compatible with BEA 10RD900 Receiver, implementing frequency hopping, intended to be used as wireless door activation pushplates in the pedestrian automatic door industry User Manual 75 5172 06 PANTHER SERIES 20160517 indd

BEA Incorporated Transmitter operating in the ISM band (902-928 MHz), compatible with BEA 10RD900 Receiver, implementing frequency hopping, intended to be used as wireless door activation pushplates in the pedestrian automatic door industry 75 5172 06 PANTHER SERIES 20160517 indd

Users Manual

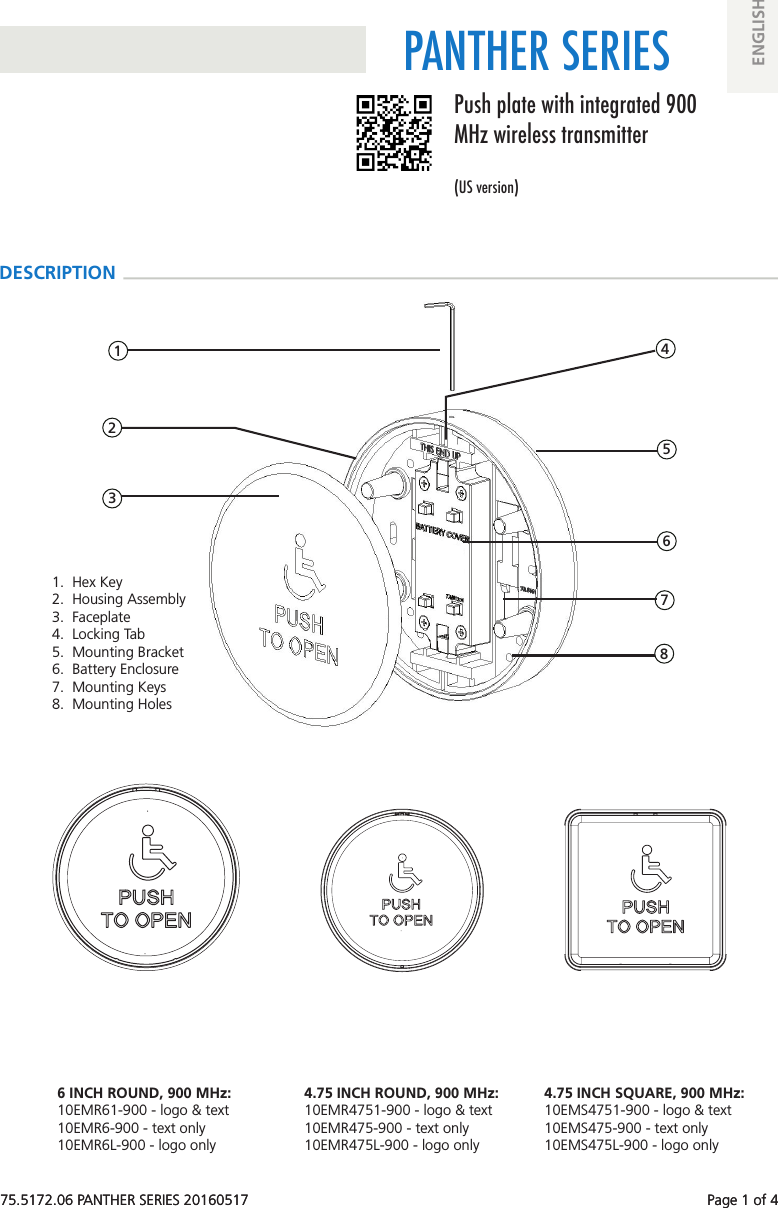

75.5172.06 PANTHER SERIES 20160517  Page 1 of 4PANTHER SERIES 1 2 3 4 6 7 8 575.5172.06 PANTHER SERIES 20160517  Page 1 of 4Push plate with integrated 900 MHz wireless transmitter(US version)ENGLISHDESCRIPTION1. Hex Key2. Housing Assembly3. Faceplate4. Locking Tab5. Mounting Bracket6. Battery Enclosure7. Mounting Keys8. Mounting Holes6 INCH ROUND, 900 MHz:10EMR61-900 - logo & text10EMR6-900 - text only10EMR6L-900 - logo only4.75 INCH ROUND, 900 MHz:10EMR4751-900 - logo & text10EMR475-900 - text only10EMR475L-900 - logo only4.75 INCH SQUARE, 900 MHz:10EMS4751-900 - logo & text10EMS475-900 - text only10EMS475L-900 - logo only

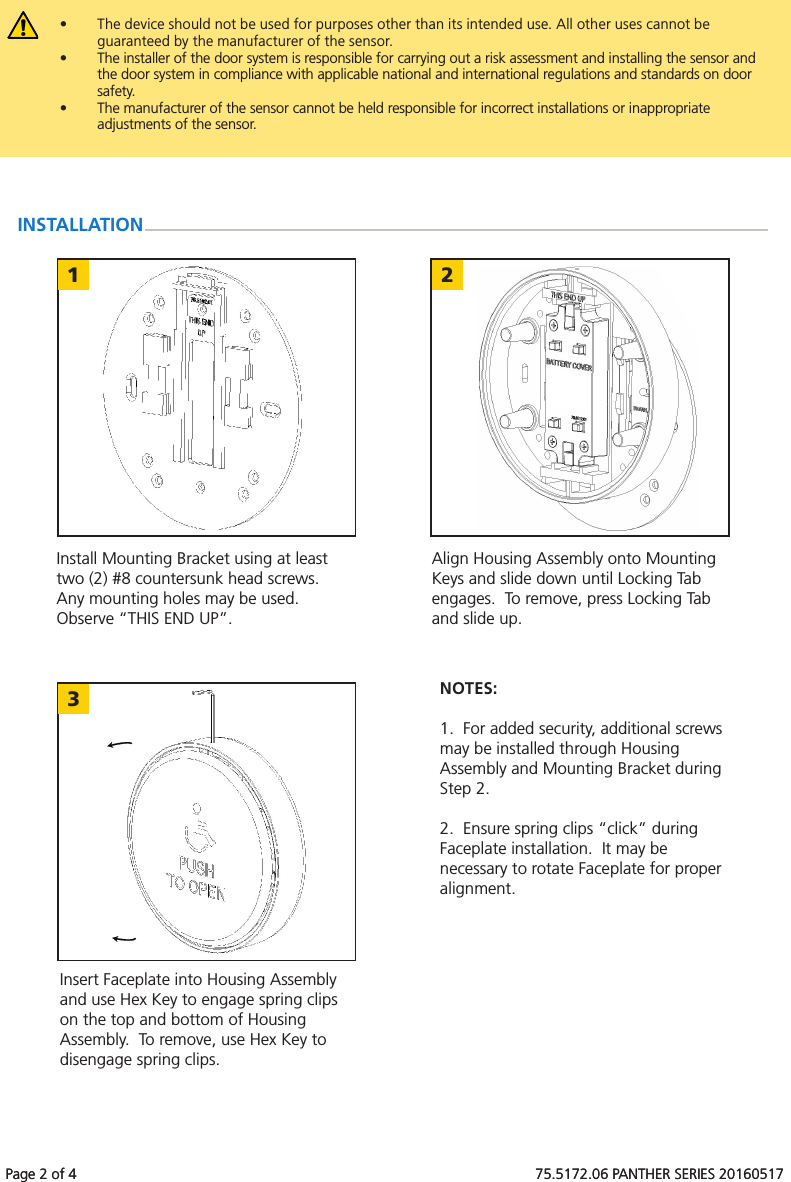

Page 2 of 4   75.5172.06 PANTHER SERIES 201605171 23Page 2 of 4   75.5172.06 PANTHER SERIES 20160517• The device should not be used for purposes other than its intended use. All other uses cannot be guaranteed by the manufacturer of the sensor.•  The installer of the door system is responsible for carrying out a risk assessment and installing the sensor andthe door system in compliance with applicable national and international regulations and standards on door safety. •  The manufacturer of the sensor cannot be held responsible for incorrect installations or inappropriateadjustments of the sensor.INSTALLATIONInstall Mounting Bracket using at least two (2) #8 countersunk head screws.  Any mounting holes may be used.  Observe “THIS END UP”.Align Housing Assembly onto Mounting Keys and slide down until Locking Tab engages.  To remove, press Locking Tab and slide up.Insert Faceplate into Housing Assembly and use Hex Key to engage spring clips on the top and bottom of Housing Assembly.  To remove, use Hex Key to disengage spring clips.NOTES:1. For added security, additional screwsmay be installed through HousingAssembly and Mounting Bracket duringStep 2.2. Ensure spring clips “click” duringFaceplate installation.  It may benecessary to rotate Faceplate for properalignment.

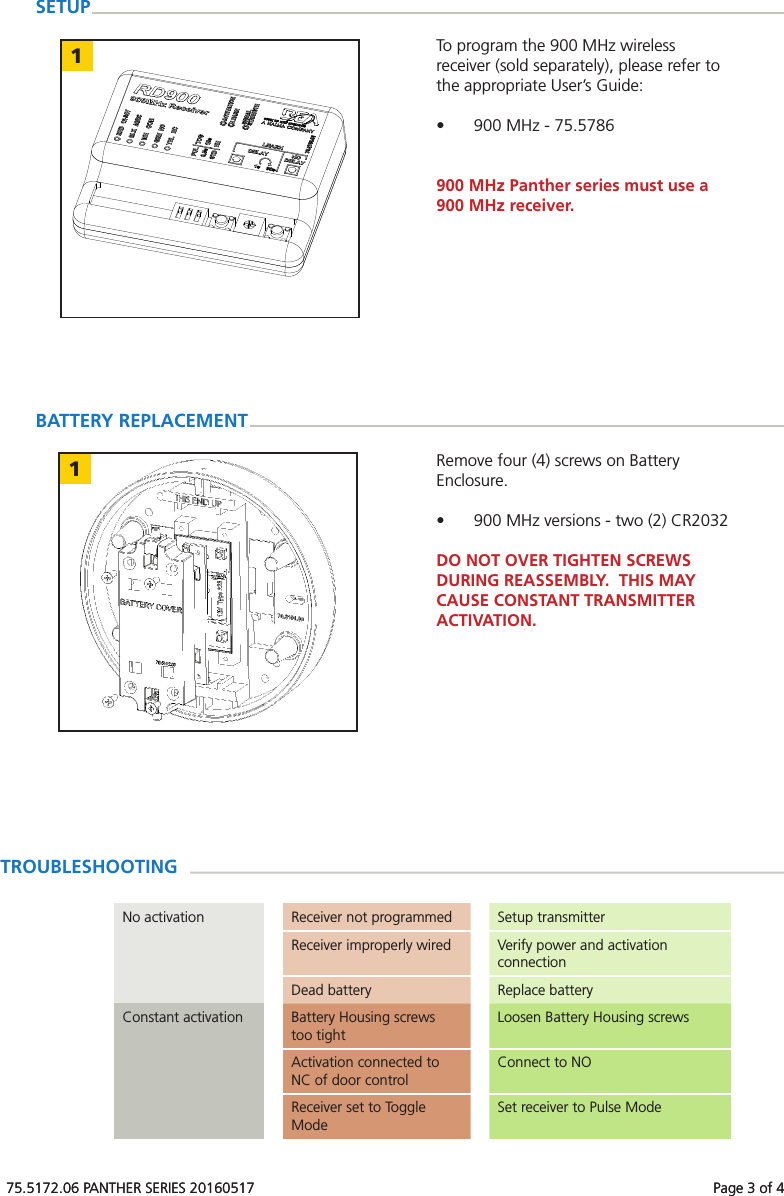

75.5172.06 PANTHER SERIES 20160517  Page 3 of 41175.5172.06 PANTHER SERIES 20160517  Page 3 of 4TROUBLESHOOTINGNo activation Receiver not programmed Setup transmitterReceiver improperly wired Verify power and activation connectionDead battery Replace batteryConstant activation Battery Housing screws too tightLoosen Battery Housing screwsActivation connected to NC of door controlConnect to NOReceiver set to Toggle ModeSet receiver to Pulse ModeSETUPTo program the 900 MHz wireless receiver (sold separately), please refer to the appropriate User’s Guide:• 900 MHz - 75.5786900 MHz Panther series must use a 900 MHz receiver.Remove four (4) screws on Battery Enclosure.• 900 MHz versions - two (2) CR2032DO NOT OVER TIGHTEN SCREWS DURING REASSEMBLY.  THIS MAY CAUSE CONSTANT TRANSMITTER ACTIVATION.BATTERY REPLACEMENT

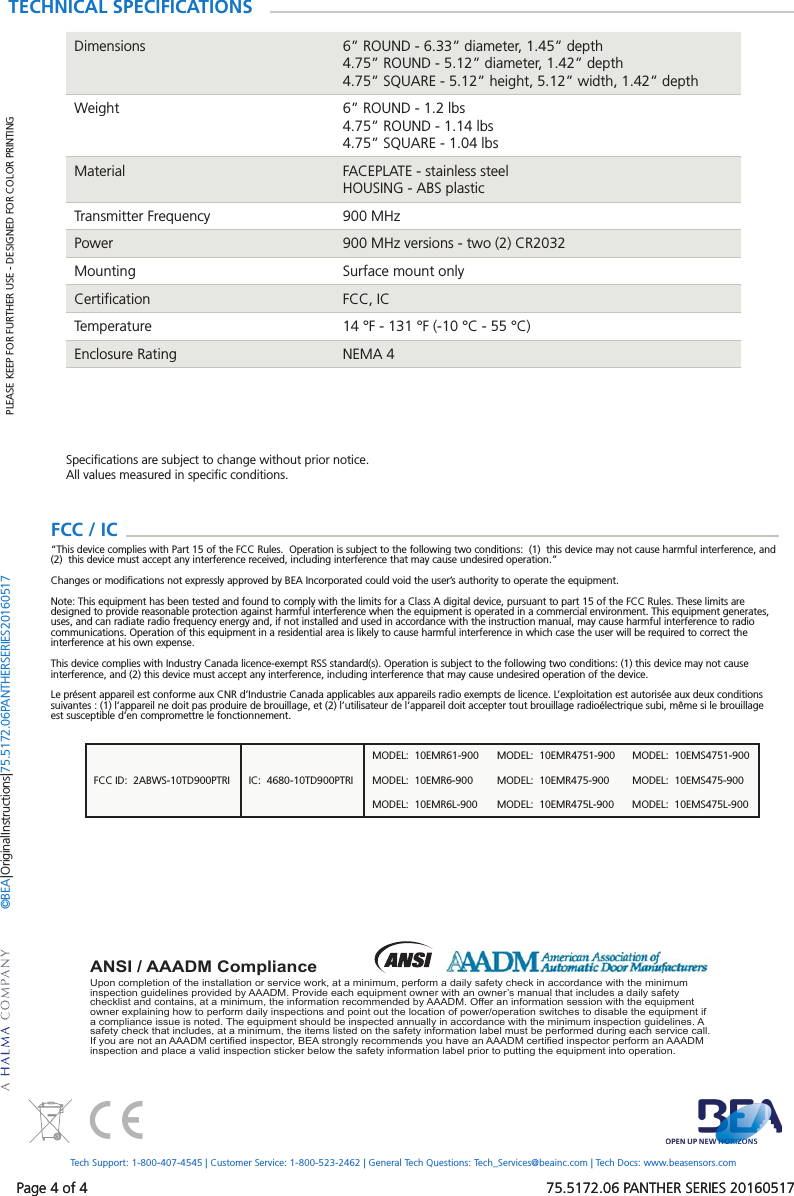

Page 4 of 4   75.5172.06 PANTHER SERIES 20160517FCC ID:  2ABWS-10TD900PTRI IC:  4680-10TD900PTRIMODEL:  10EMR61-900 MODEL:  10EMR4751-900 MODEL:  10EMS4751-900MODEL:  10EMR6-900 MODEL:  10EMR475-900 MODEL:  10EMS475-900MODEL:  10EMR6L-900 MODEL:  10EMR475L-900 MODEL:  10EMS475L-900Page 4 of 4   75.5172.06 PANTHER SERIES 20160517Upon completion of the installation or service work, at a minimum, perform a daily safety check in accordance with the minimum inspection guidelines provided by AAADM. Provide each equipment owner with an owner’s manual that includes a daily safety checklist and contains, at a minimum, the information recommended by AAADM. Offer an information session with the equipment owner explaining how to perform daily inspections and point out the location of power/operation switches to disable the equipment if a compliance issue is noted. The equipment should be inspected annually in accordance with the minimum inspection guidelines. A safety check that includes, at a minimum, the items listed on the safety information label must be performed during each service call. If you are not an AAADM certified inspector, BEA strongly recommends you have an AAADM certified inspector perform an AAADM inspection and place a valid inspection sticker below the safety information label prior to putting the equipment into operation.ANSI / AAADM ComplianceTECHNICAL SPECIFICATIONSDimensions 6” ROUND - 6.33” diameter, 1.45” depth4.75” ROUND - 5.12” diameter, 1.42” depth4.75” SQUARE - 5.12” height, 5.12” width, 1.42” depthWeight 6” ROUND - 1.2 lbs4.75” ROUND - 1.14 lbs4.75” SQUARE - 1.04 lbsMaterial FACEPLATE - stainless steelHOUSING - ABS plasticTransmitter Frequency 900 MHzPower 900 MHz versions - two (2) CR2032Mounting Surface mount onlyCertification FCC, ICTemperature 14 °F - 131 °F (-10 °C - 55 °C)Enclosure Rating NEMA 4Specifications are subject to change without prior notice.All values measured in specific conditions.PLEASE KEEP FOR FURTHER USE - DESIGNED FOR COLOR PRINTING©BEA | Original Instructions | 75.5172.06 PANTHER SERIES 20160517Tech Support: 1-800-407-4545 | Customer Service: 1-800-523-2462 | General Tech Questions: Tech_Services@beainc.com | Tech Docs: www.beasensors.comFCC / IC  “This device complies with Part 15 of the FCC Rules.  Operation is subject to the following two conditions:  (1)  this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”Changes or modifications not expressly approved by BEA Incorporated could void the user’s authority to operate the equipment.Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
