BIT4ID SRL TOKENMECC smartTOKEN ( PKI TOKEN ) User Manual

BIT4ID SRL smartTOKEN ( PKI TOKEN )

User Manual

     Bit4id tokenME User manual

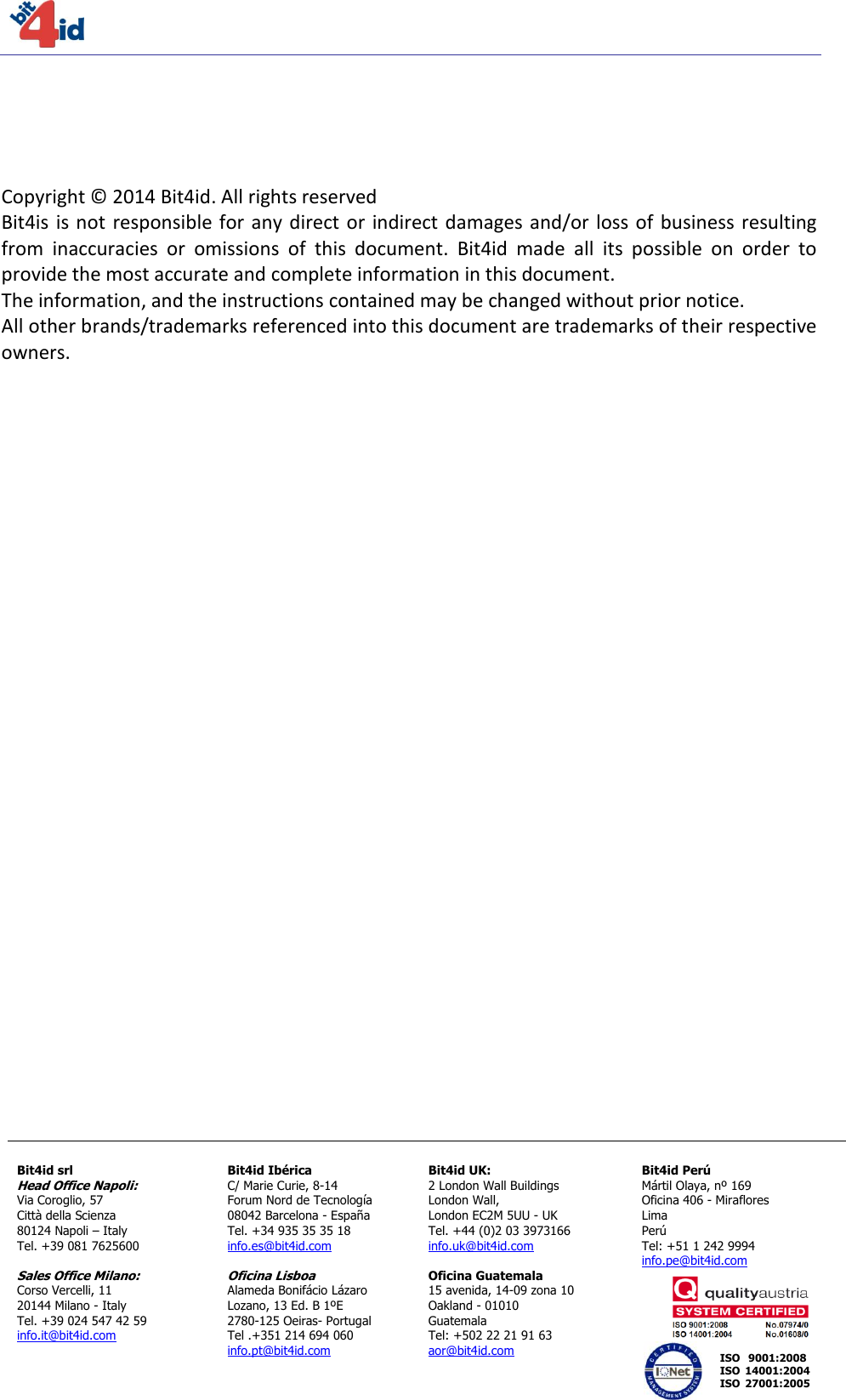

    Bit4id srl Head Office Napoli: Via Coroglio, 57 Città della Scienza  80124 Napoli – Italy Tel. +39 081 7625600  Sales Office Milano: Corso Vercelli, 11 20144 Milano - Italy Tel. +39 024 547 42 59 info.it@bit4id.com Bit4id Ibérica C/ Marie Curie, 8-14 Forum Nord de Tecnología 08042 Barcelona - España Tel. +34 935 35 35 18 info.es@bit4id.com  Oficina Lisboa Alameda Bonifácio Lázaro Lozano, 13 Ed. B 1ºE 2780-125 Oeiras- Portugal Tel .+351 214 694 060 info.pt@bit4id.com  Bit4id UK: 2 London Wall Buildings London Wall,  London EC2M 5UU - UK Tel. +44 (0)2 03 3973166 info.uk@bit4id.com  Oficina Guatemala 15 avenida, 14-09 zona 10 Oakland - 01010  Guatemala Tel: +502 22 21 91 63 aor@bit4id.com  Bit4id Perú Mártil Olaya, nº 169 Oficina 406 - Miraflores Lima Perú Tel: +51 1 242 9994 info.pe@bit4id.com    ISO   9001:2008 ISO  14001:2004 ISO  27001:2005    Copyright © 2014 Bit4id. All rights reserved Bit4is is  not  responsible for any direct or  indirect damages  and/or loss  of business  resulting from  inaccuracies  or  omissions  of  this  document.  Bit4id  made  all  its  possible  on  order  to provide the most accurate and complete information in this document. The information, and the instructions contained may be changed without prior notice. All other brands/trademarks referenced into this document are trademarks of their respective owners.

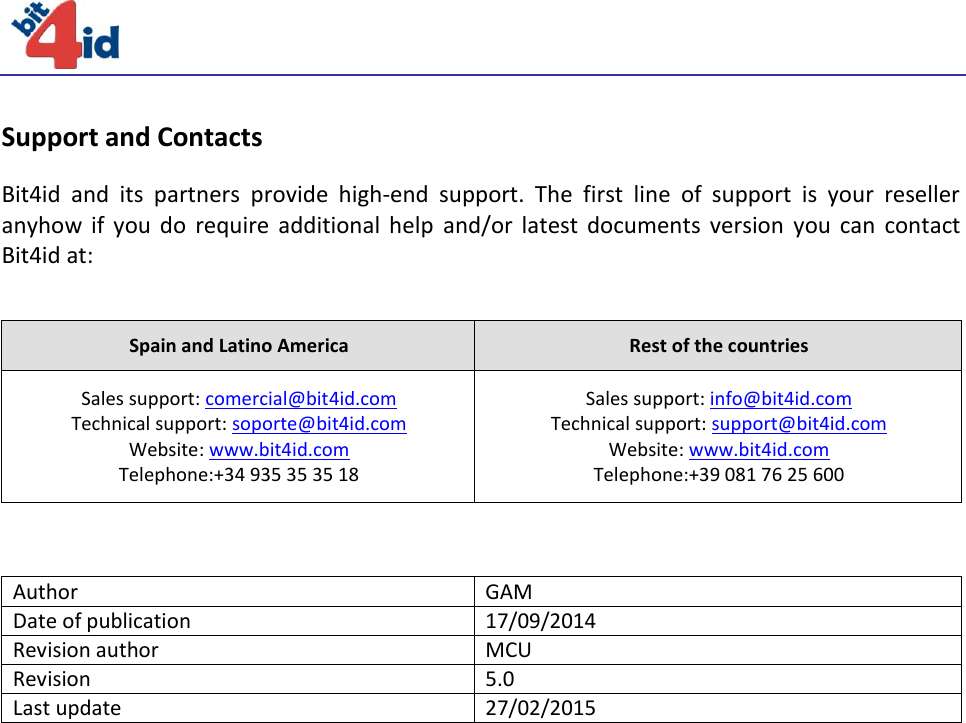

   Support and Contacts Bit4id  and  its  partners  provide  high-end  support.  The  first  line  of  support  is  your  reseller anyhow  if  you  do  require  additional  help  and/or  latest  documents  version  you  can  contact Bit4id at:  Spain and Latino America Rest of the countries Sales support: comercial@bit4id.com Technical support: soporte@bit4id.com Website: www.bit4id.com Telephone:+34 935 35 35 18 Sales support: info@bit4id.com Technical support: support@bit4id.com Website: www.bit4id.com Telephone:+39 081 76 25 600    Author GAM Date of publication 17/09/2014 Revision author MCU Revision 5.0 Last update 27/02/2015

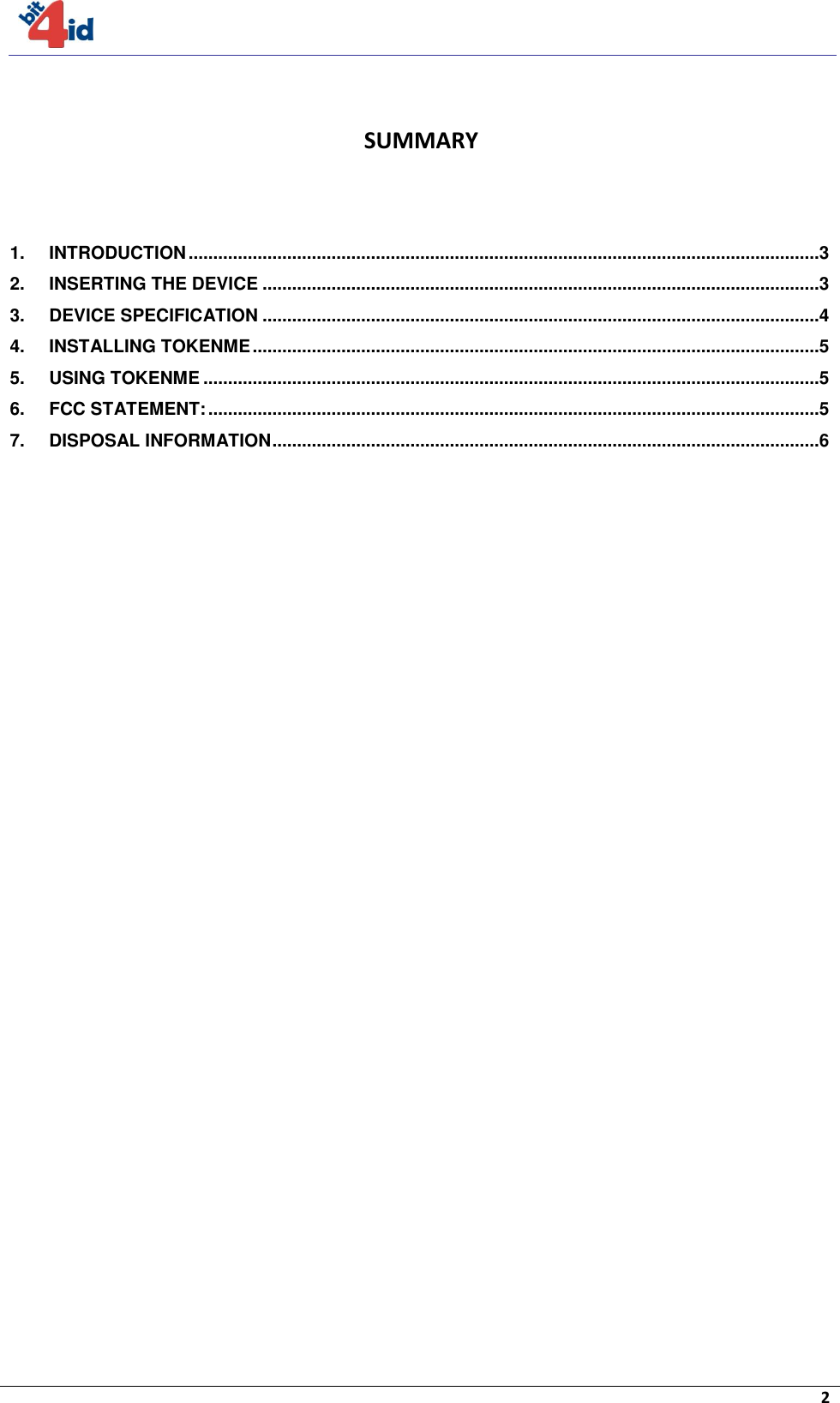

    2   SUMMARY  1. INTRODUCTION ................................................................................................................................3 2. INSERTING THE DEVICE .................................................................................................................3 3. DEVICE SPECIFICATION .................................................................................................................4 4. INSTALLING TOKENME ...................................................................................................................5 5. USING TOKENME .............................................................................................................................5 6. FCC STATEMENT: ............................................................................................................................5 7. DISPOSAL INFORMATION ...............................................................................................................6

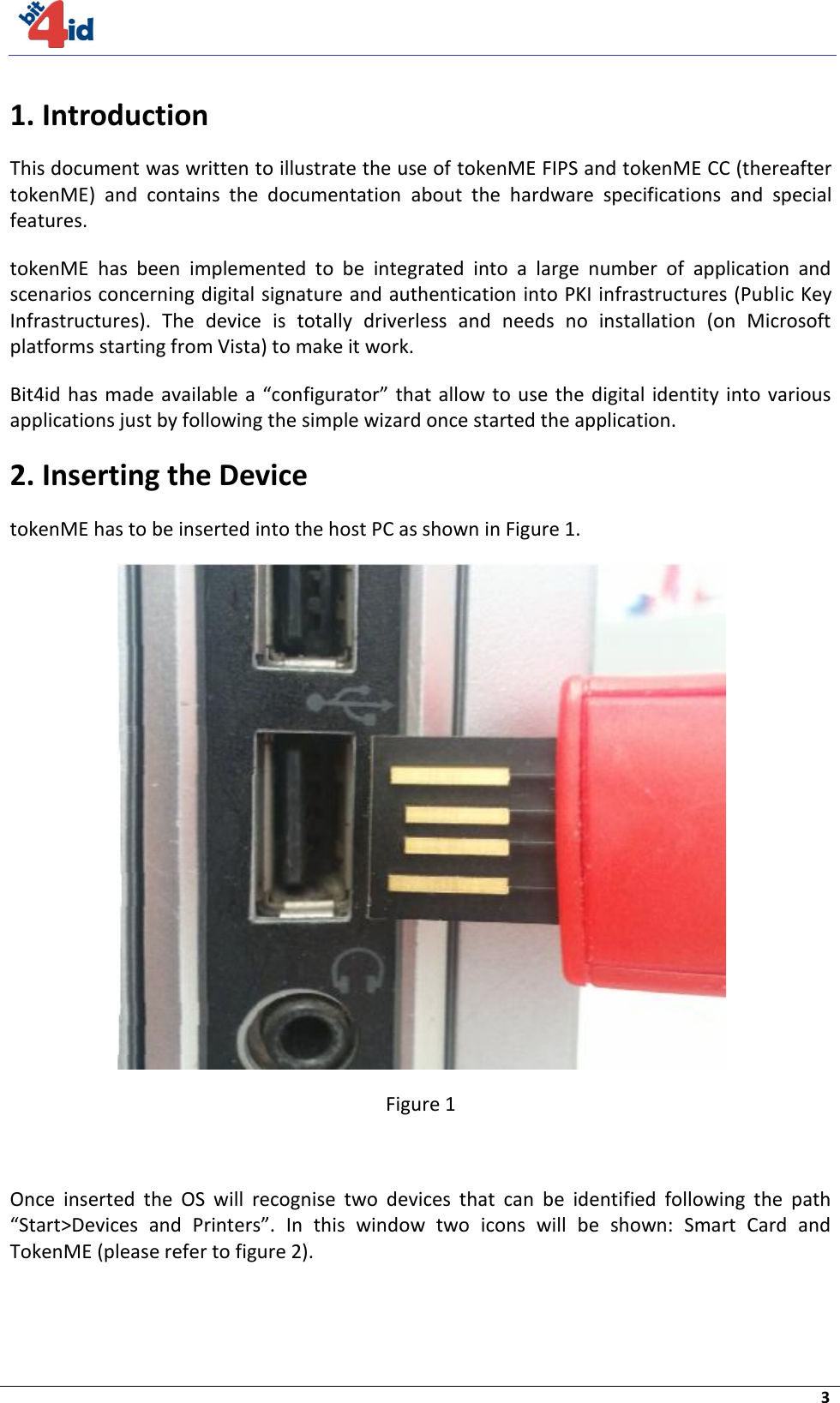

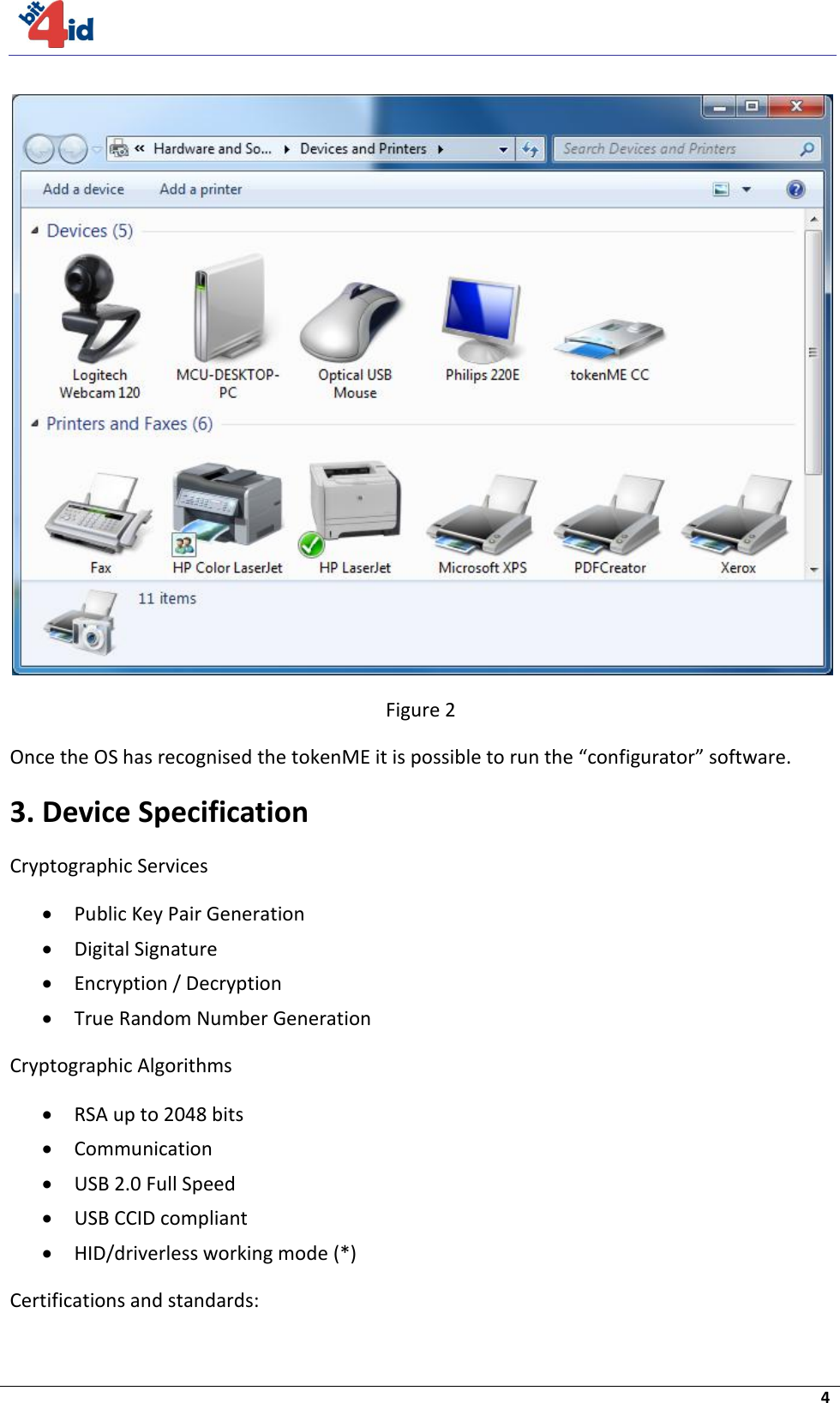

    3  1. Introduction This document was written to illustrate the use of tokenME FIPS and tokenME CC (thereafter tokenME)  and  contains  the  documentation  about  the  hardware  specifications  and  special features. tokenME  has  been  implemented  to  be  integrated  into  a  large  number  of  application  and scenarios concerning digital signature and authentication into PKI infrastructures (Public Key Infrastructures).  The  device  is  totally  driverless  and  needs  no  installation  (on  Microsoft platforms starting from Vista) to make it work. Bit4id has made available a  “configurator”  that allow to  use  the digital identity  into various applications just by following the simple wizard once started the application. 2. Inserting the Device tokenME has to be inserted into the host PC as shown in Figure 1.  Figure 1  Once  inserted  the  OS  will  recognise  two  devices  that  can  be  identified  following  the  path “Start>Devices  and  Printers”.  In  this  window  two  icons  will  be  shown:  Smart  Card  and TokenME (please refer to figure 2).
    4   Figure 2 Once the OS has recognised the tokenME it is possible to run the “configurator” software. 3. Device Specification Cryptographic Services  Public Key Pair Generation  Digital Signature  Encryption / Decryption  True Random Number Generation Cryptographic Algorithms  RSA up to 2048 bits  Communication  USB 2.0 Full Speed  USB CCID compliant  HID/driverless working mode (*) Certifications and standards:

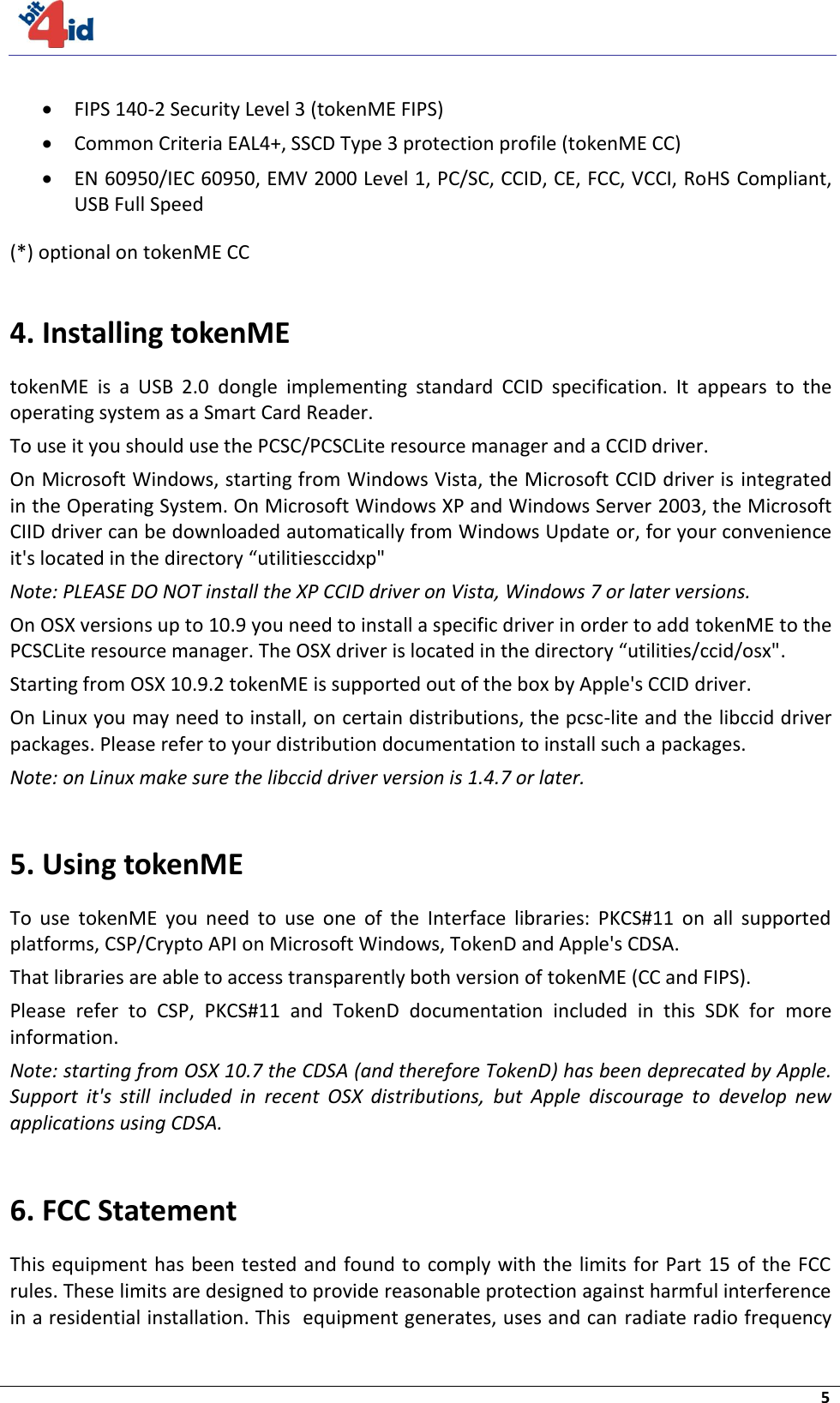

    5   FIPS 140-2 Security Level 3 (tokenME FIPS)  Common Criteria EAL4+, SSCD Type 3 protection profile (tokenME CC)  EN 60950/IEC 60950, EMV 2000 Level 1, PC/SC, CCID, CE, FCC, VCCI, RoHS Compliant, USB Full Speed (*) optional on tokenME CC  4. Installing tokenME tokenME  is  a  USB  2.0  dongle  implementing  standard  CCID  specification.  It  appears  to  the operating system as a Smart Card Reader. To use it you should use the PCSC/PCSCLite resource manager and a CCID driver. On Microsoft Windows, starting from Windows Vista, the Microsoft CCID driver is integrated in the Operating System. On Microsoft Windows XP and Windows Server 2003, the Microsoft CIID driver can be downloaded automatically from Windows Update or, for your convenience it's located in the directory “utilitiesccidxp" Note: PLEASE DO NOT install the XP CCID driver on Vista, Windows 7 or later versions. On OSX versions up to 10.9 you need to install a specific driver in order to add tokenME to the PCSCLite resource manager. The OSX driver is located in the directory “utilities/ccid/osx". Starting from OSX 10.9.2 tokenME is supported out of the box by Apple's CCID driver. On Linux you may need to install, on certain distributions, the pcsc-lite and the libccid driver packages. Please refer to your distribution documentation to install such a packages. Note: on Linux make sure the libccid driver version is 1.4.7 or later.  5. Using tokenME To  use  tokenME  you  need  to  use  one  of  the  Interface  libraries:  PKCS#11  on  all  supported platforms, CSP/Crypto API on Microsoft Windows, TokenD and Apple's CDSA. That libraries are able to access transparently both version of tokenME (CC and FIPS). Please  refer  to  CSP,  PKCS#11  and  TokenD  documentation  included  in  this  SDK  for  more information. Note: starting from OSX 10.7 the CDSA (and therefore TokenD) has been deprecated by Apple. Support  it's  still  included  in  recent  OSX  distributions,  but  Apple  discourage  to  develop  new applications using CDSA.  6. FCC Statement  This equipment has  been tested and found to comply with the limits for Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This  equipment generates, uses and can radiate radio frequency

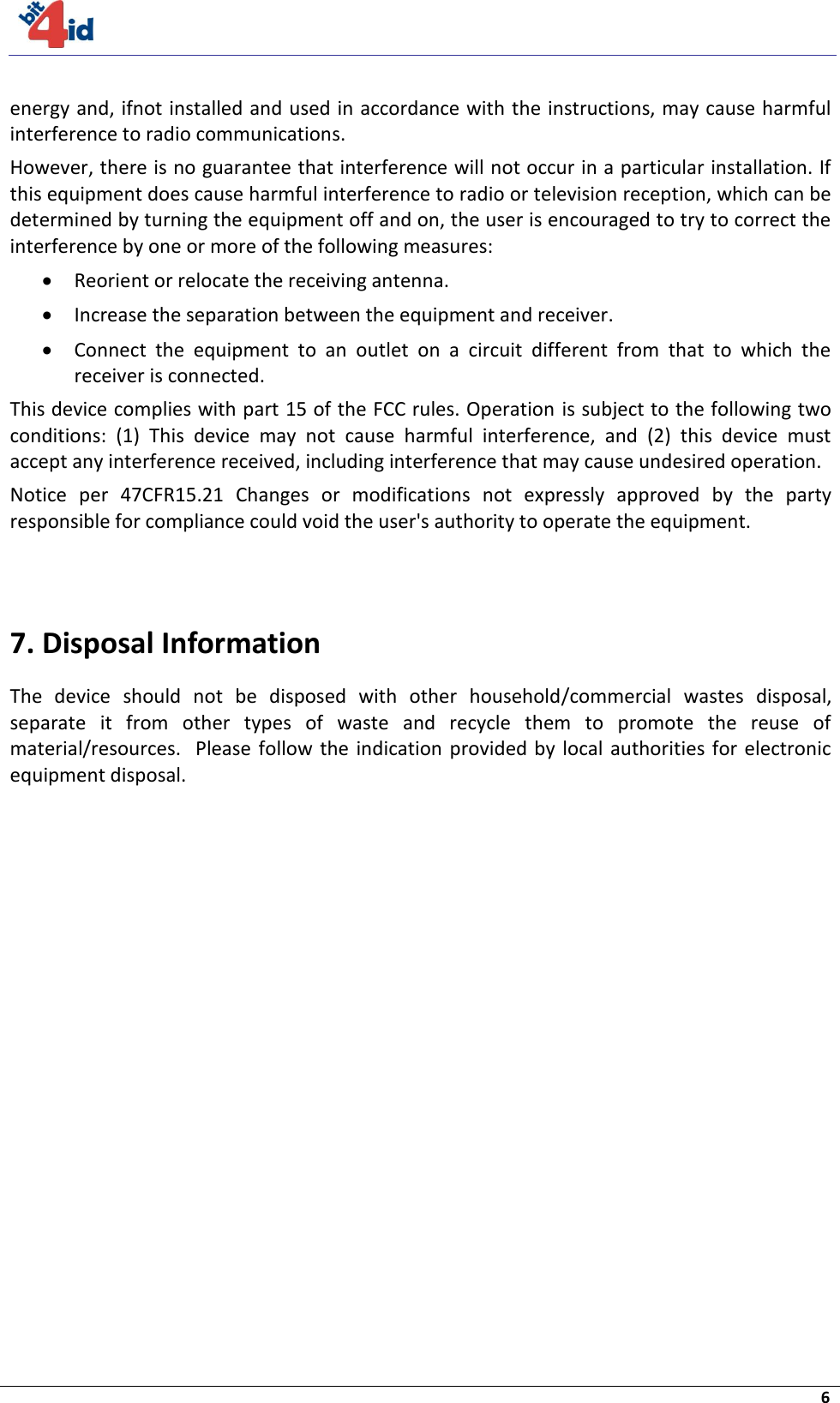

    6  energy and, ifnot installed and used in accordance with the instructions, may cause harmful interference to radio communications.  However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:   Reorient or relocate the receiving antenna.   Increase the separation between the equipment and receiver.   Connect  the  equipment  to  an  outlet  on  a  circuit  different  from  that  to  which  the receiver is connected.  This device complies with part 15 of the FCC rules. Operation  is subject to the following two conditions:  (1)  This  device  may  not  cause  harmful  interference,  and  (2)  this  device  must accept any interference received, including interference that may cause undesired operation. Notice  per  47CFR15.21  Changes  or  modifications  not  expressly  approved  by  the  party responsible for compliance could void the user's authority to operate the equipment.    7. Disposal Information The  device  should  not  be  disposed  with  other  household/commercial  wastes  disposal, separate  it  from  other  types  of  waste  and  recycle  them  to  promote  the  reuse  of material/resources.   Please  follow the  indication  provided by  local  authorities for  electronic equipment disposal.
