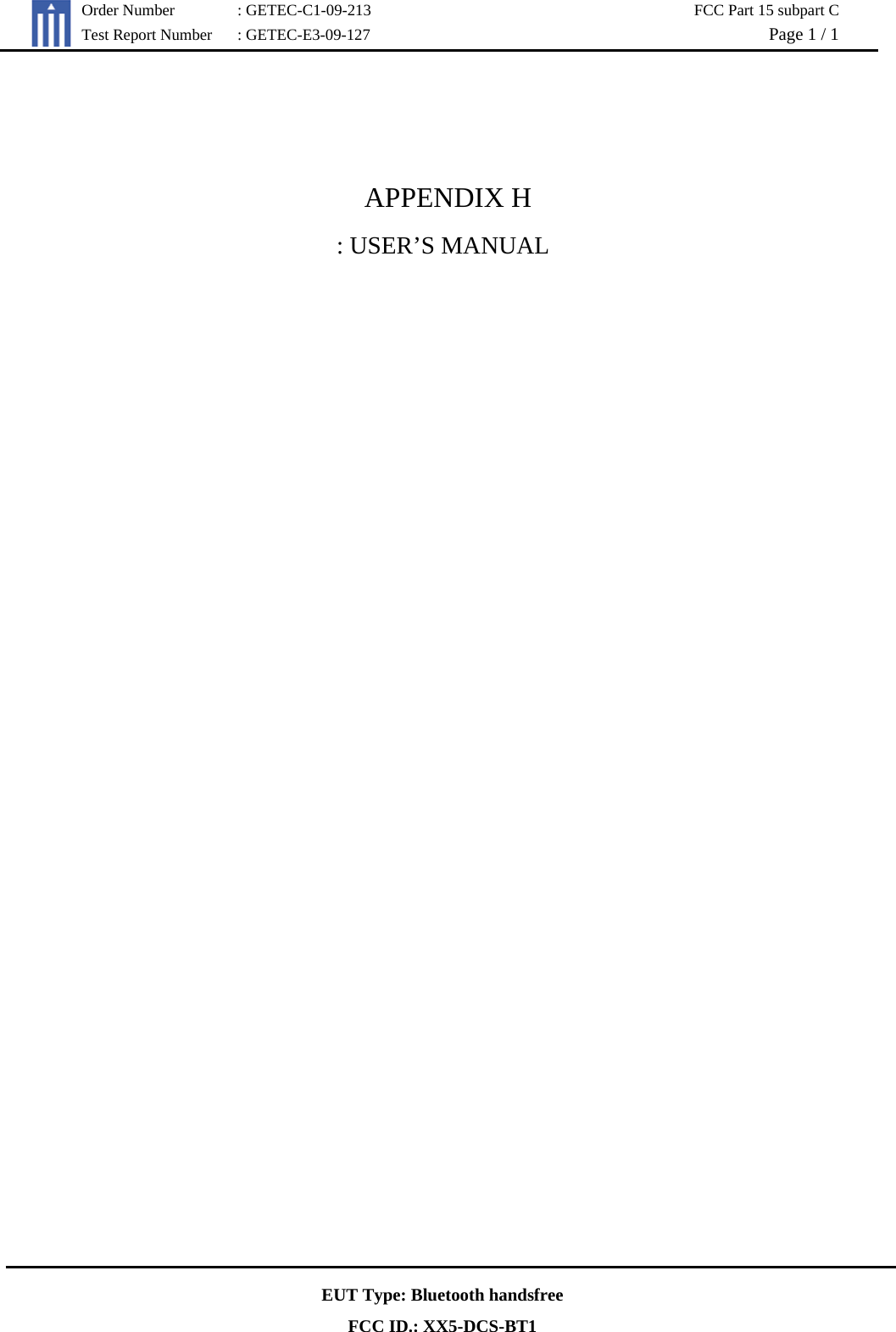

Order Number : GETEC-C1-09-213 FCC Part 15 subpart C Test Report Number : GETEC-E3-09-127 Page 1 / 1 EUT Type: Bluetooth handsfree FCC ID.: XX5-DCS-BT1 APPENDIX H : USER’S MANUAL
Bluetooth HandsfreeALPINE DCS-BT1

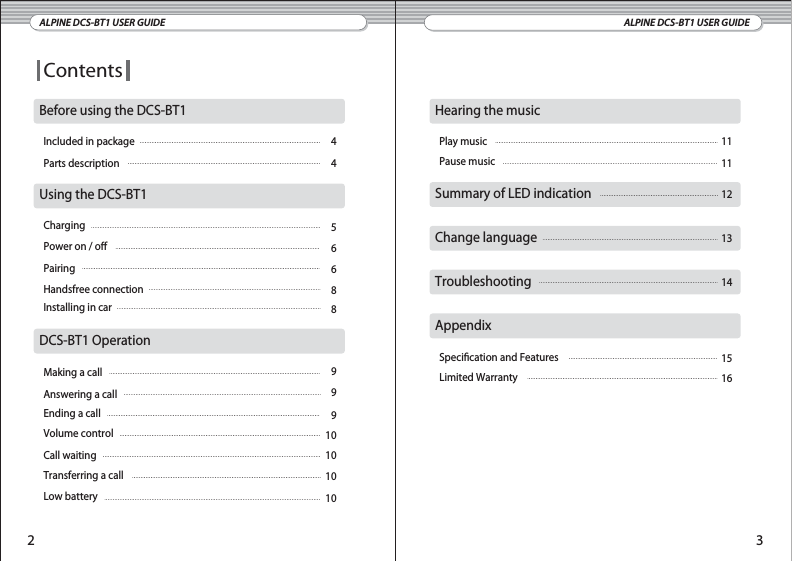

ALPINE DCS-BT1 USER GUIDE ALPINE DCS-BT1 USER GUIDE2 3ContentsIncluded in package 4456699910101010Parts descriptionChargingPower on / oPairing8Handsfree connection8Installing in carMaking a callAnswering a callEnding a callVolume controlCall waitingTransferring a callLow batteryUsing the DCS-BT1Before using the DCS-BT1DCS-BT1 OperationPlay music 111112Pause music15Specication and Features16Limited WarrantySummary of LED indication13Change language14TroubleshootingHearing the musicAppendix

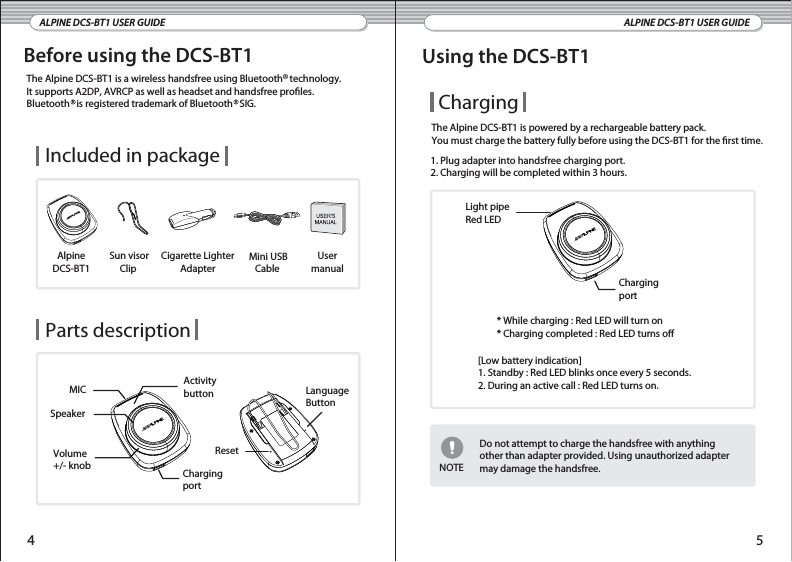

Before using the DCS-BT1ALPINE DCS-BT1 USER GUIDEThe Alpine DCS-BT1 is a wireless handsfree using Bluetooth technology.It supports A2DP, AVRCP as well as headset and handsfree proles. Bluetooth is registered trademark of Bluetooth SIG.Alpine DCS-BT1 Cigarette LighterAdapterUser manual Mini USBCable Sun visorClip Included in package Parts description MICVolume+/- knob ChargingportSpeakerActivitybuttonResetLanguageButtonALPINE DCS-BT1 USER GUIDEUsing the DCS-BT1ChargingThe Alpine DCS-BT1 is powered by a rechargeable battery pack.You must charge the battery fully before using the DCS-BT1 for the rst time.1. Plug adapter into handsfree charging port.2. Charging will be completed within 3 hours.Light pipeRed LEDChargingport* While charging : Red LED will turn on* Charging completed : Red LED turns oNOTE[Low battery indication]1. Standby : Red LED blinks once every 5 seconds.2. During an active call : Red LED turns on. Do not attempt to charge the handsfree with anythingother than adapter provided. Using unauthorized adaptermay damage the handsfree.4 5

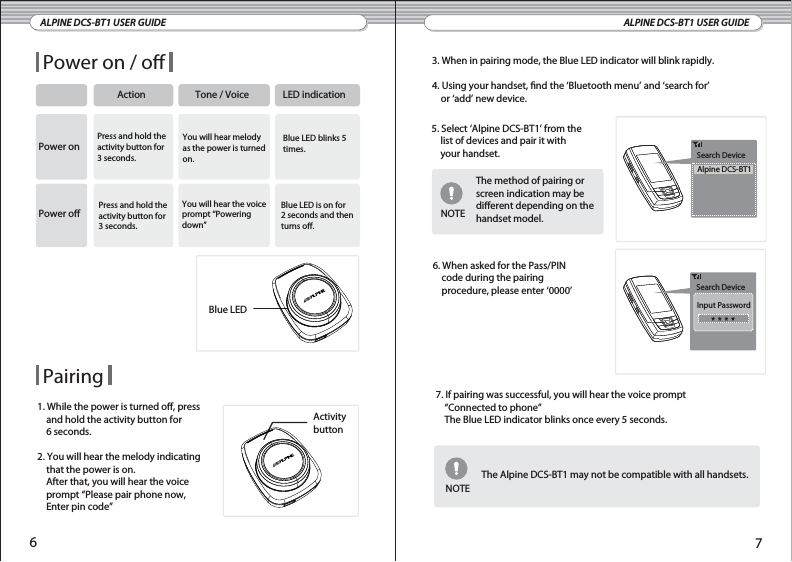

ALPINE DCS-BT1 USER GUIDE ALPINE DCS-BT1 USER GUIDEPower on / oAction Tone / Voice LED indicationPower onPower oPress and hold theactivity button for3 seconds.Press and hold theactivity button for3 seconds.You will hear melodyas the power is turnedon.You will hear the voiceprompt “Powering down”Blue LED blinks 5times.Blue LED is on for2 seconds and thenturns o.1. While the power is turned o, press and hold the activity button for 6 seconds.2. You will hear the melody indicating that the power is on. After that, you will hear the voice prompt “Please pair phone now, Enter pin code”Activitybutton3. When in pairing mode, the Blue LED indicator will blink rapidly.4. Using your handset, nd the ‘Bluetooth menu’ and ‘search for’ or ‘add’ new device.Search DeviceInput PasswordSearch DeviceAlpine DCS-BT15. Select ‘Alpine DCS-BT1’ from the list of devices and pair it with your handset.The method of pairing or screen indication may be dierent depending on the handset model.6. When asked for the Pass/PIN code during the pairing procedure, please enter ‘0000’NOTEThe Alpine DCS-BT1 may not be compatible with all handsets.Pairing67Blue LED7. If pairing was successful, you will hear the voice prompt “Connected to phone” The Blue LED indicator blinks once every 5 seconds.NOTE

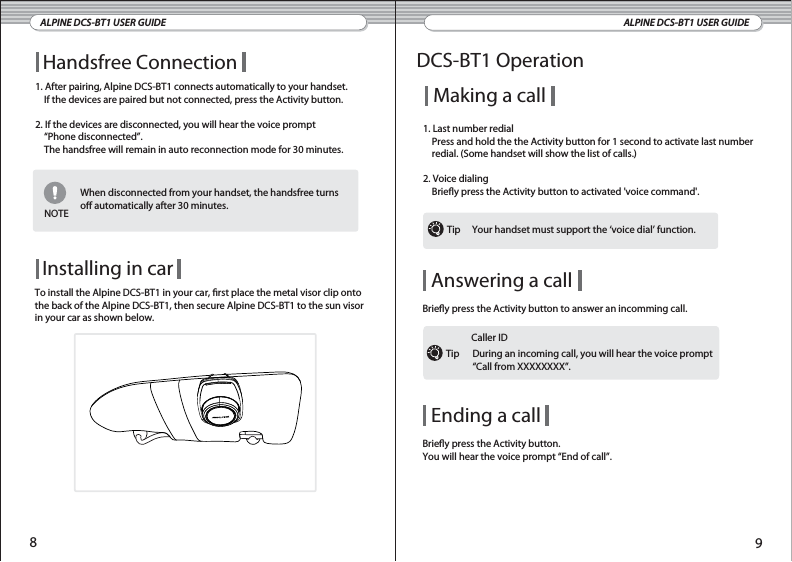

ALPINE DCS-BT1 USER GUIDE ALPINE DCS-BT1 USER GUIDEHandsfree ConnectionTo install the Alpine DCS-BT1 in your car, rst place the metal visor clip onto the back of the Alpine DCS-BT1, then secure Alpine DCS-BT1 to the sun visor in your car as shown below.Installing in car891. After pairing, Alpine DCS-BT1 connects automatically to your handset. If the devices are paired but not connected, press the Activity button.2. If the devices are disconnected, you will hear the voice prompt “Phone disconnected”. The handsfree will remain in auto reconnection mode for 30 minutes.NOTEWhen disconnected from your handset, the handsfree turnso automatically after 30 minutes.DCS-BT1 OperationMaking a call1. Last number redial Press and hold the the Activity button for 1 second to activate last number redial. (Some handset will show the list of calls.)2. Voice dialing Briey press the Activity button to activated 'voice command'.Tip Your handset must support the ‘voice dial’ function.Answering a callBriey press the Activity button to answer an incomming call.Ending a callBriey press the Activity button.You will hear the voice prompt “End of call”.Tip During an incoming call, you will hear the voice prompt “Call from XXXXXXXX”.Caller ID

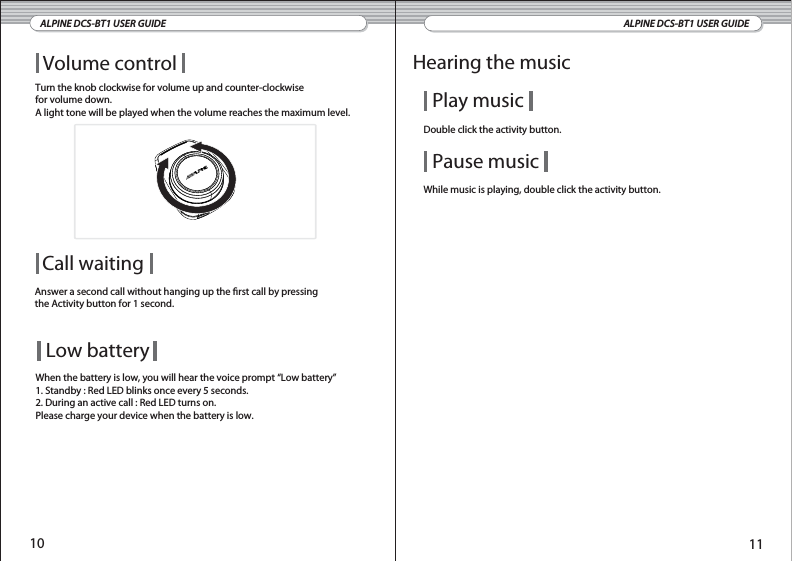

ALPINE DCS-BT1 USER GUIDE ALPINE DCS-BT1 USER GUIDEVolume controlAnswer a second call without hanging up the rst call by pressingthe Activity button for 1 second.Call waiting10 11Turn the knob clockwise for volume up and counter-clockwisefor volume down.A light tone will be played when the volume reaches the maximum level.Low batteryWhen the battery is low, you will hear the voice prompt “Low battery”1. Standby : Red LED blinks once every 5 seconds.2. During an active call : Red LED turns on. Please charge your device when the battery is low.Play musicDouble click the activity button.Hearing the musicPause musicWhile music is playing, double click the activity button.

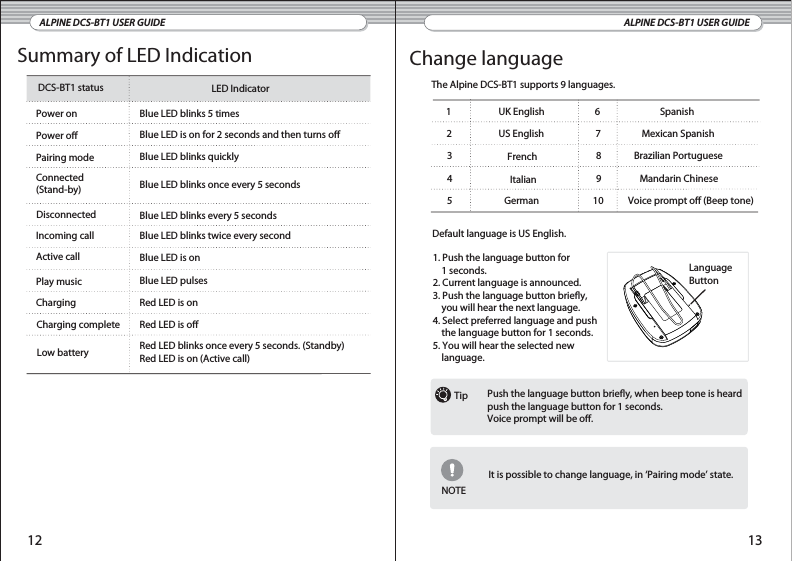

Summary of LED IndicationALPINE DCS-BT1 USER GUIDE ALPINE DCS-BT1 USER GUIDEChange languageThe Alpine DCS-BT1 supports 9 languages. NOTE1. Push the language button for 1 seconds.2. Current language is announced.3. Push the language button briey, you will hear the next language.4. Select preferred language and push the language button for 1 seconds.5. You will hear the selected new language.12 13Blue LED blinks 5 times LED IndicatorDCS-BT1 statusPower onPower oConnected (Stand-by)Pairing modeActive callIncoming callPlay musicCharging Blue LED blinks quicklyBlue LED is on for 2 seconds and then turns oBlue LED blinks once every 5 seconds Disconnected Blue LED blinks every 5 seconds Blue LED blinks twice every second Blue LED is onBlue LED pulses Red LED is on Charging complete Red LED is oLow battery Red LED blinks once every 5 seconds. (Standby)Red LED is on (Active call) UK EnglishUS EnglishFrenchItalianGermanSpanishMexican SpanishBrazilian PortugueseMandarin ChineseVoice prompt o (Beep tone)Default language is US English.12345678910TipIt is possible to change language, in ‘Pairing mode’ state.Push the language button briey, when beep tone is heard push the language button for 1 seconds.Voice prompt will be o.LanguageButton

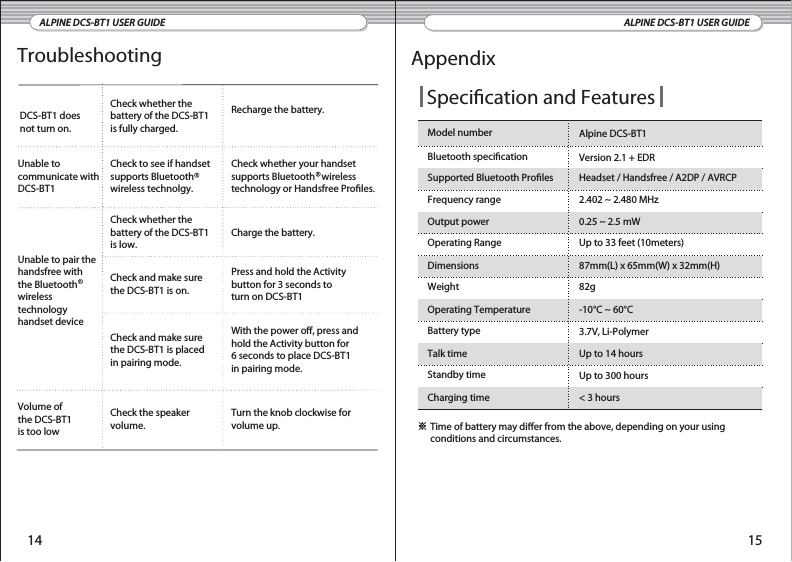

DCS-BT1 doesnot turn on.Unable to communicate withDCS-BT1Check to see if handsetsupports Bluetooth wireless technolgy.Check whether your handset supports Bluetooth wirelesstechnology or Handsfree Proles.Check whether the battery of the DCS-BT1is fully charged.Recharge the battery.Unable to pair the handsfree with the Bluetooth wirelesstechnologyhandset deviceCheck whether the battery of the DCS-BT1is low.Charge the battery.Check and make sure the DCS-BT1 is on.Press and hold the Activity button for 3 seconds to turn on DCS-BT1Check and make surethe DCS-BT1 is placed in pairing mode.With the power o, press and hold the Activity button for 6 seconds to place DCS-BT1 in pairing mode.Check the speaker volume.Turn the knob clockwise forvolume up.Volume of the DCS-BT1 is too lowTroubleshootingALPINE DCS-BT1 USER GUIDE ALPINE DCS-BT1 USER GUIDE14 15 AppendixVersion 2.1 + EDRHeadset / Handsfree / A2DP / AVRCP2.402 ~ 2.480 MHz0.25 ~ 2.5 mW82g Up to 33 feet (10meters) 3.7V, Li-Polymer-10°C ~ 60°CUp to 14 hoursUp to 300 hours< 3 hoursAlpine DCS-BT1Bluetooth specicationSupported Bluetooth ProlesOutput powerFrequency rangeOperating RangeWeight87mm(L) x 65mm(W) x 32mm(H) DimensionsOperating TemperatureBattery typeTalk timeStandby timeCharging time Time of battery may dier from the above, depending on your usingconditions and circumstances.Specication and FeaturesModel number

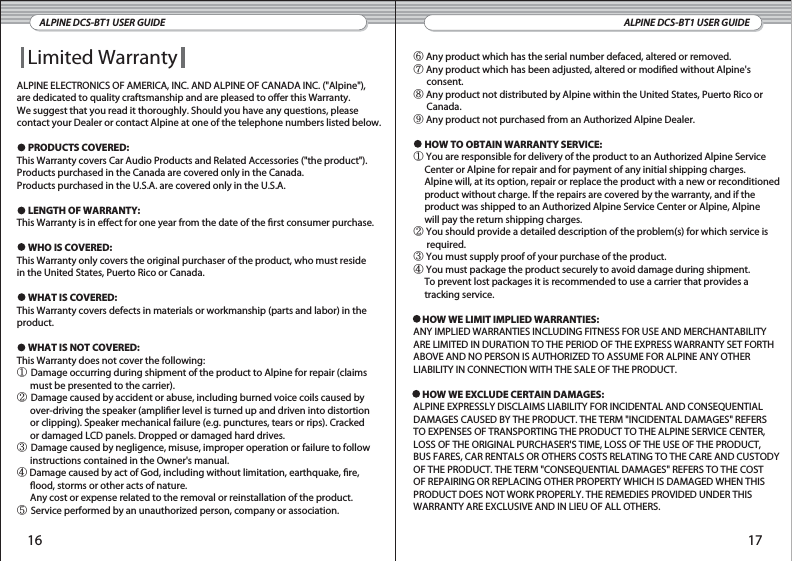

ALPINE DCS-BT1 USER GUIDE ALPINE DCS-BT1 USER GUIDE16 17Limited WarrantyALPINE ELECTRONICS OF AMERICA, INC. AND ALPINE OF CANADA INC. ("Alpine"), are dedicated to quality craftsmanship and are pleased to oer this Warranty. We suggest that you read it thoroughly. Should you have any questions, please contact your Dealer or contact Alpine at one of the telephone numbers listed below. PRODUCTS COVERED:This Warranty covers Car Audio Products and Related Accessories ("the product"). Products purchased in the Canada are covered only in the Canada. Products purchased in the U.S.A. are covered only in the U.S.A. LENGTH OF WARRANTY:This Warranty is in eect for one year from the date of the rst consumer purchase. WHO IS COVERED:This Warranty only covers the original purchaser of the product, who must reside in the United States, Puerto Rico or Canada. WHAT IS COVERED:This Warranty covers defects in materials or workmanship (parts and labor) in the product. WHAT IS NOT COVERED:This Warranty does not cover the following:① Damage occurring during shipment of the product to Alpine for repair (claims must be presented to the carrier).② Damage caused by accident or abuse, including burned voice coils caused by over-driving the speaker (amplier level is turned up and driven into distortion or clipping). Speaker mechanical failure (e.g. punctures, tears or rips). Cracked or damaged LCD panels. Dropped or damaged hard drives.③ Damage caused by negligence, misuse, improper operation or failure to follow instructions contained in the Owner's manual.④ Damage caused by act of God, including without limitation, earthquake, re, ood, storms or other acts of nature. Any cost or expense related to the removal or reinstallation of the product.⑤ Service performed by an unauthorized person, company or association.⑥ Any product which has the serial number defaced, altered or removed.⑦ Any product which has been adjusted, altered or modied without Alpine's consent.⑧ Any product not distributed by Alpine within the United States, Puerto Rico or Canada.⑨ Any product not purchased from an Authorized Alpine Dealer. HOW TO OBTAIN WARRANTY SERVICE:① You are responsible for delivery of the product to an Authorized Alpine Service Center or Alpine for repair and for payment of any initial shipping charges. Alpine will, at its option, repair or replace the product with a new or reconditioned product without charge. If the repairs are covered by the warranty, and if the product was shipped to an Authorized Alpine Service Center or Alpine, Alpine will pay the return shipping charges.② You should provide a detailed description of the problem(s) for which service is required.③ You must supply proof of your purchase of the product.④ You must package the product securely to avoid damage during shipment. To prevent lost packages it is recommended to use a carrier that provides a tracking service. HOW WE LIMIT IMPLIED WARRANTIES:ANY IMPLIED WARRANTIES INCLUDING FITNESS FOR USE AND MERCHANTABILITY ARE LIMITED IN DURATION TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE AND NO PERSON IS AUTHORIZED TO ASSUME FOR ALPINE ANY OTHERLIABILITY IN CONNECTION WITH THE SALE OF THE PRODUCT. HOW WE EXCLUDE CERTAIN DAMAGES:ALPINE EXPRESSLY DISCLAIMS LIABILITY FOR INCIDENTAL AND CONSEQUENTIAL DAMAGES CAUSED BY THE PRODUCT. THE TERM "INCIDENTAL DAMAGES" REFERS TO EXPENSES OF TRANSPORTING THE PRODUCT TO THE ALPINE SERVICE CENTER, LOSS OF THE ORIGINAL PURCHASER'S TIME, LOSS OF THE USE OF THE PRODUCT, BUS FARES, CAR RENTALS OR OTHERS COSTS RELATING TO THE CARE AND CUSTODY OF THE PRODUCT. THE TERM "CONSEQUENTIAL DAMAGES" REFERS TO THE COST OF REPAIRING OR REPLACING OTHER PROPERTY WHICH IS DAMAGED WHEN THIS PRODUCT DOES NOT WORK PROPERLY. THE REMEDIES PROVIDED UNDER THIS WARRANTY ARE EXCLUSIVE AND IN LIEU OF ALL OTHERS.

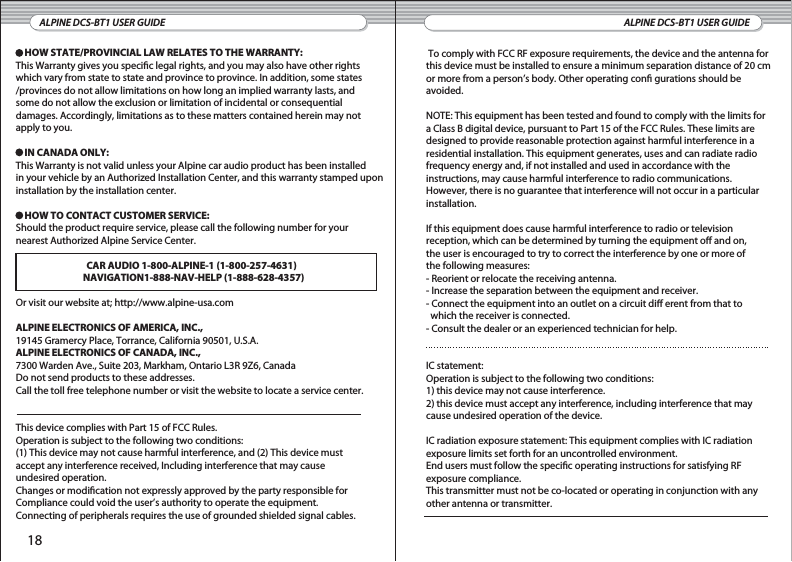

ALPINE DCS-BT1 USER GUIDE ALPINE DCS-BT1 USER GUIDE18 To comply with FCC RF exposure requirements, the device and the antenna for this device must be installed to ensure a minimum separation distance of 20 cmor more from a person’s body. Other operating con gurations should be avoided. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit di erent from that to which the receiver is connected. - Consult the dealer or an experienced technician for help. IC statement: Operation is subject to the following two conditions: 1) this device may not cause interference. 2) this device must accept any interference, including interference that may cause undesired operation of the device. IC radiation exposure statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specic operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. HOW STATE/PROVINCIAL LAW RELATES TO THE WARRANTY: This Warranty gives you specic legal rights, and you may also have other rights which vary from state to state and province to province. In addition, some states/provinces do not allow limitations on how long an implied warranty lasts, and some do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, limitations as to these matters contained herein may notapply to you. IN CANADA ONLY:This Warranty is not valid unless your Alpine car audio product has been installed in your vehicle by an Authorized Installation Center, and this warranty stamped uponinstallation by the installation center. HOW TO CONTACT CUSTOMER SERVICE:Should the product require service, please call the following number for your nearest Authorized Alpine Service Center. CAR AUDIO 1-800-ALPINE-1 (1-800-257-4631) NAVIGATION1-888-NAV-HELP (1-888-628-4357)Or visit our website at; http://www.alpine-usa.comALPINE ELECTRONICS OF AMERICA, INC., 19145 Gramercy Place, Torrance, California 90501, U.S.A.ALPINE ELECTRONICS OF CANADA, INC., 7300 Warden Ave., Suite 203, Markham, Ontario L3R 9Z6, CanadaDo not send products to these addresses.Call the toll free telephone number or visit the website to locate a service center.This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, Including interference that may cause undesired operation. Changes or modication not expressly approved by the party responsible for Compliance could void the user’s authority to operate the equipment. Connecting of peripherals requires the use of grounded shielded signal cables.
