BNCOM SMART-BLU Bluetooth dongle User Manual EMISSION TEST REPORT
BNCOM Co.,Ltd Bluetooth dongle EMISSION TEST REPORT
BNCOM >
user manual
Order Number
: GETEC-C1-12-239
FCC Part 15 subpart C
Test Report Number
: GETEC-E3-12-085
Page 1 / 1
EUT Type: Bluetooth dongle
FCC ID.: XX5SMART-BLU
APPENDIX H
: USER’S MANUAL
Smart BLU Manual
BnCOM Co., Ltd.
[Contents]
Prior to use
Discover packing
Connect to PC
How to use
Install program
Connect device
Connect bluetooth
Automatic connection
Set the class
Select language
Switch Hot key
Appendix
Specification and characteristic
Useful information
Safety advice
Guide to PL(Product liability)
Guarantee certificate
Prio
r
Applyin
g
[packin
g

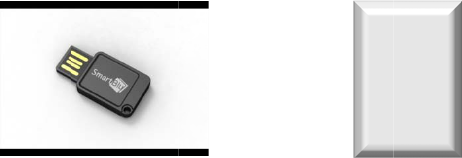

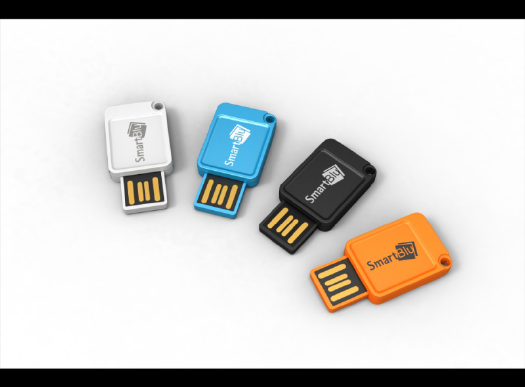

Smart
B
[Conne
c
Smart
B
If you a
direct c
o
r to u
s
g
Smart BL
U
g
content]
B
LU (dongle)
c
t to PC]
B
LU product
s
re using a
U
o
nnection t
o
s
e
U
Bluetooth
t
1EA
s
used with
a
U
SB Hub as
a
o
.
t
echnology
User M
a
a
PC conne
c
a
matter of
s
M
B
n
PC Connect
e
a
nual 1EA
c
ted to the
P
sometimes
d
anual
n
COM
e
d to a devi
P
C’s USB po
d
oes not w
o
ce that is u
s
r
t is used b
y
o
rk, so if, PC
s
ed as a PC
y
mounting.
USB, pleas
e
product.
e
use the
How to use
[How to install program]
Insert CD into PC as the picture hereunder indicates then the program starts automatically. Some
PC may not start program automatically. If so, click install file in CD.

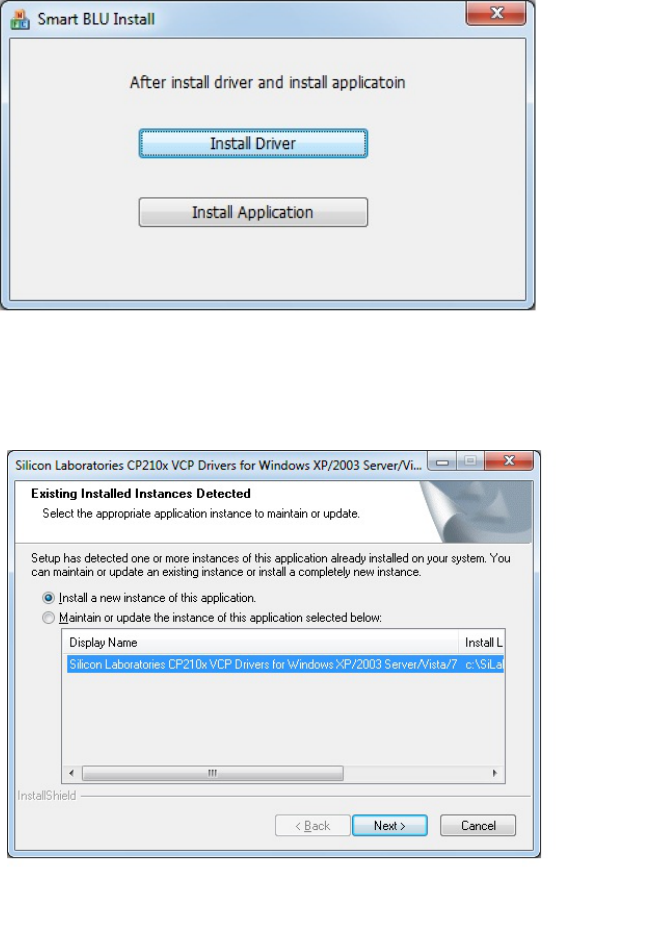

Install program after installing driver first. Push driver and the picture below will show up.
Now push “Next” button to install.

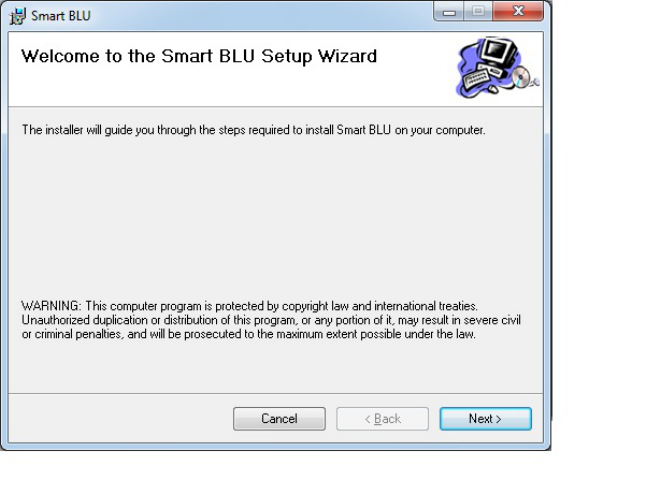

Push program button then the picture below will show up.
Push “Next” button to install
[Connecting devices]

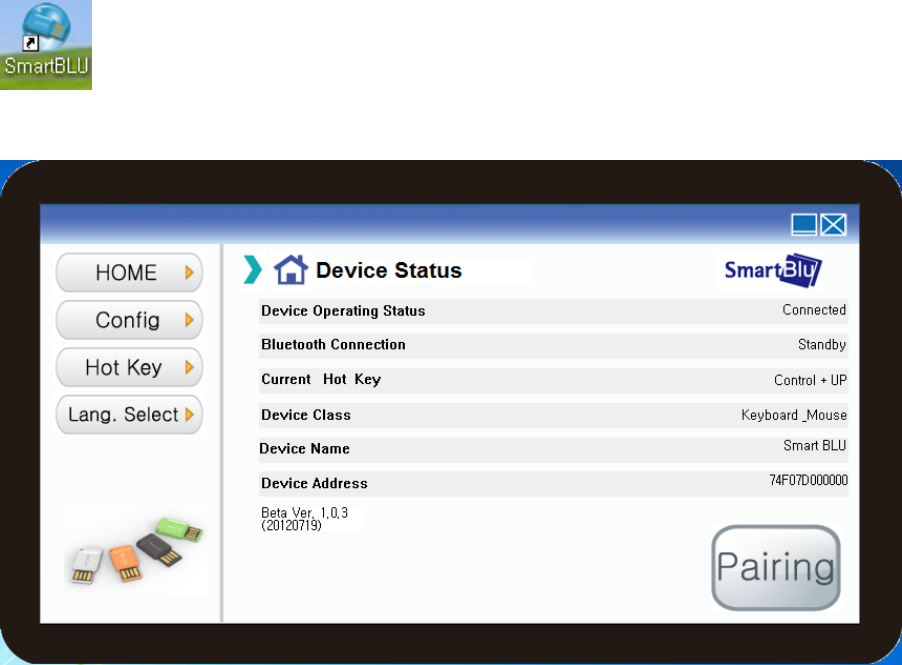

Icon will appear on the screen upon completion of installation.
Click the icon to start program as follows (Dongle must be connected)
-. Device is in operation
Dongle connection will be indicated. If connected properly. “connected” will be indicated.
If not connected. “unconnected” will be indicated.
-. Connecting bluetooth
Indicate connection to Bluetooth. Unless choosing “automatic connection” dongle will always be
on the “waiting” status. In case of waiting for connection “waiting” will be indicated.
When connected “connected” sign will show up.
-. Current Hot Key
Use for changed control PC and smart
-. Choosing a device
User can choose one of the three: keyboard, mouse, or keyboard & mouse.
Choose on of the above that fits to the class of smart device. See manual of the smart device to
choose right one.
-. Device name
User can change Smart BLU. Smart BLU is named when shipping out from factory.
User may change the name with any name user likes to change.
-. Address of the device
Indicated address is MAC Address of Smart BLU
[Specification and characteristics]
Specific Bluetooth Version 3.0
Support Profile HID Profile
Frequency range 2.402 ~ 2.480 GHz (79 channel)
Radio range Up to 10m
Operating temperature -10 ~ 60 degree
Modulation system GFSK
[Useful Information]
1. Operating method and available functions varies depending on the species of smart phone.
Refer to the manual of the equipment
2. Smart BLU may not be connected well to smart phones. In such a case, distance between two
equipment may be too far to connect, or smart phone may not match to Smart BLU.
3. Smart BLU does not support music streaming of smart phone, multi media, and audio related
functions.
4. Radio interference from other equipment may cause malfunction or noise, etc.
Bluetooth may raise radio interference with low power wireless equipment such as any industrial,
scientific, medical equipment, microwave oven, wireless lan which use same range of radio
frequency, Keep minimum 5m off Bluetooth equipment to avoid radio interference.
5. User environment may cause malfunction or noise. In case user’s body disturbes transmission of
signal, equipment may malfunction or make noise. In case a part of user’s body like a hand
touch data sink or transmitting part of smart phones or Smart BLU, user may face malfunction
. Depending on the location of Smart BLU such as wall side, corner, partition that blocks radio
transmission, Smart BLU may not be connected well.
[safety advice]
Be careful when connecting to PC
-. Connect only to USB port of PC
-. Placing under hot temperature or heating Smart BLU may cause break down or
explosion
-. Keep off from water. Parts or circuit may damage Smart BLU.
-. Protect Smart BLU from children or pet who may be biting or sucking.
Use publicly approved equipment
-. Unless using equipment publicly approved, safety and performance of the equipment
will not be guaranteed.
User should not modify, dismantle or repair by himself
-. Repair should be done by service center.
-. Free repairing after-service will not be available in case equipment was modified,
dismantled, or repaired before user visit service center.
Do not operate near microwave oven or wireless lan.
-. Same range of radio may cause malfunction or damage to performance.
** As wireless operation of Smart BLU may cause radio interference, do not use for a
service that is related to safety of human life.
[PL(Product liability) for customers]
Type of customer claims After-service / Compensation
Within guarantee
period
Alter guarantee
period
Troubles in
performance and
functions while
using in normal
conditions (within
period when parts
are available)
Major repair within 10 days
from purchasing
Replace with new
product or
reimbursement
Not applicable
Major repair within a month
from purchasing
Replace with new
product
Major repair of replaced
product within a month
Reimbursement of
price
Product unable to replace
defect Free repair
Defect after repair Replace or
reimburse
Defect repeated 4 times
Unable to repair
Unable to repair in lack of
parts
Reimburse 110% of
remaining value
after depreciation
Lost by service center of
repairable product
Damage during transportation
or installation
replace Not applicable
소비자의 고의 및
과실로 인한 고장
발생 시
In case of repairable Repair with charge Repair with charge
In case un-repairable in lack of
parts
Replace with new
product at repairing
price
[Guarantee certificate]
Smart BLU
Customer Name Tel
Address
Serial No
Date of purchase Sales agent address / Tel.
Year Month day
Guarantee period 1 year form the
date of purchasing
-. Terms and conditions for after-service
Customer is entitled to get free after-service for 1 year form the date of purchasing in case of
breakdown while using the equipment, However, in case the breakdown happened by mistakes of
the customer or by a natural disaster, after-service will be charged to the customer.
Customer should show this guarantee certificate which indicate purchasing date when customer
need to get after-service. Keep this certificate without fail.
1. Quality of smart BLU shall be guaranteed as per guaranteed certificate.
2. Put purchasing date on the guarantee certificate to get free after-service for one year.
-. Free after-service
1. Free after-service is guaranteed for a breakdown or disorder that happened while using in
normal condition during free service period.
2. Guarantee period shall be halved in case of using in heavy duty for business.
-. After-service with repairing charge
After-service for the following cases shall be charged to customers even during free-service
period:
1. Breakdown due to contamination
2. Breakdown or disorder due to drop down of the equipment.
3. Disorder or deforming caused by thinner, Benzene, other oily solution.
4. Breakdown caused by repairing with parts that are not publicly approved.
5. Breakdown of parts or lost of parts due to dismantle by user.
6. Breakdown by repairing unauthorized person other than engineers from authorized service
center.
7. Breakdown by a natural disaster.
8. Breakdown cause by not following “safety advice” in the manual.
9. End of part’life
10. Other case of breakdown caused by mistakes of a user
A/S and technical support
Customer service : 070-8274-8901 (Mon ` Fri 09:00 ~ 18:00)
Address : 4th floor Sumir Bldg 974-5 Dangjeong-dong, Gunpo city, Kyoungki-do
BnCOM Co., Ltd
Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
● Consult the dealer or an experienced radio/TV technician for help.
WARNING!
Changes or modifications not expressly approved by the manufacturer could void the user's
authority to operate the equipment.
Note: The manufacturer is not responsible for any Radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user's authority
to operate the equipment.
FCC NOTICE TO USERS
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the authority to operate equipment.
IMPORTANT NOTE
According to the KDB447498 (3)(b)(c), The output power is lower than 25 mW for any
simultaneous transmitting antenna for which stand-alone SAR evaluation is not required. This
equipment complies with FCC radiation exposure. Any change to the antenna or the device could
result in the device exceeding the RF exposure requirements and voik user's authority to operate
the device
