BRIGHT DRAGON TECHNOLOGY BH-03 Bluetooth® stereo Headset User Manual Manual

BRIGHT DRAGON TECHNOLOGY LIMITED Bluetooth® stereo Headset Manual

User Manual

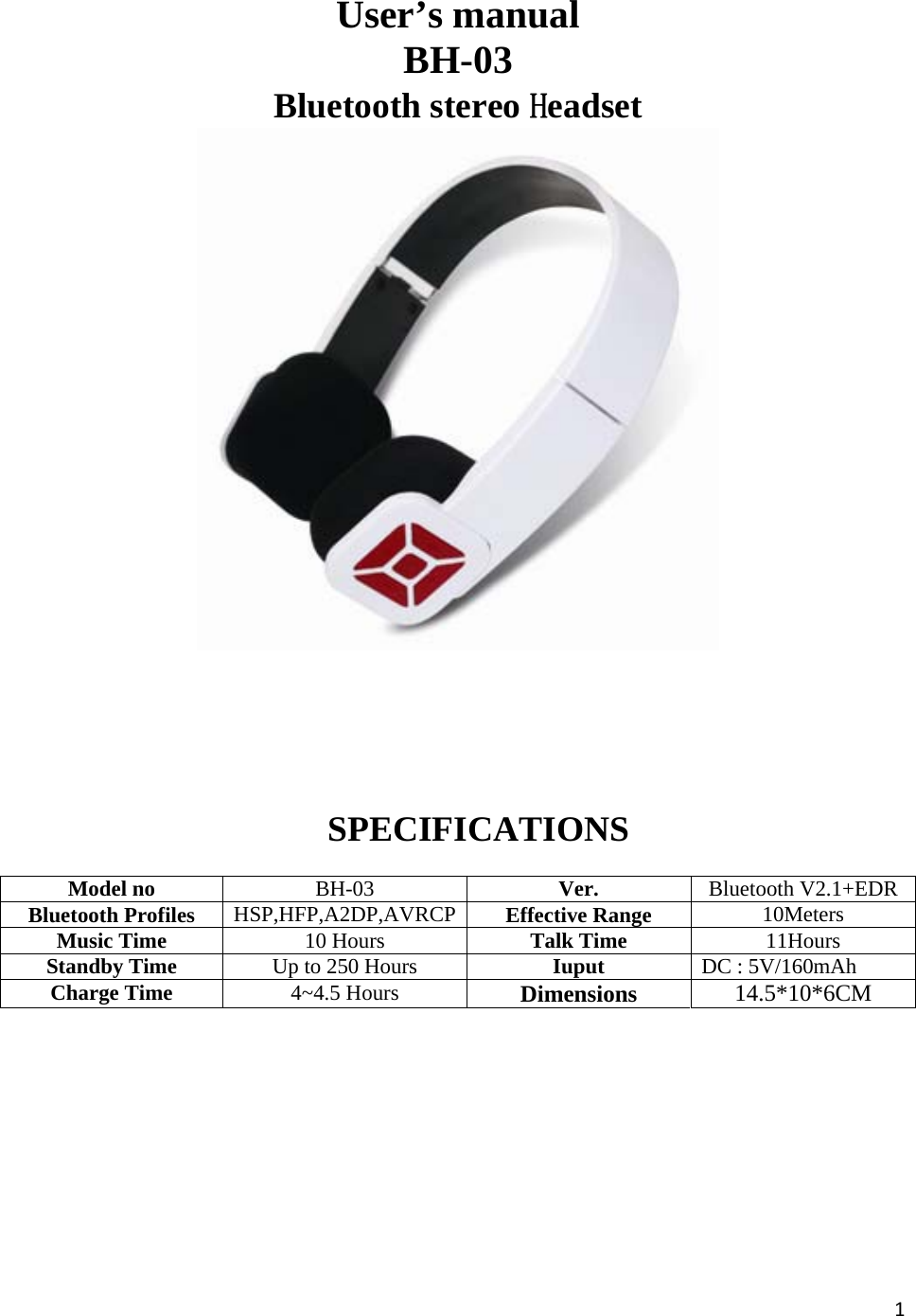

1 User’s manual BH-03 Bluetooth stereo Headset SPECIFICATIONS Model no BH-03 Ver. Bluetooth V2.1+EDRBluetooth Profiles HSP,HFP,A2DP,AVRCP Effective Range 10Meters Music Time 10 Hours Talk Time 11Hours Standby Time Up to 250 Hours Iuput DC : 5V/160mAh Charge Time 4~4.5 Hours Dimensions 14.5*10*6CM 

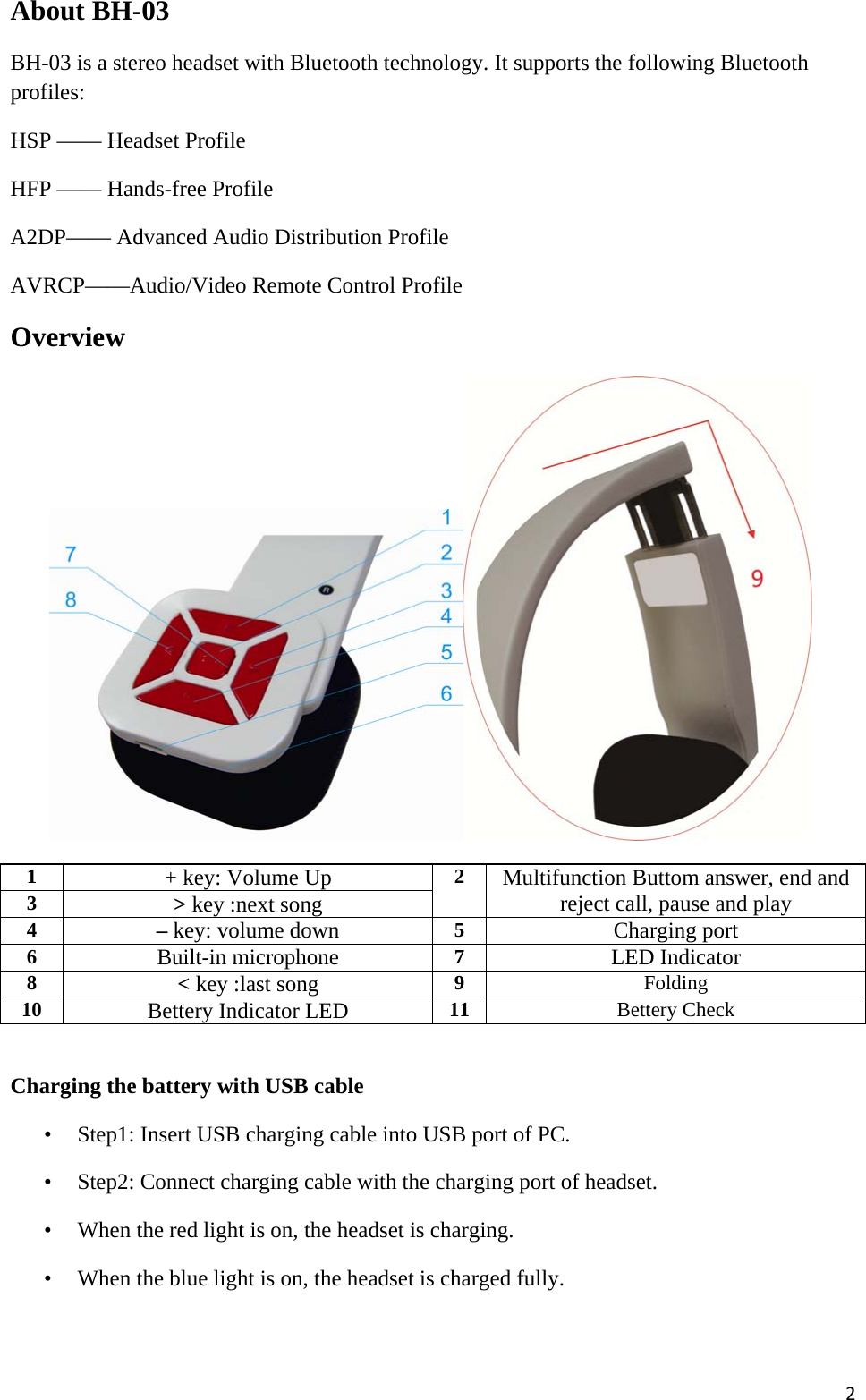

2About BH-03 BH-03 is a stereo headset with Bluetooth technology. It supports the following Bluetooth profiles: HSP —— Headset Profile HFP —— Hands-free Profile A2DP—— Advanced Audio Distribution Profile AVRCP——Audio/Video Remote Control Profile Overview 1 + key: Volume Up 3 > key :next song 2 Multifunction Buttom answer, end and reject call, pause and play 4 – key: volume down 5 Charging port 6 Built-in microphone 7 LED Indicator 8 < key :last song 9 Folding 10 Bettery Indicator LED 11 Bettery Check Charging the battery with USB cable • Step1: Insert USB charging cable into USB port of PC. • Step2: Connect charging cable with the charging port of headset. • When the red light is on, the headset is charging. • When the blue light is on, the headset is charged fully.

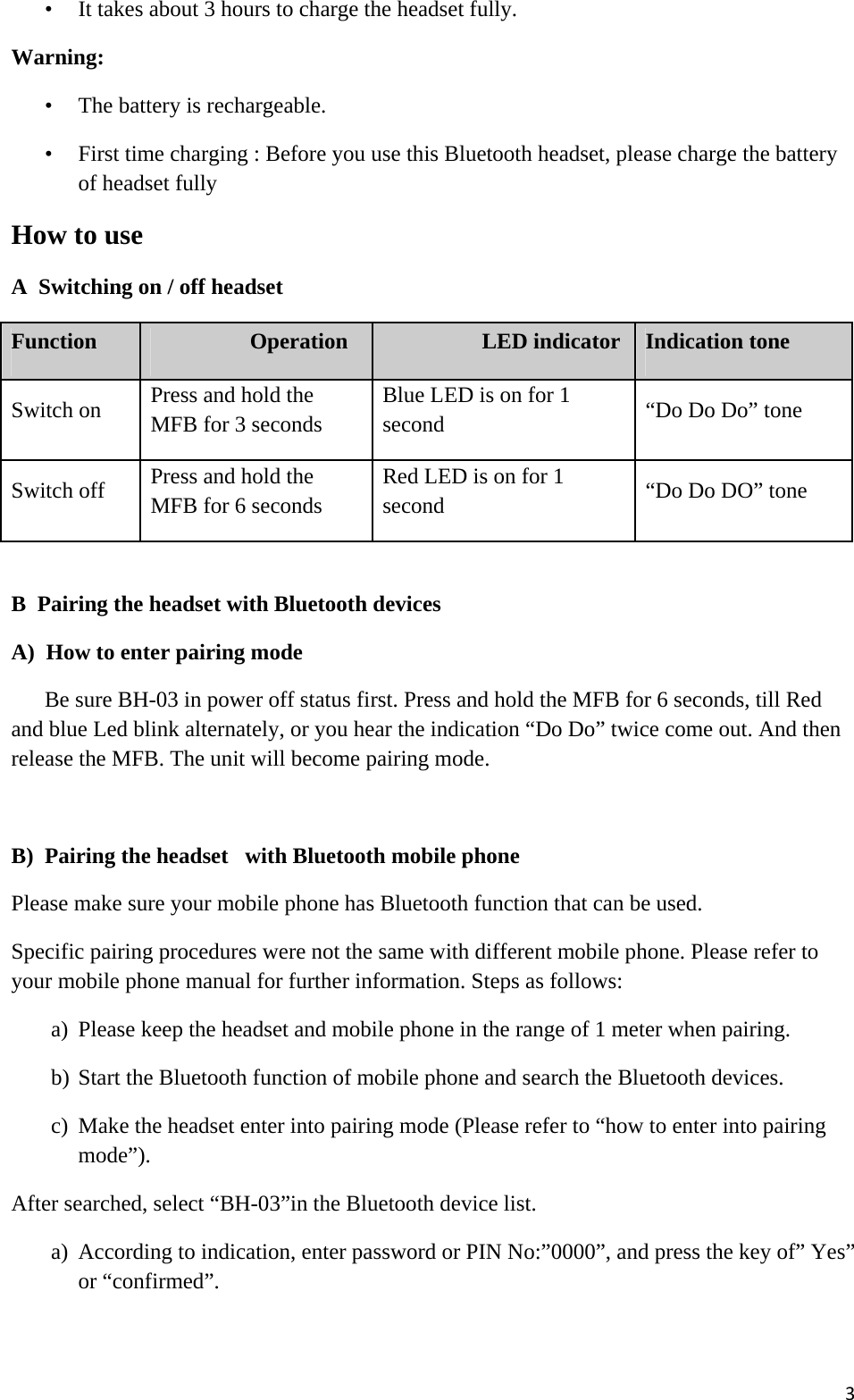

3• It takes about 3 hours to charge the headset fully. Warning: • The battery is rechargeable. • First time charging : Before you use this Bluetooth headset, please charge the battery of headset fully How to use A Switching on / off headset Function Operation LED indicator Indication tone Switch on Press and hold the MFB for 3 seconds Blue LED is on for 1 second “Do Do Do” tone Switch off Press and hold the MFB for 6 seconds Red LED is on for 1 second “Do Do DO” tone B Pairing the headset with Bluetooth devices A) How to enter pairing mode Be sure BH-03 in power off status first. Press and hold the MFB for 6 seconds, till Red and blue Led blink alternately, or you hear the indication “Do Do” twice come out. And then release the MFB. The unit will become pairing mode. B) Pairing the headset with Bluetooth mobile phone Please make sure your mobile phone has Bluetooth function that can be used. Specific pairing procedures were not the same with different mobile phone. Please refer to your mobile phone manual for further information. Steps as follows: a) Please keep the headset and mobile phone in the range of 1 meter when pairing. b) Start the Bluetooth function of mobile phone and search the Bluetooth devices. c) Make the headset enter into pairing mode (Please refer to “how to enter into pairing mode”). After searched, select “BH-03”in the Bluetooth device list. a) According to indication, enter password or PIN No:”0000”, and press the key of” Yes” or “confirmed”.

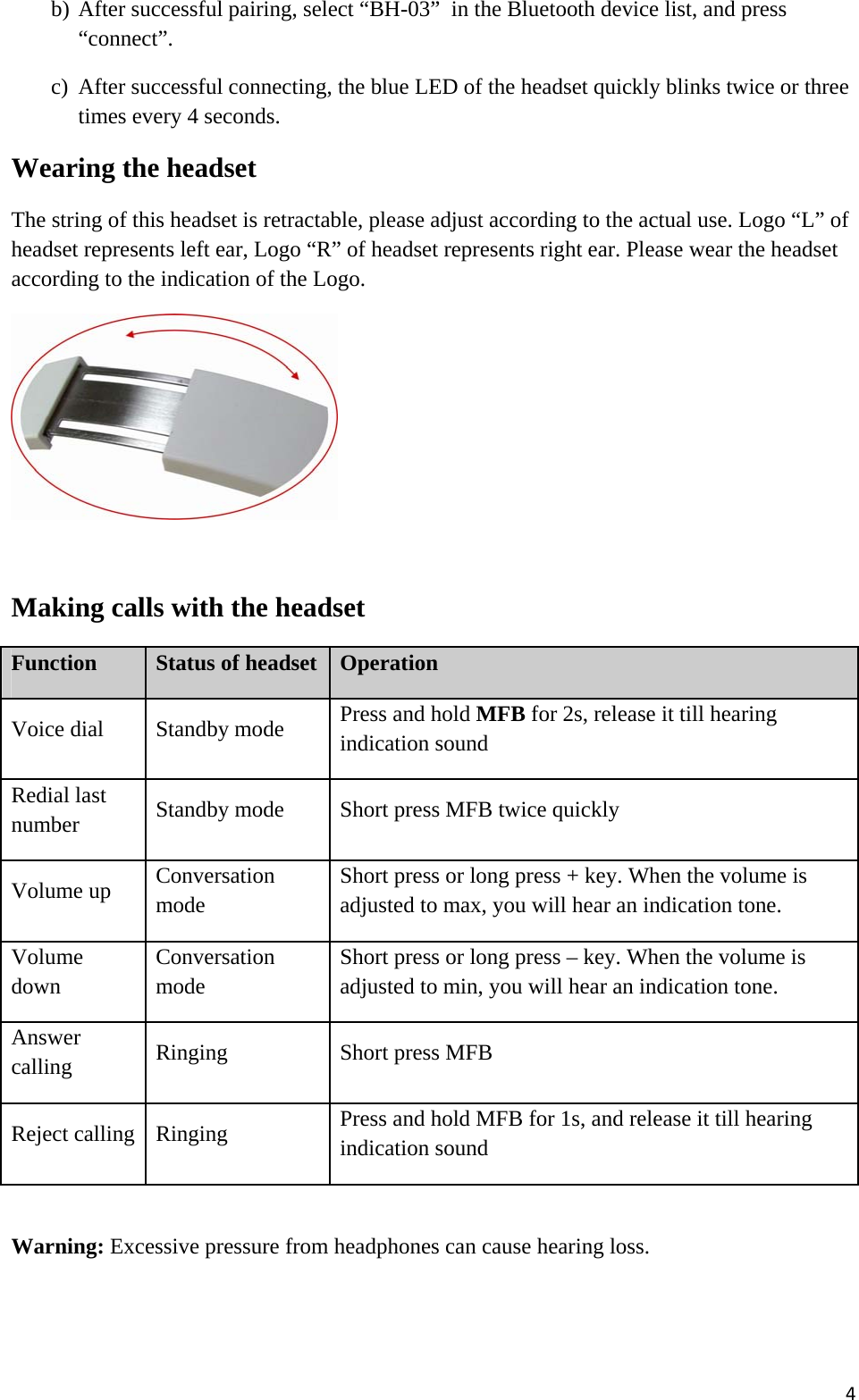

4b) After successful pairing, select “BH-03” in the Bluetooth device list, and press “connect”. c) After successful connecting, the blue LED of the headset quickly blinks twice or three times every 4 seconds. Wearing the headset The string of this headset is retractable, please adjust according to the actual use. Logo “L” of headset represents left ear, Logo “R” of headset represents right ear. Please wear the headset according to the indication of the Logo.  Making calls with the headset Function Status of headset Operation Voice dial Standby mode Press and hold MFB for 2s, release it till hearing indication sound Redial last number Standby mode Short press MFB twice quickly Volume up Conversation mode Short press or long press + key. When the volume is adjusted to max, you will hear an indication tone. Volume down Conversation mode Short press or long press – key. When the volume is adjusted to min, you will hear an indication tone. Answer calling Ringing Short press MFB Reject calling Ringing Press and hold MFB for 1s, and release it till hearing indication sound Warning: Excessive pressure from headphones can cause hearing loss.

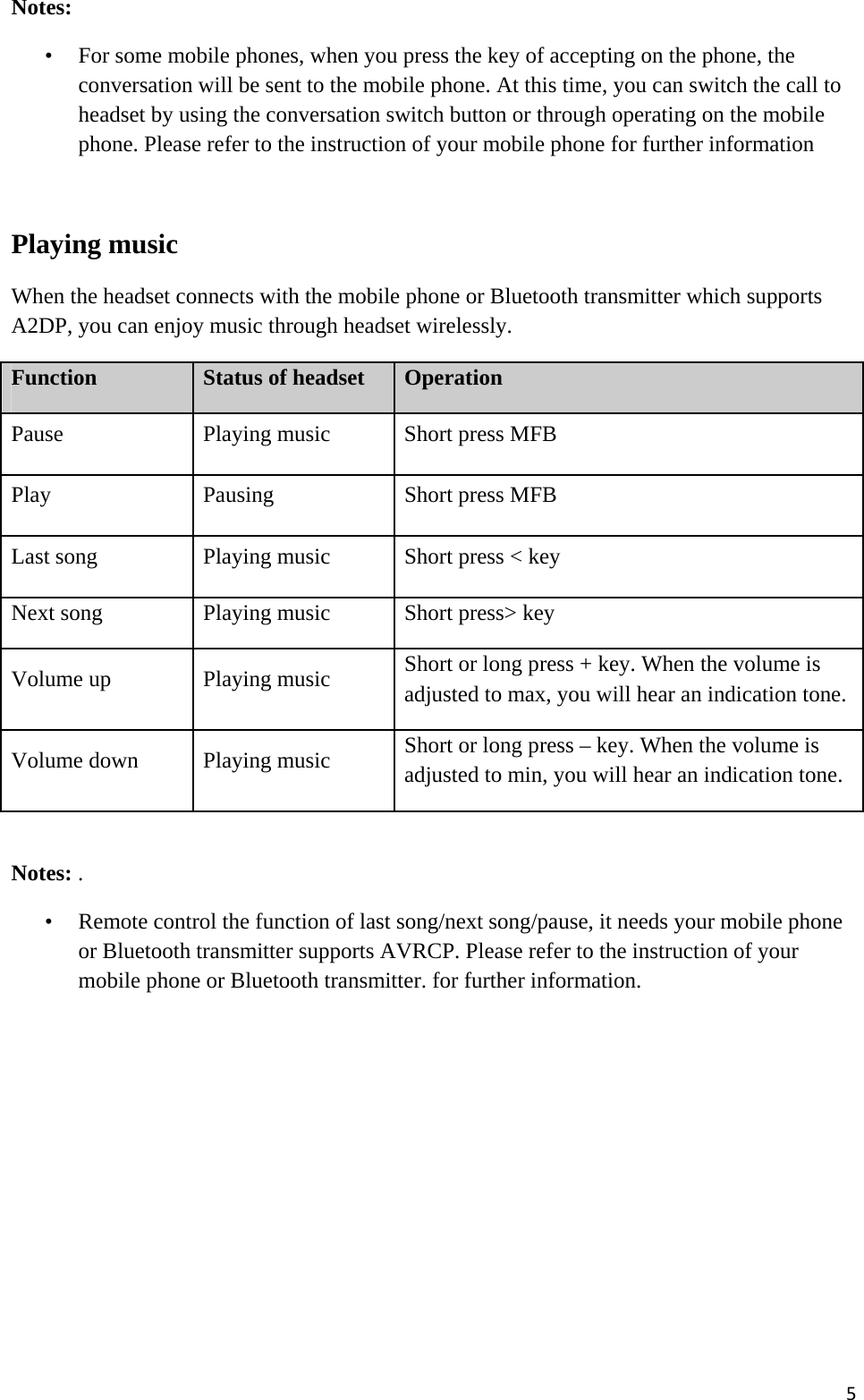

5Notes: • For some mobile phones, when you press the key of accepting on the phone, the conversation will be sent to the mobile phone. At this time, you can switch the call to headset by using the conversation switch button or through operating on the mobile phone. Please refer to the instruction of your mobile phone for further information Playing music When the headset connects with the mobile phone or Bluetooth transmitter which supports A2DP, you can enjoy music through headset wirelessly. Function Status of headset Operation Pause Playing music Short press MFB Play Pausing Short press MFB Last song Playing music Short press < key Next song Playing music Short press> key Volume up Playing music Short or long press + key. When the volume is adjusted to max, you will hear an indication tone.Volume down Playing music Short or long press – key. When the volume is adjusted to min, you will hear an indication tone. Notes: . • Remote control the function of last song/next song/pause, it needs your mobile phone or Bluetooth transmitter supports AVRCP. Please refer to the instruction of your mobile phone or Bluetooth transmitter. for further information.

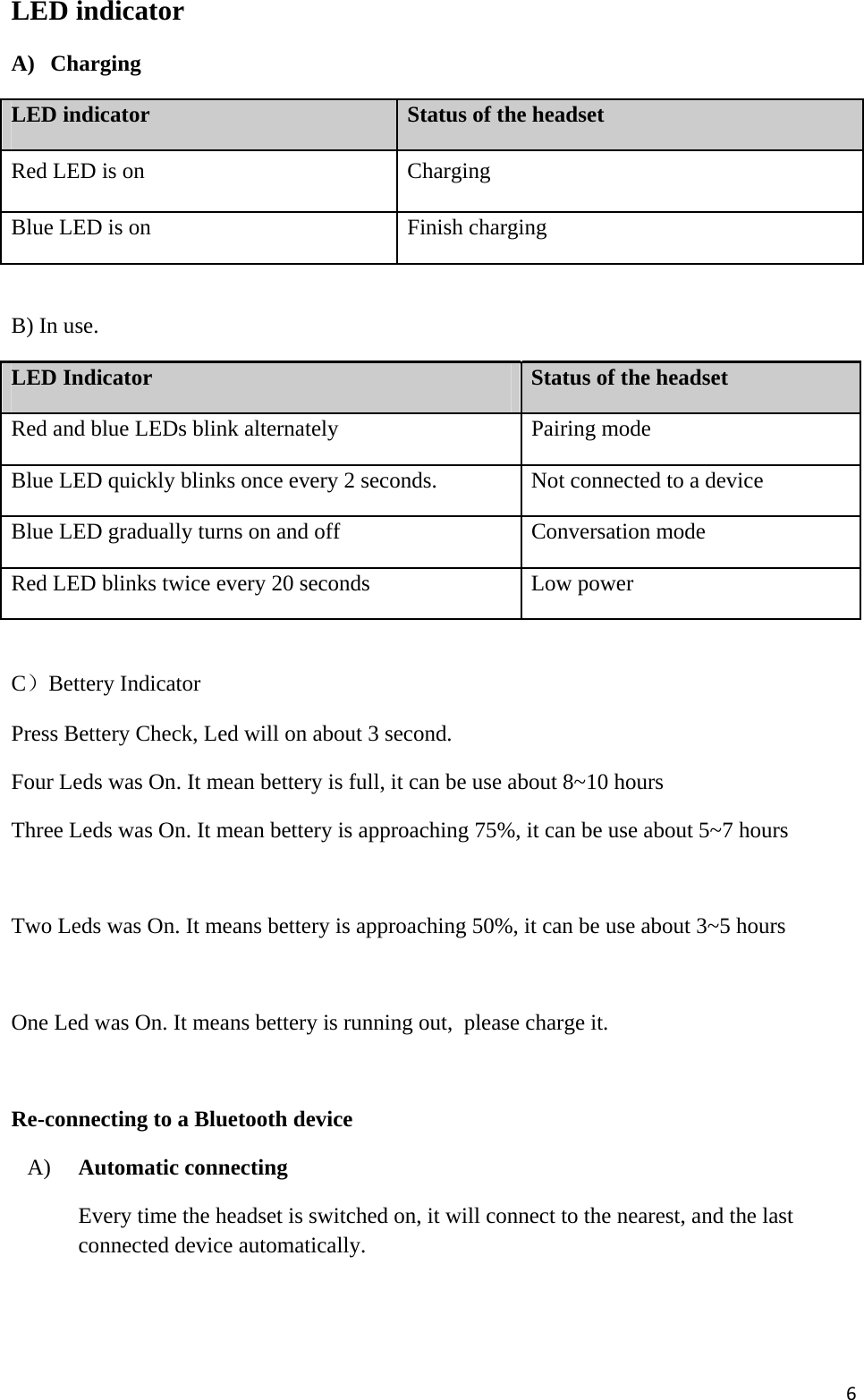

6LED indicator A) Charging LED indicator Status of the headset Red LED is on Charging Blue LED is on Finish charging B) In use. LED Indicator Status of the headset Red and blue LEDs blink alternately Pairing mode Blue LED quickly blinks once every 2 seconds. Not connected to a device Blue LED gradually turns on and off Conversation mode Red LED blinks twice every 20 seconds Low power C）Bettery Indicator Press Bettery Check, Led will on about 3 second. Four Leds was On. It mean bettery is full, it can be use about 8~10 hours Three Leds was On. It mean bettery is approaching 75%, it can be use about 5~7 hours Two Leds was On. It means bettery is approaching 50%, it can be use about 3~5 hours One Led was On. It means bettery is running out, please charge it. Re-connecting to a Bluetooth device A) Automatic connecting Every time the headset is switched on, it will connect to the nearest, and the last connected device automatically.

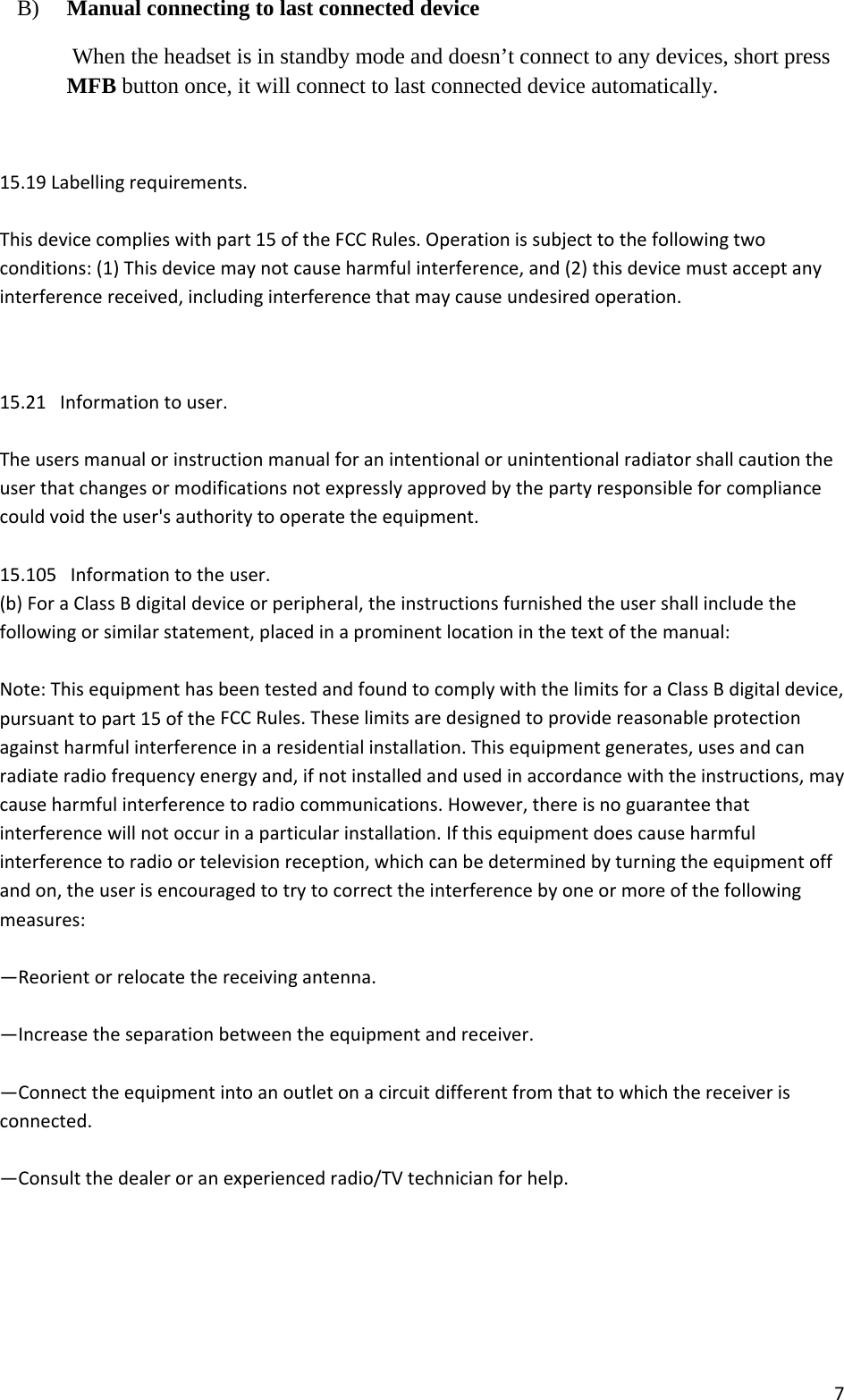

7B) Manual connecting to last connected device When the headset is in standby mode and doesn’t connect to any devices, short press MFB button once, it will connect to last connected device automatically. 15.19Labellingrequirements.Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.15.21Informationtouser.Theusersmanualorinstructionmanualforanintentionalorunintentionalradiatorshallcautiontheuserthatchangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser'sauthoritytooperatetheequipment.15.105Informationtotheuser.(b)ForaClassBdigitaldeviceorperipheral,theinstructionsfurnishedtheusershallincludethefollowingorsimilarstatement,placedinaprominentlocationinthetextofthemanual:Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:—Reorientorrelocatethereceivingantenna.—Increasetheseparationbetweentheequipmentandreceiver.—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
8 WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 
